Product Type	Wireless Keyboard for Mac
Brand	Logitech
Model	diNovo Keyboard Mac edition
Category	Gaming Keyboard
Dimensions (approx.)	450 x 180 x 30 mm
Weight (approx.)	800 g (with batteries)
Power Supply	4 AAA alkaline batteries
Estimated Battery Life	Up to 3 months depending on usage
Connectivity	Wireless USB mini-receiver
Function Keys	F1 to F19 with special functions (Exposé, Dashboard, Cover Flow, etc.)
Control Zones	Desktop, Multimedia, Volume, Applications
Customization	Reassignment of F keys via Logitech Control Center software
Required Software	Logitech Control Center (included)
Compatibility	Mac (Mac OS X)
Warranty	5 years (hardware)
Maintenance and Cleaning	Clean with a slightly damp soft cloth; do not use abrasive products
Safety	Do not expose to moisture; use batteries according to recommendations
Spare Parts and Repairability	Product not user-serviceable; contact Logitech customer service
General Information	Manual available in multiple languages; free download

Frequently Asked Questions - diNovo Keyboard Mac edition LOGITECH

How to change the function of an F key on the diNovo keyboard?

Press and hold the relevant F key for 3 seconds to open the Logitech Control Center software settings. Then use the drop-down menus to change the associated action.

The keyboard does not work, what to do?

Check that the switch is set to ON, the batteries are installed correctly, and the USB mini-receiver is plugged in. Try moving the keyboard closer to the receiver. If the problem persists, run the LCC connection utility in Utilities.

What type of batteries to use?

Use four AAA alkaline batteries. Do not use rechargeable batteries or other non-conforming types.

How to reset the wireless connection?

Open the LCC connection utility (in Finder/Go/Utilities after installing the software) and follow the on-screen instructions to re-pair the keyboard.

Is the Logitech Control Center software mandatory?

Yes, to benefit from all features (key reassignment, customization, etc.), it is recommended to install the provided software.

How to activate standard functions of F keys (F1-F12) without the FN key?

You can reverse the FN mode in the Logitech Control Center software settings. Thus, the F keys will act as standard functions by default.

Is the keyboard compatible with Windows?

This model is specifically designed for Mac (Mac OS X). Compatibility with Windows is not guaranteed.

Where can I download the full manual?

The manual is available free of charge in PDF format on notice-facile.com or on Logitech's website (www.logitech.com/support).

How to clean the keyboard?

Use a slightly damp soft cloth. Avoid chemicals, alcohol, and excess water. Disconnect the receiver before cleaning.

What to do if a key gets stuck?

Remove the batteries, gently clean the area around the key with a dry cloth. If the problem persists, contact Logitech customer service.

USER MANUAL diNovo Keyboard Mac edition LOGITECH

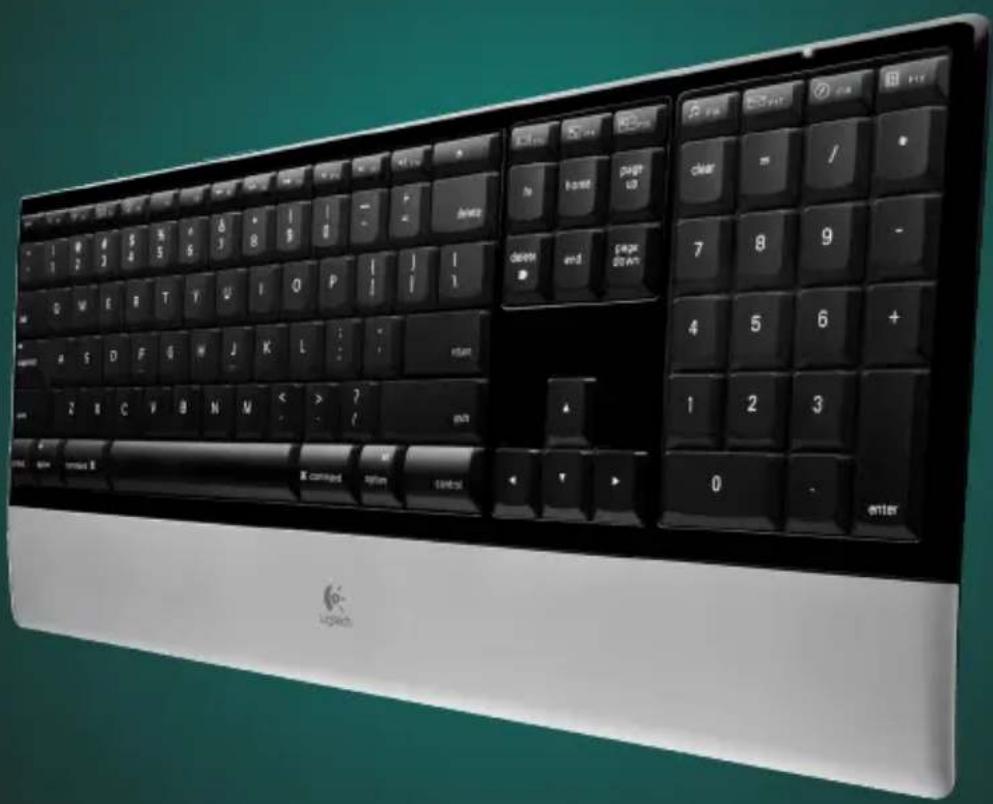

diNovo Keyboard, Mac Edition

Logitech

User's guide

Contents

English Setup, 6 Features and troubleshooting, 10

Logitech diNovo Keyboard, Mac Edition

Thank you!

iGracias!

Merci!

Obrigado!

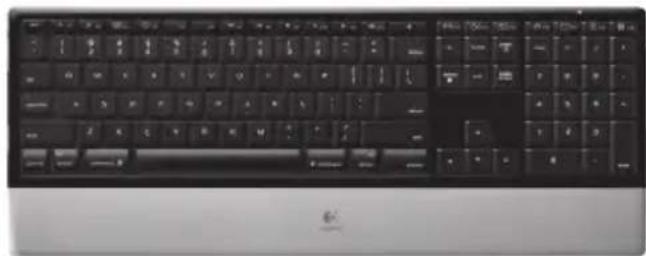

Logitech® diNovo Keyboard, Mac® Edition

Logitech diNovo Keyboard, Mac Edition

1

2

Logitech® diNovo Keyboard, Mac® Edition

3

4

Logitech diNovo Keyboard, Mac Edition

5

Logitech® diNovo Keyboard, Mac® Edition

6

Logitech® diNovo Keyboard, Mac® Edition

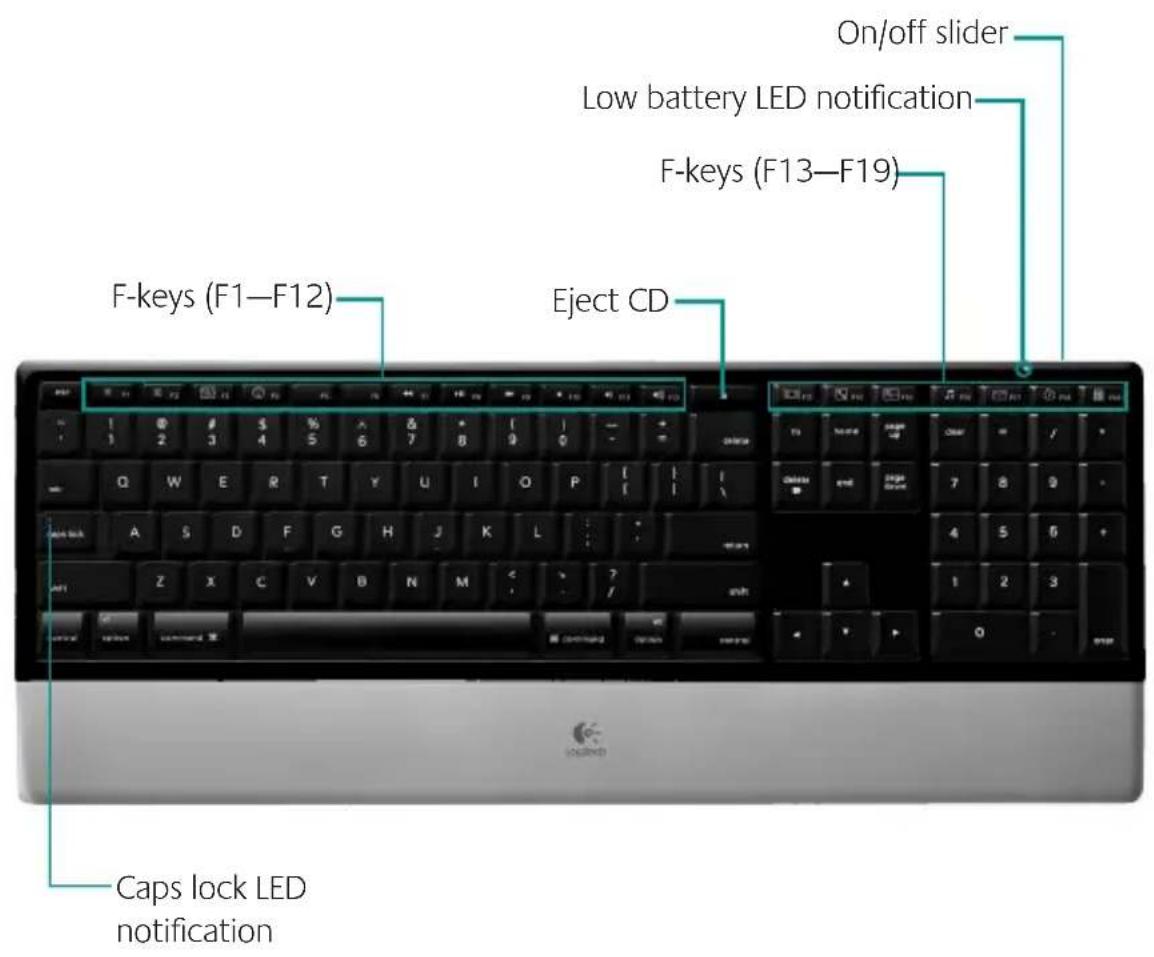

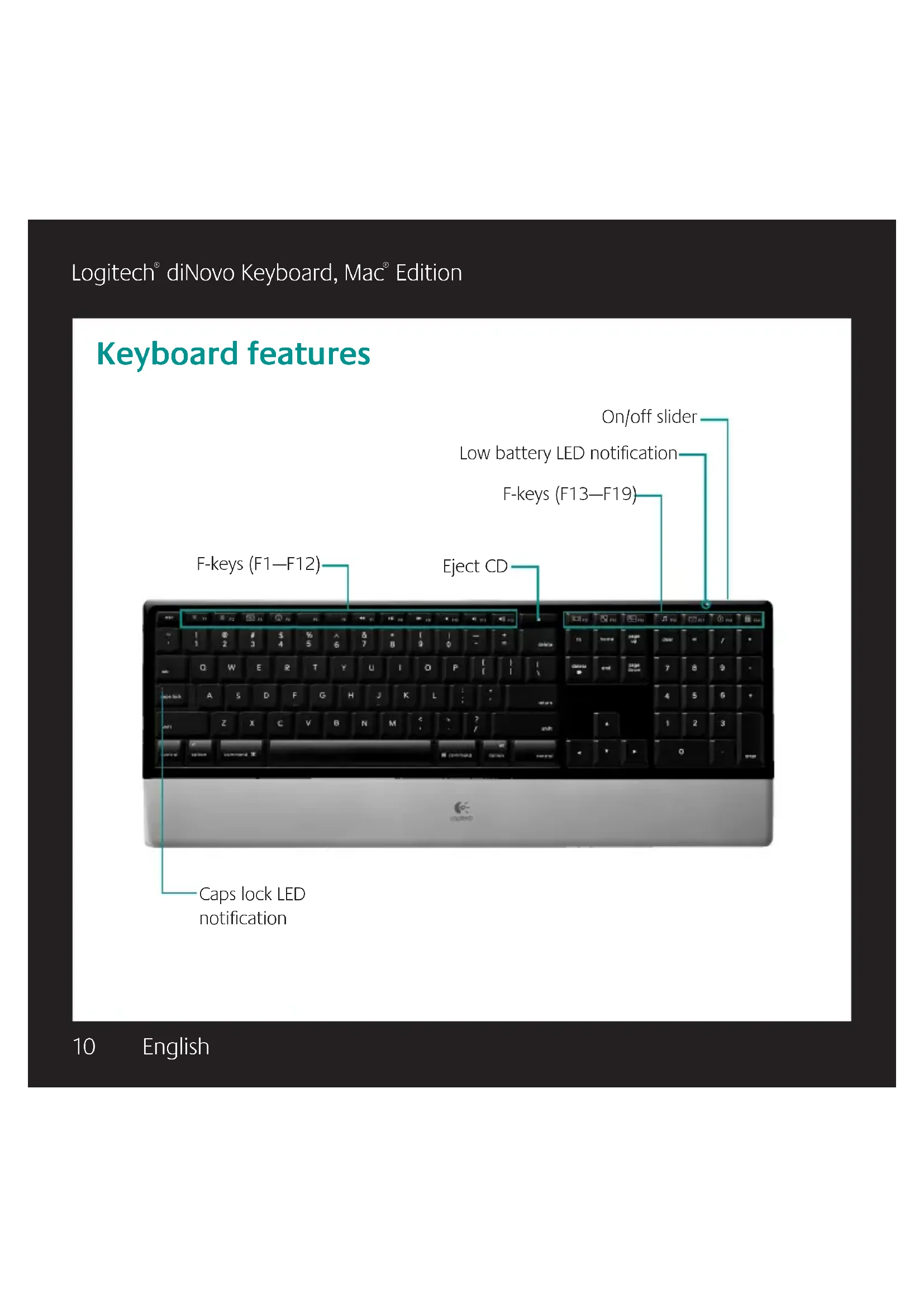

Keyboard features

User's guide

Keyboard features

F-keys

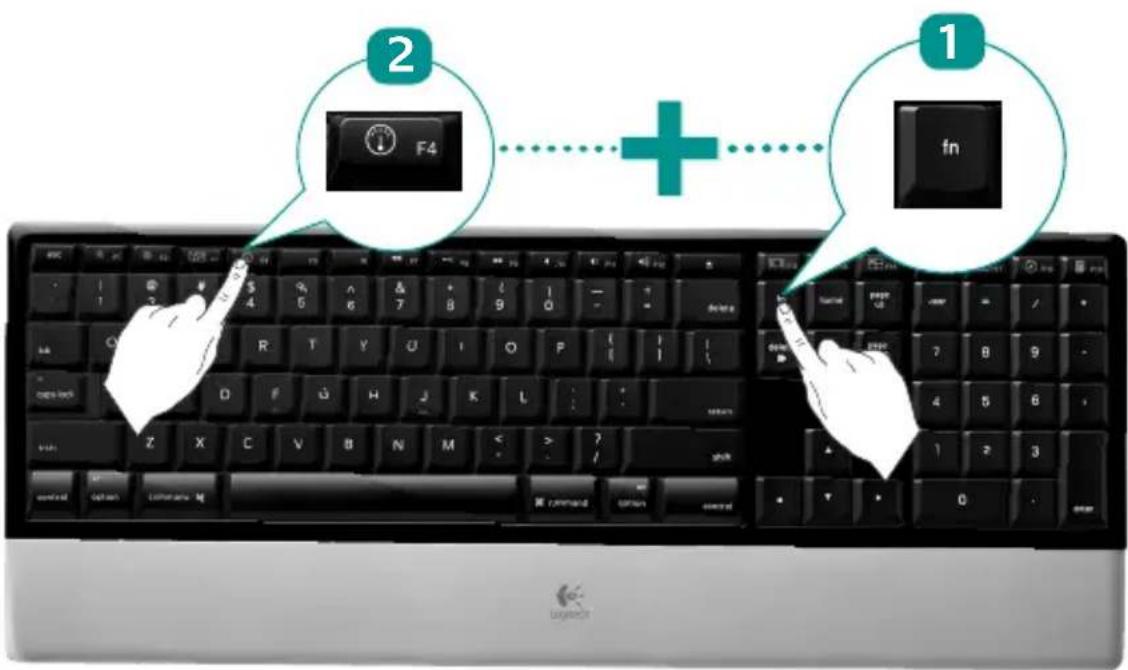

By default, each F-key performs the special feature printed on the key (e.g., volume control). To use an F-key as a standard function key, press the FN key and the F-Key you want to use simultaneously.

Tip In the software settings, you can invert the FN mode if you prefer to access directly the standard functions without having to press the FN key.

Logitech diNovo Keyboard, Mac Edition

Keyboard features

F-keys

User-friendly enhanced F-keys let you easily launch applications or control your music. To use the enhanced functions (white icons), press the F-Key you want to use.

Desktop management zone

F1 Reduces screen brightness
F2 Increases up screen brightness
F3 Launches Exposé: Quickly displays a small version of each open window, lets you choose any window displayed, resize the selected window to its last size setting, and makes it the active window.
F4 Launches Dashboard: shows screen widgets (e.g., calculator, weather, calendar, time, etc.)

User's guide

Keyboard features

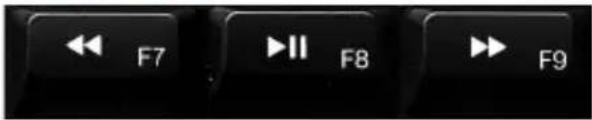

Media zone

F7 Previous track

F8 Play/Pause

F9 Next track

Volume control zone

F10 Mute

F11 Volume down

F12 Volume up

Logitech diNovo Keyboard, Mac Edition

Keyboard features

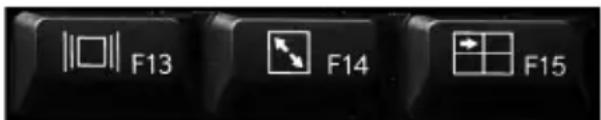

Enhanced display zone

F13 Launch Cover Flow to display album art or previews of document and image files
F14 Launch Quick Look to view a file without opening it
F15 Launch Spaces to organize windows into groups to reduce clutter

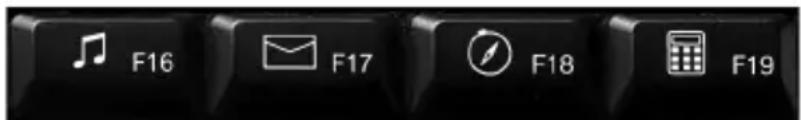

Application zone

F16 Launch iTunes™
F17 Launch Mail
F18 Launch Safari
F19 Launch Calculator

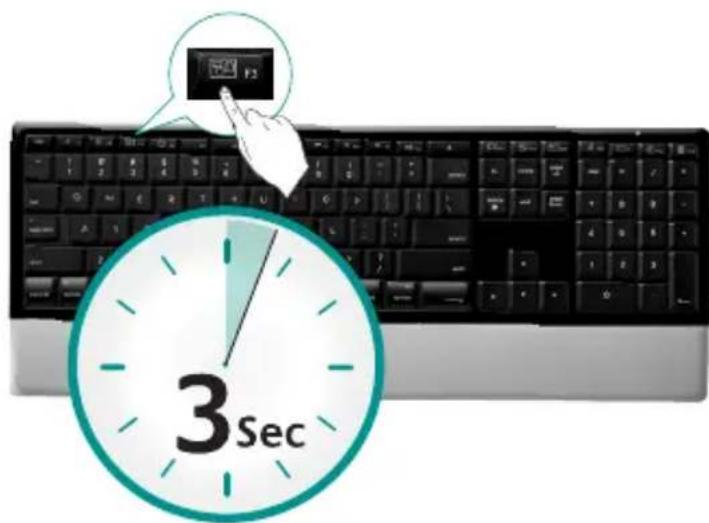

Reassigning the F-keys

In software settings, you can easily reassign an enhanced F-key (F1 to F19, except F7 to F12) to another function:

Hold down (3 seconds) the F-key you want to reassign to launch software 1. settings.

Use the provided buttons and pull-down menus to change the action 2. associated with the F-key you have selected for reassignment.

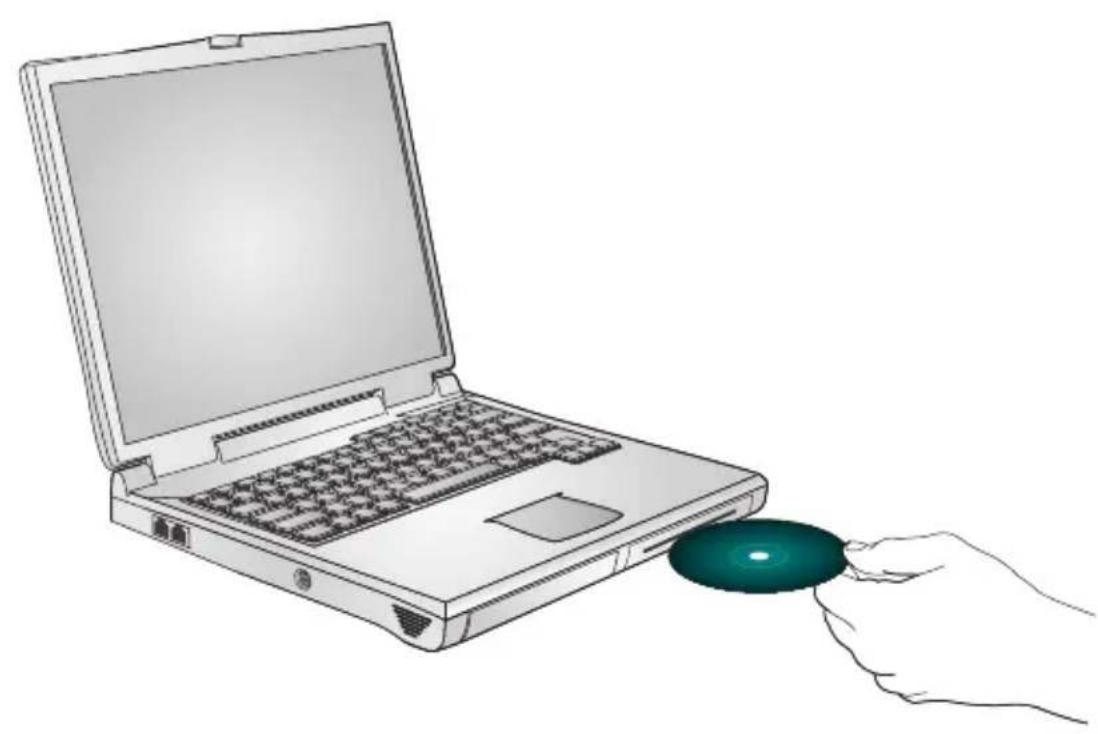

To enjoy all the features of your keyboard or to customize it to suit your needs, please install the Logitech Control Center software that comes with your product.

Troubleshooting Keyboard is not working

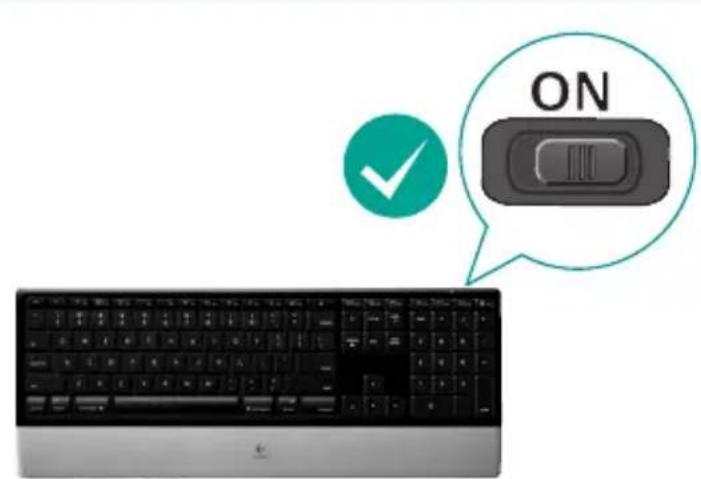

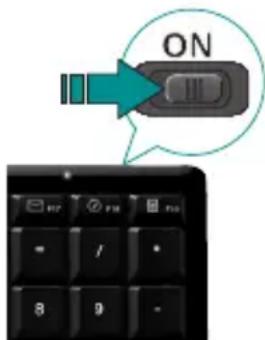

Is the Power on? The power switch for the keyboard must be in the ON position. Battery LED should light green.

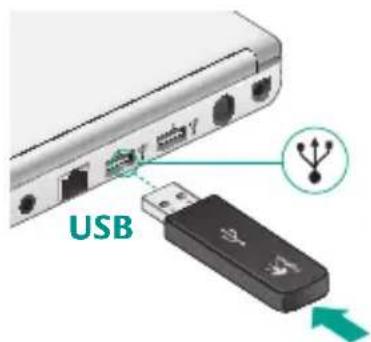

Check the USB mini-receiver. Plug the USB mini-receiver into a different USB port. Remove any metal object between the USB mini-receiver and the keyboard that may interfere with reception.

Move closer? Try moving the keyboard closer to the USB mini-receiver.

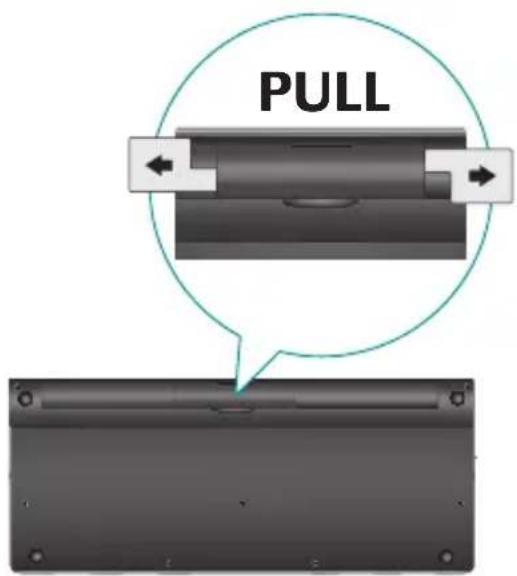

How are the batteries? Check the keyboard battery installation or replace the batteries. The keyboard uses four AAA alkaline batteries.

Re-establish the connection. • Launch the Connect Utility (requires software installation). Go to Finder/Go Menu/Utilities, double-click LCC Connection Utility, and then follow the on-screen instructions.

Install software. Make sure to install the software to enjoy all the enhanced functions.

• Restart your computer.

Visit www.logitech.com/comfort for more information about using your product, and for ergonomics.

Logitech Hardware Product Limited Warranty

Logitech warrants that your Logitech hardware product shall be free from defects in material and workmanship for five (5) years, beginning from the date of purchase. Except where prohibited by applicable law, this warranty is nontransferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights that vary under local laws.

Remedies

Logitech's entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech's option, (1) to repair or replace the hardware, or (2) to refund the price paid, provided that the hardware is returned to the point of purchase or such other place as Logitech may direct with a copy of the sales receipt or dated itemized receipt. Shipping and handling charges may apply except where prohibited by applicable law. Logitech may, at its option, use new or refurbished or used parts in good working condition to repair or replace any hardware product. Any replacement hardware product will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer or for any additional period of time that may be applicable in your jurisdiction.

This warranty does not cover problems or damage resulting from (1) accident, abuse, misapplication, or any unauthorized repair, modification or disassembly; (2) improper operation or maintenance, usage not in accordance with product instructions or connection to improper voltage supply; or (3) use of consumables, such as replacement batteries, not supplied by Logitech except where such restriction is prohibited by applicable law.

How to Obtain Warranty Support

Before submitting a warranty claim, we recommend you visit the support section at www.logitech.com for technical assistance. Valid warranty claims are generally processed through the point of purchase during the first thirty (30) days after purchase; however, this period of time may vary depending on where you purchased your product - please check with Logitech or the retailer where you purchased your product for details. Warranty claims that cannot be processed through the point of purchase and any other product related questions should be addressed directly to Logitech. The addresses and customer service contact information for Logitech can be found in the documentation accompanying your product and on the web at www.logitech.com/support.

Limitation of Liability

LOGITECH SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE OR DATA (WHEHER DIRECT OR INDIRECT) OR COMMERCIAL LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT EVEN IF LOGITECH HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some jurisdictions do not allow the exclusion or limitation of special, indirect, incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Duration of Implied Warranties

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS HARDWARE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE APPLICABLE LIMITED WARRANTY PERIOD FOR YOUR PRODUCT. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

National Statutory Rights

Consumers have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties in this Limited Warranty.

No Other Warranties

No Logitech dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

Logitech Address

Logitech, Inc., 6505 Kaiser Drive, Fremont, California 94555, U.S.A.

© 2008 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered.

All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in any manual or on this website. Information contained herein is subject to change without notice.

Logitech® diNovo Keyboard, Mac® Edition

Logitech diNovo Keyboard, Mac Edition

Characteristicas del teclado

Logitech diNovo Keyboard, Mac Edition

Logitech diNovo Keyboard, Mac Edition

Characteristicas del teclado

Logitech diNovo Keyboard, Mac Edition

Characteristicas del teclados

Zona de exibicao aprimorada

Logitech diNovo Keyboard, Mac Edition
