K375s - Gaming Keyboard LOGITECH - Free user manual and instructions

USER MANUAL K375s LOGITECH

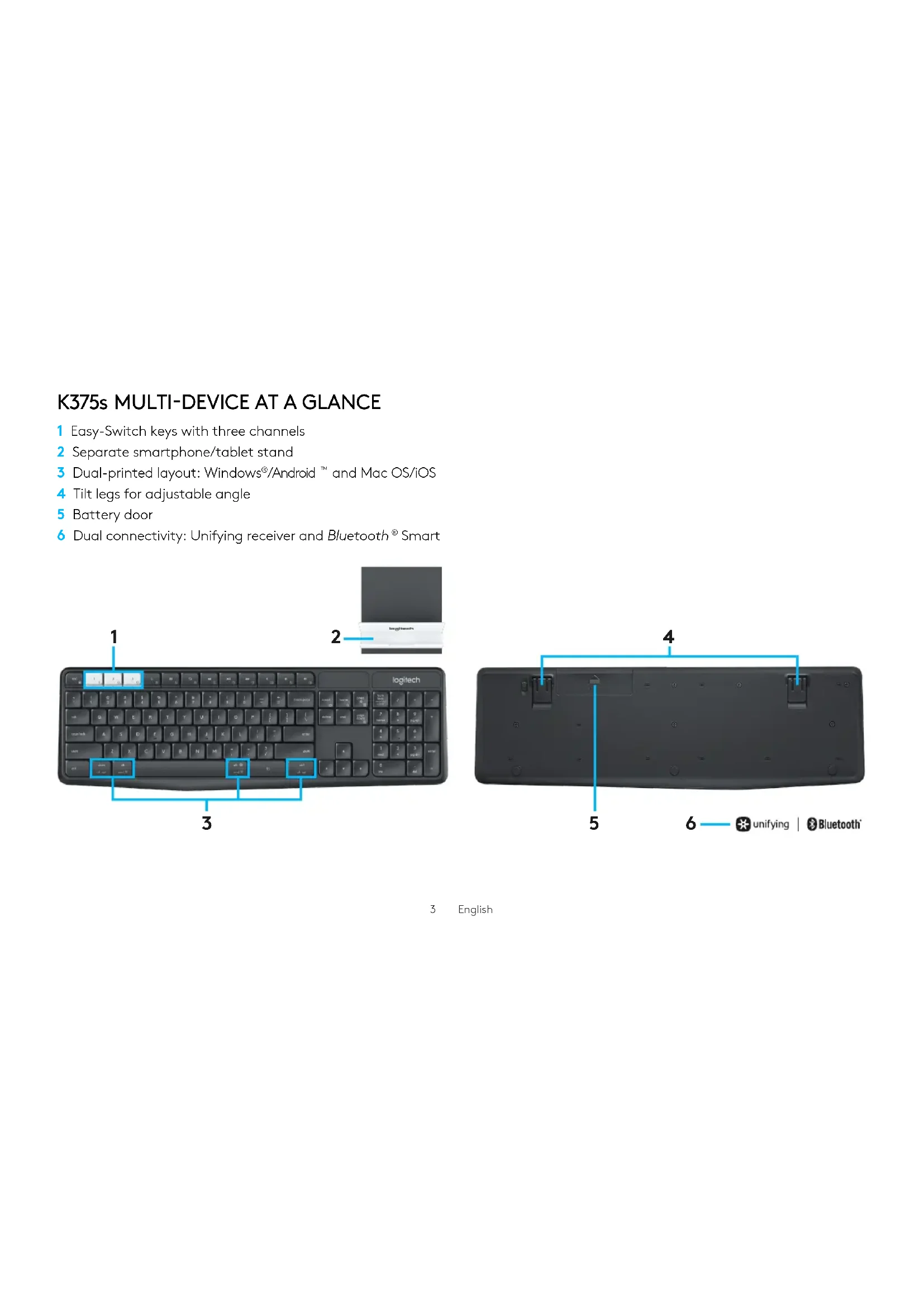

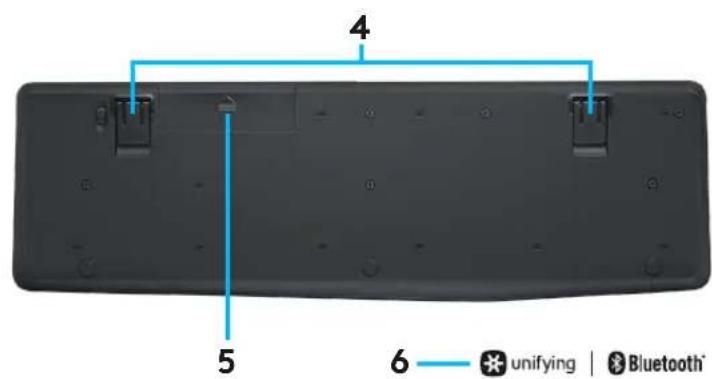

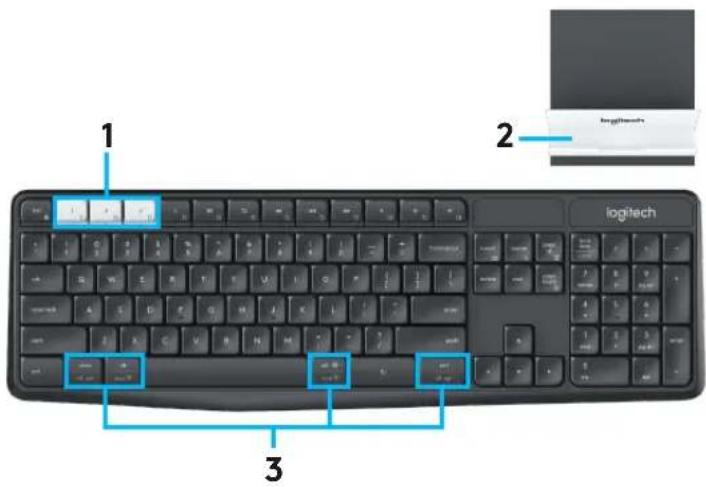

K375s MULTI-DEVICE AT A GLANCE

1 Easy-Switch keys with three channels
2 Separate smartphone/tablet stand
3 Dual-printed layout: Windows®/Android™ and Mac OS/iOS
4 Tilt legs for adjustable angle
5 Battery door
6 Dual connectivity: Unifying receiver and Bluetooth® Smart

GET CONNECTED

The K375s Multi-Device wireless keyboard and stand allows you to connect up to three devices either via Bluetooth Smart or via the included pre-paired Unifying USB receiver.

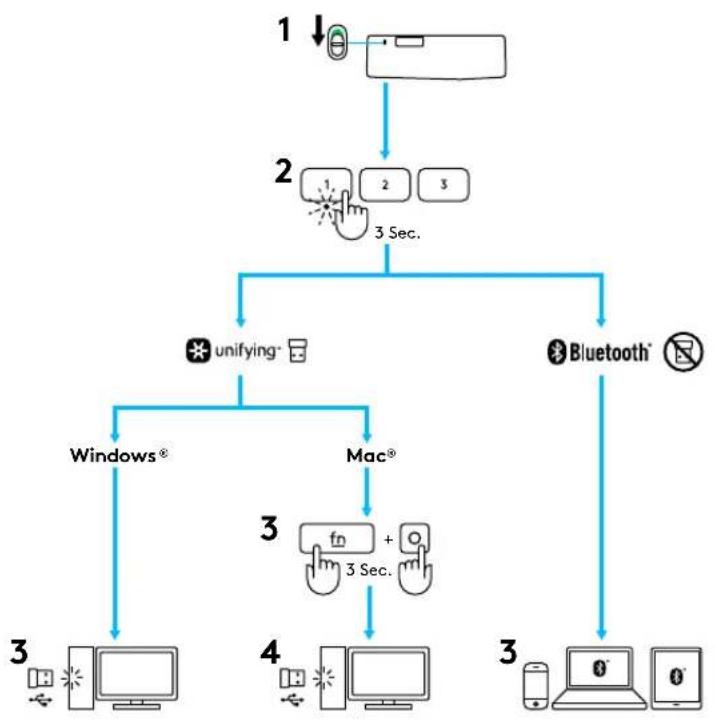

Quick Setup

Follow these steps to easily connect to your computer, laptop, or tablet. For more information on how to connect with Unifying or Bluetooth Smart, go to the following sections.

unifying

Bluetooth

CONNECT WITH UNIFYING

The K375s Multi-Device keyboard comes with a pre-paired receiver that provides a plug-and-play connection to your computer or laptop. If you want to pair a second time to the receiver in the box or pair to an existing Unifying receiver, follow these steps.

Requirements

• USB port
• Unifying software
• Windows10 or later, Windows® 8, Windows® 7
  Mac OS X 10.10 or later
• Chrome OS

How to connect

1 Download Unifying software. You can download the software at www.logitech.com/unifying.
2 Make sure your keyboard is turned on.
3 Press and hold one of the white Easy-Switch keys for three seconds. (The LED on the selected channel will blink rapidly.)
4 Configure your keyboard according to your operating system:

For Mac OS/iOS:

Press and hold fn + o for three seconds. (The LED on selected channel will light up.)

• For Windows, Chrome, or Android:

Press and hold fn + p for three seconds (The LED on selected channel will light up.)

5 Plug in the Unifying receiver.
6 Open the Unifying software and follow the instructions on the screen.

CONNECT WITH BLUETOOTH SMART

The K375s Multi-Device keyboard allows you to connect via Bluetooth Smart. Please ensure your device is Bluetooth Smart ready and runs one of the following operating systems:

Requirements

• Windows10 or later, Windows® 8
  Android 5.0 or later
  Mac OS X 10.10 or later
  iOS 5 or later
• Chrome OS

How to connect

1 Make sure your K375s Multi-Device is turned on and Bluetooth is enabled on your computer, tablet, or phone.
2 Press and hold one of the white Easy-Switch keys for three seconds. (The LED on the selected channel will blink rapidly.)
3 Open Bluetooth settings on your device and pair with "Keyboard K375s."
4 Type the on-screen password and press enter or return.

ENHANCED FUNCTIONS

The K375s Multi-Device has a number of enhanced functions to get even more out of your new keyboard. The following enhanced functions and shortcuts are available.

Hot keys and media keys

The table below shows hot keys and media keys available for Windows, Mac OS, Android, and iOS.

	Windows 10 Task view	Contextual menu	Back in browser	Previous track	Play/pause	Next track	Mute	Volume down	Volume up
Windows 8 Windows 7	Browser home page	Contextual menu	Back in browser	Previous track	Play/pause	Next track	Mute	Volume down	Volume up
Android	Home	Menu	Back	Previous track	Play/pause	Next track	Mute	Volume down	Volume up
iOS Home		Show/hide virtual keyboard	Home	Previous track	Play/pause	Next track	Mute	Volume down	Volume up
Mac OS	Mission Control	Dashboard/launchpad*	Back in browser*	Previous track	Play/pause	Next track	Mute	Volume down	Volume up

*Requires installation of Logitech Options software

Fn shortcuts

To perform a shortcut, hold down the fn (function) key while pressing the key associated with an action. The table below shows function key combinations for the different operating systems.

	+ + + + +	+ + + + +	+ + + + +	+ + + + +	+ + + + +	+ + + + +	+ + + + +
Windows 10	Lock F-functions	F-function	Print screen	Cortana search	Calculator	Switch language
Windows 8 Windows 7	Lock F-functions	F-function	Print screen	Search	Calculator	Switch language
Android	Lock F-functions	-	Print screen	Search	-	-
iOS	Lock F-functions	-	Screenshot	Search	-	Switch language
Mac OS	Lock F-functions	F-function	Print screen	Spotlight in Finder	-	Switch language

DUAL LAYOUT

Unique dual-printed keys make the K375s Multi-Device compatible across different operating systems (e.g. Mac OS, iOS, Windows, Chrome OS, Android). Key label colors and split lines identify functions or symbols reserved for different operating systems.

Key label color

Grey labels indicate functions valid on Apple devices running Mac OS or iOS.

White labels on grey circles identify symbols reserved for Alt GR on Windows computers.

Split keys

Modifier keys on either side of the space bar display two sets of labels separated by split lines. The label above the split line shows the modifier sent to a Windows or Android device.

The label below the split line shows the modifier sent to an Apple computer, iPhone, or iPad. The keyboard automatically uses modifiers associated with the currently selected device.

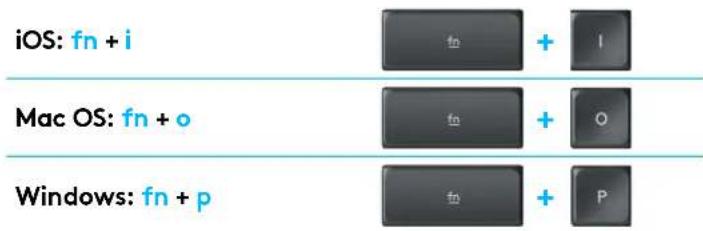

How to configure your keyboard

To configure the layout according to your operating system you need to press one of the following shortcuts for three seconds. (The LED on selected channel will light up to confirm when the layout has been configured.)

If you connect via Bluetooth Smart this step is not necessary as OS detection will configure it automatically.

APERÇU DU CLAVIER K375s MULTIDISPOSITIF

CONEXION CON TECNOLOGÍA BLUETOOTH SMART

CONEXão POR BLUETOOTH SMART
