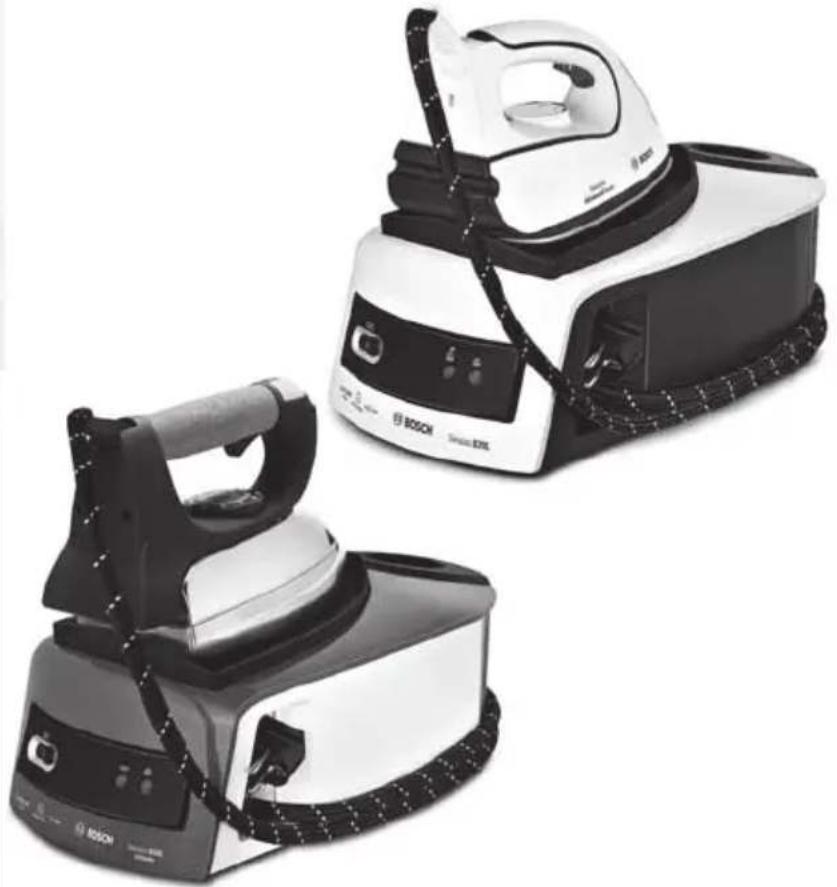

Thank you for buying the Sensixx B20L steam station, the new steam-ironing system from Bosch.

Carefully read through the operating instructions for the appliance and safeguard them for future reference.

You can download this manual from the local homepages of Bosch.

Open the leaflet sides

Illustration of an open book with blank pages and a bookmark (no text or symbols visible)

General safety instructions

☐ The iron must not be left unattended while it is connected to the supply mains.
☐ Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.
☐ The appliance must be used and placed on a stable surface.
☐ When placed on its stand, make sure that the surface on which the stand is placed is stable.
☐ The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.
☐ With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.

☐ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

CAUTION. Hot surface.

Surface is liable to get hot during use.

☐ This appliance is designed only for household use up to 2000m above sea level.

• This appliance has been designed exclusively for domestic use and must not be used for industrial purposes.
  This appliance must be used only for the purposes for which it was designed, i.e. as an iron. Any other use will be considered improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.
• This appliance is to be connected and used in accordance with the information stated on its characteristics plate.
• This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A and has a socket with an earth connection.
• If the safety fuse fitted in the appliance blows, the appliance will be rendered inoperative. To restore normal operation the appliance will have to be taken to an authorised Technical Service Centre.
• The appliance must never be placed directly under the tap to fill the water tank.
• Unplug the appliance from the mains supply after each use, or if a fault is suspected.
• The electrical plug must not be removed from the socket by pulling the cable.
• Never immerse the iron in water or any other fluid.
• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.)

Important :

• This appliance reaches high temperatures and produces steam during use, this could cause scalds or burns in case of improper use.
• The steam hose, base station and in particular the iron can get hot when used.
• Never aim the steam at people or animals.
• Do not allow the power cable to come into contact with the soleplate when it is hot.

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. Your local town council can give you information about how to dispose of obsolete appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

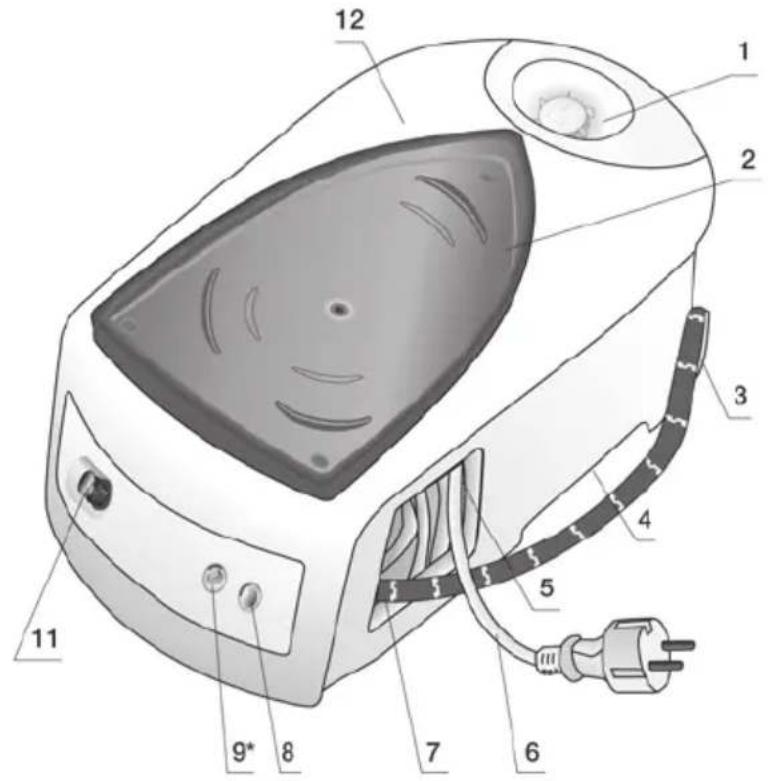

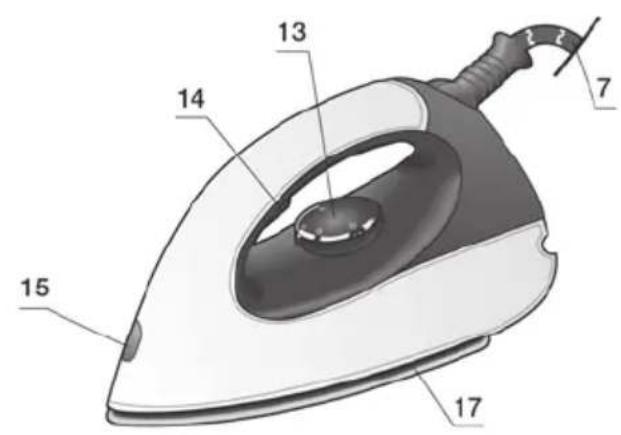

Description

1. Water tank
2. Removable iron pad *
3. Steam hose storage fixing
4. Carrying handles
5. Mains cable storage compartment
6. Mains cable
7. Steam hose
8. "Steam ready" pilot light

9. "Refill water tank" pilot light *

10. "on / off" pilot light *

11. Main power switch (0/I)
12. Housing with internal steam generator
13. Temperature control knob
14. Steam release button
15. Iron pilot light
16. Steam button lock *
17. Soleplate

* Model dependent

A

Preparations

1. Remove any label or protective covering from the soleplate.
2. Place the appliance horizontally on a solid, stable surface.

Model dependent:

You may remove the iron pad (2*) from the appliance and place the iron on it on another solid, stable, horizontal surface. Never rest the iron on the appliance without the iron pad!

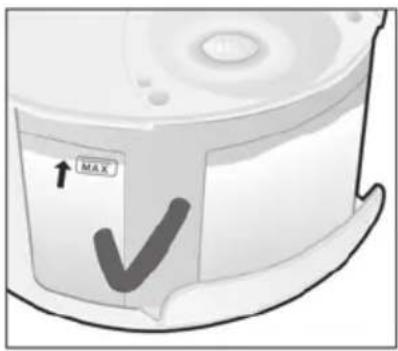

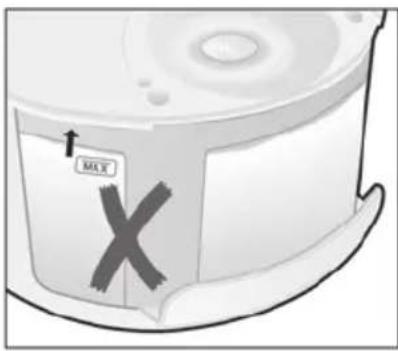

1. Fill the water tank, making sure not to pass the level mark.
2. Unwind the mains cable (6) fully and plug it into an earthed socket.
3. Set the main power switch (11) to the "I" position.
4. The "Steam ready" indicator lamp (8) will light up after several minutes, indicating that the appliance is ready to use.

The steam generator will take more time to reach “Steam ready” state only upon the initial heating up, or after performing the de-scaling operation (Calc’n’Clean).

When water is already present in the steam generator during regular use, heat up time to reach the operating temperature will be faster.

1. This appliance has a built-in water level sensor. The "refill water tank" indicator (9*) will light when the water tank is empty.

or (model dependent):

If the “steam ready” lamp (8) lights and steam is not released when pressing the steam release button (14, 15 ^* ), refill the water tank.

Important:

• Normal tap water can be used.
To prolong the optimum steam function, mix tap water with distilled water 1:1. If the tap water in your district is very hard, mix tap water with distilled water 1:2.
You can inquire about the water hardness with your local water supplier.
- The water tank can be filled at any time while using the appliance.
- To avoid damage and/or contamination of the water tank and the boiler, do not put perfume, vinegar, starch, descaling agents, additives or any other type of chemical product into the water tank.

Any damage caused by the use of the aforementioned products, will make the guarantee void.

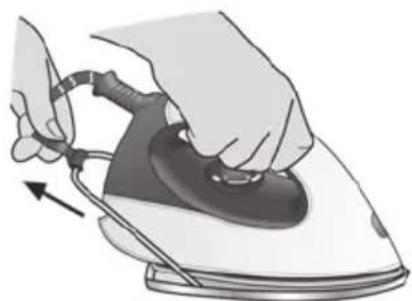

- The iron is not designed to rest on its heal. Please always position it horizontally on the iron pad (2*).

Model dependent:

The iron pad can be placed into the specially designed recess on the appliance or somewhere suitable alongside the ironing area.

Never rest the iron on the appliance without the iron pad!.

• During it first use the iron may produce certain vapours and odours, along with white particles on the soleplate, this is normal and it will stop after a few minutes
• While the steam release button is pressed, the water tank may produce a pumping sound, this is normal, indicating that water is being pumped to the steam tank.

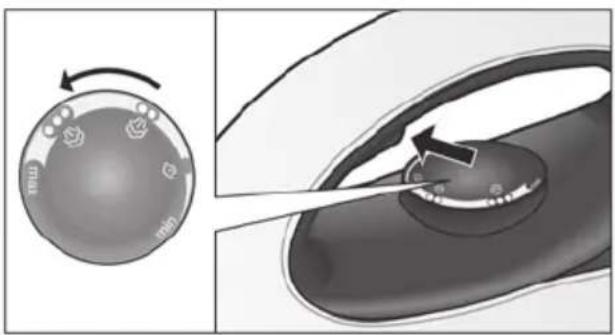

Setting the temperature

1. Check the ironing instruction label on the garment to determine the correct ironing temperature.

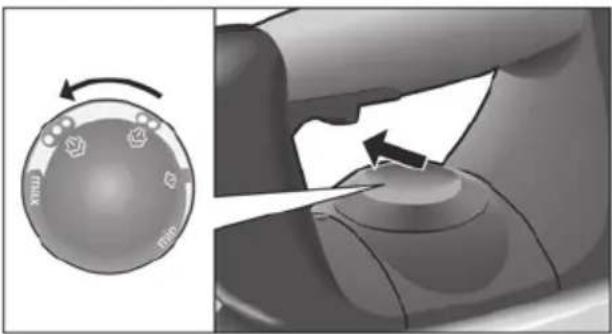

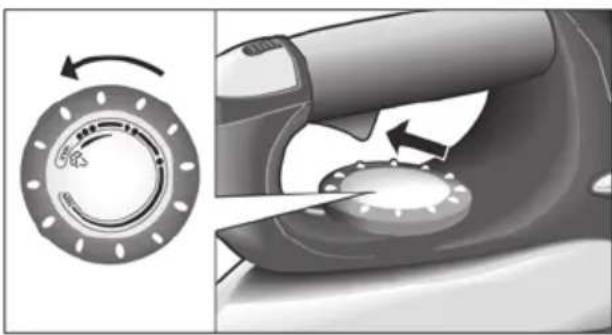

2. Turn the temperature selector (13) to the required setting:

3. Synthetics

4. Silk – Wool
   ••• Cotton – Linen

5. The indicator lamp (15) will remain lit while the iron is heating and go out as soon as the iron has reached the selected temperature.

Tips:

• Sort your garments out based on their cleaning symbol labels, always starting with clothes that have to be ironed at the lowest temperatures.
• If you are not sure what the garment is made of then begin ironing at a low temperature and decide on the correct temperature by ironing a small section not usually seen when worn

B

Ironing with steam

1. Turn the temperature selector (13) to the required setting.
2. Press the steam release button (14) to release steam.

Attention:

- When ironing on a lower temperature setting “•”, only press the steam release button (14) for a few seconds at a time.

If you find that water is dripping out of the soleplate, set the temperature to a higher position (take care that the garment can be ironed on this heat temperature setting).

- At the beginning of each use, it is possible that drops of water will be dispensed alongside steam.

Therefore, it is advisable to try the iron on the ironing board or a piece of cloth to start with.

Tip : for better ironing results, iron the last strokes without steam to dry the garment.

CORK HANDLE IRON

(model dependent):

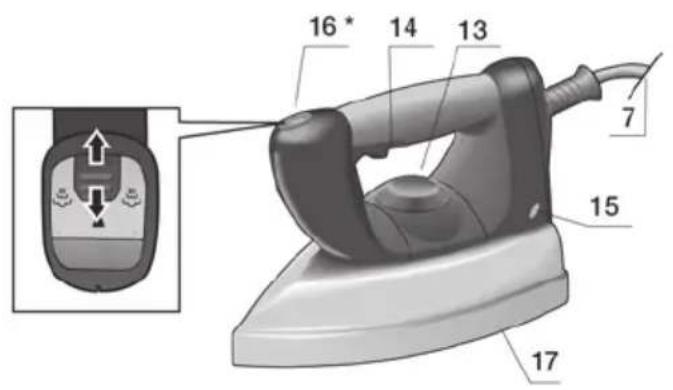

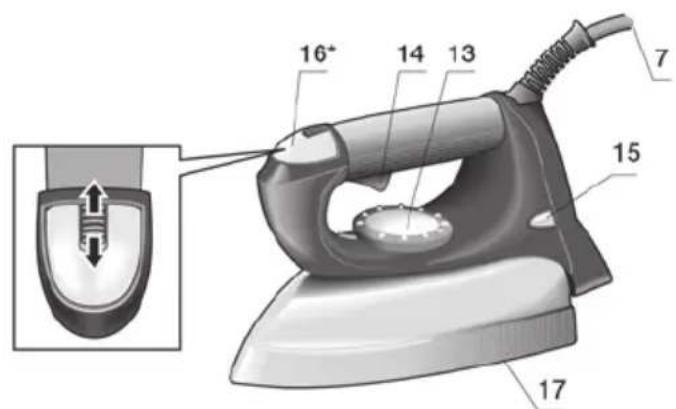

To get permanent steam, press the lock button (16*) and slide it backwards until it locks. To switch off the permanent steam, slide the lock button forward.

Important:

- The steam hose may get hot if you are ironing for long periods.

Ironing without steam

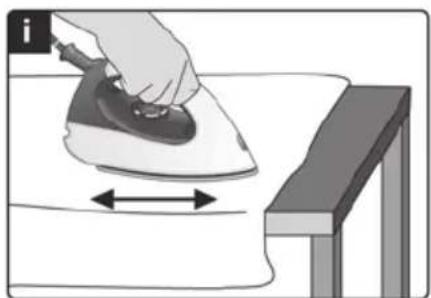

1. Begin ironing but without pressing the steam release button.

Vertical steam

Never direct the steam jet at garments that are being worn.

Never aim the steam at people or animals.

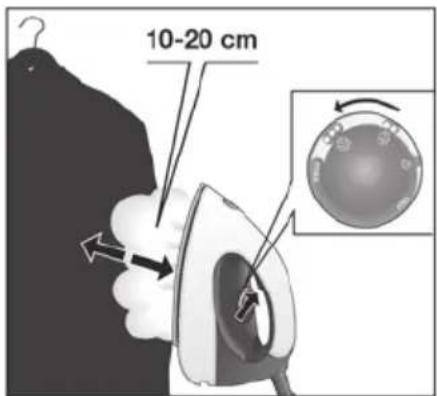

1. Set the temperature control to the “•••” or “max” position.
2. You can steam iron curtains and hanging garments (jackets, suits, coats...) by placing the iron in a vertical position and pressing the steam release button.

Cleaning & Maintenance

Always unplug the appliance from the mains supply before carrying out any cleaning or maintenance operation on it.

1. After ironing, pull out the plug and allow the appliance to cool down before cleaning.
2. Wipe the housing, handle and iron body with a damp cloth.
3. If the soleplate is soiled with dirt or scale, clean it with a damp cloth.
4. Never use abrasive products or solvents.

Storing the appliance

1. Always allow the appliance to cool down before storing it.
2. Set the main power to the "0" position and disconnect the mains cable.
3. Empty the water tank.
4. Place the iron on the iron pad, standing on the soleplate.

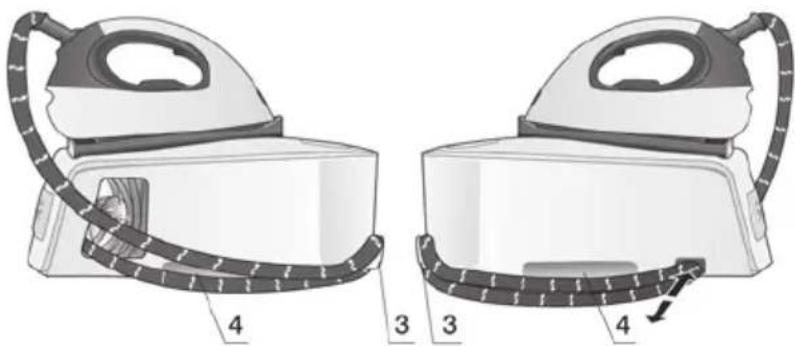

5. Store the mains cable in the storage compartment (5) and the steam hose in the storage fixing (3). Do not wrap the cords too tight.
6. Use the carrying handles (4) on the sides when moving the appliance.

Fabric protection soleplate cover

(depending on the model)

The fabric-protection soleplate cover is used for steam-ironing delicate garments at maximum temperature without damaging them. Use of the soleplate cover also does away with the need for a cloth to prevent shine on dark materials. It is advisable to first iron a small section on the inside of the garment to see if it is suitable.

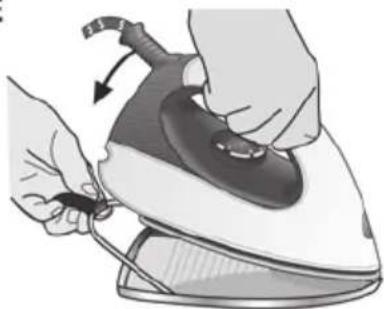

To attach the soleplate cover to the iron, place the tip of the iron into the end of the soleplate cover and pull the elastic strap over the lower rear of the iron until it fits tightly. To release the soleplate cover, pull the elastic strap and remove the iron.

The fabric-protection soleplate cover may be purchased from the customer service or specialist shops:

Accessory code

(After-sales)

Name of accessory

(online shop)

00571510 TDZ2045

Calc'n'Clean

Cleaning the Boiler

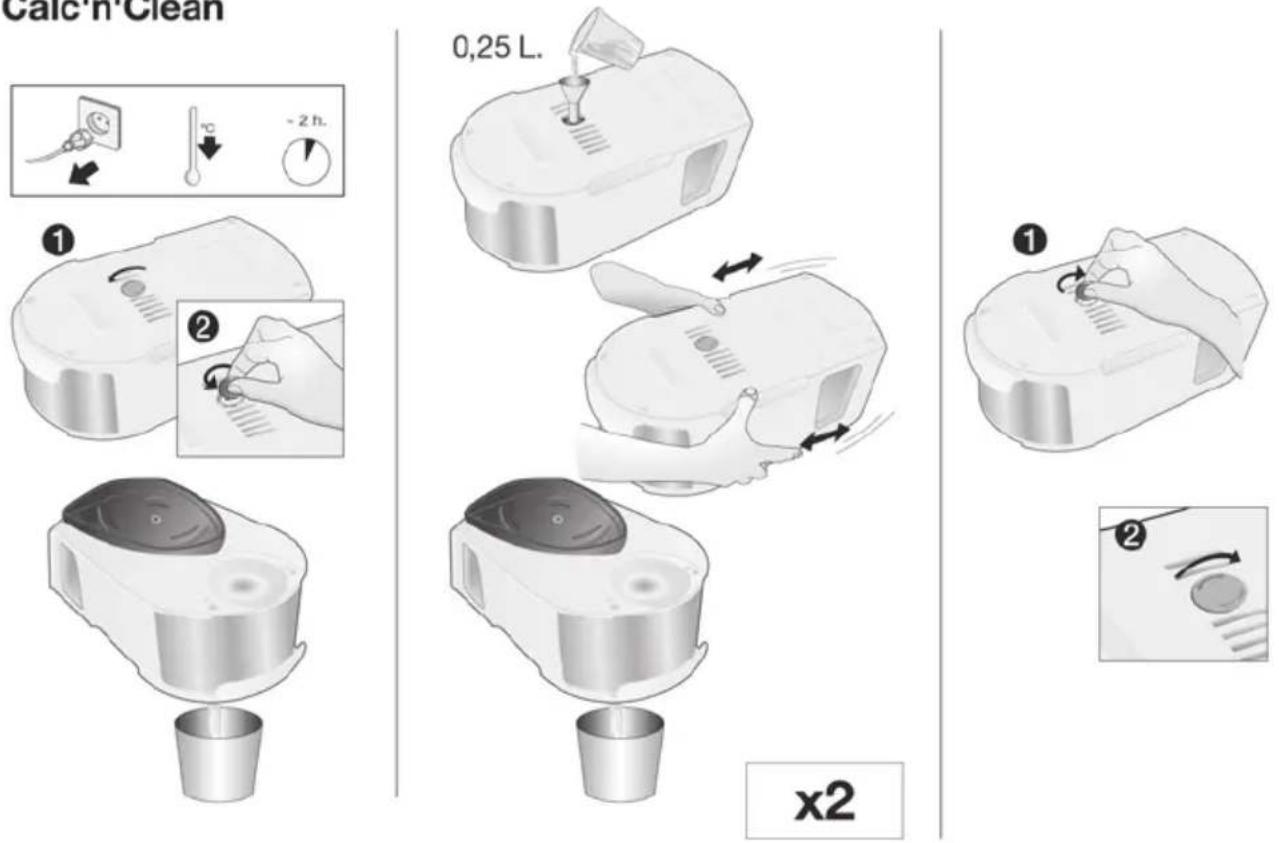

To extend the life of your steam generator and to avoid any build up of scale, it is essential that you rinse out the boiler after several hours of use (approximately after 50 hours). If the water is hard, increase the frequency.

Do not use descaling agents for rinsing out the boiler, as they could damage it.

1. Check that the appliance is cold and unplugged for more than 2 hours, and that the water tank (1) is empty.

2. Place your appliance on the edge of your kitchen sink.

3. Remove the plastic cover located on the bottom of the appliance by turning it to the position.
4. Unscrew the boiler drainage plug using a coin.
5. Holding your steam generator in upside down position, and using a jug, fill the boiler (in the base unit) with 1/4 litre of water
6. Shake the base unit for a few moments and then empty it completely over a sink or bucket. To obtain the best result, we recommend that this operation is done twice.
   Important: before re-closing, make sure no water remains in the boiler.
7. Replace and tighten up the boiler drainage plug with a coin.
8. Insert and close the plastic cover by turning it to the 🔒 position.

G

Rinsing the iron steam chamber

Caution! Risk of burns!

This procedure helps to remove scale particles out of the steam chamber.

This cleaning procedure may be performed occasionally (approximately once a year), when after a long period of use with very hard water, scale particles start to come out of the soleplate.

a) Ensure that the iron is cooled down.

b) Set the temperature selector (13) of the iron to the "min" position.
c) Fill the tank with tap water.

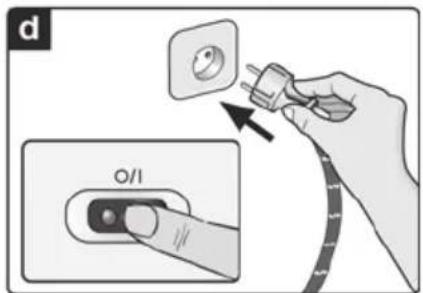

d) Plug in the mains cable and set the main power switch (11) to the "I" position.

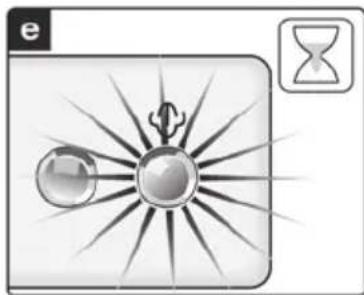

e) Wait until the "steam ready" indicator lamp (8) lights up.
f) Hold the iron over the sink or a container to collect the water.

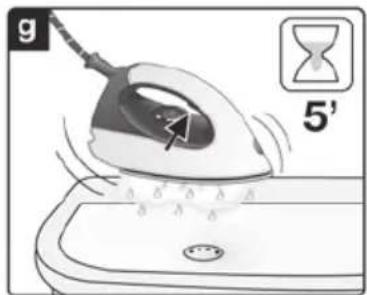

g) Press the steam release button (14) and gently shake the iron. Boiling water and steam will come out, carrying scale and or deposits that might be there. This could take approximately 5 minutes.

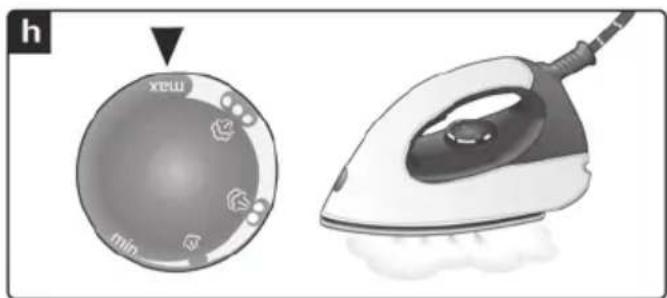

h) Set the temperature selector (13) of the iron to the "max" position, without pressing the steam release button (14). The water in the steam chamber will start evaporating. Wait until all the water inside the chamber has been evaporated.
i) To clean the soleplate, immediately rub off any residue by running the hot iron over dry cotton cloth.

If the above does not solve the problem, get in touch with authorized technical service.
Trouble shooting

Problem Possible causes Solution
The steam generator does not come on.	1. There is a connection problem.2. The main power switch is not switched on.	1. Check the mains cable, the plug and the socket.2. Set the main power switch (11) to the “I” position.
The iron does not heat up.	1. The main power switch is not switched on.2. The temperature control knob is set to the “min” position.	1. Set the main power switch (11) to the “I” position.2. Set the temperature selector (13) to the desired position.
The iron begins to smoke when switched on.	1. During first use: Certain components on the appliance have been lightly greased at the factory and may produce a little smoke when initially heated.2. During later use: the soleplate may be soiled.	1. This is completely normal and will stop after a short while.2. Clean the soleplate according to the cleaning instructions in this manual.
Water flows through the holes on the sole plate.	1. Temperature control (13) setting is too low.2. The water is condensing inside the pipes because steam is being used for the first time or has not been used for a long time.3. The steam generator contains too much scale.	1. Turn the temperature control to a higher setting (between “•” and “max”) and wait until the pilot light (15) goes out.2. Point the iron away from the ironing area and press the steam release button until steam is produced.3. Clean the boiler as described in section “Calc’n’Clean” (F).
Dirt comes out through the sole plate.	1. There is a build-up of scale or minerals in the steam tank.2. Chemical products or additives have been used.	1. Use tap water mixed 50% with dis tilled or demineralised water. If the tap water in your district is very hard, mix tap water with distilled water 1:2.2. Clean the sole plate with a damp cloth. Never add products to the boiler water.
The iron does not produce any steam.	1. The boiler is not switched on or the water tank is empty.	1. Set the main power switch (11) to the “I” position and/or fill the water tank.
The ironed garment turns dark and/or sticks to the soleplate.	1. The selected temperature is too high and has damaged the garment.	1. Select a suitable temperature for the material being and clean the sole plate with a damp cloth.
The soleplate turns brown.	1. This is a regular consequence of usage.	1. Clean the soleplate regularly with a damp cloth.
The appliance makes a pumping sound.	1. Water is being pumped into the steam tank.2. The sound will not stop.	1. This is normal.2. If the sound will not stop, do not use the steam generator and contact an authorised technical service centre.
Loss of pressure during ironing.	1. Steam release button activated during a long period of time.	1. Use the steam release button with intervals. This improves the ironing result as the textiles will be dried and stay smooth better.
Waterspots appear on the garment during ironing.	1. May be caused by steam condensed on the ironing board.	1. Wipe the textile cover of the ironing board, and iron the spots without steam to dry them.
The hose gets hot during use.	1. This is normal. It is caused by the steam passing through the hose during steam ironing.	1. Place the hose on the opposite side so that you can not touch the hose during ironing
Water leakage from the boiler	1. Drainage plug located at the bottom of the appliance is loose.	1. Tighten up boiler drainage plug with a coin

Illustration of an open book with blank pages and a bookmark, no text or symbols visible

Illustration of an open book with blank pages, no text or symbols visible

Illustration of an open book with blank pages and a bookmark, no text or symbols present

Illustration of an open book with blank pages and a small arrow pointing to the right page (no text or symbols visible)

Illustration of an open book with blank pages and a small arrow pointing to the right page (no text or symbols visible)

Generelle sikkerhetsanvisninger

Loddrett dampstryking

Illustration of an open book with blank pages, no text or symbols visible

Illustration of an open book with blank pages and a bookmark, no text or symbols present

Yleiset turvaohjeet

Illustration of an open book with blank pages and a bookmark (no text or symbols visible)

Illustration of an open book with blank pages and a bookmark (no text or symbols visible)

Illustration of an open book with blank pages and a small arrow pointing to the right page (no text or symbols visible)

Illustration of an open book with blank pages and a small arrow pointing to the right page (no text or symbols visible)

Illustration of an open book with blank pages and a small arrow pointing to the right page (no text or symbols visible)

Illustration of an open book with blank pages and a curved arrow indicating rotation (no text or symbols)

Illustration of an open book with blank pages and a curved arrow indicating rotation (no text or symbols)

Illustration of an open book with blank pages and a small arrow pointing to the right page (no text or symbols visible)

Illustration of an open book with blank pages, no text or symbols visible

3.Market discussion about the market

.4 مسكات العمل

Illustration of an open book with blank pages and a small arrow pointing to the right page (no text or symbols visible)
