USER MANUAL SKT 2000 A1 SILVERCREST

Operating instructions

This product is only suitable for well insulated spaces or occasional use.

NL BE

CONVECTOR

Gebruiksaanwijzing

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Contents

Introduction 22

Information concerning these operating instructions....2 2

Copyright 22

Limitation of liability 22

Intended use 22

Warning notes 23

Safety....24

Risk of electrocution 24

Basic safety guidelines 25

Risk of injury if batteries are improperly handled 27

Before use 28

Package contents and transport inspection 28

Set-up location requirements 28

Before initial use 29

Electrical connection 29

Inserting/changing the remote control battery 29

Fitting the feet. 29

Features 30

Handling and operation....31

Switching the appliance on and off 31

Selecting the temperature 31

Select heat setting 31

Transport and storage 33

Disposal 34

Disposal of the appliance 34

Disposing of the batteries 34

Disposal of packaging materials 34

Troubleshooting 35

Fault causes and rectification 35

Appendix 36

Technical data 36

Notes concerning the EC Declaration of Conformity 36

Information requirements for electric local space heaters 37

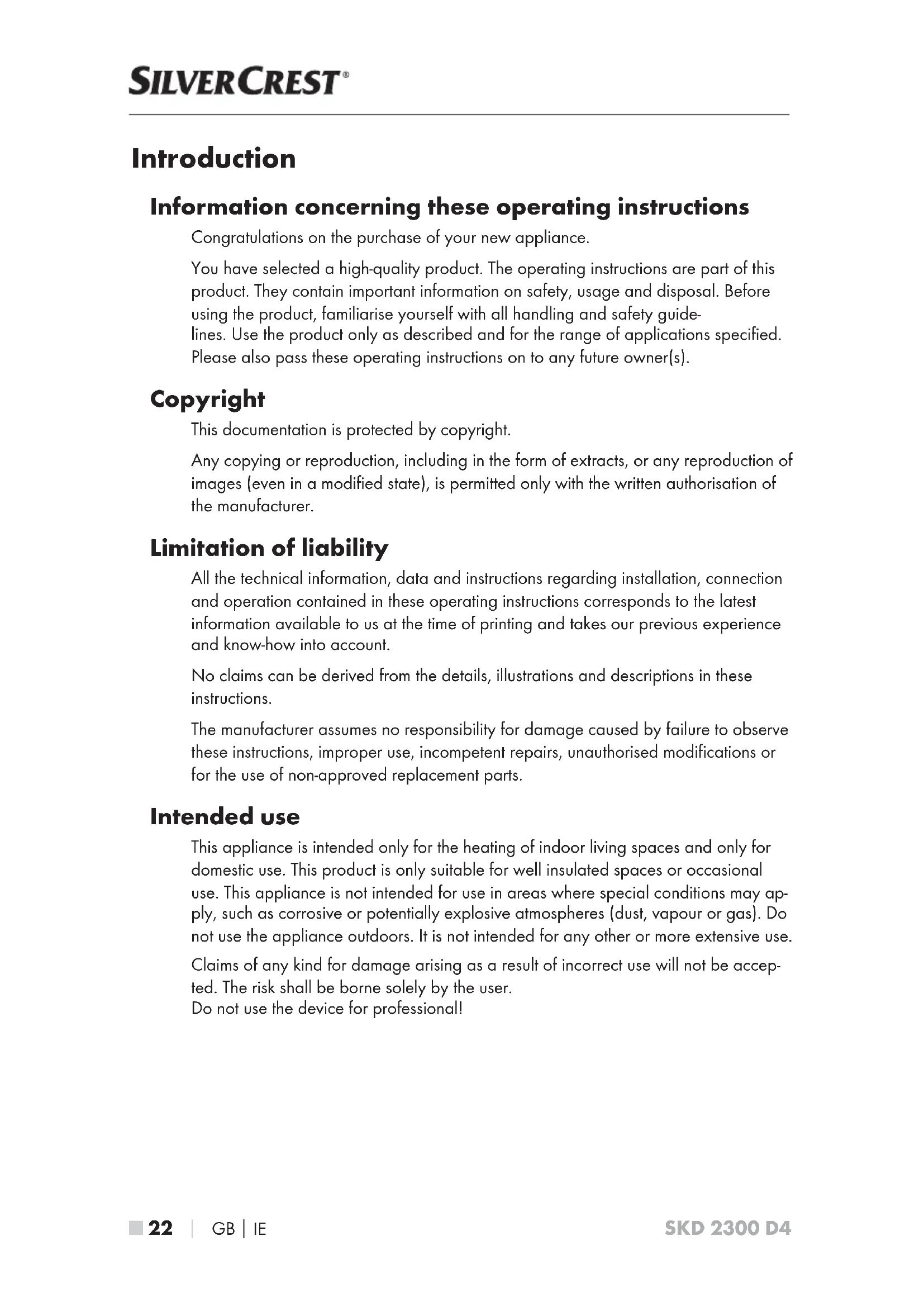

Information concerning these operating instructions

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Limitation of liability

All the technical information, data and instructions regarding installation, connection and operation contained in these operating instructions corresponds to the latest information available to us at the time of printing and takes our previous experience and know-how into account.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifications or for the use of non-approved replacement parts.

Intended use

This appliance is intended only for the heating of indoor living spaces and only for domestic use. This product is only suitable for well insulated spaces or occasional use. This appliance is not intended for use in areas where special conditions may apply, such as corrosive or potentially explosive atmospheres (dust, vapour or gas). Do not use the appliance outdoors. It is not intended for any other or more extensive use.

Claims of any kind for damage arising as a result of incorrect use will not be accepted. The risk shall be borne solely by the user.

Do not use the device for professional!

Warning notes

The following warning notice types are used in these operating instructions:

DANGER

A warning notice at this hazard level indicates an imminently hazardous situation.

If the hazardous situation is not avoided, it could result in death or serious physical injury.

▶ Follow the instructions in this warning notice to avoid the risk of death or serious injury.

WARNING

A warning notice at this hazard level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in injury.

▶ Follow the instructions in this warning notice to prevent injury.

CAUTION

A warning notice at this hazard level indicates a potential for property damage.

Failure to avoid this situation could result in property damage.

▶ Follow the instructions in this warning notice to prevent property damage.

NOTE

▶ A note provides additional information that will assist you in using the appliance.

Safety

In this section, you will find important safety instructions for using the appliance. This appliance complies with statutory safety regulations. Improper use may result in personal injury and property damage.

Do not cover the appliance!

Covering the appliance can lead to overheating and thus result in a fire!

Caution! Hot surface!

This symbol warns of hot surfaces on the appliance. There is a risk of burns!

Risk of electrocution

DANGER

Risk of fatal injury from electrocution!

Contact with live cables or components can result in fatal injury!

Please observe the following safety guidelines to prevent electrical hazards:

▶ Do not use the appliance if the power cable or the plug are damaged.
Before using the appliance again, have a new mains power cable installed by an authorised specialist.
The appliance housing must not be opened under any circumstances. There is a risk of electric shock if live connections are touched and the electrical and mechanical structure is changed.

Basic safety guidelines

To ensure safe operation of the appliance, follow the safety guidelines set out below:

- Check the appliance for visible external damage before use. Do not operate a appliance that has been damaged or dropped.

If the appliance's mains power cable is damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or by a qualified technician so that risks can be avoided.

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

Children must not use the appliance as a plaything.

Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■ Children younger than three years old should be kept away from the appliance unless they are constantly monitored.

Children older than 3 and younger than 8 years of age may only switch the appliance on and off if they are supervised or instructed in the safe use of the appliance and have understood the resulting dangers, provided that the appliance is located or installed in its normal operating position.

■ Children older than 3 and younger than 8 years of age may not plug in, regulate or clean the appliance and may not carry out user maintenance tasks.

Children should be supervised to ensure that they do not play with the appliance. Caution – some parts of the product may be very hot and cause burns. Be particularly careful when children and vulnerable persons are present.

■ The metal surfaces of the appliance can become hot. Therefore, only hold the appliance by the handles ⑨.

■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs can pose significant risks to the user. It will also invalidate any warranty claims.

■ Defective components must always be replaced with original replacement parts. Only by using original replacement parts can it be assured that the safety requirements are being complied with.

■ Protect the appliance from penetration by moisture and liquids.

■ Always unplug the appliance from the mains power socket before cleaning.

■ Always disconnect the power cable from the mains power socket by pulling on the plug; never pull on the cable.

■ Avoid using extension cables.

■ Do not use the appliance in the vicinity of naked flames.

■ The appliance must not be placed immediately under or over a mains power socket.

- Do not use this heater together with a programmable switch, a timer, a separate remote control system or any other system which switches on the heater automatically, as this could lead to a fire risk if the heater is covered or set up incorrectly.

■ Disconnect the plug from the mains power socket if the appliance malfunctions and also during thunderstorms.

■ The appliance must not be used in the immediate vicinity of a bath, a shower or a swimming pool.

■ The appliance is to be installed so that a person in the bath or shower is unable to touch the switch and other controls.

■ Do not expose the appliance to spray and/or dripping water and do not place any objects filled with liquid, such as vases or open drink containers, on or near the appliance.

Risk of injury if batteries are improperly handled

WARNING

- Keep batteries out of the reach of children. Children might put batteries into their mouth and swallow them. If a battery has been swallowed, seek medical assistance IMMEDIATELY.

▶ Do not throw batteries into a fire. Never subject batteries to high temperatures.

Risk of explosion! Do not charge batteries unless they are explicitly labelled as "rechargeable".

▶ Do not open the batteries or short-circuit them.

▶ Do not mix different types of batteries. Due to increased risk of leakage, empty batteries should be removed. The batteries should also be removed from the remote control if it is not being used for long periods.

▶ Battery acid leaking from a battery can cause skin irritation. In the event of contact with the skin, rinse with plenty of water. If the liquid comes into contact with your eyes, rinse thoroughly with water, do not rub and consult a doctor immediately.

- When handling leaking batteries, always use coated gloves and protective goggles!

The chapter entitled "Before use" describes how to correctly insert and remove batteries.

Before use

Package contents and transport inspection

The appliance is supplied with the following components as standard:

• 1 convection heater SKD 2300 D4
- 1 remote control
• 1 CR2032 button cell
- 2 feet
• 4 screws for the feet
• These operating instructions

NOTE

▶ Check the package for completeness and for signs of visible damage.
If any items are missing or damaged as a result of defective packaging or insufficient care during transportation, contact the Service hotline (see the chapter Service).

Set-up location requirements

For safe and trouble-free operation of the appliance, the set-up location must fulfil the following requirements:

The appliance may only be operated in a vertical position and fully assembled.
■ The appliance must be placed on a firm, flat and horizontal surface.
The minimum clearances between the housing and other objects must be maintained: 10 cm at the sides, 30 cm above and 50 cm in front.
■ Ensure that air can always enter and escape freely. Otherwise, there could be a heat build-up in the appliance.
Do not place the appliance in a hot, wet or extremely moist environment or in the vicinity of flammable materials.
The mains power socket must be easily accessible so that the power cable can be easily disconnected in an emergency.

DANGER

Fire risk due to contact with materials!

There is a risk of fire if the heating elements come into contact with flammable materials!

▶ Do not place the appliance in the vicinity of curtains and other flammable materials.
▶ Do not allow flammable materials (i.e. textiles) to come into contact with the appliance.
▶ Do not cover the appliance.

Before initial use

■ Remove all packaging materials and all transport locks from the appliance.

NOTE

▶ You may notice a slight smell when using the appliance for the first time. This is normal and is completely harmless.

Electrical connection

To ensure safe and trouble-free operation of the appliance after making the electrical connection, please observe the following advice:

CAUTION

Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with that of your mains power supply. These data must agree so that no damage is sustained by the appliance.
▶ Ensure that the mains power cable is not damaged and is not running over hot surfaces and/or sharp edges.
▶ Ensure that the mains power cable is not taut or knotted.

Inserting/changing the remote control battery

If the battery in the remote control 25 is dead, a new CR2032 battery needs to be inserted.

• Open the battery compartment ^30 on the underside of the remote control ^25 (see description on the rear of the remote control ^25 ).
  ◆ Remove the old battery from the remote control ^25 .

NOTE

▶ Please follow the disposal instructions (see section Disposing of the batteries).

- Insert a new CR2032 battery into the battery compartment ^30 . Ensure the +/- terminals are correctly aligned.

◆ Slide the battery compartment ^30 back into the remote control ^25 .

Fitting the feet

Place the appliance upside down on a soft surface, e.g. a carpet.
◆ Fit the feet 6 to the bottom of the appliance using 2 screws 34 on each foot.

Features

1 Control panel

② Display

3 Air outlet

4 Compartment for the remote control

5 Air inlet

6 Feet

7 Temperature sensor

8 Main switch (I/O)

9 Carrying handle

10 Display of the selected heat setting

11 „Fan“ symbols

12 „Frost protection“ symbol ✿

13 Display of the selected measurement unit

14 Fan button

15 Increase temperature

16 Decrease temperature

17 Timer button

18 Runtime display

19 Preset target temperature display

20 Display of the measured actual temperature

21 On/Off button

22 Infrared receiver for remote control

23 Button to select the measurement unit (°F / °C)

24 Button to select the heating setting

25 Remote control

26 Button to select the heating setting

27 Fan buttons

28 Button to select the measurement unit (°F / °C)

29 Decrease temperature

30 Battery compartment

31 Timer button

32 Increase temperature

33 On/Off button

34 Screw (Feet)

Handling and operation

NOTE

▶ All functions can be used with the buttons on the device as well as with the remote control 25.

This section provides you with important information on handling and using the appliance.

Switching the appliance on and off

The main switch 8 disconnects the appliance fully from the mains power supply.

• Insert the power plug into a mains wall socket.
  Switch on the appliance using the main switch 8 first; or switch off at the main switch last if you are no longer using the appliance.
  When switched on, the integrated control lamp in the main switch 8 lights up. There will be a beep and the display 2 lights up.
  Now press the on/off button 21 or 33. The appliance is now ready for use.

Selecting the temperature

NOTE

The display 2 shows the set target temperature 19 and measured actual temperature 20.
The temperature measurement is made by the temperature senso7. It may take some time until the whole room has reached this temperature.

Press the button (°F / °C23 or 28 to select the unit of measure, to select whether the temperature display uses °C or °F. The selected unit of measurement 13 is shown on the display 2.

Press the "Increase temperature" button, ▲ 15 or 32, to increase the target temperature 19 up to a maximum of 37°C (99°F). The selected target temperature 19 is shown on the display 2.

Press the "Decrease temperature" button, ▼16 or 29, to decrease the target temperature 19 down to a minimum of 5°C (41°F). The selected target temperature 19 is shown on the display 2.

Select heat setting

The heat setting determines how quickly the appliance warms up.

The appliance has three heat settings:

■ Level 1: 1000 watts
Level 2: 1300 watts
Level 3: 2300 watts

◆ Press the button to select the heat setting 24 or 26 repeatedly until the desired heat setting has been set. The selected heat setting 10 is shown on the display 2.

The appliance has a fan which can be used to distribute heated air throughout the room more quickly.

Press the fan button 14 or 27 to switch the fan on or off. If the fan is running, the „Fan” symbol 11 appears on the display 2.

NOTE

▶ If the fan is switched off, the heat is concentrated more around the appliance and is not distributed so quickly around the room.

Set heating time

The appliance has a timer that you can use to set the desired heating time between 1 to 24 hours. Once this period is over, the appliance switches off automatically.

◆ Press the timer button 17 or 31 until the desired runtime 18 is shown on the display 2.

To switch the timer off, press the timer button 17 or 31 repeatedly until no runtime 18 appears on the display 2.

Overheating protection

The appliance is fitted with a thermostat-controlled overheating protector. If the appliance becomes too hot internally, the heating element switches off automatically. As soon as the appliance has cooled down, the heating element switches back on.

WARNING

As a general rule, there is a reason for overheating! It can mean a risk of fire!

▶ Check that the appliance can sufficiently dissipate the heat generated: Is the appliance covered or is it too close to a wall or other obstacle? Is the fan blocked?
▶ Check that neither the air inlet nor the air outlet is blocked and remove the cause.
▶ If possible, eliminate the problem or contact the Service Hotline (see the chapter Service).
Even if you cannot find a cause, but the overheating protection triggers a second time, you must return the appliance to Customer Services for inspection or repair.

Frost protection function

The appliance has a frost protection function that prevents the room temperature from falling below the frost line.

Press the button for selecting the heat setting 24 or 26 repeatedly until the "Frost protection" symbol 12 appears on the display 2.

NOTE

As soon as the temperature in the immediate vicinity of the appliance falls under 5°C (41°F) the appliance will switch on automatically.

As soon as the temperature climbs above 9^ C ( 48^ F), the appliance switches itself off and the room temperature will be shown on the display ②.

To switch off the frost protection function, press the button for selecting the heat setting 24 or 26 repeatedly until the "Frost protection" symbol 12 disappears from the display 2.

Cleaning

WARNING

▶ Always pull out the plug before cleaning the appliance.

▶ Allow the appliance to cool down before cleaning to prevent any risk of burns.

▶ Only clean the appliance when it is switched off and cold.

CAUTION

Moisture can cause damage to the appliance.

▶ To avoid irreparable damage to the appliance, ensure that no moisture gets into it during cleaning.

▶ Never immerse the appliance in water and protect it from splashing or sprayed water.

■ Clean the housing only with a soft damp cloth and a mild detergent.

■ Remove dust deposits on the protective screen with a vacuum cleaner.

Transport and storage

■ Always carry the appliance using its carrying handles ^9 .

■ Disconnect the mains power plug if you do not intend to use the appliance for an extended period of time.

■ Store the appliance in a dry environment.

Disposal

Disposal of the appliance

Never dispose of the appliance in normal domestic waste. This product is subject to the provisions of the European WEEE (Waste Electrical and Electronic Equipment) Directive 2012/19/EU.

Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposing of the batteries

Defective or dead batteries must be recycled according to Directive 2006/66/EC. Do not dispose of the batteries in the domestic waste. Batteries can contain poisons which are damaging to the environment. Therefore, dispose of the batteries in accordance with applicable statutory regulations.

Consumers are legally obliged to dispose of used batteries at a collection point in their town/district or at a retail store. This obligation is intended to ensure that batteries are disposed of in an environmentally responsible manner.

Dispose of batteries only when they are fully discharged.

Disposal of packaging materials

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: Plastics,
20-22: Paper and cardboard,
80-98: Composites

Troubleshooting

This section contains important information about fault identification and rectification.

WARNING

Observe the following safety information to avoid hazards and property damage:

▶ Repairs to electrical appliances should only be carried out by specialists trained by the manufacturer. Improper repairs can cause considerable risks to users and damage to the appliance.

Fault causes and rectification

The following table will help you to identify and rectify minor malfunctions:

Malfunction	Possible cause Remedy
The appliance will not switch on.	The plug is not connected.	Put the power plug into the socket.
	The mains power socket is not supplying power.	Check the house mains fuse.
The appliance switches itself off automatically.	The overheating protection has been triggered.	Allow the appliance to cool down.
		Clean the appliance.
	The selected temperature has been reached.	The appliance switches itself back on automatically as soon as the room temperature falls.
		Select a higher target temperature.

NOTE

If you are unable to resolve the problem by taking any of the aforementioned steps, please contact the Customer Service department.

Appendix

Technical data

General
Input voltage 220-240 V	~ (alternating current)/ 50 Hz
Output 2300 W
Dimensions including feet (W x D x H)	approx. 69.2 x 43.8 x 22 cm
Weight approx. 5 kg
Battery type (remote control) 3 V / CR2032

Notes concerning the EC Declaration of Conformity

This appliance conforms, with regard to compliance with the basic requirements and other relevant provisions, with the Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive 2014/30/EU.

The complete Declaration of Compliance, in its original form, is available from the importer.

Information requirements for electric local space heaters

Model identifier(s): SKD 2300 D4
Item Symbol	Value Unit Item				Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2,236 kW		manual heat charge control, with integrated thermostat	N.A.
Minimum heat output (indicative)	P_min	0	kW	manual heat charge control with room and/or outdoor temperature feedback	N.A.
Maximum continuous heat output	P_max,c	2,236 kW		electronic heat charge control with room and/or outdoor temperature feedback	N.A.
Auxiliary electricity consumption				fan assisted heat output	N.A.
At nominal heat output	el_max	0,0006 kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0	kW	single stage heat output and no room temperature control	no
In standby mode el	SB	0,0006 kW		Two or more manual stages, no room temperature control	no
				with mechanic thermostat room temperature control	no
				with electronic room temperature control	no
				electronic room temperature control plus day timer	no
				electronic room temperature control plus week timer	no
				Other control options (multiple selections possible)
				room temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option no
				with adaptive start control no
				with working time limitation no
				with black bulb sensor no
Contact details	KOMPERNASS HANDELS GMBH, BURGSTRASSE 21, DE-44867 BOCHUM, GERMANY

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 303317

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Table des matières

Introduction 42

Protection anti-surchauffe 52

Fonction anti-gel 53

Nettoyage 53

Protection anti-surchauffe

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 62

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....82

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

Índice

Introducción....102

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Índice

Introdução....122

8 Interruptor principal (1/0)

9 Pega

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stav informací · Estado de las informaciones · Estado das informações:
