USER MANUAL SDK 2500 A1 SILVERCREST

Operating instructions

NL BE

DUBBELE KOOKPLAAT

Gebruksaanwijzing

CZ

DVOUPLOTYNKOV Y VARIC

Návod k obsluze

SK

ELEKTRICKY DVOJPLATNOV Y VARIC

Návod na obsluhu

IAN 315094

DE BE NL

PL CZ

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions Page 13

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table of Contents

Introduction. 14

Copyright. 14
Limitation of liability. 14
Intended use 14

Package contents 14

Disposal of packaging. 15

Appliance description. 15

Technical details 15

Energy consumption 16

Safety instructions 17

Setting up and connecting 18

Energy-efficient cooking. 19

Operation 19

Cleaning and care. 20

Storage 20

Fault rectification. 21

Disposal. 21

Kompernass Handels GmbH warranty. 22

Service 23

Importer 23

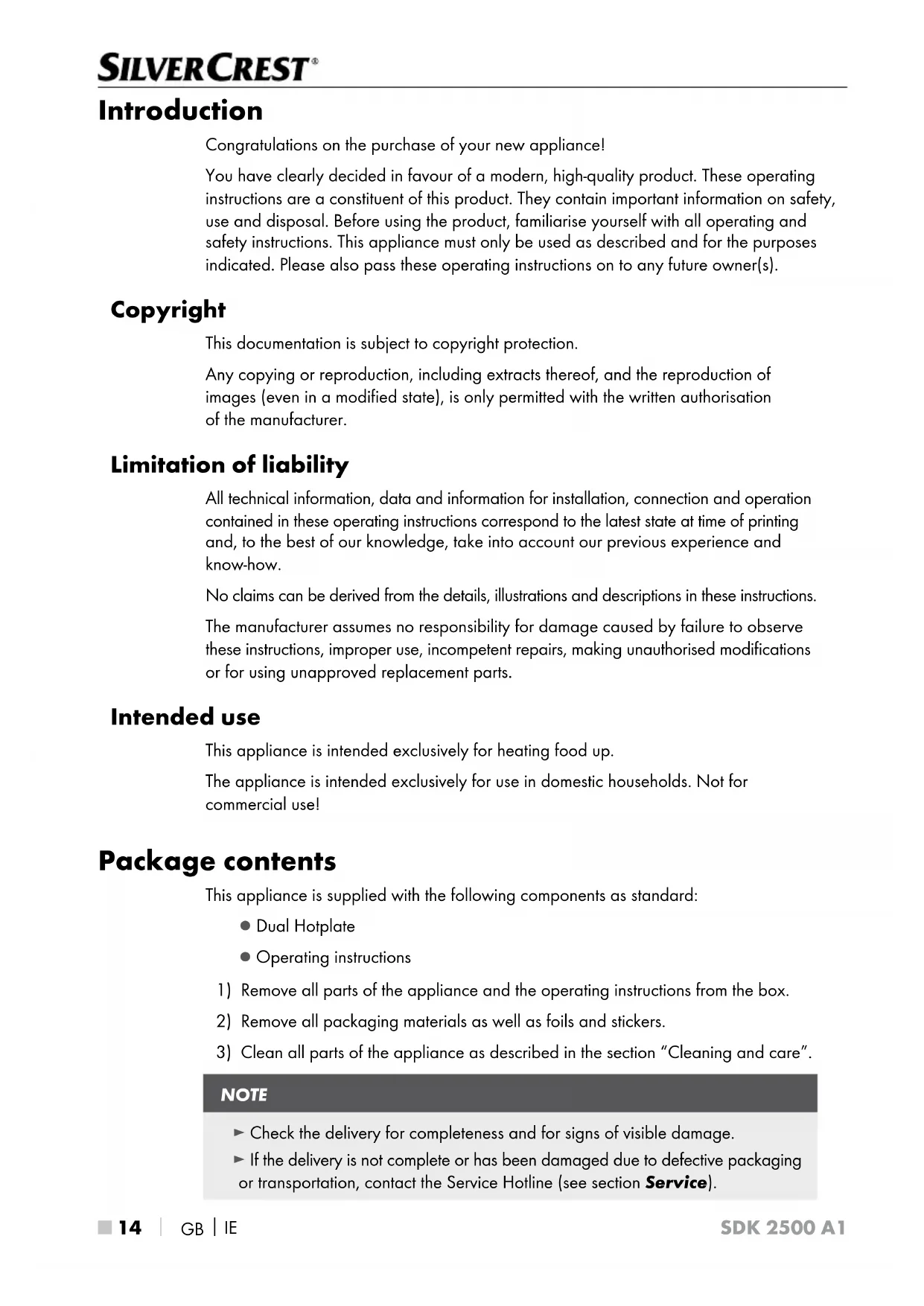

Introduction

Congratulations on the purchase of your new appliance!

You have clearly decided in favour of a modern, high-quality product. These operating instructions are a constituent of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. This appliance must only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is subject to copyright protection.

Any copying or reproduction, including extracts thereof, and the reproduction of images (even in a modified state), is only permitted with the written authorisation of the manufacturer.

Limitation of liability

All technical information, data and information for installation, connection and operation contained in these operating instructions correspond to the latest state at time of printing and, to the best of our knowledge, take into account our previous experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts.

Intended use

This appliance is intended exclusively for heating food up.

The appliance is intended exclusively for use in domestic households. Not for commercial use!

Package contents

This appliance is supplied with the following components as standard:

• Dual Hotplate
• Operating instructions

1) Remove all parts of the appliance and the operating instructions from the box.
2) Remove all packaging materials as well as foils and stickers.
3) Clean all parts of the appliance as described in the section "Cleaning and care".

NOTE

• Check the delivery for completeness and for signs of visible damage.
  If the delivery is not complete or has been damaged due to defective packaging or transportation, contact the Service Hotline (see section Service).

Disposal of packaging

The packaging protects the appliance from transport damage. The packaging materials have been selected in accordance with their environmental friendliness and disposal attributes, and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispos of packaging material that is no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: Composites

NOTE

If possible, keep the appliance's original packaging during the warranty period so that the appliance can be packed properly for returning in the event of a warranty claim.

Appliance description

Large hob
2 Small hob
On/Off switch
Thermostat small cooking plate
Indicator lamp small hob
6 Indicator lamp large hob
Thermostat large hob

Technical details

Appliance

Voltage 230V ,50Hz

Power consumption 2500 W

Energy consumption 191,38 Wh/kg

Large hob

Power consumption large hob 1500 W

Diameter of large hob 18 cm

Energy consumption of large hob 193,98 Wh/kg

Small hob

Power consumption small hob 1000 W

Diameter of small hob 15 cm

Energy consumption of small hob 188,79 Wh/kg

Energy consumption

(tested in accordance with Regulation (EU) No. 66/2014, Annex I, sections 2 and 2.2)

	Symbol Value Unit
Model designation SDK 2500 A1
Hotplate type - Household hotplate -
Number of hobs and/or cooking areas	-2-
Heating technology (induction hobs and areas, radiant heat hobs, cooking plates)	- Hotplates -
In the case of circular cooking plates or areas: diameter of effective area per hob, rounded up to the next 5 mm	Ø 18 15 cm
In the case of non-circular hobs or cooking areas: length and width of effective area per electrically-heated hob or cooking area rounded up to the next 5 mm	LN/A cm
	B	N/A cm
Energy consumption per hob or cooking area, calculated per kg	ECeletric cookers	193,98	188,79	Wh/kg
Hob energy consumption per kg	EC hob	191,38		Wh/kg

Safety instructions

RISK OF ELECTRIC SHOCK

• To avoid risks, arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or our Customer Service Department.
• Never hold the appliance, power cable or power plug with wet hands. There is the risk of receiving an electric shock.
  Do not fold or crush the power cable.
• To disconnect, always remove the power plug itself from the mains power socket, do not pull on the power cable.
• The appliance must only be connected to a correctly installed and easily accessible mains power socket. Ensure that the rating of the local power supply corresponds with the details on the rating plate of the appliance.
• Do not use the appliance in the close vicinity of a bathtub/shower or a sink filled with water. The proximity of moisture presents a danger even when the appliance is switched off.
  The appliance is suitable for use only in dry areas.

NEVER submerse the appliance in water or other liquids.

WARNING! RISK OF INJURY!

This appliance may be used by children aged 8 or over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use of the appliance safely and are aware of the potential risks.
Children younger than 8 years of age must be kept away from the appliance and the power cable.
Children must not play with the appliance.
- Cleaning and user maintenance must not be performed by children unless they are older than 8 years of age and are supervised.
After use, allow the appliance to cool down before transporting it.

WARNING! RISK OF INJURY!

• Route the power cable in such a way that no one can tread on or trip over it.
• Never touch the cooking plates during use as these become very hot.
• Do not use extension cables. The plug must be quickly accessible in an emergency.
• Do not use an external timing switch or a separate remote control system to operate the appliance.

Caution! Hot surfaces.

CAUTION - RISK OF FIRE!

Never leave the appliance unattended while it is being used.
- When the appliance is in use ensure that there are no easily inflammable materials close to it (e.g. dishcloths, oven cloths etc.).
If you do not intend to use the appliance for an extended period, you must disconnect it from the power source. The appliance is only completely without current when the power plug has been pulled out of the socket.

Setting up and connecting

1) Place the appliance on a stable, level and heat-resistant surface.
2) Insert the plug into a mains power socket.
3) Switch the appliance on by switching the On/Off switch ③ to the position "l".
4) Set the two thermostats 4/7 to MAX and allow the hobs 1/2 to heat up for about 3 minutes without any pan on them. This can cause slight smoke development since the protective coating which has been applied will burn in. Ensure there is sufficient ventilation. For example, open a window.
5) Switch off the hobs 1 / 2 after 3 minutes.

Energy-efficient cooking

Use cooking pots with the same diameter as the respective hob 1/2. If you use particularly small pots that do not cover the whole hob 1/2, a great deal of energy is simply wasted.
Ensure that the pots/pans rest flat on the hobs 1/2. Dented or uneven bottoms prevent optimum heat conduction.
To save energy, you can turn off the hob 1 / 2 before you have completely finished cooking. The residual heat of the hob 1 / 2 is usually sufficient to finish cooking the food.

Operation

NOTE

Use cooking utensils with flat, even bases for better thermal transfer.
If possible, use cooking utensils which match the cooking plate sizes.

1) Place the filled saucepan on the required hob 1/2.
2) Switch the appliance on by sliding the On/Off switch 3 to the position "l".
3) Turn the relevant thermostat 47 to the required setting:

• 0: switched off

• 4: slow cooking

• 4-MAX: fast cooking

The relevant indicator lamp 5/6 for the hob 1/2 you have switched on illuminates.

NOTE

The control lamp 5/6 remains lit while the hob 1/2 is heating up. As soon as the selected temperature has been reached, the control lamp 5/6 goes off. During operation, it is possible that the control lamp 5/6 switches on and off. This is not a malfunction of the appliance, merely an indication that the hob 1/2 is reheating occasionally to maintain the temperature.

4) Once the cooking process has finished, adjust thermostat 4/7 back to 0. The indicator lamp 5/6 goes out.
5) Turn the On/Off switch 3 to "O".

If you do not intend to use the appliance for an extended period, remove the plug from the power socket.

Cleaning and care

RISK OF ELECTRIC SHOCK

Before cleaning, ALWAYS remove the plug from the mains power socket.

Never submerse the appliance in water or other liquids.

WARNING! RISK OF INJURY!

• Allow the appliance to cool down before cleaning it!

CAUTION - PROPERTY DAMAGE!

• Do not use abrasive, chemical or caustic cleaning agents to clean this appliance! These can damage the appliance.

■ Wipe the appliance with a damp cloth. For stubborn soiling use a mild detergent on the cloth.

Ensure that you remove all detergent residues with a moist cloth afterwards.

Please wait until the appliance is completely dry before using it again.

Storage

Store the appliance in a dry and dust-free place.

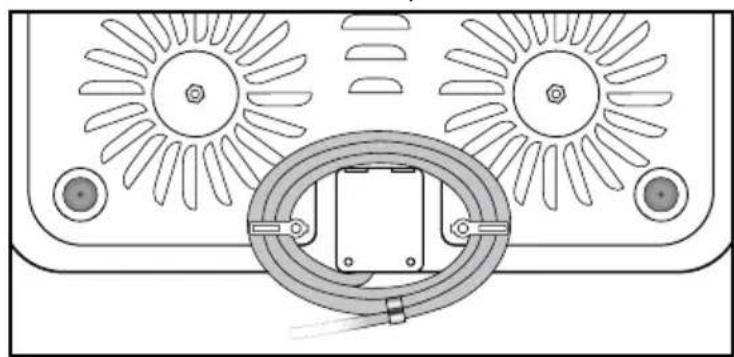

Wind the cable around the cable retainer on the underside of the appliance and fasten the end with the cable clip.

Fault rectification

Malfunction	Cause Solution
The appliance is not working.	The plug is not inserted into a mains power socket.	Connect the plug to the power supply.
	The appliance is defective.	In this case, contact the Cus-tomer Service.
	The appliance is not switched on.	Switch the appliance on using the On/Off switch ➀.

Disposal

Never dispose of the appliance in the normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).

Dispose of the appliance through an approved disposal centre or at your community waste facility. Please observe the currently applicable regulations. Please contact your waste disposal centre should you be in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the product.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appli

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 315094

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
