SHM 300 B1 - Mixer SILVERCREST - Free user manual and instructions

USER MANUAL SHM 300 B1 SILVERCREST

Operating instructions

SE

ELVISP

Bruksanvisning

FR BE

BATTEUR

Mode d'emploi

DE AT CH

HANDMIXER

Bedienungsanleitung

F

SAHKÖVATKAIN

Käytööhje

DK

HÄNDMIKSER

Betjeningsveiledning

NL BE

HANDMIXER

Gebruiksaanwijzing

IAN 102824

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

H

GB/IE Operating instructions Page 1

FI	Käytöohje	Sivu	9
SE	Bruksanvisning	Sidan	17
DK	Betjeningsvejledning	Side	25
FR/BE Mode d'emploi Page 33
NL/BE Gebruiksaanwijzing Page 41
DE/AT/CH	Bedienungsanleitung			Seite	49

A
B

CONTENT PAGE

Introduction 2

Proper use 2

Technical data 2

Items supplied 2

Description of Components 2

Important safety instructions 3

Unpacking 5

Speed levels 5

Operation 5

Kneading and Whisking 5

Cleaning 6

Disposal 6

Warranty and Service 6

Importer 7

Recipe 7

Simple sponge cake 7

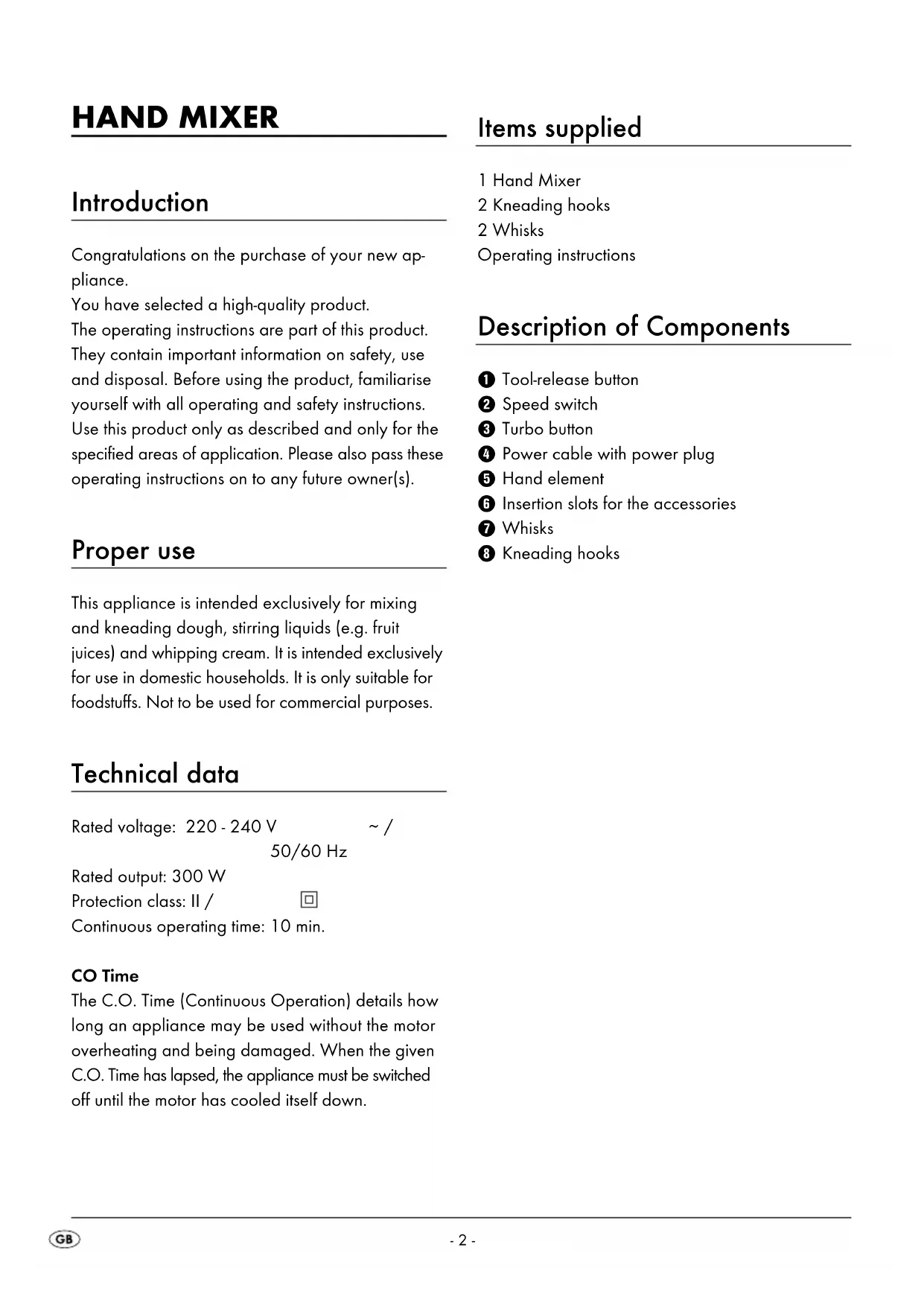

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product.

The operating instructions are part of this product.

They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions.

Use this product only as described and only for the specified areas of application. Please also pass these operating instructions on to any future owner(s).

Proper use

This appliance is intended exclusively for mixing and kneading dough, stirring liquids (e.g. fruit juices) and whipping cream. It is intended exclusively for use in domestic households. It is only suitable for foodstuffs. Not to be used for commercial purposes.

Technical data

Rated voltage: 220 - 240 V \~/

50/60 Hz

Rated output: 300 W

Protection class: II /

Continuous operating time: 10 min.

CO Time

The C.O. Time (Continuous Operation) details how long an appliance may be used without the motor overheating and being damaged. When the given C.O. Time has lapsed, the appliance must be switched off until the motor has cooled itself down.

Items supplied

1 Hand Mixer
2 Kneading hooks
2 Whisks
Operating instructions

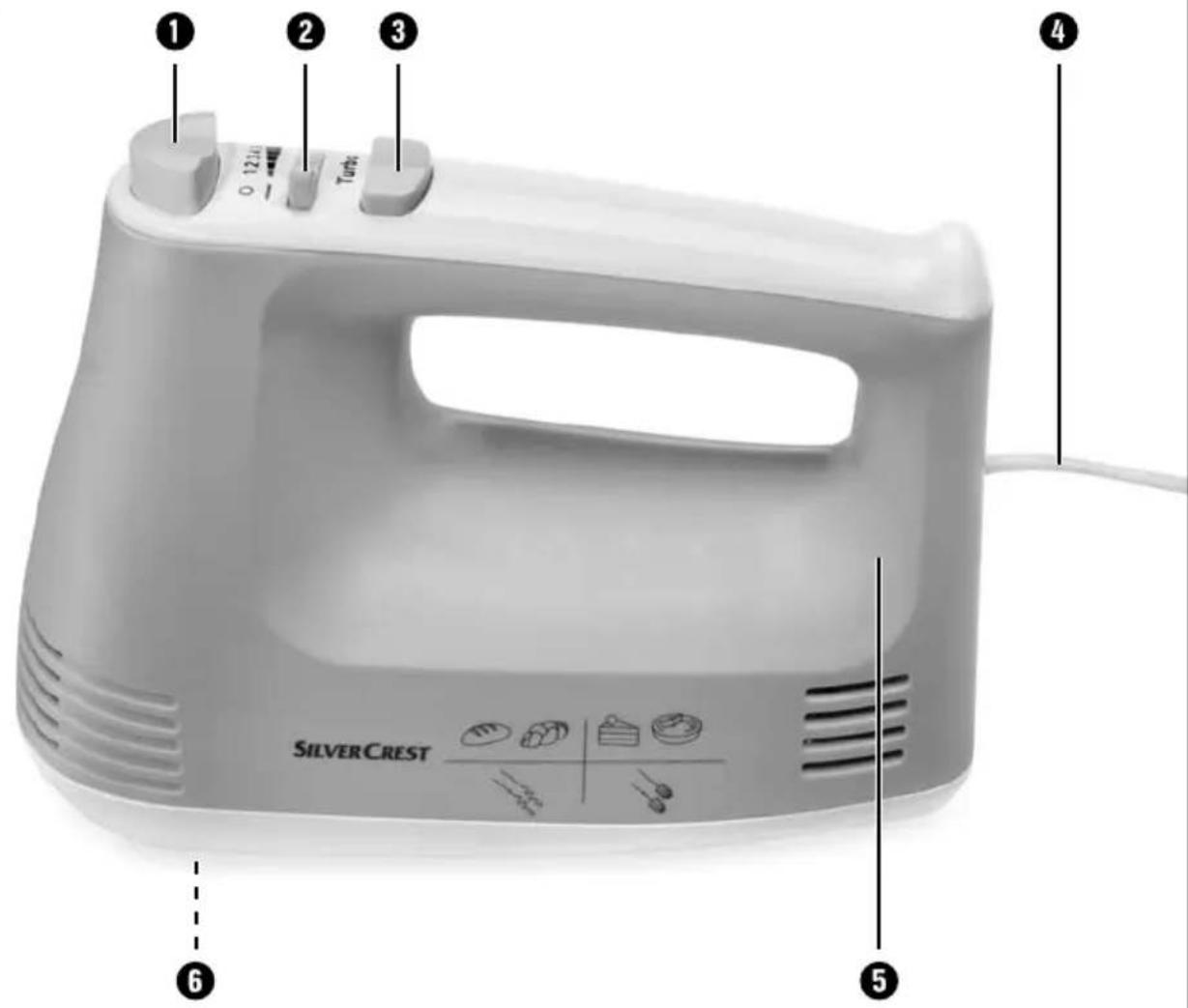

Description of Components

Tool-release button
Speed switch
3 Turbo button
4 Power cable with power plug
Hand element
Insertion slots for the accessories

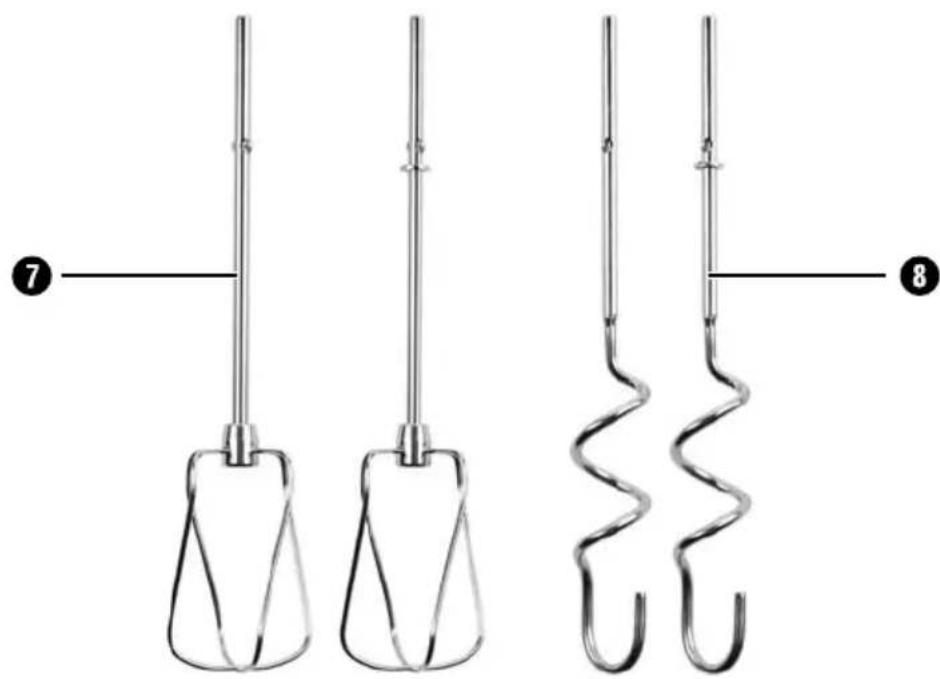

Whisks
Kneading hooks

Danger of electrical shocks!

• The power cable must never come close to or in contact with hot parts of the appliance or other sources of heat. Do not allow the power cable to lie on sharp rims or edges.
• Do not fold or crush the power cable.
• To avoid risks, arrange for defective power plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department.
• When removing the plug from the mains power socket, always pull the plug itself, never the power cable. Otherwise the power cable could be damaged!

Danger of injuries:

• This appliance may be used by people with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in how to use the appliance safely and have understood the potential risks.
• This appliance may not be used by children.
• The appliance and its connecting cable must be kept away from children.
  Children must not play with the appliance.
• The appliance should always be disconnected from the mains when not supervised and before assembly, disassembly or cleaning.

• DO NOT touch the whisks or kneading hooks when the appliance is in use. Do not allow long hair, scarves and suchlike to hang over the mixing attachments.

• NEVER attempt to assemble accessories with differing functions at the same time.

• Unplug the appliance after every use and before cleaning, so as to prevent the appliance from switching on inadvertently.
• Unplug the appliance before changing the accessories, so as to prevent the appliance from switching on inadvertently.
• Before changing accessories or additional parts that are in motion during operation, the appliance must be switched off and disconnected from mains power.
• Never touch any parts of the appliance that are in motion, always wait for them to come to a complete stop. Risk of injury!
• Before each use, check the appliance and all parts for signs of visible damage. The safety concept of the appliance can only function if it is in a faultless condition.
• Under NO circumstances should you use the appliance if parts are damaged or missing. If you do, there will be an increased risk of accidents.
• Do not operate the appliance unsupervised. If you need to leave the workplace, remove the plug from the mains power socket.
• Never use the appliance for purposes other than those described in these instructions. If you do, you run a risk of serious injury!

Attention! Appliance damage!

• Do not use the appliance outdoors. The appliance is intended exclusively for domestic use indoors.
• Have all repairs carried out by trained personnel only. If required, contact our service partner responsible for your country.

Do not submerse the hand element in water! Otherwise, the appliance could be irreparably damaged.

Unpacking

• Take all components out the packaging.
• Remove all packaging materials and transport restraints.
• Check that all of the items listed are present and that they do not show signs of damage.

Speed levels

0 Appliance is switched off
1 Good starting speed for mixing "soft" ingredients such as flour, butter, etc.
2 Best speed for blending liquid ingredients
3 Optimum mixing cake and bread doughs1
4 For whipping butter, sugar, for desserts etc.
5 For beating meringue, cake jelly, whipped cream etc.

turbo:

• this button allows you to have the full power of your appliance immediately at your disposal.

Operation

Kneading and Whisking

Attention:

Under no circumstance should you use receptacles made of glass or other very fragile/easily breakable materials. These containers can be damaged and then cause potentially serious injuries.

Warning:

Do not operate the mixer for longer than 10 minutes in one session. After 10 minutes, allow the appliance to rest until it has cooled itself down.

1. Before using them for the first time, clean the ancillaries (7, 8).
2. Push the whisks ⑦ or the kneading hooks ⑧ into the insertion slots ⑥ until they are safely and audibly engaged.

Always insert the kneading hook 3 or the whisk without the ring into the intended slot on the appliance (labelled with an icon).

Always insert the kneading hook 3 or the whisk with the ring on the rod into the intended slot on the appliance (labelled with an icon).

1. Insert the power plug 4 into a wall power socket.
2. To set the mixer to work, push the speed switch 2 to the desired speed setting. You can select between 5 speed settings and, additionally, the turbo button 3 (see section "Speed levels").
3. Press the tool-release button 1 to unfasten the whisks 7 or the kneading hooks 8.

① Note:

For safety reasons, the whisks 7 or the dough hooks 8 can only be released when the speed switch 2 is in the position "0".

Attention:

Always remove the power plug 4 before cleaning the appliance. There is a risk of receiving an electric shock!

Under no circumstances may the hand element 5 be submersed in water or other liquids! This would incur the risk of a potentially fatal electrical shock should liquids come into contact with powered components.

• Clean the hand element ⑤ only with a damp cloth and, if necessary, with a mild detergent.
• The whisks ⑦ and the kneading hooks ⑧ can be cleaned under running water or in warm water with detergent. Dry everything well after cleaning.
• We recommend cleaning the ancillaries directly after use. Food remnants are then immediately removed, greatly reducing the risks of bacterial contamination.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN102824

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., {peak})

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN102824

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Recipe

Simple sponge cake

Ingredients

3 cups of flour
2 cups of sugar

1 cup of sunflower oil
1 cup of mineral water
1 packet of vanilla sugar
1 pack baking powder

4 eggs

1 pinch salt

1. Mix the flour, the vanilla sugar and a pinch of salt in a container that is suitable for mixing.
2. Add the eggs, mineral water and oil, then mix everything into a smooth dough.
3. Grease a cake tin and add the dough.
4. Pre-heat the oven to 200 - 225°C (convection) and bake the cake for approx. 40 - 45 minutes.

SISÄLLYSLUETTELO SIVU

Johdanto 10

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Enkelt rørekage

Ingredienser

3 kopper mel
2 kopper sukker

1 kop solsikkeolie
1 kop mineralvanddd
1 brev vaniljesukker
1 brev bagepulver
4 aeg
1 knivspids salt

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Recette

Quatre-quarts facile

Ingrédients

3 tasses de farine
2 tasses de sucre

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Recept

Eenvoudige cake

Ingredients

3 kopies measles
2 kopies suiker

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Rezept

1 Pockchen Backpulver

4 Eier

1 Prise Salz

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND/GERMANY

www.kompernass.com

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

09/2014·Ident.-No.:SHM300B1-082014-1
