USER MANUAL SIKP 2000 B1 SILVERCREST

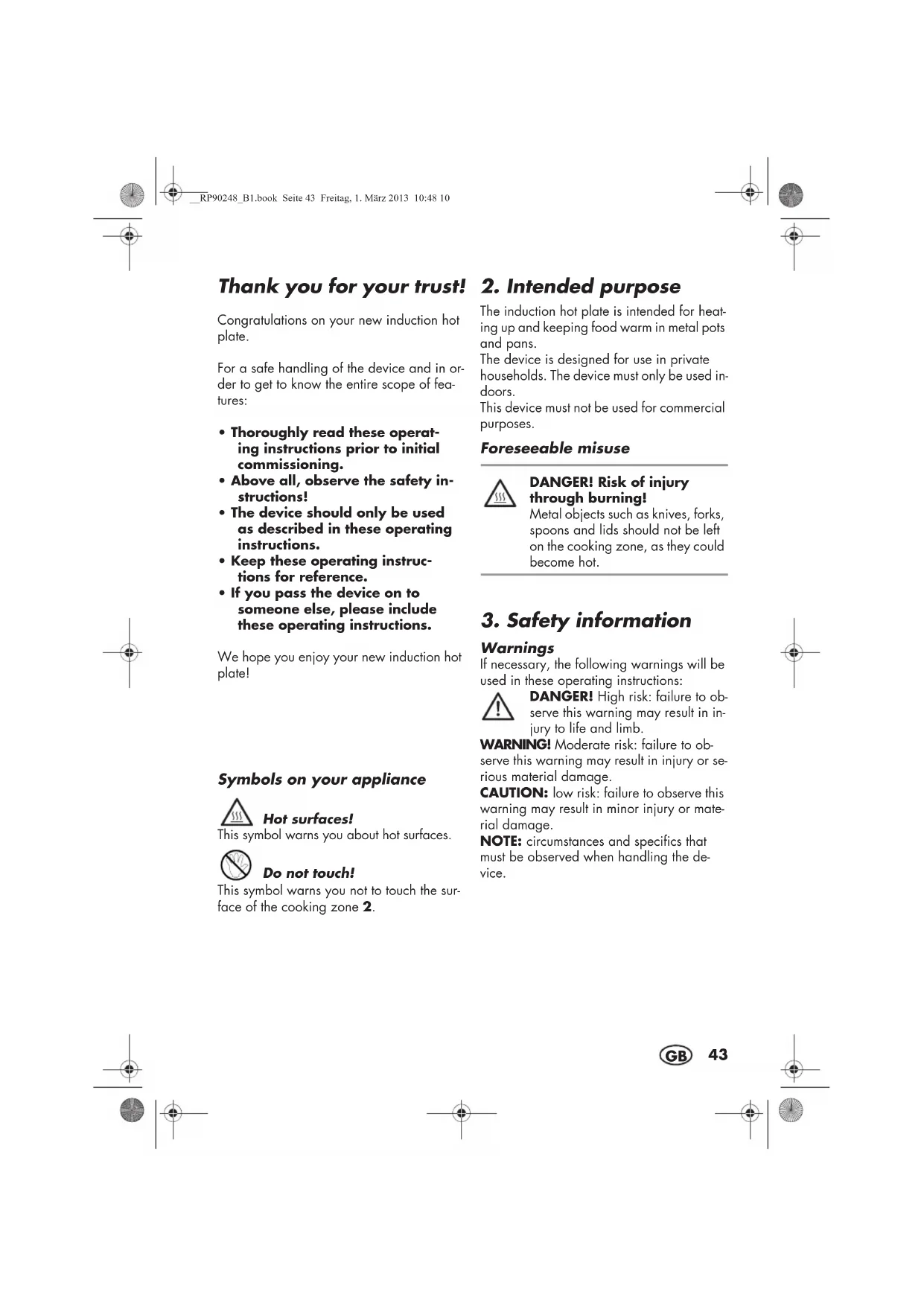

Thank you for your trust! Congratulations on your new induction hot plate. For a safe handling of the device and in or- der to get to know the entire scope of fea- tures:

• Thoroughly read these operat- ing instructions prior to initial commissioning.

• Above all, observe the safety in- structions!

• The device should only be used as described in these operating instructions.

• Keep these operating instruc- tions for reference.

• If you pass the device on to someone else, please include these operating instructions. We hope you enjoy your new induction hot plate! Symbols on your appliance Hot surfaces! This symbol warns you about hot surfaces. Do not touch! This symbol warns you not to touch the sur- face of the cooking zone2.

The induction hot plate is intended for heat- ing up and keeping food warm in metal pots and pans. The device is designed for use in private households. The device must only be used in- doors. This device must not be used for commercial purposes. Foreseeable misuse DANGER! Risk of injury through burning! Metal objects such as knives, forks, spoons and lids should not be left on the cooking zone, as they could become hot.

3. Safety information

Warnings If necessary, the following warnings will be used in these operating instructions: DANGER! High risk: failure to ob- serve this warning may result in in- jury to life and limb. WARNING! Moderate risk: failure to ob- serve this warning may result in injury or se- rious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or mate- rial damage. NOTE: circumstances and specifics that must be observed when handling the de- vice. __RP90248_B1.book Seite 43 Freitag, 1. März 2013 10:48 1044

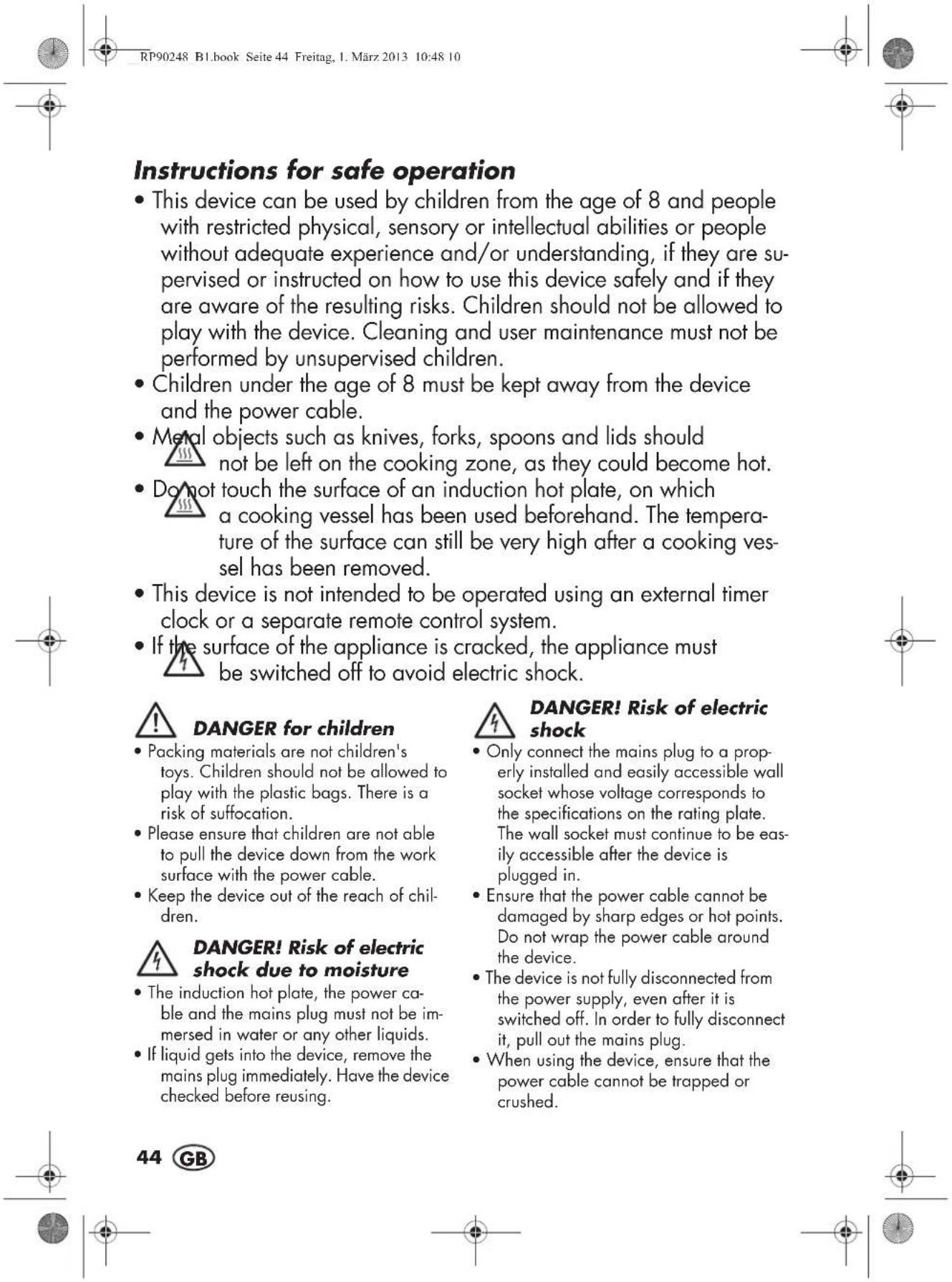

Instructions for safe operation

• This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are su- pervised or instructed on how to use this device safely and if they are aware of the resulting risks. Children should not be allowed to play with the device. Cleaning and user maintenance must not be performed by unsupervised children.

• Children under the age of 8 must be kept away from the device and the power cable.

• Metal objects such as knives, forks, spoons and lids should not be left on the cooking zone, as they could become hot.

• Do not touch the surface of an induction hot plate, on which a cooking vessel has been used beforehand. The tempera- ture of the surface can still be very high after a cooking ves- sel has been removed.

• This device is not intended to be operated using an external timer clock or a separate remote control system.

• If the surface of the appliance is cracked, the appliance must be switched off to avoid electric shock. DANGER for children

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags. There is a risk of suffocation.

• Please ensure that children are not able to pull the device down from the work surface with the power cable.

• Keep the device out of the reach of chil- dren. DANGER! Risk of electric shock due to moisture

• The induction hot plate, the power ca- ble and the mains plug must not be im- mersed in water or any other liquids.

• If liquid gets into the device, remove the mains plug immediately. Have the device checked before reusing. DANGER! Risk of electric shock

• Only connect the mains plug to a prop- erly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be eas- ily accessible after the device is plugged in.

• Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device.

• The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.

• When removing the mains plug, always pull the plug and never the cable.

• Disconnect the mains plug from the wall socket… … if there is a fault, … when you are not using the device, … before you clean the device, and … during thunderstorms.

• Do not use the device if there is visible damage to the device or the power ca- ble.

• If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similar- ly qualified specialist, in order to avoid any hazards. DANGER! Risk of fire

• Heat oil and fat carefully. Overheated oil and fat is flammable. Do not leave hot oil or fat unattended.

• DANGER OF EXPLOSION! Never extinguish burning oil or fat with water. Smother the flames by closing the cook- ing vessel with a suitable lid or plate. Pull out the mains plug.

• Do not place the appliance underneath flammable objects, e.g. curtains or drapes.

• Do not operate the appliance on a me- tallic surface. This surface may become very hot and cause a fire.

• The appliance is equipped with a cool- ing fan on the underside and needs free air supply. - Ensure that the openings on the un- derside are not covered and keep a free space of at least 10 cm right around and at least 60 cm towards the top. - Do not place the appliance on a tex- tile surface, e.g. a tablecloth. DANGER! Risk of injury through burning

• Do not heat empty cooking vessels. These overheat very quickly. This can also damage the cookware and the appliance. DANGER from electromagnetic fields

• Please pay attention to the instructions for use of medical devices (e.g. hearing aids, pacemakers) with respect to elec- tromagnetic fields. Keep the safety dis- tance as recommended by the manufacturer of the appliances. WARNING! Risk of material damage

• Operate the appliance at a minimum distance of 1 m from appliances which are affected by electromagnetic fields, e.g. electronic devices, magnetic stor- age media, watches etc.

• The cooking vessel with contents may not weigh more than 10 kg.

• Prevent sugar-based foods from boiling over. Hot sugar can destroy the cooking zone.

• Do not use any astringent or abrasive cleaning agents.

• The device is fitted with non-slip plastic feet. As furniture is coated with a wide ar- ray of varnishes and synthetics, and is also treated with different care products, it can- not be fully ruled out that some of these materials contain ingredients that could at- tack and soften the non-slip plastic feet. If necessary, place a non-slip mat under the device.

induction NOTE: familiarise yourself with induction cooking. Cooking on induction plates is dif- ferent to cooking on normal plates: - On high temperature settings, the con- tents of the cooking vessels are heated up a lot quicker. - When the temperature/power is re- duced, the contents of the cooking vessel react very quickly to the reduction in tem- perature (similar to cooking with gas). When cooking with induction, heat is gener- ated directly in the base of the cookware by an electromagnetic field and not in the cook- ing zone. This saves time and energy when cooking and frying. You need suitable ferro- magnetic cookware to enable the energy field to develop heat.

6. Suitable cookware

NOTE: the appliance switches itself off (Error message E 1 on the display), if the cookware ... … consists of an unsuitable material, … is not placed in the middle of the cooking zone2 and … is not in the appropriate size.

• Only use ferromagnetic cookware, which is suitable for induction cooking zones. - Cookware with a base made of steel or cast iron is suitable. You can recog- nise this either by a label (

or if a magnet clings to the cookware. - All metals on which a magnet does not cling to, are unsuitable, e.g. nor- mal stainless steel, aluminium and copper. Also non-metallic containers, such as those made of ceramics, por- celain, glass, plastic etc.

• The diameter of the cookware ... … may not be larger than 26 cm, so that the base of the cookware does not extend over the plate and … may not be smaller than 16 cm, so the induction field can function.

• The base of the cookware must be level and flat on the cooking zone2.

DANGER! Risk of fire! The appliance is equipped with a cooling fan on the underside and needs free air supply. - Ensure that the openings on the under- side are not covered and keep a free space of at least 10 cm right around and at least 60 cm towards the top. - Do not place the appliance on a textile surface, e.g. a tablecloth.

• Remove all packing material.

• Check to ensure that all parts are pre- sent and undamaged.

• Place the device on a dry, level, non-slip surface.

DANGER! Risk of fire!

• Heat oil and fat carefully. Overheated oil and fat is flammable. Do not leave hot oil or fat unattended.

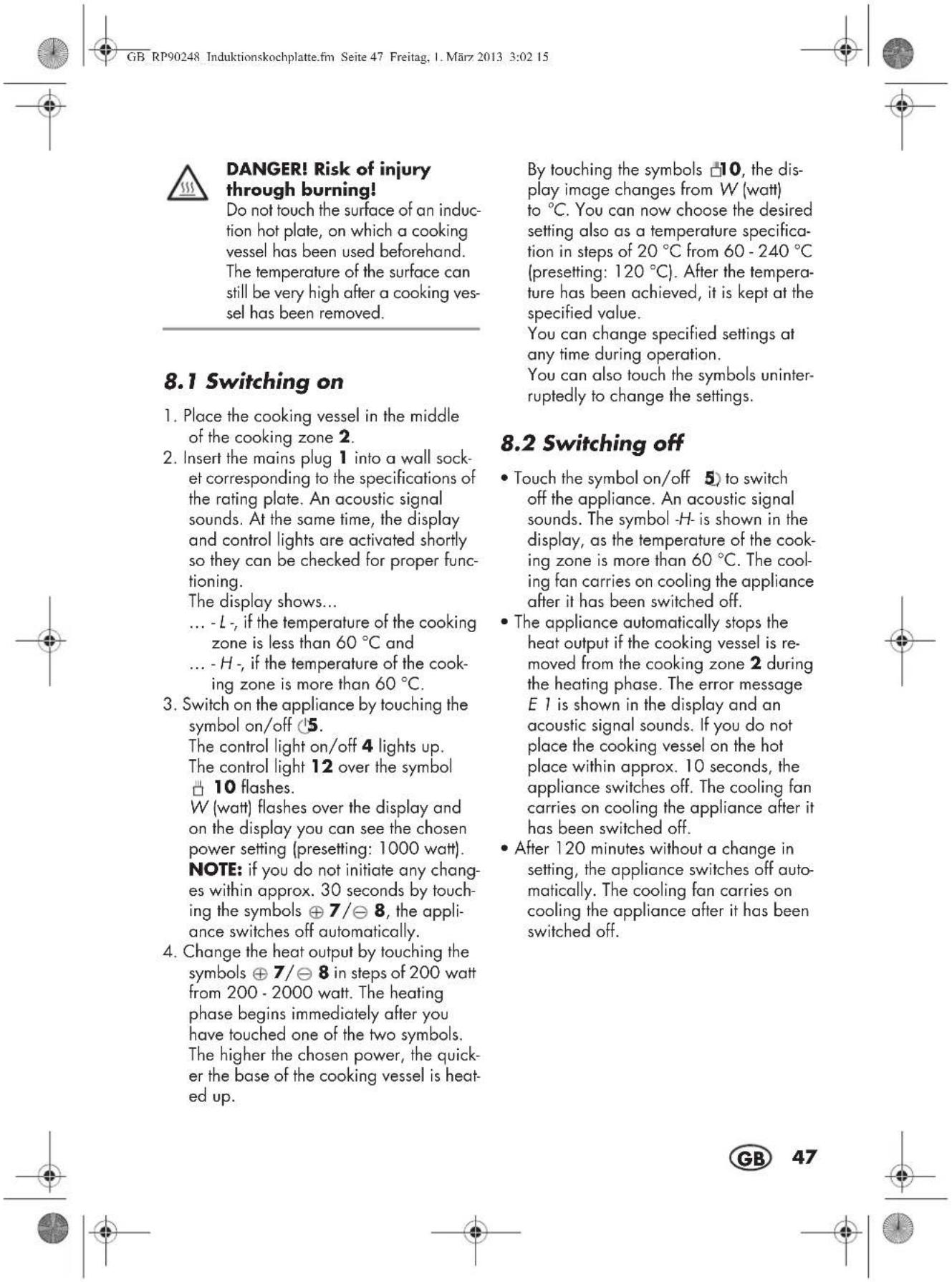

DANGER! Risk of injury through burning! Do not touch the surface of an induc- tion hot plate, on which a cooking vessel has been used beforehand. The temperature of the surface can still be very high after a cooking ves- sel has been removed.

1. Place the cooking vessel in the middle

of the cooking zone2.

2. Insert the mains plug1 into a wall sock-

et corresponding to the specifications of the rating plate. An acoustic signal sounds. At the same time, the display and control lights are activated shortly so they can be checked for proper func- tioning. The display shows... … - L -, if the temperature of the cooking zone is less than 60 °C and … - H -, if the temperature of the cook- ing zone is more than 60 °C.

3. Switch on the appliance by touching the

symbol on/off 5. The control light on/off4 lights up. The control light12 over the symbol 10 flashes. W (watt) flashes over the display and on the display you can see the chosen power setting (presetting: 1000 watt). NOTE: if you do not initiate any chang- es within approx. 30 seconds by touch- ing the symbols

8, the appli- ance switches off automatically.

4. Change the heat output by touching the

symbols 7/8 in steps of 200watt from 200 - 2000 watt. The heating phase begins immediately after you have touched one of the two symbols. The higher the chosen power, the quick- er the base of the cooking vessel is heat- ed up. By touching the symbols 10, the dis- play image changes from W (watt) to°C. You can now choose the desired setting also as a temperature specifica- tion in steps of 20 °C from 60 - 240 °C (presetting: 120 °C). After the tempera- ture has been achieved, it is kept at the specified value. You can change specified settings at any time during operation. You can also touch the symbols uninter- ruptedly to change the settings.

• Touch the symbol on/off 5, to switch off the appliance. An acoustic signal sounds. The symbol -H- is shown in the display, as the temperature of the cook- ing zone is more than 60 °C. The cool- ing fan carries on cooling the appliance after it has been switched off.

• The appliance automatically stops the heat output if the cooking vessel is re- moved from the cooking zone2 during the heating phase. The error message E1 is shown in the display and an acoustic signal sounds. If you do not place the cooking vessel on the hot place within approx. 10 seconds, the appliance switches off. The cooling fan carries on cooling the appliance after it has been switched off.

8.3 Switching off with a

during operation. The control light

lights up, min ap- pears above the display and on the dis- play the chosen switch-off time appears in minutes (presetting:

minutes, the de- vice remains on).

Change the switch-off time by touching the symbol

in one-minute steps and by touching the symbol

in 10-min- ute steps. If you have set the chosen time and touch no further symbols, the timer starts automatically and the display switches over to W or °C again. At short intervals, the remaining time is dis- played together with min.

3. After the preset time has elapsed, the

appliance switches off. An acoustic sig- nal sounds. The symbol -H- is shown in the display, as the temperature of the cooking zone is more than 60 °C. The cooling fan carries on cooling the appli- ance after it has been switched off.

8.4 Child safety lock

To prevent unwanted alteration of the set- tings, the appliance is equipped with a child safety lock. NOTE: if the child safety lock is activated while in operation, the symbols child safety lock 6 and on/off 5 are not blocked and you can switch the device off. You will only be able to switch the device on, once the child safety lock has been deactivated.

• Touch the symbol child safety lock 6. The control light for the child safety lock3 lights up and an acoustic signal sounds. All symbols except the child safety lock 6 are now blocked.

• Touch the symbol child safety lock 6 for at least 4 seconds to override the child safety lock. An acoustic signal sounds and the control light for the child safety lock3 goes out. The symbols are no longer blocked.

DANGER! Risk of electric shock!

• Pull the mains plug1 out of the wall socket before you clean the device.

• The induction hot plate, the power ca- ble1 and the mains plug1 must not be immersed in water or any other liquids. DANGER! Risk of injury through burning! Allow the device to cool down be- fore cleaning. WARNING! Risk of material damage!

• Do not use any astringent or abrasive cleaning agents.

• Clean the cooking zone2 after every use. In this way, you can prevent any ad- hering food residues from burning on.

• Clean all surfaces and the power ca- ble1 with a slightly moistened cloth.

• Baked-on residues on the cooking zone2 can be removed with a ceramic hob scraper, which may be purchased at a department store.

DANGER for children! Keep the device out of the reach of children.

The symbol showing a wheel- ie bin crossed through indi- cates that the product requires separate refuse collection in the European Union. This ap- plies to the product and all ac- cessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic applianc- es. Recycling helps to reduce the consumption of raw materials and protect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country.

12. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! Do not attempt to repair the device yourself under any circumstances.

specifications Subject to technical modification. Fault Possible causes/ Action No function

• Has the device been connected to the pow- er supply?

• Check the connection. The cooking zone is not heating up

• No cooking vessel on the cooking zone2?

• Is the cooking vessel suitable for induction cooking zones? Error message E 1 on the dis- play

• No cooking vessel on the cooking zone2?

• Unsuitable cookware on the cooking zone?

• Cooking vessel not placed centrally on the cooking zone? Error messages E 2 to E 7

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are present- ed, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. The warranty applies to material or factory defects. This warranty does not include prod- uct parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 90248 and the purchase receipt as a purchase verification for all inquiries.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. Please visit www.lidl-service.com to download this and many other manuals, product videos and soft- ware. __RP90248_B1.book Seite 50 Freitag, 1. März 2013 10:48 1051
