Introduction

Congratulations on the purchase of your new appliance!

You have decided in favour of a modern, high-quality product. These operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. This appliance may only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is protected by copyright.

Any reproduction, or any reprint even in the form of excerpts, as well as the rendi tion of figures even in modifi ed form, is only permitted with the manufacturer's written consent.

Limitation of liability

All the technical information, data and instructions regarding installation, connection and operation contained in these operating instructions corresponds to the latest information available to us at the time of printing and takes our previous experience and know-how into account.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifi cations or for the use of non-approved replacement parts.

Intended use

This appliance is intended exclusively for the sealing and vacuum-packing of foodstuff in household quantities and only in private households. This device is not intended for commercial or industrial applications or for continuous use.

It is not intended for any other use or use beyond that specified. Claims of any kind for damage arising as a result of incorrect use will not be accepted. The risk shall be borne solely by the user.

Package contents and transport inspection

The appliance is supplied with the following components as standard:

Vacuum Sealer
- 1 x tube film
These operating instructions

NOTE

Check the package for completeness and for signs of visible damage.
If the consignment is incomplete or damaged due to defective packaging or carriage, contact the Service hotline (see the chapter Service).

Unpacking

Remove the appliance, the tube fi lm and the operating instructions from the carton.
Remove all packaging material.

DANGER

Packaging materials should not be used as a plaything. Risk of suffocation.

Disposal of packaging materials

The packaging protects the appliance from damage during carriage.
The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the materials cycle conserves raw materials and reduces the amount of waste that is generated. Dispos of packaging materials that are no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the original packaging during the warranty period so that the device can be properly packed for returning in the event of a warranty claim.

Description of the appliance

Figure A

1 Appliance lid
Suction tube
3 Cable retainer
Welding wire
Lower sealing ring
Rear limiters
Front limiters
8 Lid release
Upper sealing ring
Press seal

Figure B

Red control lamp
12 button (seal)
13 button (stop)
10 lonVacuum/welding)
15 Green control lamp

Technical data

Operating voltage 220 - 240 V ~, 50 Hz
Power consumption 110 W
Protection class	II/☐
Recommended operating time 20 seconds
Recommended break time 80 seconds

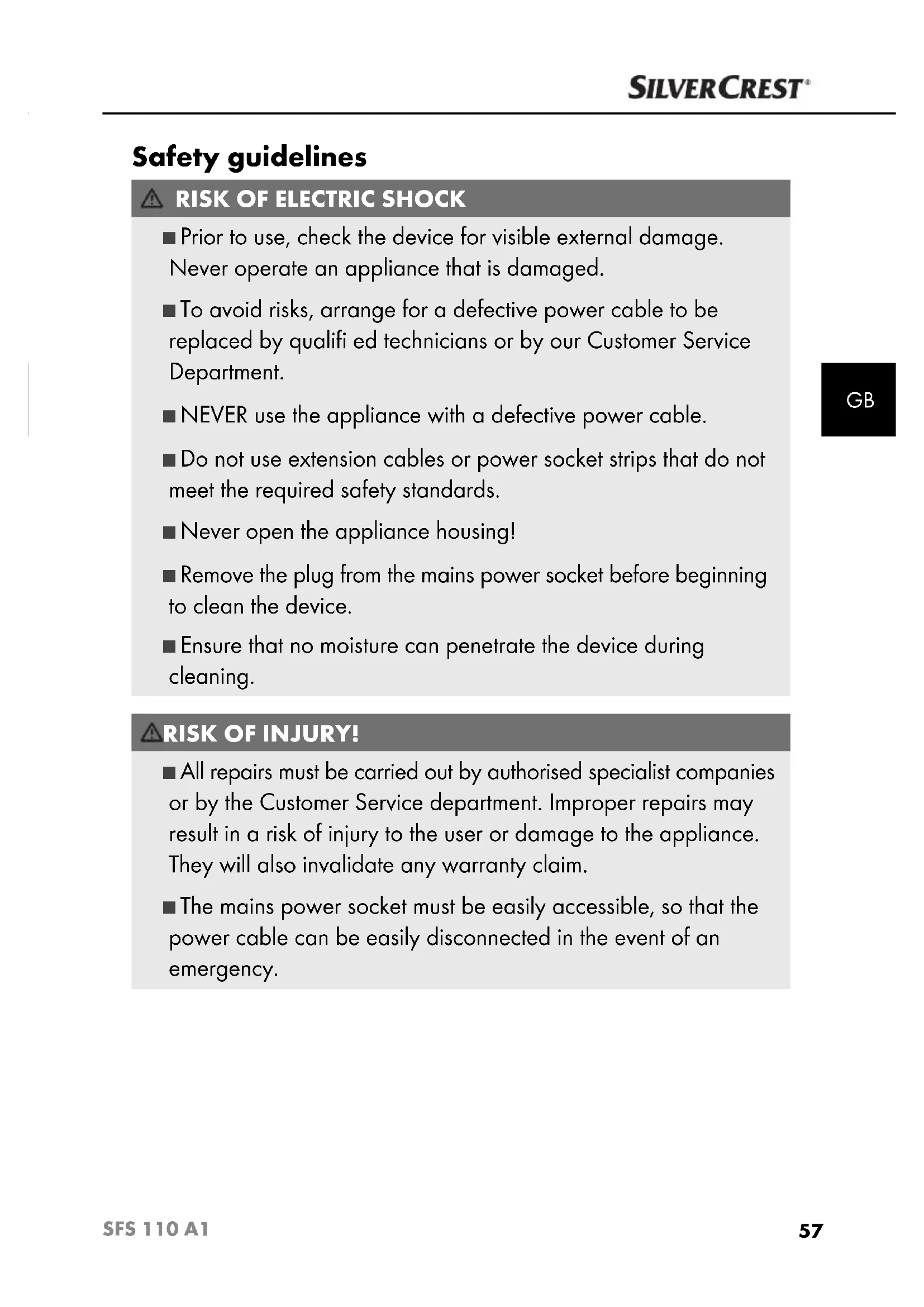

Safety guidelines

RISK OF ELECTRIC SHOCK

Prior to use, check the device for visible external damage. Never operate an appliance that is damaged.
To avoid risks, arrange for a defective power cable to be replaced by qualified technicians or by our Customer Service Department.
NEVER use the appliance with a defective power cable.
- Do not use extension cables or power socket strips that do not meet the required safety standards.
Never open the appliance housing!
- Remove the plug from the mains power socket before beginning to clean the device.
- Ensure that no moisture can penetrate the device during cleaning.

RISK OF INJURY!

All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may result in a risk of injury to the user or damage to the appliance. They will also invalidate any warranty claim.
The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency.

RISK OF INJURY!

• Cleaning and user maintenance must not be carried out by children, unless they are aged 8 or over and are supervised.
  The appliance and its connecting cable must be kept away from children younger than 8 years old.
  This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.
  Children must not play with the appliance!
  Children should be supervised to ensure that they do not play with the appliance.
• Do not leave the appliance unsupervised when it is ready for use. To prevent it being switched on accidentally, always unplug the appliance after use or during breaks.

CAUTION - PROPERTY DAMAGE!

This appliance is not suitable for continuous use over long periods. Let the appliance cool down for a minimum 80 seconds after each vacuum process. The appliance could otherwise be irreparably damaged!
- Do not use an external timer switch or a separate remote control system to operate the appliance.

Setting up and connecting

Set-up location requirements

For safe and trouble-free operation of the device, the set-up location must fulfil I the following requirements:

■ When setting it up, place the appliance on a firm, fl at and horizontal surface.
- Do not place the device in a hot, wet or extremely damp environment or in the vicinity of flammable materials.
The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency.

Electrical connection

CAUTION

Before you connect the appliance, compare the connection data (voltage and frequency) on the data plate with that of your mains power network. These data must agree so that no damage is sustained by the device.
- Ensure that the power cable is undamaged and is not routed over hot surfaces and/or sharp edges.
Ensure that the power cable is not taut or kinked.
Do not let the power cable hang over edges (trip wire eff ect).
Insert the plug into the mains mains power socket.

Welding a tube fi lm

NOTES ON THE FILM

The fi lm width may not exceed 28~cm . Otherwise it cannot be welded correctly.

• Use only nylon-PE fims with a structure (points or grooves) on one side and that have a structure (points or grooves) on one side and a thickness of approximately 0.17 - 0.29 mm ( 170 - 290 ).

Otherwise the weld seam will not be tight and the appliance may be damaged. You can recognise fi lm's of this type from the information on the packaging. The quality of the weld seam will vary depending on the type and thickness of the fi lm.

The supplied fim is suitable for temperatures between -20^ and +100^ .

1) Cut the desired length for your bag from the tube fi lm using a pair of scissors. Cut as straight as possible.
2) Open the appliance lid ① by pressing the lid release ⑧ and opening the lid ① upwards.

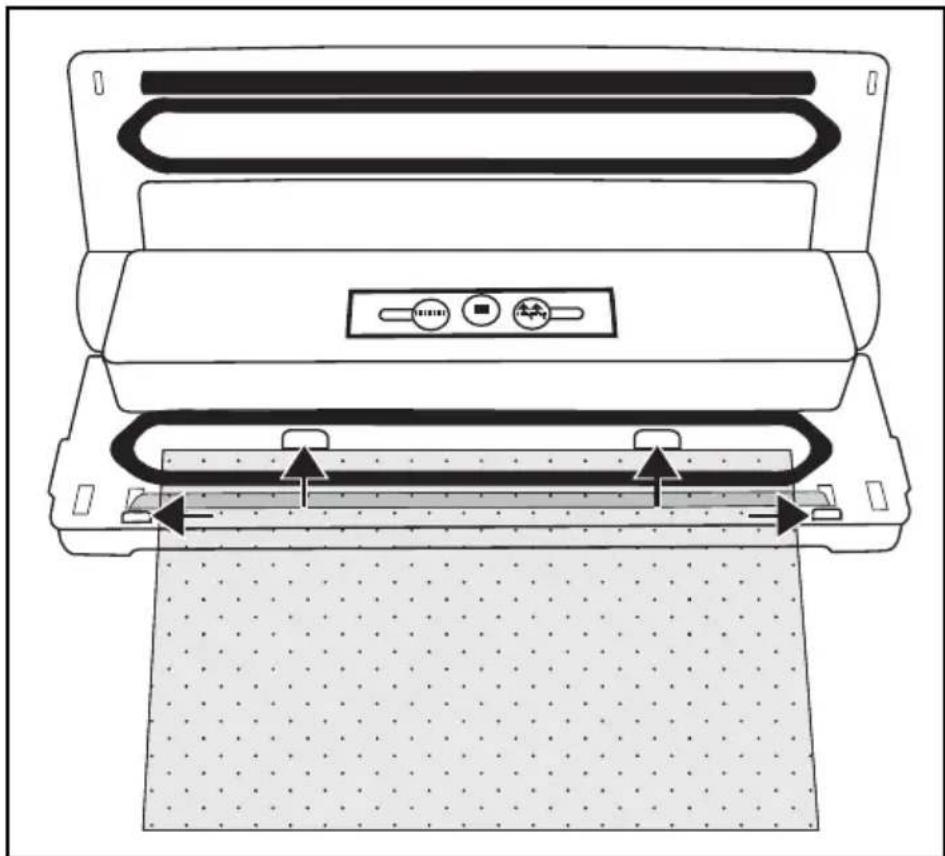

3) Lay the open end of the bag as far into the appliance so that the opening of the bag is located centrally under the lower sealing ring 5. The bag should be inserted no further than the rear limiters 6 and must lie between the front limiters 7. If the bag lies over one or both of the two limiters 7, then the bag cannot be correctly welded.

NOTE

The bag opening must lie flat on the welding wire. Otherwise the welding does not work properly.

4) Close the appliance lid ①. The press seal ⑩ presses the bag onto the welding wire ④, to create a smooth seam. Ensure that both corners of the appliance lid ① click closed. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.
5) Press the button 12. The red control lamp 11 lights up. As soon as the sealing process is finished, the red control lamp 11 goes off.

NOTE

• You can halt the sealing process at any time by pressing the button 13. The red control lamp 1 goes out.

CAUTION - PROPERTY DAMAGE!

If the red control lamp ① does not go out after a maximum of 10 seconds, there is a fault with the appliance.

• Remove the plug from the mains power socket immediately. Do not attempt to repair the appliance yourself. Contact the Customer Service department.

6) Open the appliance lid ① and remove the bag. This is now welded at one end.

NOTE

• Ensure that the weld seam is properly closed. A correct weld seam should be a smooth, straight stripe without any creases.

7) Fill the bag. You must leave at least 6cm of the bag free up to the edge to be welded.

CAUTION - PROPERTY DAMAGE!

• Fill the bag so that no food scraps or liquids can leak out during welding and get into the appliance.

8) If you do not want to vacuum the bag, you can now weld the other, open side.

Vacuuming the tube fi lm

You can also suck the air out of the bag (vacuum) during welding:

CAUTION - PROPERTY DAMAGE!

• Do not evacuate bags that contain liquids. These will get into the appliance and damage it.

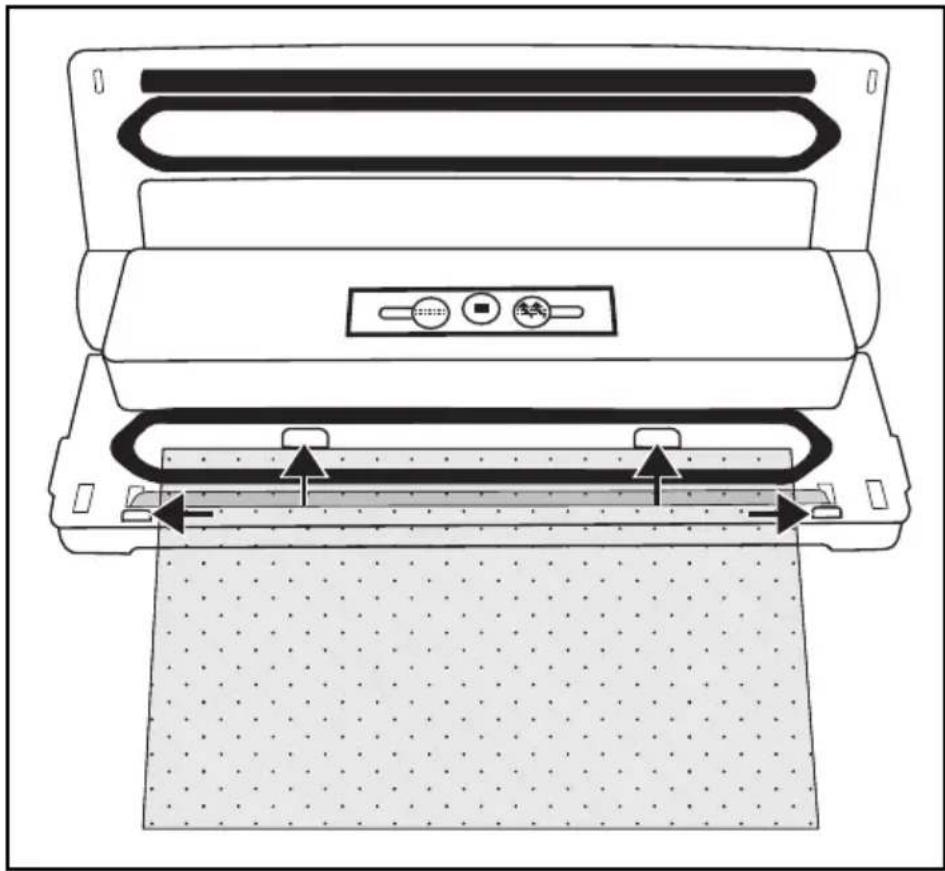

1) Lay the open end of the bag as far into the appliance so that the opening of the bag is located centrally under the lower sealing ring 5. The bag should be inserted no further than the rear limiters 6 and must lie between the front limiters 7. Otherwise the vacuuming and welding will not function correctly:

2) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click closed. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.

NOTE

• Ensure that the upper 9 and the lower sealing rings 5 are not damaged! Otherwise the device cannot suck the air out of the bag.

3) Press the button. The green control lamp lights up and the appliance sucks the air out of the bag. As soon as all the air is sucked out, the red control lamp lights up. The appliance now seals the bag.
4) Once both control lamps 1/15 have extinguished, you can open the lid and remove the vacuum-sealed bag.

NOTE

• You can halt the air extraction process at any time by pressing the button 13. The green control lamp will then go off. Press the button again to resume the extraction process.

If the appliance has already switched to the sealing process and the red control lamp 1 is lit, the process can be stopped with the button 3. The appliance then stops the sealing process.

TIP - "SOUS-VIDE COOKING"

As the supplied fi lm is suitable for temperatures between -20^ and +100^ , it can be used for the so-called "sous-vide" cooking process (vacuum cooking).

"Sous-vide" is French and means "under vacuum".

In vacuum cooking, the food (usually fish or meat, but vegetables can also be used) is vacuum-sealed in a bag and then cooked in water or steam cooked at a relatively low temperature (50 to 90 C). The advantage of this is that volatile flavours or aroma are not lost during cooking. The food does not dry out and the vitamins and flavours are preserved. Herbs or spices that are vacuum-sealed in the bag with the food give off a more intense flavour.

Cleaning

DANGER

Risk of fatal injury from electrocution!

• Remove the plug from the mains power socket before beginning to clean the device.
  Ensure that no moisture can penetrate the device during cleaning.

CAUTION

Possible damage to the appliance.

• Do not use aggressive or abrasive cleaning agents, as these may corrode the surface of the casing.
  Do not use any hard or sharp objects to remove any adhesive from the welding wire. Otherwise the welding wire or the insulation could be damaged.

Cleaning the appliance

Clean the surface of the housing of the appliance with a lightly moistened cloth and a mild detergent.
Wipe off the upper 9 and the lower sealing rings 5, as well as the press seal 10 with a damp cloth. Ensure that the appliance is dry before using it again.

Storage

The appliance has a built-in cable retainer 3 on the underside of the housing, on which you can wrap the power cable when it is not in use. This prevents the power cable from getting caught or soiled, or becoming a source of danger by hanging loosely down.

CAUTION

Possible damage to the appliance.

• Do not click the appliance lid ① closed for storage! When the appliance lid ① is clicked closed it exerts permanent pressure on the upper ⑨ and lower sealing rings ⑤, as well as the press seal ⑩. This can negatively affect their function.

Store the appliance in a clean, dry place away from direct sunlight.

Disposal

Under no circumstances should you dispose of the appliance with the normal household waste.

This product is subject to the provisions of European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).

Dispos of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations. In case of doubt, please contact your waste disposal centre.

Notes on the Declaration of Conformity

In regard to compliance with fundamental requirements and other relevant provisions, this device complies with the European Electromagnetic Compatibility Directive 2004/108/EC, RoHS Directive: 2011/65/EU, and the Low-Voltage Directive 2006/95/EC.

The complete Declaration of Conformity, in its original form, is available from the importer.

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Warranty

You are provided a 3-year warranty on this appliance, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty applies only to claims for material and manufacturing defects, not for transport damage, wearing parts or for damage to fragile components, e.g. bulbs or switches.

This appliance is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and interventions which have not been carried out by one of our authorised Service centres.

Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components.

Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge.
