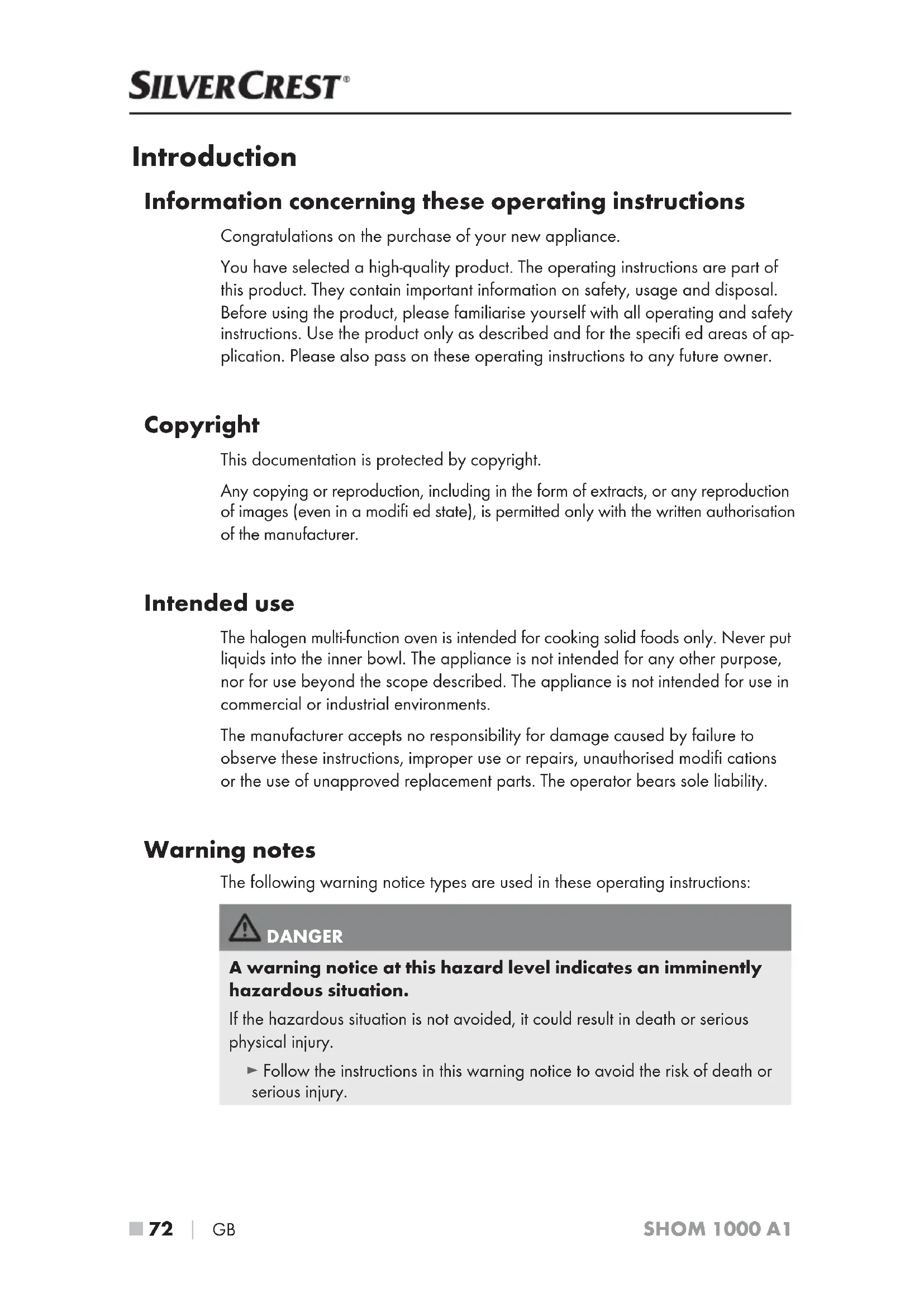

Introduction

Information concerning these operating instructions

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Please also pass on these operating instructions to any future owner.

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Intended use

The halogen multi-function oven is intended for cooking solid foods only. Never put liquids into the inner bowl. The appliance is not intended for any other purpose, nor for use beyond the scope described. The appliance is not intended for use in commercial or industrial environments.

The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The operator bears sole liability.

Warning notes

The following warning notice types are used in these operating instructions:

DANGER

A warning notice at this hazard level indicates an imminently hazardous situation.

If the hazardous situation is not avoided, it could result in death or serious physical injury.

▶ Follow the instructions in this warning notice to avoid the risk of death or serious injury.

WARNING

A warning notice at this hazard level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in injury.

▶ Follow the instructions in this warning notice to prevent injury.

CAUTION

A warning notice at this hazard level indicates a potential for property damage.

Failure to avoid this situation could result in property damage.

▶ Follow the instructions in this warning notice to prevent property damage.

NOTE

▶ A note provides additional information which will assist you in using the appliance.

Safety

This section contains important safety instructions for using the appliance.

This appliance complies with statutory safety regulations. Improper use may result in personal injury and property damage.

Basic safety guidelines

To ensure safe operation of the appliance, follow the safety guidelines set out below:

■ Check the appliance for visible external damage before use. Do not operate an appliance that has been damaged or dropped.

This appliance may be used by children of the age of 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are being supervised or have been instructed with regard to the safe use of the appliance and have understood the potential risks.

■ Cleaning and user maintenance must not be performed by children unless they are older than 8 years of age and are supervised.

■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims.

■ Repairs to the appliance during the warranty period may only be carried out by a customer service department authorised by the manufacturer. Otherwise, no warranty claims will be held for any subsequent damages.

■ Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used.

■ Do not allow the power cable to come into contact with hot appliance parts. NEVER use the appliance near naked flames, a hotplate or a heated oven.

■ After use, allow the appliance to cool down completely before cleaning it. Risk of burns!

■ Install the appliance as close as possible to an electrical power socket. Ensure that the power plug is quickly reachable in case of danger, and also that there is no danger of tripping over the cable.

■ Provide a stable location for the appliance.

RISK OF ELECTRIC SHOCK!

The appliance should only be connected to correctly installed and earthed mains power sockets. Ensure that the rating for your local power supply corresponds with the details on the rating plate of the appliance.
To prevent accidents, arrange for customer service to repair or replace connecting cables and/or appliances that are not functioning properly or have been damaged.
To prevent accidents, have defective plugs and/or power cables replaced immediately by an authorised specialist technician or our Customer Service department.
▶ Children younger than 8 years of age must be kept away from the appliance and the power cable.
- Do not expose the appliance to rain, and never use it in a humid or wet environment.
- Ensure that the power cable never becomes wet or moist during use.

RISK OF ELECTRIC SHOCK!

▶ NEVER immerse the appliance in water or other liquids! There is a risk of a potentially fatal electric shock if residual moisture comes into contact with live components during operation.

▶ Always take hold of the plug when handling the power cable. Do not pull on the cable itself and never touch the power cable with wet hands, this could result in either a short circuit or an electric shock.

- Do not place the appliance itself, furniture items or similar objects on the power cable, and take steps to ensure it cannot become jammed or trapped in any way.

- Do not open the appliance housing or attempt to repair or modify the appliance. If the housing is opened or improper modifications are made, you run the risk of receiving a potentially fatal electric shock and the warranty will be void.

- Protect the appliance from drips or splashes of water. Do not place any vessels containing liquid (e.g. flower vases) on or near the appliance.

▶ Always pull the plug out of the power socket during each break in use, as well as after use and before any cleaning.

RISK OF BURNS!

The surface of the appliance can become extremely hot during use. Therefore touch only the white handle on the lid if it is hot.
▶ Always use oven gloves when handling the appliance while it is open and hot.
▶ Always wear oven gloves to hold the lifting aids on the inner bowl.

CAUTION! MATERIAL DAMAGE!

▶ Never block the vents in the appliance lid during use. Risk of overheating and fi re!
▶ Never operate the appliance with liquids in the inner bowl.
▶ Do not operate this appliance using an external time switch or a separate remote control system.
▶ Never leave the appliance unattended during operation.
▶ Ensure that the appliance, the power cable and the plug do not come into contact with heat sources such as hotplates or naked flames.
- Do not use charcoal or similar fuels to operate the appliance!
To protect the non-stick coating in the interior, do not use metallic tools such as knives, forks, etc. If the non-stick coating is damaged, stop using the appliance.
▶ Operate the appliance only with the original accessories supplied.

Operating components

(For illustrations see fold-out pages)

Figure A:

① Vents
② Control panel with buttons and display
③ Power cable with mains plug
4 Handle
5 Lid
⑥ Halogen heating element with fan
⑦ Release button for lock function in the open position
⑧ Lifting aids for the inner bowl
9 Base
10 Inner bowl

Figure B:

11 Basket
12 Skewers
13 Roasting spit
14 Grill rack
15 Tongs

Figure C:

16 Opening for rotary drive
⑰ Spit holder

Unpacking and installation

Safety instructions

WARNING

During the first use of the appliance there is a risk of injury and/or damage to property!

To avoid risks, observe the following safety instructions:

- Do not allow children to play with packaging materials. There is a risk of suffocation.

▶ Please follow the instructions regarding the electrical connection of the appliance to avoid damage to property.

Package contents and transport inspection

The appliance is supplied with the following components (see fold-out pages):

• Halogen multi-function oven
• Removable inner bowl 10
• Accessories:

1 × basket ⑪

1 × roasting spit ⑬

2 × skewers 12

1 × grill rack 14

1 × tongs 15

- Operating instructions

NOTE

▶ Check the package for completeness and for signs of visible damage.

▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Unpacking

◆ Remove all parts of the appliance and the operating instructions from the box.
◆ Remove all packaging material.
Remove the silicone sleeves which can be found over the two spacers on the side of the basket 11.
◆ Remove the protective film from the control panel.

Disposal of packaging materials

The packaging protects the device from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the device's original packaging during the warranty period so that the device can be packed properly for return shipment in the event of a warranty claim.

Handling and operation

This section provides you with important information on handling and using the device.

NOTE

This appliance operates with so-called "heating cycles". While the appliance is heating, the halogen heating element ⑥ works and the light in the appliance switches on. Once the appliance reaches the set temperature, the halogen heating element ⑥ switches off. The light goes out. As soon as the temperature falls below the set temperature, the halogen heating element ⑥ and the light turn on again. Accordingly, if the light turns on and off during use this is normal and not an appliance malfunction!

Before fi rst use

1) Clean all accessories as described in the section "Cleaning and care" to remove any production residues.

2) Read these operating instructions carefully.

3) Install the appliance in accordance with the safety instructions.

4) Open the lid ⑤ with the handle ④ until the lock engages.

5) Remove the inner bowl ⑩. Clean the inner bowl ⑩ and the appliance with a damp cloth as described in "Cleaning and Care".

6) Replace the inner bowl ⑩ in the appliance so that the opening ⑯ in the side of the bowl is above the rotary drive.

7) Raise the lid ⑤ slightly with the handle ④ and press the release button ⑦ for the lock function. Close the lid ⑤.

8) Insert the plug on the mains cable ③ into a properly connected and earthed mains power socket which supplies the voltage stated in the section "Technical data". "----" fl ashes on the display.

9) Allow the appliance heat up for 5 minutes. Press the ⏻ button to switch the appliance on, and then the ⏱ button followed by the Temp | Timer button ⏻. Keep the ⏱ button pressed until "5" flashes on the display. Press the ⏱ button to start heating.

NOTE

The first time the appliance heats up, a small amount of smoke and odour may be generated due to production-related residue. This is normal and is completely harmless. Ensure sufficient ventilation; for example, by opening a window.

10) After heating, pull the plug out of the mains socket and allow the appliance to cool down for at least 20 minutes.

11) Clean the appliance again with a damp cloth.

Accessories

♦ Depending on the type of food you want to prepare, you can use one of the following accessories:

Part Description Use
	Roasting spit 13	For use in conjunction with the basket 11 or the skewers 12.
	Basket 11	For preparing French fries and food products which need to be rotated in the appliance to ensure even cooking.
	Skewers 12	Positioning aids for preparing a whole chicken or other poultry.
	Grill rack 14	For preparing larger food items, for cooking food au gratin in suitable containers.
	Tongs 15	For the insertion and removal of food, the basket 11 or the grill rack 14.

Using the basket

1) When using the basket ⑪, first open it, add the food and then close it again. Please make sure that you fill the basket so that the food can still move freely in the basket ⑪ while it is turning and does not get jammed. If the pieces of food are too large and jam, cut them into smaller pieces or reduce the number of pieces.
2) Push the roasting spit ⑬ through the square holes in the sides of the basket ⑪.
3) Remove the locking screws from the skewers 12 and the screw the locking screws into the threaded holes on the spacers on the side of the basket 11.
4) Fix the basket ⑪ on the middle of the roasting spit ⑬. Guide the slightly pointed end of the roasting spit ⑭ through the opening ⑮ in the inner bowl ⑯ and through into the rotary drive.
5) Hang the other end of the roasting spit ⑬ with its notch into the spit holder ⑰ in the inner bowl ⑪.

Using the roasting spit

1) When using the roasting spit ⑬ to grill poultry or similar, push the slightly pointed end of the roasting spit ⑬ forwards through the food until it is centred on the spit ⑬.
2) Turn the locking screws far enough out of the skewers 12 until you can push them and their guides over the roasting spit 13.
3) Fix the food onto the centre of the roasting spit ⑬ using the skewers ⑫.
4) Tighten the screws on the skewers 12 hand tight.
5) Guide the slightly pointed end of the roasting spit 13 through the opening 16 in the inner bowl 10 and through into the rotary drive.
6) Hang the other end of the roasting spit ⑬ with its notch into the spit holder ⑰ in the inner bowl ⑪.

Using the grill rack

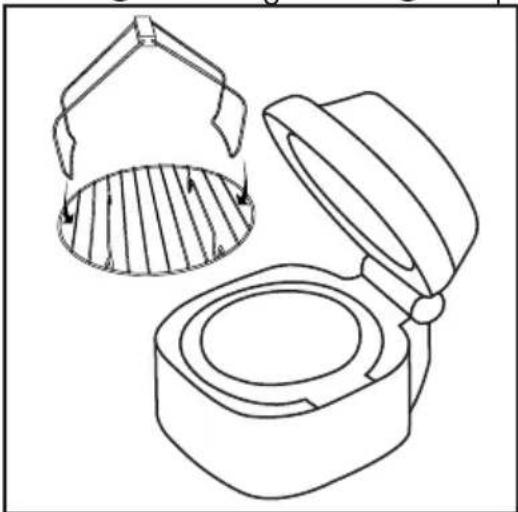

To use the grill rack 14, you need to place it on the bottom of the inner bowl 10.

NOTE

When inserting the grill rack 14, ensure that the rack does not get caught on the spit holder 17 in the inner bowl 10.

Using the tongs

RISK OF BURNS!

▶ Always use oven gloves when you remove food or accessories such as the inner bowl ⑩, the basket ⑪ or the grill rack ⑭ from the hot appliance.
▶ Wear oven gloves even when using the tongs 15 to remove items.

1) You will need to assemble the tongs before first use.

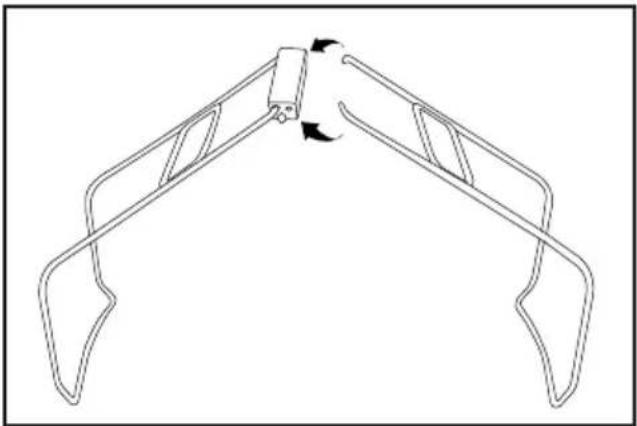

Push the ends of the open side of one of the metal brackets into the small holes of the white plastic connector which is already attached to the other bracket.

Line drawing of a mechanical component with two curved arms and a central rectangular block, no text or symbols present.

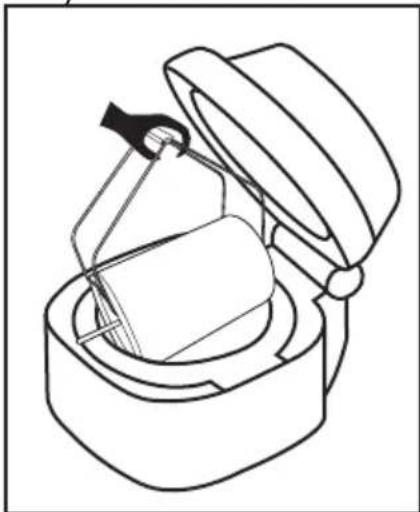

2) Use the tongs 15 to insert and remove food, as well as to handle the basket 11 and the grill rack 14 - especially if these are hot:

Technical line drawing of a mechanical device with two views: top shows internal gear, bottom shows open housing (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

NOTE

If you are preparing food on the grill rack 14, remove the cooked food first with a fork or similar. Then you can remove the grill rack 14 with the tongs 15.

Operation

1) If the lid ⑤ is open, lift it slightly using the handle ④ and press the release button ⑦ for the lock function. Close the lid ⑤.

2) Replace the plug in the mains power socket. "----" fl ashes on the display.

3) Press the button to switch on the device. "If flashes on the display.

4) Press the menu button Ⓤ repeatedly until the required cooking function is displayed. Each function has preset medium cooking temperatures and times that are suitable for average quantities of food. The LED next the symbol shows the selected function.

The following functions are available:

Symbol Function Cooking temperature		Cooking time
	Chicken 220°C 60 min.
	French fries 230°C 20 min.
	Pizza 200°C 15 min.
	Fish 160°C 10 min.
	Steak 230°C 8 min.
	Vegetables 140°C 20 min.

When you select a function, the preset cooking temperature will be shown on the display. If you want a different cooking temperature, you can set this to anything between 50°C and 230°C in 1° increments by pressing the ⊖ or ⊕ buttons. If you hold down the ⊖ or the ⊕ button, the temperature setting changes in increments of 10°.

5) Press the Temp | Timer button ⏻ to switch between the cooking temperature and cooking time. You can set the displayed cooking time to between 1 and 60 minutes by pressing (or pressing and holding) the ⊖ or the ⊕ button.

NOTES

When experimenting with cooking times, start with low values and increase them until you find the correct cooking time.
▶ Changes to the cooking temperature will not be stored in the appliance and must be re-entered later.
The rotisserie function is activated by default for all cooking functions. This is indicated by the LED above the rotisserie button ⓄTo switch off the rotisserie function for the upcoming cooking process, press the rotisserie button ⓄThe LED will go out. The direction of rotation changes for each cooking process.

6) Pull the lid ⑤ up using the handle ④ until the lock engages.

7) Taking into account the explanations in the section "Accessories", add the food to be prepared to the inner bowl 10 of the appliance.

CAUTION

Damage to the device!

▶ Position the food in the inner bowl ⑩ so that the heating element ⑥ does not come into contact with the food when the lid ⑤ is closed. Take into account the rotation of the food (if applicable).
▶ Bear in mind that semi-solid food should not be filled any higher than the opening 16 in the inner bowl 10. Otherwise food can get into the rotary drive.

NOTE

If you are not using the basket ⑪, place the food at a distance of 2 cm to the inner bowl ⑩ so that hot air can circulate unimpeded throughout the inner bowl ⑩.

The weight of the food to be cooked must not exceed 5 kg.

8) Raise the lid ⑤ slightly using the handle ④ and press the release button ⑦ for the lock function. Close the lid ⑤.

9) Press the button to start cooking. The appliance does not need to be preheated and the time shown on the display starts counting down.

10) After a short time, check the progress of the cooking/the browning of the food being cooked.

If necessary, carefully open the lid ⑤ using the handle ④ until the lock engages. While the lid ⑤ is open, the cooking process is paused.

RISK OF BURNS!

▶ Open the lid ⑤ using the white handle ④ only.

▶ When you open the lid ^5 during or towards the end of a cooking process, extremely hot air streams out of the interior of the appliance.

▶ Never touch the heating element ⑥!

Raise the lid ⑤ slightly using the handle ④ and press the release button ⑦ for the lock function. Close the appliance lid ⑤ using the handle ④. The cooking process resumes.

At the end of the cooking process, you will hear 5 beeps and "End" will flash on the display. The fan runs on for about 30 seconds to cool down the heating element 6.

11) Switch off the appliance with the ON/OFF button or set up another cooking process.

12) When you are satisfied with the cooking process, remove the grilled food. Carefully open the lid ⑤ using the handle ④ until the lock engages.

RISK OF BURNS!

▶ Always use oven gloves when you remove food or accessories such as the inner bowl ⑩, the basket ⑪ or the grill rack ⑭ from the hot appliance.

▶ Wear oven gloves even when using the tongs 15 to remove items.

CAUTION

Damage to the device!

▶ Do not use pointed or sharp objects (with the exception of the roasting spit ⑬) to remove the cooked food. These could damage the coating on the inner bowl ⑭!
▶ When inserting and removing the roasting spit, take care not to damage the coating on the inner bowl ⑩!

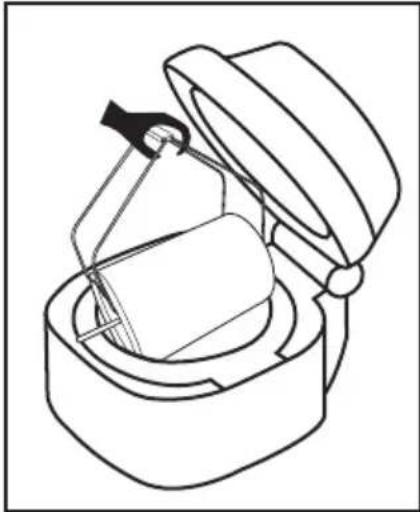

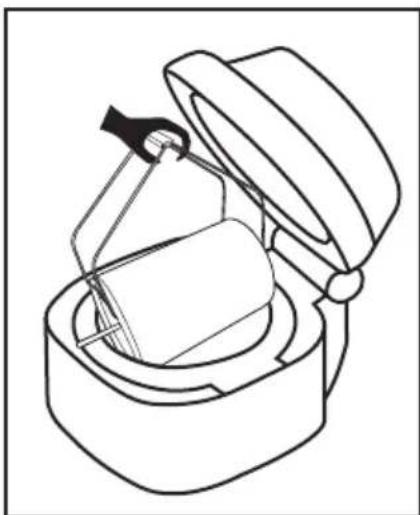

If you have used the basket ⑪, lift it out using the tongs ⑮ so that the roasting spit ⑬ comes first out of the spit holder ⑰ on the side with the notch in the inner bowl ⑰ and then out of the rotary drive.

If you have cooked food on the roasting spit 13, lift it out using the tongs 15 so that it first comes out of the spit holder on the side with the notch in the inner bowl 10 and then out of the rotary drive.

If you use the grill rack 14, remove the grilled food and then use the tongs 15 to grip it on the side by the outer bars of the grill rack 14 (see sections "Accessories/Using the tongs") and remove it from the inner bowl 10.

To remove the hot inner bowl 10 from the appliance, always use oven gloves. Touch the inner bowl 10 only with oven gloves and only on its lifting aids 8.

13) Raise the lid ⑤ slightly using the handle ④ and press the release button ⑦ for the lock function. Close the lid ⑤.

14) Remove the power plug from the mains power socket.

Tips and tricks

To make meat more tender, you can marinate it beforehand. An ideal basis for this can be sour cream, red wine, vinegar, buttermilk or fresh papaya or pineapple juice, for example. Add herbs and spices according to taste. Ideally, leave it overnight. Do not add salt as this can draw water out of the meat and make it dry. Do not place the marinated meat in the inner bowl until after it has been carefully drained.

If you are not sure whether the food is cooked all the way through, you can use a commercially available meat thermometer.

■ You can also cook frozen food. Simply increase the cooking time depending on the weight.

■ When baking pizza, we recommend placing baking paper on the grill rack 14.

■ Here you can see an overview of commonly used cooking process and the accessories to be used:

Food	Cooking temperature	Cooking time	Accessories Note
Roast chicken 220°C		approx. 60 min.	Roasting spit
Frozen French fries	230°C	approx. 20 min.	Basket	Max. fi lling quantity: 350 g
Fresh French fries	230°C 20–25 min. Basket			Max. fi lling quantity: 350 g
Chicken wings 230°C		approx. 30 min.	Basket/grill rack
Pizza 200°C 10–15 min. Cooking grill				max. pizza diameter 19 cm
Steak 190°C 12–16 min. Cooking grill
Prawns 200°C 5–8 min.	Cooking grill

Cleaning and care

Safety instructions

WARNING! DANGER TO LIFE DUE TO ELECTRIC SHOCK!

Risk of injury when cleaning the appliance!

To avoid risks, observe the following safety instructions:

Before cleaning, pull out the plug and wait until the appliance has completely cooled down. Risk of injury!

▶ Never clean the appliance under running water and never immerse it in water. The appliance could be irreparably damaged!

CAUTION

Damage to the device!

▶ To avoid irreparable damage to the device, ensure that no moisture can penetrate the device during cleaning.
- When cleaning the surfaces use neither abrasive or chemical cleaners, nor sharp or scratchy objects.

Wipe out the inner bowl 10 with a damp cloth. For stubborn soiling use a mild detergent on the cloth. Do not use any abrasive cleaning agents, rough sponges or sharp objects for cleaning as these could damage the non-stick coating.

■ For stubborn crusting, lay a wet cloth on the baked-on residues to soften them.

■ Wipe the inside of the lid with a cloth dampened with water and washing-up liquid. Afterwards, wipe it off with a cloth moistened only with water to ensure that no detergent remains. Take care that no water gets into the slots above the halogen heating element ⑥.

If dirt gets into the slits above the halogen heating element ⑥, you can clean these by inserting a damp cloth a little way into the slits. For fatty residues, add a little washing-up liquid to the cloth. Afterwards, wipe it off with a cloth moistened only with water to ensure that no detergent remains.

■ Clean the accessories with hot water and washing-up liquid. Rinse them off afterwards in clean water to remove all detergent residues.

■ Wipe down the outer surfaces with a damp cloth.

■ Ensure that all parts are completely dry before re-using the appliance.

Storage

Store the cleaned appliance in a clean and dry location.

Storage/disposal

Storage

If you plan not to use the appliance for a long period, store it in a clean, dry place away from direct sunlight.

Disposal of the device

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU-WEEE (Waste Electrical and Electronic Equipment).

Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please comply with all applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Appendix

Technical data

Halogen multi-function oven
Voltage supply 220–240 V	~ | 50/60 Hz
Power consumption 1000 W
Protection class I
	All of the parts of this appliance that come into contact with food are food-safe.

Warranty

This appliance is provided with a 3-year warranty valid from the date of purchase. The appliance has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches or batteries.

This appliance is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components.

Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase.

Repairs carried out after expiry of the warranty period shall be subject to charge.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 274455

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com
