Product type	Raclette Grill with natural cooking stone
Brand	SEVERIN
Model	RG 2683
Power supply	Mains, grounded plug (220-240 V)
Power	Approx. 1200 W
Dimensions (L x W x H)	Approx. 40 x 30 x 15 cm
Weight	Approx. 3 kg
Stone material	Natural stone
Cooking surface	Grooved plate + natural stone
Number of pans	8 mini pans (estimate)
Thermostat	Adjustable with indicator light
Stone preheating	Approx. 40 minutes
Plate preheating	Approx. 10 minutes
Stone cleaning	With running water, no detergent, synthetic sponge
Plate and pan cleaning	Warm soapy water then drying
Safety	Unplug after use, do not immerse, hot surface
Warranty	2 years
After-sales service	Authorized service centers (see manual)

Frequently Asked Questions - RG 2683 SEVERIN

How to use the cooking stone for the first time?

Before first use, clean the stone with a damp cloth. Heat the empty appliance for about 10 minutes (plate) or 40 minutes (stone) to eliminate manufacturing odors. Ensure good ventilation.

What is the recommended preheating time?

For the cooking plate, allow about 10 minutes. For the natural cooking stone, preheating takes about 40 minutes.

How to clean the cooking stone?

Clean the stone only under running water with a synthetic sponge without detergent. Do not immerse it and dry it thoroughly with a soft cloth.

How to clean the cooking plate and pans?

Wash the plate and mini pans with warm soapy water, then dry them thoroughly. Do not use abrasive products.

Can frozen foods be used on the stone?

No, do not place any frozen food on the natural cooking stone. Thaw foods before grilling.

Can the stone be used with vinegar or mustard?

No, avoid any contact with foods containing vinegar (like pickles or mustard) as this could damage the stone.

How to adjust the thermostat?

To grill or melt cheese, turn the thermostat fully to the right (maximum position). To keep warm, turn fully to the left (minimum position). The indicator light shows the heating cycle.

What safety precautions for children?

The appliance and its cord must be kept out of reach of children under 8 years. Children over 8 may only use it under supervision. Do not let children play with the appliance.

What to do if the appliance stops working?

Contact an authorized after-sales service. Repairs must be carried out by our customer service. Do not attempt to repair the appliance yourself.

What is the warranty duration?

The warranty is 2 years from the date of purchase against material and manufacturing defects. It does not cover normal wear, breakable parts, or damage due to improper use.

USER MANUAL RG 2683 SEVERIN

Black-and-white photo of a modern grater with multiple grates and food items, no visible text or symbols.

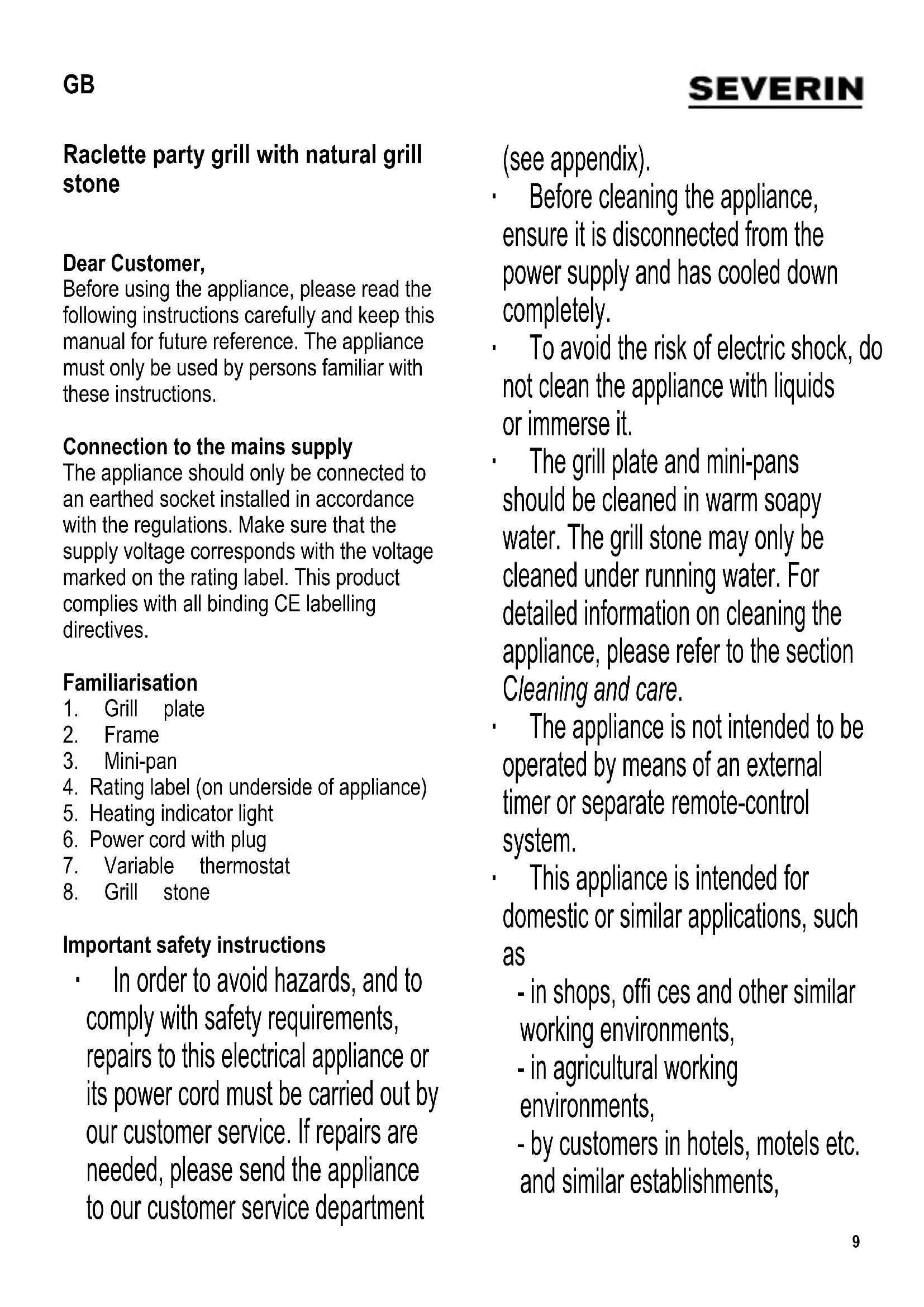

GB Instructions for use Raclette party grill with natural grill stone 9

Labeled diagram of a microwave grater with numbered components for identification

DE

Raclette party grill with natural grill stone

Dear Customer,

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Familiarisation

1. Grill plate
2. Frame
3. Mini-pan
4. Rating label (on underside of appliance)
5. Heating indicator light
6. Power cord with plug
7. Variable thermostat
8. Grill stone

Important safety instructions

- In order to avoid hazards, and to comply with safety requirements, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department

(see appendix).

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
  • To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it.
• The grill plate and mini-pans should be cleaned in warm soapy water. The grill stone may only be cleaned under running water. For detailed information on cleaning the appliance, please refer to the section Cleaning and care.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended for domestic or similar applications, such as
• in shops, offi ces and other similar working environments,
• in agricultural working environments,
• by customers in hotels, motels etc. and similar establishments,

- in bed-and breakfast type environments.

• This appliance may only be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  • Children must not be permitted to play with the appliance.
• Children must only be permitted to carry out any cleaning or maintenance work on the appliance if they are supervised and at least 8 years of age.
• The appliance and its power cord must be kept well away from children under 8 at all times.
• Caution: Keep any packaging materials well away from children – such materials are a potential source of danger, e.g. of suffocation.
• Before the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any faults or defects. Should the appliance, for instance, have been dropped onto a hard surface, or if

excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

• Do not allow the power cord to touch any hot part of the appliance.
• Caution: Danger of burns. The housing surfaces, grill areas and mini-pans become hot during use.
• Do not leave the appliance unattended while in use.
• During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes and stains. When cooking food with a high fat or moisture content, splashes are not always avoidable.
• Do not position the grill next to a wall or corner, and ensure that no infl ammable materials are stored near it.
• Before use, the grill stone and grill plate must be positioned on top of the appliance, above the heating element.

• Caution: Do not operate the appliance outdoors.
  • Always remove the plug from the wall socket

• after use,

• in case of any malfunction, and
• before cleaning the appliance.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- This appliance should only be used with the attachments provided by the manufacturer.

- Always allow the appliance sufficient time to cool down before removing the grill stone and grill plate, and before cleaning or storing the unit.

- No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

How to use your grill

Before fi rst use

Remove any packing materials completely. Before switching on the appliance for the first time, clean the grill stone, grill plate and minipans with a damp cloth.

We recommend that you heat up the appliance and the pans for about 10 minutes, without any food, to eliminate the smell typically encountered when first switching on a grill. A small amount of smoke may also be noticeable, so the room may have to be ventilated during this period.

Grill stone

• Fit the stone to the appliance above the heating element, with the polished side up. The thicker central part of the stone must rest between the two rails of the frame so that it is properly supported in position.
• Caution: avoid placing a cold stone onto a hot element.
• The stone can be used for cooking vegetables, sliced meat or fish etc. as required.
• It is entirely composed of natural material and small cracks resulting from natural expansion and contraction during heating and cooling, as well as a change to a darker colour, are normal and have no detrimental effects.
• Do not place any frozen food or items containing vinegar (such as pickled gherkins or mustard) on the stone.

Grill plate

Before the appliance is switched on, position the plate on top of the appliance over the heating element with the ribbed side up, ensuring that the recesses on the underside fit over the rails of the frame in such a way that the plate cannot move.

- The grill plate can be used for cooking vegetables, meat or fish.

Variable thermostat

- The variable thermostat controls the operating time of the heating element, with the yellow indicator light showing its current operating status.

Heating element on = indicator light on Heating element off = indicator light off

- When melting cheese or grilling, the maximum setting should be used (thermostat control all the way to the right). Simply to keep food warm, the thermostat should be adjusted to a lower setting (thermostat control further to the left).

- Turn the thermostat all the way to the left and unplug the appliance from the mains after use.

Operation

• Place the grill plate and grill stone onto the unit as described above.
• Insert the plug into a suitable wall socket and turn the thermostat all the way to the right.
  • After a pre-heating time of about 10 minutes, the grill plate is ready for use, but the stone requires a pre-heating time of around 40 minutes.
• Place the food to be cooked on the grill stone and plate. We recommend first applying a light coat of oil to the plate

and sprinkling a little salt on the stone to prevent sticking.

- Put the raclette cheese into the mini-pans and place them into the appliance under the heating element; then leave them until the cheese has melted.

Warning: Do not place empty mini-pans in the appliance while it is switched on, but leave them on a heat-resistant surface.

- Turn the thermostat all the way to the left and unplug the appliance from the mains after use.

How to prepare raclette cheese

Use about 200 to 300 grammes of suitable cheese per person. Cut the cheese into slices of about 3 to 5 mm thick and put them into the mini-pans. It is preferable to use original raclette cheese but any other fast-melting cheese is also suitable.

Practical hints

• Frozen food should always be properly thawed before it is cooked.
• To avoid damage to the coating of the mini-pans and the grill plate, use only non-abrasive utensils.

Cleaning and care

• Before cleaning the appliance, always make sure that the plug has been removed from the wall socket and allow the appliance to cool down completely.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• Do not use abrasives or harsh cleaning solutions.

• Wipe the outer surfaces of the grill with a clean damp cloth.

• Before the stone is removed for cleaning, ensure it has cooled down completely.
  Clean the stone with a synthetic sponge under running water without detergent.
  Wipe thoroughly dry afterwards with a soft cloth. Do not immerse the stone in water.
  • Take the grill plate off and clean it in warm soapy water; dry thoroughly with a soft cloth afterwards.

• Clean the mini-pans in warm soapy water and dry them thoroughly afterwards.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have

as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
