USER MANUAL Racer GT Mutsy

Close-up of a motorcycle's side profile with visible wheel and gear (no text or symbols)

Bedienungsanleitung

Sun-Verdeck

Close-up of a black cable with coiled spring and a circular badge labeled '9' (no text or symbols on the object itself)

Close-up of a mechanical assembly with wheel and shaft components (no visible text or symbols)

8 7 8 9a9a

Close-up of a medical device with a stethoscope and arrow pointing to a component (no visible text or symbols)

14 C A B D E F

Close-up of a mechanical device with no visible text or symbols

Sonnenschirmhalter

GB United Kingdom (UK)

Black-and-white photo of two smiling children, one kissing the other's mouth (no text or symbols visible)

Hartan

1 Handlebar
2 Handlebar catch
3 Safety turn lock
4 Handle-folding lock button
5 Wheel retention
6 Lock-type-swivel wheel
7 Parking brake
8 Adjustable suspension system

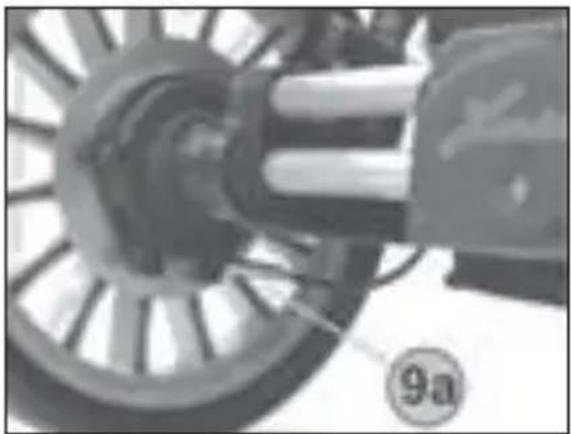

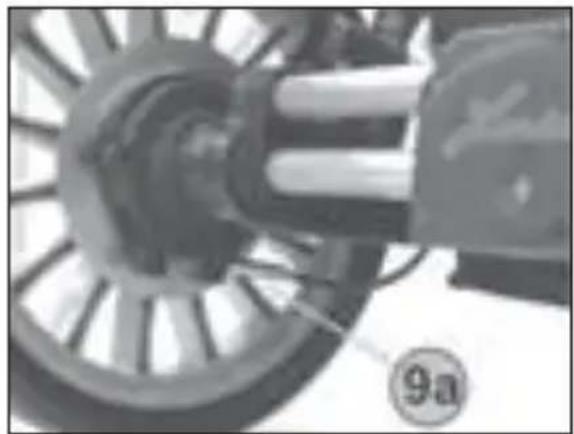

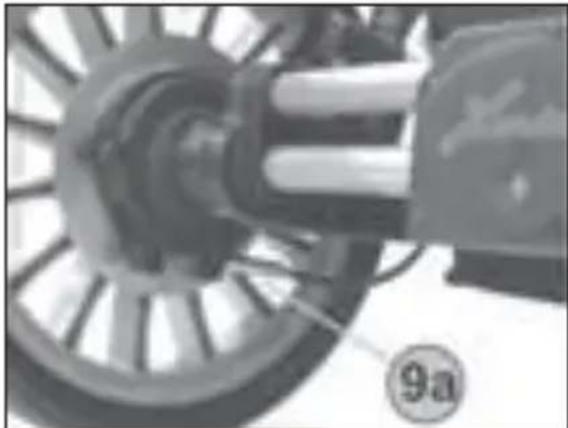

9 Readjustment of hand brake (optional)
9a Silently adjustable hood (optional)
10 Silently adjustable hood
11 Sun canopy
12 Hood and safety bar lock
13 Tilt-adjustable backrest
14 Safety belt
15 Adjustable footrest
16 Footrest extension
17 18 Fall-out protection
19 Automatic lock for upper section
20 Telescopic shock absorbers
21 Sun visor
22 Canopy attachment

Congratulations on your purchase

You want your baby to feel safe and secure, that's why you have purchased a Hartan high-quality product. You have made an excellent choice. Hartan products are manufactured with the greatest possible care and monitored constantly by rigorous quality control assuring that your pram will provide life-long satisfaction. The textiles used for our products have been tested for harmful substances (chemical residues) according to the industry's own ,Öko-Tex-Standard 100' to guarantee that all the fabric parts of your pram are safe for your baby.

Importantly! Please do not use this pram before reading the instructions carefully, and keep these instructions for queries or future reference. Your child's safety may be affected if you do not follow these instructions.

If you do not understand the instructions or if you require more detailed information, contact your dealer.

Please ensure that other users are also informed about the functions of the carriage and the notes on safety.

For the safety of your child

WARNING! Before use, conduct an initial check of the carriage, and do not use it if it is damaged or if parts are torn or broken.

WARNING! When folding and unfolding the stroller, make sure that your child is clear of any moving parts, in order to avoid any injury.

WARNING! Never leave your child unattended in the pram.

WARNING! Before using the pram, make sure the catches are locked in place and the carriage top is secured properly.

WARNING! Negotiating stairs or steps as well as overloading may damage the pram and endanger your child.

WARNING! When parking the pram, make sure the brake is engaged.

When using public transport, ensure the pram stands safely.

WARNING! A pram, stroller or carrycot is not a substitute for a cradle or a bed.

It is intended to be used exclusively as a means of transport.

WARNING! Using this pram while jogging, skating, etc. can be dangerous and is therefore not allowed.

WARNING! Do not allow children to play either near or with the pram.

WARNING! Use the safety belt for your child.

WARNING! Shopping bags must not be hung on the handle as this may affect the stability of the pram.

WARNING! This model has been designed for 1 child.

WARNING! A second child seat is not allowed for this model.

WARNING! The carriage top, the seat unit, and the carrycot may not be used as a child car seat in vehicles.

WARNING! The rain cover may not be used when the hood is taken off (danger of suffocation). Never expose the rain cover hood to sun while the child is in the carriage (overheating).

WARNING! Keep the carriage away from open fires or other sources of heat.

WARNING! Remove immediately all film packaging, and do not allow your child to play with it (asphyxiation).

WARNING! For safety reasons, only use Hartan accessories and replacement parts.

Instructions

Unfolding the pram

By pushing the lock buttons 4, unfold the upper section to bring the handle in horizontal position. Pull handle 1 upwards until handle catch 2 has engaged. WARNING! Before using the pram, make sure all catches are locked.

Folding the pram

Turn safety turn-lock 3 inward until the handle's catch 1 has released. Push handle downwards to fold the pram. By pushing the lock buttons 4, fold the handle's upper section inward.

WARNING! We recommend proceeding with caution when folding and unfolding the chassis, and adjusting the backrest, as there is a risk that you do yourself an injury such as jamming your limbs, fingers, etc.

Height adjustment of handlebar

Press the two handle-folding lock buttons 4 to bring the upper section of the handlebar 1 in the desired position.

Changing of wheels

Release the parking brake. Push the button 5 to release the retention, and pull off the wheel. Push the wheel right to the axle's stop, then depress the button. Make sure, all wheels are held in place properly.

Lock-type-swivel wheels

Turn the cap 6 so that the red point is visible to pre-select the straight-line motion mode, which will be activated the moment the wheels point in forward direction. Turn the cap 6 so that the green point is visible to release the swivel lock. To remove the wheel, release the push-button in the centre of the cap 6 and pull the wheel off the holding device. To assemble the wheel, insert the fastening pin in the holding device, and depress the push-button inside the cap, which is indicated by a click sound.

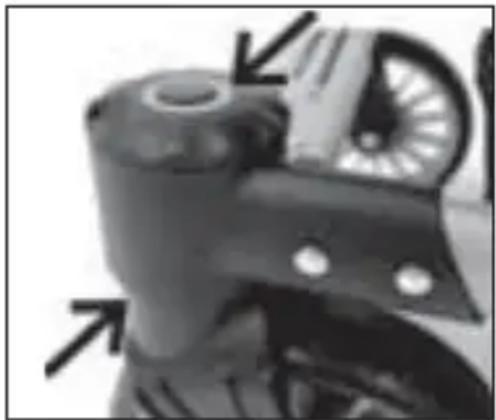

Making the swivel wheel attachment ready for use

Make sure the fastening pin is inserted completely and the pushbutton is closed.

Close-up of a motorcycle's wheel and side gear assembly (no visible text or symbols)

Sun canopy

Press the two front hood bows 10 together to adjust the hood. Adjusting the hood can be effected silently. By taking off the rear hood section 11, the hood can be converted into a sun canopy by means of a zip fastener.

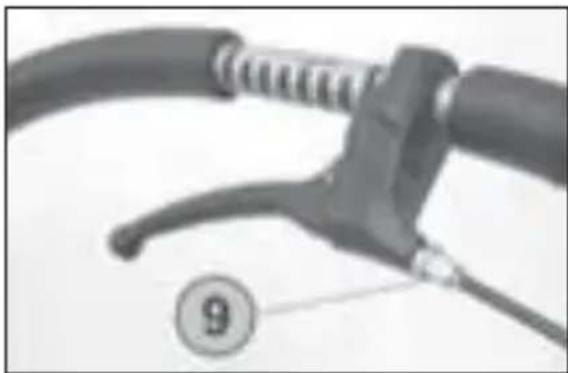

Readjustment of hand brake

Readjust the hand brake by means of the cable adjusting barrel 9 (above). A different brake effect on the two rear wheels can be corrected by means of the cable adjusting barrel 9a (below).

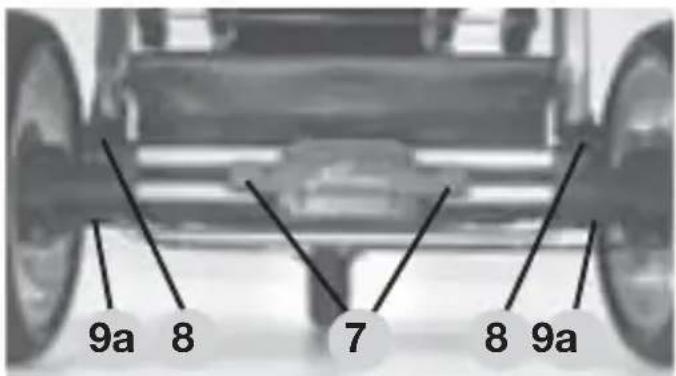

Adjustable suspension system

By turning the selector 8, a „hard“ or „soft“ position can be selected for suspension.

Parking brake

Push the red brake button 7 to engage the brake. Having parked the pram, try to push it to check thebrake. Push the green brake button 7 to release the brake. WAR-

NING! Make sure the brake is always closed when placing the baby in the carriage or taking it out of it.

Hood and safety bar

By pressing the bayonet joint 12, the hood or the safety bar can be pulled out. When inserting it, make sure the safety bar locks into place correctly and be careful not to pinch any of the fabric parts. By pressing the buttons, the safety bar position can be changed.

WARNING! The hood bar 10 of the stroller and the safety bar are not suitable for carrying the pram.

Close-up of a black bicycle handle with coiled spring and a numbered circle marker (no text or symbols on the handle itself)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

8 7 8 9a9a

Instructions

Climatic zone

To provide good ventilation to the hood and to prevent heat from accumulating inside, open the two zip fasteners 26 and fold up the hood flap. Use the Velcro band below the additional tap to secure the flap to the hood. As an additional protection, the sun visor 21 can be pulled out.

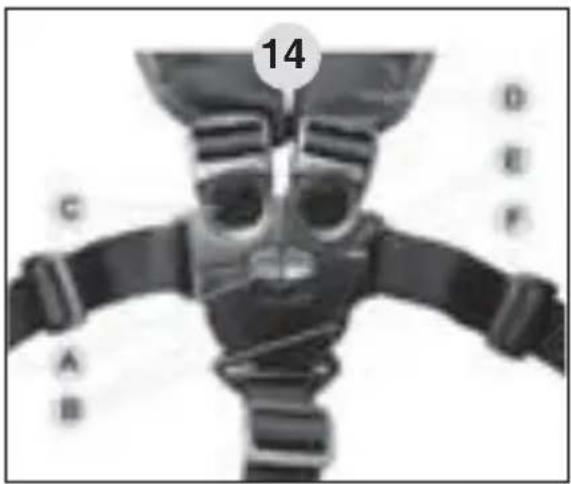

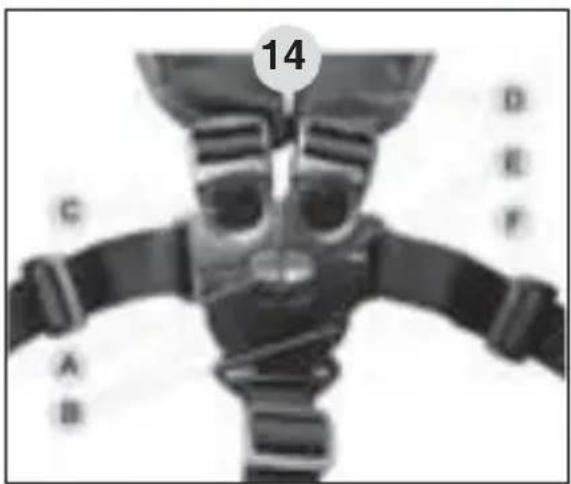

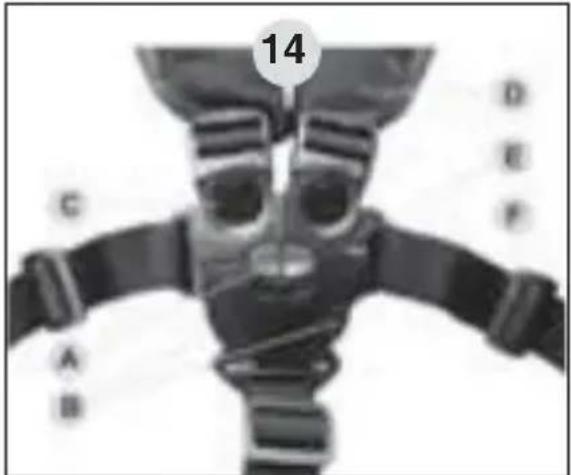

Safety belt WARNING!

Secure your child with the five-point harness system 14.

Make sure the shoulder straps D are plugged in and that the belt is securely fastened. The length of the belt can be adjusted with the sliding buckle F.

To undo the harness: press the two tongues B together using your thumb and forefinger, then press the red button A, so that you can pull the two plugs E out upwards. To undo the shoulder straps you then press button C.

Canopy attachment

Turn the canopy attachment clip so that the opening faces upwards. Remove the lower part of the canopy 22. Insert then the fixing peg of the canopy in the slot of the canopy attachment.

Close-up of a medical device with a stethoscope and a numbered label (26) on the chest, no readable text or symbols beyond the number.

14 C A B D E F

Close-up of a mechanical device with a cylindrical component and a black handle (no visible text or symbols)

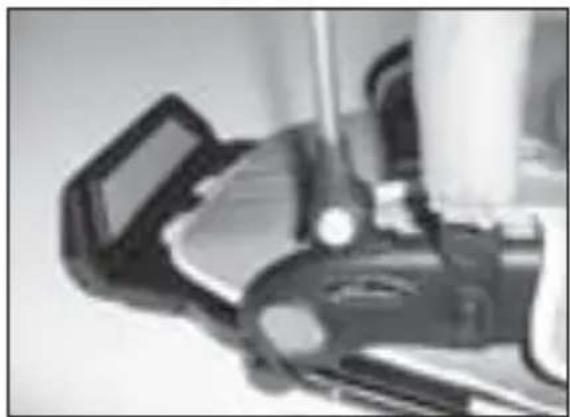

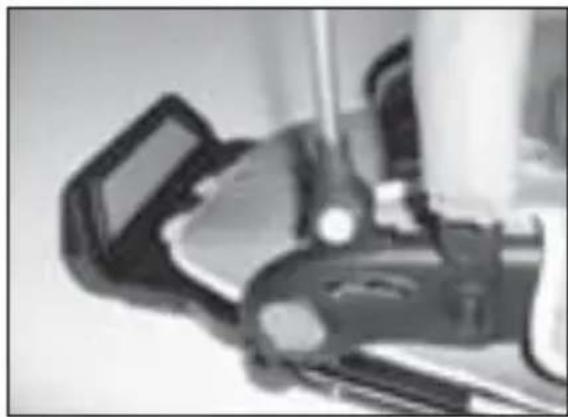

Adjusting the footrest

By pressing the two red safety buttons 15 at the same time, the footrest can be lowered. When lifting it, adjustment of positions is effected automatically. The footrest can be lengthened. To do this, pull the two red pins 16 and turn the footrest by 180°.

WARNING! In case the carrycot is attached to the frame, the footrest should always be in horizontal position, as an additional protection preventing it from slipping out. Secure the carrycot according to the operating instructions.

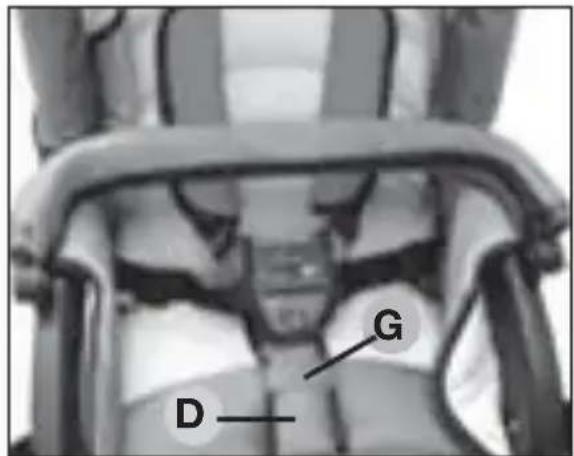

Automatic lock for upper section 19 Place the carrycot or stroller unit upon the chassis in a way that the two

G D—

lateral pins engage in the respective slots on each side. Then push the upper section right up to the stop. The catching pins on both sides engage auto matically, which is indicated each time by a click sound.

WARNING! By pulling the upper section horizontally, check before use whether it is fixed correctly! If the red safety point can still be seen, the upper-section lock has not yet completely closed! Pull the locking lever downwards until it snaps into place to open the lock and to remove the upper section.

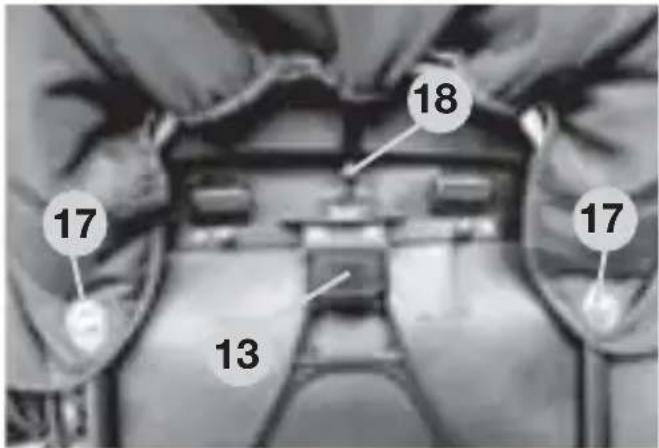

Fall-out protection WARNING!

As an additional protection preventing the baby from falling out of the carriage, secure the hood to the metal back. To do this, join the two grommets 17 to their respective turn-lock fasteners, and the hook lock 18 to the metal ring on the back plate as well.

13 17 17 18

Adjusting the backrest

By raising adjustment lever 13 on the back, the seat-back can be precisely adjusted to any incline between an upright seated position and a lying position. WARNING! When adjusting the backrest, take care that no movable parts jam the baby's limbs, or fingers, etc. Finally, make sure the backrest has reengaged properly.

Instructions

Suitability for your child

The Racer GT stroller unit is designed to carry a child from the age of 6 months, and up to 15kg in weight.

WARNING!

Only use this seat unit when your child is able to sit independently.

The Racer GT troller is not suitable for children under the age of 6 months except in connection with an appropriate carrycot.

All the materials we use can easily be cared for.

Care of the fabric parts

Clean soiled fabrics when dry using a clothes-brush or lukewarm water (then use hair dryer). Do not rub fabrics extensively. Remove tenacious stains using a soft detergent. All removable fabric parts may be machine washed in lukewarm water at a gentle setting and reduced agitation, at 30 °C. Let's say you have encountered a heavy rain shower. Dry your carriage with the hood still on in a dry and airy room using a cloth. This prevents marking as well as the underlining fabrics from moist soaking in through the seams. As a guaranteed protection against rain, we recommend that you use our rain cover, which is either included or can be purchased at your dealer's. Our fabrics have quite a number of distinctive features. However, they are very sensitive to excessive sunlight. That's why you should park your carriage in the shade whenever possible.

Care of the chassis

The chassis requires regular care. You should clean and slightly lubricate the wheel axles at a regular 4-weeks interval. Use a silicone based lubricant spray for all moving plastic parts to maintain them in an operative condition. Keep all coated and chrome-plated metal parts in dry condition, and use a finish restorer or chrome paste if necessary. Remove smaller chassis paint damages by means of a touch-up applicator. Do not use high-pressure cleaners when cleaning your carriage, due to risk of damaging the ball bearings of the wheels (greased) and other functional parts (grinding and creaking noise). Wheels: Overpressure may result in accidents and personal injuries. Replace worn plain wheel bearings and springs in time. Replace worn plain wheel bearings and springs in time. Little stones in the thread, etc. may just as well damage the floor covering. When parking the carriage in the blazing sun or cramming it in the boot at temperatures of above 40^ C, the semi pneumatic tires may flatten or become deformed.

For pneumatic tires

When using pneumatic wheels, make sure they have got enough air in the tire. Specified tire inflation pressure should be between 1.2 and 1.5bar max. WARNING! Max. tire pressure will be reached quickly. Tires tend to lose air over time. When blowing up a flat tire, inflate it only halfway first, and make sure the tire is evenly seated, to avoid “wobble”. Replace worn plain wheel bearings and springs in time. Then continue to inflate it to the proper pressure.

Quality agreement

2 YEARS warranty

This product is guaranteed for a period of 2 years by your contract partner. For possible submission of proof, please keep your receipt, the completed warranty card as well as the hand-over check bearing your signature for the length of the warranty period. These documents must be submitted to qualify for service under the warranty.

IN CASE OF WARRANTY CLAIM

This product is warranted against defects in materials and workmanship that existed at the time it was handed over.

THIS WARRANTY DOES NOT COVER .....

We disclaim liability for defects in the object of purchase that are beyond our control. This especially applies to:

■ natural wear and tear (wear-related defects) and defects due to excessive stress
■ consequential defects, originally caused by neglect of defects/damages but developing into conditions necessitating a more difficult repair
■ defects due to improper or inappropriate use (see Instructions)
■ defects due to incorrect assembly or operation
■ defects due to negligent handling or lack of maintenance of the product
■ defects due to improper alteration of the product.

WARRANTY CLAIM — YES OR NO?

Rust: To provide a proper basic protection of the chassis, it has undergone a rust-proofing treatment. However, rust-stains may be found when lacking maintenance. This case will not be covered by the warranty.

Scratches: Scratches caused by wear and tear will not be covered by the warranty.

Mould formation: Fabric parts, having become wet, should be dried properly to prevent mould formation (see Instructions). Mould formation will not be covered by the warranty.

Bleaching of the fabrics: We confirm that the fabrics comply with the established standards. It cannot be ruled out that colours of the fabrics may fade while the parts are exposed to direct sunlight, washed too frequently, come into contact with sweat and detergents, or suffer abrasive wear (especially on those parts where the pram is handled). Consequently, colour fading is excluded from the warranty. It is unavoidable that colours sometimes differ slightly from one individual batch to the next, which is why this case will not be covered under the warranty.

Knob formation on fabrics: We recommend that you apply general clothes care. As with woollen sweaters, the knobs can easily be removed by using a clothes-brush or burling machine.

Tearing of seams, fabrics, press studs : At the time of purchase, please check carefully that all the fabric parts, seams and snap fasteners have properly been sewn and fastened. In case of a possible complaint concerning seams/defective snap fasteners, a claim must immediately be reported to your dealer after the defect has been discovered.

Wheels: As wheels used on prams will not be balanced, they may show slight run-outs („wobbles“). Worn tires will be regarded as natural wear and tear. No claim can be raised if your pram, using pneumatic tired wheels, has a „flat“. This will be attributed to extraneous causes — a small hole caused by a pointed object, or pushing the pram about when it has not got enough air in the tire. This case will not be covered by the warranty.

Quality agreement

WHAT TO REMEMBER WHEN BUYING YOUR PRAM

Check that your pram is complete when it is handed over and no parts are missing. Check the function of all parts and confirm this by signing the hand-over check.

WHAT TO DO IN CASE OF A COMPLAINT

Call your dealer, from whom you bought the pram, to file the complaint and to discuss how to handle the matter. In case of defects concerning safety regulations, your complaint must be filed at your dealer within a 30 days period from the date the defects have occurred, otherwise these defects will not be warranted for. When handling your warranty claims, we will apply product-specific depreciation rates. We refer you to our general terms and conditions displayed at our premises.

USE, CARE AND MAINTENANCE

To maintain the original quality of your pram as a means of transportation for your child, it requires care and maintenance according to the instructions.

F La France

Hartan

Close-up of a motorcycle's side profile with visible wheel and gear (no text or symbols)

Pare-soleil

Close-up of a black bicycle brake lever with attached spring and chain (no text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

9a 8 7 8 9a

Close-up of a medical device with a stethoscope and a circular badge showing number 26 (no readable text or symbols)

14 C A B D E F

Close-up of a mechanical device with a light bulb and control panel (no visible text or symbols)

Protection anti-chutes

Close-up of a motorcycle's wheel and side gear assembly (no visible text or symbols)

Parkeerrem

Close-up of a black bicycle brake lever with attached spring and chain (no text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

9a 8 7 8 9a

Veiligheidsgordel WAARSCHUWING!

Close-up of a medical device with a stethoscope and a circular badge showing number 26 (no readable text or symbols)

14 C A B D E F

Close-up of a mechanical device with a light bulb and control panel (no visible text or symbols)

Parasolhouder

Close-up of a motorcycle's side profile with visible wheel and gear (no text or symbols)

Solsejl

Close-up of a black bicycle handle with coiled spring and a numbered circle (9) on the side (no text or symbols on the handle itself)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

9a 8 7 8 9a

Close-up of a medical device with a stethoscope and numbered label (26), no readable text or symbols beyond the number.

14 C A B D E F

Close-up of a mechanical device with a light bulb and control panel (no visible text or symbols)

Holder til solskærm

Close-up of a motorcycle's side profile with visible wheel and gear (no text or symbols)

Sol-kalesje

Close-up of a black bicycle handle with coiled spring and a numbered circle (9) on the side (no text or symbols on the handle itself)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

9a 8 7 8 9a

Close-up of a medical device with a stethoscope and numbered label (26), no readable text or symbols beyond the number.

14 C A B D E F

Close-up of a mechanical device with a light bulb and control panel (no visible text or symbols)

Parasollholder

TA HENSYN TIL F∅LGENDE VED KJ∅PET

Close-up of a motorcycle's wheel and side gear assembly (no visible text or symbols)

Solsufflett

Close-up of a black bicycle brake lever with attached spring and chain (no text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

9a 8 7 8 9a

Bruksanvisning

Close-up of a medical device with a stethoscope and numbered label (26), no readable text or symbols beyond the number

14 C A B D E F

Close-up of a mechanical device with a mounted sensor or sensor component (no visible text or symbols)

Parasollets fäste

Close-up of a motorcycle's wheel and side gear assembly (no visible text or symbols)

Auringonsuojakuomu

Close-up of a black bicycle handle with coiled spring and a numbered circle (9) on the side (no text or symbols on the handle itself)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

9a 8 7 8 9a

Käyttöohje

Ilmanvaihtoaukko

Close-up of a medical device with a stethoscope and numbered label (26), no readable text or symbols beyond the number

14 C A B D E F

Close-up of a mechanical device with a cylindrical component and a small screen (no visible text or symbols)

Parasollets fäste

■ Folding mechanism
■ Road behaviour
Wheels
■ Adjusting mechanism
Brakes check
■ Suspension check

○ checked/OK
○ checked/OK
○ checked/OK
○ checked/OK
○ checked/OK
○ checked/OK

○ not applicable
○ not applicable
○ not applicable
○ not applicable
○ not applicable ○ not applicable
○ not applicable

3. Intactness

■ Frame check
■ Fabric check
■ Plastic parts check

○ checked/OK
○ checked/OK
○ checked/OK

○ not applicable
○ not applicable
○ not applicable

• I have checked the product and have ascertained that it is supplied complete, has no external, visible faults and that all functions are intact.
• I have received sufficient information concerning the product and its functions before purchase and have been instructed on care and maintenance.

Übergabe-Protokoll

Acceptance Certificate

Name / Name:

Straße / Road:

Stoff-Farbe (Design): Colour of fabric (design):

Zubehör / Accessories:

Kaufdatum / Date of purchase:

Note: signing this acceptance certificate does not restrict the legal rights of the purchaser.

Händler / Dealer:
