USER MANUAL Lucca Topmark

IMPORTANT: KEEP FOR FUTURE REFERENCE.

• Read this instruc ons carefully before use and keep for future reference.
• Your child's safety may be affected if you do not follow these instruc ons.
• Use only spare parts delivered by importer for replacing or repara on.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures. Extreme sunshine or temperatures may cause colour changes or bent parts.

WARNING

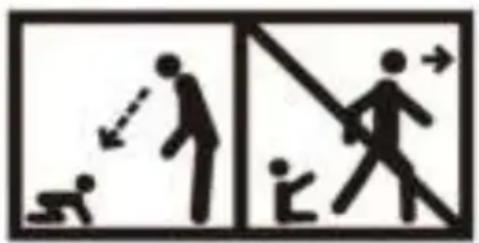

• Never leave your child una ended. It may be dangerous to leave your child una ended.
• The use of this stroller is recommended for children from 0 months - 4 years. The maximum weight is up to 15kg
• Do not overload the basket with more than 2kg .
• Never put hot liquids in cup holder, maximum weight 0.5kg .
• It is recommended that the backrest should be used in its most reclined position on for children from birth to 6 months of age.
• Any load ached to the handle and/or on the back of the backrest and/or on the sides of the stroller a ects the stability of the stroller. The stroller may become unstable and p over and can injure your child.
• This product is not suitable for running or skiing.
  Always use the restraint system.
• Avoid serious injury from falling or sliding out. Always use seat harness.
• Always use the crotch strap in combina on with the waist belt.

WARNING

• This vehicle is designed for use by one child only.
• No addi onal ma ress shall be added.
• This product is not intended for periods of long sleeping. Should your child need to sleep then it should be placed in a suitable pram body, cot or bed.

• Pay special a en on when manoeuvring the stroller up or down the pavement, it is best to do it backwards.

• Be aware of the risk of open re and other sources for strong heat, such as electric bar fires, gas fires... in the vicinity of the stroller.

• Avoid hot liquids, power cables and other possible dangers may come within range of a child.
• Do not use this stroller if any parts are broken, torn or missing.
• Ensure that all the locking devices are engaged before use.
• Check that the pram body or seat unit or seat a achment devices are correctly engaged before use.
• Before making adjustments to stroller ensure that child's body is clear of any moving parts.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not use on stairs or escalators, fold stroller and carry.
• Put on all the brakes whenever you park the stroller.
• Always apply the brakes when ever the stroller is stationary.
• Do not let your child play with this product.
• Do not allow child to stand on seat or footrest.
• Do not allow more children, as stroller may become unstable.
• The parking device shall be engaged when placing and removing the children.
• Do not allow objects on top of canopy as this stroller may become unstable.
• Keep plas c rain cover away from children to avoid su oca on. Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of su oca on. To prevent the risk of su oca on, never leave the stroller with child in it under the sun, with the rain cover ed to it.
• Do not use accessories or replacement parts other than the ones recommended by instruc on manual.
• Do not use accessories which are not approved by the manufacturer.
• Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
• Never put stroller near steps or stairs.

ASSEMBLING

Check if following spare parts are in the box:

• Stroller frame with basket, front and rear wheels

BOX COLOUR PACK

• Rain cover

• Canopy for seat unit

• Cup holder

• Shoulder and crotch strap pads

Note that the fabric pa erns, colour pictures and stroller accessories on the stroller in this instruc on manual may vary from that of the product that you have purchased.

If one or more of the above men oned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING:

Please keep all packaging material away from babies and children, to prevent su oca on.

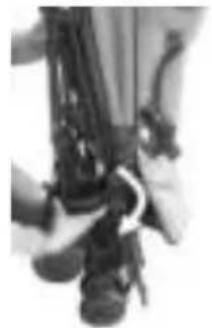

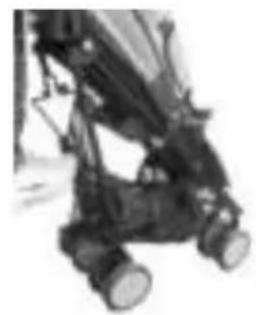

TO OPEN STROLLER

Release folding latch and open the frame, then step down the base lock un I it is fully locked.

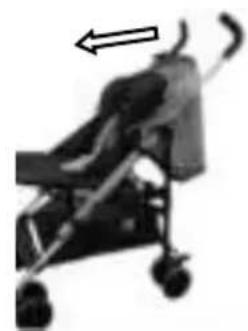

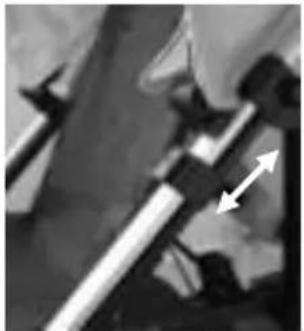

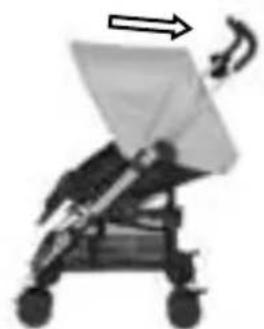

FITTING CANOPY

Push or pull the hood tab to install or remove the hood. Fasten the snap bu ons. Push down to close the hood and pull up to open the hood.

WARNING: the hood must be xed on both sides of the stroller. Ensure that the hood is correctly secured into posi on.

ASSEMBLING

SHOULDER PAD ASSEMBLY

Slide shoulder pads to the shoulder harness.

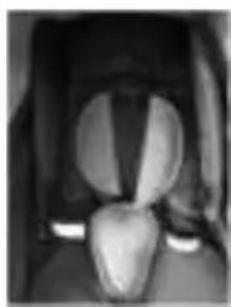

CROTCH STRAP ASSEMBLY

Press the centre of harness buckle. Assemble protect cover to the crotch strap.

Final to fasten the harness clip each chest strap onto the waist strap.

CUP HOLDER ASSEMBLY

To install or remove cup holder simple push down or pull up the cup.

EN

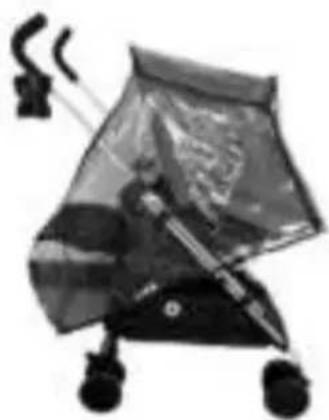

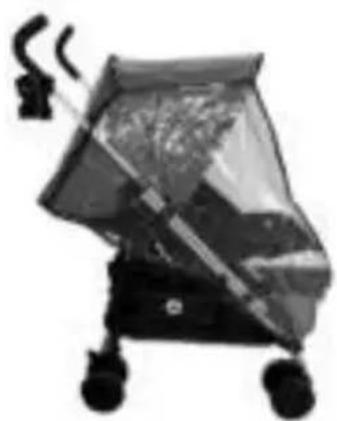

RAIN COVER ASSEMBLY

Put rain cover on the stroller and make sure it has been xed by Velcro.

WARNING:

Be extremely careful when using the rain cover.

Store away from children when not in use.

To be used under adult's supervision.

Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of su oca on.

To prevent the risk of su oca on, never leave the stroller with child in it under the sun, with the rain cover ed to it.

To prevent your child from overha ng, always remove the rain cover when indoor or in warm environments.

USING

ADJUSTMENTS

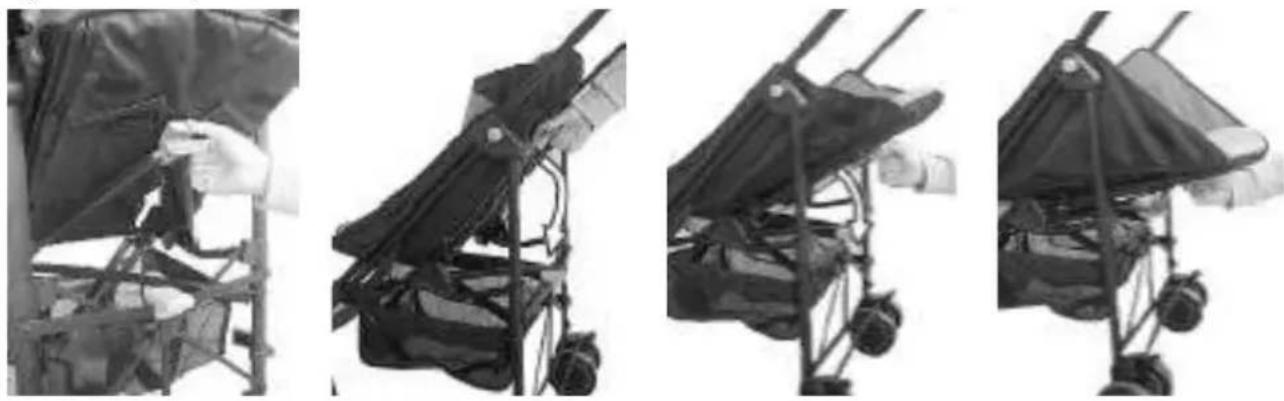

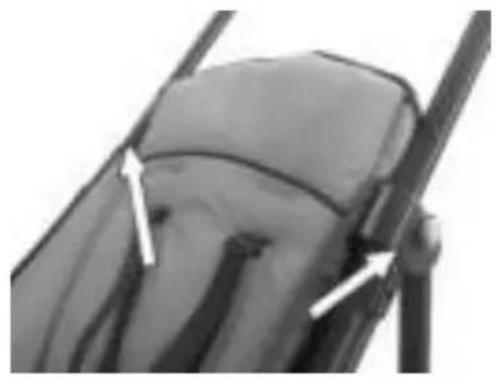

A. Backrest adjustment

Pull up recline release tab to adjust seat back to desire recline posi ons.

To erect seat back, simply pull up seat back to upright posi ons. The backrest can be adjusted in 4 posi ons.

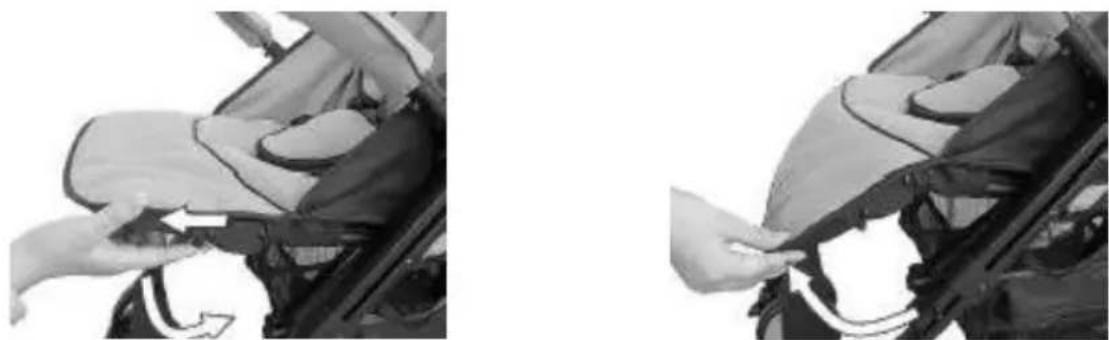

B. Adjustable leg rest

Pull the plas c parts of the adjustable leg rest forwards to change posi on of the leg rest. The leg rest can be adjusted to 2 posi ons.

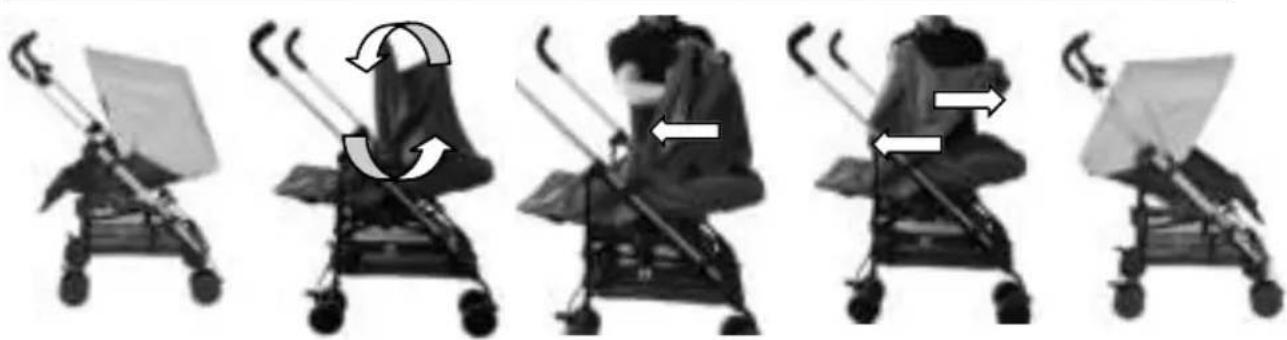

CONVERT THE HOOD FROM PARENT FACING TO FORWARD FACING

The hood can be converted to both forward facing or parent facing, simply hold front hood panel with one hand, grape rear hood panel from underside of hood with another hand, pull both hand to convert the hood to opposite posi on.

EN

USING

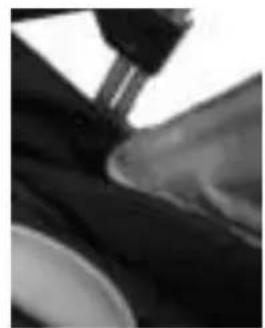

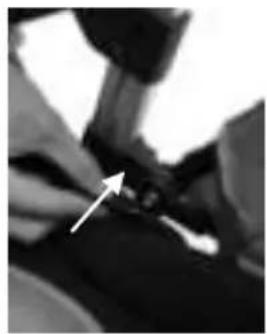

CONVERT THE SEAT FROM FORWARD FACING TO PARENT FACING

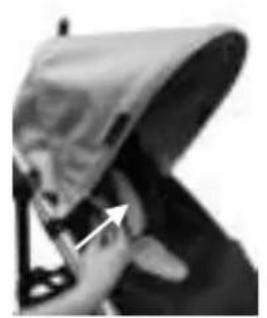

1. Release the side wing snap on both sides of the canopy.

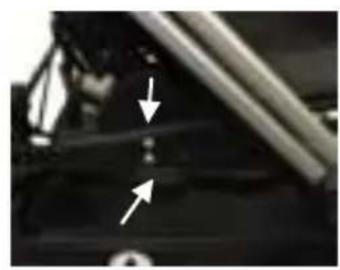

2. Push both sides seat main lock button until hear "CLICK" sound to release both sides lock.

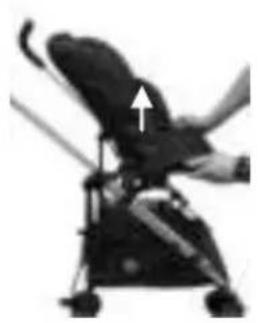

3. Li up seat unit and convert to opposite posi on then push in seat unit into lock posi on.
4. Secure the side wing snap on both sides of the canopy.

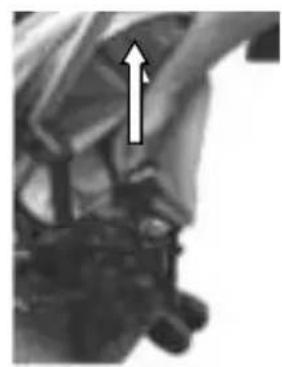

USING

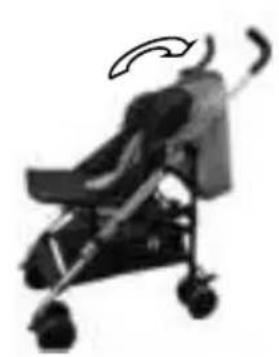

Buggy can be folded when seat is facing either direc ons.

Make sure the backrest is in upright position (when stroller is in facing forward position), footrest is up and canopy is closed when folding the stroller.

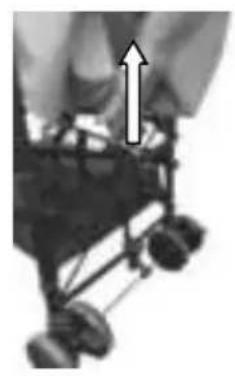

Push both sides 2nd lock button until hear "CLICK" sound to release both 2nd lock. Pull up the main lock release handle (push handle in the same me) to unfolding un I lock into folding posi on. Close the folding latch.

EN

CARRY HANDLE

To carry push chair, simply hold the carry handle on side of push chair as shown.

Op onal:
So carry cot T2031

USING

FUNCTIONS

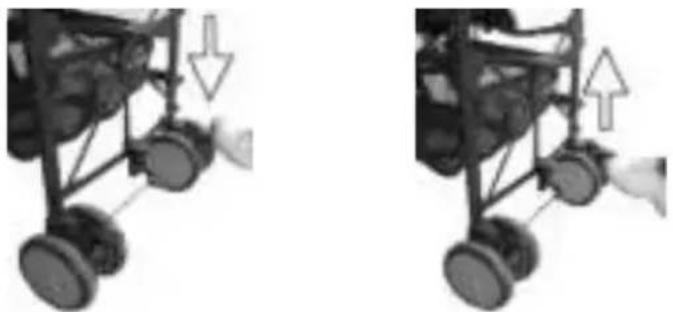

A. Brake func on

To apply brakes, press down brake lever on rear wheels and roll stroller back and forth un I levers lock into place.

Release the brake by pushing the brake levers upwards.

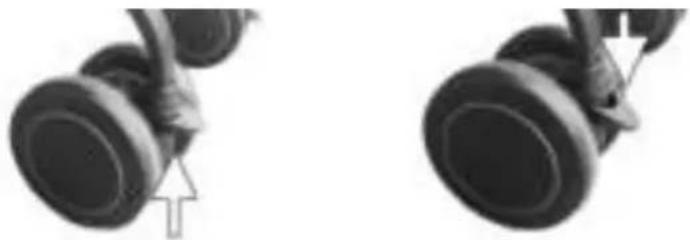

B. Front swivel wheels

To unlock the swivel wheels, push the lever in an upward posi on. To lock the wheels, lower the lever in a downward direc on.

Unlock

Lock

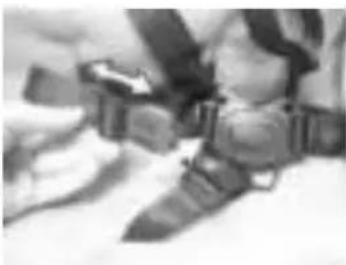

USING 5-POINT SAFETYBELT

WARNING: ALWAYS USE THE CROTCH STRAP WITH WAIST BELT.

Ensure shoulder straps are clipped to hip safety belts.

Lock buckle parts of hip belts together into the cross belt (belt between the legs) un I secure click is heard.

Pull on belt to be sure both buckles are fastened to secure child safety.

To safely secure child, adjust shoulder straps and waist belt snugly around child.

To release belt just press the bu on.

There are 2 posi ons for height adjus ng. If the shoulder height is not okay please re-install the belt again.

NO- Too low
NO- Too high
YES-Correct

CARE AND MAINTENANCE

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of me.

Check the wheels regularly for wear and make sure that there is no dust and sand between the axles and wheels.

Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Do not allow the stroller to come in contact with salt water, this causes the forma on of rust.

EN

Helpful hints

If the wheels squeak, use a silicon based spray ensuring it penetrates the wheel and axles assembly.

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry, unless the care labeling on the product permits these methods.

Non removable fabric covers and trims may be cleaned using a damp sponge with soap or mild detergent. Allow it to dry completely before folding or storing it away. In some climates the covers and trims may be a ected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well ven lated area.

Always check parts regularly for ghtness of screws, nuts and other fasteners, ghten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only part and accessories approved by the supplier.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resul ng from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or opera on of the product.

Damages caused by overloading or wrong folding are not granted.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the rst owner and is not transferable.

Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 1888
