USER MANUAL MD 15803 Micromaxx

Black stainless steel refrigerator with closed glass doors and three wine bottles on the shelves (no visible text or labels)

Weinlagerschrank

Wine cooler

Wijnkast

Cave à vin

micromaxx ^® MD 15803

Inhaltsverzeichnis

DE

www.medion.com/conformity.

15. Impressum

Copyright © 2014

1. About these instructions.... 20

1.1. Warning symbols and keywords used in these instructions ....20

EN

1. Proper use

2. Safety instructions

3.1. People not permitted to use this appliance ....22

FR

3.2. General safety instructions 22

3.3. Setting up the appliance ....23

3.4. Cleaning and maintenance 24

3.5. Faults 24

3.6. Disposal....24

1. Package contents

2. Overview of the appliance 25

3. Preparing to operate the appliance 26

4. Operating the appliance 26

7.1. Temperature control....26

7.2. Lighting 26

1. Cleaning

2

1. Transport 27

2. Troubleshooting 27

3. End of operation 29

4. Disposal 29

5. Technical data 30

6. Declaration of conformity.... 30

7. Legal notice 30

8. Restricted Warranty (United Kingdom) 31

9. Service Address.... 35

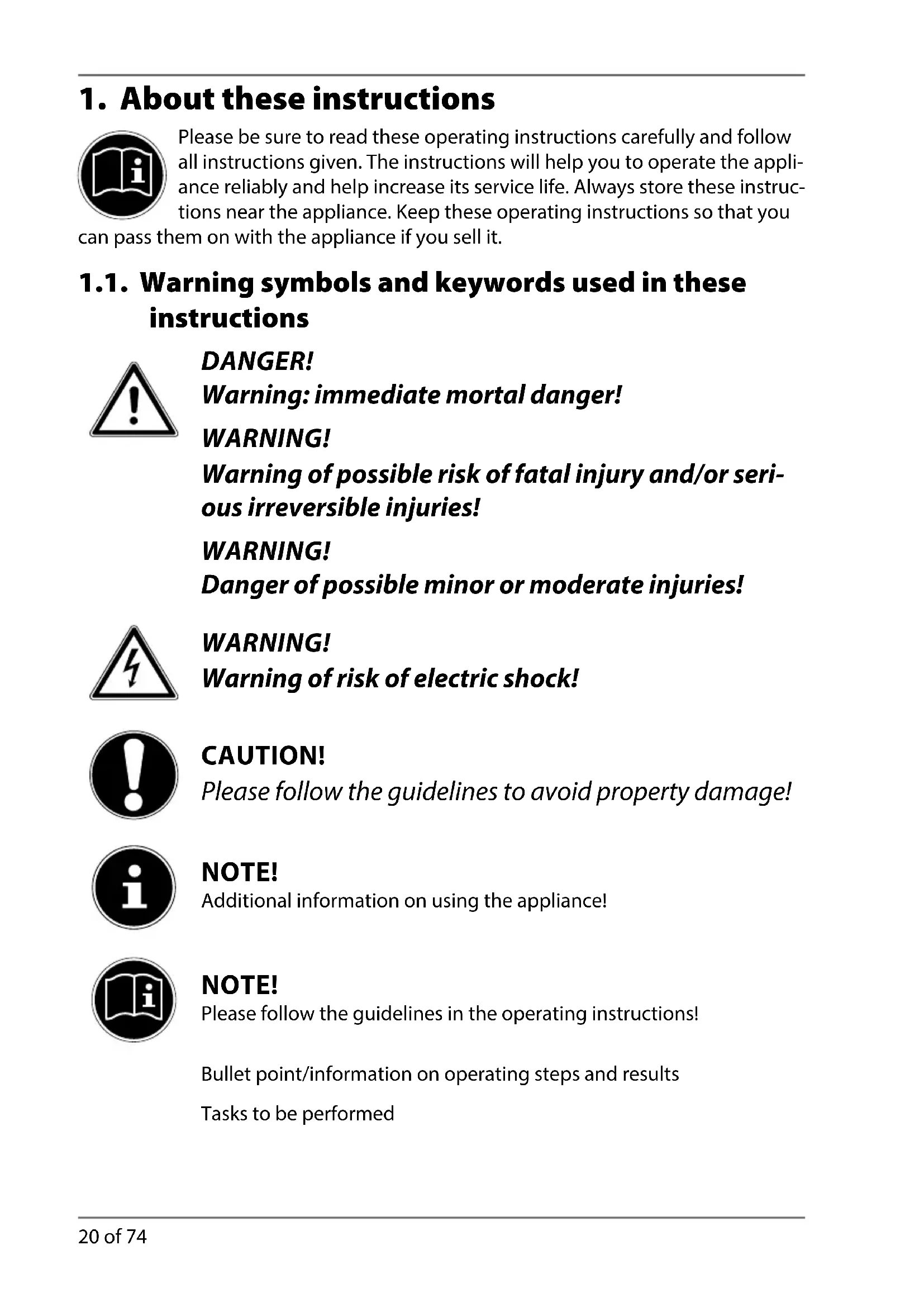

1. About these instructions

Please be sure to read these operating instructions carefully and follow all instructions given. The instructions will help you to operate the appliance reliably and help increase its service life. Always store these instructions near the appliance. Keep these operating instructions so that you can pass them on with the appliance if you sell it.

1.1. Warning symbols and keywords used in these instructions

DANGER!

Warning: immediate mortal danger!

WARNING!

Warning of possible risk of fatal injury and/or serious irreversible injuries!

WARNING!

Danger of possible minor or moderate injuries!

WARNING!

Warning of risk of electric shock!

CAUTION!

Please follow the guidelines to avoid property damage!

NOTE!

Additional information on using the appliance!

NOTE!

Please follow the guidelines in the operating instructions!

Bullet point/information on operating steps and results

Tasks to be performed

2. Proper use

The appliance is designed for cooling drinks in closed containers. However, the appliance is not suitable for cooling foodstuffs because it cannot achieve the required temperatures.

The appliance is designed for operation in an ambient temperature of between +10°C and +26°C (living area temperature) (Climate Class N) and is only suitable for operation indoors.

- This appliance is intended to be used for domestic or similar applications, but not:

–in commercial kitchens, for employees in shops, offices and other commercial areas;

-on agricultural estates;

- by customers in hotels, motels and other residential facilities;

-in bed & breakfast accommodation.

Please note that we shall not be liable in cases of improper use:

- Do not modify the appliance without our consent and do not use any auxiliary equipment which we have not approved or supplied.

-Use only spare parts and accessories which we have supplied or approved.

-Heed all the information in these operating instructions, especially the safety information. Any other use is deemed improper and can cause personal injury or damage to the appliance.

- Do not use the appliance in areas where there is a risk of explosion. These areas include e.g. tank farms, fuel storage depots, or areas in which solvents are processed. It is also not permitted to use this appliance in areas where the air is polluted with fine particles (e.g. flour dust or sawdust).

- Do not expose the appliance to any extreme conditions. The following should be avoided:

–High humidity or moisture

-Extremely high or low temperatures
-Direct sunlight
-Open fire

3. Safety instructions

3.1. People not permitted to use this appliance

• Keep the appliance and its accessories out of reach of children.
  • These appliances may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliance and have understood the potential risks.
  • Children must not play with the appliance.
• Cleaning and user maintenance must not be carried out by children, unless they are aged 8 or over and are supervised.
• Children younger than 8 should be kept away from the appliance and the mains cable.
• Do not allow children to sit or stand on the appliance. Furthermore, children should not pull on the storage shelves.

WARNING!

Keep plastic packaging out of the reach of children. There is a risk of suffocation!

3.2. General safety instructions

WARNING

Improper handling can cause damage to the appli- ance and your health. Please follow the safety advice below closely:

- Do not store or use any petrol or other flammable materials or liquids in the appliance or near to the appliance. There is a RISK OF EXPLOSION AND FIRE due to the resulting fumes!

3.3. Setting up the appliance

• Only connect the appliance to a properly installed 220–240 V\~50 Hz safety socket that is easy to reach and close to the set-up location. The safety socket must be freely accessible so that you can unplug the appliance from the mains quickly if necessary.
• Do not use an extension cable.
• Ensure the mains cable is out of harm's way and will not trip people up. Do not allow the mains cable to become trapped or squashed.
• Set up the appliance in a dry and ventilated room. Do not expose the appliance to direct sunlight because this can damage the surfaces of the appliance and increase energy consumption.
• Do not set up the appliance near to heat sources such as ovens, radiators, underfloor heating, etc.
• Set up the appliance on a stable, flat surface.
• The appliance should be level; compensate for any unevenness in the floor by unscrewing and adjusting the four extendible feet.

3.4. Cleaning and maintenance

• Before starting any maintenance work, always ensure that the plug has been removed from the safety socket (do not pull on the cable, but on the plug). There is a risk of electric shock due to live parts.
• Remove the plug from the socket before cleaning the appliance. If the plug is not accessible, the corresponding fuse for the mains electricity supply to the house needs to be switched off. There is a risk of electric shock due to live parts.
• Do not use any flammable liquids to clean the appliance or any parts of the appliance. There is a RISK OF EXPLOSION AND FIRE due to the resulting fumes!

3.5. Faults

• Never try to open and/or repair an appliance component yourself. There is a risk of electric shock.
• A damaged mains cable may only be replaced by an authorised repair workshop or customer services to avoid any risks.
• In the event of a fault, contact our Service Centre or another suitable professional repair workshop.

3.6. Disposal

• Remove the door before disposing of the appliance and leave the storage shelves for the bottles in the appliance to prevent children climbing into it. There is a risk of suffocation if the door slams shut.
• Before disposal cut off the mains cable.

4. Package contents

-Wine refrigerator

-Operating instructions

-Warranty documentation

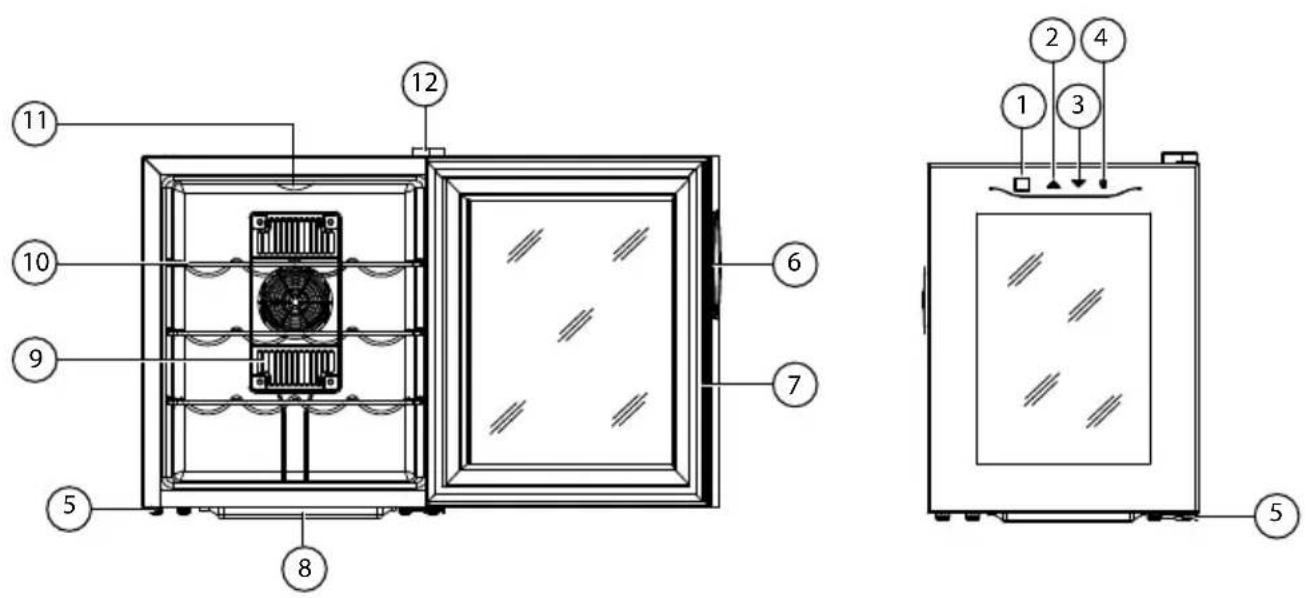

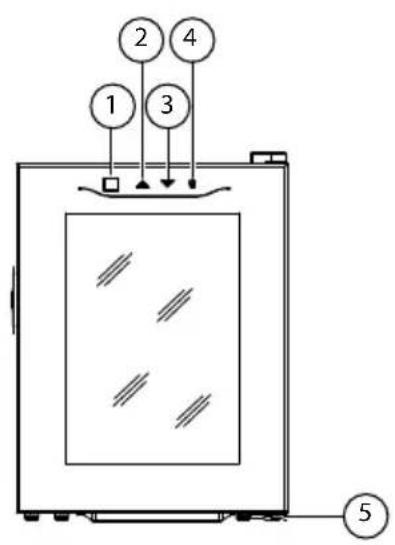

5. Overview of the appliance

8) Collection tray (for any water accumulating due to condensation)

9) Fan cover

10) Storage shelf for bottles

11) Lighting

12) Door hinge

6. Preparing to operate the appliance

Before using the appliance for the first time, completely remove any packaging from the appliance and the inside of the appliance.
▶ Compensate for an uneven surface by unscrewing or screwing in the extendible feet.
▶ Clean the inside of the appliance with warm water and a soft cloth.
▶ Make sure that the storage shelves for the bottles are correctly inserted into the guide tracks. If necessary, insert the shelves again correctly.

7. Operating the appliance

Connect the appliance to a properly installed 220-240 V\~50 Hz safety socket. The appliance will beep and the display will show the current temperature inside the appliance. The appliance will now start to cool the interior.

Place bottles onto the storage shelves as evenly as possible.

NOTE

The temperature at the bottom storage shelf is a little cooler than at the top storage shelf. Therefore, place those bottles that need to be cooled to a greater degree on the lowest storage shelf.

A signal tone is emitted every time a button is pressed.

7.1. Temperature control

▶ Set the desired temperature (it can be set to between 11^ C and 18^ C)
▶ Press ⚠ to increase the temperature and ⚡ to decrease the temperature.

The set temperature will flash briefly on the display and then the current temperature inside the appliance will be shown.

7.2. Lighting

▶ Press

to switch the interior lighting on or off.

NOTE

Leaving the light switched on for a long time will increase the temperature inside the appliance. Switch the light off immediately when it is no longer required.

8. Cleaning

WARNING!

Live parts. There is a risk of electric shock.

Before cleaning the appliance, always ensure that the plug has been removed from the safety socket (do not pull on the cable, but on the plug).

Remove all bottles and storage shelves from the inside of the appliance.
Clean the surfaces of the appliance and the storage shelves for the bottles, with the exception of the door seal, with a mild detergent and a soft cloth.
▶ Wipe down the door seal with clean water and allow it to dry. Abrasive or acidic cleaning agents are unsuitable for cleaning the appliance.
Clean the inside of the appliance with warm water and bicarbonate of soda. We recommend using 2 tablespoons of bicarbonate of soda to one litre of water.
Wipe out the collection tray at the bottom of the appliance and clean it with water and a mild detergent.

9. Transport

▶ Unplug the appliance from the safety socket.
Remove all bottles and storage shelves from the inside of the appliance.
▶ Screw in the extendible feet.
▶ Tape the door in place using adhesive tape.
▶ Ensure that the appliance is transported in an upright position to avoid any damage to the cooling system.

10. Troubleshooting

Faults may occur during operation. Please use the following table to check whether you can resolve the problem yourself. All other repairs are prohibited and will invalidate the warranty cover. In the event of a fault, contact our Service Centre or another suitable professional repair workshop.

Malfunction Cause Rectification
The appliance is not working.	The electrical circuit has been interrupted.	·Check whether the mains plug is plugged in. ·Check whether the mains socket is live by plugging in another electrical device (e.g. a bedside lamp). ·Check whether the connection cable has been damaged.
The temperature is not low enough.	The door does not seal properly when closed or has been opened too often.	·Arrange the bottles so that they do not prevent the door closing properly. ·Open the door for a short period of time. ·Check the door seal.
	The appliance is dirty.	Clean the appliance.
	The appliance has been set up in a location that is exposed to direct sunlight or next to a heat source.	·Set up the appliance in another location. ·Set the appliance to a colder setting.
The appliance is operating too loudly or vibrating.	The feet on the appliance have not been properly adjusted.	·Adjust the feet on the appliance.
	The fan is blocked. · Check the fan.
The LED display is off.	The power supply has been interrupted.	·Check the plug.
	The control system has failed.	·Contact the customer service department.
The operating elements do not work.	The temperature sensor is defective.	·Contact the customer service department.
The interior lighting is not working.	The LED is defective.	·Contact the customer service department.

11. End of operation

If you do not intend to use the appliance for a long period of time, it is necessary to perform the following tasks:

–Switch off the appliance and then remove the plug from the socket.
-Empty the appliance.
–Wipe out the cooling area and allow it to dry.

- Carefully wash all appliance fittings (storage shelves for the bottles).

– Leave the door open to avoid unpleasant odours and mould formation.

12. Disposal

Appliance

Old appliances should not be disposed of with the normal household rubbish.

In accordance with Directive 2012/19/EU, the appliance must be properly disposed of at the end of its service life.

This involves separating the materials in the appliance for the purpose of recycling and avoiding any impact on the environment.

Take old appliances to a collection point for electrical scrap or a recycling centre.

Contact your local waste disposal company or your local authority for more information on this subject.

▶ Before disposal cut off the cable.

Remove the door before disposing of the appliance and leave the storage shelves for the bottles in the appliance.

Packaging

Your appliance has been packaged to protect it against transportation damage. Packaging materials are raw materials and can therefore be reused or recycled.

13. Technical data

Capacity of the cooling area: 48 l

Protection class I

Climate class: N

Nominal voltage: 220 – 240 V \~

Nominal frequency: 50 Hz

Nominal current: 70 W/1 A

Energy consumption: 0.36 kWh/24 hrs = 131.4 kWh / 1 year

LED lighting 1 W

Temperature range 11–18°C (max. 14°C below room temperature)

Net weight 13.4 kg

Dimensions

(WxDxH in mm) 420 x 480 x 520

14. Declaration of conformity

Medion AG hereby declares that the product MD 15803 conforms to the following European requirements:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC
• Ecodesign Directive 2009/125/EC
• RoHS Directive 2011/65/EU.

Full declarations of conformity are available at www.medion.com/conformity.

15. Legal notice

Copyright © 2014

All rights reserved.

This operating manual is protected by copyright.

Mechanical, electronic and any other form of reproduction is prohibited without the written permission of the manufacturer

Copyright is owned by the company:

Medion AG

Am Zehnthof 77

45307 Essen

Germany

The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/.

You can also scan the QR code above and download the operating manual onto your mobile device via the service portal.

16. Restricted Warranty (United Kingdom)

16.1. General Conditions of Warranty

16.1.1. General

This warranty covers defects relating to workmanship and manufacture in MEDION products. The period during which this warranty is valid and during which claims against the warranty can be made to MEDION must be in accordance with the following terms in order to be considered eligible:

- Is effective from the date of purchase or receipt of the MEDION product from an authorised seller of MEDION products;

and

- expires at the end of the warranty period.

For the warranty to be valid, you must:

• provide suitable evidence of purchase, a copy of the original purchase receipt from an authorised seller of MEDION products is preferred;

or

- register your product within 28 days of purchase online at www.MEDION.co.uk.

Please keep the original purchase receipt in a safe place. MEDION and its authorised sellers reserve the right to refuse a repair under warranty or a warranty confirmation if a proof of purchase [or registration of purchase] cannot be established, or has not been, submitted.

When it is necessary to return your product for repair please ensure that your product is suitably packed for transportation.

Provided that your product is still within warranty (please check the duration of the warranty period as described above) and is eligible for repair or replacement under the terms of the warranty, to return your product, please telephone MEDION on the service hotline number. You will be sent a pre-paid transportation box suitable for returning your product to MEDION or a voucher.

PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY OF ALL DATA ON THE PRODUCT BEFORE RETURNING THE PRODUCT TO MEDION.

MEDION shall bear the costs of postage and packaging for returning the product and the transportation risk. However, if following examination of the defective product in question, MEDION, in its reasonable opinion, considers that the defect has been caused by:

• your operating and/or using the product other than as instructed in the accompanying documentation;
• damage caused in transit as a result of your negligence in packaging of the product; and/or
• otherwise than in accordance with the terms of this warranty;

This warranty shall be void and you may be required by MEDION to reimburse MEDION for the reasonable costs of postage and packaging before MEDION will return the product to you. If so and you would still like MEDION to repair or replace the

product, MEDION may do so but you will be charged MEDION's standard rates for repair and replacement for this service.

Before returning the product, please contact MEDION via the service hotline or via the internet www.MEDION.co.uk. You will receive a reference number (RMA No.). Please mark the outside of your package to ensure that this reference number is clearly visible. Please submit a letter containing as much detailed information as possible and, a full description of the defect or fault.

This should include:

• a description of the fault;
• when it occurred, how long it has been evident and how frequently it occurs;
• any errors message(s) displayed when using the product;
• a description of the circumstance(s) and conditions in which the fault occurs; and
• whether it is an intermittent or persistent fault.

This will greatly assist MEDION in identifying the defect, when submitted together with the defective product.

Unless otherwise instructed by a MEDION representative in all cases, the product must be returned complete with all parts which were included with the original product. Incomplete contents of the returned package may lead to a delay in the repair or replacement. MEDION does not accept any liability for any additionally submitted material(s) which were not supplied with the original MEDION product.

This warranty does not affect your statutory rights in any way and is subject to the applicable legal statutes of the country where the product was sold to you by an authorised MEDION seller.

16.1.2. Scope

Subject to any exclusions set out within this warranty, where there is a defect in your MEDION product covered by this warranty, MEDION will repair or replace the MEDION product. The decision whether to repair or replace the product will be made solely at the discretion of MEDION. MEDION may, in its own discretion, replace the product returned for repair under warranty with a replacement product that is either identical or, in the event that such product(s) are no longer available, a product of equal or superior specification and quality.

No warranty is given for batteries or rechargeable batteries or for consumable materials subject to wear and tear, i.e. for parts which have to be replaced periodically during the normal use of the product, such as video-projector lamp.

Non critical failures that fall within industry specified tolerances e.g. noise, LCD pixels are not covered by this warranty. Please consult the appropriate section in your user or instruction manual for this product for exact specifications and tolerances.

To the extent which is permitted under law, MEDION will accept no liability for burnt-in images on plasma or LCD products as a result of normal wear and tear during the operation of the product. Please refer to your user or instruction manual for this product for detailed operating instructions for your plasma or LCD product.

The warranty does not cover errors relating to the playback of data media in an incompatible format or created with unsuitable software.

If it is found during repair or assessment that the defect concerned is not covered under warranty, MEDION reserves the right to invoice you for all reasonable costs incurred by MEDION. These costs will be in relation to the return of the product, including reasonable administration costs, plus reasonable costs for materials used and labour provided when repairing or replacing the product. This is subject to MEDION providing you with an estimate for carrying out such work prior to costs being incurred and that you have accepted the estimate.

You are entitled to seek independent advice or consultation relating to your product or any of MEDION's findings. MEDION will not be liable for any costs incurred to you when doing so.

16.1.3. Exclusion from warranty

To the extent permitted by law, this warranty shall be void in the event that defects or loss caused by:

• failure and damage resulting from the operation of the product in an environment other than that recommended in the accompanying user or instruction manual (e.g. in direct sunlight or in a damp room);
• accidental damage;
• use other than in accordance with the accompanying user or instruction manual;
• modifications, conversions, expansions, maintenance and/or repairs made to the MEDION product by unauthorised repairers or use of unauthorised third party parts;
• negligence;
  • virus attack or software errors;
  or

- improper transportation or packaging during return of the product.

- This warranty will also be considered void if labels or serial numbers of the product or of a component of the product are modified or made illegible.

- To the extent permitted by law, MEDION shall; only be responsible for losses which are a reasonably foreseeable consequence of the relevant defect in the product; MEDION will not be responsible for any costs incurred in relation to software configuration; economic loss; loss of opportunity; loss of income; or loss of data or software arising out of its repair or replacement of a MEDION product under this warranty

16.1.4. Service Hotline

Before returning the product to MEDION you must contact us using the service hotline or via the internet (www.MEDION.co.uk). You will receive further instructions for making your claim under warranty when you call.

The price of your call will be stated at the beginning of the call.

16.2. Special warranty conditions for MEDION PC, notebook, pocket PC (PDA) and navigation devices (PNA)

The following terms apply to MEDION PC, notebook, desktop, pocket PC and laptop products and optional items included with such products. If one of these items has a fault, you also have a warranty claim for its repair or replacement, from MEDION.

The warranty covers the costs of materials and labour for repairing or replacing the defective MEDION product or the optional item in question.

Hardware connected to your product that was not produced or marketed by MEDION can invalidate the warranty if MEDION can reasonably demonstrate that damage to the MEDION product or of the optional item included with the delivery was caused by such hardware. You are entitled to seek independent advice or consultation relating to your product or any of MEDION's findings. MEDION will not be liable for any costs incurred to you when doing so.

This warranty is restricted in relation to any pre-installed operating system as well as to application programme software that is included with the MEDION product in question. This warranty is restricted as follows:

For pre-installed operating system as well as to application programme software included in the MEDION product, MEDION only guarantees the data media (e.g. the diskettes and CD-ROMs) upon which this software is delivered and warrants that such data media shall be free from material and processing defects for a period of 90 days from the date of purchase of the MEDION product from an authorised seller of MEDION. MEDION will replace defective data media free of charge.

Any claims in respect of defective pre-installed operating system as well as to application programme software are hereby expressly excluded and you should contact the relevant licensor or copyright owner of the defective software in question. MEDION does not guarantee that any software supplied with MEDION products will function without interruption, will be free from errors or that it will fulfil your requirements. MEDION does not guarantee the 100% accuracy of the maps provided with the Navigation device.

It may be necessary to delete all data in the product in order to repair the MEDION product. PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY OF ALL DATA ON THE PRODUCT BEFORE RETURNING THE PRODUCT TO MEDION. To the extent permitted by law, MEDION excludes all liability for loss of data and MEDION recommends in all cases that you back up all data on your MEDION product before returning the product to MEDION.

16.3. Special warranty conditions for repair on site or replacement on site

If a claim for repair or replacement on site is included with the product, the special warranty conditions for repair or replacement of your MEDION product on site apply.

The following provisions must be made by you for carrying out repairs or replacements on site:

• MEDION or its authorised personnel must have unrestricted, safe and immediate access to the products.
• Telecommunication facilities required by MEDION or its authorised personnel for proper execution of your order, for testing and diagnostic purposes and for remedying faults are provided by you at your own expense.
• You are responsible yourself for restoring the application software after the repair services have been carried out by MEDION or its authorised personnel.
• You must take all other necessary steps to enable MEDION or its authorised personnel to carry out your order properly.
• You are responsible yourself for connecting and configuring any existing external peripheral products after MEDION or its authorised personnel have carried out their repairs.
• The free cancellation period for repairs or replacements on site is 24 hours, thereafter our reasonable costs resulting from late or missing cancellation shall be invoiced at your expense.

17. Service Address

① 0871 37 61 020 01793 715716

(Costs 7p/min from a BT landline, mobile costs may be higher)

Mo - Fr: 08:00 - 20:00

Sa - Su: 10:00 - 16:00

www.medion.co.uk

@ To contact us by email please visit the „Service“ section of our website at www.medion.co.uk.

Inhoudsopgave

DE

—dans les bed and breakfasts.

16. Garantie commerciale limitee (France)

Medion Electronics Ltd. 120 Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire United Kingdom

Hotline: [phone] (National rate) Fax: [phone]

To contact us by email please visit the „Service and Support“ section of our website at www.medion.co.uk.

www.medion.co.uk

Medion B.V. John F. Kennedylaan 16a 5981 XC Panningen Nederland

Hotline: 0900 - 2352534 (€ 1 per gesprek) Fax: 0900 - 3292534 (€ 1 per fax)
