USER MANUAL WT 519 TECHNOLINE

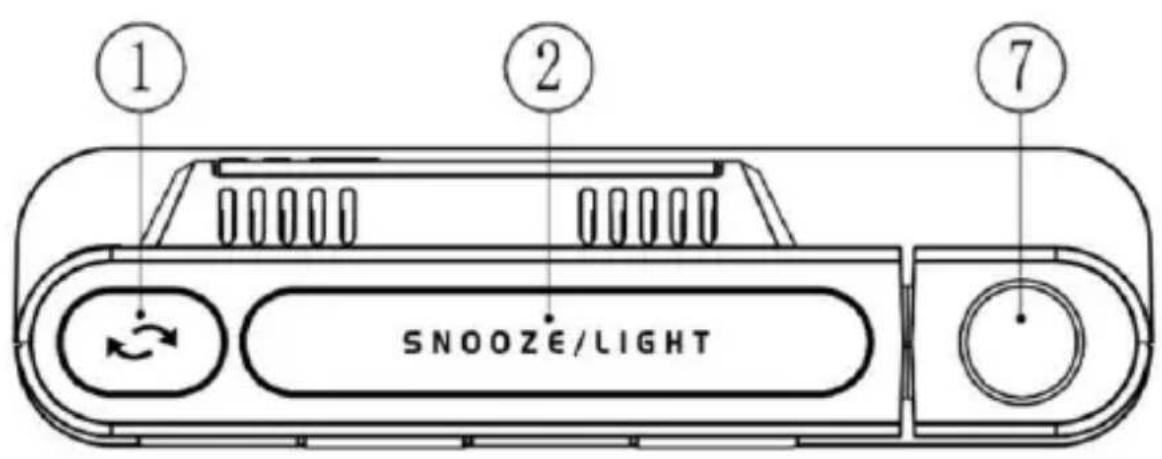

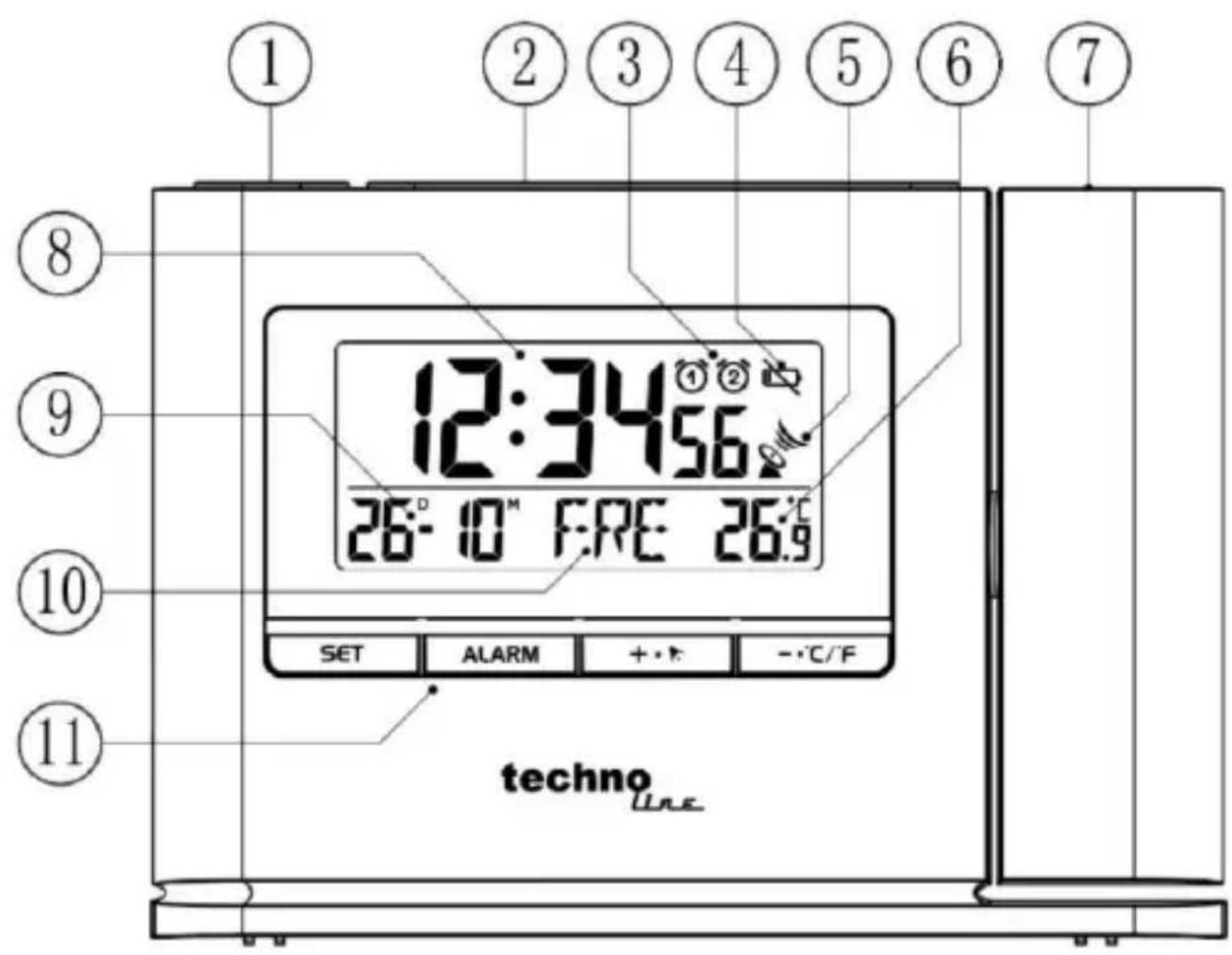

Production Appearance

1: Projection rotation button
2: Snooze function and backlight brightness adjustment button
3: Alarm icon
4: Low battery prompt symbol
5: Radio wave receiving status symbol
6: Indoor temperature
7: Projection window
8: Time
9: Date
10: Day of week
11: Operation buttons

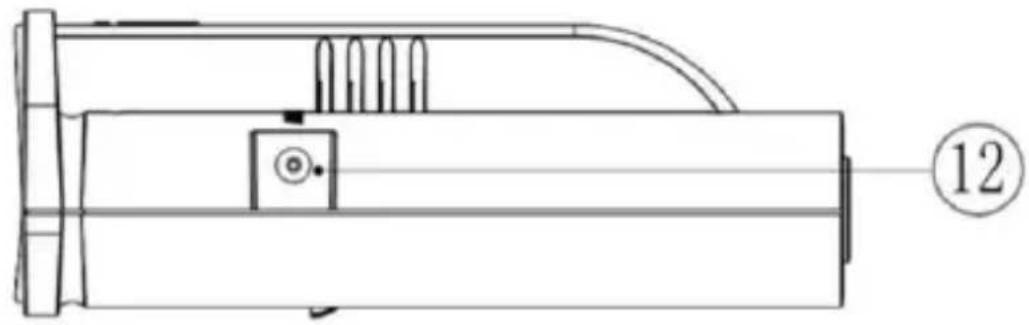

12: Adapter input jack

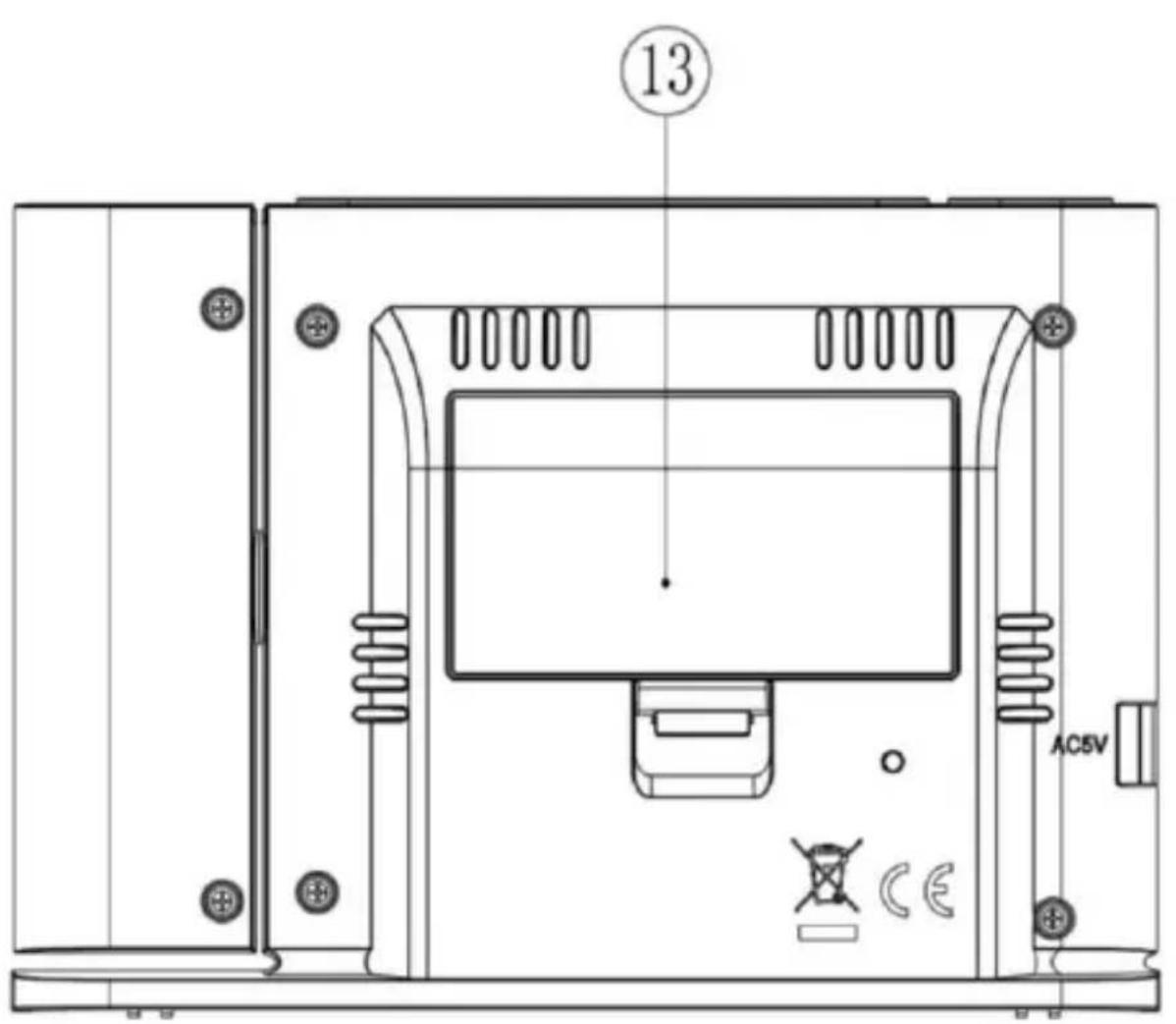

13: Battery compartment cover

Features:

• DCF Radio controlled clock function
  Calendar Up to Year 2099
• Day of week in 7 languages user selectable: English, German, Italian, French, Spanish, Dutch and Danish
• Timing in optional 12/24 hour format.
• Double daily Alarm Function
• 8 minutes snooze function
• Time and temperature projection function
• Projection display 180 degree rotation function
• Indoor temperature measurement ranges: -9.9°C (14.2°F) ~ 50°C (122°F) Temperature alternatively in °C or °F
• Power Supply: Battery: 2 x LR06 AA Adapter: AC5V 150mA, HX018-0500150-A2E

Initial operation

Battery Mode

• Open battery compartment cover of the product.
• Insert 2 × AA batteries observing polarity ("+ " and "- marks)
• Close the Battery compartment cover again.

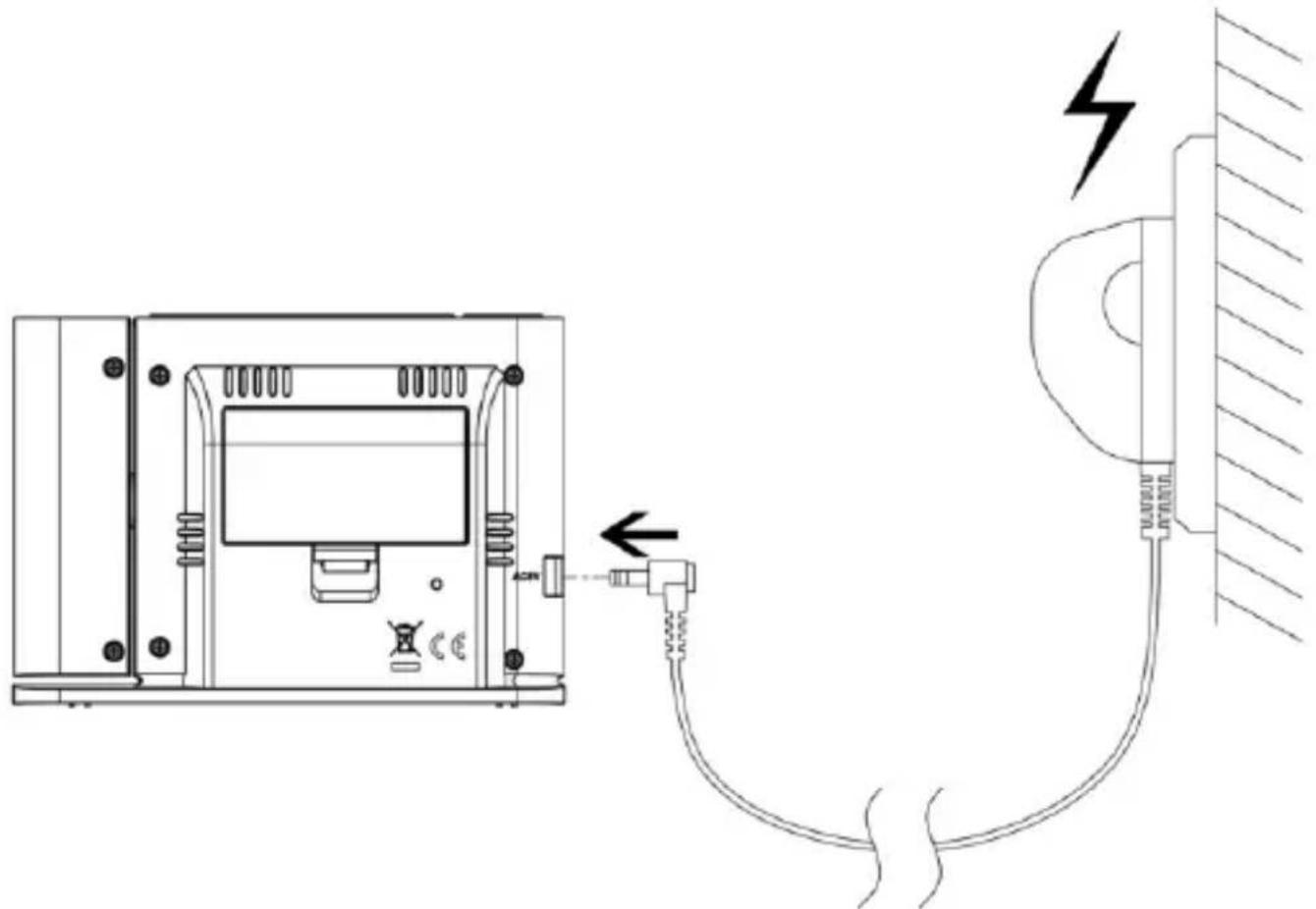

Power adapter Mode

• Inserting the adapter AC output plug into the product power jack, plug the AC input of the adapter into the mains socket of electricity.
• Only use the included adapter: HX018-0500150-A2E

Note:

• The icons on the LCD display will briefly light up for 3 seconds after the clock is fully powered, and you will hear a beep tone, and detect indoor temperature.

Reception of the Radio signal

• Press and hold the button -·^ C / ·^ F for 2 seconds to enter the RCC

function manually, the symbol flashing indicates entering RCC function, the signal line dynamic display indicates that the signal is normal.

Receiving and Signal detected

: Received successfully

The previous reception was successful, but the last reception failed

: ROC function is set to OFF

A11:00/2:00/3:00 (AM), the clock automatically carries out the synchronization procedure with the DCF77 signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast icon disappears from the display), the

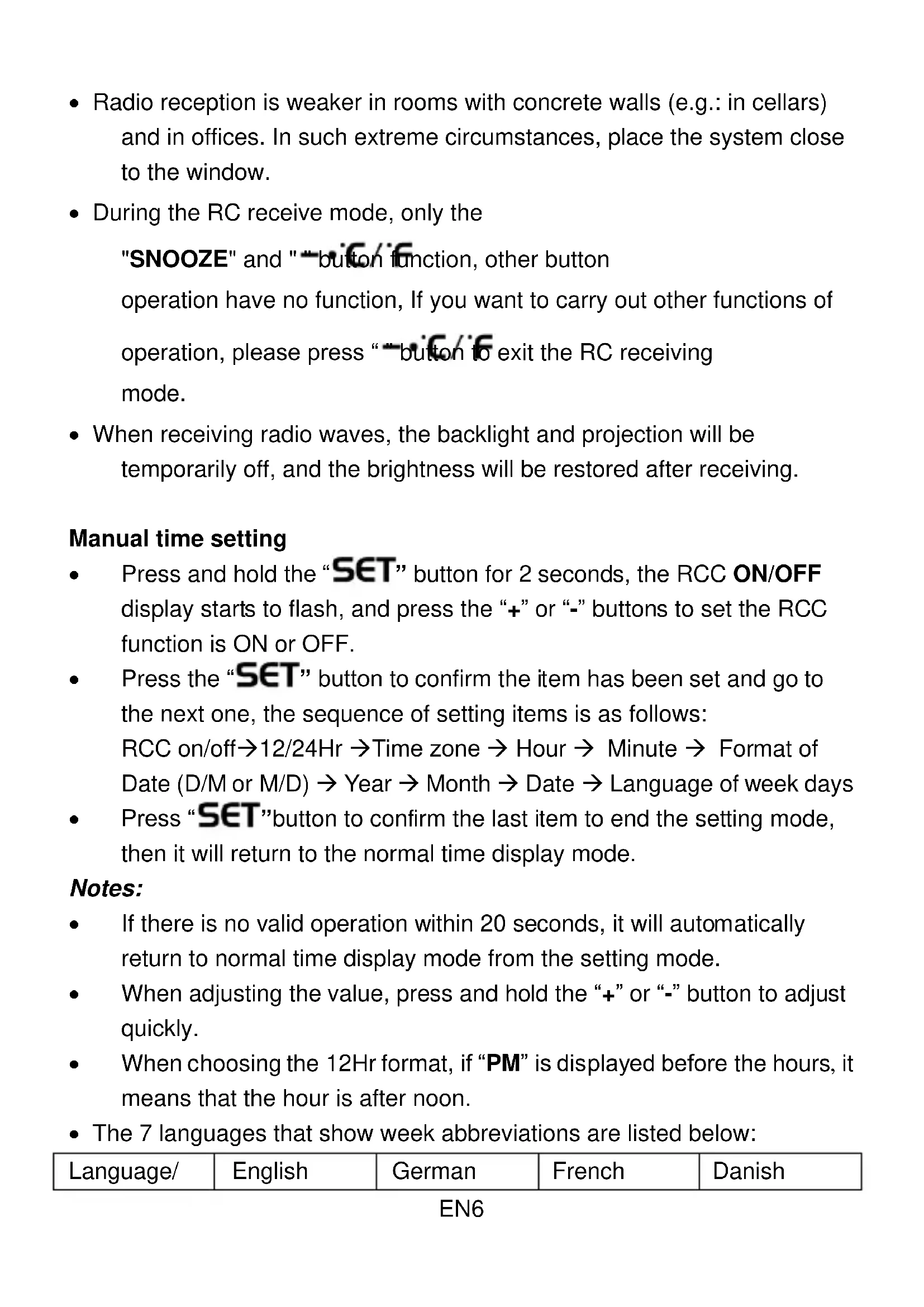

• Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window.
• During the RC receive mode, only the "SNOOZE" and "button function, other button operation have no function, If you want to carry out other functions of operation, please press "button to exit the RC receiving mode.
• When receiving radio waves, the backlight and projection will be temporarily off, and the brightness will be restored after receiving.

Manual time setting

• Press and hold the "SET" button for 2 seconds, the RCC ON/OFF display starts to flash, and press the "+" or "-" buttons to set the RCC function is ON or OFF.
• Press the "SET" button to confirm the item has been set and go to the next one, the sequence of setting items is as follows: RCC on/off 12/24Hr Time zone Hour Minute Format of Date (D/M or M/D) Year Month Date Language of week days
• Press "SET" button to confirm the last item to end the setting mode, then it will return to the normal time display mode.

Notes:

• If there is no valid operation within 20 seconds, it will automatically return to normal time display mode from the setting mode.
• When adjusting the value, press and hold the "+" or "-" button to adjust quickly.
• When choosing the 12Hr format, if “PM” is displayed before the hours, it means that the hour is after noon.
• The 7 languages that show week abbreviations are listed below:

Language/

English

German

French

Danish

Day	ENG	GER	FRE	DAN
Monday	MON	MON	LUN	MAN
Tuesday	TUE	DIE	MAR	TIR
Wednesday	WED	MIT	MER	ONS
Thursday	THU	DON	JEU	TOR
Friday	FRI	FRE	VEN	FRE
Saturday	SAT	SAM	SAM	LOR
Sunday	SUR	SON	DIM	SON

Language/ Day	Spanish SPA	Italian ITA	Dutch DUT
Monday	LUN	LUN	MAR
Tuesday	MAR	MAR	DIN
Wednesday	MIE	MER	WOE
Thursday	JUE	GIO	DON
Friday	VIE	VEN	VRI
Saturday	SAD	SAD	ZAT
Sunday	DOM	DOM	ZON

Alarm setting

• Press the button " ” to display the alarm symbol and separately, together( ) or none of them. The alarm icons indicate the enabled alarms. Each one can be turned on, off, separately or both at the same time.
• Press once button “” to switching display alarm 1 time, press button “” again, LCD display alarm 2 time, press button “” again, return to time display.
• When alarm 1 is displayed, press and hole button “ ” for 2 seconds until hour of the alarm 1 time starts to flash, press the “+” or “-”

button to set the required hour.

• Press button “ ” to confirm your setting, the minute of the alarm 1 time starts to flash, press the “+” or “-” button to set the required minute.
• Press button “ ” to confirm your setting and to end the setting of Alarm1.
• When Alarm 2 is displayed, press and hole button “ ” for 2 seconds until hour of the alarm 2 time starts to flash, press the “+” or “-” button to set the required hour.
• Press button “” to confirm your setting, the minute of the alarm 2 time starts to flash, press the “+” or “-” button to set the required minute.
• Press button “ ” to confirm your setting and to end the setting of alarm 2.

Notes:

• If there is no valid operation within 20 seconds, it will automatically return to normal time display mode from the setting mode.
• When adjusting the value, press and hold the "+" or "-" button to adjust quickly.
• The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.

Turn OFF the alarm sound

• When the alarm is ringing, press any button except the "SNOOZE" button to stop the alarm sound.
• This time of the next day will ring again.

Snoopze function

• When the alarm is ringing, press the "SNOOZE" button the alarm sounds to get to snooze mode. The alarm signal sounds again after 8

minutes.

Switching ^ C or ^ F

• Press “ ” button once to switching the temperature unit in °C or °F.

Backlight and Projection function Battery Mode

• Press "SNOOZE/LIGHT" button once to active backlight and projection for 8 seconds (the projection function is turned ON)

Power adapter Mode

• When using the adapter supply, the backlight and projection will always light up, press the "SNOOZE/LIGHT" button to adjust the backlight brightness or set it to OFF. The order is: light medium dark OFF light medium dark......
• Press the button the projection display will rotate 180 degrees.

Note:

• When the projection is triggered, the projection distance is about 2 meters.

Low battery indicator

Under battery operation, when the low battery indicator " displayed, replace with 2 new AA size batteries. Pay attention to the battery polarity.

IMPORTANT

Hereby, Technotrade declares that this product WT 519 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665005195

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
  among tall buildings
• inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
• inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
• Install batteries correctly by matching the polarities (+/-) .
• Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and

collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all

countries of the European Union, and to other European countries with a separate waste collection system.
