WT 171 - Alarm bell TECHNOLINE - Free user manual and instructions

Product type	Radio alarm clock buzzer
Brand	TECHNOLINE
Model	WT 171
Power supply	2 AAA 1.5 V batteries (LR03)
Display	LCD with backlight
Radio reception	DCF-77 (German time signal)
Time formats	12h or 24h
Calendar	Year, month, date
Indoor temperature range	-5 °C to 50 °C
Alarm	With snooze function (5 minutes)
Weekday languages	German, English, Spanish, Italian, French
Time zone function	Adjustable from -12 to +12 hours
Dimensions (approx.)	100 x 80 x 50 mm
Weight (approx.)	200 g
Compliance	Directive 2014/53/EU and ROHS 2011/65/EC
Material	Plastic
Cleaning	Soft dry cloth
Safety	Use alkaline batteries, do not open the device
Maintenance	Remove batteries if not used for extended period
Repairability	No user-serviceable parts

Frequently Asked Questions - WT 171 TECHNOLINE

How to set the time manually?

Press and hold the TIME SET button for 3 seconds. The hours flash: use UP or DOWN to adjust. Press TIME SET again to go to minutes, then seconds (reset), year, month, date, and time zone. Once finished, press TIME SET to return to normal display.

How to set the alarm?

First press the ALARM button. Then press and hold the ALARM SET button for 3 seconds: the minutes flash. Use UP or DOWN to adjust the minutes, then press TIME SET to set the hours. Press TIME SET again to confirm and return to normal screen.

How to enable or disable the alarm?

Once the alarm is set, press the ALARM ON/OFF button to activate it. The alarm icon appears. To deactivate, press ALARM ON/OFF again. Note that the TIME SET button also activates the alarm and snooze function simultaneously.

How to change the weekday language?

In manual time setting mode, after setting the time zone, press TIME SET until the language flashes. Use UP or DOWN to choose from German, English, Spanish, Italian, or French. Press TIME SET to confirm.

How to switch between 12h and 24h display?

Simply press the 12/24 button to toggle between 12-hour format (with AM/PM) and 24-hour format.

How to use the snooze function?

When the alarm sounds, press the SNOOZE/LIGHT button for a 5-minute pause. The snooze symbol flashes. To cancel snooze completely, press any other button.

What to do if the clock does not receive the DCF signal?

If no signal is received after 6 minutes, you can set the time manually. Ensure the clock is placed near a window, away from metal objects and electronic devices. The signal is automatically searched every day at 2 AM. You can also force a search by holding the WAVE button for 3 seconds.

How to change the temperature unit (°C/°F)?

In normal display mode, press the C/F button to toggle between degrees Celsius and degrees Fahrenheit.

How to replace the batteries?

Open the battery compartment on the back of the device. Insert 2 new AAA 1.5V (LR03) batteries, observing the polarity (+/-). Close the cover. Use only alkaline batteries, not rechargeable batteries.

How to clean the device?

Use a soft, dry cloth to wipe the exterior. Do not use chemical or abrasive cleaners. Never immerse the device in water.

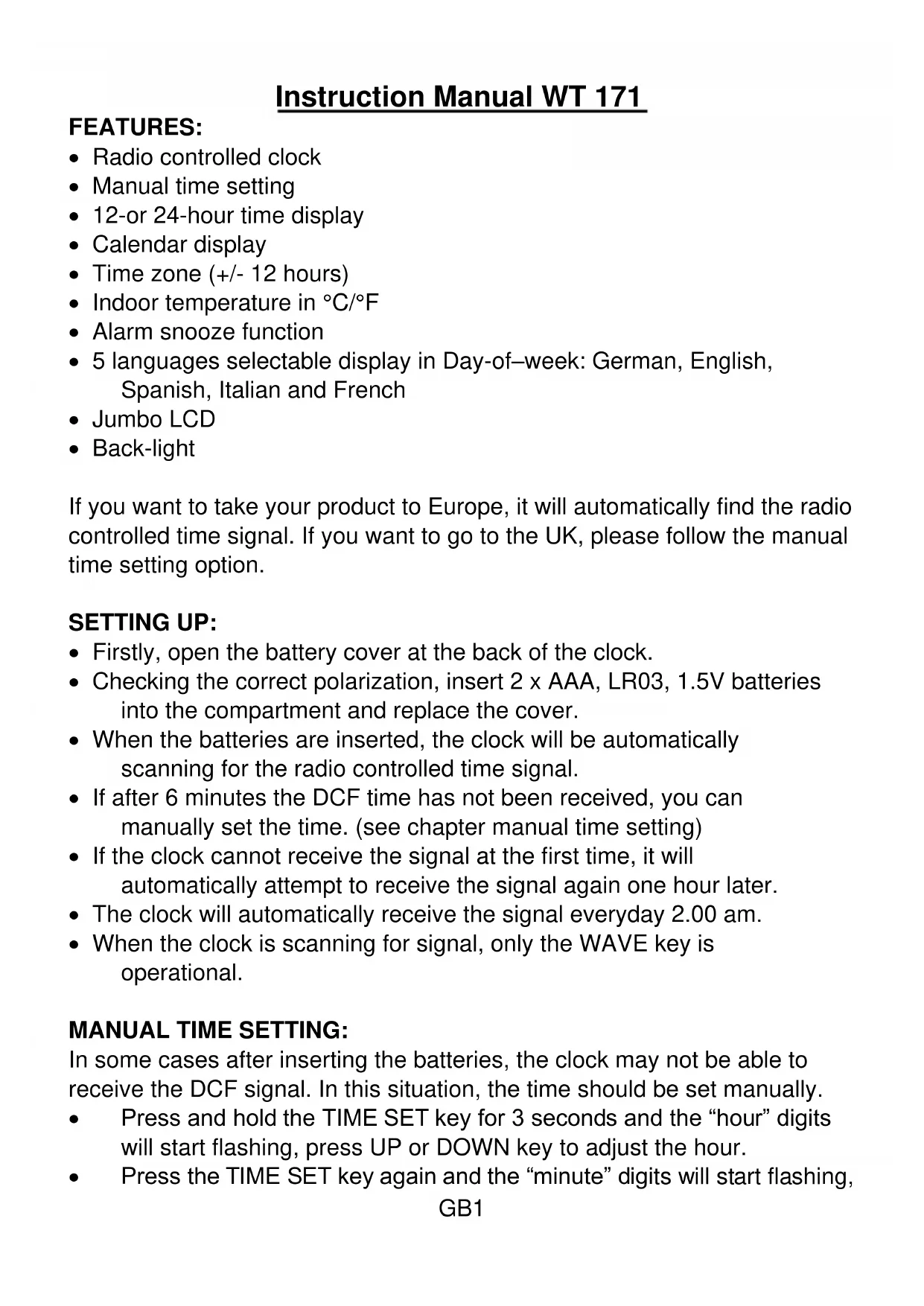

USER MANUAL WT 171 TECHNOLINE

• Radio controlled clock
• Manual time setting
  12-or 24-hour time display
  Calendar display
  Time zone (+ / - 12 hours)
• Indoor temperature in ^ C / ^ F
• Alarm snooze function
• 5 languages selectable display in Day-of-week: German, English, Spanish, Italian and French
• Jumbo LCD
• Back-light

If you want to take your product to Europe, it will automatically find the radio controlled time signal. If you want to go to the UK, please follow the manual time setting option.

SETTING UP:

• Firstly, open the battery cover at the back of the clock.
• Checking the correct polarization, insert 2 × AAA , LR03, 1.5V batteries into the compartment and replace the cover.
• When the batteries are inserted, the clock will be automatically scanning for the radio controlled time signal.
• If after 6 minutes the DCF time has not been received, you can manually set the time. (see chapter manual time setting)
• If the clock cannot receive the signal at the first time, it will automatically attempt to receive the signal again one hour later.
• The clock will automatically receive the signal everyday 2.00 am.
• When the clock is scanning for signal, only the WAVE key is operational.

MANUAL TIME SETTING:

In some cases after inserting the batteries, the clock may not be able to receive the DCF signal. In this situation, the time should be set manually.

• Press and hold the TIME SET key for 3 seconds and the "hour" digits will start flashing, press UP or DOWN key to adjust the hour.
• Press the TIME SET key again and the "minute" digits will start flashing,

press the UP or DOWN key to adjust the minute.

• Press the TIME SET key again and the "second" digits will start flashing, press the UP or DOWN key to clear the "second" to 0.
• Press the TIME SET key again and the "year" digits will start flashing, press UP or DOWN key to adjust the year.
• Press the TIME SET key again and the "dash" between "date" and "month" will start flashing, press UP or Down key to shift the position of "date" and "month".
• Press the TIME SET key again and the "month" digits will start flashing, press the UP or DOWN key to adjust the month.
• Press the TIME SET key again and the "date" digits will start flashing, press the UP or DOWN key to adjust the date.
• Press the TIME SET key again and then press the UP or DOWN key to set the time zone, e.g. when the country time is faster than DCF time for 1 hour, the zone should be set to +1.
• Press the TIME SET key again and then press the UP or DOWN key to choose the language for the Day of week.
• Press the TIME SET key again to return to normal display.

ALARM SETTING:

• Press the ALARM Set key.
• Press and hold the ALARM SET key for 3 seconds and the "minute" digits of alarm time will start flashing, press UP or DOWN key to adjust the minute.
• Press the ALARM SET key again and the "hour" digits of alarm time will start flashing, press UP or DOWN key to adjust the hour.
• Press the ALARM SET key again to return to alarm time display.
• Press the ALARM ON/OFF key once to activate alarm on function and twice to activate snooze function. Press the ALARM ON/OFF key once more, the alarm on function will be inactivated.
• Press TIME SET key to return to normal display mode.

FUNCTION KEYS

SNOOZE/LIGHT KEY

• When the snooze alarm beeps, press the SNOOZE/LIGHT key to pause the alarm for 5 minutes and the snooze function can be used repeatedly.

• To stop snooze function, just press other keys once.

• Press the SNOOZE/LIGHT key to illuminate the LCD for 3 seconds.

C/F KEY

• n normal time display, press the C/F key to toggle between Celsius and Fahrenheit temperature readings.

12/24 KEY

• In normal time display, press the 12/24 key to toggle between 12h and 24h display.

WAVE KEY

• In normal time display, press and hold the WAVE key for 3 seconds to activate the DCF scanning function.
• If the clock is scanning for the DCF signal, press the WAVE key once to inactivate the DCF scanning function.

Hereby, Technotrade declares that this product WT 171 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665101712

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
  among tall buildings
• inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures

• inside moving vehicles

• Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
• Install batteries correctly by matching the polarities (+/-) .
• Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to

bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European

countries with a separate waste collection system.
