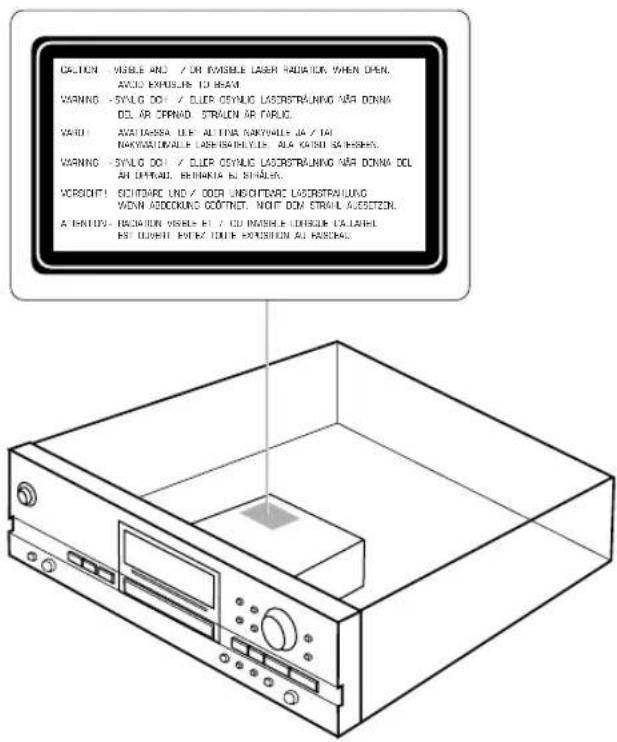

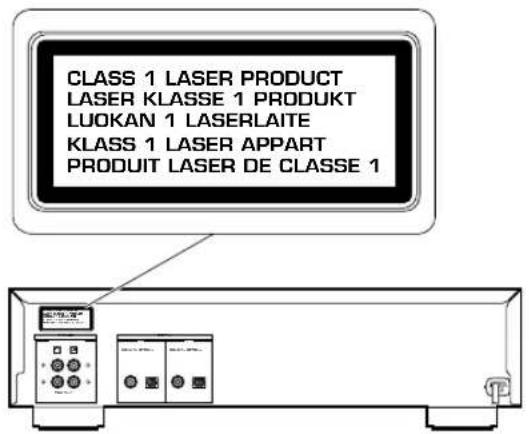

• To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.

• Install this unit in a well ventilated, cool, dry, clean place with at least 30cm on the top, 20cm on the right and left, and 10cm at the back of this unit for ventilation space – away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold.

• Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds. To prevent fire or electrical shock, do not place this unit where it may get exposed to rain, water, and/or any type of liquid.

• Do not expose this unit to sudden temperature changes from cold to hot, and do not locate this unit in a environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

• On the top of this unit, do NOT place:

• Other components, as they may cause damage and/or discoloration on the surface of this unit.

• Burning objects (i.e. candles), as they may cause fire, damage to this unit, and/or personal injury.

• Containers with liquid in them, as they may cause electrical shock to the user and/or damage to this unit.

• Do not cover the rear panel of this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

• Do not plug in this unit to a wall outlet until all connections are complete.

• Do not operate this unit upside-down. It may overheat, possibly causing damage.

• Do not use force on switches, knobs and/or cords.

• When disconnecting the power cord from the wall outlet, grasp the plug; do not pull the cord.

• Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.

• Only voltage specified on this unit must be used. Using this unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

• To prevent damage by lightning, disconnect the power cord from the wall outlet during an electrical storm.

• Take care of this unit so that no foreign objects and/or liquid drops inside this unit.

• Do not attempt to modify or fix this unit. Contact qualified YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reasons.

• When not planning to use this unit for long periods of time (i.e. vacation), disconnect the AC power plug from the wall outlet.

• Be sure to read the “Troubleshooting” section on common operating errors before concluding that this unit is faulty.

• Before moving this unit, first check that there is no disc in the disc tray. Finally, press POWER to turn off this unit, and disconnect the AC power plug from the wall outlet.

SPECIAL INSTRUCTIONS FOR U.K. MODEL

IMPORTANT The wires in this mains lead are coloures in accordance with the following code: GREEN-and-YELLOW:Earth BLUE:Neutral BROWN:Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured GREEN-and-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN or GREEN-and - YELLOW. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. For U.K. customers If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the instructions described above. Note: The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1.E-1 PREPARATION RECORDING AND COPYING EDITING PLAYBACK ADDITIONAL INFORMATION English Features

• Copying a CD to the HDD at maximum 10x speed

• Copying data on the HDD to a CD-R disc at maximum 8x speed

• Copying data on the HDD to a CD-RW disc at maximum 4x speed

• CD-R discs can only be recorded on once, and the recorded material cannot be erased.

• CD-RW discs can be recorded on, have the recorded material erased, and then recorded on again any number of times. ■ Discs that cannot be used for recording on this unit

• Discs bearing marks other than those shown above.

• Discs intended for recording computer data.

• Discs intended for professional use or labeled “FOR PROFESSIONAL USE ONLY”. ■ Finalization of CD-R discs for playback on standard CD players Although a partially recorded CD-R disc can be played on this unit, it cannot be played on a standard CD player until it has undergone a process known as “finalization”. In the finalization process, the Table of Contents (TOC) is written onto the disc and further recording is not possible. However, this process makes it possible to play a CD-R disc on a standard CD player. Some CD players may not play back the finalized CD-R discs properly due to differences in the playback system of different manufacturers. See page 19 for the finalization procedure. ■ Erasure or loss of data Yamaha and suppliers accept no liability for the loss of data written on the HDD and CD-R or CD-RW discs, or any problems caused as a result of using this unit. As a precaution, it is recommended that the discs are tested after they have been recorded on. Furthermore, under no circumstances do Yamaha and suppliers guarantee the reliability of the discs. ■ Discs that can be played back In addition to CD-R and CD-RW digital audio discs described above, commercially available pre-recorded CDs bearing the marks shown below can also be played on this unit.

DISCS COMPATIBLE WITH THIS UNIT

■ Playback of CD-RW discs Please note that even after a CD-RW disc has been finalized, it still cannot be played on a standard CD player. CD-RW discs can only be played back on CD-RW-compatible players such as this unit. Additionally, CD-RW discs can be erased even after finalization has been performed, and recorded on again. ■ Playback on DVD players Before playing back a finalized CD-R or CD-RW discs on a DVD player, please check whether the DVD player is compatible with CD-R or CD-RW discs or not. Refer to the owner’s manual of the DVD player for more information. CD-R or CD-RW discs cannot be played on a DVD player that is not compatible with CD-R or CD-RW discs. IMPORTANT

• Please check the copyright laws in your country to record from records, CDs, radio, etc. Recording of copyright material may infringe copyright laws.E-3 PREPARATION English

DISCS COMPATIBLE WITH THIS UNIT

■ Handling of discs Heed the following notes on handling of discs not to create any cause for a recording failure, a loss of the recorded data, or a malfunction of this unit.

• This compact disc recorder is designed for use with CDs (including 8cm [3”] discs) bearing the , , , or marks only. Never attempt to load any other type of disc into this unit.

• CDs are not subjected to wear during play. However if the disc is handled improperly, damage may be created on the disc to adversely affect the disc’s play.

• Do not use cleaning discs or warped discs. All of these could damage this unit.

• Although playback of CDs is generally not affected by small particles of dust or fingerprints on their playing surface, dust, fingerprints, small scratches and direct sunlight on the recording surface of a CD-R or CD-RW disc may make recording impossible. Therefore, for optimal performance of the recorder and for long-term enjoyment of your CD collection, handle discs correctly as outlined in the following guidelines.

1. Hold discs by touching only the edges or center hole.

2. When a disc is not currently being used, remove it from the

recorder and store in an appropriate case.

3. With proper disc maintenance, cleaning should not be

necessary. However, should cleaning be required, wipe by using a clean, dry cloth. Do not wipe with a circular motion; wipe straight outward from the center.

• Do not try to clean the disc’s surface by using any type of disc cleaner, record spray, antistatic spray or liquid, or any other chemical-based liquid, because such substances might irreparably damage the disc’s surface.

• Do not expose discs to direct sunlight, high temperature, or high humidity for a long period of time, because this might warp or otherwise damage the disc. No! ■ To prevent a malfunction of this unit

• Do not use any non-standard shaped CDs (heart, flower shaped, etc.) available on the market, because they are off-balance in their weight. If a non-standard shaped CD is loaded into this unit, it may create problems such as improper playback, opening the disc tray, creating an usual noise, and this unit’s failure.

• Be sure to use a felt-tip pen or similar writing tool when writing on the label side of the disc. Do not use a ball-point pen, pencil, or other hard-tipped writing tool, as these may damage the disc and may adversely affect further recording on the disc.

• Do not use the discs with glue left on their surface. It may get stuck in this unit or create damage to this unit.

• When using an 8cm (3”) disc, do not place a normal 12cm (5”) disc on top of it.E-4 Supplied Accessories After unpacking, make sure the following items are included in your package. PREPARATION

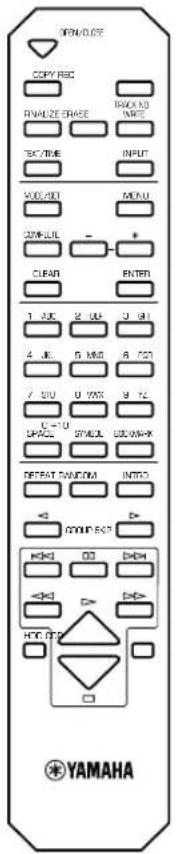

• If operation of this unit by the remote control creates any malfunction in any other components, change the placement of the component.

• Do not spill any liquid on or drop the remote control. Do not place it near a heater or in the bathroom where the temperature and humidity become high.
• Make sure the remote control sensor is not exposed to direct sunlight or strong lights. If it is, it may not function correctly. ■ Loading the batteries in the remote control

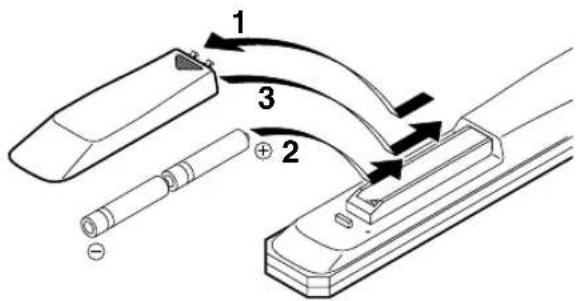

1. Remove the battery compartment cover on the back

of the remote control.

2. Insert 2 batteries (AA, UM-3 or R6 type) according to

the polarity markings on the inside of the batterycompartment.

3. Close the cover until it snaps into place.

■ Battery replacementIf you find that the remote control must be used closer to this unitthan usual, the batteries are weak. Replace both batteries with newones.■ Notes on batteries• Use only AA, UM-3, or R6 type batteries for replacement.• Do not mix a new battery with a used one.• A rechargeable battery cannot be used.• Do not mix different types of battery.• Do not attempt to short out the batteries by directly connecting theplus (+) and the minus (–) with a piece of metal.• Remove the batteries if the remote control will not be used for anextended period of time.• If batteries leak, dispose of them immediately. Clean the batterycompartment thoroughly before installing new batteries.

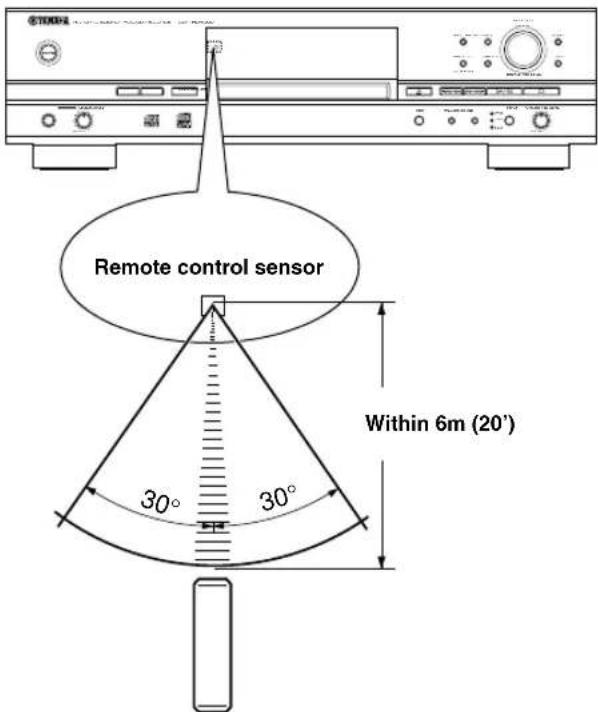

■ Remote control operation rangeNATURAL SOUND HDD/CD RECORDER CDR–HD1000TEXT/TIME MODE/SETMULTI JOGDIGITAL REC LEVELPUSH ENTERTRACK NO.FINALIZE ERASEBOOKMARKCOMPLETE MENU

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC COAXIALANALOGCOPYCDRHDDMIN MAXLEVELPHONESPOWER 30° 30° Remote control sensor Within 6m (20’)E-6 PREPARATION Connections Turn off the power of this unit and the other components, and unplug them from the wall outlet before making any connections.

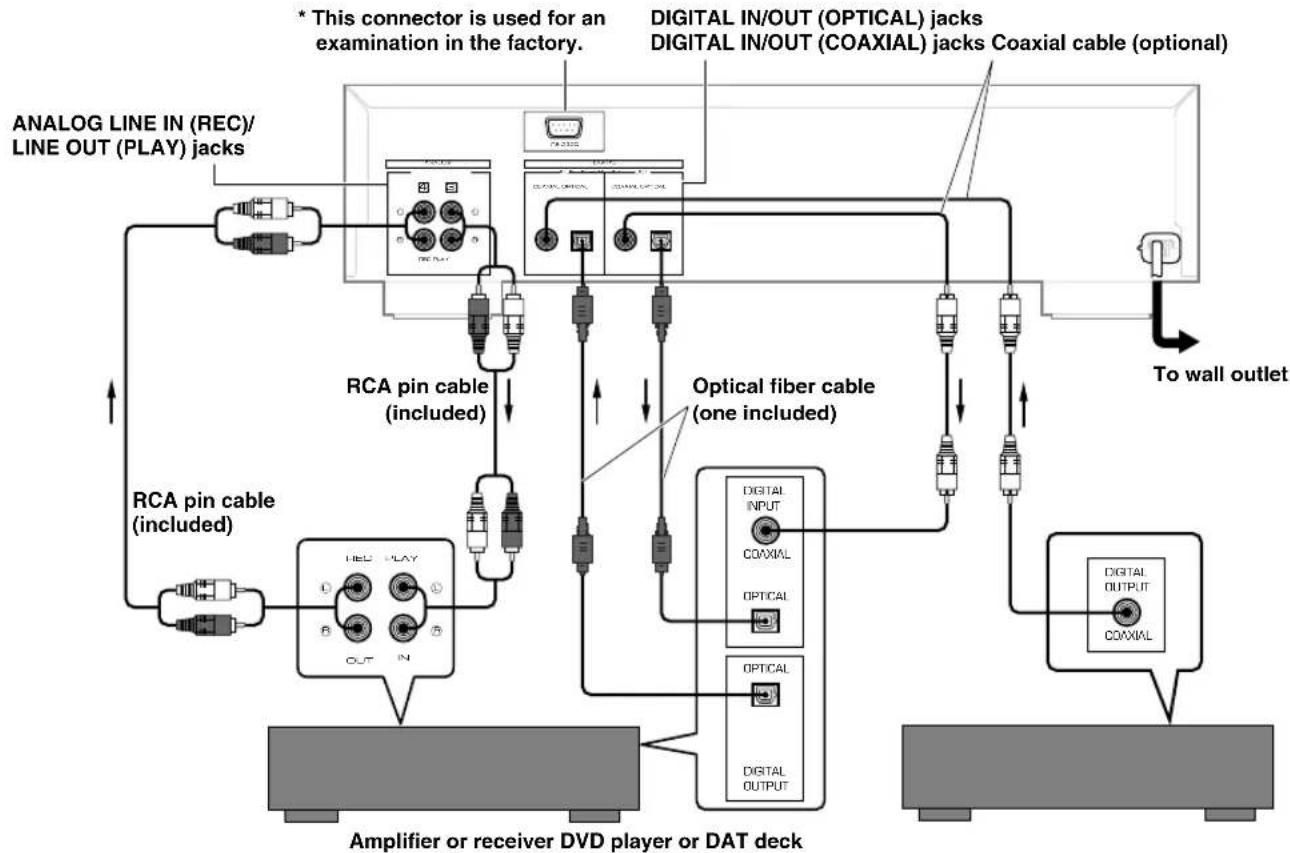

• Correctly connect the input and output jacks on this unit to the input and output jacks on the other components.

• Arrow marks (➞) in the illustration below indicate the direction of the audio signal. ■ Digital connections

• Remove the jack covers for the DIGITAL IN/OUT (OPTICAL) jacks before starting to make connections. Using the optical fiber cable, connect the DIGITAL IN (OPTICAL) jack on this unit to the digital optical output jack on the other component, and the DIGITAL OUT (OPTICAL) jack on this unit to the digital optical input jack on the other component.

• Keep the jack covers for future use. Replace them in order to protect the DIGITAL IN/OUT (OPTICAL) jacks from dust when the jacks are not being used.

• When using the DIGITAL IN/OUT (COAXIAL) jacks, make connections with coaxial cables. Connect the DIGITAL IN (COAXIAL) jack on this unit to the digital coaxial output jack on the other component, and the DIGITAL OUT (COAXIAL) jack on this unit to the digital coaxial input jack on the other component. ■ Analog connections

• Make sure to connect the L (left) and R (right) input and output jacks on this unit to the correct L (left) and R (right) input and output jacks on the other component.

• Connect the ANALOG LINE IN (REC) jack on this unit to the analog output jack on the other component, and the ANALOG LINE OUT (PLAY) jack on this unit to the analog input jack on the other component.

• The ANALOG LINE IN (REC)/LINE OUT (PLAY) jacks on this unit are numbered # and $ respectively. Connect these jacks to the jacks with the same numbers when connecting this unit to a Yamaha amplifier or receiver. ■ Plug in this unit to a wall outlet when all connections are complete. Note

• When you play the data on the HDD or CDs, signals are output both from the ANALOG LINE OUT (PLAY) jack and from the DIGITAL OUT (OPTICAL/COAXIAL) jacks.

ANALOG LINE IN (REC)/

LINE OUT (PLAY) jacks

• This connector is used for an examination in the factory. DIGITAL IN/OUT (OPTICAL) jacks DIGITAL IN/OUT (COAXIAL) jacks Coaxial cable (optional) RCA pin cable (included) RCA pin cable (included) Optical fiber cable (one included) To wall outlet Amplifier or receiver DVD player or DAT deckE-7 PREPARATION English 1 POWER ............................................................................. P. 13 2 HDD 3 CDR 4 COPY ..................................................................... P. 23, 25, 27 5 Front panel display ......................................................... P. 9, 10 6 Disc tray 7 v

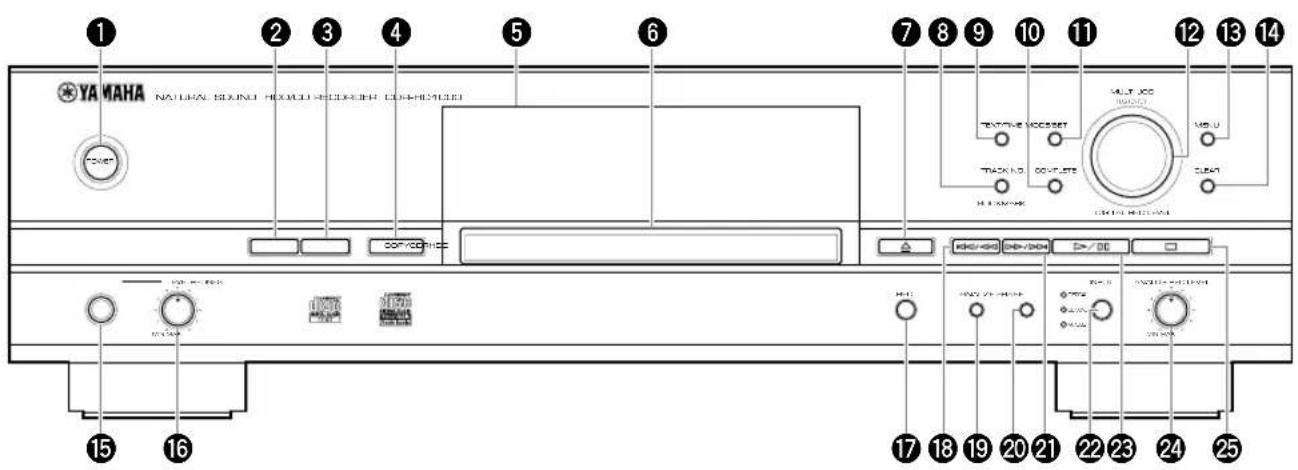

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC LEVELTRACKGROUP VAR CD–RW

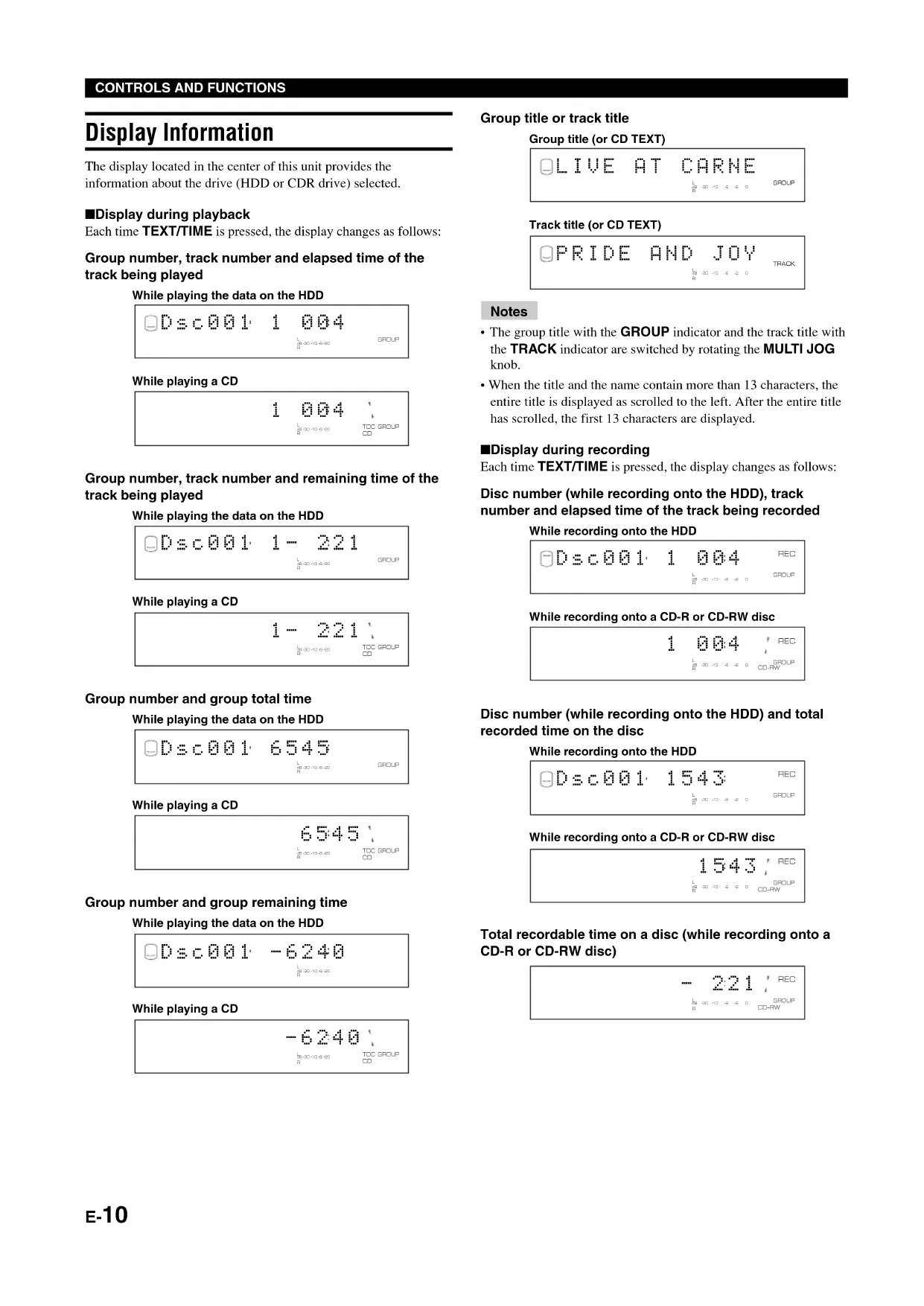

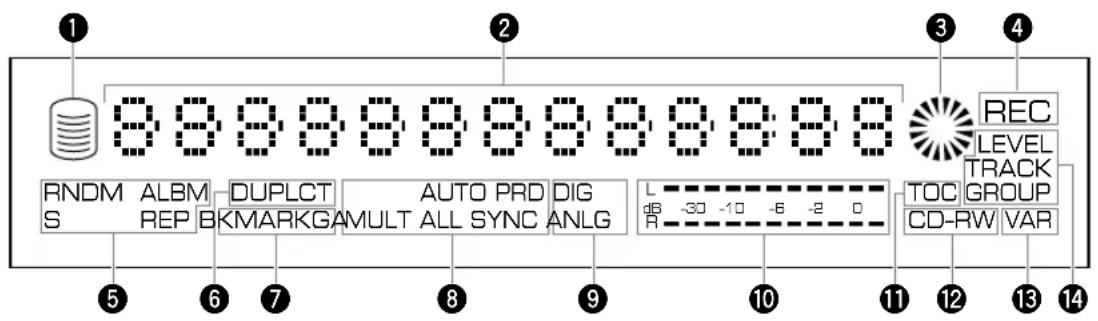

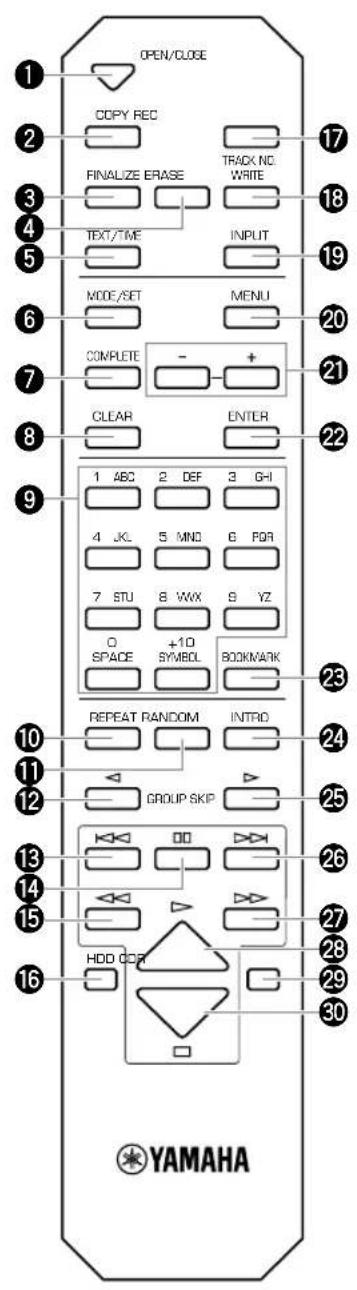

Display Information The display located in the center of this unit provides the information about the drive (HDD or CDR drive) selected. ■ Display during playback Each time TEXT/TIME is pressed, the display changes as follows: Group number, track number and elapsed time of the track being played While playing the data on the HDD While playing a CD Group number, track number and remaining time of the track being played While playing the data on the HDD While playing a CD Group number and group total time While playing the data on the HDD While playing a CD Group number and group remaining time While playing the data on the HDD While playing a CD GROUP

TOC Group title or track title Group title (or CD TEXT) Track title (or CD TEXT) Notes

• The group title with the GROUP indicator and the track title with the TRACK indicator are switched by rotating the MULTI JOG knob.

• When the title and the name contain more than 13 characters, the entire title is displayed as scrolled to the left. After the entire title has scrolled, the first 13 characters are displayed. ■ Display during recording Each time TEXT/TIME is pressed, the display changes as follows: Disc number (while recording onto the HDD), track number and elapsed time of the track being recorded While recording onto the HDD While recording onto a CD-R or CD-RW disc Disc number (while recording onto the HDD) and total recorded time on the disc While recording onto the HDD While recording onto a CD-R or CD-RW disc Total recordable time on a disc (while recording onto a CD-R or CD-RW disc) GROUP

dB –30 –10 –6 –20 - 221E-11 PREPARATION English Rules of Digital Recording ■ SCMS—Serial Copy Management System As a digital audio component, this unit conforms with the Serial Copy Management System (SCMS) standards. The Serial Copy Management System restricts copies made by recording digital signals to first-generation copies only. The digital program sources that have been recorded cannot be digitally recorded again. There are 2 rules as follows: Rule 1 Digital sources such as commercially available CDs can be copied digitally onto other recordable digital media with this unit (a first- generation digital copy). However, the first-generation digital copy cannot be copied digitally any further. Rule 2 The source that was recorded via the ANALOG LINE IN (REC) jacks can be copied digitally onto other recordable digital media (a first-generation digital copy). However, the first-generation digital copy cannot be copied digitally any further. This unit monitors the SCMS status for each track when a digital recording is made. If the track is protected from digital recording and copying, it is not possible to make a digital recording and copy of that track. The SCMS standard does not apply to analog recording and copying. When making a copy from a CD onto the HDD, or from the HDD onto a CD-R or CD-RW disc, any of the copy methods described below can be selected. The following selections are contained in “Copy Method”.

• “Auto Dig/Anlg”: Automatically switches to analog recording if the track cannot be digitally recorded for SCMS.

• “Digital Copy/Move”: Performs recording of only those tracks that can be digitally copied when recording from a CD onto the HDD. Switches to the Digital Move method when recording from the HDD onto a CD-R or CD-RW disc.

• “Analog Copy”: Performs analog copying regardless of the SCMS standard. ■ Digital Move This unit has a built-in HDD with large space that makes a long recording possible. You can create your own CD by editing the various program sources that have been recorded onto the HDD of this unit and copying them onto a CD-R or CD-RW disc. If you want to make a digital copy of the original data that has been created on the HDD to a CD-R or CD-RW disc, the “Digital Move” method is convenient. You can make a digital copy from the HDD onto a CD-R or CD-RW disc even if the track is protected from making a second-generation copy by the SCMS standard. However, since the concept of “Digital Move” is that the data is moved from the HDD onto a CD-R or CD-RW disc, the original data on the HDD is erased when moving is complete. See page 30 for details. RULES OF DIGITAL RECORDING AND NOTES ON SYSTEM Notes on System ■ Number of recordable discs and tracks and their length

• One CD-R or CD-RW disc, or one disc on the HDD can be recorded with up to 99 tracks on them.

• Once 99 tracks have been recorded, no further recording is possible even if space for recording is available on the disc.

• The minimum length of one track must be 4 seconds. If a recording is stopped while the track is less than 4 seconds long, this unit will record for 4 seconds, and then stop recording. The maximum length of one track is 99 minutes 59 seconds for the HDD.

• 999 discs can be created at maximum on the HDD of this unit. However, the number of discs that can be created is limited according to the space availability (total recordable time) on the HDD. Total recordable time for the HDD is approximately 30 hours.

• The maximum length of one disc on the HDD is 99 minutes 59 seconds. However, since each track on the HDD is handled in the unit of frame (75 frames are equal to one second), the maximum length of one track or disc may vary slightly. ■ Source sampling rate conversion

• Digital input of this unit supports sampling frequencies of 32kHz, 44.1kHz, 48kHz, and 96kHz. This unit converts these inputs to the 44.1kHz,16-bit digital signals and records them onto the HDD, or a CD-R or CD-RW disc.

• Analog input is also converted to the same digital signal to be recorded.

• This unit always produces the signals at the sampling frequency of 44.1kHz, 16-bit from its digital output. ■ Recording of non-audio signals

• This unit is designed exclusively for recording audio signals. Recording is only possible for audio signals.

• When a CD with CD TEXT is recorded onto the HDD, CD TEXT will be automatically copied if it is not copy protected.

• If the digital signals contain graphic data such as CD graphics, the non-audio signals will not be recorded.

• It is not possible to record from non-audio sources such as CD- ROM or DVD. ■ Data processing

• A small amount of space may be used for data processing besides recording the actual program sources.

• Although this unit is capable of recording 999 albums at maximum onto the HDD, the data processing speed may slow down if a large number of albums is created.E-12 RULES OF DIGITAL RECORDING AND NOTES ON SYSTEM ■ Data on the HDD The data recorded onto the built-in HDD of this unit will be numbered and organized based on the following concept: Disc One consequent recording is counted and numbered as one unit of disc. The HDD of this unit can record 999 discs at maximum. (However, the number of discs to be created may be less than 999 for the space availability on the HDD.) Track 99 tracks can be recorded onto a disc at maximum. (However the number of discs tracks to be recorded may be less than 99 for the space availability on the HDD.) One track must be 4 seconds at shortest and 99 minutes 59 seconds at longest. Album A group of the source programs selected from different discs and recorded as the playlist is called “album”. This unit can record 999 albums at maximum onto the HDD. See page 31 for details. Bookmark This unit can make a temporary bookmark on a favorite track as playing back. The list of the program sources marked is called “bookmark”. This marking is temporary and cannot be duplicated. However, an album can be easily created by copying the bookmarked tracks. See page 36 for details. Group A collection of tracks such as a disc, album, and bookmark is called “group”. Any of the recorded discs, created albums, and marked bookmarks can be selected as a group in the order by rotating the MULTI JOG knob. Disc 1 Track 1 Track 2 Track 3 Track 99

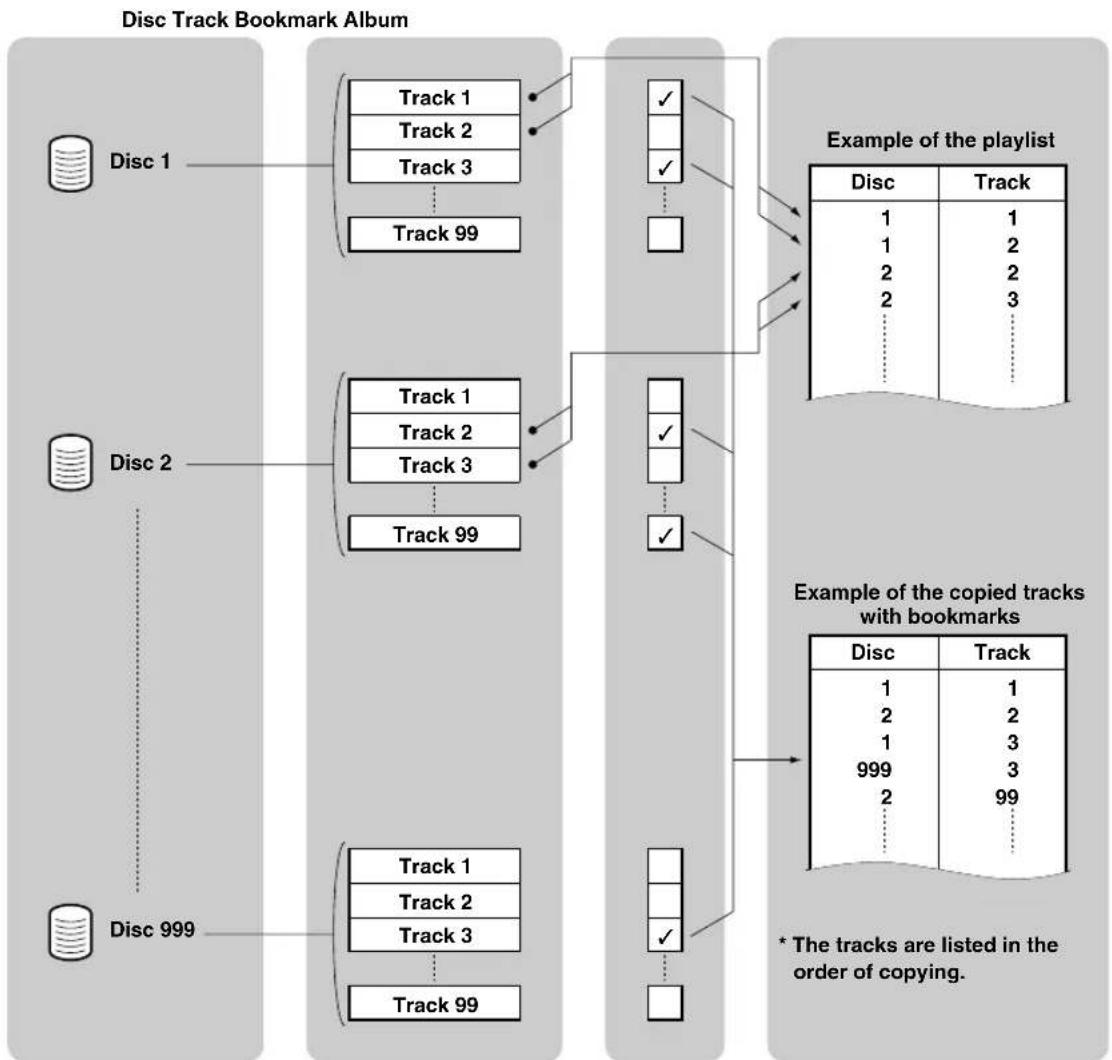

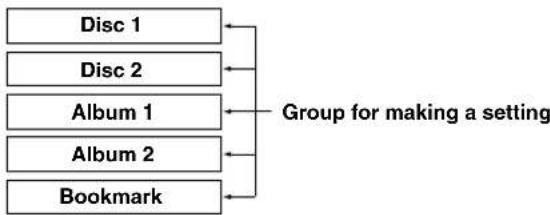

Disc 2 Track 1 Track 2 Track 3 Track 99

Disc 999 Track 1 Track 2 Track 3 Track 99

Disc Track Bookmark Album Example of the playlist Example of the copied tracks with bookmarks

• The tracks are listed in the order of copying.E-13 RECORDING AND COPYING English Usable Recording Media The media used for recording and copying with this unit are the hard disk drive (HDD) or a compact disc for recording (a CD-R or CD-RW disc). Choose whichever suits your needs. HDD is convenient to make a long recording, and to edit the recorded tracks afterwards. A CD-R and CD-RW disc can be used to make an original CD that another CD player can play. Types of Recording and Copying 5 types of recording and copying are possible with this unit as follows:

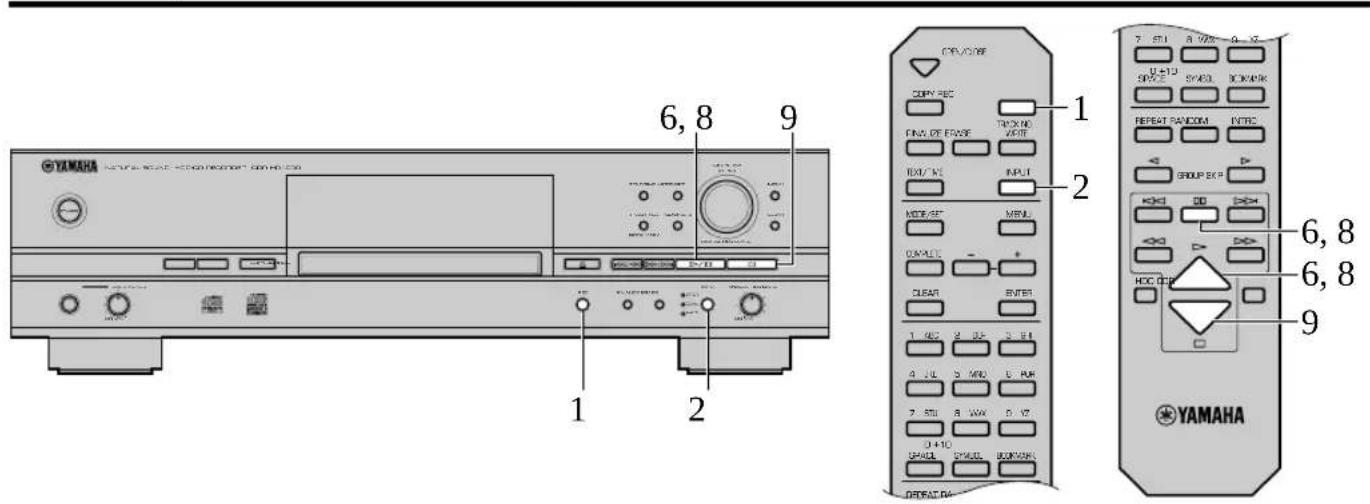

• Recording from an external component onto the HDD ➞ See page 14.

• Recording from an external component onto a CD-R or CD-RW disc ➞ See page 15.

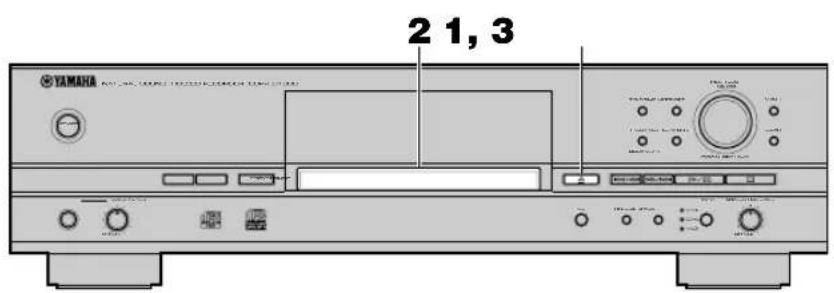

• Copying from a CD onto the HDD ➞ See page 22.

• When a CD with CD TEXT is recorded from an external CD player, CD TEXT cannot be copied even if it is not copy protected. To copy CD TEXT, copy a CD onto the HDD following the steps for “Copying from a CD onto the HDD” on pages 22—

Before Starting to Record and Copy

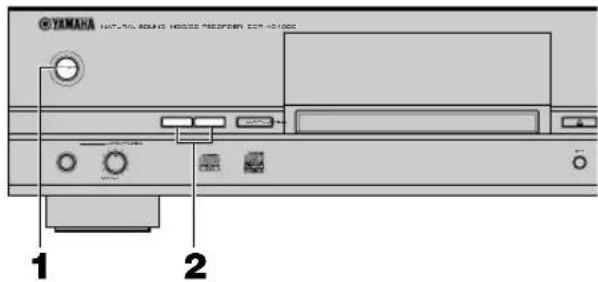

1. Turn on the power of this unit by pressing POWER on

the front panel. The message “WELCOME TO YAMAHA HDD/CD SYSTEM” appears on the display. After the message is displayed, this unit is ready for operation.

2. Select the recording medium.

Press HDD when recording onto the HDD, and CDR when recording onto a CD-R or CD-RW disc. NATURAL SOUND HDD/CD RECORDER CDR–HD1000 REC COPYCDRHDDMIN MAXLEVELPHONESPOWER

GROUP SKIP HDD CDR 2E-14 This section describes the basic recording operation. The operation steps are explained by using the buttons on the front panel and the remote control. Recording from an External Component onto the HDD

The HDD mark flashes, and the disc and track numbers to berecorded are indicated on the display. Recording has not beenstarted yet at this stage. (Recording pause mode)

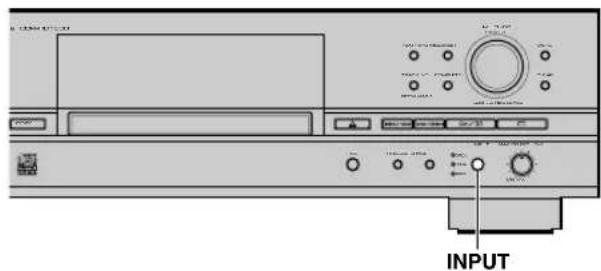

2. Select the input source to be recorded.

Press INPUT to select the input source from among OPTICAL, COAXIAL, and ANALOG. See page 17 for details.

3. Adjust the recording level.

The recording level can be adjusted for both digital and analoginput. See page 17 for details.

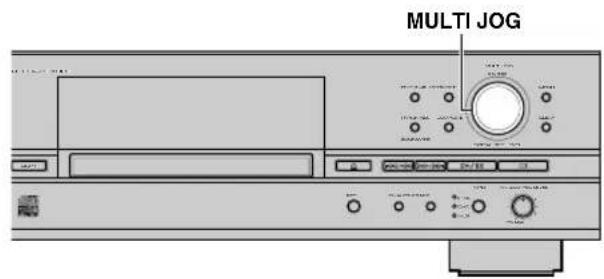

4. Select the disc to be recorded.

See page 20 for details.

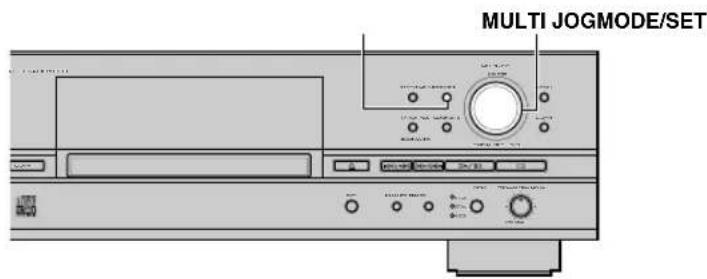

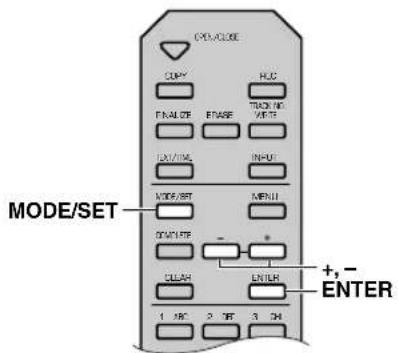

5. Select the recording mode.

See page 20 for details.

Press w/d (w or d on the remote control) to start recording. Note

• In the multi-synchronized or all-synchronized recordingmode, this unit automatically starts recording when thesource component starts playback.NATURAL SOUND HDD/CD RECORDER CDR–HD1000TEXT/TIME MODE/SETMULTI JOGDIGITAL REC LEVELPUSH ENTERTRACK NO.FINALIZE ERASEBOOKMARKCOMPLETE MENU

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

Disc number to be recorded Track number to be recorded REC

7. Start playing the source.

8. Press w/d (d on the remote control) to stop recording

temporarily.The HDD mark flashes and the track number is advanced to thenext. Press w/d (w or d on the remote control) to resume recording.

9. Press a to stop recording.

The first track number of the disc at which recording has beenstopped is indicated on the display.IMPORTANT• Never turn off the power of this unit during recording.Recording may not be correctly made, or the data on the HDDmay be damaged.• During recording, make sure that this unit is not subjected toshock or vibration as the HDD may be damaged.

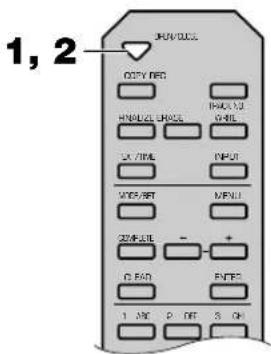

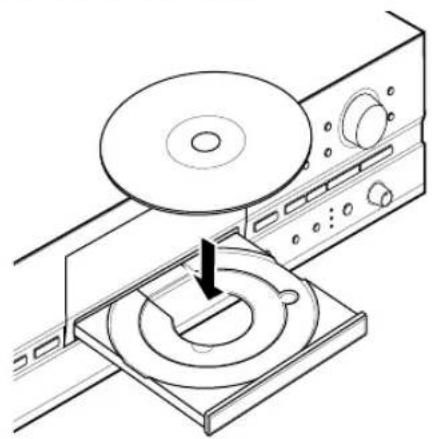

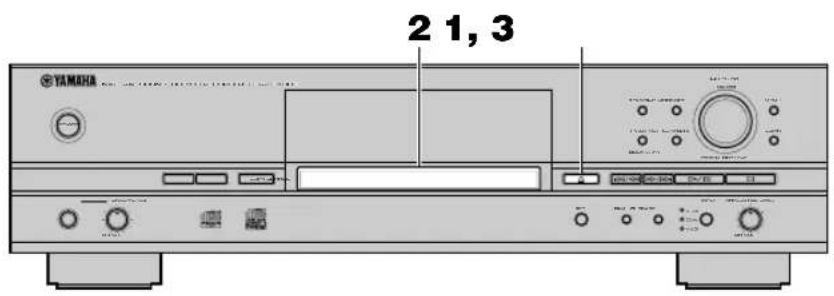

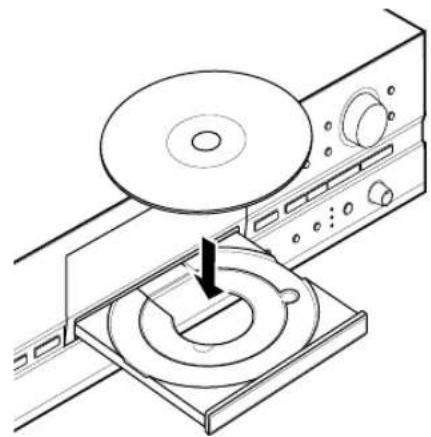

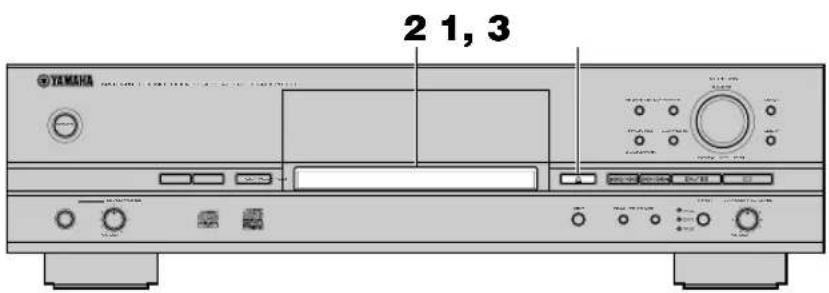

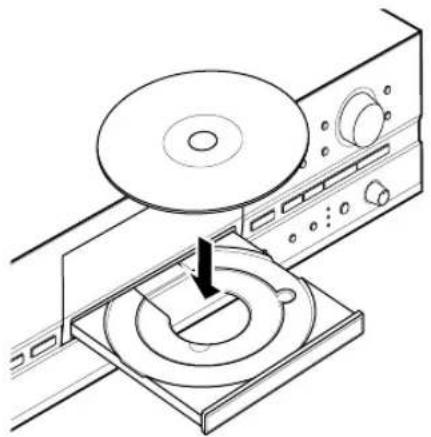

1. Press v (OPEN/CLOSE on the remote control) to

2. Load a new CD-R or CD-RW disc, or a CD-R or CD-

RW disc without finalization on the disc tray.Place the CD-R or CD-RW disc correctly aligned in therecessed area of the disc tray with its recordable side facingdown.

3. Press v (OPEN/CLOSE on the remote control) to

close the disc tray. Note

• The disc tray can be also closed by pressing the front edge ofthe disc tray gently. If a CD-R or CD-RW disc withoutfinalization has been loaded, this unit starts playback of thatCD-R or CD-RW disc. Press a to stop playback.This unit starts reading the disc information (type and capacityof the disc) when the disc has been loaded. It takesapproximately 10 to 15 seconds to complete the reading.The following message appears on the display during thereading. Recording from an External Component onto a CD-R or CD-RW Disc NATURAL SOUND HDD/CD RECORDER CDR–HD1000TEXT/TIME MODE/SETMULTI JOGDIGITAL REC LEVELPUSH ENTERTRACK NO.FINALIZE ERASEBOOKMARKCOMPLETE MENU

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC COAXIALANALOGCOPYCDRHDDMIN MAXLEVELPHONESPOWER 2 1, 3

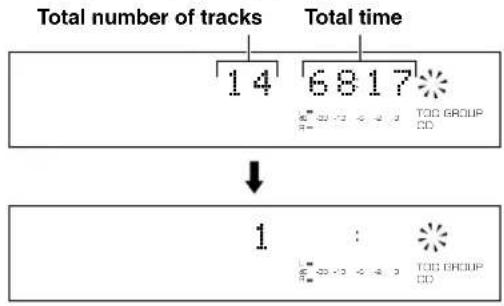

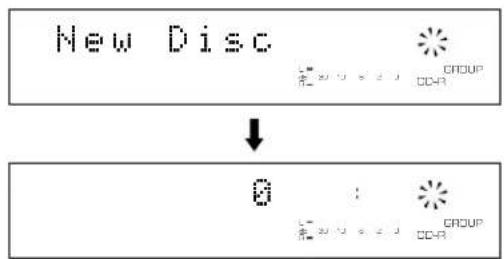

dB –30 –10 –6 –20 Reading When reading the disc information has been completed, thedisplay changes as follows and this unit becomes ready foroperation.■ When a CD-R or CD-RW disc without finalization isloaded■ When a new CD-R or CD-RW disc is loaded GROUP

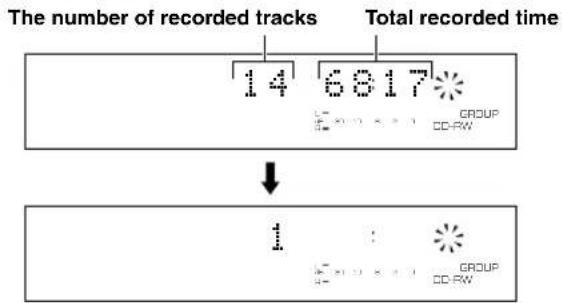

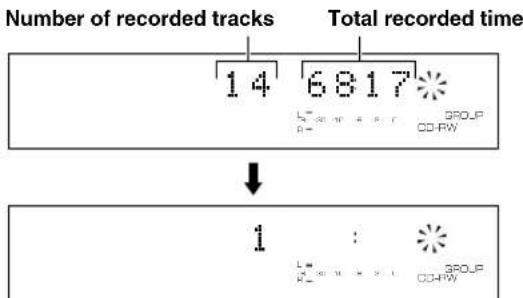

CD–RW Number of recorded tracks Total recorded time GROUP

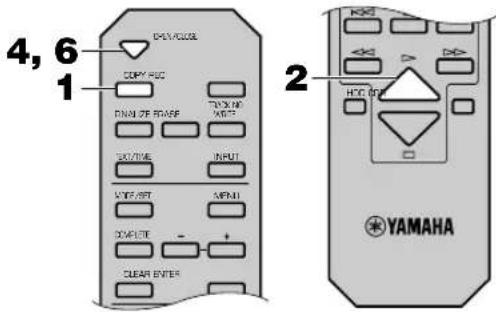

<To start recording>

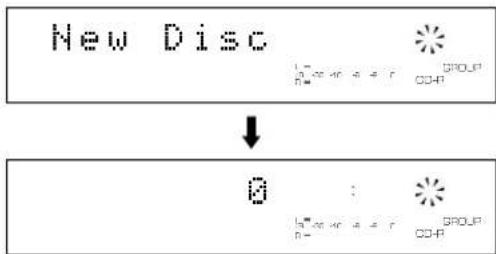

This unit automatically adjusts the laser strength against the disc reflection for optimal recording. This process is called OPC (Optimum Power Calibration) and takes approximately 15 seconds to complete. The following message appears on the display. If this unit determines that OPC is not needed for the disc loaded, “Standby” flashes on the display. The CDR mark starts flashing in a few seconds, and the track number is indicated on the display. Recording has not been started yet at this stage. (Recording pause mode) Note

• Before starting to record, check the remaining time available for recording on the CD-R or CD-RW disc. (See page 10.)

2. Select the input source to be recorded.

Press INPUT to select the input source to be recorded from among OPTICAL, COAXIAL and ANALOG. See page 17 for details.

3. Adjust the recording level.

The recording level can be adjusted for both digital and analog input. See page 17 for details.

4. Select the recording mode.

See page 20 for details.

Press w/d (w or d on the remote control) to start recording. Note

• In the multi-synchronized, all-synchronized, or full auto- synchronized recording mode, this unit automatically starts recording when the source component starts playback.

6. Start playing the source.

7. Press w/d (d on the remote control) to stop recording

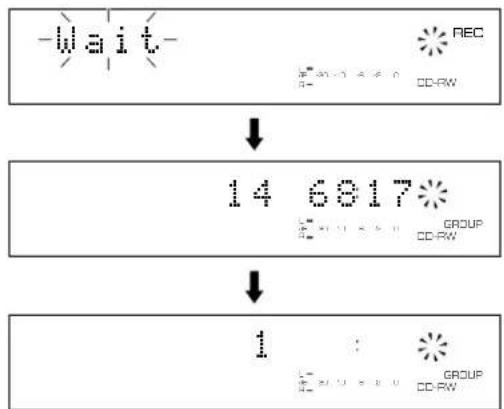

temporarily. “Wait” flashes on the display. The CDR mark starts flashing in a few seconds and the track number is advanced to the next. Press w/d (w or d on the remote control) to resume recording.

8. Press a to stop recording.

“Wait” flashes on the display. The number of recorded tracks and the total recorded time are indicated on the display in a few seconds, and then the first track number of the recorded tracks is indicated on the display in a few seconds. NATURAL SOUND HDD/CD RECORDER CDR–HD1000TEXT/TIME MODE/SETMULTI JOGDIGITAL REC LEVELPUSH ENTERTRACK NO.FINALIZE ERASEBOOKMARKCOMPLETE MENU

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC COAXIALANALOGCOPYCDRHDDMIN MAXLEVELPHONESPOWER 5, 7

dB –30 –10 –6 –20 OPC Adjust CD–RW REC

dB –30 –10 –6 –20 Standby CD–RW REC

BASIC RECORDING OPERATION

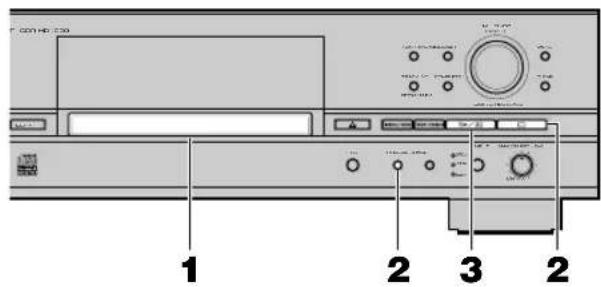

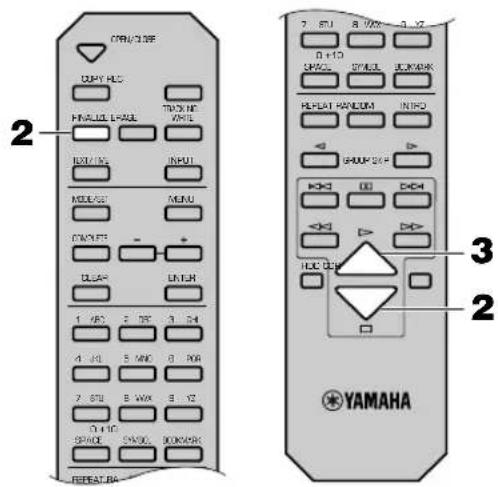

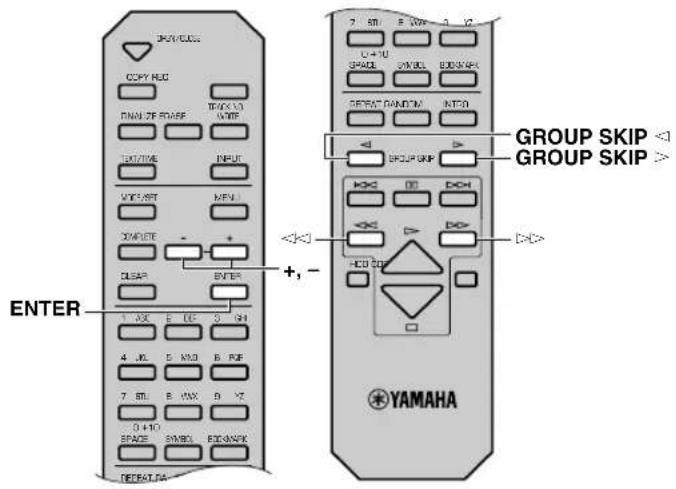

9. Perform finalization when all recordings have been

completed.See page 19 for the finalization procedure.IMPORTANT• Never turn off the power of this unit during recording.Recording may not be correctly made, or the CD-R or CD-RWdisc may be damaged.• If the power of this unit is turned off during recording on aCD-R disc, recording may become impossible or the CD-Rdisc may not be played back normally because information isnot written in the PMA (Program Memory Area).• During recording, make sure that this unit is not subjected toshock or vibration as it may cause skips or jumps to beincluded in the recording. Selecting an Input Source Press INPUT to select the appropriate input source to be used forrecording from among OPTICAL (optical digital input), COAXIAL (coaxial digital input), and ANALOG (analog input).

• Press INPUT to light OPTICAL when recording the source input to the DIGITAL IN (OPTICAL) jack.
• Press INPUT to light COAXIAL when recording the source input to the DIGITAL IN (COAXIAL) jack.
• Press INPUT to light ANALOG when recording the source input to the ANALOG LINE IN (REC) jacks. Note
• This selection of the input source must be made while this unit isin the recording pause mode.

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEAR ENTERCOMPLETEFINALIZE ERASETRACK NO.WRITE

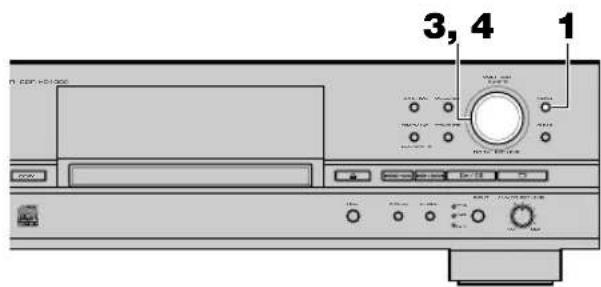

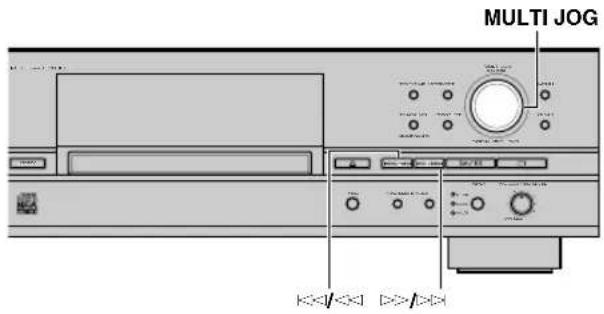

INPUT Adjusting the Recording Level There is an adjusting procedure for each input source to be recordedas explained below. Choose the one for your input source andfollow the steps.■ When recording a digital input sourceThe digital recording level is set to 0dB, the level of the inputsource, as an initial setting. Further adjustment is not normallynecessary. However it is possible to adjust the recording level to suityour needs.

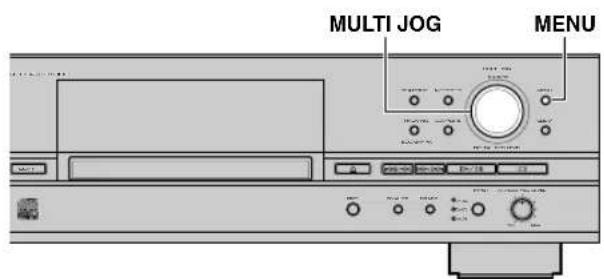

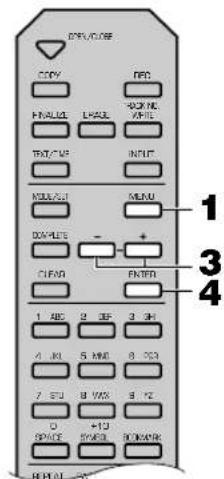

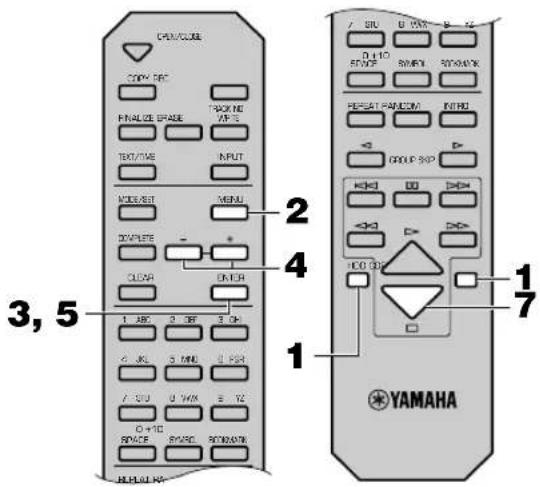

1. Press MENU while this unit is in the recording pause

mode.The following message appears on the display.

2. Play the loudest passage (highest sound level) of the

source to be recorded.

control) to adjust the recording level. Adjustment is possible in the –12dB to +12dB range by 0.4dB steps. When the level is set to a value other than 0dB, the VAR indicator lights on the display. Adjust the recording level so that the red part on the peak level meter does not light at the loudest sound levels.

4. Press the MULTI JOG knob (ENTER on the remote

control) to return to the previous display. Notes

• The recording level can be adjusted while this unit is in either the recording or recording pause mode. Once recording has been stopped, the recording level is reset to 0dB.

• Adjustment of the recording level can be canceled by pressing MENU when the level is adjusted in the recording pause mode.

• The recording level is set to 0dB by pressing CLEAR when the level is adjusted in the recording pause mode. GROUP VAR CD–RW

dB –30 –10 –6 –20 GROUP VAR CD–RW

dB –30 –10 –6 –20 ■ When recording an analog input source

1. Play the loudest passage (highest sound level) of the

source to be recorded.

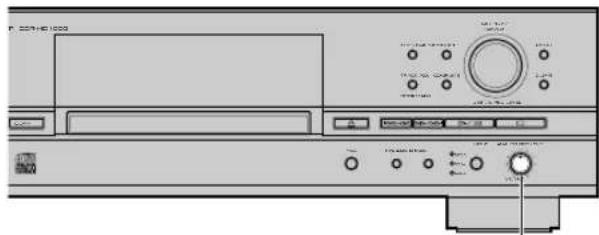

2. Adjust the recording level by rotating the ANALOG

REC LEVEL control. Rotate the control clockwise to increase the level and counterclockwise to decrease the level. Adjust the recording level so that the red part on the peak level meter does not light at the loudest sound levels. Note

• The recording level can be adjusted while this unit is in either the recording or recording pause mode.

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

Finalization Finalization is the process that concludes recording, and allows a CD-R disc to be played on a standard CD player. (CD-RW discs can only be played on a CD-RW-compatible player even after finalization has been completed. CD-RW discs cannot be played on a standard CD player.)

1. Load a recorded CD-R or CD-RW disc without

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Finalize OK ? CD–R REC GROUP Finalizing CD–R The level meter shows the finalization progress on the display.

• When finalization of a CD-R disc has been completed, the CD-R indicator on the display changes to the CD indicator and the TOC indicator lights on the display, and this unit enters the stop mode.

• When finalization of a CD-RW disc has been completed, the TOC indicator lights on the display, and this unit enters the stop mode. Cautions

• Further recording is not possible onto a finalized CD-R disc. Make sure that all recording has been completed before making a finalization.

• Before loading the disc, make sure there are no scratches, dust, fingerprints or similar marks on the disc. If necessary, clean the disc as described on page 3.

• Once the finalization process has started, no other operation is possible until finalization is completed.

• Never turn off the power or disconnect the power cord during finalization. Note

• When finalizing a CD-R or CD-RW disc that does not support high-speed writing, use the slow finalization mode. By pressing and holding FINALIZE for approximately 3 seconds in step 2, “Slow Fnlz OK?” appears on the display and this unit is ready to perform slow finalization. GROUP CD–R GROUP CD–R When starting finalization During finalization GROUP

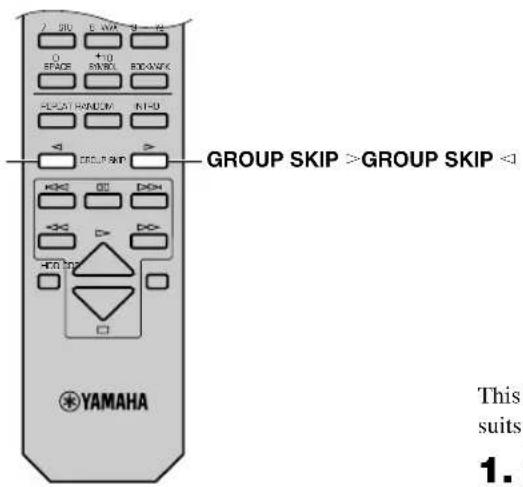

TOC GROUP CD–RW TOCE-20 Setting the Recording Mode This unit provides various recording modes. Choose the one that suits your needs.

1. Press MODE/SET while this unit is in the recording

pause mode. The recording mode can be selected.

2. Rotate the MULTI JOG knob (press +/– on the remote

control) to select the recording mode. Choose one of the modes listed below. ■ Manual (Manual recording mode) All the recording operations including starting, stopping, track marking and finalization (when recording onto a CD-R or CD- RW disc) are performed manually. ■ Multi Sync. (Multi-synchronized recording mode) This mode records the set number of tracks at the same time as the source programs are being played. The number of tracks to be recorded can be set in the range of 1 to 99 tracks. This mode is convenient to record a mix of tracks from different sources. ■ All Synchro (All-synchronized recording mode) This mode records all of the material from a single audio source at the same time as the source programs are being played. Track markers are automatically placed between the tracks being recorded. ■ Full Auto (Full auto-synchronized recording mode) (when recording onto a CD-R or CD-RW disc only) This mode automatically performs finalization after all synchronized recording is complete. A CD-R disc can be played as a CD as soon as finalization has been completed. ■ Auto Period (Auto-period recording mode) This mode makes recording for the set amount of time while placing track markers at the set time interval. The length between track markers can be adjusted in the 10 seconds to 30 minutes range by 10-second steps. This mode is convenient to search for material recorded from FM broadcasts. Selecting a Disc for Recording When recording onto the HDD, you can select the disc on the HDD for your recording. Rotate the MULTI JOG knob (press GROUP SKIP q/GROUP SKIP w on the remote control) to select the disc number on which recordings are to be made while this unit is in the recording pause mode. Notes

• When no disc number is selected, recordings are made onto the disc with the smallest number available on the HDD.

• When a disc with recorded tracks is selected, new recordings are added to the end of the previous recordings.

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

BOOKMARK REPEAT RANDOM GROUP SKIP INTRO HDD CDR GROUP SKIP wGROUP SKIP qE-21 RECORDING AND COPYING English Manual Track Marking This unit can automatically place track markers. However you can also manually place track markers during your recording. (Manual track marking) Press TRACK NO./BOOKMARK (TRACK NO. WRITE on the remote control) during your recording.

• A new track number is added at the location on the disc corresponding to the time TRACK NO./BOOKMARK (TRACK NO. WRITE on the remote control) is pressed.

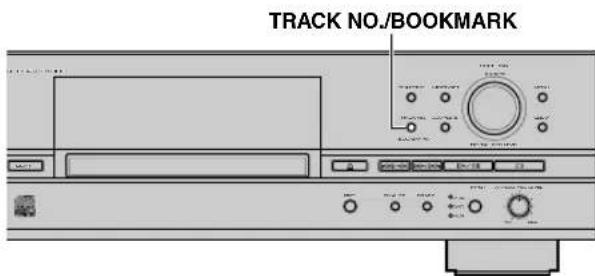

• Manual track marking is possible after the recording has been performed for 5 seconds from the beginning of the track, and a disc cannot contain more than 99 tracks. Even if there is time remaining on the disc, further recording is impossible once 99 track markers have been placed. Notes

• Manual track marking is recommended when recording an analog source at an extremely low level, and when recording digital satellite broadcasts.

• The track markers may not be placed properly even if the recording has been performed in the synchronized recording according to the type of the source devices. To avoid this problem, place the track markers manually.

• The track markers may not be placed properly when recording the source that contains the noise or low level sound, or the source of which the intervals between tracks are extremely short. To avoid this problem, place the track markers manually.

• Manual track marking is possible even during synchronized recording.

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the recording mode selected. Further settings are necessary if “Multi Sync.” or “Auto Period” is selected. Follow the steps described below to make settings. ■ When “Multi Sync.” is selected The following message appears on the display. The desired number of tracks can be set.

1. Select the number of tracks by rotating the MULTI

JOG knob (pressing +/– on the remote control). The number can be set in the 1 to 99 tracks range.

2. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the number of tracks to be set. ■ When “Auto Period” is selected The following message appears on the display. The time length between track markers can be set.

1. Select the time length between track markers by

rotating the MULTI JOG knob (pressing +/– on the remote control). The time length can be set in the 10 seconds to 30 minutes range by 10-seconds steps.

2. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the time length between the selected track markers. The following message appears on the display. The total recording time can be set.

3. Select the total recording time by rotating the

control) to confirm the total recording time. Notes

• If no recording mode is selected, recording is performed in the manual recording mode.

• Manual recording or auto period recording are recommended for a long recording over 100 minutes. In these recording modes, the recording will be performed continuously to the next available disc after the recording has been performed to one disc for its maximum length.

• When recording to the HDD in the auto period recording mode, the recording will be performed continuously to the next available disc if the time length between selected track markers exceeds the group remaining time.

• In the auto period recording mode, a time error can occur in a frame unit. Therefore, the time of each track or the group total time may not match the confirmed time length between selected track markers or the total recording time. REC

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 Total? 0h 4m

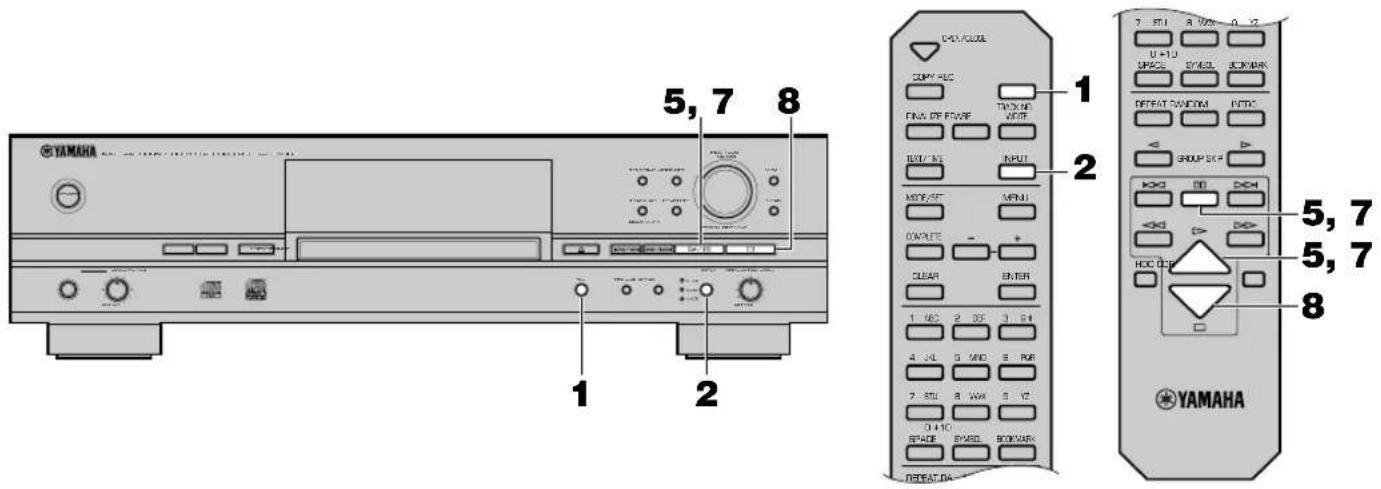

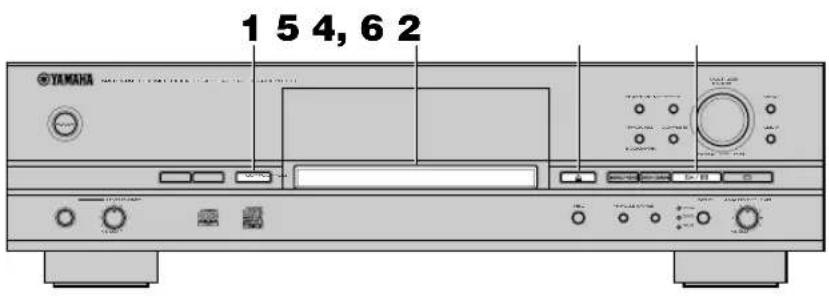

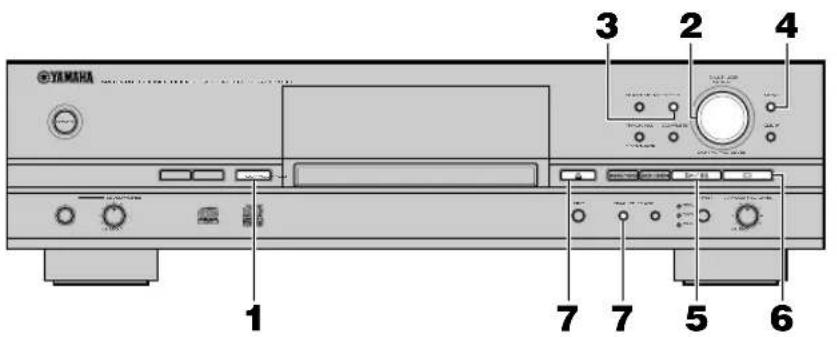

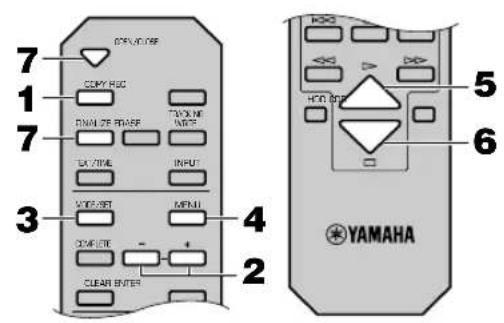

1. Press v (OPEN/CLOSE on the remote control) to

2. Load the CD to copy from on the disc tray.

Place a CD correctly aligned in the recessed area of the disctray with its label side facing up.

3. Press v (OPEN/CLOSE on the remote control) to

close the disc tray. Note

• The disc tray can be also closed by pressing the front edge ofthe disc tray gently. If the disc tray is closed in this way, thisunit starts playback of a CD. Press a to stop playback.This unit starts reading the disc information (type and capacityof the disc) when the disc is loaded. It takes approximately 10to 15 seconds to complete the reading.The following message appears on the display during thereading.

BASIC COPYING OPERATION

This section describes the basic copying operation. The operation steps are explained by using the buttons on the front panel and the remote control. Copying from a CD onto the HDD NATURAL SOUND HDD/CD RECORDER CDR–HD1000TEXT/TIME MODE/SETMULTI JOGDIGITAL REC LEVELPUSH ENTERTRACK NO.FINALIZE ERASEBOOKMARKCOMPLETE MENU

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC COAXIALANALOGCOPYCDRHDDMIN MAXLEVELPHONESPOWER 2 1, 3

dB –30 –10 –6 –20 Reading When reading the disc information has been completed, thedisplay changes as follows, and this unit becomes ready foroperation. GROUP

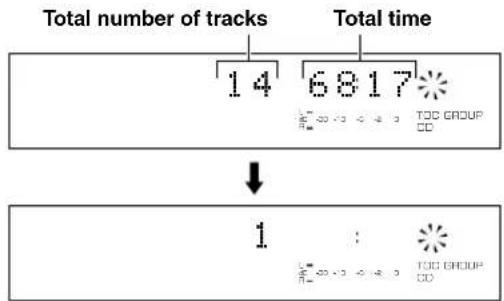

TOC Total number of tracks Total timeE-23 RECORDING AND COPYING English

The following message appears on the display, and this unit enters the copy standby mode. Copying has not been started yet at this stage.

2. Select the disc to be copied.

Press MODE/SET to select the copying mode. See page 28 for details.

4. Make detailed settings for copying on the menu.

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

Press w/d (w on the remote control) to start copying. Notes

• It takes a few seconds for this unit to become ready to start copying after w/d (w on the remote control) has been pressed.

• This unit may create some vibration and rotation noise while performing the copying process by rotating a CD at high speed. If this problem occurs, lower the copying speed to decrease the vibration and rotation noise. (See “Copy Speed” on page 30.)

6. When copying has been completed, the operation of

dB –30 –10 –6 –20 ALL SYNC 003 1π 1 001 TOC Output of the signals during copying

• During copying at 1x speed, signals are output both from the ANALOG LINE OUT (PLAY) jack and from the DIGITAL OUTPUT (OPTICAL/COAXIAL) jacks.

• During copying at 2x speed, signals are output only from the ANALOG LINE OUT (PLAY) jack.

• During copying at 4x or more speed, signals are output neither from the ANALOG LINE OUT (PLAY) jack nor the DIGITAL OUTPUT (OPTICAL/COAXIAL) jacks.E-24 BASIC COPYING OPERATION<Preparing a CD-R or CD-RW disc>

1. Press v (OPEN/CLOSE on the remote control) to

2. Load a new CD-R or CD-RW disc, or a CD-R or CD-

RW disc without finalization on the disc tray.Place the CD-R or CD-RW disc correctly aligned in therecessed area of the disc tray with its recordable side facingdown.

3. Press v (OPEN/CLOSE on the remote control) to

close the disc tray. Note

• The disc tray can be also closed by pressing the front edge ofthe disc tray gently. If a CD-R or CD-RW disc withoutfinalization is loaded, this unit starts playback of that CD-Ror CD-RW disc. Press a to stop playback.This unit starts reading the disc information (type and capacityof the disc) when a disc is loaded. It takes approximately 10 to15 seconds to complete reading.The following message appears on the display during reading. Copying from the HDD onto a CD-R or CD-RW Disc NATURAL SOUND HDD/CD RECORDER CDR–HD1000TEXT/TIME MODE/SETMULTI JOGDIGITAL REC LEVELPUSH ENTERTRACK NO.FINALIZE ERASEBOOKMARKCOMPLETE MENU

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC COAXIALANALOGCOPYCDRHDDMIN MAXLEVELPHONESPOWER 2 1, 3

dB –30 –10 –6 –20 Reading When reading the disc information has been completed, thedisplay changes as follows, and this unit becomes ready forcopying operation.■ When copying onto a CD-R or CD-RW disc withoutfinalization■ When copying onto a new CD-R or CD-RW disc GROUP

CD–RW The number of recorded tracks Total recorded time GROUP

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

• This unit can make a high-speed copy onto a CD-R or CD-RW disc. However there are some audio CD-R or CD-RW discs that do not support high speed writing. To copy onto these discs, lower the copy speed. (See “Copy Speed” on page 30.)

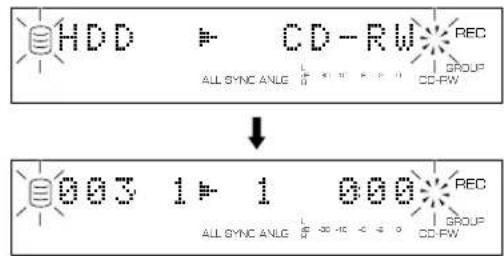

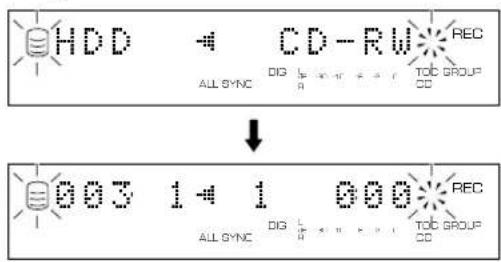

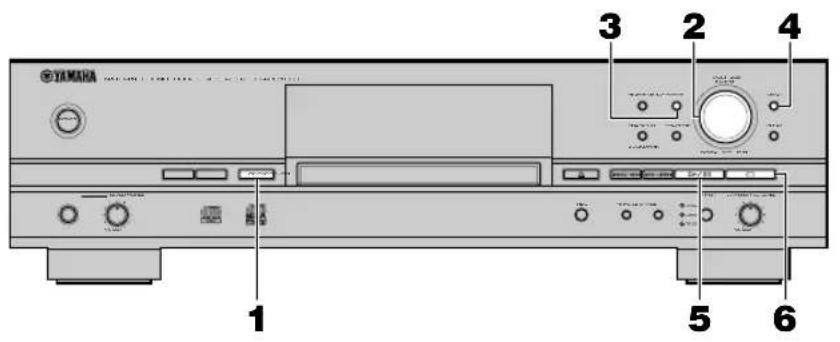

1. Press COPY twice.

The following message appears on the display, and this unit enters in the copy standby mode. Copying has not been started yet at this stage.

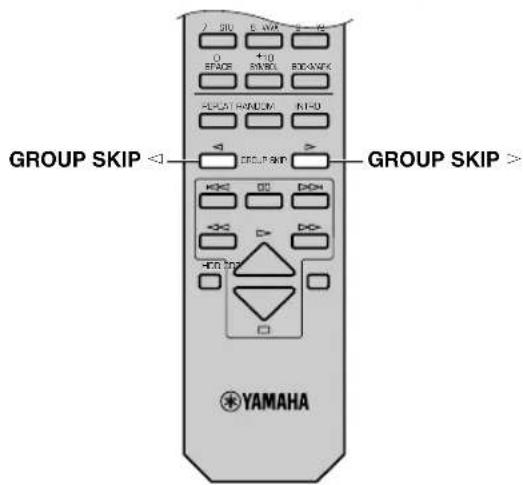

2. Select the group on the HDD to be copied.

Rotate the MULTI JOG knob (press +/– on the remote control) to select the group on the HDD to be copied.

3. Select the copying mode.

Press MODE/SET to select the copying mode. See page 28 for details.

4. Make detailed settings for your copying on the menu.

Press MENU to make copying menu settings. See page 29 for details.

Press w/d (w on the remote control) to start copying. REC GROUP

dB –30 –10 –6 –20 ALL SYNC HDD “ CD-RW ANLG CD–RW REC GROUP

• OPC may start on the loaded disc depending on its recording condition. It takes approximately 15 seconds to complete the adjustment. When the adjustment has been completed, and the message above turns off on the display, copying automatically starts.

• The progress of elapsed time for the track being copied may vary by the data processing inside this unit.

6. When copying has been completed, the operation of

the HDD and the CD automatically stops. To cancel copying, press a. Caution

• If copying is canceled by a being pressed, only the data that has been recorded on the CD-R or CD-RW disc before the cancellation remains on the disc. When “Digital Move” (see page 30) is selected, the original data on the HDD which has already been copied to a CD-R or CD-RW disc will be deleted.

7. The TOC indicator flashes if the copied data contains

the title data (disc title etc.) which can be copied to a CD-R or CD-RW disc. To copy the titles, perform finalization before opening the disc tray (See page 19). “TEXT Save?” appears on the display if the disc tray has been attempted to be opened by pressing v (OPEN/CLOSE on the remote control). To copy the title, perform finalization. To open the disc tray, press v (OPEN/CLOSE on the remote control) again. Caution

• If the disc tray is opened without performing finalization, the title data is not copied to a CD-R or CD-RW disc. Note

• In the full auto-synchronized copy mode, finalization is performed automatically. REC GROUP

1. Press v (OPEN/CLOSE on the remote control) to

2. Load the CD to duplicate on the disc tray.

Place the CD correctly aligned in the recessed area of the disctray with its label side facing up.

3. Press v (OPEN/CLOSE on the remote control) to

close the disc tray. Note

• The disc tray can be also closed by pressing the front edge ofthe disc tray gently. If the disc tray is closed in this way, thisunit starts playback of the CD. Press a to stop playback.This unit starts reading the disc information (type and capacityof the disc) when the disc is loaded. It takes approximately 10to 15 seconds to complete reading.The following message appears on the display during reading. Duplication of a CD NATURAL SOUND HDD/CD RECORDER CDR–HD1000TEXT/TIME MODE/SETMULTI JOGDIGITAL REC LEVELPUSH ENTERTRACK NO.FINALIZE ERASEBOOKMARKCOMPLETE MENU

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC COAXIALANALOGCOPYCDRHDDMIN MAXLEVELPHONESPOWER 2 1, 3

dB –30 –10 –6 –20 Reading When reading about the disc information has been completed,the following message appears on the display, and this unitbecomes ready for duplicating operation. GROUP

TOC Total number of tracks Total timeE-27 RECORDING AND COPYING English

BASIC COPYING OPERATION

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

<Starting to duplicate>

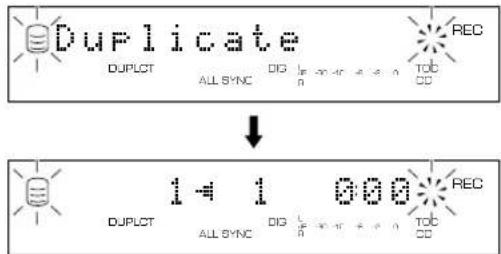

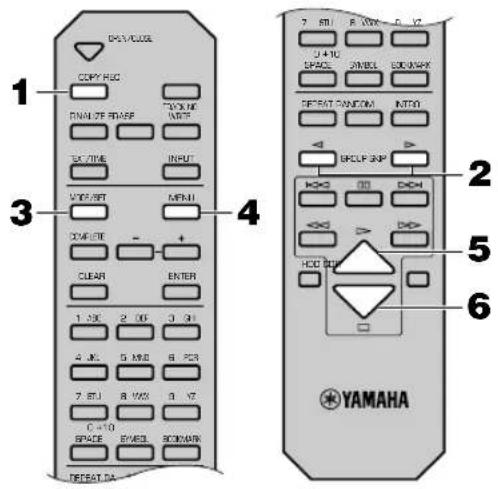

1. Press COPY three times.

The following message appears on the display, and this unit enters the copy standby mode. Duplication has not been started yet at this stage.

2. Start copying from the CD onto the HDD.

Press w/d (w on the remote control) to start copying. The copying conditions are as follows:

• Copy Speed: “Best Effort” See page 30 for further details about the copying conditions described above. Cautions

• If copying is canceled by a being pressed, even the data that has been copied before cancellation does not remain on the HDD.

• If a track is copy protected by the SCMS standard, that track cannot be copied onto the HDD.

3. When copying from the CD onto the HDD has been

completed, the following message appears on the display.

4. Press v (OPEN/CLOSE on the remote control) to

5. Load a new CD-R or CD-RW disc on the disc tray.

• New recordings cannot be added to a CD-R or CD-RW disc on which some tracks have been previously recorded. DIG REC

6. Press v (OPEN/CLOSE on the remote control) to

close the disc tray. When the disc tray is closed, this unit starts reading the disc information. When reading has been completed, this unit automatically starts copying from the HDD onto the CD. Notes

• Duplication cannot be correctly made for a CD-R or CD-RW disc that does not support high-speed copying. In this case, make a copy onto the HDD first, and then copy the copied data onto a disc by “Digital Move” at 2x or 1x speed. (See page 30.)

• After reading the disc information has been completed, OPC may start on the loaded disc depending on its recording condition. When the adjustment has been completed, and the above message turns off on the display, this unit automatically starts copying. The copying conditions are as follows:

• Copy Speed: “Best Effort” See page 30 for further details about the copying conditions described above. Caution

• If copying is canceled by a being pressed, only the data that has been recorded on the CD-R or CD-RW disc before cancellation remains on the disc. The original data on the HDD being copied will be deleted.

7. When copying has been completed, the HDD

operation automatically stops, and finalization of the CD-R or CD-RW disc starts. After finalization has been completed, this unit enters the stop mode. DIG REC

dB –30 –10 –6 –20 OPC Adjust CD–RW REC GROUP Finalizing CD–RE-28 Selecting a Disc to Be Copied on When the copying onto the HDD, you can select the disc on the HDD to make copy on. Rotate the MULTI JOG knob (press GROUP SKIP q/GROUP SKIP w on the remote control) to select the disc number to make the copy on while this unit is in the copy standby mode. Notes

• If the disc number is not selected, copying will be made on the disc with the smallest number available on the HDD.

• When a disc number with recorded tracks is selected, new recordings will be added to the end of the last track that has been previously recorded.

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 003 1π 1 000 Disc number to make the copy on Setting the Copying Mode This unit provides various copying modes. Choose the one that suits your needs.

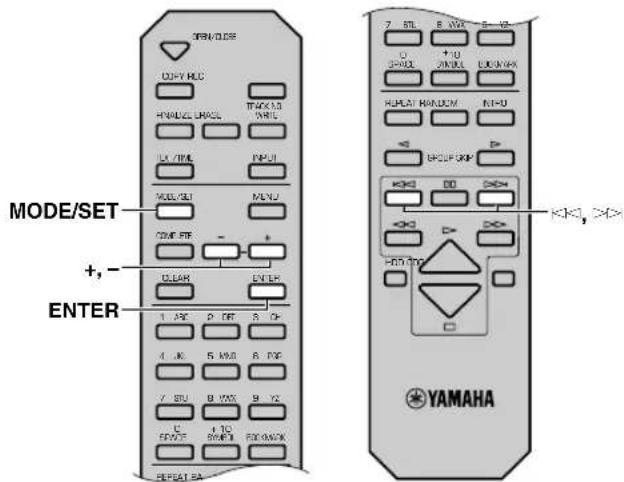

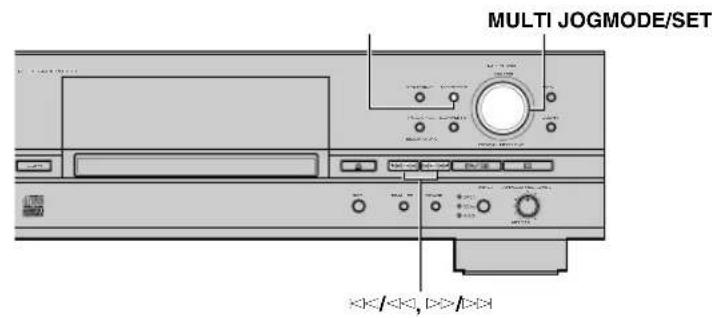

1. Press MODE/SET while this unit is in the copy

standby mode. You can select the copying mode.

2. Rotate the MULTI JOG knob (press +/– on the remote

control) to select the copying mode. Choose one of the modes listed below. ■ All Synchro (All-synchronized copying mode) This mode copies all of the material from a single audio source at the same time as the source programs are being played. Track markers are automatically placed between the tracks being recorded. ■ Multi Sync. (Multi-synchronized copying mode) This mode copies the set number of tracks at the same time as the source programs are being played. The number of tracks to be recorded can be set in the range of 1 to 99 tracks. This mode is convenient to record a mix of tracks from different sources. ■ Full Auto (Full auto-synchronized copying mode) (when recording on a CD-R or CD-RW disc only) This mode automatically performs finalization after all synchronized copying is complete. A CD-R disc can be played as a CD as soon as finalization has been completed.

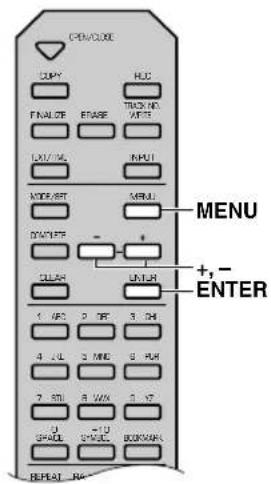

Copying Menu Setting You can make detailed settings on the menu for your copying. Follow the steps described below for menu setting.

1. Press MENU while this unit is in the copy standby

mode. You can start setting the copying menu.

2. Select the menu item to be set by rotating the MULTI

JOG knob (pressing +/– on the remote control). The copying menu contains 3 items as follows:

• Copy Method (setting the copying method)

• Copy Level (setting the copying level)

• Copy Speed (setting the copying speed)

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the menu item to be adjusted.

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the copying mode selected. If “Multi Sync.” is confirmed, follow the steps described below to make further settings. ■ When “Multi Sync.” is confirmed The following message appears on the display, and you can enter the desired number of tracks to be copied.

1. Select the number of tracks by rotating the MULTI

JOG knob (pressing +/– on the remote control). The number can be selected in the 1 to 99 tracks range.

2. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the number selected.

• When copying from a CD onto the HDD, select the track to start copying from by pressing t/e (t on the remote control) or r/y (y on the remote control).

• When copying from the HDD onto a CD-R or CD-RW disc, select the group or the track to start copying from by rotating the MULTI JOG knob. While the GROUP indicator is lit, the group number can be selected. While the TRACK indicator is lit, the track number can be selected. Switch the indicator to being lit by pressing the MULTI JOG knob. Notes

• If the group or track number is not specified, all tracks will be copied in the all-synchronized copying mode.

• When duplicating a CD, the copying mode cannot be selected. At duplication, copying from a CD onto the HDD is performed in the all-synchronized copying mode. On the other hand, copying from the HDD onto a CD is performed in the full auto-synchronized copying mode. REC

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

control) to confirm the setting when adjustment has been completed.

• The settings for “Copy Method” and “Copy Speed” are stored in the memory and apply to future copying. ■ Copy Method Setting of the copying method. Copying may fail if the setting for “Copy Method” is not correctly made. <When copying from a CD onto the HDD> Initial setting: Digital Copy Digital Copy This method always makes digital copies. Copying is not possible if the tracks are copy protected by the SCMS standard (see page 11). Auto Dig/Anlg Digital and analog copying are automatically switched depending on the track. If digital copying is prohibited by the SCMS standard (see page 11), an analog copy is made. For those tracks that can be digitally copied, a digital copy is made. Analog Copy This method always makes analog copies. <Copying from the HDD onto a CD-R or CD-RW disc> Initial setting: Analog Copy Analog Copy This method always makes analog copies. Digital Move The data is moved from the HDD to the CD. Therefore, the track or group data will be deleted from the HDD after they have been moved to the CD-R or CD-RW disc by this method. Auto Dig/Anlg Digital and analog copying are automatically switched depending on the track. If digital copying is prohibited by the SCMS standard (see page 11), an analog copy is made. For those tracks that can be digitally copied, a digital copy is made. Note

• In analog copying, the data may be copied at a lower sound level. ■ Copy Level Setting of the sound level for copying. Sound level adjustment is not normally necessary. However it is possible to adjust the copying sound level to suit you needs. The following message appears on the display when “Copy Level” setting is confirmed in step 3 for “Copying Menu Setting” on page

1. Adjust the copying sound level by rotating the MULTI

JOG knob (pressing +/– on the remote control). Adjustment is possible in the –12dB to +12dB range by 0.4dB steps. When the level is set to a value other than 0dB, the VAR indicator lights on the display.

2. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the copying level setting. Notes

• Level adjustment is not possible during copying.

• If the red part on the peak level meter lights at the loudest sound levels, stop copying to adjust the copying level, and then resume copying. ■ Copy Speed Setting of the copying speed. Initial setting: Best Effort Best Effort Copying is done at the highest speed possible depending on the “Copy Method” setting and the disc condition.

• When “Digital Copy” is selected: 10x speed

• When “Auto Dig/Anlg” is selected: 2x speed

• When “Digital Move” is selected: 8x speed (for a CD-R disc), 4x speed (for a CD-RW disc)

• When “Analog Copy” is selected: 2x speed 1x Copy Copying is always made at 1x speed despite the “Copy Method” setting. 2x Copy Copying is always made at 2x speed despite the “Copy Method” setting. Notes

• If there are scratches or dust on the disc, the copy speed may drop automatically even when “Best Effort” is selected.

• Select “2x Copy” or “1x Copy” when copying onto a CD-R or CD-RW disc that does not support high-speed copying. REC

dB –30 –10 –6 –20 GROUP VAR CD–RW

dB –30 –10 –6 –20E-31 EDITING English

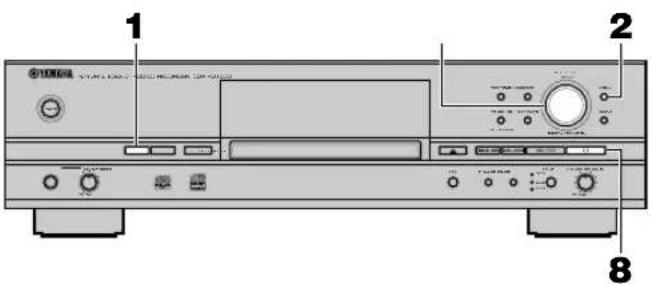

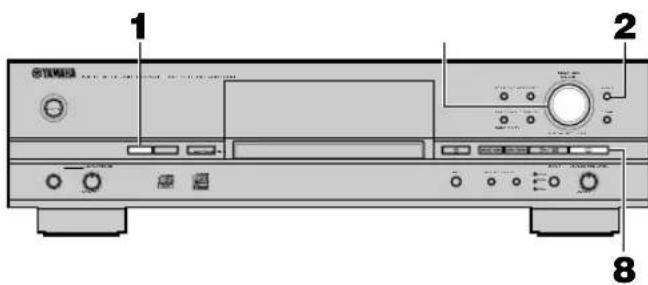

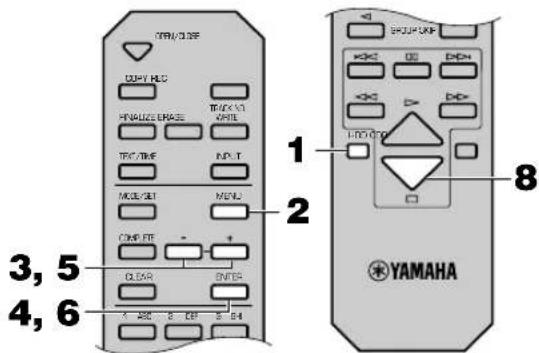

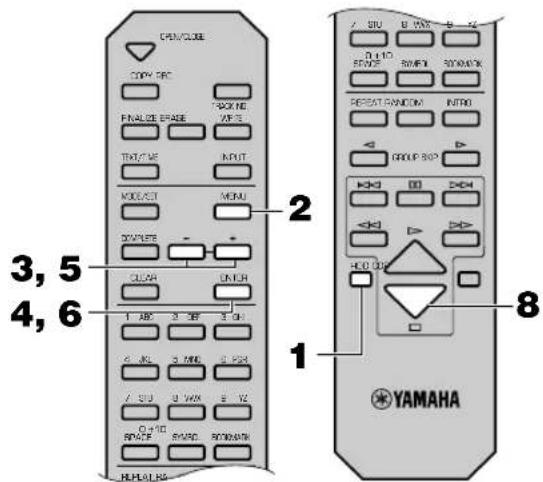

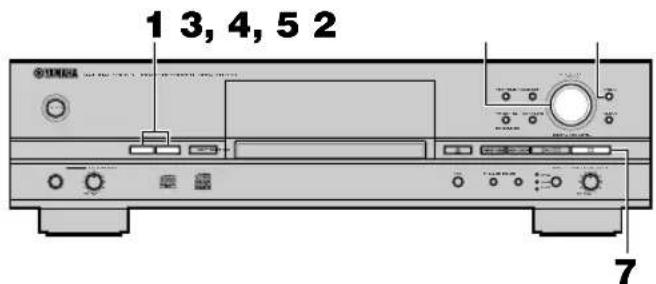

1. Press HDD or CDR to select the drive to be edited.

2. Menu appears on the display if MENU is pressed

when this unit is in the stop mode.

4. Select the editing menu item to be set by rotating the

MULTI JOG knob (pressing +/– on the remote control). The followings are the album editing menu items.

• Album Copy (only when the HDD is selected)

• Album Rename (only when the HDD is selected)

• Album Pack (only when the HDD is selected)

• Album Title (only when the HDD is selected)

5. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the menu item before editing.

6. Start editing by following the setting steps (pages

32—36) for each item. Notes

• If MENU is pressed during editing, entry of the selection becomes ineffective, and the display changes to the previous one.

• If a is pressed during editing, all entry of the selection becomes ineffective, and the display returns to the one when this unit was in the stop mode.

7. Press a when all editing has been completed.

The display changes to the one when this unit was in the stop mode. ALBUM EDITING NATURAL SOUND HDD/CD RECORDER CDR–HD1000TEXT/TIME MODE/SETMULTI JOGDIGITAL REC LEVELPUSH ENTERTRACK NO.FINALIZE ERASEBOOKMARKCOMPLETE MENU

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Album EditE-32 Edit Stored You can add tracks to or delete tracks from an already created album. Editing subject: HDD or CD

1. Select and confirm “Edit Stored” in step 4 for

“ALBUM EDITING” on page 31. The following message appears on the display. (The following display is the one when the HDD is being edited.)

2. Select the album to be edited by rotating the MULTI

control) to confirm the album to be edited. The following message appears on the display. (The following display is the one when the HDD is selected for editing.) Note

• Steps 2 and 3 are not necessary when a CD is selected for editing. ■ When adding new tracks

1. Select the track to be added by pressing t/e or

2. Select the disc that contains the track to be added by

control) to confirm the disc that contains the track to be added. Note

• Steps 2 and 3 are not necessary when a CD is selected for editing. GROUP

dB –30 –10 –6 –20 Dsc001 1≥15 Disc that contains thetracks to be added (onlywhen the HDD is selected) Track to be addedTrack to be added or deleted ALBUM EDITING Album New You can create a new album by selecting the desired tracks from among the ones recorded on the HDD or a CD. Editing subject: HDD or CD

1. Select and confirm “Album New” in step 4 for

“ALBUM EDITING” on page 31. The following message appears on the display. (The following display is the one when the HDD is being edited.) The number of the source disc flashes. (This indication does not appear when a CD is selected for editing.)

2. Select the source disc by rotating the MULTI JOG

control) to confirm the source disc. The number of the source track flashes. Note

• Steps 2 and 3 are not necessary when a CD is selected for editing.

4. Select the source track by rotating the MULTI JOG

control) to confirm the source track. The track number of the album being created will be advanced to the next, and the display returns to the one shown in step 1. Repeat steps 2—5 to select other discs and tracks. Note

• If a wrong selection is confirmed, press CLEAR to cancel it, and select and confirm the correct entry.

A new album is created with the selected tracks recorded on it. Note

• If the new album is created on the CDR drive that already has the album, the newly created album is overwritten onto the previous album. GROUP

dB –30 –10 –6 –20 Dsc001 1≥ 1 Source discTrack in the album to be createdSource trackE-33 EDITING English Album Copy You can copy the entire disc, album, or bookmark in a new album. Editing subject: HDD only

1. Select and confirm “Album Copy” in step 4 for

“ALBUM EDITING” on page 31. The following message appears on the display. The number of the group to be copied from flashes.

2. Select the group to be copied from by rotating the

control) to confirm the group to be copied from. The display scrolls to the left to indicate the number of the group to be copied from and the number of the album to be copied to. Notes

• The album to be copied on is assigned the smallest available number.

• If a wrong selection is confirmed, press CLEAR to cancel it. Select and confirm the correct entry.

The selected group is copied to a new album. ALBUM EDITING

4. Select the track to be added by rotating the MULTI

control) to confirm the track to be added.

6. When continuing to add tracks to the album, repeat

The selected tracks are added to the album. ■ When deleting tracks from the album

1. Select the track to be deleted by pressing t/e or

• The tracks following the deleted track will automatically be down-numbered.

3. When continuing to delete tracks from the album,

repeat steps 1 and 2.

The selected tracks are deleted from the album. GROUP

dB –30 –10 –6 –20 Copy Dsc001? Group to be copied fromGROUP

dB –30 –10 –6 –20 Delete 001? Album to be deleted ALBUM EDITING Album Rename You can move the album and assign a new number. Editing subject: HDD only

1. Select and confirm “Album Rename” in step 4 for

“ALBUM EDITING” on page 31. The following message appears on the display. The number of the album to be moved flashes.

2. Select the album to be moved by rotating the MULTI

control) to confirm the album to be moved. The display scrolls to the left to indicate the number of the album to be moved and the new album number.

4. Select the new album number by rotating the MULTI

control) to confirm the new album number. Note

• If a wrong selection is confirmed, press CLEAR to cancel it. Then, select again and confirm the correct entry.

The selected album has been moved and assigned a new number. Notes

• If the selected new album number is already in use, the albums following this renumbered album will be automatically up- numbered by one. However, if there is any unused album number, only the albums up to that number will be up-numbered.

• The original number of the album that has been renumbered will be available for future use. Album Delete You can delete an existing album. Editing subject: HDD or CD

1. Select and confirm “Album Delete” in step 4 for

“ALBUM EDITING” on page 31. The following message appears on the display. (when HDD is selected) The number of the album to be deleted flashes. (This indication does not appear when CD is selected.)

2. Select the album to be deleted by rotating the MULTI

control) to confirm the album to be deleted. Notes

• Steps 2 and 3 are not necessary when CD is selected for editing.

• If a wrong selection is confirmed, press CLEAR to cancel it. Then, select again and confirm the correct entry.

The selected album has been deleted. Notes

• When HDD is selected for editing, the number of the deleted album will be available for future use.

• When CD is selected, the information about the created album with the recorded tracks on the CD will be erased if the disc tray is opened, or the power of this unit is turned off. GROUP

dB –30 –10 –6 –20 Rename 001? Album to be movedGROUP

dB –30 –10 –6 –20 Alb001≥002 Album to be moved New album numberE-35 EDITING English

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the album to assign a title to. The following message appears on the display. The cursor flashes. Note

• If the selected album already has a title, the title appears on the display.

4. Enter the title characters by using the MULTI JOG

When the MULTI JOG knob is rotated clockwise, characters appear in the order of alphabetical capital letters, alphabetical lower case letters, numbers, and symbols. Select the character you wish to use for the title.

2. Press the MULTI JOG knob to confirm the selected

character. The cursor moves to the next space. Repeat steps 1 and 2 until the title is complete. A title can contain up to 32 characters.

3. Press COMPLETE when all the characters have been

entered. The title is assigned to the selected album. ■ Entering the title characters by using the alphabetical/ numeric buttons on the remote control

1. Select the character to be used for the title by using

the alphabetical/numeric buttons on the remote control. Alphabetical capital letters, alphabetical lower case letters, and numbers switch each time the buttons are pressed. To create a space, press SPACE. To use a symbol, press SYMBOL to select the desired symbol.

2. Select the next character by pressing one of the

alphabetical/numeric buttons. The cursor automatically moves to the next space. When the same button is used, press y to move the cursor to the next space. ALBUM EDITING Album Pack You can re-organize the album numbers by eliminating unused album numbers that have been created by changing album numbers or deleting albums. Editing subject: HDD

1. Select and confirm “Album Pack” in step 4 for

“ALBUM EDITING” on page 31. The following message appears on the display.

The album numbers are re-organized without unused album numbers. Album Title You can assign a title to a created album. Editing subject: HDD only

1. Select and confirm “Album Title” in step 4 for

“ALBUM EDITING” on page 31. The following message appears on the display. The number of the album to assign a title to flashes.

2. Select the album to assign a title to by rotating the

dB –30 –10 –6 –20 Pack ?

Before “Album Pack” is performed After “Album Pack” has been performed (Unused album numbers have been eliminated.) : Unused album numbersGROUP

dB –30 –10 –6 –20 Title 001? Album to assign the title to

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

3. Press COMPLETE when all the characters have been

entered. The title is assigned to the selected album. Note

• If a new character is entered on the existing character, the new character is inserted in front of the existing character. ■ Correcting the characters Move the cursor to the character to be corrected by pressing t/ e or r/y (t or y on the remote control). Press CLEAR to cancel the character before a new character is entered. Then enter and confirm the new character. Bookmark While playing a track that has been recorded on the HDD of this unit, you can place a bookmark temporarily on the track. Bookmark is convenient for immediate playback of the desired track and for creating a new album since the tracks with bookmarks are stored in a playlist. ■ To place a bookmark Press TRACK NO./BOOKMARK (BOOKMARK on the remote control) to place a bookmark during playback of the track. The BKMARK indicator lights on the display. Notes

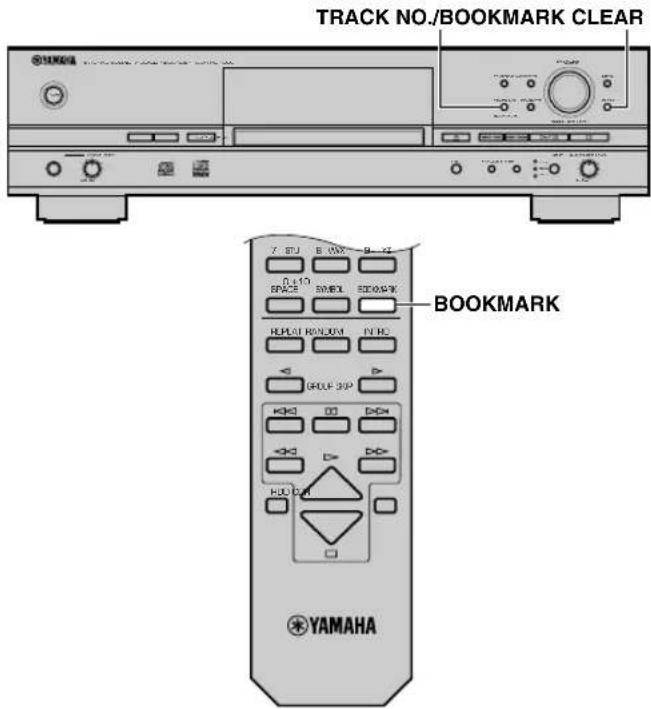

• When the track with a bookmark is selected, the BKMARK indicator lights on the display regardless of whether it is during playback or stopped.

• Only one list of tracks with bookmarks can be stored. If you wish to have more than one list, copy the playlist in the album. (See page 33.) ■ To play the track with a bookmark See page 58. ■ To cancel a bookmark Press TRACK NO./BOOKMARK (BOOKMARK on the remote control) to cancel the bookmark during playback of the track. The BKMARK indicator turns off on the display. ■ To cancel all bookmarks Press CLEAR as pressing TRACK NO./BOOKMARK on the front panel while this unit is in the stop mode. The following message appears on the display, and all bookmarks are canceled. BKMARKG GROUP

dB –30 –10 –6 –20 BKMARKG Bookmark Clr.E-37 EDITING English

1. Press HDD to select the HDD.

2. Press MENU to display the menu item selection while

this unit is in the stop mode.

3. Select “Track Edit” by rotating the MULTI JOG knob

(pressing +/– on the remote control). TRACK EDITING NATURAL SOUND HDD/CD RECORDER CDR–HD1000TEXT/TIME MODE/SETMULTI JOGDIGITAL REC LEVELPUSH ENTERTRACK NO.FINALIZE ERASEBOOKMARKCOMPLETE MENU

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Track Edit

5. Select the menu item by rotating the MULTI JOG knob

(pressing +/– on the remote control). The followings are the track editing menu items:

control) to confirm the menu item before editing.

7. Start editing by following the setting details (pages

38—45) for each menu item. Notes

• If MENU is pressed during editing, entry of the selection becomes ineffective, and the display returns to the previous one.

• If a is pressed during editing, all entry of the selection becomes ineffective, and the display returns to the one when this unit was in the stop mode.

8. Press a when all editing has been completed.

The display changes to the one when this unit was in the stop mode. You can do various editing operations on the tracks that have been recorded on the HDD. The following steps describe how to edit a track. For details about each editing menu item, refer to the descriptions on the following pages corresponding to your need. To change a track number ............................................................................................ “Track Rename” (page 38) To adjust the beginning of a track ............................................................................... “Track Adjust” (page 38) To erase a track ............................................................................................................ “Track Erase” (page 39) To erase the part of a track .......................................................................................... “Part Erase” (page 40) To combine a series of tracks ...................................................................................... “Track Combine” (page 41) To divide one track into two ........................................................................................ “Track Divide” (page 42) To eliminate unused track numbers ............................................................................. “Track Pack” (page 43) To add fade-in to the beginning of a track ................................................................... “Add Fade In” (page 43) To add fade-out to the end of a track ........................................................................... “Add Fade Out” (page 44) To assign a track title ................................................................................................... “Track Title” (page 45)E-38TRACK EDITING Track Rename You can move a track and assign a new number.

1. Select and confirm “Track Rename” in step 5 for

“TRACK EDITING” on page 37.The following message appears on the display.The disc number that contains the track to be moved flashes.

2. Select the disc that contains the track to be moved by

rotating the MULTI JOG knob (pressing +/– on theremote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc that contains the track tobe moved.The number of the track to be moved flashes.

4. Select the track to be moved by rotating the MULTI

JOG knob (pressing +/– on the remote control).

5. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the track to be moved.The display scrolls to the left to indicate the disc number thatcontains the track to be moved, the existing track number, andthe new track number.

6. Select the new track number by rotating the MULTI

JOG knob (pressing +/– on the remote control).

7. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the new track number. Note

• If a wrong selection is confirmed, press CLEAR to cancel it. Then, select again and confirm the correct entry.

The selected track is renumbered.Notes• If the selected new track number is already in use, the tracksfollowing this renumbered track will be automatically up-numbered by one. However, if there is any unused track number,only the tracks up to that number will be up-numbered.• The original number of the track that has been renumbered will beavailable for future use. Track Adjust You can change the beginning of the track to either earlier or later.

1. Select and confirm “Track Adjust” in step 5 for

“TRACK EDITING” on page 37.The following message appears on the display.The disc number that contains the track to be adjusted flashes.

2. Select the disc that contains the track to be adjusted

by rotating the MULTI JOG knob (pressing +/– on theremote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc that contains the track tobe adjusted.The number of the track to be adjusted flashes.

4. Select the track to be adjusted by rotating the MULTI

JOG knob (pressing +/– on the remote control).

5. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the track to be adjusted. Note

• If there is no track before the track that is selected and confirmed in steps 4 and 5, “No Previous” appears on the display, and adjustment is not possible for this track.

6. Press w/d (w on the remote control) to start playback

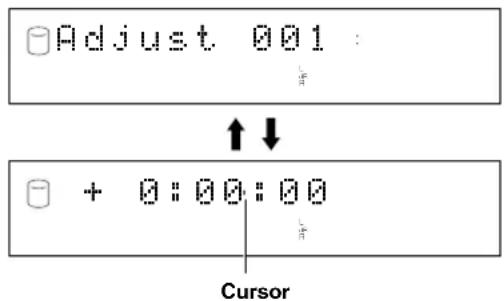

of the track to be adjusted. “Adjust” and the indication of the time length to be adjusted alternately appear on the display.GROUP

dB –30 –10 –6 –20 Rename 001 1? Disc that contains the track to be movedTrack to be movedTRACK

dB –30 –10 –6 –20 001 1≥ 1 Disc that contains the track to be movedExisting track number New track numberGROUP

dB –30 –10 –6 –20 Adjust 001 2? Disc that contains the track to be adjustedTrack to be adjusted TRACK

dB –30 –10 –6 –20 No Previous

Before “Track Adjust” is performed After “Track Adjust” has been performed (The beginning of track 2 is adjusted earlier.)

7. Adjust the time length to change the beginning of the

track by rotating the MULTI JOG knob (pressing +/– on the remote control). The time length can be adjusted by “minute: second: frame”. (Frame is the unit used for values smaller than 1 second. 75 frames make 1 second.) Move the cursor on the side of the second indication to the part to be adjusted by pressing t/e or r/y.

8. Press the MULTI JOG knob (ENTER on the remote

control) to search for the temporarily changed beginning point of the track according to the time length setting made in step 7 and start repeated playback from the new beginning point to the end of the disc. Go to the next step if the new beginning point is set appropriately. If not, continue the adjustment by repeating steps 7 and 8. Notes

• Press CLEAR to cancel the new setting and return to the original setting for the track beginning point.

• If a wrong selection is confirmed, press CLEAR to cancel it. Then, select again and confirm the correct entry.

The new track beginning point is set. Notes

• If the adjusted track includes a part that cannot be copied digitally before adjusting, the adjusted track itself cannot be copied digitally either.

• When the emphasis status of the track to be adjusted is different from that of the previous track, the emphasis status of the track to be adjusted takes precedence over that of the previous track. TRACK EDITING Track Erase You can erase a selected track.

1. Select and confirm “Track Erase” in step 5 for

“TRACK EDITING” on page 37. The following message appears on the display. The disc number that contains the track to be erased flashes.

2. Select the disc that contains the track to be erased

by rotating the MULTI JOG knob (pressing +/– on the remote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc that contains the track to be erased. The number of the track to be erased flashes.

4. Select the track to be erased by rotating the MULTI

control) to confirm the track to be erased. Notes

• If a wrong selection is confirmed, press CLEAR to cancel it. Then, select again and confirm the correct entry.

• To check the track to be erased, press w/d (w on the remote control). This unit starts to play the track to be erased repeatedly.

The selected track is erased. Note

• The number of the track that has been erased will be available for future use. GROUP

dB –30 –10 –6 –20 Erase 001 1? Disc that contains the track to be erasedTrack to be erasedE-40

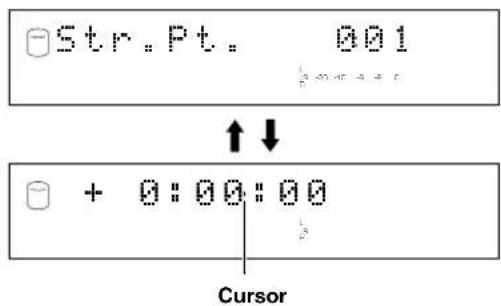

3. Press the MULTI JOG knob (ENTER on the remote

control) to search for the point that is several seconds before the beginning point of the partial erase set in step 2. Then the passage between the searched point and the beginning point set for the partial erase is for repeatedly played. Go to the next step, if the beginning point of the partial erase is set appropriately. If not, continue setting by repeating steps 2 and 3.

4. Press MODE/SET to confirm the beginning point of

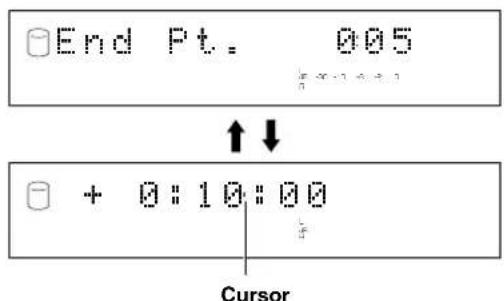

the partial erase. ■ Setting the ending point of a partial erase “End.Pt.” and the ending point of the partial erase alternately appear on the display after step 4 for “Setting the beginning point of a partial erase”. Note

• The ending point of the partial erase is temporarily set to a point that is 10 seconds after the beginning point of the partial erase.

1. Set the ending point of the partial erase by rotating

the MULTI JOG knob (pressing +/– on the remote control). The ending point of the partial erase can be set by “minute: second: frame”. Move the cursor on the side of the second indication to the point to be set by pressing t/e or r/y.

2. Press the MULTI JOG knob (ENTER on the remote

control) to search for the ending point of the partial erase set in step 1. Then the passage between the ending point and a point that is several seconds after the ending point is repeatedly played. Go to the next step, if the ending point of the partial erase is set appropriately. If not, continue setting by repeating steps 1 and

3. Press MODE/SET to confirm the ending point of the

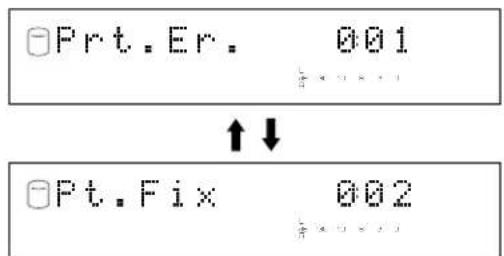

partial erase. “Prt.Er.” and “Pt.Fix” alternately appear on the display. When the ending point is confirmed, this unit repeatedly plays the passage between a point that is approximately 5 seconds before the beginning point and the point that is approximately 5 seconds after the ending point of the partial erase. Cursor

dB –30 –10 –6 –20 Pt.Fix 002 TRACK EDITING Part Erase You can erase part of a selected track.

1. Select and confirm “Part Erase” in step 5 for “TRACK

EDITING” on page 37. The following message appears on the display. The disc number that contains the track to be partially erased flashes.

2. Select the disc that contains the track to be partially

erased by rotating the MULTI JOG knob (pressing +/– on the remote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc that contains the track to be partially erased. The number of the track to be partially erased flashes.

4. Select the track to be partially erased by rotating the

control) to confirm the track to be partially erased. ■ Setting the beginning point of a partial erase

1. Press w/d (w on the remote control) to start playback

of the track to be partially erased. “Str.Pt.” and the beginning point of a partial erase alternately appear on the display.

2. Set the beginning point of the partial erase by

rotating the MULTI JOG knob (pressing +/– on the remote control). The beginning point of a partial erase can be set by “minute: second: frame”. Move the cursor on the side of the second indication to the point to be set by pressing t/e or r/y. GROUP

dB –30 –10 –6 –20 Prt.Er.001 1? Disc that contains the track to be partially erasedTrack to be partially erased

4. Select the track to be the first in the combination by

rotating the MULTI JOG knob (pressing +/– on theremote control).

5. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the track to be the first in thecombination.The display scrolls to the left to indicate the disc number thatcontains the first track to be combined, the track number to bethe first in the combination, and the track number to be the lastin the combination.

6. Select the track to be the last in the combination by

rotating the MULTI JOG knob (pressing +/– on theremote control).

7. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the track to be the last in thecombination.

The two selected tracks and all those between are combinedinto one track.Notes• When combining a series of tracks, the selected track numbersfollowing the selected first track will be available for future use.• The track title for the first track is effective for the combinedtrack.• If there is any track that cannot be copied digitally among thetracks to be combined, the combined track cannot be copieddigitally either.• When tracks with different emphasis status have been combined,the emphasis status of the first track becomes effective for thecombined track.TRACK EDITINGCaution• During the playback of the passage mentioned above, thesound may be missing at the joint between the passage beforethe beginning point and the passage after the ending point.However, the partially erased track is played properly afterconfirming the part to be erased in step 4.To change the ending point, press CLEAR once to return to thesetting display for the ending point. To change the beginning point, press CLEAR twice to return to the setting display for the beginning point.

The selected part is erased.Caution• The minimum length of a track is 4 seconds. It is not possible tocreate a track that is shorter than 4 seconds by a partial erase. Track Combine You can combine a series of tracks into one.

1. Select and confirm “Track Combine” in step 5 for

“TRACK EDITING” on page 37.The following message appears on the display.The disc number that contains the first track to be combinedflashes.

2. Select the disc that contains the first track to be

combined by rotating the MULTI JOG knob (pressing+/– on the remote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc that contains the firsttrack to be combined.The number of the track to be the first in the combinationflashes.

TrackTrack : Part to be erased1 Repeated passage when setting the beginning point2 Repeated passage when setting the ending point3 Repeated passage after confirming the ending pointDisc that contains the first track to be combinedTrack to be the first in the combinationGROUP

dB –30 –10 –6 –20 001 1- 2 Disc that contains the first track in the combinationTrack to be the first inthe combinationTrack to be the last inthe combinationE-42 TRACK EDITING Before “Track Divide” is performed Divided into two After “Track Divide” has been performed (dividing a track into two) : Space not being used Track Divide You can divide a track into two at the selected point.

1. Select and confirm “Track Divide” in step 5 for

“TRACK EDITING” on page 37. The following message appears on the display. The disc number that contains the track to be divided flashes.

2. Select the disc that contains the track to be divided

by rotating the MULTI JOG knob (pressing +/– on the remote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc that contains the track to be divided. The number of the track to be divided flashes.

4. Select the track to be divided by rotating the MULTI

control) to confirm the track to be divided.

6. Press w/d (w on the remote control) to play the track

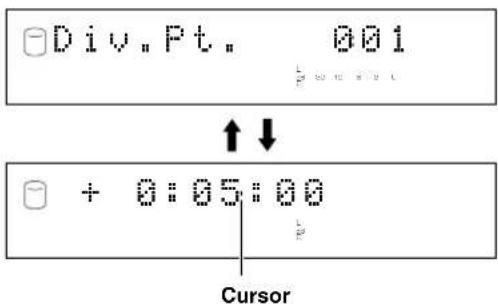

to be divided. “Div.Pt.” and the dividing point alternately appear on the display.

7. Set the dividing point by rotating the MULTI JOG

knob (pressing +/– on the remote control). The dividing point can be set by “minute: second: frame”. Move the cursor on the side of the second indication to the point to be set by pressing t/e or r/y.

8. Press the MULTI JOG knob (ENTER on the remote

control) to search for a point that is several seconds before the dividing point set in step 7. Then the passage between the searched for point and the dividing point is repeatedly played. Go to the next step, if the dividing point is set appropriately. If not, continue setting by repeating steps 7 and 8.

The selected track is divided into two at the set dividing point. Cautions

• The minimum length of a track is 4 seconds. It is not possible to create a track that is shorter than 4 seconds by dividing a track.

• One disc can contain up to 99 tracks. If the disc already contains 99 tracks, “Track No.Full” appears on the display. Note

• The track numbers following the divided track will be up- numbered by one. However, if there is any unused track number, only the tracks up to that number will be up-numbered. GROUP

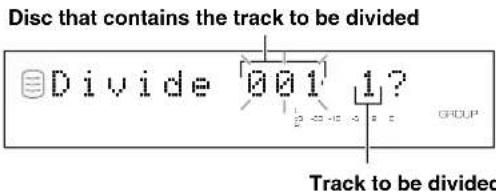

dB –30 –10 –6 –20 Divide 001 1? Disc that contains the track to be dividedTrack to be dividedCursor

+ 0:05:00E-43 EDITING English TRACK EDITING Track Pack You can re-organize the track numbers by eliminating unused track numbers, that have been created by changing track numbers or erasing tracks.

1. Select and confirm “Track Pack” in step 5 for “TRACK

EDITING” on page 37. The following message appears on the display.

2. Select the disc on which unused track numbers are

to be eliminated by rotating the MULTI JOG knob (pressing +/– on the remote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc on which unused track numbers are to be eliminated.

The track numbers are re-organized by eliminating unused track numbers.

dB –30 –10 –6 –20 Pack 001 ? Disc on which unused tracknumbers are to be eliminated

Before “Track Pack” is performed After “Track Pack” has been performed (Unused track numbers have been eliminated.) : Unused track numbers Add Fade In You can add fade-in at the beginning of a track. The beginning of the track is played with gradually rising level when fade-in has been added.

1. Select and confirm “Add Fade In” in step 5 for

“TRACK EDITING” on page 37. The following message appears on the display. The disc number that contains the track to add fade-in flashes.

2. Select the disc that contains the track to add fade-in

by rotating the MULTI JOG knob (pressing +/– on the remote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc that contains the track to add fade-in. The number of the track to add fade-in flashes.

4. Select the track to add fade-in by rotating the MULTI

control) to confirm the track to add fade-in.

6. Press w/d (w on the remote control) to play the track

to add fade-in. “Fd.In” and the fade-in length alternately appear on the display.

7. Set the fade-in length by rotating the MULTI JOG

knob (pressing +/– on the remote control). The fade-in length can be set in the 1 to 10 second range by 1 second increments. Disc that contains the track to add fade-inTrack to add fade-inGROUP

control) to repeatedly play the passage between the beginning of the track and a point that is several seconds after the end of the fade-in to be added as set in step 7. Go to the next step, if the fade-in length is set appropriately. If not, continue setting by repeating steps 7 and 8.

The fade-in is added to the beginning of the selected track for the selected length. Notes

• To cancel the fade-in that has been added, press CLEAR in step 7 to clear the fade-in length, and then press COMPLETE.

• Fade-in cannot be added to a track that is shorter than 21 seconds.

• The fade-in effect becomes ineffective if the following editing is performed to the track which the fade-in is added to.

1. Erasing a certain part of the track (Part Erase).

2. Combining the track (Track Combine).

3. Dividing the track (Track Divide).

4. Adjusting the beginning of the track (Track Adjust).

• If “Track Adjust” has been performed, the fade-in effect of both the adjusted track and the previous track becomes ineffective. Add Fade Out You can add fade-out at the end of a track. The end of the track is played with gradually lowering the level when fade-out has been added.

1. Select and confirm “Add Fade Out” in step 5 for

“TRACK EDITING” on page 37. The following message appears on the display. The disc number that contains the track to add fade-out flashes.

2. Select the disc that contains the track to add fade-out

by rotating the MULTI JOG knob (pressing +/– on the remote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc that contains the track to add fade-out. The number of the track to add fade-out flashes.

4. Select the track to add fade-out by rotating the MULTI

control) to confirm the track to add fade-out.

6. Press w/d (w on the remote control) to play the track

to add fade-out. “Fd.Out” and the fade-out length alternately appear on the display.

7. Set the fade-out length by rotating the MULTI JOG

knob (pressing +/– on the remote control). The fade-out length can be set in the 1 to 10 second range by 1 second increments.

8. Press the MULTI JOG knob (ENTER on the remote

control) to repeatedly play the passage between a point that is several seconds before the beginning of the fade-out to be added as set in step 7 and the end of the track. Go to the next step, if the fade-out length is set appropriately. If not, continue setting by repeating steps 7 and 8.

The fade-out is added to the end of the selected track for the selected length. Notes

• To cancel the fade-out that has been added, press CLEAR in step 7 to clear the fade-out length, and then press COMPLETE.

• Fade-out cannot be added to a track that is shorter than 21 seconds.

• The fade-out effect becomes ineffective if the following editing is performed to the track which the fade-out is added to.

1. Erasing a certain part of the track (Part Erase).

2. Combining the track (Track Combine).

3. Dividing the track (Track Divide).

4. Adjusting the beginning of the track (Track Adjust).

• If “Track Adjust” has been performed, the fade-out effect of both the adjusted track and the previous track becomes ineffective. TRACK EDITING GROUP

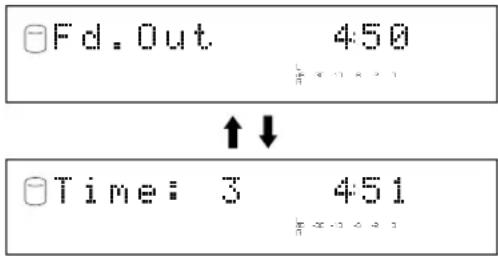

dB –30 –10 –6 –20 Fd.Out 001 1? Disc that contains the track to add fade-outTrack to add fade-out

dB –30 –10 –6 –20 Time: 3 451E-45 EDITING English TRACK EDITING Track Title You can assign a title to a track.

1. Select and confirm “Track Title” in step 5 for “TRACK

EDITING” on page 37. The following message appears on the display. The disc number that contains the track to assign a title to flashes.

2. Select the disc that contains the track to assign a title

to by rotating the MULTI JOG knob (pressing +/– on the remote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc that contains the track to assign a title to. When the disc has been confirmed, the disc number that contains the track to assign a title to flashes.

4. Select the track to assign a title to by rotating the

control) to confirm the track to assign a title to. The following message appears on the display. The cursor flashes. Note

• If the selected track already has a title, the title appears on the display.

6. Enter the title characters by using the MULTI JOG

When the MULTI JOG knob is rotated clockwise, characters appear in the order of alphabetical capital letters, alphabetical lower case letters, numbers, and symbols. Select the character you wish to use for the title.

2. Press the MULTI JOG knob to confirm the selected

character. The cursor moves to the next space. Repeat steps 1 and 2 until the title is complete. A title can contain up to 32 characters.

3. Press COMPLETE when all the characters have been

entered. The title is assigned to the selected track. ■ Entering the title characters by using the alphabetical/ numeric buttons on the remote control

1. Select the character to be used for the title by using

the alphabetical/numeric buttons on the remote control. Alphabetical capital letters, alphabetical lower case letters, and numbers switch each time the buttons are pressed. To create a space, press SPACE. To use a symbol, press SYMBOL to select the desired symbol.

2. Select the next character by pressing one of the

alphabetical/numeric buttons. The cursor automatically moves to the next space. When the same button is used, press y to move the cursor to the next space.

3. Press COMPLETE when all the characters have been

entered. The title is assigned to the selected track. Note

• If a new character is entered on the existing character, the new character is inserted in front of the existing character. ■ Correcting the characters Move the cursor to the character to be corrected by pressing t/ e or r/y (t or y on the remote control). Press CLEAR to cancel the character before a new character is entered. Then enter and confirm the new character. GROUP

dB –30 –10 –6 –20 Title 001 1? Disc that contains the track to assign a title toTrack to assign a title to

dB –30 –10 –6 –20E-46

6. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the menu item before editing.

7. Start editing by following the detailed steps (pages

46—49) for each menu item.Notes

• If MENU is pressed during editing, entry of the selection becomes ineffective, and the display returns to the previous one.
• If a is pressed during editing, all entry of the selection becomes ineffective, and the display returns to the one while this unit wasin the stop mode.

8. Press a when all editing has been completed.

The display changes to the one when this unit was in the stopmode. Disc Rename You can move a disc and assign a new number.

1. Select and confirm “Disc Rename” in step 5 for “DISC

EDITING”.The following message appears on the display.The disc number to be moved flashes.

2. Select the disc to be moved by rotating the MULTI

JOG knob (pressing +/– on the remote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc to be moved.The display scrolls to the left to indicate the disc number to bemoved and new number.

1. Press HDD to select the HDD to edit.

2. Press MENU to display the menu item selection while

this unit is in the stop mode.

3. Select “Disc Edit” by rotating the MULTI JOG knob

(pressing +/– on the remote control).

4. Press the MULTI JOG knob (ENTER on the remote

5. Select the desired editing menu item by rotating the

MULTI JOG knob (pressing +/– on the remotecontrol).The followings are the disc editing menu items:• Disc Rename• Disc Erase• Disc Combine• Disc Divide• Disc Pack• Disc Title DISC EDITING NATURAL SOUND HDD/CD RECORDER CDR–HD1000TEXT/TIME MODE/SETMULTI JOGDIGITAL REC LEVELPUSH ENTERTRACK NO.FINALIZE ERASEBOOKMARKCOMPLETE MENU

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Disc Edit Disc to be moved GROUP

4. Select the new disc number to by rotating the MULTI

control) to confirm the new disc number. Note

• If a wrong selection is confirmed, press CLEAR to cancel it. Then, select again and confirm the correct entry.

The selected disc has been moved to and assigned a new number. Notes

• If the selected new disc number is already in use, the disc numbers following this renumbered disc will be automatically up- numbered by one. However, if there is any unused disc number, only the discs up to that number will be up-numbered.

• The original number of the disc that has been renumbered will be available for future use. Disc Erase You can erase a selected disc.

1. Select and confirm “Disc Erase” in step 5 for “DISC

EDITING” on page 46. The following message appears on the display. The number of the disc to be erased flashes.

2. Select the disc to be erased by rotating the MULTI

control) to confirm the disc to be erased. Note

• If a wrong selection is confirmed, press CLEAR to cancel it. Then, select again and confirm the correct entry.

The selected disc is erased. Note

• The number of the erased disc will be available for future use. DISC EDITING GROUP

dB –30 –10 –6 –20 Erase 001? Disc to be erased Disc Combine You can combine a series of discs into one.

1. Select and confirm “Disc Combine” in step 5 for

“DISC EDITING” on page 46. The following message appears on the display. The disc number to be the first in the combination flashes.

2. Select the disc to be the first track in the combination

by rotating the MULTI JOG knob (pressing +/– on the remote control).

3. Press the MULTI JOG knob (ENTER on the remote

control) to confirm the disc to be the first in the combination. The display scrolls to the left to indicate the disc numbers to be the first and the last in the combination.

4. Select the disc to be the last in the combination by

control) to confirm the disc to be the last in the combination.

The two selected discs and all those between are combined into one disc. Cautions

• One disc can contain up to 99 tracks. When the total track number on a disc exceeds 99, “Track No.Full” appears on the display.

• The maximum length of one disc on the HDD is 99 minutes 59 seconds. When the total time of the discs to be combined exceeds 99 minutes 59 seconds, “No Enough Spc” appears on the display. Notes

• When combining a series of discs, the selected disc numbers following the selected first disc will be available for future use.

• The disc title for the first disc is effective for the combined disc. GROUP

dB –30 –10 –6 –20 Combine 001? Disc to be the first in the combinationGROUP

dB –30 –10 –6 –20 001 -002 Disc to be the first in thecombinationDisc to be the last in thecombinationE-48 Disc Divide You can divide a disc into two at the selected point.

1. Select and confirm “Disc Divide” in step 5 for “DISC

EDITING” on page 46. The following message appears on the display. The number of the disc to be divided flashes.

2. Select the disc to be divided by rotating the MULTI

control) to confirm the disc to be divided. “Div.from” and the dividing point (the number of the track to be the first after dividing) appear on the display.

4. Select the dividing point by rotating the MULTI JOG

control) to confirm the dividing point.

The selected disc is divided into two at the selected dividing point. Caution

• The HDD can contain up to 999 discs. If the HDD already contains 999 discs, “Disc No.Full” appears on the display. Note

• The disc numbers following the divided disc will be up-numbered by one. However, if there is any unused disc number, only the discs up to that number will be up-numbered. DISC EDITING Disc to be dividedGROUP

dB –30 –10 –6 –20 Divide 001? Track to be the first after dividingGROUP

dB –30 –10 –6 –20 Div.from 4? Disc Pack You can re-organize the disc numbers by eliminating unused disc numbers that have been created by changing disc numbers or erasing discs.

1. Select and confirm “Disc Pack” in step 5 for “DISC

EDITING” on page 46. The following message appears on the display.

The disc numbers are re-organized by eliminating unused disc numbers.

dB –30 –10 –6 –20 Pack ?

Before “Disc Pack” is performed After “Disc Pack” has been performed (Unused disc numbers have been eliminated.) : Unused disc numbers

Before “Disc Divide” is performed Divided into two After “Disc Divide” has been performed (dividing a disc into two) : Space not being usedE-49 EDITING English DISC EDITING Disc Title You can assign a title to a recorded disc.

1. Select and confirm “Disc Title” in step 5 for “DISC

EDITING” on page 46. The following message appears on the display. The number of the disc to assign a title to flashes.

2. Select the disc to assign a title to by rotating the

control) to confirm the disc to assign a title to. The following message appears on the display. The cursor flashes. Note

• If the selected disc already has a title, the title appears on the display.

4. Enter the title characters by using the MULTI JOG

When the MULTI JOG knob is rotated clockwise, characters appear in the order of alphabetical capital letters, alphabetical lower case letters, numbers, and symbols. Select the character you wish to use for the title.

2. Press the MULTI JOG knob to confirm the selected

character. The cursor moves to the next space. Repeat steps 1 and 2 until the title is complete. A title can contain up to 32 characters.

3. Press COMPLETE when all the characters have been

entered. The title is assigned to the selected disc. ■ Entering the title characters by using the alphabetical/ numeric buttons on the remote control

1. Select the character to be used for the title by using

the alphabetical/numeric buttons on the remote control. Alphabetical capital letters, alphabetical lower case letters, and numbers switch each time the buttons are pressed. To create a space, press SPACE. To use a symbol, press SYMBOL to select the desired symbol.

2. Select the next character by pressing one of the

alphabetical/numeric buttons. The cursor automatically moves to the next space. When the same button is used, press y to move the cursor to the next space.

3. Press COMPLETE when all the characters have been

entered. A title is assigned to the selected disc. Note

• If a new character is entered on the existing character, the new character is inserted in front of the existing character. ■ Correcting the characters Move the cursor to the character to be corrected by pressing t/ e or r/y (t or y on the remote control). Press CLEAR to cancel the character before a new character is entered. Then enter and confirm the new character. Disc to assign a title toGROUP

dB –30 –10 –6 –20 Title 001?

dB –30 –10 –6 –20E-50 UNDO FUNCTION You can cancel an operation and the result of a previous editing step on this unit (Undo function).

1. Press MENU to display the menu item selection while

this unit is in the stop mode.

2. Select “Undo” by rotating the MULTI JOG knob

The previous editing operation and result are canceled. The undo function does not work if any of the following operations has been performed after the editing operation.

• After the editing operation, a recording has been made, or this unit has been set in the recording pause mode to start recording.

• After the editing operation, a copy has been made, or this unit has been set in the copy standby mode to start copying.

• Further editing operations have been performed.

• The HDD has been formatted. The following message appears on the display if the undo function does not work. Notes

• The undo function does not apply to the addition of fade-in or fade-out to a track because it can be canceled at any time.

• The undo function does not apply to assigning a title to an album, track or disc.

• The undo function does not apply to editing a CD album.

dB –30 –10 –6 –20 Undo

dB –30 –10 –6 –20 No Undo dataE-51 EDITING English

ERASING A CD-RW DISC

You can erase the data recorded on a CD-RW disc. New recordingscan be made in the space created by erasing. The following 4 typesof erasing are possible with this unit.■ Last Track Erase This operation erases the last track on a disc. “Last Track Erase” cannot be performed if a CD-RW disc has been finalized, or onlyone track has been recorded on the disc.

1. Load the CD-RW disc to be erased.

The following message appears on the display.Go to the next step when erasing only the last track. To eraseother tracks as well, select the track number to start erasingfrom by rotating the MULTI JOG knob.To cancel erasing, press a.

3. Press w/d (w on the remote control) to start erasing.

“Erasing” flashes on the display, and the level meter shows theerasing progress.

4. This unit enters the stop mode when erasing has

been completed.■ All Track Erase This operation erases all of the tracks. “All Track Erase” cannot be done if a CD-RW disc has been finalized.

1. Load the CD-RW disc to be erased.

2. Press ERASE repeatedly until “Erase All?” appears

on the display.To cancel erasing, press a.

3. Press w/d (w on the remote control) to start erasing.

“Erasing” flashes on the display, and the level meter shows theerasing progress.

4. This unit enters the stop mode when erasing has

been completed.■ TOC EraseThis operation is only available on a CD-RW disc that has beenfinalized. After the Table of Contents (TOC) has been erased, theeffects of finalization are defeated, and further recording ispossible.

1. Load the CD-RW disc that has been finalized.

“Erase TOC?” appears on the display. To cancel erasing, press a.

3. Press w/d (w on the remote control) to start erasing.

“Erasing” flashes on the display, and the level meter shows theerasing progress.

4. This unit enters the stop mode when erasing has

been completed. Note

• The TOC indicator turns off when “TOC Erase” has been completed.■ Disc EraseThis operation erases all data on the disc. It is mainly used torecover a disc.

1. Load the CD-RW disc to be erased.

2. Press and hold ERASE for approximately 2 seconds.

“Erase Disc?” appears on the display.To cancel erasing, press a.

3. Press w/d (w on the remote control) to start erasing.

“Erasing” flashes on the display, and the level meter shows theerasing progress.

4. This unit enters the stop mode when erasing has

been completed.Cautions• Never turn off the power of this unit during erasing.

• If “Check Disc” appears on the display during erasing, and erasing stops, there may be dust or damage on the disc. Check thedisc and start the erasing operation again.• Erasing a disc takes approximately 20 minutes.GROUPCD–RW Erase Last?

dB –30 –10 –6 –20 Track to start erasing from Last track GROUPCD–RW Erase All?

dB –30 –10 –6 –20E-52 Playing a CD

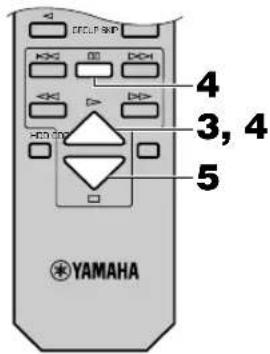

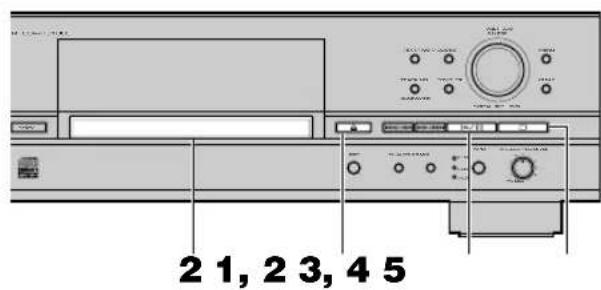

1. Press v (OPEN/CLOSE on the remote control) to

2. Load the CD to be played on the disc tray and close

the disc tray by pressing v (OPEN/CLOSE on theremote control).This unit starts reading the disc information. “Reading” flasheson the display during reading.

When w/d (w on the remote control) is pressed, this unit starts playback from the beginning of the first track.

4. Press w/d (d on the remote control) to stop playback

temporarily. Press w/d (w or d on the remote control) to resume playback.

5. Press a to stop playback.

BASIC PLAYBACK OPERATION

This unit can play back tracks recorded on the 2 types of recording media; HDD and CD. Press HDD to play tracks recorded on the HDD, and press CDR to play tracks recorded on a CD (including a CD-R and a CD-RW disc).

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

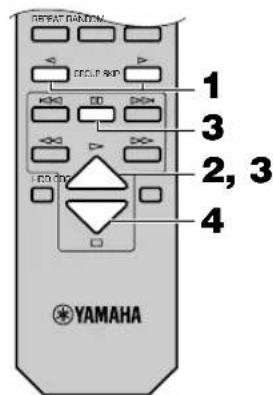

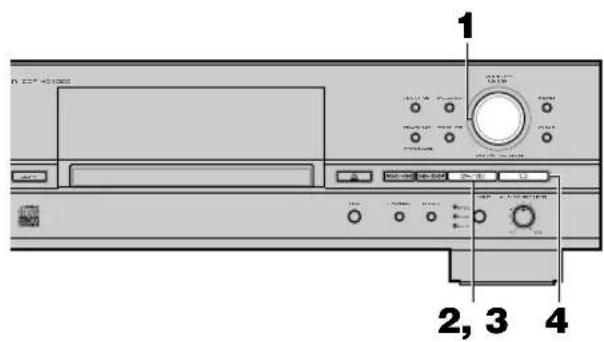

TOC Playing Tracks on the HDD

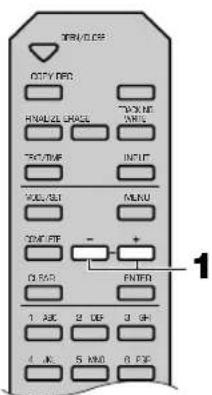

1. Make sure the GROUP indicator is lit on the display

and select the group (disc, album, or bookmark) to beplayed by rotating the MULTI JOG knob (pressing +/–on the remote control). Note

• You can select the group by pressing GROUP SKIP q/ GROUP SKIP w on the remote control.

When w/d (w on the remote control) is pressed, this unit starts playback from the beginning of the first track of the selectedgroup.

3. Press w/d (d on the remote control) to stop playback

temporarily. Press w/d (w or d on the remote control) to resume playback.

4. Press a to stop playback.

• Never turn off the power of this unit during the playback. The data on the HDD may be damaged.

• During the playback, make sure that this unit is not subjected to shock or vibration as the HDD may be damaged.

Finding the Desired Passage (Search) ■ To go forward rapidly Press and hold r/y (r on the remote control) during playback. When the button is released, normal playback resumes. ■ To go backward rapidly Press and hold t/e (e on the remote control) during playback. When the button is released, normal playback resumes. Note

• Search is possible in the pause mode. No sound can be heard when searching is performed during the pause mode.

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

GROUP SKIP q Finding the Desired Group (Group Skip) You can select the group (disc, album, or bookmark) recorded on the HDD. ■ To select the desired group with the MULTI JOG knob (+/– on the remote control) Press the MULTI JOG knob (ENTER on the remote control) to turn on the GROUP indicator on the display. Rotate the MULTI JOG knob clockwise (press + on the remote control) to advance to the next group and the following groups or counterclockwise (press – on the remote control) to return to the previous group and other previous groups. ■ To advance to the next group Press GROUP SKIP w on the remote control. Press GROUP SKIP w repeatedly to advance to other groups. ■ To return to the previous group Press GROUP SKIP q on the remote control. Press GROUP SKIP q repeatedly to return to other previous groups. Notes

• Group skip is possible in the play, pause and stop modes.

• Playback starts from the beginning of the first track of the selected group. GROUP

dB –30 –10 –6 –20 Resume Play function If you press w/d (w on the remote control) after a has been pressed to stop playback, this unit starts playback from the beginning of the track that has been stopped. This function is called “Resume Play”. To cancel the “Resume Play” function, press a to stop playback first and then press a again. After the cancellation, this unit starts playback from the beginning of the first track recorded on a disc (or an album) or a CD.E-54

BASIC PLAYBACK OPERATION

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

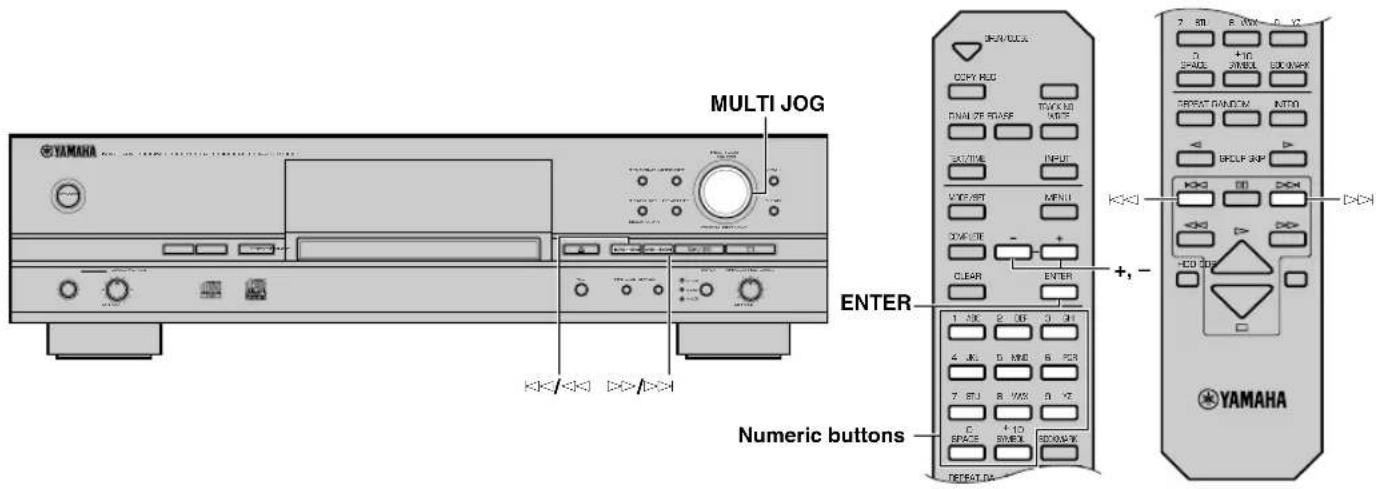

ENTER Finding the Desired Track (Track Skip) ■ To select the desired track number with the MULTI JOG knob (+/– on the remote control) Press the MULTI JOG knob (ENTER on the remote control) to turn on the TRACK indicator on the display. Rotate the MULTI JOG knob clockwise (press + on the remote control) to advance to the next track and the following tracks or counterclockwise (press – on the remote control) to return to the previous track and other previous tracks. ■ To advance to the next track Press r/y (y on the remote control). Press r/y (y on the remote control) repeatedly to skip to other tracks. ■ To return to the beginning of the track being played Press t/e (t on the remote control) once during playback. ■ To return to the previous track Press t/e (t on the remote control) twice during playback. Press t/e (t on the remote control) repeatedly to return to other previous tracks. Numeric buttons ■ To play the desired track Select the desired track by using the numeric buttons on the remote control. The selected track number appears on the display. Example: To select track 25 Press +10 twice, and then immediately press 5 once. Note

• If a number higher than the last track number recorded on a disc (or an album) or a CD is entered by using the remote control, this unit plays the last track. Note

• Track skip is possible in the play, pause and stop modes. TRACK

dB –30 –10 –6 –20E-55 PLAYBACK English This unit provides various playback methods according to the setting. The following steps describe the setting procedure for each setting. Notes

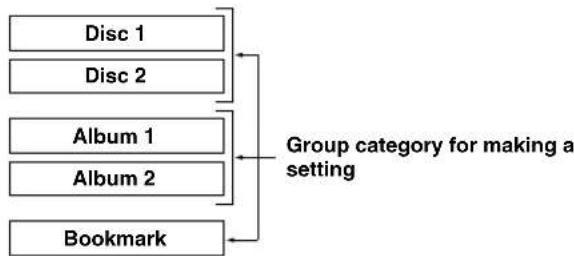

• The setting of play style, random play, repeat play, and intro play can be set during the playback.

• The setting of play style, random play, and full repeat play is memorized even after the power of this unit has been turned off. Setting the Play Style When playing sources recorded on the HDD, you can set the play style. The play style setting changes the range of playback for random play, full repeat play, and intro play.

1. Press HDD to select the HDD.

2. Press MODE/SET to display the playback mode

setting. “Play Style” appears on the display.

3. Press the MULTI JOG knob (ENTER on the remote

control) to start the play style setting.

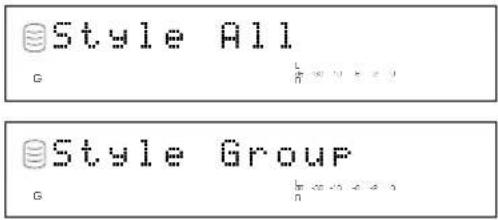

control) to confirm the selection. ■ When “Style All” is confirmed The A indicator lights on the display. Random play, full repeat play, or intro play can be set for one of the group categories (disc, album, and bookmark) recorded on the HDD.

• When random play is set, all tracks that belong to the selected group category are played in a random sequence.

• When full repeat play is set, all tracks that belong to the selected group category are repeatedly played.

• When intro play is set, the beginnings of all tracks that belong to the selected group category are played one after another. For example, if full repeat play is set during the playback of disc 1, all tracks recorded to discs 1 and 2 are repeatedly played. Note

• If “Style All” is set and the title is shown on the display, the sound may be missing when this unit switches from one disc to another. To avoid this problem, switch the display to from the indication of time by pressing TEXT/TIME (see page 10). ■ When “Style Group” is confirmed The G indicator lights on the display. Random play, full repeat play, or intro play can be set for one of the groups (disc, album, and bookmark) recorded on the HDD.

• When random play is set, all tracks that belong to the selected group are played in a random sequence.

• When full repeat play is set, all tracks that belong to the selected group are repeatedly played.

• When intro play is set, the beginnings of all tracks that belong to the selected group are played one after another. For example, if full repeat play is set during the playback of disc 1, all tracks recorded to disc 1 are repeatedly played.

Random Play You can listen to all tracks recorded in a group on the HDD or on a CD in a random sequence. ■ To set random play

1. Press HDD or CDR to select the drive to be used.

2. Press MODE/SET to start the playback mode setting.

control) to start setting random play.

5. Rotate the MULTI JOG knob (press +/– on the remote

control) to confirm the selection. The RNDM indicator lights on the display. Notes

• Random play can be easily set by pressing RANDOM on the remote control.

• If random play is set during playback, the new setting applies to the next track. ■ To start random play When random play is set, press w/d (w on the remote control) to start random play. ■ To stop random play Press a. ■ To cancel the random play setting Select and confirm “Random Off” in step 5 for “To set random play” or press RANDOM on the remote control. The RNDM indicator turns off on the display. Single Repeat Play You can listen to a single desired track or to a track being played repeatedly. ■ To set single repeat play

1. Press HDD or CDR to select the drive to be used.

2. Press MODE/SET to start the playback mode setting.

control) to start setting single repeat play.

5. Rotate the MULTI JOG knob (press +/– on the remote

control) to confirm the selection. The S REP indicator lights on the display. Notes

• Single repeat play can be easily set by pressing REPEAT on the remote control once.

• The track being played is repeatedly played even during playback of an album or random play. ■ To cancel the single repeat play setting Select and confirm “Repeat Off” in step 5 for “To set single repeat play” or press REPEAT on the remote control repeatedly until the S REP indicator turns off on the display.

dB –30 –10 –6 –20 Repeat

Full Repeat Play You can repeatedly listen to all tracks recorded in a group (or a CD) or group category. ■ To set full repeat play

1. Press HDD or CDR to select the drive to be used.

2. Press MODE/SET to start the playback mode setting.

control) to start setting full repeat play.

5. Rotate the MULTI JOG knob (press +/– on the remote

control) to confirm the selection. The REP indicator lights on the display. Notes

• Full repeat play can be easily set by pressing REPEAT on the remote control twice.

• The tracks are repeatedly played in the same random order if played in the random play mode. ■ To cancel the full repeat play setting Select and confirm “Repeat Off” in step 5 for “To set full repeat play” or press REPEAT on the remote control repeatedly until the REP indicator turns off on the display. Intro Play You can listen to the beginnings of the tracks for a set amount of time one after another. ■ To set intro play

1. Press HDD or CDR to select the drive to be used.

2. Press MODE/SET to start the playback mode setting.

control) to start setting intro play.

5. Rotate the MULTI JOG knob (press +/– on the remote

control) to set the amount of time to play the beginning of each track. The playback time can be set in the 1 to 10 seconds range by 1 second steps and in the 10 seconds to 60 seconds range by 5 seconds steps. ■ To start intro play After the playback time for intro play has been set in step 5 for “To set intro play”, press the MULTI JOG knob (ENTER on the remote control) to confirm the setting or press w/d (w on the remote control) to start intro play. Notes

• Intro play can be easily started by pressing INTRO on the remote control.

• The beginning of the selected track is repeatedly played if single repeat is set.

• When “Style Group” is set with the full repeat play mode, the beginnings of all tracks recorded in the selected group are repeatedly played.

• When “Style All” is set with the full repeat play mode, the beginnings of all tracks recorded in the selected group category are repeatedly played.

• The beginnings of randomly selected tracks are played if random play is set. ■ To stop intro play Press a. ■ To cancel the intro play setting Press INTRO on the remote control.

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat Full REPG

Album Play You can listen to the desired tracks in the desired order (album play). You need to create an album that lists the tracks in a certain order. See page 32 for the album creation procedure. ■ To play a created album

1. Press HDD or CDR to select the drive to be used.

2. Press the MULTI JOG knob (ENTER on the remote

control) to turn on the GROUP indicator on the display.

3. Select the album to be played by rotating the MULTI

JOG knob (pressing +/– on the remote control). If there is more than 1 album created on the HDD, the album numbers appear in orderly sequence.

Playback starts from the beginning of the first track of the selected album when w/d (w on the remote control) is pressed.

5. Press w/d (d on the remote control) to stop playback

temporarily. To resume playback, press w/d (w or d on the remote control). ■ To stop album play Press a. ■ To edit the album See page 32. ■ To delete the album See page 34. Bookmark Play You can easily listen to a group of desired tracks by selecting a list of tracks with bookmarks. See page 36 for details about bookmarks.

1. Press HDD to select the HDD.

2. Press the MULTI JOG knob (ENTER on the remote

control) to turn on the GROUP indicator on the display.

3. Rotate the MULTI JOG knob (press +/– on the remote

control) to select “Mark”.

Playback starts from the beginning of the first track when w/d (w on the remote control) is pressed. Note

• Tracks are played in the order that bookmarks have been placed.

5. To stop playback temporarily, press w/d (d on the

remote control). To resume playback, press w/d (w or d on the remote control). Listening with Headphones Connect your headphones to the PHONES jack and adjust the volume with the LEVEL control. Caution

• If the power of other components such as an amplifier connected to this unit is not turned on, the sound of this unit may be distorted. If this occurs, use the headphones with the other component’s power turned on. When using the CD driveWhen using the HDD (when album number 1 is selected.)GROUP

dB –30 –10 –6 –20 BKMARKG Mark 1 NATURAL SOUND HDD/CD RECORDER CDR–HD1000 REC COPYCDRHDD MIN MAX LEVELPHONES POWER Adjust the headphones volumeConnect your headphonesE-59 ADDITIONAL INFORMATION English HDD Utility ■ To check the HDD utility (HDD Info.) You can check the HDD utility (capacity, usage, and available space) of this unit.

1. Press MENU to display the menu item selection while

this unit is in the stop mode.

2. Select “HDD Utility” by rotating the MULTI JOG knob

control) again to display the capacity of the HDD. Each time the MULTI JOG knob is rotated (+/– on the remote control is pressed), the display changes as follows. Indications are made by time. Note

dB –30 –10 –6 –20 HDD Utility

dB –30 –10 –6 –20 HDD Info. Capacity (total time)Usage (total used time)Available space (recordable time)

dB –30 –10 –6 –20 Total 30h40m

• After the HDD has been formatted, all data about the recorded tracks and settings will be erased from the HDD.

• After all data on the HDD have been initialized, the undo function cannot be applied to any editing operations before formatting.

1. Press MENU to display the menu item selection while

this unit is in the stop mode.

2. Select “HDD Utility” by rotating the MULTI JOG knob

4. Select “HDD Format” by rotating the MULTI JOG knob

(pressing +/– on the remote control).

5. “Initialize?” appears on the display when the MULTI

JOG knob (ENTER on the remote control) is pressed.

6. “Format Really” appears on the display to make a

confirmation when w/d (w on the remote control) is pressed. If you wish to format the HDD, press INPUT. If not, press a.

7. “Format OK” appears in the display when INPUT is

pressed. Then the display returns to the one when the power of this unit was turned on.

dB –30 –10 –6 –20 HDD Format

dB –30 –10 –6 –20 Initialize ?

dB –30 –10 –6 –20 Format ReallyE-60 OTHERS System Utility ■ To check the firmware version (Firm. Version) Software that is called “firmware” is built into this unit. This firmware controls the operation. The following steps describe the firmware version check procedures.

1. Press MENU to display the menu item selection while

this unit is in the stop mode.

2. Select “Sys. Utility” by rotating the MULTI JOG knob

control) again to display the version of the firmware. The display switches in the order of the system firmware version ➞ the CDR drive firmware version ➞ type of HDD as the MULTI JOG knob is rotated (+/– on the remote control is pressed).

dB –30 –10 –6 –20 Firm. Version

dB –30 –10 –6 –20 V1.0.00 Jun 2 System firmware versionCDR drive firmware versionType of HDD

dB –30 –10 –6 –20 V1.0.00 Jun 2

dB –30 –10 –6 –20 CDRW 1.0D

■ To initialize the setting for each item (Initialize) You can initialize the settings that have been changed.

1. Press MENU to display the menu item selection while

this unit is in the stop mode.

2. Select “Sys. Utility” by rotating the MULTI JOG knob

control) to display the system utility item selection.

4. Select “Initialize” by rotating the MULTI JOG knob

(pressing +/– on the remote control).

5. “Initialize?” appears on the display if the MULTI JOG

knob (ENTER on the remote control) is pressed.

The display returns to the one when the power of this unit is turned on.

dB –30 –10 –6 –20 Initialize

dB –30 –10 –6 –20 Initialize ?E-61 ADDITIONAL INFORMATION English OTHERS ■ To change the display brightness (Dimmer Setup) You can change the brightness of the display.

1. Press MENU to display the menu item selection while

this unit is in the stop mode.

2. Select “Sys. Utility” by rotating the MULTI JOG knob

control) to display the system utility item selection.

4. Select “Dimmer Setup” by rotating the MULTI JOG

knob (pressing +/– on the remote control).

5. The current setting is indicated on the display if the

MULTI JOG knob (ENTER on the remote control) is pressed. The selection and the brightness change in 3 levels as the MULTI JOG knob is rotated (+/– on the remote control is pressed).

6. Press the MULTI JOG knob (ENTER on the remote

control) or COMPLETE. The display brightness has been set.

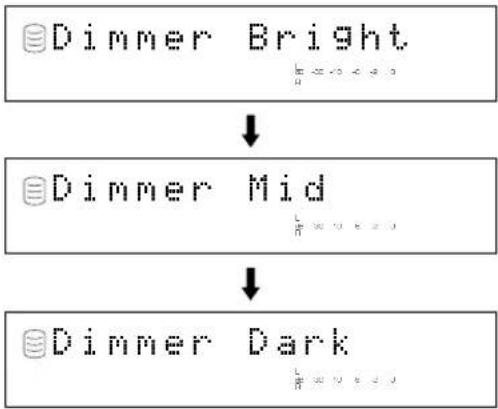

dB –30 –10 –6 –20 Dimmer Setup (Initial setting)

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Mid

dB –30 –10 –6 –20 Dimmer Dark ■ To set auto play (Auto Play) You can set the auto play function which automatically starts playback when the power of this unit is turned on.

1. Press MENU to display the menu item selection while

this unit is in the stop mode.

2. Select “Sys. Utility” by rotating the MULTI JOG knob

control) to display the system utility item selection.

4. Select “Auto Play” by rotating the MULTI JOG knob

(pressing +/– on the remote control).

5. The current setting is indicated on the display if the

MULTI JOG knob (ENTER on the remote control) is pressed. Select “Auto Play On” by rotating the MULTI JOG knob (pressing +/– on the remote control).

6. Press the MULTI JOG knob (ENTER on the remote

control) or COMPLETE. The auto play function will be turned on and applied when the power of this unit is turned on the next time.

• This unit plays data on the drive that had been last selected when the power of this unit was last turned off.

• This unit plays in the playback mode (such as random play) that had been last set when the power of this unit was last turned off. Note

• Initial setting is “Auto Play Off”. ■ To update the firmware version (Firm. Update) This menu is prepared for the expansion of the functions in the future.

dB –30 –10 –6 –20 Auto Play (Initial setting)

dB –30 –10 –6 –20 Auto Play OffE-62 OTHERS DAC (Digital/Analog Converter) Mode This unit has a DAC mode function. You can switch the input signals, as an input selector, to output from both the analog and digital jacks to the amplifier connected to this unit.

1. Press MENU to display the menu item selection while

this unit is in the stop mode.

2. Select “DAC mode” by rotating the MULTI JOG knob

4. The input source selected by INPUT is output both

from the ANALOG LINE OUT (PLAY) jacks and from the DIGITAL OUT (OPTICAL/COAXIAL) jacks.

• When OPTICAL or COAXIAL is selected, the MULTI JOG knob functions as a volume control.

• When ANALOG is selected, the ANALOG REC LEVEL control functions as a volume control.

5. Any of the following operation cancel the DAC mode

and start normal operation.

• Press w/d (w on the remote control) to play the drive that had been selected before entering the DAC mode.

• Press a to set this unit in the stop mode.

• Press COMPLETE to set this unit in the stop mode.

dB –30 –10 –6 –20 DAC modeE-63 ADDITIONAL INFORMATION English Display Messages Can’t Copy This message is displayed for approximately 3 seconds when digital recording or copying is not possible according to the SCMS standard. See “Rules of Digital Recording” on page 11. Can’t Edit This message is displayed when a prohibited editing operation has been attempted. Change Discs! This message informs that a CD needs to be changed to a disc to be used for duplicating when copying from a CD onto the HDD has been completed. Check Disc The disc loaded is not compatible with this unit, or some kind of error has occurred during operation. Check the disc, and exchange the disc if necessary. Data Track This message is displayed when the data track is being played. Disc Full This message is displayed when recording to a CD-R or CD-RW disc cannot be performed any further because the recording has been made up to the total recordable time. Disc No.Full When the number of discs recorded on the HDD has reached its maximum of 999 discs, this message is displayed if more discs have been attempted to be added. Erasing Erasing a CD-RW disc is being performed. The erasing progress is indicated by the level meter. Finalize OK? This message confirms starting finalization of a disc. If you wish to finalize the disc, press w/d (w on the remote control). Finalizing Finalization is being performed. The finalization progress is indicated by the level meter. HDD Full This message is displayed when recording to the HDD cannot be performed any further because the recording has been made up to the total recordable time. New Disc The disc in the disc tray is either a new CD-R or CD-RW disc, or a CD-RW disc that has been erased by using a Disc Erase or All Erase. No data There are no tracks (data) recorded on the HDD. No Enough Spc There is not enough space for copying, or the track number exceeds the maximum number, or the total recorded time of the disc exceeds its maximum length when the recording to HDD is performed in the multi-synchronized or all-synchronized recording mode. OTHERS No Previous When making “Track Adjust” on the TRACK EDITING menu, there is no track before the track to be adjusted. No Source When copying from the HDD onto a CD-R or CD-RW disc, there is no source recorded on the HDD to be used for copying. Not Audio A non-audio disc or a disc for PCs has been loaded in the disc tray, and recording has been attempted on that disc. No Undo Data Undo is not possible. OPC Adjust This message is displayed while OPC (Optimum Power Calibration) optimized the laser power to the reflectivity of the disc. Approximately 15 seconds may be required to complete this automatic adjustment. However, this time length may change according to the type of the disc that has been loaded. Pack Before ! This message is displayed when the editing operation cannot be done unless “Pack” is performed. Reading This unit reads the format of the disc loaded on the disc tray. Approximately 10 to 15 seconds may be required to complete the reading. However, this time length may change according to the type of the disc that has been loaded. Standby This message is displayed for several seconds after REC has been pressed to record on a CD-R or CD-RW disc. TEXT Save? This message is displayed when the disc tray has been attempted to be opened without performing finalization after copying the data including the titles (disc title, track title, and album title) to a CD-R or CD-RW disc. Track No.Full One disc can contain up to 99 tracks. Recording is attempted on the disc that has reached the maximum number. Unrecordable In recording or copying onto a CD-R or CD-RW disc, the disc cannot be used for recording or copying. Or in recording or copying onto the HDD, no space is available. Wait This message flashes while this unit is writing information to the PMA (Program Memory Area) after a is pressed in recording onto a CD-R or CD-RW disc, or processing the data on the HDD.E-64 OTHERS SYMPTOM This unit does not turn on when POWER is pressed. Playback does not begin with the disc loaded. Playback is delayed, or begins at the wrong place. Recording/copying is not possible. Some vibration and rotation noise are created during the copying. Continuous recording cannot be made on a disc beyond 100 minutes. (HDD) The beginning of the track is missing during the playback when this unit is connected digitally to an amplifier. The sound is missing when this unit switches one disc to another. A CD-R or CD-RW that has been recorded with this unit cannot be played on the other CD player or DVD player. Sound “skips”. This unit makes noise. Troubleshooting If this unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple measures suggested. If they cannot be corrected, or if the fault is not listed in the SYMPTOM column, disconnect the power cord and contact your authorized YAMAHA dealer or service center for assistance. CAUSE The AC power cord is not completely connected. There is moisture on the laser pick-up. The disc has been loaded upside down. The disc is dirty. The disc may be scratched or damaged. The disc has been finalized. The disc that has completed recording is loaded. INPUT is not correctly set. Further digital recording or copying has been attempted from the digitally copied sources. There is not enough available space left or 99 tracks have already been recorded on the disc. There is no available space on the HDD. If the power cord was unplugged or there was a power outage during recording, the recorded material may be lost. The disc is dirty or damaged. This unit copies by rotating the disc at high speed. The longest recordable time for a disc is 99 minutes 59 seconds. The tracks that have different emphases have been played. The titles appear on the display during the playback of the part that has been recorded stretching over the two discs. Your CD or DVD player is not compatible with CD-R or CD-RW discs. The disc has not been finalized. This unit and/or the component connected is being subjected to vibration or impact. The disc is dirty. Connection has not correctly been made. REMEDY Securely connect the power cord. Turn off the power of this unit and wait 20 to 30 minutes before trying to play a disc. Reload the disc with the label side facing up. Clean the disc. Check the disc carefully. Replace it if necessary. Load a recordable CD that has not been finalized yet. Load a recordable CD. Set INPUT to the correct position according to the input signal. Switch to ANALOG to make a recording. Load a recordable disc (for a CD-R or CD-RW disc). Select the other discs (for the HDD). Erase the space not being used by performing “Pack” to create available space on the HDD for further recording. If the recording of a CD-RW disc is interrupted, try recording again from the beginning. When the recording of a CD-R disc is interrupted, start recording over again with a disc that can be recorded on. Clean or replace the disc. Lower the copying speed to decrease vibration and rotation noise. Set the recording mode to the manual or auto period recording mode. Recording continues to be made on the next disc. Connect to the amplifier using the ANALOG LINE OUT (PLAY) jacks. Press TEXT/TIME to switch the display to the indication of time. Use a CD or DVD player compatible with CD-R or CD- RW discs. Finalize the disc. Relocate the unit. (This is not possible if the skipping sound is already on the recording due to vibrations or impact that occurred during recording.) Clean the disc. Properly connect the audio cords. Replace the audio cords.E-65 ADDITIONAL INFORMATION English ■ Audio Performance Frequency response .................................... 5 to 20,000 Hz, ±0.5 dB S/N ratio (EIAJ) Playback ......................................................................... 105 dB Recording ......................................................................... 92 dB Total harmonic distortion (1 kHz) Playback ........................................................................ 0.004 % Recording ...................................................................... 0.006 % Dynamic range Playback ........................................................................... 99 dB Recording ......................................................................... 93 dB ■ Laser Diode Properties Material ................................................................................ GaAIAs Wavelength ................................................................. 780 to 787 nm Pulse Durations and Max. Output at the lens of the Laser Pickup Unit Read Mode .............................................. 0.7 mW (Continuous) Write Mode .......................... Max. 38 mW (for 166 ns, Min. Cycle 86.6 ns) ■ Inputs ANALOG LINE IN (REC) Type ............................................................................... Pin jack Standard output level .......................................... 500 mV/24 kΩ DIGITAL IN (OPTICAL) Type ............................................. Square optical connector jack DIGITAL IN (COAXIAL) Type ........................................................................ Coaxial jack Standard output level ........................................ 0.5 Vp-p (75 Ω) OTHERS ■ Outputs ANALOG LINE OUT (PLAY) Type ............................................................................... Pin jack Standard output level (1 kHz, 0 dB) ..................... 2.0±0.5 Vrms DIGITAL OUT (OPTICAL) Type ............................................. Square optical connector jack DIGITAL OUT (COAXIAL) Type ........................................................................ Coaxial jack Standard output level ........................................ 0.5 Vp-p (75 Ω) PHONES Standard output level (Input 150 Ω shorted, –20 dB) ............................................................................ 300 mV/150 Ω ■ General Power supply [U.S.A. and Canada models] ........................... AC 120 V, 60 Hz [Australia model] ............................................. AC 240 V, 50 Hz [U.K. and Europe models] ............................... AC 230 V, 50 Hz Power consumption .................................................................. 33 W Dimensions (W x H x D) ............................ 435 x 115.5 x 414.5 mm (17-1/8” x 4-1/2” x 16-5/16”) Weight ............................................................... 8.3 kg (18 lbs. 5 oz.) Accessories ......................................................... RCA Pin cables (2) Optical fiber cable Remote control Batteries (2) Operating environment Temperature .............................................................. +5 to 35°C Humidity .............................. 30 to 90 % RH (No condensation) Specifications are subject to change without notice. SYMPTOM This unit does not operate properly. Remote control does not work. TV does not correctly function when the remote control is being used. The picture on the TV is impaired. CAUSE The internal microcomputer has been frozen. The batteries of the remote control are too weak. Remote control is from too far. Remote control is being used at an incorrect angle. Direct sunlight or lighting (of an inverter type of fluorescent lamp, etc.) is striking the remote control sensor. Remote control is being used near TV set with a remote control sensor. The indoor antenna is used. REMEDY Turn off the power of this unit and then turn on again after about one minute. Replace 2 batteries with new ones. Use the remote control within 6m and 60 degrees radius. Change the position so that the remote control sensor is not exposed to strong lighting. Relocate this unit away from the TV or cover the TV’s remote control sensor. Use an outdoor antenna, or set this unit away from the TV set. SpecificationsATTENTION ATTENTION: VEUILLEZ LIRE CE QUI SUIT AVANT D’UTILISER L’APPAREIL

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC LEVELTRACKGROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 OPC Adjust CD–RW REC

dB –30 –10 –6 –20 Standby CD–RW REC

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 Total? 0h 4m

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

DIGITAL OUTPUT (OPTICAL/COAXIAL).F-24

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 ALL SYNC HDD “ CD-RW ANLG CD–RW REC GROUP

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Track Edit

dB –30 –10 –6 –20 No Previous

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

dB –30 –10 –6 –20 Title 001?

dB –30 –10 –6 –20 Undo

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat Full REPG

dB –30 –10 –6 –20 HDD Utility

dB –30 –10 –6 –20 Total 30h40m

dB –30 –10 –6 –20 HDD Format

dB –30 –10 –6 –20 Initialize ?

dB –30 –10 –6 –20 Firm. Version

dB –30 –10 –6 –20 V1.0.00 Jun 2

dB –30 –10 –6 –20 CDRW 1.0D

dB –30 –10 –6 –20 Initialize

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Mid

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

(REC)/ANALOG LINE OUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC LEVELTRACKGROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 OPC Adjust CD–RW REC

dB –30 –10 –6 –20 Standby CD–RW REC

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Total? 0h 4m

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 ALL SYNC HDD “ CD-RW ANLG CD–RW REC GROUP

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

dB –30 –10 –6 –20D-36

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Track Edit

dB –30 –10 –6 –20 No Previous

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

dB –30 –10 –6 –20 Title 001?

dB –30 –10 –6 –20 Undo

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat Full REPG

dB –30 –10 –6 –20 HDD Utility

dB –30 –10 –6 –20 Total 30h40m

dB –30 –10 –6 –20 HDD Format

dB –30 –10 –6 –20 Initialize ?

dB –30 –10 –6 –20 Firm. Version

dB –30 –10 –6 –20 V1.0.00 Jun 2

dB –30 –10 –6 –20 CDRW 1.0D

dB –30 –10 –6 –20 Initialize

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Mid

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

ANALOG LINE IN (REC)/

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC LEVELTRACKGROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 OPC Adjust CD–RW REC

dB –30 –10 –6 –20 Standby CD–RW REC

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 Total? 0h 4m

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 ALL SYNC HDD “ CD-RW ANLG CD–RW REC GROUP

dB –30 –10 –6 –20 OPC Adjust CD–RWV-26

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Track Edit

dB –30 –10 –6 –20 No Previous

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

dB –30 –10 –6 –20 Title 001?

dB –30 –10 –6 –20 Undo

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat Full REPG

dB –30 –10 –6 –20 HDD Utility

dB –30 –10 –6 –20 Total 30h40m

dB –30 –10 –6 –20 HDD Format

dB –30 –10 –6 –20 Initialize ?

dB –30 –10 –6 –20 Firm. Version

dB –30 –10 –6 –20 V1.0.00 Jun 2

dB –30 –10 –6 –20 CDRW 1.0D

dB –30 –10 –6 –20 Initialize

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Mid

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC LEVELTRACKGROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 OPC Adjust CD–RW REC

dB –30 –10 –6 –20 Standby CD–RW REC

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 Total? 0h 4m

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

DIGITAL OUTPUT (OPTICAL/COAXIAL).I-24

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 ALL SYNC HDD “ CD-RW ANLG CD–RW REC GROUP

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Track Edit

dB –30 –10 –6 –20 No Previous

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

dB –30 –10 –6 –20 Title 001?

dB –30 –10 –6 –20 Undo

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat Full REPG

dB –30 –10 –6 –20 HDD Utility

dB –30 –10 –6 –20 Total 30h40m

dB –30 –10 –6 –20 HDD Format

dB –30 –10 –6 –20 Initialize ?

dB –30 –10 –6 –20 Firm. Version

dB –30 –10 –6 –20 V1.0.00 Jun 2

dB –30 –10 –6 –20 CDRW 1.0D

dB –30 –10 –6 –20 Initialize

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Mid

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC LEVELTRACKGROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 OPC Adjust CD–RW REC

dB –30 –10 –6 –20 Standby CD–RW REC

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 Total? 0h 4m

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

OUTPUT (OPTICAL/COAXIAL).S-24

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 ALL SYNC HDD “ CD-RW ANLG CD–RW REC GROUP

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

dB –30 –10 –6 –20S-36

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Track Edit

dB –30 –10 –6 –20 No Previous

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

dB –30 –10 –6 –20 Title 001?

dB –30 –10 –6 –20 Undo

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat Full REPG

dB –30 –10 –6 –20 HDD Utility

dB –30 –10 –6 –20 Total 30h40m

dB –30 –10 –6 –20 HDD Format

dB –30 –10 –6 –20 Initialize ?

dB –30 –10 –6 –20 Firm. Version

dB –30 –10 –6 –20 V1.0.00 Jun 2

dB –30 –10 –6 –20 CDRW 1.0D

dB –30 –10 –6 –20 Initialize

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Mid

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

ANALOG LINE IN (REC)/

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

REC LEVELTRACKGROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 OPC Adjust CD–RW REC

dB –30 –10 –6 –20 Standby CD–RW REC

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 Total? 0h 4m

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 ALL SYNC HDD “ CD-RW ANLG CD–RW REC GROUP

dB –30 –10 –6 –20 OPC Adjust CD–RWN-26

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 MULT SYNC How Many ? 1

dB –30 –10 –6 –20 GROUP VAR CD–RW

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

dB –30 –10 –6 –20N-36

3. Druk op COMPLETE nadat alle tekens zijn ingevoerd.

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Track Edit

dB –30 –10 –6 –20 No Previous

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Pack ?

dB –30 –10 –6 –20 Title 001?

dB –30 –10 –6 –20 Undo

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

CLEARMIN MAXOPTICALANALOG REC LEVELINPUT

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat

dB –30 –10 –6 –20 Repeat Full REPG

dB –30 –10 –6 –20 HDD Utility

dB –30 –10 –6 –20 Total 30h40m

dB –30 –10 –6 –20 HDD Format

dB –30 –10 –6 –20 Initialize ?

dB –30 –10 –6 –20 Firm. Version

dB –30 –10 –6 –20 V1.0.00 Jun 2

dB –30 –10 –6 –20 CDRW 1.0D

dB –30 –10 –6 –20 Initialize

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Bright

dB –30 –10 –6 –20 Dimmer Mid

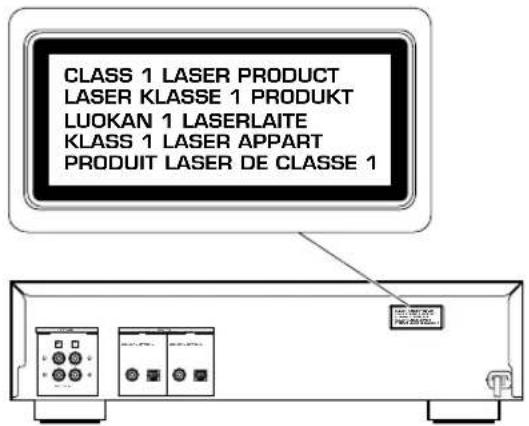

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

KLASS 1 LASER APPART

PRODUIT LASER DE CLASSE 1

(For U.S.A. and Canada models) (For U.K. and Europe models)

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

KLASS 1 LASER APPART

PRODUIT LASER DE CLASSE 1

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

KLASS 1 LASER APPART
