USER MANUAL Elegance Auna

Black and silver outdoor headphones with 'auna' branding, shown against white background (no text or symbols on the headphones themselves)

Inhalt

Bedienungsanleitung

Technische Daten 3

Technical diagram of a headband with numbered parts for identification

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this product. Please read and follow these instructions, in order to avoid damaging the item. We do not cover any damages that may arise from improper use of the item or the disregard of the safety instructions.

Technical Data

Article no.	0028473
Description	BT (4.0) stereo headphones with 3,5mm audio input and integrated battery (rechargeable via USB cable)
BT Version	4.0 (supported profiles: A2DP/ AVRCP/ HSP /HFP)
BT Range	10m
Battery Lifespan	Calls up to 14h; Music up to 14h; Standby up to 540h
Impedance	32 Ω
Sound Pressure	18±3dB
Frequency Response	20Hz - 20 KHz
SN Ratio	≥85dB
Dimensions & Weight	200x180x65mm, 255.5g

Important Safety Instructions

• Read all instructions before using.
• Do not place on or near a hot gas or electric burner or in a heated oven.
• To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or device in water or other liquids.
  • Do not expose the appliance to extreme temperatures. The appliance shall be used in moderate climates.
• Disconnect the appliance from the power source if it is not going to be used for a long time, if there is a thunderstorm or if it isn't working properly.
• The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
• Do not open the unit by removing any cover parts. Do not attempt to repair the unit. Any repairs or servicing should be done by qualified personell only.
• Only qualified persons may perform technical work on the product. The product may not be opened or changed. The components cannot be serviced by the user. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications.

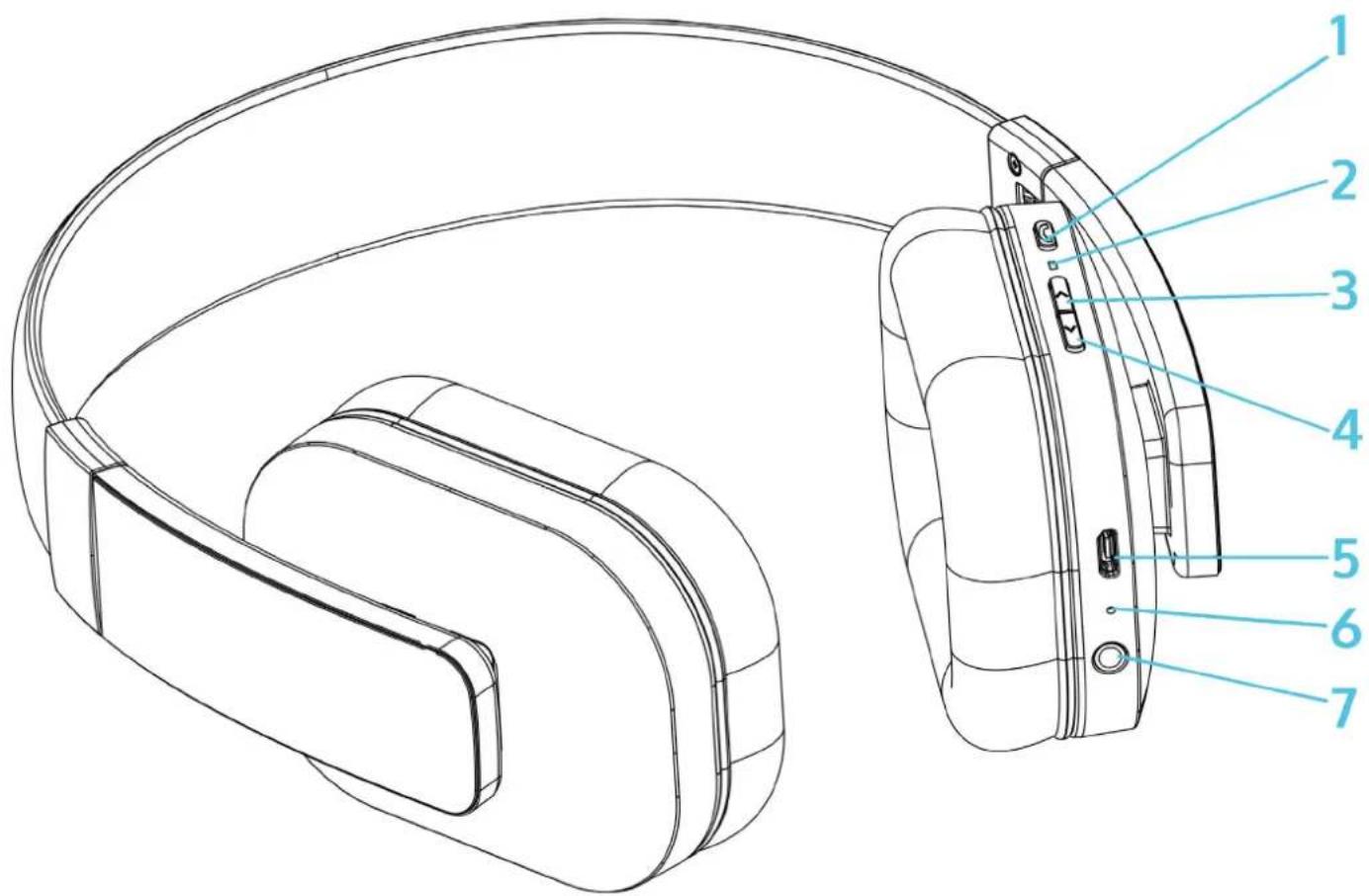

Controls & Functions

Technical diagram of a headband with numbered parts for identification

Press to switch on / Hold to switch off;Hold (when switched off) to go to pairing mode;In BT music playing mode: press for Play/Pause;Incoming calls: Answer/End	15	USB charging socket
LED (see below for a functions overview)	26	Microphone
Hold for next track (in BT mode);Short press for VOL+;Hold (at incoming call) for reject	37	Audio-In (3.5mm audio in jack)
Hold for previous track (in BT mode);Short press for VOL-;Hold (when making a call) to mute call	4

LED Status Overview

	LED Status
Switch on	LED (blue) flashes 2x
Switch off	LED (red) flashes 2x
Pairing	Red and blue LEDs flash alternately
Standby	LED (blue) flashes slowly
Incoming Call	LED (blue) flashes continuously
Low Battey	LED (red) flashes slowly
Charging	LED (red) keeps lighting continuously during charging; blue LED flashes upon charging is completed

Pairing (BT)

Switch the ELEGANCE off. Then press and hold the multi functional button (1) for 5 seconds. The red and blue LED will flash alternately to indicate the pairing mode. Activate BT on your smart device and connect to ELEGANCE. Type in „0000" (4 x zero) if you are prompted to fill in a password.

You can connect the ELEGANCE to two BT devices. Shut off the headphones after the first successful pairing (press and hold (1)) and repeat the procedure using another BT device.

To use the two devices simultaneously, press VOL+ and VOL- (3 & 4) at the same time, in order to activate the multi point connection.

APT-X: Featuring the apt-X codec, the headsets can connect wirelessly to any apt-X enabled devices, vastly improves the quality of BT streaming, delivering CD-quality sound.

Connect with an NFC device: Ensure that NFC is enabled on your mobile device. Then turn the ELEGANCE on and slowly slide the NFC zone of the headset directly against the NFC device until an NFC connection is confirmed.

Charging via USB

Charge the ELEGANCE connecting it with the supplied USB cable to either a computer USB port or to a suitable USB AC/DC adaptor.

Continuously charge for at least 2 hours.

When connected to an iOS device, the battery status will be displayed on the display (of the iOS device).

Audio-In

You can connect the ELEGANCE to any audio source (like smartphones, MP3 players or the like) in the conventional way, using the supplied 3.5mm audio cable. When using the headphone like that you do not need to switch it on. The internal battery will not be in use. In this case you can not use the hands free and BT functions.

Environment Concerns

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will hep prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: CHAL-TEC GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European directives:

1999/05/EC (R&TTE)

2011/65/EC (RoHS)

CE
