USER MANUAL iZi Go X1 STOKKE

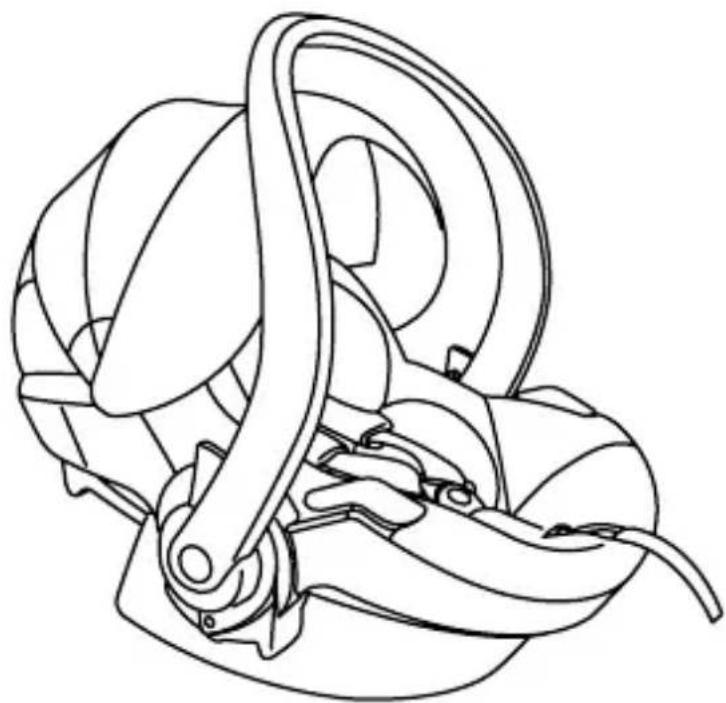

Stokke ^® iZi Go ^TM by BeSafe ^®

Line drawing of a car seatbelt device with no text or symbols

USER GUIDE

UK/IE

GEBRAUCHSANWEISUNG

DE

BRUGSANVISNING

DK

KÄYTTÖOHJE

FI

NOTICE D'UTILISATION

FR

GEBRUIKSAANWIJZING

NL

BRUKSANVISNING

NO

BRUKSANVISNING

SE

UK/IE Warnings.... 4
Introduction 9
DE Achtung.... 22
Einleitung.... 28
DK Advarsel 42
Introduktion 47
FI Varoitus 60
Johdanto 65
FR Avertissement.... 78
Introduction 84
NL Waarschuwing.... 98
Inleiding....103
NO Advarsel 116
Introduksjon....121
SE Varning.... 134
Introduktion 139

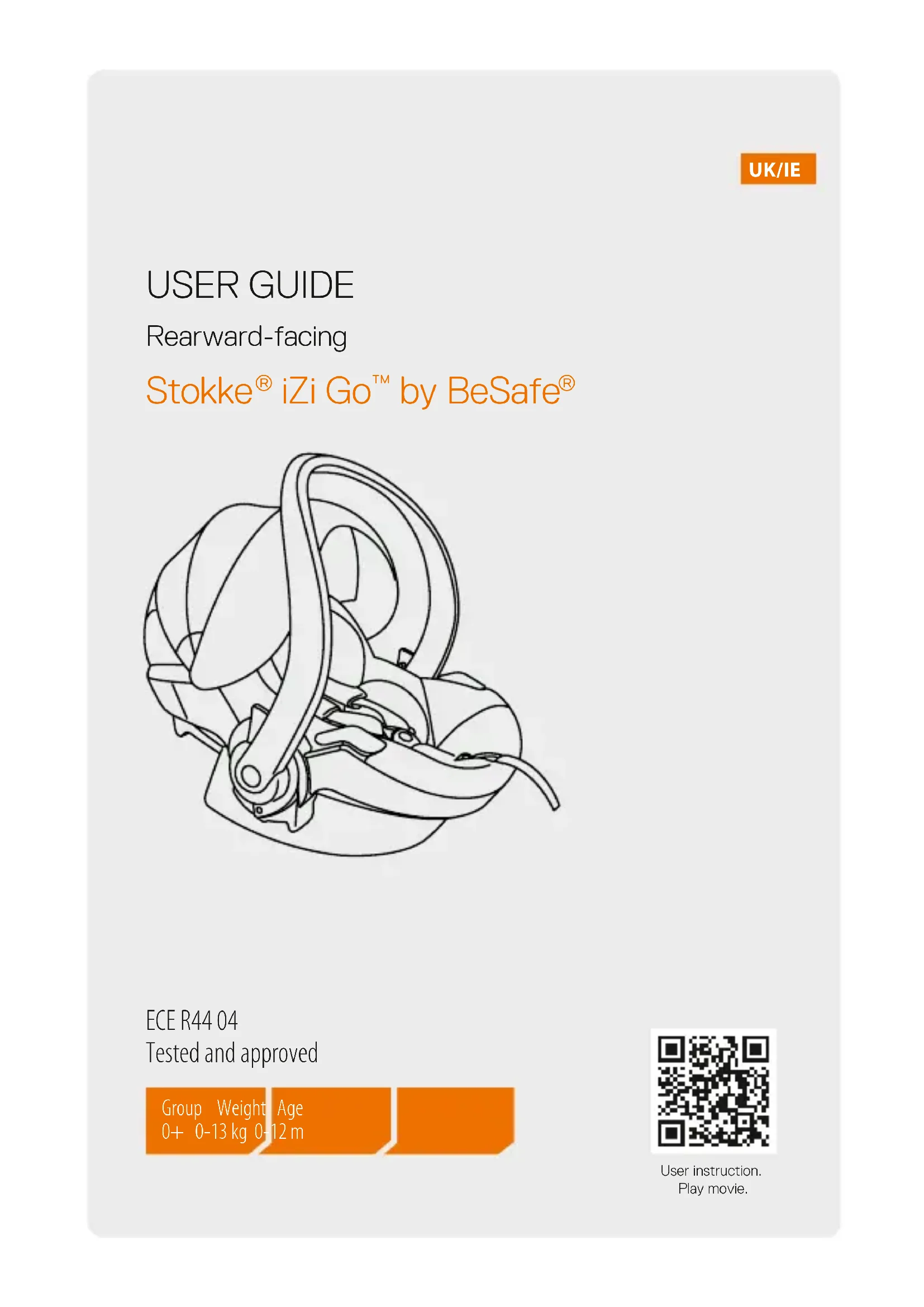

USER GUIDE

Rearward-facing

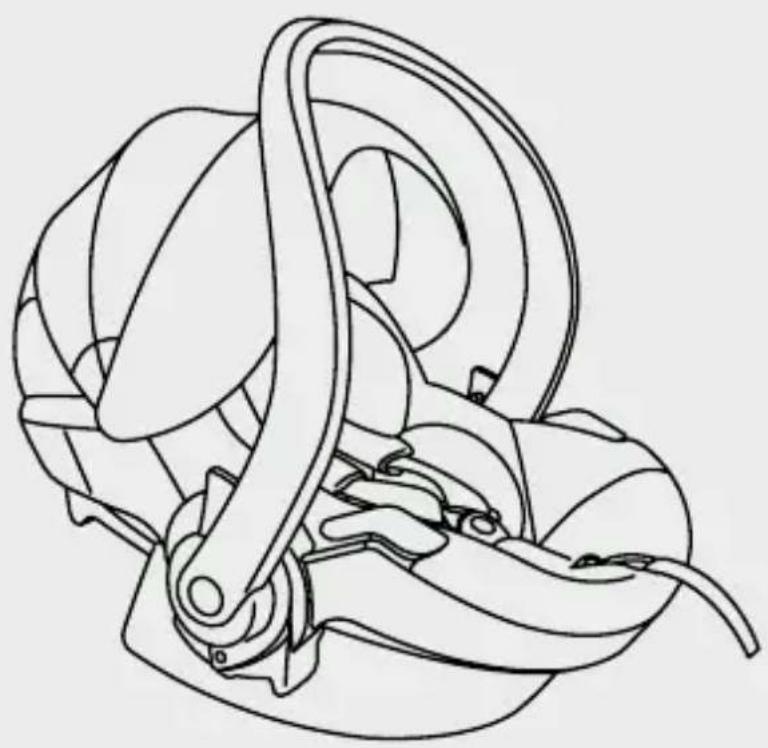

Stokke® iZi Go™ by BeSafe®

Line drawing of a car seatbelt device with no text or symbols

ECE R44 04

Tested and approved

Group Weight Age

0+ 0-13 kg 0-12 m

QR code image containing encoded data, no visible human-readable text

User instruction.

Play movie.

WARNING

• It is important that you read this user manual BEFORE installing your seat. Incorrect installation could endanger your child.
• KEEP this user manual with the seat for later use.
• It is NOT ALLOWED to mount the seat in a front passenger seat WITH AN ACTIVATED AIRBAG.

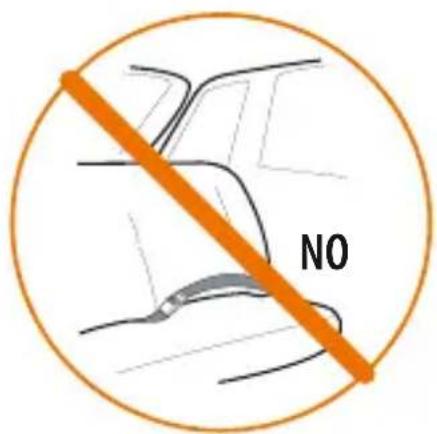

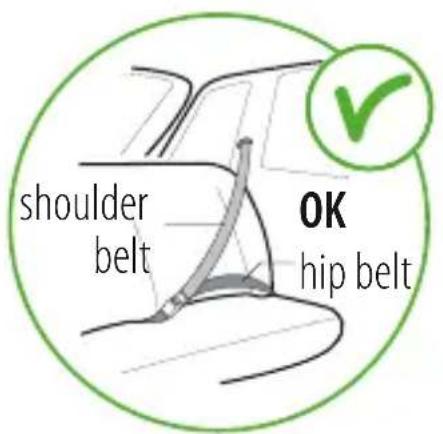

• The seat can only be installed rearward-facing with a 3-point car belt, approved according to UN/ECE Regulation No.16 or other equivalent standards.

shoulder belt OK hip belt

NO

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of a person.

• Stokke® iZi Go™ by BeSafe® is approved for group 0+, rearward-facing from 0-13 kg.

• If the child weighs over 13 kg or his shoulder height reaches above the highest position of the shoulder straps, you will need to change to a group 1 seat.

• The child must always be secured with the internal harness straps when seated in the child seat. The same applies to carrying the seat and when using in combination with a stroller.

• The seat cover contains magnets in the areas with the orange indications. Magnets can influence electronic equipment such as pacemakers.
• The seat must always be replaced following an accident. Although it may look undamaged, in the event of another accident, it might not be able to protect your child as well as it should.
• Prevent the seat from becoming trapped or weighed down by luggage, seats and/or slamming doors.
  • Before every use, make sure the harness is not damaged or twisted.
  • Make sure you can fit no more than one finger between the harness and your baby (1cm).

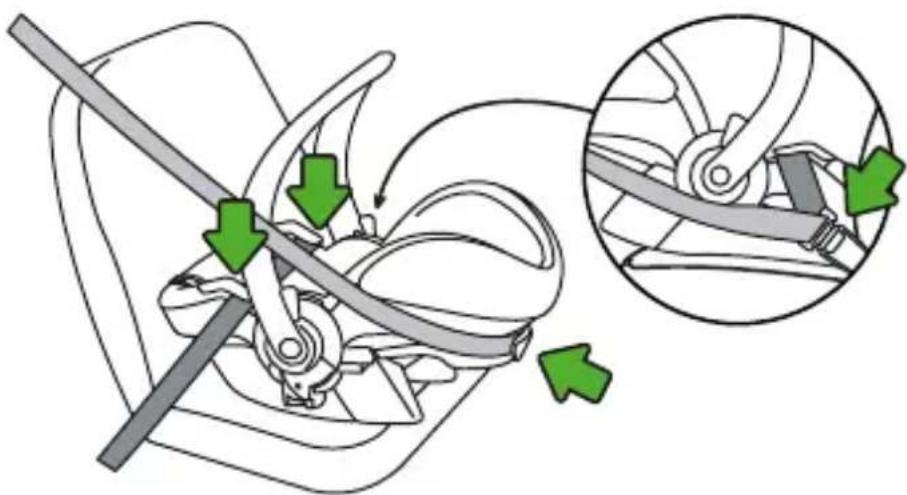

  • Make sure the car safety belt buckle runs in a straight line and stays below the belt hook of the seat.

Diagram illustrating mechanical assembly with green arrows indicating force directions and a magnified inset showing a gear mechanism.

WARNING

• DO NOT use the seat positioned in the vehicle, with the carrying handle in a downward position. The handle must be in the vertical carrying position while driving.
• Only use the seat on forward facing seats.
• DO NOT attempt to dismantle, modify or add any part to the seat. The warranty will not be honoured if non-original parts or accessories are used.
• DO NOT use anything, such as a cushion, to raise the child seat off the passenger seat of the vehicle. In the event of an accident the seat will not be able to protect your child properly.
• Make sure all passengers are informed about how to release your child in case of emergency.
• An unoccupied child seat should always be fastened in the vehicle.
• Make sure luggage or other objects are properly secured. Unsecured luggage may cause severe injuries to children and adults in the event of an accident.
• Never use the seat without the cover. The cover is a safety feature and may only be replaced by an original BeSafe cover.
• We use EPS foam under the cover. Do not push or pull too hard against the foam, since you might damage the foam.

Diagram showing two car frames with labeled foot positions and checkmark indicators

• Do not use any aggressive cleaning agents; these may harm the construction material of the seat.
• BeSafe advises that child seats should not be bought or sold second-hand.
• DO NOT use the seat for longer than 5 years. The quality of the material may change with ageing.
  • DO NOT use at home on a table or worktop, if your child is seated in the seat.
• When the child seat is mounted in the car check all the areas where the child seat might touch the interior. We recommend using a (BeSafe) protection cover in these places to avoid cuts, marks or discolouration on the interior of the vehicle, especially in vehicles with leather or wooden interior.
• Make sure both 3-point-belt and child safety belt are tightened firmly, in order to prevent any unwanted dislocation of child or the seat. Check frequently.
  • All passengers must be fastened by a safety belt.
• Never use the two wheel function when the seat is attached to a Stokke® Xplory®.
• Always make sure the seat is properly attached when used on a stroller from Stokke. Failure to attach properly could result in serious injury or death to yourchild.
• When the seat is attached to the chassis of a stroller from Stokke, the combination should never be lifted up by the car seat.

WARNING

• Always remove your child from the seat while making adjustments to the stroller and/or the car seat.
  • Always make sure the carrying handle is in the carrying position before carrying.
• If in doubt, consult either the child restraint manufacturer or the retailer.

WARNING

(EN 12790-2009): Using the seat as a reclined cradle

• IMPORTANT! Keep this manual for future reference.
• Never leave the child unattended.

Safety warning illustration showing pictograms of a person using a tool to avoid injuries, with directional arrows indicating movement.

EN 12790-2009

• Do not use the seat as reclined cradle once your child can sit unaided.
• This seat is not intended for prolonged periods of sleeping.
• It is dangerous to use this seat on an elevated surface.
  • Always use the restraint system.

Introduction

Do not use this product until you have thoroughly read and understood this user guide. Stokke® advises that child seats shall not be bought or sold second hand. Many seats sold through local advertising and car boot sales have been found to be dangerous. DO keep this user guide in the pocket of the seat.

Contents

Warnings.... 4

Introduction 9

Crucial parts 10

Installation in the car 11

Fitting your child in the Stokke® iZi Go™ by BeSafe® 13

Removing the Stokke ^® iZi Go ^™ by BeSafe ^® 17

Removing and refitting the cover.... 17

Cleaning instructions.... 17

Using the Stokke® iZi Go™ by BeSafe® with a stroller from Stokke...... 18

Guarantee.... 20

Point of Sale information.... 20

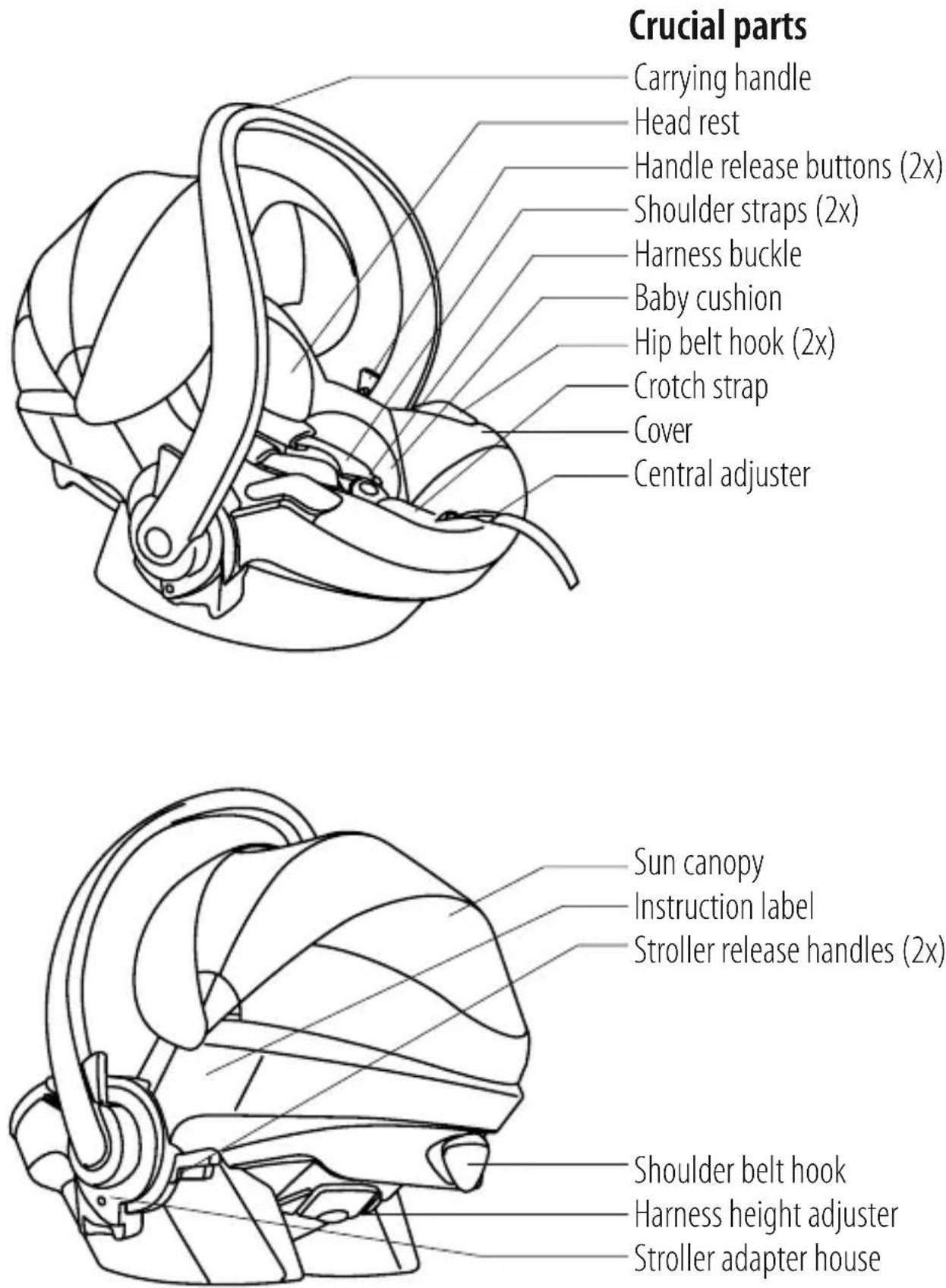

Crucial parts Carrying handle Head rest Handle release buttons (2x) Shoulder straps (2x) Harness buckle Baby cushion Hip belt hook (2x) Crotch strap Cover Central adjuster Sun canopy Instruction label Stroller release handles (2x) Shoulder belt hook Harness height adjuster Stroller adapter house

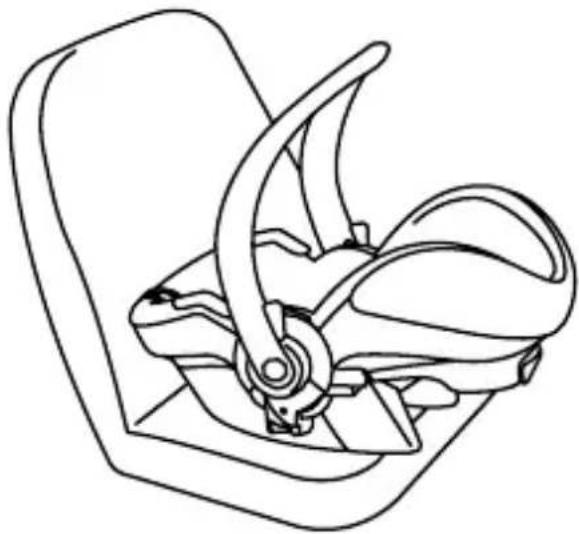

Installation in the car

It is NOT ALLOWED to mount the seat in a front passenger seat WITH AN ACTIVATED AIRBAG.

Prohibition sign showing no car seat and passenger seat with pictograms

1. Position the seat on the vehicle seat. Make sure the carrying handle is in the carrying position.

Line drawing of a mechanical device with no visible text or symbols

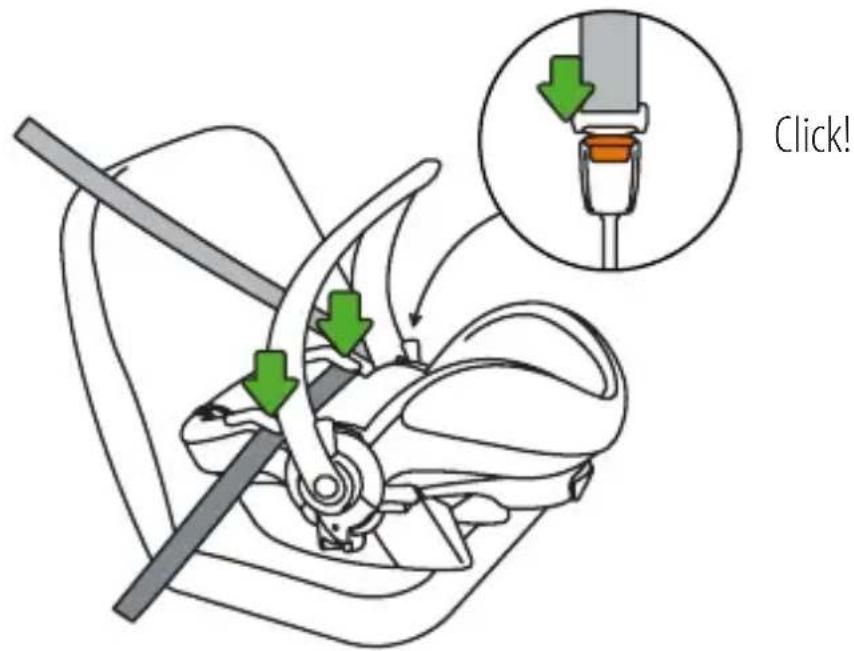

1. Guide the hip belt of the 3-point-belt over the blue parts through the hip belt hooks and fasten the seat belt with a 'click'.

Click!

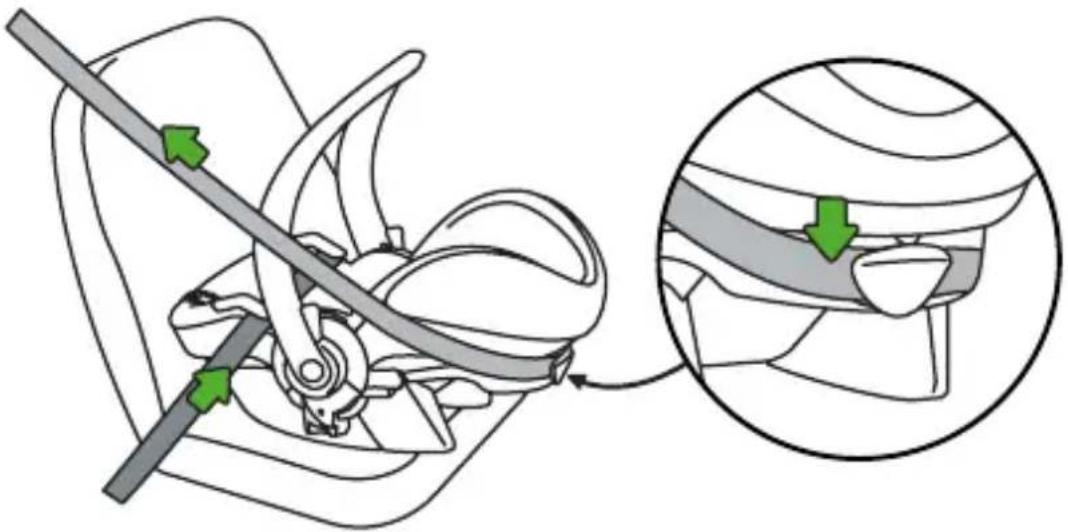

1. Guide the shoulder belt over the blue part through the shoulder belt hook at the rear side of the seat shell.

Diagram of a mechanical device with a diagonal tool and green arrow indicating direction (no text or symbols)

1. Tighten the 3-point belt by pulling the belt through the hip belt hooks and through the shoulder belt hook until it is really tight.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including a magnified inset showing a detail view.

1. Leave the carrying handle in carrying position.

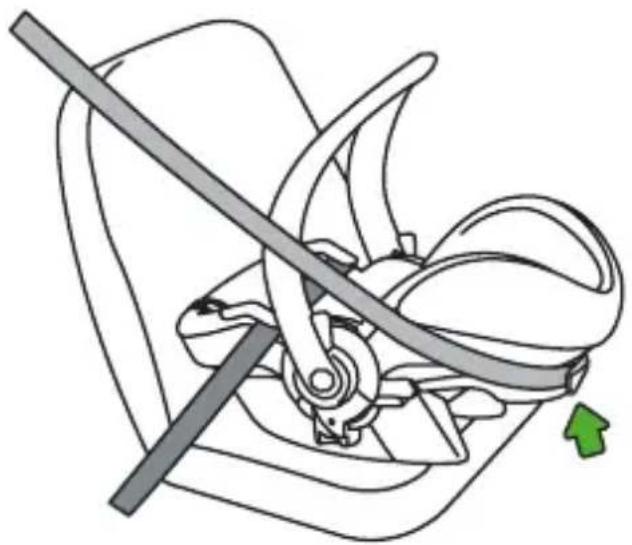

2. Positioned in the back seat of the vehicle, you should push the front seat of the vehicle backwards, so that it is in contact with the child seat. Positioned in the front seat, you should push the front seat forwards, so that the child seat is in contact with the dashboard. If this is not possible, leave a space of minimum 25 cm between child seat and back rest of the front seat or dashboard.

Fitting your child in the Stokke® iZi Go™ by BeSafe®

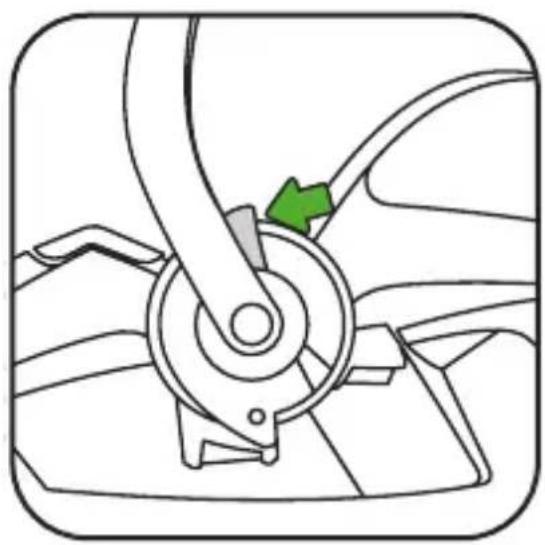

- To position your child, you can fold the carrying handle behind the seat in 2 positions, by pressing both handle release buttons.

Mechanical component diagram showing a lever and wheel assembly with a green arrow indicating a specific part (no text or symbols present)

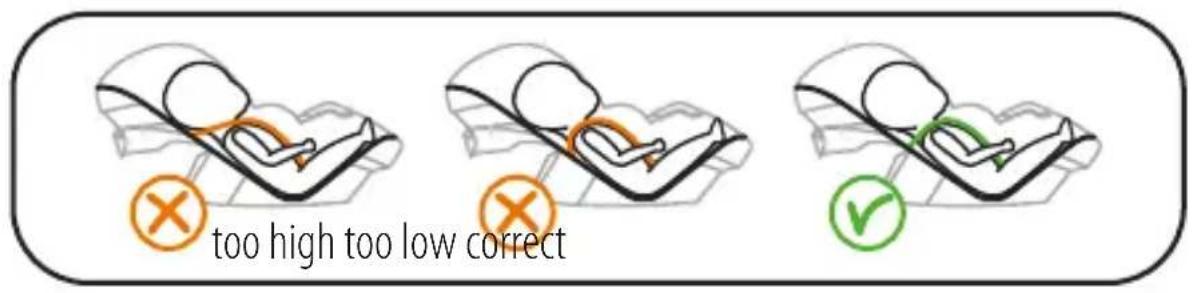

- Position the shoulder straps: Check that the shoulder strap slots are levelled with your child's shoulders.

too high too low correct

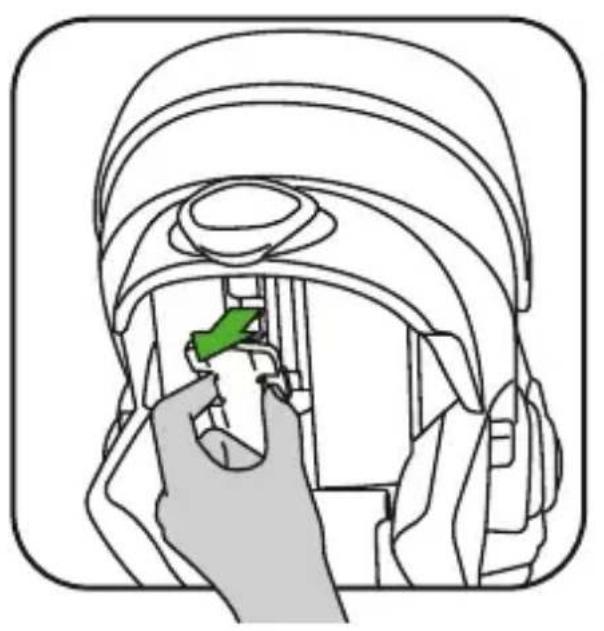

- The height of the shoulder straps can be adjusted by pulling the harness height adjuster out and moving the adjuster up or down.

Illustration of a hand inserting a green arrow into a mechanical component (no text or symbols)

Illustration of a hand placing a green recycling symbol into a car window (no text or symbols present)

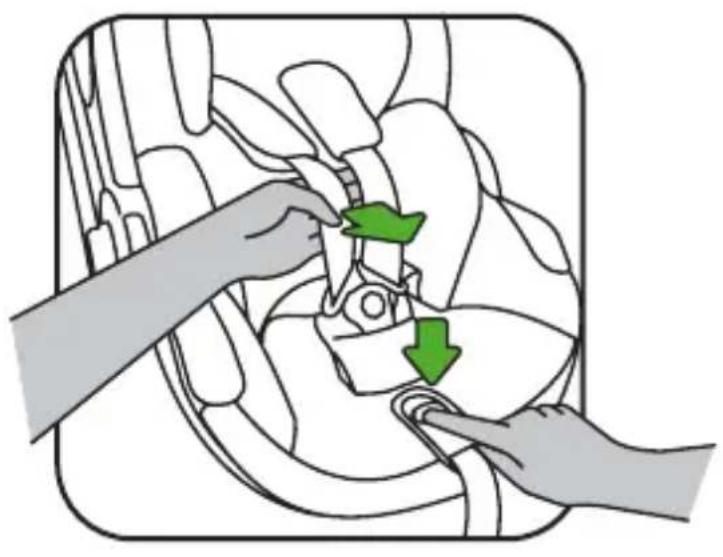

1. Pull the shoulder straps up while pressing the button of the central adjuster.

Illustration of hands adjusting a mechanical component with green arrows indicating direction (no text or symbols)

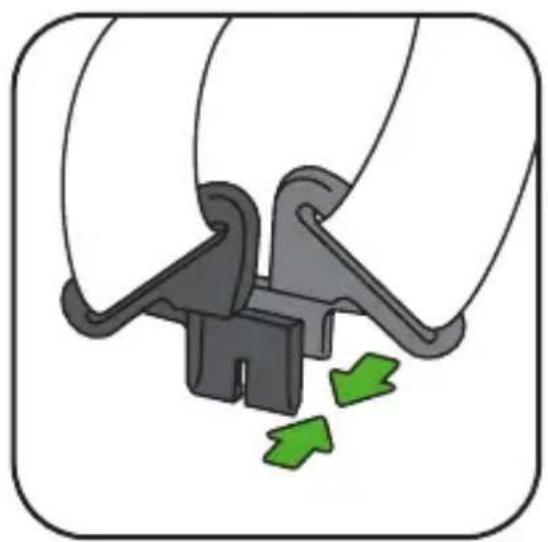

1. Open the harness buckle.

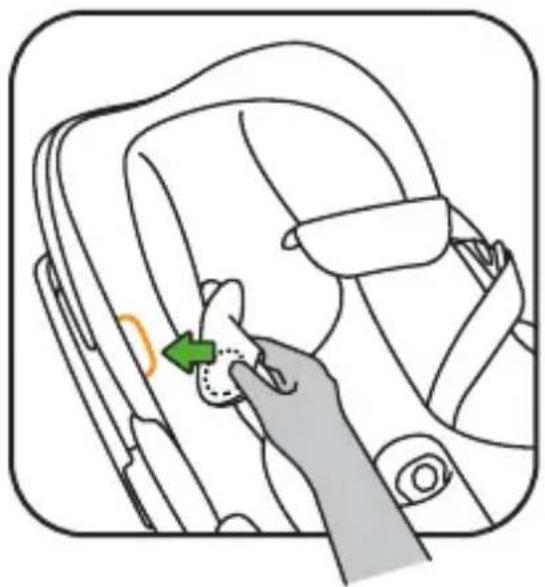

2. Position the shoulder straps over the orange marking at sides of the seat to keep the harness open while you position the child.

Illustration of a hand cleaning a car seat with a green arrow indicating the angle (no text or symbols present)

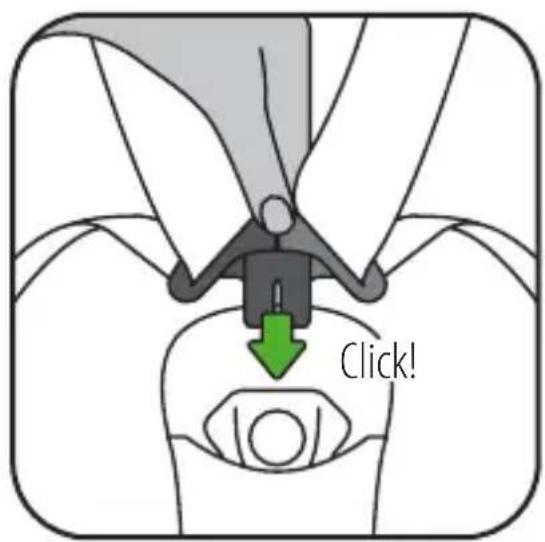

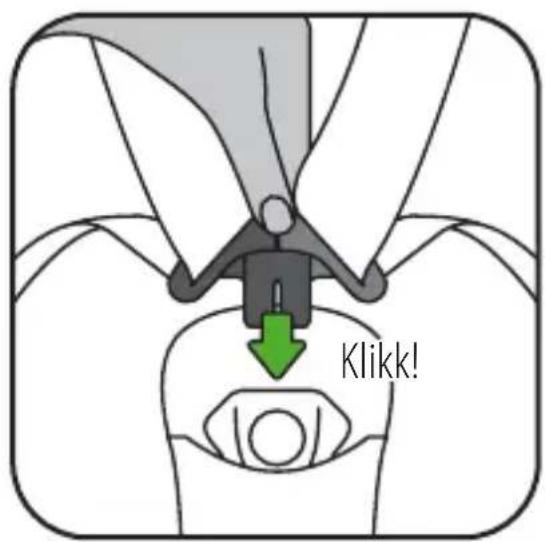

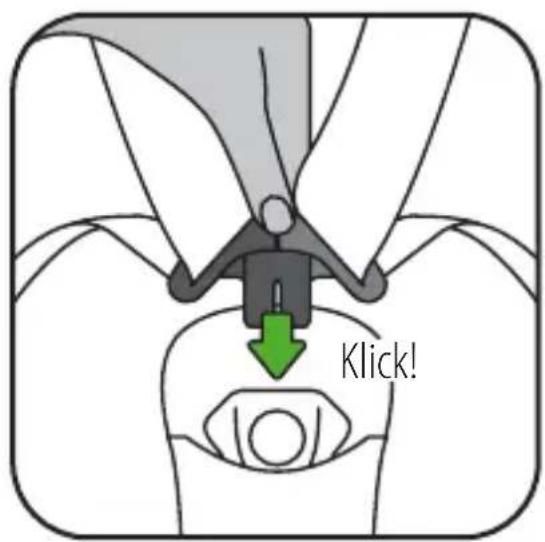

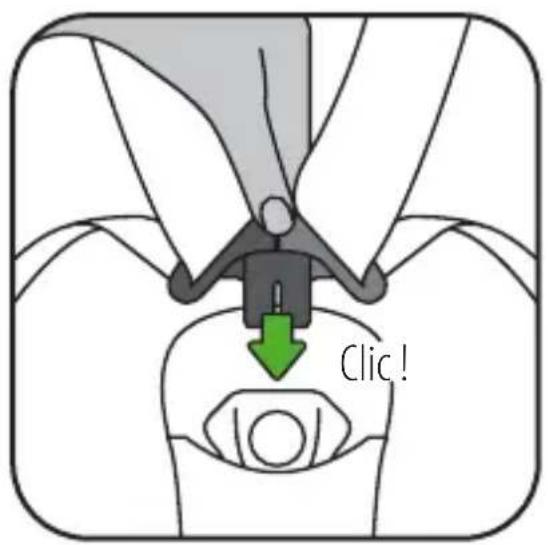

1. When the child is positioned, place the shoulder straps over the child's shoulders and close the buckle: click!

Diagram of a mechanical component with green directional arrows indicating motion or movement (no text or symbols)

Click!

1. Pull the harness strap through the central adjuster in the direction of the green arrow straight up-/forward. Continue pulling until the harness is a comfortable but firm fit.

Illustration of a hand holding a key inserted into a car helmet (no text or symbols)

• Make sure that the harness straps are always locked and tightened when the child is in the seat.

• You can protect your child against the sun by unfolding the sun canopy.

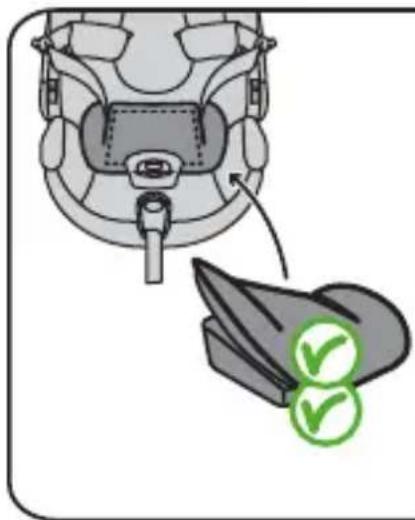

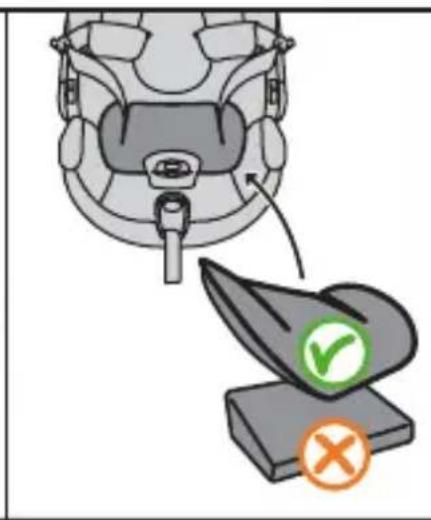

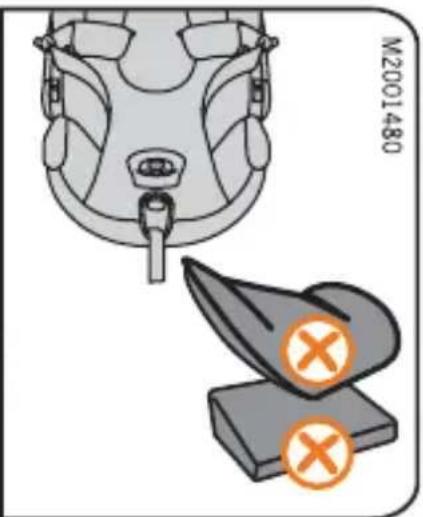

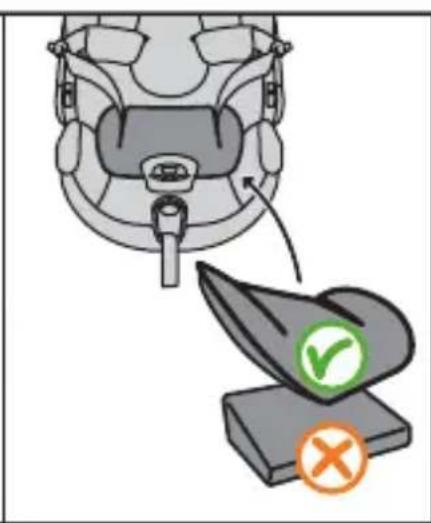

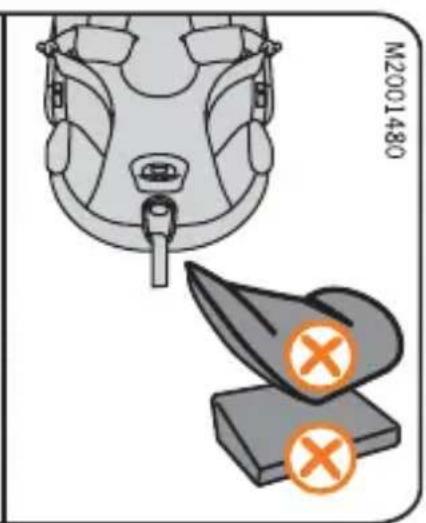

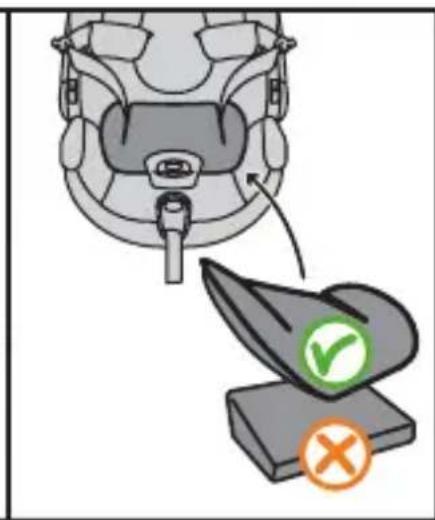

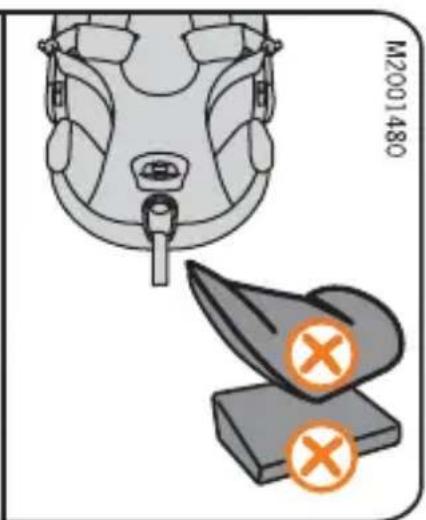

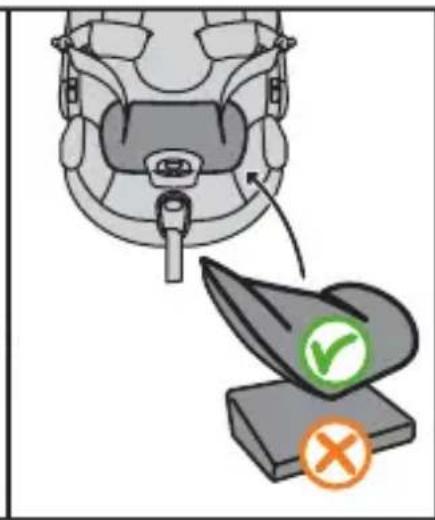

Baby cushion and body hugger configurations

Diagram showing a device with a lock and a green checkmark indicating approval or verification (no text or symbols present)

Diagram showing a device with a lock and a checkmark indicating cancellation or error, alongside a stylized leaf symbol.

M2001480

<60cm (0-4 months) OK to use baby cushion and body hugger

60–65cm (4-6 months) REMOVE baby cushion

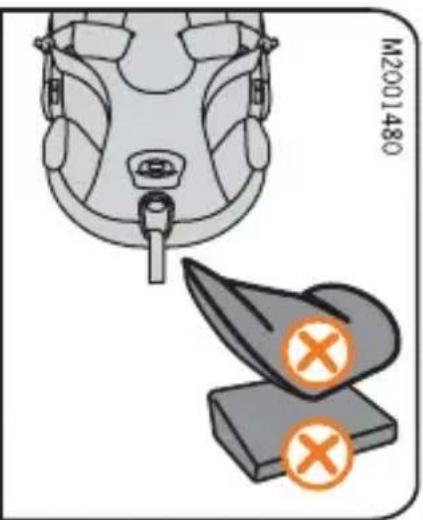

65cm (6 months and older) REMOVE baby cushion and body hugger

Removing the Stokke® iZi Go™ by BeSafe®

• Remove the shoulder belt from the shoulder belt hook at the rear side.
• Release the belt from the buckle in the car and remove the belt from the hip belt hooks.

Removing and refitting the cover

Removing the cover

• Pay attention when you remove the cover, as fitting the cover is done in the opposite way.
  • Take off the headrest and the baby cushion.
• Open the zippers. Do not remove the harness straps from the hooks in the seat.
  • Take off the complete cover by pulling it carefully from the foam.

Refit the cover

• Pull the harness straps through the openings in the cover and close the zippers.
• Pull the buckle through the crotch strap cover and pull the hole for the central adjuster over the central adjuster.
  • Fix the cover at all sides by putting it carefully between the foam and seat shell.

Cleaning instructions

The covers of the Stokke ^® iZi Go ^™ by BeSafe ^® must be washed in accordance with the instructions on the inside of the covers. Clean harness by hand with water and mild soap.

Using the Stokke ^® iZi Go ^TM by BeSafe ^® with a stroller from Stokke

The Stokke ^® iZi Go ^™ by BeSafe ^® can only be used on the following strollers:

Stokke® Xplory®, Stokke® Crusi™ and Stokke® Scoot™.

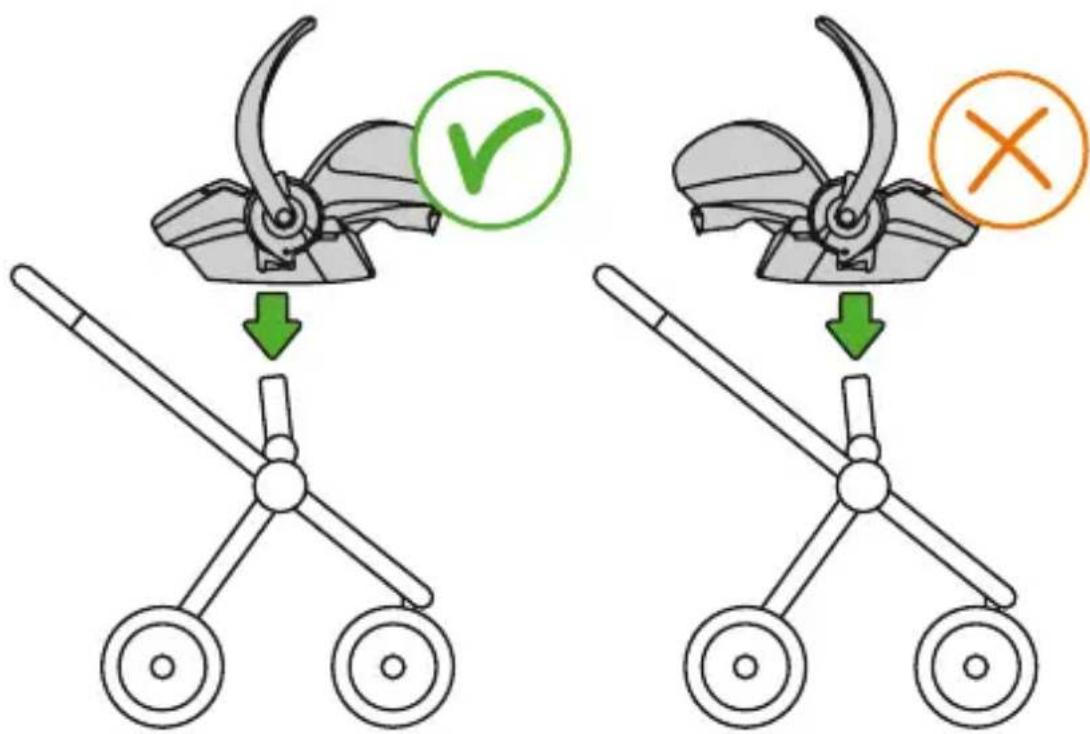

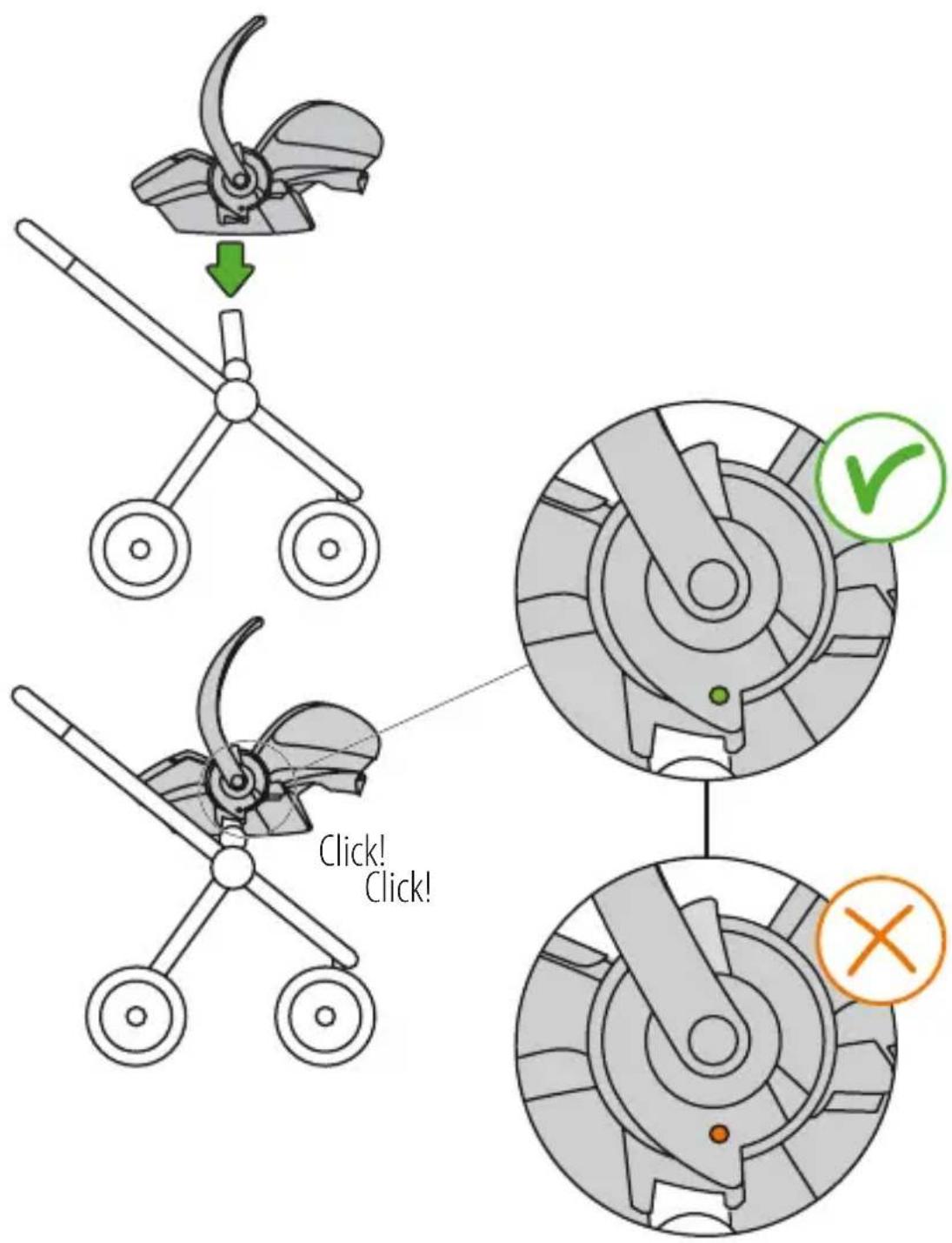

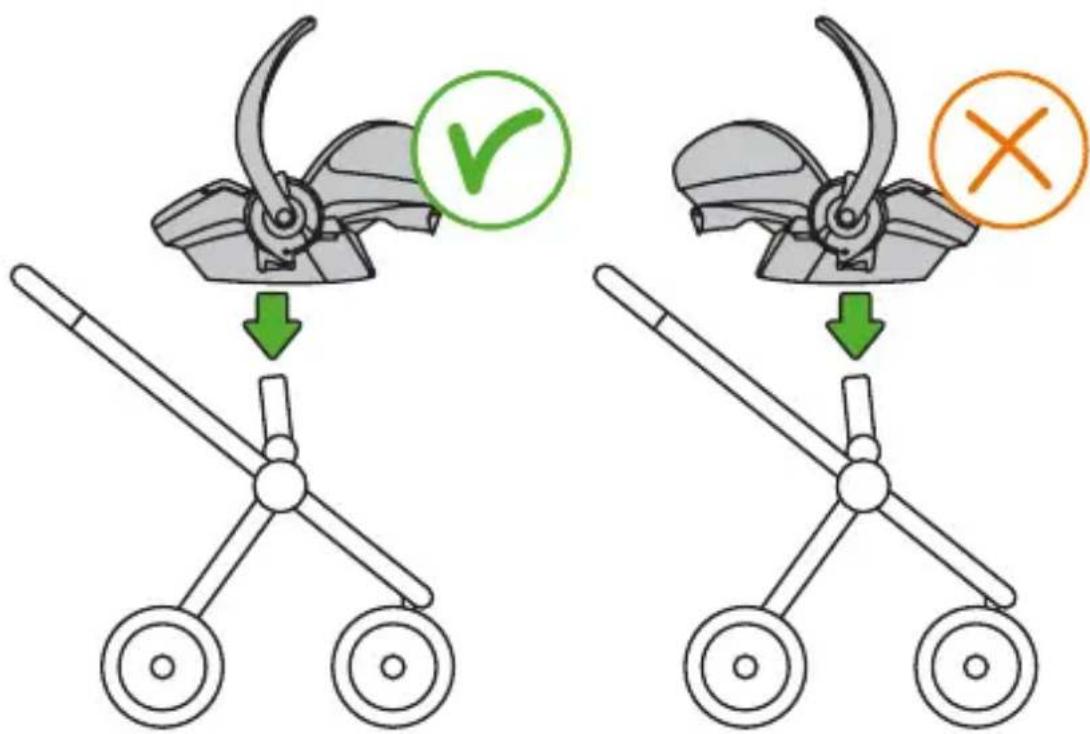

Installation on a stroller

Align the stroller adapter house above the adapters of the stroller and move straight down, click (2x) ! Green dots on both sides indicate that the seat is properly fastened.

• The car seat should always be facing the parent.

Click! Click!

Diagram illustrating correct and incorrect assembly of a mechanical component, with checkmark and cross symbols indicating selection or validation.

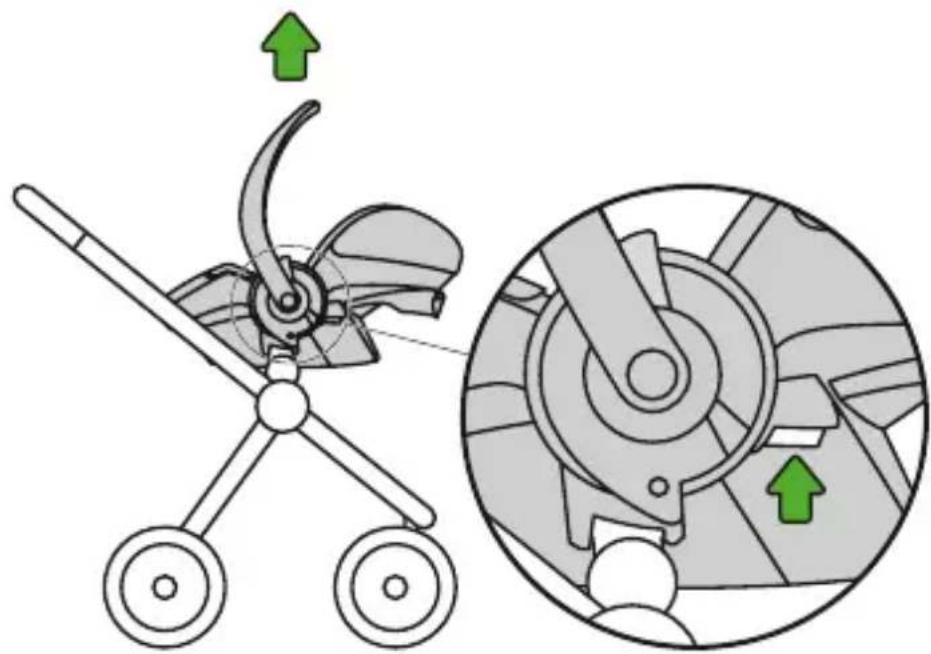

Removing from a stroller

• Move the carrying handle into carrying position.
• Push the stroller release up at both sides while lifting the seat vertically from the stroller.

Diagram of a mechanical device with two wheels and a close-up view showing internal components (no text or symbols)

Guarantee

• All Stokke BeSafe products are carefully designed, manufactured and tested. All our Stokke BeSafe child seats are tested periodically during flow production in our test laboratory. Furthermore they are tested by independent test institutes.
• Should this product prove faulty within 24 months of purchase due to materials or manufacturing fault, except covers and harness straps, please return it to the original place of purchase.
• The guarantee is valid only if you use your seat properly and with care. Please contact your dealer and he will decide whether the seat will be returned to the manufacturer for repair. Replacement or return cannot be claimed. Repair of the product does not extend the guarantee.
• The guarantee is cancelled in the following situations: if there is no receipt, if flaws are caused by incorrect and improper use, if the flaws are caused by abuse, misuse or negligence.

Point of Sale information

Notice for REARWARD-FACING installation

This is a universal Child Restraint System. It is approved according to regulation No. 44.04, series of amendments for general use in vehicles fitted with 3-point car belts, approved to UN/ECE Regulation No. 16 or other equivalent standards.

BEDIENUNGSANLEITUNG

Stokke® iZi Go™ by BeSafe®

Line drawing of a car seatbelt device with no text or symbols

ECE R44 04

QR code image containing encoded data, no visible human-readable text

User instruction.

Play movie.

ACHTUNG!

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Diagram illustrating car wheel steering mechanism with green arrows indicating clockwise motion and a magnified inset showing gear assembly.

ACHTUNG!

Diagram showing two car side-by-side diagrams with symbols X and V, likely indicating vehicle positions or movement.

Safety warning illustration showing pictograms of a person using a tool to avoid injuries, with arrows indicating direction of movement.

EN 12790-2009

Prohibition sign showing no car seat and passenger seat with pictograms

Line drawing of a mechanical device with no visible text or symbols

Diagram illustrating mechanical assembly with green arrows indicating force or direction of movement, accompanied by a magnified inset showing a component being inserted.

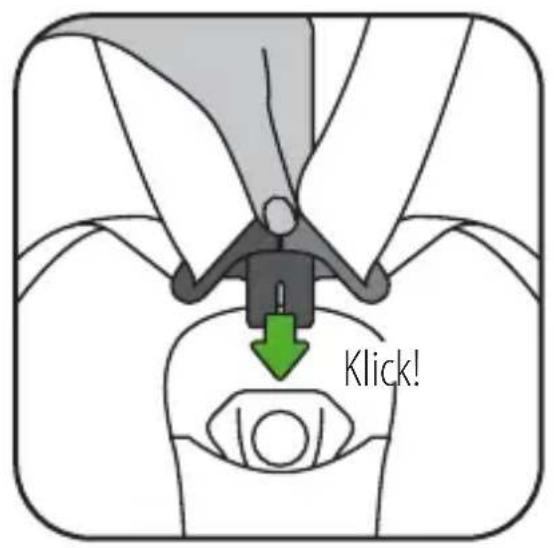

Klick!

Diagram of a car seatbelt mechanism with a diagonal bar and green arrow indicating direction (no text or symbols)

Diagram illustrating car wheel steering mechanism with labeled components and directional arrows

Mechanical component diagram showing a wheel and gear assembly with a green arrow indicating a specific part (no text or symbols present)

Illustration of a hand inserting a green arrow into a mechanical component (no text or symbols)

Illustration of a hand cleaning a car window with a green plastic clip (no text or symbols)

Illustration of hands performing a mechanical or electrical operation with green arrows indicating direction (no text or symbols present)

Illustration of a hand cleaning a car seat with a green arrow indicating the action (no text or symbols present)

Diagram of a mechanical component with green directional arrows indicating movement or force (no text or symbols)

Klick!

Illustration of a hand holding a key inserted into a car helmet (no text or symbols)

Diagram showing a device with a lock and a green checkmark indicating approval or confirmation (no text or symbols present)

Diagram showing a device with a lock and a checkmark indicating cancellation or error, alongside a leaf-shaped object with a green checkmark.

M2001480

<60cm (0-4 Monate)

60–65cm (4-6 Monate)

Babypolster ENTFERNEN.

65cm

Klick! Klick!

Diagram illustrating correct and incorrect assembly of a mechanical component, with checkmark and cross symbols indicating selection or validation.

Mechanical component diagram showing a fan blade and wheel assembly with green directional arrows indicating motion (no text or symbols)

Garantie

Stokke® iZi Go™ by BeSafe®

Line drawing of a car seatbelt device with no text or symbols

ECE R44 04

Testet og godkendt

Gruppe Vægt Alder

0+ 0-13 kg 0-12 måneder

QR code image containing encoded data, no visible human-readable text

User instruction.

Play movie.

ADVARSEL

Prohibition sign showing a person sitting on a chair facing another person, with no text or symbols beyond the prohibition symbol.

Diagram illustrating mechanical assembly with green arrows indicating motion or force directions, showing a lever mechanism and close-up of the component.

ADVARSEL

Diagram showing two car frames with labeled vehicle positions, marked with orange 'X' and green 'V'

Safety warning illustration showing pictograms of a person and child with directional arrows indicating movement or safety.

EN 12790-2009

Prohibition sign showing no car seat and passenger inside, indicating no car use or absence of seat replacement.

Line drawing of a mechanical device with no visible text or symbols

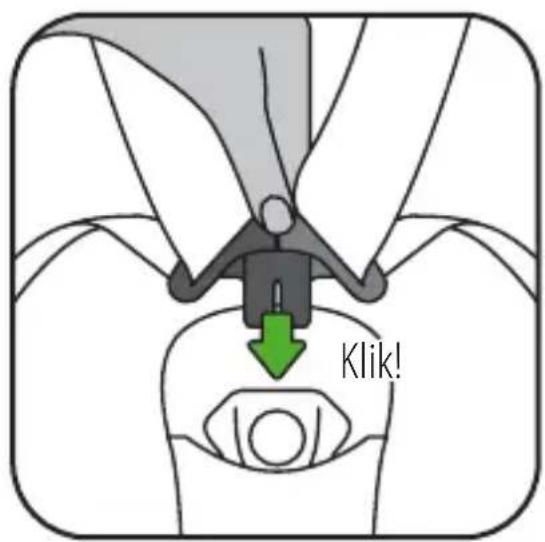

1. Før hoftedelen af 3-punktsselen over de blå dele gennem hofteselekrogene, og fastgør stoleselen med et 'Klik'.

Klik!

Diagram of a mechanical device with a diagonal tool and green arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt mechanism with labeled components and directional arrows indicating movement

Mechanical component diagram showing a lever and wheel assembly with a green arrow indicating a specific part (no text or symbols present)

Illustration of a hand inserting a green arrow into a mechanical component (no text or symbols)

Illustration of a hand cleaning a car interior with a green recycling symbol (no text or symbols present)

Illustration of hands adjusting a mechanical component with green arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a car seat with a green arrow indicating the angle (no text or symbols present)

Diagram of a mechanical component with green directional arrows indicating movement or force (no text or symbols)

Klik!

Illustration of a hand holding a key inserted into a car helmet component, with a green arrow indicating the direction (no text or symbols present)

- Sørg for, at selestropperne altid er låst og strammet, når barnet sidder i stolen.

Diagram showing a device with a lock and a green checkmark indicating approval or verification (no text or symbols present)

Diagram showing a medical device with a checkmark and cross symbol indicating approval or rejection.

Technical illustration of a helmet and a mechanical component with orange X marks (no text or symbols)

Diagram illustrating correct and incorrect assembly of a mechanical component, with checkmark and cross symbols indicating selection or validation.

Diagram of a mechanical device with two wheels and a close-up view showing internal components (no text or symbols)

Garanti

Stokke® iZi Go™ by BeSafe®

Line drawing of a car seatbelt device with no text or symbols

ECE R44 04

QR code image containing encoded data, no visible human-readable text

User instruction.

Play movie.

VAROITUS!

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of a child.

Diagram illustrating mechanical assembly with green arrows indicating force directions and a magnified inset showing a close-up of the component.

VAROITUS!

Diagram showing two car illustrations with labeled symbols 'X' and 'V', likely indicating vehicle positions or movement.

Safety warning illustration showing pictograms of a person using a tool to avoid injuries, with arrows indicating direction of movement.

EN 12790-2009

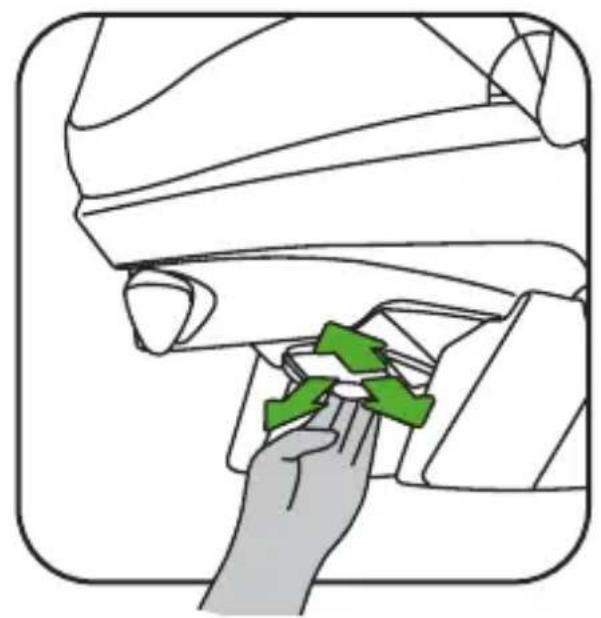

Johdanto

Prohibition sign showing no car seat and child on phone, indicating no use or absence of use.

Line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with a diagonal tool and green arrow indicating direction (no text or symbols)

Diagram illustrating mechanical assembly with labeled components and directional arrows, including a magnified inset showing a component detail.

Diagram of a car wheel assembly with a green arrow indicating a specific component (no text or symbols present)

Illustration of a hand interacting with a device inside a curved mechanical component (no text or symbols visible)

Illustration of a hand cleaning a car window with green recycling symbols (no text or labels)

Illustration of hands performing a medical procedure on a patient's abdomen, with green arrows indicating direction of movement (no text or symbols present)

Illustration of a hand cleaning a car seat with a green arrow indicating the angle (no text or symbols present)

Diagram of a mechanical component with green directional arrows indicating movement or force (no text or symbols)

Klik!

Illustration of a hand holding a key inserted into a car helmet component, with a green arrow indicating the direction (no text or symbols present)

Diagram showing a device with a lock and a green checkmark indicating approval or confirmation.

Diagram showing a medical device with a checkmark and cross symbol indicating diagnostic status or failure.

Diagram showing a helmet and a mechanical component with orange X marks (no text or symbols)

<60cm (0–4 kk)

Diagram illustrating correct and incorrect assembly of a mechanical component, with checkmark and cross symbols indicating selection or validation.

Mechanical component diagram showing a fan blade and wheel assembly with green directional arrows indicating motion (no text or symbols)

Takuu

Stokke® iZi Go™ by BeSafe®

Line drawing of a car seatbelt device with no text or symbols

ECE R44 04

Testé et approuvé

QR code image containing encoded data, no visible human-readable text

User instruction. Play movie.

AVERTISSEMENT

Prohibition sign showing a chair seat and child on the wheel, indicating no use or absence of use.

Diagram illustrating mechanical assembly with green arrows indicating force directions and a magnified inset showing a gear mechanism.

Diagram showing two car illustrations with labeled symbols 'X' and 'Y' indicating different states or features.

Safety warning illustration showing pictograms of human and child walking with a diagonal barrier, indicating safety or hazard.

EN 12790-2009

Line drawing of a car seatbelt with handle and seat, no text or symbols present

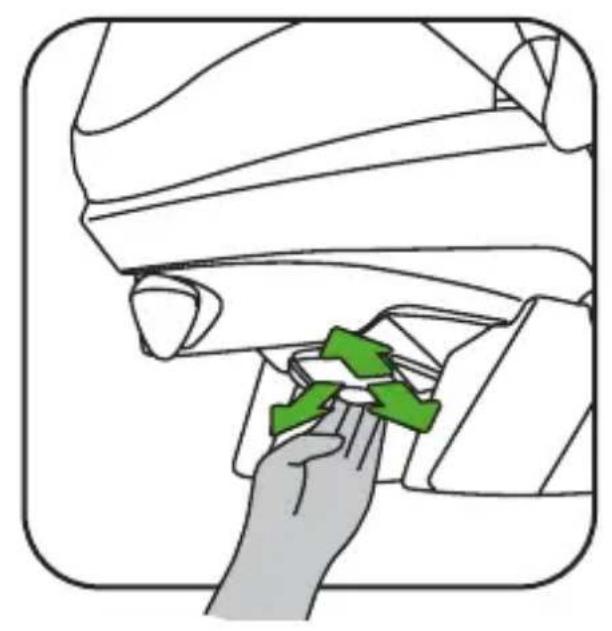

Éléments essentiels

Technical line drawing of a mechanical device with curved internal components and mounting brackets (no text or symbols)

Pare-soleil

Prohibition sign showing no car seat and passenger seat with pictograms

Line drawing of a mechanical device with no visible text or symbols

Diagram illustrating mechanical assembly with green arrows indicating force or direction of movement, accompanied by a magnified inset showing a component being inserted.

Clic!

Diagram of a car seatbelt mechanism with a diagonal bar and green arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including a magnified inset showing a detail of a component.

Mechanical component diagram showing a lever and wheel assembly with a green arrow indicating a specific part (no text or symbols present)

Illustration of a hand inserting a green arrow into a car interior (no text or symbols)

Illustration of a hand placing a green recycling symbol into a car interior (no text or symbols present)

Illustration of hands performing a task with green arrows indicating steps (no text or symbols present)

Illustration of a hand cleaning a car seat with a green arrow indicating the action (no text or symbols present)

Diagram of a mechanical component with green directional arrows indicating movement or force (no text or symbols)

Clic!

Illustration of a hand holding a tool inside a mechanical component, with a green arrow indicating the process (no text or symbols present)

Clic! Clic!

Diagram illustrating correct and incorrect assembly of a mechanical component, with checkmark and cross symbols indicating selection or validation.

Mechanical component diagram showing a fan blade and wheel assembly with green directional arrows indicating motion (no text or symbols)

Garantie

Stokke® iZi Go™ by BeSafe®

Line drawing of a car seatbelt device with no text or symbols

ECE R44 04

QR code image containing encoded data, no visible human-readable text

User instruction.

Play movie.

WAARSCHUWING!

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of a child.

Diagram illustrating mechanical assembly with green arrows indicating force directions and a magnified inset showing the mechanism.

WAARSCHUWING!

Diagram showing two car scenarios with labeled foot positions and checkmark indicators

Safety warning illustration showing pictograms of human and child walking with a diagonal barrier, indicating safety or hazard.

EN 12790-2009

Inleiding

Prohibition sign showing no car seat and passenger seat with pictograms

Line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with a diagonal tool and green arrow indicating direction (no text or symbols)

Diagram illustrating mechanical assembly with labeled components and directional arrows, including a magnified inset showing a detail view.

Diagram of a car wheel assembly with a green arrow indicating a specific component (no text or labels present)

Illustration of a hand pressing a green button into a car interior (no text or symbols)

Illustration of a hand cleaning a car window with a green recycling symbol (no text or symbols present)

Illustration of hands adjusting a mechanical component with green arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a car seat with a green arrow indicating the angle (no text or symbols)

Diagram of a mechanical component with green directional arrows indicating movement or force (no text or symbols)

Klik!

Illustration of a hand holding a key inserted into a car hood, with a green arrow indicating the direction (no text or symbols present)

Illustration of a helmet with a green checkmark indicating a safety inspection (no text or symbols present)

Diagram showing a device with a lock and a checkmark indicating cancellation, accompanied by a leaf-shaped object with an 'X' symbol.

M2001480

Diagram illustrating correct and incorrect assembly of a mechanical component, with checkmark and cross symbols indicating selection or validation.

Van de kinderwagen afhalen

Mechanical component diagram showing a fan blade and wheel assembly with green directional arrows indicating motion (no text or symbols)

Garantie

Stokke® iZi Go™ by BeSafe®

Line drawing of a car seatbelt device with no text or symbols

ECE R44 04

Testet og godkjent

Gruppe Vekt Alder

0+ 0-13 kg 0-12 m

QR code image containing encoded data, no visible human-readable text

User instruction.

Play movie.

ADVARSEL!

Prohibition sign showing no smoking or reduction in car seat and child, with orange circle and black pictogram

Diagram illustrating mechanical assembly with green arrows indicating force directions and a magnified inset showing the mechanism.

ADVARSEL!

Diagram showing two car illustrations with labeled symbols, possibly indicating vehicle positions or safety indicators.

Safety warning illustration showing human and child walking poses with pictograms and directional arrows

EN 12790-2009

Prohibition sign showing no car seat and passenger seat with pictograms

Line drawing of a mechanical device with no visible text or symbols

Diagram of a car seatbelt mechanism with a diagonal line indicating force or tension, no text or symbols present

Diagram illustrating car seatbelt usage with labeled components and directional arrows indicating movement

Mechanical component diagram showing a lever and wheel assembly with a green arrow indicating a specific part (no text or symbols present)

Illustration of a hand inserting a green arrow into a mechanical component (no text or symbols)

Illustration of a hand cleaning a car window with a green plastic clip (no text or symbols)

1. Trekk skulderstroppen opp mens du trykker på knappen for sentralregulatoren.

Illustration of hands performing a medical procedure on a patient's abdomen, with green arrows indicating direction of movement (no text or symbols present)

Illustration of a hand cleaning a car seat with a green arrow indicating the angle (no text or symbols present)

Diagram of a mechanical component with green directional arrows indicating movement or force (no text or symbols)

Klikk!

Illustration of a hand holding a key inserted into a car helmet component, with a green arrow indicating the direction (no text or symbols present)

Diagram showing a device with a lock and a checkmark indicating approval or confirmation.

Illustration of a medical device with a catheter and a checkmark on its base (no text or symbols present)

M2001480

<60cm (0–4 måneder)

Diagram illustrating correct and incorrect assembly of a mechanical component, with checkmark and cross symbols indicating selection or validation.

Mechanical component diagram showing a fan blade and wheel assembly with green directional arrows indicating motion (no text or symbols)

Garanti

Stokke® iZi Go™ by BeSafe®

Line drawing of a car seatbelt device with no text or symbols

ECE R44 04

Testad och godkänd

Grupp Vikt Ålder

0+ 0-13 kg 0-12 m

QR code image containing encoded data, no visible human-readable text

User instruction.

Play movie.

WARNING

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of a person.

Diagram illustrating mechanical assembly with green arrows indicating force directions and a magnified inset showing a close-up of the component.

! WARNING

Diagram showing two car side-by-side views with labeled vehicle positions and checkmark indicators

Safety warning illustration showing pictograms of human and child walking with a diagonal barrier, indicating safety or hazard.

EN 12790-2009

Prohibition sign showing no car seat and child on wheel, indicating no use or absence of use

Line drawing of a mechanical device with no visible text or symbols

Diagram illustrating mechanical assembly with green arrows indicating force or direction of movement, accompanied by an inset showing a device component.

Klick!

Diagram of a mechanical device with a diagonal tool and green arrow indicating direction (no text or symbols)

Diagram illustrating mechanical assembly with labeled components and directional arrows, including a magnified inset showing a detail view.

Spänna fast barnet i Stokke® iZi Go™ by BeSafe®

Mechanical component diagram showing a lever and wheel assembly with a green arrow indicating a specific point (no text or symbols present)

Illustration of a hand inserting a green arrow into a mechanical component (no text or symbols)

Illustration of a hand cleaning a car window with a green plastic clip (no text or symbols)

Illustration of hands performing a medical procedure on a patient's abdomen, with green arrows indicating direction of movement (no text or symbols present)

Illustration of a hand cleaning a car seat with a green arrow indicating the angle (no text or symbols)

Diagram of a mechanical component with green directional arrows indicating movement or force (no text or symbols)

Klick!

Illustration of a hand holding a key inserted into a car helmet component, with a green arrow indicating the direction (no text or symbols present)

Diagram showing a device with a lock and a green checkmark indicating approval or confirmation.

Diagram showing a device with a lock and a checkmark indicating cancellation or error, accompanied by a warning symbol.

M2001480

<60cm (0–4 månader)

Ta bort Stokke® iZi Go™ by BeSafe®

Klick! Klick!

Diagram illustrating correct and incorrect assembly of a mechanical component, with checkmark and cross symbols indicating selection or validation.

Mechanical component diagram showing a fan blade and wheel assembly with green directional arrows indicating motion (no text or symbols)

Garanti
