USER MANUAL EnergyUp HF3421 PHILIPS

Two white and black electronic devices with control buttons, displayed against a plain background (no visible text or symbols on the devices themselves).

Diagram of a folded paper or scroll with multiple panels and directional arrows indicating orientation (no text or symbols)

PHILIPS ① ② ③ ④ ⑤

-1

1_

-1

1

English 6

Dansk 22

Deutsch 38

Français 57

Italiano 75

Nederlands 93

Norsk 110

Suomi 125

Svenska 141

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Read this user manual carefully before using this Philips appliance.

Intended use

This Philips appliance EnergyUp Intense Blue is intended to make people feel more energetic, to adjust circadian rhythms and to provide relief from the winter blues. Medical intended use of this appliance is to treat winter depression or SAD (seasonal affective disorder). Treatment of SAD must always take place under medical supervision.

Light - a natural energizer

Today's busy modern lifestyles demand peak performance all day long. Even the fittest person suffers energy dips, particularly when deprived of natural daylight, such as in an office in winter. Daylight is essential to well-being, keeping fit and feeling energized throughout the day – just like healthy nutrition and regular exercise. Philips EnergyUp Intense Blue mimics the natural energizing power of daylight on a bright sunny day. It stimulates special receptors in the eye to trigger the body's natural response to sunlight. This helps you to fight energy dips, to feel more energetic, active and alert, and to improve your mood.

Circadian rhythms and sleep patterns

The human body uses light cues, such as those provided by the sun, to time certain internal functions. Properly timed rhythms regulate energy, mood, sleep, appetite and digestion. These daily internal cycles, called circadian rhythms, sometimes fall out of sync with nature, which can have impact on our well-being. Nature’s cues no longer govern our modern lifestyle. Our day no longer starts at sunrise and ends at sunset, working days are getting longer, and many people work in shifts. Moreover, our activities often extend well into the night. Many people tend to get too little sleep during the week,

which diminishes their energy levels during the day. Using Philips EnergyUp Intense Blue at the right time of day can help you establish and reinforce regular sleep patterns.

Light via eyes

Research shows that a special photoreceptor in our eyes is responsible for regulating our energy, mood and sleep/wake cycles. This receptor responds mostly to the blue light of the summer sky. We do not get much of this light in autumn and winter. Most indoor light does not provide enough of this essential color. This appliance helps you to be at your best by delivering the wavelength, colour and intensity of light to which our body responds most efficiently.

Winter blues

Lack of light during the darker winter months causes many people to experience a noticeable drop in energy level and low spirits as autumn sets in. These symptoms, known as 'winter blues', may cause you to feel low, listless and fatigued for weeks or even months. This affects both personal performance and mood. Blue light therapy is a successful method to fight these winter blues symptoms. It provides your body with summer vitality throughout the dark winter months.

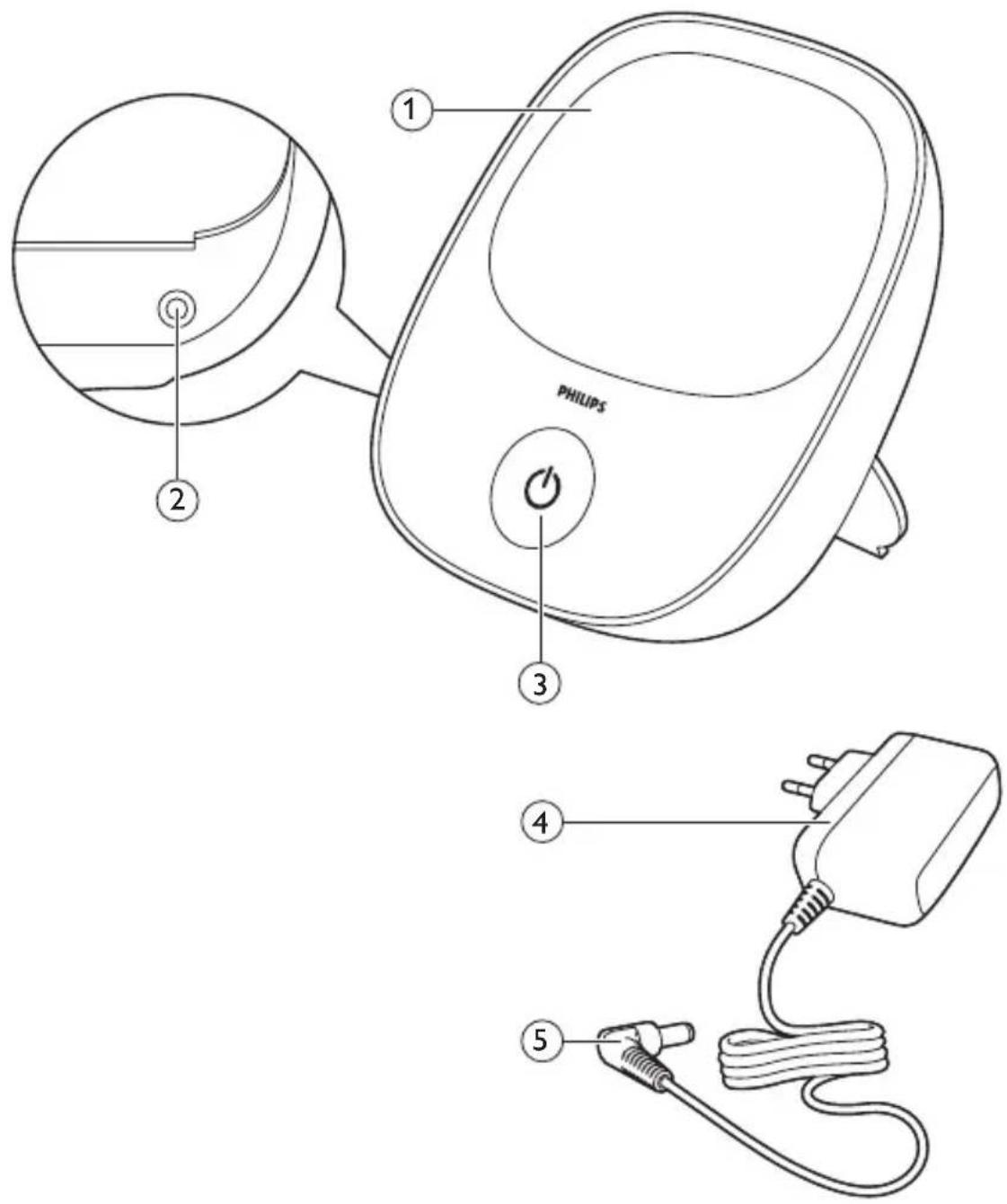

General description

1 Light panel
2 Socket for small plug
3 On/off button and light intensity control
4 Adapter HF10
5 Small plug

Important treatment information

Read this user manual carefully and always adhere to the treatment instructions.

Contraindications

The following conditions may be contraindications for use of this appliance:

- bipolar disorder

8 English

• recent eye surgery or a diagnosed eye condition for which your doctor advised you to avoid bright light
• use of photo-sensitizing medications (e.g. certain antidepressants, psychotropic drugs or malaria tablets), as it may cause side effects (e.g. skin irritation)

If any of the above conditions apply to you, always consult your doctor before you start using the appliance.

Possible reactions

Possible adverse reactions to light from this appliance are relatively mild and of a transient nature. They may include:

• Headache
• Eyestrain
• Nausea

Measures to avoid, minimize or alleviate these adverse reactions:

• Always use the appliance in a well-lit room.
• Reduce the light intensity if these reactions occur.
• Stop using the appliance for a few days to make the reactions disappear and then try again.

Important safety information

Read this important information carefully before you use the appliance and save it for future reference.

Danger

• Keep the appliance and the adapter dry and away from water. Do not place or store it over or near water contained in a bathtub, washbasin, sink etc. Do not immerse it in water or any other liquid. This may affect the safety of the appliance.
• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• Do not use the appliance or the adapter if it is damaged.
• If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.

Warning

- If you suffer from depression, consult your doctor before you start using this appliance.

- Do not use the appliance in a room where there is no other light source, as this may cause eyestrain. Use the light of this appliance as an addition to the normal light (sunlight, electric light) in your home

- Do not look straight into the light too long, as this may be uncomfortable to your eyes.

- Do not use the appliance where its light may hinder you or other people during the performance of essential tasks such as driving or operating heavy equipment.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Only use the appliance in combination with the adapter supplied.

- Do not modify the appliance and its accessories.

- Stop using the appliance if it is damaged in any way. Do not look directly at uncovered LEDs, as their light is very bright. If repair is needed, consult chapter 'Guarantee and support' for information.

- Never open the appliance to prevent electric shock, finger burns or temporary black spots in the eye.

- Do not use the appliance in the presence of flammable anesthetic mixtures with air, oxygen or nitrous oxide.

Caution

- Do not use the appliance outdoors or near heated surfaces or heat sources.

- Use the appliance in vertical position with the stand in place. Do not use it in horizontal position without the stand or cover it, as this might cause the appliance to overheat.

- Do not place heavy objects on the appliance, the adapter or the cord.

English

• Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter.
• When you remove the adapter from the wall socket, do not pull at the cord but grasp the adapter directly to avoid cord damage.
• When you remove the small plug from the appliance socket, do not pull at the cord but grasp the small plug directly to avoid cord damage.

Safety and compliance

• This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.
• This is a Class IIa medical appliance. It meets requirements of Medical Device Directive MDD 93/42/EEC and 2007/47/EC for medical appliances.
• This is not a general illumination product.

Electromagnetic compatibility (EMC)

Portable and mobile radio frequency communication equipment, such as mobile phones, cordless telephones and their base stations, walkie-talkies, and wireless home network devices (routers), can affect the Philips EnergyUp. They must therefore not be used in close proximity to the EnergyUp. If this cannot be avoided, the EnergyUp must be observed to verify normal operation. If abnormal performance (e.g. loss of functionality, light inconsistency, flicker) is observed, additional measures may be necessary, such as re-orientation of the radio frequency communication equipment or the EnergyUp (see section 'EMC information' in chapter 'Specifications' for more details).

General

The adapter is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 Vac, 50/60 Hz.

Using the appliance

When to use

Knowing at what time to use the Philips EnergyUp is essential. It may mean the difference between feeling better in a few days instead of weeks and between experiencing benefits or experiencing none. Follow these guidelines to understand how light affects us and when to use the Philips EnergyUp for the best results.

Duration

Most people experience benefits if they use the appliance 20 to 30 minutes each day. It is safe to use the Philips EnergyUp longer, provided you do so at the correct time of day. You may notice some energizing effects of light immediately. Other effects become noticeable after several days of regular use.

Indoor life and energy dips

If you spend a lot of time indoors with little daylight and artificial light, you can experience the energizing effects of the Philips EnergyUp very quickly after you switch it on.

Many people experience a natural dip in the afternoon. The Philips EnergyUp can help you counteract this dip.

Winter blues

If you experience lower energy levels, an increased need for sleep, and a lower mood in the dark season compared to spring and summer, use the energy light for 20–30 minutes a day. Preferably use it in the morning to help you start the day. You may also use it later during the day, but do not use it in the last few hours before bedtime. If you do, the light could delay your sleep and make you even less energetic the next day.

Winter depression

If your seasonal mood swings are more severe and you suffer from depression, consult a therapist and only use light therapy under supervision. Your therapist may prescribe 30 minutes of treatment per day at level 1 or 2 over several weeks.

12 English

Sleep patterns

• Morning persons tend to wake up early in the morning and usually find it difficult to stay awake in the evening. If you want to get more out of your evening, avoid bright light directly after waking up and use the Philips EnergyUp in the evening.
• Evening persons find it difficult to get up in the morning and are full of energy in the evening. If this applies to you, you need morning light. Use the Philips EnergyUp within the first 1-2 hours after you get out of bed. Avoid bright light in the last 4 hours before bedtime. Daily use of the Philips EnergyUp in the morning may help you establish a regular sleep pattern that allows you to function better in the morning.

Note: If your desired wake-up time is less than six hours after your normal bedtime, do not use the Philips EnergyUp immediately after you wake up. This could give your body a signal that is opposite to the one intended.

Recommended times to use the appliance

	When to use
Energy need because of:	Morning	Lunch time	Afternoon	Evening
- Lack of light indoors	+++ +++ +++ ---
- Being a morning person	--- + ++ +++
- Being an evening person	+++ ++ + ---
- An afternoon energy dip	+ +++ +++ ---
- Fighting the winter blues	+++ + + ---

• The more pluses (+++) there are in a column, the more suitable the time
• --- means: do not use the appliance at this time.

Jet lag

Rapidly traveling across several time zones puts your internal body clock out of sync with the new external time. This not only causes sleeping problems, but also influences your mood and energy level. If you stay for more than a few days in the other time zone, you may want to shift your body clock to the new time zone. This will help you sleep better and be more alert and energetic when you need to. One of the best strategies to deal with jet lag is to start shifting your body clock and sleep times several days before you leave.

Traveling east

When you travel east, you have to advance your sleep time by a number of hours that equals the time zones you cross. You can shift your body clock forwards in steps of one hour a day. The number of time zones you cross determines how many days before departure you have to start using the Philips EnergyUp. Use the appliance for 30 minutes after you wake up. Avoid bright light in the evening and go to bed early. When you arrive at your destination, avoid bright light during your normal sleep period. Expose yourself to bright light at the end of this period to advance your body clock further to the local time.

Before your return flight, use the Philips EnergyUp late in the evening for a couple of days. On the last night of the trip, try to stay up and use the appliance as late as possible after midnight. On the day of the flight, avoid any bright light in the morning.

Traveling west

Since most people's body clocks adjust more easily to later time zones, you only have to use the Philips EnergyUp for one day before you travel across four time zones. Add an additional preparation day for each three additional time zones. You do not have to use the Philips EnergyUp for more than three days, even on longer westbound trips. Use the appliance for 30–40 minutes late in the evening. Start two or three days before you leave. Use the appliance two hours later the following nights.

14 English

When you arrive at your destination, try to stay awake until bedtime and avoid bright evening light (wear sunglasses) for the first few days. Before you travel home, avoid any bright afternoon and evening light. Use the Philips EnergyUp in the morning for a few days.

Light intensity

Use the Philips EnergyUp in addition to the normal room lighting. The Philips EnergyUp is more comfortable to use in a well-lit room. Adjust the brightness to a comfortable level. Allow a few minutes for your eyes to get used to the bright light. If the highest setting is too bright for you, start using the appliance at a lower setting. Increase the light intensity if you feel no effect after a week.

How to use the appliance

1 Fold out the stand and place the appliance on a table (Fig. 2).
2 Insert the small plug into the socket on the appliance (Fig. 3).
3 Insert the adapter into a wall socket (Fig. 4).
4 Place the appliance at arm's length (at approximately 50–75cm from your eyes) within your field of vision. The light must bathe your face (Fig. 5).

• You can read, eat, work at the computer, watch TV or exercise while you use the appliance.
• For the best results, place the appliance at the same level as your midriff (stomach area), e.g. place it on the table at which you are sitting.
• Make sure that the surroundings of the appliance are well-lit for more visual comfort.

Note: Do not stare into the light of the appliance. It is sufficient that the bright light reaches your eyes indirectly.

5 Press the on/off button briefly to switch on the appliance (Fig. 6). The appliance switches on at a low setting.
6 To increase the light intensity to a higher setting, press the on/off button again briefly (Fig. 7).

- HF3420 has 3 settings: 30%, 55%, 100% intensity respectively.

HF3421 has 5 settings: 30%, 40.5%, 55%, 74%, 100% intensity respectively.

Note: For the best results, use the highest intensity setting that is comfortable to your eyes.

7 If you press the on/off button briefly when the appliance is working at the highest setting, the appliance switches off.

Note: When the appliance is working, you can also switch it off immediately by pressing and holding the on/off button for more than 2 seconds (Fig. 8).

Cleaning and storage

Do not immerse the appliance in water or any other liquid and do not rinse it under the tap.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

1 Clean the appliance with a dry or moist cloth. Do not use a wet cloth (Fig. 9).

2 Store the appliance in a safe and dry place.

Frequently asked questions

This chapter lists the questions most frequently asked about the appliance. If you cannot find the answer to your question, visit www.philips.com/support for more frequently asked questions or contact the Consumer Care Center in your country.

Question Answer

I have heard that blue light can be dangerous. Can this appliance damage my eyes?

This appliance complies with the photobiological safety standard IEC62471. According to this standard, the appliance represents no risk to healthy eyes and can be safely used.

Question Answer

Can I get sunburn from using this appliance?	No, sunburn is caused by UV light. The light produced by this appliance does not contain UV.
Is the Philips Energy Up safe to use around children and pets?	The light is safe to be used around children and pets. However, do not let children play with the appliance.
Can I use the Philips EnergyUp when I am pregnant?	Yes, there are no known side effect from using the Philips EnergyUp during pregnancy.
Do I have to take off my glasses when I use the appliance?	No, you can use the appliance with your glasses on. Do not wear tinted glasses or sunglasses when you use the appliance, as these glasses reduce its effectiveness.
How often do I have to use the Philips EnergyUp?	Use the Philips EnergyUp every day at the right time to achieve the result you want. For more information on the duration of a session, read chapter 'Using the appliance'. Except when you try to adjust your sleep time, we advise you to use the Philips EnergyUp at the same time every day. It is usually sufficient to use it 20 to 30 minutes a day. It is absolutely safe to use it longer, if you want to.
When do I start to notice improvement from using the Philips EnergyUp?	You may start to feel the energizing effect any time between first use and 1 to 2 weeks of daily use.

Question Answer

Is it harmful to sit in front of a switched-on Philips EnergyUp for a long time?	No, the Philips EnergyUp is absolutely safe, also when you use it throughout the day. However, in general avoid using the light in the last 4 hours before you go to bed, as the energizing effect of the light may interfere with your sleep. Only 'morning persons' who want to get more out of their evening can use it in the evening (see 'Sleep patterns').
Can the lamp of the Philips EnergyUp be replaced?	No, the Philips EnergyUp has a durable LED lamp that lasts many years.

Ordering accessories

To buy accessories or spare parts, visit

www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

Accessories

The following accessories are available:

- adapter HF10 EU: service code 4222.036.2482.1

- adapter HF10 UK: service code 4222.036.2483.1

Warranty and support

If you need information or support, please visit

www.philips.com/support or read the international warranty leaflet.

Recycling

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU) (Fig. 10).

English

- Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

Specifications

Model HF3421, HF3420

Electrical

Rated input voltage adapter 100-240 Vac

Rated input frequency adapter 50/60 Hz

No-load power adapter < 0.1 W

Rated output voltage adapter 9 Vdc

Rated output power adapter 10 W

Standby power appliance < 0.25 W

Classifications

Medical device classification IIa

Insulation class adapter II

Ingress of an object and water IP51 (main unit only)

Mode of operation Continuous

Operating conditions

Temperature from 5°C to +35°C

Relative humidity from 15% to 90% (no condensation)

Storage and transport conditions

Temperature from -20°C +50°C

Relative humidity from 15% to 90% (no condensation)

Physical characteristics

Dimensions 14.3 x 14.3 x 3.5 cm
Weight 0.4 kg (less than 14 ounces)
Dominant wavelength 475 - 480 nm
Full width at half maximum (FWHM) 20 nm
Nominal output at 50 cm (100% intensity)	1.9 W/m2; 220 lux
Maximum output at 50 cm (100% intensity)	3 W/m2; 235 lux
Variation in treatment at 50 cm ± 7%
Expected service life
Expected service life 7 years

Symbol key

The following symbols may appear on the appliance:

Symbol Description

	Consult the user manual supplied
	DC power
	DC polarity
	Indoor use only
IP51 Degree of protection against liquid and particles.
HF3421, HF3420 Model number
KEMA 0344	CE stands for European Declaration of Conformity. The code 0344 indicates that the notified body is DEKRA.
	Compliant with the Waste Electrical and Electronic Equipment/Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (WEEE) recycling directives.
PHILIPS	Philips shield
	Manufactured for: Philips Consumer Lifestyle B.V, Tussendiepen 4, 9206 AD Drachten, Netherlands. Fax: [phone]
	Date code and serial number of this appliance
	On/off button

EMC information

Recommended separation distance between portable and mobile RF communications equipment and HF3421, HF3420

HF3421, HF3420 is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of HF3421, HF3420 can help prevent

electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and HF3421, HF3420 as recommended below, according to the maximum output power of the communications equipment.

Rated maximum output power of transmitter (W)

	800 MHz to 2.5 GHz d = 0.70 √P
0.01 0.07
0.1 0.22
1 0.70
10 2.21
100 7.00

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
