Product type	Light therapy lamp
Brand	Philips
Model	goLITE BLU HF3429
Dimensions	20 x 15 x 15 cm
Weight	0.5 kg
Power supply	Mains adapter 100-240 V
Power consumption	12 W
Light intensity	10,000 lux at 30 cm
Wavelength	470 nm (blue light)
Main functions	Energy boost, sleep regulation, mood improvement
Settings	5 intensity levels, programmable timer
Lighting area	30 x 20 cm at 30 cm distance
LED lifespan	10,000 hours
Safety	Automatic shut-off after 60 minutes
Maintenance	Clean with a soft dry cloth
Spare parts	Mains adapter included, LED bulb not replaceable
Warranty	2 years
Box contents	goLITE BLU HF3429 lamp, mains adapter, quick start guide

Frequently Asked Questions - goLITE BLU HF3429 PHILIPS

At what distance should I place the lamp from my face?

The recommended distance is 30 to 40 cm. At 30 cm, you get 10,000 lux. Respect this distance for optimal effectiveness.

How long should I use the lamp per day?

Typical usage time is 20 to 30 minutes per day, preferably in the morning. Do not use for more than 60 minutes without consulting a doctor.

Is blue light dangerous for the eyes?

The goLITE BLU emits filtered and safe blue light. Do not look directly at the LED and follow the usage instructions. Suitable for home use.

Can I use the lamp if I am taking photosensitizing medications?

Consult your doctor before using the lamp if you are taking medications that increase sensitivity to light.

How to clean the lamp?

Unplug the device and clean it with a soft dry cloth. Do not use chemicals. Do not immerse in water.

Can the lamp be used by children?

Yes, under adult supervision. Respect age-appropriate usage times. Ask a doctor for advice.

What are the benefits of blue light?

Blue light stimulates energy, improves concentration, regulates the circadian rhythm and helps combat winter fatigue and sleep disorders.

Can I use the lamp in the evening?

It is not recommended to use the lamp in the evening as it may delay falling asleep. Use preferably in the morning or early afternoon.

What should I do if the lamp does not turn on?

Check that the adapter is properly plugged in and that the outlet works. If the problem persists, contact Philips customer service.

How much does the bulb replacement cost?

The LEDs are integrated and not replaceable. The lifespan is about 10,000 hours. No maintenance is required.

USER MANUAL goLITE BLU HF3429 PHILIPS

Diagram of a folded folding panel with grid patterns and directional arrows indicating orientation (no text or symbols)

www.philips.com 4222 002 7815 1

Register your product and get support at

White Philips VR headset with visible grille and control buttons (no text or symbols on body)

PHILIPS

2

3
Fig. 1

4

ENGLISH 6

FRANÇAIS (CANADA) 24

ESPAÑOL 44

HF3429

IMPORTANT SAFETY INSTRUCTIONS

Read this user manual carefully before you use the appliance and save it for future reference.

WARNING (a warning indicates the possibility of injury to the user or operator)

- Water and electricity are a dangerous combination. Do not use this appliance in wet surroundings (e.g. in the bathroom or near a shower or swimming pool). Do not immerse appliance in water or any other liquid.

- Check if the voltage indicated on the appliance corresponds to the local voltage before you connect the appliance.

- The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.

- Never use the adapter if it is damaged in any way. Always have the adapter replaced with one of the original type in order to avoid a hazard.

- This appliance contains an internal rechargeable lithium-ion battery. Do not incinerate, disassemble or expose to high temperatures above 50^ C ( 122^ F). Do not operate or charge the appliance at temperatures below 5^ C ( 4^ F) or above 35^ C ( 95^ F). Batteries can overheat, causing fire or bursting.

- Never open the appliance to prevent electric shock, finger burns or temporary black spots in the eye.

- If the power cord is damaged, do not use the appliance. Call 1-866-832-4361 for assistance.

- Close supervision is necessary when this appliance is used by, or near children or invalids.

- Children should be supervised to ensure that they do not play with the appliance.

ENGLISH 7

- There are no user-serviceable parts inside the appliance. No modification of this appliance is allowed.

- Never use the appliance if the lamp housing or cover is damaged, broken or missing.

- Do not use the appliance where the light may compromise your or other people's ability to perform essential tasks, such as driving or operating heavy equipment.

- Do not use this appliance in the presence of a flammable anesthetic mixture with air, oxygen, or nitrous oxide.

- Consult your doctor before you start using the Philips goLITE BLU if:

1 you suffer or have suffered from severe depression;

2 you have an eye condition for which your physician advised you to avoid bright light;

3 you are on specific medication (i.e. certain antidepressants, psychotropic drugs or malaria tablets);

Caution (a caution indicates the possibility of damage to the appliance)

- Always unplug the appliance after use.

- Do not use the appliance outdoors or near heated surfaces or heat sources.

- Place the appliance on a stable, level and non-slippery surface with the stand in place.

- Do not place any object on top of appliance, adapter or cord.

- When unplugging the appliance, grasp the plug directly to avoid damaging the cord. Never pull on the power cord to remove the plug from the outlet.

- Use this appliance for its intended household use as described in this manual. Do not use attachments not recommended by Philips Electronics North America Corporation.

- If this appliance is damaged in any way or it is not working, it should not be operated. Please visit philips.com/support or call 1-866-832-4361 for assistance.

ENGLISH8

Contraindications

The following conditions may be contraindications for use of this appliance:

• bipolar disorder
• recent eye surgery or a diagnosed eye condition for which your physician advised you to avoid bright light
• use of photo-sensitizing medications (e.g. certain antidepressants, psychotropic drugs or malaria tablets)

If any of the above conditions apply to you, always consult your physician before you start using the appliance.

Possible reactions

Possible adverse reactions to light from this appliance are relatively mild and of a transient nature. They may include:

• Headache
• Eyestrain
• Nausea

Measures to avoid, minimize or alleviate these adverse reactions:

• Always use the appliance in a well-lit room.
• Reduce the light intensity if these reactions occur.
• Stop using the appliance for a few days to make the reactions disappear and then try again.

SAVE THESE INSTRUCTIONS

Safety and compliance

- This appliance meets the requirements in the USA and Canada for portable electric luminaires: UL153, UL8750 and CSA 22.2 no.12.

- This device complies with the EMC requirements of the USA and Canada: FCC 47 Part 15, ICES-003.

FCC Information

- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against

ENGLISH 9

harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

- This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

- This Class B digital apparatus complies with Canadian ICES-003.

Introduction

Congratulations on your purchase and welcome to Philips! To benefit fully from the support that Philips offers, register your product at

www.philips.com/welcome.

Intended use

The Philips goLITE BLU is intended to make people feel more energetic, to increase alertness, and to provide mood relief from the winter blues. If you suffer from severe mood swings or depression, make sure to consult a professional, and do not use this device for self-treatment. This product has not been approved by FDA for treatment of seasonal affective disorder (SAD).

ENGLISH10

Light - a natural energizer

Today's busy modern lifestyles demand peak performance all day long. Even the fittest person suffers energy dips, particularly when deprived of natural daylight, such as in an office in winter. Daylight is essential to well-being, keeping fit, and feeling energized throughout the day – just like healthy nutrition and regular exercise. Philips goLITE BLU mimics the natural energizing power of daylight on a bright sunny day. It stimulates special receptors in the eye to trigger the body's natural response to sunlight. This helps you to fight energy dips, to feel more energetic, active and alert, and to improve your mood.

Sleep patterns

The human body uses light cues, such as those provided by the sun, to time certain internal functions. Properly timed rhythms regulate energy, mood, sleep, appetite and digestion. Nature's cues no longer govern our modern lifestyle. Our day no longer starts at sunrise and ends at sunset, and working days are getting longer. Moreover, our activities often extend well into the night. Many people tend to get too little sleep during the week, which diminishes their energy levels during the day. Using goLITE BLU at the right time of day can help you establish and reinforce regular sleep patterns.

Light via eyes

Research shows that a special photoreceptor in our eyes is responsible for regulating our energy, mood and sleep/wake cycles. This receptor responds mostly to the blue light of the summer sky. We do not get much of this light in autumn and winter. Most indoor light does not provide enough of this essential color. This appliance helps you to be at your best by delivering the wavelength, color and intensity of light to which our body responds most efficiently.

Winter blues

Lack of light during the darker winter months causes many people to experience a noticeable drop in energy level and low spirits as fall sets in. These symptoms, known as ‘winter blues’, may cause you to feel low, listless and fatigued for weeks or even months. This affects both personal performance and mood. Blue light therapy is a successful method to fight these winter blues symptoms. It provides your body with summer vitality throughout the dark winter months.

Features (Fig. 1)

1 Light panel
2 Socket for small plug
3 Charge indicator
4 Time indicator bar
5 Intensity increase and decrease buttons
6 On/off button

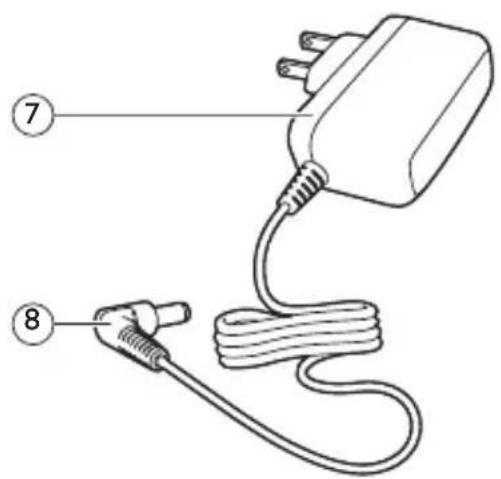

7 Adapter
8 Small plug

Charging

To operate the appliance corded, connect it to an electrical outlet. For more flexibility, charge the rechargeable battery. Charging takes approximately 3 to 4 hours.

Note: You can use the appliance while it is charging. The charging time is longer when you use the appliance while it is charging.

1 Fold out the stand and place the appliance on a table (Fig. 2).
2 Insert the small plug into socket on the appliance (Fig. 3).
3 Put the adapter in an electrical outlet.

The charge indicator pulsates green during charging. When the battery is fully charged, the charge indicator turns solid green. It continues to light up solid green for 1 hour (Fig. 4).

Note: When the battery is fully charged, it contains enough energy for about 1 hour of use at full intensity.

Using the goLITE BLU

When to use the goLITE BLU

Knowing at what time to use the goLITE BLU is essential. It may mean the difference between feeling better in a few days instead of weeks and between experiencing benefits or experiencing none. Follow these guidelines to understand how light affects us and when to use the goLITE BLU for the best results.

ENGLISH12

Duration

Most people experience benefits if they use the appliance 20 to 30 minutes each day. It is safe to use the goLITE BLU longer, provided you do so at the correct time of day. You may notice some energizing effects of light immediately. Other effects become noticeable after several days of regular use.

Indoor life and energy dips

If you spend a lot of time indoors with little daylight and artificial light, you can experience the energizing effects of the Philips goLITE BLU very quickly after you switch it on. You can also use the appliance as an extra source of light throughout the day (but not in the evening or at night) to compensate for the lack of natural daylight.

Many people experience a natural dip in the afternoon. The goLITE BLU can help you counteract this dip.

Winter blues

If you experience lower energy levels, an increased need for sleep, and a lower mood in the dark season compared to spring and summer, use the goLITE BLU for 20-30 minutes a day. Preferably use it in the morning to help you start the day. You may also use it later during the day, but do not use it in the last few hours before bedtime. If you do, the light could delay your sleep and make you even less energetic the next day.

Sleep patterns

- Morning persons tend to wake up early in the morning and usually find it difficult to stay awake in the evening. If you want to get more out of your evening, avoid bright light directly after waking up and use the goLITE BLU in the evening close to bedtime.

- Evening persons find it difficult to get up in the morning and are full of energy in the evening. If this applies to you, you need morning light. Use the goLITE BLU within the first 1 to 2 hours after you get out of bed. Avoid bright light or blue-rich light in the last 4 hours before bedtime. Daily use of the goLITE BLU in the morning may help you establish a regular sleep pattern that allows you to function better in the morning.

Note: If your desired wake-up time is less than six hours after your normal bedtime, do not use the goLITE BLU immediately after you wake up. This could give your body a signal that is opposite to the one intended.

Recommended times to use the goLITE BLU

Time to use goLITE BLU >>

Morning Lunchtime Afternoon Evening

Energy need ▼

Lack of daylight indoor +++ +++ +++ ---

Morning person --- + ++ +++

Evening person +++ ++ + ---

Afternoon energy dip + +++ +++ ---

Winter blues +++++ ---

• The more pluses (+++) there are in a column, the more suitable the time.
• --- means: do not use the appliance at this time.

Light intensity

Use the goLITE BLU in addition to the normal room lighting. The goLITE BLU is more comfortable to use in a well-lit room. Adjust the brightness to a comfortable level. Allow a few minutes for your eyes to get used to the bright light. If the highest setting is too bright for you, start using the goLITE BLU at a lower setting. Increase the light intensity if you feel no effect after a week.

How to use the appliance

Use the appliance for its intended household use as described in this manual.

ENGLISH14

1 Place the appliance at arm's length (at approximately 50-75cm/20-30 in. from your eyes) within your field of vision. The light must bathe your face (Fig. 5).

- You can read, eat, work at the computer, watch TV or exercise while you use the appliance.

- For the best results, place the appliance at the same level as your midriff (stomach area), e.g. place it on the table at which you are sitting.

Note: Do not stare into the light of the appliance. It is sufficient that the blue light reaches your eyes indirectly.

- Make sure that the surroundings of the appliance are well-lit for more visual comfort.

2 Press the on/off button briefly to turn on the appliance (Fig. 6).

The first time you turn on the appliance, the blue light comes on at the default middle setting.

The next time you turn on the appliance, the light comes on at the last used setting. You can choose between five settings.

3 To choose a lower or higher setting, touch the + or - button briefly to arrive at a light intensity that is comfortable to you (Fig. 7).

The timer starts to count up to 1 hour. The first segment of the time indicator bar flashes (Fig. 8).

After 10 minutes, the first segment lights up solid and the second segment starts flashing (Fig. 9).

After 10 more minutes, the second segment lights up solid and the third segment starts flashing.

This process continues, until all segments of the time indicator bar light up solid after 1 hour.

Note: If you want to turn off the appliance, press the on/off button briefly.

4 If you use the appliance on its rechargeable battery, the charge indicator lights up solid orange after about 1 hour to let you know that the rechargeable battery is low. Connect the appliance to an electrical outlet to charge the rechargeable battery (Fig. 10).

Note: You can use the appliance while it is charging.

5 If the battery is low and the appliance is not connected to an electrical outlet, the battery symbol starts flashing orange after some time (Fig. 11).
6 If you do not connect the appliance to an electrical outlet, the appliance turns off.

Travel lock

You can activate the travel lock to prevent the appliance from turning on when a button is accidentally pressed while you travel or carry the appliance.

1 To activate the travel lock, press and hold the on/off button for 5 seconds (Fig. 12).
If the appliance is on, it turns off. The segments of the timer indicator bar flash once to confirm that the appliance is locked.
When the appliance is locked, the segments of the timer indicator bar will flash once when you press the on/off button briefly to indicate that the appliance is locked. If you touch the + or - button while the appliance is locked, the appliance does not respond.

2 To deactivate the travel lock, press and hold the on/off button for 5 seconds.

The appliance turns on.
The segments of the time indicator bar flash twice to confirm that the appliance is unlocked.
The + and - buttons are active again.

Note: The travel lock is deactivated automatically when you connect the appliance to an electrical outlet.

Cleaning

Never immerse the appliance in water or any other liquid, nor rinse it under the tap.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

1 Clean the appliance with a dry cloth. (Fig. 13).

ENGLISH16

This appliance has no other user-serviceable parts. For assistance call 1-866-832-4361.

Storage

• If the appliance will not be used for an extended period of time, remove cord from outlet and store in a safe, dry location where it will not be crushed, banged, or subject to damage.
• Do not wrap cord around the appliance when storing.

Disposal

• Dispose of the device in accordance with local regulations.
• This Philips goLITE BLU appliance contains a Lithium-Ion battery which must be disposed of properly (Fig. 14).
• Your local or national recycling organizations may also have disposal information.
• For assistance call 1-866-832-4361.

Battery Removal

▶Battery should only be removed when appliance is to be discarded.
For assistance, visit our website, www.philips.com/support or call toll free 1-866-832-4361.

Removing the rechargeable battery

Only remove the rechargeable battery when you discard the appliance. Make sure the battery is completely empty when you remove it.

1 Disconnect the appliance from the outlet and remove the power cord.
2 Turn on the LED panel and leave it on until it goes out automatically.
3 To open the housing at the battery location, place the tip of a flat-head screwdriver on the break line. The break line is indicated on the back of the housing. Hit the top of the screwdriver handle

with a hammer until the screwdriver penetrates. Repeat this in several spots along the break line (Fig. 15).

4 Continue with the final part of the break line which is located between the rubber feet and housing (Fig. 16). If all segments of break line are loose you can open the housing with the tip of the screwdriver. The battery will be visible.
5 Remove the rechargeable battery from the housing with the tip of the screwdriver (Fig. 17).
6 Do not attempt to replace battery. Insulate battery ends by covering with tape and/or place battery in a small plastic bag.
7 Discard appliance. Do not attempt to plug electrical cord into the outlet or recharge appliance after battery has been removed.
8 Contact your local town or city officials for battery disposal information or call 1-800-8-BATTERY or www.rbrc.com for battery drop-off locations.

Assistance

For assistance call toll free: 1-866-832-4361 or visit our website: www.philips.com/support

45-Day Money-Back Guarantee

If you are not fully satisfied with your Philips goLITE BLU, send the product back and we'll refund you the full purchase price.

The goLITE BLU must be shipped prepaid by insured mail, insurance prepaid, have the original sales receipt, indicating purchase price and date of purchase, and the money-back guarantee return authorization form enclosed. We cannot be responsible for lost mail. The goLITE BLU must be postmarked no later than 45 days after the date of purchase. Philips reserves the right to verify the purchase price of the goLITE BLU and limit refunds not to exceed suggested retail price.

To obtain Money-Back Guarantee Return Authorization Form, call 1-866-832-4361. Delivery of refund check will occur 6-8 weeks AFTER receipt of returned product.

ENGLISH18

Full Two-Year Warranty

Philips Electronics North America Corporation (USA) and Philips Electronics Ltd (CANADA) warrant each new Philips product, model HF3429 against defects in materials or workmanship for a period of two years from the date of purchase, and agree to repair or replace any defective product without charge. IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, or the affixing of any attachment not provided with the product. NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. In order to obtain warranty service, simply call toll-free 1-866-832-4361.

In US Manufactured for: Philips Consumer Lifestyle, A Division of Philips Electronics North America Corporation, P.O. Box 10313, Stamford, CT 06904

In Canada Imported for: Philips Electronics LTD, 281 Hillmount Road, Markham, Ontario L6C 2S3

Trademarks owned by the Philips Group. © 2014 Koninklijke Philips N.V. All Rights Reserved.

Frequently asked questions

This section lists the questions most frequently asked about the appliance. If you cannot find the answer to your question, call 1-866-832-4361 for assistance.

Question Answer

I have heard that blue light can be dangerous. Can this appliance damage my eyes?

Philips goLITE BLU complies with the photobiological safety standard IEC62471. According to this standard, the appliance represents no risk to healthy eyes and can be safely used.

Can I get sunburn from using this appliance?

No, sunburn is caused by UV light. The light produced by this appliance does not contain UV.

Is the goLITE BLU safe to use around children and pets?

The light is safe to be used around children and pets. However, do not let children play with the appliance.

Can I use the goLITE BLU when I am pregnant?

Yes, there are no known side effects from using the goLITE BLU during pregnancy.

Do I have to take off my glasses when I use the appliance?

No, you can use the appliance with your glasses on. Do not wear tinted glasses or sunglasses when you use the appliance, as these glasses reduce its effectiveness.

How often do I have to use the goLITE BLU?

Use the goLITE BLU every day at the right time to achieve the result you want. For more information on the duration of a session, read chapter 'Using the goLITE BLU'. Except when you try to adjust your sleep time, we advise you to use the goLITE BLU at the same time every day. It is usually sufficient to use it 20 to 30 minutes a day. It is absolutely safe to use it longer, if you want to.

ENGLISH20

Question Answer

When do I start to notice improvement from using the goLITE BLU?

You may start to feel the energizing effect any time between first use and 1 to 2 weeks of daily use.

Is it harmful to sit in front of a switched-on goLITE BLU for a long time?

No, the goLITE BLU is absolutely safe, also when you use it throughout the day. However, avoid using the light in the last 4 hours before you go to bed, as the energizing effect of the light may interfere with your sleep.

Can the lamp of the goLITE BLU be replaced?

No, the goLITE BLU has a durable LED lamp that lasts many years.

Can I replace the rechargeable battery?

No, the battery is not replaceable. If the battery capacity decreases, you can continue to use the appliance on electrical power.

The goLITE BLU appears to be locked because I cannot turn it on. What should I do?

The travel lock is active. Press and hold the on/off button for 5 seconds until the appliance turns on. You can also plug in the appliance. This automatically unlocks it.

Specifications

Model HF3429

Electrical

Rated input voltage adapter 100-240Vac

Rated input frequency adapter 50/60 Hz

No-load power adapter <0.1W

Rated output voltage adapter 9 Vdc

Rated output power adapter 10W

Standby power appliance <0.25W

Classifications

• Portable Electric Luminaires UL153, UL8750 and CSA 22.2 no.12
• Adapter Class 2 power supply
• Ingress of an object and water IP51(main unit only)
• Mode of operation Continuous

Rechargeable battery type

1-cell lithium-ion nominal 3.6V, 2250mAh

IEC 62133 and UL 1642 compliant

Operating conditions

Temperature from +5°C to +35°C (41°F to 95°F)

Relative humidity from 15% to 90% (no condensation)

Storage conditions

Temperature from -20^ to +50^ ( -4^ to +122^ )

Relative humidity from 15% to 90% (no condensation)

ENGLISH22

Physical characteristics

Dimensions 14.3 × 14.3 × 3.5 cm (5.6 × 5.6 × 1.4 in.)

Weight 0.4kg (14 oz.)

Peak wavelength 475-480 nm

Half-peak bandwidth 20nm

Nominal output (100% intensity)

200 lux at 50cm (200 lux at 19.7 in.)

Symbol key

The following symbols may appear on the appliance:

Symbol Description

Consult the user manual supplied

DC power

DC jack polarity

IP51

Degree of protection against liquid and particles.

Symbol Description

HF3429 Model number
	UL listing mark for Canada and the United States
	Philips Shield
	In China manufactured for: Philips Consumer Lifestyle, A Division of Philips Electronics North America Corporation,1600 Summer Street – 5th Floor, Stamford, CT 06905-5125. In Canada imported for: Philips Electronics LTD, 281 Hillmount Road, Markham, Ontario L6C 2S3
	Date code and serial number of this appliance
	on/off button
	decreasing light intensity button
	increasing light intensity button
	locking and unlocking the travel lock

24 FRANÇAIS (CANADA)

IMPORTANTES CONSIGNES DE SÉCURITÉ

Type de pile rechargeable

Lithium-ion, 1 cellule nominale 3,6 V, 2250 mAh
