USER MANUAL HouseParty SmartDock GEAR4

HouseParty® SmartDock®

User Manual

Thank you for buying the HouseParty SmartDock, Smart home stereo speaker for iPod and iPhone. Please read over this manual before use and retain it for future reference.

Declaration of Conformity

Product Name: GEAR4 HouseParty SmartDock

Model: PG476

Distributor: Disruptive Limited

Address: Windsor House, Turnpike Road, High Wycombe, Bucks, HP12 3NR, United Kingdom.

Declare that the product described below is in conformity with the relevant provisions of the following directives and National Laws and Regulations adopting these directives.

The Low Voltage Directive 2006/95/EC

The EMC Directive 2004/108/EEC

The product has been tested and assessed by application of the following standards or specifications. Together with all relevant National Technical Standards and Specifications as applicable.

Standard Year Description

EN 55013: 2001+A1+A2 Sound and television broadcast receivers and associated equipment

EN 55020: 2007 Sound and television broadcast receivers and associated equipment

EN 60065: 2007+A1 Audio, video and similar-safety requirements

Issued in:

High Wycombe, Bucks, United Kingdom

Date: 26/07/10

Authorised Representative: Carl Walastyan Signature:

Position: Commercial Director

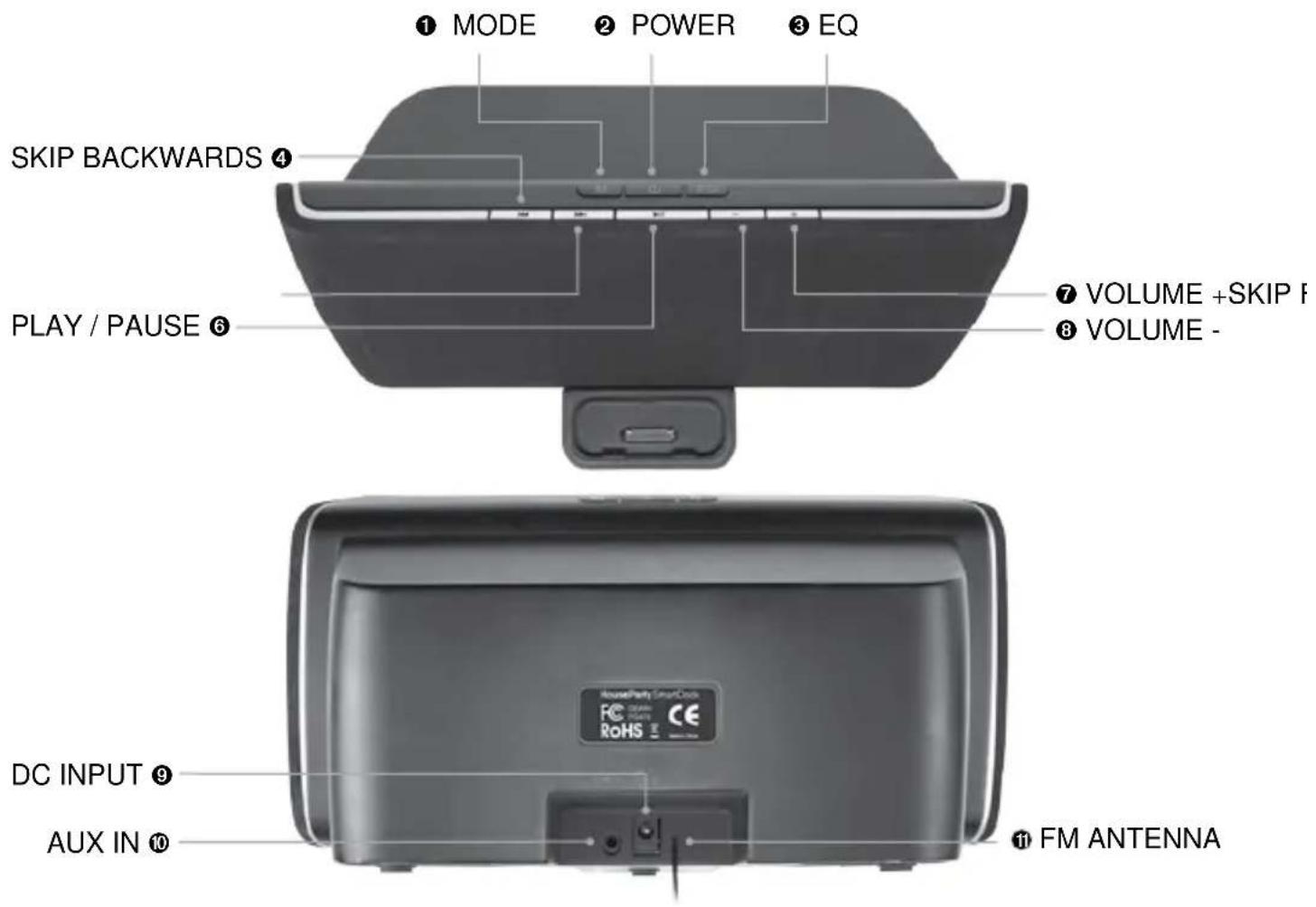

HouseParty SmartDock controls:

Made for

iPod

iPhone

Made for iPod touch (1st, 2nd, and 3rd generation),

iPod classic, iPod with video, iPod nano (1st, 2nd, 3rd, 4th, and 5th generation) and iPod mini.

Made for iPhone 3GS, iPhone 3G and iPhone.

Box contents:

HouseParty SmartDock

User manual

Power supply (UK & EU)

Alimentation (GB & EU)

Netzteil (GB & EU)

Remote control

Télécommande

Fernbedienung

4 dock adapters for iPod / iPhone

FM radio
Charges iPod / iPhone
Line-in port for use with other music players
6 EQ settings
SmartDock compatible

SMART FEATURES:

Make your speaker do more with SmartDock, a free download from the App Store:

View FM station names and track info*
Turn your speaker into an alarm clock
Built-in music player

• Where RDS broadcast is available.

N.B. Smart features require GEAR4 SmartDock app for iPhone 3GS, iPhone 3G or iPod touch (2nd, and 3rd generation) with iOS 3.1.3, iOS 4.0 or higher. Available FREE on the App Store.

Getting started:

Plug the power cable into the back of the unit and then into the mains supply.
Press the POWER button on the speaker or the remote control.

For use with iPod / iPhone:

• Select and insert the correct docking adapter to suit your iPod / iPhone.

N.B. Please ensure that you use the correct dock adapter for your iPod / iPhone to avoid damage to the dock connector. If the specific adapter is not included, please use the adapter that was provided by Apple with your iPod / iPhone. GEAR4 will not be responsible for any damage resulting in not using a dock adapter.
- Carefully insert your iPod / iPhone into the dock, it will start charging upon connection and automatically select iPod mode.
- When connecting your iPhone or iPod touch to HouseParty SmartDock for the first time, your device will display a notification that the accessory requires an application that is not installed. Tap OK to go to the App Store, download page and tap the Install button. The SmartDock application is free of charge.
Use the remote control to navigate the iPod / iPhone menus.

For use as an FM radio:

Press MODE on the remote control or the M button on the speaker to select FM mode.

Press and hold the button for 1 second on the remote or the speaker to autoscan to the next clearest frequency.
Press theor button to manually scan through frequencies.

For use with other music players:

Press MODE on the remote control or the M button on the speaker to select AUX mode.
Plug one end of the 3.5mm audio cable (not included) into your MP3 or MP4 player and connect the other end into the AUX line-in port at the back of the speaker.
Use your device to control the music.

N.B. The remote will not control devices connected via 3.5mm cable.

EQ settings:

Press EQ on the remote control or the speaker to scroll through the equaliser settings - ROCK, POP, BASS, CLASSICAL, JAZZ, ACOUSTICAL, CUSTOM EQ, OFF.
The default EQ mode is OFF. The speaker will revert to this when powered on and off.
The speaker will use the last used EQ setting when switched on from standby.

To display the time:

The HouseParty SmartDock can automatically update its time settings when you dock your iPod / iPhone.
To display the time while the speaker is in standby, press the CLOCK button on the remote or the button on the speaker while in standby. The clock will now always display when the speaker enters standby. Press again to turn the clock off.
To check the time when the speaker is on, press the clock button on the remote.

To download some of the finest new music around for FREE, visit:

www.gear4.com/newmusic

Please ensure that your iPod / iPhone is using the latest software version. To update the software, connect your iPod / iPhone to iTunes. If there is a newer software version available you will be prompted to upgrade.

Copyright © 2010 Disruptive Limited. All rights reserved. Reproduction in part or in whole is prohibited. GEAR4, SmartDock and HouseParty are registered trade marks of Disruptive Limited. iPhone, iPod, iPod nano, iPod classic and iPod touch are trade marks of Apple Inc., registered in the U.S. and other countries.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone respectively and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

WARNING

To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.

CAuTlO N

Use of controls or adjustments of performance or procedures other than those specified may result in hazardous radiation exposure.

UNPACKING AND INSTALLATION

Unpack your unit carefully. We recommend that you save the packaging in case you ever need to store your unit. To avoid damage, never place the unit or its batteries near radiators, in front of heating vents, under direct sunlight or near water.

foR YouR SAfeTY

• When disconnecting the power cables, pull the plugs first. Do not pull the cords by themselves.

• Never handle the power plug with wet hands, as this could cause fire or electric shock.

• Refer servicing to qualified personnel only.

• Do not open the housing.
• Do not twist or pinch the power supply cords. If the plugs or power supply cords need to be replaced, ensure that they comply with the manufacturer's recommendation.
• Unplug the unit during lightning storms and when unused for extended periods of time.

DISPoSAL

According to the European Directive 2002/96/ EC all electrical and electronic products must be collected separately by a local collection system. Please act according to your local rules and do not dispose of your old products with your normal household waste.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert user to the

presence of uninsulated 'Dangerous Voltage' within the product's enclosure that may be of sufficient magnitude to constitute risk of electric shock to person.

The exclamation point within an equilateral triangle is intended to alert user to the presence of

important operating and maintenance (servicing) instruction in the literature accompanying the appliance.

fCC RuLeS

You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

Operation is subject to the following two conditions:

1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause undesired operation of the device.

Commandes de HouseParty SmartDock :

MODE
MARCHE / ARRET
EQ
RETOUR RAPIDE
⑤ AVANCE RAPIDE
LECTURE/PAUSE
VOLUME +
VOLUME -
ENTREE CC
10 PRISE D'ENTREE POUR AUTRES LECTEURS
1 ANTENNE FM

RISQUE D'LECTROCUTION - NE PAS OUVRIR.

ATTENTION : POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE PAS RETIRER LE COUVERCLE NI LE FOND. CET APPAREIL NE CONTIENT AUCUNE PIECE REPARABLE PAR L'UTILISATEUR. CONSULTER LE PERSONNEL QUALIFIÉ POUR TOUTE RÉPARATION.

RéGLeS De LA fCC

HouseParty SmartDock

Controles de HouseParty SmartDock:

1 MODO (MODE)
ENCENDIDO / APAGADO
ECUALIZADOR
SALTAR HACIA ATRÁS
SALTAR HACIA DELANTE
⑥ REPRODUCIR / PAUSA
VOLUMEN +
VOLUMEN
ENTRADA DE CC
LINEA DE ENTRADA (PARA OTROS REPRODUCTORES DE MUSICA)
ANTENA DE FM

Bediening HouseParty SmartDock:

MODE (STAND)
AAN/UIT
EQ
4 ACHTERUIT
⑤ VOORUIT
AFSPELEN/PAUZEREN
VOLUME +
VOLUME -
GELIJKSTROOMINVOER
LINE IN (VOOR ANDERE MUZIEKSPELERS)
FM-ANTENNE

Productkenmerken:

www.gear4.com/newmusic

UPPACKING OCH INSTALLATION

AF HENSYN TIL DIN SIKKERHED

GEAR4 One-Year Warranty

Disruptive Limited, who owns the GEAR4 brand, warrants this product to be free from defects in workmanship and materials at the point of sale and that when this product is used in accordance with the instructions for its use it shall continue to be free from defects, for a period of one (1) year from the date of original purchase.

Any damage or defects caused by a failure to follow the instructions which relate to this product or as the result of an accident, abuse, misuse, misapplication, product modification, faulty ancillary equipment, improper voltage or current, lightning or other acts of God, commercial non-home use, normal wear and tear, shipping damage or loss, damage to digital media players or damage caused by service performed by anyone other than Disruptive Limited are expressly excluded from the warranty stated above.

Disruptive Limited will, at its sole election, repair or replace any product that proves to be defective in either or both of workmanship or materials and which is covered by this warranty. If the product is no longer current or is out of stock, at its sole election, Disruptive Limited may replace your product with a similar product. Disruptive Limited's liability is limited to the repair or replacement, of any defective product under warranty and any incidental or consequential damages are expressly excluded to the fullest extent permitted by law. This warranty is not transferable and does not extend to users other than the person who originally purchased the product.

Return Policy / Warranty Service

Warranty claims will only be valid when accompanied with proof of purchase to evidence that the product was purchased from an authorised dealer and that the claim is within allowed period. To make a warranty claim you must first contact Disruptive Limited by email to [e-mail] stating your name, full postal address, telephone number, date and place of purchase and a detailed description of the problem you are experiencing and don't forget to include the name of the product and its serial number.

If the defect is covered by this warranty then you will be provided with a Return to Manufacturer Authorization number and instructions for return shipment. Sending the product back to us under this warranty shall be at your expense, and the return MUST be accompanied by the original proof of purchase whilst we highly recommend that you retain a copy of this. Disruptive Limited shall not responsible for lost or damaged products during shipment. Any product returned without the original proof of purchase will be returned without being examined or tested and such return shall be at the customer's expense.

To avoid any additional charges, all returns and exchanges must include the original packing materials, product box, all included accessories which may include, but not necessarily be limited to, power adapters or power cords, connecting cables, remote controls, adapters, inserts cards and instruction manuals. The absence of any of the aforementioned items may mean that you incur a charge for their replacement. Disruptive Limited shall not be liable for any inconvenience, or loss of time, loss of use of the product.

This warranty gives you specific legal rights in addition to the ones afforded you by the laws of your country and nor is this warranty intended nor does it operate to limit such legal rights.

PRODuCT No: PG476

PoWeR ADAPTeR: ADS-24RD-12 1224G

INPuT:100-240V\~50/60Hz,0.7A max

ouTPuT:12V-2.0A
