USER MANUAL PDM4220 YAMAHA

Thank you very much for purchasing the Yamaha High Definition Plasma Monitor.

Before using your monitor, please carefully read this manual so you will know how to operate the monitor properly. Keep this manual in a safe place. You will find it useful in the future.

Notes on Installation Work:

This product is marketed assuming that it is installed by qualified personnel with enough skill and competence. Always have an installation specialist or your dealer install and set up the product. YAMAHA cannot assume liabilities for damage caused by mistake in installation or mounting, misuse, modification or a natural disaster.

Note for Dealers:

After installation, be sure to deliver this manual to the customer and explain to the customer how to handle the product.

Notes about This Manual

The information in this manual is subject to change without notice.
While meticulous care has been taken in the preparation of this manual, you are requested to notify your dealer or us should you have any comments, views or questions about our product.
- Fully understand the prerequisites to using the product, such as hardware and software specifications and constraints, in using the product. We are not held liable for damages caused by improper handling of the product.
- Reproduction of this manual in whole or in part without our prior written permission is prohibited.
- The product names mentioned in this manual may be trademarks or registered trademarks of their respective owners.

FEATURES

Large-screen, high-definition plasma display panel

The 42-inch colour plasma display panel, with a resolution of 1024 (H) x 1024 (V) pixels, creates a high-definition, large-screen aspect ratio : 16:9 and low-profile flat display. Free from electromagnetic interferences from geomagnetic sources and ambient power lines, the panel produces high-quality display images free from colour misconvergence and display distortion.

High Performance Digital Processor

A wide range of input signals can be handled, including composite, component, and HDMI.

High Definition Digital Processor creates the fine-textured image with dynamic contrast.

In addition, it corresponds to a broad array of personal computer signals, from 640 × 400 , and 640 × 480 VGA to 1600 × 1200 UXGA. (Analog input)

Easy-to-use remote control and on screen display system

The remote control included eases the work of setting display controls. Further, the on-screen display system, displays the status of signal reception and display control settings in an easy-to-view fashion.

The "HD ready" Logo is a trademark of EICTA.

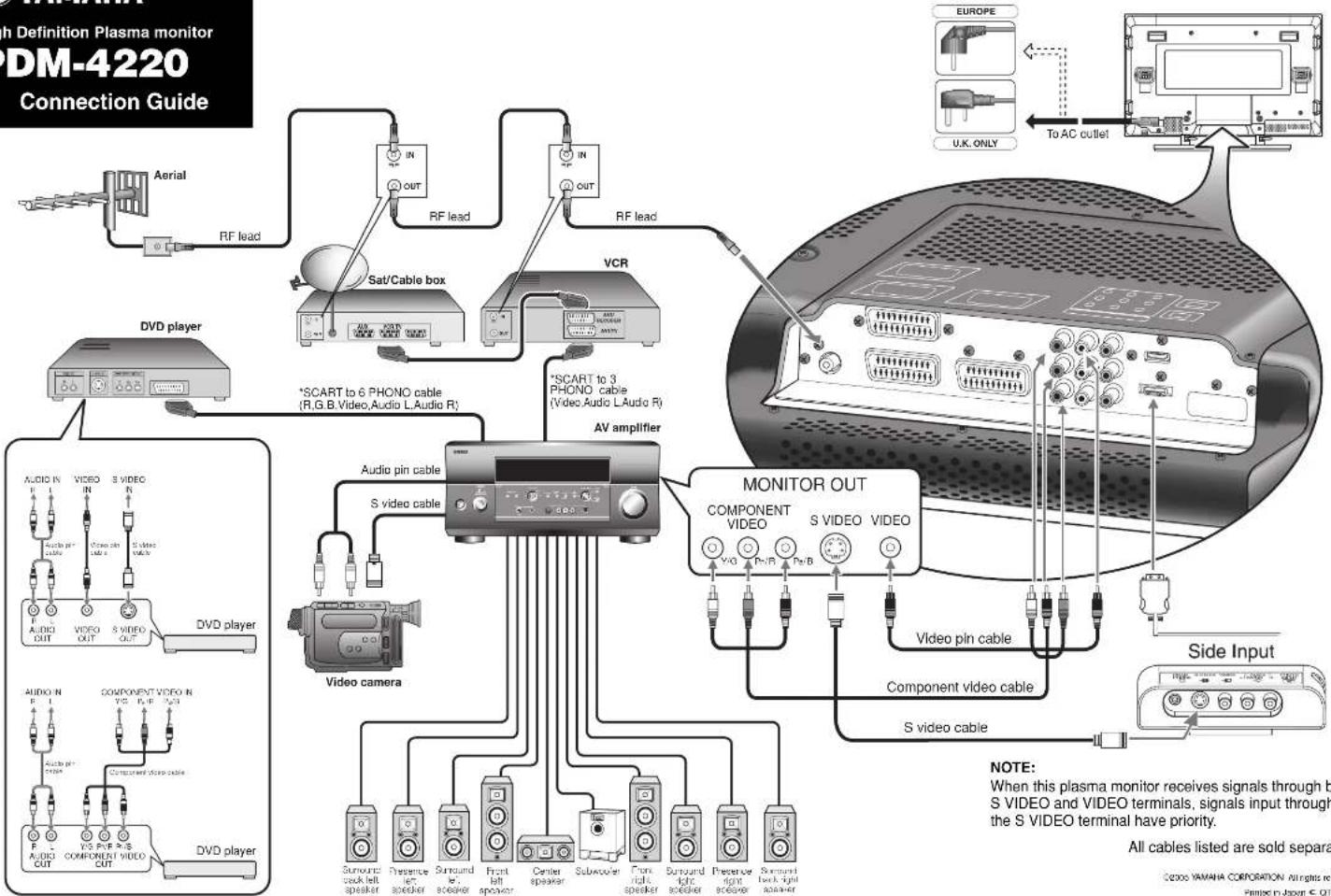

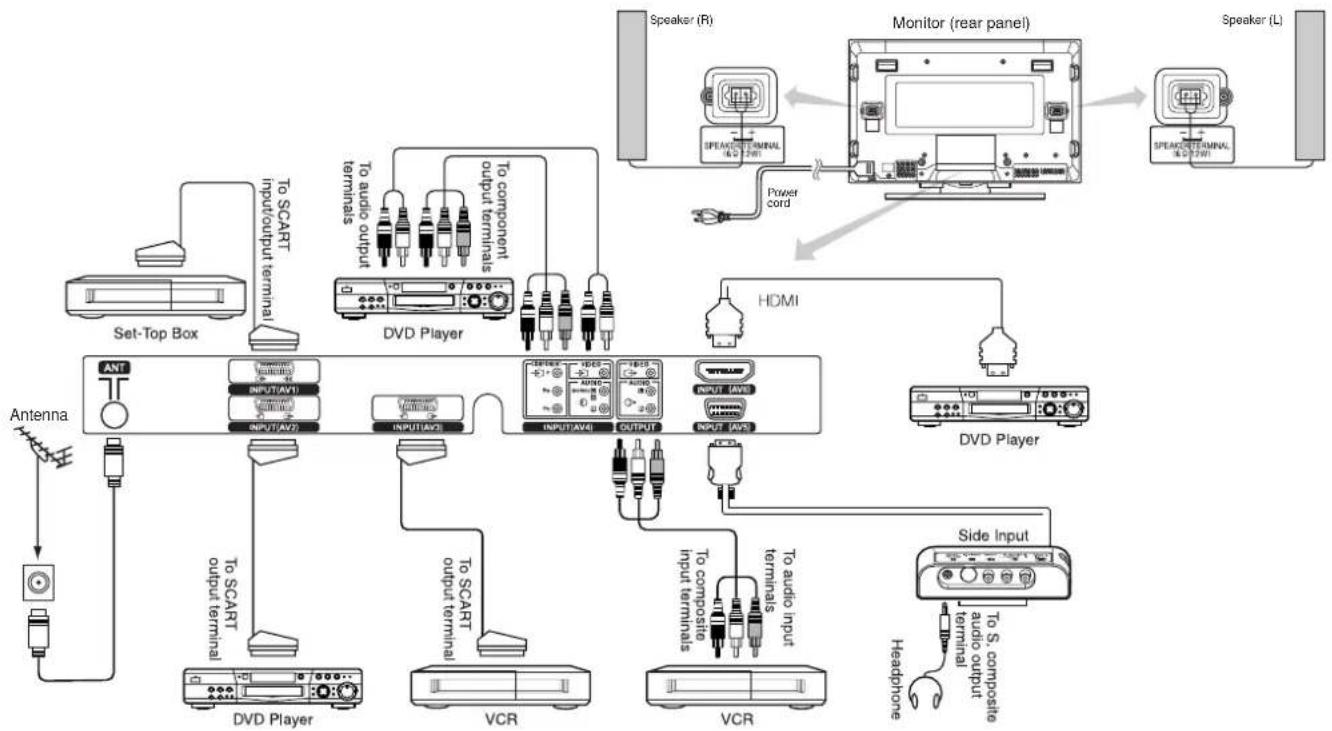

Connecting to an Audio Visual Divice

• Three Scart terminals¹, composite/S terminal², a component terminal³, and a HDMI terminal have been added. A composite video output terminal is also provided as a monitoring output.

AV1 scart applies to composite/ S-video
AV2 and AV3 apply to composite/ RGB
A composite/S terminal = Side Input

With AV4 input, if a composite terminal and a component terminal are used at the same time, the component terminal would govern.

• A wide range of devices can be also connected besides personal computers.

Options

Ask your local retail dealer for further details on the following optional attachments.

• Pedestal (PDS-342)

• Wall mounting unit (PWK-242)
  Woodbezel (4 colours)

• This User's Manual was printed before final product development. After printing, some product specifications may change due to operational upgrades and other reasons. In this case, the specifications of the product itself will take precedence over the specifications in this manual.
  TRADEMARK ACKNOWLEDGEMENT

VGA and XGA are registered trademarks of International Business Machines Corporation.

APPLE and Macintosh are registered trademarks of Apple Computer, Inc.

All brand or product names are trademarks or registered trademarks of their respective holders.

SUPPLIED ACCESSORIES

Remote control (RPD-342)
- Batteries (2) (AA,R06,UM-3)
Power cord
- Side input

CONTENTS

FEATURES 2

SUPPLIED ACCESSORIES 2

CAUTION: READ THIS BEFORE

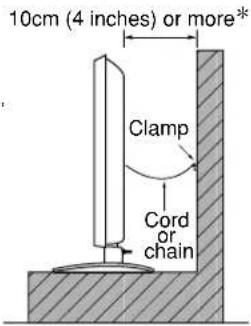

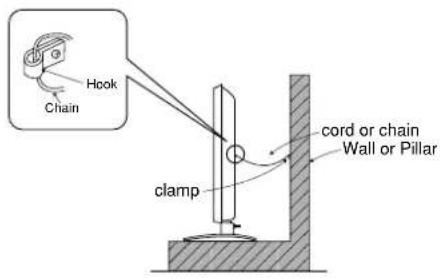

Anti-tumble measures 12

Connecting to an Audio Visual Device 13

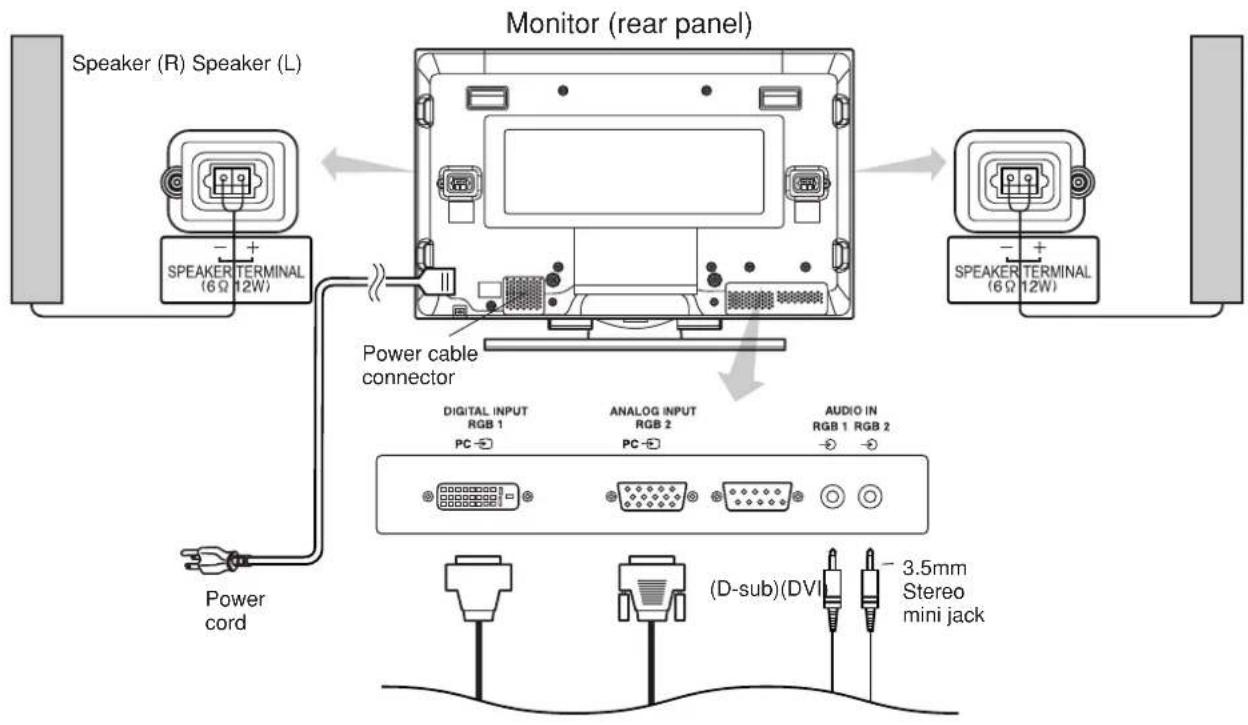

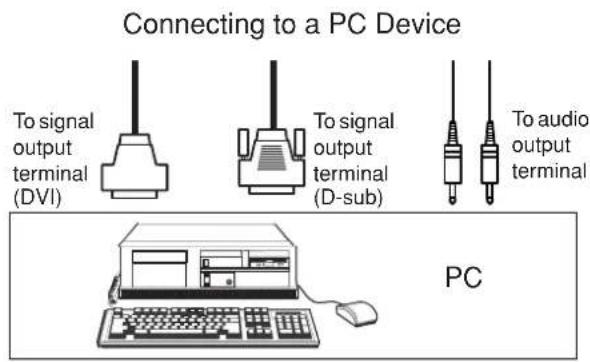

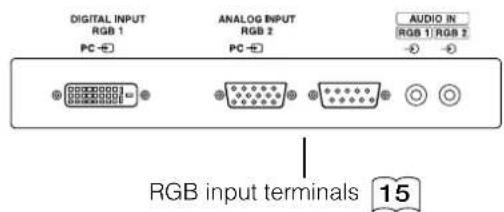

Connecting to a PC 15

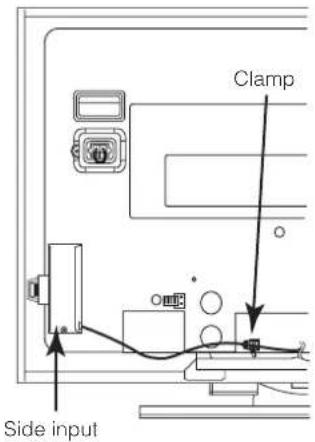

Mounting the Side Input 16

Power Cord Connection 17

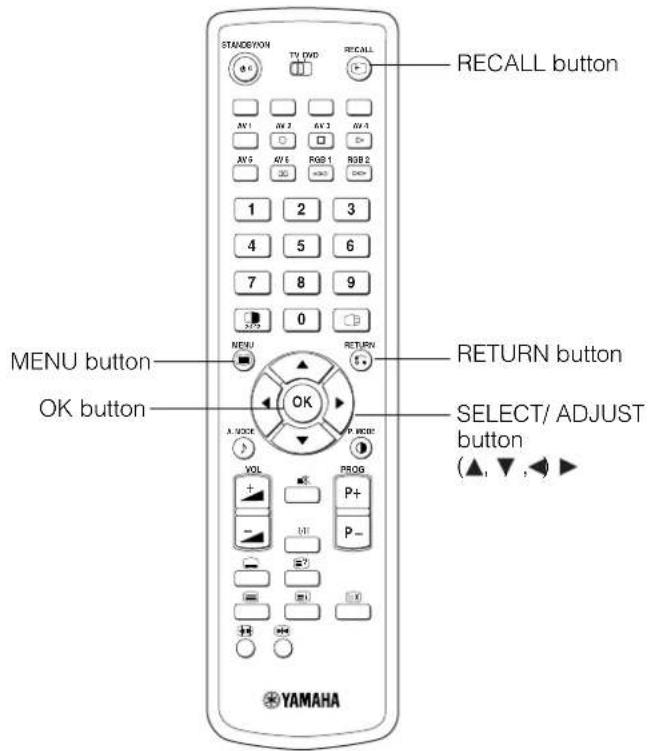

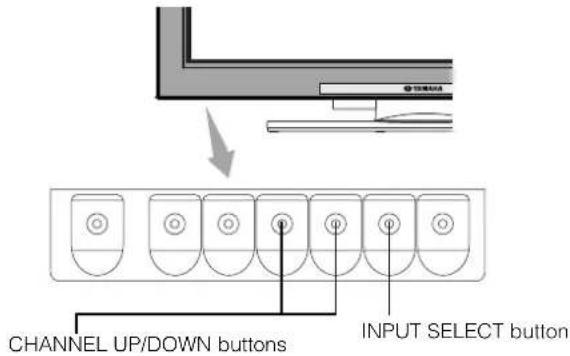

OPERATING INSTRUCTIONS 18

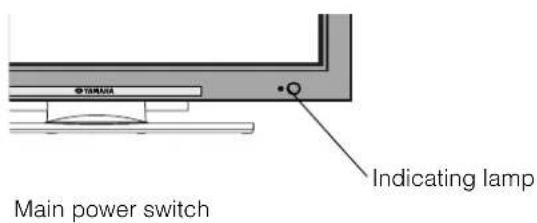

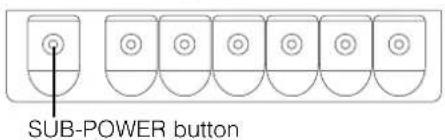

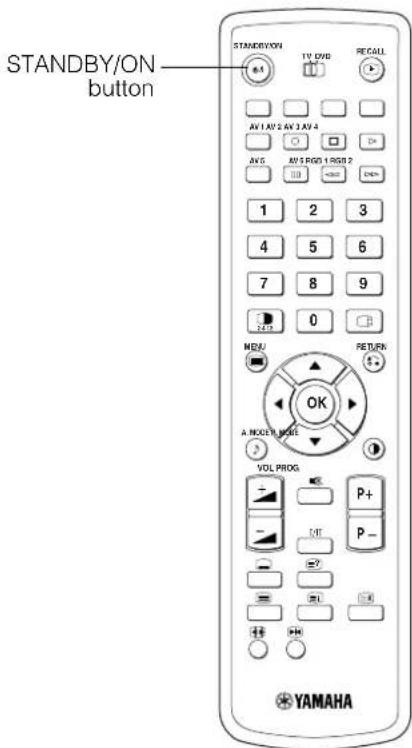

Turning Power On and Off 18

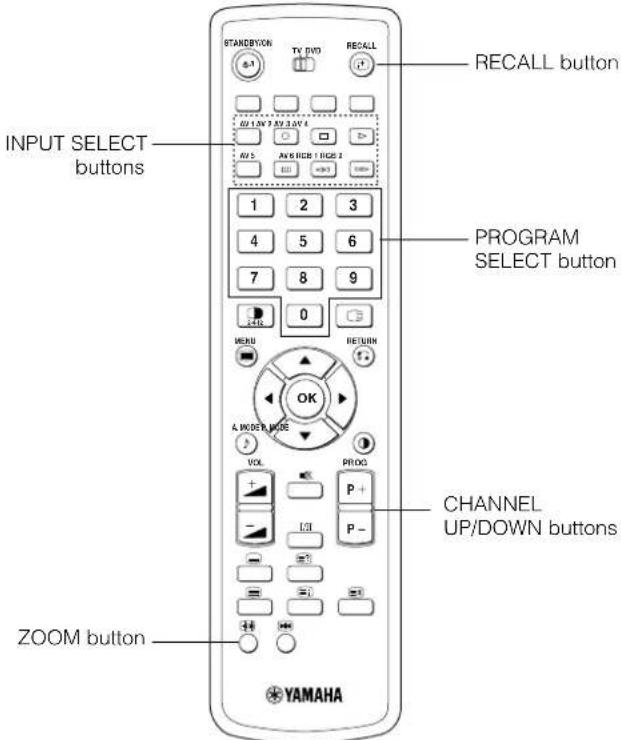

Input Switching 19

Size Switching 19

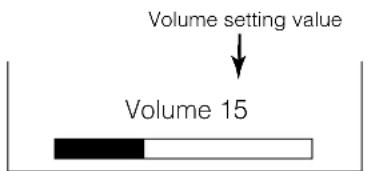

Volume Adjustment 21

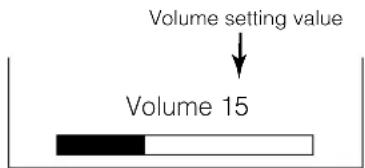

Audio Mute 21

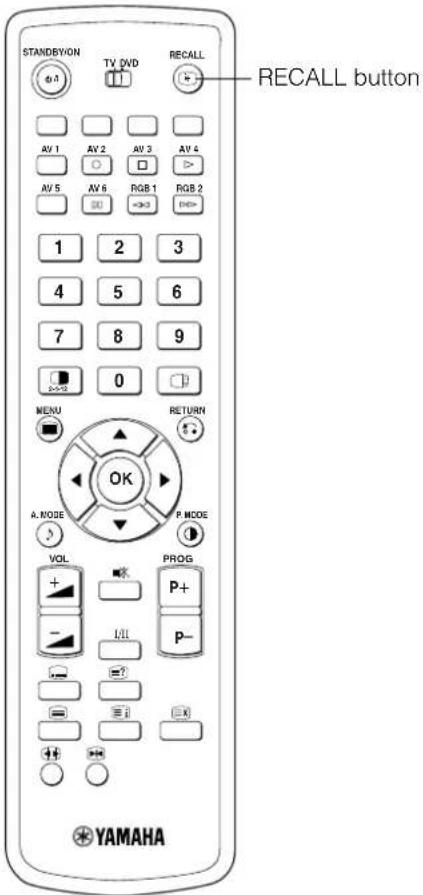

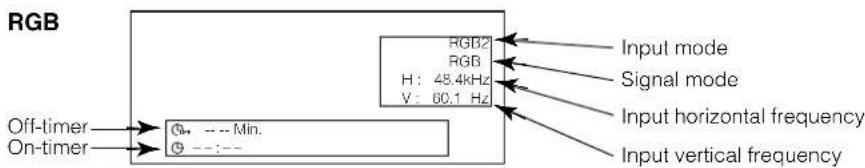

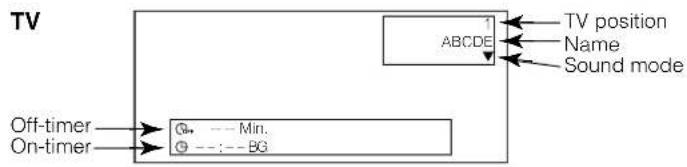

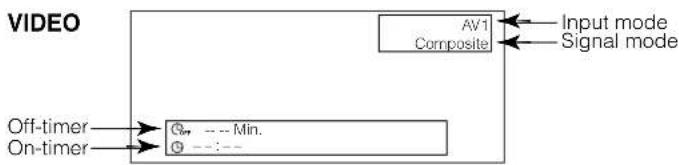

Input Signal Screen Display 22

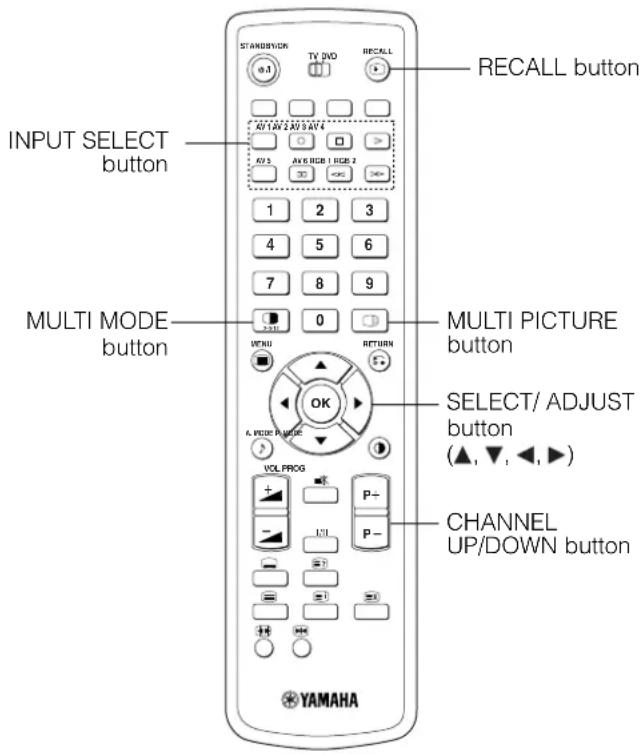

Displaying MULTI PICTURE 23

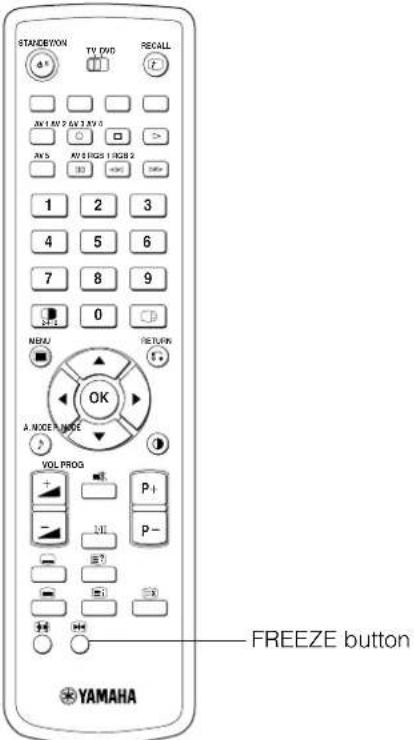

Picture Freezing 25

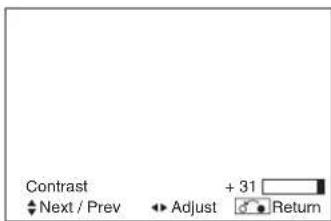

Using the Menu Screen (on-screen display system) 26

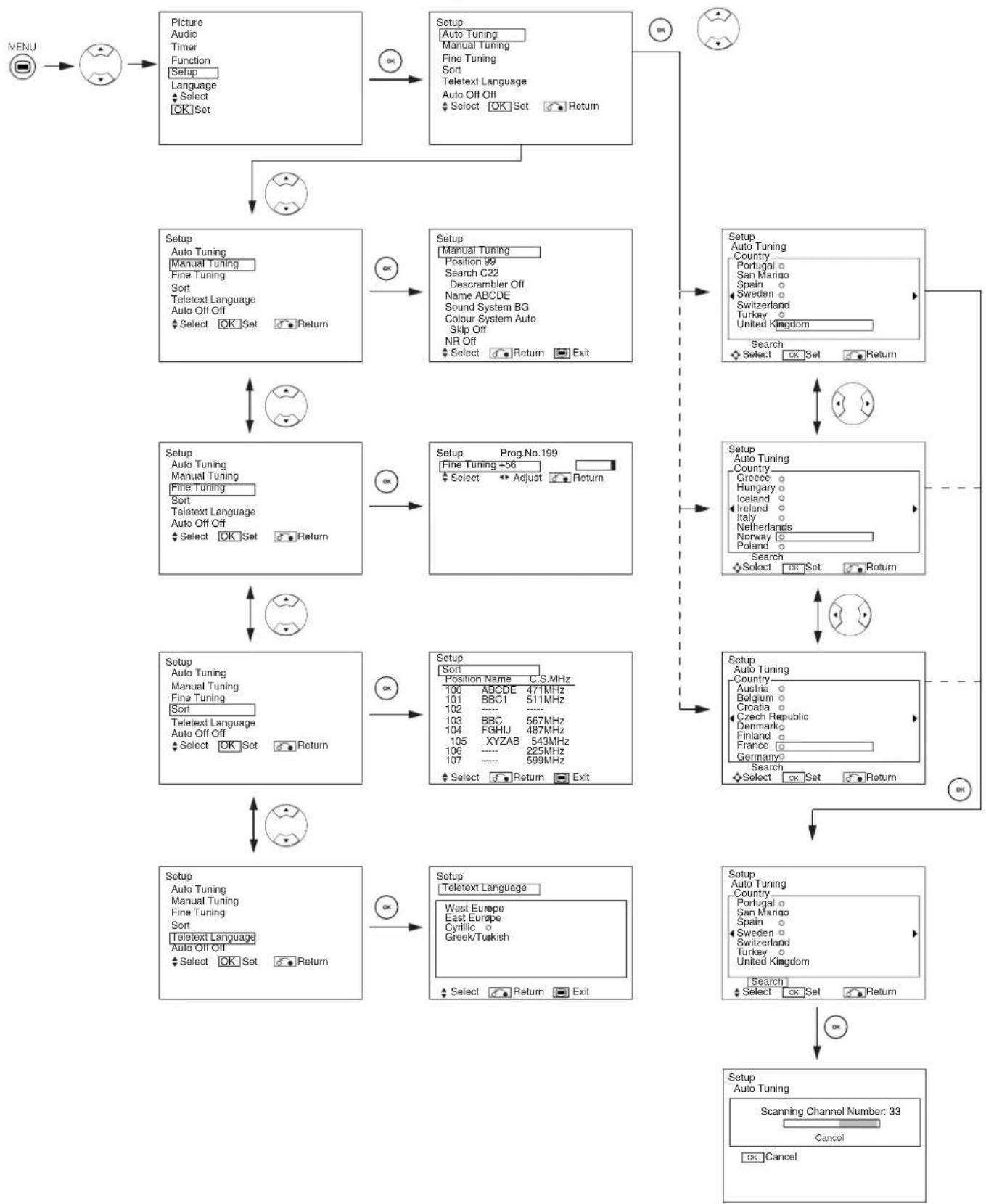

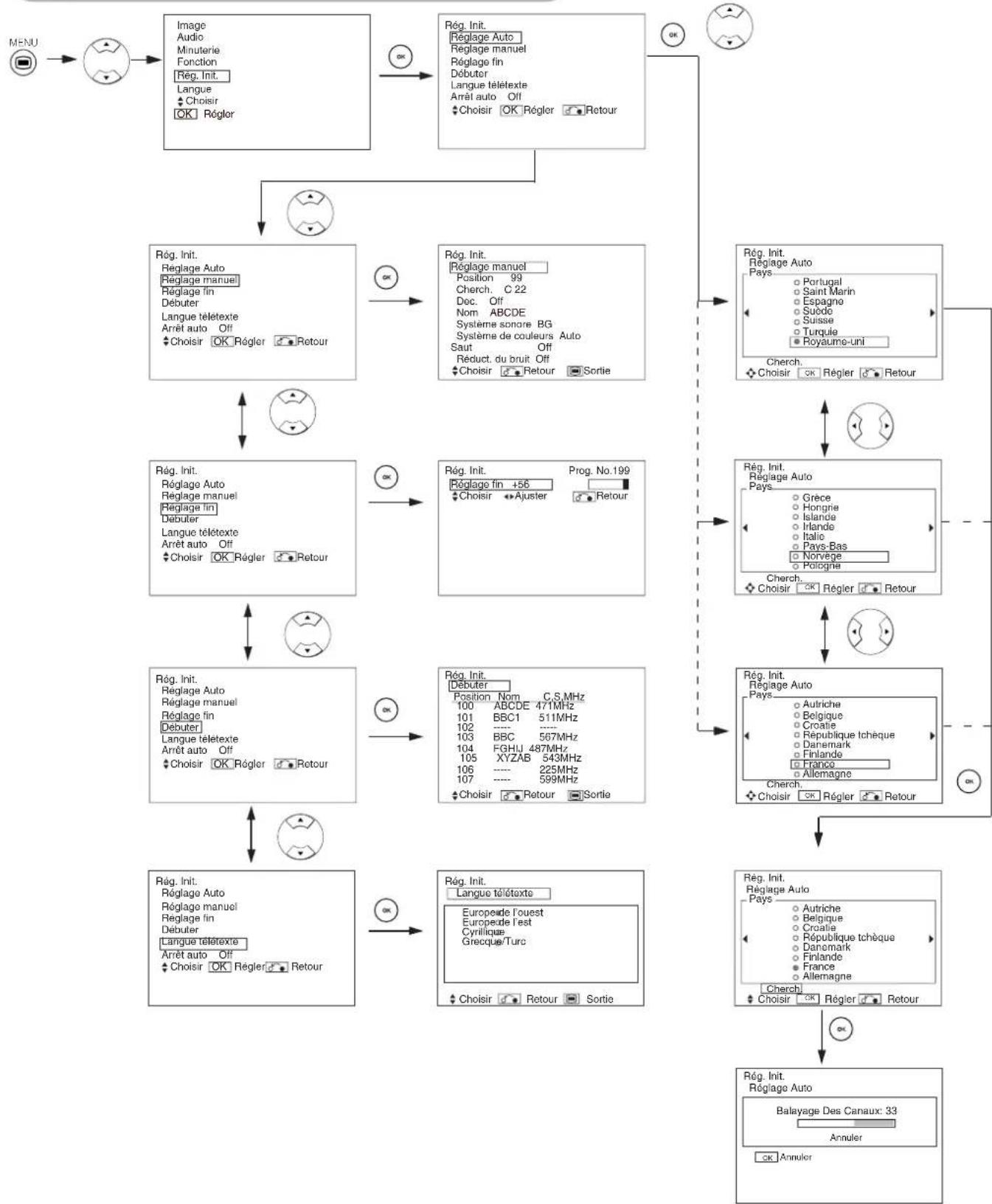

SETUP MENU (TV mode) 27

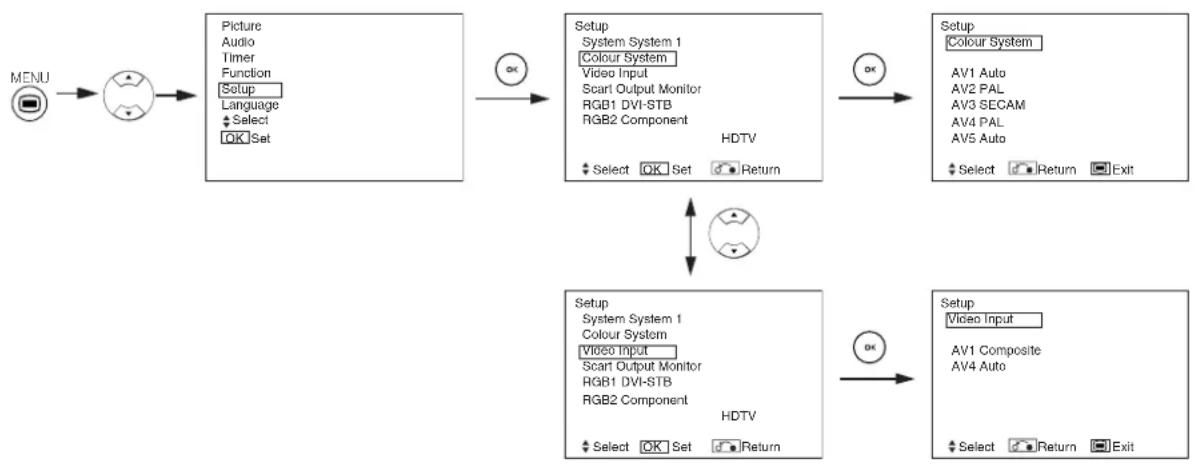

SETUP MENU (Video mode) 29

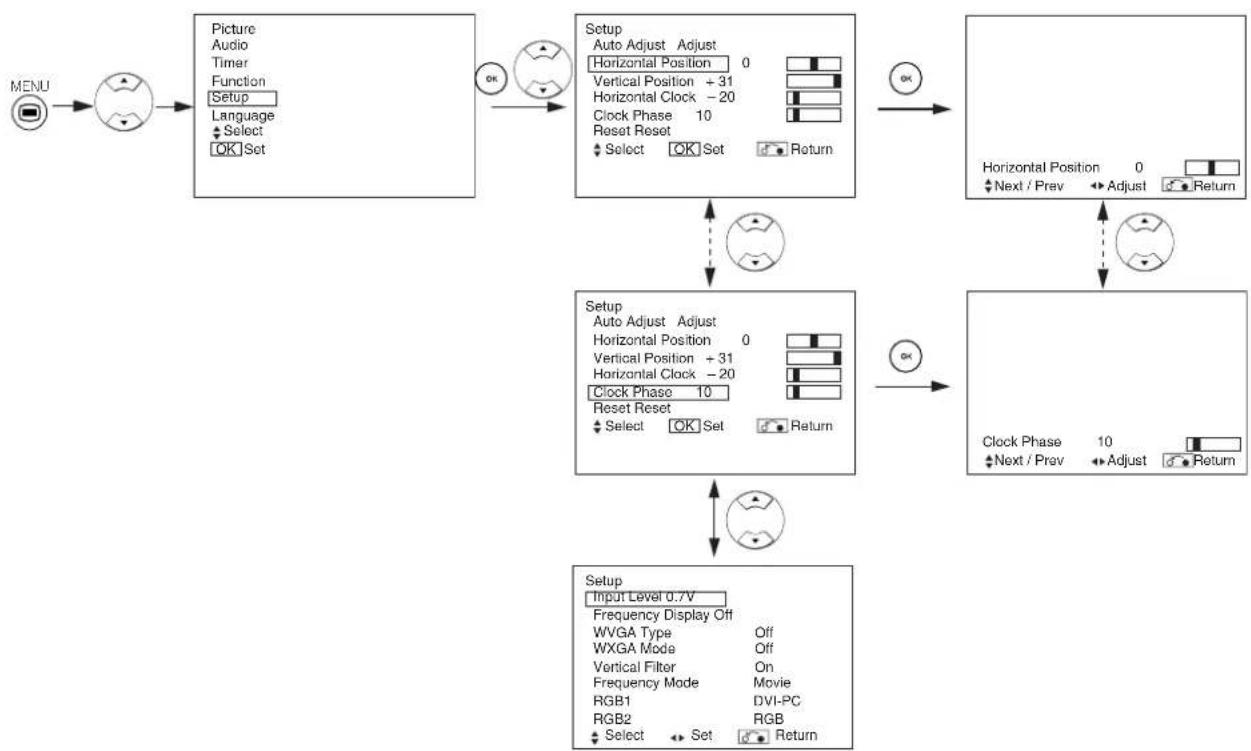

SETUP MENU (RGB mode: RGB1 (DVI-PC), RGB2 (RGB)) 30

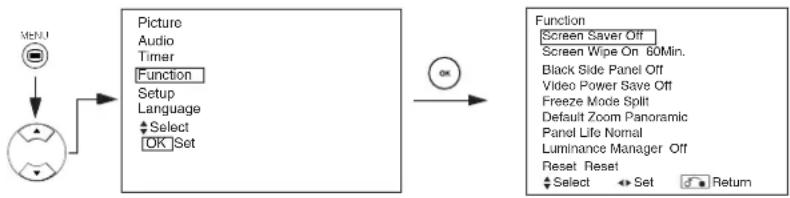

FUNCTION MENU 32

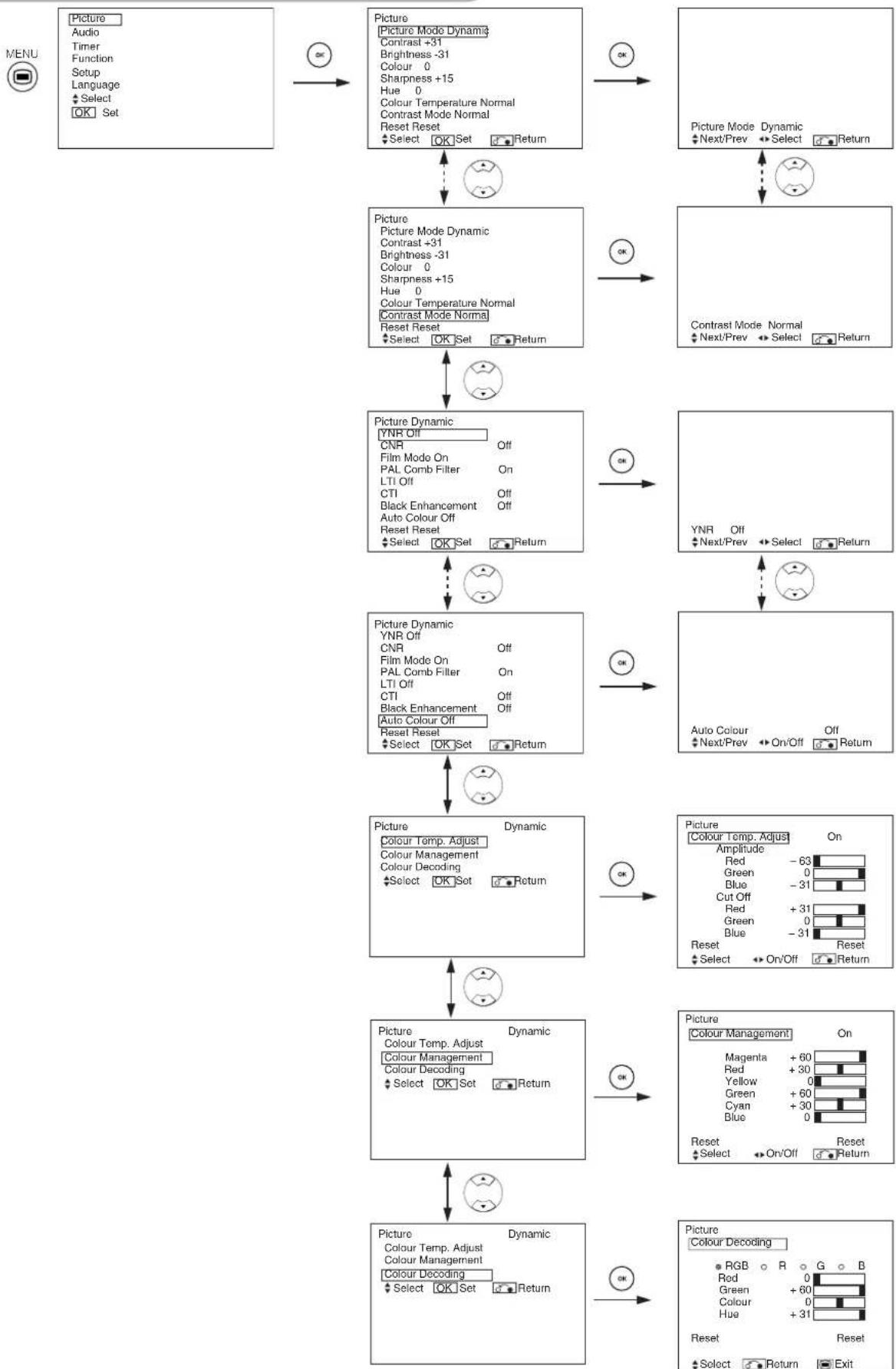

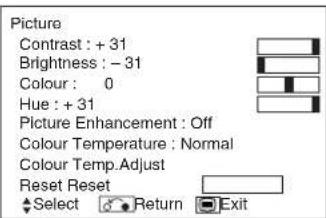

PICTURE MENU (TV/Video mode) 33

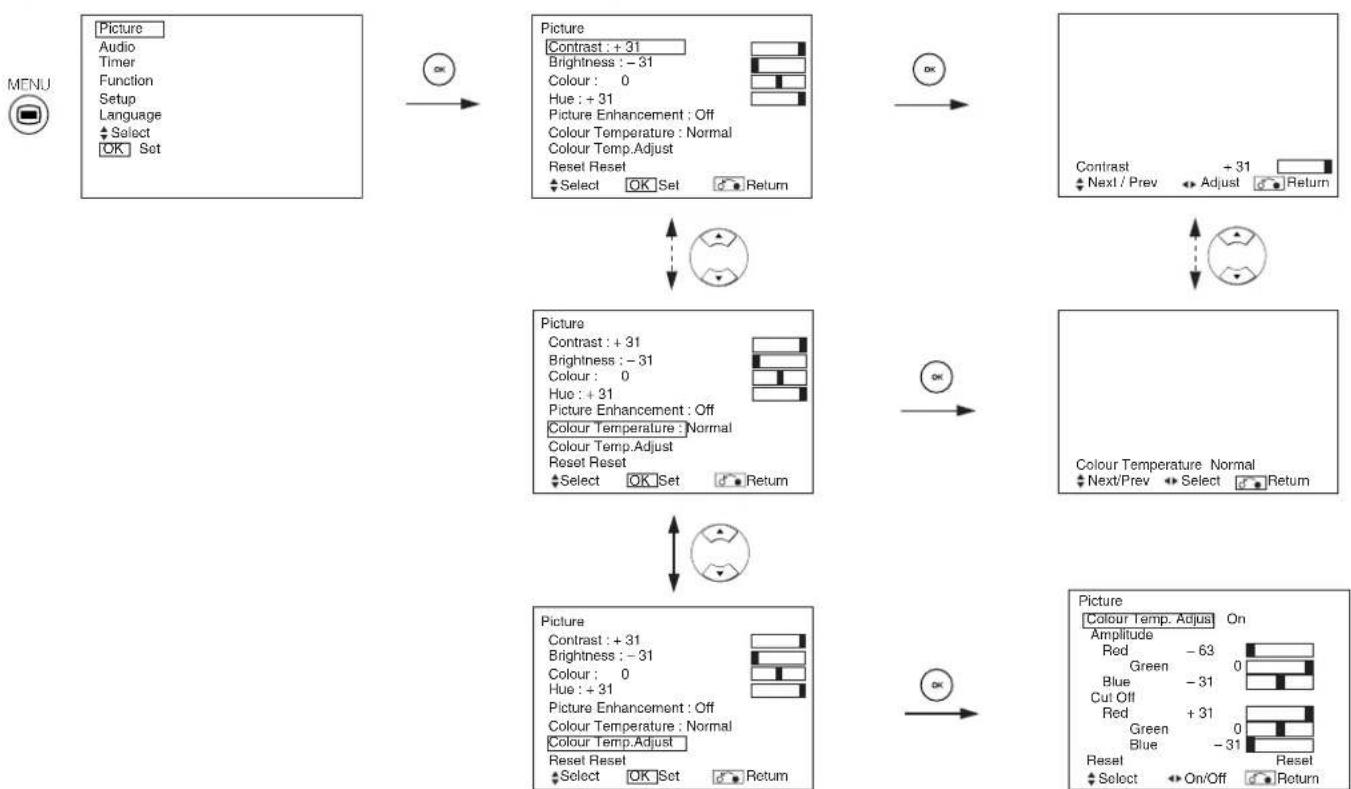

PICTURE MENU (RGB mode) 36

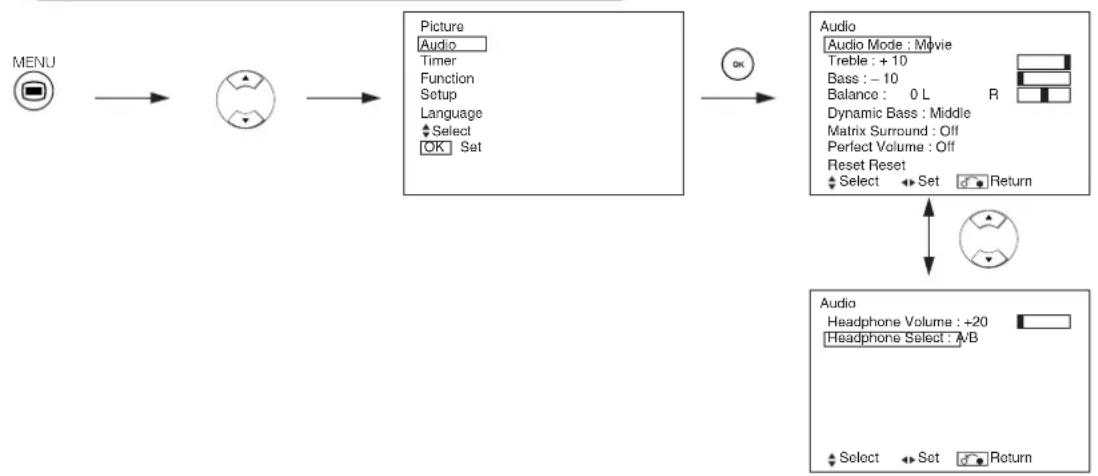

AUDIO MENU 37

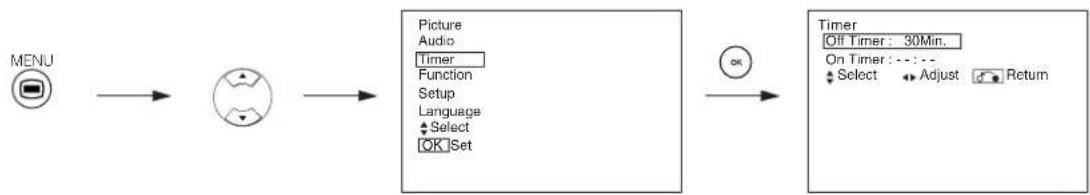

TIMER MENU 38

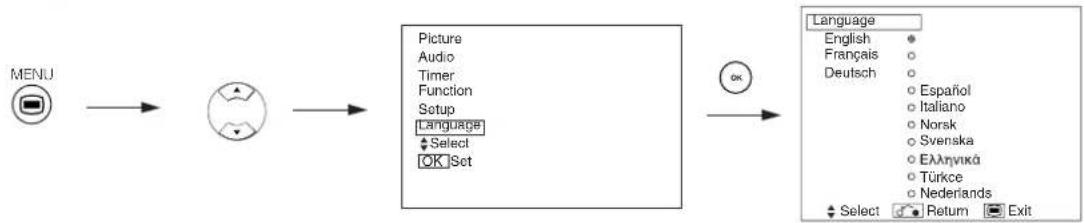

LANGUAGE MENU 38

OTHER FUNCTIONS 39

Automatic Store 39

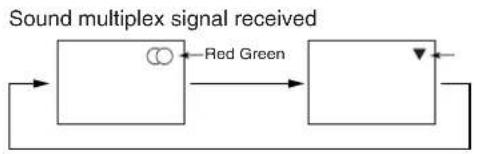

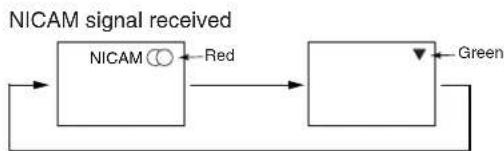

Audio Switching 40

Power Save Mode 41

DVD Player Selection 41

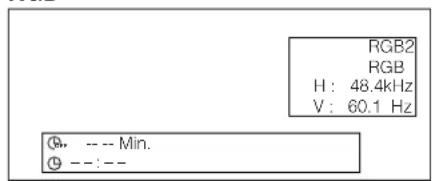

Signal Check (RGB mode) 42

TROUBLESHOOTING 43

Symptoms That Seemingly Appear to be Failures 43

Actions to Correct Abnormal Displays 45

PRODUCT SPECIFICATIONS 46

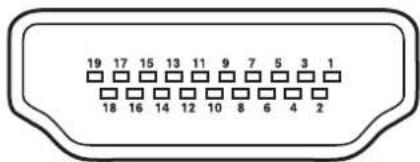

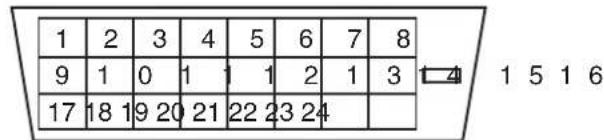

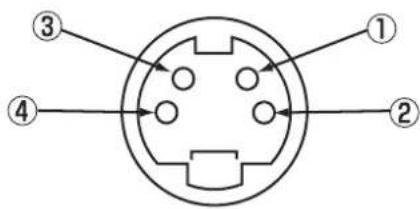

Signal Input 47

Recommended Signal List 48

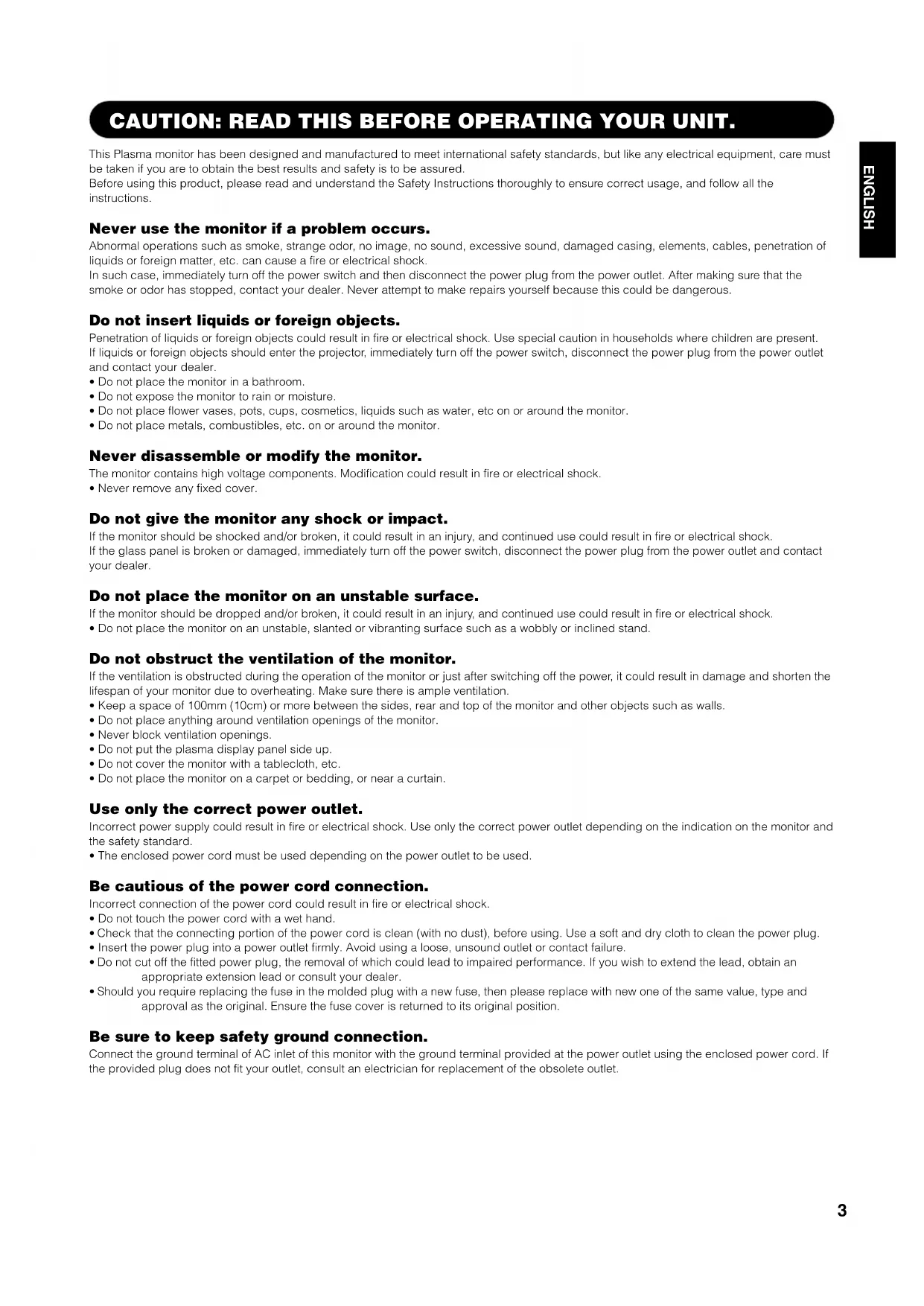

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

This Plasma monitor has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Before using this product, please read and understand the Safely Instructions thoroughly to ensure correct usage, and follow all the instructions.

Never use the monitor if a problem occurs.

Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing, elements, cables, penetration of liquids or foreign matter, etc. can cause a fire or electrical shock.

In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact your dealer. Never attempt to make repairs yourself because this could be dangerous.

Do not insert liquids or foreign objects.

Penetration of liquids or foreign objects could result in fire or electrical shock. Use special caution in households where children are present. If liquids or foreign objects should enter the projector, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

• Do not place the monitor in a bathroom.
• Do not expose the monitor to rain or moisture.
• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc on or around the monitor.
• Do not place metals, combustibles, etc. on or around the monitor.

Never disassemble or modify the monitor.

The monitor contains high voltage components. Modification could result in fire or electrical shock.
- Never remove any fixed cover.

Do not give the monitor any shock or impact.

If the monitor should be shocked and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

If the glass panel is broken or damaged, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

Do not place the monitor on an unstable surface.

If the monitor should be dropped and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.
- Do not place the monitor on an unstable, slanted or vibrating surface such as a wobbly or inclined stand.

Do not obstruct the ventilation of the monitor.

If the ventilation is obstructed during the operation of the monitor or just after switching off the power, it could result in damage and shorten the lifespan of your monitor due to overheating. Make sure there is ample ventilation.

• Keep a space of 100mm (10cm) or more between the sides, rear and top of the monitor and other objects such as walls.
• Do not place anything around ventilation openings of the monitor.
• Never block ventilation openings.
• Do not put the plasma display panel side up.
• Do not cover the monitor with a tablecloth, etc.
• Do not place the monitor on a carpet or bedding, or near a curtain.

Use only the correct power outlet.

Incorrect power supply could result in fire or electrical shock. Use only the correct power outlet depending on the indication on the monitor and the safety standard.

The enclosed power cord must be used depending on the power outlet to be used.

Be cautious of the power cord connection.

Incorrect connection of the power cord could result in fire or electrical shock.

• Do not touch the power cord with a wet hand.
• Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug
• Insert the power plug into a power outlet firmly. Avoid using a loose, unsound outlet or contact failure.
• Do not cut off the fitted power plug, the removal of which could lead to impaired performance. If you wish to extend the lead, obtain an appropriate extension lead or consult your dealer.
• Should you require replacing the fuse in the molded plug with a new fuse, then please replace with new one of the same value, type and approval as the original. Ensure the fuse cover is returned to its original position.

Be sure to keep safety ground connection.

Connect the ground terminal of AC inlet of this monitor with the ground terminal provided at the power outlet using the enclosed power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.

Be careful in handling the power cord and external connection cables.

If you keep using a damaged power cord or cables, it can cause a fire or electrical shock. Do not apply too much heat, pressure or tension to the power cord and cables.

If the power cord or cables are damaged (exposed or broken core wires, etc.), contact your dealer.
- Do not place the monitor or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them because this could result in the inadvertent placing of heavy objects on the concealed power cord or cables.
- Do not pull the power cord and cables. When connecting and disconnecting the power cord or cables, do it with your hand holding the plug or connector.
- Do not place the cord near the heater.
- Do not touch the power plug just after disconnecting it from the power outlet to prevent electric shock.
- Do not touch the power plug when lightening is close to you.
- Avoid coiling the power cord and bending it sharply.
- Protect the power cord from being walked on, pinched particularly at plugs, conveniences receptacles, and the point where they exit from the apparatus.
- Do not modify the power cord.

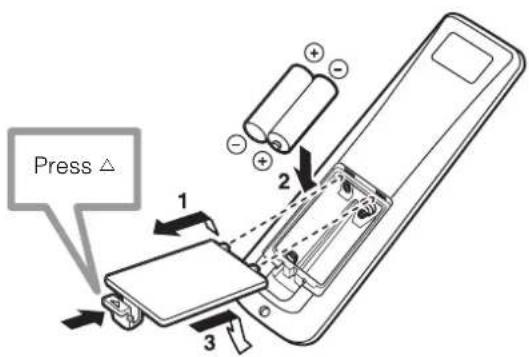

Be careful in handling the battery of the remote control.

Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly.
- Keep the battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.
- Do not allow the battery to be exposed to fire or water.
- Avoid fire or high-temperature environment.
- Do not hold the battery with metallic tweezers.
- Keep the battery in a dark, cool and dry place.
- Do not short circuit the battery.
- Do not recharge, disassemble or solder the battery.
- Do not physically impact the battery.
- Use only the battery specified in the manual of this monitor.
- Make sure the plus and minus terminals are correctly aligned when loading the battery.
If you observe a leakage of the battery, wipe out the liquid and then replace the battery. If the liquid adheres your body or clothes, rinse well with water.
- Obey the local laws on disposing the battery.

FOR THE CUSTOMERS IN THE U.K.

THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS PLUG FOR USE IN MAINLAND EUROPE. FOR THE U.K. PLEASE REFER TO THE NOTES ON THIS PAGE.

IMPORTANT FOR UNITED KINGDOM

WORDING FOR CLASS I EQUIPMENT INSTRUCTION BOOKS AND LABELS

The mains lead on this equipment is supplied with a molded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA or BSI approved BS 1362 fuse must be used of the same rating. If the fuse cover is detachable never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug. Fuse covers are available from your dealer.

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

Should it be necessary to change the mains plugs, this must be carried out by a competent person, preferably a qualified electrician.

If there is no alternative to cutting off the mains plug, ensure that you dispose of it immediately, having first removed the fuse, to avoid a possible shock hazard by inadvertent connection to the mains supply.

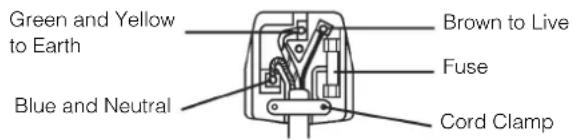

WARNING: THIS EQUIPMENT MUST BE EARTHED IMPORTANT

The wires in the mains lead are coloured in accordance with the following code :

Green and Yellow = Earth, Blue = Neutral, Brown = Live.

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol ④ or coloured Green or Green and Yellow.

The wire coloured Blue must be connected to the terminal marked with the letter N or coloured Blue or Black. The wire coloured Brown must be connected to the terminal marked with the letter L or coloured Brown or Red.

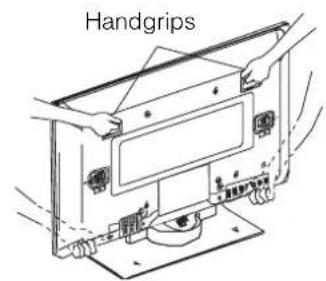

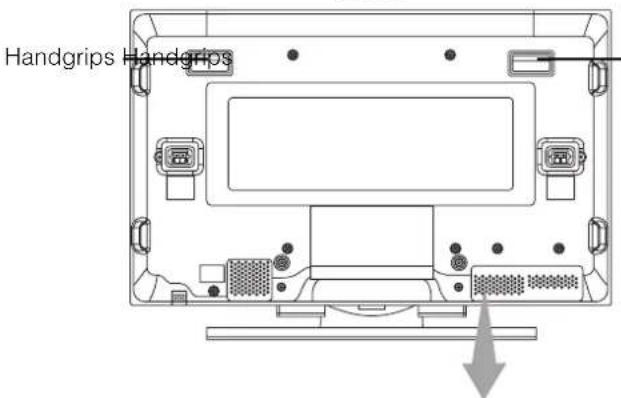

Be careful in moving the monitor.

Neglect could result in an injury or damage.

• Do not move the monitor during use. Before moving, disconnect the power plug and all external connections.
• You are advised to move the monitor with two persons.
• Avoid any impact or shock to the monitor; particularly take care of glass screen.

Do not put anything on top of the monitor.

Placing anything on the monitor could result in loss of balance or falling, and cause an injury or damage. Use special caution in households where children are present.

Avoid a humid or dusty place.

Placing the monitor in a smoke, a highly humid, dusty place, oily soot or corrosive gas could result in fire or electrical shock.

• Do not place near the kitchen, a humidifier or other place where there is oil, smoke or humidity.

Avoid a high temperature environment.

The heat could have adverse influence on the monitor and other parts, and could result in transformation, melting or fire.

• Do not place the monitor, the remote control and other parts in direct sunlight or near a hot object such as heater, etc.
• Do not put the monitor in a place where the temperature is widely changing.

Remove the power cord for complete separation.

• For safety purposes, disconnect the power cord if the monitor is not to be used for prolonged periods of time.
  Before cleaning, turn off and unplug the monitor. Neglect could result in fire or electrical shock.

How to view the monitor

If you use the monitor in too dark a room, your eyes may become tired.

Please use it in a reasonably bright room.

Avoid direct rays of the sun to the screen in order to prevent eye fatigue.

Your eyes will get fatigued after viewing the monitor for long period of time.

Relax your eyes by viewing away from the monitor from time to time.

Please watch the monitor in downward direction.

Installation environment

Do not obstruct a ventilation hole.

Do not put the monitor on carpet or blanket, or near a curtain which has a possibility of obstructing a ventilation hole of the monitor.

Do not put the monitor in the following places.
Hot places such as near heater, place exposed to the direct rays of the sun.
- A place where the temperature is widely changing.
- Places with soot, dust or high humidity.
- Poor air ventilation place.
- Place near fire.
- A wet place such as bathroom,or shower room.
- Place where you can trip over it.
- Always vibrating or strongly vibrating places.
Distorted or unstable places.

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT. (continued)

Note on image retention

The plasma monitor illuminates phosphor to display images. The phosphor has a finite illumination life. After extended periods of illumination, the brightness of the phosphor will be degraded to such extent that stationary images would burn-in that part of the screen as grayed-out images.

Tips to prevent such image retention are:

• Do not display images having sharp brightness differences or high-contrast images, such as monochrome characters and graphic patterns, for long.
• Do not leave stationary images appearing for long, but try to refresh them at appropriate intervals of time, or try to move them using screen saver function.
• Turn down the contrast and brightness controls.

How to clean the plasma display panel of the monitor

Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet.

To prevent scratching or damaging the plasma display panel face, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. If it is not enough, then use a cloth with mild detergent. Do not use harsh or abrasive cleaners.

How to clean the cabinet of the monitor

Use a soft cloth to clean the cabinet and control panel of the monitor. When the plasma monitor is excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth.

Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially because they would cause discoloration, scratches or cracks.

Prevention of an obstacle to Radio receivers

This monitor has been designed pursuant to the international EMI standards. This is to prevent a problem to Radio receivers.

• Keep the monitor away from Radio.
• Adjust Radio antennas in order for the monitor not to receive interference.
  The antenna cable of Radio should be kept away from the monitor.
• Use a coaxial cable for antenna.
  You can check if this monitor influences Radio receivers by turning off all other equipment other than the monitor.
  If you find a problem receiving Radio when using the monitor, check the instructions mentioned above.

Precautions for the cable connection

• Do ensure that all connections, (including the power plug, extension leads and interconnections between the pieces of equipment), are properly made and in accordance with the manufacturers instructions. Switch off and withdraw the power plug before making or changing connections.
• Confirm the connector is fixed tightly when the signal cable is connected. Also confirm the screws on the connector are tightened.
• Plug the power cord of the monitor into a different socket from that for other equipment, such as Radio etc.
• Use a plug with ground terminal and make sure that it connects to the ground.

Precaution during transportation

Please pay attention when you transport this monitor because it is heavy.

Furthermore, use the original carton box and its packaging materials when the monitor is transported.

Failure to transport the monitor in any carton except the original carton may result in damage to the monitor.

Save the original carton box and all packing material.

Do not physically impact the remote control.

A physical impact could cause damage or malfunction of the remote control.

Take care not to drop the remote control.
- Do not place heavy objects on the remote control.

Avoid strong rays.

Any strong rays (such as direct sun rays or room lighting) onto the remote control sensors could invalidate the remote control.

Avoid radio interference.

Any interfering radiation could cause distorted images or noises.
- Avoid radio generator such as a mobile telephone, transceiver, etc. around the monitor.

Set the sound volume at a suitable level.

It is better to keep the volume level low and close the windows at night to protect the neighborhood environment.

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT. (continued)

Precautions for the installation

• Do not use makeshift pedestals and NEVER fix legs with wood screws - to ensure complete safety, always fit the manufacturers approved pedestal or legs with the fixings provided according to the instructions.
• Use only with the cart, pedestal, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
  This product is designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the front, or top, of the cabinet that could cause the product to overturn resulting in product damage and/or personal injury.
• Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.
• Only use the attachments/accessories specified by the manufacturer.
• Consult your dealer if you are in any doubt about installation, operation or safety of your equipment.

Other precautions

• Do not leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a stand-by mode. Switch off using the switch on the equipment and show your family how to do this. Make special arrangements for infirm or handicapped people.
• Disposal of this product may require specific instructions pertaining to your resident region.
• Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!

PRECAUTIONS

Please read this User's Manual thoroughly, especially the "CAUTION: READ THIS BEFORE OPERATING YOUR UNIT." and the "PRECAUTIONS" sections. Mis-use may cause damage to your plasma monitor, which could shorten its lifespan, or cause injury to yourself. Should you encounter any difficulty in the set-up or operation of your monitor, firstly refer to the Troubleshooting guide at the rear of this manual.

In the unlikely event of a problem occurring with your plasma monitor, switch off at the mains sockets, pull out the plugs, and contact your dealer immediately.

• Under no circumstances remove the rear cover of your plasma monitor.
  Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!
• It is prohibited for the end user of this product to copy, reverse engineer or reverse compile the software included therein, save to the extent permitted by law.
  After the plasma monitor has been turned on for any length of time, you will notice that the screen becomes warm. Please note that this is normal.

Sometimes the screen might have some tiny bright or dark spots. Please note that this is normal.

• To prevent scratches or damages to the plasma display panel, do not knock or rub the surface with sharp or hard objects.

COMPONENT NAMES

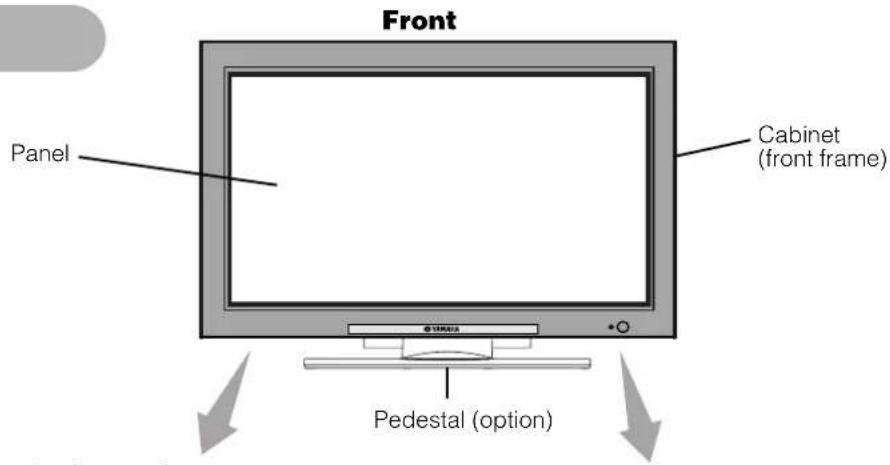

Main Unit

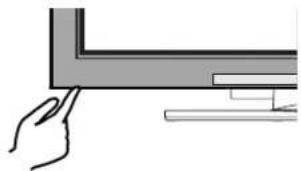

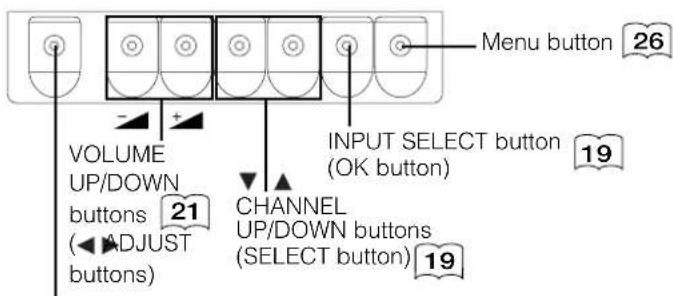

Control panel

• Adjustment buttons are located on the bottom.
  The back cover is provided with indications to distinguish the adjustment buttons.

SUB-POWER button 18

• ( ) indicates the function whilst the MENU is displayed on the screen.

The main power switch is located at the back, on the lower surface.

Main power switch 18

Caution when moving the main unit

• As this product is heavy, whenever it is moved, two people are required to transport it safely.
• Whenever the unit is moved it should be lifted forwards using the two handgrips at the back, and the unit should then be held at the base on both sides for stability.

Rear
External device connection terminals

COMPONENT NAMES (continued)

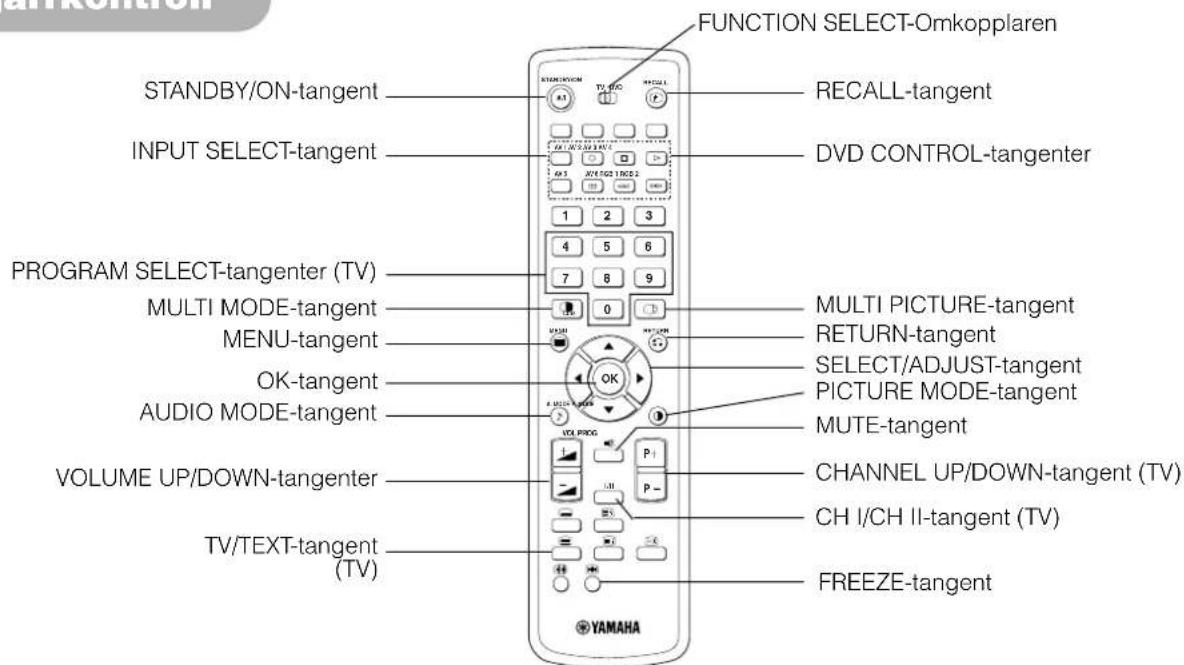

Remote control

Loading Batteries

1. Press the mark on the battery cover and slide off the cover.
   2.Insert the two supplied batteries (AA, R06, UM-3) into the battery compartment.

Make sure you insert the batteries according to the polarity markings (+ and -) .

1. Close the battery cover.

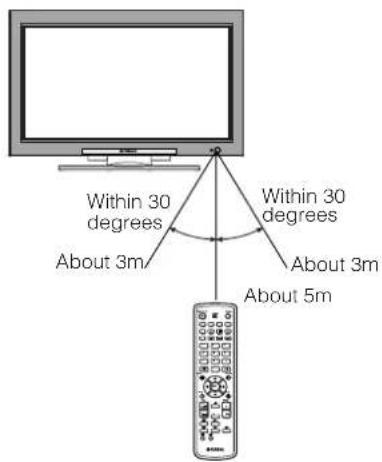

Handling the Remote Control

Use the remote control within 5m from the front of the unit's remote-control sensor and within 30 degrees on both sides.

CAUTION

• Do not use new and old batteries together. The batteries could explode or leak, resulting in fires, physical injury, or stains.
• When loading batteries, observe their correct polarities as marked on the product. If loaded in the wrong direction, the batteries could explode or leak, resulting in fires, physical injury, or stains.

ATTENTION

• Do not drop or impact the remote control.
• Do not splash the remote control with water or put it on a wet object to avoid possible failures.
  Before leaving the remote control out of use for an extended period of time, remove the batteries from it.
• If the remote control begins to lack responsiveness, replace the batteries.
• Strong light such as direct sunlight impinging on the photoreceptor of the remote control can cause operational failure. Position this unit to avoid direct contact with such light.

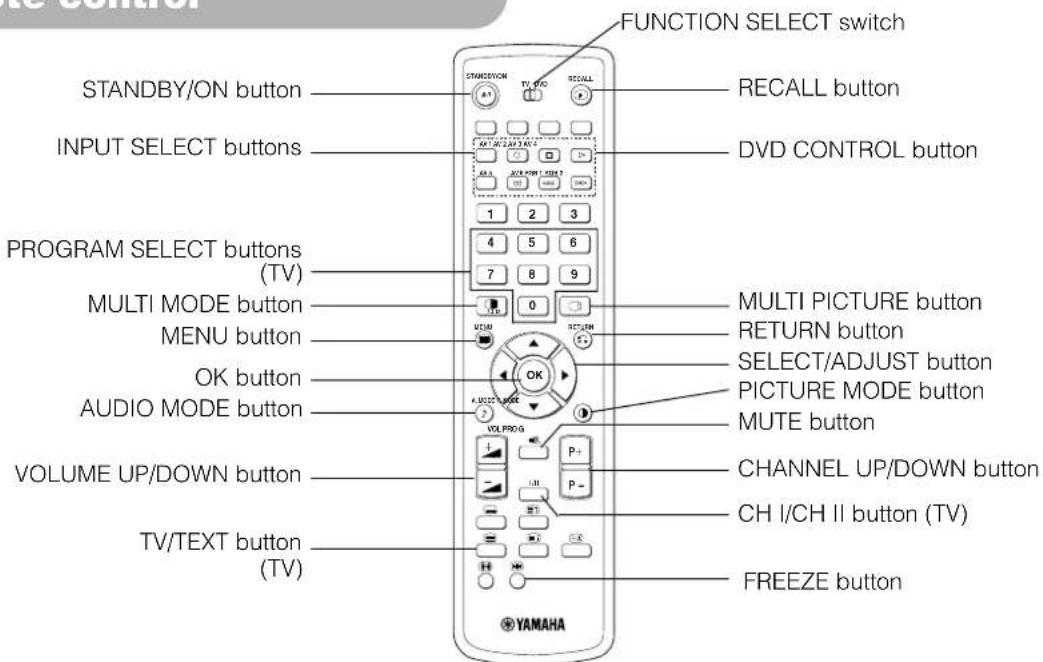

COMPONENT NAMES (continued)

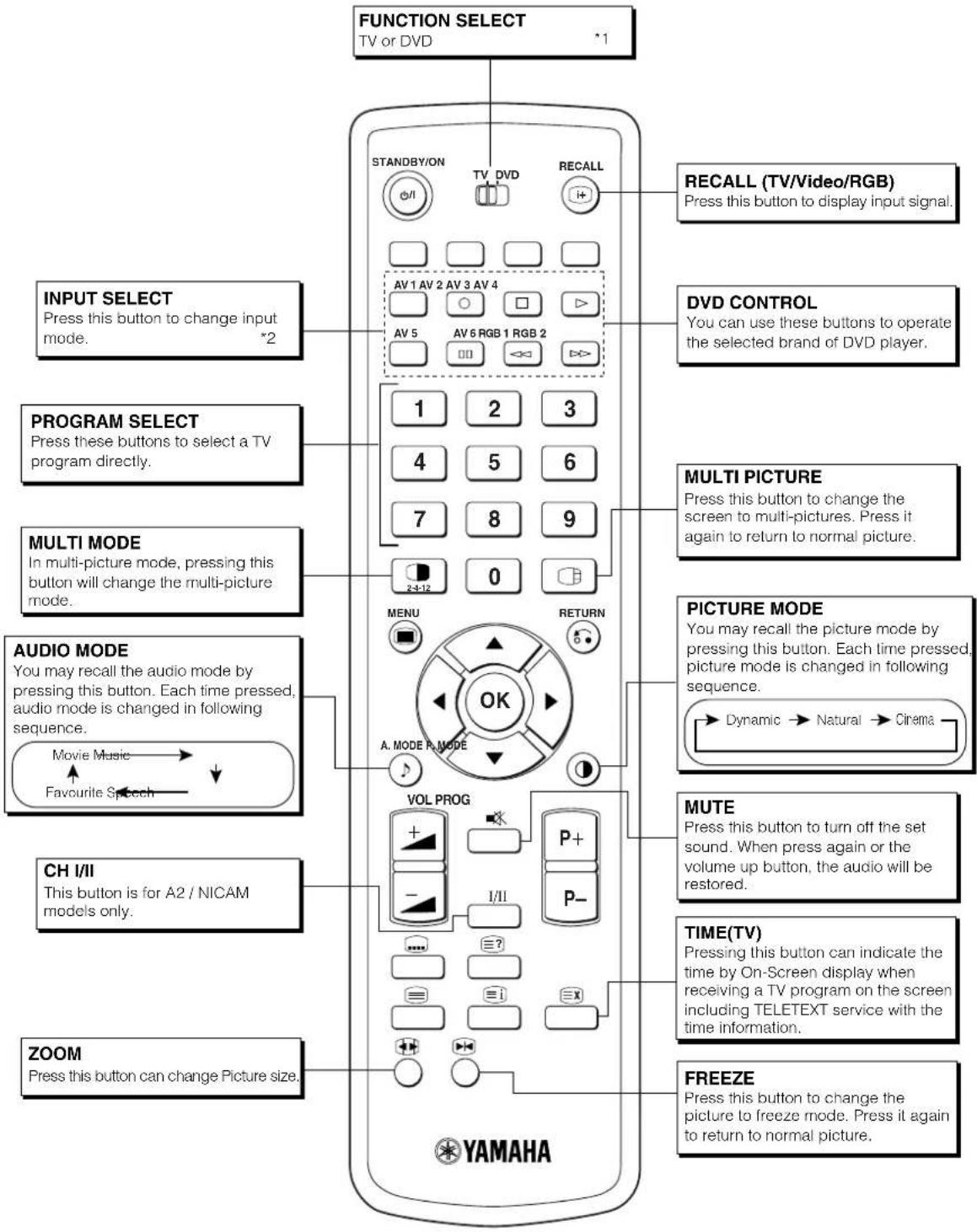

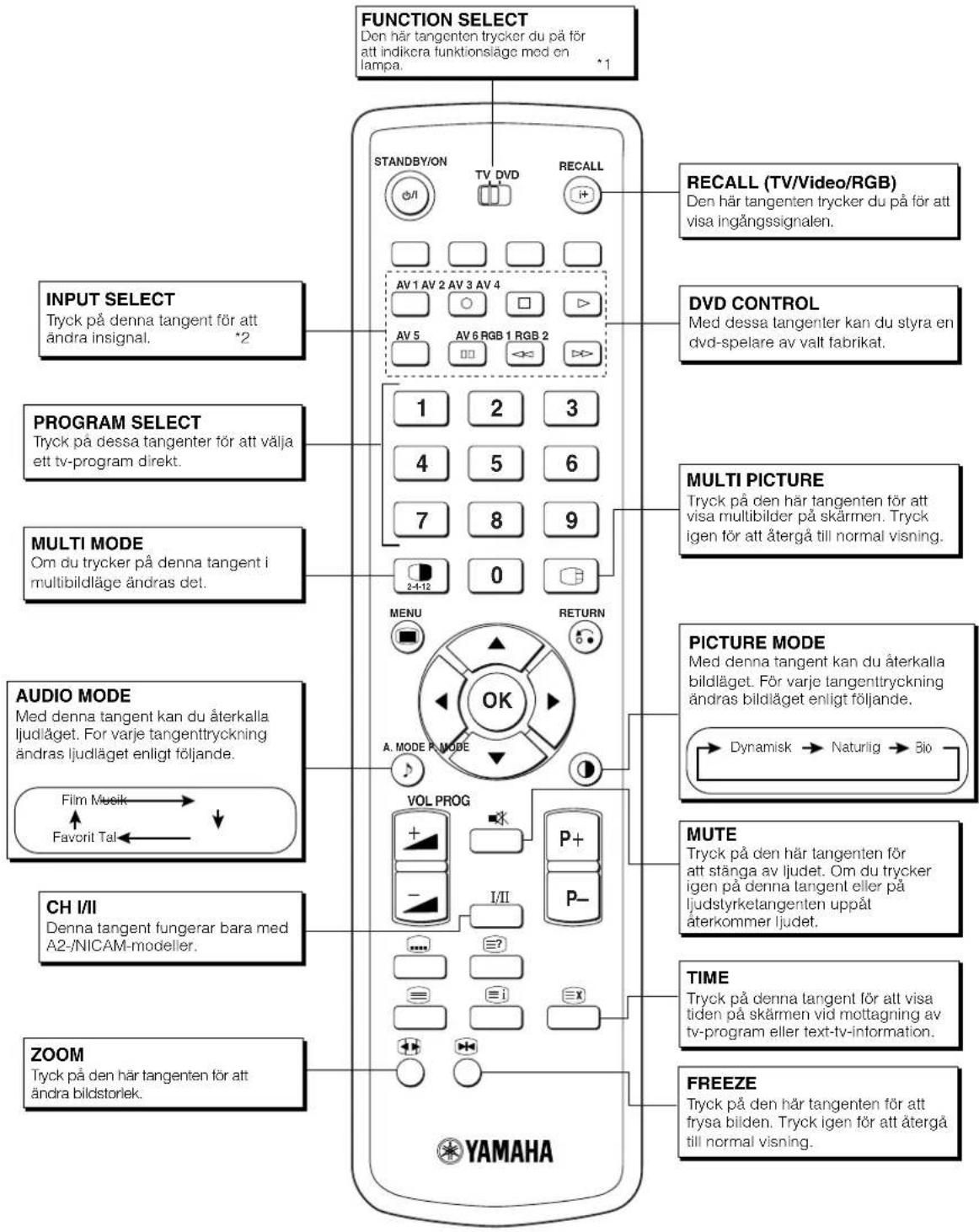

Remote control (continued)

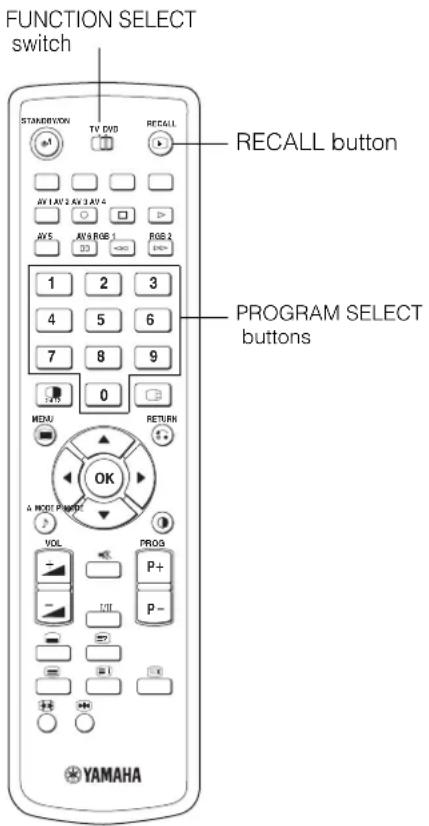

*1 FUNCTION SELECT

This remote control has functions to control other makers of DVD Player and DVD Recorder. Use the TV/DVD switch to select either TV or DVD mode.

For more details, refer to

*2 INPUT SELECT

For details, refer to 19

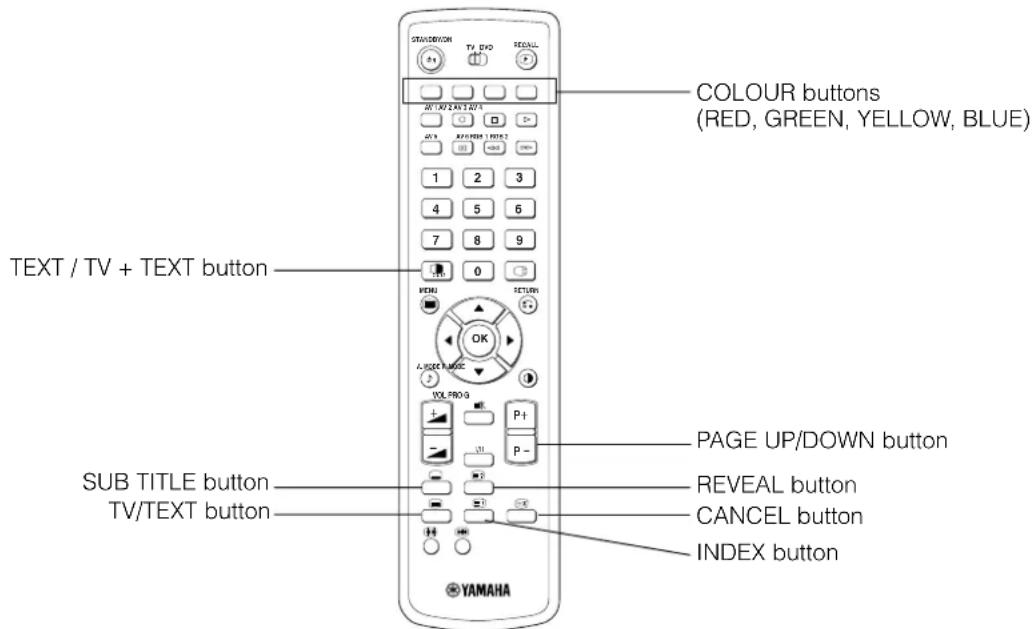

Remote control (continued)

[Button for TELETEXT Mode]

TELETEXT FUNCTION

Buttons on Remote Control	Function
TV / TEXT	This switches the receiver between the TV mode and the TELETEXT mode.
TEXT / TV + TEXT	In TELETEXT mode, this button switches between TV+TEXT screen (split) and TELETEXT only.
INDEX	This selects the Index page.
SUB TITLE	Use this to access a subtitle service directly rather than through a TELETEXT service (subject to subtitle service broadcasting).
CANCEL	This allows the screen to return to the TV mode temporarily whilst searching for a required text page. When the required text page has been received, the page number will be displayed at the top left of the screen. Press the CANCEL button again to display the TELETEXT screen.
RED	Each of these buttons selects a link page displayed at the lower part of the screen.
GREEN
YELLOW
BLUE
REVEAL	This allows hidden information (found on some teletext pages) to be displayed on the screen.
PAGE UP / DOWN	This button increases / decreases the TELETEXT page number.

NOTE

• Certain pages do not show linked pages at the bottom of the screen. To display linked pages, press the INDEX button.
  Refer to Teletext Language shown on 28

INSTALLATION INSTRUCTIONS

Installation

WARNING

Use one of the special mount units to install this product. A mount of insufficient strength or inadequate design can cause overturning or dropping and result in fire, electrical shock or injury. Please note that our company assumes absolutely no responsibility for personal injuries or property damage caused by use of other mount units or improper installation.

CAUTION

• In order to prevent an internal temperature increase, maintain a space of 10cm (4 inches: For a desktop set-up) or more between the sides and other objects such as walls, etc., so that the ventilation holes are not blocked.

Anti-tumble measures

CAUTION

Have this unit mounted in a stable place. Take measures to prevent it from tumbling down to avoid possible physical injury.

Securing to a wall or pillar

Use a commercially available cord, chain and clamp, secure the set to a firm wall or pillar.

Securing desktop

1) Using wood screws (two), fasten the set to the clamping screw holes on the rear of the stand as shown.
2) Using commercially available wood screws, secure the set firmly in position.

Read CAUTION (3 to 7) carefully to ensure maximum safety before proceeding to these steps:

• Choose an appropriate site and install the product on a level table where the stand is secure.
• Install the monitor to have ready access to a power socket available.
• Make sure that the power switch of this device is turned off.

Connecting to an Audio Visual Device

(1) Make sure that the power switch of the monitor is turned off.
(2) Make sure that the power switch of the audio visual device is turned off.
(3) Use a commercially available cable and connector to connect the signal input terminal on the rear panel of this device and the signal output terminal of the audio visual device.

[An example of connecting audio visual devices]

• AV1 SCART applies to composite/S-video, and AV2 and AV3 SCART apply to composite/RGB.
• If a component input terminal and a composite input terminal of AV4 connect to the monitor at the same time, component input would govern.
• If video equipment with an S video output terminal is used, cabling by the S video cable is recommended to provide finer video quality. (If an S video input terminal and a video input terminal of AV5 (side input) connect to the monitor at the same time, S video input would govern.)
• If the OUTPUT (Monitor) terminal is connected to an external monitor with a 75 Ohm terminal, it is possible to view the same image as on the main unit. But it is possible to monitor only the composite video signal from AV1 ~ AV5 input that is displayed on the screen at the time.
• Set-Top Box is only for an AV1 input. (Tuner output signal is available only for AV1.)
• Secure connecting cables to the stand with the provided clamp.

HDMI

• HDMI (High-Definition Multimedia Interface) is a digital interface based on DVI (Digital Visual Interface), which is an added function for audio-video equipment.
• It does not have degradation by transmission since it is digital.
• With only one cable, it is possible to transmit both picture signals and audio signals.
  In case of using analog audio, when connecting with DVI-HDMI transformation connector, use analog audio terminal for AV4 input.

SCART Specification

INSTALLATION INSTRUCTIONS (continued)

Connecting to an Audio Visual Device (continued)

Precautions when connecting the antenna

• Please use a coaxial cable which is free from interference to connect the antenna. Avoid using a parallel flat feeder wire as interference may occur, causing reception to be unstable and stripe noise to appear on the screen.
• Avoid using indoor antenna as this may be affected by interference. Please use CATV net or outdoor antenna.
• Keep the power cord as far away from the antenna wire as possible.

If there are noise appearance in the picture of VHF-Low band channel, please use the double-shielded cable (not provided) for RF LEADS to reduce the noise.

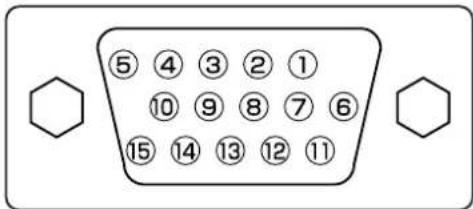

Connecting to a PC

(1) Make sure that the display signal of the personal computer to be used is compatible with the specifications of this device.

device. See "PRODUCT SPECIFICATIONS" concerning the specifications of this device 46\~50

(2) Make sure that the power switch of the personal computer is turned off.

(3) Connect the signal input terminal (RGB 1 or RGB 2) on the rear panel of this device to the display signal output terminal of the personal computer.

• Use a cable that fits the input terminal of this device and the output terminal of the personal computer.
• Depending on the type of personal computer being connected, the use of an optional conversion adapter or the adapter provided with the personal computer may be necessary in some cases. For details, refer to the instruction manual of the personal computer or ask the personal computer manufacturer or your local retail dealer.

- Setting
RGB1: DVI-PC
RGB2: RGB
For details, refer to

INSTALLATION INSTRUCTIONS (continued)

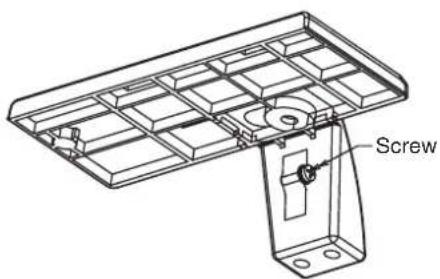

Mounting the Side Input

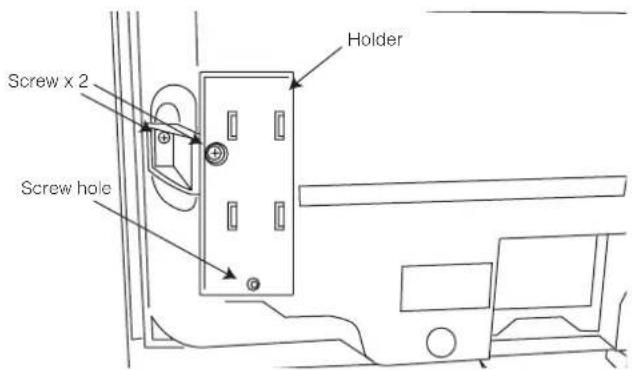

1. Attach the holder for the side input.

2. Mount the side input into the securing holder.

Fasten the side input with the speaker holder by the screw. See the below figure how to treat the cable.

NOTE

About the fixing screw for the Side Input

• The screw for fixation is attached on the holder with the tape as shown below.

INSTALLATION INSTRUCTIONS (continued)

Power Cord Connection

Connect the power cord, after completing all other connections.

① Connect the power cord to this device.
② Connect the power cord plug to the power outlet. (The type of plug is different from this drawing for some countries.)

CAUTION

• Use only the power cord provided.
• Do not use a power supply voltage other than that indicated (AC100-240V, 50/60Hz) as this may cause fire or electric shock.

OPERATING INSTRUCTIONS

Turning Power On and Off

To turn the monitor power ON, press the main power switch on the monitor main unit to ON, and then press the SUB POWER button of control panel or the STANDBY/ON button on the remote control.
- To turn the monitor power off, press the SUB POWER button of control panel or the STANDBY/ON button on the remote control, and then press the main power switch on the monitor main unit to OFF.

• During normal use, the main power switch is set in the ON position, and the monitor can then be turned ON/OFF using the SUB POWER button or the STANDBY/ON button on the remote control.

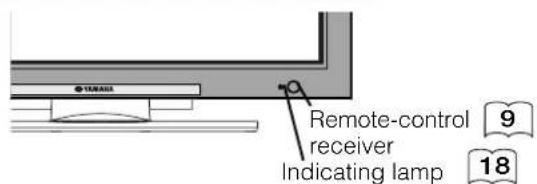

Indicating lamp

Indicating lamp	Power status	Operating
Off	Off	When the main power switch is set to OFF.
Lights red	Off(standby)	When the main power switch is ON, and the STANDBY/ON button on the remote control or the SUB POWER button on the underside of the front of the frame is OFF.
Lights green	On	When the main power switch is ON, and the STANDBY/ON button on the remote control or the SUB POWER button on the underside of the front of the frame is ON.
Lights orange	Off(Power Save)	When the main power switch is ON, and the STANDBY/ON button on the remote control or the SUB POWER button on the underside of the front of the frame is ON.However, the state is in POWER SAVE mode.

When the indicating lamp lights in orange or the message "No Sync. Signal", "Power Save" or "Invalid Scan Freq." appears on the screen, there is something unusual about the status of reception. See "Power Save Mode" or "Symptoms That Seemingly Appear to be Failures." 41 42 43

ATTENTION

• Avoid repeatedly turning the monitor on and off at short time intervals. Failures might result from such operation.
• Turn off the main power switch before leaving the monitor out of use for an extended period of time.
• If a power failure occurs whilst the main unit is running, it would be powered on upon recovery from the failure. Turn off the unit main power switch before leaving the main unit.

OPERATING INSTRUCTIONS (continued)

Input Switching

• Input can be switched by pressing the AV1~6, RGB1 or RGB2 buttons of the remote control.
• Input can be switched to TV by pressing CHANNEL UP/DOWN buttons or PROGRAM SELECT buttons.
• Input can be switched in the sequence of TV AV1 AV2 AV3 AV4 AV5 AV6 RGB1 RGB2 by pressing the INPUT SELECT button of the control panel.

Size Switching

Each time the ZOOM button of the remote control is pressed, the screen display size will change in sequence and the status will be displayed at the bottom of the screen.

• During TV/VIDEO signal input (AV4, AV5, AV6, RGB1 (set to [DVI-STB]) and RGB2 (set to [Component])

Full

The size will fix as Full mode and not change when receiving the component signal of 1080i/50, 1080i/60, 720p/50 or 720p/60.

• During AV1~AV3 signal input

• [Auto] is the mode using the Switch signal from the equipment connected to AV1~AV3 terminal included in SCART connector No.8 pin which indicate the picture format of the video source. When Switch signal has not been detected, Default Zoom setting in the Function Menu is used to choose.

• During TV mode

• [Auto] is the mode using WSS (Wide Screen Signals) which identify the picture format movies and programs are broadcast in. Various broadcast stations now transmit WSS. It can be detected and the monitor automatically switch to the correct format. However, some broadcasters do not transmit WSS, so this monitor will not recognize which format is being transmitted. Therefore, Default Zoom setting in the Function Menu is used to choose when a WSS has not been sent or has not been detected.

Display size selection diagram

When you want to Set the display size Display	screenInput signal	Remarks
Play a 4:3 image in a 16:9 screen faithfully.	4:3	(4:3 signal)	Blanking occurs on both sides.
Play a 4:3 image in a 16:9 screen with the height and width of the middle of the screen enlarged on equal scales and with both sides appearing somewhat enlarged.	Panoramic
Play a 16:9 VISTA size image from a 4:3 image faithfully reproduced on the 16:9 screen.	Zoom	(Vista)	The 4:3 image is called a letterbox image. In some cases, some slight blanking may remain at the top and bottom.
Play a 4:3 image faithfully in a 16:9 screen in the standard vertical size and horizontally squeezed.*	Full	(Squeeze)	An image with an aspect ratio of 16:9 shrunk horizontally to 4:3 to display in a 4:3 screen

OPERATING INSTRUCTIONS (continued)

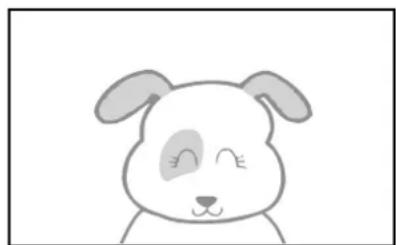

Size Switching (continued)

When you want to Set the display size Display screenInput signal Remarks
Play a 14:9 image in a 16:9 screen expanded vertically and squeezed horizontally.	C14 : 9L	(14:9 signal)		This mode is provided for the broadcasting program with WSS code-C14:9L.
Play a 14:9 image expanded vertically on the 16:9 screen.	14 : 9Zoom	(14:9 signal)		This mode is provided for the broadcasting program with WSS code-14:9Zoom.

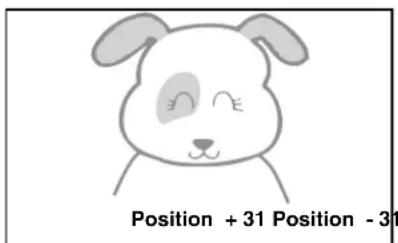

Vertical picture position can be adjusted for [Panoramic], [Zoom], [C14:9L] and [14:9Zoom] mode as follows.
1. Press the SIZE button and SELECT buttons during picture size display.
2. Position display will appear.
3. Adjustment range of each picture size are as shown below.

[Panoramic] - 12 to + 12

[Zoom] - 31 to + 31

[C14:9L] and [14:9Zoom]-16 to +16

1. When 1080i/60 component signal is received, vertical position can be adjusted only one step up. (The range: 0 to +1)

Press Press

ATTENTION

Using a wide-screen monitor

This monitor has a screen mode selection feature. If an incompatible screen mode is selected to play certain software, such as a TV program, the image will appear different from the original. Take this into consideration when making screen mode choices.
- Use of this monitor in its enlarged display mode with the wide feature enabled in coffee shops, hotels and other establishments for commercial or public viewing purposes could infringe on the copyright holder's rights protected by Copyright Law.
- When a normal 4:3 image is displayed over the entire screen in the Panoramic mode, parts of the periphery of the image may disappear and/or appear distorted in some cases. Use the 4:3 mode to view images which were created in 4:3 mode. This mode allows 4:3 content to be viewed without picture distortion.

- During RGB Input (RGB1 (set to [DVI-PC]) and RGB2 (set to [RGB]))

• Real mode gives the image of the same shape as it is displayed on a computer monitor. This mode is only available for VGA (640 X 480) and WVGA (864 X 480).

Display area selection diagram (RGB input)

Resolution	Full display	Circular display
Display	Full	Normal	Real	Zoom1	Zoom2	Zoom3
640 X 480(VGA)
800 X 600(SVGA)
1024 X 768(XGA)
1280 X 1024(SXGA)			VGA and W-VGA only
1600 X 1200(UXGA)

Processes such as compression (thinning) and expansion are performed for the above signal display. Because of this, there is a possibility that flicker may become noticeable on Zoom (1 3) depending on the display contents. If this occurs, turning the Vertical Filter On can reduce the flicker.

Volume Adjustment

The volume can be adjusted by pressing the +d buttons of the remote control (or the +d volume buttons of the monitor unit).

Adjustment status guide display

Audio Mute

The audio volume can be temporarily muted by pressing the MUTE button of the remote control.

Adjustment status guide display
(The display colour will change to magenta: volume Mute)

• When a button is pressed, the volume adjustment status guide will be displayed.

The volume will increase when the button is pressed whilst the guide is being displayed.
The volume will decrease when the button is pressed whilst the guide is being displayed.

• When a button is pressed, the volume adjustment status guide (magenta) will be displayed.

The volume setting can be lowered by pressing the button whilst the audio is mute.
The muting can be cancelled by pressing the button or MUTE button whilst the audio is mute.
The audio from the headphone terminal is not mule.
The audio from the speaker is automatically mute whilst connecting the headphone to the headphone terminal of the side input (AV5).

When the MUTE button of the remote control is pressed again, the audio will be restored and the volume display (green) will appear.

OPERATING INSTRUCTIONS (continued)

Input Signal Screen Display

The input signal status can be displayed on the screen by pressing the RECALL button of the remote control.

The display will go out in approximately 6 seconds.

Displaying MULTI PICTURE

If the MULTI PICTURE button on the remote control is pressed, multi pictures will display. And then three types of the screen can be selected by pressing the MULTI MODE button on the remote control.

The multi picture mode will change in the following sequence each time the MULTI MODE button is pressed.

Activating the Split mode from the TV screen

Pressing the MULTI PICTURE button one time will display 2 pictures.

• The speaker icon can be shifted left and right by pressing the and SELECT buttons; the audio will be output from the side on which the speaker icon is located.
  The same signal input cannot be selected for both screens at the same time.
  The TV channel can be changed by pressing the CHANNEL UP/DOWN button on the remote control.
• The signal input mode of picture-A or picture-B (the one that the speaker icon is located on) can be selected by pressing INPUT SELECT buttons on the remote control.
• Pressing the MULTI PICTURE button once again will cancel the multi picture mode.

Refer to the table for 2 pictures (Split) mode. 24

Activating the 4 pictures mode from the TV screen

Pressing the MULTI MODE button one time at the 2 pictures mode will display 4 pictures.

• Press and SELECT buttons to select picture A or picture B indicated by a red triangle. For pictures on right, press and SELECT buttons to select picture. The input display on the selected picture would change green.
  The TV channel can be changed by pressing the CHANNEL UP/DOWN button on the remote control.
  The audio can only be output from picture A in 4 pictures mode.
• The component signal input mode cannot be selected in pictures B. Refer to the table for 4 pictures mode. [24]
• Pressing the MULTI PICTURE button at the 4 picture mode will cancel the multi picture mode. And then, pressing the MULTI PICTURE button again will display the 4 pictures.

Activating the 12 pictures mode from the TV screen

Pressing the MULTI MODE button one time at the 4 pictures mode will display 12 pictures.

• Starting from channel 1, preset channels will automatically display in sequence on the 12 windows.
• This function activates only in TV mode.
  After several seconds, it refreshes the picture one by one.
• Pressing the MULTI PICTURE button at the 12 picture mode will cancel the multi picture mode. And then, pressing the MULTI PICTURE button again will display the 12 pictures again.
• Pressing the MULTI MODE button at the 12 picture mode will display the 2 pictures (Split) mode.

OPERATING INSTRUCTIONS (continued)

Displaying MULTI PICTURE (continued)

Activating the Split mode from the video input screen

Pressing the MULTI PICTURE button one time will display 2 pictures.

• The speaker icon can be shifted left and right by pressing the and SELECT buttons. The audio of the video will be output from the side on which the speaker icon is located.
  The same video input mode cannot be selected for both screens at the same time.
• Pressing the MULTI PICTURE button again will cancel the 2 pictures display.
  Refer to the table for 2 pictures (Split) mode.

Activating the MULTI PICTURE mode from the RGB input screen

Pressing the MULTI PICTURE button one time will display 2 pictures.

• This mode can be available from RGB1(DVI-PC) and RGB2(RGB) input.
• The speaker icon can be shifted up and down by pressing the and SELECT buttons. The audio will be output from the side on which the speaker icon is located.
  The sub-screen position can be selected up and down by pressing and SELECT buttons.
• The sub-screen can be selected with the AV1-AV6, TV channel buttons from the status that the speaker icon appears on the left side of AV* etc. as shown in the diagram to the right.
• Pressing the MULTI PICTURE button again will cancel the 2 pictures display.
• Frequency Mode" in the Setup Menu should be set to Movie when sub-screen is the component signal of 1080i/50 or 1080i/60.

AV1: Displays theVIDEO input signal of the sub-screen

NOTE

Even if the input of the horizontal / vertical synchronizing signal (or video signal) stops in the multi picture display, the mode will not change to power save mode.
- Please be careful since image retention will occur if display is left in a multi picture display state for a long period of time.

2 pictures (Split)
(○:available)

• 720p/50Hz can support for AV4, AV6, and RGB 1 (DVI-STB) only during the single picture mode.
• RGB2 (component) is not available for 720p/50Hz.

OPERATING INSTRUCTIONS (continued)

PICTURE Freezing

When the FREEZE button on the remote control is pressed, the screen transfers into the freeze mode.

• There are two types of freezing screen mode, Split and Strobe. These are possible to select at the "Freeze Mode" setting of the Function Menu.
• The Split mode will display 2 pictures from the same source on the screen with one active picture and the other still.
  The Strobe mode will display 12 pictures with the last picture active, whilst other 11 windows are still.
• Pressing the FREEZE button again changes the screen back to the normal picture.
  This function is also available from video input mode besides TV mode. Refer to the table for Freeze function as below:

(○:available)

OPERATING INSTRUCTIONS (continued)

Using the Menu Screen (on-screen display system)

When the MENU button is pressed, the adjustment menu screen will be displayed; from there, PC signal adjustment and setting is possible by using the SELECT button, ADJUST button and OK button.

Refer to 27c39 cening the adjustment items and the settings.

Example: Selecting the Picture screen

1. Press the MENU button to display the Main Menu screen.

1. Press the OK button to display the Picture Menu screen. (Use the and SELECT buttons to select other items.)

1. Use the and SELECT buttons to select the item to be adjusted and then use the and ADJUST buttons to adjust (example: Contrast).

• Press the RETURN button to return to the previous screen.
• If there is no operation for a period of one minute, the Adjustment Menu screen will be closed automatically.

OPERATING INSTRUCTIONS (continued)

SETUP MENU (TV mode)

OPERATING INSTRUCTIONS (continued)

SETUP MENU (TV mode) (continued)

Selected characters	←	→	Setup hint
Auto Tuning
Country	→(Page1)←→(Page2)←→(Page3)←		Select the country name by▲andSELECT buttons and press OK button. •If some required stations could not be preset in this auto tuning function, select and preset the required station in the required position by the manual tuning operation.
Search	-	-	Press the OK button and it starts the auto tuning.
Manual Tuning
Position	→1←→2←→3----199←→AV00←		Set the position number(1~199 and AV00) or channel number by (+) (-) CHANNEL UP/DOWN button.
Search(C-)	-	-	At first, select the channel entry method, entering a two digit channel number(CH), entering a two digit S-band number or entering a three digit frequency(MHz), by pressing the OK button.
	-	-	Enter two digit number by pressing 0~9 NUMBER buttons. If the number is normal, then it starts the channel search.
(S-)	-	-	Enter two digit number by pressing 0~9 NUMBER buttons. If the number is normal, then it starts the channel search.
(-MHz)	-	-	Enter three digit number by pressing 0~9 NUMBER buttons. If the number is normal, then it starts the channel search.
Descrambler	→Off←→On←		Set this to Off normally. If it is set to On, AV1 (Scart) terminal operates as TV signal output, and the screen changes to display AV1 (Scart) input signal automatically.
Name	□←→□←→□←→□(□:a letter)		This is used to input the name of the TV station within 5 letters. After fixing the cursor on the first digit, select a letter by▲ and▲SELECT buttons and move to next digit by▲ADJUST button. Press the OK button again after finished. •Selectable letters are "0"-"9", "A"-"Z", "+"","-",""(blank),"(comma) and "."(period).
Sound System	L←L'→BG←→DK←→I←		Select the sound system through the 5 different settings.
Colour System	Auto←PAL←SECAM←→NTSC3.58←→NTSC4.43←		Select the colour system through the 5 different settings.
Skip	→Off←→On←		If this is set to On, that position will be skipped whilst selecting positions by PROGRAM UP/DOWN button. This is automatically set to On for those non-broadcasting channels.
NR	→Off←→On←		If this is set to On, it helps to reduce the noise interference visible on the screen, especially in the weaker signal reception areas.
Fine Tuning	Decreasing the frequency data for the main tuner	Increasing the frequency data for the mian tuner	After completing the fine-tuning, press the RETURN button to exit this mode. •The variable range is -56 ~ +56.
Sort
(A Line of position List)	-	-	Press OK button at the line that is required to change order, then the characters will change to green. And move it up or down in the list by pressing▲ andSELECT buttons. And press OK button to complete it. Press the RETURN button to exit.
Teletext Language	-	-	Select the teletext language, depending on the area utilized through the 4 settings: West Europe, East Europe, Cyrillic, and Greek/Turkish.
Auto Off	→Off←→On←		If this is set to On, the power will be turned off when there is no transmission signal and no operation for about 10 minutes in the TV mode.

OPERATING INSTRUCTIONS (continued)

SETUP MENU (Video mode)

Selected characters	←	→	Setup hint
System	→System1←→System2←		Do not change the original setting.(System1: Europe/Asia, System2: North America)
Colour System
AV1-AV5	System1Auto←→PAL←→SECAMNTSC3.58←→NTSC4.43←System2Auto←→NTSC-M←→PAL-N←→PAL-M←		This should correspond to the colour system of the signal from the equipment that is connected to AV1-AV5 video input terminal.Normally, set this to Auto. The system of the input signal will be automatically recognized.If the input signal contains much noise or has a low level at Auto and the operation is found erratic, set this to match the input signal.When the component signal is received, this would be not available (greyed out).
Video Input
AV1	→S.Video←→Composite←		This should correspond to the signal mode of the signal from the equipment that is connected to AV1 Scart input.
AV4	→Auto←→HDTV←→SDTV/DVD←		This should correspond to the signal mode of the signal from the equipment that is connected to AV4 video input terminal.Normally, set this to Auto. The signal mode of the input signal will be automatically recognized.If the input signal contains much noise or has a low level at Auto and the operation is found erratic, set this to match the input signal.
Scart Output	→TV←→Monitor←		TV:AV1 (Scart) output will be fixed as TV signal output.Monitor:AV1 (Scart) output can view the image as on the main unit. But it is possible to monitor only the composite video signal from AV2, AV3, AV4, or AV5 input that is displayed on the screen at the time.If Descrambler is set to On, it will be fixed as TV automatically.
RGB1	→DVI-PC←→DVI-STB←		This should correspond to the signal mode of the signal from the equipment that is connected to RGB1 DVI terminal.
RGB2 (1st step)	→RGB←→Component←		This should correspond to the signal mode of the signal from the equipment that is connected to RGB2 D-sub terminal.
RGB2 (2nd step)	→Auto←→HDTV←→SDTV/DVD←		This step should be set only when [Component] is selected on the 1st step.This should correspond to the signal mode of the signal from the equipment that is connected to RGB2 D-sub terminal.Normally, set this to Auto. The signal mode of the input signal will be automatically recognized.If the input signal contains much noise or has a low level at Auto and the operation is found erratic, set this to match the input signal.

OPERATING INSTRUCTIONS (continued)

SETUP MENU (RGB mode: RGB1 (DVI-PC), RGB2 (RGB))

Selected characters	▲	▲	Setup hint
Auto Adjust*	-	Adjust Pressing the OK button here, Automatic regulation is started.	Horizontal Position, Vertical Position, Horizontal Clock and Clock Phase are adjusted automatically.
Horizontal Position	Moves the horizontal position to left.	Moves the horizontal position to right.	Adjust the left-side display position. Screen display changes to Magenta colour if beyond the available range. (This function is only for RGB2. It's not available (greyed out) for RGB1 (DVI-PC).)
	-	-
Vertical Position	Moves down the vertical position.	Moves up the vertical position.	Adjust the vertical display position. Screen display changes to Magenta colour if beyond the available range. (This function is only for RGB2. It's not available (greyed out) for RGB1 (DVI-PC).)
	-	-
Horizontal Clock	Reduces the dot clock frequency (shrinks the right side).	Increases the dot clock frequency (expands the right side).	Adjust for maximum character clarity. (This function is only for RGB2. It's not available (greyed out) for RGB1 (DVI-PC).)
	-	-
Clock Phase	Slows the dot clock phase (shifts slightly to left).	Advances the dot clock phase (shifts slightly to right).	Adjust for clear character visibility. (This function is only for RGB2. It's not available (greyed out) for RGB1 (DVI-PC).)
	-	-
Reset	(off the function)	(waiting to reset)	The original factory settings for the items of this Menu page can be restored by pressing the OK button.
Input Level	→0.7V←→1.0V←		Normally set to 0.7 V. If white is found to spread across the screen, set to 1.0 V. (This is effective only for RGB2.)
Frequency Display	→Off←→On←		Set this to Off if the frequency information of the Input Signal Screen Display is not required.
WVGA Type	→Off←→On←		This is only available for W-VGA signal. When it is set to On, the display area mode can be selected Full or Real. (With RGB1 INPUT, the screen remains the same. RGB2 (ANALOG) INPUT only)
WXGA Mode	→Off←→1280x768←→1366x768←		This is only available for W-XGA signal. (RGB2 (ANALOG) INPUT only)

OPERATING INSTRUCTIONS (continued)

SETUP MENU (RGB mode: RGB1 (DVI-PC), RGB2 (RGB)) (continued)

Selected characters	←	→	Setup hint
Vertical Filter	→Off →On →		Turn On when concerned about screen flicker.
Frequency Mode	→Movie →PC →		Set to Movie when viewing moving images on a personal computer.
RGB1	→DVI-PC →DVI-STB →		This should correspond to the signal mode of the signal from the equipment that is connected to RGB1 DVI terminal.
RGB2 (1st step)	→RGB← Component →		This should correspond to the signal mode of the signal from the equipment that is connected to RGB2 D-sub terminal.
RGB2 (2nd step)	→Auto←HDTV←SDTV/DVD←		This step should be set only when [Component] is selected on the 1st step. This should correspond to the signal mode of the signal from the equipment that is connected to RGB2 D-sub terminal. · Normally, set this to Auto. The signal mode of the input signal will be automatically recognized. · If the input signal contains much noise or has a low level at Auto and the operation is found erratic, set this to match the input signal.

• Depending on the type of signal displayed, displays may not be optimized through automatic adjustment. Adjust manually to optimize them.

OPERATING INSTRUCTIONS (continued)

FUNCTION MENU

Selected characters	←	→	Setup hint
Screen Saver	→Off←5Min.←10Min.→60Min.←40Min.←20Min.→		This moves the picture around the screen in small amount, at set intervals, to reduce the panel image retention. This is where stationary objects, such as screen logos, leave a slight image visible after they should have disappeared.
Screen Wipe	On	60Min	This is used to reduce the panel image retention that can occur with stationary pictures by the white field signal. Select On (continuous operation) or 60 Min. (time limit operation) and press the OK button. Press the MENU or RETURN button on the remote control to return to normal viewing.
Black Side Panel	→Off←On←		This turns the grey sidebars to the black sidebars when watching normal mode screen size area. It is always set to Off when the monitor powered On. It is recommended to set to Off to reduce the panel image retention.
Video Power Save	→Off←On←		This is used to reduce power consumption for video input when there is no video signal. Setting it On will lead the monitor to the standby mode when the AV input with no signal is selected.
Freeze Mode	→Split←Strobe←		This selects the display condition of the FREEZE mode between Split (2 pictures) and Strobe (12 pictures).
Default Zoom	→Panoramic←4:3←14:9zoom←		This selects the screen display size of TV input that appears first when the main power turned on.
Panel Life	Normal←Extend 1←Extend 2		This function is to suppress the contrast of the screen regardless of the Contrast setting in the Picture Menu. By this control, power consumption can be reduced or degradation of a panel can be mitigated. The order of power consumption is Extend 2 < Extend 1 < Normal. If the Contrast setting is changed when this item is set to Extend 1 or 2, it will be changed to Normal automatically.
Luminance Manager	→Off←On←		This is used to reduce the panel image retention which is caused by especially displaying TV station logo. Brightness of 4 corners of the panel gets lower than the centre.
Reset	(off the function) (waiting to reset)		The original factory settings for the items of this Menu page can be restored by pressing the OK button.

OPERATING INSTRUCTIONS (continued)

PICTURE MENU (TV/Video mode)

OPERATING INSTRUCTIONS (continued)

PICTURE MENU (TV/Video mode) (continued)

Selected characters		▲	▲	Setup hint
Picture Mode		Dynamic Nature	→ Cinema	Dynamic: This setting is best for very bright ambient lighting. Natural: This setting is for normal lighting conditions. Cinema: This setting is best for watching movie.
Contrast		Narrows the gap between brightness and darkness.	Broadens the gap between brightness and darkness.	Adjust for maximum visibility to suit the ambient brightness. This can adjust further till [+40] by pressing and holding SELECT button at [+31]. The colour for [+32] to [+40] numbers will change from green to magenta. This special mode is better for dark scenes. For normal viewing we recommend that the Contrast is set to [+31]. "Panel Life" in the Function Menu should be set to Normal when this Contrast setting is adjusted.
Brightness		Black is subdued for increased overall darkness.	Black is set off for increased overall brightness.	Adjust to preference.
Colour		Decrease colour intensity.	Increase colour intensity.	Adjust to preference.
Sharpness		Soft	Sharp	Shift to the minus (-) side for a softer effect and plus (+) for sharper picture.
Hue		Enhances red and weakens green.	Enhances green and weakens red.	This is not available to adjust when receiving PAL/SECAM signal. Then the character will be greyed out. Adjust for most realistic skin colour.
Colour Temperature		Cool → Normal → Warm → Black / White		Normally set to Normal.
Contrast Mode		Normal → Auto → Dynamic		Dynamic: Emphasizes the differences between video shadings to improve the feeling of contrast. Normal: The gradation of an image is reproduced as faithfully as possible. Auto: Detects image brightness and automatically adjusts for natural brightness.
Reset		(of the function)	(waiting to reset)	The original factory settings for the items of this Menu page can be restored by pressing the OK button.
YNR		Off → Low → High		Performs picture signal noise reduction. Turn up to reduce noise.
CNR				Performs colour signal noise reduction. Turn up to reduce noise. And it will be fixed as Off only when selecting DVI-STB mode.
Film Mode		Off → On →		On: Automatically detects the movie film material and faithfully reproduces the original film image. Off: Set to OFF when switching between images does not appear natural.
PAL Comb Filter		Off → On →		This is available only when receiving a PAL composite signal. Turn On to reduce the discolorations in fine picture detail and provides purer colour.
LTI		Off → Low → Middle → High		Adjusts the sharpness of the picture signal.
CTI				Adjusts the sharpness of the colour signal.
Black Enhancement				Adjusts the black level compensation.
Auto Colour		Off → On →		This is available only when receiving an NTSC composite/SVideo signal. This monitors and adjusts the colour to maintain constant colour levels. It also maintains natural flesh tones whilst preserving fidelity of background colours.
Colour Temp. Adjustment		Off → On →		Turn On when you wish to change colour temperature depending on the user's preference.
Amplitude	Red	Brightness scene is decreased in reddish colour.	Brighter scene is increased in reddish colour.	Adjust colour temperature depending on the user's preference. These settings are independently stored in each of the 4 Colour Temperature modes.
	Green	Brightness scene is decreased in greenish colour.	Brighter scene is increased in greenish colour.
	Blue	Brightness scene is decreased in bluish colour.	Brighter scene is increased in bluish colour.
Cut Off	Red	Dark scene is decreased in reddish colour.	Dark scene is increased in reddish colour.
	Green	Dark scene is decreased in greenish colour.	Dark scene is increased in greenish colour.
	Blue	Dark scene is decreased in bluish colour.	Dark scene is increased in bluish colour.

OPERATING INSTRUCTIONS (continued)

PICTURE MENU (TV/Video mode) (continued)

Selected characters		▲	▲	Setup hint
Colour Management		→Off ⇌On ⇌		Turn On when the original balance of each colour is required to adjust depending on the user's preferences.
	Magenta	Magenta is weakened.	Magenta is strengthened.	This adjusts listed colours individually to make them either deeper or more pure. These settings are independently stored in each of the 4 Colour Temperature modes.
	Red	Red is weakened.	Red is strengthened.
	Yellow	Yellow is weakened.	Yellow is strengthened.
	Green	Green is weakened.	Green is strengthened.
	Cyan	Cyan is weakened.	Cyan is strengthened.
	Blue	Blue is weakened.	Blue is strengthened.
Colour Decoding		→RGB ⇌ R ⇌ G ⇌ B ⇌		Select the single colour screen when that is required to adjust R/G/B level individually depending on the user's preference. And set it back to RGB mode that indicates all colour after adjusting. Press the OK button every time the setting is changed.
	Red	Darkens red only.	Lightens red only.	This adjusts R/G/B level or hue to make the colour appear natural for the user's preference. These settings are independently stored in each of the 4 Colour Temperature modes. When select "Hue", the display will be grey to indicate it is not available when receiving PAL/SECAM.
	Green	Darkens green only.	Lightens green only.
	Colour	Decrease colour intensity.	Increase colour intensity.
	Hue	Enhances red and weakens green.	Enhances green and weakens red.

OPERATING INSTRUCTIONS (continued)

PICTURE MENU (RGB mode)

Selected characters		←	→	Setup hint
Contrast		Narrows the gap between brightness and darkness.	Broadens the gap between brightness and darkness.	Adjust for maximum visibility to suit the ambient brightness. This can adjust further till [+40] by pressing and holding SELECT button at [+31]. The colour for [+32] to [+40] numbers will change from green to magenta. This special mode is better for dark scenes. For brighter scene some parts of the picture might not be clear. We recommend to set at [+31]. "Panel Life" in the Function Menu should be set to Normal when Contrast setting is adjusted.
Brightness		Black is subdued for increased overall darkness.	Black is set off for increased overall brightness.	Adjust to preference.
Colour		Decrease colour intensity.	Increase colour intensity.	Adjust to preference.
Hue		Enhances red and weakens green.	Enhances green and weakens red.	This is not available to adjust when receiving PAL/SECAM signal. In this case the character will be greyed out. Adjust for most realistic skin colour.
Picture Enhancement		Off←Low←Middle←High		Sets the clarity of small details to the desired level.
Colour Temperature		Cool←Normal←Warm←Black/White		Normally set to normal.
Colour Temp. Adjustment		Off←On←		Turn On when you wish to change colour temperature is required to adjust depending on the user's preference.
Amplitude	Red	Brighter scene is decreased in reddish colour.	Brighter scene is increased in reddish colour.	Adjust colour temperature depending on the user's preference. These settings are independently stored in each of the 4 Colour Temperature modes.
	Green	Brighter scene is decreased in greenish colour.	Brighter scene is increased in greenish colour.
	Blue	Brighter scene is decreased in bluish colour.	Brighter scene is increased in bluish colour.
Cut Off	Red	Dark scene is decreased in reddish colour.	Dark scene is increased in reddish colour.
	Green	Dark scene is decreased in greenish colour.	Dark scene is increased in greenish colour.
	Blue	Dark scene is decreased in bluish colour.	Dark scene is increased in bluish colour.
Reset		(off the function)	(waiting to reset)	The original factory settings for the items of this Menu page can be restored by pressing the OK button.

OPERATING INSTRUCTIONS (continued)

AUDIO MENU

Selected characters	▲	▲	Setup hint
Audio Mode	Movie←Music←Speech←Favourite←		Movie: This selects the audio suitable for Movie. Music: This selects the audio suitable for Music. Speech: This selects the audio suitable for News, Talk show etc. Favourite: This mode should be adjusted depending on user's preference.
Treble	Suppresses treble.	Enhances treble.	Adjust to preference.
Bass	Surpresses bass.	Enhances bass.	Adjust to preference.
Balance	Surpresses right-side sound.	Surpresses left-side sound.	Adjust to preference.
Dynamic Bass	Off←Low←Middle←High←		Dynamic Bass takes advantage of the ability of the human ear to be able to distinguish between two different tones. By using this ability, Dynamic Bass gives enhanced bass sound that otherwise would not be heard. Adjust it depending on the user's preference.
Matrix Surround	Off←On←		This features the spacious sound effects of a stadium.
Perfect Volume	Off←On←		This will automatically adjust volume so each channel and input has the same average volume level.
Reset	(off the function)	(waiting to reset)	The original factory settings for the items of this Menu page can be restored by pressing the OK button.
Headphone Volume	Turns down the volume.	Turns up the volume.	This is to set the volume for headphone. The audio from the speaker is mute when connected to headphone terminal.
Headphone Select	A/B B←		A/B: During the 2 pictures mode, the audio will be output from headphone on A (left picture) or B (right picture) to be selected. The speaker icon is located on the selected picture. B: The audio of B (right picture) is from headphone.

NOTE

About the Headphone

• During PC input (RGB1/RGB2), the audio is not output from the headphone.
• When the input on B (right picture) is AV6 during the 2 pictures mode, even though "B" is selected from "Audio Menu, Headphone select", the audio is not fixable at B (right picture) but output from the selected picture (A/B).

OPERATING INSTRUCTIONS (continued)

TIMER MENU

Selected characters	▲	▲	Setup hint
Off Timer	--Min.←→30Min.←→60Min.		This function automatically sets the power to standby status when the indicated time period has elapsed.
	120Min.←→90Min.
On Timer	---(:---) hours	---(:) -- minutes	This automatically sets the power from standby to ON when the indicated time period has elapsed. The settable time is 00:00~11:59. Input the required time by ▲ and ▼SELECT buttons on the remote control.

LANGUAGE MENU

Select a language by and SELECT nuctions and press the OK button.

Automatic Store

Approximately 1 sec. after adjustment is completed, the adjustments will be recorded as shown in the table below.

Menu	Display	Registration condition
Picture	Picture Mode	1 setting is registered.
	Contrast	For every input function and every Picture Mode, 1 setting is registered.
	Brightness
	Colour
	Sharpness
	Hue
	Colour Temperature
	Contrast Mode
	YNR
	CNR
	Film Mode
	PAL Comb Filter
	LTI
	CTI
	Black Enhancement
	Auto Colour
	Colour Temp. Adjust	For every Colour Temperature, 1 setting is registered.
	R Amplitude	1 setting is registered.
	G Amplitude
	B Amplitude
	R Cut Off
	G Cut Off
	B Cut Off
	Colour Management	For every input function and every Picture Mode, 1 setting is registered.
	Magenta	1 setting is registered.
	Red
	Yellow
	Green
	Cyan
	Blue
	Colour Decoding	-
	Red	For every colour temperature, 1 setting is registered.
	Green
	Colour	For every input function and every Picture Mode, 1 setting is registered.
	Hue
Audio	Audio Mode	1 setting is registered.
	Treble	For every Audio Mode, 1 setting is registered.
	Bass
	Balance	1 setting is registered.
	Dynamic Bass	For every Audio Mode, 1 setting is registered.
	Matrix Surround
	Perfect Volume
	Headphone Volume
	Headphone Select

Menu	Display	Registration condition
Function	Screen Saver	1 setting is registered.
	Screen Wipe	(not registered)
	Black Side Panel	1 setting is registered.
	Video Power Save
	Freeze Mode
	Default Zoom
	Panel Life
	Luminance Manager
Setup	System	1 setting is registered.
	Colour System	-
	AV1	For every Input function, 1 setting is registered.
	AV2
	AV3
	AV4
	AV5
	Video Input	-
	AV1	1 setting is registered.
	AV4
	Scart Output	1 setting is registered.
	RGB1
	RGB2
	Auto Adjust	(not registered)
	Horizontal Position	For every signal mode, 1 setting is registered. (Only for RGB2)
	Vertical Position
	Horizontal Clock
	Clock Phase
	Input Level	1 setting is registered.
	Frequency Display
	WVGA Type
	WXGA Mode
	Vertical Filter
	Frequency Mode
Language		1 setting is registered.

The previously recorded items will be lost.
- The signal mode can be identified by the horizontal/vertical sync frequency and the sync signal polarity. Different signals with which all the elements are the same or similar will be handled as the same signal.

OTHER FUNCTIONS (continued)

Audio Switching

A2 / NICAM / Sound Multiplex (TV mode)

• The CH I / II button is only useful for NICAM and sound multiplex signals.

Otherwise pressing this button will have no effect.

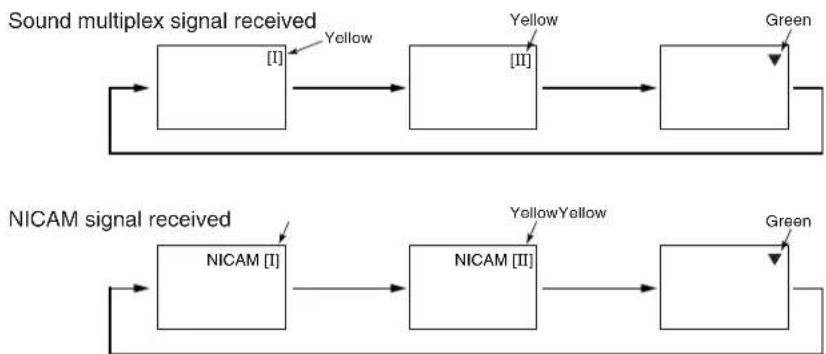

BILINGUAL/DUAL sound broadcast

When bilingual program is received, sound mode display appears in yellow as shown on right.

Press the CH I / II button to select the sound to be heard.

Each time the button is pressed, I, II or V (force mono) appear cyclically on the screen.

When receiving NICAM signals, NICAM display will appear as below.

Select I, II or (force mono) to hear the CHI, CHII or MONO broadcast respectively.

STEREO sound broadcast

When a stereo program is received, sound mode display will appear in red, and you can press the CH I / II button to select between stereo and mono sound.

Each time the button is pressed, or force mono) appear cyclically on the screen.

When receiving NICAM signals, NICAM display will appear as below.

Select or (force mono) to hear the STEREO or MONO broadcast respectively.

Monaural sound broadcast

When a monaural program is received, sound mode display will appear in green.

You can press the CH I / II button to select the sound mode between monaural and forced

mono (sound is same).

Each time the button is pressed, or (force mono) appear cyclically on the screen.

NOTE

• If sound signal is not strong enough for quality reception, press the CH I / II button until appears on the screen to receive a clear mono sound.
• If sound has hiss noise or keep switching between stereo and mono mode due to signal condition, press the CH I / II button until▼ appears on the screen to receive a clear mono sound.

OTHER FUNCTIONS (continued)

Power Save Mode

When the RGB1, RGB2 input is selected

• When this unit is connected to a VESA DPMS computer, the Power Save (Off) mode can be set to be activated automatically when the computer is not being used to reduce power consumption by this unit.

RGB sync signal	Horizontal	Yes	No	Yes	No
	Vertical	Yes	Yes	No	No
PC signal		Active (normal display)	Blank (no display)
Operation mode		On	Off
Indicating lamp		Lights green	Lights Orange
Power consumption		380W	3W or less (RGB1) 1W or less (RGB2: 100V ≤ AC ≤ 120V) 3W or less (RGB2: 120V < AC < 240V)

Returning to operating status

• Operate the personal computer, or press either the INPUT SELECT button of the main unit or the RGB1/RGB2 buttons of the remote control.

DVD Player Selection

• You can use this remote control to operate the selected maker of DVD player by pressing the following buttons on the remote control simultaneously.

<“DVD”Selection>

	Set Maker	Set Type
YAMAHA 1	i+ 6	i+ ①~②
YAMAHA 2	i+ 4	i+ ①~④

Other brands

Makers of DVD player	Set Maker	Set Type	Makers of DVD player	Set Maker	Set Type
HITACHI	i+ 1	i+ 1~3	Sharp	i+ 2+D	i+ 1~2
FUNAI	i+ 2	i+ 1	RCA	i+ 0	i+ 1
Pioneer	i+ 3	i+ 1~6	Mitsubishi	i+ 3	i+ 1
Panasonic	i+ 4	i+ 1~4	ONKYO	i+ 1	i+ 1~3
TOSHIBA	i+ 5	i+ 1~4	ZENITH	i+ 5	i+ 1
Philips	i+ 6	i+ 1~2	THOMSON	i+ 7	i+ 1
JVC	i+ 7	i+ 1	SHINCO	i+ 1	i+ 1
SAMSUNG	i+ 8	i+ 1	SKYWORTH	i+ 1	i+ 1
Sony	i+ 9	i+ 1~4	BUBUKO	i+ 3?	i+ 1

OTHER FUNCTIONS (continued)

DVD Player Selection (continued)

Set up hint

Example)YAMAHA1DVD(6)

To operate the YAMAHA DVD player, set the FUNCTION SELECT switch to the DVD position.

1. Set up the maker.

Press and hold the button, and followed by pressing 6 for more than 1 second.

2. Set up the type.

Release the 6 button whilst keeping button depressed.

Then, press the 1 for more than 1 second.

3. Confirm the setting.

After setting the maker and type, press the STANDBY/ON button on the remote control. If the DVD does not switch on, repeat step 1 and 2 using other types (in this case, ②) as listed in the chart on 41

NOTE

• Not all models of the listed makers can be operated using this remote control.

Signal Check (RGB mode)

Changes in the signal status are displayed on the screen as they arise.

Status	Display	Action
When Mode Display is set to ON, the input signal is switched or when the RECALL button is pressed.	A guide is displayed for the input terminal and the horizontal and vertical sync frequency.	——
When the sync signal is no longer detected.	·A guide displays No Sync. Signal, and Power Save (for approx. 5 sec.) ·When the condition continues where the sync signal cannot be detected, indicator lamp of power source changes in orange and the mode switches to power save mode.	Recheck the personal computer power switch status and the connection status.
When the input signal does not match the monitor specifications or is in an unstable state.	A duide displays Invalid Scan Freq.	Recheck the input signal specifications. 48 ~ 50

RGB

! No Sync. Signal

!Invalid Scan Freq.

Symptoms That Seemingly Appear to be Failures

Make the checkes suggested below depending on the symptoms observed. If the symptoms remain uncorrected, contact your dealer.

WARNING

Customer servicing can be hazardous.

Symptom Point to check See page
·No picture with the power-indicating lamp off.		·Check the way the power cable is connected. ·Pr ess the power switch.	17 18
·The message "No Sync. Signal" or "Power Save" is displayed. ·No picture, with the power indicating lamp lights in orange.	!No Sync. Signal	No sync signal is detected. ·Check the way the signal cable is connected. ·Make sure that the switch of the computer, imaging equipment, etc., is turned on. ·Make sure the computer is not in the power save mode. ·Check to see if the input selection matches the connection terminal.	15
·The message "Invalid Scan Freq." is displayed.	Invalid Scan Freq.	An input signal is not received normally. ·Check to see if the input signal matches the monitor specifications. ·Check the way the signal cable is connected.	15 48 49 50
·The power indicating lamp is normally lit but no picture.		·Check the contrast and brightness settings (adjust them for higher contrast and brightness). ·Check the way the signal cable is connected.	15 34 36
·The display image appears flowing slantwise. ·Text displayed across the screen appears vertically streaked, with the characters in vertical columns blurred.		·Adjust the dot clock frequency and phase. (Adjust the dot clock frequency first, the dot clock phase next.) (RGB input)	30 45
·Text displayed across the screen appears blurred. ·A fine pattern flickers when displayed on the screen.	A	·Adjust the dot clock phase for the clearest viewing. (RGB input)	30 45
·The remote control does not work.		·Check to see if the batteries are loaded in the remote control in opposite direction. ·Check to see if the batteries in the remote control are OK.	9
·The display image does not appear in the normal position.	AAAA	·Check to see if the displayed input signal match the monitor spciification by pressing + button. ·Turn off the screen saver.	15 32 48 49 50
·The display has lack of picture around the screen. (PC input mode only)	AAAA	·Turn off the screen saver.	32
·The temperature of the display panel surface is high.		·The plasma display panel is lighting the phosphors by the discharge of internal radiation. In some cases, this may cause the temperature of the panel surface to increase. Please note that this is not a malfunction.	-

Symptoms That Seemingly Appear to be Failures (continued)

	Point to checkSymptom	See page
·There are locations on the screen that are different from the periphery (*).*Points that do not light, points with brightness different from that of the periphery, points with colour different from that of the periphery, etc.	·High-precision technology is used to manufacture the plasma display panel. However in some cases, there are minor defects in some parts of the screen. Please note that this is not a malfunction.	-
·Vertical noises appear, depending on the screen contents.	·The plasma display panel is lighting the phosphors by the discharge of internal radiation. Depending on the screen contents, in rare cases this may cause vertical stripes to appear because of failure to light. Please note that this is not a malfunction.	-
·Coarse horizontal stripes appear in FULL display.	·Adjusting the Clock Phase will reduce the horizontal stripes. (RGB input)	30
·Flickering in the form of horizontal lines oscillating up and down. (PC INPUT MODE only)	·If the direct frequency from the computer is below 85Hz, try a higher frequency (upper limit 85Hz). There may be a slight attenuation of the current image.·Try turning the Vertical Filter On. For this case however, the vertical resolution will drop.	31
·The top of the monitor heats up.	·When used for long periods of time, the top of the monitor may heat up. This is not a malfunction.	-
·Text characters are displayed with varying thicknesses.	·The thicknesses of characters and lines may vary if images with a vertical resolution greater than 512 lines are displayed; however, this is not a malfunction.	-
·The screen becomes dark and the images cannot be seen during VTR special playback (fast forward, rewind)	·This sometimes occurs when a component output VTR such as the 480i is connected. This is not a malfunction; therefore, please take note that this may occur. When it does occur, change to composite output,or S(video output.	-
·During multi picture mode, sub pictures are not displayed.	·Sub pictures image might not be able to be displayed, depending on the combination. (Refer to the table of “2 pictures mode” and “4 pictures mode”)	24
·The screen display sizes are not switched.	·The screen display size is fixed at “Full” as receiving 1080i/60Hz, 1080i/50Hz, 720p/50Hz, and 720p/60Hz.	-
·Images from AV6 (HDMI) are not displayed.	·Check the cable and output format of connecting device. (Refer to “Connecting to an Audio Visual Device” and “Recommended Signal List”).	1350

TROUBLESHOOTING (continued)

Actions to Correct Abnormal Displays

Depending on the kind of system equipment used, images may not be displayed normally. In this case, make the adjustments suggested below. (only for RGB2)

Symptom 1	Text displayed across the screen appears vertically streaked, with some characters blurred (Figure 1). (RGB input).
Example	Figure 1 ABCDEFGHIJ abcdefgABCDEFGabcd ABCDEFGHIJ abcdefgABCDEFGabcd ABC After adjustment, all characters appear crisp now. After adjustment, all characters are blurred.
Adjustment procedure	1) Press the MENU button. The Main Menu will be displayed. 2) Press the SELECT button and select Setup. 3) Press the OK button. The Setup Menu will be displayed. 4) Press the SELECT button and select Auto Adjust.
	When adjustment is not possible with Auto Adjust 5) Press the MENU button. The Main Menu will be displayed. 6) Press the SELECT button and select Setup. 7) Press the OK button. The Setup Menu will be displayed. 8) Press the SELECT button and select Horizontal Clock. (Display fine patterns as characters or a vertical striped pattern over the entire screen during Horizontal Clock adjustment.) 9) Press the ↓ ARJUST buttons and search for clear characters over the entire screen. 10) Perform adjustment for symptom 2 below, when the characters are blurred on the entire screen.

The display image may be momentarily disturbed during clock adjustment but this is not a failure.

Symptom 2	Text displayed across the screen appears blurred in its entirety (Figure 2). A fine pattern flickers when displayed on the screen (Figure 3).
Example	Figure 2 Figure 3 Before adjustment ABCDEFGHIJ ABCdefgABCDEFGabcd After adjustment ABCDEFGHIJ ABCdefgABCDEFGabcd	Before adjustment After adjustment
Adjustment procedure	1) Press the MENU button. The Main Menu will be displayed. 2) Press the SELECT button and select Setup. 3) Press the OK button. The Setup Menu will be displayed. 4) Press the SELECT button and select Auto Adjust.
	When adjustment is not possible with Auto Adjust 5) Press the MENU button. The Main Menu will be displayed. 6) Press the SELECT button and select Setup. 7) Press the OK button. The Setup Menu will be displayed. 8) Press the SELECT button and select Clock Phase. (Display fine patterns as characters or a vertical striped pattern over the entire screen during Clock Phase adjustment.)
	9) Press or ADJUST buttons to make the text appear clean across the screen.	9) Press or ADJUST buttons to make the text appear without flickering.
Panel	Display dimensions	Approx. 42 inches (922 (H) x 522 (V) mm, diagonal 1059mm)
	Resolution	1024 (H) x 1024 (V) pixels
Net dimensions(excluding Speaker/Stand)		1030(W) x 636 (H) x 104 (D) mm
Net weight(excluding Speaker/Stand)		36.0kg
Ambient conditions	Temperature	Operating: 5°C to 35°C, Storage: 0°C to 40°C
	Relative humidity	Operating: 20% to 80%, Storage: 20% to 90% (non-condensing)
Power supply		AC100 - 240V, 50/60Hz
Power consumption/at standby		380W / <3W
Audio output		speaker 12W + 12W (6Ω)
(RGB Input)
Input terminals		RGB1 DVI input terminal (DVI-D)RGB1 audio input terminal (3.5mm Stereo Mini Jack)RGB2 analog RGB input terminal (D-sub 15-pin)RGB2 audio input terminal (3.5mm Stereo Mini Jack)
Input signals		0.7 V/1.0 Vp-p, analog RGB (Recommended Signal)480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/50', 720p/60
Sync signals		H/V separate, TTL level [2KΩ]H/V composite, TTL level [2KΩ]Sync on green, 0.3 Vp-p [75Ω]
Recommended signal		44 modes 49 50
(Video Input)
Input terminals		AV1: composite video / S video / L/R audio input terminal (SCART)AV2: composite video / RGB / L/R audio input terminal (SCART)AV3: composite video / RGB / L/R audio input terminal (SCART)AV4: composite video / Y/Ps /Pn video / L/R audio input terminal (RCA)AV5: composite video / S video / L/R audio input terminal (RCA)AV6: HDMI input terminal
Input signals		AV1: PAL, SECAM, NTSC3.58, NTSC4.43AV2: PAL, SECAM, NTSC3.58, NTSC4.43, RGBAV3: PAL, SECAM, NTSC3.58, NTSC4.43, RGBAV4: PAL, SECAM, NTSC3.58, NTSC4.43AV4: 480i, 576i, 480p, 576p, 720p/50, 720p/60, 1080i/50, 1080i/60,AV5: PAL, SECAM, NTSC3.58, NTSC4.43AV6: HDMI input signal 49
Output Signal		OUTPUT (MONITOR): composite video monitor-output terminal (RCA)OUTPUT (MONITOR): L/R audio monitor-output terminal (RCA)OUTPUT (HEADPHONE): L/R audio monitor-output terminal (Mini-pin)AV1: composite video / L/R audio monitor / TV output terminal (SCART)
Recommended Signals		24 modes 48 49
(RF Input)
Input terminals		ANT: 75Ω Unbalanced
RF Video System		PAL B, G, H/I/D, KSECAM B, G/K1/L, L'/(D, K)'

The monitor takes at least 30 minutes to attain the status of optimal picture quality.
720p/50 does not support RGB2.
2 The SECAM D, K system might not be normally received, depending on the model.

Signal Input

RGB terminal (D-sub 15-pin connector)

Pin	Input signal
1	R (Pn/Cn)
2	G or sync on green (Y)
3	B (Pb/Cs)
4	No connection
5	No connection
6	R.GND (Pr/Cr, GND)
7	G.GND (Y, GND)
8	B.GND (Pb/Cs, GND)
9	No connection
10	GND
11	No connection
12	[SDA]
13	H. sync or H/V composite sync
14	V. sync. [V.CLK]
15	[SCL]

S-input connector pin specifications

Pin	Input signal
1	Y
2	Y-GND
3	C
4	C-GND
Frame	GND

HDMI connector pin specifications

Pin	Input signal	Pin	Input signal
1	TMDS Data2+	11	TMDS Clock Shield
2	TMDS Data2 Shield	12	TMDS Clock-
3	TMDS Data2-	13	CEC
4	TMDS Data 1+	14	Reserved (N.C. on device)
5	TMDS Data1 Shield	15	SCL
6	TMDS Data1-	16	SDA
7	TMDS Data0+	17	DDC/CED Ground
8	TMDS Data0 Shield	18	+5V Power
9	TMDS Data0-	19	Hot Plug Detect
10	TMDS Clock+

DVI terminal (DVI-D)

Pin	Input signal	Pin	Input signal
1	T.M.D.S. Data2-	14	+5V Power
2	T.M.D.S. Data2+	15	Ground (for+5V)
3	T.M.D.S. Data2/4 Shield	16	Hot Plug Detect
4	T.M.D.S. Data4-	17	T.M.D.S. Data0-
5	T.M.D.S. Data4+	18	T.M.D.S. Data0+
6	DDC Clock	19	T.M.D.S. Data0/5 Shield
7	DDC Data	20	T.M.D.S. Data5-
8	No Connect	21	T.M.D.S. Data5+
9	T.M.D.S. Data1-	22	T.M.D.S. Clock Shield
10	T.M.D.S. Data1+	23	T.M.D.S. Clock+
11	T.M.D.S. Data1/3 Shled	24	T.M.D.S. Clock-
12	T.M.D.S. Data3-	Frame	GND
13	T.M.D.S. Data3+

• When different kinds of input signals are simultaneously input to the monitor via a graphics board or the like, the monitor will automatically select the signals in the following priority order:

Sync signal type	Priority
H/V seperate sync.	1
H/V composite sync.	2
sync. on Green *	3

*Even in the case of the recommended signals shown on the following page, there may be instances when correct display is not possible. In this case, use H/V seperate sync or H/V composite sync.

PRODUCT SPECIFICATIONS (continued)

Signal Input (continued)

Scart connector pin specifications

Pin	Signal	Pin	Signal
1	AUDIO OUT (RIGHT)	12	Not Used
2	AUDIO IN (RIGHT)	13	RGB-R GND
3	AUDIO OUT (LEFT/MONO)	14	GND
4	AUDIO GND	15	RGB-R / S.VHS CHROMINANCE IN
5	RGB-B GND	16	BLANKING SIGNAL
6	AUDIO IN (LEFT/MONO)	17	COMPOSITE VIDEO GND
7	RGB-B IN	18	BLANKING SIGNAL GND
8	AUDIO/RGB SWITCH / 16:9	19	COMPOSITE VIDEO OUT
9	RGB-G GND	20	COMPOSITE VIDEO / S.VHS LUMINANCE IN
10	Not Used	21	GND / SHIELD (CHASSIS)
11	RGB-G IN

Recommended Signal List

Applicable video signals for input terminal

Terminal	RCA/S-video/SCART				HDMI	DVI		D-sub		Remarks
Signal	CVBS	S-video	Component	SCART (RGB)		PC STB RGB			Component
AV1	○	○								Refer to Setup Menu 30
AV2	○			○						Refer to Setup Menu 30
AV3	○			○						Refer to Setup Menu 30
AV4	○		○							Refer to Setup Menu 30
AV5	○	○								Refer to Setup Menu 30
AV6					○
RGB1						○	○			Refer to Setup Menu 30
RGB2								○	○	Refer to Setup Menu 30

(0:Available)

With Composite Input (AV1~AV5 input) and S-video Input (AV1, AV5 input).
With component input (AV4 and RGB2-component input).

No.	Signal Mode			Horizontal frequency (kHz)	Dot clock frequency (MHz)	Remarks
	Signal Name	Resolution	Vertical frequency (Hz)
1	NTSC4.43 NTSC3.58	525	59.94	15.73	-
2	PAL SECAM	625	50.00	15.63	-

*1 720p/50 is supported AV4 only.

No.	Signal Mode			Horizontal frequency (kHz)	Dot clock frequency (MHz)	Remarks
	Signal Name	Resolution	Vertical frequency (Hz)
1	576i	576	50.00	15.63	-
2	480i	480	59.94	15.73	-
3	576p	576	50.00	31.26	-
4	480p	480	59.94	31.47	-
5	1080i/50	1080	50.00	28.13	-
6	1080i/60	1080	60.00	33.75	-
7	\( 720p/50^{-1} \)	720	50.00	37.50	-
8	720p/60	720	60.00	45.00	-

Recommended Signal List (continued)

With HDMI input (AV6 input)

No.	Signal Mode			Horizontal frequency (kHz)	Dot clock frequency (MHz)	Remarks
	Signal Name	Resolution	Vertical frequency (Hz)
1	VGA	640 x 480	59.94	31.47	25.18	EIA-861B
2	576i	720(1440) x 576	50.00	15.63	27.00	EIA-861B
3	480i	720(1440) x 480	59.94	15.73	27.00	EIA-861B
4	576p	720 x 576	50.00	31.25	27.00	EIA-861B
5	480p	720 x 480	59.94	31.47	27.00	EIA-861B
6	1080i/50	1920 x 1080	50.00	28.13	74.25	EIA-861B
7	1080i/60	1920 x 1080	60.00	33.75	74.25	EIA-861B
8	720p/50	1280 x 720	50.00	37.50	74.25	EIA-861B
9	720p/60	1280 x 720	60.00	45.00	74.25	EIA-861B

With Digital signal input

No.	Signal Mode Setup Menu Condit			Horizontal frequency (kHz)	Dot clock frequency (MHz)			Remarks
	Signal Name	Resolution	Vertical frequency (Hz)			DVI-PC	DVI-STB
1	VGA	640 X 400	70.08	31.47	25.18	○
2		640 X 480	59.94	31.47	25.18	○	○
3	W-VGA	864 X 480	59.94	31.47	34.24	○		WVGA type : On
4	VESA	640 X 480	72.81	37.86	31.50	○
5		640 X 480	75.00	37.50	31.50	○
6		640 X 480	85.01	43.27	36.00	○
7		800 X 600	56.25	35.16	36.00	○
8		800 X 600	60.32	37.88	40.00	○
9		800 X 600	72.19	48.08	50.00	○
10		800 X 600	75.00	46.88	49.50	○
11		800 X 600	85.06	53.67	56.25	○
12		1024 X 768	60.00	48.36	65.00	○
13		1024 X 768	70.07	56.48	75.00	○
14		1024 X 768	75.03	60.02	78.75	○
15	480p	720 X 480	59.94	31.47	27.00		○	EIA-861B
16	576P	720 X 576	50.00	31.25	27.00		○	EIA-861B
17	720P/50	1280 X 720	50.00	37.50	74.25		○	EIA-861B
18	720p/60	1280 X 720	60.00	45.00	74.25		○	EIA-861B
19	1080i/60	1920 X 1080	60.00	33.75	74.25		○	EIA-861B
20	1080l/50	1920 X 1080	50.00	28.13	74.25		○	EIA-861B

The type of video board or connecting cable used may not allow for correct display adjustment of Horizontal Position, Vertical Position, Horizontal Clock and Clock Phase.
The monitor may fail to display an animation image correctly when a signal having a vertical frequency of 85Hz or higher is input to it.
The monitor differentiates the signal modes according to the horizontal and vertical frequencies and the horizontal and vertical sync signal polarities. Note that different signals having all these elements alike may be handled as the same signal.
- Displaying images with more than 512 lines of vertical resolution at Full display (compressed display) can result in the interpolation of stripes.

Manuel Utilisateur

ACCESSIONS FOURNIS 2

ATTENTION: VEUILLEZ LIRE CE QUI

SUIT AVANT D'UTILISER L'APPAREIL .... 3

PRECAUTIONS 7

NOM DES COMPOSANTS 8

CHARACTERISTIQUES DU PRODUIT 46

[C14:9L] and [14:9Zoom] - 16 a + 16

Principal Secondenaire

(○:disponible)
4 Images

Terminal d'entrée

AV1~AV5

AV2, AV3

AV4, AV6

RGB1

RGB2

TELE TEXT

SecondairePrincipal

TV

PALSECAM

NTSC3.58NTSC4.43

RGB

576i576p

480i480p

1080i/50

1080i/60

720p/50

720p/60

RECEPTOR SATELLTE

Composante

TV

○

○

○

AV1~AV5

PAL, SECAM

○

○

○

○

NTSC3.58/4.43

○

○

○

○

AV2AV3

RGB

○

○

○

○

AV4AV6

576i, 576p

○

○

○

○

480i, 480p

○

○

○

○

1080i/50

○

○

○

○

1080i/60

○

○

○

○

720p/50

720p/60

○

○

○

○

RGB1

RÉCEPTEUR SATELLITE

RGB2

Composante

○

○

○

○

(○:disponible)

Principal	Secondaire 1
	Secondaire 2
	Secondaire 3

REMARQUE :

Environ 720p/50Hz

Amelioration image : Off

Menu Réglage Initial (TV mode)

INSTRUCTIONS CONCERNANT L'OPÉRATION (suite)

Menu Réglage Initial (TV mode) (Suite)

Menu Réglage Initial (RGB mode: RGB1 (DVI-PC), RGB2 (RGB)) (suite)

CHARACTERISTIQUES DU PRODUIT

Business Machines Corporation.

INNEHÄLLSFÖRTECKNING

FUNKTIONER 2

DELARNAS NAMN (forts.)

Fjärrkontroll

Lagga i batterier

DELARNAS NAMN (forts.)

Fjarrkontroll (forts.)

*1 FUNCTION SELECT

INSTALLATIONSANVISNINGAR (forts.)

INSTALLATIONSANVISNINGAR (forts.)

Ansluta till en AV-enhet (forts.)

INSTALLATIONSANVISNINGAR (forts.)

Ansluta till en pc

(1) Se till att datorns bildskarmssignal ar kompatibel medenna enhet.

Se "PRODUKTSPECIFICATIONER" for information om enhelens specifikationer. 46 50

INSTALLATIONSANVISNINGAR (forts.)

Montera sidoingangen

INSTALLATIONSANVISNINGAR (forts.)

Ansluta nätkabeln

ÖVRIGA FUNKTIONER (forts.)

Växla Ijudläge

A2 / NICAM / ljudmultiplexering (TV-läge)

ÖVRIGA FUNKTIONER (forts.)

Strömbesparingsläge

ÖVRIGA FUNKTIONER (forts.)

DVD-spelare valja

Inställningstips

PRODUKTSPECifikATIONER (forts.)

Signaling (forts.)

PRODUKTSPECifikATIONER (forts.)

Rekommenderade signaler (forts.)

Med HDMI-ingang (AV6-ingang)

Nr.	Signalläge			Horisontell frekvens (kHz)	Klockfrekvens (MHz)	Anmärkning
	Signalläge	Upplösning	Vertikal frekvens (Hz)
1	VGA	640 x 480	59,94	31,47	25,18	EIA-861B
2	576i	720(1440) x 576	50,00	15,63	27,00	EIA-861B
3	480i	720(1440) x 480	59,94	15,73	27,00	EIA-861B
4	576p	720 x 576	50,00	31,25	27,00	EIA-861B
5	480p	720 x 480	59,94	31,47	27,00	EIA-861B
6	1080i/50	1920 x 1080	50,00	28,13	74,25	EIA-861B
7	1080i/60	1920 x 1080	60,00	33,75	74,25	EIA-861B
8	720p/50	1280 x 720	50,00	37,50	74,25	EIA-861B
9	720p/60	1280 x 720	60,00	45,00	74,25	EIA-861B

Med digital signaling

Nr.	Signalläge			Horisontell frekvens (kHz)	Klock- frekvens (MHz)	Val på menyn Inställninger		Anmärkning
	Signalläge	Uplösning	Vertikal frekvens (Hz)			DVI-PC	DVI-STB
1	VGA	640 X 400	70,08	31,47	25,18	○
2		640 X 480	59,94	31,47	25,18	○	○
3	W-VGA	864 X 480	59,94	31,47	34,24	○		WVGA-typ: På
4	VESA	640 X 480	72,81	37,86	31,50	○
5		640 X 480	75,00	37,50	31,50	○
6		640 X 480	85,01	43,27	36,00	○
7		800 X 600	56,25	35,16	36,00	○
8		800 X 600	60,32	37,88	40,00	○
9		800 X 600	72,19	48,08	50,00	○
10		800 X 600	75,00	46,88	49,50	○
11		800 X 600	85,06	53,67	56,25	○
12		1024 X 768	60,00	48,36	65,00	○
13		1024 X 768	70,07	56,48	75,00	○
14		1024 X 768	75,03	60,02	78,75	○
15	480p	720 X 480	59,94	31,47	27,00		○	EIA-861B
16	576P	720 X 576	50,00	31,25	27,00		○	EIA-861B
17	720P/50	1280 X 720	50,00	37,50	74,25		○	EIA-861B
18	720p/60	1280 X 720	50,00	45,00	74,25		○	EIA-861B
19	1080i/60	1920 X 1080	50,00	33,75	74,25		○	EIA-861B
20	1080l/50	1920 X 1080	50,00	28,13	74,25		○	EIA-861B

( : acceptabel)

PRODUKTSPECifikATIONER (forts.)

Rekommenderade signaler (forts.)

Med analog signaling (RGB2-ingang)

Nr.	Signalläge			Horisontell frekvens (kHz)	Klockfrekvens (MHz)	Anmäkning
	Signalläge	Uplösning	Vertikal frekvens (Hz)
1	VGA	640 X 400	70,08	31,47	25,18
2		640 X 480	59,94	31,47	25,18
3	W-VGA	864 X 480	59,94	31,47	34,24	WVGA type: På
4	VESA	640 X 480	72,81	37,86	31,50
5		640 X 480	75,00	37,50	31,50
6		640 X 480	85,01	43,27	36,00
7		800 X 600	56,25	35,16	36,00
8		800 X 600	60,32	37,88	40,00
9		800 X 600	72,19	48,08	50,00
10		800 X 600	75,00	46,88	49,50
11		800 X 600	85,06	53,67	56,25
12		1024 X 768	60,00	48,36	65,00
13		1024 X 768	70,07	56,48	75,00
14		1024 X 768	75,03	60,02	78,75
15		1024 X 768	85,00	68,68	94,50
16		1152 x 864	75,00	67,50	108,00
17		1280 x 1024	60,02	63,98	108,00
18		1280 x 1024	75,03	79,98	135,00
19		1280 x 1024	85,02	91,15	157,50
20		1600 x 1200	60,00	75,00	162,00
21		1600 x 1200	75,00	93,75	202,50
22		1600 x 1200	85,00	106,.25	229,50
23	Macintosh	640 x 480	66,67	35,00	30,24
24		832 x 624	74,55	49,72	57,28
25		1024 x 768	74,93	60,24	80,00
26		1152 x 870	75,06	68,68	100,00
27	W-XGA	1280 x 768	59,833	47,986	81,00
28		1280 x 768	69,997	56,137	94,760
29	W-XGA	1280 x 768	59,876	47,776	79,50	WXGA lage: 1280 x 768
30		1366 x 768	60,015	47,712	85,50	WXGA lage: 1366 X 768

[C14:9L] y [14:9Zoom] - 16 to + 16

Image Retention can be an issue for all plasma monitors, however if you follow the simple guidelines listed below, you can enjoy many years of viewing. YAMAHA has included a number of features in our range of plasma monitors which help to reduce image retention. Please refer to the user manual for this model for instruction on how to use these features.

• Ensure screen save mode is activated.
• Always display the image in a mode that fills the screen.
• Avoid using split screen modes for long periods of time.
• Do not allow the "On Screen Display" to stay on for long periods of time.
• Do not display still images, such as menus from game consoles, Teletext, PCs or logos on the monitor for long periods of time.
• We recommend that you reduce "Contrast" and "Brightness" levels as much as possible.

Français

Retention d'image

Basic connection to an AV Receiver 1
