5HD31150 - Oven BLAUPUNKT - Free user manual and instructions

Features	Details
Product type	Electric oven
Capacity	About 50 liters
Power	About 2000 watts
Cooking functions	Convection, grill, traditional cooking
Maximum temperature	250°C
Dimensions (W x D x H)	60 x 60 x 60 cm
Weight	About 30 kg
Cavity material	Easy-to-clean enamel
Safety system	Door safety lock
Energy consumption	Energy class A
Included accessories	Grill rack, baking tray
Maintenance	Cleaning with soapy water recommended
Warranty	2 years

Frequently Asked Questions - 5HD31150 BLAUPUNKT

How do I preheat the BLAUPUNKT 5HD31150 oven?

To preheat the oven, select the desired temperature using the control knob. Wait until the preheating indicator lights up, indicating that the oven has reached the selected temperature.

Why won’t the oven turn on?

Check that the oven is properly plugged into a working electrical outlet. Also, make sure the fuse is not blown.

How do I clean the inside of the oven?

To clean the interior, use a soft cloth and a non-abrasive cleaner. Avoid using harsh chemicals that could damage the surface.

Does the oven heat evenly?

If you notice uneven cooking, check that the racks are properly positioned and not blocking air circulation. It is also recommended to turn dishes halfway through cooking.

How do I use the steam cooking function?

To use steam cooking, fill the designated water reservoir, select the steam mode on the control panel, and adjust the cooking time as needed.

What should I do if the oven displays an error code?

If an error code appears, consult the user manual to identify the problem. You can also try unplugging the oven for a few minutes and then plugging it back in.

What types of dishes can I use in the oven?

Use oven-safe dishes such as glass, ceramic, or metal cookware. Avoid plastics that are not heat resistant.

How do I set the oven timer?

Turn the timer knob to the desired duration. The oven will emit a sound signal when the time is up.

USER MANUAL 5HD31150 BLAUPUNKT

Built-in cooker 5HD311.0

Inbouwfontuiis 5HD311.0

Eine Störung, was tun? 11

Störungstabelle 11

Eine Störung, was tun?

Compartment de cuisson. 23

Vos accesoires 24

Compartment de cuisson

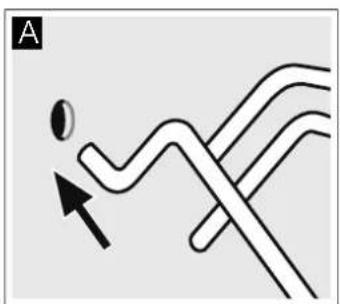

Installation des supports

Important safety information. 39

Causes of damage 40

Your new oven 41

Control panel 41

Function selector. 41

Temperature selector 42

Burner knob 42

Cooking compartment 42

Your accessories. 42

Inserting the accessories 42

Special accessories 43

Before using the oven for the first time. 43

Heating up the oven. 43

Cleaning the accessories. 43

Setting the hob 43

Setting the oven. 44

Setting the type of heating and temperature 44

Care and cleaning 44

Cleaning agents 44

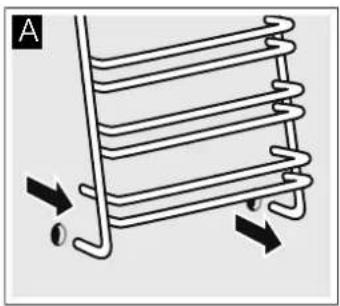

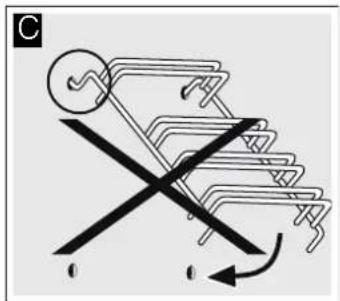

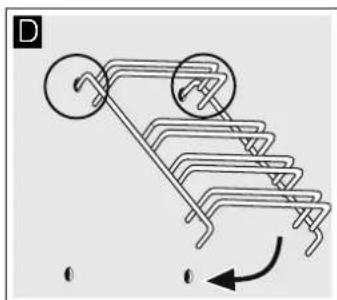

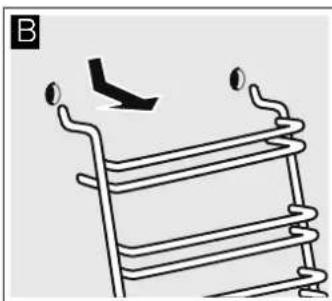

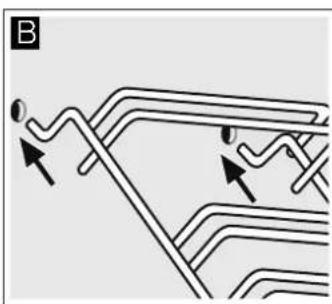

Detaching and refitting the rails. 45

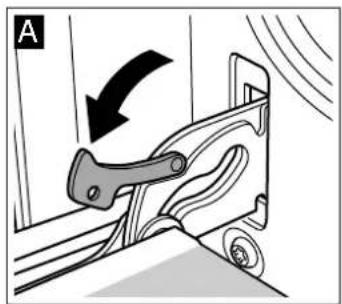

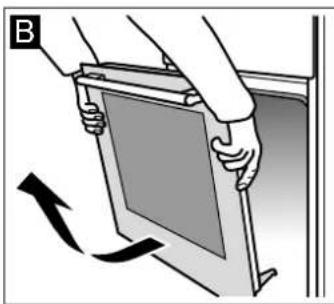

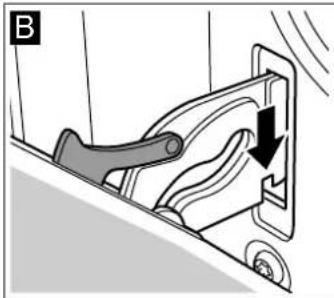

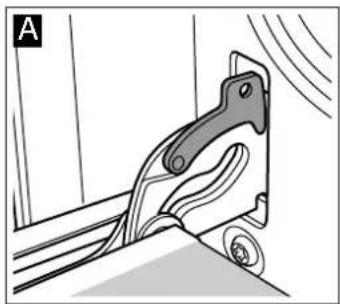

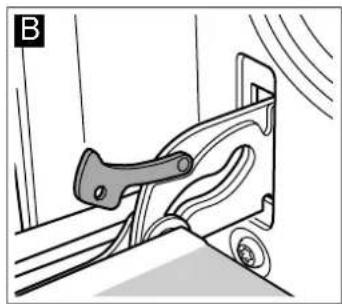

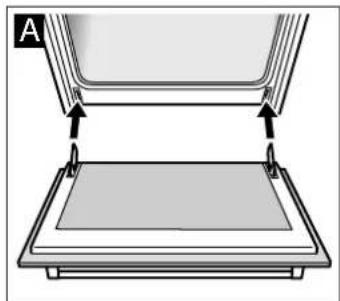

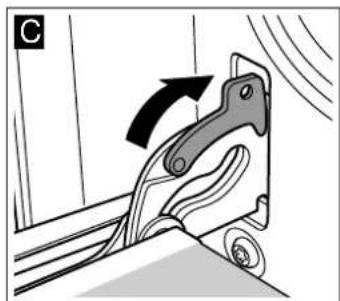

Detaching and attaching the oven door. 45

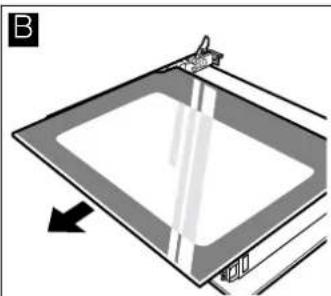

Removing and refitting the door panels. 46

Troubleshooting 47

Malfunction table. 47

Replacing the bulb in the oven ceiling light 47

Glass cover. 47

After-sales service 47

E number and FD number 47

Energy and environment tips. 47

Saving energy. 47

Environmentally-friendly disposal. 48

Measures to be noted during transport. 48

Tested for you in our cooking studio 48

Cakes and pastries 48

Baking tips 49

Meat, poultry, fish. 50

Tips for roasting and grilling. 52

Bakes, gratins, toast with toppings 52

Preprepared products. 52

Special dishes 53

Defrosting 53

Drying. 53

Preserving 53

Acrylamide in foodstuffs 54

Test dishes. 55

Baking. 55

Grilling. 55

Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Always slide accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.

Risk of fire!

• Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box.
• A draught is created when the appliance door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof paper with a dish or a baking tin. Only cover the surface required with greaseproof paper. Greaseproof paper must not protrude over the accessories.

Risk of burns!

• The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.
• Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.
• Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care.

Risk of scalding!

• The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance.
• When you open the appliance door, hot steam may escape. Open the appliance door with care. Keep children at a safe distance.
  Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.

Risk of injury!

Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.

Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.
- The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
- Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
- When replacing the cooking compartment bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Causes of damage

Caution!

• Accessories, foil, greaseproof paper or ovenware on the cooking compartment floor: do not place accessories on the cooking compartment floor. Do not cover the cooking compartment floor with any sort of foil or greaseproof paper. Do not place ovenware on the cooking compartment floor if a temperature of over 50^ has been set. This will cause heat to accumulate. The baking and roasting times will no longer be correct and the enamel will be damaged.
  Water in a hot cooking compartment: do not pour water into the cooking compartment when it is hot. This will cause steam. The temperature change can cause damage to the enamel.

• Moist food: do not store moist food in the cooking compartment when it is closed for prolonged periods This will damage the enamel.
  Fruit juice: when baking particularly juicy fruit pies, do not pack the baking tray too generously. Fruit juice dripping from the baking tray leaves stains that cannot be removed. If possible, use the deeper universal pan.
  Cooling with the appliance door open: only allow the cooking compartment to cool when it is closed. Even if the appliance door is only open a little, front panels of adjacent units could be damaged over time.

• Very dirty door seal: If the door seal is very dirty, the appliance door will no longer close properly when the appliance is in use. The fronts of adjacent units could be damaged. Always keep the door seal clean.

• Appliance door as a seat, shelf or worktop: Do not sit on the appliance door, or place or hang anything on it. Do not place any cookware or accessories on the appliance door.

• Inserting accessories: depending on the appliance model, accessories can scratch the door panel when closing the appliance door. Always insert the accessories into the cooking compartment as far as they will go.

• Carrying the appliance: do not carry or hold the appliance by the door handle. The door handle cannot support the weight of the appliance and could break.

Your new oven

Here you will learn about your new oven. The control panel and the individual operating controls are explained. You will find information on the cooking compartment and the accessories.

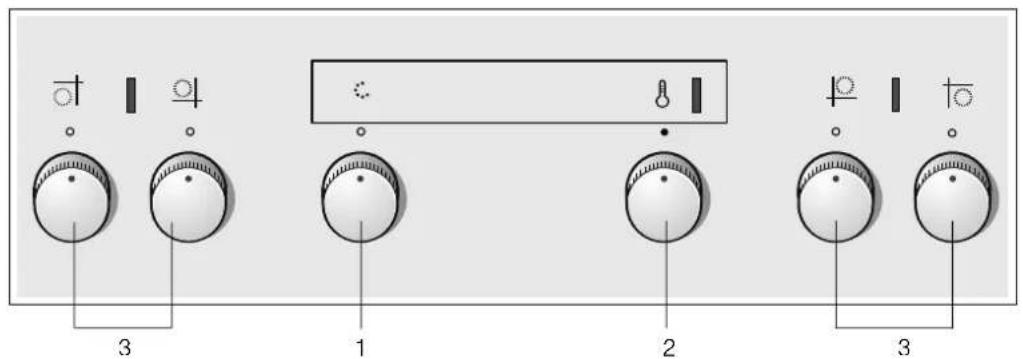

Control panel

Here you can see an overview of the control panel. The design depends on the respective appliance model.

Explanations

1 Function selector

2 Temperature selector

3 Selector switch

Control knobs

The control knobs can be pushed in and remain pressed down when they are in the "out" position. Press down on the control knob again to release it back up.

Function selector

With the function selector knob you can set the heating mode for the oven. The function selector knob can be rotated to the right or to the left.

When the required type of heating is set, the oven light lights up.

Settings Function

0	Off The oven is switched off.
□	Top/bottom heat-ing	Baking, roasting or grilling is possi- ble on a single level only. This set- ting is well-suited for cakes and pizza in tins or on the baking tray, and for lean joints of beef, veal and game. Heat is emitted evenly from the top and bottom.

• Type of heating in accordance with energy efficiency class EN50304.

Settings Function

F	Circulated air* Meringues and puff pastries can be baked on a single level. Small baked items, cookies and puff pastries can be baked at the same time on two levels. The fan on the rear side of the appliance takes the air that comes from above and below and distributes it evenly around the food.
Bottom heating You can use Bottom heating for the final baking stage and for browning meals from the bottom. The heat is emitted from below.
Hot air grilling Hot air grilling is particularly suitable for grilling fish, poultry and larger pieces of meat. The grill element and fan switch on and off alternately. The fan distributes the heated air around the food.
Radiant grill, small area	This type of heating is suitable for grilling small quantities of steak, sausages, fish, and toast. The centre part of the grill element is heated.
Radiator grilling, large area	Can be used to grill a large number of beef steaks, sausages and fish, or to toast bread. The whole area below the grill heating element becomes hot.

• Type of heating in accordance with energy efficiency class EN50304.

Temperature selector

Use the temperature selector to set the temperature and the grill setting.

Positions Function

Off Oven not hot.

50-270 Temperature range Temperature in °C

I, II, III Grill settings Grill settings for the grill, small □ and large □ surface. I = level 1, low II = level 2, medium III = level 3, high

The small light above the temperature selector is lit when the oven is heating. It goes out during pauses in the heating. For some settings, it does not light up.

Grill settings

With Radiant grilling, use the temperature selector to set a grill setting.

Burner knob

You can use the four burner knobs to adjust the heat setting of the hotplates.

The Positions Function

Zero position Cooker switched off.

1-9 Heat settings 1 = lowest setting 9 = highest setting

Activate Switches on the extended cooking zone

Activate Switches on the dual-circuit hot-plate

When you switch on the cooker, the indicator lamp lights up.

Cooking compartment

The oven light is located in the cooking compartment. A cooling fan protects the oven from overheating.

Oven light

During oven operation, the oven light is on. By turning the function selector to any position, the oven light can also be switched on without the oven heating up.

Cooling fan

The cooling fan switches on and off as required. The hot air escapes above the door.

So that the cooking compartment cools down more quickly after operation, the cooling fan continues to run for a certain period afterwards.

Caution!

do not cover the ventilation slots. Otherwise the oven will overheat.

Your accessories

The accessories supplied with your appliance are suitable for making many meals. Ensure that you always insert the accessories into the cooking compartment the right way round. There is also a selection of optional accessories, with which you can improve on some of your favourite dishes, or simply to make working with your oven more convenient.

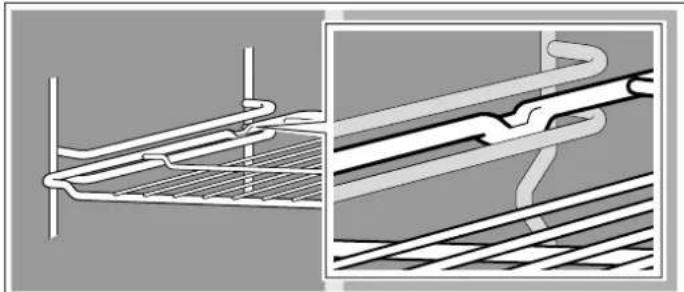

Inserting the accessories

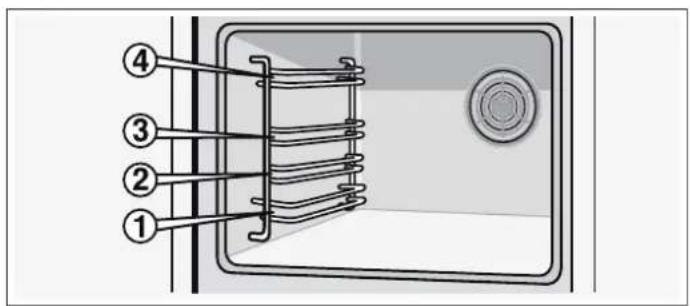

The accessories can be inserted in the oven at 4 different levels. Always insert the accessories as far as they can go to ensure that they do not touch the door glass.

When the accessories are pulled approximately halfway out, they lock into position. This allows meals to be taken out easily. When placing the accessories in the oven, check that the indentation is at the back. They can only lock correctly in place in this position.

Note: Heat may cause the accessories to deform. As soon as the accessories cool down, they regain their original shape. Their function is not impaired.

Hold the baking tray securely on the sides with both hands and push it parallel into the frame. Avoid movements to the right or left when pushing the baking tray in. Otherwise, it will be difficult to push the tray in and the enamelled surfaces could be damaged.

Your oven does not have all of the accessories listed below.

You can buy accessories from the after-sales service, from specialist retailers or online. Please specify the 5Z number.

Wire rack For ovenware, cake tins, joints, grilled items and frozen meals. Insert the wire rack with the open side facing the oven door and the curvature pointing downwards

Universal pan For moist cakes, pastries, frozen meals and large roasts. It can also be used to catch dripping fat when you are grilling directly on the wire rack. Slide in the universal pan with the sloping edge facing the oven door.

Special accessories

You can purchase special accessories from the after-sales service or specialist retailers. You will find a comprehensive range of products for your oven in our brochures and online. The availability of special accessories and whether it is possible to order them on the Internet will vary from country to country. You can find information on this in the sales brochures.

Not all special accessories are suitable for all appliances. When purchasing, always quote the exact identification number (E no.) of your appliance.

Special accessories 5Z number Use
Wire rack 5Z 11KR11 For ovenware, cake tins, roasts, grilled items and frozen meals.
Aluminium baking tray 5Z 11BA11 For cakes and biscuits.	Slide the baking tray into the oven with the sloping edge facing the oven door.
Enamel baking tray 5Z 11BE11 For cakes and biscuits.	Slide the baking tray into the oven with the sloping edge facing the oven door.
Universal pan 5Z 11BU11 For moist cakes, pastries, frozen meals and large roasts. Can also be used under the wire rack to catch fat and meat juices.	Slide the universal pan into the oven with the sloping edge facing the oven door.
2-level telescopic shelf 5Z 11TA12 The pull-out rails at levels 1 and 3 allow you to pull accessories out fully without them tipping.
3-level telescopic shelf 5Z 11TA14 The pull-out rails at levels 1, 2 and 3 allow you to pull accessories out fully without them tipping.
Oven door - Additional safety precautions	If you have small children, extra supervision is required during oven operation.
During long cooking times, the oven door may become very hot.	In addition, there is a safety device which prevents direct contact with the oven door. This optional accessory (440651) is available from the after-sales service.

Before using the oven for the first time

In this section, you can find out what you must do before using your oven to prepare food for the first time. First read the section on Safety information.

Heating up the oven

To remove the new cooker smell, heat up the oven when it is empty and closed. An hour of Top/bottom heating at 240^ is ideal for this purpose. Ensure that no packaging remnants have been left in the cooking compartment.

Keep the kitchen ventilated the whole time the oven is on.

1. Use the function selector to set Top/bottom heating
2. Set the temperature selector to 240^ .

After an hour, switch off the oven. To do so, turn the function selector to the off position.

Cleaning the accessories

Before you use the accessories for the first time, clean them thoroughly with hot soapy water and a soft dish cloth.

Setting the hob

Your hob comes with its own instruction manual. It contains important safety guidelines, full instructions for setting and extensive information on care and cleaning.

Setting the oven

You have several options for setting the oven. In this section, we will explain how you can select the required type of heating and temperature or grill setting.

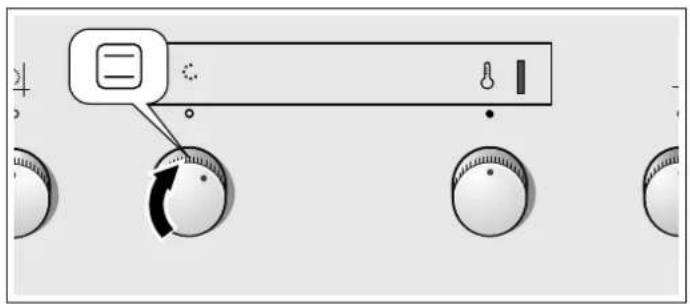

Setting the type of heating and temperature

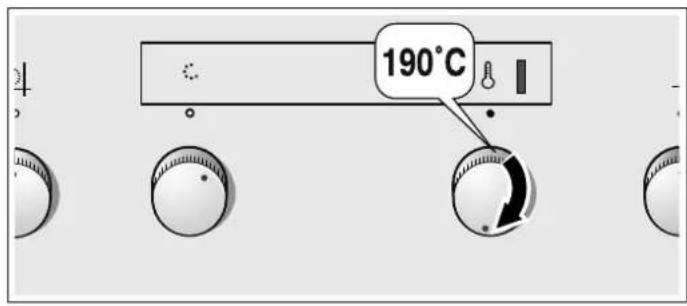

Example in the picture: Top/bottom heating at 190^ .

1. Use the function selector to set the type of heating.

1. Set the temperature or grill setting using the temperature selector.

The oven begins to heat up.

Switch off the oven

Turn the function selector to the off position.

Changing the settings

You can change the type of heating, temperature and grill setting as required.

Care and cleaning

With good care and cleaning, your oven will remain clean and fully-functioning for a long time to come. Here we will explain how to maintain and clean your oven correctly.

Notes

Slight differences in the colours on the front of the oven are caused by the use of different materials, such as glass, plastic and metal.
- Shadows on the door panel which look like streaks, are caused by reflections made by the oven light.
Enamel is baked on at very high temperatures. This can cause some slight colour variations. This is normal and does not affect their function. The edges of thin trays cannot be completely enamelled. As a result, these edges can be rough. This will not impair the anti-corrosion protection.

Cleaning agents

Damage to the various different surfaces caused by using the wrong cleaning agent can be avoided by observing the following instructions.

When cleaning the oven do not use

sharp or abrasive cleaning agents,
cleaning agent with a high alcohol content,
scouring pads,
high-pressure cleaners or steam jets.
- Do not clean individual parts in the dishwasher.

Wash new sponges thoroughly before first use.

The control panel	Hot soapy water: Clean with a dish cloth and dry with a soft cloth. Do not use glass cleaners or glass scrapers for cleaning.
Stainless-steel surfaces	Clean with warm soapy water and a soft cloth. On stainless-steel surfaces, always wipe parallel to the natural grain. Otherwise, you may scratch the surface. Dry with a soft cloth. Remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately. Do not use any abrasive materials, scouring sponges or rough cleaning cloths. The stainless-steel fronts can be polished using a special care product. Follow the manufacturer's instructions. You can purchase special stainless-steel cleaner from our after-sales service or from specialist retailers.
Enamel surfaces and lacquered surfaces	Wipe with a damp cloth and some washing-up liquid. Dry with a soft cloth.
Rotary knobs	Wipe with a damp cloth and some washing-up liquid. Dry with a soft cloth.
Glass panel	Clean using glass cleaner. Do not use any abrasive cleaning agents or sharp metal objects. These could scratch and damage the surface of the glass panel.
Seal Wipe with a damp cloth. Dry with a soft cloth.
Oven interior	Warm soapy water or a vinegar solution. If there are heavy deposits of dirt, only use oven cleaner on cold surfaces.
Glass cover for the oven light	Wipe with a damp cloth and some washing-up liquid. Dry with a soft cloth.

Accessories Soak in warm soapy water. Clean with a brush or sponge.

Aluminium baking tray (optional)	Do not clean in the dishwasher. Never use oven cleaner. To avoid scratches, never touch the metal surfaces with a knife or a similar sharp object. Clean horizontally with some washing-up liquid and a damp glass cleaning cloth or a microfibre cloth - do not press too hard. Dry with a soft cloth. Do not use any abrasive materials, scouring sponges or rough cleaning cloths. Otherwise, you may scratch the surface
Childproof lock (optional)	If a childproof lock has been fitted on the oven door, it must be removed before cleaning. Soak all plastic parts in warm soapy water and wash with a sponge. Dry with a soft cloth. If very dirty, the childproof lock will not work properly.
Hob Refer to the hob instruction manual for information about care and cleaning.

Detaching and refitting the rails

The rails can be removed for cleaning. The oven must have cooled down.

Unhooking the rails

1. Hold the shelf frames from underneath and pull slightly forward. Pull the extension pins at the bottom of the rails out of the mounting holes (Fig. A).
2. Then fold the rails upwards and carefully remove them (Fig.B).

Clean the rails with washing-up liquid and a sponge. For stubborn deposits of dirt, use a brush.

Installing the frames

1. Insert the two hooks carefully into the upper holes. (Figure A-B)

Incorrect assembly!

Never move the frame before the two hooks are fully anchored in the upper holes. The enamel could be damaged and may break (figure C).

1. the two hooks must be inserted fully into the upper holes. Now move the frame slowly and carefully downwards and insert in the lower holes (figure D).
2. Insert both frames into the side walls of the oven (figure E). If the rails are fitted correctly, the distance between the two upper shelf positions is greater.

Detaching and attaching the oven door

For cleaning purposes and to remove the door panels, you can detach the oven door.

The oven door hinges each have a locking lever. When the locking levers are closed (figure A), the oven door is secured in place. It cannot be detached. When the locking levers are open in order to detach the oven door (Fig. B), the hinges are locked. They cannot snap shut.

Risk of injury!

Whenever the hinges are not locked, they snap shut with great force. Ensure that the locking levers are always fully closed or, when detaching the oven door, fully open.

Detaching the door

1. Open the oven door fully.
2. Fold up the two locking levers on the left and right (figure A).
3. Close the oven door as far as the limit stop. With both hands, grip the door on the left and right-hand sides. Close the door a little further and pull it out (figure B).

Attaching the door

Reattach the oven door in the reverse sequence to removal.

1. When attaching the oven door, ensure that both hinges are inserted straight into the opening (figure A).
2. The notch on the hinge must engage on both sides (figure B).

1. Fold back both locking levers (figure C). Close the oven door.

Risk of injury!

If the oven door falls out accidentally or a hinge snaps shut, do not reach into the hinge. Call the after-sales service.

Removing and refitting the door panels

The glass panels can be removed from the oven door to allow more thorough cleaning.

Removal

1. Removing the oven door See the section Removing the oven door. Lay the oven door on a cloth with the handle facing downwards.
2. Remove the cover from the top of the oven door. To do this, press with your fingers on the left and right-hand side. Pull out the cover (Fig. A).
3. Raise the top panel and pull it out (Fig. B).

Clean the panels with glass cleaner and a soft cloth.

Risk of injury!

Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.

Fitting

1. Hold the top glass panel firmly by the sides and slide it in towards the back at an angle. The panel must be inserted into the openings on the lower side. The smooth surface must face outwards, while the roughened side must be on the inside. (Fig. A).

1. Place the cover on the top of the oven door and press in place. Make sure that the grooves along the sides lock into position.
2. Refitting the oven door See the section Refitting the oven door.

Do not use the oven again until the panels have been correctly fitted.

Troubleshooting

Malfunctions often have simple explanations. Refer to the table before calling the after-sales service as you may be able to remedy the fault yourself.

Malfunction table

If your meal is not successful, please refer to section. We have tested the recipe for you in our cooking studio. Here, you will find useful cooking tips and tricks for cooking, baking and roasting.

Malfunction Possible cause Remedy/information

The oven does not work.	The circuit breaker is defective.	Look in the fuse box to see if the circuit breaker is defective.
	Power cut. Check whether the kitchen light and other kitchen appliances are working.
Oven not hot. Dust on the contacts.	Turn the control knobs several times to the left and right.

Risk of electric shock!

Repairs that are not carried out properly are dangerous. Repairs must only be performed by one of our after-sales service technicians.

Caution!

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Replacing the bulb in the oven ceiling light

If the bulb in the oven light fails, it must be replaced. Heat-resistant, 40 watt spare bulbs can be obtained from our after-sales service or a specialist retailer. Only use these bulbs.

Risk of electric shock!

Switch off the circuit breaker in the fuse box.

1. Place a tea towel in the oven when it is cold to prevent damage.
2. Unscrew the glass cover by turning it anti-clockwise.

1. Replace the bulb with one of the same type.
2. Screw the glass cover back in.
3. Remove the tea towel and switch on the circuit breaker.

Glass cover

You must replace a damaged glass cover. Suitable glass covers may be obtained from the after-sales service. Please specify the E number and FD number of your appliance.

After-sales service

Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician.

E number and FD number

When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate containing these numbers can be found on the right-hand side of the oven door. You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.

E no.

FD no.

After-sales service

Please note that there will be a fee for a visit by a service technician in the event of a malfunction, even during the warranty period.

After-sales contact details for all countries can be found in the attached after-sales service directory.

Energy and environment tips

Here you can find tips on how to save energy when baking and roasting and how to dispose of your appliance properly.

Saving energy

Only preheat the oven if this is specified in the recipe or in the operating instruction tables.
Use dark, black lacquered or enamelled baking tins. They absorb the heat particularly well.
- Open the oven door as infrequently as possible while you are cooking, baking or roasting.

It is best to bake several cakes one after the other. The oven is still warm. This reduces the baking time for the second cake. You can also place two loaf tins next to each other.
For longer cooking times, you can switch the oven off 10 minutes before the end of the cooking time and use the residual heat to finish cooking.

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Measures to be noted during transport

Secure all mobile parts in and on the appliance using an adhesive tape that can be removed without leaving any traces. Push all accessories (e.g. baking tray) into the corresponding slots with cardboard at the edges, in order to avoid damaging

the appliance. Place cardboard or similar between the front and rear side to prevent knocks against the inside of the door glass. Secure the oven door to the side walls of the appliance using adhesive tape.

Keep the original appliance packaging. Only transport the appliance in the original packaging. Observe the transport arrows on the packaging.

If the original packaging is no longer available

pack the appliance in protective packaging to guarantee sufficient protection against any transport damage.

Transport the appliance in an upright position. Do not hold the appliance by the door handle or the connections on the rear, as these could be damaged. Do not place any heavy objects on the appliance.

Tested for you in our cooking studio

Here you will find a selection of dishes and the ideal settings for them. We will show you which type of heating and which temperature are best suited for your dish. You can find information about suitable accessories and the height at which they should be inserted. There are also tips about cookware and preparation methods.

Notes

The values in the table always apply to dishes placed into the cooking compartment when it is cold and empty.

Only preheat the appliance if the table specifies that you should do so. Do not line the accessories with greaseproof paper until after they have been preheated.

The times specified in the tables are guidelines only. They will depend on the quality and composition of the food.
Use the accessories supplied. Additional accessories may be obtained as special accessories from specialist retailers or from the after-sales service.

Before using the oven, remove any unnecessary accessories and ovenware from the cooking compartment.

Always use oven gloves when taking hot accessories or ovenware out of the cooking compartment.

Cakes and pastries

Baking on one level

When baking tarts, Top/bottom heating delivers the best results.

When baking with 2D Circulated air, insert the accessory in at the following shelf positions:

Cakes in tins: Shelf position 2
Cakes on trays: Shelf position 3

Baking on several levels

Use circulated air

Shelf heights for baking on two levels:

Universal pan: Shelf position 3
Baking tray: Shelf position 1

Food that is placed into the oven at the same time will not necessarily be ready at the same time.

The tables contain a selection of dishes.

Note: Do not place food directly onto the aluminium baking tray. Line the aluminium baking tray with greaseproof paper.

Baking tins

It is best to use dark-coloured metal baking tins.

Baking times are increased when light-coloured baking tins made of thin metal or glass dishes are used, and cakes do not brown so evenly.

If you wish to use silicone baking tins, use the information and recipes provided by the manufacturer as a guide. Silicone baking tins are often smaller than normal tins. The amount of mixture and recipe instructions may differ.

Tables

The tables show the ideal type of heating for the various cakes and pastries. The temperature and baking time depend on the amount and composition of the mixture. This is why

temperature ranges are given in the tables. You should try the lower temperature first, since a lower temperature results in more even browning. You can increase the temperature next time if necessary.

If you preheat the oven, the baking time is shortened by 5 to 10 minutes.

Additional information can be found in the Baking tips section following the tables.

Cake in a mould Tin Level Type of	heating	Temperature, °C	Cooking time in minutes
Sponge cake, simple Fruit loaf tin 2	\( \boxed{\square} \)	160-180 50-60
Sponge cake, delicate (e.g. sand cake) Fruit loaf tin 2	\( \square \)	155-175 65-75
Shortcrust pastry base with crust Springform cake tin 1	\( \square \)	160-180 30-40
Sponge flan base Flan-base cake tin 2	\( \square \)	160-180 25-35
Sponge cake	Springform cake tin 2	\( \square \)	160-180 30-40
Fruit tart or cheesecake, shortcrust pastry*	Dark springform cake tin 1	\( \square \)	170-190 70-90

• Allow cakes to cool in the appliance for approx. 20 minutes.

Cake in a mould	Tin	Level	Type of heating	Temperature, °C	Cooking time in minutes
Delicate fruit flan, sponge Springform cake tin 2			□	150-170 55-65
Savoury cakes* (e.g. quiche/onion tart) Springform cake tin 1			□	180-200 50-60

• Allow cakes to cool in the appliance for approx. 20 minutes.

Cakes on trays Accessories Level Type of	heating	Temperature in °C	Cooking time in minutes
Sponge mixture or yeast dough with dry topping Universal pan 3	□	160-180 25-35
Sponge mixture or yeast dough with fresh fruit Universal pan 3	□	140-160 40-50
Sponge roulade (preheat) Universal pan 2	□	170-190 15-20
Plaited loaf, 500 g flour Universal pan 3	□	150-170 25-35
Stollen, 500 g flour Universal pan 3	□	160-180 50-60
Stollen, 1 g flour Universal pan 3	□	150-170 90-100
Strudel, sweet Universal pan 2	□	180-200 55-65
Pizza Universal pan 3	□	180-200 20-30

Bread and bread rolls

Never pour water directly into a hot oven.

If not specified otherwise, always preheat the oven for baking bread.

Bread and bread rolls	Accessories	Level	Type of heating	Temperature, °C	Cooking time in minutes
Yeast bread, 1.2 kg flour	Universal pan:	2	□	270	8
				190	35-45
Sourdough bread, 1.2 kg flour	Universal pan:	2	□	270	8
				190	35-45
Bread rolls (e.g. rye rolls)	Universal pan:	2	□	200-220	20-30

Small baked products Accessories		Level	Type of heating	Temperature in °C	Cooking time in minutes
Biscuits	Universal pan	3	□	150-170 10-20
	Aluminium baking tray* + universal pan**	1+3	王	130-150 25-35
Meringue	Universal pan	3	王	70-90	125-135
Cream puffs	Universal pan	2	□	200-220 30-40
Macaroons	Universal pan	3	□	110-130 30-40
	Aluminium baking tray* + universal pan**	1+3	王	100-120 35-45
Puff pastry	Universal pan	3	王	180-200 20-30
	Aluminium baking tray* + universal pan**	1+3	王	180-200 30-40

• Additional baking trays can be ordered from the after-sales service or specialist retailers.
  ** When baking on two levels, always place the universal pan in the upper level.

Baking tips

You want to bake according to your own recipe.	Use similar items in the baking tables as a guide.
How to tell whether sponge cake is baked through:	Approximately 10 minutes before the end of the baking time specified in the recipe, pierce the cake at its highest point with a cocktail stick. If the cocktail stick comes out clean with no dough residue, the cake is ready.
The cake collapses.	Use less fluid next time or set the oven temperature 10 degrees lower. Observe the mixing times that are specified in the recipe.
The cake has risen in the middle but is lower around the edge.	Do not grease the sides of the springform cake tin. After baking, use a knife to loosen the cake carefully.
The cake browns too much on top.	Place it lower in the oven, select a lower temperature and bake the cake for a little longer.
The cake is too dry.	Use a wooden skewer to make tiny holes in the finished cake. Then drizzle fruit juice or an alcoholic drink over it. Next time, select a temperature that is 10 degrees higher and reduce the baking time.

The bread or cake (e.g. cheesecake) Next time, use slightly less liquid and bake at a lower temperature for slightly longer. For looks good, but is soggy on the cakes with a moist topping, bake the base first. Cover the base with almonds or breadinside (sticky, with streaks of water). crumbs first and then apply the topping. Observe any recipes and baking times.

The tart or the cake has not been baked evenly throughout.

Select a slightly lower temperature to ensure that the cake is baked more evenly. Bake deli- icate pastries on one level using Top/bottom heating \( \square \) . Extremely large greaseproof paper that protrudes out over the baking tray may affect the air circulation. Always trim the greaseproof to fit the baking tray.

The bottom of a fruit flan is too light. Place the cake one level lower the next time.

The fruit juice overflows. Next time, use the deeper universal pan (if available).

When baking yeast bread rolls, stick the sections together. There should be a gap of approx. 2 cm around each item. This leaves enough space for the bread rolls to expand and be baked evenly.

You want to bake on two levels. When baking on several layers, always use Circulated air. Food on baking trays that are placed into the oven at the same time will not necessarily be ready at the same time.

Condensation forms when you bake moist cakes. Baking may create water vapour. The steam escapes via the door. The steam may settle and form water droplets on the control panel or on the fronts of adjacent units. This is a natural process.

Meat, poultry, fish

Ovenware

You may use any heat-resistant ovenware. The universal pan is suitable for large roasts.

Glass ovenware is the most suitable. Ensure that the lid of the roasting dish fits well and closes properly.

Add a little more liquid when using enamelled roasting dishes.

With roasting dishes made of stainless steel, browning is not so intense and the meat may be somewhat less well cooked. Increase the cooking times.

Information in the tables:

Ovenware without a lid = open

Ovenware with a lid = closed

Always place the ovenware in the centre of the wire rack.

Place hot glass ovenware on a dry mat after cooking. The glass could crack if placed on a cold or wet surface.

Roasting

Add in a little liquid if the meat is lean. Cover the base of the ovenware with approx. 12 cm of liquid.

Add liquid generously for pot roasts. Cover the base of the ovenware with approx. 1 - 2cm of liquid.

The amount of liquid depends on the type of meat and the material the ovenware is made of. If preparing meat in an enamelled roasting dish, it will need a little more liquid than if cooked in glass ovenware.

Roasting dishes made from stainless steel are not ideal. The meat cooks more slowly and browns less fully. Use a higher temperature and/or a longer cooking time.

Tips for grilling

Always grill with the oven door closed.

Heat the grill for approximately 3 minutes before placing the food to be grilled on the wire rack.

Place the food to be grilled directly on the wire rack. If you are grilling a single piece, the best results are achieved by placing it in the centre of the wire rack. The universal pan should also be inserted at level 1. The meat juices are collected in the pan, keeping the oven cleaner.

Do not insert the baking tray or universal pan at level 4. They may become deformed at high temperatures and damage the cooking compartment when they are removed.

If possible, grill items should be of equal thickness. This will allow them to brown evenly and remain succulent and juicy. Only add salt to steaks once they have been grilled.

Turn grilled items after 2/3 of the specified time.

The grill element switches on and off intermittently. This is normal. The grill setting determines how frequently this occurs.

Meat

Turn pieces of meat halfway through the cooking time.

When the roast is ready, turn off the oven and allow it to rest for an additional 10 minutes. This allows better distribution of the meat juices.

After cooking, wrap sirloin in aluminium foil and leave it to rest for 10 minutes in the oven.

For roast pork with a rind, score the rind in a crossways pattern, then lay the roast in the dish with the rind at the bottom.

Meat Weight Accessories and	ovenware	Level Type of heating	Temperature °C, grill setting	Cooking time in minutes
Beef
Joint of beef 1.0 kg Covered 2		☐	200-220 120
1.5 kg 2		☐	190-210 140
2.0 kg 2		☐	180-200 160
Tenderloin, medium rare 1.0 kg Uncovered 1		☐	210-230 70
1.5 kg 1		☐	200-220 80
Sirloin, medium rare 1.0 kg Uncovered 1		\( ☑^{\ddagger} \)	230-250 50
Steaks, 3 cm, medium rare	Grill wire rack + baking tray	4+1	\( ☑^{\ddagger} \)	3
				15

Veal

Joint of veal	1.0 kg Uncovered 1	□	200-220 100
	1.5 kg 1	□	190-210 120
	2.0 kg 1	□	180-200 140

Meat Weight Accessories and ovenware			Level	Type of heating	Temperature grill setting	°C, Cooking time in minutes
Pork
without rind (e.g. neck) 1.0 kg Uncovered 1					190-210 120
1.5 kg 1					180-200 150
2.0 kg 1					170-190 170
with rind (e.g. shoulder) 1.0 kg Uncovered 1					180-200 130
1.5 kg 1					190-210 160
2.0 kg 1					170-190 190
Smoked pork on the bone 1.0 kg Covered 1					210-230 80
Lamb
Leg of lamb, boned, medium 1.5 kg Uncovered 1					170-190 120
Minced meat
Meat loaf approx.	750 g	Uncovered 1			180-200 70
Sausage
Sausage Grill wire rack + baking tray			4+1		3	15
Poultry			When cooking duck or goose, pierce the skin on the underside of the wings to allow the fat to escape.
The values in the table apply to dishes placed in a cold oven.			Place the bird onto the wire rack with the breast side facing downwards. Turn the whole bird when two thirds of the cooking time has elapsed.
The weights indicated in the table are for unstuffed poultry that is ready for roasting.			Poultry will turn out particularly crispy and brown if you baste it towards the end of the roasting time with butter, salted water or orange juice.
If you are grilling directly on the wire rack, you should also insert the universal pan at level 1.
Poultry	Weight	Accessories and ovenware	Level	Type of heating	Temperature °C, grill setting	Cooking time in minutes
Chicken halves, 1-4 pieces	400g each Wire rack	2			210-230 40-50
Chicken pieces	250 g each	Wire rack	3		210-230 30-40
Chicken, whole, 1-4 birds	per 1 kg	Wire rack	2		200-220 55-85
Duck, whole	1.7 kg	Wire rack	2		170-190 80-100
Goose, whole	3.0 kg	Wire rack	2		160-180 110-130
Small turkey, whole	3.0 kg	Wire rack	2		180-200 80-100
2 turkey drumsticks	800g each Wire rack	2			180-200 80-100
Fish
Turn the pieces of fish after 2/3 of the specified time.			To ensure that the fish remains in position, place half a potato or a small, ovenproof container into the stomach cavity. If you are grilling directly on the wire rack, also insert the universal pan at level 1. The fish juices are collected in the pan and the oven is kept cleaner.
Whole fish do not need to be turned. Place the whole fish in the oven in swimming position with the dorsal fin facing upwards.

Fish	Weight	Accessories and ovenware	Level	Type of heating	Temperature °C, grill setting	Cooking time in minutes
Fish, whole	300 g each	Wire rack	3	□	2	20-25
	1.0 kg Wire rack	2		□	190-210	40-50
	1.5 kg Wire rack	2		□	180-200	60-70
Fish, in slices (e.g. steaks)	300 g each	Wire rack	4	□	2	20-25

Tips for roasting and grilling

The table does not contain information for the weight of the joint.	Select the next lowest weight from the instructions and extend the time.
How to tell when the roast is ready.	Use a meat thermometer (available from specialist shops) or carry out a "spoon test". Press down on the roast with a spoon. If it feels firm, it is ready. If the spoon can be pressed in, it needs to be cooked for a little longer.
The roast is too dark and the crackling is partly burnt.	Check the shelf height and temperature.
The roast looks good but the juices are burnt.	Next time, use a smaller roasting dish or add more liquid.
The roast looks good but the juices are too clear and watery.	Next time, use a larger roasting dish and use less liquid.
Steam rises from the roast when busted.	This is normal and due to the laws of physics. The majority of the steam escapes through the steam outlet. It may settle and form condensation on the cooler switch panel or on the fronts of adjacent units.

Bakes, gratins, toast with toppings

If you are grilling directly on the wire rack, the universal pan should also be inserted at level 1. This keeps the oven cleaner.

Always place the ovenware on the wire rack.

How well cooked the bake is will depend on the size of the dish and the height of the bake. The figures in the table are only average values.

Dish Accessories and oven-ware	Level Type of heating	Temperature in °C	Cooking time in minutes
Bakes
Bake, sweet Ovenproof dish 2	%	170-190	50-60
Pasta bake Ovenproof dish 2	%	210-230	25-35
Gratin
Potato gratin made using raw ingredients, Max. 2 cm deep	TM	150-170	50-60
Toast
Toasting bread, 4 slices Wire rack 4	\( \square \)	3 6-7
Toasting bread, 12 slices Wire rack 4	\( \check{S} \)	3 4-5
Toast, with topping, 4 slices Wire rack 3	\( \square \)	3 7-10
Toast, with topping, 12 slices Wire rack 3	\( \check{S} \)	3 5-8

Preprepared products

Observe the instructions on the packaging.

If you line the accessories with greaseproof paper, make sure that the paper is suitable for these temperatures. Make sure the paper is a suitable size for the dish to be cooked.

The cooking result greatly depends on the quality of the food. Pre-browning and irregularities can sometimes even be found on the raw product.

Dish	Accessories	Level Type of heating	Temperature in °C	Cooking time in minutes
Strudel with fruit filling	Universal pan	3	180-200	40-50
Chips	Universal pan	3	%	210-230	25-30
Pizza	Wire rack	2	%	200-220	15-20
Pizza baguette	Wire rack	2	TM	190-210	15-20

Note

The universal pan may warp when cooking frozen dishes. The reason for this is the large temperature differences that the accessory is subjected to. The deformation disappears as early as during the cooking process.

Special dishes

Low temperatures are particularly good for preparing yeast dough and home-made yoghurt.

Remove the accessories from the oven.

Preparing yoghurt

1. Bring 1 litre of milk (3.5% fat) to the boil, let it cool to 40^ .
2. Add 150g yoghurt (from the refrigerator) to the milk and stir well.

3. Pour into small sealable jars and cover with cling film.

4. Place the jars on a wire rack and slide in at level 1.

5. Set the baking temperature to 50^ and continue as indicated.

Proving yeast dough

1. Prepare the yeast dough as usual, place it in a heat-resistant ceramic dish and cover with a lid.
2. Preheat the oven as indicated.
3. Close the oven door and allow the yeast dough to prove in the oven.

Dish Ovenware Type of		heating	Temperature Cooking time
Yoghurt Sealable yoghurt jars	1	□	50 °C 6-8 hours
Proving yeast dough Place the heat-resistant dish	on the oven floor	□	preheat to 50 °C	5-10 minutes
			Switch off the appliance and place the yeast dough in the oven	20-30 minutes

Defrosting

The defrosting time depends on the amount and type of food. Observe the instructions on the packaging.

Take food out of its packaging and place in suitable ovenware on the wire rack.

Place poultry with the breast side to the plate.

Frozen food Accessories Level Type of	heating	Temperature
e.g. cream cakes, buttercream cakes, gateaux with chocolate or Wire rack 2 sugar icing, fruit, chicken, sausage and meat, bread and bread rolls, cakes and other baked items	\( \boxed{\mathrm{E}} \)	The temperature selector remains switched off

Drying

Use undamaged fruit and vegetables only and wash them thoroughly.

Drain off any excess water from fruit and vegetables and dry them.

The universal pan must be inserted at level 3, and the wire rack is placed at level 1.

Line the universal pan and the wire rack with greaseproof or parchment paper.

Turn very juicy fruit or vegetables several times. Remove fruit and vegetables from the paper as soon as they have dried.

Fruit and vegetables Level Type of heating			Temperature in °C	Cooking time, hours
600 g of apple rings	1+3	\( ✦ \)	80	approx. 5
800 g of pear slices	1+3	\( ✦ \)	80	approx. 8
1.5 kg damsons or plums	1+3	\( ✦ \)	80	approx. 8-10
200 g herbs, washed	1+3	\( ✦ \)	80	approx. \( 1\frac{1}{2} \)

Preserving

For preserving, the jars and rubber seals must be clean and intact. If possible, use jars of the same size. The information in the table is for round, one-litre jars.

Caution!

Do not use jars that are larger or taller than this. The lids could crack.

Only use fruit and vegetables in good condition. Wash them thoroughly.

The times given in the tables are a guide only. The time will depend on the room temperature, number of jars, and the quantity and temperature of the contents. Before you switch off the appliance or change the cooking mode, check whether the contents of the jars are bubbling as they should.

Preparation

1. Fill the jars, but not to the top.
2. Wipe the rims of the jars, as they must be clean.
3. Place a damp rubber seal and a lid on each jar.
4. Seal the jars with the clips.

Place no more than six jars in the cooking compartment.

Settings

1. Insert the universal pan at level 2. Arrange the preserving jars so that they do not touch each other.
2. Pour 12 litre of water (approx. 80^ ) into the universal pan.
3. Close the oven door.
4. Set Bottom heat□.
5. Set the temperature to 170 - 180^

Preserving

Fruit

After approx. 40 to 50 minutes, small bubbles begin to form at short intervals. Switch off the oven.

After 25 to 35 minutes of residual heat, remove the preserving jars from the cooking compartment. If they are allowed to cool for longer in the cooking compartment, germs could multiply, promoting acidification of the preserved fruit.

Fruit in one-litre jars When it starts to bubble Residual heat
Apples, reductrants, strawberries Switch off approx. 25 minutes
Cherries, apricots, peaches, gooseberries Switch off approx. 30 minutes
Apple purée, pears, plums Switch off approx. 35 minutes
Vegetables As soon as bubbles begin to form in the jars, set the temperature back to between 120 and 140 °C. Depending on	the type of vegetable, heat for approx. 35 to 70 minutes. Switch off the oven after this time and use the residual heat.
Vegetables with cold cooking water in one-litre jars When it starts to bubble Residual heat
Gherkins - approx. 35 minutes
Beetroot approx. 35 minutes approx. 30 minutes
Brussels sprouts approx. 45 minutes approx. 30 minutes
Beans, kohlabi, red cabbage approx. 60 minutes approx. 30 minutes
Peas	approx. 70 minutes approx. 30 minutes
Taking out the jars	Caution!
After preserving, remove the jars from the cooking compartment.	Do not place the hot jars on a cold or wet surface. They could suddenly burst.
Acrylamide in foodstuffs
Acrylamide is mainly produced in grain and potato products prepared at high temperatures, such as potato crisps, chips,	toast, bread rolls, bread or fine baked goods (biscuits, gingerbread, cookies).
Tips for keeping acrylamide to a minimum when preparing food
General	Keep cooking times to a minimum.
	Cook meals until they are golden brown, but not too dark.
	Large, thick pieces of food contain less acrylamide.
Baking	With top/bottom heating max. 200 °C.
	With 3D hot air or hot air max.180 °C.
Biscuits	With top/bottom heating max. 190 °C.
	With 3D hot air or hot air max. 170 °C.
	Egg or egg yolk reduces the production of acrylamide.
Oven chips	Spread evenly over the baking tray, in a single layer. Bake at least 400 g per baking tray so that the chips do not dry out

Test dishes

These tables have been produced for test institutes to facilitate the inspection and testing of the various appliances.

In accordance with EN 50304/EN 60350 (2009) and IEC 60350.

Baking

Baking on 2 levels:

Always insert the universal pan above the baking tray.

Piped cookies (such as Spritz cookies in sugar syrup):

Dishes that are put in the oven at the same time do not have to be ready at the same time.

German apple pie, level 1

Change the position of the dark springform cake tin, slide in diagonally.

German apple pie, level 2

Change the position of the dark springform cake tin.

Cakes in a metal springform cake tin:

Bake on level 1 with Top/bottom heating Place the springform cake tin on the universal pan instead of on the wire rack.

Dish Accessories and ovenware Level Type of		heating	Temperature in °C	Cooking time in minutes
Viennese whirls Universal pan 3		□	150-170 20-30
Aluminium baking tray* + universal pan**	1+3	王	140-160 30-40
Small cakes Universal pan 3		□	150-170 25-35
Small cakes, preheat Aluminium baking tray* + universal pan**	1+3	王	140-160 25-35
Hot water sponge cake Springform cake tin 2		□	160-180 30-40
German apple pie Universal pan + 2 springform cake tins, dia. 20 cm***	1	□	190-210 70-80
2 wire racks* + 2 springform cake tins, dia. 20 cm***	1+3	王	180-200 70-80

• Additional baking trays and wire racks can be obtained as an optional accessory from the after-sales service or specialist retailers.
  When baking on two levels, always place the universal pan in the upper level.
  * Place the cake tins diagonally on the accessories.

Grilling

If you are grilling food directly on the wire rack, the universal pan should also be inserted at level 1. The liquid is then collected, keeping the oven cleaner.

Dish Accessories and oven-	ware	Level Type of heating	Grill setting Cooking time in minutes
Toast	Wire rack	4	3 1/2-2
Preheat for 10 mins
Beefburgers, 12 pieces*	Wire rack + universal pan	4+1	3 25-30
No preheating

• Turn over after 2/3 of the cooking time.
