Integrated oven 5B30P0250

Four encastrable 5B30P0250

Pure geometric diagram of a parallelogram with diagonal lines, no text or symbols present

Pure diagram of a container with horizontal lines and arrows indicating flow or movement (no text or symbols)

Pure geometric diagram of a rectangular frame with internal grid lines (no text or symbols)

Technical line drawing of a multi-panel metal frame structure (no text or symbols)

Technical line drawing of a mechanical enclosure or enclosure with internal components (no text or symbols)

oder

Technical line drawing of a multi-tiered industrial or laboratory device with internal compartments and no visible text or symbols

AUSWECHSELN DER OFENLAMPE

Simple line drawing of a container with a rotating arrow, no text or symbols present

FESTSCHRAUBEN DES GERÄTS AM SCHRANK

Technical diagram showing a mechanical assembly with arrows indicating direction and a close-up of a screw (no text or symbols present)

LÜFTUNGSÖFFNUNGEN

Line drawing of an adjustable wrench with no text or symbols on the tool itself

Close-up of a green electronic device with two red circles highlighting the interior (no visible text or symbols)

Close-up of a finger pressing a small component, with an inset showing a hand holding a device (no visible text or symbols)

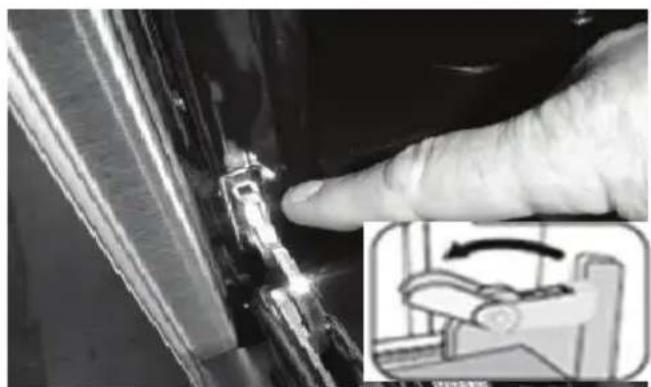

Scharnier mit Bügel

Close-up of a black metal panel with a red upward arrow pointing to a green safety sign (no text or symbols visible)

Black rectangular electronic device with a blank display area, mounted on a base (no visible text or symbols)

Two-panel image showing a mechanical assembly with a red circle highlighting a component and a hand adjusting a black plastic clip (no text or symbols visible)

Two-panel photo showing hands adjusting a black plastic clip with red number 1, no visible text or symbols

Hand pointing at a digital touchscreen device with a red downward arrow indicating a drop or change (no text or symbols visible)

Hand pressing down on a transparent rectangular panel with a red downward arrow indicating compression (no text or symbols visible)

Hand holding a black object with a red arrow pointing downward (no text or symbols visible)

Close-up of a hand holding a black electronic device with a red arrow pointing to a button (no visible text or symbols)

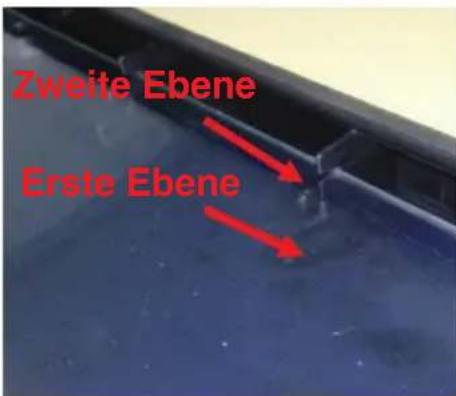

Hand holding a rectangular white substance placed on a black rectangular base (no text or symbols visible)

Hand pointing at a transparent square containing yellow liquid, placed on a tiled surface (no text or symbols visible)

ACKNOWLEDGMENT

Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.

WARNING

• When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run up the new empty product with the conventional cooking function, 250 °C, 90 minutes to clean oil impurities inside the cavity.
• During the first use, it is completely normal that there will be a slight smoke and odors. If it does occur, you merely have wait for the smell to clear before putting food into the oven.
• Please use the product under the openenvironment.
• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven.
• Do not allow children to go near the oven when it is operating, especially when the grill is on.
• Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring specifications.
  ● Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety.
• Accessible parts may become hot during use. Young children should be kept away.

• An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
  ● A steam cleaner is not to be used.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• The instructions for ovens that have shelves shall include details indicating the correct installations of the shelves.

SAFETY HINTS

• Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands.
• For oven: Oven door should not be opened often during the cooking period.
• The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel.
• When the door or drawer of oven is open do not leave anything on it, you may unbalance your appliance or break the door.
• Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before touching onto the points that are exposed to the heat directly.
• If you will not use the appliance for a long time, it is advised to plug it off.

FITTING THE OVEN INTO THE KITCHEN UNIT

Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into an upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances adhered to when fixing the oven.

IMPORTANT

If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Ensure that the glues of units that are made of veneered wood can with stand temperatures of at least 120 °C. Plastics or glues that cannot withstand such temperatures will melt and deform the unit, once the oven has been lodged inside the units, electrical parts must be completely insulated. This is a legal safety requirement. All guards must be firmly fixed into place so that it is impossible to remove them without using special tools. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear gap of at least 35 mm.

DECLARATION OF COMPLIANCE

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children.

CE

PRODUCT DESCRIPTION

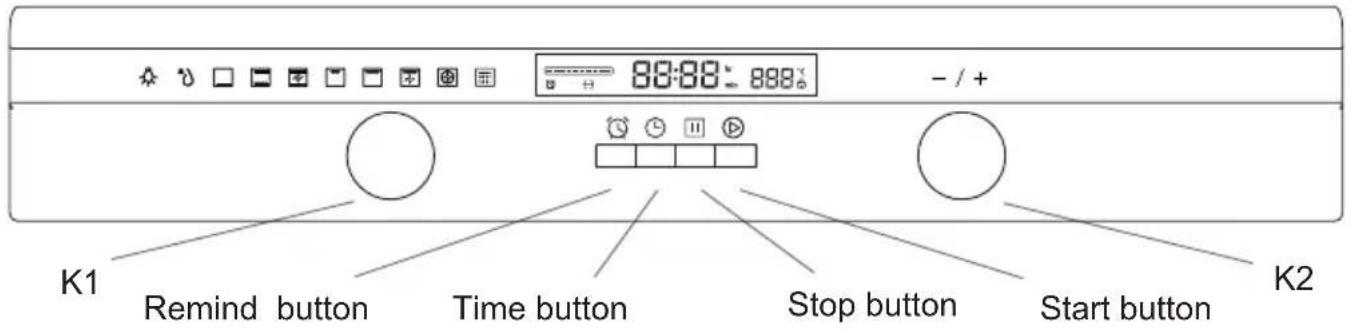

88:88: 888 - / + K1 Remind button Time button Stop button Start button K2

Symbol	Function description
	Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions except pyrolytic and ECO function.
	Deforst: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc.
[CH3D]	Bottom heater: A concealed element in the bottom of the oven provides a more concentrative heat to the base of food without browning. This is ideal for slow cooking dishes such as casseroles, stews, pastries and pizzas where a crispy base is desired. The temperature can be set within the range of 60-120 °C. The default temperature is 60 °C.
	Conventional cooking: The top and bottom work together to provide convectional cooking. The temperature can be set within the range of 50-250 °C. The default temperature is 220 °C.
	Convention with fan: Combination of the fan and both heating element provides more even heat penetration,saving up to30-40% of energy. Dishes are lightly browned on the outside and still moist on the inside. Note:This function is suitable for grilling or roasting big pieces of meat at a higher temperature. The temper ature can be set within the range of 50-250 °C. The default temperature is 220 °C.
	Radiant grilling: The inner grill element switches on and offto maintain temperature. The temperature can be set within the range of 180-240 °C.The default temperature is 210 °C.
	Double grill: The radiant heating element and the top heating element are working. The temperature can be set within the range of 180-240 °C.The default temperature is 210 °C.
	Double grill with fan: The radiant heating element and top heating element are working with fan. The temperature can be set within the range of 180-240 °C. The default temperature is 210 °C.
[TKWZ]	Convection: An element around the convection fan provides an additional source of heat for convection style cooking. In convection mode the fan automatically comes on to improve air circulation within the oven and creates an even heat for cooking. The temperature can be set within the range of 50-240 °C. The default temperature is 180 °C.
	Pyrolytic function: When the function set to prolytic mode, LED display „ PyR „. The default temperature is 450°C . The timer can be set 1:30 or 2:00 hours.
	This is an energy-saving heating function that allows you to gently cook meat, fish and baked items. The appliance optimally controls the supply of energy to the cooking compartment. Depending on the method of preparation and the type of food, it is possible to save energy.

OPERATION INSTRUCTIONS

1. Clock Setting

After connectiong the unit to the power, the symbols "0:00" will be visible on the display.

1> Press " Ⓛ", the hour figures will flash.
2> Rotate "K2" to adjust the hour figures, (time should be within 0--23).
3> Press " Ⓛ ", the minutes will flash.
4> Rotate "K2" to adjust the minutes setting, (time should be within 0--59).
5> Press " Ⓛ " to finish the clock settings. ":" will flash, and the time will be illuminated.

Note: The clock is 24 hours. After power on, if not set, the clock will show "0:00".

2. Function Setting

1> Rotate "K1" to choose the cooking function you require. The related symbol will illuminated.
2> Rotate " K2 " to adjust the temperature.
3> Press "▶" to confirm the start of cooking.
4> If step 2 is ignored, Press "▶" to confirm the start of cooking and the default time is 9 hours, the default temperature will display on the LED.

NOTE:

1>The step quantities for the adjustment time of the knobs are as follow:
0--0:30min: step 1 minute 0:30--9:00hour :step 5 minutes
2>The step quantities for the adjustment of temperature is 5^ .
3>Rotate "K1" to adjust the cooking time when cooking begins. Then press "▶" to confirm.
If "▶" not pressed within 3 seconds, the oven will revert back to the previous time to continue cooking.
4>Rotate"K2 " to adjust the temperature when cooking begins. The related indicator will be illuminated.
Then press" ☑ " to start cooking. If " ☑ " not pressed in 3 seconds, the oven will revert back to the previous temperattrue to continue cooking.

3. Lamp Setting

1> Rotate"K1" to select the relevant function, then the corresponding icon will be on.
2> Press "▶" button to start, "0:00" and lamp icon"-☐-" will light up, ": " will flash.

4. Inquiring function

In the following states, you can use inquiring function, after 3 seconds return to the current state.

1> During working state, if the clock was set, press " ” button to see the current time; if the reminder function was set, press " ” button to see the time of reminder.
2> In reminding state, if the clock was set, press " Ⓛ " button to see the current time.

5. Child lock function

To Lock : press " ▶ " and " □ " simultaneously for 3 seconds, there will be a long "beeping" sound and the " 🔒 " will be illuminated.

Lock quitting : press " ▶ " and " □ " simultaneously for 3 seconds, there will be a long "beeping" sound indicating the child-lock is released.

Note: During working mode, if you want to stop cooking, press stop button quickly. Do not need to long pressing on stop button, it is invalid.

6. Reminder Function:

This function will help to remind you to start cooking in a certain time from 0:01 to 9:59.

Only when oven in standby mode, the reminder can be set. Follow below to set the reminder:

1> Press reminder setting button "☐";
2> Rotate "K2" to set the hour time of reminder. (Time should be within 0--9).
3> Press reminder setting button " ℬ " again;
4> Rotate "K2" to set minute time of reminder. (Time should be within 0--59).
5> Press " ▶ " to confirm setting. The time will count down.

Note: The oven buzzer will sound for 10 times after the time back to the zero hour.

You can cancel the reminder during setting by pressing the "☐" button; After the reminder has been set, you can cancel it by pressing stop button twice.

7. Start/Pause/Cancel Function

1> If the cooking time has been set, press " ▶" to start cooking. If the cooking is paused, press " ▶" to resume cooking.
2> During cooking process, press " [1] " once to pause the cooking. Press " [1] " twice to cancel the cooking.

8. Energy-Saving Function

1> In waiting state and reminding state, press "播放" for three seconds, the LED display will go off and set to energy-saving mode.
2> If no operation in 10 minutes under waiting state, the LED display will go off and go into energy-saving mode.
3> Under the energy-saving mode, press any key or rotate any knob quit the energy-saving mode.

9. Pyrolytic Function

This function allows you to clean thoroughly the oven cavity.

1> Rotate „K1 „ to select the pyrolytic function. LED will display „PyR „

2> Press , “ to confirm the cooking. And the default time is 2 hours, „ PyR „ will display on the

LED. 3> Rotate „K1 „ to change the pyrolytic time. The timer can be set 1:30 or 2:00 hours.

Note:

A) When the oven door is not closed, pressing start button will be invalid, LED display „door „„PyR „.
B) When the oven's center temperature is higher than 320°C, pressing start button will be invalid. The LED will display „CooL „ and „PyR „. When the oven's center temperature is lower than 200°C, press cancel button once, it will pause; press again, it will return to waiting state. If higher than 200°C, press cancel button once, it will return to waiting state directly.
C) Open the door when the oven is working, the LED will display „door and the buzzer will sound continuously until the door was closed or press cancel button.
D) Before activating the pyrolytic cleaning function, remove any excessive spillage and make sure that oven is empty. Do not leave anything inside it (e.g. pans, baking tray, dripping pan, slider bracket etc.) as this could heavily damage them.
E) When finished pyrolytic cleaning, don't interrupt the power in an hour.

10. Note

1> The oven lamp will be on for all functions except pyrolytic and ECO function.
2> Once the cooking programme has been set and the" " button is not pressed within 5 minutes, the current time will be displayed or turn back to waiting state. The setting program will be invalid.
3> The buzzer will sound once when effectively pressed, if not effectively pressed there will be no response.
4> The buzzer will sound five times to remind you when cooking has finished.

ACCESSORIES

Wire shelf : For grill .dishes, cake pan with items for roasting and grilling.

Pure geometric diagram of a parallelogram with diagonal lines and a horizontal line, no text or symbols present.

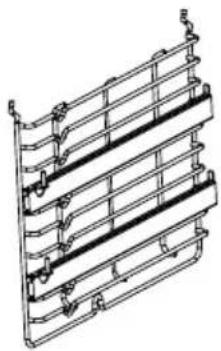

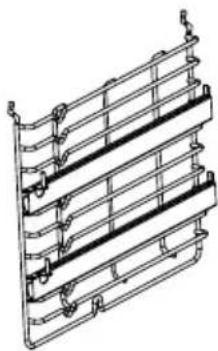

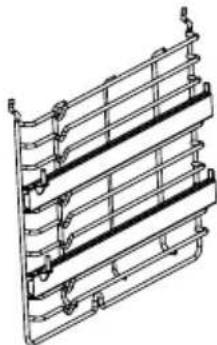

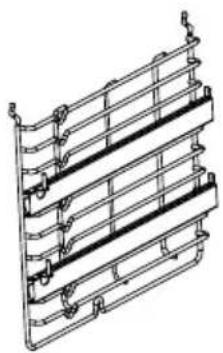

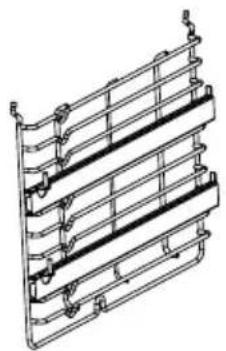

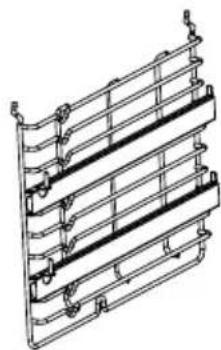

Slider bracket : These shelf support rails on the right and left sides of the oven can be removed for cleaning oven walls. (only for specific modles)

Pure diagram of a container with horizontal lines and arrows indicating flow or movement (no text or symbols)

Universal pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc, or for collecting fat/ spillage and meat juices.

Pure geometric diagram of a rectangular frame with internal diagonal lines (no text or symbols)

Telescopic runner: Some of models might with telescopic runners to facilitate the use of oven.

These telescopic runners could be disassembled for cleaning by unscrew the screws use to fix it.

(only for specific modles)

Technical line drawing of a multi-layered structural frame or panel structure (no text or symbols)

SHELF PLACEMENT WARNING:

To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. This will ensure that during careful removal of the shelf or tray, hot food items should not slide out.

Technical line drawing of a mechanical enclosure or enclosure with internal components (no text or symbols)

or

Line drawing of a microwave oven with internal compartments and lid (no text or symbols)

BULB REPLACEMENT

For replacement, process as follows:

1>. Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet.
2>.Unscrew the glass lamp cover by turning it counter-clockwise (note, it may be stiff) and replace the bulb with a new one of the same type.
3>.Screw the glass lamp cover back in place.

NOTE: Only use 25W/230V, T300°C halogen lamps.

Simple line drawing of a container with a rotating arrow indicating rotation (no text or symbols)

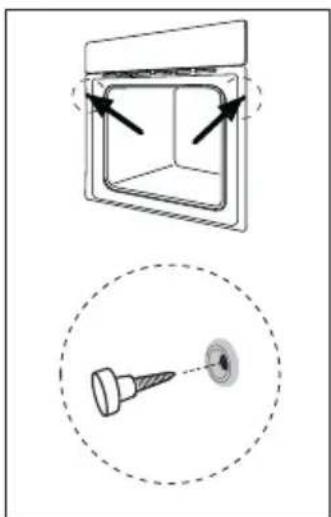

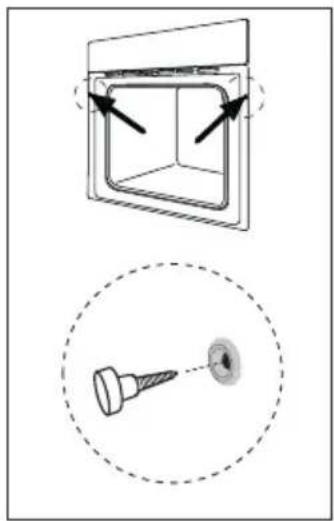

SECURING THE OVEN TO THE CABINET

1. Fit oven into the cabinet recess.
2. Open the oven door and determine the location of the mounting screw holes.
3. Fix the oven to the cabinet with two screws.

Technical diagram showing a square component with arrows indicating rotation and a close-up of a screw (no text or symbols)

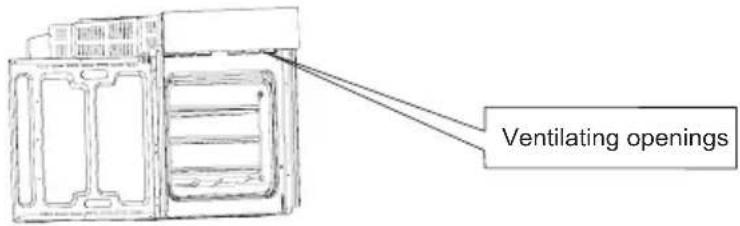

VENTILATING OPENINGS

When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance.

Ventilating openings

INSTALLATION

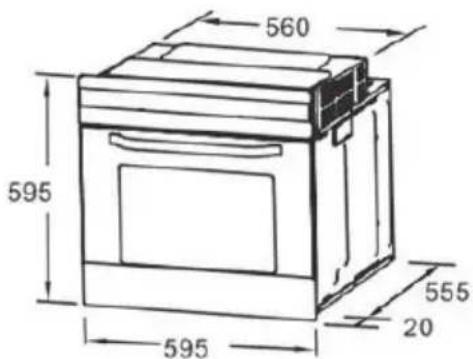

560 595 595 555 20

NOTE: The number of accessories included depends on the particular appliance purchased. The cabinet dimension is in mm.

CLEANING AND MAINTENANCE

For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly.

■ Before any maintenance and cleaning, disconnect the power.
■ Set all controls in the OFF position.
- Wait until the inside of the unit is not hot but only slightly warm- cleaning is easier than when warm.
- Clean the surface of the unit with a damp cloth, soft brush or fine sponge and then wipe dry. In case of heavy soiling, use hot water with non-abrasive cleaning product.
For cleaning the glass of the oven door, do not use abrasive cleaners or sharp metal scrapers, these can scratch the surface or lead to the glass being damaged.
■ Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
- Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild detergent.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment(WEEE).

By ensuring this product is disposed correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

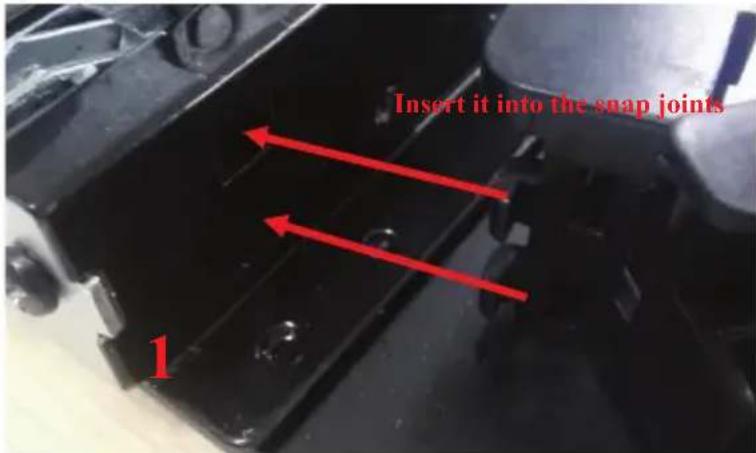

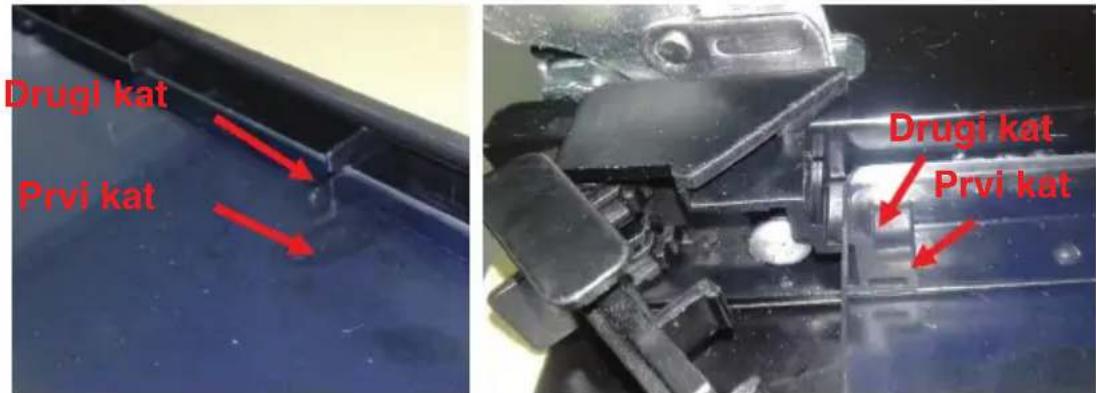

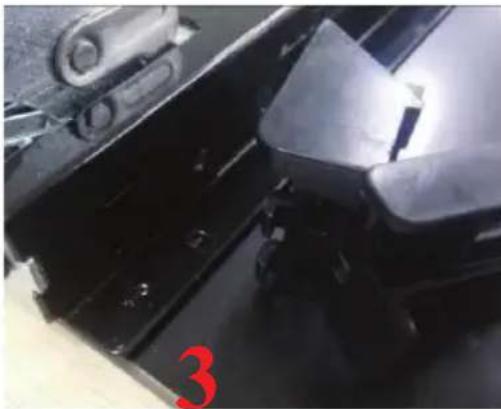

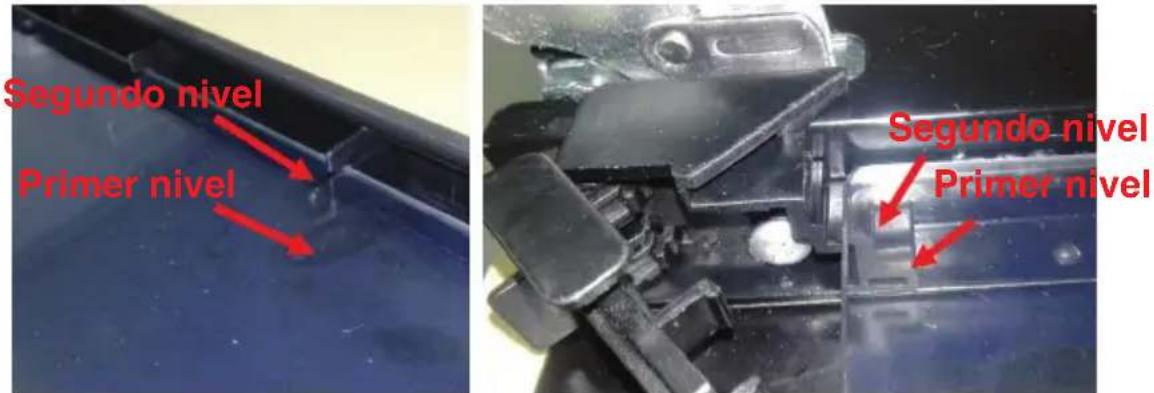

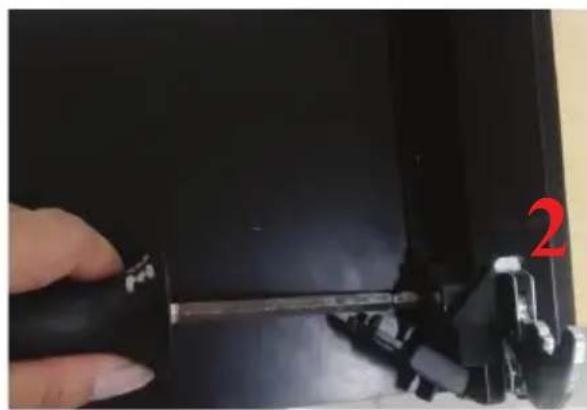

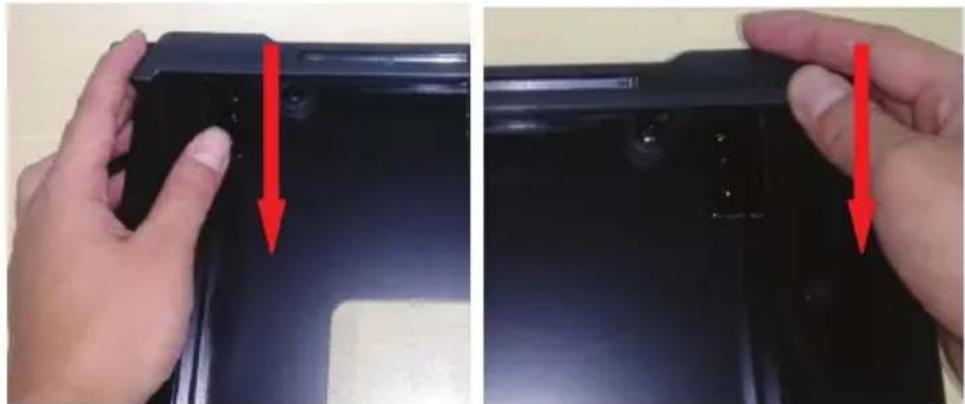

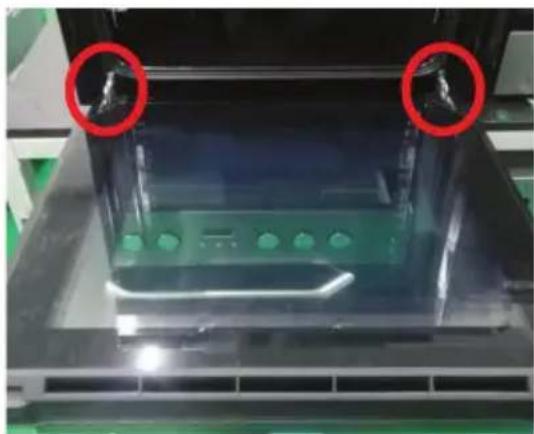

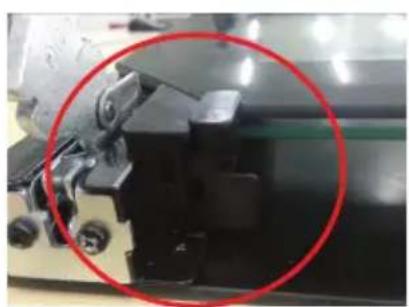

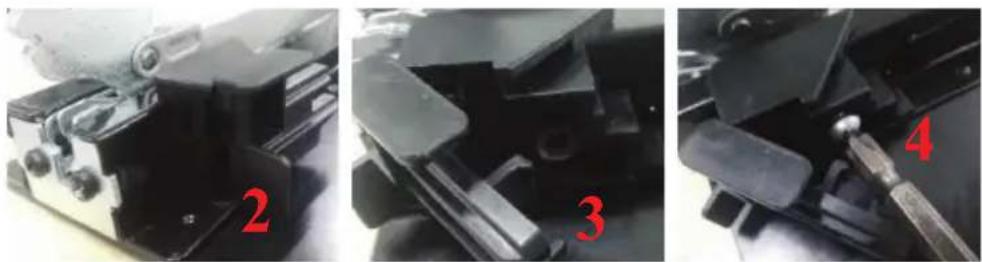

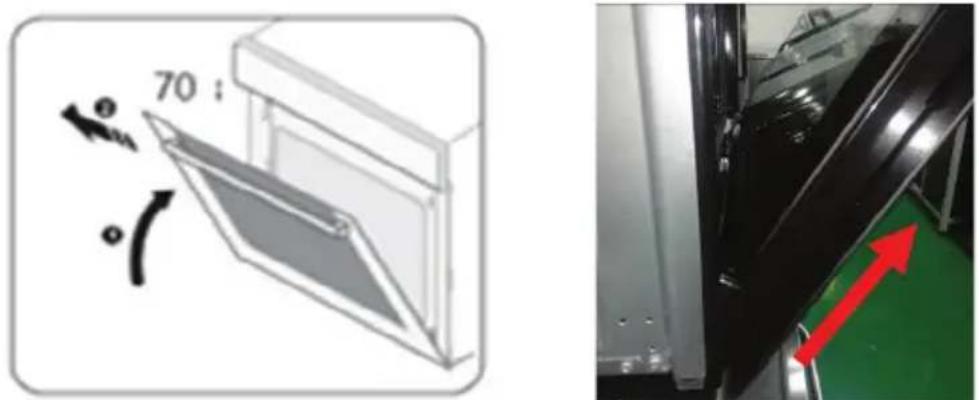

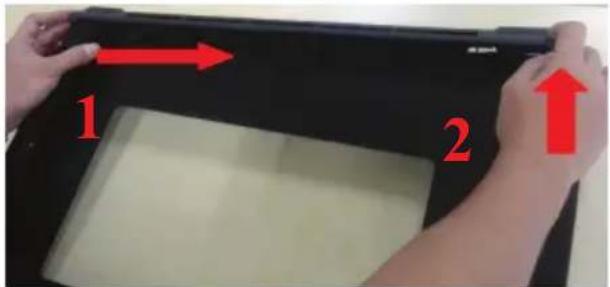

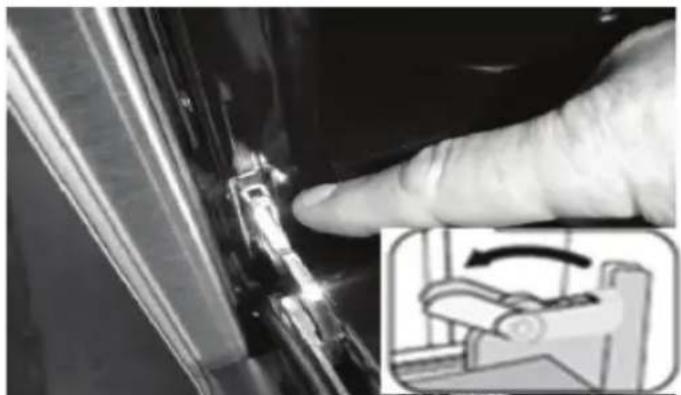

Installation instruction of the door frame up cover and rotation bracket assembly

Preparation before disassembly

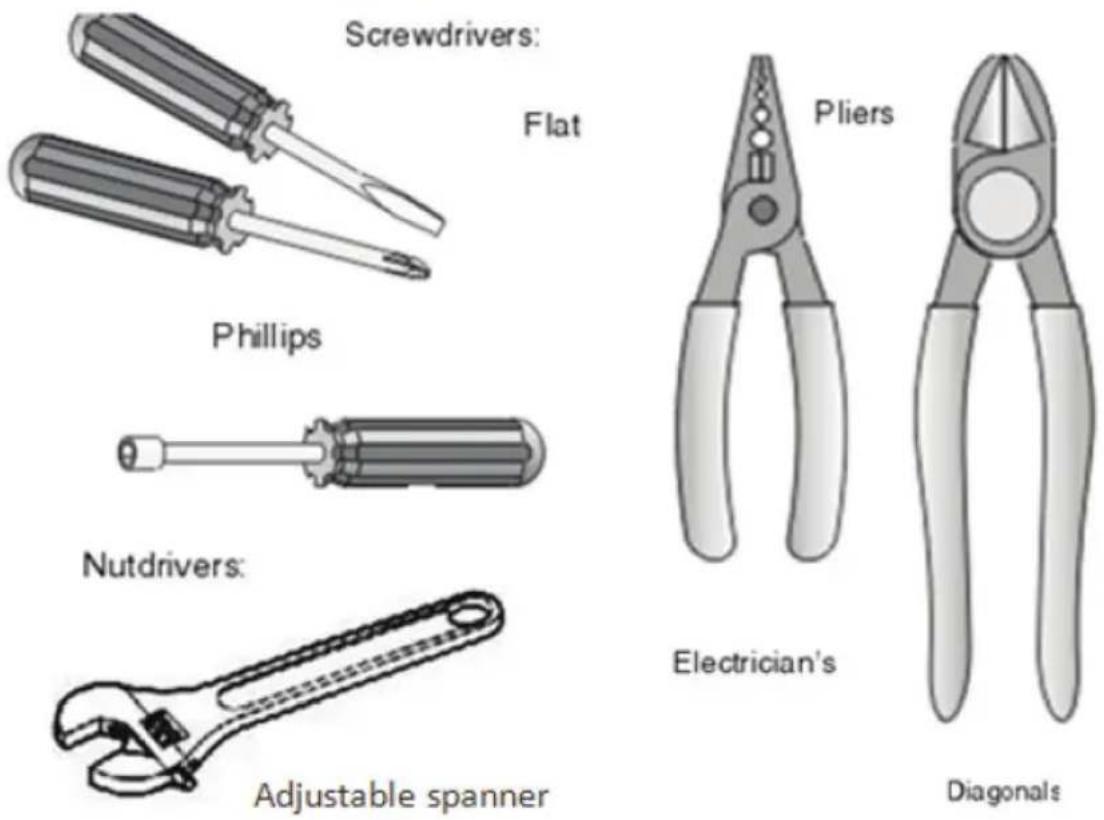

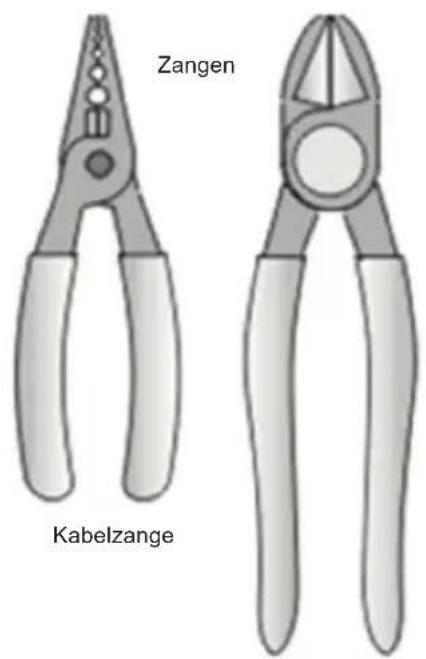

Most of the tools that you might need are shown below. Some tools are optional.

Parts disassembly

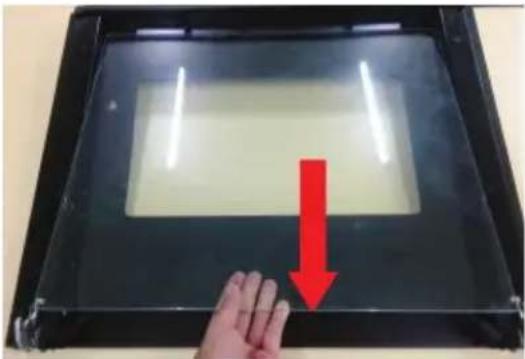

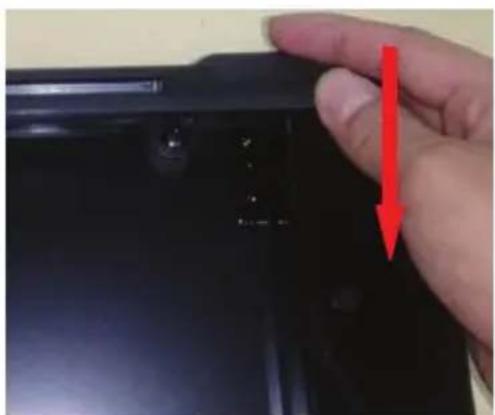

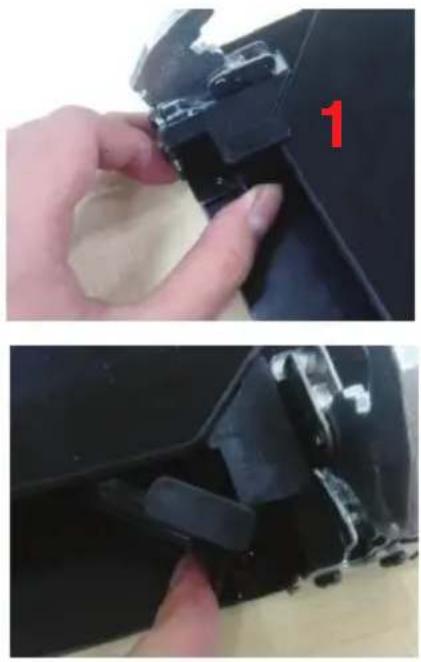

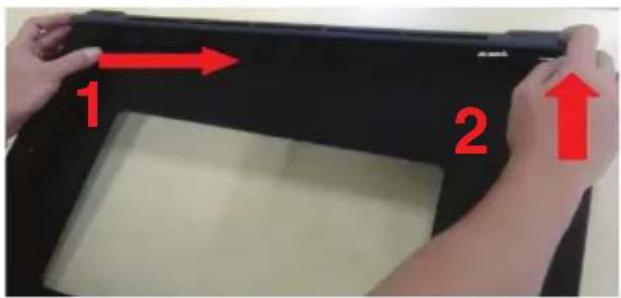

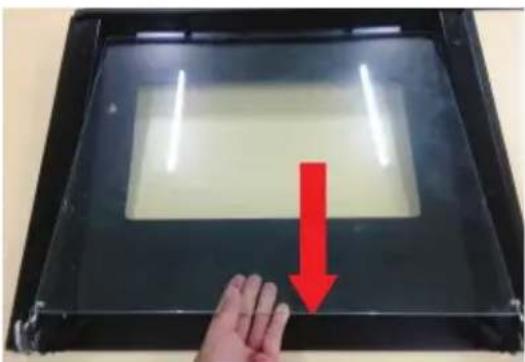

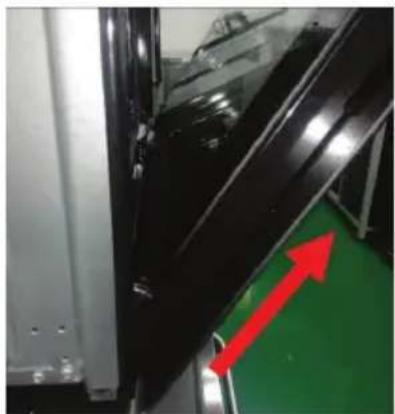

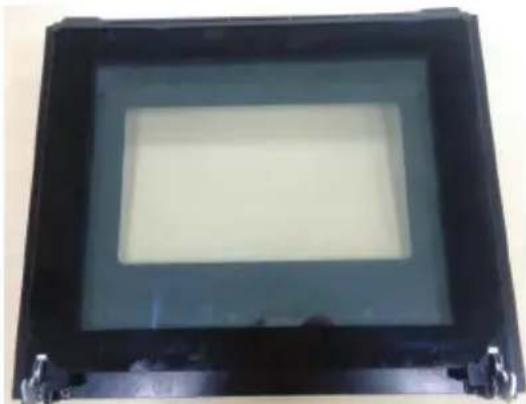

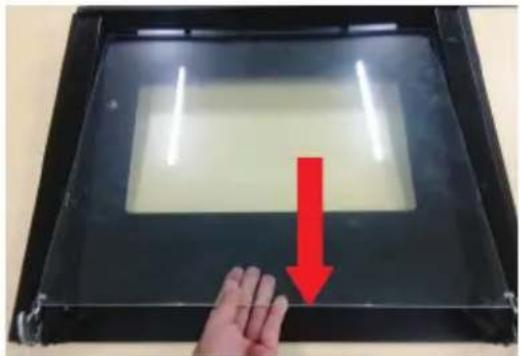

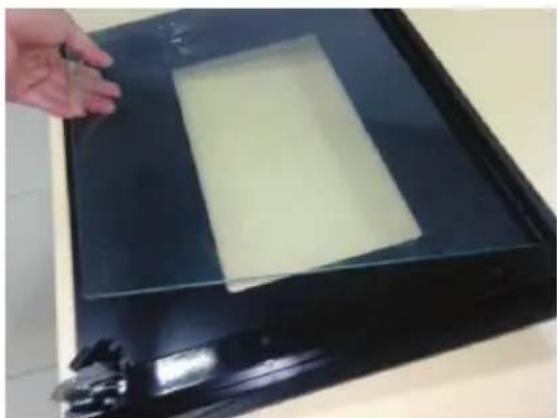

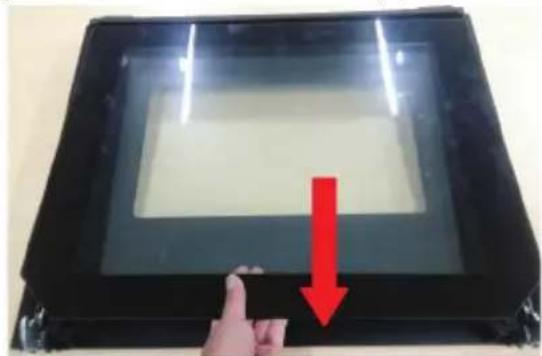

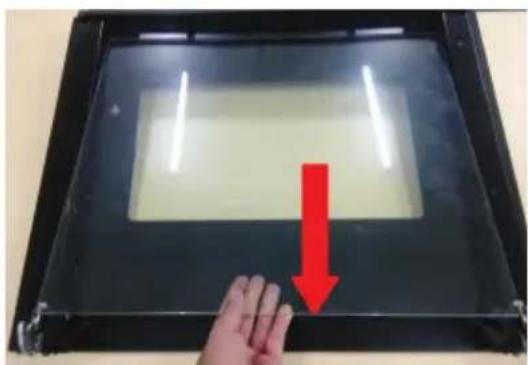

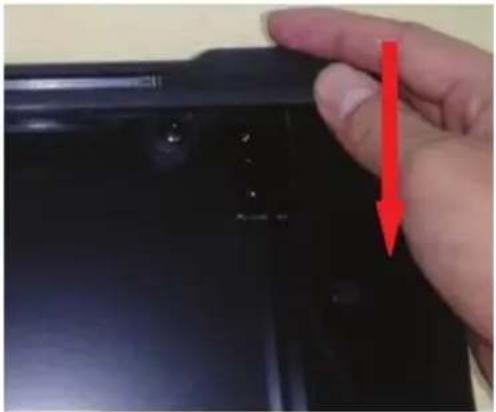

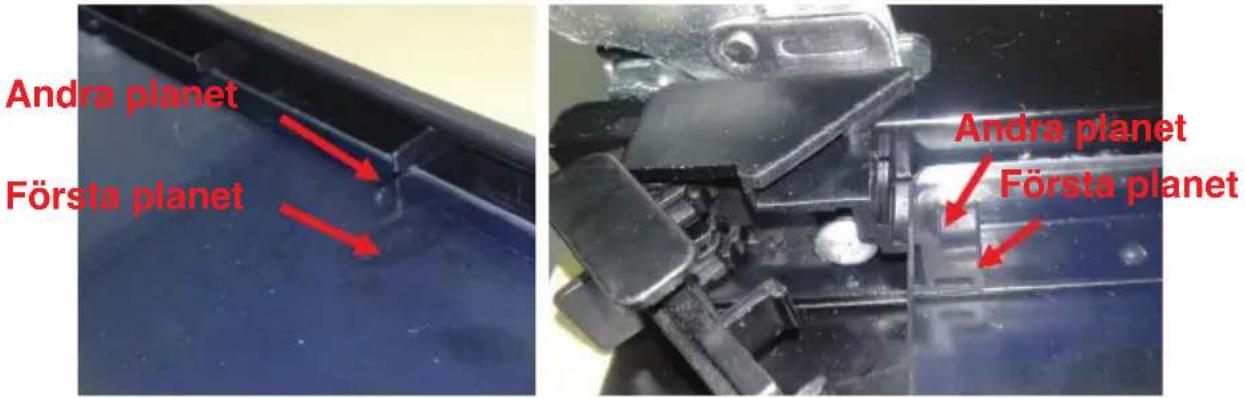

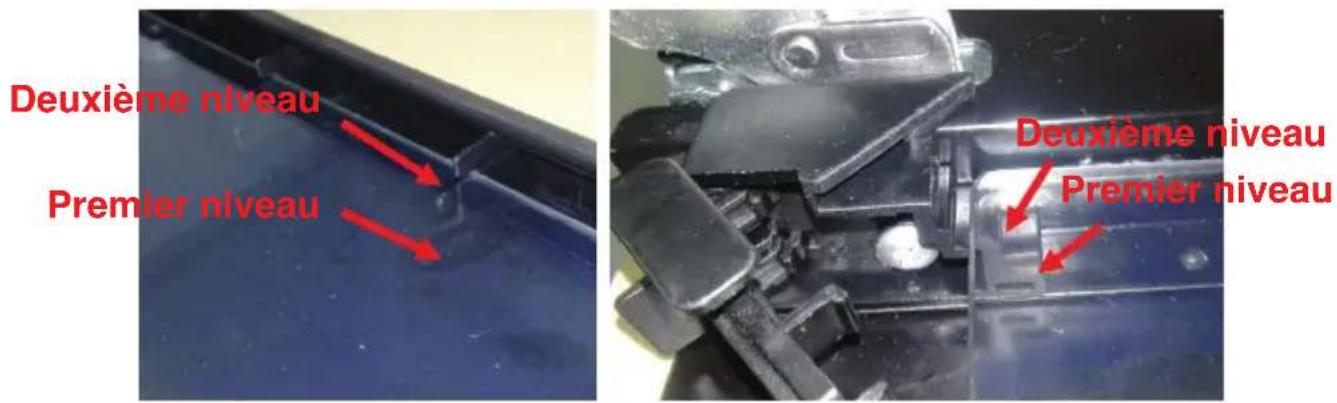

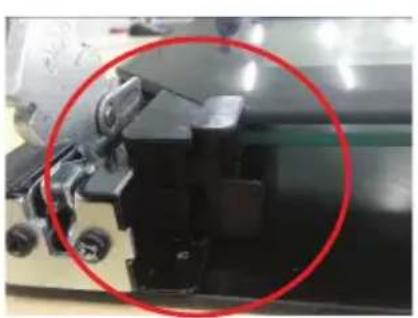

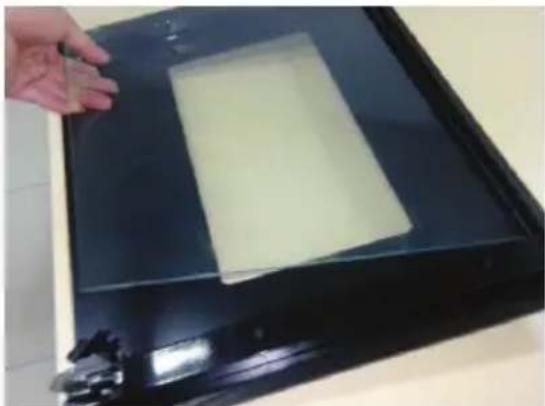

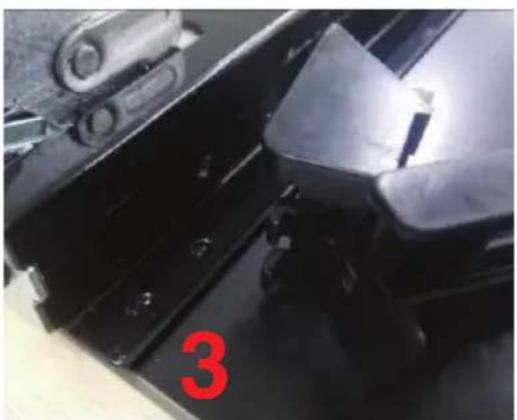

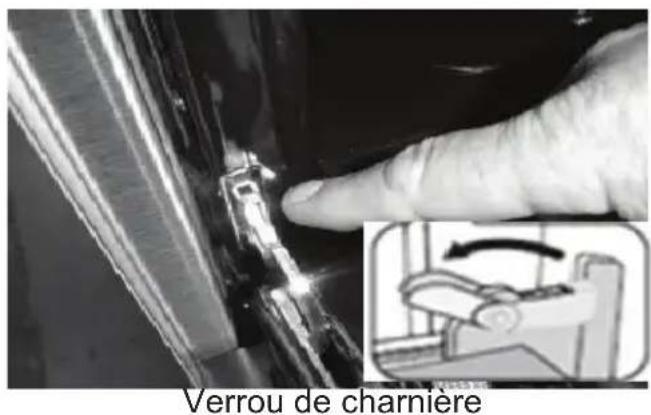

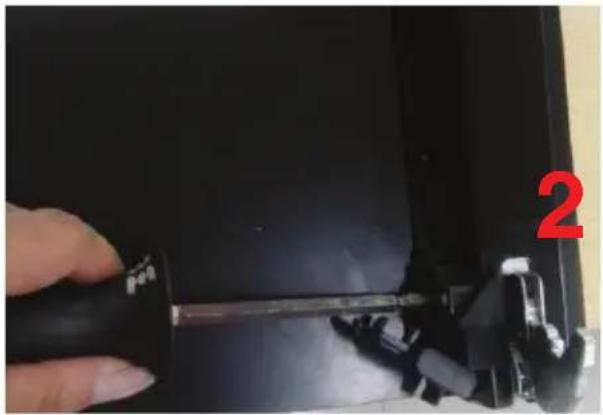

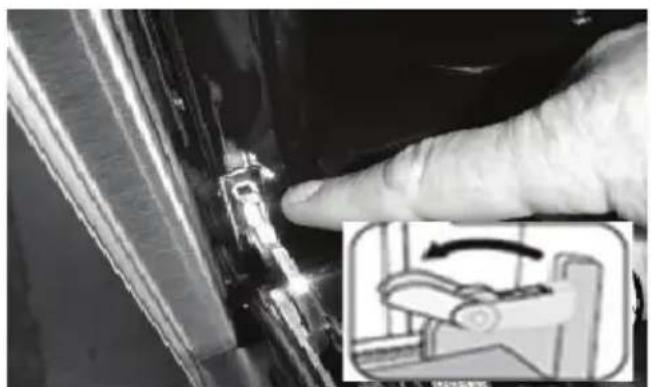

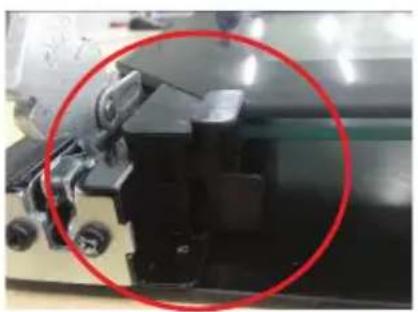

The oven door's disass embly

Step 1: Open the oven door completely.

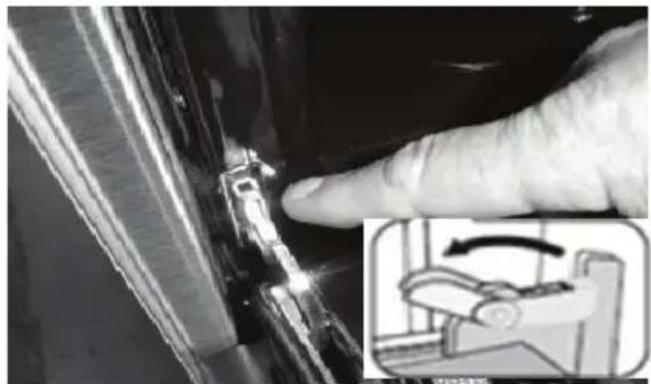

Step 2: Pull the hinge locks forward on both hinges, until they stop.

Close-up of a transparent electronic device with green components and red circular annotations highlighting features (no readable text or symbols)

Close-up of a finger pressing a small mechanical component, with an inset showing a hand operating a rotary switch mechanism (no text or symbols visible)

Hinge Lock

Step 3: Raise the doo r so that it is at a 30^ angle from the front of the oven. Hold the door with one hand on each side. Lift the door up and d out.

Warning: Don't forcibly pulled out the door and prevent the glass breakage during the dismantling process.

Warning: The hinge springs could release, causing personal injury.

Warning: Do not lift or carry the oven door by the door handle.

The oven door components' disassembly.

Step 1: Disassemble the door from the oven, then put it on the bench horizontally, see 2.1.

Black rectangular electronic device with a blank display screen, mounted on a base with mounting feet (no visible text or symbols)

Step 2: Open the door rotation bracket assembly, refer the action in the following picture.

Close-up of a mechanical component with a red-circled highlight, showing no visible text or symbols.

Close-up of a hand holding a black mechanical component with a red number '1' on the side (no visible text or symbols on the component itself)

Close-up of a hand adjusting a black mechanical component with a red number '2' on the side (no text or symbols on the object itself)

Close-up of a black plastic component being held by a finger, with no visible text or symbols.

Step 3: Lift up the door outer gla ss and pul lit out, then take the door middle glass out as the same way;

Hand pointing at a digital display screen with a red downward arrow overlay (no text or symbols on screen)

Hand touching a transparent rectangular panel with a red arrow pointing downward (no text or symbols visible)

Step 4: Use one hand to push the door frame up cover toward middle part (1), then lift up the cover with the another hand (2);

1 2

Step 5 : See the screwdriver to disassemble the rotation bracket assemblies , then take out it from the door brac ket;

Close-up of a mechanical device with a metallic rod inserted, labeled '1' in red (no readable text or symbols on the device itself)

Close-up of a hand holding a black cylindrical object with a red number '2' visible on the side (no text or symbols on the object itself)

Close-up of mechanical components with no visible text or symbols

Step 6: Change the new rotation bracket assemblies and insert it into the snap joints, then fix it with screw.

Insert it into the snap joints 1

Three-panel photo showing mechanical components with red numbers 2, 3, and 4 highlighting specific parts (no readable text or symbols)

Step 7: Assemble the new door frame up cover on the bracket and make sure it be stable;

Close-up of hands installing or adjusting a black plastic component with red arrows indicating the step (no text or symbols visible)

Step 8: Assemble the door middle glass and pay attention that it should be put at the second floor of door frame up covered for 3-layer glass door, and for 4-layer glass door, another middle glass should be placed at the first floor;

Hand holding a rectangular object with a pale yellow substance inside, placed on a black rectangular base (no text or symbols visible)

second floor

first floor

second floor

first floor

Step 9: Assemble the outer glass and accomplish the replacement work.

REMERCIEMENTS

DÉCLARATION DE CONFORMITÉ

Pure geometric diagram of a rectangular plate with diagonal hatching (no text or symbols)

Pure diagram of a container with horizontal lines and a small wavy line at the bottom (no text or symbols)

Pure geometric diagram of a rectangular frame with internal grid lines (no text or symbols)

Technical line drawing of a metal frame structure with multiple parallel grooves (no text or symbols)

AVERTISSEMENT DE POSITIONNEMENT DES GRILLES/PLAQUES :

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

ou

Technical line drawing of a multi-tiered storage unit with internal compartments and housing (no text or symbols)

REEMPLACEMENT DE L'AMPOULE

Simple line drawing of a container with a rotating arrow indicating rotation (no text or symbols)

V, T 300 °C.

SÉCURISATION DU FOUR DANS LE MEUBLE

Technical diagram showing a mechanical component with arrows indicating direction and a close-up of a screw (no text or symbols)

OUVERTURES DE VENTILATION

Close-up of a green electronic device with two red circles highlighting the top two components (no visible text or symbols)

Verrou de charnière

Close-up of a black plastic panel with red directional arrows indicating movement or force (no text or symbols visible)

Black rectangular electronic device with a blank display screen, mounted on a stand (no visible text or symbols)

Close-up of a mechanical component with a red-circled highlight, no visible text or symbols

Close-up of a hand adjusting a black plastic component with a red number '1' on the side (no text or symbols on the object itself)

Close-up of a hand adjusting a black plastic component with a red number '2' visible (no text or symbols on the object itself)

Close-up of a black plastic component being held by fingers, showing internal structure and mounting holes (no text or symbols visible)

Hand pointing at a screen displaying a light-colored screen, with a red downward arrow indicating a drop or reduction (no text or symbols visible)

Hand pressing down on a transparent display panel with a red downward arrow indicating compression (no text or symbols visible)

Close-up of mechanical components with black and white parts, no visible text or symbols

Close-up of mechanical components with a red number '3' overlaid (no readable text or symbols)

Close-up of mechanical components with a red number '4' and a metal rod inserted, no visible text or symbols.

Close-up of a hand pressing down on a black electronic device component with a red arrow indicating the downward force (no text or symbols visible)

Close-up of a hand holding a black electronic component with a red arrow pointing downward (no visible text or symbols)

Hand holding a rectangular sample on a black electronic device (no visible text or symbols)

Hand pointing at a transparent square containing yellow liquid, placed on a tiled surface (no text or symbols visible)

GEACHTE KLANT

Pure geometric diagram of a rectangular prism with diagonal hatching (no text or symbols)

Pure diagram of a container with horizontal lines and a wavy bottom edge, no text or symbols present.

Pure geometric diagram of a rectangular frame with internal lines, no text or symbols present

Technical line drawing of a multi-tiered metal frame structure (no text or symbols)

WAARSCHUWING ROOSTERPLAATSING:

Technical line drawing of a mechanical enclosure or enclosure with internal components (no text or symbols)

of

Technical line drawing of a multi-chamber industrial machine or storage unit (no text or symbols visible)

GLOEILAMP VERVANGEN

Simple line drawing of a container with a rotating arrow, no text or symbols present

DE OVEN AAN DE KAST BEVESTIGEN

Technical diagram showing a door frame with arrows indicating direction and a screw with a hole, enclosed in a dashed circle (no text or symbols)

VENTILATIEOPENINGEN

Close-up of a green electronic device with two red-circled features on its side (no visible text or symbols)

Close-up of a finger pressing a small component on a metal panel, with an inset showing a mechanical device (no visible text or symbols)

Scharnierslot

Close-up of a black metal panel with red and green directional arrows indicating movement or force (no text or symbols)

Black rectangular electronic device with a blank display area, mounted on a base (no visible text or symbols)

Close-up of a mechanical component with a red circle highlighting a section (no visible text or symbols)

Close-up of a hand adjusting a black plastic component with a red number '1' on the side (no text or symbols on the object itself)

Close-up of a hand adjusting a black mechanical component with a red number '2' visible (no text or symbols on the object itself)

Close-up of a black plastic object with a finger inserted, showing internal structure and texture (no text or symbols visible)

Hand pointing at a screen displaying a light-colored screen, with a red downward arrow indicating a drop or reduction (no text or symbols visible)

Hand pressing down on a transparent display panel with a red downward arrow indicating compression (no text or symbols visible)

Close-up of mechanical components with black and white parts, no visible text or symbols

Close-up of mechanical components with a red number '3' overlaid (no readable text or symbols)

Close-up of mechanical components with a red number '4' and a metal rod inserted (no visible text or symbols)

Close-up of a hand pressing down on a black electronic device with a red arrow pointing to the button (no text or symbols visible)

Close-up of a hand holding a black electronic component with a red arrow pointing downward (no visible text or symbols)

Hand holding a rectangular sample on a black electronic device (no visible text or symbols)

Tweede niveau Eerste niveau Tweede niveau Eerste niveau

Hand pointing at a transparent square containing yellow liquid, placed on a tiled surface (no text or symbols visible)

RINGRAZIAMENTO

Simple line drawing of a rectangular object with horizontal lines and a central horizontal bar (no text or symbols)

Pure diagram of a container with horizontal lines and a small arrow at the bottom (no text or symbols)

Pure geometric diagram of a rectangular frame with internal grid lines (no text or symbols)

Technical line drawing of a metal frame structure with multiple parallel grooves (no text or symbols)

Technical line drawing of a mechanical enclosure or enclosure with internal components (no text or symbols)

0

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Simple line drawing of a container with a rotating arrow indicating rotation (no text or symbols)

FISSAGGIO DEL FORNO AL MOBILE

Technical diagram showing a square component with arrows indicating direction and a close-up of a screw (no text or symbols)

Illustration of two screwdrivers with a labeled component 'Caccia' (no other text or symbols)

Illustration of a pair of metal pliers with labeled parts (atta and Pin), no text or symbols on the image itself.

Pinza per cavi

Illustration of a pair of pliers with no text or symbols

Close-up of a green electronic device with two red circles highlighting the top two components (no visible text or symbols)

Close-up of a finger pressing a small mechanical component, with an inset showing a hand operating a device (no visible text or symbols)

Cerniera bloccabile

Close-up of a black plastic panel with red directional arrows indicating movement or force (no text or symbols visible)

Black rectangular electronic device with a blank display panel, mounted on a base (no visible text or symbols)

Close-up of a mechanical component with a red circle highlighting a specific area (no visible text or symbols)

Close-up of a hand adjusting a black plastic component with a red number '1' on the side (no text or symbols on the object itself)

Close-up of a hand adjusting a black mechanical component with a red number '2' visible (no text or symbols on the object itself)

Close-up of a black plastic object with a finger inserted, showing internal structure and texture (no text or symbols visible)

Hand pointing at a screen displaying a light-colored screen, with a red downward arrow indicating a drop (no text or symbols visible)

Hand pressing down on a transparent display panel with a red downward arrow indicating compression (no text or symbols visible)

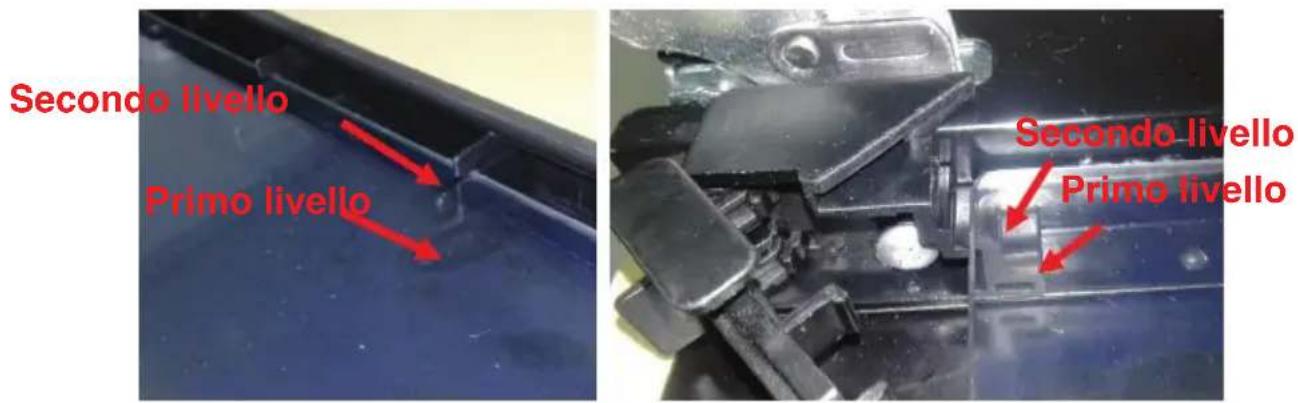

Hand holding a rectangular sample on a black electronic device (no visible text or symbols)

Hand pointing at a transparent square containing yellow liquid, placed on a tiled surface (no text or symbols visible)

FÖRORD

Pure geometric diagram of a rectangular plate with diagonal hatching and a central horizontal line (no text or symbols)

Simple line drawing of a container with liquid and a side wall, no text or symbols present

Pure geometric diagram of a rectangular frame with internal diagonal lines (no text or symbols)

Technical line drawing of a metal frame structure with multiple parallel grooves (no text or symbols)

WARNING GÄLLANDE HYLLPLANENS PLACERING:

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

eller

Technical line drawing of a multi-tiered industrial enclosure or storage unit (no text or symbols visible)

BYTE AV UGNSLAMPA

Simple line drawing of a container with a circular arrow indicating rotation (no text or symbols)

FASTGÖRA UGNEN I SKÅPET

Technical diagram showing a mechanical component with arrows indicating direction and a close-up of a screw (no text or symbols)

VENTILATIONSÖPPNINGAR

Illustration of two screwdrivers with a labeled brand name 'Skruvn' (no other text or symbols)

Krysskruvmejsel

Platt skruvmejsel

Illustration of a pair of metal pliers with no text or symbols on the tool itself

Tänger

Illustration of a pair of pliers with no text or symbols

Line drawing of an adjustable wrench (no text or symbols)

Close-up of a green electronic device with two red circles highlighting the top two components (no visible text or symbols)

Close-up of a finger pressing a small component, with an inset showing a mechanical device (no visible text or symbols)

Gångjärnslås

Close-up of a black plastic panel with red directional arrows indicating movement or force (no text or symbols visible)

Black rectangular electronic device with a blank display screen, mounted on a stand (no visible text or symbols)

Close-up of a mechanical component with a red circle highlighting a section (no visible text or symbols)

Close-up of a hand adjusting a black plastic component with a red number '1' on the side (no text or symbols on the object itself)

Close-up of a hand adjusting a black mechanical component with a red number '2' visible (no text or symbols on the object itself)

Close-up of a black plastic object with a finger inserted, showing internal structure and texture (no text or symbols visible)

Hand pointing at a screen displaying a light-colored background, with a red downward arrow indicating a drop or change (no text or symbols visible)

Hand pressing down on a transparent display panel with a red downward arrow indicating compression (no text or symbols visible)

Close-up of hands installing or adjusting a black plastic component with red arrows indicating the process (no text or symbols visible)

Hand holding a rectangular object with a pale yellow substance inside, placed on a black square base (no text or symbols visible)

Hand pointing at a transparent square containing yellow liquid, placed on a tiled surface (no text or symbols visible)

AGRADECIMIENTOS

Pure geometric diagram of a rectangular plate with diagonal lines, no text or symbols present

Pure diagram of a container with horizontal lines and a wavy top section, no text or symbols present.

Pure geometric diagram of a rectangular frame with internal lines, no text or symbols present

Technical line drawing of a multi-panel metal frame structure (no text or symbols)

Technical line drawing of a mechanical oven or enclosure with internal components (no text or symbols)

0

Technical line drawing of a multi-tiered storage unit with internal compartments and housing (no text or symbols)

Simple line drawing of a container with a handle and circular arrow indicating rotation (no text or symbols)

MONTAJE DEL HORNO EN EL ARMARIO

Technical diagram showing a square component with arrows indicating rotation and a close-up of a screw (no text or symbols)

Close-up of a black plastic panel with red directional arrows indicating movement or force (no text or symbols visible)

Black rectangular electronic device with a blank display screen, mounted on a stand (no visible text or symbols)

Close-up of a mechanical component with a red circle highlighting a specific area (no visible text or symbols)

Close-up of a hand adjusting a black plastic component with a red number '1' on the side (no text or symbols on the object itself)

Close-up of a hand adjusting a black mechanical component with a red number '2' visible (no text or symbols on the object itself)

Close-up of a black plastic object with a finger inserted, showing internal structure and texture (no text or symbols visible)

Hand pointing at a screen displaying a light-colored screen, with a red downward arrow indicating a drop or reduction (no text or symbols visible)

Hand pressing down on a transparent display panel with a red downward arrow indicating compression (no text or symbols visible)

Hand holding a rectangular object with a pale yellow substance inside, placed on a black square base (no text or symbols visible)

Hand pointing at a black square display case with a red arrow indicating direction (no text or symbols visible)

ZAHVALA

Pure geometric diagram of a parallelogram with diagonal lines and a horizontal line, no text or symbols present.

Pure diagram of a container with horizontal lines and a vertical wall, no text or symbols present

Pure geometric diagram of a rectangular frame with internal lines and no text or symbols

Technical line drawing of a metal frame structure with multiple parallel grooves (no text or symbols)

UPOZORENJE O POLOŽAJU POLICA:

Technical line drawing of a mechanical enclosure or enclosure with internal components (no text or symbols)

ili

Technical line drawing of a multi-chamber oven or rack unit (no text or symbols visible)

ZAMJENA ŽARULJE

Simple line drawing of a container with a rotating arrow, no text or symbols present

PRIČVRŠĆIVANJE PEĆNICE ZA ORMARIĆ

1. Postavite pećnicu u udubljenje kućišta.
2. Otvorite vrata pećnice i odredite mjesto rupa za pričvrsne vijke.
3. Pričvrstite pećnicu na kućište pomoću dva vijka.

Technical diagram showing a square component with arrows indicating direction and a close-up of a screw (no text or symbols)

OTVORI ZA VENTILACIJU

Close-up of a green electronic component being processed with two red-circled features (no visible text or symbols)

Close-up of a finger pressing a small component, with an inset showing a mechanical device (no visible text or symbols)

Šarka

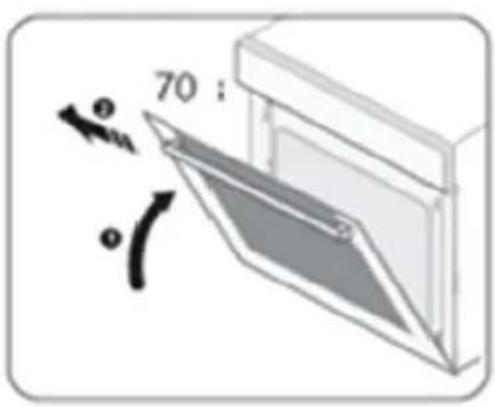

Korak br. 3: Podignite vrata tako da se nalaze pod kutom od 30° u odnosu na prednji dio pećnice. Držite vrata jednom rukom sa svake strane. Podignite pa povucite vrata.

70 :

Close-up of a black plastic panel with red directional arrows indicating movement or force (no text or symbols visible)

Black rectangular electronic device with a blank display screen, mounted on a stand (no visible text or symbols)

Close-up of a mechanical component with a red circle highlighting a specific area (no visible text or symbols)

Close-up of a hand adjusting a black plastic component with a red number '1' on the side (no text or symbols on the object itself)

Close-up of a hand adjusting a black mechanical component with a red number '2' visible (no text or symbols on the object itself)

Close-up of a black plastic object with a finger inserted, showing internal structure and texture (no text or symbols visible)

Hand pointing at a digital tablet screen with a red downward arrow indicating a drop or change (no text or symbols visible)

Hand pressing down on a transparent display panel with a red downward arrow (no text or symbols visible)

Korak br. 4: Pomoću jedne ruke gurnite poklopac okvira vrata prema sredini (1), zatim podignite poklopac drugom rukom (2);

1 2

Close-up of mechanical components with black and white parts, no visible text or symbols

Close-up of mechanical components with a red number '3' overlaid (no readable text or symbols)

Close-up of mechanical components with a red number '4' and a metallic rod inserted (no visible text or symbols)

Close-up of a hand pressing down on a black electronic device component with a red arrow indicating the downward force (no text or symbols visible)

Close-up of a hand holding a black electronic component with a red arrow pointing downward (no text or symbols visible)

Korak br. 8: Sklopite srednje staklo vrata i obratite pažnju na to da ga se treba staviti na drugi kat pokrova okvira vrata za troslojna staklena vrata, a za četvoroslojna staklena vrata potrebno je postaviti još jedno srednje staklo na prvi kat;

Hand holding a rectangular sample on a black electronic device (no visible text or symbols)

Hand pointing at a black square display case with a red arrow indicating direction (no text or symbols visible)

UVOD

Simple line drawing of a rectangular block with diagonal hatching (no text or symbols)

Pure diagram of a container with horizontal lines and a small arrow at the bottom (no text or symbols)

Pure geometric diagram of a rectangular frame with internal lines, no text or symbols present

Technical line drawing of a metal frame structure with multiple parallel grooves (no text or symbols)

OPOZORILO ZA NAMESTITEV REŠETKE:

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

ali

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

ZAMENJAVA SIJALKE

Simple line drawing of a container with a rotating arrow indicating rotation (no text or symbols)

PRITRDITEV PEČICE V OMARO

Technical diagram showing a mechanical component with arrows indicating direction and a close-up of a screw (no text or symbols)

PREZRAČEVALNE REŽE

Illustration of two screwdrivers with no text or symbols on the tools themselves

Križni izvijač

Illustration of a pair of needle pliers with labeled parts (no text or symbols on the pliers themselves)

Illustration of a pair of pliers with no text or symbols

Klešče za kable

Privijala

Line drawing of an adjustable wrench (no text or symbols)

Diagonalne kleščeNastavljiv ključ

Razstavljanje delov

Close-up of a green electronic device with two red circles highlighting features, no visible text or symbols.

Close-up of a finger pressing a small component, with an inset showing a mechanical device (no visible text or symbols)

Zapah tečaja

1. korak: vrata zaprite do kota 30° glede na sprednjo stran pečice.

Close-up of a black plastic panel with red directional arrows indicating movement or force (no text or symbols visible)

Opozorilo: vrat ne izvlecite na silo, da ne zlomite stekla.

Black rectangular electronic device with a blank display screen, mounted on a stand (no visible text or symbols)

Close-up of a mechanical component with a red circle highlighting a specific area (no visible text or symbols)

Close-up of a hand adjusting a black plastic component with a red number '1' on the side (no text or symbols on the object itself)

Close-up of a hand adjusting a black plastic component with red number '2' visible (no text or symbols on the object itself)

Close-up of a black plastic object with a finger inserted, showing internal structure and mounting holes (no text or symbols visible)

Hand pointing at a digital tablet screen with a red downward arrow overlay (no text or symbols on screen)

Hand pressing down on a transparent display panel with a red downward arrow (no text or symbols visible)

Close-up of a mechanical device with a red number '1' and a finger inserted, no visible text or symbols on the device itself.

Close-up of a hand holding a black tool with a red number '2' on the right, next to a black device (no visible text or symbols on the tool itself)

Close-up of mechanical components with a red number '3' overlaid (no readable text or symbols)

Close-up of hands installing or adjusting a black plastic component with red arrows indicating the process (no text or symbols visible)

Hand holding a rectangular object with a pale yellow substance inside, placed on a black square base (no text or symbols visible)

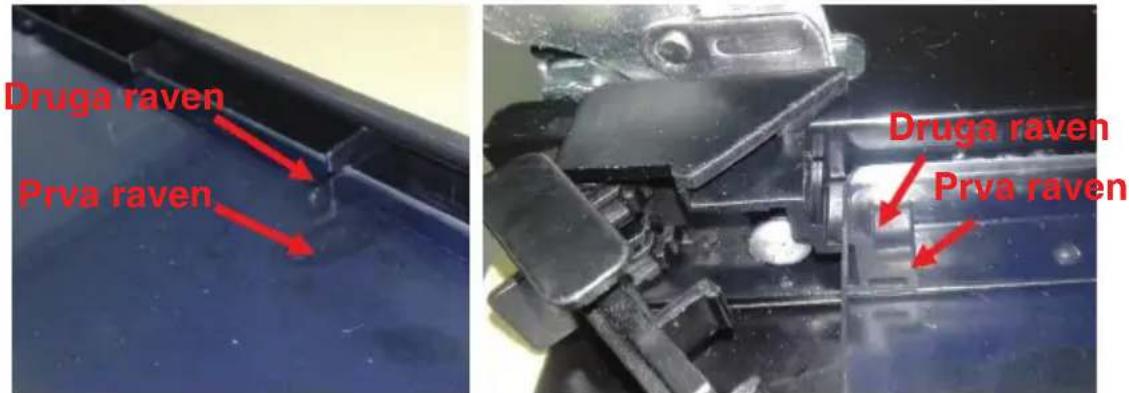

Druga raven Prva raven Druga raven Prva raven

Hand pointing at a black square display case with a red arrow indicating direction (no text or symbols visible)

Service

BLAUPUNKT
