5B36P0250AU - Oven BLAUPUNKT - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Blaupunkt
Model	5B36P0250AU
Color	Stainless Steel
Energy Source	Electric
Oven Capacity	71 Liters
Dimensions (W x H x D)	595 x 595 x 548 mm
Weight	35 kg
Rated Power	2.9 kW
Voltage / Frequency	220-240 V / 50-60 Hz
Cooking Functions	Conventional, Grill, Fan Assisted, Defrost, Bottom Heat, Top Heat
Temperature Range	50°C - 250°C
Interior Material	Enamel
Door Type	Cool Touch, Full Glass
Number of Shelves	2 (with telescopic runners optional)
Cleaning Method	Manual, Enamel Easy Clean
Child Lock	Yes
Timer	Digital, with Delay Start
Display Type	LED
Accessories Included	Grill Rack, Baking Tray
Spare Parts Availability	Yes, via authorised service centers
Repairability Index	7.5/10

Frequently Asked Questions - 5B36P0250AU BLAUPUNKT

How do I set the timer on my Blaupunkt 5B36P0250AU oven?

Press the Timer button, then use the +/- buttons to set the desired time. The timer will count down and beep when finished. For delay start, press and hold the Timer button for 3 seconds to enter delay mode.

What is the maximum temperature this oven can reach?

The oven can reach a maximum temperature of 250°C (482°F), suitable for roasting and baking.

How do I clean the oven interior?

Wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. The enamel interior is designed for easy cleaning. For stubborn residue, use a non-abrasive oven cleaner.

Can I use aluminum foil in the oven?

Yes, but avoid covering the oven floor or heating elements as it can cause overheating. Use foil on trays only, and ensure it does not touch the oven walls.

Why is my oven not heating?

Check if the oven is properly connected to power and the circuit breaker is on. Ensure the function selector is set to a heating mode. If the problem persists, contact a qualified technician.

How do I replace the oven light bulb?

Disconnect the oven from the power supply. Remove the glass cover by turning it counterclockwise. Replace with a 25W, 300°C resistant halogen bulb (G9 base). Reattach the cover and restore power.

What are the dimensions for installation?

The built-in cutout dimensions are approximately 560 x 590 x 560 mm (W x H x D). Allow at least 5 cm ventilation at the back.

Does the oven have a child lock feature?

Yes, to activate the child lock, press and hold the Lock button for 3 seconds until the lock icon appears on the display. Repeat to deactivate.

Can I use the grill and fan together?

Yes, select the Fan Grill function (if available) which combines grill with fan for even cooking. Refer to your manual for specific function symbols.

Where can I find spare parts for my Blaupunkt oven?

Spare parts are available through Blaupunkt authorised service centres. You can find the nearest centre on the Blaupunkt website or contact customer support.

USER MANUAL 5B36P0250AU BLAUPUNKT

Instructions for installation and use

Integrated Oven

5B36P0250GB

ACKNOWLEDGMENT

Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product, please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.

WARNING

• When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run the new empty product with the conventional cooking function at 250 °C for 90 minutes to clean oil impurities inside the cavity.
• During the first use, it is completely normal that there will be slight smoke and odors. If it does occur, you merely have to wait for the smell to clear before putting food into the oven.
• Please use the product in an open environment.
• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven.
• Do not allow children to go near the oven when it is operating, especially when the grill is on.
• Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring specifications. Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Accessible parts may become hot during use. Young children should be kept away.
• An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. A steam cleaner is not to be used.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• The instructions for ovens that have shelves shall include details indicating the correct installations of the shelves.

SAFETY HINTS

• Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands.
• For oven: Oven door should not be opened often during the cooking period.
• The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel.
• When the oven door or drawer is open, do not leave anything on it, as you may unbalance the appliance or break the door.
• Some parts of the appliance may retain heat for a long time; wait for it to cool down before touching surfaces that are directly exposed to heat.
• If you will not use the appliance for a long time, it is advised to unplug it.

FITTING THE OVEN INTO THE KITCHEN UNIT

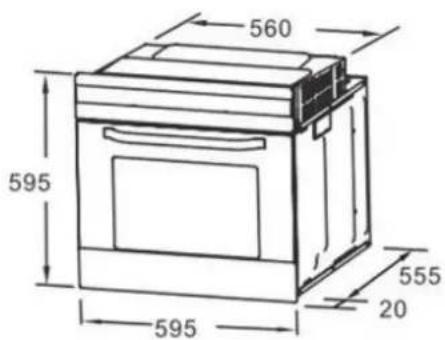

Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a worktop or into an upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation, adhere to the measurements and distances specified when fixing the oven.

IMPORTANT

If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat-resistant material. Ensure that the glues of units made of veneered wood can withstand temperatures of at least 120 °C. Plastics or glues that cannot withstand such temperatures will melt and deform the unit. Once the oven has been lodged inside the units, electrical parts must be completely insulated. This is a legal safety requirement. All guards must be firmly fixed into place so that it is impossible to remove them without using special tools. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear gap of at least 35 mm.

DECLARATION OF COMPLIANCE

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children.

CE

PRODUCT DESCRIPTION

Symbol	Function description
	Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions except pyrolytic and ECO function.
	Deforst: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc.
	Bottom heater: A concealed element in the bottom of the oven provides a more concentrative heat to the base of food without browning. This is ideal for slow cooking dishes such as casseroles, stews, pastries and pizzas where a crispy base is desired. The temperature can be set within the range of 60-120 °C. The default temperature is 60 °C.
	Conventional cooking: The top and bottom work together to provide convectional cooking. The temperature can be set within the range of 50-250 °C. The default temperature is 220 °C.
	Convention with fan: Combination of the fan and both heating element provides more even heat penetration, saving up to 30-40% of energy. Dishes are lightly browned on the outside and still moist on the inside. Note:This function is suitable for grilling or roasting big pieces of meat at a higher temperature. The temper ature can be set within the range of 50-250 °C. The default temperature is 220 °C.
	Radiant grilling: The inner grill element switches on and off to maintain temperature. The temperature can be set within the range of 180-240 °C.The default temperature is 210 °C.
	Double grill: The radiant heating element and the top heating element are working. The temperature can be set within the range of 180-240 °C.The default temperature is 210 °C.
	Double grill with fan: The radiant heating element and top heating element are working with fan. The temperature can be set within the range of 180-240 °C. The default temperature is 210 °C.
[2K68]	Convection: An element around the convection fan provides an additional source of heat for convection style cooking. In convection mode the fan automatically comes on to improve air circulation within the oven and creates an even heat for cooking. The temperature can be set within the range of 50-240 °C. The default temperature is 180 °C.
	Pyrolytic function: When the function set to prolytic mode, LED display „ PYR „The default temperature is 450°C . The timer can be set 1:30 or 2:00 hours.
	This is an energy-saving heating function that allows you to gently cook meat, fish and baked items. The appliance optimally controls the supply of energy to the cooking compartment.Depending on the method of preparation and the type of food, it is possible to save energy.

OPERATION INSTRUCTIONS

1. Clock Setting

After connecting the unit to the power, the symbols "0:00" will be visible on the display.

1> Press "☑", the hour figures will flash. 2> Rotate "K2" to adjust the hour figures (time should be within 0--23). 3> Press " ", the minutes will flash. 4> Rotate "K2" to adjust the minutes setting (time should be within 0--59). 5> Press "🔒" to finish the clock settings. ":" will flash, and the time will be illuminated.

Note: The clock is 24 hours. After power on, if not set, the clock will show "0:00".

2. Function Setting

1> Rotate "K1" to choose the cooking function you require. The related symbol will illuminate. 2> Rotate "K2" to adjust the temperature. 3> Press "▶" to confirm the start of cooking. 4> If step 2 is ignored, press "▶" to confirm the start of cooking and the default time is 9 hours, the default temperature will display on the LED.

NOTE:

1> The step quantities for the adjustment time of the knobs are as follows: 0--0:30min: step 1 minute; 0:30--9:00hour: step 5 minutes. 2> The step quantities for the adjustment of temperature is 5°C, and the grill function is 30°C. 3> Rotate "K1" to adjust the cooking time when cooking begins. Then press "▶" to confirm. If "▶" is not pressed within 3 seconds, the oven will revert back to the previous time to continue cooking. 4> Rotate "K2" to adjust the temperature when cooking begins. The related indicator will be illuminated. Then press "▶" to start cooking. If "▶" is not pressed in 3 seconds, the oven will revert back to the previous temperature to continue cooking.

3. Lamp Setting

1> Rotate "K1" to select the relevant function, then the corresponding icon will be on. 2> Press "▶" button to start, "0:00" and lamp icon "🔍" will light up, ":" will flash.

4. Inquiring function

In the following states, you can use the inquiring function, after 3 seconds return to the current state.

1> During working state, if the clock was set, press "🔒" button to see the current time; if the reminder function was set, press "🔒" button to see the time of reminder. 2> In reminding state, if the clock was set, press "🔊" button to see the current time. 3> In clock display state, if the reservation function was set, press "☐" button to see the time of reservation.

5. Child lock function

To Lock: press "▶" and "[1]" simultaneously for 3 seconds, there will be a long "beeping" sound and the "🔒" will be illuminated.

Lock quitting: press "▶" and "□" simultaneously for 3 seconds, there will be a long "beeping" sound indicating the child-lock is released.

Note: During working mode, if you want to stop cooking, press stop button quickly. Do not need to long press on stop button, it is invalid.

6. Reminder Function:

This function will help to remind you to start cooking at a set time, from 0:01 to 9:59.

The reminder can only be set when the oven is in standby mode. Follow the steps below to set the reminder:

1> Press the reminder setting button "🔊"; 2> Rotate "K2" to set the hour for the reminder (must be between 0 and 9). 3> Press the reminder setting button "ℓ" again; 4> Rotate "K2" to set the minutes for the reminder (must be between 0 and 59). 5> Press "▶" to confirm the setting. The countdown will begin.

Note: The oven buzzer will sound 10 times when the countdown reaches zero.

You can cancel the reminder during setting by pressing the "☐" button. After the reminder has been set, you can cancel it by pressing the stop button twice.

7. Start/Pause/Cancel Function

1> If a cooking time has been set, press "▶" to start cooking. If cooking is paused, press "▶" to resume. 2> During cooking, press "[II]" once to pause. Press "[II]" twice to cancel cooking.

8. Energy-Saving Function

1> In the waiting or reminding state, press and hold "▶" for three seconds to turn off the LED display and enter energy-saving mode. 2> If there is no operation for 10 minutes in the waiting state, the LED display will turn off and the oven will enter energy-saving mode. 3> In energy-saving mode, press any key or rotate any knob to exit.

9. Reservation Function

1> To use the reservation function, the clock must be set in advance. Then, following the clock-setting method, set the time at which the oven should start cooking (a> Press the reservation setting button; b> Rotate "K2" to set the hour (0-23). c> Press the reservation setting button "Ⓩᴸ" again; d> Rotate "K2" to set the minutes (0-59).), but do not press the clock button this time. Next, turn knob "K1" to select the function. 2> Press "▶" to set the cooking time and temperature. Then turn knob "K1" to adjust time and "K2" to adjust temperature. 3> Press "▶" to finish the cooking settings. The clock will be displayed with the reservation symbol "∑" lit constantly, and no other function signals will be shown. You can check the reservation time by pressing "RL"; after 3 seconds, the screen will return to the clock. 4> At the reserved time, cooking will start automatically after a buzzing sound. The reservation symbol "∑" will turn off, and other indicators will work normally.

Note:

1. Lamp, defrost, and probe functions cannot be reserved.
2. During the reservation status, press the cancel button once to display the reservation time and temperature with the menu icon lit constantly. Press again to return to the clock, or press the start button to return to the reservation status.
3. The reminder function is disabled during the reservation status.

10. Pyrolytic Function

This function allows you to clean thoroughly the oven cavity.

1. Rotate the K1 knob to select the pyrolytic function. The LED will display "PYR". 2. Press the confirm button to start the cooking. The default time is 2 hours, and "PYR" will be displayed on the LED. 3. Rotate the K1 knob to change the pyrolytic time. The timer can be set to 1:30 or 2:00 hours.

Note:

A) When the oven door is not closed, pressing the start button will be invalid, and the LED will display "DOOR" and "PYR". B) When the oven's center temperature is higher than 320°C, pressing the start button will be invalid. The LED will display "COOL" and "PYR". When the oven's center temperature is lower than 200°C, press the cancel button once to pause; press it again to return to the waiting state. If the temperature is higher than 200°C, press the cancel button once to return directly to the waiting state. C) If the door is opened while the oven is working, the LED will display "DOOR" and the buzzer will sound continuously until the door is closed or the cancel button is pressed. D) Before activating the pyrolytic cleaning function, remove any excessive spillage and make sure that the oven is empty. Do not leave anything inside it (e.g., pans, baking tray, dripping pan, slider bracket, etc.) as this could heavily damage them. E) When the pyrolytic cleaning is finished, do not interrupt the power for an hour.

11. Note

1. The oven lamp will be on for all functions (except pyrolytic function and ECO function). 2. Once the cooking programme has been set and the start button is not pressed within 5 minutes, the current time will be displayed or the oven will return to the waiting state. The setting program will be invalid. 3. The buzzer will sound once when a button is effectively pressed; if not effectively pressed, there will be no response. 4. The buzzer will sound five times to remind you when cooking has finished.

ACCESSORIES

Wire shelf: For grilling dishes, cake pans with items for roasting and grilling.

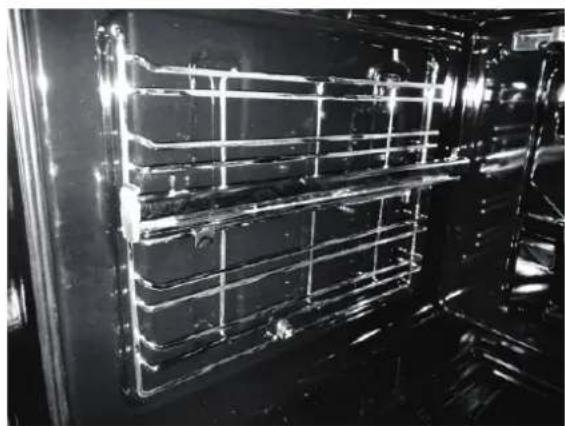

Slider bracket: These shelf support rails on the right and left sides of the oven can be removed for cleaning oven walls. (Only for specific models.)

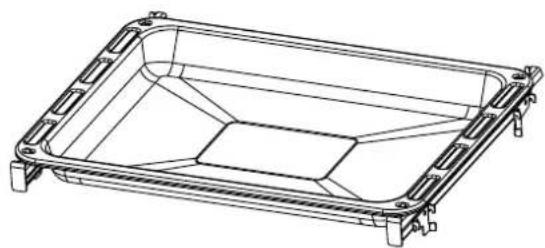

Universal pan: For cooking large quantities of food such as moist cakes, pastries, frozen food, etc., or for collecting fat/spillage and meat juices.

Telescopic runner: This model is equipped with telescopic runners to facilitate the use of the oven.

The telescopic runners can be disassembled for cleaning by hand.

OPTIONAL: ONLY FOR THE MODELS EQUIPPED WITH TELESCOPIC RAILS

The oven is equipped with telescopic rails to position the pan and wire grid (Fig. 1).

You can change the position, depending on your personal taste and needs of different foods (Fig. 2).

1. Draw out the telescopic rail before you assemble it.
2. Put the telescopic rail at the right place on the hanger. The upside of the fastener of telescopic rail should be put onto the hanger first.

1. Press the front fastener to fasten the telescopic rail to the hanger as arrow ①. And when you disassemble the telescopic rail you need to pry it up as arrow ②.

1. Withdraw the telescopic rail and you finish its assembly.

Notice:

1. When you disassemble the telescopic rail, you need to do the contrary steps to the steps above.
2. Remove the telescopic rails during the pyrolytic cleaning process.
3. Be careful of your hands when you assemble the telescopic rails.
4. Never put the pan or wire grid exclusively at the gap places between 1-5 levels without telescopic rails.

SHELF PLACEMENT WARNING:

To ensure the oven shelves operate safely, correct placement of the shelves between the side rails is imperative. Shelves and the pan can only be used between the first and fifth layers.

The shelves should be used in the right direction; this will ensure that during careful removal of the shelf or tray, hot food items do not slide out.

BULB REPLACEMENT

For replacement, proceed as follows:

1. Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet. 2. Unscrew the glass lamp cover by turning it counter-clockwise (note: it may be stiff) and replace the bulb with a new one of the same type.

3. Screw the glass lamp cover back into place.

NOTE: Only use 25-40W/220V-240V, T300°C halogen lamps.

SECURING THE OVEN TO THE CABINET

1. Fit the oven into the cabinet recess.
2. Open the oven door.
3. Secure the oven to the kitchen cabinet with two distance holders "A" that fit into the holes in the oven frame, and fit the two screws "B".

VENTILATING OPENINGS

When cooking is finished, or in pause state, or in waiting state, if the oven's center temperature is over 75 degrees, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degrees, the cooling fan will stop in advance.

INSTALLATION

NOTE: The number of accessories included depends on the particular appliance purchased.

CLEANING AND MAINTENANCE

For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly.

■ Before any maintenance and cleaning, disconnect the power. ■ Set all controls in the OFF position. - Wait until the inside of the unit is not hot but only slightly warm- cleaning is easier than when warm. - Clean the surface of the unit with a damp cloth, soft brush or fine sponge and then wipe dry. In case of heavy soiling, use hot water with non-abrasive cleaning product. For cleaning the glass of the oven door, do not use abrasive cleaners or sharp metal scrapers, these can scratch the surface or lead to the glass being damaged. ■ Never leave acidic substances (lemon juice, vinegar) on stainless steel parts. - Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild detergent.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Installation instruction of the door frame up cover and rotation bracket assembly

Preparation before disassembly

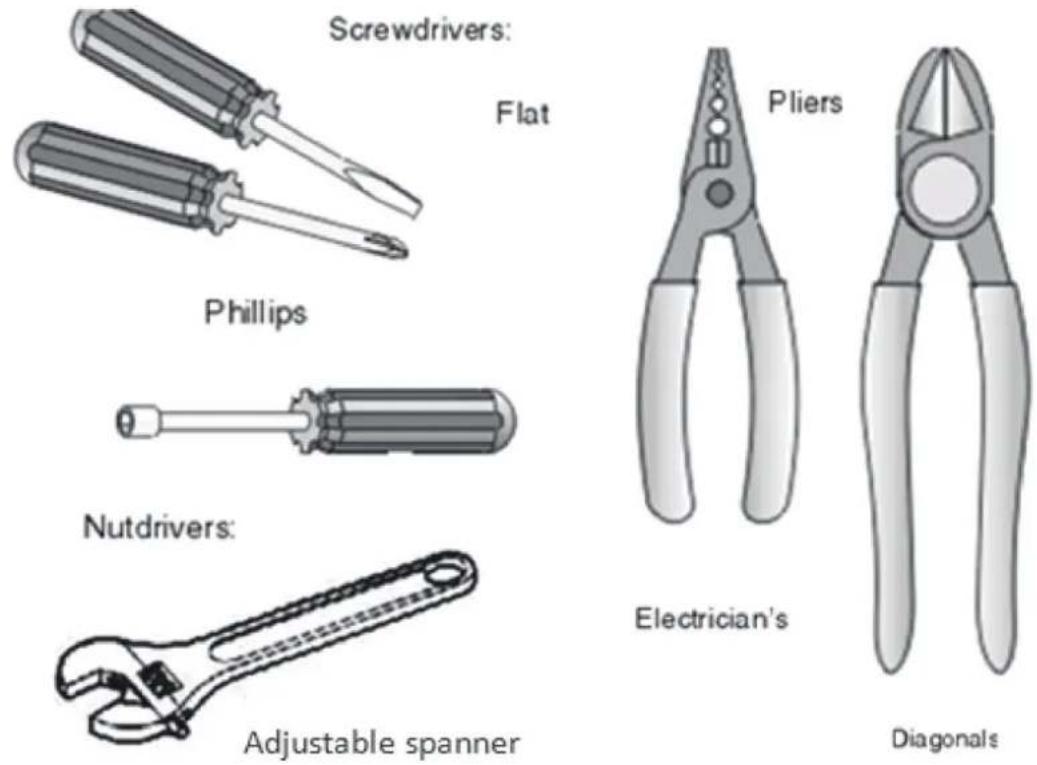

Most of the tools that you might need are shown below. Some tools are optional.

Parts disassembly

The oven door's disassembly

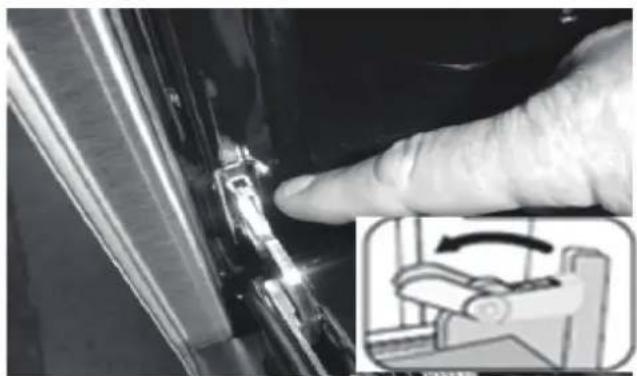

Step 1: Open the oven door completely. Step 2: Pull the hinge locks forward on both hinges, until they stop.

Hinge Lock

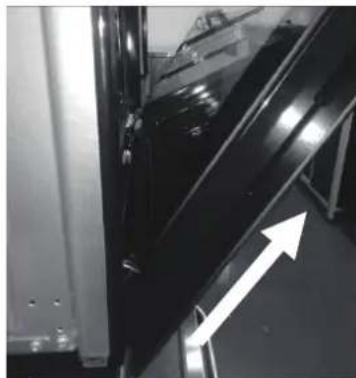

Step 3: Raise the door so that it is at a 30° angle from the front of the oven.

Hold the door with one hand on each side. Lift the door up and out.

Warning: Do not forcibly pull out the door and prevent the glass

from breaking during the dismantling process.

Warning: The hinge springs could release, causing personal injury.

Warning: Do not lift or carry the oven door by the door handle.

The oven door components' disassembly.

Step 1: Disassemble the door from the oven, then put it on the bench horizontally, see 2.1.

Step 2: Open the door rotation bracket assembly, refer to the action in the following picture.

Step 3: Lift up the door outer glass and pull it out, then take the door middle glass out in the same way.

Step 4: Use one hand to push the door frame up cover toward the middle part (1), then lift up the cover with the other hand (2).

Step 5: Use a screwdriver to disassemble the rotation bracket assemblies, then take them out from the door bracket.

Step 6: Replace with new rotation bracket assemblies and insert them into the snap joints, then fix them with screws.

Step 7: Assemble the new door frame up cover on the bracket and make sure it is stable.

Step 8: Assemble the door middle glass and pay attention that it should be placed at the second level of the door frame up cover for a 3-layer glass door, and for a 4-layer glass door, another middle glass should be placed at the first level.

Step 9: Assemble the outer glass and accomplish the replacement work.
