SO110 - Radio SONORO - Free user manual and instructions

Technical Specifications	Details
Product Type	Radio
Frequencies	AM/FM
Power Supply	Mains / Batteries
Dimensions	Compact dimensions for easy storage
Weight	Lightweight, easy to carry
Connectivity	AUX input, headphone jack
Usage	Easy to use with intuitive buttons
Maintenance	Regular cleaning recommended, no replaceable parts
Safety	Use in a dry environment, avoid exposure to water
General Information	Limited warranty, see manual for more details

Frequently Asked Questions - SO110 SONORO

How do I set the time on the SONORO SO110 radio?

To set the time, press and hold the 'Clock' button for a few seconds until the display starts blinking. Use the '+' and '-' buttons to adjust the hours and minutes, then press 'Clock' again to confirm.

Why can't I receive certain radio stations?

Make sure the antenna is fully extended and properly oriented. If you are in an area with poor reception, try moving the radio to a different location.

How do I save my favorite radio stations?

To save a station, tune to the desired station and hold down the 'Preset' button until you hear a beep. You can then select a preset number using the '+' and '-' buttons.

The radio won't turn on, what should I do?

First, check that the device is properly plugged into a working power outlet or that the batteries are correctly inserted and charged. If the problem persists, try resetting the device by unplugging the power for a few minutes.

How do I use the timer function on the SONORO SO110?

To use the timer, press the 'Timer' button and use the '+' and '-' buttons to set the desired time. Press 'Timer' again to activate the function.

Can the SONORO SO110 connect to Bluetooth?

No, the SONORO SO110 does not have Bluetooth functionality. It is designed only for radio reception and playback via wired connections.

How do I adjust the volume on the SONORO SO110?

Use the volume knob located on top of the radio to increase or decrease the volume according to your preference.

What should I do if the sound is distorted or of poor quality?

Check the quality of the radio reception. Poor reception can cause sound distortion. Try adjusting the antenna or moving the radio to a better location.

The radio is producing static noise, what should I do?

This may be due to poor reception or interference. Make sure the antenna is fully extended and keep the radio away from electronic devices that may cause interference.

USER MANUAL SO110 SONORO

White Sonoro brand microwave oven with digital display showing 12:00, no visible text or symbols on main body

Digital Audio Broadcasting

Bluetooth®

Bedienungsanleitung

Operating manual

Mode d'emploi

White Sonoro brand microwave oven with digital display showing 12:00, no visible text or symbols on main body

DAB+ Digital Audio Broadcasting

Bluetooth®

Bedienungsanleitung

sonoro

sonoro audio GmbH

Unter Goldschmied 6

50667 Köln

Illustration of two hands inserting a plug into a socket (no text or symbols)

Pure diagram of a T-shaped mechanical device with no text or symbols

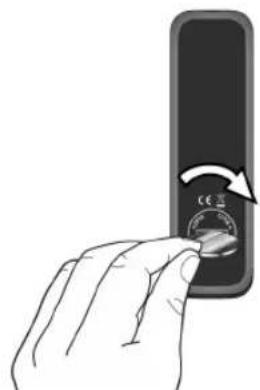

Hand holding a remote control panel with a circular dial and an arrow indicating rotation (no text or symbols)

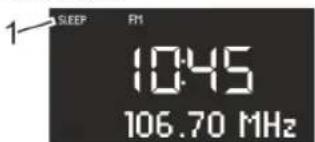

1 SLEEP FH 10:45 106.70 MHz

1 SLEEP Fri 10:45 Sleep 30min 2

7:00 Snooze 10min

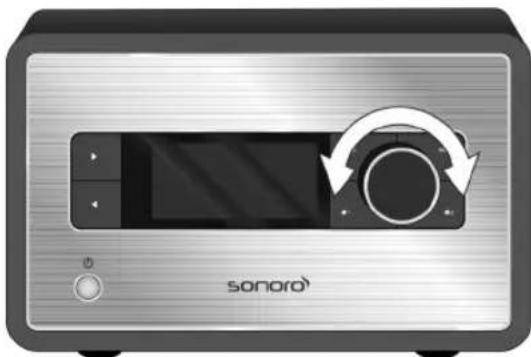

Front view of a sonora brand electronic device with a rotary knob and control buttons (no text or symbols on the device itself)

FM 106.70 man. Tuning

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

White Sonoro brand microwave oven with digital display showing 12:00, no visible text or symbols on main body

DAB+ Digital Audio Broadcasting

Bluetooth®

Operating manual

sonoro

sonoro audio GmbH

Unter Goldschmied 6

50667 Cologne

Germany

Telephone: [phone]

Fax: [phone]

email: [e-mail]

Internet: www.sonoro-audio.com

sonoro

Table of contents

1 Introduction.... 41

2 For your own safety.... 41

2.1 Symbols in this manual.... 41
2.2 Intended use.... 41
2.3 Children and persons with limited cognitive abilities.... 41
2.4 Power supply.... 41
2.5 Batteries.... 42
2.6 Transport.... 42
2.7 Ambient conditions.... 42
2.8 Operation.... 42
2.9 Headphone use.... 42
2.10 Defects.... 42
2.11 Cleaning 43

3 Scope of delivery.... 43

4 Compatible formats.... 43

5 Controls and ports.... 44

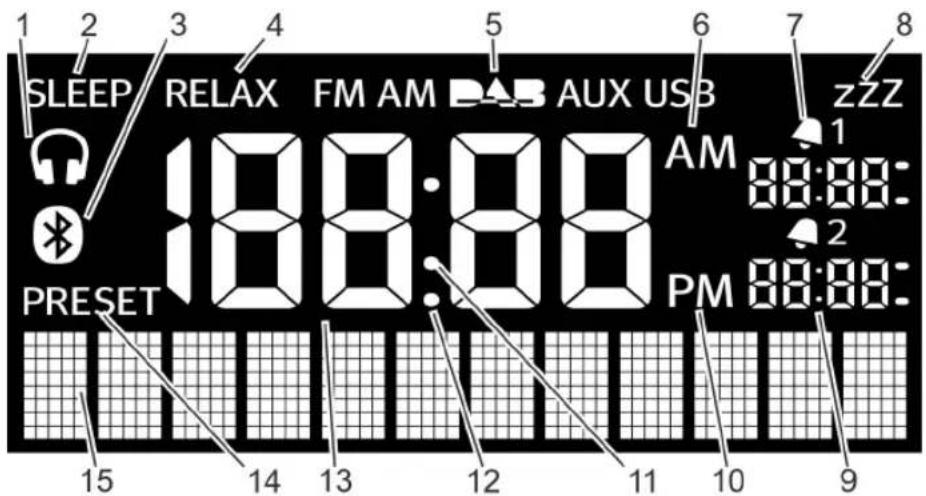

6 Display.... 49

7 Unpacking the device and commencing operation.... 50

7.1 Unpacking the device.... 50

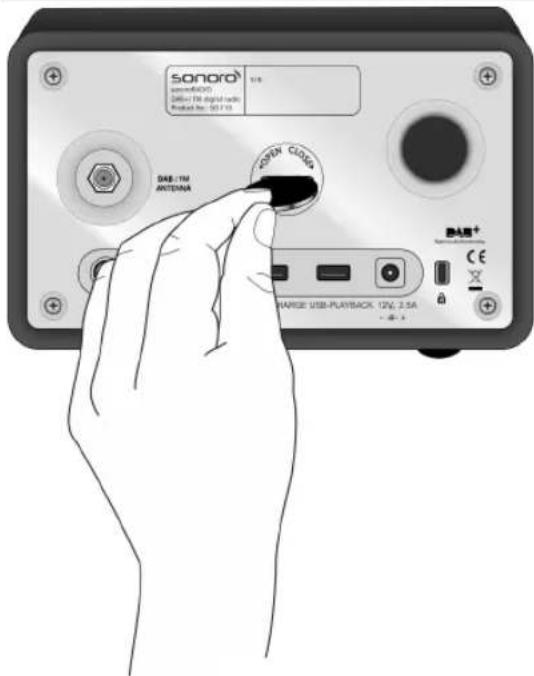

7.2 Inserting the battery.... 50
7.3 Connecting the power supply.... 51
7.4 Connecting the antenna.... 51

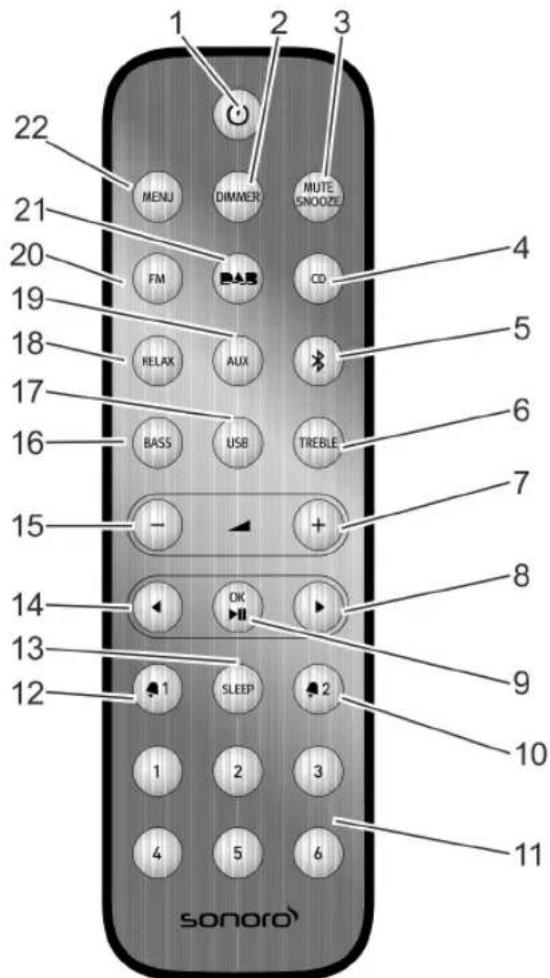

7.5 Preparing the remote control.... 51
7.6 Connecting the headphones.... 52

8 Setting the basic functions.... 52

8.1 Switching on the device for the first time.... 52
8.2 Standby menu.... 52
8.3 Settings menu.... 53

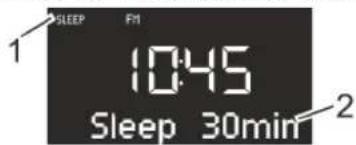

8.4 Setting the Sleep Timer.... 54
8.5 Setting the dimmer.... 54
8.6 Setting the sound.... 55
8.6.1 Adjusting the bass and treble.... 55

9 Alarm function.... 55

9.1 Setting the alarm time.... 55
9.2 Setting the alarm source.... 55
9.3 Setting the alarm volume.... 56
9.4 Setting the alarm repetition.... 56
9.5 Switching the alarm clock on/off.... 56
9.6 Switching off the alarm clock after the alarm sounds.... 56

© 2013 39

sonoro

9.7 Setting the snooze function.... 57

10 General audio playback functions.... 57

10.1 Selecting a playback mode.... 57

10.2 Setting the volume.... 57

10.3 Muting the audio playback.... 57

11 Radio playback.... 58

11.1 FM Radio.... 58

11.1.1 Finding FM stations.... 58

11.1.2 Storing FM stations.... 58

11.1.3 Retrieving saved FM stations.... 59

11.2 DAB radio.... 59

11.2.1 Finding DAB stations.... 59

11.2.2 Storing a DAB station.... 59

11.2.3 Retrieving saved DAB stations.... 59

11.2.4 Retrieving DAB info.... 60

11.2.5 Setting the DRC.... 60

12 Bluetooth playback.... 60

12.1 Pairing and deleting Bluetooth devices.... 60

12.2 Playing music via Bluetooth.... 61

13 AUX playback.... 61

14 USB playback.... 61

15 Relax Music playback.... 61

16 Demo Sound playback.... 62

17 Troubleshooting.... 63

18 Cleaning.... 64

19 Technical data.... 65

20 Disposal.... 65

21 Symbols.... 66

22 Declaration of Conformity.... 66

23 Warranty.... 66

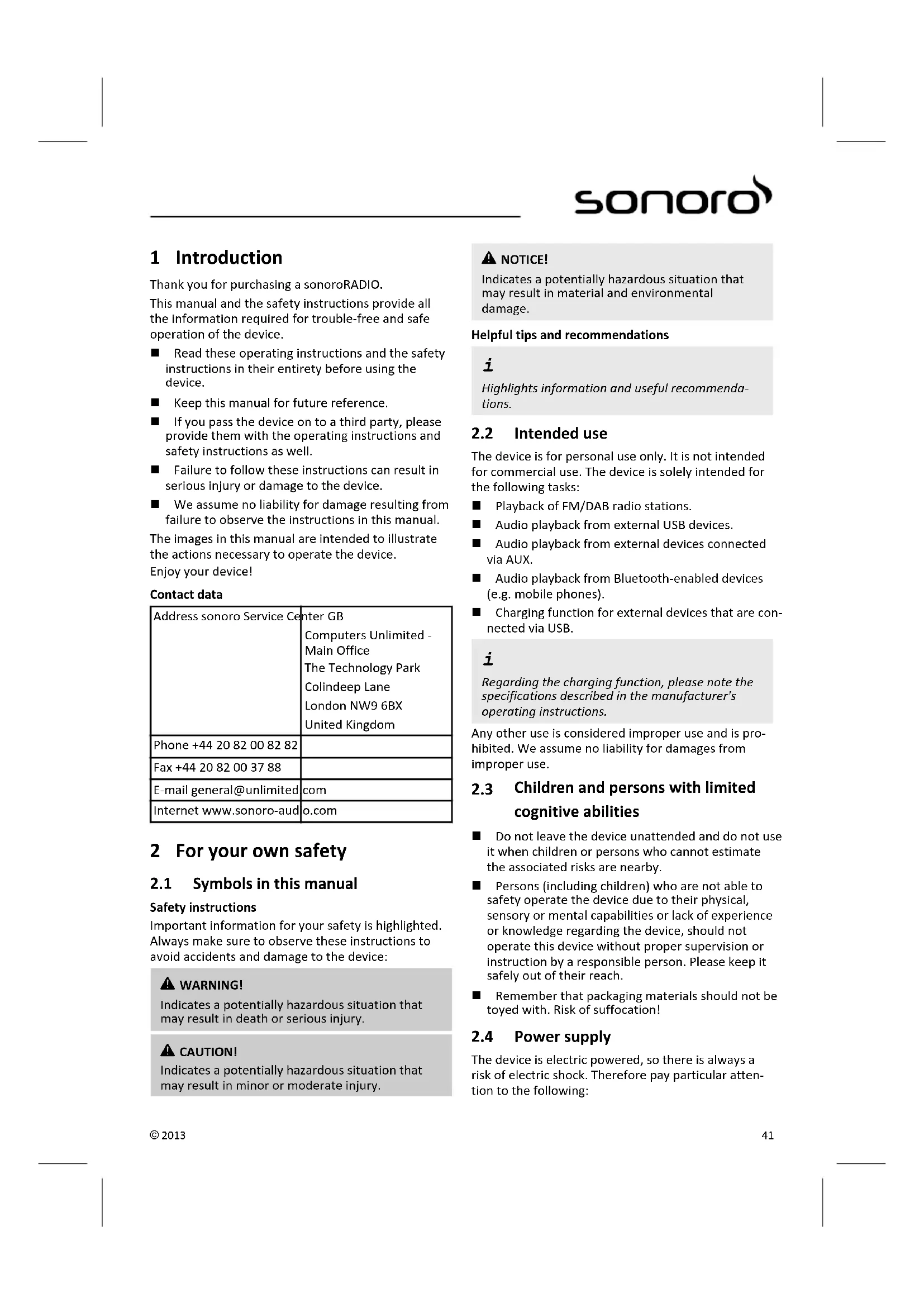

1 Introduction

Thank you for purchasing a sonoroRADIO.

This manual and the safety instructions provide all the information required for trouble-free and safe operation of the device.

• Read these operating instructions and the safety instructions in their entirety before using the device.
• Keep this manual for future reference.
  If you pass the device on to a third party, please provide them with the operating instructions and safety instructions as well.
  ■ Failure to follow these instructions can result in serious injury or damage to the device.
  ■ We assume no liability for damage resulting from failure to observe the instructions in this manual.

The images in this manual are intended to illustrate the actions necessary to operate the device. Enjoy your device!

Contact data

Address sonoro Service Center GBComputers Unlimited - Main OfficeThe Technology ParkColindeep LaneLondon NW9 6BXUnited Kingdom

Phone [phone]

Fax [phone]

E-mail [e-mail]

Internet www.sonoro-aud o.com

2 For your own safety

2.1 Symbols in this manual

Safety instructions

Important information for your safety is highlighted. Always make sure to observe these instructions to avoid accidents and damage to the device:

WARNING!

Indicates a potentially hazardous situation that may result in death or serious injury.

CAUTION!

Indicates a potentially hazardous situation that may result in minor or moderate injury.

NOTICE!

Indicates a potentially hazardous situation that may result in material and environmental damage.

Helpful tips and recommendations

i

Highlights information and useful recommendations.

2.2 Intended use

The device is for personal use only. It is not intended for commercial use. The device is solely intended for the following tasks:

■ Playback of FM/DAB radio stations.
■ Audio playback from external USB devices.
■ Audio playback from external devices connected via AUX.
■ Audio playback from Bluetooth-enabled devices (e.g. mobile phones).
■ Charging function for external devices that are connected via USB.

i

Regarding the charging function, please note the specifications described in the manufacturer's operating instructions.

Any other use is considered improper use and is prohibited. We assume no liability for damages from improper use.

2.3 Children and persons with limited cognitive abilities

■ Do not leave the device unattended and do not use it when children or persons who cannot estimate the associated risks are nearby.
■ Persons (including children) who are not able to safety operate the device due to their physical, sensory or mental capabilities or lack of experience or knowledge regarding the device, should not operate this device without proper supervision or instruction by a responsible person. Please keep it safely out of their reach.
■ Remember that packaging materials should not be toyed with. Risk of suffocation!

2.4 Power supply

The device is electric powered, so there is always a risk of electric shock. Therefore pay particular attention to the following:

■ Never touch the power plug with wet hands.
■ When you want to pull the power plug from the wall outlet, always pull directly on the plug itself. Never pull on the cable. It could break.
■ Ensure unobstructed access to the power outlet so that the power plug can be pulled out immediately in case of an emergency.
■ Make sure that the power cord is not bent, pinched or run over. Lay the power cord in such a way that it is not a tripping hazard or within reach of children.
■ Only use extension cords that are rated for the current of the device.
- Keep the device away from rain and moisture and any heat sources.
■ Only operate the device if the electrical voltage indicated on the device nameplate and the power plug matches the voltage of your power outlet. Incorrect voltage may destroy the device.
To avoid a fire hazard, disconnect the device completely from the power supply when you are not using the device for a long time. Do this by unplugging the power cord from the AC outlet.

2.5 Batteries

■ Remove the non-rechargeable/rechargeable batteries from the battery compartment as soon as they are empty, or if you do not intend to use the device for a period of time.
- Do not throw the non-rechargeable/rechargeable batteries into fire, and never expose them to high temperatures.
Do not attempt to recharge the non-rechargeable batteries. Do not attempt to open or short circuit the non-rechargeable/rechargeable batteries. Explosion hazard!
■ Fluid that leaks from the batteries when these are used incorrectly can cause skin irritation. In case of contact, wash off the fluid with plenty of water. If the fluid gets into your eyes, do not rub eyes. Instead, rinse eyes immediately for 10 minutes with water and consult a physician immediately.
■ Only use batteries of the same or an equivalent type. Explosion hazard!

2.6 Transport

■ To avoid damage to the inserted medium, remove it from the device before transporting/shipping the device.
■ Whilst driving in a vehicle, store the device so as not to endanger its occupants.
If you ship the device, please stow it in its original packaging. Keep the packaging for this purpose.

2.7 Ambient conditions

Safe operation of the device implies maintaining appropriate ambient conditions for the device. So please observe the following:

■ Protect the device from the elements. Never use it outdoors and never place it in areas with increased exposure to sunlight.
■ Never place the device on or in the immediate vicinity of fire and heat sources, such as burning candles, stove tops, ovens, etc.
Place the device in such a way that adequate ventilation is ensured. This prevents heat build up inside the device. Always keep a minimum distance of 10 cm from other objects or walls.
■ Protect the device from strong mechanical vibrations and place it on a solid surface.
■ Protect the remote control from the weather, humidity and high temperatures (e.g. from direct sunlight).
■ Protect the device from splashing or dripping water. Never place objects containing liquids on or next to the device.

2.8 Operation

■ Do not use any media other than those specified in this manual.
■ The rubber feet of the device may produce stains on certain surfaces. Use a suitable surface.

2.9 Headphone use

■ Always decrease the volume of the device before putting on the headphones. Increase the volume to the desired level only after the headphones are in the correct position.
- Do not adjust the volume too high when listening on headphones. If you hear permanent noise or background noise in your ears (ringing), immediately decrease the volume or stop using the headphones altogether.
■ Even if your headphones are designed in such a way that you can hear outside noises, remember to never adjust the volume so high that you are no longer aware of your immediate surroundings.

2.10 Defects

Should the device be defective, do not attempt to repair it on your own.

sonoro

If the power plug, the adapter, or the power cord of this device is damaged, they must be replaced by the manufacturer or the manufacturer's customer service department to avoid risk of electric shock.
■ Should any fluid enter the device, or if the device has been dropped or otherwise damaged, have it checked by an authorised dealer. Immediately disconnect the device from the power supply and contact an authorised dealer as soon as possible.

2.11 Cleaning

■ Clean the device only from the outside with a soft, dry cloth. Never use abrasive or solvent-based cleaning agents as these may damage the surface of the device.
If the device is extremely dirty, wipe it with a slightly damp cloth and dry it with a soft, dry cloth.

3 Scope of delivery

Additional components that you need to receive radio frequencies are part of sonoroRADIO's scope of delivery.

■ sonoroRADIO with protective cover
■ Remote control
■ Two button cells (CR2032, 3 V)
■ AC adapter with universal adapter (CE and UK)
■ FM/DAB antenna
Gloves
■ Operating instructions

4 Compatible formats

Compatible audio formats

■ MP3 format "MPEG 1 layer 3 with sample rates of 44.1 kHz and 22.05 kHz"

5 Controls and ports

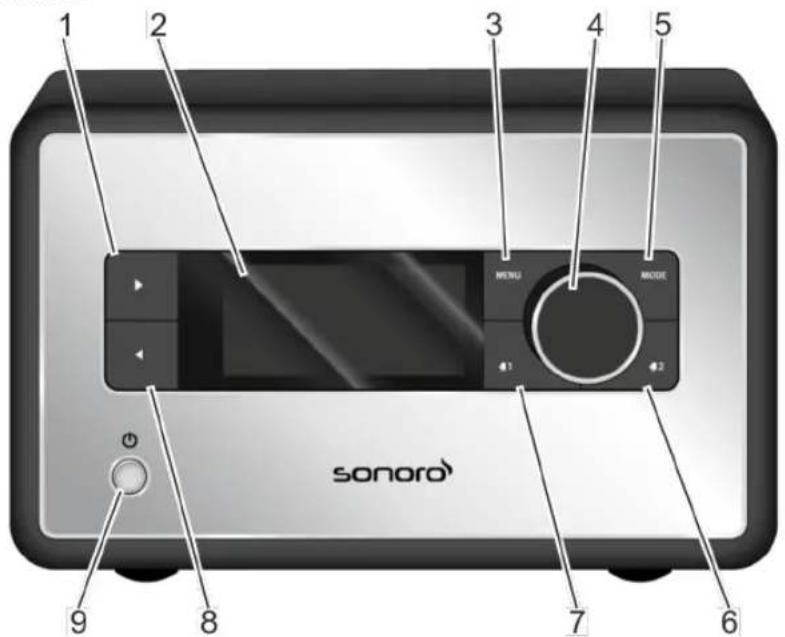

sonoroRADIO, front view

1 2 3 4 5 METHU MUCDE 1 2 sonoro 9 8 7 6

Fig. 1: sonoroRADIO, front view

Item(Fig. 1)	Designation Function	Function
1 Next		Press: navigate the menu entries; search FM/DAB stations, next track on USB, Relax Music, Demo Sound modes.Press and hold: fast forward.
2 LC Display	Displays current time and date when the device is switched off. Provides mode-related information when the device is switched on.
3 MENU	Open and save/close the menu entries.
4 Click wheel		Turn: Volume, FM/DAB station, set alarm; navigate.Press: confirm the individual submenus; FM Station List/DAB Station List; start/stop audio playback; stop alarm.Press and hold: manually set FM/DAB frequency.
5 MODE	Switch to the next	playback mode.
6 Alarm 2		Press: switch Alarm 2 on/off, stop the alarm.Press and hold: set the alarm.
7 Alarm 1		Press: switch Alarm 1 on/off, stop the alarm.Press and hold: set the alarm.
8 Previous		Press: navigate the menu entries; search FM/DAB stations, previous track on USB, Relax Music, Demo Sound modes.Press and hold: rewind.
9 Standby	Switch the device	on/off. Stop the alarm.

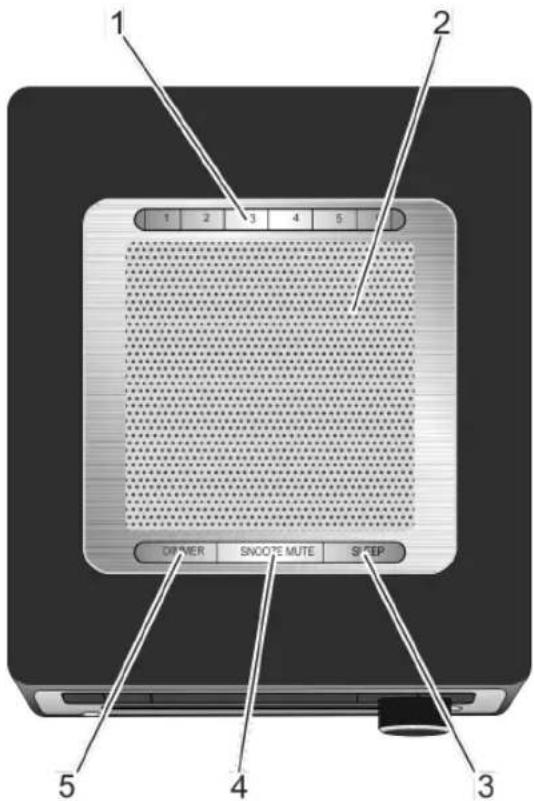

sonoroRADIO, top view

1 2 1 2 3 4 5 DIPower SNOOTE MUTE SIPTEP 5 4 3

Fig. 2: sonoroRADIO, top view

Item(Fig. 2)	Designation Function	Description
1 Memory	1–6 Station memory.
2 Speaker	Speaker opening.
3 SLEEP		Press briefly: switch the auto disconnect (Sleep Timer) function on/off.Press briefly (in Standby mode): the device switches itself on.Press and hold: opens the [Sleep Timer] menu for setting the auto disconnect.
4 SNOOZE	MUTE	Press briefly (in playback mode): switch audio playback (Mute) on/off.Press briefly (in Alarm mode): start the snooze function (Snooze).Press and hold: opens the[Snooze Setting] menu to set the snooze time.
5 DIMMER		Press briefly: the display is illuminated at the highest brightness level for 3 s.Press and hold: opens the [DIMMER] menu to set the display's brightness level.

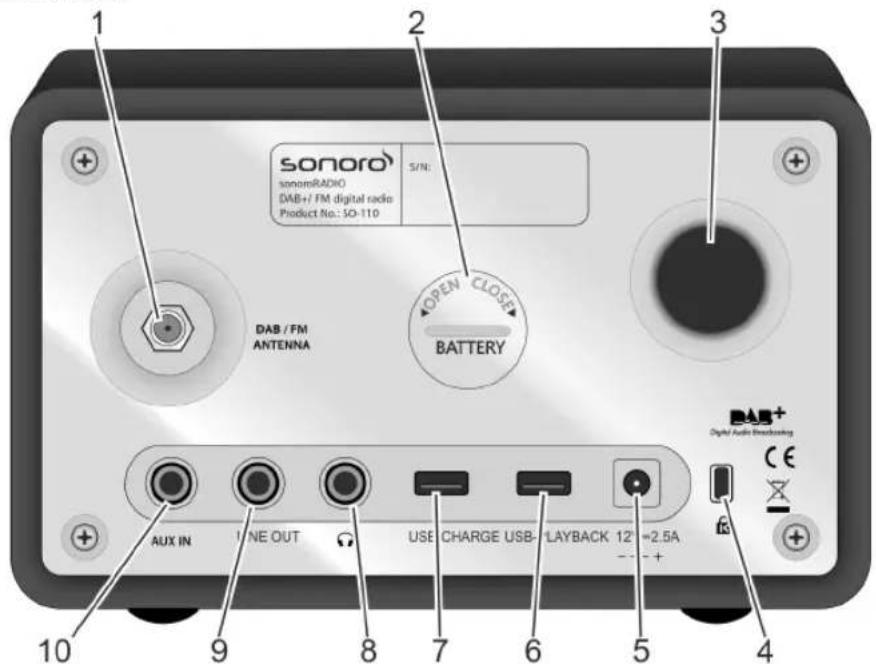

sonoroRADIO, rear view

sonoro sonoroRADIO DAB+/ FM digital radio Product No.: SO-110 S/N: OPEN CLOSE BATTERY DAB / FM ANTENNA AUX IN LINE OUT USE CHARGE USB- LAYBACK 12+2.5A Digital Audio Streaming CE + - + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Fig. 3: sonoroRADIO, rear view

Item(Fig. 3)	Designation Function
1 DAB/FM	ANTENNA	Port for the antenna (included) or an external antenna.
2 Battery	com-partment	The battery (CR2032 button cell, 3V) ensures continued operation of the clock in case of power failure.
3 Bass ref	ex opening	Bass response is enhanced.The distance to the next wall should measure at least 3 cm.
4 Keylock	Anti-theft protection port.
5 AC adapter	ter port	12 V connection for the AC adapter (included).
6 USB play	back Port for a U	SB stick or a USB cable.
7 USB charger	ger Port for charging external devices via a USB cable.
8 Headphones	ones Port for headphones.
9 LINE OUT	UT Port for external audio playback.
10 AUX IN	Port for externa	audio devices.

Remote control

1 2 3 4 5 6 7 8 9 10 sonoro 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 MENU DIMMER MUTE SNOOZE FM CD RELAX AUX BASS USB TREBLE OK SLEEP SLEEP SONORO

Fig. 4: Remote control

Item(Fig. 4)	Button Function
1 Standby	Switch the device on/off.
2 DIMMER	Switch the dimmer on/off. Adjust the dimmer settings.
3 MUTE	SNOOZE	Press briefly (in playback mode): switch audio playback (Mute) on/off.Press briefly (in Alarm mode): start the snooze function (Snooze).Press and hold: opens the [Snooze Setting] menu to set the snooze time.
4 CD Not assigned.
5 Bluetooth	Select Bluetooth function.
6 TREBLE	Adjust the treble
7 VOL + All playback modes: increase the volume.
8 Next Scan channels and navigate the menus.

sonoro

Item(Fig. 4)	Button Function
9 OK, Play	/Pause Confirm the selected settings in the menu. Play or pause the selected track.
10 Alarm	2	Press: switch Alarm 2 on/off, stop the alarm.Press and hold: Adjust the alarm.
11 Memory	y 1–6	Station memory.
12 Alarm	1	Press: switch Alarm 1 on/off, stop the alarm.Press and hold: Adjust the alarm.
13 SLEEP		Press briefly: Switch the auto disconnect (Sleep Timer) function on/off.Press briefly (in Standby mode): The device switches itself on.
14 Previous Scan channels and navigate the menus.
15 VOL - All playback modes: decrease the volume.
16 BASS Adjust the bass.
17 USB Select USB playback. Switch between artist and track info (if available).
18 RELAX Select saved Relax Music.
19 AUX Select aux input.
20 FM		Press briefly: Switch on FM Radio.Press briefly (in FM mode): switch RDS on/off.
21 DAB		Press briefly: Switch on DAB radio.Press briefly (in DAB mode): switch DAB info.
22 MENU	Open and close the menu.

6 Display

SLEEP RELAX FM AM AUX USB 15 14 13 12 11 10 9 PRESET 18:00 AM zzzz 1 2 3 4 5 6 7 8

Fig. 5: Display

Item(Fig. 5)	Symbol Function
1 Headphones	Headphones are connected.
2 Sleep Time	The Sleep Timer is on.
3 Bluetooth	Bluetooth is on.
4 Relax Time	Relax mode is on.
5 FM/DAB	/AUX/USB	Displays the selected operating mode.
6 AM Time	suffix in the 12-hour setting.
7 Alarm 1	Displays the set Alarm 1 time.
8 Snooze	The snooze function is on.
9 Alarm 2	Displays the set Alarm 2 time.
10 PM Time	Suffix in the 12-hour setting.
11 Colon	Flashes to indicate seconds.
12 Point	For the FM frequency range.
13 Time	Displays the current time.
14 Preset	Station memory
15 Lower	display section	Display for date, menus, frequencies, etc.

7 Unpacking the device and commencing operation

Only use connection cables and external devices that comply with the electromagnetic compatibility and insulation quality of this device.

7.1 Unpacking the device

All parts of the device are delivered in a single cardboard box.

WARNING!

Risk of suffocation when playing with the packaging!

The packaging material presents a choking hazard.

- Keep the packaging material out of reach of children and people who can not estimate the hazard involved.

1. Unpack the device and all accessories, and check the contents for completeness and integrity.

i

Should you detect any damage, contact your dealer or sonoro support immediately (see ✉ 'Contact data' on page 41).

1. Place the device in a suitable location and remove the protective film from the display.

i

Observe the safety instructions regarding the ambient conditions ( Chapter 2 'For your own safety' on page 41).

7.2 Inserting the battery

The battery ensures the clock functions in case of power failure.

WARNING!

Risk of injury from improper handling of batteries!

Risk of injury from explosions from improper handling of batteries!

• Never attempt to recharge, open or short-circuit the batteries. Explosion hazard!
• Never damage or warp the batteries.
• Never throw the batteries into an open fire or expose them to high temperatures.
• Keep batteries out of reach of children. Risk of swallowing!
• Fluid may escape from misuse, which can cause skin irritation. In case of contact:
  – Wash off the fluid with plenty of water.
• Do not rub your eyes. Instead, rinse eyes with plenty of water for 10 minutes and seek immediate medical attention.

NOTICE!

Material damage from improper handling of batteries!

The device may become damaged if batteries are handled improperly.

- Do not insert the batteries the wrong way. Observe the correct polarity.

sonora® sonora@201 Select 48 digital radio Product line: 50.7 V3 DA8-TM ANTENA OPEN CLOUD BAS+ CHARGE USB-PLAYBACK 12V, 2.5A + - +

Fig. 6: Inserting the battery

1. Open the battery compartment cover on the back of the device with a small coin (Fig. 6).
2. Insert the supplied battery with the label side up.
3. Insert the battery compartment cover and close with a small coin.

7.3 Connecting the power supply

Power is supplied to the device via the AC adapter (included). The AC adapter with universal adapter must be connected before use.

WARNING!

Risk of injury from incorrect handling!

Risk of electric shock from improper handling of the AC adapter with universal adapter.

• Make sure that the AC adapter and universal adapter are always firmly connected to each other.
• Pull the AC adapter straight out of the socket so that the adapter does not break off the mounting bracket.

NOTICE!

Material damage occurs from an incorrect voltage connection!

Connection values that exceed the maximum allowable values of the device can irreparably damage the device.

• Only use the AC adapter included.
• Only operate the device if the electrical voltage indicated on the AC adapter matches the voltage of your power outlet.

Illustration of two electrical plug plugs with pins, one being inserted and the other holding a terminal block (no text or symbols)

Fig. 7: Installing and disconnecting the universal adapter

1. Push the universal adapter onto the AC adapter until it clicks into place (Fig. 7).
2. Insert the plug connector of the AC adapter into the 12.0 V, 2.5 A DC port at the back of the device.
3. Insert the mains plug into the socket.

7.4 Connecting the antenna

Pure diagram of a T-shaped mechanical device with no text or symbols

Fig. 8: Connecting the antenna

The antenna (included) is needed for radio reception in the FM frequency range and for DAB radio stations.

1. Screw the supplied FM/DAB antenna located onto the DAB/FM antenna connector on the back of the device.

2. Unfold and align the antenna so that you have the best possible reception.

i

For good FM/DAB radio reception, the two ends of the antenna should form a "T" (dipole) with the connecting cable (Fig. 8).

For even better reception, attach the cable to a suitable house antenna.

7.5 Preparing the remote control

Hand holding a remote control panel with a circular dial and an arrow indicating rotation (no text or symbols)

Fig. 9: Inserting the battery into the remote control

1. Open the battery compartment on the remote control (Fig. 9).

2. Insert the supplied button cell (CR2032, 3 V) with the label (+) side up.

3. Close the battery compartment.

7.6 Connecting the headphones

The headphones can be connected to the device with a 3.5 mm stereo jack (not included in the scope of delivery).

WARNING!

Risk of injury from improper headphone use!

Improper use of headphones can cause severe accidents and damage to health.

- Do not set the volume too high when using the headphones.

1. Turn the click wheel to the left to set the volume to minimum.
2. Insert the headset jack into the headset port at the back of the device.
3. Slowly turn the click wheel to the right to increase the volume.

8 Setting the basic functions

The individual menus let you select the functions and settings of the device.

8.1 Switching on the device for the first time

After you have switched the device on for the first time, the LC display shows the clock display and the message [Tune to FM RDS station to set time & date].

i

In FM/DAB mode, time and date are set automatically as long as this has not been disabled.

8.2 Standby menu

You can adjust the following settings in the Standby menu:

■ Manually set the time.
■ Manually set the date.
■ Switch the date on the display on/off.

The procedure for setting the individual functions is the same.

Setting the time manually

Fig. 10: Setting the time

1. Press the [MENU] button on the device or the remote control in Standby mode.

⇒ The display shows the [Set Time] menu (Fig. 10).

1. Press the click wheel to set the hours.

⇒ The hour display flashes.

1. Turn the click wheel to set the hours.

2. Press the click wheel to confirm the setting.

⇒ The minute display flashes.

1. Turn the click wheel to set the minutes.

2. Press the control knob to confirm the setting.

→ The time is set.

i

Use the [Next] or [Previous] button to switch between the hours and minutes display.

i

After 10 seconds of inactivity, the device automatically goes into Standby mode without saving the settings.

Setting the date manually

Fig. 11: Setting the date

1. Press the [MENU] button on the device or the remote control in Standby mode.

⇒ The display shows the [Set Time] menu (Fig. 10).

1. Turn the click wheel until the display shows [Set Date].

2. Press the click wheel.

→ You can now set the date by turning the click wheel.

i

Press the click wheel to toggle between day, month and year display.

Switching the date on/off

Fig. 12: Switch date on/off

1. Press the [MENU] button on the device or the remote control in Standby mode.

⇒ The display shows the [Set Time] menu (Fig. 10).

1. Turn the click wheel until the display shows [Display Date].

2. Press the click wheel.

→ You can now switch the date on or off.

8.3 Settings menu

In operating mode, you can make the following configurations in the [Settings] menu:

■ Set the time format.
■ Set the date format.
■ Set the automatic time/date update function.
■ Set the display language.
■ Activate/deactivate Demo Sound.
■ Reset the device to the factory settings.

To adjust the settings, proceed as follows:

1. Press the [MENU] button on the front of the device or the remote control to enter the corresponding submenu.

2. Press the [Next] or [Previous] button, or turn the click wheel to scroll through the individual menu items.

3. To open the selected menu item, briefly press the click wheel or the [OK] button on the remote control.

4. To exit the menu, briefly press the [MENU] button on the device or on the remote control.

i

If you do not make any further entries, the menu will close and the display switches to the initial mode.

Setting the time format

Fig. 13: Setting the time format

You can choose between the 24-hour and 12-hour formats. In the 12-hour format, the time of day is indicated by [AM] and [PM].

Setting the date format

dd.mm.yyyy

mm.dd.yyyy

mm/dd/yyyy

Fig. 14: Setting the date format

You can set three different date formats (Fig. 14/A, B and C). The configuration options are:

A: day, month, year.
B: month, day, year.
C: month, day, year.

Setting the automatic time/date update function

Fig. 15: Setting the automatic update function In the [Clock Update] submenu (Fig. 15), you can select the automatic update function. Switching on this function automatically synchronizes the time and date in the FM radio and DAB radio operating modes.

Setting the display language

Fig. 16: Setting the language

You can set the language for the menu and the play-back display (Fig. 16). The following languages are available:

English
German

Switching Demo Sound on/off

Fig. 17: Switching Demo Sound on/off

You can switch the Demo Sound function on or off (Fig. 17).

Resetting the device to the factory settings

Fig. 18: Resetting to the factory settings

If necessary, you can reset all specified settings, such as language and time formats and saved stations, to the default factory settings (Fig. 18).

8.4 Setting the Sleep Timer

The Sleep Timer is an automatic power-off function that switches the device to Standby mode after the specified time has expired.

Setting the Sleep Timer

1—SLEEP 10:45 106.70 MHz

Fig. 19: Switching the Sleep Timer on/off

1. Hold down the [SLEEP] button on the top of the device or the remote control.

⇒ The display shows the [SLEEP] symbol (Fig. 19/1).

Switching off the Sleep Timer

1. To switch off the sleep timer, press the [SLEEP] button again.

⇒ The display does not show a symbol.

i

If the device was switched off by the Sleep Timer, it will start in the mode you were listening to last when you turn it on again.

Setting the time interval for the Sleep Timer

SLEEP Fri 10:45 Sleep 30min 2

Fig. 20: Setting the time interval for the Sleep Timer

1. Hold down the [SLEEP] button on the top of the device or the remote control.
   ⇒ The display shows the Sleep Timer (Fig. 20) and the [SLEEP] symbol flashes (Fig. 20/1).

2. Turn the click wheel to select the desired time interval length (Fig. 20/2).

i

The maximum time interval is 120 minutes.

1. Press the click wheel to confirm the settings.

When the specified time expires, playback gradually fades out.

8.5 Setting the dimmer

You can use the dimmer to adjust the display brightness.

A

B

Fig. 21: Setting the dimmer

1. Press the [DIMMER] button on the top of the device or the remote control for approx. 3 seconds.
   ⇒ The display shows [Light HI] (Fig. 21/A).
2. Adjust the brightness level from 8–15 by turning the click wheel.

3. Press the click wheel on the device or the [OK] button on the remote control to confirm the setting.
   ⇒ The display shows [Light LO] (Fig. 21/B).

4. Adjust the brightness level from 1–8 by turning the click wheel.

5. Press the click wheel on the device or the [OK] button on the remote control to confirm the setting.

i

The backlight is adjusted automatically depending on the ambient lighting.

8.6 Setting the sound

8.6.1 Adjusting the bass and treble

You can adjust the audio playback's sound using the bass and treble settings when it is switched on.

Adjusting the settings using the remote control

A

B

Fig. 22: Setting the sound

1. Press the [Bass] or [Treble] button on the remote control.
2. To adjust the bass, select [Bass] (Fig. 22/A) and press the [VOL+] or [VOL-] button.
3. To adjust the treble, select [Treble] (Fig. 22/B) and press the [VOL+] or [VOL-] button.
4. Press the [OK] button or wait 10 seconds to confirm the setting.

Adjusting settings via the device

1. Press the [MENU] button on the front of the device.
2. Turn the click wheel until the display shows [Bass] or [Treble].
3. Press the click wheel to confirm your selection.
4. To adjust the bass, select [Bass] and turn the click wheel. To adjust the treble, select [Treble] and turn the click wheel.
5. Press the click wheel or wait 10 seconds to confirm the setting.

9 Alarm function

You can use the device to wake up with FM/DAB radio, Relax Music or alarm ringtones.

All settings are made by pressing and holding the [Alarm 1] or [Alarm 2] button on the front of the device or the remote control.

The alarm functions can also be set in the device's Standby mode.

The alarm setup menu is structured as follows:

'Set the Alarm Time → Set the Alarm Source
→ Set the Alarm Volume → Set the Alarm Repetition
→ End'

i

If you do not enter any information for approx. 10 seconds when setting the alarm, the setting is terminated without saving it.

9.1 Setting the alarm time

Fig. 23: Setting Alarm 1

1. Keep the [Alarm 1] or [Alarm 2] button pressed.

⇒ The display shows the [Alarm 1 Time] (Fig. 23) or [Alarm 2 Time] menu.

1. Turn the click wheel to set the hours.
2. Press the click wheel to confirm the entry.

⇒ The minute display flashes.

1. Turn the click wheel to set the minutes.
2. Press the click wheel to confirm the entry.

i

Use the [Next] or [Previous] button to switch between the hours and minutes display.

→ The alarm time is set.

9.2 Setting the alarm source

After you have set and confirmed the alarm time, you can set the source for the alarm (Fig. 24).

Fig. 24: Setting the alarm source

1. Turn the click wheel to select the medium you want to use:

FM Select an FM	M station preset from the station memory that you wish to start the device with and wake up to.
DAB Select a DAB	DAB station preset from the station memory that you wish to start the device with and wake up to.
Relax Music Select	a Relax Music sound from the memory you wish to start the device with and wake up to.
Ringtone Select	a ringtone from the memory that you wish to start the device with and wake up to.

1. Press the click wheel or the [OK] button on the remote control to confirm your setting.

→ The alarm source is set.

9.3 Setting the alarm volume

After you have set and confirmed the alarm source, you can set the alarm volume (Fig. 25).

Fig. 25: Setting the alarm volume

1. Turn the click wheel to set the desired volume.

2. Press the click wheel or the [OK] button on the remote control to confirm your setting.

→ The alarm volume is set.

i

The alarm audio playback always starts with the minimum volume and gradually increases to the specified volume level.

9.4 Setting the alarm repetition

After you have set and confirmed the alarm volume, you can set the alarm repetition (Fig. 26).

7:00 weekdays

Fig. 26: Setting the alarm repetition

1. Turn the click wheel to set the desired alarm repetition. You can choose between the following settings:

Once
Daily
At weekends
Weekdays

1. Press the click wheel or the [OK] button on the remote control to confirm your setting.

→ The alarm repetition is set.

9.5 Switching the alarm clock on/off

Switching on the alarm clock

1. To switch on the alarm clock, briefly press the [Alarm 1] or the [Alarm 2] button on the front of the device or the remote control.

Switching off the alarm clock

1. To switch off the alarm clock, briefly press the [Alarm 1] or [Alarm 2] button again.

9.6 Switching off the alarm clock after the alarm sounds

1. To switch off the alarm, press one of the following buttons:

[Alarm 1]
[Alarm 2]
Control knob
■ [Standby]

⇒ The alarm will remain activated for the next day. This does not apply if the non-recurring alarm setting is in use.

1. To switch the alarm clock off and have it come back on after a set period of time (Snooze), press the [SNOOZE] button on the remote control.

i

Alternatively, you can turn the click wheel when the alarm sounds to set the snooze time. Press the click wheel to confirm.

⇒ The display shows the remaining snooze time. After the set time expires, the alarm will sound again.

9.7 Setting the snooze function

The snooze function allows you to define a length of time after which the alarm will go off again.

7:00 Snooze 10min

Fig. 27: Setting the snooze function

1. Briefly press the [SNOOZE] button on the remote control in Standby mode. If the device is switched on, press and hold the [SNOOZE] button on the remote control until the Snooze sub-menu appears (Fig. 27).
   ⇒ The display shows the [Snooze] symbol (Fig. 27/1).
2. Turn the click wheel to set the duration.
3. Press the click wheel to confirm the entry.

10 General audio playback functions

10.1 Selecting a playback mode

Select the desired mode to play back audio from different media or external devices.

Fig. 28: Selecting a playback mode

1. Switch on the sonoroRADIO.
2. Press the [MODE] button on the front of the device until the desired mode is displayed, or press the desired mode on the remote control.

i

Alternatively, you can also rotate the click wheel after pressing the [MODE] button to toggle through the different modes. Press the click wheel to confirm the mode.

⇒ The display shows the selected mode (Fig. 28).

10.2 Setting the volume

Front view of a sonoro brand microwave oven with control knob and rotary scroll (no text or symbols on device body)

Fig. 29: Setting the volume

1. Turn the click wheel to increase or decrease the volume (Fig. 29).

→ The display shows a volume control.

10.3 Muting the audio playback

Mute

Fig. 30: Mute

1. In playback mode, briefly press the [MUTE] button on the top of the device or the remote control to turn off the sound during playback.

⇒ The display shows the text [Volume Mute] (Fig. 30).

Switching on the sound

1. To turn the sound back on, press the [MUTE] button on the device or the remote control again, or turn the click wheel clockwise.

11 Radio playback

1. Press the [MODE] button on the front of the device until FM or DAB mode is displayed, or press the desired mode on the remote control.

⇒ The display shows the [FM] or [DAB] symbol.

In radio mode, the display shows the following information:

■ Mode: FM or DAB.
■ Stored programme channel, if the radio station is stored in the programme memory.
■ Station name, if the station transmits RDS text.

i

RDS is only available for stations in the FM frequency range and only if the corresponding station transmits RDS data.

If the station does not broadcast RDS text, then the frequency is displayed instead of the station name.

11.1 FM Radio

11.1.1 Finding FM stations

Automatic tuning

Prerequisite:

The DAM/FM antenna is connected.

Fig. 31: Automatic tuning

1. Press and hold the [Next] or [Previous] button in FM playback mode to activate the automatic full scan function.

⇒ The display shows the text [Auto Tuning] (Fig. 31).

Manual tuning

Prerequisite:

The DAM/FM antenna is connected.

Fig. 32: Manual Tune

1. Press and hold the click wheel to activate the manual station search function.

⇒ The display shows the [Manual Tune] (Fig. 32).

1. Turn the click wheel to change the frequency range.
2. Press the click wheel to confirm your selection.

Automatic full scan

The automatic full scan function automatically creates and saves a station list with up to 30 stations. The stations are sorted according to the strongest reception.

Prerequisite:

The DAM/FM antenna is connected.

Fig. 33: FM Station

1. Press the [MENU] button.

⇒ The display shows the text [FM Station] (Fig. 33).

1. Turn the click wheel until the display shows [Auto Search].
2. Press the click wheel.

⇒ The display shows the text [Search Yes].

1. Press the click wheel again.

⇒ The automatic full scan is started. After the search is complete, the device will jump to the first station on the list.

11.1.2 Storing FM stations

Fig. 34: Storing FM stations

1. Press and hold one of the station preset buttons on top of the device or the remote control.

⇒ The display shows the station preset number.

i

You can save up to 6 FM stations using the remote control.

11.1.3 Retrieving saved FM stations

1. Briefly press one of the station preset buttons on top of the device or the remote control.

→ The selected station is played.

11.2 DAB radio

11.2.1 Finding DAB stations

Automatic tuning

Prerequisite:

The DAM/FM antenna is connected.

Fig. 35: Automatically finding DAB stations

1. Press the [Menu] button in DAB playback mode.

⇒ The display shows [Full Scan] (Fig. 35).

1. Press the click wheel on the device or the [OK] button on the remote control to confirm the selection.

⇒ The device will now search for available radio stations and play back the first available station.

i

When DAB mode is switched on for the first time or the device has been reset to the factory settings, a full scan is performed automatically.

Manual tuning

Prerequisite:

The DAM/FM antenna is connected.

Fig. 36: Manually finding DAB stations

1. Press the [Menu] button in DAB playback mode.

⇒ The display shows [Full Scan].

1. Turn the click wheel until the display shows [Manual Tune] (Fig. 36).

2. Press the click wheel on the device or the [OK] button on the remote control to confirm the selection.

© 2013

1. Turn the click wheel to set the different stations.
2. Press the click wheel to confirm your selection.

Removing inactive stations – Prune list

Prerequisite:

The DAB station list created using the DAB full scan function is out of date (e.g. after a change of address).

Fig. 37: Deleting inactive DAB stations

1. Press the [Menu] button in DAB playback mode.
   ⇒ The display shows [Full Scan].
2. Turn the click wheel until the display shows [Prune list] (Fig. 37).
3. Press the click wheel to confirm your selection.

Fig. 38: Pruning

1. Press the click wheel again to select and delete inactive DAB stations.

⇒ Inactive DAB stations are deleted. In the meantime, [Pruning] is displayed (Fig. 38).

11.2.2 Storing a DAB station

1. Press and hold one of the station preset buttons on top of the device or the remote control.

⇒ The display shows the station preset number.

i

You can save up to 6 DAB stations using the remote control.

11.2.3 Retrieving saved DAB stations

1. Briefly press one of the station preset buttons on top of the device or the remote control.

⇒ The selected station is played.

11.2.4 Retrieving DAB info

In DAB mode, you can call up information on the station, programme, etc. The information is displayed in the following order:

■ Station name (starting point)
- Broadcaster
■ DLS ("Dynamic Label Service", programme-related information, such as artist, track, etc.)
■ Programme type (e. g. sport)
■ Station frequency
■ Signal quality

1. Press the [DAB] button on the remote control in DAB mode.

⇒ The display shows the information in the order listed above.

1. Press the [DAB] button on the remote control again.

⇒ The display shows the next information.

1. Proceed accordingly to retrieve the remaining DAB information.

11.2.5 Setting the DRC

The DRC (Dynamic Range Compression) setting reduces the difference in volume between quieter and louder passages.

3 different settings are available for the DRC function:

■ DRC High

DRC Low

DRC Off

Prerequisite:

The device is in DAB mode.

1. Press the [MENU] button.

⇒ The display shows the text [Full Scan].

Fig. 39: Setting the DRC

1. Turn the click wheel until the display shows [DRC Setting] (Fig. 39).

2. Press the click wheel or the [OK] button on the remote control to confirm the selection.

3. Turn the click wheel to choose the desired setting.

4. Turn the click wheel until the display shows [DRC Setting] (Fig. 39).

5. Press the click wheel or the [OK] button on the remote control to confirm the selection.

6. Turn the click wheel to choose the desired setting.

7. Press the click wheel to confirm the setting.

12 Bluetooth playback

Mobile phones and other Bluetooth-enabled devices can be paired with the sonoroRADIO via Bluetooth.

i

Use the manual of your mobile phone or Bluetooth device for help.

Fig. 40: Setting the Bluetooth mode

1. Switch on the sonoroRADIO.

2. Press the [MODE] button on the front of the device until the display shows the [Bluetooth] symbol. You can also press the [Bluetooth] button on the remote control.

⇒ The Bluetooth mode is now active (Fig. 40).

1. Pair your mobile phone or Bluetooth device to the sonoroRADIO via Bluetooth.

i

Enter code '0000'.

i

The radio can store up to 8 Bluetooth devices, and pairs with previously configured devices automatically if Bluetooth is enabled.

12.1 Pairing and deleting Bluetooth devices

Pairing Bluetooth devices

Fig. 41: Searching for Bluetooth

1. Activate Bluetooth mode.

⇒ The display shows [Searching], and the [Bluetooth] symbol flashes (Fig. 41).

1. Pair your mobile phone or Bluetooth device to the sonoroRADIO via Bluetooth.

i

Enter code '0000'.

⇒ After pairing, the display permanently shows the [Bluetooth] text.

Deleting connected devices

1. Press the [Memory 1] button on the top of the device or the remote control and hold for approx. 3 seconds.

→ The display shows [Unpaired] for 2 seconds.

12.2 Playing music via Bluetooth

Starting playback

1. Press the click wheel or the [Play/Pause] button on the sonoroRADIO remote control to start playback.

Pausing playback

1. Press the click wheel or the [Play/Pause] button on the sonoroRADIO remote control again to pause playback.

i

The buttons on the sonoroRADIO offer only limited control over external devices.

13 AUX playback

The AUX input can be used to connect and play back from other audio devices.

Fig. 42: Activating AUX playback

1. Switch on the sonoroRADIO.
2. Connect the external audio device to the AUX input on the sonoroRADIO.

3. Press the [MODE] button until the display shows [AUX. Input]. You can also press the [AUX] button on the remote control.
   ⇒ The display shows [AUX] (Fig. 42).

4. Turn on the external device and start playback on the external device.

14 USB playback

You can connect additional devices and play music through the USB playback port on the back of the sonoroRADIO.

i

The MP3 format "MPEG 1 layer 3 with sample rates of 44.1kHz and 22.05 kHz" can be played back.

Fig. 43: Setting USB playback

1. Switch on the sonoroRADIO.
2. Press the [MODE] button until the display shows [USB] mode, or press the [USB] button on the remote control.
   ⇒ The display shows the [USB] symbol (Fig. 43).
3. Connect an external USB device to the sonoroR-ADIO.
   ⇒ The display shows [Reading...].
4. Press the [Play/Pause] button to commence playback.

i

By pressing the [USB] button on the remote control, you can edit the ID3 metadata, if available. The sequence for this is:

'Track → Artist → Album → Elapsed time'

Stopping USB playback

1. Press the click wheel or the [Play/Pause] button on the remote control to pause playback.

15 Relax Music playback

Relax 10:45 Ocean Surf

Fig. 44: Setting Relax Music

1. Switch on the sonoroRADIO.

2. Press the [MODE] button until the display shows the [Relax] mode. You can also press the [RELAX] button on the remote control.

⇒ The display shows the Relax Music menu (Fig. 44).

1. Press one of the memory keys or the [Next] or [Previous] button to select music:

Ocean Surf
Whales
Birds
Rain
Wind Chimes
■ Fireplace

16 Demo Sound playback

Demo Sound can be played in Standby mode to demonstrate the device in a shop, for example.

Activating Demo Sound mode

1. Press and hold the click wheel for approx. 3 seconds.

Demo Sound mode is activated.

1. Press the 1–6 memory keys located on the top of the device or the remote control to select a demo track.

⇒ The display shows the title of the demo music.

i

The following buttons are active:

• Play/Pause
• Mute
• Next
• Previous
• Volume

Exiting Demo Sound mode

1. Press and hold the [Standby] button or press and hold the click wheel for approx. 3 seconds to exit Demo Sound mode.

17 Troubleshooting

Malfunctions may occur with any electrical equipment. This is not necessarily due to a device defect. As such, you should check the following table to see if you can eliminate the problem yourself.

Malfunction Possible cause Elimination
Device does not turn on Power cable	is not properly connected	Connect the power cable properly (see Chapter 7.3 'Connecting the power supply' on page 51).
No sound Volume is set to minimum	Increase the volume (see	Chapter 10.2 'Setting the volume' on page 57).
	Sound is turned off Switch on the sound (see Chapter 10.3 'Muting the audio playback' on page 57).
	Headphones are connected Pull the headphones out of the jack.
	Another mode is set Set the correct mode (see Chapter 10.1 'Selecting a play-back mode' on page 57).
USB playback does not start USB device	is not plugged in Insert the USB device into the port on the back of the device (see Chapter 14 'USB playback' on page 61).
	USB device is not compatible Check whether your USB device is compatible with sonoroRADIO.
	USB device does not contain readable audio files	Check the files on your USB device.
Poor FM/DAB reception FM/DAB antenna	enna is not properly aligned	Change the position of the FM/DAB antenna.
Remote control does not work, or only works sporadically	Distance too great Reduce the distance between the remote control and the device.
	Battery empty Replace the battery in the remote control (see Chapter 7.2 'Inserting the battery' on page 50).
	Malfunctions due to other radio transmitters or devices	Increase the distance between the source of interference and the sonoroRADIO. Plug the device into another socket so that the source of interference and the sonoroRADIO are connected to different branch currents.
Device not responding Error in the device	Switch the device off and on again.

sonoro

Malfunction Possible cause Elimination
Alarm does not work Alarm is not switched on Switch on the alarm (see Chapter 9.5 'Switching the alarm clock on/off' on page 56).
Headphones are connected Pull the headphones out of the jack.
No Bluetooth connection, or Blue-tooth connection interrupted	Malfunctions due to other radio transmitters or devices	Increase the distance between the sonoroRADIO and your television.
	Software not up to date Make sure that your external Blue-tooth device has the latest software version installed.

18 Cleaning

NOTICE!

Material damage from improper cleaning!

Only clean the device from the outside using a dry, soft cloth. Never use abrasive or solvent-based cleaning agents as these may damage the surface of the device.

19 Technical data

Specification Value
Dimensions (WxDxH) Approx. 183 x 223 x 115 mm
Weight Approx. 2.0 kg
FM reception range 87.5 MHz – 108 MHz
DAB/DAB+ reception range 174.9	28 MHz – 239.2 MHz
Tuning range (FM) 50 KHz
AC adapter, power Model: S032E	M1200250Input: 100 – 240 V ~50/60 HzOutput: 12.0 V, DC, 2.5 A
Bluetooth Version: 4.0	Profile: AVRCP, A2DP
AUX-IN Port: 3.5 mm jack	Sensitivity: 300 mV/10 kOhm
Batteries Lithium battery: 3 V, type CR2032 (button cell)
Ports Headphones, AUX-IN, USB	(charging and playing USB)
USB Playback formats: MP3 form	at "MPEG 1 layer 3 with sample rates of 44.1 kHz or 22.05 kHz"Output: DC 5 V, 0.5 ACompatible systems: FAT 16, FAT 32 (not compatible with NTFS systems)Maximum capacity of USB devices: 64 GBMaximum supported file size: < 2 GBMaximum supported tracks: 999Supports ID3 tags for track/artist display

i

Subject to technical modifications.

20 Disposal

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Fig. 45: Do not dispose of in household waste

Devices that are marked with this symbol should not be disposed of in household waste. They must be returned to a collection point for recycling of electrical and electrotechnical devices. Information regarding the disposal of old equipment can be obtained at your municipality, local waste disposal company and the store where you purchased this device. Proper disposal of old devices prevents environmental damage and does not jeopardise your health.

Non-rechargeable/rechargeable batteries may contain toxic heavy metals and are subject to hazardous waste treatment. Return the non-rechargeable/rechargeable batteries to a municipal collection point or have them disposed of by a specialist company.

21 Symbols

Bluetooth

Bluetooth®

Fig. 46: Bluetooth symbol

The Bluetooth® word brand and logo are the property of Bluetooth SIG, Inc., and are used under licence by sonoro audio GmbH.

22 Declaration of Conformity

Fig. 47: EC marking

Manufacturer: sonoro audio GmbH

We hereby declare that sonoroRADIO meets the essential requirements of the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC, the R & TTE Directive 1999/5/EC and the Ecodesign Directive 2009/125/EC, including changes valid at the time of the declaration, due to its design, engineering and build.

23 Warranty

When submitting warranty claims, the following is valid — without restricting — your legal rights:

■ Warranty claims can only be asserted within a period of max. 2 years (1 year in North America and Australia), calculated from the date of purchase.
■ sonoro audio GmbH shall, at its own discretion, repair or replace the device free of charge any defects caused by material or manufacturing defects within the warranty period.
In case of a complaint, please contact our customer service department. You can find contact details ( 'Contact data' on page 41) or at www.sonoro-audio.com.
■ No new warranty period begins following repair or replacement of the device. The warranty period of 2 years (1 year in North America and Australia) from date of purchase remains applicable.
■ Excluded from the warranty are batteries, damage caused by improper use, normal wear and tear, as well as defects which only minimally affect the value or usability of the device. The warranty also expires for any modifications not made by our authorised service centre.

sonoroRADIO (SO-110)

DAB+ / FM Digitalradio

White Sonoro brand microwave oven with digital display showing 12:00, no visible text or symbols on main body

Digital Audio Broadcasting

Bluetooth®

Mode d'emploi

sonoro

sonoro audio GmbH

Unter Goldschmied 6

50667 Cologne

Illustration of two electrical plug holders with pins, one being inserted and the other holding a plug (no text or symbols)

Pure diagram of a T-shaped mechanical device with no text or symbols

Hand holding a remote control panel with a circular dial and an arrow indicating rotation (no text or symbols)

10:45 AM PM

10:45 Clock Update

1 SLEEP FM 10:45 106.7 MHz

Fig. 19: Activation/désactivation de la fonction sleep timer

SLEEP FH 10:45 Sleep 30min 2

7:00 Snooze 10min

Front view of a sonora brand audio device with playback controls and a circular dial (no text or symbols on the device itself)

Fig. 29: Réglage du volume sonore

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

White Sonora brand microwave oven with digital display showing 12:00, no visible text or symbols on main body

DAB+ Digital Audio Broadcasting

Bluetooth®

Illustration of a hand inserting a plug into a socket, showing the pin and cable (no text or symbols)

Pure diagram of a T-shaped mechanical device with no text or symbols

Hand holding a remote control panel with a circular dial and an arrow indicating rotation (no text or symbols)

1 SLEEP FH 10:45 106.7 MHz

SLEEP Fri 10:45 Sleep 30min 2

A 10:45 Bass

10:45 Treble

7:00 Snooze 10min

Fig. 27: Ajuste de Snooze

FM 10:45 FM Radio

Front view of a sonor brand electronic device with a rotary knob and control buttons (no text or symbols on the device itself)

106.70 Auto Tuning

Symbol of a trash bin crossed with a diagonal line, indicating no waste or restriction (no text present)

White Sonoro brand microwave oven with digital display showing 12:00, no visible text or symbols on main body

Digital Audio Broadcasting

Bluetooth®

Manuale operativo

sonoro

sonoro audio GmbH

Unter Goldschmied 6

50667 Köln

Telefono: [phone]

Fax: [phone]

E-mail: [e-mail]

Internet: www.sonoro-audio.com

sonoro

Indice

Illustration of a hand inserting a plug into two connected electrical plugs (no text or symbols)

Pure diagram of a T-shaped mechanical device with no text or symbols

Hand holding a remote control panel with a circular dial and an arrow indicating rotation (no text or symbols)

[Tune to FM RDS station to set time & date].

i

1 SLEEP P1 10:45 106.7 MHz

SLEEP Fri 10:45 Sleep 30min 2

7:00 Snooze 10min

Front view of a sonora brand electronic device with a rotary knob and control buttons (no text or symbols on the device itself)

Symbol of a trash bin crossed with a diagonal line, indicating no waste or restriction (no text present)

White Sonora brand microwave oven with digital display showing 12:00, no visible text or symbols on main body

DAB+ Digital Audio Broadcasting

Bluetooth®

Illustration of a hand inserting a plug into two connected electrical plugs (no text or symbols)

Pure diagram of a T-shaped mechanical device with no text or symbols

Hand inserting a circular component into a rectangular device (no text or symbols visible)

[Tune to FM RDS station to set time & date] på dis- playet.

i

1 SLEEP FH 10:45 106.7 MHz

SLEEP Fri 10:45 Sleep 30min 2

Fig. 20: Indstilling of tidsinterval for Sleep Timer

7:00 Snooze 10min

Front view of a sonor brand microwave oven with rotary scroll and control buttons (no text or symbols on device body)

Symbol of a trash bin crossed with a diagonal line, indicating no waste or restriction (no text present)
