Technical Specifications	Details
Product Type	Digital radio
Connectivity	Wi-Fi, Bluetooth
Reception Formats	DAB+, FM, Internet radio
Output Power	2 x 5 W RMS
Display	Backlit LCD display
Dimensions	245 x 150 x 95 mm
Weight	1.2 kg
Power Supply	Power adapter, rechargeable battery
Usage	Listening to online and local radio stations, playing music via Bluetooth
Maintenance	Regular cleaning, firmware update via Wi-Fi
Safety	Use only with the supplied adapter, avoid exposure to moisture
General Information	Compatible with streaming apps, 2-year warranty

Frequently Asked Questions - DigitRadio 110 IR TECHNISAT

How do I reset the TECHNISAT DigitRadio 110 IR?

To reset your radio, press and hold the 'Menu' button for about 10 seconds until the screen displays 'Reset'. Follow the instructions to confirm the reset.

Why can't I connect to Wi-Fi?

Check that your Wi-Fi network is working properly and that the password entered is correct. Also, make sure the radio is within range of the router.

How do I add favorite radio stations?

To add a station to your favorites, press the 'Favorites' button while listening to the desired station, then confirm by following the on-screen instructions.

What should I do if the screen stays black?

Check that the device is properly powered. Try unplugging the device and plugging it back in after a few minutes. If the problem persists, contact technical support.

How do I update the radio software?

Go to the 'Settings' menu, then select 'Software Update'. Make sure your radio is connected to the internet and follow the on-screen instructions.

Why is the sound quality poor?

Check the position of your radio and try moving it closer to a window or an area with better reception. Also, make sure the speakers are not obstructed.

How do I change the time format?

Go to the 'Settings' menu, select 'Date and Time', then choose between 12-hour or 24-hour format according to your preference.

The radio won't turn on, what should I do?

Make sure the device is properly plugged into a working outlet. Try another outlet or power cable if necessary.

How do I adjust the volume?

Use the volume button located on top of the radio to increase or decrease the volume. You can also use the remote control, if available.

Is the TECHNISAT DigitRadio 110 IR compatible with streaming services?

Yes, the TECHNISAT DigitRadio 110 IR is compatible with several streaming services. Make sure you are connected to the internet and access the 'Streaming' section in the menu.

How do I use the alarm function?

Go to the 'Alarm' menu, select 'Add Alarm', then set the desired time and days. Make sure the alarm is activated for it to work.

USER MANUAL DigitRadio 110 IR TECHNISAT

Internet, DAB/DAB+ and FM Digital Radio with

Bluetooth Technology and Spotify and Multi-room features

CONTENTS

ENGLISH 3-44

FRANÇAIS 45-86

ITALIANO....87-128

NEDERLANDS....129-170

POLSKE 171-212

ČEŠTINA 213-254

SLOVENSKÉ....255-296

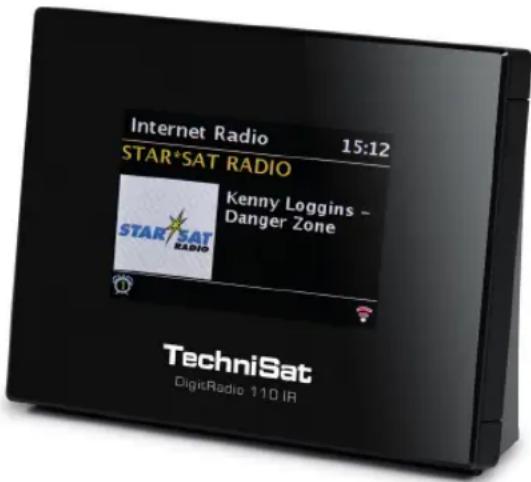

Instruction Manual

DIGITRADIO 110 IR

Internet, DAB/DAB+ and FM Digital Radio with

Bluetooth Technology and Spotify and Multi-room features

Internet Radio 15:12 STAR*SAT RADIO Kenny Loggins - Danger Zone START/SAT RADIO TechniSat DigitRadio 110 IR

TechniSat

1 Important Safety Instructions

1. Read these instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use the speaker near water.
6. Clean only with dry cloth.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK: DO NOT REMOVE SCREWS, COVERS OR THE CABINENT. NO USER SERVICING PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS SPEAKER TO RAIN OR MOISTURE.

To reduce the risk of electrical shock, fire, etc.:

1. Do not place unit near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
2. Do not block any ventilation openings of unit.
3. The unit shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the unit.
4. Do not place any heavy loads onto the unit, and do not step on it, the load may fall and cause serious injury to the unit.
5. Please read Rating Labels at the back of unit for power input and other safety information.
6. This unit is intended to be used only with the power supply provided.

7. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at any point where they exit from the unit.

8. Never unplug your unit by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.

9. Repair or replace all electric service cords that have become frayed or otherwise damaged immediately. Do not use a cord that shows cracks or abrasion damage along its length, the plug, or the connector end.
10. To prevent fire or shock hazard, do not use this plug with an extension cord or other outlet unless the blades can be fully inserted to prevent blade exposure.
11. During lightning or raining days, unplug the unit for additional protection during thunderstorms or when the unit is not used for prolonged periods. This will prevent damage to the unit from lightning and power surges.
12. Do not attempt to carry out any service work yourself. By opening or removing the cabinet, you may be exposed to dangerous voltage or other hazards. Any service work should be carried out by qualified technicians.
13. The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.
14. The means of disconnecting this apparatus from the mains supply is plug of adapter. The disconnect device shall remain readily operable.
15. The battery of remote control shall not be exposed to excessive heat such as sunshine, fire or the like.
16. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
17. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Contents

1 Important Safety Instructions....2

2 Getting Started 7

2.1 What you can find inside of your package....7

2.2 Positioning your Radio 7

2.3 Wireless LAN Setting 8

2.4 Adjusting the Antenna 8

2.5 Using Optical Cable 8

2.6 Using RCA Cable 8

2.7 Turning the Unit On/Off 9

3 Unit Views 9

3.1 Remote Control View 10

4 Setup Wizard....11

5 Internet Radio mode....15

5.1 'Local "Country" Stations....15

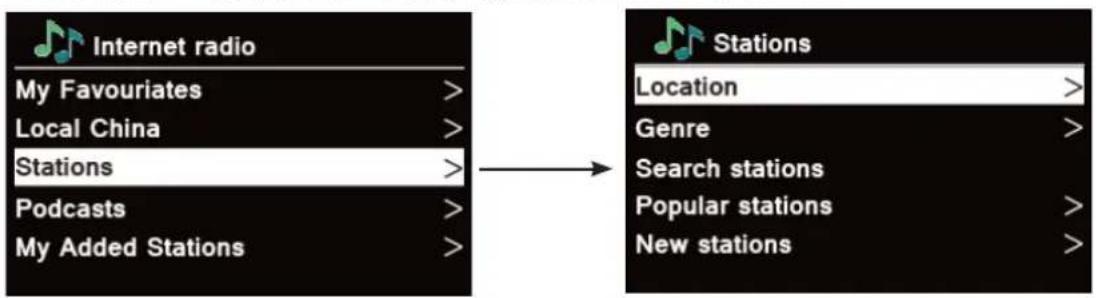

5.2 Selecting a station through 'Stations'....16

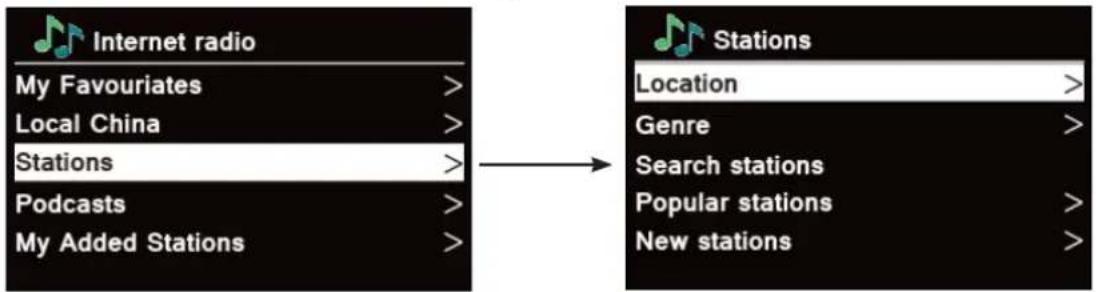

5.3 Selecting a station through 'Podcasts' 17

5.4 Getting Access Code and FAQ Solution....18

5.5 Adding station to 'My Favourites'....18

5.6 Adding station to 'My Added Stations' 19

5.7 View Station Information 19

5.8 Storing Preset Stations....19

5.9 Recalling a Preset Station....19

6 Spotify Connect 20

6.1 Using Spotify Connect 20

6.2 Controlling Spotify Connect....21
6.3 Using another Spotify account with your radio....22

7 Music player Mode 22

7.1 Setting up a Music Server....22

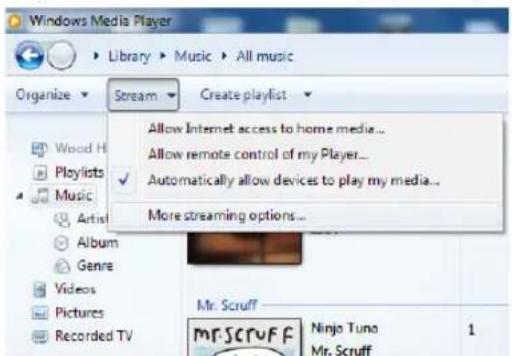

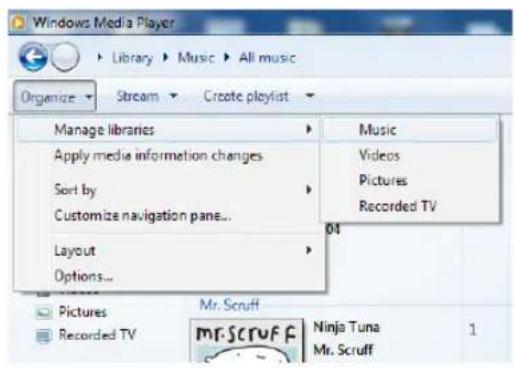

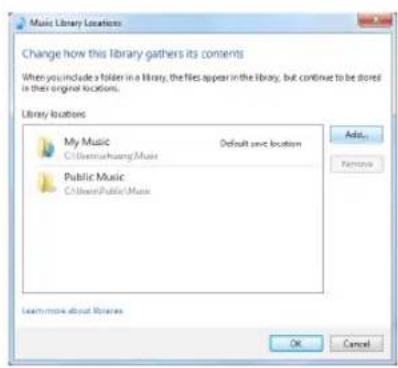

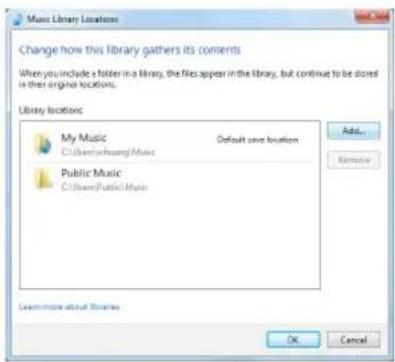

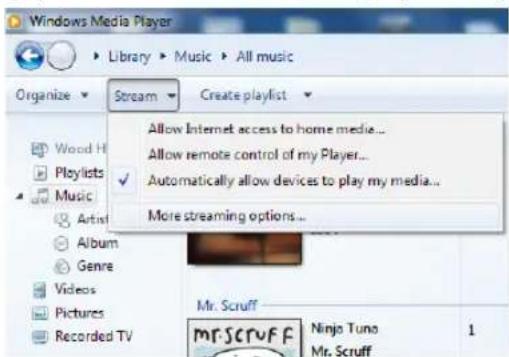

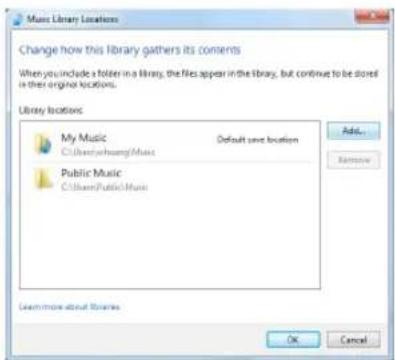

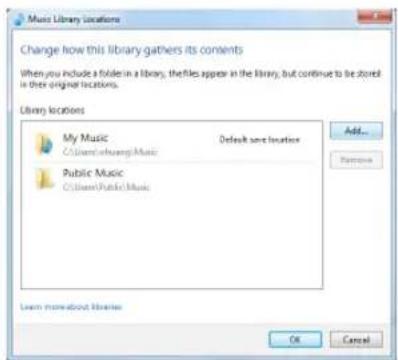

7.2 Sharing Media with Windows Media Player....22

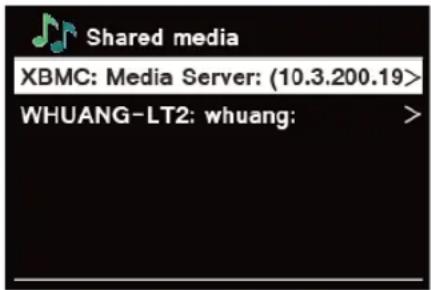

7.3 Playing Shared Media 24

7.4 My Playlist 25

7.5 Repeat Play Mode 25

7.6 Shuffle Play Mode 26

7.7 Clearing My Playlist 26

7.8 Prune Servers....26

7.9 Now Playing Information....26

8 DAB Mode....27

8.1 Selecting DAB mode 27

8.2 Selecting another Station.... 27

8.3 Secondary Service....28

8.4 Scanning Stations 28

8.5 Prune Invalid 28

8.6 DRC (Dynamic Range Control) value 28

8.7 Changing Station Order 29

8.8 Viewing Station Information....29

8.9 Storing Preset Stations....30

8.10 Recalling a Preset Station....30

9 FM Mode 30

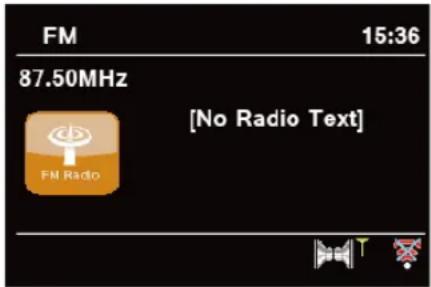

9.1 Selecting FM Mode 30

9.2 Scan setting 31

9.3 Audio Settings 31

9.4 Storing Preset Stations....31
9.5 Recalling a Preset Station 32
10 Bluetooth Mode 32
11 General Operation....33
11.1 Setting Sleep 33
11.2 Setting Alarm 33
11.3 Setting Equaliser 34
11.4 Network Setup 34
11.5 Setting Time/Date 35
11.6 Setting Language 36
11.7 Factory Reset 36
11.8 Software Update 36
11.9 Setup Wizard 37
11.10 Viewing System Info 37
11.11 Setting Backlight....37

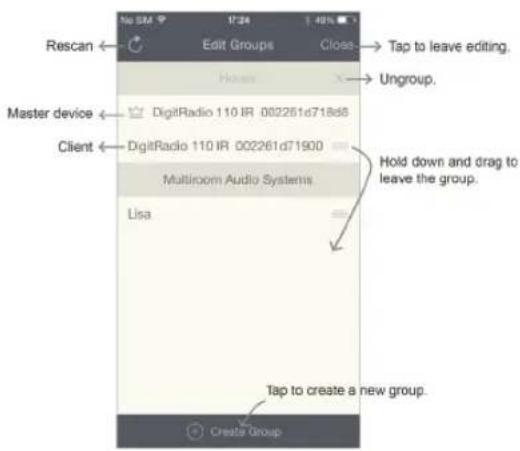

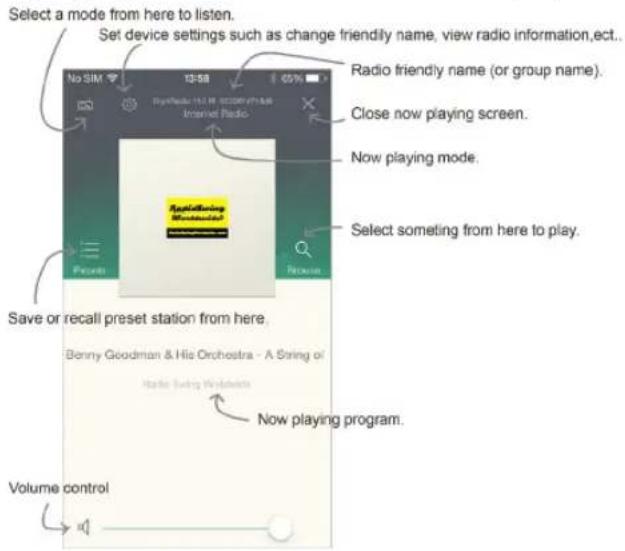

12 Multi-room....38

13 Specification....41

2 Getting Started

Carefully remove your radio from the box. You may wish to store the packaging for future use.

2.1 What you can find inside of your package

Main unit
Instruction manual
Remote control and AAA alkaline batteries
Power adapter
DAB/FM antenna
RCA cable

2.2 Positioning your Radio

Place your radio on a flat / stable surface that is not subject to vibrations.

Avoid the following locations:

Where the radio will be exposed to direct sunlight.
Where the radio will be close to heat radiating sources.
Where the humidity is high and ventilation is poor.
Where it is dusty.
Where it is damp or there is a possibility of water dripping or splashing onto unit.

2.3 Wireless LAN Setting

A broadband Internet connection.
A wireless access point (Wi-Fi) connected to your broadband Internet, preferably via a router.
If your wireless network is configured to use Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access (WPA) data encryption then you need to know the WEP or WPA code so you can get the Internet Radio to communicate with the network.
If your wireless network is configured for trusted stations you will need to enter the Radio's MAC address into your wireless access point. To find the Radio's MAC address use menu items as follows: Main menu > System settings > Network > View settings > MAC address.

Before you continue, make sure that your wireless access point is powered up and connected to your broadband Internet. To get this part of the system working, read the instruction supplied with the wireless access point is highly recommended.

2.4 Adjusting the Antenna

Unwind the DAB/FM antenna and screw it to Antenna socket on the back of the unit to ensure you receive the best reception possible in both DAB and FM radio modes. It may be necessary to adjust the position of the radio and /or antenna to achieve the best signal.

2.5 Using Optical Cable

Connect a fiber-optical digital cable to Optical Out socket on the back of the unit will allow your radio transmitting digital signal to audio equipment.

2.6 Using RCA Cable

Connect the 3.5 mm plug at the end of your RCA cable to the Audio Out socket on the back of this unit. Then insert the Red and Black plugs at the other end of the RCA cable to your audio device.

2.7 Turning the Unit On/Off

Connect the plug at the end of power adapter cable to the DC IN socket on the back of the unit. Then insert the power adapter into the mains socket. Press ⏻ button on the unit or on the remote control to turn unit on or standby. To switch the unit off completely, unplug the power adapter from the mains socket.

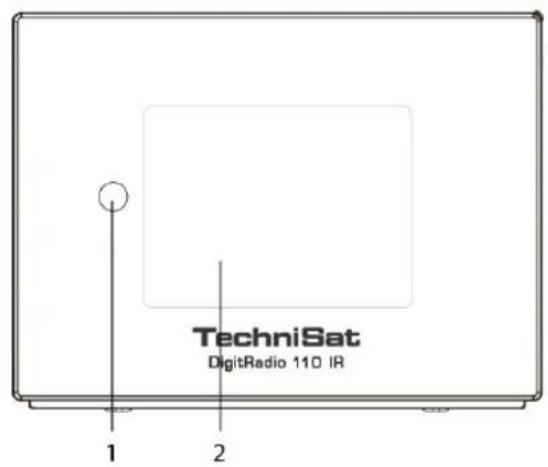

3 Unit Views

TechniSat DigitRadio 110 IR 1 2

1. Remote

control

sensor

1. Display

Optical Dot Audio Box DC-IV +0.0 Airvana 1 2 3 4 5

1. Optical Out socket

To connect an (

1. Audio Out socket
   To connect a RCA
2. DC IN socket
3. Antenna socket
4. button Press to switch radio

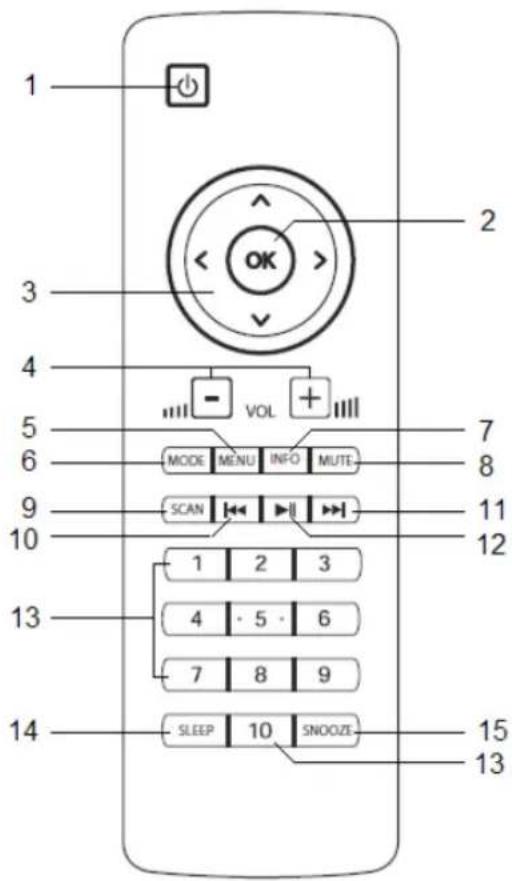

3.1 Remote Control View

1 2 3 4 5 6 7 8 9 10 11 12 13 14 SLEEP 10 SNOOZE 15 13

1. button Press to switch radio on or standby.
2. OK button. Press to confirm your selection.
3. buttons Press to browse options.
4. VOL +/- buttons. Press to adjust volume.
5. MENU button. Press to display menu options.
6. MODE button. Press to switch among Internet, Spotify, Music player, DAB, FM and Bluetooth modes.
7. INFO button. Press to view station information.
8. MUTE button. Press to mute radio, press again to pick up sound.
9. SCAN button. Press to scan for DAB and FM stations.
10. button. Press to skip to previous track in Music player and Spotify mode.
    Press and hold to rewind current track in Music player and Spotify mode.
11. button. Press to skip to next track in Music player and Spotify mode.
    Press and hold to fast forwards current track in Music player and Spotify mode.
12. button Press to pause/play current track in Music player and Spotify mode.
    13.Presetbuttons1-10. Press and hold to save a preset station. Press to recall a saved preset station.
13. SLEEP button. Press to set up sleep time.
14. SNOOZE button. Press to active snooze function.

3.1.1 Replacing the batteries:

1. Open the battery compartment cover on the back of your remote control.
2. Install two AAA new batteries referring to the markings direction inside the battery compartment.

Note: do not reverse any battery and do not mix battery types, also do not mix old and new batteries.

When discard your old battery, please considering eco-friendly.

1. Cover the battery compartment door.

4 Setup Wizard

1. For initial use, the display will show 'Setup wizard' screen.

Setup wizard Start now? YES NO

1. Press < or > button to confirm 'YES' to start setup. Options in the setup wizard include the following:

Date/Time

Set 12 or 24 hour format

Auto update

Update from DAB
Update from FM
Update from Network

Select your time zone and daylight savings is needed.

No update

Set the date and time is needed.

Keep network connected

Select YES or NO

1. The Wizard will now scan your location for accessible wireless networks. When the scan has finished, a list of networks will be displayed.

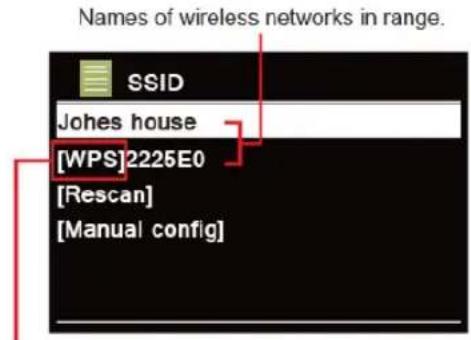

Names of wireless networks in range. SSID Johes house [WPS]2225E0 [Rescan] [Manual config]

WPS security is available for this network.

1. Press < or > button and then press OK button to select a wireless network you wanted.

1) If a WEP/WPA key (password) is required, radio will ask you to input the WEP/WPA code and display the password entry screen as follows:

Note: If a password (WEP/WPA) isn't required by your network, radio will connect to the network automatically.

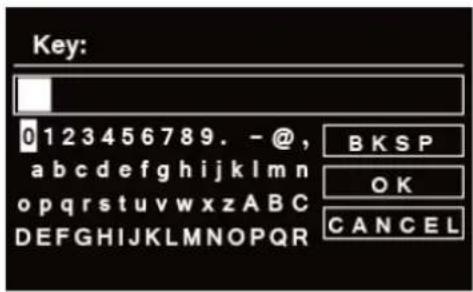

Key: 0 123456789. - @, a b c d e f g h i j k l m n o p q r s t u v w x z A B C D E F G H I J K L M N O P Q R B K S P O K C A N C E L

a. Press < v> buttons to cycle through the alphanumeric character list, press OK button to select an appointed character.

Note: WEP/WPA pass codes are case-sensitive.

b. If a wrong operation is being conducted, select to delete a BKS P ed character.

Note: BKSP = Backspace; CANCEL means return to previous track; radio will automatically e WEP/WPA you've input, so no bother to re-enter these codes.

c. After selecting the final character of your password, press buttons to<, and>

then press OK button to confirm. The radio is connected to wireless network.

2) Devices that support connection via WPS (Wi-Fi Protected Setup) are identified in the list as [WPS].

a. If you wish to establish a connection via WPS, press OK button after you have selected desired network. The radio then offers the option to initiate WPS.

b. Press < or > button to select through PUSH Button, PIN and Enter Passkey, press OK button to confirm.

Push Button You	must start the WPS scan on the remote station (e.g. router). Consult the manual for your router or Access Points (AP) to learn how to do this.After you have done this, press OK button on the radio and then both devices will establish a connection.
PIN The radio creates an 8-digit number, which you then have to enter into the remote station.After entering the PIN, press OK button to establish the connection between both devices.
Enter Passkey In	addition to a WPS connection, you can also establish a connection using a Pre-Shared-Key. The required key is often on the rear of the router, or you may have defined it yourself.This method is used automatically for networks without WPS. You can call up the Pre-Shared-Key function on networks with WPS by selecting menu item “Enter Passkey”.An input field should now appear. You can enter the required key (PSK) by pressing <∧∨> buttons and press OK button, and then select “OK” and press OK button complete the entry. The radio should now establish the connection to the network.

1. Setup wizard completed, press OK button to exit.

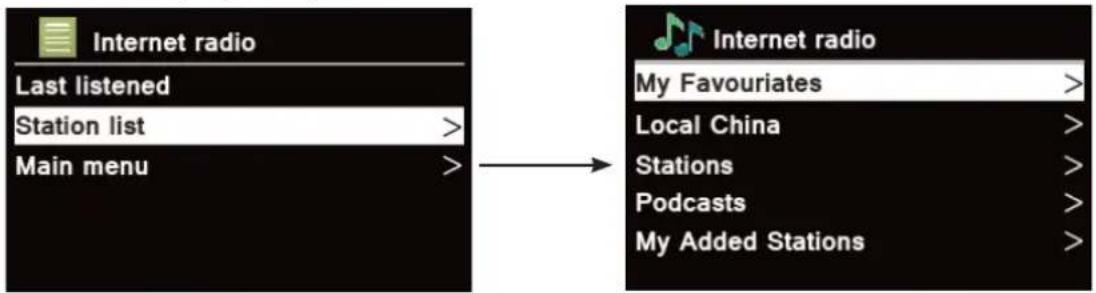

5 Internet Radio mode

1. The display will show 'Main menu' after 'Setup wizard' completed. Press OK button to select Internet radio mode.
2. While 'Station list' is highlighted, press OK button to confirm.

Internet radio Last listened Station list > Main menu >

1. Then refer following section to choice stations. Or if failed to connect to network, please follow:

a. Check your Router, see it working normally or not;
b. Relocate your radio to a stronger signal position is necessary!
c. Make sure your password is correct input.

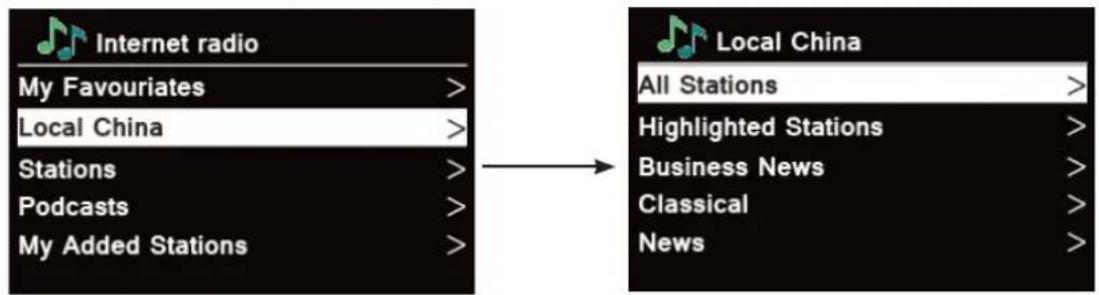

5.1 'Local "Country"' Stations

Local 'Country' will change according to your current location. It displays local programs of your current location.

1. To enter Local stations, press MENU button > Station list > Local 'Country', press OK button to confirm.

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations > Local China All Stations > Highlighted Stations > Business News > Classical > News >

1. Press ∧ or ∨ button to select options, and then press OK button to confirm.
2. Step by step to the program you desired.

5.2 Selecting a station through 'Stations'

1. Press MENU button > Station list > Stations, press OK button to confirm.

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

1. In 'Stations' menu:

'Location' enables you to choose from the radio stations provided by any country which you choose from a list.

a) While 'Location' is highlighted, press OK button to confirm.

b) Press ∧ or √ button to select the region you wanted, and then press OK button to confirm.

c) Using the same method to choose country, station in turn, radio will now loading.

'Genre' enables you to choose radio stations according to their content, for example Classic Rock, Sport, News, etc.
'Search stations' enables you to enter all or part of station name to find a station.
'Popular stations' enables your radio to list the stations that have the most listeners.
'New stations' enables your radio to list the stations that have recently joined the Internet radio network.
Note: Some radio stations do not broadcast 24 hours per day, and some stations are not always on-line.

5.3 Selecting a station through 'Podcasts'

1. Press MENU button > Station list > Podcasts, press OK button to confirm.

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

1. Press ∧ or ∨ button to select options, and then press OK button to confirm.
2. Step by step to your purpose program.

5.4 Getting Access Code and FAQ Solution

1. To accesses to this order, press MENU button > Station list > Help, press OK button to confirm.

Help Get access code > FAQ >

1. Press ∧ or √ button to select Get access code or FAQ, and then OK button to confirm.

Get access code It uses for creating an account when registering your radio on portal www.wifiradio-frontier. com Refer to section ‘Adding station to ‘My Favourites”.

FAQ Press or button to select question, and then press OK button to listen the FAQ.

5.5 Adding station to 'My Favourites'

1. To register your radio with the portal: www.wifiradio-frontier.com
2. Create account login, enter Access code is required. Access code can be found from "Station list > Help > Get access code".
3. You can add your favourite stations via the portal (www.wifiradio-frontier.com).

4. After you added the stations, in order to have your radio access your new settings, get your radio power off for several minutes is necessary.

5. The added stations are accessible by selecting MENU > Station list > My favourites.

Note: Doing a 'factory reset' cannot erase 'my favourites' stations.

5.6 Adding station to 'My Added Stations'

1. Even though the Internet radio portal contains thousands of stations, you may want to listen to stations not listed. You can add your own stations via the portal (www.wifiradio-frontier.com).
2. After you added the stations, in order to have your radio access your new settings, get your radio power off for several minutes is necessary.
3. The added stations are accessible by selecting MENU > Station list > My added stations.

Note: Doing a 'factory reset' cannot erase 'my added stations'.

5.7 View Station Information

It is possible to view the information that is displaying on the second line of the display when listening Internet program. To view more information, you can press INFO button repeatedly, the display will show the information through Station Description, Genre, Country, Reliability, Bit rate, Codec, Sampling Rate, Playback Buffer and Date Info.

5.8 Storing Preset Stations

Your radio can store up to 10 of your favourite Internet stations. This will enable you to access your favourite stations quickly and easily.

1. While playing your favourite station, press and hold one of Preset buttons 1-10 until display shows 'Preset stored'.

2. Preset number ' #' will show on the display.

5.9 Recalling a Preset Station

1. Press one of Preset buttons 1-10 to play the preset station.
2. The display will show 'Preset empty' if the preset station isn't allocated.

6 Spotify Connect

Spotify gives you millions of songs at your fingertips. The artists you love, the readymade playlists for every mood and genre, the latest hits and new discoveries just for you.

With Spotify Connect feature, you can play and control all this music wirelessly. Choose music on your smartphone or tablet, and listen on your radio.

*For service availability in your country, check www.spotify.com

6.1 Using Spotify Connect

Your radio has Spotify Connect built in. This lets you control the music playing on your radio using the Spotify app on your smartphone or tablet. Listening is seamless – you can take calls, play games, watch a video, even switch your phone off, all without interrupting the music. It's a better way to listen at home.

You'll need a Spotify Premium account to use Spotify Connect. If you don't have it, just go to www.spotify.com/freetrial for your free 30-day trial.

1. Download Spotify app for your smartphone or tablet (iOS or Android).
2. Connect your radio to the same WiFi network as your smartphone or tablet, and then press MODE button on the remote control repeatedly to select Spotify Connect mode.
3. Open the Spotify app on your smartphone or tablet, and play any song.
4. Tap the square image of the song's cover art in the bottom left of the screen. Then tap the Connect icon.
5. Tap 'DigitRadio 110 IR' from the list to select your radio. If you can't see it, just check it's connected to the same wifi network as your smartphone of tablet. You will notice that your radio is currently listed as "DigitRadio 110 IR xxxxxxxxxxxxx" (the 12 digit alphanumeric code is the MAC address of your radio) in the Spotify App. If you would like to change this name to something more personal ('John's DigitRadio 110 IR' for example), you can do so as follows:

a. On the radio: Press MENU and select Main menu > System settings > Network > View settings. Scroll down and take a note of the 'IP address'.

b. On your computer: Ensure that your computer is on the same network as the radio, then enter the IP address into your browser's address bar (example: 192.168.0.34). This will allow you to view some of the radio's diagnostics, but also change its name.
6. The Connect icon will turn green to signify that your radio is now selected and being used for audio playback.
7. Your Spotify app will only recognize your radio when the radio is connected to the internet (i.e. in Internet Radio, Spotify Connect or Music player modes). To use Spotify when your radio is in non-internet modes (i.e. in DAB, FM or Bluetooth mode) you need to select Main menu > System settings > Network > Keep network connected > YES. This also allows you to wake the radio from standby using your Spotify app.

Note: If unattended to use radio for long periods of time, e.g. overnight, while on holiday or while out of the house, select NO to save power is recommended.

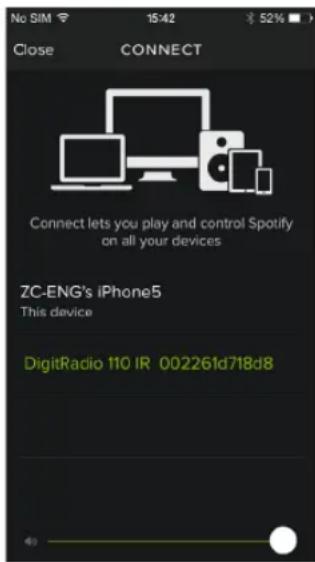

No SIM 15:42 Close CONNECT Connect lets you play and control Spotify on all your devices ZC-ENG's iPhone5 This device DigitRadio 110 IR 002261d718d8

6.2 Controlling Spotify Connect

You can now control Spotify from the app like normal; search for and play your tracks, change the volume and add to playlists even though playback is through your radio. The next time you open the Spotify app, playback will continue through your radio.

Spotify Connect is a cloud-based service, therefore after activation on your radio, your smartphone or tablet no longer needs to be on the same WiFi network to control audio playback.

6.3 Using another Spotify account with your radio

Your Spotify account details are now stored on your radio. To overwrite this with another Spotify account, simply follow the activation steps again whilst running the Spotify app using your desired account. Please remember that both your smartphone or tablet and your radio need to be on the same WiFi network for the overwriting to occur.

7 Music player Mode

7.1 Setting up a Music Server

In order for your radio play music files from a computer, the computer must be set up to share files or media.

UPnP media sharing allows devices like this radio to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre.

If you are running a suitable server system such as a PC with Windows Media Player10 or later (WMP), and your music library is well-tagged, then it is recommended to use media sharing.

Only the UPnP (Universal Plug and Play) server needs to be set up. (iTunes does not currently work as a UPnP media server.)

7.2 Sharing Media with Windows Media Player

The most common UPnP server is Windows Media Player (10 or later. Viewing version from Help > About Windows Media Player). Alternatively, other UPnP platforms and servers may be used. To set up WMP for media sharing, perform the following steps:

1. Ensure that the PC is connected to the network.
2. Ensure that the radio is powered on and connected to the same network.
3. In WMP, add to the media library the audio files and folders you want to share with your radio by selecting Organize > Manage Libraries > Music / Videos / Pictures / Recorded TV, click Add to add audio files and folders and then click OK to finish adding.

Windows Media Player Library > Music > All music Organize Stream Create playlist Manage libraries Apply media information changes Sort by Customize navigation pane... Layout Options... Music Videos Pictures Recorded TV 04 Pictures Recorded TV Mr. Scruff Mr. Scruff Ninja Tuna Mr. Scruff 1

Music Library Locations Change how this library gathers its contents When you include a folder in a library, the files appear in the library, but continue to be stored is their original locations. Library locations My Music C:\Users\huang\Music Default and location Add... Remove Public Music C:\Users\Public\Music Learn more about libraries OK Cancel

1. In WMP, enable media sharing (Stream > More streaming options...).

Windows Media Player Library > Music > All music Organize Stream Create playlist Allow Internet access to home media... Allow remote control of my Player... Automatically allow devices to play my media... More streaming options... Wood H Playlists Music Album Genre Videos Pictures Recorded TV Mr. Scruff Mr.Scruff Ninja Tuno Mr. Scruff 1

1. Make sure that the radio has access to the shared media by selecting it and clicking Allow. You can also set a name for the shared media in the box of Name your media library. Click OK to close the dialogue boxes.

Network and Sharing Center • Media streaming options Search Control/Active Choose media streaming options for computers and devices Choose your media library sharing Choose device settings... Show devices to local networks Add/Remove Add/Remove Add/Remove Add/Remove All devices are allowed to create your shared media. Choose non-protocol and sharing options Choose power options Test remote about media streaming. Read the privacy transport online OK Cancel

1. The PC is now ready to stream the music to the radio. The WMP UPnP service runs in the background; there is no need to start WMP explicitly.

7.3 Playing Shared Media

1. Press MODE button repeatedly to select Music player mode.
2. While 'Shared media' is highlighted, press OK button to confirm.

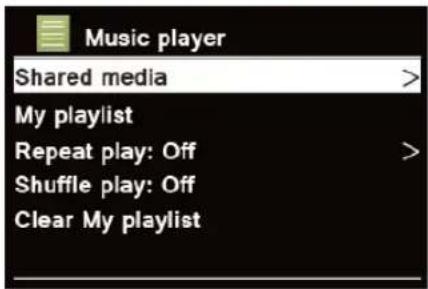

Music player Shared media > My playlist Repeat play: Off Shuffle play: Off Clear My playlist

1. Available media servers will be listed. Press ▲ or ▼ button to browse servers and press OK button to confirm, and then step by step to your selecting music.

Shared media XBMC: Media Server: (10.3.200.19)> WHUANG-LT2; whuang;

1. When a track is playing, you can use remote control to:

a. Press ◀ button to skip to previous track; press and hold ◀ button to fast reverse current playing track. b. Press button to play/pause current playing track.

c. Press ▶ button to skip to next track; press and hold ▶ button to fast forward current playing track.

7.4 My Playlist

The My Playlist feature enables you to create a playlist of your favourite tracks from your music libraries. Once you have your playlist ready you can choose to play through the playlist on your radio and can also set shuffle and repeat play functions while your playlist is playing.

To save a track to 'My Playlist', browse the track you want to add to the playlist, press and hold OK button, then the track is added to the playlist.

To play 'My Playlist', press MENU button, and then press ∧ or ∨ button to select 'My playlist', press OK button to confirm. Browse the track you want to play, press OK button to select.

7.5 Repeat Play Mode

Press MENU button, and then press ▲ or ▼ button to select 'Repeat play: Off', then press OK button repeatedly to shift repeat play 'On' or 'Off'.

7.6 Shuffle Play Mode

Press MENU button, and then press ∧ or ∨ button to select 'Shuffle play: Off', then press OK button repeatedly to shift repeat play 'On' or 'Off'.

7.7 Clearing My Playlist

You can use this feature to clear the contents of your playlist.

1. Press MENU button, press ▲ or ▼ button to select 'Clear My playlist' and then press OK button to confirm.
2. Select 'YES' to clear my playlist.

7.8 Prune Servers

The Prune Servers feature enables you to remove music servers that are no longer available to you to browse for music.

1. Press MENU button, press ∧ or ∨ button to select 'Prune servers' and then press OK button to confirm.
2. Select 'Yes' to 'Prune shared media wake on LAN servers'.

7.9 Now Playing Information

While a track is playing, the display shows the track and a progress bar with figures for elapsed and total track time. To view further information, press INFO button on the main unit repeatedly to show the information through Artist, Album, Bit Rate, Codec, Sampling Rate, Playback buffer and Date on the display.

8 DAB Mode

8.1 Selecting DAB mode

1. Press MODE button repeatedly to select DAB mode.
2. For initial use, radio will carry out a full scan and store stations list in memory.

Scan Stations: 12 Scanning

1. Once the scanning is completed, the DAB/DAB+ stations will be displayed in alphanumeric order. The first station in the list will be selected, press OK button to broadcast.

Note: if no DAB/DAB+ signal is found in your area, it may be necessary to relocate your radio to a stronger signal area.

8.2 Selecting another Station

1. While a program is playing, press or button to display station list, and then press or button to select the stations you want to play. Press OK button to confirm.
2. Alternatively, press MENU button and then press ▲ or ▼ button to select 'Station list', press OK button to confirm. Step by step to select the station you want.

8.3 Secondary Service

You may see a “>>” symbol after the name of the station, this indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station. E.g. a sports station may want to add extra commentaries. The secondary services are inserted directly after the primary station (a “<<” symbol is before the name of the station) in the station list.

To select the secondary station, press or button until you find the secondary service you want, then press OK button to select it.

When the secondary service ends, the unit will automatically switch back to the primary station.

8.4 Scanning Stations

Simply press SCAN button to scan for all available stations.

Alternatively, press MENU button, press ∧ or ∨ button to select 'Scan', and then press OK button to full scan.

8.5 Prune Invalid

You may remove all unavailable stations from the station list.

1. Press MENU button, press ∧ or √ button to select 'Prune invalid', and then press OK button to confirm.
2. Press < or > button to select 'YES', and then press OK button to confirm.

8.6 DRC (Dynamic Range Control) value

You can set the compression level of stations to eliminate the differences in dynamic range or sound level between radio stations.

1. Press MENU button, press ∧ or ∨ button to select 'DRC', and then press OK button to confirm.
2. Press ∧ or ∨ button to select through 'DRC high', 'DRC low' or 'DRC off', press OK button to confirm.

8.7 Changing Station Order

You may want to display the stations in different order.

1. Press MENU button, press ∧ or ∨ button to select 'Station order', and then press OK button to confirm.
2. Press ▲ or ▼ button to select through 'Alphanumeric', 'Ensemble' or 'Valid', and then press OK button to confirm your selecting option.

Alphanumeric Display all stations in alphanumeric order.

Ensemble List currently broadcasting active stations before inactive ones.

Valid Remove inactive stations from the station list.

8.8 Viewing Station Information

DAB/DAB+ stations broadcast additional information. Press INFO button on the main unit repeatedly to view information through DLS (Dynamic Label Segment), Ensemble, Program Frequency, Signal Quality, Signal Strength, Bitrate, Codec, Channel and Date.

8.8.1 Showing Signal Strength

While you selected signal strength, a signal bar with the strength of the current station will show on the display.

DAB 15:32 BBC Radio 6Music Singnal error: 0 Strength: Strength of signal Minimum signal level

The indicator on the signal bar shows the minimum acceptable signal level.

Note: Stations with signal strength below the minimum signal level may not provide a steady stream of audio.

8.9 Storing Preset Stations

Your radio can store up to 10 of your favourite DAB+ stations. This will enable you to access your favourite stations quickly and easily.

1. While playing your favourite station, press and hold one of Preset buttons 1-10 until display shows 'Preset stored'.
2. Preset number ' #' will show on the display.

8.10 Recalling a Preset Station

1. Press one of Preset buttons 1-10 to play the preset station.
2. The display will show 'Preset empty' if the preset station isn't allocated.

9 FM Mode

9.1 Selecting FM Mode

1. Press MODE button repeatedly to select FM mode.
2. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last listened FM station will be selected.

FM 15:36 87.50MHz [No Radio Text]

1. To manually change the FM frequency, while FM frequency shows up, press ▲ or ▼ button to change the frequency by 0.05MHz.
2. To automatically scan, while FM frequency shows up, press ∧ or ∨ button and then press the SCAN button, your radio will skip forwards or backwards until it reached the next available station.

9.2 Scan setting

By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations.

1. To change the scan settings to stop only at stations with good signal strength, press MENU button, press ▲ or ▼ button to select 'Scan setting', and then press OK button to confirm.
2. Display will show 'Strong stations only', press < or > button to select 'YES' and then press OK button to confirm.

9.3 Audio Settings

By default, all stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss).

1. To play weak stations in mono, press MENU button, press ∧ or ∨ button to select 'Audio setting', and then press OK button to confirm.

2. Display will show 'Listen in Mono only?' Press < or > button to select 'YES', and then press OK button to confirm.

9.4 Storing Preset Stations

Your radio can store up to 10 of your favourite FM stations. This will enable you to access your favourite stations quickly and easily.

1. While playing your favourite station, press and hold one of Preset buttons 1-10 until display shows 'Preset stored'.
2. Preset number ‘ #’ will show on the display.

9.5 Recalling a Preset Station

1. Press one of Preset buttons 1-10 to play the preset station.
2. The display will show 'Preset empty' if the preset station isn't allocated.

10 Bluetooth Mode

Pair the unit with a Bluetooth device to listen to music:

1. Press the MODE button to select Bluetooth mode.
2. The display will flash in repeatedly.
3. Activate your Bluetooth device and select the search mode.
4. 'DigitRadio 110 IR' will appear on your Bluetooth device.
5. Select 'DigitRadio 110 IR' and enter "0000" for the password if necessary.
6. The 🖱️ icon will remains steadily on the display when connection is successful.
7. While a track is playing, you can:

a. Press button once to resume to the beginning of track, and then press button once again to skip to previous track; press and hold button to fast reverse current playing track.

b. Press button to pause or play current playing track.

c. Press ▶ button to skip to next track; press and hold ▶ button to fast forward current playing track.

1. To disconnect the Bluetooth connection, press MENU button on the unit, Press ∧ or √ button to select 'BT disconnect', and then press OK button to confirm. The display will show 'Device disconnect?', Press ∧ or √ button to select 'YES', and then press OK button to confirm.

11 General Operation

11.1 Setting Sleep

This feature enables your radio to switch to standby mode by itself after a set sleep time.

1. Press MENU button > Main menu > Sleep, and then press OK button to confirm.
2. Press ∧ or √ button to view options Sleep OFF, 15, 30, 45 or 60 minutes, press the OK button to confirm. The sleep icon and sleep time will show on the display.
3. To turn the sleep function off while the sleep timer is still counting down, select 'Sleep' option, press ▲ or ▼ button to select 'Sleep OFF'.
4. Alternatively, press SLEEP button repeatedly to set sleep time.

11.2 Setting Alarm

Your radio includes dual alarms. Set Alarm, making sure set time at first.

1. Press MENU button > Main menu > Alarms, and then press OK button to confirm.
2. Press ∧ or ∨ button to select 'Alarm 1' or 'Alarm 2', and then press OK button to confirm.
3. Press ∧ or ∨ button to select options, and then press OK button to confirm the setting.

Enable: Alarm active day: Off, Daily, Once, Weekends or Weekdays
Time: Alarm date: D	D-MM-YYYY (only available when alarm repeat is set to ‘Once’) Alarm time: HH:MM
Mode: Alarm mode:	Buzzer, Internet radio, DAB or FM
Preset: Last listened	or saved preset station (not available for Buzzer mode).
Volume: Alarm volume
Save: Save the alarm

1. When the display shows 'Alarm Saved', the alarm setting is successful. 🔒 or 🔒 will show on the display.
2. To temporarily switch off alarm, press SNOOZE button to activate Snooze function when the alarm is sounding. Press SNOOZE button repeatedly can set Snooze time of 5, 10, 15 or 30 minutes in turn. The set snooze time will show on the display.
3. To turn off alarm, press button when the alarm is sounding.
4. To cancel Alarm, refer to steps 1-3 to enable alarm 'Off'.

11.3 Setting Equaliser

This feature enables you to choose a sound equalization profile. Each of the equalization setting will change the tone of the sound from your radio when selected.

1. Press MENU button > Main menu > System settings > Equaliser, and then press OK button to confirm.
2. Press ▲ or ▼ button to select through Normal, Flat, Jazz, Rock, Movie, Classic, Pop, News, My EQ or My EQ profile setup, and then press OK button to confirm.
3. To set up My EQ, select 'My EQ profile setup', and then press OK button to confirm. Press ∧ or √ button to select Bass or Treble, and then press OK button to confirm. Press ∧ or √ button to change the value of Bass or Treble, and then press OK button to confirm. Press < button, display will show 'Save changes'. Press ∧ or √ button to select 'YES' and then press OK button to save changes.

11.4 Network Setup

Users encountering networking issue may find these options useful for diagnosing and fixing network problems.

1. Press MENU button > Main menu > System settings > Network, press OK button to confirm.
2. Press ∧ or button to select your preferred network setting option:

Network wizard: Scan for available networks

PBC Wlan setup: Set up a WPS encrypted network (only support the router uses WPS 2.0)

View settings.: View network settings such as MAC address, Wlan region, IP address etc.

Manual settings: Set wireless connection

NetRemote PIN setup Set a Net Remote Pin code

Network profile: List of registered networks or delete some of unwanted networks

Clear network settings: Clear current network settings

Keep network connected: Keep network connected in non-internet mode such as DAB, FM, Bluetooth, Aux in and standby modes

1. Press OK button to confirm your setting.

11.5 Setting Time/Date

1. Press MENU button > Main menu > System settings > Time/Date, press OK button to confirm.
2. Press ∧ or √ button to select options, and then press OK button to confirm the setting.

Set Time/date: Manually	set-up both Time and Date
Auto update: ‘Update from DAB’, ‘Update from FM’, ‘Update from Network’ or ‘No update’
Set format: 12 or 24 hour format
Set timezone: Select a timezone(Only available when auto update from Network.)
Daylight saving:	Daylight saving settings(Only available when auto update from Network.)

1. Then setting time according to your personal preference.

11.6 Setting Language

This feature enables you to change menu language. The default menu language is German.

1. Press MENU button > Main menu > System settings > Language, press OK button to confirm.
2. Press ∧ or ∨ button to select your language, and then press OK button to confirm.

11.7 Factory Reset

A factory reset resets all user settings to default values, so time/date and presets are lost.

1. Press MENU button > Main menu > System settings > Factory Reset, press OK button to confirm.
2. Press < or > button to select 'YES', and then press OK button to confirm.

11.8 Software Update

From time to time, your radio may make software upgrades available with bug fixes and/or additional features. If your radio detects that newer software is available, it will ask if you want to go ahead with an update. If you agree, the new software is then downloaded and installed.

After a software upgrade, all user settings are maintained.

CAUTION

Before starting a software upgrade, ensure that your radio is plugged into a stable mains power connection. Disconnecting power during a software update may permanently damage the unit.

1. Press MENU button > Main menu > System settings > Software update, press OK button to confirm.
2. Press ▲ or ▼ button to select 'Auto-check setting', your radio will check periodically for new version software.
3. Press ▲ or ▼ button to select 'Check now', your radio will now to check new version software and automatically upgrade the detected new version software.

11.9 Setup Wizard

When this unit is started for the first time, it runs through a setup wizard to configure settings for date/time and network. Once this has finished, the system is ready to use in most modes.

1. Press MENU button > Main menu > System settings > Setup wizard, press OK button to confirm.
2. Press < or > button to select 'YES', and then press OK button to confirm.

11.10 Viewing System Info

This information may be requested when dealing with technical support issues.

1. Press MENU button > Main menu > System settings > Info, press OK button to confirm.
2. Press ∧ or √ button to view 'SW version', 'Spotify version', 'Radio ID' and 'Friendly Name'.

11.11 Setting Backlight

1. Press MENU button > Main menu > System settings > Backlight, press OK button to confirm.
2. Press ∧ or √ button to select 'Power-on Level' or 'Standby Level', then press OK button to confirm.
3. Press ∧ or √ button to select backlight level, and then press OK button to confirm the setting.

Power-on Level > High	> Medium> Low
Standby Level > High	> Medium> Low

12 Multi-room

Multi-room is a feature that enables you control your radio (one or group) via MyDigitRadio Pro App for playback. You can enjoy music by using your smartphone which has MyDigitRadio Pro App to control the radios (multi-room capable devices) in the kitchen, bedroom or living room. Of course you also can control the radios playing together.

1. To use multi-room feature, download MyDigitRadio Pro app from App Store for your iOS smartphone or download from Google Play for your Android smartphone.
2. Start MyDigitRadio Pro app, making sure your radio and smartphone are connected to same WiFi network.

3. All available devices will be listed. Tap your radio "DigitRadio 110 IR xxxxxxxxxxxxx" (the 12 digit alphanumeric code is the MAC address of your radio) to connect to.

4. Now playing screen is shown. (Playing Internet radio mode for example.)

Select a mode from here to listen. Set device settings such as change friendly name, view radio information,ect.. Radio friendly name (or group name). Close now playing screen. Now playing mode. Select something from here to play. Save or recall preset station from here. Benny Goodman & His Orchestra - A String of Radio Swing Window Now playing program. Volume control

1. Multi-room capable devices can be connected to play synchronously if they are added to a group.
2. Edit group through App, taping 'Edit' at the right-top corner on device list.

a. Tap '+ Create Group' at the bottom on device list to create a new group and then enter a group name or select one usual name from the list, and then select 'Create'.

b. As many new groups can be created as needed. The new empty groups are shown at the top of the list. Hold down the three horizontal line and then drag your radio into group.

Note: some modes are not supported when grouping your radio. If your radio is in mode DAB, FM or Bluetooth you cannot move it into the selected group.

c. If your radio is a client in the group, the radio display will show "Waiting for synchronisation" and then the radio will play the same program as master device playing.
d.Tap 'Close' at top-right corner on editing screen to leave editing. (Refer to Figure 1.)
e. The devices in the group will be listed below group name. Tap on group name to select the group.
f. Group will synchronously play the program which the master device is playing. You can drag the volume control bar to change the master volume for all grouped devices. You also can tap on the volume control and then change volume for each device respectively. (Refer to Figures 2 and 3.)

Note: when select playing mode, the standalone modes (DAB, FM or Bluetooth) are incompatible for grouped devices, if you select these modes, the master device will be removed from group.

Figure 1 Figure 2 Figure 3

Rescan ← Edit Groups Close → Tap to leave editing. Master device ← DigitRadio 110 IR 002261d718d8 Client ← DigitRadio 110 IR 002261d71900 Multimoom Audio Systems Lisa Tap to create a new group. Create Group

House Internal Radio Applications Mandelski Presents Volume control ← Ivier Cugat & His Waldorf-Astoria Orchestra - Pactor Saving Offerturkey

Volume Controls Close Volume DigitRadio 110 IR 002261d71900 #J —— #J DigitRadio 110 IR 002261d718dB #J —— #J Master Volume

1. Alternatively, you can edit group through your radio.

a. Press MENU button > Main menu > System settings > Multi-room, and then press OK button to confirm.

b. Press ∧ or ∨ button to select options, and then press OK button to confirm.

View details View your radio state (Ungrouped, Server or Client) and the group which it belong to.

Create new group Create a new group that your radio will be joined.

Add to group Devices in current network will be listed. Select the client you desired to add to the group which your radio belong to.

List current clients Clients	in the group which your radio belong to will be listed. Select the client you want to remove from group.
Leave group Remove your	radio from group
Dissolve group Dissolve the	group which your radio belong to.

1. To ensure you can use MyDigitRadio Pro app when your radio is in all modes especially in non-internet modes (i.e. in DAB, FM or Bluetooth mode) you need to select Main menu > System settings > Network > Keep network connected > YES. This also allows you to wake the radio from standby using your MyDigitRadio Pro app.

Note: If unattended to use radio for long periods of time, e.g. overnight, while on holiday or while out of the house, select NO to save power is recommended.

13 Specification

Specifications: Internet, DAB/DAB+	and FM Digital Radio withBluetooth Technology and Spotify and Multi[room features
Power Supply: AC Input: 100-240V~	50-60HzDC Output: 6V, 500mA
Frequency Ranges: FM: 87.5-108MHz	DAB/DAB+: 174.928 - 239.200 MHz
Power Consumption: 3W (Max)
Dimension (L x W x H): 130mm x 42mm x 95mm

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

CE

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. For more information, please contact the local authority or your retailer where you purchased the product.

Mode d'emploi

DIGITRADIO 110 IR

7.4 My Playlist (Ma playlist)....69

Setup wizard Start now? YES NO

Names of wireless networks in range. SSID Johes house [WPS]2225E0 [Rescan] [Manual config]

WPS security is available for this network.

Internet radio Last listened Station list > Main menu >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations > Local China All Stations > Highlighted Stations > Business News > Classical > News >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

No SIM 15:42 Close CONNECT Connect lets you play and control Spotify on all your devices ZC-ENG's iPhone5 This device DigitRadio 110 IR 002261d718d8

Windows Media Player Library > Music > All music Organize Stream Create playlist Manage libraries Apply media information changes Sort by Customize navigation pane... Layout Options... Music Videos Pictures Recorded TV 04 Pictures Mr. Scruff Recorded TV mr.Scruff Ninja Tuna Mr. Scruff 1

Music Library Locations Change how this library gathers its contents When you include a folder in a library, the files appear in the library, but continue to be stored in their original locations. Library locations My Music C:\Users\chung\Music Default and location Add... Remove Public Music C:\Users\Public Music Learn more about libraries OK Cancel

Windows Media Player Library > Music > All music Organize Stream Create playlist Allow Internet access to home media... Allow remote control of my Player... Automatically allow devices to play my media... More streaming options... Wood H Playlists Music Album Genre Videos Pictures Recorded TV Mr. Scruff Mr.Scruff Ninja Tuno Mr. Scruff 1

Network and Flash Center Media streaming options Select Control Power Choose media streaming options for computers and devices Choose your media library - streaming Choose default streamer Show destinations: Local network About 50 Block 50 Digital to 361.820000000 A local server using this streamer Customize... Remove... All devices are allowed to access your shared media. Choose hierarchical and sharing options Chiniao power options Test resources about media streaming Find the privacy statement online OK Cancel

Music player Shared media > My playlist Repeat play: Off Shuffle play: Off Clear My playlist

7.4 My Playlist (Ma playlist)

Scan Stations: 12 Scanning

DAB 15:32 BBC Radio 6Music Singnal error: 0 Strength: Strength of signal Minimum signal level

FM 15:36 87.50MHz [No Radio Text]

Select a mode from here to listen. Set device settings such as change friendly name, view radio information,ect.. Radio friendly name (or group name). Close now playing screen. Now playing mode. Select something from here to play. Save or recall preset station from here. Bonny Goodman & Hia Orchestra - A String of Hua: Swing Window Now playing program. Volume control

Figure 1 Figure 2 Figure 3

Rescan ← Edit Groups Close → Tap to leave editing. Master device ← DigitRadio 110 IR 002261d718d6 Client ← DigitRadio 110 IR 002261d71900 Multimoom Audio Systems Lisa Tap to create a new group. Create Group

House Internal Radio Applications Mandelski Presents Volume control ← Ivier Cugat & His Waldorf-Astoria Orchestra - Pactor Saving Offerturkey

Volume Controls Close Volume DigitRadio 110 IR 002261d71900 #J —— #J DigitRadio 110 IR 002261d718dB #J —— #J Master Volume

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

CE

Setup wizard Start now? YES NO

Names of wireless networks in range. SSID Johes house [WPS]2225E0 [Rescan] [Manual config]

WPS security is available for this network.

Internet radio Last listened Station list > Main menu >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations > Local China All Stations > Highlighted Stations > Business News > Classical > News >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

No SIM 15:42 $ 52% Close CONNECT Connect lets you play and control Spotify on all your devices ZC-ENG's iPhone5 This device DigiRadio 110 IR 002261d718d8

Windows Media Player Library > Music > All music Organize Stream Create playlist Manage libraries Apply media information changes Sort by Customize navigation pane... Layout Options... Music Videos Pictures Recorded TV 01 Pictures Mr. Scruff Recorded TV mr.Scruff Ninja Tuna Mr. Scruff 1

Music Library Locations Change how this library gathers its contents When you include a folder in a library, the files appear in the library, but continue to be stored in their original locations. Library locations: My Music C:\Users\johwang\Music Default sent location Public Music C:\Users\Public\Music Add... Remove Learn more about libraries OK Cancel

Windows Media Player Library Music All music Organize Stream Create playlist Allow Internet access to home media... Allow remote control of my Player... Automatically allow devices to play my media... More streaming options... Wood H Playlists Music Artist Album Genre Videos Pictures Recorded TV Mr. Scruff Mr.Scruff Ninja Tuno Mr. Scruff 1

Network and Sharing Center • Media streaming options Search Control/Active Choose media streaming options for computers and devices Choose your media library sharing Choose device settings... Show devices to local networks Add/Remove Add/Remove Add/Remove Add/Remove All devices are allowed to create your shared media. Choose non-protocol and sharing options Choose power options Test remote about media streaming. Read the privacy transport online OK Cancel

Music player Shared media > My playlist Repeat play: Off Shuffle play: Off Clear My playlist

Scan Stations: 12 Scanning

DAB 15:32 BBC Radio 6Music SIGNAL error: 0 Strength: Strength of signal Minimum signal level

FM 15:36 87.50MHz [No Radio Text]

Select a mode from here to listen. Set device settings such as change friendly name, view radio information,ect. Radio friendly name (or group name). Close now playing screen. Now playing mode. Select something from here to play. Save or recall preset station from here. Bonny Goodman & His Orchestra - A String of Kenny Swing Booklets Now playing program. Volume control

Rescan Edit Groups Close Tap to leave editing. House Ungroup. Master device DigitRadio 110 IR 002261d718d8 Client DigitRadio 110 IR 002261d71900 Multimord Audio Systems Hold down and drag to leave the group. Lisa Tap to create a new group. Create Group

Papier Gugat & His Waldorf-Astoria Orchestra Volume control ← 40

Volume Controls Close Volume DigitRadio 110 IR 002261d71900 I/O —— I/O DigitRadio 110 IR 002261d718d8 I/O —— I/O Master Volume

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

CE

6 Spotify Connect 148

Setup wizard Start now? YES NO

Names of wireless networks in range. SSID Jones house [WPS]2225E0 [Rescan] [Manual config]

WPS security is available for this network.

Internet radio Last listened Station list > Main menu >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations > Local China All Stations > Highlighted Stations > Business News > Classical > News >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

No SIM 15:42 52% Close CONNECT Connect lets you play and control Spotify on all your devices ZC-ENG's iPhone5 This device DigitRadio 110 IR 002261d718d8

6.2 Spotify Connect bedienen

Windows Media Player Library > Music > All music Organize Stream Create playlist Manage libraries Apply media information changes Sort by Customize navigation pane... Layout Options... Music Videos Pictures Recorded TV 01 Pictures Mr. Scruff Recorded TV mr.Scruff Ninja Tuna Mr. Scruff 1

Music Library Locations Change how this library gathers its contents When you include a folder in a library, the files appear in the library, but continue to be stored is their original locations. Library locations: My Music C:\Users\house\Music Default set location Add... Remove Public Music C:\Users\Public\Music Learn more about libraries OK Cancel

1. In WMP schakelt u media delen in (Stream > Meer streamingopties...).

Windows Media Player Library Music All music Organize Stream Create playlist Allow Internet access to home media... Allow remote control of my Player... Automatically allow devices to play my media... More streaming options... Wood H Playlists Music Album Genre Videos Pictures Recorded TV Mr. Scruff Ninja Tuno Mr. Scruff 1

Network and Flash Center • Media streaming options Select Control Power Choose media streaming options for computers and devices Choose your media library - streaming Choose default options Show destinations: Local network Afford Back All Digital to 50% (R/W) NEW CNTN A basic access using this settings Customer Remove... All devices All devices All devices All devices All devices are allowed to screen your shared media. Choose hierarchical and sharing options Chinac power options Test resources about media streaming Find the privacy statement online OK Cancel

Music player Shared media > My playlist Repeat play: Off Shuffle play: Off Clear My playlist

Scan Stations: 12 Scanning

DAB 15:32 BBC Radio 6Music Singular error: 0 Strength: Strength of signal Minimum signal level

FM 15:36 87.50MHz [No Radio Text]

Select a mode from here to listen. Set device settings such as change friendly name, view radio information,ect.. Radio friendly name (or group name). Close now playing screen. Now playing mode. Select something from here to play. Save or recall preset station from here. Benny Goodman & Hla Orchestra - A String of Radio being worldwide Now playing program. Volume control

Rescan ← Edit Groups Close → Tap to leave editing. Master device ← DigitRadio 110 IR 002261d718d8 Client ← DigitRadio 110 IR 002261d71900 Multimoom Audio Systems Lisa Tap to create a new group. Create Group

House Internal Radio Applications Mandelski Presents Volume control ← Ivier Cugat & His Waldorf-Astoria Orchestra - Pactor Saving Offerturkey

Volume Controls Close Volume DigitRadio 110 IR 002261d71900 #J —— #J DigitRadio 110 IR 002261d718dB #J —— #J Master Volume

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

CE

12 Multi-room....208

Setup wizard Start now? YES NO

Names of wireless networks in range. SSID Johes house [WPS]2225E0 [Rescan] [Manual config]

WPS security is available for this network.

Internet radio Last listened Station list > Main menu >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations > Local China All Stations > Highlighted Stations > Business News > Classical > News >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

1. W menu Stacje:

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

No SIM 15:42 $ 52% Close CONNECT Connect lets you play and control Spotify on all your devices ZC-ENG's iPhone5 This device DigitRadio 110 IR 002261d718d8

Windows Media Player Library > Music > All music Organize Stream Create playlist Manage libraries Apply media information changes Sort by Customize navigation pane... Layout Options... Music Videos Pictures Recorded TV 01 Pictures Mr. Scruff Recorded TV mr.Scruff Ninja Tuna 1 Mr. Scruff

Music Library Locations Change how this library gathers its contents When you include a folder in a library, the files appear in the library, but continue to be stored is their original locations. Library locations: My Music C:\Users\June\Music Default sent location Public Music C:\Users\Public\Music Add... Remove Learn more about libraries OK Cancel

Windows Media Player Library > Music > All music Organize Stream Create playlist Allow Internet access to home media... Allow remote control of my Player... Automatically allow devices to play my media... More streaming options... Wood H Playlists Music Artist Album Genre Videos Pictures Recorded TV Mr. Scruff Mr.Scruff Ninja Tuna Mr. Scruff 1

Network and Flash Center Media streaming options Select Control Power Choose media streaming options for computers and devices Choose your media library - streaming Choose default streamer Show destinations: Local network Afford Back All Digital to 50% (R/W) Streaming A basic access using this platform Customer Remove... All device is allowed to screen your shared media. Choose hierarchical and sharing options Chinac power options Test notice about media streaming Find the privacy statement online OK Cancel

Music player Shared media > My playlist Repeat play: Off Shuffle play: Off Clear My playlist

Scan Stations: 12 Scanning

DAB 15:32 BBC Radio 6Music Singnal error: 0 Strength: Strength of signal Minimum signal level

FM 15:36 87.50MHz [No Radio Text]

Select a mode from here to listen. Set device settings such as change friendly name, view radio information,ect.. Radio friendly name (or group name). Close now playing screen. Now playing mode. Select something from here to play. Save or recall preset station from here. Benny Goodman & His Orchestra - A String of Radio living workshop Now playing program. Volume control

Rescan ← Edit Groups Close → Tap to leave editing. Master device ← DigitRadio 110 IR 002261d718d8 Client ← DigitRadio 110 IR 002261d71900 Multimoom Audio Systems Lisa Tap to create a new group. Create Group

House Internal Radio Applications Mandelski Presents Volume control ← Ivier Cugat & His Waldorf-Astoria Orchestra - Packs/Saney/Alberia

Volume Controls Close Volume DigitRadio 110 IR 002261d71900 #J —— #J DigitRadio 110 IR 002261d718dB #J —— #J Master Volume

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

CE

Setup wizard Start now? YES NO

Names of wireless networks in range. SSID Johes house [WPS]2225E0 [Rescan] [Manual config]

WPS security is available for this network.

Internet radio Last listened Station list > Main menu >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations > Local China All Stations > Highlighted Stations > Business News > Classical > News >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

No SIM 15:42 $ 52% Close CONNECT Connect lets you play and control Spotify on all your devices ZC-ENG's iPhone5 This device DigitRadio 110 IR 002261d718d8

Windows Media Player Library > Music > All music Organize Stream Create playlist Manage libraries Apply media information changes Sort by Customize navigation pane... Layout Options... Music Videos Pictures Recorded TV 01 Pictures Mr. Scruff Recorded TV mr.Scruff Ninja Tuna Mr. Scruff 1

Music Library Locations Change how this library gathers its contents When you include a folder in a library, the files appear in the library, but continue to be stored is their original locations. Library locations: My Music C:\Users\house\Music Default set location Add... Remove Public Music C:\Users\Public\Music Learn more about libraries OK Cancel

Windows Media Player Library > Music > All music Organize Stream Create playlist Allow Internet access to home media... Allow remote control of my Player... Automatically allow devices to play my media... More streaming options... Wood H Playlists Music Artist Album Genre Videos Pictures Recorded TV Mr. Scruff Mr. Scruff Ninja Tuno Mr. Scruff 1

Network and Flash Center Media streaming options Select Control Power Choose media streaming options for computers and devices Choose your media library - streaming Choose default streamer Show destinations: Local network About 50 Block 50 Digital to 361.820000000 A local server using this streamer Customize... Remove... All device is allowed to access your shared media. Choose hierarchical and sharing options Chiniao power options Test resources about media streaming Find the privacy statement online All device is allowed to access your shared media. Choose remote system and sharing options Chiniao power options Test resources about media streaming Find the privacy statement online OK Cancel

Music player Shared media > My playlist Repeat play: Off Shuffle play: Off Clear My playlist

Scan Stations: 12 Scanning

DAB 15:32 BBC Radio 6Music Singular error: 0 Strength: Strength of signal Minimum signal level

FM 15:36 87.50MHz [No Radio Text]

Select a mode from here to listen. Set device settings such as change friendly name, view radio information,ect.. Radio friendly name (or group name). Close now playing screen. Now playing mode. Select something from here to play. Save or recall preset station from here. Denny Goodrian & His Orchestra - A String of Radio Swing Worldwide Now playing program. Volume control

Rescan ← Edit Groups Close → Tap to leave editing. Master device ← DigitRadio 110 IR 002261d718d6 Client ← DigitRadio 110 IR 002261d71900 Multimoom Audio Systems Lisa Tap to create a new group. Create Group

House Internal Radio Applications Mandelsor Volume control ← Prowers Brauns Ivier Cugat & His Waldorf-Astoria Orchestra - Racks/Swing/Alberia

Volume Controls Close Volume DigitRadio 110 IR 002261d71900 #J —— #J DigitRadio 110 IR 002261d718dB #J —— #J Master Volume

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

CE

12 Multi-room....292

Optical Bus Audio Bus DC 40 +0.4 Analog 1 2 3 4 5

Setup wizard Start now? YES NO

Names of wireless networks in range. SSID Johes house [WPS]2225E0 [Rescan] [Manual config]

WPS security is available for this network.

Internet radio Last listened Station list > Main menu >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations > Local China All Stations > Highlighted Stations > Business News > Classical > News >

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

1. V ponuke Stations (Stanice):

Internet radio My Favourites > Local China > Stations > Podcasts > My Added Stations >

No SIM 15:42 $ 52% Close CONNECT Connect lets you play and control Spotify on all your devices ZC-ENG's iPhone5 This device DigitRadio 110 IR 002261d718d8

6.2 Ovládanie Spotify Connect

Windows Media Player Library > Music > All music Organize Stream Create playlist Manage libraries Apply media information changes Sort by Customize navigation pane... Layout Options... Music Videos Pictures Recorded TV 01 Pictures Mr. Scruff Recorded TV mr.Scruff Ninja Tuna Mr. Scruff 1

Music Library Locations Change how this library gathers its contents When you include a folder in a library, the files appear in the library, but continue to be stored is their original locations. Library locations: My Music C:\Users\house\Music Default set location Add... Remove Public Music C:\Users\Public\Music Learn more about libraries OK Cancel

Windows Media Player Library Music All music Organize Stream Create playlist Allow Internet access to home media... Allow remote control of my Player... Automatically allow devices to play my media... More streaming options... Wood H Playlists Music Artist Album Genre Videos Pictures Recorded TV Mr. Scruff Mr.Scruff Ninja Tuno Mr. Scruff 1

Network and Flash Center • Media streaming options Select Control Power Choose media streaming options for computers and devices Choose your media library - streaming Choose default options Show destinations: Local network Afford Back All Digital to 50% (R/W) NEW CNTN A basic access using this settings Customer Remove... All device is allowed to screen your shared media. Choose hierarchical and sharing options Chinac power options Test notice about media streaming Find the privacy statement online OK Cancel

Music player Shared media > My playlist Repeat play: Off Shuffle play: Off Clear My playlist

Scan Stations: 12 Scanning

DAB 15:32 BBC Radio 6Music Singnal error: 0 Strength: Strength of signal Minimum signal level

Indikátor na lište zobrazuje minimálnu prijatel'nú úroveň signálu.

FM 15:36 87.50MHz [No Radio Text]

Select a mode from here to listen. Set device settings such as change friendly name, view radio information,ect.. Radio friendly name (or group name). Close now playing screen. Now playing mode. Select something from here to play. Save or recall preset station from here. Benny Goodman & His Orchestra - A String of Radio Swing Window Now playing program. Volume control

Rescan ← Edit Groups Close → Tap to leave editing. Master device ← DigitRadio 110 IR 002261d718d8 Client ← DigitRadio 110 IR 002261d71900 Multimoom Audio Systems Lisa Tap to create a new group. Create Group

House Internal Radio Vivier Cugat & His Waldorf-Astoria Orchestra - Radio Swing Off-Backway Volume control ← ←

Volume Controls Close Focus DigitRadio 110 IR 002261d71900 ID ID DigitRadio 110 IR 002261d718d8 ID ID Master Volume

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

CE
