USER MANUAL Jade 91528 Pro-User

UK: Assembly instruction and safety regulations

Black and white photo of a JADE V50 vehicle rear bumper with attached JADE vehicle tray (no visible text or symbols)

PRO USER BIKE CARRIERS® USER

Europese typegoedkeur/Europäische Zulassung/European permission/Certification Européenne

E4-26R-03 0306

T

a

b

l

e

o

f

c

o

n

t

e

•

l

n

t

r

o

d

u

c

t

i

o

n

•

l

m

p

o

r

t

a

n

t

i

n

f

o

•

Mounting the bike carrier

32

•

The licenseplateholder & Lighting

33

•

Mounting of the bike carrier onto the tow bar

34

•

Mounting of the bikes on the bike carrier

36

•

Tilting mechanism

37

•

S

a

f

e

t

y

r

e

g

u

l

a

t

•

Maintenance & guarantee

39

•

A

c

c

e

s

s

o

r

i

e

s

•

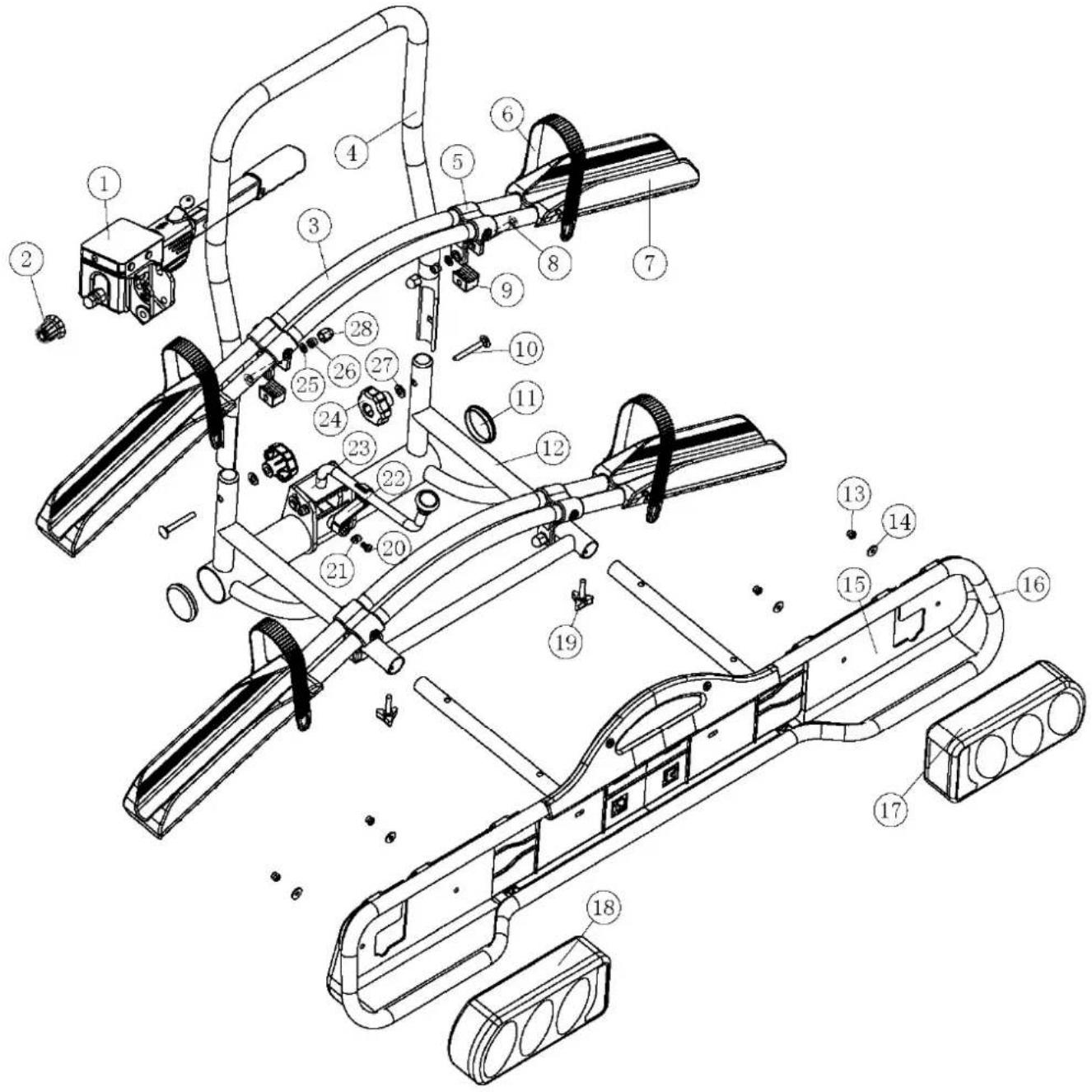

Part list & exploded drawing

41

Front view of a JADE vehicle with visible headlights and gear (no text or symbols on body)

Metal frame with two black clamps hanging from a vertical rod, no text or symbols visible

Two mechanical components with screws and bolts, no visible text or symbols

De montage:

Close-up of a mechanical device with metallic components and a mounted bracket (no visible text or symbols)

Front view of a JADE vehicle front-mounted lease bracket (no visible text or symbols on the body)

Close-up of a mechanical lever mechanism with a black handle and metal rail (no text or symbols visible)

DE NUMMERPLAATHOUDER

Close-up of a car's front bumper with visible headlights and decorative square cutouts (no text or symbols)

Close-up of a black automotive electrical plug with attached cable (no visible text or symbols)

Close-up of a mechanical switch mechanism with directional arrows indicating motion (no text or symbols)

Close-up of a mechanical lever assembly with a black handle and metal components (no visible text or symbols)

Close-up of a medical imaging machine with a patient's hand operating it, showing internal components and motion lines (no text or symbols visible)

Close-up of a mechanical device with directional arrows indicating movement or force, no visible text or symbols

Close-up of a mechanical device with a metallic connector and a black arrow pointing to it (no visible text or symbols)

Close-up of a black mechanical device with directional arrows and lock symbols, no readable text or labels present.

Close-up of a mechanical device with black clamps and metal rods (no visible text or symbols)

Close-up of a bicycle's front wheel and side panel, showing no visible text or symbols on the car body.

Close-up of a mechanical assembly with visible brand name 'PRESTIG' on the frame (no readable text beyond label)

Close-up of a bicycle wheel with a lock mechanism (no visible text or symbols)

Close-up of a car tire being adjusted with a strap, showing mechanical components and a person's hand (no visible text or symbols)

Close-up of bicycle suspension system components (no visible text or symbols)

HET KANTELMECHANISME

Silhouette of a person pushing a vehicle with a red arrow, next to a car (no text or symbols)

Side view of a black SUV front bumper with attached mechanical sensor array (no visible text or symbols)

Close-up of a pipe fitting with a valve and screw, no visible text or symbols

VEI LIGHEIDVOORSCHRIFTEN

Close-up of a mechanical gear shift lever with a knob and control panel (no visible text or symbols)

White car with a JADE-branded navigation device mounted on a paved surface, no visible text or symbols on the vehicle or background.

Close-up of a mechanical component with a metallic clip attached to a black base (no visible text or symbols)

Exterior view of a car with attached roof-mounted tractors and a parked vehicle (no visible text or symbols)

Technical diagram of a mechanical assembly with numbered components for identification

EINFÜHRUNG

Front view of a JADE vehicle with visible headlights and gear (no text or symbols on body)

Metal frame with two black clamps hanging from each other against a plain wall (no text or symbols visible)

Two mechanical fasteners with bolts and mounting holes (no text or symbols visible)

Die Montage:

Close-up of a mechanical device with metal frame and clamping mechanism (no visible text or symbols)

Front view of a JADE vehicle front-mounted truck cab (no visible text or symbols on the vehicle body)

Close-up of a mechanical lever mechanism with a black handle and metal rail (no text or symbols visible)

Close-up of a car's front wheel and side mirror panel (no visible text or symbols)

Close-up of a black automotive electrical plug with attached cable (no visible text or symbols)

Close-up of a mechanical clamp or lever mechanism with directional arrows and a lock, no visible text or symbols

Close-up of a mechanical device with a lever and handle, no visible text or symbols

Close-up of a medical imaging device with a human hand operating it, showing internal components and tubing (no visible text or symbols)

Close-up of a mechanical device with a lock and adjustment knob, no visible text or symbols

Close-up of a white industrial control box with a metallic connector and a black arrow pointing to it (no visible text or symbols)

Close-up of a mechanical device with directional arrows and a dial indicator (no readable text or symbols)

Close-up of a mechanical device with black and white components, no visible text or symbols

Close-up of a bicycle's front wheel and side seat, showing no visible text or symbols

Prestig

Close-up of a mechanical device with a lock and gear mechanism (no visible text or symbols)

Close-up of a hand using a tool to trim a car tire, with no visible text or symbols.

Close-up of a motorcycle's front wheel and suspension system (no visible text or symbols)

DER ABKLAPPMECHANISMUS

Side view of a black SUV trunk with attached mechanical sensor array (no visible text or symbols)

Silhouette of a person pushing a vehicle with a red arrow, next to a car (no text or symbols)

Close-up of a pipe fitting with a valve and screw, showing mechanical components (no text or symbols visible)

SI CHERHEI TSVORSCHRI FTEN

Fietsrager of Treknak Aust is brought in the record? LET OPI LET OPI Pcs 100000 LET OPI

Black-and-white photo of a JADE vehicle mounted on a paved pavement, no visible text or symbols on the vehicle or background.

Close-up of a mechanical component with a metallic clip attached to a black base (no visible text or symbols)

Exterior view of a car with attached roof-mounted sensors and a parked vehicle (no visible text or symbols)

Technical diagram of a mechanical assembly with numbered components for identification

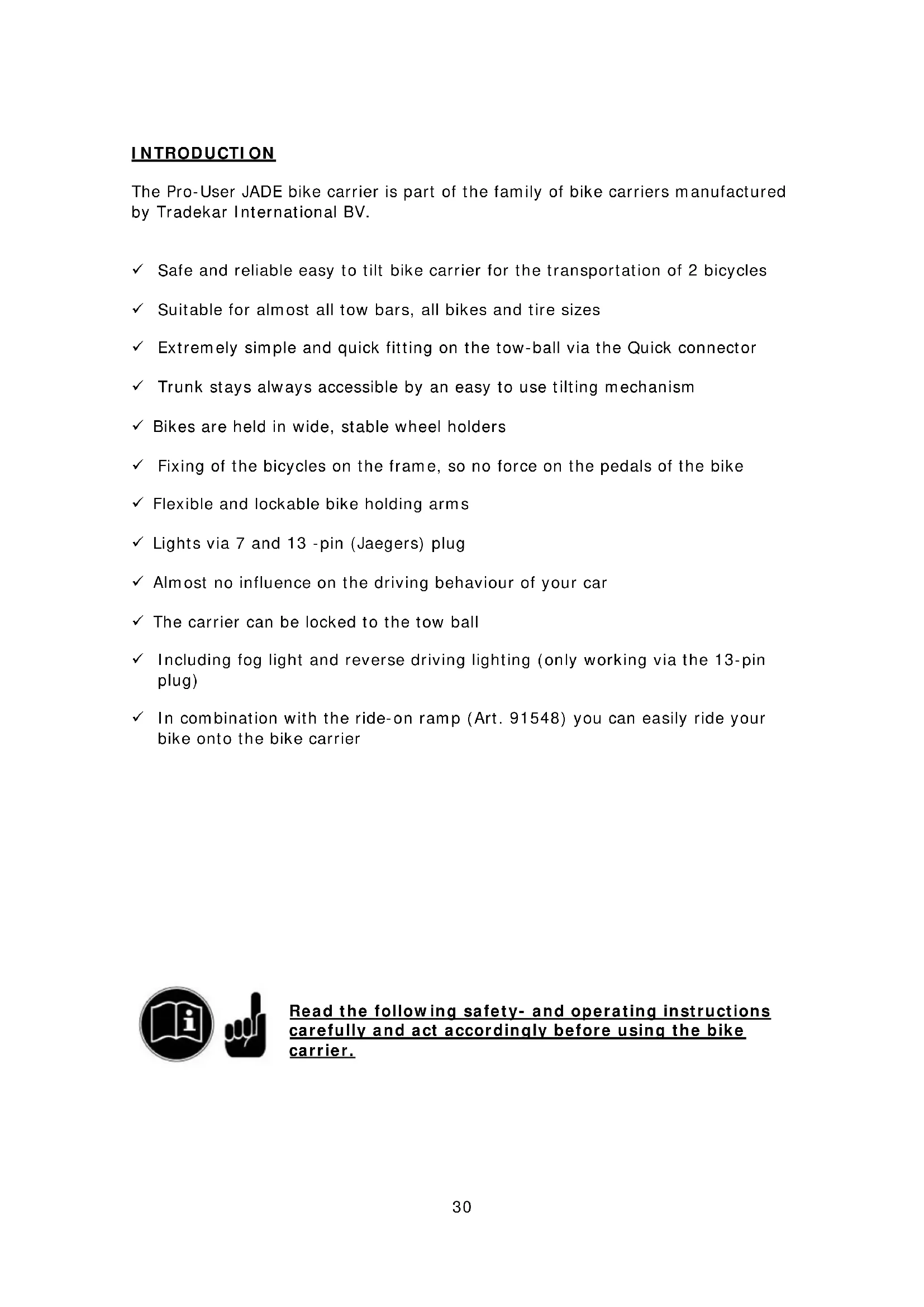

INTRODUCTION

The Pro-User JADE bike carrier is part of the family of bike carriers manufactured by Tradekar International BV.

√ Safe and reliable easy to tilt bike carrier for the transportation of 2 bicycles
√ Suitable for almost all tow bars, all bikes and tire sizes
√ Extremely simple and quick fitting on the tow-ball via the Quick connector
√ Trunk stays always accessible by an easy to use tilting mechanism
√ Bikes are held in wide, stable wheel holders
√ Fixing of the bicycles on the frame, so no force on the pedals of the bike
√ Flexible and lockable bike holding arms
√ Lights via 7 and 13 -pin (Jaegers) plug
√ Almost no influence on the driving behaviour of your car
√ The carrier can be locked to the tow ball
√ Including fog light and reverse driving lighting (only working via the 13-pin plug)

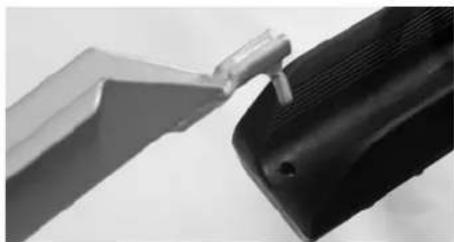

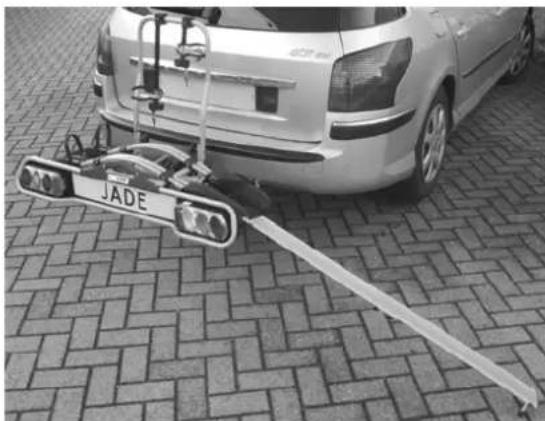

√ In combination with the ride-on ramp (Art. 91548) you can easily ride your bike onto the bike carrier

Read the following safety- and operating instructions carefully and act accordingly before using the bike carrier.

IMPORTANT INFORMATION

Read these instructions carefully before using the product for the first time.

Do not use this product until the manual and safety regulations are read and are entirely clear.

The assembly and installation of the bikecarrier can only be done according to this instruction manual.

The steps that are mentioned and the safety regulations for assembly, handling and use of the bikecarrier need to be followed! The slightest non conformity can lead to incorrect assembly or wrong use.

The carrier is suitable for the transport of two bikes at most. Please check the maximum permissible ball load. You can find it on the identification plate of the tow bar of your car (for most cars this is 75kg). The total weight of the carrier with the bikes cannot exceed the maximum permissible ball load of the tow bar.

The maximum permissible load for the carrier itself may be 60kg. The net weight of the carrier is 17kg.

Max. permissible Ball load	Weight Bike carrier Max. load
50kg	17kg	33kg
60kg	17kg	43kg
75kg	17kg	58kg
90kg	17kg	Max. 60kg

Not suitable for the use on an aluminium tow ball.

Keep these instructions in your car.

CONSUMER HELPDESK & SUPPORT

[phone] (Monday till Thursday 8:30-12:30)

[e-mail]

MOUNTING THE BIKE CARRIER

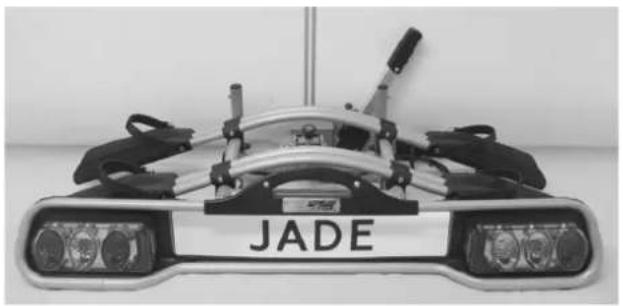

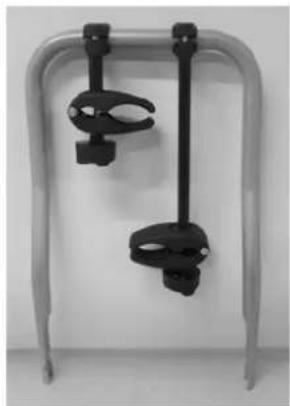

The bike carrier is already assembled in part. You only need to assemble the last parts. Remove all parts from packaging and arrange them in a well-organized way. The instructions will clearly describe and show the parts that you need for assembly of the bike carrier

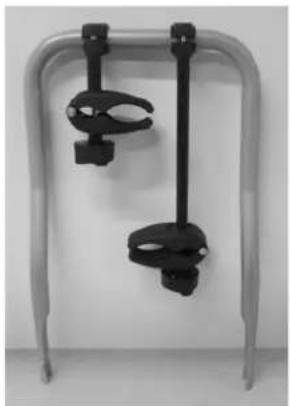

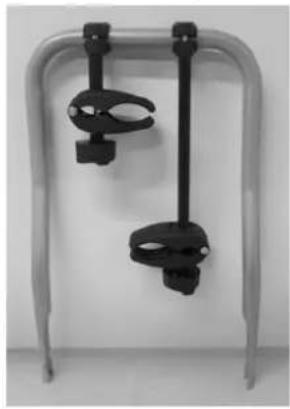

Parts:

Front view of a JADE vehicle with visible headlights and gear (no text or symbols on body)

Metal frame with two black clamps hanging from a vertical rod, no text or symbols visible

Two mechanical components: two screws and two black octagonal nuts with holes, shown without any text or symbols.

Assembly:

Close-up of a mechanical device with metal frame and clamping mechanism (no visible text or symbols)

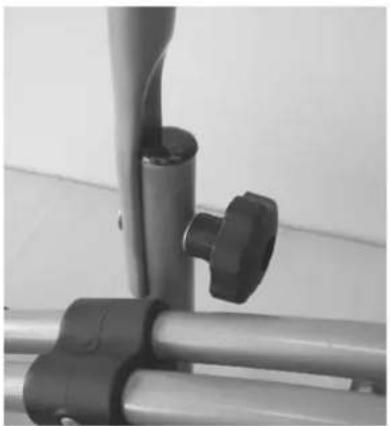

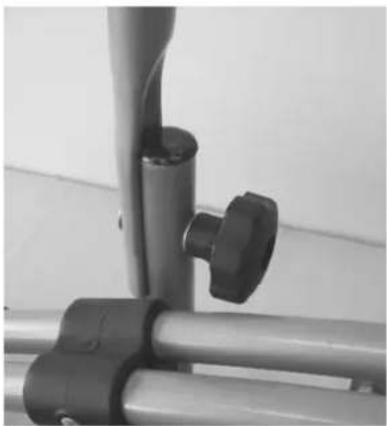

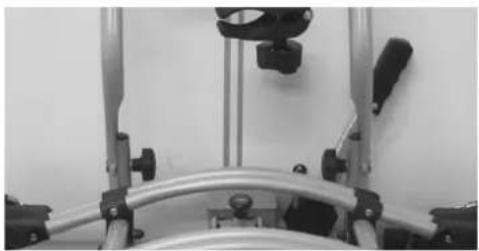

Slide the U-frame on the U-frame holders of the base frame. Secure this U-frame with the carriage bolts (M8x60), washers (M8) and plastic knobs (M8) supplied with the carrier. The plastic knobs must be mounted on the inside.

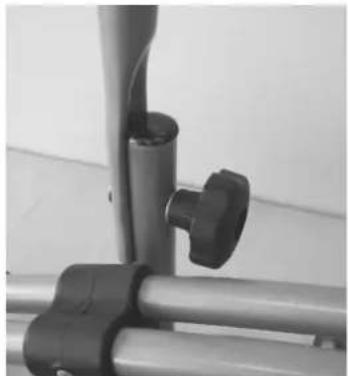

Please note you have to firmly tighten both rotary knobs so that the U-frame will come on its place well.

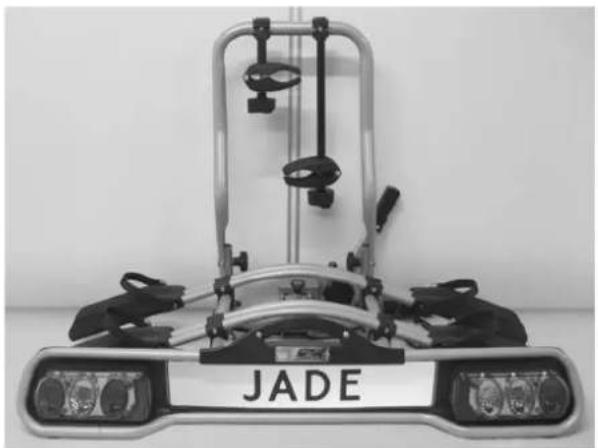

End result:

Front view of a JADE vehicle rear bumper with visible headlights and control knobs (no text or symbols on the vehicle itself)

Close-up of a mechanical lever mechanism with a black handle and metal rail (no text or symbols visible)

THE LICENSEPLATEHOLDER

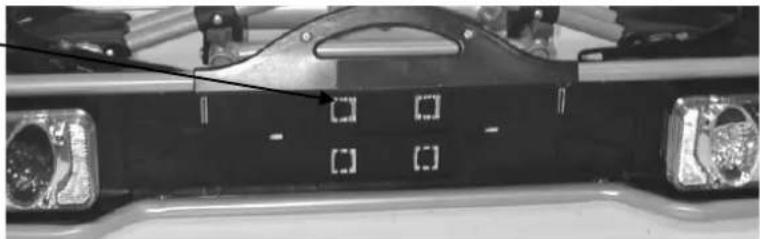

The fastening clips to secure the number plate are incorporated in the back of the number plate holder and can easily be pressed out. Subsequently, use two clips to secure the number plate (at the bottom).

Close-up of a car's front panel with visible headlights and mounting holes (no text or symbols)

LIGHTING

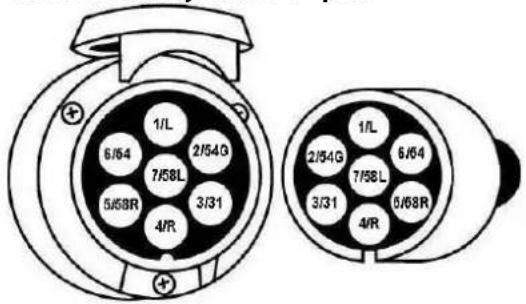

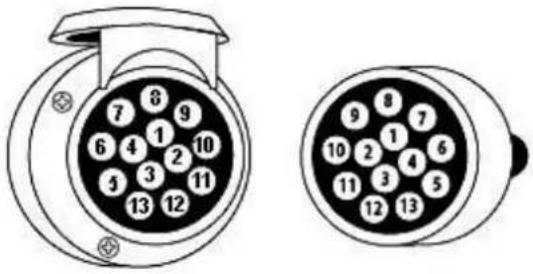

This bike carrier is equipped with a lighting system. This system can be connected to the tow bar power socket of your car. Seeing that there are different kinds of sockets that require different

kinds of plugs, this carrier comes with the usual 7-pin plug and the 13-pin plug (Jaegers). As a result, the carrier can be used with any tow bar!

Both plugs are in one housing. Please cover the plug you don't use with the supplied cover.

Black plastic electrical plug with attached wires (no visible text or symbols)

Universal system 7 pin	1/L2/54G3/314/R5/58R6/547/58L	Indicator leftRear fog lightGroundIndicator rightRear light rightStop lightsRear light leftThe reversing light is not working via the 7-pin plug!	yellowbluewhitegreenbrownredblack
Jaegers system 13 pin(DIN 72.570)	12345678910111213	Indicator leftRear fog lightGroundIndicator rightRear light rightStop lightsRear light leftReversing lightNot usedNot usedNot usedGroundNot used	yellowbluewhitegreenbrownredblackgray

MOUNTING OF THE BIKE CARRIER ON CAR

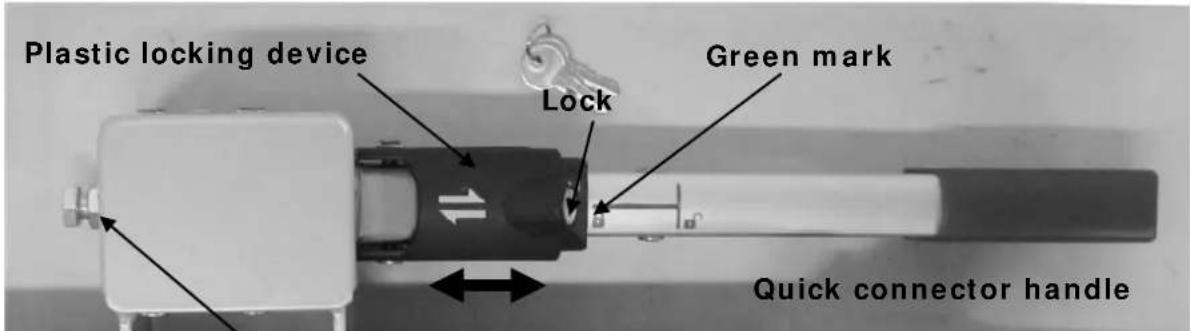

The first step is to become familiar with the quick connector.

Plastic locking device Lock Green mark Quick connector handle

Quick connector adjustment screw

The quick connector consists of a case mounted to the bike carrier and a lever. Using the lever, you can close and open the quick connector. Using the sliding locking devise to lock the handle of the quick connector and finally lock the complete quick connector with the key (mandatory during use!).

When mounting the bike carrier to the car, it is best that the car is parked straight, the engine is turned off and the parking brake is activated. Make sure that the tow ball is undamaged, clean and not greasy!

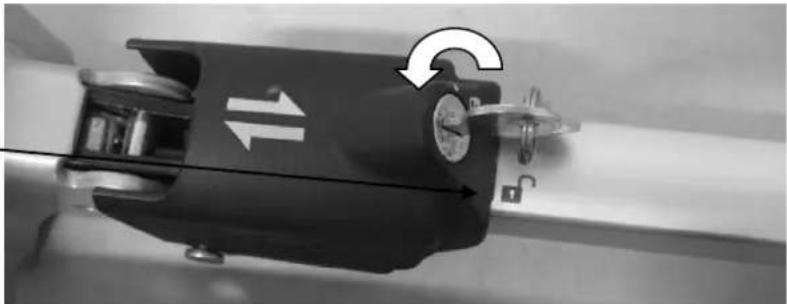

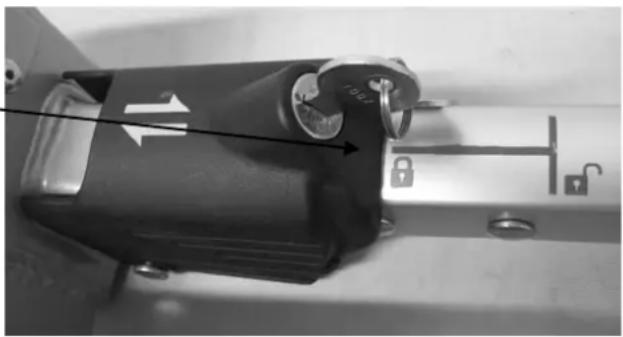

Open the lock of the plastic locking device with use of the supplied key. Turn the

key one quarter (key stands now vertical). Slide the plastic locking device to the right (only open red lock is visible on the handle).

Close-up of a mechanical switch mechanism with directional arrows and a circular component (no text or symbols visible)

Mechanical device with lever and bracket assembly (no visible text or symbols)

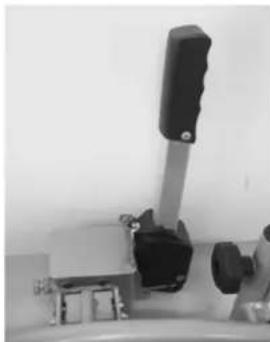

Release the quick connector by moving the handle in the vertical position.

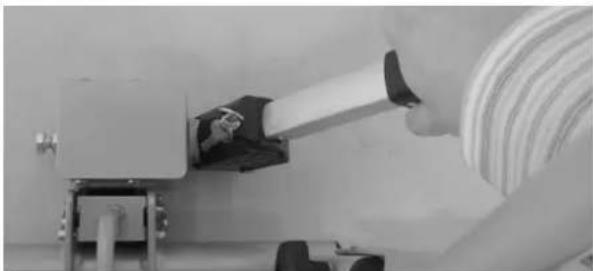

Position the bike carrier on the tow-bal from the top. Press the handle of the quick connector downwards (approx. 35-40kg) until it stops (handle will stay stable in the horizontal position).

Close-up of a mechanical device with a cylindrical component inserted, showing internal components and a coiled cable (no visible text or symbols)

Slide the plastic locking devise to the left until the green mark on the handle is 100% visible.

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

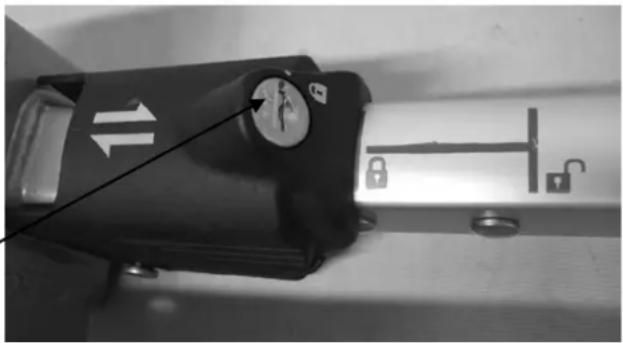

Now test if the carrier is attached steady enough on the tow ball (and not easy to

twist). If not, you have to adjust the quick connector. Detach first the carrier by sliding the plastic locking device to the right and pull the handle up. Adjust the adjustment bolt (First release the locking nut, than adjust the bolt and finally lock it again with the locking nut). Test again if the carrier is stable enough on the tow bal (and not easy to twist). Repeat this until the carrier is completely stable. Caution: Always make sure that the locking nut of the adjustment bolt is tightened again!

Close-up of a white electronic device with a black arrow pointing to a metallic connector (no visible text or symbols)

When the bike carrier is not easy to turn anymore, the quick connector can be locked. Slide the plastic locking devise to the left until the green mark on the handle is 100% visible. Lock the quick connector with the key and take the key out (the red mark is on the position of the lock symbol). Keep it carefully on a safe place. The bike carrier is now also protected against theft.

Close-up of a mechanical device with directional arrows and a lock mechanism (no text or symbols visible)

Always check if the quick connector is well secured! The green mark on the handle must be completely visible and the red dot on the lock must be at the same position as the lock symbol on the locking device.

MOUNTING OF THE BIKES ON THE BIKE CARRIER

Remove all parts from the bikes that could easily be lost (E-bike batteries, bike pumps, speedometers, baskets, panniers, bicycle seats etc.) during transport. These parts may become loose by the increased air resistance and vibration and put other road users at risk.

The first (and heaviest, max 30kg) bike has to be placed in the rear wheel holder (the one which is the nearest to the car) and secured with the short frame holder on the U-tube. The frame holders are flexible to place on the U-tube, and are also flexible to place on your bike. Try the first time which position in your situation works best (and most stable affirmative is). It is important to place the frame holder as high as possible, giving maximum stability.

Close-up of a mechanical device with black clamps and metal rods (no visible text or symbols)

Close-up of a bicycle frame with visible latches and a license plate (no readable text or symbols)

PRESTIG

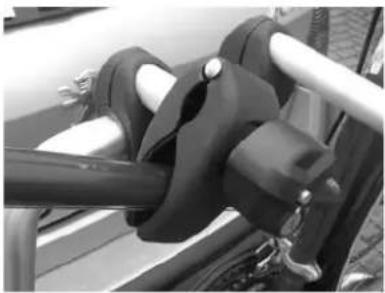

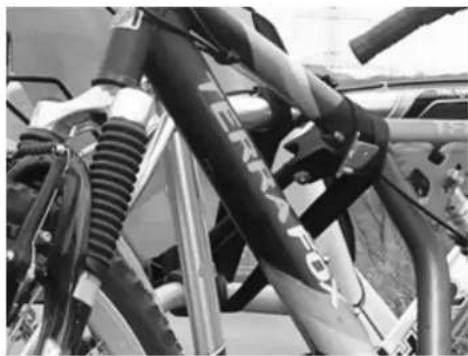

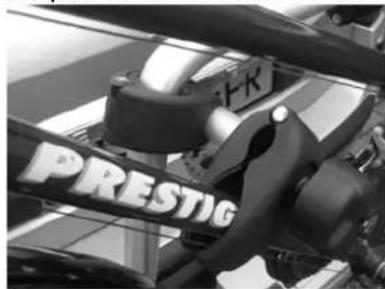

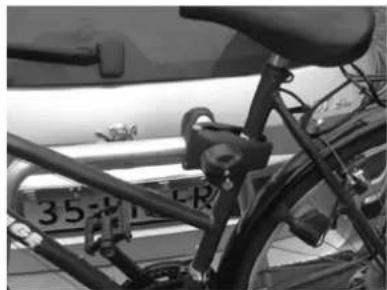

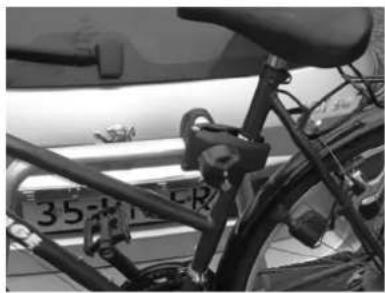

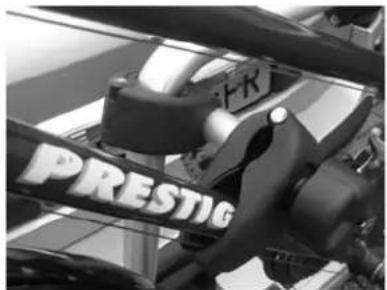

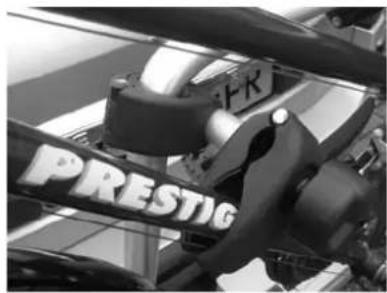

Clamp the frame of the bike with the frame holder and turn the lockable button tight.

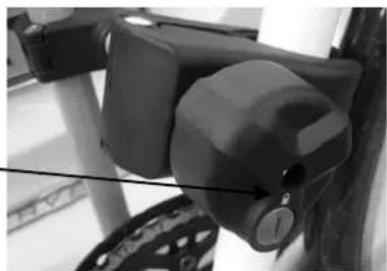

Always lock the frame clamp with the key (the "lock" sign on the button and the red sign on the metal plate indicate if the frame holder is locked or unlocked).

Close-up of a mechanical device with a black handle and circular base, mounted on a vertical pole (no visible text or symbols)

Place the second bike in opposite direction in the second wheel holder and you secure it with the long frame holder.

Close-up of a hand adjusting a car tire component with a strap (no visible text or symbols)

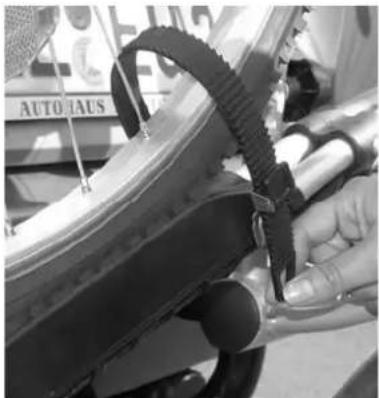

Secure the wheels using the straps already fixed on the wheel holder.

Close-up of a motorcycle's suspension system with visible hoses and brackets (no text or symbols)

Now secure the bikes using the long safety belt (included in delivery). Run the safety belt through the bike frame and around the U frame and tighten firmly.

TILTING MECHANISM

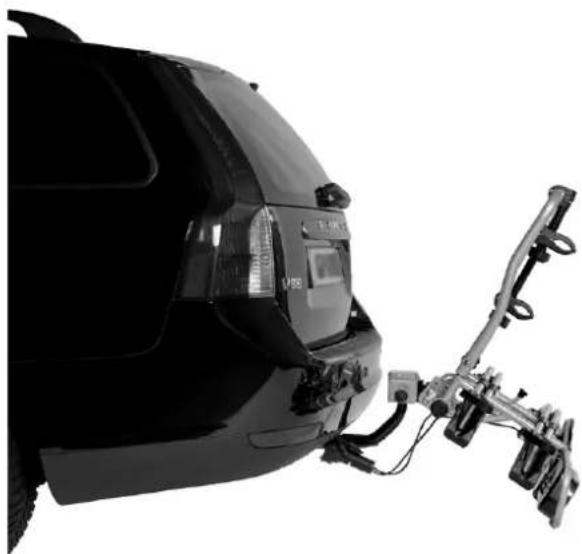

For easy access to your boot, even if the bikes are mounted on the carrier, you may use the tilting mechanism.

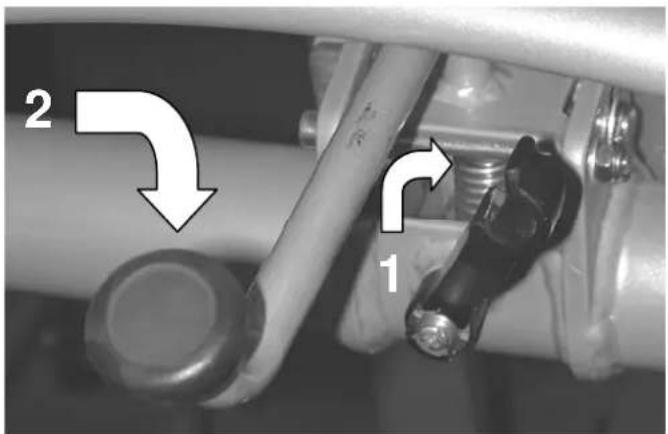

First you must push aside the safety lock of the tilting mechanism (1).

2 1

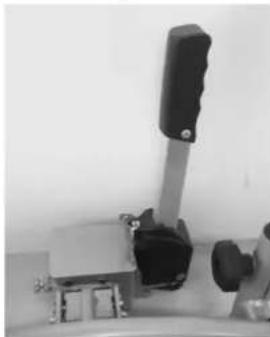

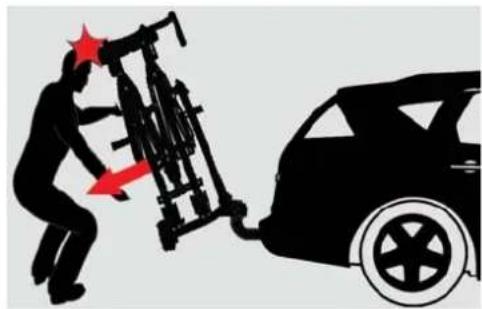

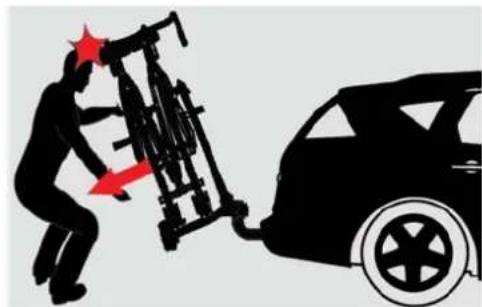

With one hand, keep a firm grip on the U-frame so that the carrier cannot fall down in an uncontrolled movement. With the other hand, push the handle of the tilting mechanism down to unlock it (2). It is now possible to tilt the carrier.

Silhouette of a person pushing a vehicle with a red arrow, next to a car (no text or symbols)

Side profile of a black car head with attached mechanical sensor array (no visible text or symbols)

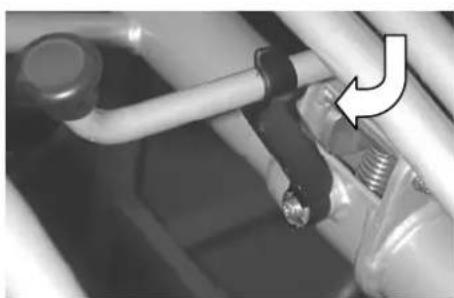

By pushing the entire carrier up, the tilting mechanism is locked again. Make sure to always secure the handle again with the safety lock!

Close-up of a mechanical pipe fitting with a curved arrow indicating direction (no text or symbols visible)

The bike carrier may never be used if the tilting mechanism is not well secured.

SAFETY REGULATIONS

Keep the tow ball clean and free of grease.

Each time after having mounted the carrier on the tow ball, it will "settle" during the first kilometres that you drive. Therefore, check if the carrier is still firmly secured after the first few kilometres and if necessary, tighten the locking bolt.

Check the bikecarrier before use if there is any damage. Damaged or worn parts need to be replaced immediately. Only use original replacement parts.

Do not make any modifications on the bikecarrier (mechanical or electronic) This can be very dangerous. Warranty claims will not be accepted and we can not guarantee the correct functionality of the bikecarrier, if you done modifications. We are not responsible for damage caused as result of incorrect assembly, installation or modification.

Check the correct operation of the lighting at regularly.

Always make sure that the bikes are firmly fixed by using the frame clamps and wheel safety belts. During transport, the frame clamps need to be locked.

Always use the extra safety belt, for extra protection of your bikes. Run the safety belt trough the U-frame and the frames of the bikes, and pull this firmly.

Make sure that no parts of the bike can get lost during driving (pump, basket, saddlebags, etc.). Always remove these before driving!

Check regularly if all the belts, knobs and fixations are firmly secured and if necessary secure them again.

Always make sure that the tilting mechanism is locked.

Always make sure that the quick connector is closed and locked.

Do not cover the bikes with a cover while driving.

Driving with a bike carrier affects the performance of your car. Adjust your speed accordingly (max 120km/h). Try to avoid sudden braking and steering movements.

Please remember when driving in reverse that the car is longer than usual!

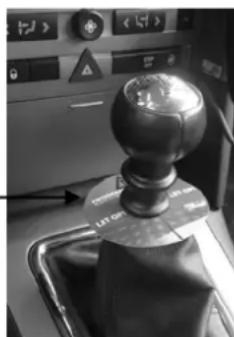

Close-up of a mechanical lever mechanism with a glossy finish and control panel (no visible text or symbols)

In addition, pay attention to the regulatory requirements applicable to the transport of goods at the back of your vehicle.

When you have a vehicle with electronic parking sensors, an error message can come when the bikecarrier is mounted. Switch off the parking system during the use of the bikecarrier.

If the car is equipped with an automatic opening of the trunk, this must be switched off or only opened manually, if the bikecarrier is mounted.

Take the bikecarrier of the tow ball before using the carwash.

The bikecarrier is not suitable for "off road" use.

Take the bikecarrier of the tow ball if not used.

In case of defects or problems please contact your Pro-User supplier.

MAINTENANCE

Always store the bikecarrier clean and dry after use. If necessary spray with the water hose to remove mud and other filthy stuff.

Keep the tow ball of the car clean and free of grease.

Keep the quick connector of the bikecarrier clean and free of grease.

Check the bikecarrier regular if there is any damage. Damaged or worn parts need to be replaced immediately. Use only original replacement parts.

The nuts and bolts of the bikecarrier need to be checked regular, if necessary tighten them again.

If there is a damage on the powder coating of the bikecarrier this need to be treat with paint immediately.

Rotating and moving parts need to be oiled regularly.

GUARANTEE

This product is covered by a 2 year guarantee. Please note that our guarantee covers reasonable use of the bike carrier, it does NOT cover any damage caused by misuse. This also applies to a malfunction or failure of the bike carrier that has been caused by poor or incorrect installation. To ensure the validity of the guarantee please carry out maintenance in accordance with the maintenance section. We reserve the right to make a call out and/or repair charge for any work required to be undertaken to rectify faults that are outside of the company's control i.e. incorrect or poor fitting, misuse, accidental damage, etc.

ACCESSORIES (not included)

ride-on ramp

Black-and-white photo of a JADE vehicle mounted on a paved pavement, no visible text or symbols on the vehicle or background.

With the optional ride-on ramp (Article 91548), you can really simply drive your bicycle on the bike carrier without lifting. To do this install the ride-on ramp onto the wheelholder using the pin and the special hole. As shown in the picture.

Close-up of a mechanical component with metallic pins and a textured base (no visible text or symbols)

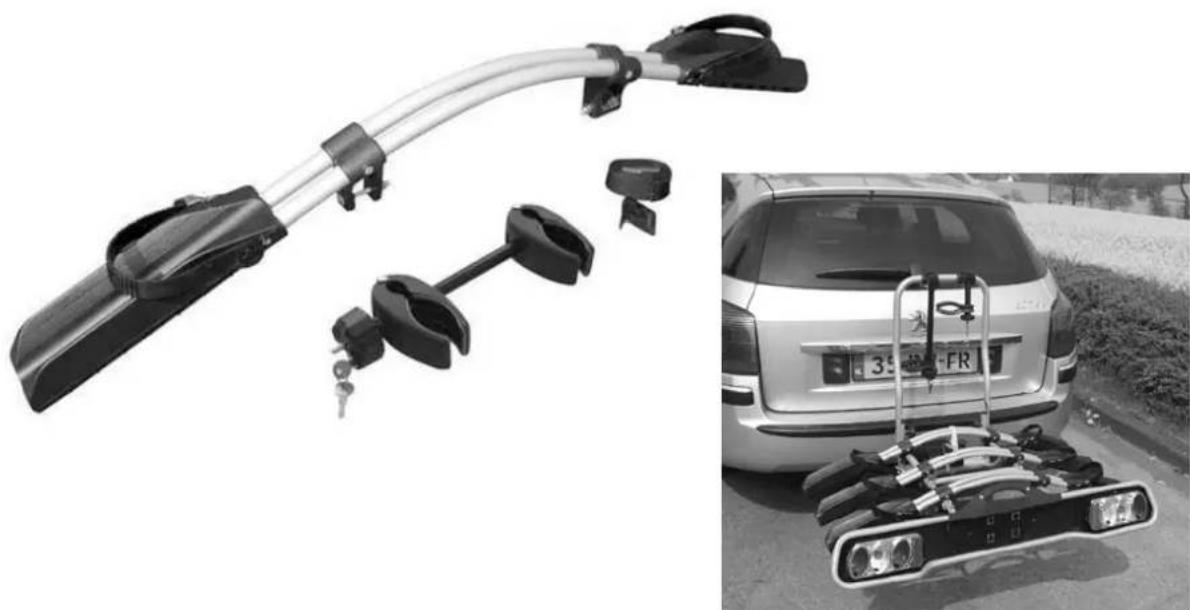

Extension to three bikes

With the add-on accessory (article 91534), the Jade bike carrier can be extended for the transport of three bikes. Ask your Pro-User dealer for more information about the possibilities.

Exterior view of a car with attached roof-mounted tractors and a parked vehicle (no visible text or symbols)

Attention: With the add-on accessory, the weight of the bike carrier (excluding bikes) will increase to 19kg!

PARTLIST

Pos nr.	Description	Number	Size
1	Quick connector 1
2	Plastic cap 1
3	Wheel holder 4
4	U-Frame 1
5	Fastening wheel holder	4
6	Synthetic strap 4
7 Plastic wheel holder 4
8	Lock bolt 4 M6x55
9 Small plastic press block 4
10	Lock bolt 2 M8x60
11	Plastic end cap	2
12	Base frame	1
13	Self locking nut	4 M5
14	Washer	5	M5
15	Plastic light holder	1
16	Lamp frame	1
17	Right rear light unit	1
18	Left rear light unit	1
19	Plastic knob	2
20	Small bolt	1	M5x10
21	Special washer	1
22	Plastic safety lock		1
23	Tilting mechanism	1
24	Plastic knob	2	M8
25	Washer	4	M6
26	Self locking nut	4 M6
27	Washer	2	M8
28	Plastic cap	4

EXPLODED DRAWING

Technical diagram of a mechanical assembly with numbered components for identification

INTRODUCTION

Front view of a JADE-branded vehicle with visible headlights and gear (no text or symbols on body)

Metal frame with two black clamps hanging from a vertical rod (no text or symbols visible)

Two mechanical fasteners with bolts and mounting holes (no text or symbols visible)

L'assemblage:

Close-up of a mechanical device with metal frame and clamps (no visible text or symbols)

Front view of a JADE vehicle rear bumper with visible headlights and control knobs (no text or symbols on the vehicle itself)

Close-up of a mechanical lever mechanism with a black handle and metal rail (no text or symbols visible)

SUPPORT DE LA PLAQUE

Close-up of a car's front panel showing illuminated windows and mounting holes (no text or symbols visible)

Close-up of a black automotive electrical plug with coiled cable (no visible text or symbols)

Close-up of a mechanical switch mechanism with directional arrows and lock symbols (no readable text or labels)

Close-up of a mechanical device with a black handle and metallic base, no visible text or symbols

Close-up of a mechanical device with a cylindrical component and coiled cable, no visible text or symbols

Close-up of a mechanical component with directional arrows indicating movement or force, no visible text or symbols

Close-up of a mechanical device with a black arrow pointing to a small component (no visible text or symbols)

Close-up of a black mechanical device with directional arrows and a lock mechanism (no text or symbols visible)

Close-up of a mechanical device with black clamps and metal rods (no visible text or symbols)

Close-up of a bicycle's front wheel and side seat, showing no visible text or symbols

Close-up of a mechanical assembly with visible 'PRESTIG' branding (no readable text beyond label)

Close-up of a mechanical device with a lock and gear mechanism (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a car tire (no visible text or symbols)

Close-up of bicycle suspension system components (no visible text or symbols)

MECANISME A BASCULE

Silhouette of a person pushing a vehicle with a red arrow, next to a car (no text or symbols)

Side profile of a black SUV front bumper with attached mechanical sensor array (no visible text or symbols)

Close-up of a mechanical pipe fitting with a directional arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical lever mechanism with a spherical knob and control panel (no visible text or symbols)

Exterior view of a white car with a mounted robotic device and a long white cable on a paved surface (no visible text or symbols)

Close-up of a mechanical component with a metallic clip attached to a black base (no visible text or symbols)

Black-and-white photo of a car-mounted cable rack with attached lockers and a parked SUV (no visible text or symbols)

Technical diagram of a mechanical assembly with numbered components for identification

© Tradekar 91528/15B

PROUSER BIKE CARRIERS® USER

Tradekar Benelux BV

Staalweg 8 [phone]

4104 AT CULEMBORG [e-mail]

The Netherlands www.pro-user.eu
