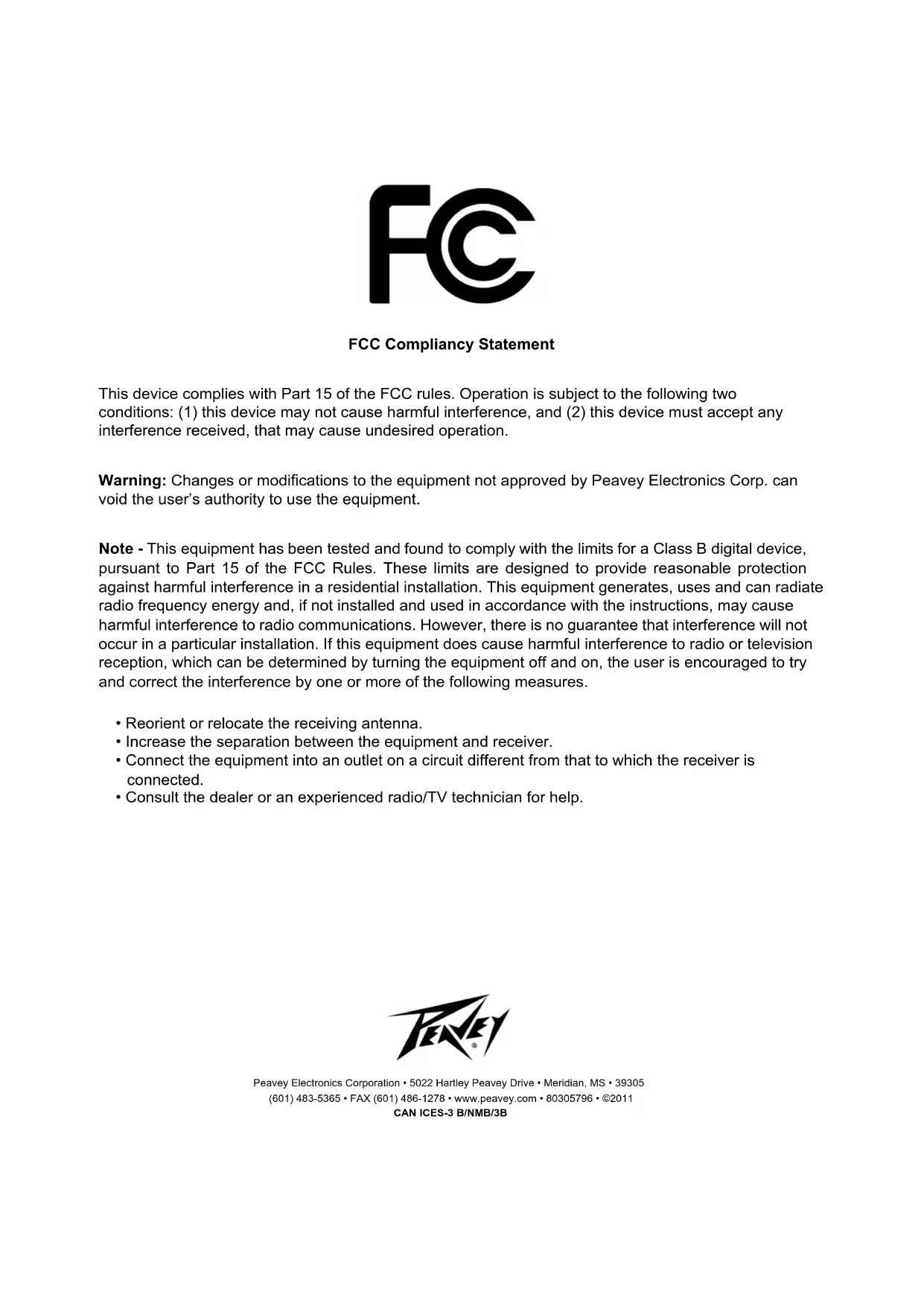

FCC Compliancy Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, that may cause undesired operation.

Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user's authority to use the equipment.

Note - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Peavey Electronics Corporation · 5022 Hartley Peavey Drive · Meridian, MS · 39305

[phone]·FAX [phone]·www.peavey.com·80305796·©2011

CANICES-3B/NMB/3B

ENGLISH

IPR2TM 2000 / 3000

Power Amplifier

Congratulations on your purchase of an IPR2™ power amplifier, designed for years of reliable, flawless operation under rigorous use. The groundbreaking IPR2 series utilizes an advanced design that allows Peavey engineers to dramatically reduce weight while increasing output power, reliability and thermal efficiency. IPR2 Series amplifiers are designed with a resonant switch-mode power supply and a high-speed class D topology that yields the highest audio resolution and efficiency available. This revolutionary amplifier offers the sonic superiority and unsurpassed reliability for which Peavey is famous, in an extremely efficient and lightweight design. Advanced technology and extensive protection circuitry allow operation with greater efficiency into difficult loads and power conditions. The DDT™ (Distortion Detection Technique) circuitry ensures trouble-free operation into loads as low as 2 ohms. DDT protects drivers and ensures that sonic integrity is maintained, even in extreme overload conditions. The IPR2's high-efficiency design allows the amplifier to operate at very low temperatures, and does not require massive heat sinks to cool. For your safety, read the important precautions section, as well as input, output and power connection instructions.

Although the IPR2 amplifier is simple to operate and housed in an ultra-strong, ultra-lightweight chassis, improper use can be dangerous. This amplifier is very high-powered and can put out high voltages and sizable currents at frequencies up to 30kHz . Always use safe operating techniques when operating this amplifier.

Before you apply power to your amplifier, it is very important to ensure that the product has the proper AC line voltage supplied. You can find the proper voltage for your amp printed next to the IEC line (power) cord on the rear panel of the unit. Each product feature is numbered. Refer to the front-panel diagram in this manual to locate the particular features next to its number.

Please read this guide carefully to ensure your personal safety as well as the safety of your amplifier.

FEATURES:

2 channel independent crossovers

• Two pole combination twist lock and 1/4 (6.3mm) phone plug outputs

• DDT ^TM protection

• Ultra-light weight

Revolutionary IPR2 class D topology

• Individual signal patch 1/4 (6.3mm) jacks on each channel

Detented input controls

• LED illuminated

Combination XLR and 1 / 4 inputs

• Standby, LED power present indication

VENTILATION: For proper ventilation, allow 12^ clearance from nearest combustible surface.

Make sure that vents are not blocked and air can flow freely through the unit.

NOTE: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or and experienced radio/TV technician for help.

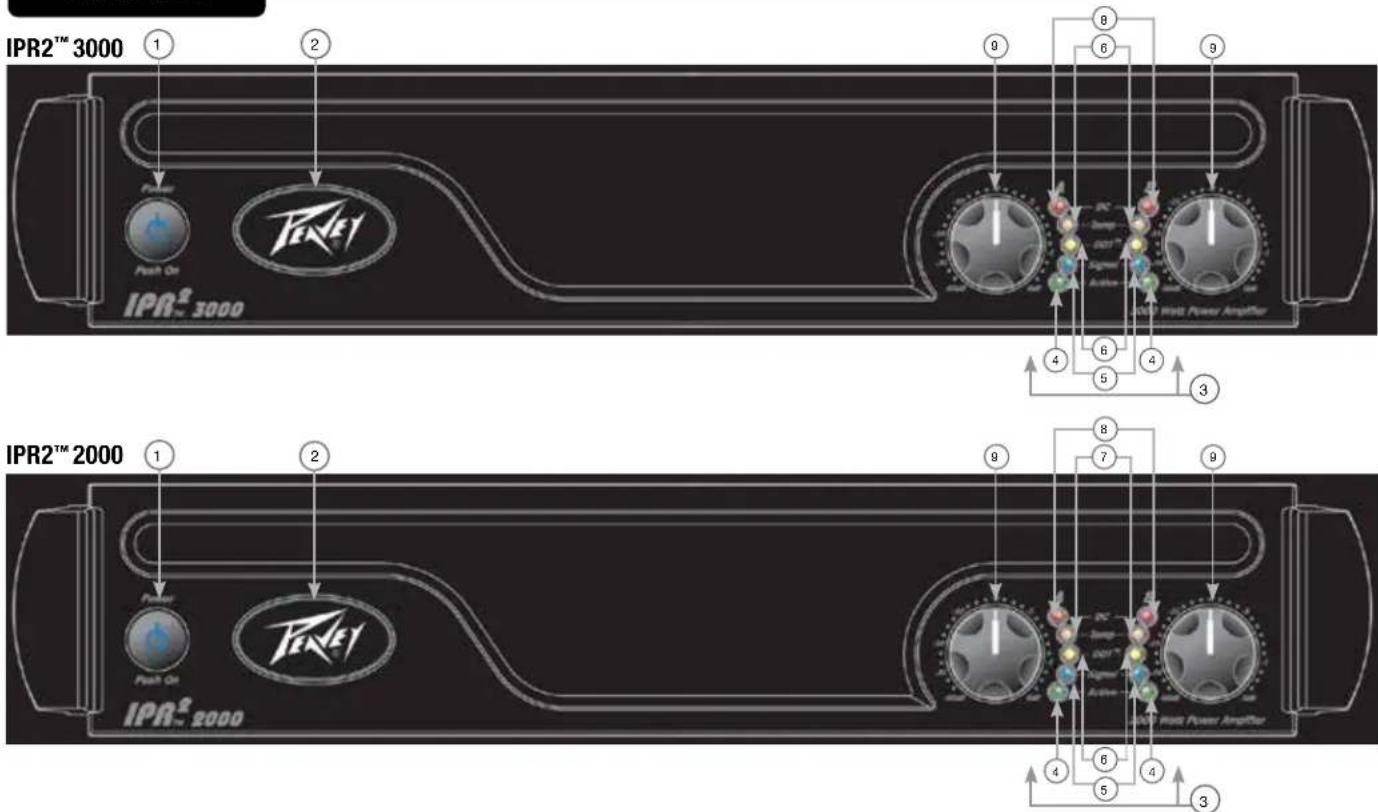

Front Panel

IPR2TM 3000

AC POWER SWITCH

This button triggers the relay that provides power to the amplifier. This button indicates power is connected to the amplifier by glowing dimly while the amplifier is off (or in standby). When the switch is depressed, the amplifier will turn on and the switch will illuminate brightly.

PEAVEY LOGO

While the amplifier is off, the logo is illuminated dimly to indicate power is connected. When the amplifier is on, the logo will illuminate brightly.

INDICATORS

The IPR2 amplifiers feature five front-panel LED indicators per channel: ACTIVE, SIGNAL, DDT, TEMP and DC. These LED indicators inform the user of each channel's operating status and warn of possible abnormal conditions.

ACTIVE LED

The Active LED indicates that the channel is operational. It illuminates when the amplifier is in normal operation. If the Active LED goes off, the channel is not operational.

SIGNAL LED

The LED lights when its channel produces an output signal of about 4 volts RMS or more. The Signal LED indicates whether a signal is reaching and being amplified by the amplifier.

DDT™ (DISTORTION DETECTION TECHNIQUE) LED

A channel's DDT™ LED will light at the onset of clipping. If the LEDs are flashing quickly and intermittently, the channel is just at the clip threshold. A steady, bright glow means the amp is clip limiting, or reducing gain to prevent severely clipped waveforms from reaching the loudspeakers.

TEMPLED

In the unlikely event of an unstable thermal condition, amplifier protection will be activated and will shut down the offending channel. The Temp LED will remain illuminated until safe operating temperatures have returned.

DCLED

In the event of abnormal operating conditions, the IPR2 has built-in amplifier protection. Under conditions that would normally damage the loudspeaker, the DC LED will illuminate and the amplifier will automatically attempt to restart to correct the condition. If the amplifier does not return to normal operating status, contact your local authorized service center.

INPUT ATTENUATORS

wher possible, set the attenuators fully clockwise to maintain optimum system headroom. The input attenuator controls, located at the front panel (one for channel A, one for channel B), adjust signal attenuation for their respective amplifier channels in all modes. See the specifications at the end of this manual for standard voltage gain and input sensitivity information.

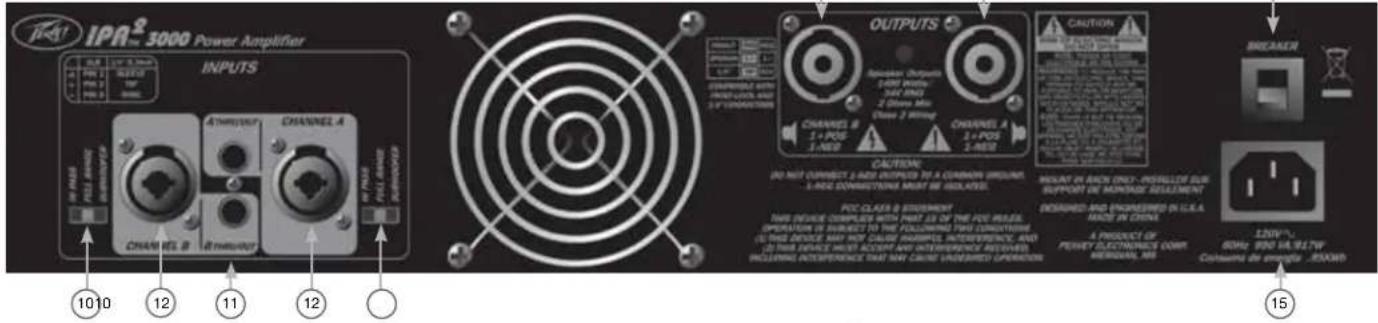

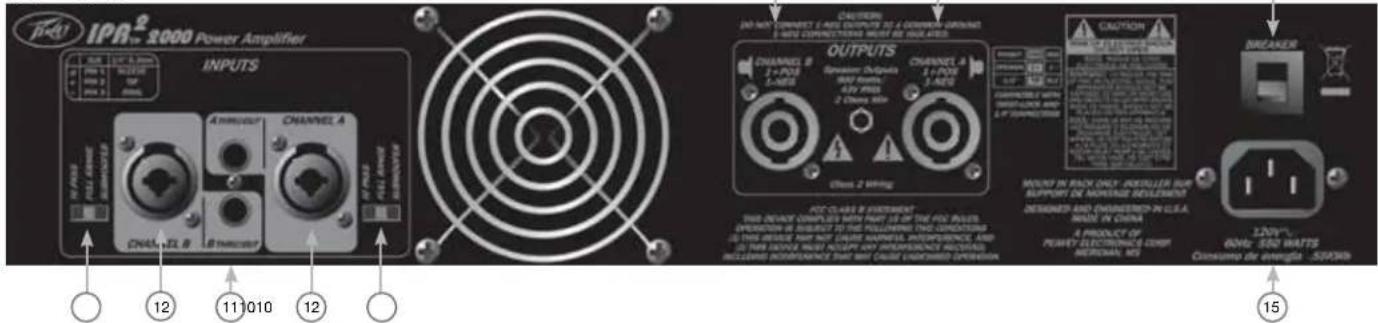

Rear Panel

IPR2TM 3000

IPR2TM 2000

CHANNEL MODE SWITCH:

HIGH PASS

This position is used to activate the HIGH PASS filter for the corresponding channel. This filter will limit the frequencies sent to the associated amplifier channel to frequencies above 100Hz . In situations where separate subwoofer cabinets are being used, this position would indicate connecting the mid-high frequency speaker cabinet to the channel associated with the HIGH PASS switch.

FULL RANGE

As the name implies, the Full Range position on this switch allows all frequencies to pass to the amplifier. Normally used when connecting a full range speaker enclosure to the amplifier's output.

SUBWOOFER

This position is used to activate the LOW PASS filter for the corresponding channel. This filter will limit the frequencies sent to the associated amplifier channel to frequencies below 100Hz . In situations where separate subwoofer cabinets are being used, this position would indicate connecting the subwoofer speaker cabinet to the channel associated with the Subwoofer switch.

THRU/OUT JACKS

This 1/4 (6.3mm) jack supplies parallel output signals from the associated channel for patching to this amplifier and/or additional power amplifier inputs.

CONNECTING INPUTS

This 1 / 4'' (6.3mm) jack is a parallel connection to the input connector for patching to this amplifier and/or additional power amplifier inputs. A TRS plug must be used to maintain a balanced connection.

CONNECTING OUTPUTS

All models have one two-pole twist lock and 1/4 (6.3mm) phone plug combination connector per channel. All four speaker connection wires must be isolated from each other.

CIRCUIT BREAKER

In the unlikely event of operating conditions that may potentially damage the amplifier, the circuit breaker may trip. After inspecting the cables and connections, the amplifier can be reset. If the circuit breaker trips a second time, contact the local Peavey authorized service center.

AC POWER INLET:

This is the receptacle for an IEC line cord, which provides AC power to the unit. Connect the line cord to this connector to provide power to the unit. Damage to the equipment may result if improper line voltage is used. (See line voltage marking on unit).

Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always make sure that the amplifier and all associated equipment is properly grounded.

NOTE: FOR U.K. ONLY

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

ENGLISH

IPR2TM 2000/3000 DSP

Power Amplifier

As the name implies, the IPR2™ 2000 and 3000 DSP all include advanced digital signal processing. The DSP was designed to be incredibly effective, yet extremely easy to use. Using unique and revolutionary advanced bass enhancement processes, the IPR2 DSP amplifiers dramatically improve the perceived level of bass in any system, using a fraction of the power that would be required with any other power amplifier.

Before you send signal through your amplifier, it is very important to ensure that the product has the proper AC line voltage supplied. You can find the proper voltage for your amp printed next to the IEC line (power) cord on the rear panel of the unit. Each product feature is numbered. Refer to the front panel diagram in this manual to locate the particular features next to its number.

Please read this guide carefully to ensure your personal safety as well as the safety of your amplifier.

IPR2TM 2000 / 3000 DSP FEATURES:

• DDT™ protection
  Revolutionary IPR2 class D topology
• Combination XLR and 1/4 inputs
• 2-pole twist lock output connector
  Light weight
• Individual signal patch-thru 1/4" jacks on each channel

• LED illuminated
  DSP-based Loudspeaker Management System

• Up to 120 ms of delay per channel

• 4 bands of parametric equalization per channel
  Security lock
• Adjustable Crossover
• Adjustable second through fourth-order high-pass filter each channel

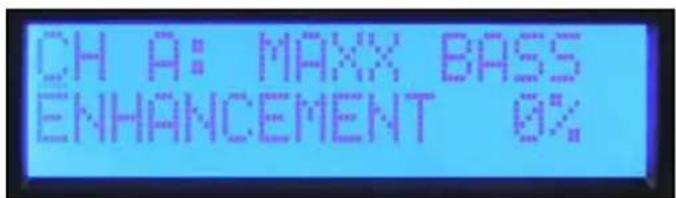

  MAXX Bass® bass enhancement circuitry

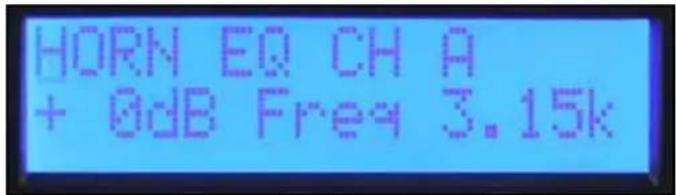

• Horn EQ each channel
• Blue, backlit LCD screen indicates DSP setting

WARNING: PLEASE REVIEW YOUR DSP SETTINGS BEFORE SENDING SIGNAL TO THE AMPLIFIER. INCORRECT SETTINGS CAN POTENTIALLY DAMAGE SPEAKER ENCLOSURES.

VENTILATION: For proper ventilation, allow 12" clearance from nearest combustible surface. Make sure that vents are not blocked and air can flow freely through the unit.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or and experienced radio/TV technician for help.

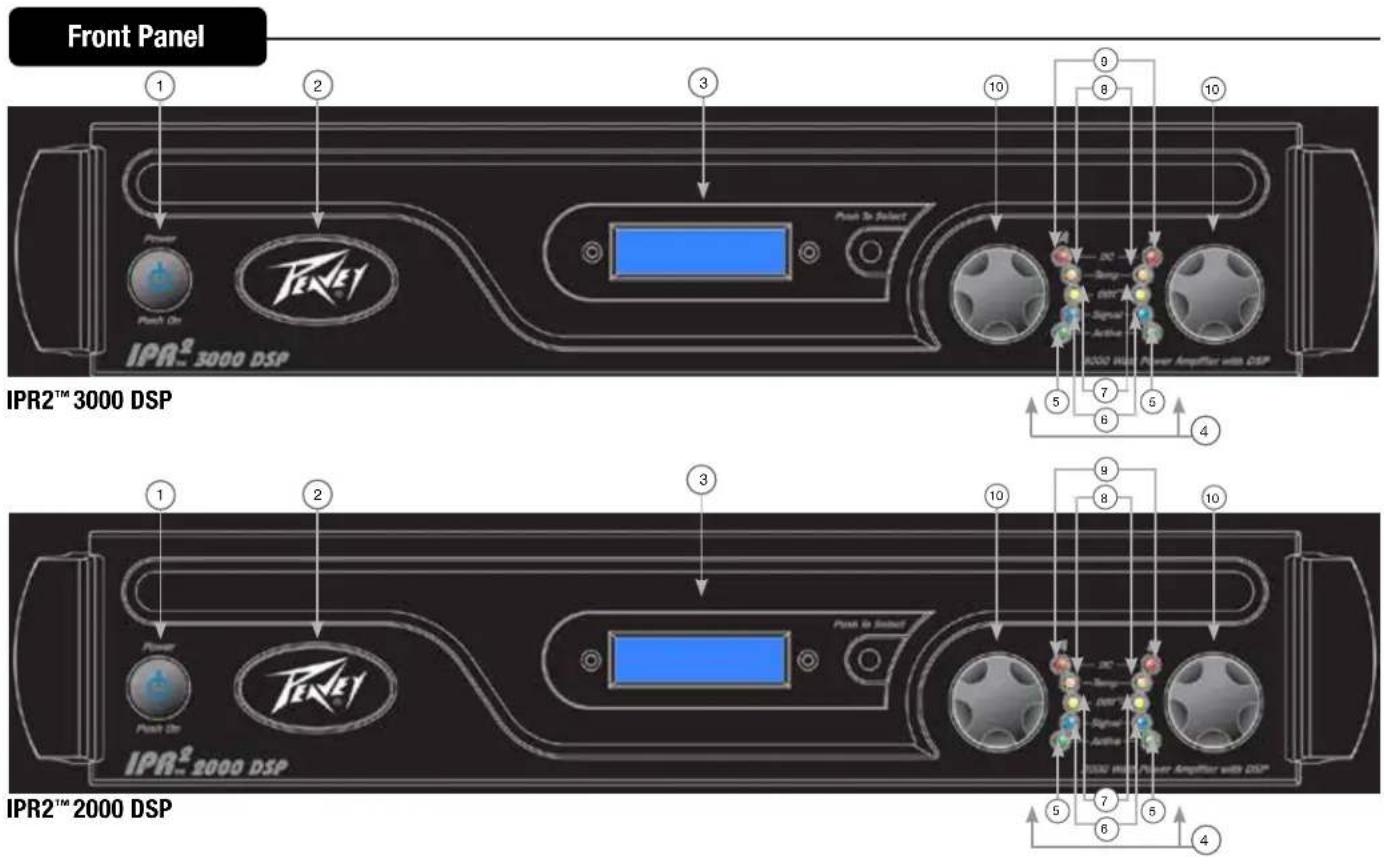

① AC POWER SWITCH

This button indicates power is connected to the amplifier by glowing dimly while the amplifier is off. When the switch is depressed, the amplifier will turn on and the switch will illuminate brightly.

② PEAVEYLOGO

While the amplifier is off, the logo is illuminated dimly to indicate power is connected. When the amplifier is on, the logo will illuminate brightly.

LCD SCREEN

Blue, backlit LCD screen indicates DSP setting.

INDICATORS

The IPR2 amplifiers feature five front-panel LED indicators per channel: ACTIVE, SIGNAL, DDT, TEMP and DC. These LED indicators inform the user of each channel's operating status and warn of possible abnormal conditions.

ACTIVELED

The Active LED indicates that the channel is operational. It illuminates when the amplifier is in normal operation. If the Active LED goes off, the channel is not operational.

6 SIGNAL LED

This LED lights when its channel produces an output signal of about 4 volts RMS or more. The Signal LED indicates whether a signal is reaching and being amplified by the amplifier.

⑦ DDT™ (DISTORTION DETECTION TECHNIQUE) LED

A channel's DDT LED will light at the onset of clipping. If the LEDs are flashing quickly and intermittently, the channel is just at the clip threshold. A steady, bright glow means the amp is clip limiting, or reducing gain to prevent severely clipped waveforms from reaching the loudspeakers.

TEMPLED

In the unlikely event of an unstable thermal condition, amplifier protection will be activated and will shut down the offending channel. The Temp LED will remain illuminated until safe operating temperatures have returned.

(9) DC LED

In the event of abnormal operating conditions, the IPR2 has built-in amplifier protection. Under conditions that would normally damage the loudspeaker, the DC LED will illuminate and the amplifier will automatically attempt to restart to correct the condition. If the amplifier does not return to normal operating status, contact your local authorized service center.

(10) INPUT ATTENUATORS

Whenever possible, set the attenuators fully clockwise to maintain optimum system headroom. The input attenuator controls, located at the front panel (one for channel A, one for channel B), adjust signal attenuation for their respective amplifier channels in all modes. See the specifications at the end of this manual for standard voltage gain and input sensitivity information.

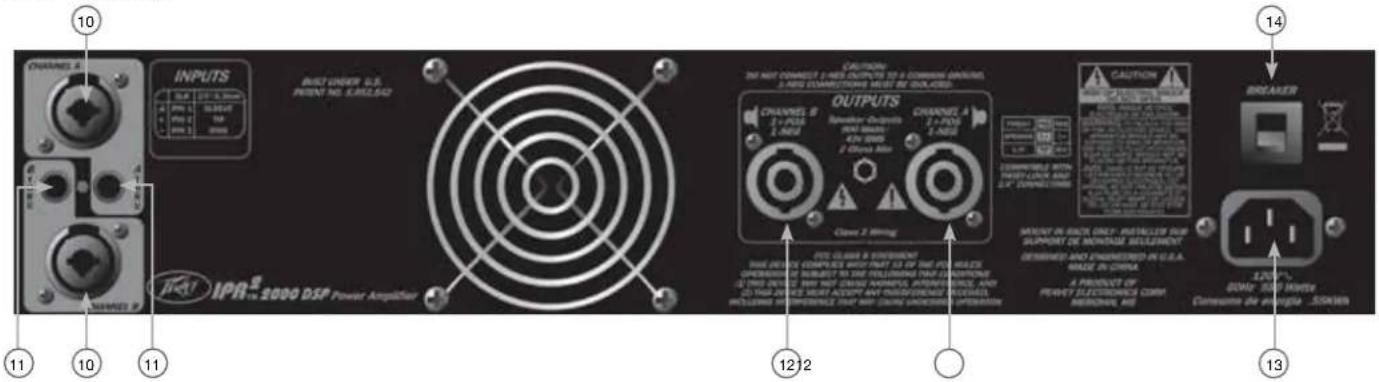

Rear Panel

IPR2TM 3000 DSP

IPR2TM 2000 DSP

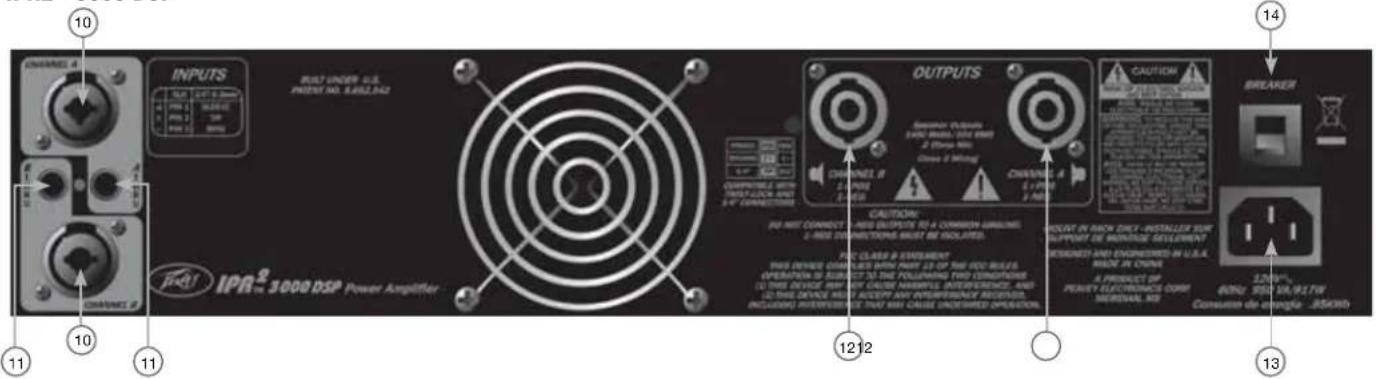

CONNECTING INPUTS

Input connections are made via the 3-pin XLR (pin 2+) or 6.3mm plug combination connectors on the rear panel of the amplifier. The inputs are actively balanced. The input overload point is high enough to accept the maximum output level of virtually any signal source.

THRU/OUT JACKS

This 1/4" (6.3mm) jack is a parallel connection to the input connector for patching to this amplifier and/or additional power amplifier inputs. A TRS plug must be used to maintain a balanced connection.

CONNECTING OUTPUTS

All models have one two-pole twist lock and 1/4'' (6.3mm) phone plug combination connector per channel. All four speaker connection wires must be isolated from each other.

CIRCUIT BREAKER

In the unlikely event of operating conditions that may potentially damage the amplifier, the circuit breaker may trip. After inspecting the cables and connections, the amplifier can be reset. If the circuit breaker trips a second time, contact the local Peavey authorized service center.

AC POWER INLET:

This is the receptacle for an IEC line cord, which provides AC power to the unit. Connect the line cord to this connector to provide power to the unit. Damage to the equipment may result if improper line voltage is used. (See line voltage marking on unit).

Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always make sure that the amplifier and all associated equipment is properly grounded.

NOTE: FOR U.K. ONLY

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

Navigation Overview

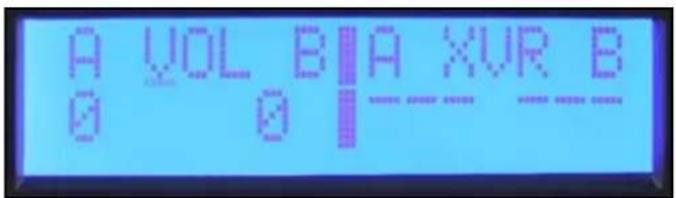

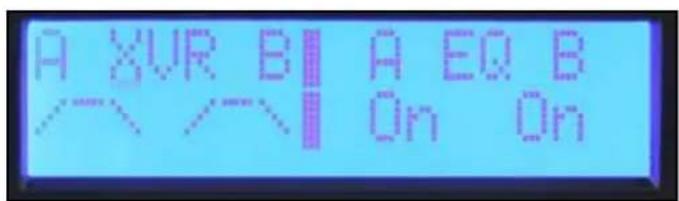

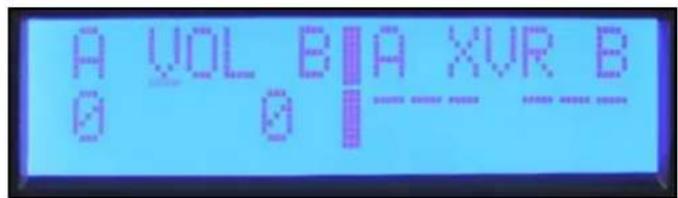

Once the IPR2 ^TM screen appears, you can start adjusting the DSP processor. Pressing the encoder will bring you to the main menu.

The encoder knob to the right of the display is used to navigate and control the DSP functions. The Channel A and B controls to the left of the display are also encoders but are dedicated to adjusting input gain for each channel. Turning the encoder knob to the right of the display will allow you to scroll through the Main Menu selections. The Main Menu not only allows you to select a process for editing, but also provides a quick view of which processes are activated.

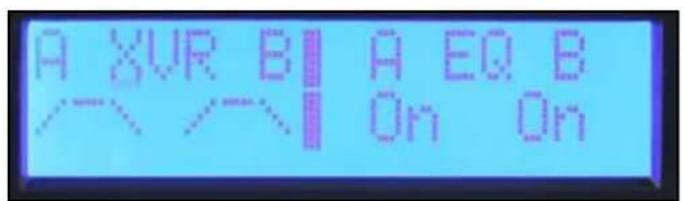

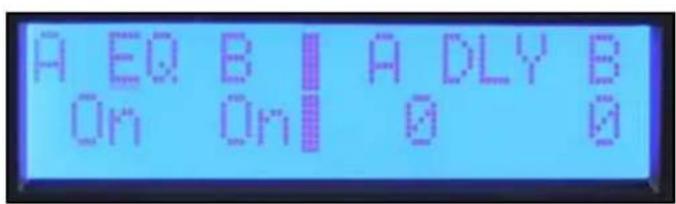

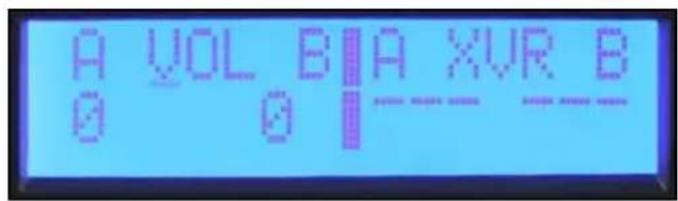

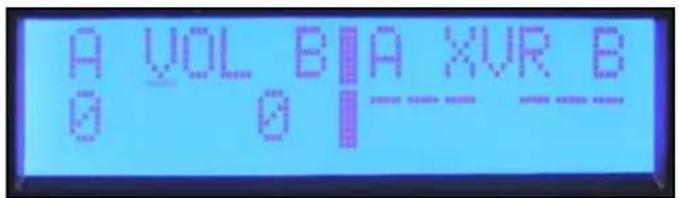

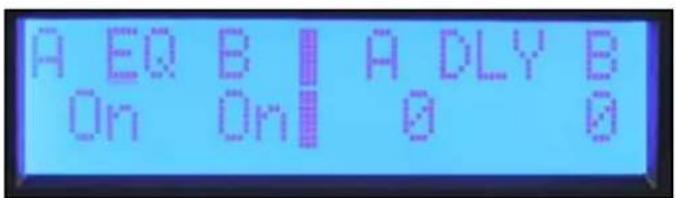

From left to right the menu selections are: Input Mode, Volume, Crossover/Band-Pass Filters, Equalization, Delay, Limiting, Memory and Lock.

Input Mode

Volume

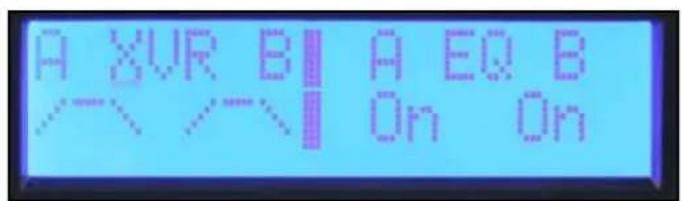

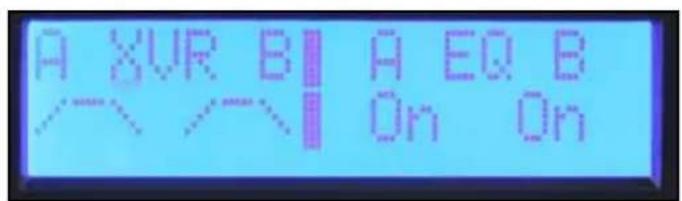

Crossover / Band-Pass Filters

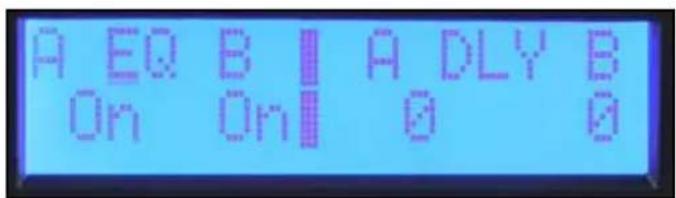

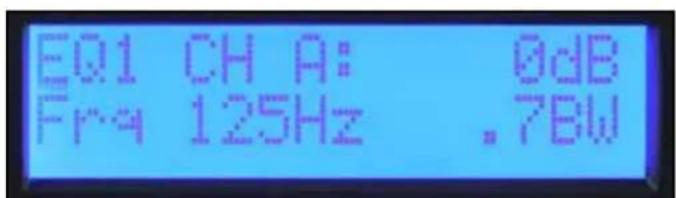

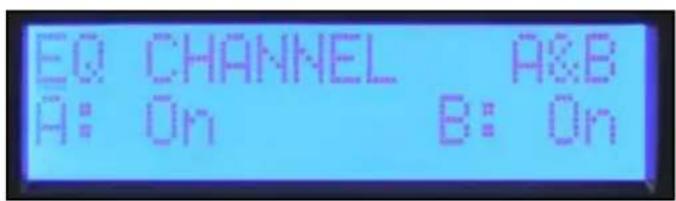

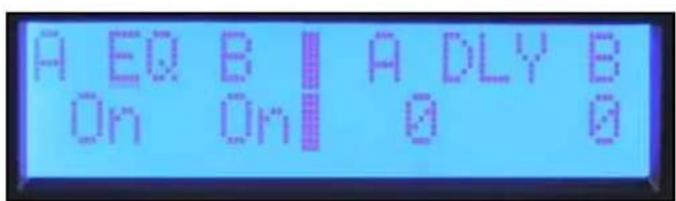

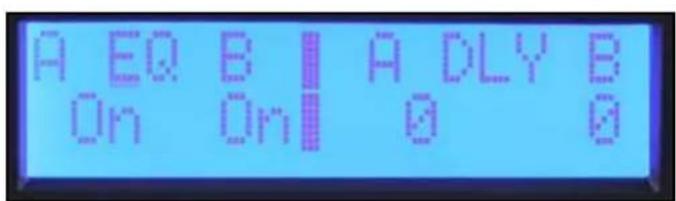

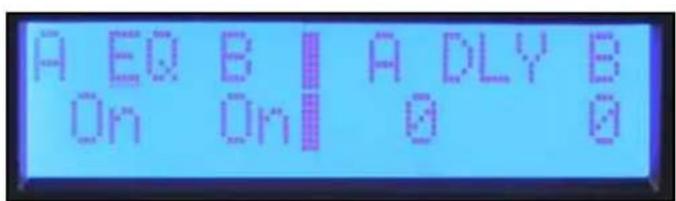

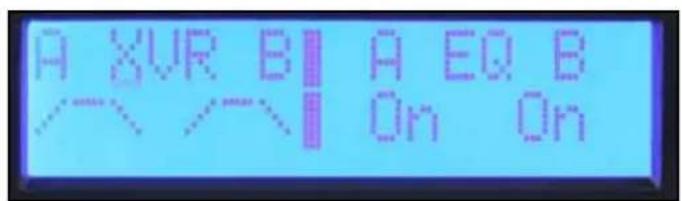

Equalization

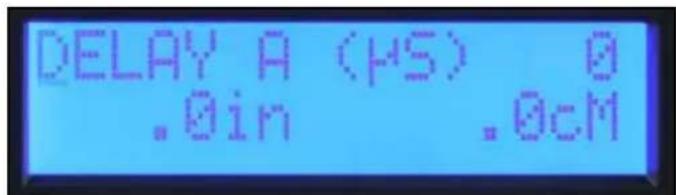

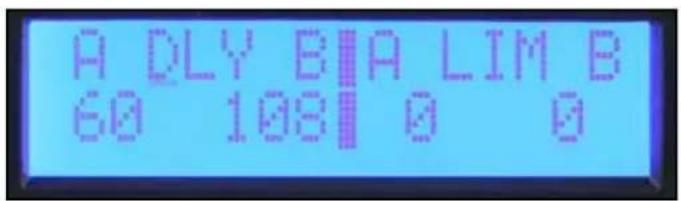

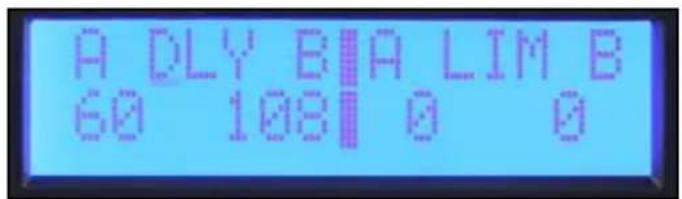

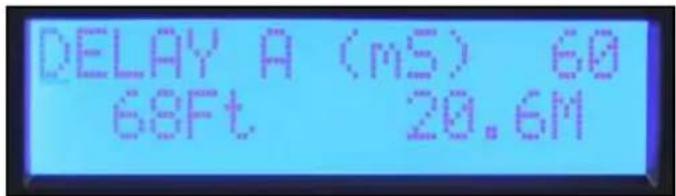

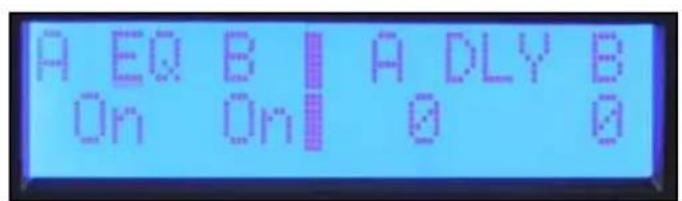

Delay

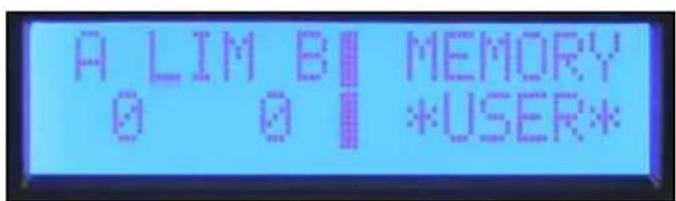

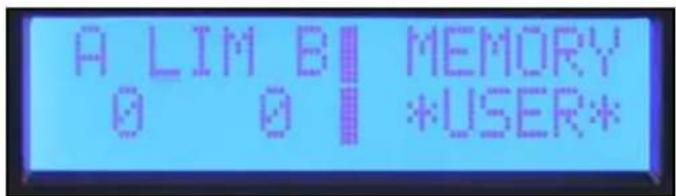

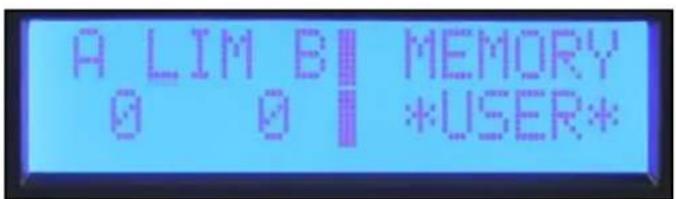

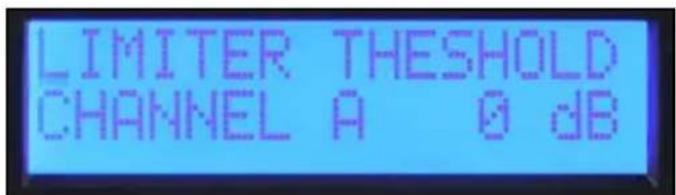

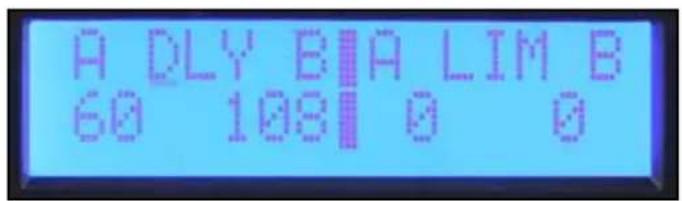

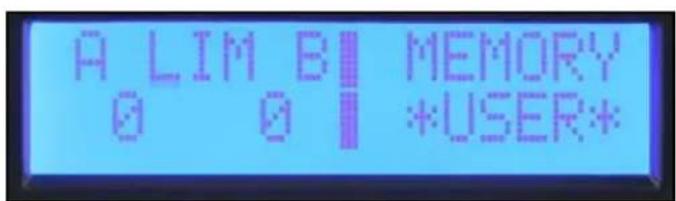

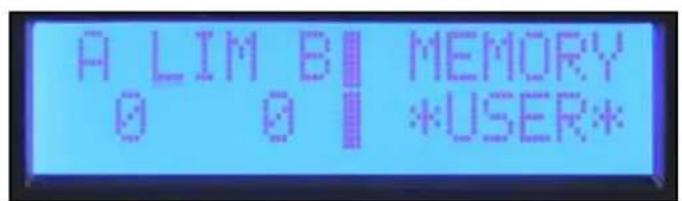

Limiting

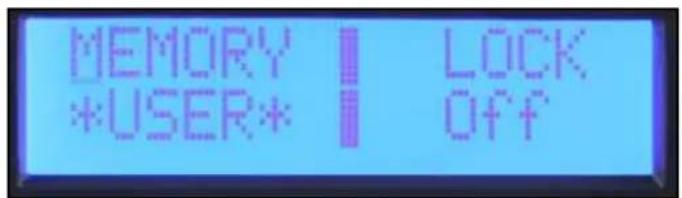

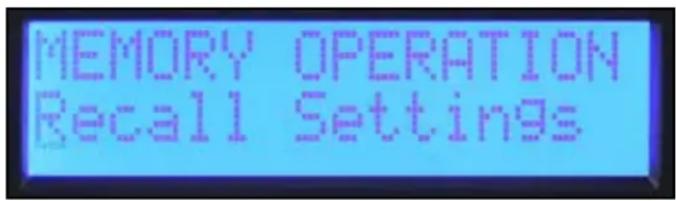

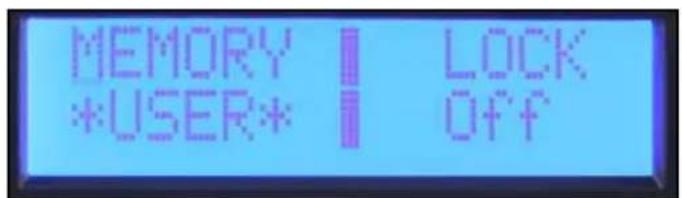

Memory Lock

To select an item from the Main Menu, rotate the encoder until the cursor marks the selection you want. Press the encoder to navigate to the Sub Menu adjustment screens for that processing function. When you enter a processing function Sub Menu, the cursor will appear in the upper left corner of the screen allowing you to scroll through Sub Menu screens. To edit a parameter, press the encoder to move the cursor to the desired parameter on the screen. Turning the encoder then adjusts that parameter. To scroll to another screen, press the encoder to return the cursor to the upper left corner of the screen. You can now scroll through Sub Menu screens.

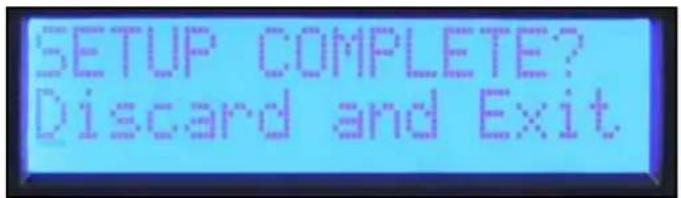

Discard and Exit

To reset the DSP and discard edits, select "Discard and Exit" from the Sub Menu to delete the edits made since entering the Sub Menu.

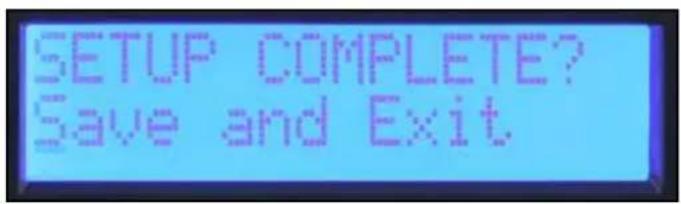

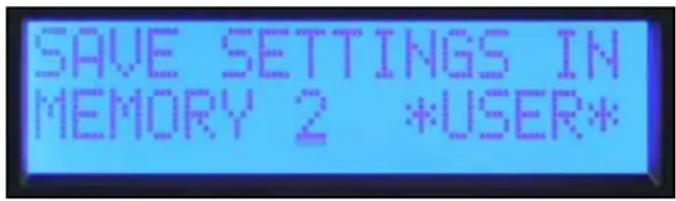

Save and Exit

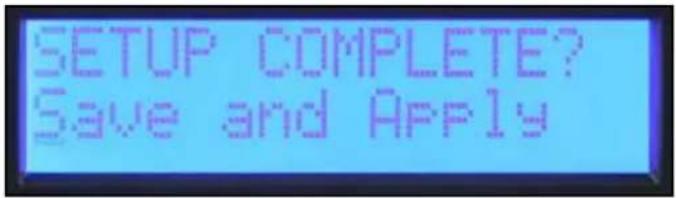

The final screen in most process Sub Menus is "Save and Exit." Press the encoder in this screen to save the edits and return to the main menu.

Note: Adjustments made are not stored until Save and Exit is selected and you return to the main menu. Turning off the amplifier while editing in a Sub Menu gives the same result as "Discard and Exit."

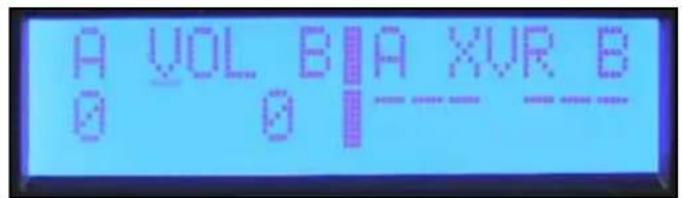

Volume

Volume

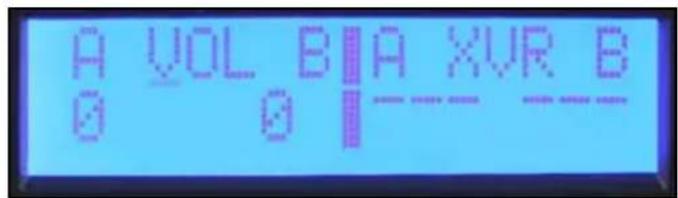

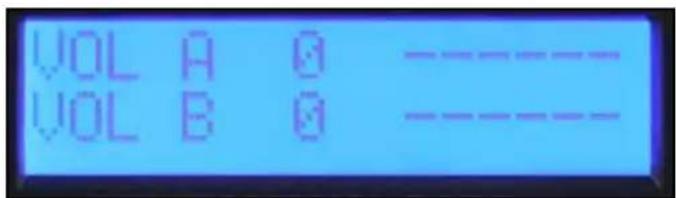

The current gain settings are always available in the main menu screen. The dedicated encoders on the front panel are used for adjustment of the A and B channels in stereo and mono modes. If the input mode is set to Bridge, the Channel B control is not active and the volume display shows "na."

Mode

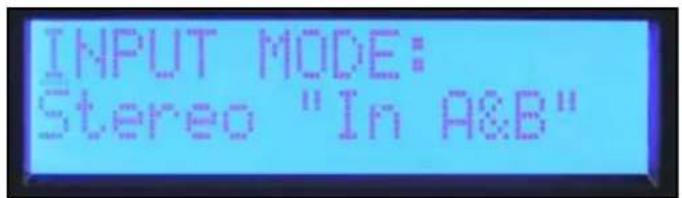

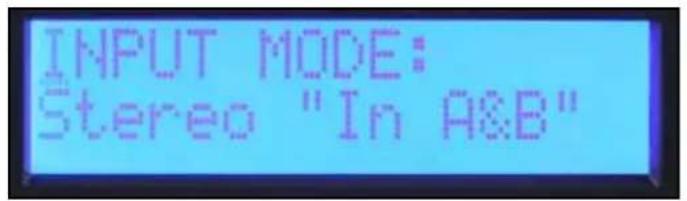

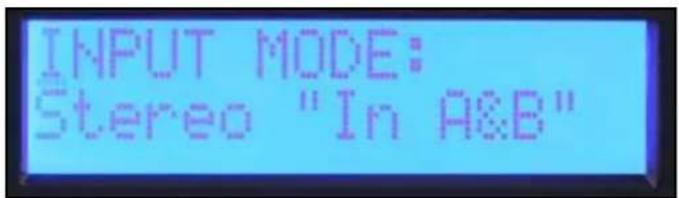

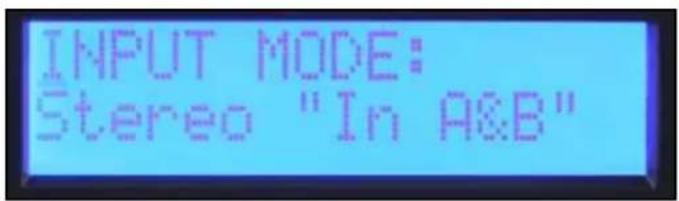

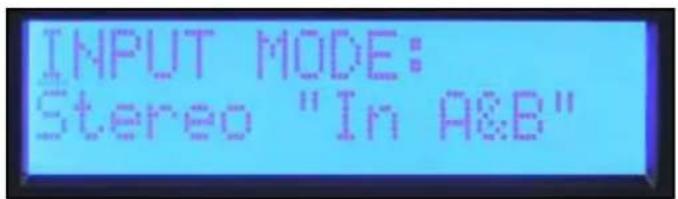

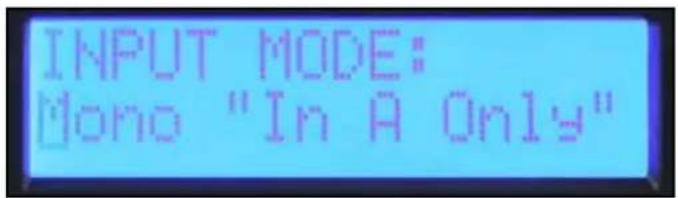

Stereo Input Mode

Stereo: Inputs A and B go to outputs A and B.

Mono Input Mode

Mono: Input A drives both outputs A and B.

Unlike the other function Sub Menu, the input mode does not change until you select "Save and Apply" and return to the Main Menu.

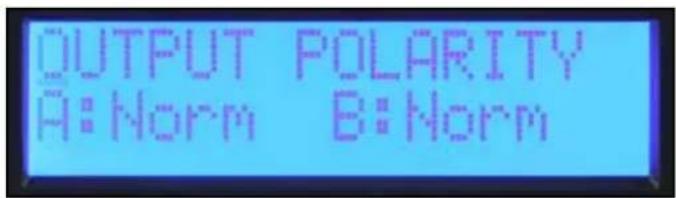

Crossover Filters, Band-Pass Filters and Polarity

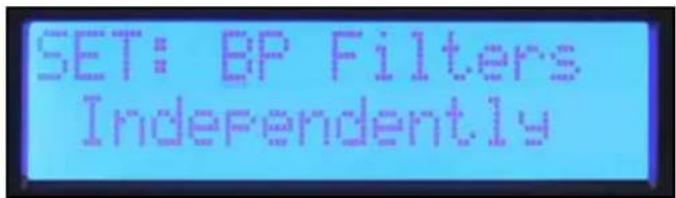

Set: BP Filters Independently

When you enter the "XOVER" Sub Menu, you are given three options for how the band-pass filters can be set. When Set "BP Filters Independently" is selected, the Channel A and B high-pass and low-pass filters are individually set.

Set: BP Filters Channel B=A

If you are using the amplifier in a stereo system where both channels will be set the same, select "Channel B=A" and both channels will be set at once. Setting the filters for Channel A also sets Channel B.

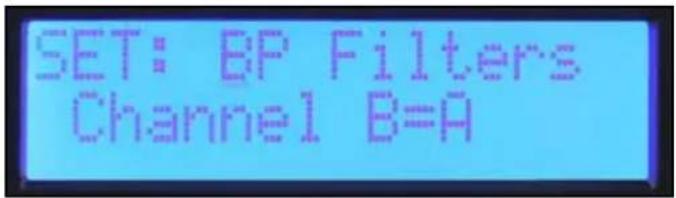

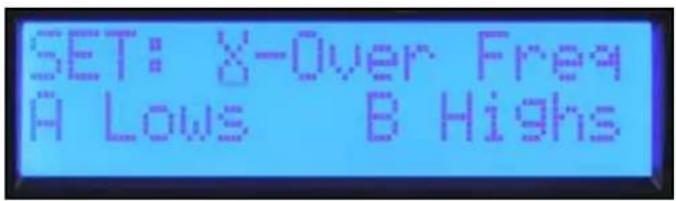

Set: X-Over Freq A Lows B Highs

If you create a crossover between channels of the amplifier, select "X-over Freq A Lows B Highs" and crossover frequency and filter type can be set with one set of controls. Set by crossover screen, High-pass and Low-pass screens.

The filter types available for the high-pass and low-pass filters are:

Off No filter

BW-12 dB Butterworth filter with 12 dB per octave slope. -3dB at corner frequency. Butterworth filters have a flat frequency response in the pass-band.

BW-18 dB Butterworth filter with 18 dB per octave slope. -3dB at corner frequency. Butterworth filters have a flat frequency response in the pass-band.

BW-24 dB Butterworth filter with 24 dB per octave slope. -3dB at corner frequency. Butterworth filters have a flat frequency response in the pass-band.

LR-24 dB Linkwitz-Riley Filter with 24 dB per octave slope. -6dB at corner frequency. LR filters combine for a flat response at the corner frequency.

It is generally a good idea to use a high-pass filter for all loudspeakers.

Output Polarity

Output Polarity

The output polarity can be inverted on either channel. Select Normal or Invert in the polarity screen. If you create a crossover with 12dB per octave filters, the high frequency output would likely need to be inverted to maintain the proper phase relationship at the crossover frequency. Temporarily inverting the polarity of one channel of a multi-way system can also aid in the setting of the delay for driver alignment. You can adjust the delay for cancellation at the crossover frequency. Remember to switch the polarity back to Normal when complete.

To return to the Main Menu, select Discard and Exit or Save and Exit.

Equalization

The IPR2™ DSP provides five bands of parametric EQ, Waves® Maxx Bass® enhancement and horn EQ on each channel.

Bypass

EQ Bypass

The first screen in the EQ Sub Menu is the bypass screen. The channels can be bypassed independently or both A&B can be bypassed together. Press the encoder until the cursor is under the desired parameter to change and rotate the encoder to change the bypass mode. Press the cursor to return it to the upper left corner when done so you can scroll to other screens.

Set Channel EQ

The first screen in the EQ Sub Menu is the bypass screen. The channels can be bypassed independently or both A&B can be bypassed together. Press the encoder until the cursor is under the desired parameter to change and rotate the encoder to change the bypass mode. Press the cursor to return it to the upper left corner when done so you can scroll to other screens.

MaxxBass

The MaxxBass® enhancement system interacts with the high-pass filter for each channel to produce bass energy in a frequency range the loudspeaker can handle. The higher the MaxxBass® number, the more the bass is enhanced.

Parametric EQ

There are five bands of parametric EQ for each channel. The frequency can be set in 1/12 octave frequency steps. The filter bandwidth is set and displayed in octaves. The level can be adjusted over a + / - 15 dB range. Press the encoder to select the desired parameter to adjust. Return the cursor to the upper left corner when done to scroll to other screens.

Horn EQ

The Horn EQ provides a 6dB per octave high frequency boost that is sometimes required for high frequency horns. The frequency control sets the low frequency corner of the filter.

To return to the Main Menu, select Discard and Exit or Save and Exit.

Delay

Delay can be used to align drivers within a loudspeaker or to delay auxiliary speakers like those installed under a balcony. A short delay can also be used to delay the main speakers to align them with the drums or bass guitar. A total of 125mS of delay is available on each channel. 5 mS of delay is available in 41.67 uS steps for driver alignment. 120 mS is available in 1 mS steps for system alignment. These delays can be set independently so that the driver alignment offset can be maintained when the system alignment delay is adjusted.

The first screen in the delay Sub Menu allows the user to decide whether the delays will be set independently or B = A . This selection only applies to the 1 mS step system delay, leaving the driver alignment delays to be set independently. The IPR2™ amplifiers display the equivalent delay distance in meters and feet in the system delay and centimeters or inches in the driver delay.

System (mS) Delay screen

Driver alignment (uS) screen

Limiter

The IPR2 DSP has limiters available on each channel. These limit the signal level to the input of the power amplifier stage. The limit threshold starts at zero and is adjusted in -1 dB steps, reducing the maximum output. You must be aware the IPR2 DSP works the same as most other amplifiers, as their maximum output depends on the line voltage and load impedance. Depending on load, you may need to reduce the limiter up to 3 dB before the output is reduced.

Memory

The IPR2 has four memory locations where its settings can be stored and then recalled. Each location has a six-character name to identify the file. The name of the active preset is also displayed in the Main Menu "Memory" screen.

Saving Settings

In the Memory Operation Sub Menu, select "Save Settings."

Select one of the four preset locations.

Edit the name by rotating the cursor to select the character and pressing the encoder to step to the next position. Continue until complete. To keep the same name, press the encoder six times to step through the name edit screen.

Once the save location has been selected and you have named the preset, you will be given a yes/no option to complete the save.

Recalling a Preset

In the Memory Operation Sub Menu, select "Recall Settings."

Select the Preset number to recall or select "Recall Factory Settings" to recall a neutral state. Just like the save function, the option is given to exit without completing the recall option.

Lock

The security lock feature of the IPR2™ DSP allows selected controls to be locked to prevent unauthorized adjustment. A four-digit password must be set when the lock is engaged. This password must be entered whenever a Sub Menu is entered to allow temporary access to the edit functions. The lock is re-engaged whenever you return the Main Menu or turn the unit off. All editing is locked when the power is off.

Note: Be sure to make note of the password. Contact customer service if the password is lost or misplaced.

The IPR2 amplifiers have three different lock modes:

Off All settings can be adjusted without entering a password.

All Except Volume A password must be entered for all edit Sub Menus except volume.

All with Volume A password must be entered for all edit Sub Menus including volume.

ESPÁNOL

IPR2TM 2000 / 3000

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

ESPANOL

IPR2TM 2000/3000 DSP

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

Once the IPR2 ^TM screen appears, you can start adjusting the DSP processor. Pressing the encoder will bring you to the main menu.

The encoder knob to the right of the display is used to navigate and control the DSP functions. The Channel A and B controls to the left of the display are also encoders but are dedicated to adjusting input gain for each channel. Turning the encoder knob to the right of the display will allow you to scroll through the Main Menu selections. The Main Menu not only allows you to select a process for editing, but also provides a quick view of which processes are activated.

From left to right the menu selections are: Input Mode, Volume, Crossover/Band-Pass Filters, Equalization, Delay, Limiting, Memory and Lock.

Input Mode

Volume

Crossover / Band-Pass Filters

Equalization

Delay

Limiting

Memory Lock

Set: BP Filters Independently

Set: BP Filters Channel B=A

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

FRANÇAIS

IPR2TM 2000/3000 DSP

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

Once the IPR2™ screen appears, you can start adjusting the DSP processor. Pressing the encoder will bring you to the main menu.

The encoder knob to the right of the display is used to navigate and control the DSP functions. The Channel A and B controls to the left of the display are also encoders but are dedicated to adjusting input gain for each channel. Turning the encoder knob to the right of the display will allow you to scroll through the Main Menu selections. The Main Menu not only allows you to select a process for editing, but also provides a quick view of which processes are activated.

From left to right the menu selections are: Input Mode, Volume, Crossover/Band-Pass Filters, Equalization, Delay, Limiting, Memory and Lock.

Input Mode

Volume

Crossover / Band-Pass Filters

Equalization

Delay

Limiting

Memory Lock

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

DEUTSCH

IPR2TM 2000/3000 DSP

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

Once the IPR2 ^TM screen appears, you can start adjusting the DSP processor. Pressing the encoder will bring you to the main menu.

The encoder knob to the right of the display is used to navigate and control the DSP functions. The Channel A and B controls to the left of the display are also encoders but are dedicated to adjusting input gain for each channel. Turning the encoder knob to the right of the display will allow you to scroll through the Main Menu selections. The Main Menu not only allows you to select a process for editing, but also provides a quick view of which processes are activated.

From left to right the menu selections are: Input Mode, Volume, Crossover/Band-Pass Filters, Equalization, Delay, Limiting, Memory and Lock.

Input Mode

Volume

Crossover / Band-Pass Filters

Equalization

Delay

Limiting

Memory Lock

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

ITALIANO

IPR2TM 2000/3000 DSP

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

Once the IPR2™ screen appears, you can start adjusting the DSP processor. Pressing the encoder will bring you to the main menu.

The encoder knob to the right of the display is used to navigate and control the DSP functions. The Channel A and B controls to the left of the display are also encoders but are dedicated to adjusting input gain for each channel. Turning the encoder knob to the right of the display will allow you to scroll through the Main Menu selections. The Main Menu not only allows you to select a process for editing, but also provides a quick view of which processes are activated.

From left to right the menu selections are: Input Mode, Volume, Crossover/Band-Pass Filters, Equalization, Delay, Limiting, Memory and Lock.

Input Mode

Volume

Crossover / Band-Pass Filters

Equalization

Delay

Limiting

Memory Lock

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

日本語

IPR2TM 2000/3000 DSP

ハフーパンフ

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

トビゲーション概要

Once the IPR2 ^TM screen appears, you can start adjusting the DSP processor. Pressing the encoder will bring you to the main menu.

The encoder knob to the right of the display is used to navigate and control the DSP functions. The Channel A and B controls to the left of the display are also encoders but are dedicated to adjusting input gain for each channel. Turning the encoder knob to the right of the display will allow you to scroll through the Main Menu selections. The Main Menu not only allows you to select a process for editing, but also provides a quick view of which processes are activated.

From left to right the menu selections are: Input Mode, Volume, Crossover/Band-Pass Filters, Equalization, Delay, Limiting, Memory and Lock.

Input Mode

Volume

Crossover / Band-Pass Filters

Equalization

Delay

Limiting

Memory Lock

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

中文

IPR2TM 2000/3000 DSP

功率放大器

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

导航概述

Once the IPR2™ screen appears, you can start adjusting the DSP processor. Pressing the encoder will bring you to the main menu.

The encoder knob to the right of the display is used to navigate and control the DSP functions. The Channel A and B controls to the left of the display are also encoders but are dedicated to adjusting input gain for each channel. Turning the encoder knob to the right of the display will allow you to scroll through the Main Menu selections. The Main Menu not only allows you to select a process for editing, but also provides a quick view of which processes are activated.

From left to right the menu selections are: Input Mode, Volume, Crossover/Band-Pass Filters, Equalization, Delay, Limiting, Memory and Lock.

Input Mode

Volume

Crossover / Band-Pass Filters

Equalization

Delay

Limiting

Memory Lock

设置：BP Filters Independently

Rated Watts 2ch x 2 ohms 1100 watts 20ms repetitive burst / 900 watts 1% THD both channels driven @ 1kHz.

Rated Watts 2ch x 4 ohms 600 watts 20ms repetitive burst / 570 watts 1% THD / 530 watts 0.15% THD, both channels driven @ 1kHz.

Rated Watts 2ch x 8 ohms 370 watts 20ms repetitive burst / 325 watts 1% THD / 300 watts 0.15% THD, both channels driven @ 1kHz.

Minimum Load Impedance 2 ohms

Maximum RMS Voltage Swing 55volts

Frequency Response 10Hz - 30kHz; +/- 3 dB at 1 watt, eight ohms.

20Hz - 20kHz 2ch x 2 ohms <0.25% @ 650 watts 20Hz to 4kHz, decreasing to 530 watts @ 20kHz, both channels driven.

20Hz - 20kHz 2ch x 4 ohms < 0.15% @ 470 watts 20Hz to 10kHz, both channels driven.

20Hz - 20kHz 2ch x 8 ohms <0.15% @ 260 watts 20Hz to 10kHz, both channels driven.

Input CMRR > -69 dB @ 1 kHz.

Voltage Gain × 60(+35dB)

Crossover 100Hz switchable 2nd order high pass and 3rd low pass per channel.

Crosstalk > -70dB @ 1kHz @ 250 watts power @ 8 ohms.

Hum and Noise > -105 dB, "A" weighted referenced to rated power @ 4 ohms.

Slew Rate >12V / s

Damping Factor (8 ohms) > 170:1 @ 20Hz - 1kHz @ 8 ohms.

Input Sensitivity .775 volts +/- 3% for 1kHz 4 ohm rated power, .68 volts +/- 3% for 1kHz 2 ohm rated power.

Input Impedance 15k ohms, balanced and 7.5k ohms unbalanced.

Current Draw @ 1/8 power in VA (watts) 540 (315) @ 2 ohms, 370 (185) @ 4 ohms, 240 (115) @ 8 ohms.

Current Draw @ 1/3 power in VA (watts) 1250 (760) @ 2 ohms, 750 (425) @ 4 ohms, 460 (240) @ 8 ohms.

Idle Consumption 90VA, 40watts.

Cooling Temperature dependent variable speed 80~mm DC fan.

Controls 2 front panel attenuators, crossover select switch for HPF, Normal and LPF

Indicator LEDs Five LED indicators per channel: Active, Signal, DDT™, Temperature and DC

Protection Thermal, DC, subsonic, incorrect loads, under and over voltage.

Connectors Inputs: Dual Combination 1/4" & XLR, Outputs: Dual 1/4" signal patch, dual twist lock connectors.

Construction 0.062" thick aluminum

Dimensions 3.5"x19"x10.5" behind front panel + 0.6" for handle

Net Weight 3.23 kg (7.12 lbs.*)

Gross Weight 4.31 kg (9.5 lbs.)

Rated power readings made with BW: 20 Hz to 22 kHz. All power measurements made @ 120 VAC or 240VAC.

2 ohm steady state sine wave power is time limited by circuit breaker

*Net Weight does not include power cord.

IPR2™ 3000 Specification Sheet

Rated Power 2ch x 2 ohms 1750 watts 20ms repetitive burst / 1450 watts 1% THD both ch. driven @ 1kHz.

Rated Power 2ch x 4 ohms 950 watts 20ms repetitive burst / 900 watts 1% THD / 815 watts 0.2% THD, both ch. driven @ 1kHz.

Rated Power 2ch x 8 ohms 525 watts 20ms repetitive burst / 500 watts 1% THD / 430 watts 0.15% THD, both ch. driven @ 1kHz.

Minimum Load Impedance 2 ohms

Maximum RMS Voltage Swing 70 volts

Frequency Response 20 Hz - 22 kHz; +/-.05dB @ 4 ohms

20Hz - 20kHz 2ch x 2 ohms <0.15% @ 1,200 watts 20 Hz to 3 kHz, decreasing to 1,100 watts @ 20 kHz, both ch. driven.

20Hz - 20kHz 2ch x 4 ohms <0.15% @ 650 watts 20 Hz to 20 kHz, both ch. driven.

20Hz - 20kHz 2ch x 8 ohms <0.15% @ 375 watts 20 Hz to 20 kHz, both ch. driven.

Input CMRR > -76 dB @ 1 kHz.

Voltage Gain × 75(+37dB)

Crossover 100Hz switchable 2nd order High pass and 3rd order Low Pass per ch.

Crosstalk > -68 dB @ 1 kHz @ 400 watts @ 8 ohms.

Hum and Noise > -101.5 dB, "A" weighted referenced to rated power @ 4 ohms.

Slew Rate >12V / s

Damping Factor (8 ohms) > 215:1 @ 20 Hz - 1 kHz @ 8 ohms

Input Sensitivity 0.775 volts +/- 3% for 1 kHz 4 ohm rated power, 0.730 volts +/- 3% for 1 kHz, 2 ohm rated power

Input Impedance 15 kilohms, balanced and 7.5 kilohms unbalanced.

Current Draw @ 1/8 in VA (watts) 960 (535) @ 2 ohms, 615 (315) @ 4 ohms, 400 (200) @ 8 ohms

Current Draw @ 1/3 in VA (watts) 2065 (1360) @ 2 ohms, 1215 (735) @ 4 ohms, 740 (420) @ 8 ohms

Idle Consumption 160VA, 75 watts

Cooling Temperature dependent variable speed 80 mm DC fan.

Controls 2 front panel attenuators, crossover select switch for H.PF, Normal and L.PF.

Indicator LEDs Five LED indicators per channel: Active, Signal, DDT* Temperature and DC

Protection Thermal, DC, subsonic, incorrect loads, under and over voltage

Connectors Dual combination 1 / 4" XLR, dual male XLR input thru, two twist lock connectors

Construction 0.062" aluminum

Dimensions 3.5"x19"x10.5" behind front panel + 0.6" for handle

Net Weight 5.62 kg (12.4 lbs.*)

Gross Weight 6.80 kg (15.0 lbs.)

Rated power readings made with BW: < 10Hz to 22kHz . All power measurements made @ 120 VAC or 240VAC.

2 ohm steady state sine wave power is time limited by circuit breaker and AC limitations.

*Net Weight does not include power cord.

IPR2™ 2000 DSP Specification Sheet

Rated Watts 2ch x 2 ohms	1100 watts 20ms repetitive burst / 900 watts 1% THD both channels driven @ 1kHz.
Rated Watts 2ch x 4 ohms	600 watts 20ms repetitive burst / 570 watts 1% THD / 500 watts 0.15% THD, both channels driven @ 1kHz.
Rated Watts 2ch x 8 ohms	370 watts 20ms repetitive burst / 325 watts 1% THD / 270 watts 0.15% THD, both channels driven @ 1kHz.
Minimum Load Impedance 2 ohms
Maximum RMS Voltage Swing 56 volts
Frequency Response 10Hz - 22kHz; +/- 0.5dB at 1 watt.
20Hz - 20kHz 2ch x 2 ohms	<0.25% @ 650 watts 20Hz to 4kHz, decreasing to 530 watts @ 20kHz, both channels driven.
20Hz - 20kHz 2ch x 4 ohms	<0.15% @ 470 watts 20Hz to 10kHz, both channels driven.
20Hz - 20kHz 2ch x 8 ohms	<0.15% @ 260 watts 20Hz to 10kHz, both channels driven.
Input CMRR > -69 dB @ 1 kHz.
Voltage Gain x 37.5 (+31.5 dB)
Crossover	Adjustable frequencies with 24dB/oct, 4th order Linkwitz –Riley High Pass and Low Pass filter per channel.
Crosstalk > -70dB @ 1kHz @ 250 watts power @ 8 ohms.
Hum and Noise > -92 dB, “A” weighted referenced to rated power @ 4 ohms.
Slew Rate > 12V/μs
Damping Factor (8 ohms) > 150:1 @ 20Hz - 1kHz @ 8 ohms.
Input Sensitivity	1.185 volts +/- 3% for 1kHz 4 ohm rated power, 1.165 volts +/- 3% for 1kHz 2 ohm rated power.
Input Impedance	15k ohms, balanced and 7.5k ohms unbalanced.
Current Draw @ 1/8 power in VA (watts)	540 (315) @ 2 ohms, 370 (185) @ 4 ohms, 240 (115) @ 8 ohms.
Current Draw @ 1/3 power in VA (watts)	1250 (760) @ 2 ohms, 750 (425) @ 4 ohms, 460 (240) @ 8 ohms.
Idle Consumption	90VA, 40watts.
Cooling	Temperature dependent variable speed 80 mm DC fan.
Controls	2 front panel detented attenuators, push-button navigation encoder to navigate through the menus on the LCD screen for input mode, parametric EQ, crossover H.P.F, Normal, L.P.F. and more.
Indicator LEDs	2 DDTTM (clip limiting), 2 Signal presence, 2 Active status, 2 Temp and 2 DC protect.
Protection	Thermal, DC, subsonic, incorrect loads, under and over voltage.
Connectors	Inputs: Dual Combination 1/4" & XLR, Outputs: Dual 1/4" signal patch, dual twist lock connectors.
Construction	0.062" thick aluminum
Dimensions	3.5"x19"x10.5" behind front panel + 0.6" for handle
Net Weight	3.23 kg (7.12 lbs.* )
Gross Weight	4.31 kg (9.5 lbs.)
Warranty	5 years
Rated power readings made with BW: 20 Hz to 22 kHz. All power measurements made @ 120 VAC or 240VAC.
2 ohm steady state sine wave power is time limited by circuit breaker and AC limitations.
*Net Weight does not include power cord.

IPR2™ 3000 DSP Specification Sheet

Rated Power 2ch x 2 ohms	1750 watts 20ms repetitive burst / 1450 watts 1% THD both ch. driven @ 1kHz.
Rated Power 2ch x 4 ohms	950 watts 20ms repetitive burst / 900 watts 1% THD / 815 watts 0.2% THD, both ch. driven @ 1kHz.
Rated Power 2ch x 8 ohms	525 watts 20ms repetitive burst / 500 watts 1% THD / 430 watts 0.15% THD, both ch. driven @ 1kHz.
Minimum Load Impedance 2 ohms
Maximum RMS Voltage Swing 70 volts
Frequency Response	20 Hz - 22 kHz; +/-.05dB @ 4 ohms
20Hz - 20kHz 2ch x 2 ohms	<0.15% @ 1,200 watts 20 Hz to 3 kHz, decreasing to 1,100 watts @ 20 kHz, both ch. driven.
20Hz - 20kHz 2ch x 4 ohms	<0.15% @ 650 watts 20 Hz to 20 kHz, both ch. driven.
20Hz - 20kHz 2ch x 8 ohms	<0.15% @ 375 watts 20 Hz to 20 kHz, both ch. driven.
Input CMRR > -76 dB @ 1 kHz.
Voltage Gain x 37.75 (+31.5 dB)
Crossover	Adjustable High Pass and Low Pass filter per channel. Filter Types: 12dB/occt 2nd order, 18dB/occt 3rd order, 24dB/occt 4th order Butterworth and 24dB/occt 4th order Linkwitz-Riley.
Crosstalk > -68 dB @ 1 kHz @ 400 watts power @ 8 ohms.
Hum and Noise	> -92 dB, "A" weighted referenced to rated power @ 4 ohms.
Slew Rate > 12V/μs
Damping Factor (8 ohms) > 255:1 @ 20 Hz - 1 kHz @ 8 ohms
Input Sensitivity	1.54 volts +/- 3% for 1 kHz 4 ohm rated power, 1.47 volts +/- 3% for 1 kHz. 2 ohm rated power
Input Impedance	12 kilohms, balanced and 6 kilohms unbalanced.
Current Draw @ 1/8 in VA (watts)	960 (535) @ 2 ohms, 615 (315) @ 4 ohms, 400 (200) @ 8 ohms
Current Draw @ 1/3 in VA (watts)	2065 (1360) @ 2 ohms, 1215 (735) @ 4 ohms, 740 (420) @ 8 ohms
Idle Consumption	160VA, 75 watts
Cooling	Temperature dependent variable speed 80 mm DC fan.
Controls	2 front panel detented attenuators, push-button navigation encoder to navigate through the menus on LCD screen for input mode, parametric EQ, crossover HPF, LPF. and more.
Indicator LEDs	Five LED indicators per channel: Active, Signal, DDT*, Temperature and DC
Protection	Thermal, DC, subsonic, incorrect loads, under and over voltage
Connectors	Dual combination 1/4" XLR, dual male XLR input thru, two twist lock connectors
Construction	0.062" aluminum
Dimensions	3.5"x19"x 10.5" behind front panel + 0.6" for handle
Net Weight	5.62 kg (12.4 lbs.)
Gross Weight	6.80 kg (15.0 lbs.)
Rated power readings made with BW: <10 Hz to 22 kHz. All power measurements made @ 120 VAC or 240VAC.
2 ohm steady state sine wave power is time limited by circuit breaker and AC limitations.
*Net Weight does not include power cord.

Notes:

Notes:

Notes:

Notes:

U.S. CUSTOMER WARRANTY REGISTRATION

Optional Product Extended Warranty Registration

Give us some information and put your extended warranty into effect!

Please take a few minutes to fill out this information/survey sheet to help us get to know and serve you better.

To save time, submit your warranty registration online at www.peavey.com/support/warrantyregistration

1.

First Name Initial Last Name

Street Address

City State/Province Postal Code

（ ）

Telephone Number

E-mail Address

（

Fax Number Date of birth

Gender M F

2.

Model

8-Digit Serial Number

Date of Purchase

Price Paid

3.

Name of store where purchased

City

State

1. Top two (2) reasons why you purchased from this store/dealer:

Availability of product

Past favorable experience

Friend/Relative's recommendation

□Advertised special

Store credit card

Convenient location

Knowledgeable staff

□ Received as a gift

Availability of lessons

□ Other

Technical instruction

1. Where do you most often shop for music and sound products?

□ Independent retailer

□ Newspaper ads

Mass market retailer

Internet/Web sites

Mail order magazines

□ Other

1. What two (2) factors most influenced your purchase of this product?

Peavey brand name

Product appearance

Craftsmanship

Durability

Features for price

Prior experience with Peavey

Bundled accessories

Packaging

Sound quality

□ Other

1. How did you learn about this Peavey product? (select best answer)

Magazine review

Teacher's recommendation

Newspaper review

Catalog or flyer

Radio advertisement

7 Saw in store

□ Advertised special

Use by professional

Friend/Relative's recommendation

Other.

Salesperson's recommendation

1. Which other brands/models did you consider?

2. How would you describe your level of musicianship/technical expertise?

Beginner - Never played or taken less than one (1) year of lessons

Intermediate - One (1) to five (5) years of lessons or playing

Advanced - More than five (5) years of lessons or playing; play professionally

1. Education: (select best answer)

High school

Some college

Completed college

Graduate school

1. Which best describe your family income? (select best answer)

Under $15,000

□75,000-99,999

15,000 -24,999

□100,000 -149,999

□25,000 -34,999

Over - $150,000

□35,000-49,999

□50,000 -74,999

1. Which of the following is your primary source of information on musical products: (select best answer)

Television

Mail order catalogs

7 Radio

Direct mail

Internet

Literature from manufacturer

7 Newspaper

Other

Magazines

1. What is your main motivation for buying new equipment?

Replacing old product

Impulse

Want new and leading edge equipment

Need for improved performance

Fullfill a specific need

New technology

Supplement existing products

Availability of product

Value

1. Please list your three most frequently visited Web sites.

2. http://

1. http://

---

1. http://

Please use the space below to tell us your answer.

8019-2066sw

8019 xog O'd

nennnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne

o

s!nroeE Aaeed

eH

aBebesod

eepd

PEAVEY ELECTRONICS CORPORATION LIMITED WARRANTY

Effective Date: 09/15/2010

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category Duration
Guitars/Basses, Amplifiers, Preamplifiers, Mixers, Electronic Crossovers and Equalizers 2 years *(+ 3 years)
Drums 2 years *(+ 1 year)
Enclosures 3 years *(+ 2 years)
Digital Effect Devices and Keyboards and MIDI Controllers 1 years *(+ 1 year)
Microphones 2 years
Speaker Components(incl. Speakers, Baskets, Drivers, Diaphragm Replacement Kits and Passive Crossovers)	1 year
Tubes and Meters	90 Days
Cables Limited Lifetime
AmpKit Link, Xport, Rockmaster Series, Strum'n Fun, RetroFire, GT & BT Series Amps	1 year

* Denotes additional Warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by Warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for Warranty service, the consumer must pay initial shipping charges. If the repairs are covered by Warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center. OR

(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of Warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTY, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied Warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHEATHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this Warranty or services received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone].

Features and specifications are subject to change without notice.

Features and specifications subject to change without notice.

Peavey Electronics Corporation · 5022 Hartley Peavey Drive · Meridian · MS · 39305

[phone] • FAX [phone] • www.peavey.com

©2013

31700092
