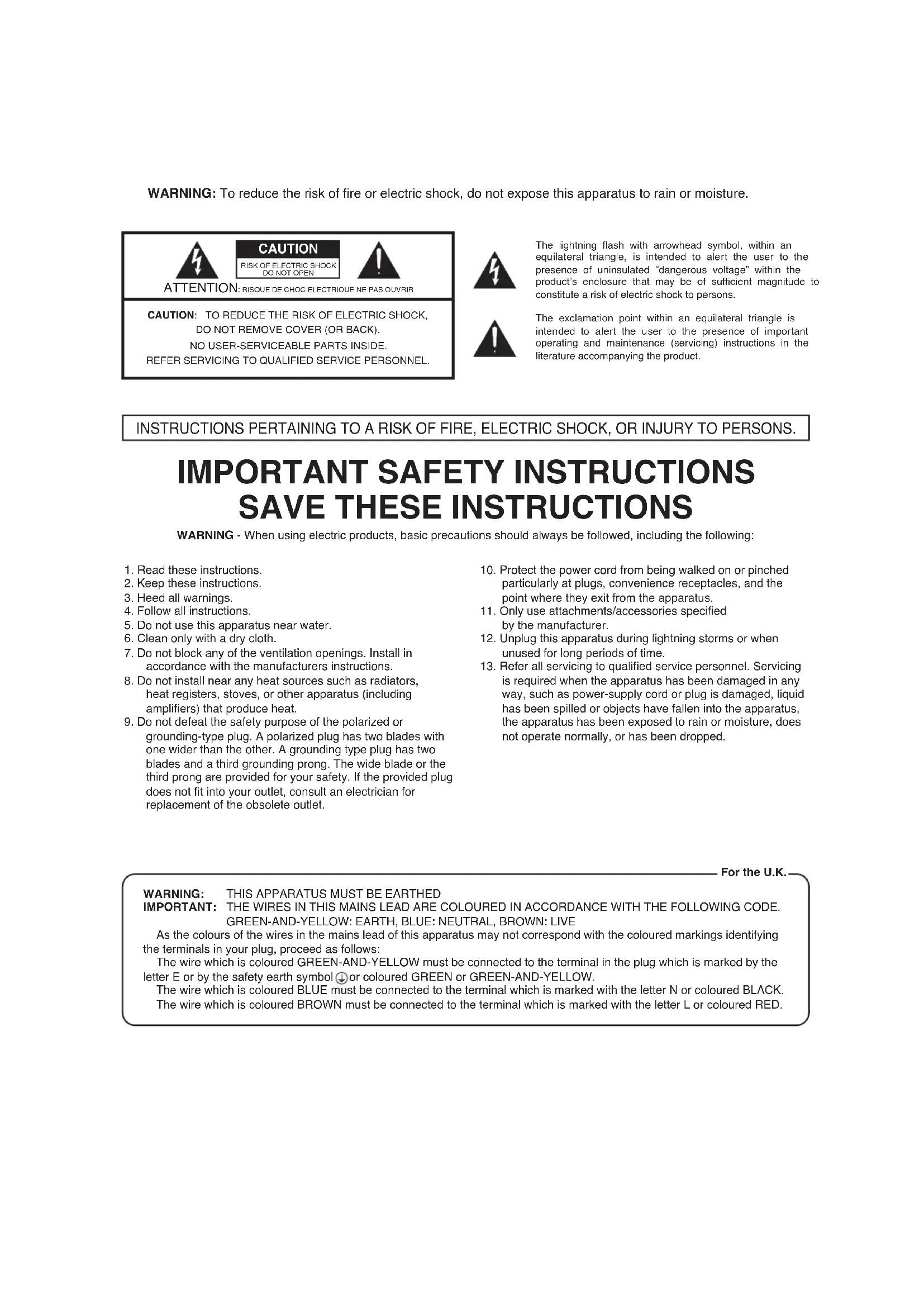

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

WARNING - When using electric products, basic precautions should always be followed, including the following:

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

For the U.K.

WARNING: THIS APPARATUS MUST BE EARTHED

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE. GREEN-AND-YELLOW: EARTH, BLUE: NEUTRAL, BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol ① or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

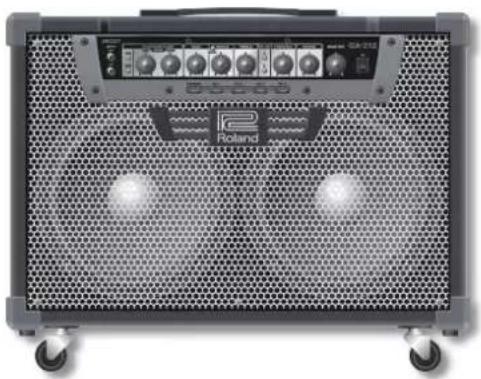

GA-212

A guitar amp with 200 W output and two custom 30 cm (12-inch) speakers.

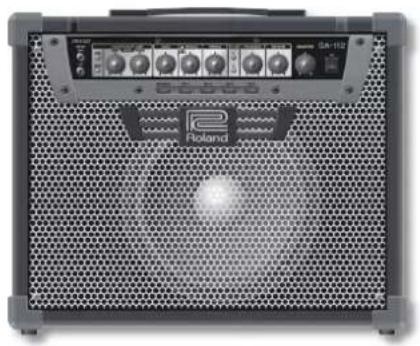

GA-112

A guitar amp with 100 W output and one custom 30 cm (12-inch) speaker.

Owner's Manual

Guitar Amplifier

GA-212

GA-112

Roland's PROGRESSIVE AMP technology gives a broader and richer guitar sound

This newly developed PROGRESSIVE AMP with COSM technology offers an original drive control, enabling continuous and smooth changes, not only for gain, but between the amp's characteristics as well. This feature allows a variety of rich sounds and is ideal for many different types of performance, from a good clear clean sound to a sticky crunch sound, and through to high-gain super extreme, and also allows comfortable playing with distortion.

Intuitive operation

The GA-212/GA-112 are equipped with four channels and you can set different tones for each channel. Each knob has an LED pointer that indicates the current setting. The LED pointer allows at-a-glance tone checking and quickly indicates any change of channel. The channel settings are automatically saved after every operation. The exclusive foot controller gives easy foot control of the GA (p. 8).

Equipped with simple operation of basic functions and expandability

In addition to 3-band EQ, presence and mid boost allow versatile sound creation. Exclusively-designed reverb gives great spatial effects. The unit is equipped with two independent effect loops and can be set for each channel. The unit has the basic functions needed for both live performance and recording. Link connection can also be easily made, allowing you to enjoy a performance with a more powerful sound.

What is COSM?

Composite Object Sound Modeling (COSM) is Roland's innovative and powerful sound modeling technology. COSM analyzes the many factors that make up the original sound, such as the electrical and physical characteristics of the original, and then produces a digital model that can reproduce the same sound.

AUTO OFF function

• The unit has an energy-saving AUTO OFF function; the unit is automatically turned off approximately 4 hours after last use.
• When shipped from the factory, the unit comes with the AUTO OFF function turned ON.
• To override the energy-saving setting, set the [AUTO OFF] switch to OFF as described on p. 6.

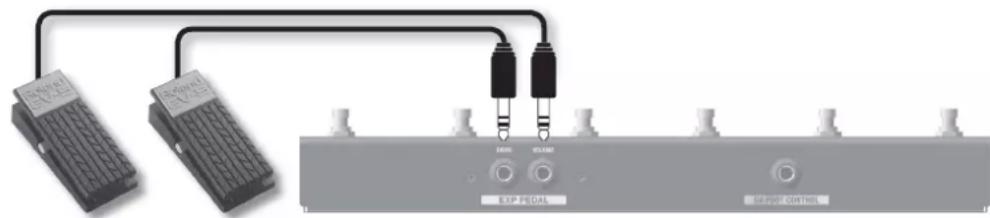

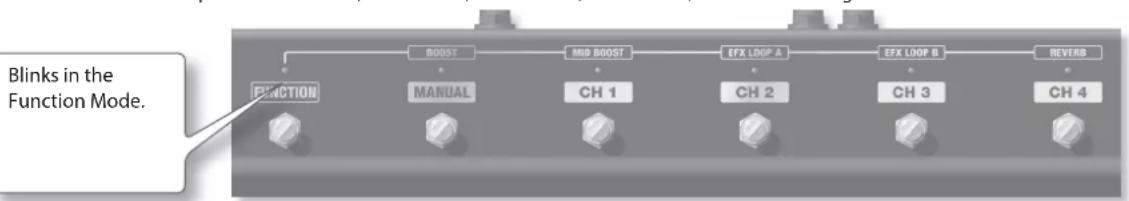

About The Exclusive Foot Controller

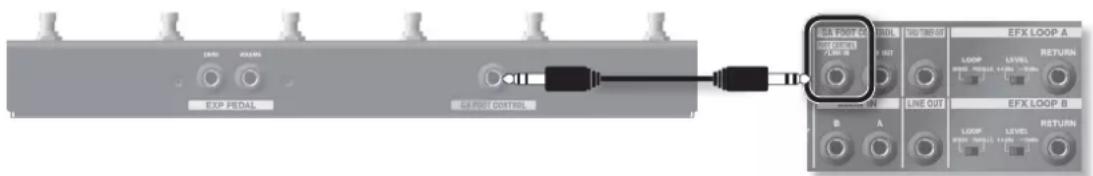

The exclusive foot controller (GA FOOT CONTROLLER) is an available option.

Copyright © 2012 ROLAND CORPORATION

All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.

"What type of stage amplifier do guitarists really want?" After much intensive research and development, GA is Roland's answer.

GA is an amp with easy intuitive operation and with a sound that resonates with the guitarist's inspiration.

By focusing on these key points, a "live amp" was born with a sound character that satisfies guitarists, simple operation and all the functions required for a great live performance.

In our search for a sound that moves the performer's heart, we experimented endlessly to get it just right. Our efforts have borne fruit and we believe Roland's unique amp delivers sound quality beyond tube and solid state amps.

It was also essential to ensure that operating the unit was simple and intuitive. All guitarists desire "to only concentrate on artistic performance, without being diverted by technical control." This amp is designed with simple and intuitive operation and is ideal for all guitarists.

GA is the next-generation stage guitar amp, born from Roland's years of technological experience and know-how.

Before using this unit, carefully read the sections entitled: "IMPORTANT SAFETY INSTRUCTIONS" (inside front cover), "USING THE UNIT SAFELY" (p. 2), and "IMPORTANT NOTES" (p. 3). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's Manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About WARNING and CAUTION Notices

WARNING	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
CAUTION	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.* Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

	The ▲symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
	The ○symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
	The ●symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

WARNING

Make sure that the power cord is grounded

Connect mains plug of this model to a mains socket outlet with a protective earthing connection.

Do not disassemble or modify by yourself

Do not open or perform any internal modifications on the unit.

Do not repair or replace parts by yourself

Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

Do not use or store in the following types of locations

• Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet floors); or are
• Exposed to steam or smoke; or are
• Subject to salt exposure; or are
• Humid; or are
• Exposed to rain; or are
  Dusty or sandy; or are
• Subject to high levels of vibration and shakiness.

Do not place in an unstable location

Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

Connect the power cord to an outlet of the correct

voltage

The unit should be connected to a power supply only of the type described as marked on the rear side of unit.

Use only the included power cord

Use only the attached power-supply cord. Also, the included power cord must not be used with any other device.

Do not bend the power cord or place heavy objects

on it

Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards

Avoid extended use at high volume

This unit, either alone or in combination with an amplifier or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.

Don't allow foreign objects or liquids to enter unit; never place containers with liquid on unit

Do not place containers containing liquid on this product. Never allow foreign objects (e.g., flammable objects, coins, wires) or liquids (e.g., water or juice) to enter this product. Doing so may cause short circuits, faulty operation, or other malfunctions.

WARNING

Turn off the unit if an abnormality or malfunction occurs

Immediately turn the unit off, remove the power cord from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page when:

The power-supply cord or the plug has been damaged; or
If smoke or unusual odor occurs; or
- Objects have fallen into, or liquid has been spilled onto the unit; or
The unit has been exposed to rain (or otherwise has become wet); or
- The unit does not appear to operate normally or exhibits a marked change in performance.

Adults must provide supervision in places where children are present

When using the unit in locations where children are present, be careful so no mishandling of the unit can take place. An adult should always be on hand to provide supervision and guidance.

Do not drop or subject to strong impact

Protect the unit from strong impact. (Do not drop it!)

Do not share an outlet with an unreasonable number of other devices

Do not force the unit's power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the extension cord's outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.

Do not use overseas

Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

Do not connect the unit to an electrical outlet when there is condensation on or in it

When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. When such conditions exist, you risk causing malfunction if you connect the unit to an electrical outlet. First, make sure any condensation has been eliminated by allowing the unit to acclimate for several hours; then, you can connect it to an electrical outlet.

CAUTION

Place in a well ventilated location

The unit should be located so that its location or position does not interfere with its proper ventilation.

Grasp the plug when connecting or disconnecting the power cord

Always grasp only the plug on the power-supply cord when plugging into, or unplugging from, an outlet or this unit.

Periodically clean the power cord's plug

At regular intervals, you should unplug the power plug and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.

Manage cables for safety

Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

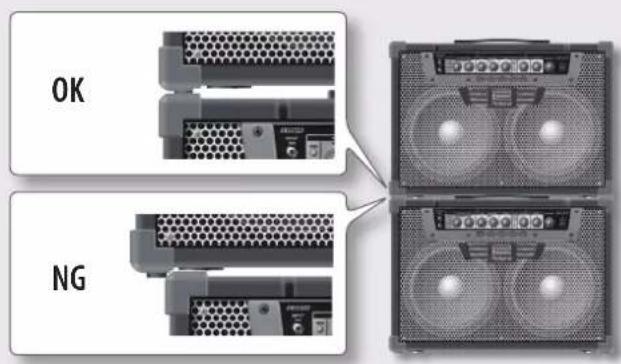

Remove all casters if mobility presents danger

In every situation where the unexpected movement of this unit could present a danger (such as when it's set up on a stage, or when it's being transported inside a vehicle), make sure to remove all the casters.

Avoid climbing on top of the unit, or placing heavy objects on it

Never climb on top of, nor place heavy objects on the unit.

Do not connect or disconnect the power cord with wet hands

Never handle the power cord or its plugs with wet hands when plugging into, or unplugging from, an outlet or this unit.

CAUTION

Disconnect everything before moving the unit

Before moving the unit, disconnect the power plug from the outlet, and pull out all cords from external devices.

Unplug the power cord from the outlet before cleaning

Before cleaning the unit, turn it off and unplug the power cord from the outlet (p. 6).

If there is a possibility of lightning strike, disconnect the power cord from the outlet

Whenever you suspect the possibility of lightning in your area, pull the plug on the power cord out of the outlet.

Do not remove the speaker grille and speaker

Do not remove the speaker grille and speaker by any means. Speaker not user replaceable. Shock hazardous voltages and currents are present inside the enclosure.

IMPORTANT NOTES

Power Supply

• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter or a motor (such as a refrigerator, washing machine, microwave oven, or air conditioner). Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.
• To prevent malfunction and equipment failure, always make sure to turn off the power on all your equipment before you make any connections.
• Although the LEDs are switched off when the unit is turned off, this does not mean that the unit has been completely disconnected from the source of power. If you need to turn off the power completely, first turn off the unit's switch, then unplug the power cord from the power outlet. For this reason, the outlet into which you choose to connect the power cord's plug should be one that is within easy reach and readily accessible.
  With the factory settings, the GA-212/GA-112 will automatically be switched off 4 hours after you stop playing or operating the unit. If you don't want the unit to turn off automatically, set the "AUTO OFF" switch to "OFF" as described on p.6.

Placement

• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.
• This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.

• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Also, do not allow lighting devices that normally are used while their light source is very close to the unit (such as a piano light), or powerful spotlights to shine upon the same area of the unit for extended periods of time. Excessive heat can deform or discolor the unit.

• Do not allow rubber, vinyl, or similar materials to remain on this unit for long periods of time. Such objects can discolor or otherwise harmfully affect the finish.

• Do not paste stickers, decals, or the like to this instrument. Peeling such matter off the instrument may damage the exterior finish.
  Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface. You can place a piece of felt or cloth under the rubber feet to prevent this from happening. If you do so, please make sure that the unit will not slip or move accidentally.
• Do not put anything that contains water on this unit. Also, avoid the use of insecticides, perfumes, alcohol, nail polish, spray cans, etc., near the unit. Swifly wipe away any liquid that spills on the unit using a dry, soft cloth.

Maintenance

• To clean the unit, use a dry, soft cloth; or one that is slightly dampened. Try to wipe the entire surface using an equal amount of strength. Rubbing too hard in the same area can damage the finish.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Repairs and Data

• Please be aware that all data contained in the unit's memory may be lost when the unit is sent for repairs. Important data should always be written down on paper (when possible). During repairs, due care is taken to avoid the loss of data. However, in certain cases (such as when circuitry related to memory itself is out of order), we regret that it may not be possible to restore the data, and Roland assumes no liability concerning such loss of data.

Additional Precautions

• Please be aware that the contents of memory can be irretrievably lost as a result of a malfunction, or the improper operation of the unit. To protect yourself against the risk of loosing important data, we recommend that you periodically write down the settings stored in the unit's memory on paper.
  Unfortunately, it may be impossible to restore the contents of data that was stored in the unit's memory once it has been lost. Roland Corporation assumes no liability concerning such loss of data.

• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.

• When disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• A small amount of heat will radiate from the unit during normal operation.
• To avoid disturbing others nearby, try to keep the unit's volume at reasonable levels.
• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.
• Use only the specified expression pedal (Roland EV-5, BOSS FV-500L, BOSS FV-500H; sold separately). By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.
• Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.

Copyright

• Roland, BOSS, COSM are either registered trademarks or trademarks of Roland Corporation in the United States and/or other countries.
• Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.
• MMP (Moore Microprocessor Portfolio) refers to a patent portfolio concerned with microprocessor architecture, which was developed by Technology Properties Limited (TPL). Roland has licensed this technology from the TPL Group.
• This product contains eCROS integrated software platform of eSOL Co., Ltd. eCROS is a trademark of eSOL Co., Ltd. in Japan.

Front Panel

PROGRESSIVE AMP

PROGRESSIVE AMP is an original amp designed with the very latest COSM technology. By changing the preamp and power amp behavior, you can freely create a broad range of sounds.

[DRIVE] knob/ [BOOST] button

Adjusts the level of distortion.

[BOOST] button

[DRIVE] knob Operation Minimum Value to Maximum Value

OFF Clean to Crunch

ON Crunch to Super Extreme

• When BOOST is on, the expression pedal connected to the DRIVE Jack of the exclusive foot controller (p. 8) can change the sound from clean to super extreme.

[VOICE] button

Changes sound character.

[VOLUME] knob

Adjusts the volume.

Sound indicator

When distortion is adjusted with the [DRIVE] knob, the sound indicator color changes according to the level of the distortion. (If you don't want to use the LED display, for example, on a dark stage, it can be turned off.)

To make the setting, see P-1

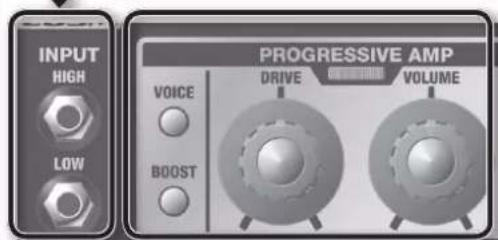

INPUT Jacks

Use to connect to an electric guitar. Use HIGH or LOW according to the guitar's output level. Normally connect to HIGH. Especially for guitars with a large output and likely sound distortion, connect to LOW.

[MID BOOST] Button

Turns the midrange boost on/off.

[BASS] Knob

Adjusts the sound level of the lower range.

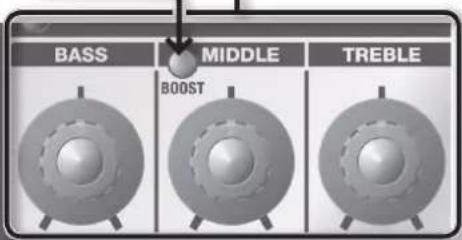

[MIDDLE] Knob

Adjusts the sound level of the midrange.

[TREBLE] Knob

Adjusts the sound level of the upper range.

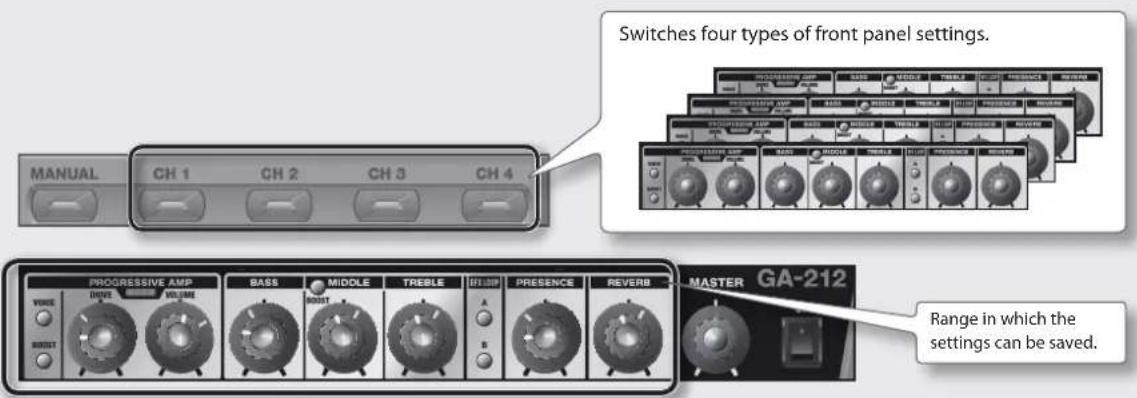

[MANUAL] Button, [CH 1]-[CH 4] Buttons

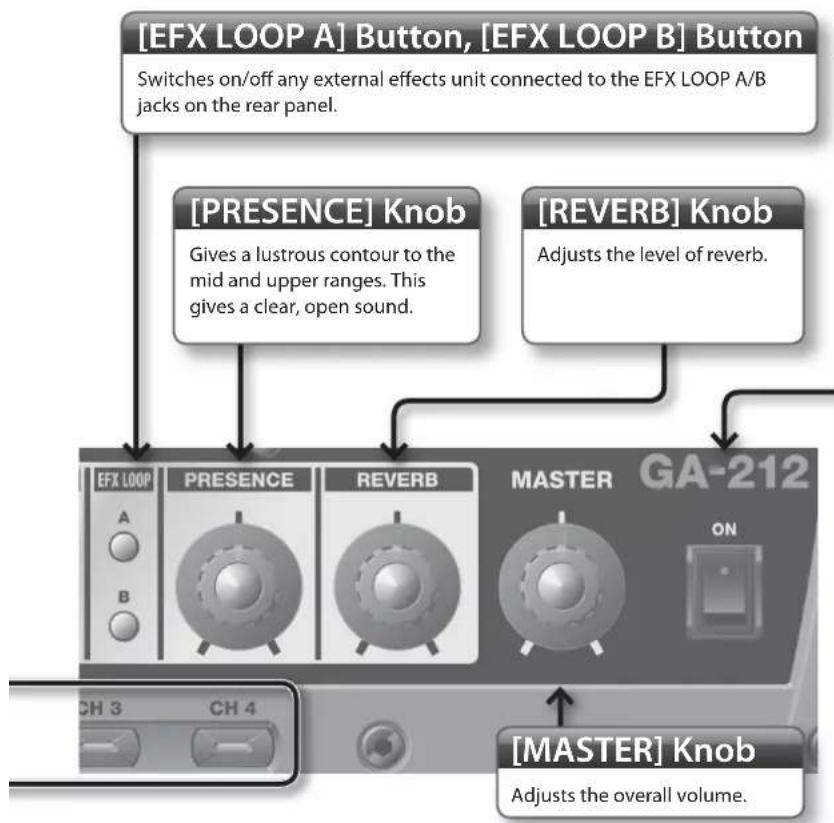

Each knob on the front panel of GA-212/GA-112 has an original LED pointer that allows you to check at a glance the settings during a performance or when the channels have been changed.

The simply-structured operation system enables intuitive control.

[MANUAL] button

When the unit is turned on, MANUAL operation is activated.

In MANUAL operation the LED pointers and knobs always match.

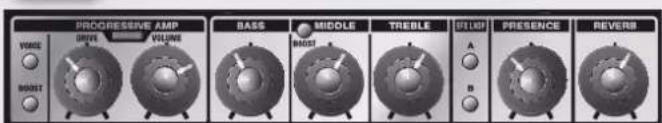

Knob LED pointers

An LED pointer indicates the setting of a knob.

When any one of the [CH 1]-[CH 4] buttons are pressed to change the channel (settings), the knob LED pointers also change instantaneously.

When the [MANUAL] button is pressed, the LED pointers will be displayed at the current knob positions.

If the saved knob setting is at the maximum level and the knob position is at the minimum level, turn the knob clockwise before making adjustments to lower the set value. If the opposite is true, turn the knob counterclockwise before making adjustments to raise the set value.

[ON] Switch

This switches the unit on/off.

Switching the unit on

• Once everything is properly connected (p. 6), be sure to follow the procedure below to turn on their power. If you turn on equipment in the wrong order, you risk causing malfunction or equipment failure.

• Before turning the unit on/off, always be sure to turn the volume down. Even with the volume turned down, you might hear some sound when switching the unit on/off. However, this is normal and does not indicate a malfunction.

• This unit is equipped with a protection circuit. A brief interval (a few seconds) after turning the unit on is required before it will operate normally.

• Turn on all the devices connected, but not the device connected to the LINE OUT jack.

• Turn on the GA-212/GA-112.
• Turn on the device connected to the LINE OUT jack.

Switching the unit off

1. Before switching off the unit, lower the volume on all the devices and then turn off the devices in the reverse order to which they were switched on.

CAUTION

• With the factory settings, the GA-212/GA-112 will automatically be switched off 4 hours after you stop playing or operating the unit. If you don't want the unit to turn off automatically, set the [AUTO OFF] switch to "OFF" as described on p. 6.
• If you need to turn off the power completely, first turn off the unit, then unplug the power cord from the power outlet. Refer to Power Supply (p. 3).

[CH 1]–[CH 4] buttons

Excluding the [MASTER] knob, the settings of all knobs and buttons on the front panel are saved in the [CH 1]-[CH 4] buttons. This function saves the last positions of the knobs; therefore, there is no special operation needed to save the settings.

Copying the button settings

You can copy the settings of the [MANUAL] button, or each of the [CH 1]-[CH 4] buttons to another channel.

Hold down the button to be copied, i.e. the [MANUAL] button or any of the [CH 1]-[CH 4] buttons...

Select and press any of the [CH 1]-[CH 4] buttons to which a copy will be made.

• You cannot select the [MANUAL] button as the channel which will receive the copy.

Saving the channel settings using the write operation function

The automatic saving of channel settings can be changed to the saving of channel settings by using the write operation. In the write operation mode, by holding down any one of the [CH 1]-[CH 4] buttons for a few seconds, the settings can be saved.

To make the setting, see

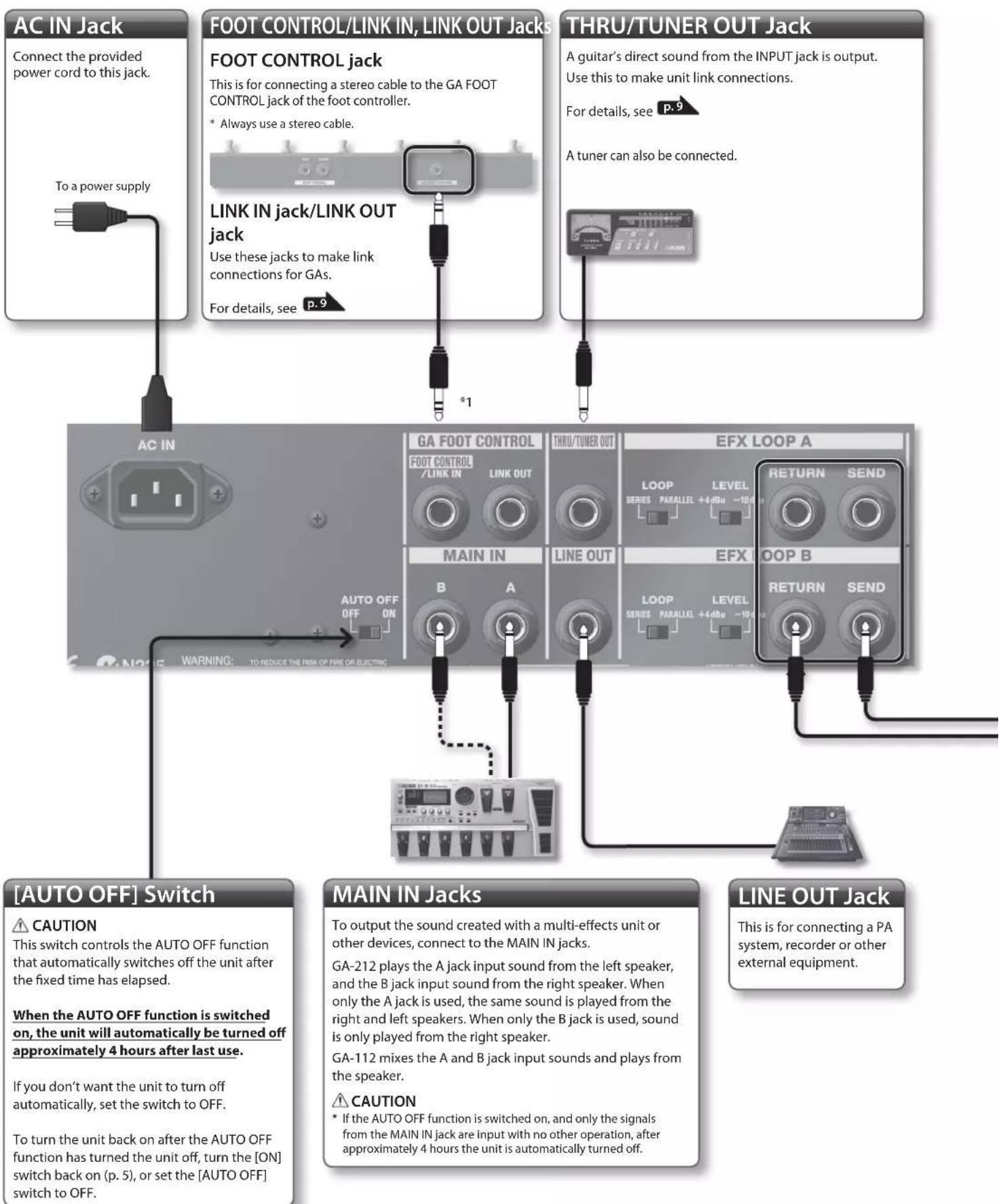

Rear Panel (Connecting Equipment)

EFX LOOP A, B Jacks

These are for connecting external effects units.

There are two systems, A and B (monaural).

Connect the external effects unit INPUT to the SEND jack, and the OUTPUT to the RETURN jack.

[LOOP] switch

When PARALLEL is set, the external effects sound and the direct sound are mixed.

When SERIES is set, only the external effects sound is played.

• When SERIES is set, if the volume of the external effects unit is turned down completely, or the power is not turned on, no sound will be heard.

[LEVEL] switch

Use this switch to change the input/output level of an effects loop. According to the input/output level of the connected equipment, select +4 dBu or -10 dBu. When the input/output level of the connected equipment is high, set +4 dBu, and when it is low, set -10 dBu.

• Depending on the power supply you are using, the two cables connected to SEND and RETURN may pick up more noise if they are placed apart from each other. Bundle the cables together.

External effects unit

OUTPUTINPUT

*1 Important Notes on FOOT CONTROL/LINK IN and LINK OUT Jacks

• Do not connect any device other than GA-212/GA-112 for link connection or exclusive GA FOOT CONTROLLER (GA-FC) to the FOOT CONTROL/LINK IN jack.
• Do not connect any device other than GA-212/GA-112 for link connection to the LINK OUT jack.
• This instrument is equipped with balanced (TRS) type jacks. Wiring diagrams for these jacks are shown below.

TIP

RING

SLEEVE (GND)

Exclusive Foot Controller (sold separately)

Connecting the foot controller

Connect a stereo cable to the FOOT CONTROL/LINK IN jack of the GA-212/GA-112.

• Always use a stereo cable.
• Use cables that do not contain resistors.

How to operate the foot controller

You can change channels by using the foot controller. By pressing the [FUNCTION] switch, you can also turn on/off BOOST, MID BOOST, EFX LOOP A, EFX LOOP B, and REVERB.

• The ON/OFF operation of BOOST, MID BOOST, EFX LOOP A, EFX LOOP B, and REVERB using the foot controller is not saved in the channel.

Using the expression pedals

By connecting expression pedals (Roland EV-5, BOSS FV-500L, BOSS FV-500H; sold separately), you can change the DRIVE value and volume by pedal.

DRIVE jack

Use this to control DRIVE. When BOOST is off, the sound can be changed from clean to crunch, and when BOOST is on, changed from clean to super extreme.

With an expression pedal connected to the DRIVE jack, the drive value can be controlled from 0 to the current DRIVE value on the panel. When the pedal is pressed fully down, the drive value shown by the panel knob will be applied.

VOLUME jack

This is for controlling the volume. Volume swell and mute are possible.

• The volume that you can control with the expression pedal connected to this jack is different from the [VOLUME] on the panel. The pedal operation is not linked to the [VOLUME] knob level.

Setting MINIMUM VOLUME of an expression pedal

With the [MINIMUM VOLUME] knob of an expression pedal, you can set the value for when the pedal is lifted up all the way (lowest value).

[MINIMUM VOLUME] knob

DRIVE value settings after changing channel

When an expression pedal is connected to the DRIVE jack, you can set the DRIVE value after changing channel to the current pedal value, not the value saved in the channel. To make the setting, see p. 10

• Use only the specified expression pedal (Roland EV-5, BOSS FV-500L, BOSS FV-500H; sold separately). By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.

(Example)

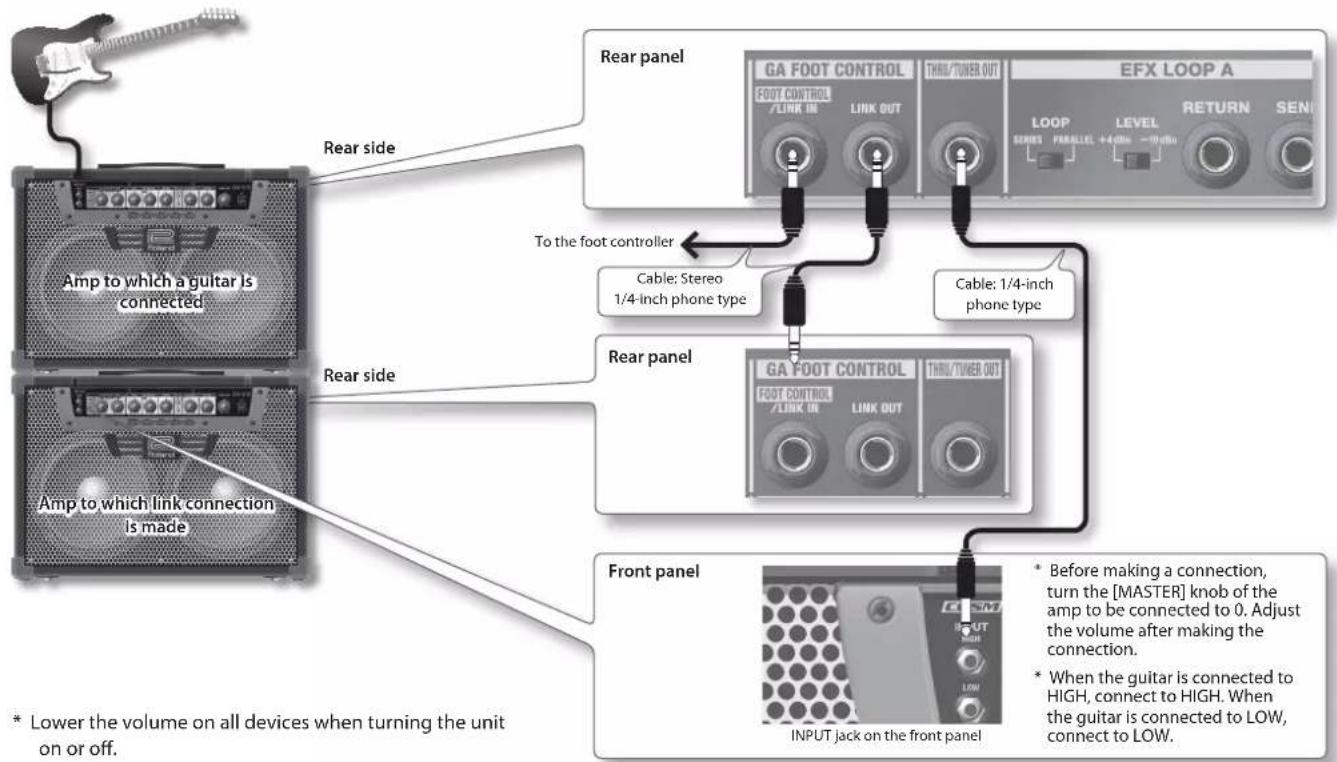

Making Unit Link Connections

Link connection can be made with another unit. Link connection allows you to obtain more sound pressure, and give a powerful performance on a large stage.

When the amps are connected as described below, channel change by the foot controller, and use of an expression pedal are possible with the connected amp.

How to stack the amps

GA-212/112 can be used in a stacked configuration.

NOTE

Up to one unit can be stacked. Do not stack two or more units. When stacking, be sure to follow the instructions below.

• Be sure to set up and use these units in stable, level locations.
• To prevent injury caused by the unit overturning or being dropped, make sure that at least two persons work together when lifting and carrying the units.
• Be careful not to get your fingers pinched.

How to stack the amps

• When the amps are stacked, always align them so that the corners of the upper and lower amps are securely engaged. If the corners are not engaged, there is a risk of the units falling.
• Do not stack GA-212 and GA-112.
• If the units are to be stacked, always remove all casters from each amp.

Fitting and removal of casters (For GA-212 only)

The casters are not fitted to the unit when shipped from the factory. To fit or remove the casters, follow the diagram.

By holding down specific buttons and switching the unit on simultaneously, the following settings can be configured for the unit.

Settings Operation
Returning to the factory-default settings (*)		Hold down the [EFX LOOP B] and [CH4] buttons, and switch the unit on.
Saving to a channel	Automatically saving the channel settings (default)	Hold down the [EFX LOOP A] button, and switch the unit on.
	Saving the channel settings using the write operation function (p. 5)	Hold down the [EFX LOOP B] button, and switch the unit on.
DRIVE value after changing the channel	The value saved in a channel (default) Hold down the [VOICE] button, and switch the unit on.
	Current expression pedal value Hold down the [BOOST] button, and switch the unit on.
Sound indicator	Enabling color display (default) Hold down the [MID BOOST] and [VOICE] buttons, and switch the unit on.
	Disabling color display Hold down the [MID BOOST] and [BOOST] buttons, and switch the unit on.
Setting the Link mode * The second amplifier functions according to the settings on the first amplifier.	The second amplifier reflects the foot controller operation (channel switching, expression pedal, and On/Off of REVERB) (default)	Hold down the [EFX LOOP A] and [MID BOOST] buttons, and switch the unit on.
	The second amplifier reflects all operations on the front panel (except MASTER) and foot controller	Hold down the [EFX LOOP B] and [MID BOOST] buttons, and switch the unit on.
Copy the channel settings on the first amplifier to the second amplifier		With the second amplifier turned on, hold down the [EFX LOOP A], [EFX LOOP B], and [MID BOOST] buttons on the first amplifier, and switch the unit on.

• The settings for each channel also return to the factory-default settings.

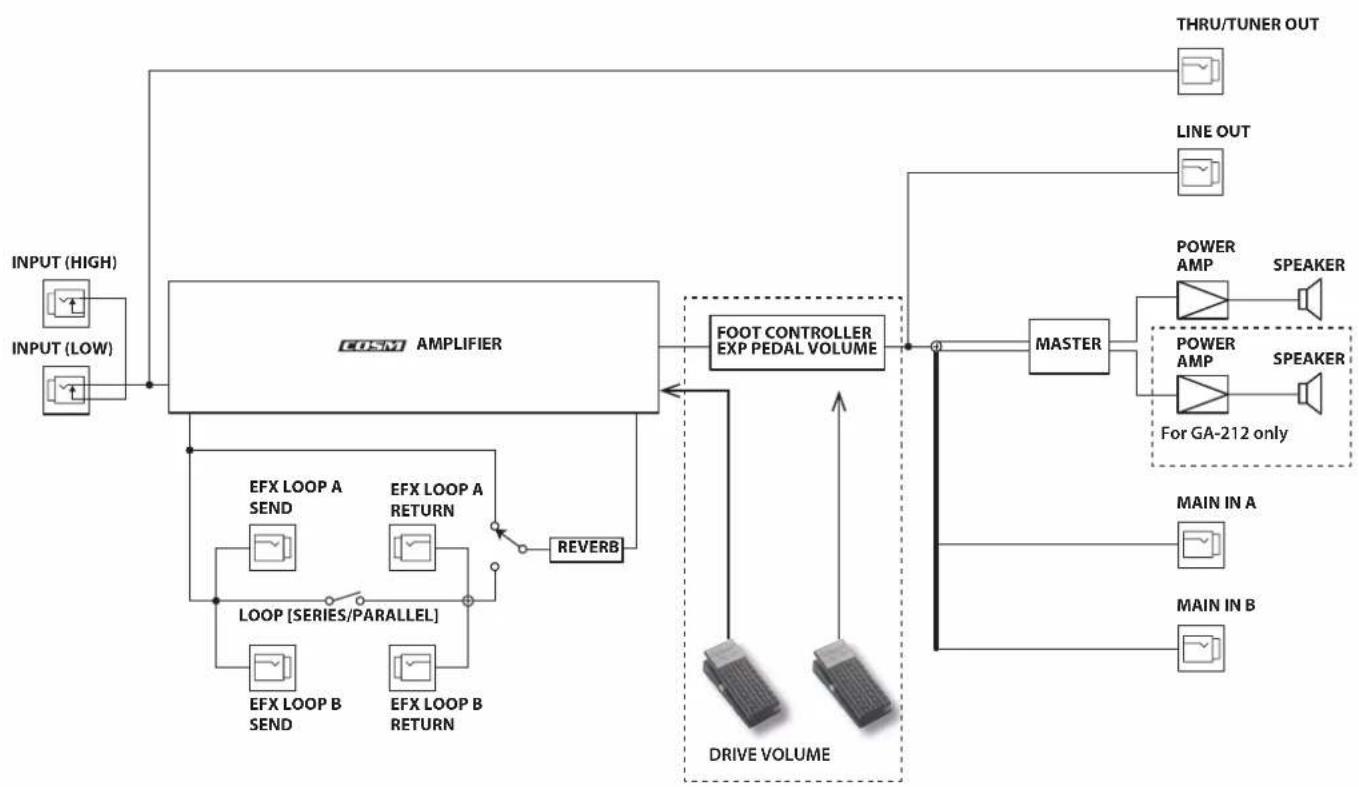

Block Diagram

Only when the foot controller is connected

Roland GA-212

Roland GA-112:Guitar Amplifier

	GA-212 GA-112
Rated Power Output 200 W 100 W
Nominal Input Level	INPUT HIGH: 10 dBu
	INPUT LOW: 0 dBu
	MAIN IN A, B: -10 dBu
	EFX LOOP A, B RETURN: -10 dBu, +4 dBu (selectable)
Nominal Output Level	LINE OUT: -10 dBu
	EFX LOOP A, B SEND: -10 dBu, +4 dBu (selectable)
	THRU / TUNER OUT: -10 dBu
Speaker 30 cm (12 inches) x 2 30 cm (12 inches) x 1
Controls	[ON] switch [AUTO OFF] switch [VOICE] button [BOOST] button [MID BOOST] button EFX LOOP[A],[B] button EFX LOOP A, B[LOOP] switches EFX LOOP A, B[LEVEL] switches [MANUAL] button [CH 1]-[CH 4] button
	[MASTER] knob [DRIVE] knob [VOLUME] knob [BASS] knob [MIDDLE] knob [TREBLE] knob [PRESENCE] knob [REVERB] knob
Indicators	SOUND INDICATOR LED knobx7 (except MASTER Knob) VOICE BOOST MID BOOST EFX LOOP A, B MANUAL CH 1-CH 4
Connectors	AC IN Jack INPUT HIGH/LOW jacks (1/4-inch phone type) MAIN IN A, B jacks (1/4-inch phone type) LINE OUT jack (1/4-inch phone type) FOOT CONTROL/LINK IN jack (Stereo 1/4-inch phone type) LINK OUT jack (Stereo 1/4-inch phone type) THRU/TUNER OUT jack (1/4-inch phone type) EFX LOOP A, B SEND jacks (1/4-inch phone type) EFX LOOP A, B RETURN jacks (1/4-inch phone type)
Power Consumption 75 W 45 W
Dimensions	715 (W) x 337 (D) x 560 (H) mm 28-3/16 (W) x 13-5/16 (D) x 22-1/16 (H) inches	615 (W) x 337 (D) x 504 (H) mm 24-1/4 (W) x 13-5/16 (D) x 19-7/8 (H) inches
Weight 32.0 kg / 70 lbs 9 oz	oz 24.5 kg / 54 lbs 1 oz
Accessories	Caster x 4 (only GA-212) Power Cord Owner's Manual
Options (sold separately)	GA FOOT CONTROLLER (GA-FC)

*0dBu=0.775Vrms
In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Roland

GA-212

Buchsen FOOT CONTROL/LINK IN, LINK OUT

FOOT CONTROL-Buchse

Ajusta as frequencias graves do som.

Botão [MIDDLE]

Ajusta as frequencies medias do som.

Botão [TREBLE]

Ajusta as frequencies agudas do som.

This product complies with the requirements of EMCD 2004/108/EC and LVD 2006/95/EC.

For EU Countries.

For the USA

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment requires shielded interface cables in order to meet FCC class B limit.

Any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For Canada

NOTICE

This Class B digital apparatus meets all requirements of the Canadian Interference-Caising Equipment Regulations.

AVIS

This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.

For EU Countries

This symbol indicates that in EU countries, this product must be collected separately from household waste, as defined in each region. Products bearing this symbol must not be discarded together with household waste.

Este的意义，即：如果在任何情况下，产品都属于本国的生产国。
Este é a signe de la production du pays du monde.
This is the most important of all the goods that are produced in the world.
This is the most important of all the goods that are produced in the world.

When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as shown below.

AFRICA

EGYPT

Al Fanny Trading Offi ce 9, EBN-Hagar Al Askalany Street, ARD E1 Golf, Heliopolis, Cairo 11341,EgyptTEL: [phone]

REUNION

MARCEL FO-YAM SARl 25 Rue Jules Hermann, Chaudron -BP79 97 49 Ste Clotilde Cedex, REUNION ISLAND TEL: [phone]

SOUTH AFRICA

T.O.M.S. Sound & Music (Pty)Ltd. 2ASTRON ROAD DENVER JOHANNESBURGZA 2195, SOUTH AFRICA TEL: [phone]

Paul Bothner(PTY)Ltd.
Royal Cape Park, Unit 24
Londonderry Road, Ottery 7800
Cape Town, SOUTH AFRICA
TEL: [phone]

ASIA

CHINA

Roland Shanghai Electronics Co., Ltd.
5F. No.1500 Pingliang Road
Shanghai 200090, CHINA
TEL: (021) 5S80-0800

Roland Shanghai Electronics Co.,Ltd. (BEIJING OFFICE) 3F, Soluxe Fortune Building 63 West Dawang Road, Chaoyang District, Beijing, CHINA TEL: [phone]

HONG KONG

Tom Lee Music BARBADOS 11/F Silvercord Tower 1 30 Canton Rd A&B Music Supplies LTD Tsimshatsui, Kowloon, 12 Webster Industrial Park HONG KONG Wildey,St.Michael, BARBADOS TEL:[phone] TEL:[phone]

Parsons Music Ltd.
8th Floor, Railway Plaza, 39
Chatham Road South, T.S.T.,
Kowloon, HONG KONG
TEL: [phone]

INDIA

Rivera Digitec (India) Pvt. Ltd. 411, Nirman Kendra Mahalaxmi Flats Compound Off. Dr. Edwin Moses Road, Mumbai-400011, INDIA TEL: [phone]

INDONESIA

PT. Citta Intirama
Ruko Garden Shopping Arcade
Unit 8 CR, Podomoro City
JI.Letjend.S.Parman Kav.28
Jakarta Barat 11470, INDONESIA
TEL: [phone]

KOREA

Cosmos Corporation 1461-9 Seocho-Dong, Seocho Ku, Seoul, KOREA TEL: [phone]

MALAYASIA/SINGAPORE

Roland Asia Paci c Sdn. Bhd. 45-1, Block C2, Jalan PJU 1/39, Dataran Prima, 47301 Petaling Jaya, Selangor, MALAYSIA TFL: [phone]

PHILIPPINES

G.A. Yuapanco & Co. Inc.
339 Gil J. Puyat Avenue
Makati, Metro Manila 1200,
PHILIPPINES
TEL: [phone]

TAIWAN

ROLAND TAIWAN ENTERPRISE CO., LTD. 05-6-12-13 Chung-Shu

9F-5, No. 112 Chung Shan North Road Sec. 2 Taipei 104, TAIWAN R.O.C.
TEL: [phone]

THAILAND

Theera Music Co., Ltd.
100-108 Soi Verng Nakornkasem,
New Road,Sumpantawong,
Bangkok 10100, THAILAND
TEL: [phone]

VIET NAM

VIET THUONG CORPORATION
386 CACH MANG THANG TAM ST
DIST.3, HO CHI MINH CITY,
VIET NAM
TEL: [phone]

OCEANIA

AUSTRALIA/ NEW ZEALAND

Roland Corporation Australia Pty.,Ltd. 38 Campbell Avenue Dee Why West.NSW 2099, AUSTRALIA

For Australia
TEL: [phone]
For New Zealand
TEL: [phone]

CENTRAL/LATIN AMERICA

ARGENTINA

Instrumentos Musicales S.A. Av.Santa Fe 2055 (1123) Buenos Aires,ARGENTINA TEL: [phone]

BARBADOS

A&B Music Supplies LTD 12 Webster Industrial Park Wildley,St.Michael, BARBADOS TEL:[phone]

BRAZIL

Roland Brasil Ltda.
Rua San Jose, 211
Parque Industrial San Jose
Cotla - Sao Paulo - SP, BRAZIL
TEL: [phone]

CHILE

Comercial Fancy II S.A.
Ruc.: 96.919.420-1
Nataniel Cox #739, 4th Floor
Santiago - Centro, CHILE
TEL: [phone]

COLOMBIA

Centro Musical Ltda.
Cra 43 B No 25 A 41 Bododega 9
Medelin, COLOMBIA
TEL: [phone]

COSTA RICA

JUAN Bansbach Instrumentos Musicales
Ave.1.Calle 11, Apartado 10237, San Jose, COSTA-BICA

CURACAO

Zeelandia Music Center Inc.
Oriowweg 30
Curacao, Netherland Antilles
TEL: [phone]

DOMINICAN REPUBLIC Instrumentos Fernando Giraldez Calle Proyecto Central No.3 Ens.La Esperilla Santo Domingo, DOMINICAN REPUBLIC Tel: [phone]

ECUADOR

Mas Musika Rumichaca 822 y Zaruma Guayquil - ECUADOR TEL: [phone]

EL SALVADOR

OMNI MUSIC
75 Avenida Norte y Final Alame
Juan Pablo II,
Edif cio No.4010 San Salvador,
EL SALVADOR
TEL: [phone]

GUATEMALA

Casa Instrumental Calzada Roosevelt 34-01,zone 11 Ciudad de Guatemala, GUATEMALA TEL: [phone]

HONDURAS

Almacen Pajaro Azul S.A. de C.V.
BO.Paz Barahona
3 Ave.11 Calle S.O
San Pedro Sula, HONDURAS
TEL: [phone]

MARTINIQUE

MOCO INC.
Jadeh Maksouts Karaj (K-9)
Nakhe Zarin Ave.
Jalal Street, Reza Alley No.4
Tehran 1389716791, IRAN
TEL: [phone]

ISRAEL

Halit P. Greenspoon & Sons Ltd.
8 Retzif Ha'aila Hashvia St.
Tel: Aviv-Yafo ISRAEL
TEL: [phone]

JORDAN

MUSIC HOUSE CO. LTD. FREDDY FOR MUSIC P.O.Box 922846 Amman 11192, JORDAN TEL: [phone]

KUWAIT

EASA HUSAIN AL-YOUSIFI & SONS CO.
Al-Yousifi Service Center P.O.Box 126 (Safat) 13002, KUWAIT
TEL: [phone]

LEBANON

Chahine S.A.L.
George Zeidan St., Chahine Bldg.,
Achrafeh, P.O.Box: 16-5857
Beirut, LEBANON
TEL: [phone]

OMAN

TALENTZ CENTRE L.L.C.
Malatlan House No.1
Al Norr Street, Ruwi
SULTANATE OF OMAN
TEL:[phone]

QATAR

AL-EMADI TRADING & CONTRACTING CO. P.O.Box 62, Doha, QATAR TEL:[phone]

aDawliah Universal Electronics

APL Behind Pizza Inn Prince Turkey Street aDawlah Building PO BOX 2154, Alkohbar 31952, SAUDI ARABIA TEL: [phone]

SYRIA

Technical Light & Sound Center
PO Box 13520 Bidg No.49
Khaled Abn Alwalid St.
Damascus, SYRIA
TEL: [phone]
TURKEY
ZUHAL DIS TICARET A.S.
Galip Dede Cad. No.33
Beyoglu, Istanbul, TURKEY
TEL: [phone]
U.A.E.
Zak Electronics & Musical Instruments Co. L.L.C.
Zabeef Road, Al Sheroog Bidg., No. 14, Ground Floor, Dubal, U.A.E.
TEL: [phone]

NORTH AMERICA

CANADA

Roland Canada Ltd.
(Head Off ce)
5480 Parkwood Way Richmond B. C., V6V 2M4, CANADA
TEL: [phone]

Roland Canada Ltd.
(Toronto Offi ce)
170 Admiral Boulevard
Mississauga ON LST 2N6, CANADA
TFL: (905) 362 907

U.S.A.

Roland Corporation U.S. 5100 S. Eastern Avenue Los Angeles, CA 90040-2938, U.S.A.

TEL: [phone]

MEMO

Roland
