USER MANUAL Saigor 100 VPASG100 HQ Power

SAIGOR POWER AMPLIFIER (19")

SAIGOR VERMOGENVERSTERKER (19")

AMPLIFICATEUR DE PUISSANCE SAIGOR (19")

AMPLIFICADOR DE POTENCIA SAIGOR (19")

Note: layouts of SAIGO R 200 and SAIGOR 300 are identical.

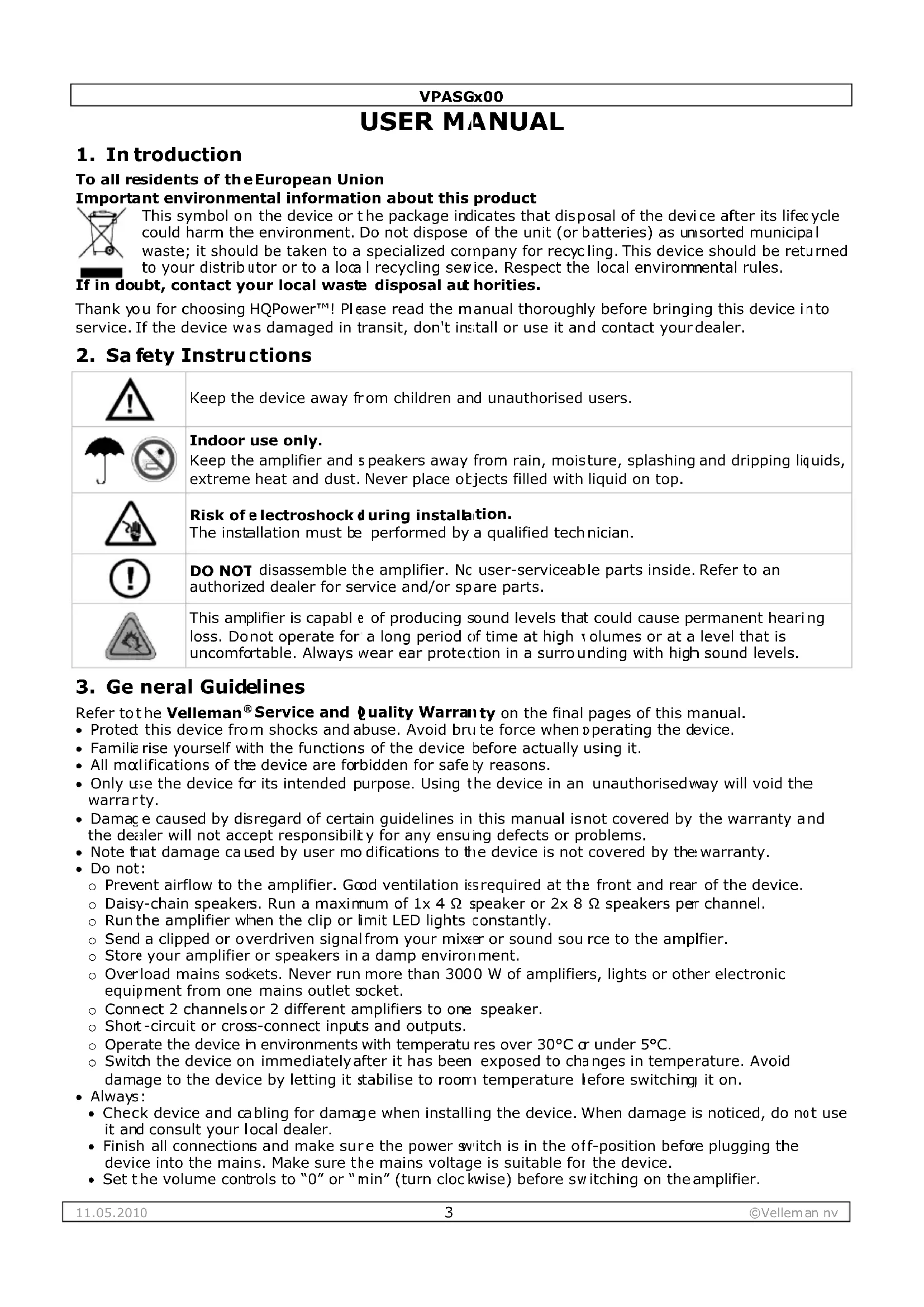

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

!	Keep the device away from children and unauthorised users.
	Indoor use only. Keep the amplifier and speakers away from rain, moisture, splashing and dripping liquids, extreme heat and dust. Never place objects filled with liquid on top.
	Risk of electroshock during installation. The installation must be performed by a qualified technician.
!	DO NOT disassemble the amplifier. No user-serviceable parts inside. Refer to an authorized dealer for service and/or spare parts.
	This amplifier is capable of producing sound levels that could cause permanent hearing loss. Donot operate for a long period of time at high volumes or at a level that is uncomfortable. Always wear ear protection in a surrounding with high sound levels.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the final pages of this manual.

• Proted this device from shocks and abuse. Avoid brute force when operating the device.
• Familie rise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safe by reasons.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
  Note that damage caused by user modifications to the device is not covered by the warranty.
• Do not:

o Prevent airflow to the amplifier. Good ventilation is required at the front and rear of the device.
Daisy-chain speakers. Run a maximum of 1x 4 Ω speaker or 2x 8 Ω speakers per channel.
- Run the amplifier when the clip or limit LED lights constantly.
o Send a clipped or overdriven signal from your mixer or sound source to the amplifier.
Store your amplifier or speakers in a damp environment.
Overload mains sockets. Never run more than 3000 W of amplifiers, lights or other electronic equipment from one mains outlet socket.
Connect 2 channels or 2 different amplifiers to one speaker.
- Short-circuit or cross-connect inputs and outputs.
Operate the device in environments with temperatu res over 30^ a under 5^
- Switch the device on immediately after it has been exposed to changes in temperature. Avoid damage to the device by letting it stabilise to room temperature before switching it on.

Always:

• Check device and cabling for damage when installing the device. When damage is noticed, do not use it and consult your local dealer.
• Finish all connections and make sure the power switch is in the off-position before plugging the device into the mains. Make sure the mains voltage is suitable for the device.
• Set the volume controls to "0" or "min" (turn clockwise) before switching on the amplifier.

VPASGx00

• Switch on the amplifier last and switch it off first. Disconnect from the mains when not in use or when maintenance activities are performed. Handle the power cable by the plug only.

• Keep power cables away from signal cables to avoid interference.

• Save this user manual for further reference.

4. Overview and use

Refer to the illustration on page 2 of this manual.

1	Clip LED	This LED flashes when the channel A output signal is distorted.
2	Gain control: channel A	Adjust the volume of channel A.
3	Power LED	This LED illuminates when the amplifier is switched on.
4	Protect LED	On when one of the internal protection circuits is active or no speakers are connected. Switch off the amplifier and resolve the error condition .
5	Gain Control: channel B	Adjust the volume of channel B.
6	Clip LED	This LED flashes when the channel A output signal is distorted.
7	Power switch	Press this button to start operation.
8	Speakon® output	Speakon® speaker jack sockets.
9	TRS input sockets	for input signals using balanced ¼" TRS (stereo) jacks
10	RCA input sockets	for input signals using unbalanced phone (RCA) input jacks
11	Ground lift switch	Some connected equipment may present hum. This switch will remove the signal ground and reduce the effect of the mains hum.
12	TRS output sockets	for output signals using stereo jacks
13	screw outputs	for output signals using bare wires
14	fuse holder	Only replace the fuse when the device is disconnected from the Mains. Only use fuses of the same rating and power.
15	AC power socket	plug the AC power cord into this power socket
16	AC voltage selector	Make sure the setting matches your local mains voltage!

5. Notes

- Rack installation

This amplifier can be mounted in a 19" (483mm) rack that allows access to front and rear panel. Make sure to leave enough space around the device for sufficient ventilation. Note that when mounting in a rack, the heaviest devices should be mounted closest to the bottom.

Also note that it is not enough to mount the amplifier with 4 screws on the front; the rear must also be attached to the side bars of the rack.

- Input cables

Using short cables will improve sound quality as high frequencies are absorbed by the cable. Longer cables may also lead to humming and noise problems. If you do need longer cables, only use balanced cables.

Output cables

The high damping factor of the amplifier produces a clear sound reproduction. Long and thin cables will influence this damping factor and thus the low frequencies in a negative way. To maintain good sound quality, the damping factor should be around 50. When long cables are unavoidable, make sure they are thick enough.

- Speakers

Connect your speakers using the Speakon® or screw outputs. Connect the red terminator with the positive wire and the black terminator with the negative wire.

Ground lift switch

This switch allows the signal ground or chassis ground to be separated in case of a ground conflict. For safety reasons it is recommended to keep the switch in the GND FLOATING position unless ground problems are experienced.

6. Troubleshooting

- The amplifier stops working.

Turn the volume knobs of both channels to zero, switch off the amplifier and disconnect from the mains. Check the front panel, the fuse and all input and output connections. Replace the fuse with a fuse of the same type and ratings.

- No sound when power LED is switched off.

The power supply is not connected or the amplifier has a blown fuse. Check the power connections and switches, or replace the fuse located below the power input.

- No sound when power LED is switched on.

No or low input, or faulty speakers. Check if the input is connected and if the LED shows the presence of a signal. Gently increase the volume level and check the speakers and speaker connections.

Hum or buzz.

Power supply noise is picked up in the signal path or earth problem. Only use good quality, shielded signal cables and ensure they are kept away from the power cables and other AC-powered equipment. Use a mains tester to ensure the mains outlet has a good earth.

Distorted sound.

There is an excessive signal level or damaged signal cables. Check the LED to ensure the input level to the amp is at the correct level. Only use good quality, shielded signal cables and protect them from damage.

Sound cuts out.

The signal cables are damaged or the connectors are not properly inserted. Check all cables and connections.

- Protect LED on

• Check if the amplifier is not overheated. Clean ventilation openings when necessary.
• Check whether the connected speakers have the appropriate impedance. If not, connect speakers with sufficient impedance. Also verify that the speakers are not short-circuited. Inspect the wiring.
• Inputs receive DC voltage or another technical fault condition has occurred. Switch off the amplifier and contact your local dealer for servicing.

7. Maintenance

• Regularly wipe the amplifier with a moist, lint-free cloth. Do not use alcohol or solvents.
• Ensure that liquids are not spilled into the enclosure through the ventilation openings.
• Contact your HQPower™ dealer if your amplifier needs servicing.

8. Technical Specifications

VPASG100		VPASG200	VPASG300
RMS power	4Ω	120Wrms	250Wrms	400Wrms
	8Ω	80Wrms	180Wrms	280W
S/N ratio > 85dB > 90dB > 90dB
weight		9.5kg	10.5kg	12

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulted from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.hqpower.eu. The information in this manual is subject to change without prior notice.
