CA122650 - Cooker CONSTRUCTA - Free user manual and instructions

Product type	Built-in gas cooktop
Brand	Constructa
Model	CA122650
Number of burners	4 (wok, rapid, semi-rapid, auxiliary)
Ignition type	Automatic (spark plugs)
Safety system	Thermocouple (gas shut-off in case of flameout)
Surface material	Stainless steel (depending on model)
Approximate dimensions (W x D x H)	60 x 60 x 10 cm
Approximate weight	40 kg
Gas supply	Natural gas or butane/propane (adjustable)
Burner power	See rating plate (varies by gas)
Main functions	Gas cooking, automatic ignition, thermocouple safety, Simmer Cap burner available
Maintenance and cleaning	Clean with soapy water, non-metal brush; do not use steam cleaner
Safety instructions	Mandatory supervision, do not use as heater, adequate ventilation
Spare parts and repairability	Available from Constructa Technical Service
General information	83-page user manual, multilingual

Frequently Asked Questions - CA122650 CONSTRUCTA

How to light a burner on the CA122650 cooktop?

Press the control knob of the selected burner and turn it to the left to the desired position. Bring a gas lighter or a flame near the burner. If automatic ignition is present, sparks will occur. Keep the knob pressed for 4 seconds if the safety system (thermocouple) is active.

What to do if a burner does not light?

Check that the burner parts are clean and dry, and that the caps are properly placed. Clean the gap between the spark plug and the burner. If automatic ignition still does not work, contact Technical Service.

How to clean the CA122650 cooktop?

After cooling, clean with a sponge, water and soap. Wash the burners and grates with soapy water using a non-metal brush. Dry completely before reuse. Never use a steam cleaner.

What cookware to use on the burners?

Use cookware with a flat and thick base, suitable for each burner: minimum diameter 12 cm for the auxiliary, up to 26 cm for the rapid. The flame must not touch the sides of the cookware. Place the cookware well centered.

How to save energy with this cooktop?

Use appropriately sized cookware, cook with a lid, and place the cookware in the center of the burner. Avoid heating empty. The wok and rapid burners are more efficient for intense cooking.

What to do in case of gas odor?

Immediately close the main gas supply, ventilate the room, and do not use the appliance. Contact a qualified technician to check the installation. Do not use any flame or electrical appliance.

The burner goes out after releasing the knob: why?

You did not hold the knob down long enough. After lighting, hold it down for 4 seconds (or more) to activate the thermocouple. If the problem persists, clean the burner grooves.

Can I use a wok on this cooktop?

Yes, the wok burner is designed for wok cookware (minimum diameter 22 cm). Follow the wok manufacturer's instructions. Refer to the manual for optional accessories.

How to maintain the stainless steel burners?

Clean after each use with a product suitable for stainless steel. Discoloration due to heat is normal. Use the recommended cleaning product (ref. 464524) available from Technical Service.

Where to find spare parts and after-sales service?

Contact Constructa Technical Service at the numbers indicated in the manual (France : 01 40 10 12 00, Switzerland : 0848 840 040). Have ready the product number (E-Nr.) and the manufacturing number (FD) located on the rating plate.

USER MANUAL CA122650 CONSTRUCTA

[en] Instruction manual 15

[es] Instrucciones de uso 21

Fare for forgiftning!

Illustration of a kettle being heated by two hands using a stove (no text or symbols)

Ekstra kafferist

Illustration of a cooking pot and its lid with a stove (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Pure diagram of a circular component with curved arrows and circles, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Manuel tænding

Illustration of a standard metal pan with a handle (no text or symbols)

Wok

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, both labeled in English.

Illustration showing two cooking pots with checkmarks and X marks indicating cooking defects or failure.

Illustration showing cooking process: a pot with checkmark and a cooking pot with steam, both without text labels.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking resistance.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Illustration of a cooking pot and its octagonal stove with a side table (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Pure diagram of a circular component with curved arrows and circles, no text or symbols present

Exploded view diagram of a mechanical assembly showing layered components (no text or labels)

Technical line drawing of a gas stove or boiler assembly (no text or labels)

Anzünden per Hand

Technical line drawing of a circular mechanical component with two embedded pins (no text or symbols)

Illustration of a stainless steel cooking pan with a handle (no text or symbols)

Wok

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, both labeled in English.

Illustration showing two cooking pots with checkmarks and X marks indicating heating conditions

Illustration showing a cooking pot with a checkmark and a cooking pan with a crossed-out 'X' symbol, likely indicating a cooking or heating scenario.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking resistance.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

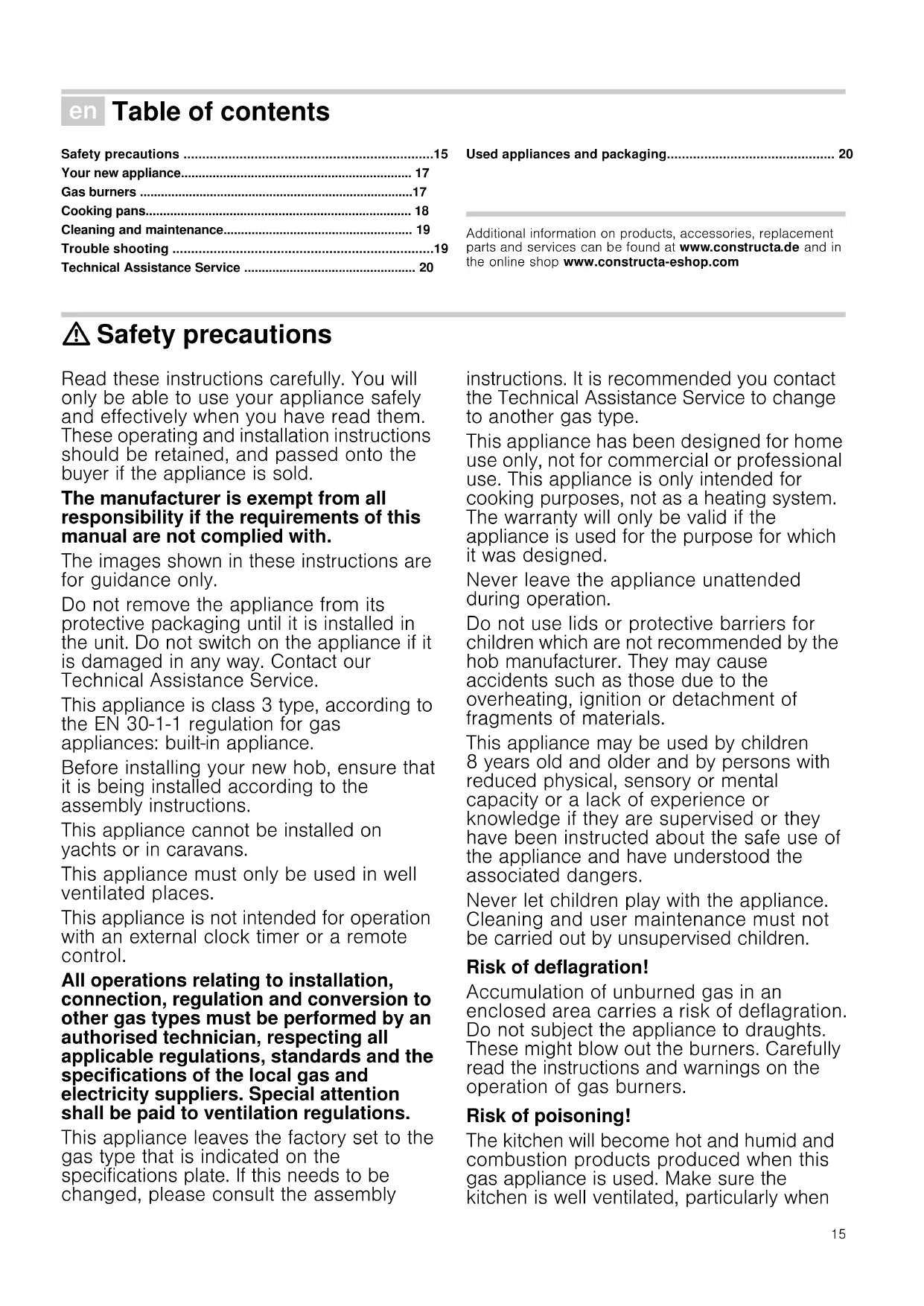

Safety precautions ....15

Your new appliance....17

Gas burners ....17

Cooking pans.... 18

Cleaning and maintenance.... 19

Trouble shooting ....19

Technical Assistance Service 20

Used appliances and packaging.... 20

Additional information on products, accessories, replacement parts and services can be found at wwwConstructa.de and in the online shop wwwConstructa-eshop.com

Safety precautions

Read these instructions carefully. You will only be able to use your appliance safely and effectively when you have read them. These operating and installation instructions should be retained, and passed onto the buyer if the appliance is sold.

The manufacturer is exempt from all responsibility if the requirements of this manual are not complied with.

The images shown in these instructions are for guidance only.

Do not remove the appliance from its protective packaging until it is installed in the unit. Do not switch on the appliance if it is damaged in any way. Contact our Technical Assistance Service.

This appliance is class 3 type, according to the EN 30-1-1 regulation for gas appliances: built-in appliance.

Before installing your new hob, ensure that it is being installed according to the assembly instructions.

This appliance cannot be installed on yachts or in caravans.

This appliance must only be used in well ventilated places.

This appliance is not intended for operation with an external clock timer or a remote control.

All operations relating to installation, connection, regulation and conversion to other gas types must be performed by an authorised technician, respecting all applicable regulations, standards and the specifications of the local gas and electricity suppliers. Special attention shall be paid to ventilation regulations.

This appliance leaves the factory set to the gas type that is indicated on the specifications plate. If this needs to be changed, please consult the assembly

instructions. It is recommended you contact the Technical Assistance Service to change to another gas type.

This appliance has been designed for home use only, not for commercial or professional use. This appliance is only intended for cooking purposes, not as a heating system. The warranty will only be valid if the appliance is used for the purpose for which it was designed.

Never leave the appliance unattended during operation.

Do not use lids or protective barriers for children which are not recommended by the hob manufacturer. They may cause accidents such as those due to the overheating, ignition or detachment of fragments of materials.

This appliance may be used by children 8 years old and older and by persons with reduced physical, sensory or mental capacity or a lack of experience or knowledge if they are supervised or they have been instructed about the safe use of the appliance and have understood the associated dangers.

Never let children play with the appliance. Cleaning and user maintenance must not be carried out by unsupervised children.

Risk of deflagration!

Accumulation of unburned gas in an enclosed area carries a risk of deflagration. Do not subject the appliance to draughts. These might blow out the burners. Carefully read the instructions and warnings on the operation of gas burners.

Risk of poisoning!

The kitchen will become hot and humid and combustion products produced when this gas appliance is used. Make sure the kitchen is well ventilated, particularly when

the hob is in operation: either keep the natural ventilation apertures open, or install a ventilation system (extractor hood). Intense prolonged use of the appliance may require additional or more effective ventilation: open a window or increase the power of the ventilation system.

Risk of burns!

The hotplates and their immediate vicinity get very hot. Never touch the hot surfaces. Keep children under 8 years old well away from this appliance.

Risk of fire!

■ The hotplates get very hot. Do not rest inflammable objects on the hob. Do not store objects on the hob.
- Do not store or use corrosive chemicals, products which produce fumes, inflammable materials or non-food products below or near this domestic appliance.
- Fat or oil which is overheated can catch fire easily. Never leave fat or oil to heat up unattended. If oil or fats do catch fire, never use water to put the fire out. Put the fire out by covering the pan with a lid and switch off the hotplate.

Risk of injuries!

• Pans which are damaged, are not the right size, hang over the edge of the hob or are not positioned correctly can cause serious injuries. Follow the advice and warnings provided relating to the cooking pans.
• In the event of a malfunction, turn off the appliance's gas and electricity supply. For repairs, call our Technical Assistance Service.
• Do not tamper with the appliance's interior. If necessary, call our Technical Assistance Service.
• If one of the control knobs will not turn, do not force it. Call the Technical Assistance Service immediately so that they can repair or replace them.

Risk of electric shock!

Do not clean the appliance using steam cleaners.

Your new appliance

Page 2 shows an overall view of your new appliance as well as the burner power.

Accessories

The following accessories can be purchased from the Technical Assistance Service:

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

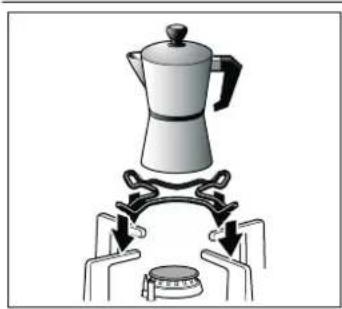

Additional coffee maker support

Only for use on the auxiliary burner with pans which are no more than 12 cm in diameter.

Illustration of a cooking pot and its octagonal stove with a side table (no text or symbols)

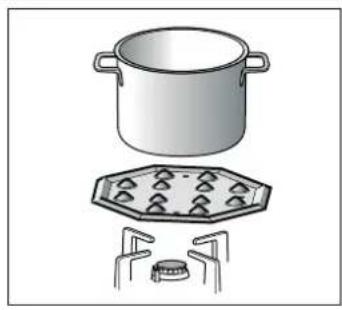

Simmer Plate

This accessory has been designed to reduce the level of heat at the lowest power setting.

Place the accessory directly on the pan support with the cones facing upwards, never directly over the burner. Centre the pan over the accessory.

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

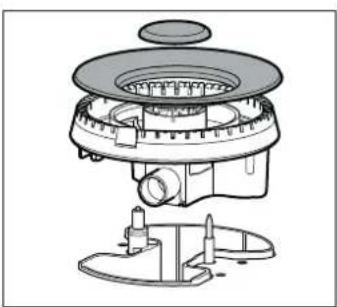

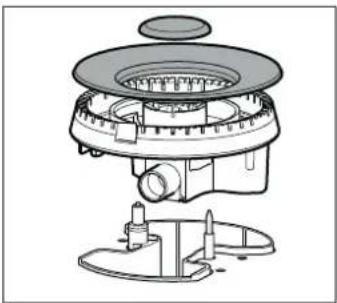

Simmer Cap

Burner specially designed to cook at minimum power. In order to use it, remove the auxiliary burner and replace it with the Simmer Cap burner.

The manufacturer accepts no liability if these accessories are not used or are used incorrectly.

Gas burners

Remove the plastic covering used to protect the stainless steel before using the appliance (depending on the model). If any traces of adhesive remain on the printed areas, remove them with a wet cloth.

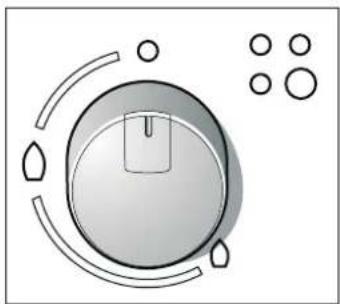

There are indications to show which burner each control knob operates.

Pure diagram of a circular device with internal components and surrounding circles (no text or symbols)

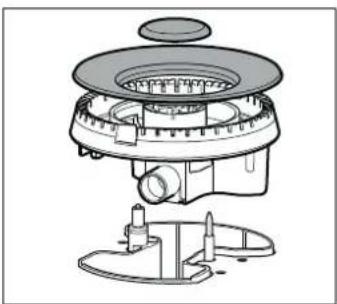

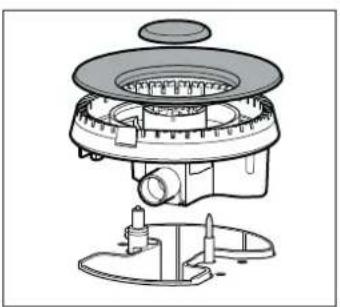

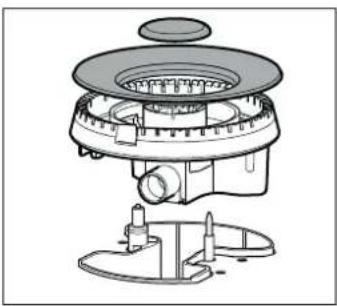

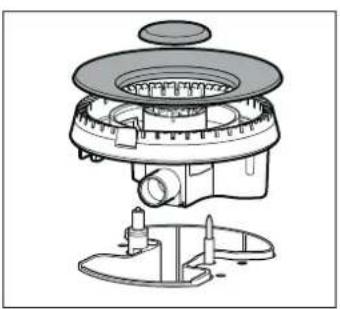

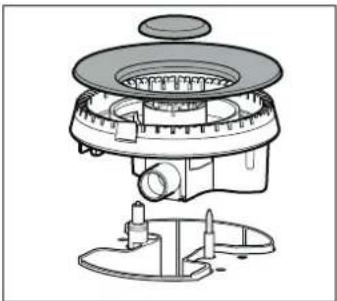

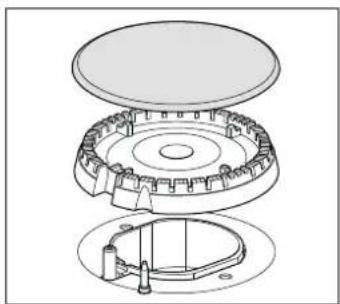

It is essential to ensure that all the burner parts and pan supports are correctly installed for the appliance to work correctly. Do not swap the burner caps around.

Exploded view diagram of a mechanical assembly showing layered components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Switching on manually

1. Press the chosen burner control knob and turn it anticlockwise to the required setting.
2. Use any type of lighter or flame (cigarette lighter, matches, etc.) and bring it close to the burner.

Switching on automatically

If your hob can be switched on automatically (ignition sparkers):

1. Press the chosen burner control knob and turn it anticlockwise to the maximum power setting. While the control knob is still pressed down, sparks are produced on all burners. The flame ignites.
2. Release the control knob.
3. Turn the control knob to the required setting.

If it does not come on, turn the control knob to the off setting and repeat the steps above. This time, press and hold the control knob for longer (up to 10 seconds).

Risk of deflagration!

If after 15 seconds the flame does not ignite, switch off the burner and open a nearby window or door. Wait at least one minute before trying to switch the burner back on.

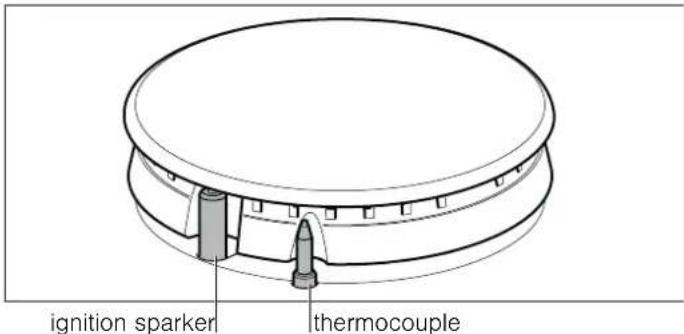

Safety system

Depending on the model, your hob may have a safety system (thermocouple) that prevents the flow of gas if the burners accidentally switch off.

ignition sparker thermocouple

To ensure that this device is active:

1.Switch on the burner as usual.

1. Without releasing the control knob, press and hold it down firmly for 4 seconds after lighting the flame.

Switching off a burner

Turn the corresponding control knob clockwise to the 0 setting.

Power levels

The progressive control knobs can be used to control the power needed, from minimum to maximum power.

Setting o Control knob off

High flame ◊ Maximum capacity or aperture and elec-tricity on

Low flame ◊ Minimum capacity or aperture

Warnings

It is normal to hear a soft whistling noise while the burner is operating.

When first used, it is normal for the burner to give off odours. This does not pose any risk and does not indicate a malfunction. They will disappear in time.

An orange-coloured flame is normal. This is caused by the presence of dust in the atmosphere, spilt liquids, etc.

If the burner flames are accidentally blown out, switch off the burner operating control knob and do not try to relight it for at least 1 minute.

A few seconds after the burner is switched off, a sound (thud) will be produced. This is not a fault - this means that the safety device is no longer operating.

Keep the burner as clean as possible. If the ignition sparkers are dirty they will not light properly. Clean them periodically using a small non-wire brush. Bear in mind that the ignition sparkers must not suffer any serious impacts.

Cooking guidelines

Burner Very high - High Medium Low

Wok burner Boiling, steaming, griddling, toasting, paellas, Asian food (wok).		Reheating and keeping things hot: cooked and pre-cooked dishes
Rapid burner	Escalopes, steaks, omelettes, frying	Rice, white sauce, ragout	Steaming: fish, vegetables
Semi-rapid burner	Steamed potatoes, fresh vegetables, vegetable stews, pasta	Reheating, keeping things hot and making tasty casse-roles
Auxiliary burner	Cooking: casse-roles, rice pudding, caramel	Defrosting and slow cooking: veg-etables, fruit and frozen products	Melting: but-ter, choco-late, jelly

Cooking pans

Suitable pans

Burner Minimum pan diameter		Maximum pan diameter
Wok burner	22 cm
Rapid burner	22 cm	26 cm
Semi-rapid burner 14 cm		20 cm
Auxiliary burner	12 cm	16 cm

Illustration of a standard metal pan with a handle, no text or symbols present

Wok pan

The wok pan diffuses intense heat uniformly, so that the food is cooked in less time and using less oil.

Always follow the manufacturer's instructions when cooking with a wok pan.

Precautions for use

The following advice is intended to help you save energy and prevent pan damage:

Illustration showing two cooking pots with checkmarks and X marks indicating heating conditions

Use pans which are the right size for each burner.

Do not use small pans on large burners. The flame must not touch the sides of the pan.

Two identical cooking pots with checkmarks and X marks, placed on a stove (no text or symbols)

Do not use damaged pans, which do not sit evenly on the hob. Pans may tip over.

Only use pans with a thick, flat base.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or heating.

Do not cook without using a lid and make sure the lid is properly fitted. This wastes energy.

Illustration showing cooking process with a pot and a cooking pan, indicating heating or cooking resistance.

Always centre the pan over the burner, not to one side. Otherwise it could tip over.

Do not place large pans on the burners near the control knobs. These may be damaged by the very high temperatures.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

Place the pans on the pan supports, never directly on the burner.

Make sure that the pan supports and burner caps are correctly positioned before using the appliance.

kg

Pans should be placed on the hob carefully.

Do not strike the hob and do not place excessive weight on it.

Cleaning and maintenance

Cleaning

Once the appliance is cool, use a sponge to clean it with soap and water.

After each use, clean the surface of the respective burner parts once they have cooled down. If any residue is left (baked-on food, drops of grease etc.), however little, it will become stuck to the surface and more difficult to remove later. The holes and grooves must be clean for the flame to ignite properly.

The movement of some pans may leave metal residue on the pan supports.

Clean the burners and pan supports using soapy water and scrub with a non-wire brush.

If the pan supports are fitted with rubber rests, ensure that these are also cleaned. The rests may come loose and the pan support may scratch the hob.

Always dry the burners and pan supports completely. Water droplets or damp patches on the hob at the start of cooking may damage the enamel.

After cleaning and drying the burners, make sure the burner caps are correctly positioned on the diffuser.

Caution!

Do not use steam cleaners. This could damage the hob.

Maintenance

Always clean off any liquid as soon as it is spilt. This will prevent food remains from sticking to the hob surface and you will save yourself any unnecessary effort.

Do not leave acidic liquids (e.g. lemon juice, vinegar, etc.) on the hob.

Due to the high temperatures endured, the wok burner and the stainless steel zones (grease drip tray, burner outline, etc.) can change colour. This is normal. After each use, clean these areas with a product that is suitable for stainless steel.

It is recommended that the cleaning product available from our Technical Assistance Service (code 464524) is used regularly.

Trouble shooting

Sometimes certain faults detected can be easily resolved. Before calling the Technical Assistance Service, bear in mind the following advice:

Fault Possible cause Solution

The general electrical sys-tem is malfunctioning.	Defective fuse. Check the fuse in the main fuse box and change it if it is damaged.
	The automatic safety switch or circuit breaker has tripped.	Check the main control panel to see if the auto-matic safety switch or circuit breaker has tripped.
The automatic switching on function does not work.	There may be food or cleaning products stuck between the ignition sparkers and the burners.	The space between the ignition sparker and the burner must be clean.
	The burners are wet. Dry the burner caps carefully.
	The burner caps are not correctly positioned. Check that the burner caps are correctly posi-tioned.

The appliance is not earthed, is poorly connected. Contact the installation technician. or the earthing is faulty.

Fault Possible cause Solution

The burner flame is not uni-form.	The burner components are not correctly posi-tioned.	Correctly place the parts on the appropriate burner.
	The grooves on the burner are dirty. Clean the grooves on the burner.
The gas flow is not normal or there is no gas.	The gas supply is blocked by gas taps. Open all gas taps.
	If the gas is supplied from a gas cylinder, check that it is not empty.	Change the gas cylinder.
The kitchen smells of gas.	A gas tap has been left on. Turn off the taps.
	Incorrect coupling of gas cylinder. Check that the coupling is sound.
	Possible gas leak. Shut off the gas supply, ventilate the premises and immediately notify an authorised installation techni-cian to check and certify the installation. Do not use the appliance until ensuring that there is no gas leak in the installation or appliance itself.
The burner immediately switches off after releasing the control knob.	The control knob was not held down for long enough.	Once the burner is on, hold the control knob down a few seconds longer.
	The grooves on the burner are dirty. Clean the grooves on the burner.

Technical Assistance Service

When contacting our Technical Assistance Service, please provide the product number (E-Nr.) and production number (FD) of the appliance. This information is given on the specifications plate located on the lower section of the hob and on the label in the user manual.

Please find the contact data of all countries in the enclosed customer service list..

Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.

Warranty conditions

In the unlikely event that the appliance is damaged or does not meet your expectations in terms of quality, please inform us as soon as possible. For the warranty to be valid, the appliance must not have been tampered with, or used inappropriately.

The applicable warranty conditions are those set out by the company's representative office in the country of purchase. Detailed information is available from retail outlets. Proof of purchase must be presented to obtain the benefits of the warranty.

We reserve the right to introduce changes.

Used appliances and packaging

If the symbol is shown on the specifications plate, bear in mind the following instructions:

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU

The packaging of your appliance has been manufactured using only the materials which are strictly necessary to guarantee efficient protection during transport. These materials are 100% recyclable, thus reducing the environmental impact. You can also contribute to caring for the environment by following the advice below:

■ Dispose of the packaging in the appropriate recycling bin.
■ Before you get rid of an old appliance, make sure you disable it. Contact your local authority to find out the address of your nearest recycling centre to dispose of your appliance.
- Do not pour used oil down the sink. Collect it in a sealed container and take it to an appropriate collection point or, failing that, place it in the rubbish bin (it will end up in a controlled dump; this is probably not the best option, but it will avoid contaminating ground water)

Illustration of a kettle being heated by a stove, with hands holding the stove (no text or symbols)

Parrilla supletoria cafetera

Illustration of a cooking pot and its octagonal stove with a side table (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a flat top and base (no text or symbols)

Simmer Cap

Pure diagram of a circular component with curved lines and small circles, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical illustration of a mechanical device with internal components and mounting base (no text or symbols)

Encendido manual

Illustration of a frying pan with a handle (no text or symbols)

Recipiente wok

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, both labeled in English.

Illustration showing a cooking pot with a checkmark and a cross symbol indicating incorrect cooking conditions.

Illustration showing a cooking pot with a checkmark and a cooking pan with a 'X' indicating boiling or boiling.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking resistance.

Two identical cooking pots with checkmarks, one on a stand and one on a side (no text or symbols)

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Illustration of a cooking pot and its cooking pan with a stove (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Pure diagram of a circular component with curved arrows and circles, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical illustration of a mechanical device with no visible text or symbols

Allumage manuel

Illustration of a stainless steel pan with a handle (no text or symbols)

Récipient wok

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, both labeled in English.

Illustration showing two cooking pots with checkmarks and X marks indicating heating conditions

Illustration showing a cooking pot with a checkmark and a cooking pan with a crossed-out 'X' symbol, likely indicating a cooking or heating scenario.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking resistance.

Illustration showing two cooking pots with checkmarks and crossed-out signs, likely indicating cooking or cooking resistance.

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Illustration of a cooking pot and its cooking tray (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Pure diagram of a circular component with curved lines and small circles, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Kézi gyújtás

Illustration of a stainless steel pan with a handle (no text or symbols)

Wok edény

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, both labeled in English.

Illustration showing a cooking pot with a checkmark and a cross symbol, likely indicating a cooking or heating setup.

Illustration showing cooking process with a pot and a cooking pan, indicating heating or cooking resistance.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

Illustration showing two cooking pots: one with a checkmark and the other with a cross, both on a stove.

kg

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Illustration of a cooking pot and its octagonal stove with a side table (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Pure diagram of a circular component with curved lines and small circles, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Accensione manuale

Illustration of a stainless steel pan with a handle (no text or symbols)

Recipiente wok

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, both labeled in English.

Illustration showing a cooking pot with a checkmark and a cross symbol indicating incorrect cooking conditions.

Illustration showing a cooking pot with a checkmark and a cooking pan with a crossed-out 'X' symbol, likely indicating cooking or heating.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking resistance.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Illustration of a cooking pot and its octagonal stove with a side table (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Pure diagram of a circular component with curved arrows and circles, no text or symbols present

Exploded view diagram of a mechanical assembly showing layered components (no text or labels)

Technical line drawing of a gas stove or boiler assembly (no text or labels)

Illustration of a stainless steel colander with a handle (no text or symbols)

Wokpan

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, both labeled in English.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure, likely for cooking instructions.

Illustration showing cooking pots with checkmark and cross symbols indicating cooking methods

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking error.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

Illustration of a kettle being heated by two hands using a stove (no text or symbols)

Illustration of a cooking pot and its cooking pan with a stove (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Abstract diagram with a central circular element, curved lines, and scattered circles (no text or symbols)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Zapalanie ręczne

Illustration of a standard metal pan with a handle and lid (no text or symbols)

Naczynie wok

Illustration showing two cooking methods: a steaming pot with checkmark and a cooking pot with cross, both on a gas stove.

Illustration showing a cooking pot with a checkmark and a cross symbol indicating a cooking error or failure.

Illustration showing a cooking pot with a checkmark and a cooking pan with a 'X' indicating boiling or boiling.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking resistance.

Illustration showing two cooking pots with checkmarks and crossed-out signs, likely indicating cooking or cooking resistance.

Illustration of a kettle being heated by a stove, with hands holding the stove (no text or symbols)

Illustration of a cooking pot, its lid, and side table with kitchen utensils (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Abstract diagram with curved lines and circles, no text or symbols present

Exploded view diagram of a mechanical assembly showing layered components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Acendimento manual

Illustration of a standard metal pan with a handle (no text or symbols)

Recipiente wok

Two identical cooking pots on stovels, one with checkmark and the other with cross (no text or symbols)

Illustration showing two cooking pots with checkmarks and X symbols indicating cooking methods or conditions.

Illustration showing a cooking pot with a checkmark and a cooking pan with a crossed-out 'X' symbol, likely indicating a cooking or heating scenario.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or storage issues.

Illustration showing two cooking pots with checkmarks and X marks indicating cooking resistance or absence.

Illustration of a kettle being heated by two hands using a stove (no text or symbols)

Illustration of a cooking pot, its lid, and side table with a stove (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Abstract diagram with a central circular element, curved lines, and scattered circles (no text or symbols)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Aprindere manuală

Illustration of a standard metal pan with a handle, no text or symbols present

Recipient wok

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, both labeled in English.

Illustration showing a cooking pot with a checkmark and a cross symbol indicating incorrect cooking conditions.

Illustration showing a cooking pot with a checkmark and a cooking pan with a 'X' indicating boiling or heating.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking resistance.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

Illustration of a kettle being heated by two hands using a stove (no text or symbols)

Illustration of a cooking pot, its lid, and side table with a stove (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Pure diagram of a circular component with curved arrows and circles, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Manuel tändning

Illustration of a stainless steel colander with a handle (no text or symbols)

Wokgryta

Illustration of a kettle being heated by two steamers, with no text or symbols present.

Kahve cezvesi eki

Illustration of a cooking pot and its octagonal stove with a side table (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Pure diagram of a circular component with curved lines and small circles, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Manuel çakmak

Illustration of a standard metal pan with a handle (no text or symbols)

Wok Kap
