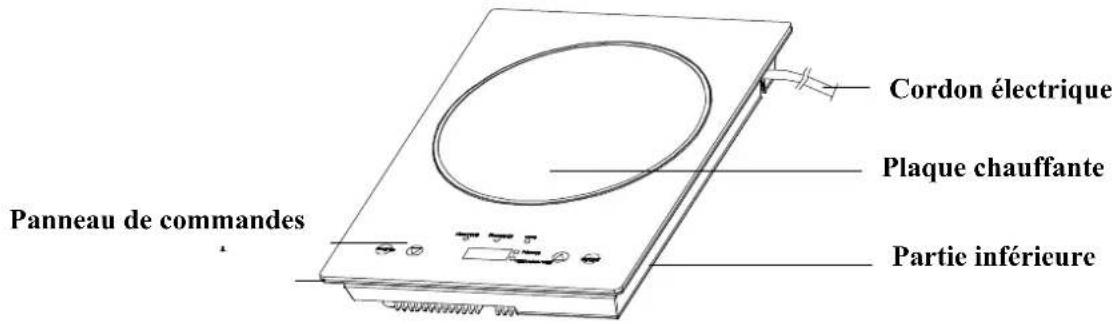

ILLUSTRATION DU PRODUIT

Power cord Bottom cover Top cover Control panel Hot plate

INSTRUCTION MANUALPage 22 of 8 Read this booklet thoroughly before using and save it for future reference.

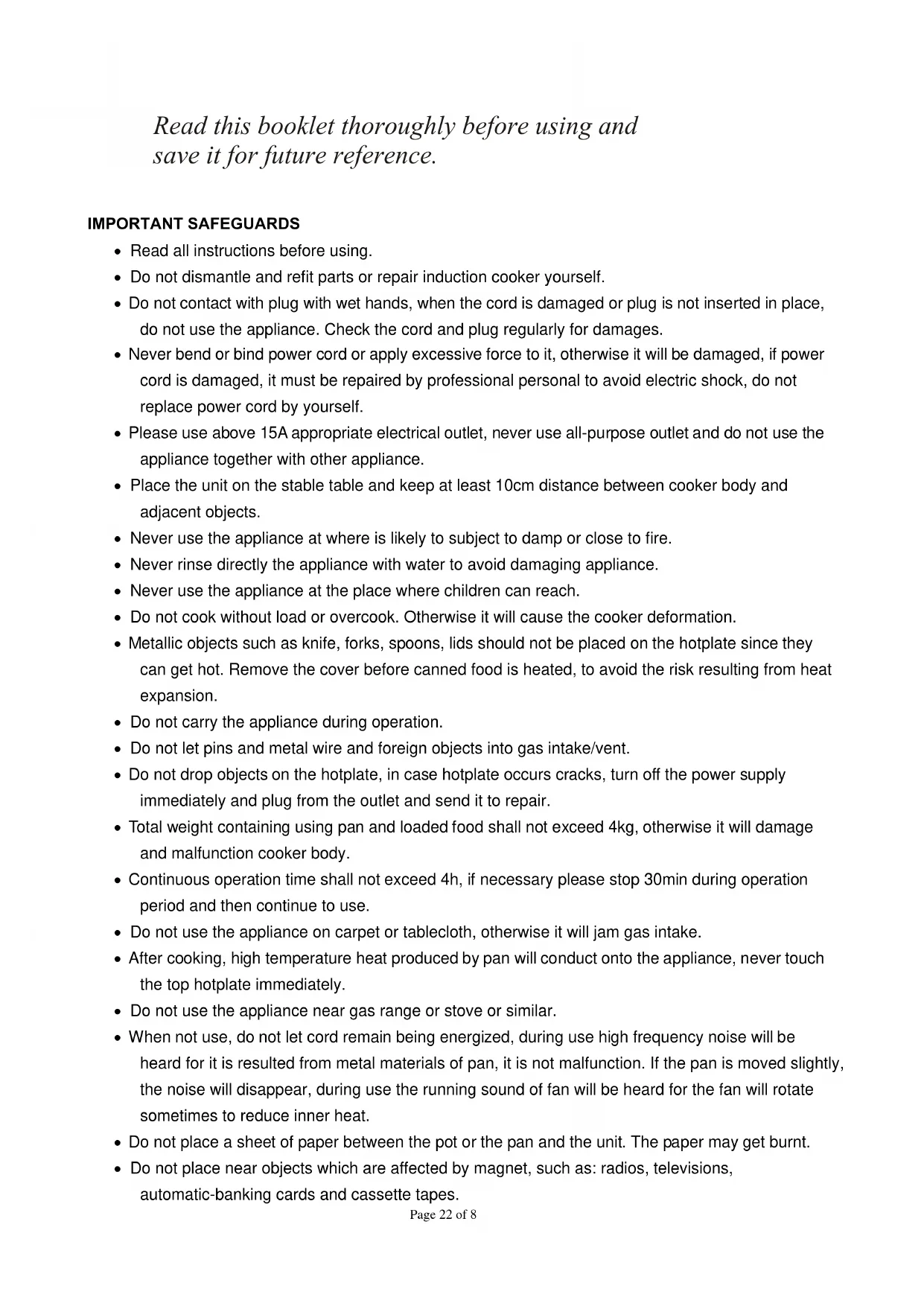

IMPORTANT SAFEGUARDS Read all instructions before using. Do not dismantle and refit parts or repair induction cooker yourself. Do not contact with plug with wet hands, when the cord is damaged or plug is not inserted in place, do not use the appliance. Check the cord and plug regularly for damages. Never bend or bind power cord or apply excessive force to it, otherwise it will be damaged, if power cord is damaged, it must be repaired by professional personal to avoid electric shock, do not replace power cord by yourself. Please use above 15A appropriate electrical outlet, never use all-purpose outlet and do not use the appliance together with other appliance. Place the unit on the stable table and keep at least 10cm distance between cooker body and adjacent objects. Never use the appliance at where is likely to subject to damp or close to fire. Never rinse directly the appliance with water to avoid damaging appliance. Never use the appliance at the place where children can reach. Do not cook without load or overcook. Otherwise it will cause the cooker deformation. Metallic objects such as knife, forks, spoons, lids should not be placed on the hotplate since they can get hot. Remove the cover before canned food is heated, to avoid the risk resulting from heat expansion. Do not carry the appliance during operation. Do not let pins and metal wire and foreign objects into gas intake/vent. Do not drop objects on the hotplate, in case hotplate occurs cracks, turn off the power supply immediately and plug from the outlet and send it to repair. Total weight containing using pan and loaded food shall not exceed 4kg, otherwise it will damage and malfunction cooker body. Continuous operation time shall not exceed 4h, if necessary please stop 30min during operation period and then continue to use. Do not use the appliance on carpet or tablecloth, otherwise it will jam gas intake. After cooking, high temperature heat produced by pan will conduct onto the appliance, never touch the top hotplate immediately. Do not use the appliance near gas range or stove or similar. When not use, do not let cord remain being energized, during use high frequency noise will be heard for it is resulted from metal materials of pan, it is not malfunction. If the pan is moved slightly, the noise will disappear, during use the running sound of fan will be heard for the fan will rotate sometimes to reduce inner heat. Do not place a sheet of paper between the pot or the pan and the unit. The paper may get burnt. Do not place near objects which are affected by magnet, such as: radios, televisions, automatic-banking cards and cassette tapes.Page 23 of 8 Save these instructions.

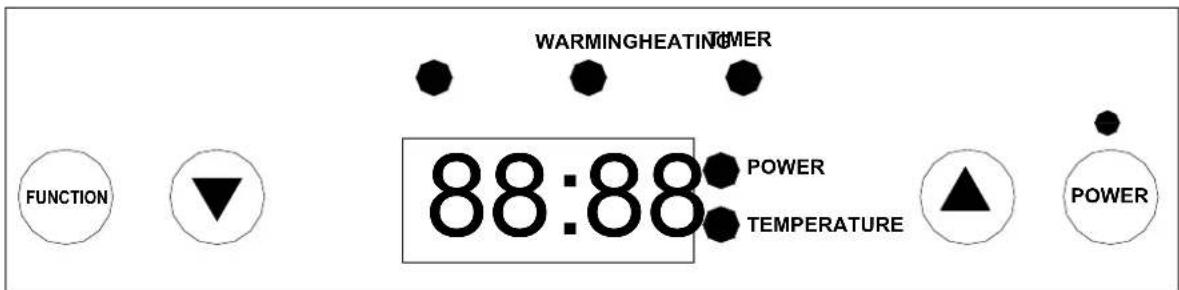

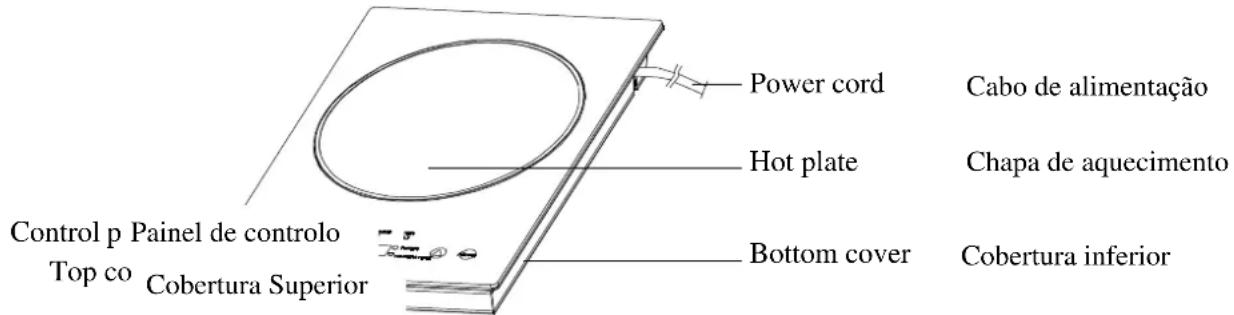

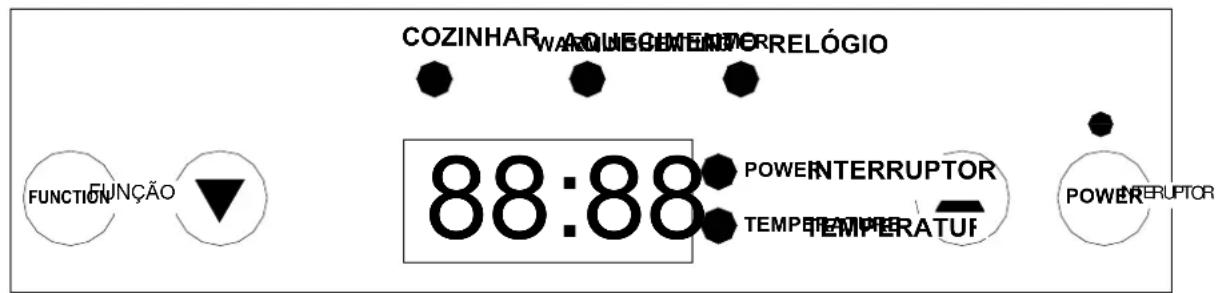

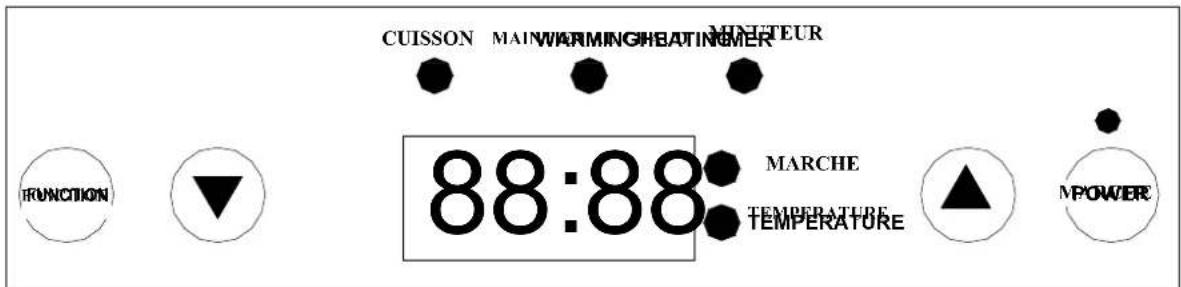

PRODUCT ILLUSTRATION Power cord Bottom cover Top cover Control panel Hot plate CONTROL PANEL POWERFUNCTIONTEMPERATUREPOWERTIMERWARMINGHEATING 88:88 FUNCTION INSTRUCTION Touch POWER key to start the unit. Heating function setting: touch FUCTION key, when the HEATING indicator is lighted, it means entering heating state, and power can be set by touching “▲” or “▼” key to the following value: 400W- 800W- 1000W- 1200W- 1400W- 1600W- 1800W. Warming function setting: touch FUNCTION key, when the WARMING indicator is lighted, it means entering warming state, and the warming temperature can be set by touching “▲” or “▼” key to the following value: 60℃ 100℃ 140℃ 180℃ 220℃ 240℃. Timer function setting: touch FUNCTION key, when the TIMER indicator is lighted, it means entering timing state, shut-off time can be set by touching “▲” or “▼” key, the time range is within 23 hours and 59 minutes. The unit will stop automatically when no any key is pressed within 2h. OPERATION Insert power cord into separate appropriate socket, and buzzer sound “Bi” will be heard once, digital tube and all indictors flash once and then go out immediately, digital tube displays “- - - -”, indicating the unit is energized.Page 24 of 8 Place the pan on the center of the hot plate, and then touch POWER key to start the unit while the POWER and HEATING indictors will be lighted, at the same time the fan starts running, the default power is 1800W, which can be adjusted by touching “▲” or “▼” key. If the pan is not placed, the unit will shut off automatically after 3s, the digital tube displays “E0” and buzzer sound “Bi” will be heard at an interval of 3 minutes. The appliance will be shut off automatically after 60s. Touch FUNCTION key once to enter WARMING setting, and the WARMING and TEMPERATURE indicators will be lighted. The default temperature is 240°C, which can be adjusted by touching “▲” or “▼” key, when the temperature rises to the set value, the program will enter the automatic protection.

4. Touch FUNCTION key once more to enter timer setting which is used for setting the time to shut

off the power, at this time the TIMER indictor will be lighted. Digital tube displays and hour is flashed. Within 3s touch “▲” or “▼” key to set hour, the maximum set time is 23h. The “▲” and “▼” keys can be hold down to scroll through the digits, or touched and released to advance one digit at a time. If the hour is not adjusted within 3s, the hour setting will be finished, following enter minute setting, and the minute set range is 0-59s. If the minute is not adjusted within 3s, the minute setting will be finished. o After timing, power and time will cycle to display, and the HEATING and TIMER indicators will be lighted. You can adjust the power by touching “▲” or “▼” key. The default power is 1800W when the FUNCTION key is not touched any more. o After timing, touch FUNCTION key once, transfer to WARMING setting, touch “▲” or “▼” key to adjust the temperature, temperature and time will cycle to display and the WARMING and TIMER indicators will be lighted. o After timing, touch FUNCTION key twice, return to the TIMER setting and renew to set time. Note: under timing shut-off state, the unit can be shut off by touching POWER key, after being shut off, the timing shut-off setting will be cancelled, and at the next start the previous set time will not be saved. When time out, the unit will stop operating automatically and all indicators will be extinguished. Note: the operation process can be terminated at any time by touching the POWER key. After cooking, plug from the power outlet. OPERATION PRINCIPLE The operation principle of induction cooker is achieved by the current produced by magnetic field 0 : 0 0Page 25 of 8 induction which electron circuitry board produces alternate magnetic field, when the pan bottom containing metal material is placed on the hotplate, the pan will immediately cut the alternate magnetic field and then the metal part of pan bottom produces the current (whirlpool), it makes iron molecule run irregularly at high speed, following the collision and friction between molecules produce heat energy which makes the appliance heat promptly, so that the purpose of cooking food is achieved. PRODUCT ADVANTAGE High efficiency, saving energy and environmental protection: cooker body is heating part itself, so heat efficiency is very high and save energy greatly, when cooking food with induction cooker, there is be free of visible fire, smoke and waste gas, bear environment protection effect, safe and clean. Wider applicable voltage range: the unit can adjust automatically the wattage according to the power voltage, so that it avoids the trouble resulting from voltage fluctuation. Perfect safety protection function: the unit has safe protection function for over voltage, lower voltage or sudden voltage change. However normal over temperature function is quick and accurate. Accurate and perfect inspection for pan quality and no-load protection function: the unit can inspect whether the material or size of pan is applicable, when the pan is moved away, the unit stop heating immediately and after 10s the power is cut off. No matter how the pan is moved away quickly or slowly, no damage to induction cooker. Start self-diagnosis function and 2h timing shut-off function: it can judge whether induction cooker and operation are appropriate, that induction cooker is not operated for long time will be considered being forgotten or outgoing, shut of the power automatically after 2h, so it make you use it safely Multi-section wattage adjustment and multi-section temperature control: convenient and agile use, in addition temperature control compensation feature make the set temperature more exact. Multi-heating function: perform different cooking demand according to different power.

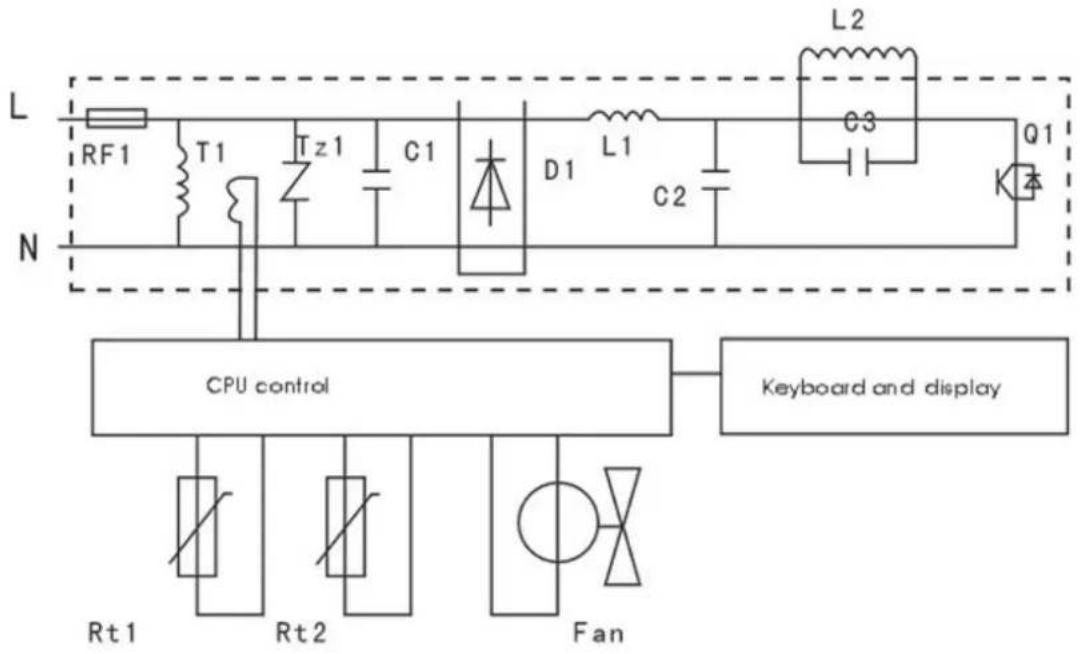

SAFETY PROTECTION EQUIPMENT

Over voltage protection and lower voltage protection When power voltage is too high or low, induction cooker will compensate voltage automatically and adjust output power. Small metal part protection For small iron metal which the diameter is less than 80mm, no power is outputted to avoid abnormalPage 26 of 8 heating. No pan or improper pan protection When no utensil is placed on the hotplate or the utensil is deviated greatly from the center, or the material of the utensil is not applicable, the power will not be outputted and buzzer sound will be heard to alert until appropriate utensil is put in place. over temperature protection When the temperature of top hotplate is too high, induction cooker will stop automatically power output and long buzzer sound will be heard to alert until the temperature returns to normal. High voltage pulse protection During operation, when power supply receives a transient high voltage pulse (such as lightning strike), induction cooker will stop automatically and in a minute resume automatically.

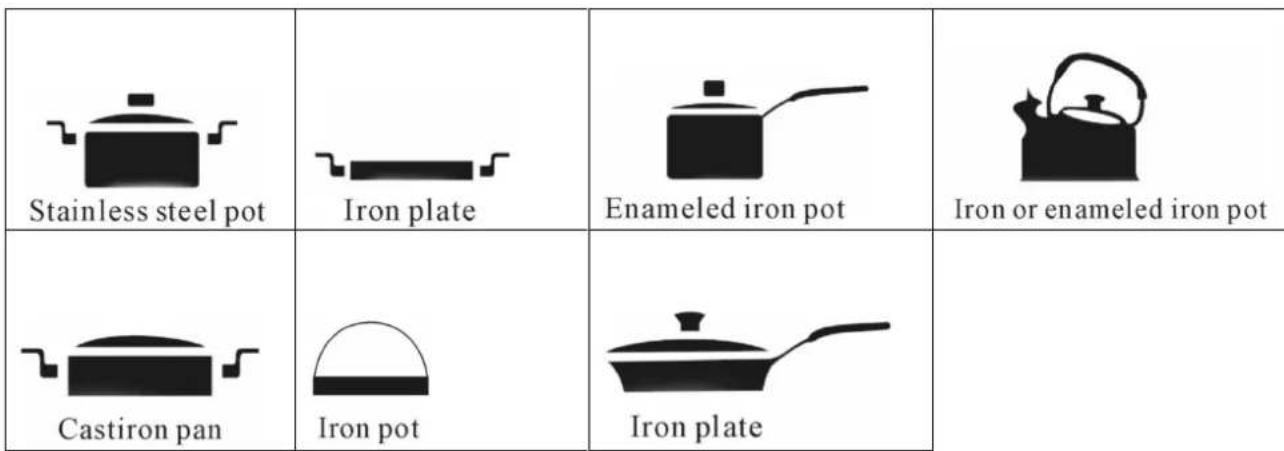

Steel or cast iron, enameled iron, stainless steel, flat-bottom pans/pots with diameter 12-26cm.

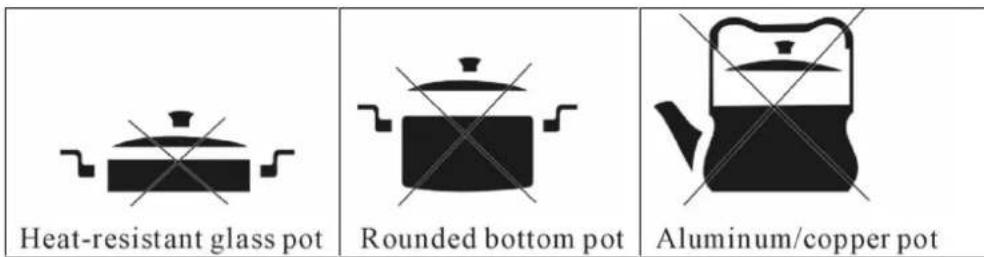

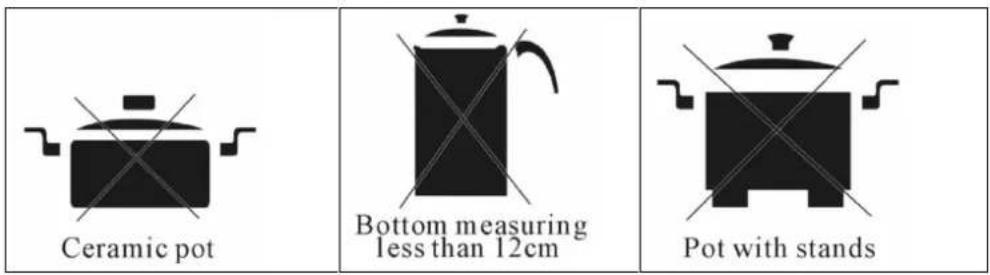

Heat-resistant glass, ceramic container, copper, aluminum pans/pots. Round-bottom pans/pots with bottom measuring less than 12cm.Page 27 of 8

Please plug from power outlet before care and maintenance. When ceramic hotplate is made dirty, wipe it with wet cloth, or after wipe it with detergent or burnishing powder clean it with wet cloth. Wipe unit body and control panel with soft and wet cloth, neutral cleanser may be used for firm oil stain, then wipe the remained residue with soft and wet cloth. Never rinse directly with water or immense it in water. Keep the unit clean regularly to prevent black beetle entry into the fan so that the unit will fail, the surface of gas intake and vent may be cleaned (such as dust, smear) with cotton bar, a little detergent added on the toothbrush may be used for cleaning. CONTRAST CHART OF THERMAL EFFICIENCY (based on 1l water)Page 28 of 8 Cooker type Time Gas(or electricity) consumption Expense Thermal efficiency Induction cooker 6.7min 0.2kw/h 0.140yuan 93% Gas cooker 8min 0.05kg 0.185yuan 50% Electric cooker 12min 0.345kw/h 0.250yuan 47% TROUBLE SHOOTING If the problem is found during operation, please make the check according to the following table before returning it to repair.

TROUBLE CHECKING POINT

When plug is inserted into the power outlet, a beep sound will not be heard and the indicator will not be lighted when pressing POWER key Whether the plug is removal from the outlet. Whether power switch or fuse in your home is cut off Whether power is cut off Continuous 15s beep sound will be heard and then the unit stop operating.

Whether the pan is proper Whether the pan is centered on the hotplate Whether the bottom diameter of the pan is more than 12cm The unit stops heating suddenly during use

Whether ambient temperature is very high Whether gas intake or vent is jammed It means reaching the set temperature when the unit is at warming state Protection equipment may operate confirm it after wait several to 10 minutes The temperature can not be controlled when frying or grilling food. Whether the pan bottom is concavo-convex or the bottom center is concave Whether power indictor is lighted

Power cord Bottom cover Top cover Control panel Hot plate

Piatto in ferro Tegame in ghisa

Power cord Bottom cover Top cover Control panel Hot plate

Guidelines for pro tection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..Page 51 of 8
