CB 1260 - Cooker BOMANN - Free user manual and instructions

USER MANUAL CB 1260 BOMANN

Labeled diagram of a toaster oven with numbered parts for identification

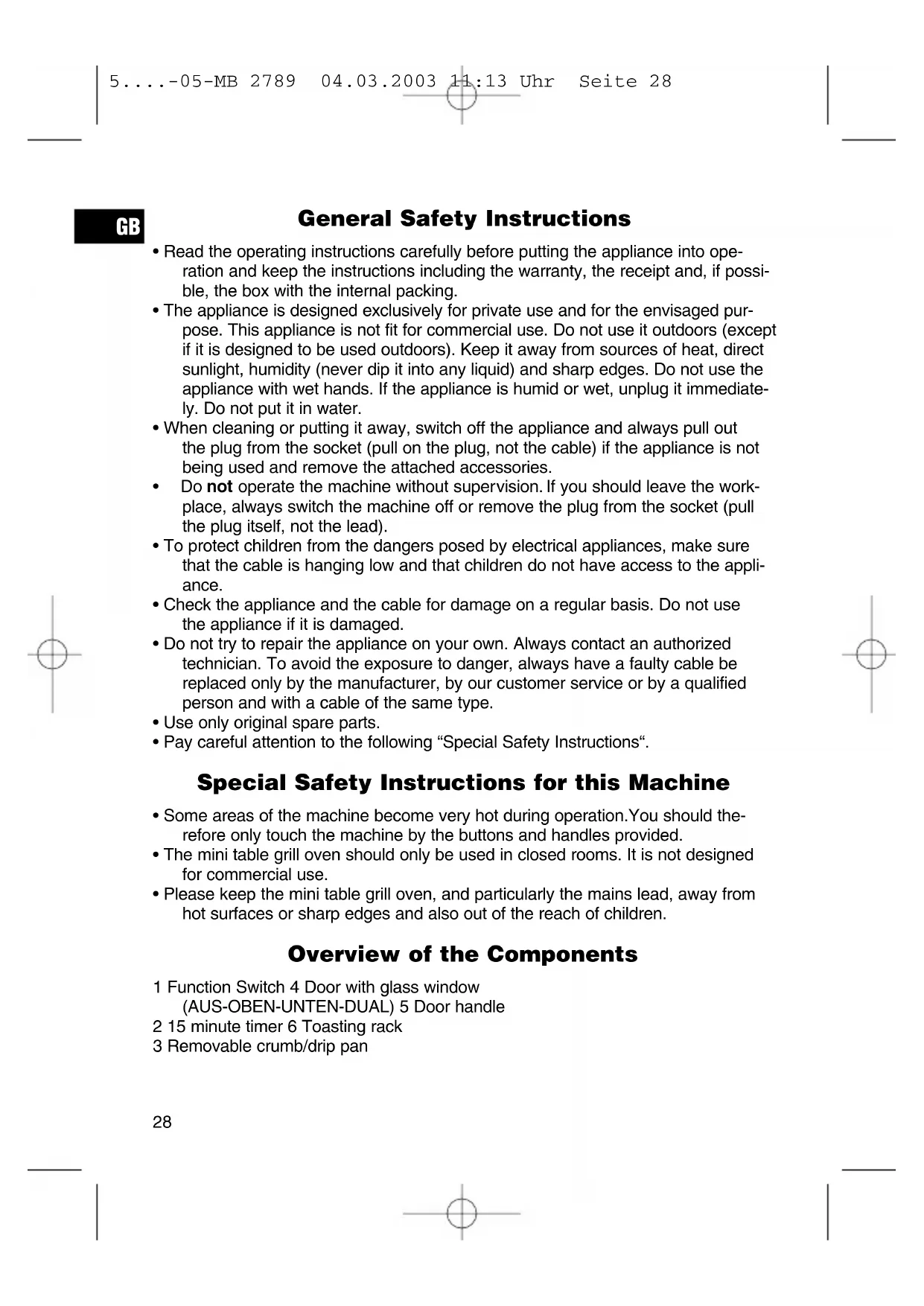

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions for this Machine

• Some areas of the machine become very hot during operation. You should therefore only touch the machine by the buttons and handles provided.
• The mini table grill oven should only be used in closed rooms. It is not designed for commercial use.
• Please keep the mini table grill oven, and particularly the mains lead, away from hot surfaces or sharp edges and also out of the reach of children.

Overview of the Components

1 Function Switch 4 Door with glass window (AUS-OBEN-UNTEN-DUAL) 5 Door handle
2 15 minute timer 6 Toasting rack
3 Removable crumb/drip pan

Preliminary Operations

• Remove any packaging materials that may be present in the oven.
• Before initial use please operate the oven for 15 minutes to remove the protective coating on the heating element. Please select dual operation.
• The presence of smoke is normal. Make sure that a sufficient level of ventilation is available.

How to use

1. The timer must be switched to the AUS position.
2. Open the door and place the food to be cooked in the oven. Use the baking tin for meat. The grill is suitable for preparing toast If you would like to use other tableware, please ensure that this is sufficiently heat-resistant.
3. Close the oven door.
4. Set the required heating with the upper knob (top or bottom heating or both together).
5. Use the lower knob (timer) to set the desired cooking time. Please see the table in these instructions for reference values.
6. After the set time has expired, the machine automatically switches off and a short ringing is heard. The control lamp goes off. The timer can continue for a short time (ticking sounds).
7. If you would like to terminate the heating process prematurely, simply turn the button of the timer to the left to the "AUS" position.
8. If the cooking time is to be set to less than three minutes, please first set the timer to approximately 10 minutes and then to 3 minutes, for example.
9. In the case of short cooking times (under 5 minutes) it is recommended that the oven is preheated briefly (approximately 3 minutes) without food.
10. When the oven is switched off, you can open the door again and take out the food (Warning - this is hot!). For your safety you should use a cloth or similar object.

Recommended Toasting Times

Cooked Food Quantity/No. Cooking Time Type of heating

Sandwiches 2 - 3 2 - 3 Min. dual

Toast 2 – 3 slices 2 – 3 Min. dual

Bacon	4 rashers	5 – 10 Min. each side	top heat
Ham slices	3 – 4 slices 7 – 12 Min. each side		top heat
Hamburger	2 – 3 slices 8 – 10 Min. each side		top heat
Pork cutlets	2	12 – 14 Min. each side	top heat
Fish fillet	1 – 2 slices	10 – 12 Min. each side	top heat
Sausage/hotdogs	3 – 4	10 – 12 Min. each side	top heat
Beef steaks	2 slices(approx. 2 cm thick)	12 – 14 Min. each side	top heat

GB

Cooked Food Quantity/No. Cooking Time Type of heating

Lamb cutlets 2 – 3 11 – 14 Min. each side top heat

Chicken 1 half 15 – 20 Min. each side top heat

These times are only approximations and may vary depending on circumstances.

How to clean

• Please remove the mains plug.
• ONLY clean the machine after it has cooled down.
  • The machine must never be immersed in water!
• Wipe surfaces and quartz heating rods with a dry, soft cloth.
• Crumbs and other residues are removed by pulling out the collection dish.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GB
