Product type	Fully automatic coffee machine
Brand	SEVERIN
Model	Piccola KV 8081
Dimensions (W x H x D)	228 mm x 316 mm x 387 mm
Weight	Approx. 6.35 kg
Power supply	220–240 V~, 1600 W
Pump pressure (max.)	15 bar
Water tank capacity	1.35 L
Bean hopper capacity	140 g
Dreg drawer capacity	10 servings
Main functions	Coffee, espresso, ground coffee, strength and water quantity adjustment, adjustable grinder, adjustable height nozzle
Display and controls	Display with control buttons, arrow keys and OK button
Maintenance	Automatic rinsing, cleaning and descaling programs, cleaning of the brewing unit, water filter
Safety	Programmable auto shut-off, important safety instructions
Warranty	24 months
Included accessories	Instruction manual, water hardness test strips

Frequently Asked Questions - Piccola KV 8081 SEVERIN

How to adjust the water hardness on the Severin Piccola KV 8081?

Use the provided test strip to measure the hardness of your water. Go to menu > DEVICE MENU > WATER HARDNESS, select the corresponding water hardness level and confirm with OK.

How to clean the brewing unit?

Turn off the appliance and unplug it. Remove the water tank, then the cover of the brewing unit. Pull the red lever up and remove the unit. Rinse it under running water without disassembling it. Replace it by pushing until the tabs click into place, then lower the red lever.

What to do if the display shows 'Please clean brewing unit'?

The brewing unit must be cleaned. Follow the manual cleaning steps (see previous question). After cleaning, the warning will disappear.

How to prepare a coffee with ground coffee?

Select the desired drink with the arrow keys, then press the control button under the display to choose the ground coffee symbol. Confirm with OK. When the display shows 'PLEASE ADD GROUND COFFEE', open the ground coffee dosing funnel, add up to 10 g of ground coffee, close and press OK again.

How to adjust the grind setting?

Place a cup under the spout and select a drink. Press OK to start grinding. While the grinder is running, push the grind setting regulator down and turn it: to the left for a finer grind, to the right for a coarser grind. Release to engage.

How to use the water filter?

Place the water filter in the empty water tank. Fill with cold water up to the Max mark. In the menu > DEVICE MENU > WATER FILTER, select YES. The filter should be changed every 4 to 8 weeks.

How to run the descaling program?

Empty the drip tray and dreg drawer. Remove the water filter if present. Dissolve one SEVERIN descaling tablet in lukewarm water in the water tank (half full). Replace the tank, press OK. Follow the on-screen instructions for rinsing and emptying. The program lasts up to 45 minutes.

What to do if coffee flows too slowly?

Set a coarser grind setting (see grind adjustment). Clean the spout. If the problem persists, descale the appliance.

How to save custom settings?

Go to menu > BEVERAGE MENU, select the coffee specialty. Choose the setting (strength, quantity, temperature) and adjust it with the arrow keys. Confirm with OK. These settings are saved and can be accessed by selecting the custom symbol.

How to reset the appliance to factory settings?

Via the menu: DEVICE MENU > FACTORY SETTINGS, confirm with the √ key. Otherwise, turn off the appliance, press and hold the two outer control buttons and turn it on until 'DEVICE SET TO FACTORY DEFAULTS' appears.

USER MANUAL Piccola KV 8081 SEVERIN

Black SEVERIN piccola milk dispenser with digital display and control panel (no visible text or symbols on device body)

GB Table of contents 31

FR Sommaire 57

Diagram of a hand operating a device inside a frame, with a cable and a small component below (no text or symbols)

Line drawing of a hand pressing down on a device with a handle and arrow indicating downward motion (no text or symbols)

Line drawing of a hand pouring coffee beans into a tray with a cup, no text or symbols present

Line drawing of a coffee maker with a cup and directional arrow indicating compression (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Diagram of a hand pressing down on a cylindrical object inside a container (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

DE

Table of contents

1. General information....32

1.1. Greeting....32
1.2. Notices concerning the operating manual .....32

1. For your safety....32
2. Technical data 33
3. Overview....33

4.1. Items included....33
4.2. Accessories 33
4.3. Device....34

1. Switching on for the first time 35

2. Coffee preparation....37

6.1. Switching on/off 37
6.2. Operation 37
6.3. Preparing coffee specialities....38

6.3.1. Preparing coffee or espresso 39
6.4. Preparing coffee with coffee powder (ground coffee) ..... 39

1. Individual settings 40

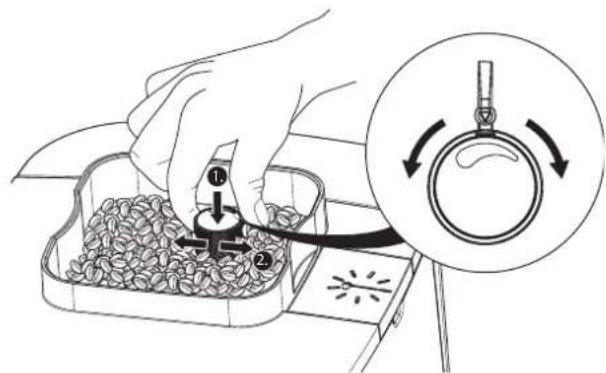

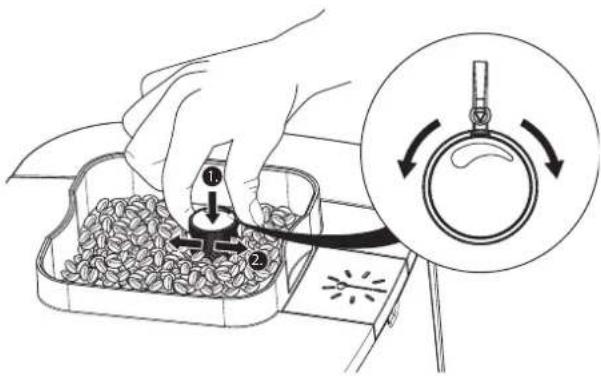

7.1. Setting the grinding fineness 40
7.2. Making individual settings for coffee preparation....41

7.2.1. Storing personal settings ....41
7.2.2. Making personal settings quickly (Quick Select) 41

7.3. Changing the device settings....41

7.3.1. Language 41
7.3.2. Water hardness....42
7.3.3. Water filter 42
7.3.4. Energy savings options....43
7.3.5. Resetting the device 43

1. Maintenance 44

8.1. Daily cleaning 45
8.2. Cleaning programmes 45

8.2.1. Rinsing the device....46
8.2.2. Cleaning programme 46
8.2.3. Descaling 47
8.2.4. Changing the water filter 48

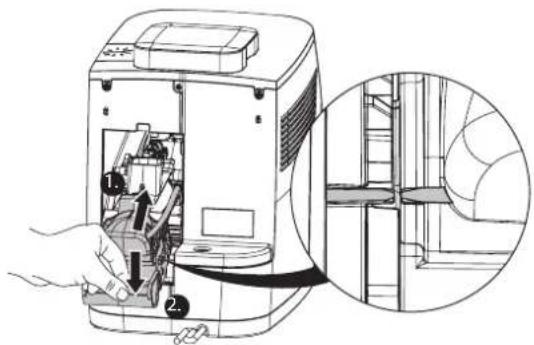

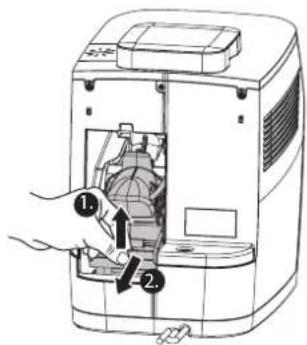

8.3. Cleaning the brewing unit 49
8.4. Cleaning the bean container 50

1. Troubleshooting....50

9.1. Display device information....52

1. Garantiebestimmungen....52

10.1. The SEVERIN manufacturer's warranty 52
10.2. Handling of warranty claims ....52
10.3. Warranty provisions 52

1. Disposal....53
2. Tips for perfect coffee enjoyment....54
3. Licence provisions 55

1. General information

1.1 Greeting

Dear Customers, we are pleased that you have selected a SEVERIN fully automatic coffee maker. Before you start, please take some time to get to know your machine with the help of the operating instructions. This will ensure that you will get the best possible results.

1.2 Notices concerning the operating manual

WARNING!

Danger of severe injuries or damage to the device due to failure to heed the safety instructions and operating manual.

-Read the operating manual and the safety-related supplemental sheet in their entirety before you use the device. Keep both documents in a safe place.
—In case you pass this device on to a third party, please also include the safety-relevant documents.

NOTE!

-SEVERIN assumes no liability for damage that arises due to non-observance of this operating manual.
- You can download the safety-related supplemental sheet, this operating manual and additional language versions on the Internet at www.severin.de.

2. For your safety

Important notes for your safety are marked in a special fashion. Be sure to follow these instructions to avoid accidents and damage to the appliance:

WARNING!

Indicates notes that must be heeded to prevent a danger or injury or a danger to life.

CAUTION!

Indicates notes that must be heeded to prevent a danger of slight injury.

CAUTION!

Indicates notes that must be heeded to prevent a danger of property damage.

NOTE!

Emphasises tips and other useful information.

To ensure safe use of this automatic coffee maker, please take note of the safety-related supplementary sheet before the appliance is first put into operation.

3. Technical data

Voltage 220–240 V\~

Output/power consumption 1600 W

Pump pressure (max.) 15 bar

Capacity of water tank 1.35 l

Capacity of bean container 140 g

Capacity of grounds container 10 portions

Dimensions (W x H x D) 228 mm x 316 mm x 387 mm

Weight approx. 6.35 kg

4. Overview

4.1 Items included

The following components are included:

• Your fully automatic coffee maker
• Operating instructions & Warranty provisions
  • Safety-related supplemental sheet
  • Water hardness test strips

4.2 Accessories

The following accessories are available:

• Water filter
• Cleaning tablets
• Descaling tablets

4.3 Device

Overview

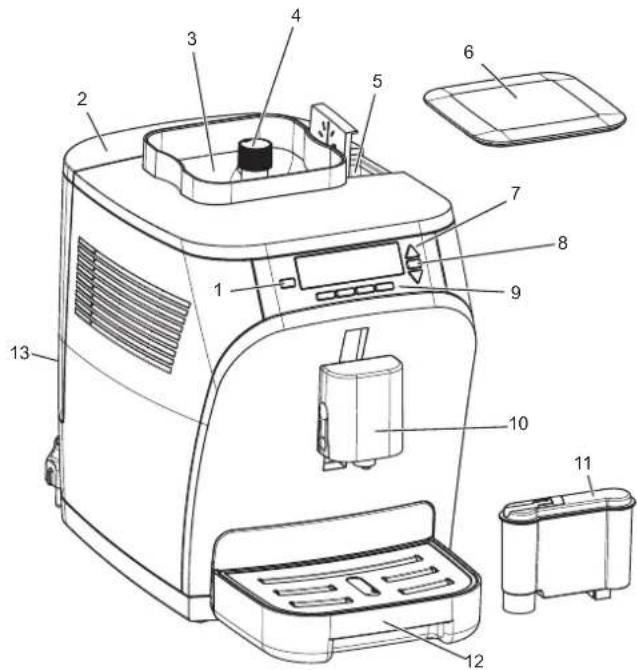

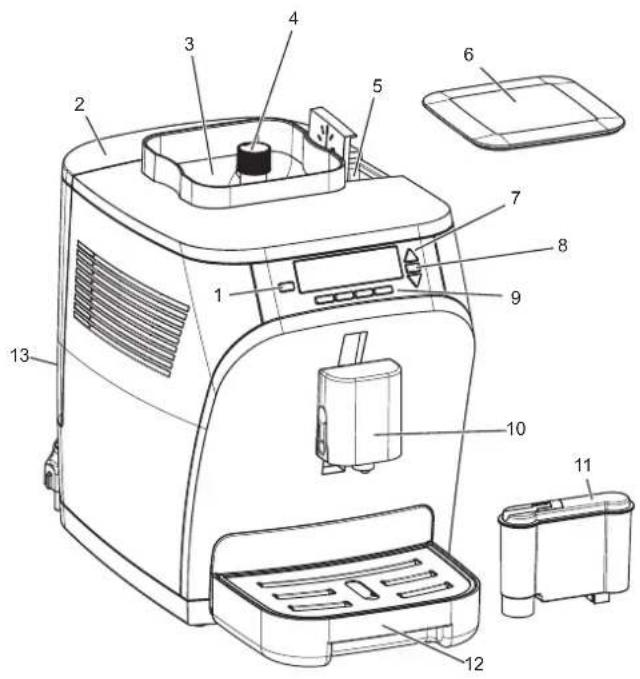

fig. 1: Device overview

Item Designation Explanations
1 On/off switch
2 Water tank For adding drinking water.
3 Bean container For adding unground beans.
4 Grind regulator For adjusting the grinding of the coffee variety.
5 Powder chamber For adding a cup portion of coffee powder (e.g.decaffeinated coffee).
6 Bean container cover
7 Arrow keys For selecting a coffee speciality and for selecting menu options and settings on the menu.
8 OK button To start the brewing process and to confirm menu selections and settings.
9 Display with operating controls or menu button	Shows details about beverage preparation and the menu. The buttons have the function shown on the respective display.
10 Height-adjustable outlet	The height of the outlet can be adjusted to the size of the cup being used.
11 Water filter	To improve the water quality.
12 Drip tray with cup tray and grounds container	For catching water and coffee grounds.

Item Designation Explanations

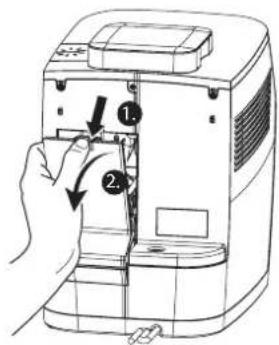

13 Brewing unit cover The cover of the brewing unit is on the rear of the unit behind the water tank. On the inside of the cover you will find all relevant phone numbers of your SEVERIN service centre.

5. Switching on for the first time

When you switch the appliance on for the first time, it asks you for some basic settings.

1. Insert the mains plug into the outlet.
2. Use the On/Off switch to turn the appliance on.

The display shows "SEVERIN", followed by: PLEASE SELECT LANGUAGE

1. Press one of the arrow keys until the desired language appears, and then confirm it by pressing the OK button.

NOTE!

If you have accidentally selected the wrong language, you can change the setting later on (▶ "7.3.1 Language") and (▶ "7.3.5 Resetting the device").

The display shows:

PLEASE SELECT WATER HARDNESS

1. Check the water hardness on a tap using the water hardness test strip. To do this, proceed according to the enclosed description of the test strips.
2. Use the arrow keys to select the water hardness and confirm by pressing the OK button.

The display shows:

USE WATER FILTER?

1. Rinse the water tank thoroughly with water.
2. If desired, insert the water filter into the water tank (fig. 2).

Diagram of a hand operating a device inside a frame, showing internal components and wiring (no text or symbols)

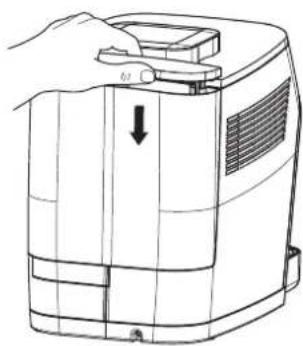

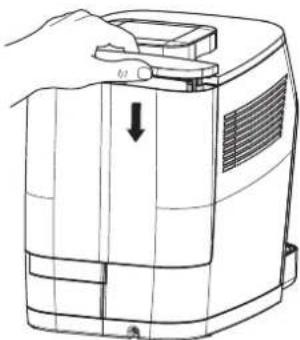

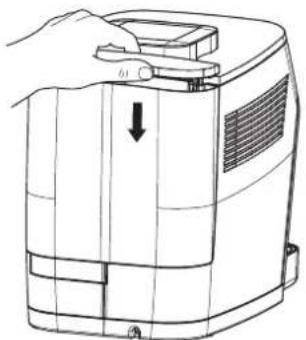

fig. 2: Inserting the water filter fig. 3: Fitting the water tank

NOTE!

A water filter improves the water quality of the water used by removing contaminants and scale from the water. SEVERIN recommends the use of a water filter for high water quality starting with 12^ .

1. Fill the water tank with cold drinking water up to the "Max" marking and place it on the appliance (fig. 3). However, make sure that the water tank hooks into the top of the appliance and lies close against the appliance.

NOTE!

The tank must be filled only with cold, clean, non-carbonated water. Never put milk, instant-powders, syrups or any other flavourings or additives into the tank.

Line drawing of a hand operating a portable electronic device with a handle and control panel (no text or symbols)

1. Use the arrow keys to select

2. NO, if you do not want to use a water filter or
   • YES, if you want to insert a water filter

and confirm your selection by pressing the OK button.

The display shows:

RINSING

Water runs directly from the outlet into the drip tray.

As soon as the rinsing procedure is complete, the display shows the "Beverage selection" view. The appliance is now ready for operation.

6. Coffee preparation

6.1 Switching on/off

Each time you turn the machine on or off, the appliance first rinses the brewing unit.

1. Use the On/Off switch to turn the appliance on.

The display shows the text "SEVERIN" and then: RINSING

Rinsing of the brewing unit is complete as soon as "Beverage selection" appears again.

NOTE!

The device switches off automatically after a programmable switch-off time (default setting:

30 minutes). By pressing the on/off switch, you can switch off the device manually at any time.

6.2 Operation

"Beverage selection" view

Symbols Meaning
	To set the strength of the desired coffee. weak coffee normal coffee strong coffee individually-set quantity of beans Preparation with ground coffee
	To set the quantity of water. small cup (100 ml) medium cup (125 ml) large cup (160 ml) individually-set cup size
≡	To call up and exit the menu.
△	Indicates an error message

Line drawing of a hand pouring seeds into a tray with a container filled with nuts (no text or symbols)

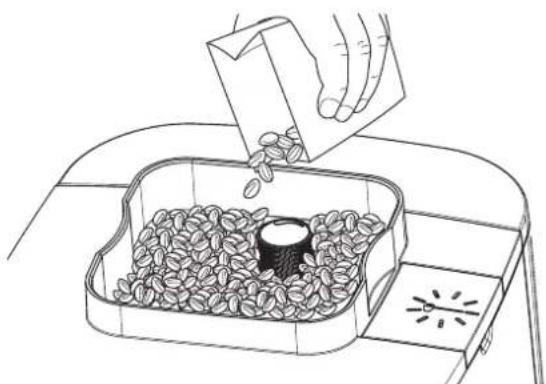

fig. 4: Loading the beans

The appliance is operated by using the arrow keys and control buttons, and subsequently confirming the selection with the OK button.

• Use the arrow keys to select a beverage. Preparation starts when the OK button is pressed.
• By pressing the control buttons below the display, you can adjust your coffee speciality to suit your individual needs.

"Device menu" view

In this menu, you can choose settings, perform maintenance programmes and display information.

Line drawing of a modern coffee maker with a cup and directional arrow indicating flow (no text or symbols)

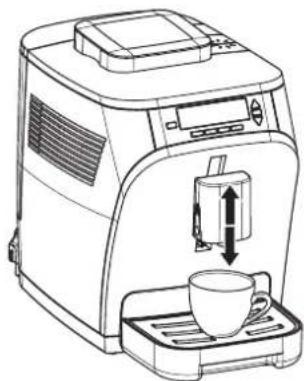

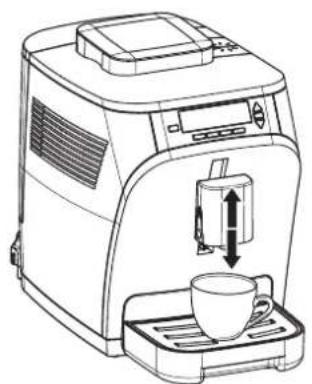

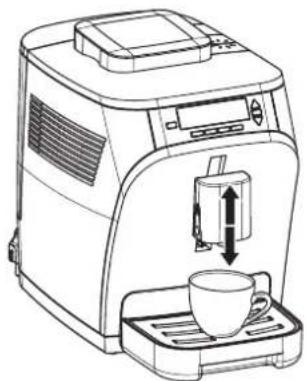

fig. 5: Place the cup below the dispenser and adjust the outlet height

• Pressing the menu button brings up the menu; you can exit it by pressing the button again.
• The arrow keys allow you to select a menu option; confirm by pressing the OK button.
• Use the button under the display field ✗ to return to the previous menu without changing the setting.

6.3 Preparing coffee specialities

CAUTION!

Do not put your hand inside the unit to remove the drip tray directly after a beverage has been prepared, or directly following a cleaning cycle. There is a danger of scalding!

1. Open the cover of the bean container and use a dry and lint-free cloth to wipe the inside of the bean container.

2. Fill the bean container with coffee beans (fi g. 4). Always ensure there are enough beans in the container.

NOTE!

Do not use caramelised coffee beans!

1. Close the cover of the bean container.

6.3.1 Preparing coffee or espresso

To prepare a coffee or espresso, there must be enough beans in the bean container and enough water in the water tank.

1. Put a cup on the tray under the outlet and adjust the height to that of the cup (fi g. 5).
2. Use the arrow keys to select COFFEE or ESPRESSO.
3. If desired, you can use the button under the display fi eld

• to change the set coffee strength
• to change the set water quantity.

NOTE!

To prepare the coffee speciality with your own settings, press the respective button until .is displayed after the corresponding symbol (▶ "7.2 Making individual settings for coffee preparation").

1. Confirm by pressing the OK button.
   The desired coffee speciality is being prepared.
2. To change the coffee quantity during dispensing, use the arrow keys while the process is going on.
   The display shows a bar with the set quantity in "ml". The coffee dispensing stops automatically after the selected quantity has been prepared. It can also be stopped early by pressing the OK button.

Version 2: 2014-11

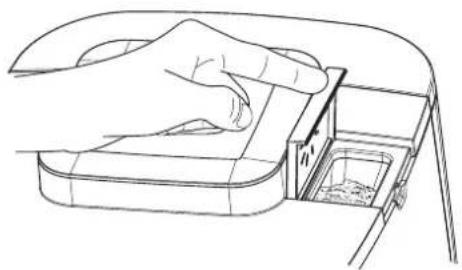

6.4 Preparing coffee with coffee powder

You can also prepare a coffee speciality with coffee powder. This is especially useful if you want to prepare a decaffeinated coffee, for example.

CAUTION!

Incorrect fi lling can damage the device.

-Only add coffee when the device asks you to.
-Only add coffee made of ground beans (no instant beverage powder, coffee granules, cocoa, etc.).
—Fill the powder chamber with ground coffee, up to a maximum of 10 g.
—Fill the powder chamber only once for each cup portion, not multiple times.

1. Proceed as described in the section ▶ "6.3.1 Preparing coffee or espresso" to select the desired beverage.
2. Instead of selecting the strength of the coffee, use the button under the display fi eld to select the symbol
3. Once the desired quantity of water has been selected (if applicable), press OK.

After a short time, the display shows: PLEASE FILL COFFEE GROUNDS.

1. Open the powder chamber and put in the required amount of ground coffee. (fi g. 6)
2. Close the powder chamber.
3. Press OK again. The desired coffee speciality is prepared.

Line drawing of a hand inserting a small object into a device (no text or symbols)

fig. 6: Putting ground coffee into the powder chamber

1. To change the beverage amount during dispensing, use the arrow keys while the process is going on, as described in the section ▶ "6.3.1 Preparing coffee or espresso".

7. Individual settings

7.1 Setting the grinding fineness

The grinding fineness affects the taste of the coffee. Select the grinding fineness according to the type of coffee you are using.

NOTE!

For a light roast, you should set a high fineness; for a dark roast a medium fineness is optimal. The roast is normally printed on the coffee package.

fig. 7: Setting the grind quality

CAUTION!

If the fineness setting is moved without grinding coffee beans, the grinder can be damaged.

—Only shift the grinding fineness while the grinder is grinding.

Here's how to set the grinding fineness:

1. Put a cup on the tray under the outlet and adjust the height to that of the cup.
2. Open the cover of the bean container.
3. Select a beverage using the arrow keys.
4. Press OK to confirm.

The grinder starts operating.

1. Now set the grinding level of the beans on the grinder regulator. To do this, press the grinder regulator down and turn it (fi g. 7).

• to the left in order to increase the fineness level.
• to the right in for a coarser fineness.
As soon as you release the grinder regulator, it snaps upward automatically.

1. Close the cover of the bean container again.

7.2 Making individual settings for coffee preparation

You can adapt the coffee preparation individually to your personal preferences. For each coffee speciality, the preparation variants listed below are available.

Preparation variants

Espresso/coffee
	Quantity of coffee (espresso)	20 – 50 ml
	Quantity of coffee (coffee)	50 – 250 ml
	Coffee strength very weak, weak, normal, strong, very strong
	Temperature coffee normal, high, very high

7.2.1 Storing personal settings

Here's how to programme your own settings for coffee preparation:

1. Press the menu button and use the arrow keys to select the menu option

BEV, SETT, MENU.

The display shows a list with the coffee specialities.

1. Select the coffee speciality whose settings you would like to change.

The display shows the setting possibilities for the selected coffee speciality (see previous table: "Preparation variants").

1. Select the setting that you would like to change.

The display shows a bar with the currently selected setting.

1. Use the arrow keys to change the setting and

2. confirm the change by pressing OK, or

3. cancel the change with the button under the display fi eld X

4. Then press the menu button to exit the menu.

The display shows the "Beverage selection" view. The settings are now saved. You can apply the settings by simply selecting the . symbol with the respective button (▶ "6.3 Preparing coffee specialities").

7.2.2 Making personal settings quickly (Quick Select)

You can also make the settings temporarily before the preparation:

1. In the "Beverage selection" view, press the button
   • 📋 to change the currently set coffee strength.
   • to change the currently set water quantity.

2. Select the desired setting using the arrow keys.

3. Press OK.

The selected coffee speciality is prepared using the selected settings. However, these settings are not saved.

7.3 Changing the device settings

7.3.1 Language

This is how to select the preferred language for the display.

1. Press the menu button and use the arrow keys to select the menu option DEVICE MENU.

2. Then select the LANGUAGE menu option.

The display shows the available languages.

1. Use the arrow keys to change the setting and

- confirm by pressing OK, or

- cancel the change with the button under the display field

NOTE!

If you have accidentally selected the incorrect language, you can reset the device to the factory setting (▶ "7.3.5 Resetting the device in case of incorrect language setting").

7.3.2 Water hardness

Select the water hardness according to the water hardness in your household. Depending on the setting, your appliance will inform you when it is time to perform a descaling.

NOTE!

In order to operate your device optimally, set the water hardness according to the specifications of your water utility. Use the included water test strip to determine the water hardness.

Here's how to set the water hardness:

1. Press the menu button and use the arrow keys to select the menu option DEVICE MENU.

2. Then select the

WATER HARDNESS menu option.

The display shows: HARDNESS 4 PLEASE SELECT WATER HARDNESS.

1. Use the arrow keys to change the setting and

- confirm by pressing OK, or

- cancel the change with the button under the display field

7.3.3 Water filter

If you want to use a water filter, you must set the device accordingly. The water filter improves the water quality and the appliance requires less descaling if properly operated.

NOTE!

SEVERIN recommends the use of a SEVERIN water filter for high water quality. The water filters are effective for approx. 4 to 8 weeks before they have to be changed.

This is how to set the device for the use of a water filter:

1. Press the menu button and use the arrow keys to select the menu option DEVICE MENU.

2. Then select the WATER FILTER menu option.

The display shows: USE WATER FILTER?

1. Use the arrow keys to select

• YES, if you want to insert a water filter in the water tank or

• NO, if you do not want to use a water filter
and press OK to confirm.
4. Follow the steps in section ▶ "8.2.4 Changing water filter.

7.3.4 Energy savings options

The appliance has an automatic power-off function. You can set this time limit individually this way.

Here's how to set the energy savings options:

1. Press the menu button and use the arrow keys to select the menu option
   DEVICE MENU.

2. Then select the

AUTO POWER-OFF menu option.

The display shows the currently-set time for the automatic power-off.

1. Use the arrow keys to change the setting and

2. confirm by pressing OK, or

3. cancel the change with the button under the display field ✗.

7.3.5 Resetting the device

You can reset the device to the factory settings. All personal settings for coffee preparation will be lost, and the device starts once again with the commissioning (▶ „5. Switching on for the first time").

Resetting the device via the menu

Here's how to reset the device to the factory settings:

1. Press the menu button and use the arrow keys to select the menu option
   DEVICE MENU.

Version 2 2014-11

1. Then select the

FACTORY SETTINGS menu option.

The display shows:
RESET TO DEFAULT

1. Press

2. the button under the display field √ if you want to call up the factory settings or

3. the button under the display field ✗ if you want to keep your personal settings.
   For a short while, the display shows the note:
   DEVICE SET TO FACTORY DEFAULTS.
   All programmed values are now reset. All basic settings must now be adjusted again.
   (▶ „5. Switching on for the first time“).

Resetting the device in case of incorrect language setting

If you have accidentally set an incorrect language and a resetting via the menu is not possible, you can also reset the device to the delivery state as follows:

1. Switch the appliance off.
2. Press the outer two buttons below the display and hold them down.
3. Switch the appliance on and continue to hold the buttons down until the message
   DEVICE SET TO FACTORY DEFAULTS appears on the display.
   All programmed values are now reset. All basic settings must now be adjusted again.
   (▶ „5. Switching on for the first time")

8. Maintenance

In order to enjoy your device for a long time and enjoy good coffee at any time, you must clean the appliance regularly. Following is an overview of all necessary cleaning activities. Some parts of the appliance are dishwasher-safe or can be cleaned by hand, others are cleaned by the device itself thanks to an appropriate cleaning programme.

Overview

daily
	Empty and clean the water tank, drip tray and grounds container (▶ "8.1 Daily cleaning")
	Interior requires cleaning (▶ "8.1 Daily cleaning")
when the device indicates
	Run the cleaning program(▶ "8.2.2 Cleaning program")
	Descaling (▶ "8.2.3 Descaling")
	Change water filter(▶ "8.2.4 Changing the water filter")
weekly
	Clean brewing unit(▶ "8.3 Cleaning the brewing unit")

at the latest every 2 months
	Change water filter(► "8.2.4 Changing the water filter")
when necessary
	Clean bean container(► "8.4 Cleaning the bean container")
	Wipe the housing of the device with a damp soft cloth without abrasives.

Maintenance tips

Your device informs you about important maintenance intervals via a message on the display (see overview). In this case, you can start the cleaning programme directly:

• Press the button under the display field √ and perform the steps described in the corresponding chapters of these instructions starting with step 3.
• If you want to run the cleaning programme later, press the button under the display field X.

CAUTION!

If you do not run the cleaning program right away, a warning symbol appears on the display as a reminder that you must still start a cleaning program. You can continue to use the device without limitation after the display of a maintenance message. However, the message will continue to be displayed in order to remind you about the necessity of maintenance and to prevent damage to the device.

—Clean the machine as soon as you can.

Exploded view diagram of a plastic container with internal compartments and housing (no text or symbols)

fig. 8: Drip tray assembly

8.1 Daily cleaning

The water tank and drip tray should be cleaned on a daily basis.

1. Switch the appliance off and disconnect the mains plug.
2. Remove the water tank (and water filter if fitted).
3. Clean the water tank with clean water and a mild detergent, and dry it inside and outside with a lint-free cloth.
4. Re-insert the water filter if necessary.
5. Pull the drip tray out of the appliance.
6. The interior should be cleaned on a daily basis. Always allow the appliance to cool down first, switch it off and disconnect it from the mains.
7. Remove the grounds container and empty the coffee grounds.
8. Clean both parts and the cup tray with clear water and a mild detergent.
9. Re-assemble the drip tray (fig. 8) and slide it back into the appliance

NOTE!

• The drip tray and grounds container are both dishwasher-safe.
• After the appliance has been switched off, and before any extended period of non-use, empty the water tank and ensure it is completely dry before it is refitted.

8.2 Cleaning programmes

The device has automatic cleaning programmes. These can be started from the menu at any time.

8.2.1 Rinsing the device

The coffee system is rinsed automatically each time it is switched on/off in order to guarantee evenly high quality of the coffee preparation. In addition, you can manually start a rinsing cycle.

1. Press the menu button and use the arrow keys to select the menu option CLEANING

2. Then select the RINSING menu option.

The display shows:

RINSING

The rinsing is complete as soon as "Beverage selection" appears again.

8.2.2 Cleaning programme

The device has a cleaning programme with which the coffee system can be rinsed and cleaned intensively with a cleaning tablet.

NOTE!

If you carry out the cleaning program immediately after the display of a cleaning message, steps 1 and 2 can be omitted.

1. Press the menu button and use the arrow keys to select the CLEANING menu option.

2. Then select the CLEANING menu option

The display shows:

PLEASE FILL WATER CONTAINER

1. Fill the water tank with water up to the max. marking and place it on the device.

2. Press OK to confirm.

The display shows:

1. Remove the drip tray and empty it together with the grounds container.

2. Re-assemble all parts and push the drip tray back into the device.

3. Place a 500 ml-container onto the cup tray under the outlet.

4. Press the OK button.

The display shows:

CLEANING

1. Wait until the command

PLEASE ADD CLEANING TAB appears on the display, then open the powder chamber and insert the cleaning tablet.

NOTE!

The SEVERIN cleaning tablets are optimally attuned to your device and can be purchased from your SEVERIN dealer.

1. Close the powder chamber.

2. Press OK to continue.

The display shows: CLEANING

NOTE!

The cleaning process can take as long as 15 minutes.

12. As soon as the command

EMPTY DRIP TRAY AND GROUNDS CONT. appears on the display, repeat steps 5 and 6.

The cleaning programme is complete as soon as the "Beverage selection" view is displayed again.

8.2.3 Descaling

Depending on the water hardness of the drinking water used and the application of a water filter, the appliance must be descaled at particular intervals so that no scale builds up in the system.

CAUTION!

Due to unsuitable descaler and if the descaling is not performed regularly, the device can be damaged.

-Use SEVERIN descaler, never vinegar or other acidic substances.

—Descale regularly.

NOTE!

—The descaling process can take as long as 45 minutes.

- No warranty is made for damage that is due to devices which have not been descaled regularly.

-If you descale immediately after the display of a cleaning message, steps 1 and 2 can be omitted.

- If you use a water filter, remove it before descaling.

1. Press the menu button and use the arrow keys to select the menu option CLEANING

2. Then select the DESCALING menu option

The display shows:

1. Remove the drip tray and empty it together with the grounds container.

2. Re-assemble all parts and push the drip tray back into the appliance.

3. Press OK to continue.

The display shows:

PLEASE ADD DESCALING SOLUTION

1. Fill the water tank halfway with lukewarm tap water and place the descaling tablets in the water tank.

2. Wait until the descaling tablets are completely dissolved, and then place the water tank on the appliance.

3. Press OK to continue.

The display shows: DESCALING

1. As soon as the command

EMPTY DRIP TRAY AND GROUNDS CONT.
appears on the display, empty the drip tray and grounds container again. Clean the parts with clear tap water and reinsert them into the appliance.

1. Press OK to continue.

The display shows:

RINSE CONTAINER AND FILL WITH WATER

Diagram of a hand pressing down on a container with an arrow indicating upward motion (no text or symbols)

fig. 9: Removing the water filter fig. 10: Inserting the water filter

Diagram of a mechanical device with a hand operating a housing and connected to a battery (no text or symbols visible)

1. Rinse the water tank thoroughly with clear tap water, then fill it to the top and put it back on the appliance.
2. Press OK to continue.

The display shows:

DESCALING

Descaling is complete as soon as "Beverage selection" appears again.

8.2.4 Changing the water filter

For constant water quality, the water filter must be changed regularly.

NOTE!

If you change the water filter immediately after the display of a cleaning message, steps 1 and 2 can be omitted.

1. Press the menu button and use the arrow keys to select the menu option

CLEANING

1. Then select the

WATER FILTER

menu option

The display shows:

INSERT NEW WATER FILTER

1. Remove the water filter (fig. 9).
2. Fill the water tank halfway with cold drinking water.
3. Insert a new water filter (fig. 10).
4. Replace the water tank on the appliance.
5. Press OK.

fig. 11: Removing the cover of the brewing unit

fig. 12: Pulling out the brewing unit

fig. 13: Inserting the brewing unit

The display shows: RINSING

The filter change is complete as soon as the "Beverage selection" view is displayed again.

8.3 Cleaning the brewing unit

In addition to an integral cleaning programme, the appliance also offers you the opportunity to clean the brewing unit manually. For this purpose, the brewing unit can be removed as follows:

1. Switch the appliance off and disconnect the plug.
2. Remove the water tank and pour out the remaining water.
3. Remove the cover of the brewing unit on the rear of the appliance by pressing down on the tabs with your thumbs and pulling towards you (fig. 11).

The brewing unit is now visible.

1. Pull the red lever of the brewing unit upwards and pull the brewing unit downwards at an angle out of the machine (fig. 12).
2. Clean the brewing unit under running water.

CAUTION!

Incorrect handling of the brewing unit can cause damage to the brewing unit.

-Do not take the brewing unit apart or adjust it.
-Push the brewing unit in place from below.

1. Insert the brewing unit into the machine and push it in until, the locking latches are aligned. (fig. 13).
2. Press the red lever of the brewing unit down. If the lever does not move, check the position.
3. Close the brewing unit again with the cover.

8.4 Cleaning the bean container

The bean container must be cleaned regularly to prevent contamination. Ideally this is done when the supply of beans is used up and before new beans are added.

CAUTION!

There is a danger of damage to the device if objects fall into the bean feed.

—Switch the device off before starting cleaning.

—Do not let any objects fall into the bean feed.

Here's how to clean the bean container:

1. Switch the appliance off and disconnect the plug.
2. Wipe the bean container with a dry, lint-free cloth.

9. Troubleshooting

In addition to the cleaning messages, the display also shows an appropriate message in case of a technical fault.

WARNING!

When opening a defective unit, there is a danger of injury.

—Never repair a defective device yourself. In case of a technical defect, contact SEVERIN customer service.

Display Cause Remedy
PLEASE CLEAN BREWING UNIT.	The brewing unit must be cleaned.	Clean the brewing unit (▶ "8.3 Cleaning the brewing unit").
CHECK BREWING UNIT AND INSERT.	The brewing unit is not inserted correctly.	Insert the brewing unit (▶ "8.3 Cleaning the brewing unit").
SYSTEM ERROR.	A system error has occurred.	Switch the unit off for several seconds, then turn it on again.Disconnect the unit from the mains for several seconds.If the problem persists, contact our customer service.
PLEASE RE-FILL COFFEE BEANS.	The bean container is empty.The grind mechanism is blocked.	Fill the bean container with beans(▶ "6.3 Preparing coffee specialities").Set the grinder regulator on the coarsest fineness (► "7.1 Setting the grinding fineness") and prepare another coffee speciality.If this solves the problem, set the desired fineness again for the next beverage.If problem persists, contact customer service.
BREWING UNIT DOOR OPEN.	The door of the brewing unit is not closed.	Properly close the door of the brewing unit.
RINSING NECESSARY.PLEASE PRESS OK-BUTTON.	After the cover of the brewing unit has been opened, rinsing becomes necessary.	Press OK; rinsing will start automatically.

Display Cause Remedy
WATER SUP-PLY ERROR.	There is not enough water in the brewing unit.	Make sure the water tank is firmly fitted.Clean the water tank and especially its water discharge on the floor.Fill the water tank halfway with cold drinking water and if necessary, remove the water filter and replace it.'Bleed' the water filter by filling it with water and replacing it in the tank.If problem persists, also clean the brewing unit (► "8.3 Cleaning the brewing unit").
GRINDER BLOCKED, PLEASE CONTACT SERVICE.	The grinder is blocked.	Set the grinder regulator on the coarsest fineness (► "7.1 Setting the grinding fineness") and prepare another coffee speciality.If this solves the problem, set the desired fineness again for the next beverage.If problem persists, contact customer service.

9.1 Display device information

For questions to customer service in case of a fault, you can display various device information on the display.

This is how to display device information:

1. Press the menu button and use the arrow keys to select the menu option INFORMATION
2. If you want to have the number of beverages prepared with the device displayed, select the QUANTITY INFO menu option.
   The display shows the number of coffee specialities prepared since the commissioning of the device.
3. If you want to have information about the device type displayed, select the DEVICE INFO menu option.
   The display shows the serial number of the device, the device version and the software version.

10. International warranty for fully automatic coffee makers

10.1 The SEVERIN manufacturer's warranty

By way of this warranty, SEVERIN guarantees that the product, which has been designed and built exclusively for home use, is free of defects in materials and workmanship. The warranty period is 24 months, beginning on the date of purchase by the end-customer. If problems are experienced during the warranty period that are attributable to defects in materials or workmanship, the product or the defective components will be repaired or replaced by the SEVERIN service department, international SEVERIN branches, or authorised SEVERIN service locations or service dealers in accordance with the terms and conditions set forth below.

10.2 Handling of warranty claims

If your SEVERIN fully automatic coffee maker requires warranty service, please always phone the respective SEVERIN service centre first. Specially trained experts are on hand there to take your call and deal with your specific case quickly and professionally. We will strive to process your warranty claim to your complete satisfaction. The telephone number for your SEVERIN service centre can be found on the inside of the brewing unit cover.

If the appliance is taken out of the country in which it was purchased, warranty claims can still be handled by an authorised SEVERIN service location.

10.3 Terms and conditions of warranty

- The SEVERIN warranty is valid only if the purchase date and appliance type can be verified from a purchase receipt.

• During the warranty period, SEVERIN will repair any defects in the product, but is entitled to choose between repair, replacement of defective parts, or replacement of the whole appliance.
• The warranty does not cover damage or defects caused by improper use, improper electrical connection, attempted repairs by unauthorised individuals, or failure to follow the operating instructions. Also, the warranty does not apply in the event that SEVERIN operating or maintenance instructions are not followed and/or materials (water filters, cleaning products) are used that do not comply with the original specifications. The warranty does not cover parts subject to wear (e.g. seals, grinding discs, valves) or damage to the grinding mechanism caused by foreign objects (e.g. stones, paper clips), or damage caused by accidents, lightning, water or fire, insufficient ventilation, or other damage over which SEVERIN has no control.
• SEVERIN service is available (both during the warranty and after its expiry) in all countries in which SEVERIN officially sells the product.
• The warranty becomes invalid if the coffee maker needs to be modified or adjusted to enable it to be used in a country other than the one for which it was manufactured. This also means that the warranty does not cover the repair of damage resulting from any such modifications

11. Disposal

CAUTION!

Incorrect disposal can cause environmental damage.

—The device contains electronic components and it therefore must not be disposed of in household rubbish.
-For disposal, heed the local disposal regulations and, in case of doubt, ask the responsible authorities about proper disposal.

- Dispose of packaging materials that are no longer needed according to local regulations.

- Dispose of the water filter in the normal household garbage.

- At the end of its life, hand the appliance over to a collection point for electrical scrap.

12. Tips for perfect coffee enjoyment

Situation Tip
What kinds of coffee can I use? All types of coffee that are not treated after roasting (e.g. with sugar).
My espresso/coffee does not have any foam.	Use the right beans.
	The coffee is old. Use fresh coffee beans.
	Set a higher fineness (► "7.1 Adjusting the grinding fineness").
	Increase the quantity of coffee (► "6.3.1 Preparing coffee or espresso").
My espresso tastes bitter. Use a different type of coffee.
	Reduce the strength of the coffee (► "6.3.1 Preparing coffee or espresso").
	Set a higher fineness (► "7.1 Adjusting the grinding fineness").
	Set a lower brewing temperature (► "7.2 Making individual settings for coffee preparation").

Situation Tip
My espresso tastes sour. Use a different type of coffee.
	Reduce the strength of the coffee (► "6.3.1 Preparing coffee or espresso").
	Clean the water tank and fill it with fresh water.
	Set a higher brewing temperature (► "7.2 Making individual settings for coffee preparation").
My espresso tastes bland. Set a coarser fineness (► "7.1 Adjusting the grinding fineness").
	Increase the quantity of coffee (► "6.3.1 Preparing coffee or espresso").
The coffee is produced from the outlet very slowly.	Set a coarser fineness (► "7.1 Adjusting the grinding fineness").
	Clean the outlet (► "8.1 Daily cleaning").
	Descale the device (► "8.2.3 Descaling").
When should I insert the water filter?	Recommendation: starting at 12 °dH

13. Licence provisions

FreeRTOS

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public Licence (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Sommaire

1. Généralités .... 58

1.1. Accueil ....58

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Line drawing of a hand pressing down on a device with a downward arrow indicating compression (no text or symbols)

Line drawing of a hand pouring seeds into a container filled with beans, with a tray and lid nearby (no text or symbols)

Line drawing of a coffee maker with a cup and directional arrow indicating flow (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Diagram of a hand pressing down on a cylindrical object inside a container (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Inhoudsopgave

1. Algemeen....86

1.1. Begroeting 86

Diagram of a hand operating a device inside a frame, with a downward arrow indicating motion (no text or symbols present)

Line drawing of a hand pressing down on a device with a handle and arrow indicating downward motion (no text or symbols)

Line drawing of a hand pouring seeds into a container filled with nuts, placed on a tray (no text or symbols)

Line drawing of a modern coffee maker with a cup and directional arrow indicating compression (no text or symbols)

Weergave "Apparaatmenu"

Line drawing of a hand inserting a small object into a device (no text or symbols)

Exploded view diagram of a plastic container with internal compartments and a handle (no text or symbols)

Line drawing of a hand pressing down on a container with an upward arrow (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Índice

fig. 1: Vista general del aparato

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Line drawing of a hand operating a portable electronic device with a handle and ventilation slots (no text or symbols)

Line drawing of a hand pouring seeds into a container filled with nuts, placed on a tray (no text or symbols)

Line drawing of a coffee maker with a cup and directional arrow indicating flow (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

fig. 7: Ajuste del grado de molido

¡CUIDADO!

fig. 8: Instalar la bandeja de goteo

iNOTA!

Diagram of a hand pressing down on a cylindrical object inside a container (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

ES

Indice

1. In generale....142

Diagram of a hand operating a device inside a frame, with a downward arrow indicating a component or connection (no text or symbols present)

Line drawing of a hand operating a portable electronic device with a handle and ventilation slots (no text or symbols)

Line drawing of a hand pouring seeds into a container filled with nuts, placed on a tray (no text or symbols)

Line drawing of a modern coffee maker with a cup and directional arrow indicating compression (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Exploded view diagram of a plastic container with internal compartments and a handle (no text or symbols)

Line drawing of a hand pressing down on a cylindrical container with an upward arrow (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

CAUTELA!

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

IT

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Indholdsfortegnelse

1. Generelt 170

1.1. Velkommen! 170

• Vandfilter
• Rensetabletter
• Afkalkningstabletter

4.3 Maskine

Overblik

Diagram of a hand operating a device inside a frame, with a cable and plug inserted (no text or symbols)

Line drawing of a hand pressing down on a device with a downward arrow indicating force or adjustment (no text or symbols)

Line drawing of a hand pouring seeds into a container filled with nuts, placed inside a tray (no text or symbols)

Line drawing of a modern coffee maker with a cup and directional arrow indicating flow (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Exploded view diagram of a plastic container with internal compartments and housing (no text or symbols)

OPLÓS AFKALKNINGSTABLETTEN I VANDTANKEN.

Diagram of a hand pressing down on a cylindrical object inside a container (no text or symbols visible)

Diagram of a hand operating a device inside a container, with a downward arrow indicating motion (no text or symbols present)

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Line drawing of a hand operating a portable electronic device with a handle and ventilation slots (no text or symbols)

OBS!

Line drawing of a hand pouring seeds into a container filled with nuts, placed on a tray (no text or symbols)

Line drawing of a modern coffee maker with a cup and directional arrow indicating compression (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Exploded view diagram of a plastic container with internal compartments and housing (no text or symbols)

Diagram of a hand pressing down on a cylindrical object inside a container (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

bild 11: Ta bort bryggenhetens lock

bild 12: Att dra ut bryggenheten

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Sisällysluettelo

1. Yleistä 222

1.1. Tervehdys 222

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

Line drawing of a portable air conditioner unit with handle and ventilation slots (no text or symbols)

Line drawing of a hand pouring seeds into a container filled with nuts, placed on a tray (no text or symbols)

Line drawing of a modern coffee maker with a cup and directional arrow indicating compression (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Exploded view diagram of a plastic container with internal compartments and housing (no text or symbols)

Diagram of a hand pressing down on a cylindrical object inside a container (no text or symbols visible)

Diagram of a hand operating a cylindrical device inside a container, with a downward arrow indicating motion or force (no text or symbols present)

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Spis treści

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Line drawing of a hand operating a portable electronic device with a handle and ventilation slots (no text or symbols)

WSKAZÓWKA!

Line drawing of a hand pouring seeds into a tray with a cup, no text or symbols present

rys. 4: Wsypywanie ziaren

OSTROŻNIE!

Line drawing of a coffee maker with a cup and directional arrow indicating compression (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Exploded view diagram of a plastic container with internal compartments and a handle (no text or symbols)

Diagram of a hand pressing down on a cylindrical object inside a container (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Line drawing of a hand operating a portable electronic device with a handle and ventilation slots (no text or symbols)

ΥΠΟΔΕΙΞΗ!

Line drawing of a hand pouring seeds into a container filled with nuts, placed on a tray (no text or symbols)

Line drawing of a modern coffee maker with a cup and directional arrow indicating flow (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Exploded view diagram of a plastic container with internal compartments and housing (no text or symbols)

Line drawing of a hand pressing down on a cylindrical object inside a container (no text or symbols)

Diagram of a hand operating a cylindrical device with a downward arrow indicating motion or force (no text or symbols present)

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Оглавление

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Line drawing of a hand operating a portable electronic device with a handle and ventilation slots (no text or symbols)

ВНИМАНИЕ!

Line drawing of a hand pouring seeds into a container filled with nuts, placed on a tray (no text or symbols)

Line drawing of a modern coffee maker with a cup and directional arrow indicating compression (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Exploded view diagram of a plastic container with internal compartments and a handle (no text or symbols)

Line drawing of a person using a device in a container, with an upward arrow indicating motion (no text or symbols)

Diagram of a hand operating a device with a downward arrow indicating motion (no text or symbols present)

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

RU

Índice

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Line drawing of a hand operating a portable electronic device with a handle and ventilation slots (no text or symbols)

Line drawing of a hand pouring seeds into a container filled with nuts, placed on a tray (no text or symbols)

Line drawing of a modern coffee maker with a cup and directional arrow indicating flow (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Exploded view diagram of a plastic container with internal compartments and a handle (no text or symbols)

fig. 8: Montar a bandeja de recolha de gotas

NOTA!

Diagram of a hand pressing down on a cylindrical object inside a container (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

목차

1. 일반 사항 362

1.1 인사말 362

1.2사용 설명서 관련 지침 362

1. 안전 관련 사항 362

3.기술데이터 363

1. 개요 363

4.1 공급사양 363

4.2 액세서리 363

4.3 장치 364

그림 1: 장치 보기

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Line drawing of a hand operating a portable electronic device with a handle and ventilation slots (no text or symbols)

Line drawing of a hand pouring seeds into a container filled with nuts, placed on a tray (no text or symbols)

Line drawing of a modern coffee maker with a cup and directional arrow indicating flow (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

그림 8: 드립 트레이

8.1 매일 세척

Diagram of a hand pressing down on a cylindrical object inside a container (no text or symbols visible)

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

8.2.4 워터 필터 교체

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

目录

1. 概述 390

1.1. 问候....390
1.2. 有关本手册的注意事项 ..... 390

图示 1: 整机概览

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow indicating motion (no text or symbols present)

Line drawing of a hand pressing down on a portable air purifier device (no text or symbols)

- 屏幕上显示：

Line drawing of a hand pouring seeds into a tray with a cup, no text or symbols present

Line drawing of a coffee maker with a cup and directional arrow indicating flow (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

图示 8: 组合滴水盘、杯架和残渣盒

8.2.2 清洁程序

Diagram of a hand pressing down on a container with an arrow indicating upward motion (no text or symbols)

Diagram of a hand operating a device inside a frame, with a downward arrow indicating motion (no text or symbols present)

8.3 清洁冲泡室

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public Licence (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

CN

版本2 2014-11

فهرست المحتويات

427 3.3.7

Line drawing of a hand pressing down on a device with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Line drawing of a modern coffee maker with a cup and digital display (no text or symbols)

Line drawing of a hand pouring seeds into a container filled with nuts, placed on a tray (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and a downward arrow (no text or symbols)

Diagram of a hand pressing down on a container with an upward arrow, no text or symbols present

الإستعمال الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية
	الإستعمال الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفIEA.1.1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100.101.102.103.104.105.106.107.108.109.110.111.112.113.114.115.116.117.118.119.120.121.122.123.124.125.126.127.128.129.130.131.132.133.134.135.136.137.138.139.140.141.142.143.144.145.146.147.148.149.150.151.152.153.154.155.156.157.158.159.160.161.162.163.164.165.166.167.168.169.170.171.172.173.174.175.176.177.178.179.180.181.182.183.184.185.186.187.188.189.190.191.192.193.194.195.196.197.198.199.200.201.202.203.204.205.206.207.208.209.210.211.212.213.214.215.216.217.218.219.220.221.222.223.224.225.226.227.228.229.230.231.232.233.234.235.236.237.238.239.240.241.242.243.244.245.246.247.248.249.250.251.252.253.254.255.256.257.258.259.260.261.262.263.264.265.266.267.268.269.270.271.272.273.274.275.276.277.278.279.280.281.282.283.284.285.286.287.288.289.290.291.292.293.294.295.296.297.298.299.300.301.302.303.304.305.306.307.308.309.310.311.312.313.314.315.316.317.318.319.320.321.322.323.324.325.326.327.328.329.330.331.332.333.334.335.336.337.338.339.340.341.342.343.344.345.346.347.348.349.350.351.352.353.354.355.356.357.358.359.360.361.362.363.364.365.366.367.368.369.370.371.372.373.374.375.376.377.378.379.380.381.382.383.384.385.386.387.388.389.390.391.392.393.394.395.396.397.398.399.400.401.402.403.404.405.406.407.408.409.410.411.412.413.414.415.416.417.418.419.420.421.422.423.424.425.426.427.428.429.430.431.432.433.434.435.436.437.438.439.440.441.442.443.444.445.446.447.448.449.450.451.452.453.454.455.456.457.458.459.460.461.462.463.464.465.466.467.468.469.470.471.472.473.474.475.476.477.478.479.480.481.482.483.484.485.486.487.488.489.490.491.492.493.494.495.496.497.498.499.500.501.502.503.504.505.506.507.508.509.510.511.512.513.514.515.516.517.518.519.520.521.522.523.524.525.526.527.528.529.530.531.532.533.534.535.536.537.538.539.540.541.542.543.544.545.546.547.548.549.550.551.552.553.554.555.556.557.558.559.560.561.562.563.564.565.566.567.568.569.570.571.572.573.574.575.576.577.578.579.580.581.582.583.584.585.586.587.588.589.590.591.592.593.594.595.596.597.598.599.600.601.602.603.604.605.606.607.608.609.610.611.612.613.614.615.616.617.618.619.620.621.622.623.624.625.626.627.628.629.630.631.632.633.634.635.636.637.638.639.640.641.642.643.644.645.646.647.648.649.650.651.652.653.654.655.656.657.658.659.660.661.662.663.664.665.666.667.668.669.670.671.672.673.674.675.676.677.678.679.680.681.682.683.684.685.686.687.688.689.690.691.692.693.694.695.696.697.698.699.700.701.702.703.704.705.706.707.708.709.710.711.712.713.714.715.716.717.718.719.720.721.722.723.724.725.726.727.728.729.730.731.732.733.734.735.736.737.738.739.740.741.742.743.744.745.746.747.748.749.750.751.752.753.754.755.756.757.758.759.760.761.762.763.764.765.766.767.768.769.770.771.772.773.774.775.776.777.778.779.780.781.782.783.784.785.786.787.788.789.790.791.792.793.794.795.796.797.798.799.800.801.802.803.804.805.806.807.808.809.810.811.812.813.814.815.816.817.818.819.820.821.822.823.824.825.826.827.828.829.830.831.832.833.834.835.836.837.838.839.840.841.842.843.844.845.846.847.848.849.850.851.852.853.854.855.856.857.858.859.860.861.862.863.864.865.866.867.868.869.870.871.872.873.874.875.876.877.878.879.880.881.882.883.884.885.886.887.888.889.890.891.892.893.894.895.896.897.898.899.900.901.902.903.904.905.906.907.908.909.910.911.912.913.914.915.916.917.918.919.920.921.922.923.924.925.926.927.928.929.930.931.932.933.934.935.936.937.938.939.940.941.942.943.944.945.946.947.948.949.950.951.952.953.954.955.956.957.958.959.960.961.962.963.964.965.966.967.968.969.970.971.972.973.974.975.976.977.978.979.980.981.982.983.984.985.986.987.988.989.990.991.992.993.994.995.996.997.998.999.1000

This product contains software which is linked to FreeRTOS V6.0.1 - Copyright (C) 2009 Real Time Engineers Ltd. FreeRTOS V6.0.1 is licensed by the modified GNU General Public License (GPL) Version 2 (see the licensing section of http://www.FreeRTOS.org for full details). FreeRTOS V6.0.1 source code can be provided upon request to our Customer Service Center (email address) until October 2014. A charge for performing the request may apply.

AVR-Libc

Portions of avr-libc are Copyright (c) 1999-2010 Werner Boellmann, Dean Camera, Pieter Conradie, Brian Dean, Keith Gudger, Wouter van Gulik, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Harald Kipp, Carlos Lamas, Cliff Lawson, Artur Lipowski, Marek Michalkiewicz, Todd C. Miller, Rich Neswold, Colin O'Flynn, Bob Paddock, Andrey Pashchenko, Reiner Patommel, Florin-Viorel Petrov, Alexander Popov, Michael Rickman, Theodore A. Roth, Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Helmut Wallner, Eric B. Weddington, Joerg Wunsch, Dmitry Xmelkov, Atmel Corporation, egnite Software GmbH, The Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

SEVERIN

www.severin.de
