USER MANUAL FMJ P777 ARCAM

CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

'The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: In Canada and the USA, to prevent electric shock, match the wide blade of the plug to the wide slot in the socket and insert the plug fully into the socket.

Warning

Mains plug/appliance coupler is used to disconnect device and it shall remain readily operable.

CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. c wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Many of these items are common sense precautions but, for your own safety and to ensure that you do not damage the unit, you must read them.

Important safety instructions

This product is designed and manufactured to meet strict quality and safety standards. However, you should be aware of the following installation and operation precautions.

1. Follow all instructions

You should read all the safety and operating instructions before operating this equipment. Retain this handbook for future reference and adhere to all warnings in the handbook or on the equipment.

2. Water and moisture

The presence of electricity near water can be dangerous. Do not use the equipment near water - for example next to a bathtub, washbowl, kitchen sink, in a wet basement or near a swimming pool, etc.

3. Object or liquid entry

Take care that objects do not fall and liquids are not spilled into the enclosure through any openings. Liquid-filled objects such as vases should not be placed on the equipment.

4. Lifting and placing the equipment

This amplifier weighs 37.2kg so take extreme care when lifting or moving this unit. We recommend that two people are available to lift this unit.

Only use a rack or shelf that is stable and strong enough to support the weight of this equipment.

5. Ventilation

Do not place the equipment on a bed, sofa, rug or similar soft surface, or in an enclosed bookcase or cabinet, since ventilation may be impeded.

Keep a minimum of 5cm (2 inches) clear around the apparatus to allow sufficient passage of air.

6. Heat

Locate the equipment away from naked flames or heat-producing appliances such as radiators, stoves or other appliances that produce heat.

7.Climate

The equipment has been designed for use in moderate climates and in domestic situations. Unplug this equipment during lightning storms to prevent possible damage from a strike or mains surge.

8. Cleaning

Unplug the unit from the mains supply before cleaning. The case should normally only require a wipe with a soft, lint-free cloth. Do not use chemical solvents for cleaning. We do not advise the use of furniture cleaning sprays or polishes as they can cause permanent white marks.

9. Grounding

Ensure that the unit is grounded ('earthed') properly at all times

10. Power sources

Only connect the equipment to a power supply of the type described in the operating instructions or as marked on the equipment.

The primary method of isolating the equipment from the mains supply is to remove the mains plug. The equipment must be installed in a manner that makes disconnection possible.

11. Power-cord protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to the point where they exit from the equipment.

12. Non-use periods

If the equipment is not being used for an extended period, we recommend that you unplug the power cord of the equipment from the outlet, to save power.

13. Abnormal smell

If an abnormal smell or smoke is detected from the equipment, turn the power off immediately and unplug the equipment from the wall outlet. Contact your dealer and do not reconnect the equipment.

14. Servicing

You should not attempt to service the equipment. Contact your dealer to arrange servicing.

15. Damage requiring service

The equipment should be serviced by qualified service personnel when:

A. the power-supply cord or the plug has been damaged, or

B. objects have fallen, or liquid has spilled in equipment, or

C. the equipment has been exposed to rain, or D. the equipment does not appear to operate normally or exhibits a marked change in performance, or

E. the equipment has been dropped or the enclosure damaged.

Safety compliance

This equipment has been designed to meet the IEC/EN 60065 international electrical safety standard.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Contents

safety guidelines..E-2

Important safety instructions. E-2

Safety compliance

welcome E-3

Installation E-4

Overview E-4

Placing the unit E-4

Room acoustics E4

12V Trigger Input E-4

Power 1

Connecting to a pre-amplifier E4

speakers E-6

Speaker placement E-6

Speaker wiring options E-6

Single wiring E-7

Biwinng 1

Bi-amping E-7

operation E-8

Front panel control E-8

Operating procedure E-8

troubleshooting. E-9

Fault status indicators.. E-10

specifications E-11

product guarantee E-12

Thank you and congratulations for purchasing your Arcam FMJ P777 Multichannel power amplifier.

Arcam has been producing specialist audio products of remarkable quality for over three decades and the P777 is the latest in a long line of award winning HiFi equipment. The design of the FMJ range draws upon all of Arcam's experience as one of the UK's most respected audio companies and is built to give you years of trouble-free listening enjoyment.

This handbook has been designed to give you all the information you need to install, connect and use the Arcam P777. It may be that the P777 has been installed and set up as part of your Hi-Fi or home cinema installation by a qualified Arcam dealer. In this case, you may wish to skip the sections of this handbook dealing with installation and setting up the unit. Use the Contents list to guide you to the section of interest.

We hope that your multichannel power amplifier will give you years of trouble-free operation. In the unlikely event of any fault, or if you simply require further information about Arcam products, our network of dealers will be happy to help you. Further information can also be found on the Arcam website at www.arcam.co.uk.

The FMJ development team

Overview

The P777 Multichannel Power Amplifier is built to Arcam's traditional high quality design and manufacturing standards. It is an extremely high-performance multichannel power amplifier obviously well suited to multichannel home cinema amplification, although it also provides superb quality stereo performance with two-channel sources. The P777 is an ideal partner for the PMJ AV888 Pre-amp Processor.

Each power amplifier module is identical, and is electrically isolated from the other modules by opto-isolated circuitry which ensures that each amplifier module has its own isolated supply. This allows the amplifier to give excellent channel separation and very low distortion.

The P777 also has input and output phono sockets for the signal being fed to each channel, to allow the signal to be passed on to additional power amplifiers to drive loudspeakers in other rooms or to bi-amplify any of the speakers. If the P777 is being used to drive a five-channel surround sound system, then the spare two modules (SBL and SBR) can be used in conjunction with the main (L and R) modules to bi-amplify suitable front left and right speakers.

The customised installation of the P777 to a listening room is an important process which requires care at every stage. For this reason, the installation information is very comprehensive and should be followed carefully. This manual has been written with the assumption that the installer is familiar with the installation of high-end audio/video systems.

Placing the unit

• Place the P777 on a level, firm surface, avoiding direct sunlight and sources of heat or damp.
  The P777 is a powerful amplifier and a source of considerable heat output when driven hard. Take this into consideration when placing the unit.
  Do not place the unit in an enclosed space such as a bookcase or closed cabinet unless there is very good provision for ventilation.
  Do not place any other component or item on top of the P777 as this may obstruct airflow around the unit, causing the P777 to run hot.
  Do not place your record deck on top of this unit. Record decks are very sensitive to the noise generated by mains power supplies which will be heard as a background 'hum' if the record deck is too close.

Room acoustics

The shape of your room and how it's furnished will affect the sound you hear. For instance, too many bare surfaces can cause reflections that may add harshness to the sound. Adding carpeting and drapes can help.

If you have a choice of rooms, avoid ones that are perfectly square or have one dimension exactly twice another. These rooms can aggravate resonances that colour the sound.

12V Trigger input

If your pre-amp provides a 12V Trigger output, it can be connected to the 12VTRIGERIN socket using a mono 3.5mm jack. This enables the P777 to be turned on remotely from the pre-amp.

Note that the trigger input is only active when the central power button on the front panel is depressed. In normal use there is no need to make any connections to this input.

Power

The P777 is supplied with a moulded mains plug already fitted to the lead. Up to 3kW is drawn at maximum levels, so a heavy duty IFC mains cable is supplied.

Check that the plug supplied fits your supply - if your mains supply voltage or mains plug is different, or you need a new mains lead, please contact your Arcam dealer.

Push the IEC plug end of the power cable into the socket on the back of the P777, making sure that it is pushed in firmly. Plug the other end of the cable into your main's socket and, if necessary, switch the socket on.

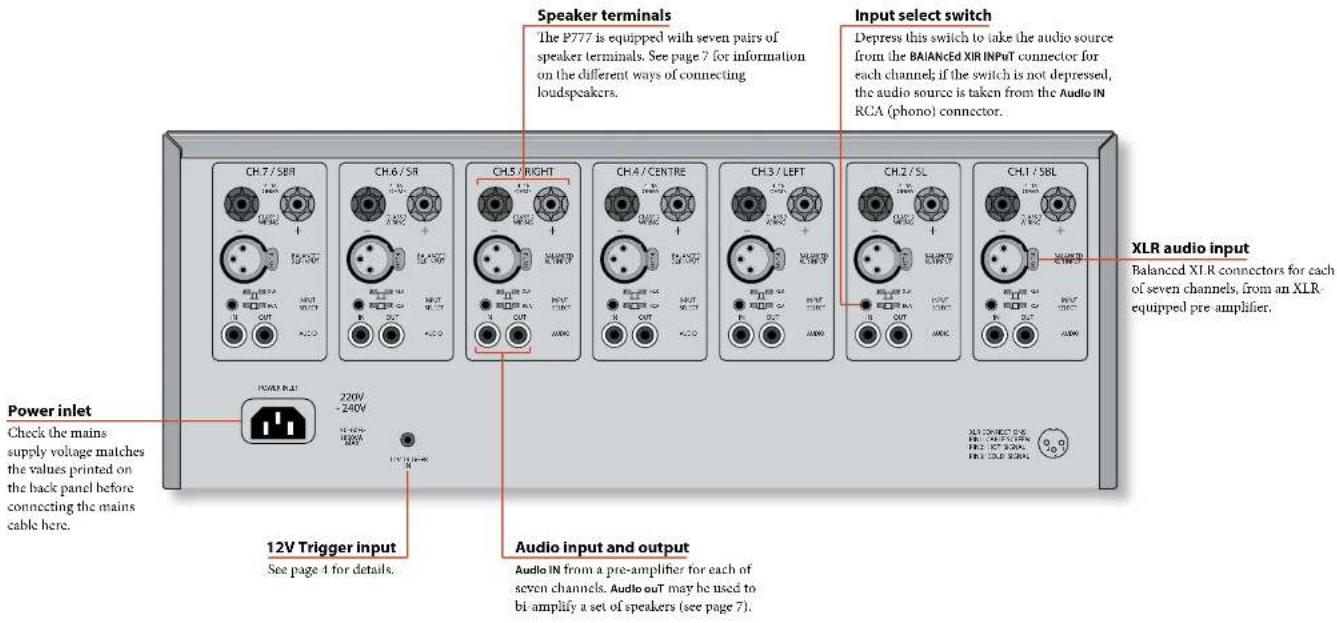

Connecting to a pre-amplifier

Two different connection types are provided for receiving signals from your pre-amplifier phone sockets and XLR connectors. The connection type to use depends on the set-up that you have.

If the cables to be used to connect your preamplifier to the P777 are less than 3m long, we recommend connecting your pre-amplifier to the AUDIOIN phono (RCA) sockets of your P777. To use the phono connections, make sure that all the channel input switches are not depressed.
If the cables to be used to connect your pre-amplifier to the P777 are 3m or longer and your pre-amplifier has balanced XLR outputs, we recommend using these instead of the phone (RCA) connections. Performance will also be improved in electrically noisy environments by using these connections. To use the XLR connections, make sure that the INPUT SELECT switches are depressed for each channel.

Pin Function

1 Chassis ground (cable shield)
2 'Hot' (normal polarity)
3 'Cold' (inverted polarity)

Interconnect cables

We recommend the use of high-quality screened cables that are designed for the particular application. Other cables will have different impedance characteristics that will degrade the performance of your system (for example, do not use cabling intended for video use to carry audio signals). All cables should be kept as short as is practically possible.

It is good practice when connecting your equipment to make sure that the mains power-supply cabling is kept as far away as possible from your audio cables. Failure to do so may result in unwanted noise in the audio signals.

speakers

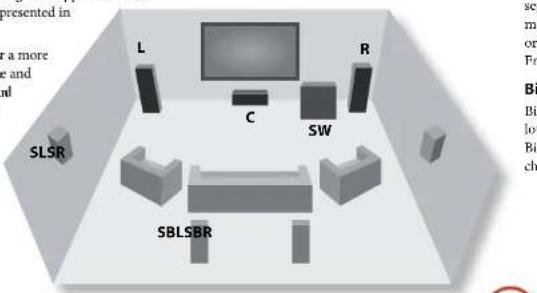

Speaker placement

The P777 allows connection of up to seven loudspeakers. All speakers, with the exception of the subwoofer, should be arranged around your normal viewing/listening position (see diagram). The subwoofer can be placed almost anywhere and we recommend experimenting with it in various positions to obtain the best result.

The closer you place a speaker to intersecting room surfaces (corners, wall and ceiling, wall and floor), the stronger the bass output. This can help bass-shy speakers, but it can also add too much bass. Again, just moving a speaker a few inches can often make a big difference in sound.

Position your front left (L) and right (R) speakers to achieve a good stereo image for normal musical reproduction. If they are placed too close together there will be a lack of spaciousness. Alternatively if they are placed too far apart the stereo image will appear to have a hole in the middle and will be presented in halves.

The centre speaker (C) allows for a more realistic reproduction of dialogue and centre sounds as well as wider and better imaging for stereo effects and background sounds for home cinema use. Do not compromise on the quality of your centre speaker as it carries all the dialogue for a home cinema system.

The surround left (SL) and right (SR) speakers reproduce the ambient sound and effects present in a multichannel home cinema system.

The surround back left (SBL) and surround back right (SBR) speakers are used to add extra depth, a more spacious ambience and sound localisation.

A subwoofer (SW) will greatly improve the bass performance from your system. This is useful for reproducing special cinema effects, especially where a dedicated 1.FE (Low-Frequency Effects) channel is available, as with Dolby Digital or DTS Digital Surround encoded discs.

Speaker wiring options

Single wiring

Single wiring is the conventional wiring method of running a single cable per channel between the amplifier and the speaker; this is the easiest technique.

Bi-wiring

Bi-wiring is running two separate cables between the amplifier and each speaker, with one cable carrying the low-frequency information, the other the higher-frequency signals.

Bi-wiring can improve the sound of your system because the separation of high- and low-frequency signal currents into different speaker cables avoids distortions caused by the different currents interacting with one another within a single cable, as occurs in single-wired systems.

The P777 is designed to allow easy bi-wiring, but you will need to connect to loudspeakers that provide separate terminals for the two cables. Each speaker must have two pairs of terminals; one pair labelled or 'High Frequency', the other pair labelled if or 'Low Frequency'.

Bi-amping

Bi-ampming is the separation of the amplification of low- and high-frequency signals over two amplifiers. Bi-ampming requires the use of two amplifiers per channel.

Notes on making speaker connections

Do not make any connections to any amplifier while it is switched on. We recommend that your amplifier is completely disconnected from the mains supply before starting.
Before switching your amplifier on for the first time after connecting to speakers, please check all connections thoroughly. Ensure that bare wires or cables are not touching each other or the amplifier's chassis (which could cause short circuits), and that you have connected positive (+) to positive and negative (-) to negative. Be sure to check the wiring for both the amplifier and the speaker.
After making connections: switch the amplifier on, with the pre-amplifier volume set to a low setting. Select a source signal, then gradually increase the volume to the required listening level.
If you are unsure as to how your system should be connected, or need advice on bi-wiring or bi-amplifying, please contact your Arcam dealer who will be happy to help you.

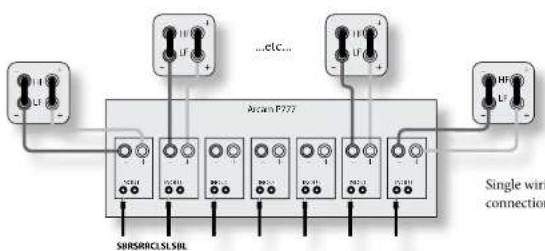

Single wiring

If each speaker has more than one pair of connecting terminals, use the terminals labelled # or "Low Frequency" for each speaker.

Connect the positive terminal of the right speaker connection on the amplifier (coloured red and labelled +R) to the positive terminal of your right speaker. Similarly, connect the negative terminal of the amplifier (coloured black and labelled with R-) to the negative terminal of your speaker. Repeat the process for the left speaker, using the amplifier terminals labelled +I and -I.

If your speakers support bi-wiring, then there is a strip of conductive metal on the speakers connecting the low-frequency terminals to those for the higher-frequencies; this musiNOT Be RemOveD in a single wired system.

Outputs from multichannel pre-amp (e.g AV888)

Bi-wiring

Bi writing is performed in the same way as single writing except that, for each speaker, a pair of cables are used to connect the amplifier to each speaker.

Follow the instructions given for single wiring; then perform the same actions, this time connecting the upper set of speaker terminals on your amplifier to the terminals labelled HF or 'High Frequency' for each speaker. Please refer to the illustration.

Speakers that support bi-wiring have a strip of metal on the speakers connecting the low-frequency terminals to those for the higher-frequencies; this mUST Be RemOVeD in a bi-wired system.

Bi-wiring using one amplifier channel per speaker

Bi-amping

Bi amping requires the use of two amplifier channels per speaker. Using this method will prevent you from using seven surround speakers.

Connect two channels of the P777 with a phone cable between the AudioOut socket on one channel to the Audio IN channel of another. One channel should then be connected to the speakers as described for single wiring, with the exception that this channel should be connected to the speaker terminals labelled HF or 'High Frequency'. The second channel must then be connected to the IF or 'Low Frequency' terminals, as in the diagram.

Note that the strip of metal on the speakers connecting the lower terminals to the upper terminals mUST Be RemOVcD. Failure to do so will result in damage to both amplifiers, which will not normally be covered under warranty.

Arcam recommends that the phone connections are use for bi-amping. If you prefer to use the XLR connectors, use a Y-lead with one female XLR to two male XLRs, so that two amplifier channels may be fed from a single source. Contact your dealer if you need assistance.

Bi-ampinging using two amplifier channels per speaker

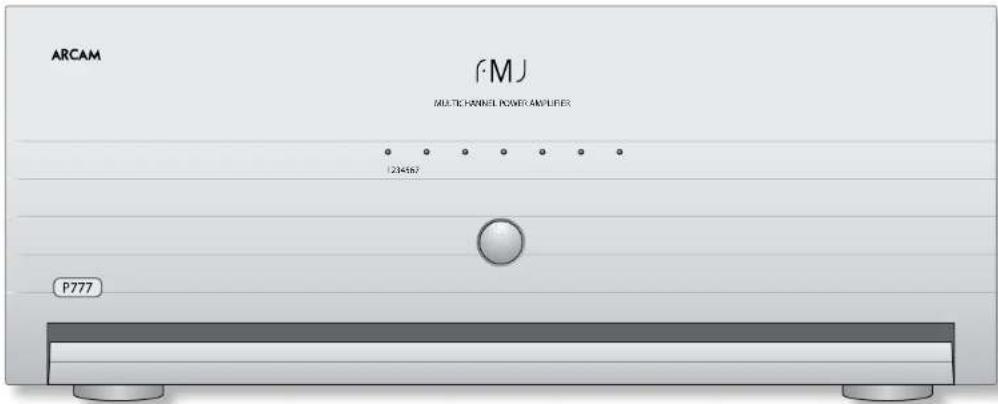

Front panel control

The front panel has a single control: a centrally located power on/off button.

POWER

Switches the unit on and off. Note that the modules are turned on individually to stagger the surge created when a powerful amplifier is switched on (i.e., it provides a 'soli start'). This reduces the surge current drawn from the domestic power supply.

Status LEDs

A separate IED indicates the status of each of the seven channels of the P777.

The I.FDs cycle through red, orange, then green to indicate the status from powered-up (initialised), stabilised and active respectively.

All 1.EDs are off in standby mode.

Operating procedure

Once the relevant connections have been made, the P777 can be switched on using the central button on the front panel.

Switching on

It is recommended that you switch on your pre-amplifier or controller before powering up the power amplifier. Normal powering up is indicated by the following sequence of front panel LED indicators:

1. On pressing the power switch, all LEDs turn red.
2. After a short delay (about half a-second), the centre LED turns amber.
3. The LEDs continue turning amber from the centre to the edges in pairs, at about one second intervals.
4. The centre LED turns green and a relay 'click' is heard.
5. The LEDs continue turning green from the centre to the edges in pairs, along with relay clicks, at about one second intervals.

In the unlikely event that the LEDs do not follow this sequence when the unit is powered up, or they behave abnormally at any time during use, then refer to the 'Fault status indicators' table on page 10 to discover why the amplifier is in protection mode.

Switching off

To what down, switch the power amplifier off first, followed by the pre amplifier or controller.

This eliminates the chance of any 'thumps' or power spikes being fed through to the power amplifier and potentially causing damage to the system.

trouble-shooting

No Lights on the Unit

Check that:

the power cord is plugged into the P777 and the mains socket outlet it is plugged into is switched
the plug fuse has not failed, or a circuit-breaker earlier in the power supply path has not opened.
the power button is pressed in.

Red LED present

Refer to the 'Fault status indicators' table (overleaf) if you have an unusual sequence of 1FDs.

No sound is produced

Check that:

the correct input has been selected on the pre-amplifier.
you have assigned the digital input to the correct input source.
the volume is turned up to a reasonable level and MUTE'is not displayed on the front panel display on the pre-amplifier.
your power amplifier(s) are turned on and working correctly.

Sound is poor and badly distorted

Check that

all cables are making a good connection. If necessary withdraw the cable from the connector and plug it back in again. (Turn the power off before doing this.)
you have selected the correct size of speakers to suit your system in the setup menu of the processor or pre-amp.

Sound only comes from some of the speakers

Check that:

all speakers in the system are connected to the P777.
you have configured your pre-amp to include all the speakers in your system.
you have an appropriate surround sound source selected and playing through the pre-amp.
For digital sources, check the player is outputting multichannel data. With some DVD players you are able to select in what format multi-format encoded discs are outputted, and whether multichannel data is down-mixed to PCM (stereo).
the disc you are playing is a multichannel recording and that the processor is outputting multichannel audio.
your speaker balance is correct
all amplifiers are turned on and all channels are working correctly.
all units are turned on. If the audio is 'daisy-chained' from the P777, make sure that the unit being fed is turned on.

Hum on an amplifier output

Check that

all cables are making a good connection. If necessary withdraw the cable from the connector and plug it back in again. (Turn the power off before doing this.)
if the hum originates from a ground loop caused by an aerial, satellite dish or cable supply, you should contact your aerial contractor.

the signal (interconnect) leads are not wrapped around a mains lead.
try switching the ground lift on the back panel of the processor (if available).

There is radio/television reception interference

The P777 has been designed to a very high standards of electromagnetic compatibility.

Check that:

the aerial/dish cable is routed as far as possible from your amplifier and its cabling.
the cabling used from the aerial/dish is of high quality and screened.

• repositioning the receiving serial/dish as far as possible from your amplifier and its cabling may bring an improvement.
  if the problem persists, contact your aerial contractor.
  you are using high quality screened audio cable between your equipment and that no cables are broken or damaged.

Fault status indicators

The LED patterns below indicate the following fault conditions:

LED status Description Amplifier action
All LEDs are greenDuring power up all LEDs stay red for an extended time	This is the normal operating state of the amplifier.The amplifier is waiting for the DC offset fault lines to clear. A DC offset fault can occur if an excessive DC voltage is present at the output of the pre-amp feeding the P777. Normal operation resumes if the lines clear in 20 seconds.	NoneTo verify excessive DC offset voltage, remove the interconnect leads (with the P777 switched off) and turn on the P777. The fault should have cleared.
During power up or normal operation, one or more LEDs are flashing green, with the remaining LEDs solid red	The DC fault cannot be cleared. The channels with the flashing green LEDs represent the amplifier modules that have a DC offset fault. Alternatively, a DC offset fault has reocurred on the same channel within 12 seconds of a previous DC offset fault clearance.	The amplifier shuts down. The power switch must be cycled to reset the amplifier (cycling the trigger does NOT reset the amplifier).
During power up or normal operation, one or more LEDs are flashing green, with the remaining LEDs NOT solid red	The amplifier is attempting to clear a DC offset fault on a channel with the flashing green LED.	The amplifier mutes the channel with the fault and its paired channel. The amplifier stays in this state for up to two seconds or until the fault clears (whichever is sooner).
During power up or normal operation, one or more LEDs are flashing red, with the remaining LEDs solid red	A short circuit fault cannot be cleared. The flashing red LEDs represent the amplifier modules with a short circuit fault. Alternatively, a short circuit fault has reocurred on the same channel within 12 seconds of a previous short circuit fault clearance.	The amplifier shuts down. The power switch must be cycled to reset the amplifier (cycling the trigger resets the amplifier).
During power up or normal operation, one or more LEDs are flashing red, with the remaining LEDs NOT solid red	The amplifier is attempting to clear a short circuit fault on a channel with the flashing red LED.	The amplifier mutes the channel with the fault and its paired channel. The amplifier stays in this state for up to half-a-second or until the fault clears (whichever is sooner).
During power up or normal operation, one or more LEDs are flashing amber	The amplifier is attempting to clear an over temperature fault on a channel with the flashing amber LED.	The amplifier mutes the channel with the fault and its paired channel and the fan is set to maximum speed. The amplifier stays in this state until the channel has cooled.
During power up or normal operation, one LED is flashing amber, with the remaining LEDs solid red	An over temperature fault has reocurred on the same channel within 12 seconds of a previous over temperature fault clearance. The flashing amber LEDs represent the amplifier modules with an over temperature fault.	The amplifier shuts down. The power switch must be cycled to reset the amplifier (cycling the trigger resets the amplifier).
During power up or normal operation, all the LEDs are flashing amber	The amplifier is attempting to clear an over temperature fault on more than one channel, or the power transformers have overheated.	The amplifier mutes all channels and the fan is set to maximum speed. The amplifier stays in this state until all channels have cooled, or the transformer has cooled.
During normal operation, all the LEDs are solid red	An over temperature fault has reocurred on one or more channels, or the power transformers have overheated within 12 seconds of a previous over temperature fault clearance.	The amplifier shuts down. The power switch must be cycled to reset the amplifier (cycling the trigger resets the amplifier).
During power up or normal operation, one or more LEDs are flashing amber, with the remaining LEDs flashing green	A DC offset fault occurred on one or more channels while attempting to clear a multiple over temperature fault.	The amplifier shuts down. The power switch must be cycled to reset the amplifier (cycling the trigger does NOT reset the amplifier).
During power up or normal operation, one or more LEDs are flashing amber, with the remaining LEDs flashing red	A short circuit fault occurred on one or more channels while attempting to clear a multiple over temperature fault.	The amplifier shuts down. The power switch must be cycled to reset the amplifier (cycling the trigger resets the amplifier).

All measurements are with 230V/50Hz mains power Maximum continuous output power
All channels driven, 20Hz-20kHz, 8Ω 160W per channel; 1.05kW total
All channels driven, 20Hz-20kHz, 4Ω 270W per channel; 1.62kW total
One or two channels driven at 1kHz, 8Ω 170W per channel
One or two channels driven at 1kHz, 4Ω 290W per channel
Total harmonic distortion
At any level up to rated power, into 4Ω or 8Ω Typically <0.004% at 1kHz
Frequency response
	Less than -0.3dB (10Hz-20kHz) -3dB at 100kHz
Residual hum and noise
Ref. full power -108dB, 20Hz-20kHz, unweighted
Voltage gain
	x.37 (31.5dB), Arcam standard
Input impedance
	470pF in parallel with 22kΩ
General
Power requirements 115V or 230VAC, 50/601Hz, 1200W	maximum via heavy duty IEC C20 mains inlet (requires IEC C19 plug). A soft start system eliminates large inrush currents at switch on.
Physical Dimensions: W430 x D450 x H180mm	Weight: 37.2kg net; 40kg packed
I&OE
NOTE: All specification values are typical unless otherwise stated

Continual improvement policy

Arcum has a policy of continual improvement for its products. This means that designs and specifications are subject to change without notice.

Radio interference

The P777 is an audio device which has been designed to very high standards of electromagnetic compatibility.

The unit can radiate RF (radio frequency) energy. In some cases this can cause interference with FM and AM radio reception. If this is the case, keep the P777 and its connecting cables as far from the tuner and its aerials as possible. Connecting the P777 and the tuner to different mains sockets can also help to reduce interference.

EC Countries - These products have been designed to comply with directive 89/336/EEC.

USA - These products comply with FCC requirements.

Worldwide Guarantee

This enitles you to have the unit repaired free of charge, during the first two years after purchase, at any authorised Arcam distributor provided that it was originally purchased from an authorised Arcam dealer or distributor. The manufacturer can take no responsibility for defects arising from accident, misuse, abuse, wear and tear, neglect or through unauthorized adjustment and/or repair, neither can they accept responsibility for damage or loss occurring during transit to or from the person claiming under the guarantee.

The warranty covers:

Parts and labour costs for two years from the purchase date. After two years you must pay for both parts and labour costs. The warranty does not cover transportation costs at any time.

Claims under guarantee

This equipment should be packed in the original packing and returned to the dealer from whom it was purchased, or failing this, directly to the Arcam distributor in the country of residence.

It should be sent carriage prepaid by a reputable carrier - not by post. No responsibility can be accepted for the unit whilst in transit to the dealer or distributor and customers are therefore advised to insure the unit against loss or damage whilst in transit.

For further details contact Arcam at:

Arcam Customer Support Department, Pembroke Avenue, Waterbacht,

CAMBRIDGE

CB25 90R, England

or via www.arcam.co.uk.

Problems?

If your Arcam dealer is unable to answer any query regarding this or any other Arcam product please contact Arcam Customer Support at the above address and we will do our best to help you.

On-line registration

You can register your product on-line at www.orcom.co.uk.

Correct disposal of this product

This marking indicates that this product should not be disposed with other household waste throughout the EU.

To prevent possible harm to the environment or human health from uncontrolled waste disposal and to conserve material resources, this

product should be recycled responsibly.

To dispose of your product, please use your local return and collection systems or contact the retailer where the product was purchased.

ARCAM

PMJ P777

Arcam Customer Support Department,

Pembroke Avenue, Waterbeach, CAMBRIDGE CF25 9QR, Grande Bretagne

on www.arcam.co.uk.

Des problèmes?

Arcam Customer Support Department

Pembroke Avenue,

Waterbeach,

CAMBRIDGE

CB259QR

England.

oderwww.orcom.co.uk.

Probleme?

productgarantee N-12

Arcam Customer Support Department

Pembroke Avenue, Waterbeach, CAMBRIDGE, CB25 9QR, England.

of www.arcam.co.uk.

Problems?
