USER MANUAL FF3J PIONEER

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1_En-A

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3 A En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A_En

Operating Environment

Operating environment temperature and humidity: +5^ to +35^ (+41^ to +95^) less than 85% RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c_A_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4 A En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation). D3-4-2-2-1a_A_En

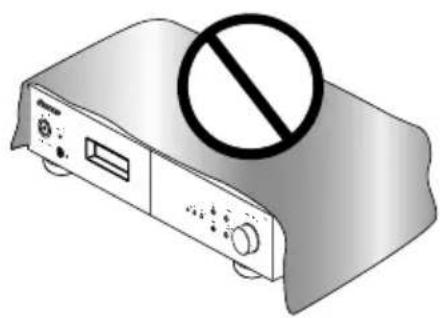

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10cm at top, 10cm at rear, and 10cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b_A_En

This product complies with the Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC.

D3-4-2-1-9a A En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

CAUTION

The POWER switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2a_A_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. S002_En

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

S002_En

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT: THE MOULDED PLUG

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

or the BSI mark

on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.

If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral Brown:Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in

your plug, proceed as follows;

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

D3-4-2-1-2-2 B_En

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

01 Before you start

Features 5

What's in the box 5

Inserting the battery 6

Installing the tuner 6

02 Connections

Making cable connections 7

Connecting analog audio sources 9

Plugging in 9

03 Controls and displays

Front panel 10

Remote control unit 11

04 Listening to FM/AM

Auto preset memory 13

Search Mode 14

Preset stations 16

An introduction to RDS. 17

RDS Search/PTY Search/TP Search 17

Naming station presets. 18

Last function memory. 19

Initialization of the microprocessor. 19

05 Other connections

Connecting external antennas. 20

Operating this tuner with the remote sensor of your Pioneer amplifier 20

06 Additional information

Troubleshooting 21

Specifications 23

Chapter 1: Before you start

Features

High Quality Audio Parts

• Schottky Barrier Diode
  Gold Plated Terminal

100 Stations, Groupe Presets (FM/AM 100)

RDS (Radio Data System) with Radio Text MPX mode

What's in the box

Please confirm that the following accessories are in the box when you open it.

• Remote control unit
  Lithium battery (CR2025)
• Power cord
  RCA/phono stereo audio cable
• SR control cable
  AM loop antenna
  FM antenna
  Warranty card
• Operating instructions

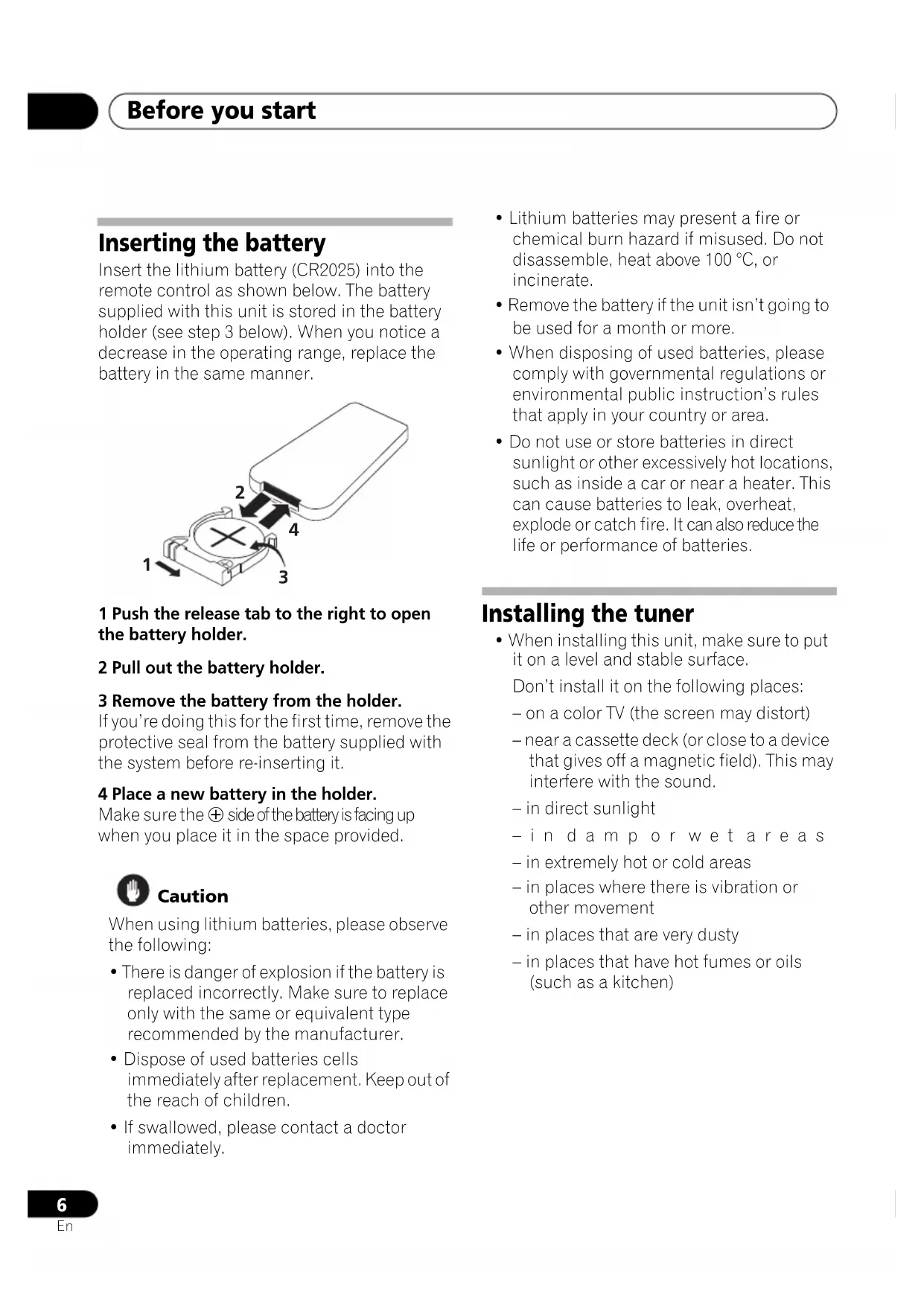

Inserting the battery

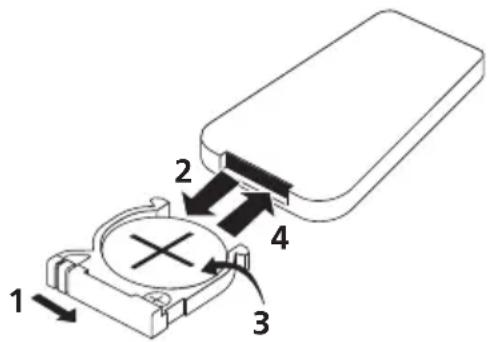

Insert the lithium battery (CR2025) into the remote control as shown below. The battery supplied with this unit is stored in the battery holder (see step 3 below). When you notice a decrease in the operating range, replace the battery in the same manner.

1 Push the release tab to the right to open the battery holder.

2 Pull out the battery holder.

3 Remove the battery from the holder.

If you're doing this for the first time, remove the protective seal from the battery supplied with the system before re-inserting it.

4 Place a new battery in the holder.

Make sure the side of the battery is facing up when you place it in the space provided.

Caution

When using lithium batteries, please observe the following:

• There is danger of explosion if the battery is replaced incorrectly. Make sure to replace only with the same or equivalent type recommended by the manufacturer.
• Dispose of used batteries cells immediately after replacement. Keep out of the reach of children.

• If swallowed, please contact a doctor immediately.

• Lithium batteries may present a fire or chemical burn hazard if misused. Do not disassemble, heat above 100^ , or incinerate.

• Remove the battery if the unit isn't going to be used for a month or more.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.
• Do not use or store batteries in direct sunlight or other excessively hot locations, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Installing the tuner

• When installing this unit, make sure to put it on a level and stable surface.
  Don't install it on the following places:
  -on a color TV (the screen may distort)
• near a cassette deck (or close to a device that gives off a magnetic field). This may interfere with the sound.
• in direct sunlight
• i nd amp or wet areas
• in extremely hot or cold areas
• in places where there is vibration or other movement
• in places that are very dusty
• in places that have hot fumes or oils (such as a kitchen)

Chapter 2: Connections

Making cable connections

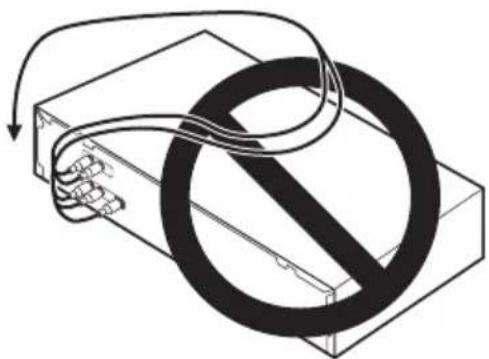

Make sure not to bend the cables over the top of this unit (as shown in the illustration), since the magnetic field produced by the unit's transformers may cause a humming noise in the speakers.

Important

• Before making or changing any connections, switch off the power and disconnect the power cord from the AC outlet.

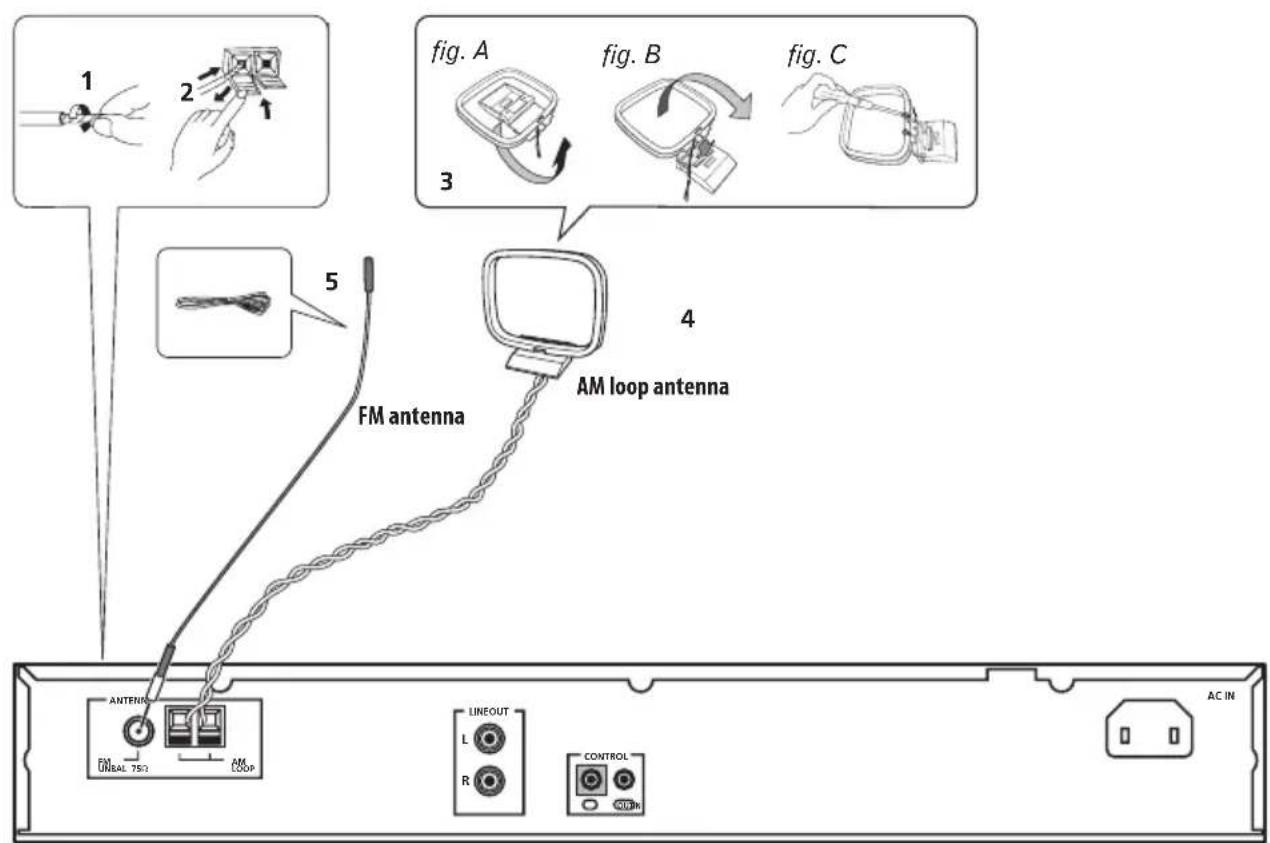

Connecting antennas

Connect the AM loop antenna and FM antenna as shown in the illustration (page 8). To improve reception and sound quality, connect external antennas¹ (See Connecting external antennas on page 20).

Connections

1 Pull off the protective shields of both AM antenna wires.

2 Push open the tabs, then insert one wire fully into each terminal, then release the tabs to secure the AM antenna wires.

3 Fix the AM loop antenna to the attached stand.

To fix the stand to the antenna, bend in the direction indicated by the arrow (fig. A) then clip the loop onto the stand (fig. B).

• If you plan to mount the AM antenna to a wall or other surface, secure the stand with screws (fig. C) before clipping the loop to the stand. Make sure the reception is clear.

4 Place the AM loop antenna on a flat surface, pointing in the direction that produces best reception.

Don't let it come into contact with metal objects and avoid placing near computers, television sets or other electrical appliances.

5 Connect the FM antenna 1 in the same way as the AM loop antenna.

For best results, extend the FM antenna fully and fix to a wall or door frame. Don't drape loosely or leave coiled up.

Note

1 Do not connect two FM antennas simultaneously.

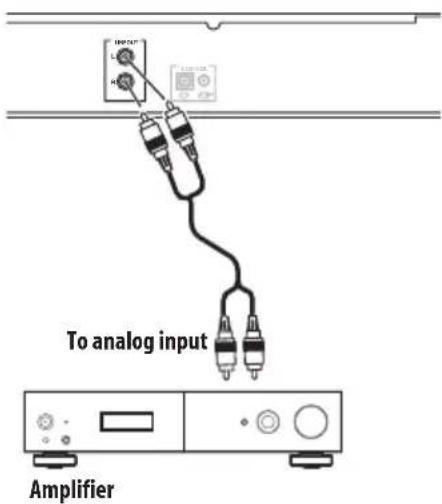

Connecting analog audio sources

• Use the RCA/phono jack audio cable to connect this unit's LINE OUT connectors to the analog input connectors of an amplifier.

Plugging in

Make sure to complete all connections before connecting to an AC outlet.

• Connect the power cord to the AC inlet (AC IN) on the rear panel of the tuner, then plug into a AC outlet.

Chapter 3:

Controls and displays

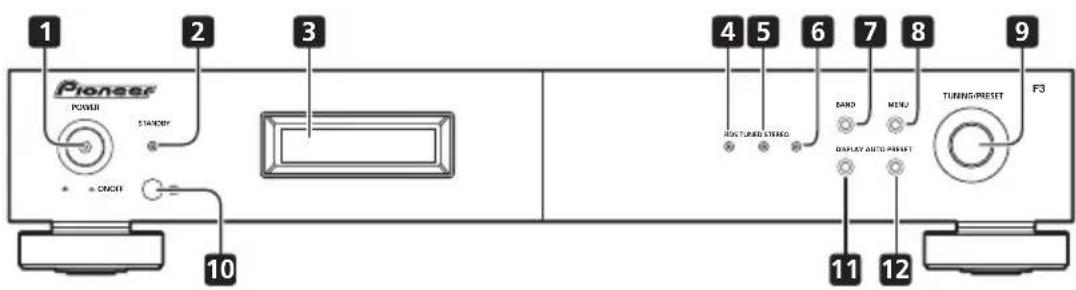

Front panel

1 POWER OFF-ON
2 STANDBY indicator
3 Di s p I a y

Tip

Liquid Crystal Display

The LCD used in this unit has a tendency to change color in response to the surrounding temperature. The display's color tone may turn gray or its ability to switch between displayed information may slow down when the room is not at optimum temperature, or when the unit has been operating for a long period of time. However, these are only temporary symptoms and regular functionality will be restored once the unit returns to optimum temperature.

4 RDS indicator

Lights when an RDS broadcast is received, and flashes during RDS search.

5 TUNED indicator

Lights when a station is properly tuned in.

6 STEREO indicator

Lights red when a stereo broadcast is received. Goes off when a monaural broadcast is received. Lights blue when the MPX mono mode is selected.

Note

1 - Remember that even when the unit is in the standby mode, it remains connected to the AC line voltage. Be sure to unplug the power cord whenever leaving your home for vacations or when otherwise not using the unit for extended periods of time.

• When the unit is in the standby mode, if the power is turned off by pressing the main unit's POWER button, the power will not turn on if the button is pressed again.

To turn on the power in this case, press either the remote control unit's button or a different button (other than the POWER button) on the main unit.

• When the unit is in the standby mode, if the power is turned off by unplugging the power cord, the power will not turn merely by reconnecting the power cord.

To turn on the power in this case, reconnect the power cord and then press either the remote control unit's button or a different button (other than the POWER button) on the main unit.

Controls and displays

7 BAND

Selects FM or AM.1

8 MENU

Use to enter/exit menu mode.

The unit times out if no operation is performed for about five seconds after the menu mode is set.

9 TUNING/PRESET dial

Press this dial to select an option or execute a command.

Turn this dial to select menu options, radio presets or stations.

In the tuning mode, the reception frequency can be tuned in an increasing or decreasing direction. Turn the dial clockwise to change the reception toward higher frequencies. Turn the dial counterclockwise to tune the reception toward lower frequencies.

In the preset mode, turning this dial moves the selected preset channel up or down. The auto tuning operation cannot be used when in this mode.

When inputting station names, use this dial to select desired characters (page 18).

10 Remote sensor

11 DISPLAY

Use to select the display mode (page 18).

12 AUTO PRESET

When pressed during FM or AM mode, receivable stations are automatically stored in the preset memory in order starting from preset channel A1.

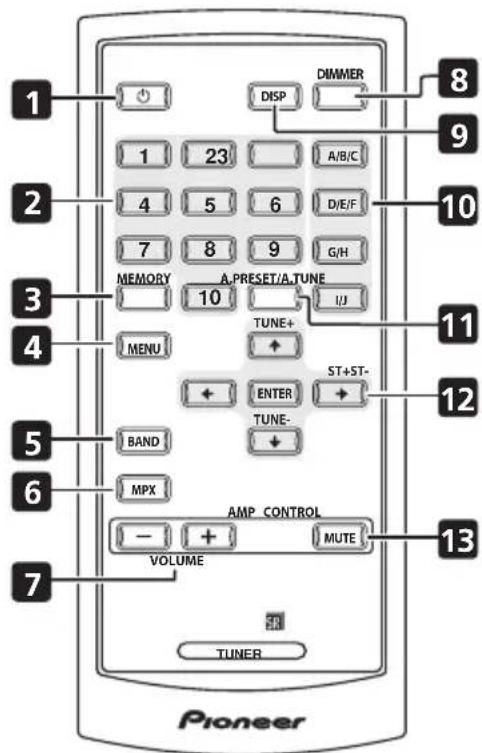

Remote control unit

10

Switches the unit between standby and on.

2 Station call buttons ( 1 to 10)

Use these buttons to preset stations, and to recall previously preset stations.

3 MEMORY

Use to preset stations. This button is also used for manual station-name character selection for FM and AM broadcasts, and for Program Type search.

4 MENU

Use to enter/exit menu mode.

5 BAND

Selects FM or AM.

Note

1 Noise may be generated when receiving AM or FM if a near-by television set is turned on. The tuner should be used as far away from a television as possible.

2 Effective period of memory back-up is about a month under normal temperature.

Controls and displays

6 MPX

Use to switch between stereo and mono reception during FM broadcasts. If the signal is weak, switching to mono may improve the sound quality (page 15).

7 VOLUME

Use to adjust your Pioneer amplifier's sound volume.

8 DIMMER

Dims or brightens the display (or switches the backlight off).

9 DISP

Use to select the display mode (page 18).

10 Preset channel range buttons

(A/B/C, D/E/F, G/H, I/J)

Use to tune in preset broadcast stations.

11 A.PRESET/A.TUNE

When pressed during FM or AM mode, receivable stations are automatically stored in the preset memory in order starting from preset channel A1.

12 Tuning buttons

ENTER

Selects an option or executes a command.

TUNE + / -

Use to change reception frequency.

ST + / -

Selects station preset when listening to the radio.

13 MUTE

Use to activate the mute function of your Pioneer amplifier.

Using the remote control

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• The remote has a range of about 7m at an angle of about 30^ from the remote sensor.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other components located close to this unit.
• Replace the battery when you notice a decrease in the operating range of the remote.

Chapter 4: Listening to FM/AM

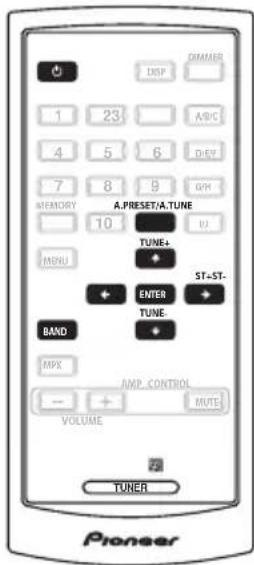

Auto preset memory

1 Make sure that the unit is in standby mode, and then press the button to turn on the power.

2 Watching the display, press the BAND button to select the desired band (AM or FM).

3 Press the A.PRESET/A.TUNE button.

4 Press the ENTER button.

The unit automatically begins searching for the broadcast stations.

• When the first broadcast station is found, that station is stored in the preset memory at channel A1.

Subsequent stations are automatically stored in order at preset channels A1 to A10, B1 to B10, C1 to C10, D1 to D10, E1 to E10, F1 to F10, G1 to G10, H1 to H10, I1 to I10 and J1 to J10 for a maximum of 100 stations.

• Channel A1 is tuned in after the auto preset memory operation is completed.

• If a station cannot be preset automatically due to poor reception, use the "Manual tuning" operation to tune in the station, then preset it using the manual "Preset stations" operation.

• To interrupt this function, press the button.
• Perform this operation from the remote control unit.

DEFAULTVALUE

Auto tuner presets
A1 to A10	87.5 MHz/88.0 MHz/90.0 MHz/92.0 MHz/94.0 MHz/96.0 MHz/98.0 MHz/100.0 MHz/102.0 MHz/104.0 MHz
B1 to B10	106.0 MHz/108.0 MHz/98.0 MHz/98.0 MHz/98.0 MHz/98.0 MHz/98.0 MHz/98.0 MHz/98.0 MHz
C1 to C10	98.0 MHz
D1 to D10	98.0 MHz
E1 to E10	98.0 MHz
F1 to F10	531 kHz/531 kHz/603 kHz/801 kHz/999 kHz/1197 kHz/1395 kHz/1602 kHz/1602 kHz/999 kHz
G1 to G10	999 kHz
H1 to H10	999 kHz
I1 to I10	999 kHz
J1 to J10	999 kHz

Search Mode

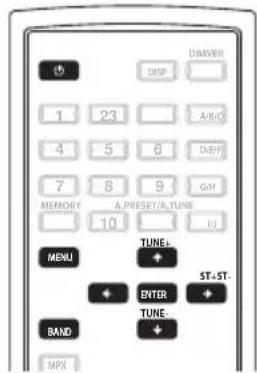

Auto tuning

1 Press the POWER or button to turn on the power.

2 Watching the display, press the BAND button to select the desired band (AM or FM).

3 Press the MENU button to select menu.

4 Either turn the TUNING/PRESET dial or press the ST + or ST - button to select the search mode.

5 Press the TUNING/PRESET dial or ENTER button to set the auto tuning mode.

6 Either turn the TUNING/PRESET dial or press the TUNE + or TUNE - button.

Automatic searching will begin, and then stop when a station is received.

• When the unit is in the MPX stereo mode and FM band auto tuning is selected, the front-panel STEREO indicator will light red when a stereo broadcast is received. At open frequencies (no station is received), the sound will be muted and the TUNED and STEREO indicators will turn off.

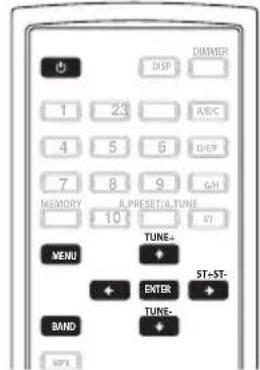

Manual tuning

1 Press the POWER or button to turn on the power.

2 Watching the display, press the BAND button to select the desired band (AM or FM).

3 Press the MENU button to select menu.

4 Either turn the TUNING/PRESET dial or press the ST + or ST - button to select the search mode.

5 Press the TUNING/PRESET dial or ENTER button to set the manual tuning mode.

6 Either turn the TUNING/PRESET dial or press the TUNE + or TUNE - button to tune in the desired station.

The frequency changes continuously when the TUNE + or TUNE - button on the remote control unit is held in.

• When the MPX mono mode has been selected, FM stereo broadcasts will be received in monaural, and the STEREO indicator will light blue.

Note

Hold the TUNE + or TUNE - button depressed for 0.5 seconds or more to perform rapid tuning.

Improving FM stereo sound

If the TUNED or STEREO indicator fails to light when tuning into an FM station due to a weak reception signal, press the MPX button to switch the tuner into mono reception mode. This should improve the sound quality and allow you to enjoy the broadcast.

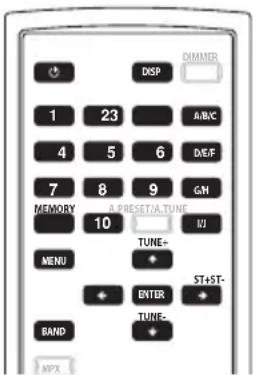

Recalling preset stations

For instructions on presetting stations, see the section "Preset stations" (page 16).

1 Connect the antenna and confirm that reception is possible.
2 Press the POWER or button to turn on the power.
3 Press the MENU button to select menu.
4 Either turn the TUNING/PRESET dial or press the ST + or ST - button to select the search mode.
5 Either turn the TUNING/PRESET dial or press the ST + or ST - button to select "Preset".

6 Press the TUNING/PRESET dial or ENTER button to set the preset mode.

7 Watching the display, either turn the TUNING/PRESET dial, or press the ST + or ST - button to select the desired preset channel.

7-1 Press one of the preset channel range (A to J) buttons to select the desired memory block (A to J).
7-2 Press one of the station call (1 to 10) buttons to select the desired preset channel (1 to 10).

• Steps 1 to 5 can be skipped when using the ST + / - , preset channel range (A to J) and station call (1 to 10) buttons.

The preset mode is set when any of these buttons is pressed, regardless of the menu setting at that time.

Note

1 The STEREO indicator will light blue when the MPX button is pressed.

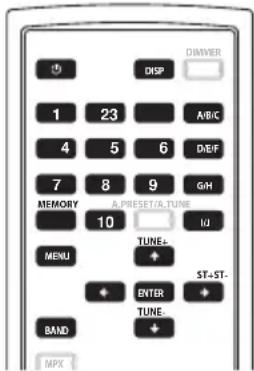

Preset stations

1 Use the "Auto tuning" or "Manual tuning" operation to tune in the station to be preset in the memory.

2 Press the MENU button to select menu.

3 Either turn the TUNING/PRESET dial or press the ST + or ST - button to select "Memory".

4 Press the TUNING/PRESET dial or ENTER button to set the preset mode and make the preset channel number flash.

• Steps 1 to 4 can be skipped when using the MEMORY button.

When this button is pressed, the preset memory standby mode is set, regardless of the menu setting at that time.

5 While the preset channel number is flashing, press one of the preset channel range (A to J) buttons to select the desired memory block (A to J).

6 While the preset channel number is flashing, either turn the TUNING/PRESET dial, press the ST + / - or Station call (1 to 10) button to select the desired preset channel (1 to 10).

7 While the preset channel number is flashing, either press the TUNING/PRESET dial or the MEMORY button to store the station in the preset memory.

• To preset other channels, repeat steps 2 to 6.
• A total of 100 broadcast stations can be preset — 10 stations (channels 1 to 10) in each of blocks A to J.2

Note

1 When the preset channel is A1, pressing the ST - button or rotating the TUNING/PRESET dial to the left will cause the preset channel to move to J10.
2 When a broadcast station is stored in memory, the MPX setting is simultaneously stored.

An introduction to RDS

Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information, such as the name of the station and the kind of show being broadcast.

One feature of RDS is that you can search by type of program. For example, you can search for a station that's broadcasting a show with the program type, JAZZ.

You can search the following program types:

NEWS - News

AFFAIRS - Current Affairs

INFO - General Information

SPORT-Sport

EDUCATE - Educational

DRAMAR - Radio plays, etc.

CULTURE - National or regional culture, theater, etc.

SCIENCE - Science and technology

VARIED - Usually talk-based material, such as quiz shows or interviews.

POP M - Pop music

ROCK M - Rock music

EASY M - Easy listening

LIGHT M - 'Light' classical music

CLASSICS - 'Serious' classical music

OTHER M - Music not fitting above categories

WEATHER - Weather reports

FINANCE - Stock market reports, commerce, trading, etc.

CHILDREN - Programs for children

SOCIAL - Social affairs

RELIGION - Programs concerning religion

PHONE IN - Public expressing their views by phone

TRAVEL - Holiday-type travel information as opposed to traffic announcements.

LEISURE-Leisure interests and hobbies

JAZZ-Jazz

COUNTRY - Country music NATION M - Popular

music in a language other than English

OLDIES - Popular music from the '50s and '60s

FOLK M - Folk music

DOCUMENT - Documentary

RDS Search/PTY Search/TP Search

Searching for RDS programs

One of the most useful features of RDS is the ability to search for a particular kind of radio program. You can search for any of the program types listed above.

1 Press the BAND button to select the FM band.2

2 Press the MENU button to select menu.

3 Select "RDS" by either rotating the TUNING/PRESET dial or pressing the ST + or ST - button, then press either the TUNING/ PRESET dial or ENTER button.

4 Either turn the TUNING/PRESET dial or press ST + or ST - button to select the desired search mode (RDS search, PTY search or TP search).

5 Press the TUNING/PRESET dial or ENTER button to search for the RDS program you want to hear.

The system starts searching through the station presets for a match. When it finds one, the search stops and the station plays for five seconds.

6 If you want to continue listening to the station, press the TUNING/PRESET dial or ENTER button within five seconds.

If you don't press the TUNING/PRESET knob or ENTER button, searching resumes.

If the program type cannot be found, the unit will automatically begin the frequency search mode.3

Note

1 In addition, ALARM may be displayed. ALARM is used for emergency broadcast announcements. You cannot search for this type of announcement, but the tuner will switch automatically to this RDS signal in the event of a broadcast.
2 RDS is only possible in the FM band.
3 PTY searches station presets only. If no stations have been preset, or if the PTY search could not be found among the station presets NO PTY DATA is displayed.

Displaying RDS information

Use the DISPLAY button to display the different types of RDS information available.

- Press the DISPLAY button for RDS information.

Each press changes the display as follows:

• Radio Text (RT) - Messages sent by the radio station. For example, a talk radio station may provide a phone number as RT.
• Program Service Name (PS) - The name of the radio station.
• Program Type (PTY) - This indicates kind of program currently being broadcast.
• Clock Time (CT)

Naming station presets

For easier identification, you can name your station presets.

1 Choose the station preset you want to name.

For how to do this, see "Recalling preset stations" (page 15).

2 Press the MENU button to select menu.

3 Select Station Name by either rotating the TUNING/PRESET dial or pressing the ST + or ST - button, then press either the TUNING/ PRESET dial or ENTER button.

4 Input the name you want.

Choose from the following characters for a name up to eight characters long.

ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz

0123456789

$$ !^{\prime \prime}# \$ \% \& ^{\prime}(0)^{*}+,-./[\backslash ]^{\wedge}_{-};:< =?[space] $$

• Use the TUNING/PRESET dial or ST +/- buttons to select characters.
• Press the TUNING/PRESERT dial or ENTER button to confirm a character. If no character is input, a space is input.
• The name is stored when the TUNING/ PRESET dial or ENTER button is pressed after choosing the fourth character.

5 Either turn the TUNING/PRESET dial, press the preset channel range (A to J) or station call (1 to 10) button.

The display shows Station Name, then a blinking cursor at the first character position.

Tip

• To delete a station name, repeat steps 4 and 5, and input all blank spaces in place of the name.

Note

If any noise is picked up while displaying the RT scroll, some characters may be displayed incorrectly.
- NO ** DATA will appear when the required data cannot be found.

Last function memory

• This unit is equipped with a last function memory which stores the input and output setting conditions as they were immediately before the power is switched off.

This function eliminates the need to perform complicated resettings when the power is switch on.

• The unit is also equipped with a back-up memory.

This function provides approximately two week of memory storage when the main unit's POWER button is off and with the power cord disconnected.

Initialization of the microprocessor

• When the indication of the display is not normal or when the operation of the unit does not show the reasonable result, the initialization of the microprocessor is required by the following procedure.

1 Press the unit's POWER button to turn the power off.

2 Press the unit's POWER button to turn the power on while holding down the MENU button.

3 "Memory Clear?" will be displayed in the display. Using the unit's TUNING/PRESET dial, select either "Yes" or "No" and press the TUNING/PRESET dial.

41 Yes" is selected, the memory will be cleared and the unit will then be set to standby mode. If "No" is selected, the unit will be set to standby mode.

Note

1- If step 4 does not work, start over from step 1.

If the microprocessor has been reset, all the button settings are reset to the default values (the values set upon shipment from the factory).

Chapter 5:

Other connections

Caution

• Make sure the power is switched off before making or changing the connections.

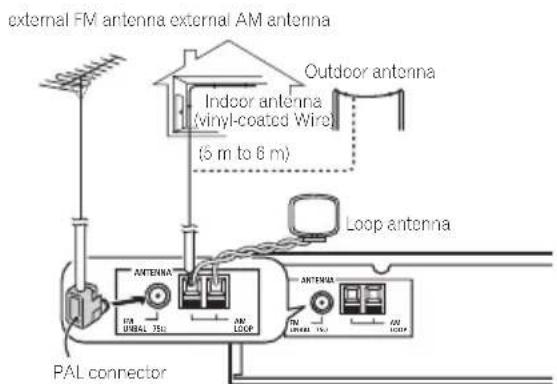

Connecting external antennas

• For an external AM antenna, use 5 m to 6 m of vinyl-insulated wire and set up either indoors or outdoors. Leave the loop antenna connected. Only use the included AM loop antenna.
• For an external FM antenna, use a PAL connector to hook up an external FM antenna.

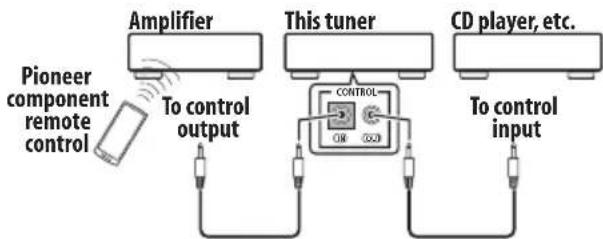

Operating this tuner with the remote sensor of your Pioneer amplifier

Many Pioneer components have SR CONTROL jacks which can be used to link components together so that you can use just the remote sensor of one component. When you use a remote control, the control signal is passed along the chain to the appropriate component.

Note that if you use this feature, make sure that you also have at least one set of analog audio jacks connected to another component for grounding purposes.

1 Connect the CONTROL IN jack of this tuner to the CONTROL OUT jack of your Pioneer amplifier.

Use a cable with a mono mini-plug on each end for the connection.

2 This process can be used to form a daisychain linkage with other Pioneer components as well.

Chapter 6:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after performing the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity, disconnect the power plug from the outlet and insert again to return to normal operating conditions.

Problem Remedy

The power does not turn on. • Disconnect the power plug from the outlet, and insert again.

• If you're trying to switch on using the remote control, make sure the front panel POWER button is switched on first.
• If the power shuts off automatically, take the unit to your nearest Pioneer authorized service center or your dealer for servicing.

No sound is output. - Turn the amplifier's power on.

• Make sure the amplifier is connected correctly (refer to Connections on page 7).
• Press the MUTE button on your Pioneer amplifier to turn the muting off.

Can't operate the remote control.

• Replace the battery (page 6).
• Operate within 7m,30^ of the remote sensor on the front panel (page 12).
• Remove the obstacle or operate from another position.
• Avoid exposing the remote sensor on the front panel to direct light.

The display is dark or off.

• Press DIMMER on the remote repeatedly to return to the default.

Hissing or buzzing sounds are heard during AM broadcasts. (Noise from a TV or interference in the signals sent from the broadcast station.)

• Turn off the TV.
• Change the position of the loop antenna.
  Install an outdoor antenna (page 20).

Booming sounds (humming) are heard during AM broadcasts. (Signals transmitted over the power supply cord are modulated by the power source frequency.)

• Insert the plug in the opposite direction.
  Install an outdoor antenna (page 20).

Additional information

Problem Remedy

Considerable noise in radio broadcasts.

• Connect the AM antenna and adjust the direction and position for best reception. You may also connect an external indoor or outdoor AM antenna (page 20).
• Fully extend the FM wire antenna, position for best reception, and secure to a wall. You may also connect an outdoor FM antenna (page 20).
• Turn off other equipment that may be causing the noise or move it further away.

Auto tuning does not pick up some stations.

• The radio signal is weak. Auto tuning will only detect radio stations with a good signal. For more sensitive tuning, connect an outdoor antenna (page 20).

Specifications

FM tuner section

Frequency range .87.5 MHz to 108 MHz Usable sensitivity NORMAL .Mono:11.3 dBf, IHF (1.0 V / 75)

50 dB quieting sensitivity NORMAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mono: 21.3 dBf, IHF (3.2 μV/75 Ω)

Signal-to-noise ratio .Mono: 76 dB (at 85 dBf) Stereo: 75 dB (at 85 dBf)

Distortion. Stereo: 0.3% (1 kHz)
Alternate channel selectivity ..75 dB (± 400kHz)

Stereo separation 45 dB (1 kHz)

Frequency response . ± 1 dB (30 Hz to 15 kHz) Image response ratio. .90 dB IF response ratio .95 dB Antenna Input .75Ω unbalanced

AM tuner section

Frequency range .531 kHz to 1602 kHz Sensitivity (IHF, loop antenna) .350 V / m Selectivity .33 dB (± 9kHz) Signal-to-noise ratio .55 dB Image response ratio .35 dB IF response ratio .65 dB Antenna .Loop Antenna

Audio section

Output (Level/Impedance) FM (100% MOD) 1000 mV/1 kΩ AM (30% MOD) 224 mV/1 kΩ

Miscellaneous

Power requirements AC 220 V to 240 V,50 Hz/60 Hz
Power consumption .8 W
Power consumption in standby mode. .0.5 W
Dimensions 420mm (W)× 78mm (H)× 350mm D
Weight (without package). .4.3 kg

Accessories

Remote control unit 1

Lithium battery (CR2025) 1

Power cord 1

RCA/phono stereo audio cable 1

SR control cable 1

AM loop antenna 1

FM antenna 1

Warranty card . 1

Operating instructions

Note

• Specifications and design are subject to possible modifications without notice, due to improvements.

Cleaning the unit

• Use a polishing cloth or dry cloth to wipe off dust and dirt.
• When the surface is dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furniture wax or cleansers.
• Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit, since these will corrode the surface.

Published by Pioneer Corporation. Copyright © 2007 Pioneer Corporation. All rights reserved.

IMPORTANT

420 mm (L) × 78 mm (H) × 350 mm (P)

Publication de Pioneer Corporation.

© 2007 Pioneer Corporation.

WAARSCHUWING NETSNOER

RDS Search/PTY Search/TP Search 17

Selecteert FM of AM.1

8 MENU

Selecteert FM of AM.

Opmerking

RDS Search/PTY Search/TP Search

Copyright © 2007 Pioneer Corporation.

Preselezioni automatiche sintonizzatore
Da A1 a A10	87,5 MHz/88,0 MHz/90,0 MHz/92,0 MHz/94,0 MHz/96,0 MHz/98,0 MHz/100,0 MHz/102,0 MHz/104,0 MHz
Da B1 a B10	106,0 MHz/108,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0MHz
Da C1 a C10	98,0 MHz
Da D1 a D10	98,0 MHz
Da E1 a E10	98,0 MHz
Da F1 a F10	531 kHz/531 kHz/603 kHz/801 kHz/999 kHz/1197 kHz/1395 kHz/1602 kHz/1602 kHz/999 kHz
Da G1 a G10	999 kHz
Da H1 a H10	999 kHz
Da I1 a I10	999 kHz
Da J1 a J10	999 kHz

Modalità di ricerca

420 mm (L) x 78 mm (A) x 350 mm (P)

Copyright © 2007 Pioneer Corporation.

Presintonías de sintonización automática
A1 a A10	87,5 MHz/88,0 MHz/90,0 MHz/92,0 MHz/94,0 MHz/96,0 MHz/98,0 MHz/100,0 MHz/102,0 MHz/104,0 MHz
B1 a B10	106,0 MHz/108,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0 MHz/98,0MHz
C1 a C10	98,0 MHz
D1 a D10	98,0 MHz
E1 a E10	98,0 MHz
F1 a F10	531 kHz/531 kHz/603 kHz/801 kHz/999 kHz/1197 kHz/1395 kHz/1602 kHz/1602 kHz/999 kHz
G1 a G10	999 kHz
H1 a H10	999 kHz
I1 a I10	999 kHz
J1 a J10	999 kHz

Modo de búsqueda

http://www.pioneer.co.uk

http://www.pioneer.fr

http://www.pioneer.de

http://www.pioneer.nl - http://www.pioneer.be

http://www.pioneer.it

http://www.pioneer.es

http://www.pioneer.eu

Published by Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.

All rights reserved.

Publication de Pioneer Corporation.

© 2007 Pioneer Corporation.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90810-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]

K002_B_En
