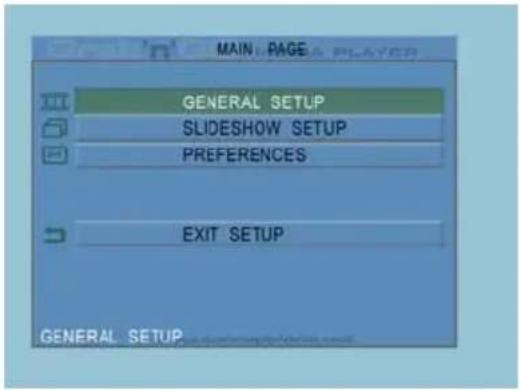

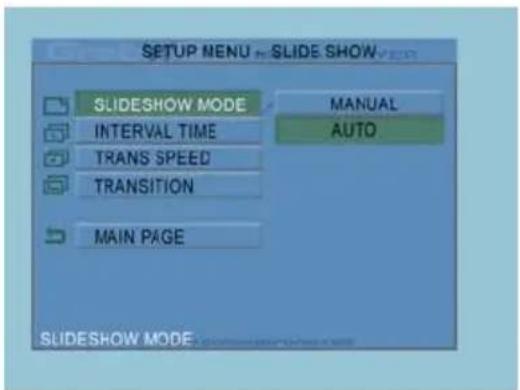

7.2 Dia show (Slideshow setup)

• SLIDESHOW MODE

Standard: THREE SECONDS

• TRANS SPEED

Conceptronic CMED3PLUS

Quick Installation Guide

Congratulations on the purchase of your Conceptronic CMED3PLUS.

The enclosed Hardware Installation Guide gives you a step-by-step explanation of how to use the Conceptronic Grab'n'GO 3,5" Media Player with Cardreader.

When problems occur, we advise you to go to our support-site (go to www.conceptronic.net and click 'Support'. Here you will find the Frequently Asked Questions Database.

When you have other questions about your product and you cannot find it at our website, then contact us by e-mail: [e-mail].

For more information about Conceptronic products, please visit the Conceptronic Web Site: www.conceptronic.net.

1. Introduction

Before operating the unit, please read this manual thoroughly and retain it for future reference.

1.1 Contents of the package

Before connecting the device to your TV or computer/monitor please check if the contents of the package are:

1x Conceptronic Grab 'n' GO 3,5" Media Player with Cardreader
1x Remote Control
- 2x Batteries for Remote Control (AAA, 1.5V)
- 1x Power adapter (12V DC, 2.5A)
- 1x Audio/Video Cable (Composite)
- 1x Audio/Video (Composite) to SCART Cable
- 1x S-Video Cable
- 1x SPDIF Optical Cable
- 1x USB Cable
- 1x Multi language printed quick installation guide
1x Stand for CMED3PLUS

1.2 Features

• Auto switch between PC and Player Mode:

• When connected to the PC, the device acts as an USB Storage Device.

• When not connected to the PC, the device acts as a Media Player.

ENGLISH

In PC mode:

Supports Plug-n-Play.
- Compliant with High Speed USB 2.0/1.1, 480Mb/s maximum data transfer rate.

In Player mode:

• Support for Internal HDD, USB Devices and memory cards.
• Multiple languages support: English, Dutch, Spanish, French, Italian, German, Portuguese
  Supports multiple HDD partitions.
  Media files previewing.
  Supports text subtitle (.SMI/.SRT/.SUB/.SSA) for MPEG4 (AVI), D1 resolution.
  Supports AVI (MPEG4), MPG (MPEG1, MPEG2), DAT (VCD), VOB (DVD), WAV, WMA, MP3, JPG.
• Various Codec's supported. Check our website for a full list of supported Codecs.
• Outputs: Composite video/Component video/RCA audio/Optical audio/VGA/S-video.
• Compliant with PAL/NTSC.
• Various repeat modes.
• File operations (DELETE/RENAME/NEW FOLDER/PROPERTIES).

• Screen Saver.
  Viewing photos in various ways

• Slide show (slide photo play back) with background music.
  14 transition modes; display interval changeable.

• Zoom, rotation, move functions.

• Files can be sorted by name/time/type.

1.3 Cautions

• Do not attempt to disassemble the included power adapter. This may cause high-voltage injuries. If the adapter needs to be fixed, please contact your dealer or the helpdesk of Conceptronic.
• Keep the device away from excessive moisture.
• Do not immerse or expose the device to liquids.
• Disconnect the power adapter if you do not intend to use the device for an extended period of time.
• Avoid using the device in a location near combustibles.
• Change the batteries of the remote control with the same kind when they are weak or dead. Dispose of the old batteries safely. Recycle them where possible. To avoid corrosion, remove the batteries if the remote is not to be used for a long time.
• Keep the remote away from excessive moisture; do not drop it.
• Do not operate the remote under intense sunlight.
• NEVER drop, shake or bump the device.
• To prevent overheating, do not cover the device.
• The CMED3PLUS only supports the FAT / FAT32 File system (NTFS is not supported).

WARNING: When you format the Harddisk to NTFS, it only functions as removable Harddisk for your computer. Reformat the Harddisk to FAT32 to activate the Media Player functionality.

• The data on the internal Harddisk and/or the connected device(s) can be fragmented. This affects movies play back. It is recommended that you defragment the Harddisk and/or the connected device(s) on your computer once in a while.

ENGLISH

2 Functionalities of the Grab'n'GO 3,5" Media Player with Cardreader

2.1 Identify the parts of the CMED3PLUS

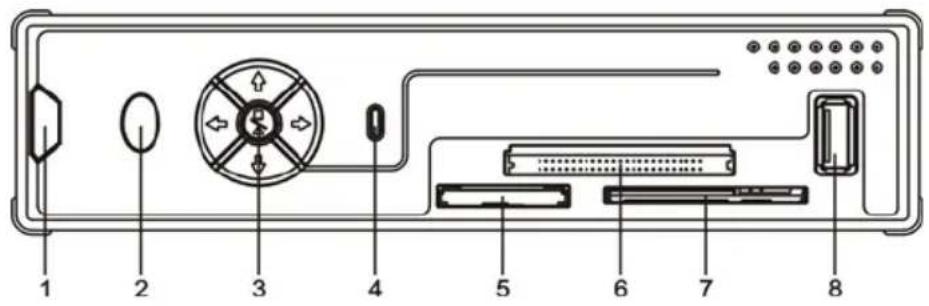

• Front View

1. Remote Control Receiver

4.HDDLED

1. SM Card Slot

2. Power LED

3. MMC/MS/SD Card Slot

4. USB HOST Jack

5. Button Control

6. CF Card Slot

7. Button Control

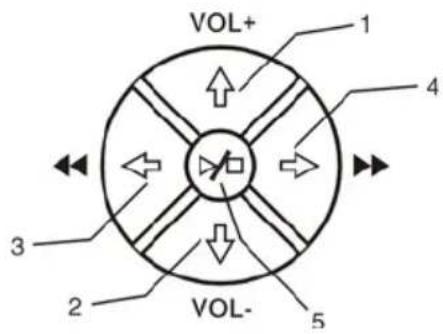

No.	Short Press		Long Press
	Stop State	Play State
1	(▲)	(VOL+)	P/N (P/N)
2	(▼)	(VOL-)	VGA (VGA)
3	(◇)	(◇)	(◇)
4	(◇)	(◇)	(◇)
5	(←)	(→)	(→)

Note: The Button control functions are the same as the Remote Control Functions. Detailed information about each button can be found in chapter 4.

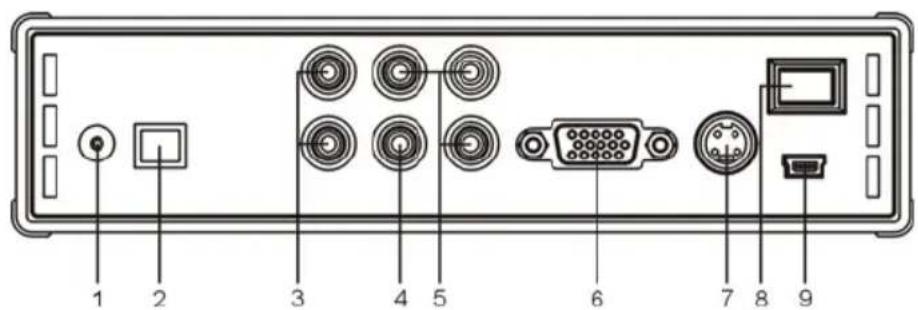

Rear view

1. DC In

2. Video Out

3. S-VIDEO Out

4. Optical Out

5. Component Video Out

6. On-Off Switch

7. Audio Out

8. VGA Out

9. USB Jack (For PC Connection)

ENGLISH

3 How to connect the Grab'n'GO 3,5" Media Player with Cardreader

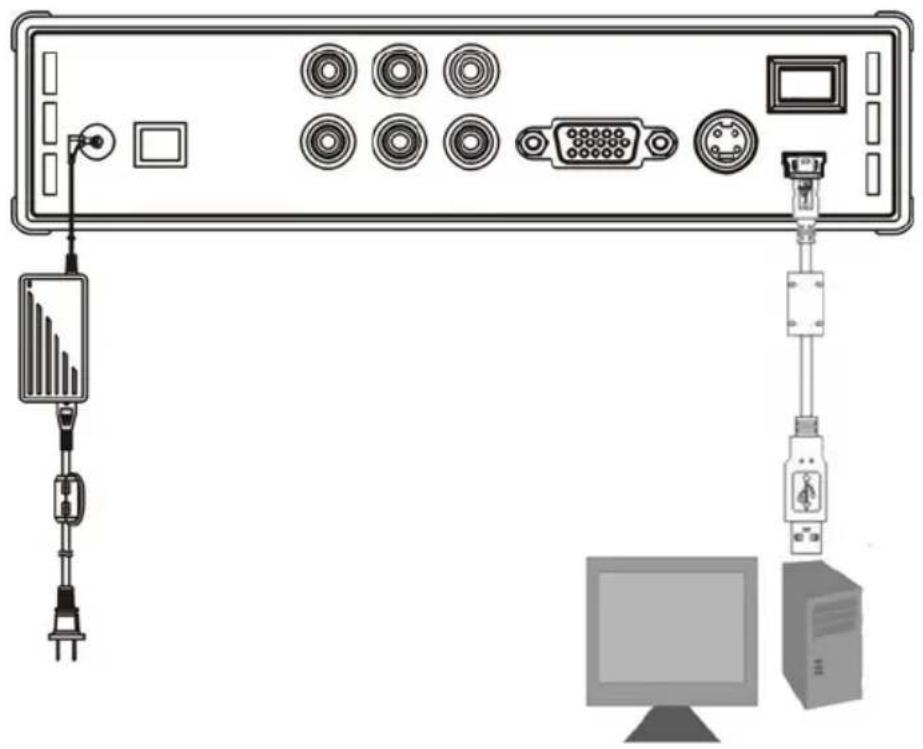

3.1 Connecting to your Computer

1. Turn on your computer.
2. Connect the powersupply to the CMED3PLUS and to the power outlet.
3. Connect the USB Cable to the CMED3PLUS and your computer.

The computer will automatically detect and configure the device, assign new drive letter(s), and then use it as a mass storage device. (Your drive is pre-formatted in FAT32 file system).

You can now add movies,music,photo's,etc. to the CMED3PLUS.

Disconnect the CMED3PLUS from your computer

1. Single-click the "Safe Removal" icon on the system tray.
2. Select "Stop USB Mass Storage Device" when prompted.
3. Wait for the message "Safe to remove Hardware".
4. Disconnect the USB cable.

ENGLISH

3.2 Connection to your Television

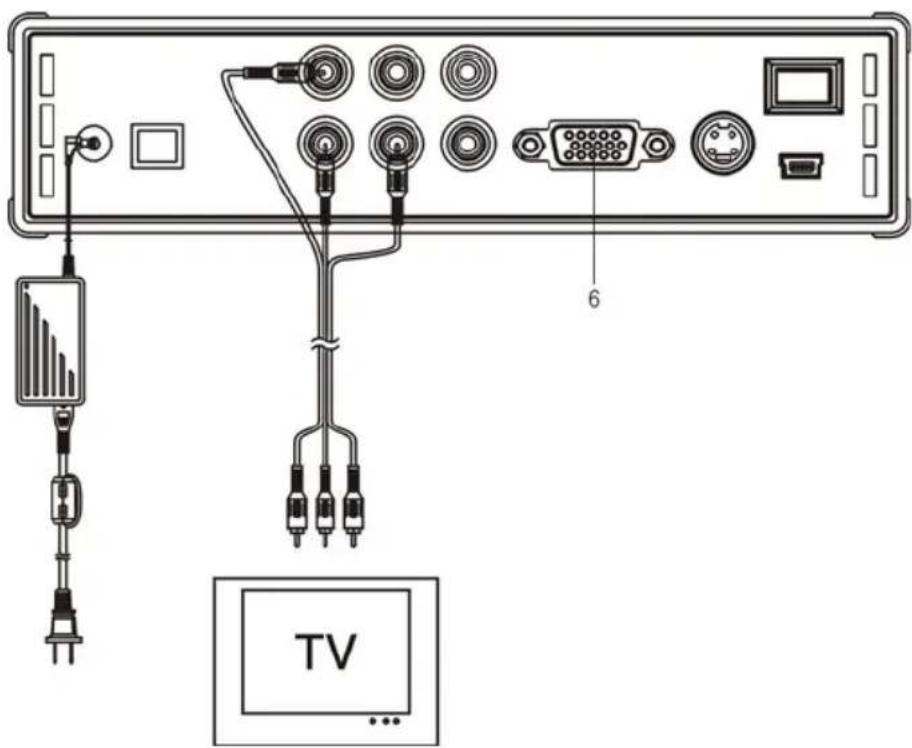

Connecting the device with a TV (illustrated as follows)

The three RCA connectors (yellow, red, white color) of the AV cable should match with the corresponding input jacks on your TV. If your TV has no Composite input available, use the included SCART to Composite/Audio cable.

You can also use the Component Output of the Media Player to connect to your LCD/Plasma TV (No Cable included). For sound, you can also use the SPDIF Output of the Media player to connect to your Amplifier / Speakerset (Cable included).

NOTE:

The Conceptronic CMED3PLUS can be used with a television or with a monitor.

When using a TV you can use the S-VIDEO, Composite, Composite to SCART or Component output of the CMED3PLUS. Please check the manual of your TV to select to correct input channel to display the video output of the CMED3PLUS. If you have used the CMED3PLUS in VGA mode, please press the VGA button on your remote control to change the VIDEO output again to your TV.

When using a monitor you have to use a monitor VGA cable and connect it to the VGA OUT (6) connector. Press the VGA button on the remote control (a number of times) until the monitor is switched on automatically (out of Stand-By mode).

To switch between the various modes available (VGA, TV, S-VIDEO,etc.) you need to press the VGA button on the remote control.

ENGLISH

4 The Remote Control

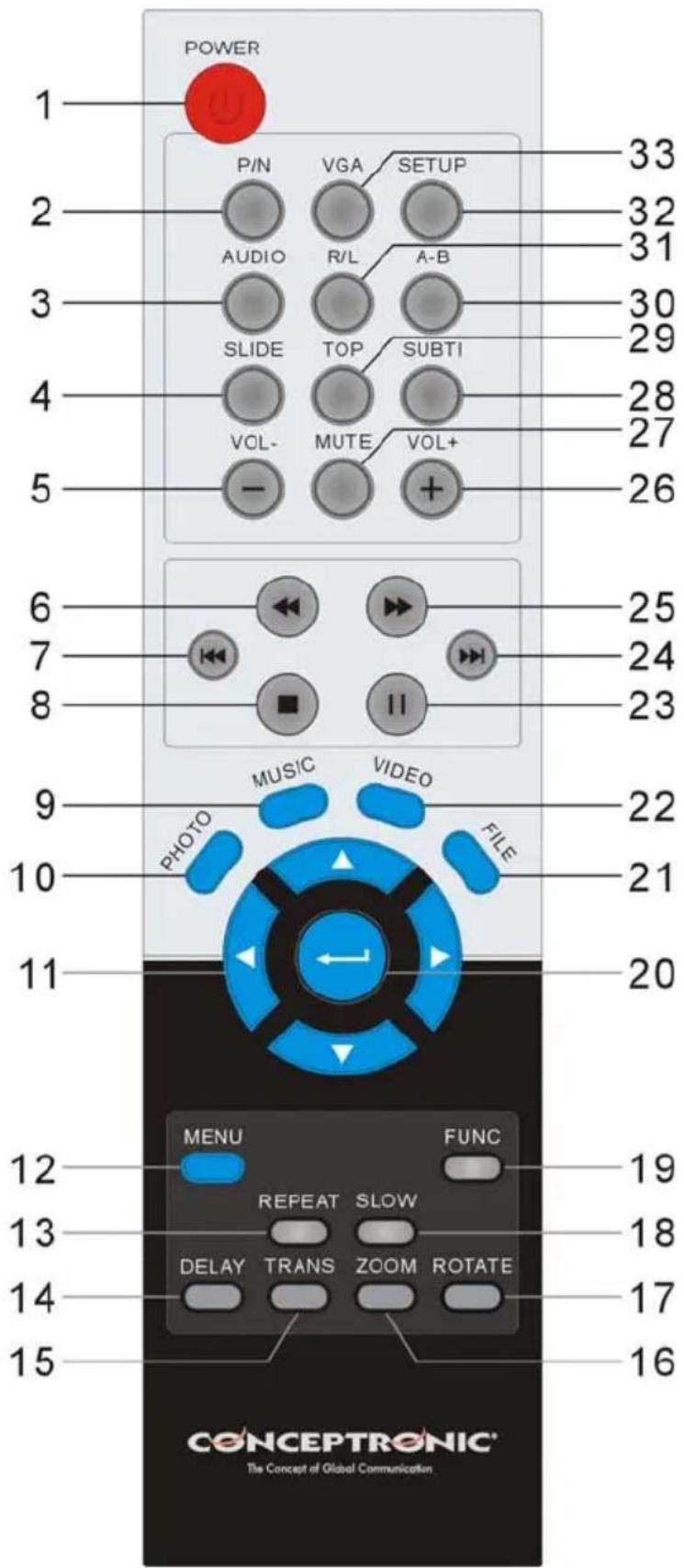

4.1 Explanation of the Remote Control

ENGLISH

Nr.	Description
1	POWER Enter or exit Standby mode. (ON/OFF)
2	P / N Select video system. (PAL / NTSC)
3	AUDIO Select audio stream.
4	SLIDE Enter Music-slide-show mode or step-play.
5	VOL - Decrease volume level.
6	FR Fast Rewind.
7	PREV Switch to previous file or page up.
8	STOP Stop playing.
9	MUSIC Direct Access button to music.
10	PHOTO Direct Access button to photos.
11	DIRECTION BUTTONS Move cursor.
12	MENU Show DEVICE LIST or FILE LIBRARY (if there is only one device connected).
13	REPEAT Select a repeat mode.
14	DELAY Select slide show (include music-slide-show) interval time.
15	TRANS Select a mode of transition or a type of music equalizer.
16	ZOOM Zoom in/out photos.
17	ROTATE Rotate photos.

Nr.	Description
8	SLOW Play back slowly.
9	FUNC Show file information or file operations menu.
20	ENTER Confirm selection.
21	FILE Show the Directory Structure of the device.
22	VIDEO Direct Access button to videos.
23	PAUSE Pause a playback.
24	NEXT Switch to next file or page down.
25	FF Fast forward.
26	VOL + Increase volume level.
27	MUTE Mute or cancel mute.
28	SUBTI Select MPEG4 subtitle.
29	TOP Go to the top of directory.
30	A - B Play a selected interval repeatedly. Press the button once to select the beginning <A> Point; Press the button again to select the ending <B> Point; A-B interval will be repeated; Press the button again to cancel. Only valid for video mode not music mode.
31 R / L	Select the audio output: right, left and stereo.
32	SETUP Function setup.
33	VGA Select the Video Output Signal.

ENGLISH

5 Important remarks

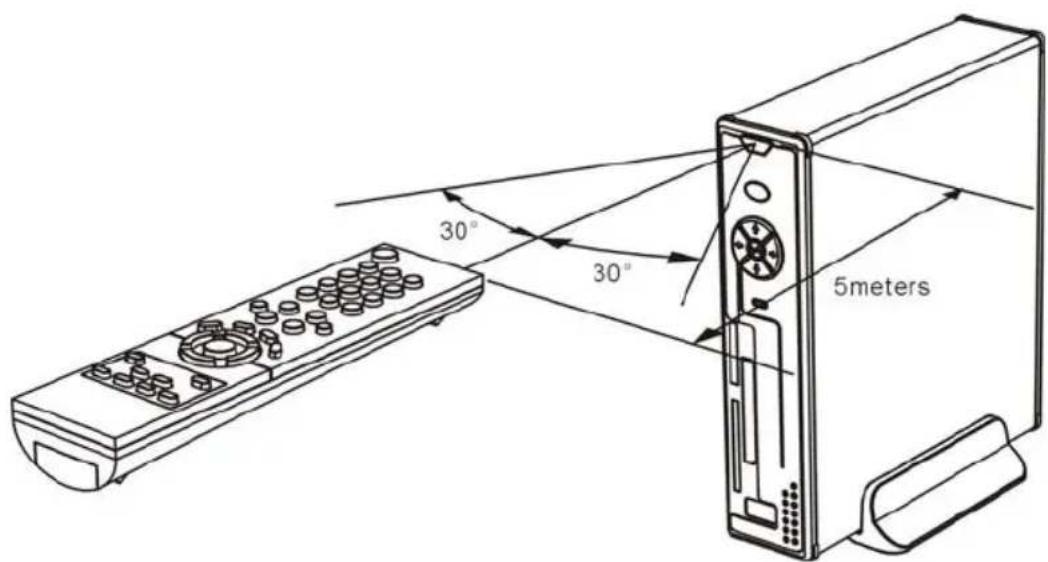

The maximum operational range of the remote control is about 5 meters.

1. Point the remote to the receiver on the front panel of the device. The receiving angle is about ± 30 degrees in the range of 5 meters.

2. Change the batteries when they are weak or empty.

5.1 Basic Operation

1. Plug the power adapter into a working electrical outlet and connect the other end of the adapter to the device.
2. Switch the device on with the power switch on the back of the device. The Power LED will become solid blue. The device is now operational.

When there is no other device connected to the CMED3PLUS, it will show the FILE LIBRARY with the contents of your Harddisk (If only 1 partition is present).

When an USB Device (like a Harddisk or USB Flashdrive) or Memory Card is connected to the CMED3PLUS, the screen will show the DEVICE LIST with all found devices. If the connected device contains a large quantity of files, it can take a little while before the device is detected. Please wait for the DEVICE LIST / FILE LIBRARY screen.

Notices

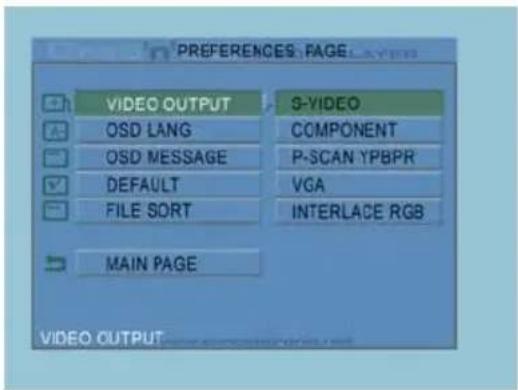

• Usually, it is not necessary to change your video system (PAL/NTSC), but if the TV only supports NTSC or PAL, you should use the P/N button to select a color system to match your TV system.
• If "AUTO START" is ON (press the SETUP button->SETUP MENU->PREFERENCES->AUTO START->ON), all files on the connected devices will be played automatically; Pressing the / STOP button can stop auto-playing and display a full file list of the selected partition.
• Press one of the / / buttons to move the cursor, and use the / ENTER button to confirm selection (enters media library, enters file folder, or starts playing files).
• Press the / STOP button button to stop playing and go back to FILE LIBRARY.
• Press the MENU button to show the DEVICE LIST or FILE LIBRARY.
• Press the / POWER button to enter/exit standby mode.
  We advise you to disconnect the device from power if the device will not be used for a long time.

ENGLISH

5.2 Detailed Operations

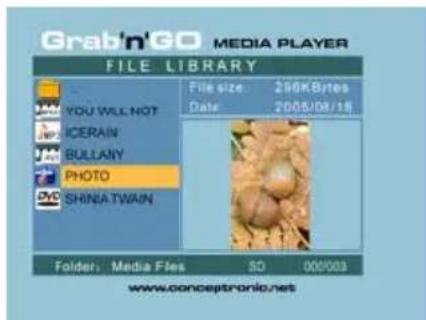

File Library

If there is no external device connected to the CMED3PLUS (only internal HDD present), the FILE LIBRARY will appear on the TV screen when you press / POWER button to enter working state (illustrated as follows).

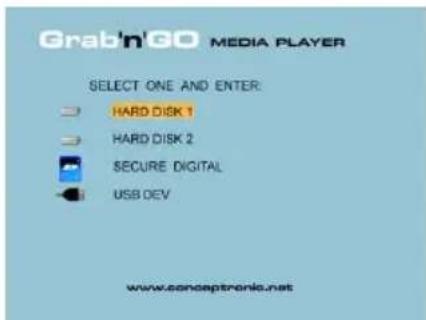

If there are multiple devices connected (USB Stick, Memorycard), the DEVICE LIST will appear on the TV screen first when you press / POWER button to enter working mode. Use button to move the cursor, and pressing the / ENTER button will go to the FILE LIBRARY.

NOTICE:

It is possible that it will take a while until you can browse through the menu. Before the menu is displayed your connected device(s) will be indexed. On screen you will see: SEARCHING. This means that all suitable files will be indexed and displayed in your menu.

PARTITION LIST

FILE LIBRARY

To change the connected device:

If there are more devices connected to the CMED3PLUS, you can press the MENU button to go to the DEVICE LIST and select a device by pressing / button and the ENTER button.

6. Movies, Music and Photo Set-up

There are 3 main functions for the Conceptronic CMED3PLUS

-Play&watch movies
Play & listen to Music
Play & watch Photos

6.1 Options how to play & watch a movie

Playing movies

The CMED3PLUS is supporting various video formats: MPEG2/1, MPEG 4 including (XVID, VOB format) including support for playing MP3, AC3, AAC and MPG1/2 audio tracks within video).

Extra options for playing video

Support for playing MPEG4 video with text subtitles

The Conceptronic CMED3PLUS can support .SMI, .SRT, .SUB or .SSA subtitle files.

If the subtitle file has the same name as the selected video file (only extension is different) the subtitle file will be loaded automatically when the MPEG4 file is played.

ENGLISH

When the subtitle file has a different name than you need to select the subtitle file, press the SUBTI button on the remote control and then select the MOVIE file to be played. (The two files are associated). Press the / ENTER button to play the movie.

Repeat interval

To play a selected video interval repeatedly, press A/B.

Sound Channels

Press the R/L button on the remote control to play Mono Left, Mono Right or Stereo Sound.

Some MPEG2/VOB files contains two or more audio streams in it, press AUDIO button to cycle through 1-1/8~1-8/8|2-1/8~2-8/8, 3-1/8~3-8/8 (total 24 audio streams). If a video has no sound when playing, press AUDIO button to locate the proper audio stream.

If you switch MPEG2/VOB file, you can loose the audio if it is on another stream. To prevent this, press the SETUP button during playback to "Lock" the current audio stream. This option will keep the selected audio stream for all files.

Playing back videos

When playing back videos, press the SLIDE button to perform video step-play. In this mode the Photos will be played continuously. When playing back videos, the button to play forward fast/ reverse fast, and press ENTER/ button to return to normal speed.

Direct access button to your video folder

You can create 1 video folder, which can be directly accessed by pressing the VIDEO-button on the remote control. Create a folder called "VIDEO ***" (Where *** can be changed to whatever you want) on the root of the hard disk and place video files in this folder. When the media player is started and you press the VIDEO-button, the media player will automatically open the folder.

NOTE:

If you create more than 1 folder beginning with "VIDEO ***", the device will only open the first folder.

NOTE:

Most Video Codec's are supported on the CMED3PLUS (Like XviD, AVI, MPEG2, etc.) but it is possible that you have files that require a Codec, which is not included with the CMED3PLUS. If you try to playback a file with a not supported Codec, you will see the message "CODEC NOT SUPPORTED".

6.2 Options how to play & listen to the music

Playing Music

The Conceptronic CMED3PLUS has various modes in which you can play music (WAV, MP3 and WMA is supported)

To Play Music files:

Press Menu and select the correct folder to play music files from. The song is displayed and you can select an equalizer setting (by pressing the TRANS button of your remote control) If you want to repeat a song you can select:

Random: Play the selected folder in random order

Shuffle: Play the selected folder in shuffled order

Single: Play only this song one time

Folder: Play only the selected folder

REP-one: Repeat the selected song until you stop

Folder repeat: Repeat the selected song until you stop

ENGLISH

When playing back Music files, press button to adjust the play speed and press ENTER/ button to return to normal speed.

Direct access button to music folder

You can create 1 music folder, which can be directly accessed by pressing the MUSIC-button on the remote control. Create a folder called "MUSIC ***" (Where *** can be changed to whatever you want) on the root of the hard disk and place music files in this folder.

When the media player is started and you press the MUSIC-button, the media player will automatically open the folder.

NOTE:

If you create mode than 1 folder beginning with "MUSIC ***", the device will only open the first folder.

6.3 Options how to play & watch photos

While playing back photos, you can use the ROTATE button to turn around photos. By default the rotation message of the photos is kept until you turn off the device or switch to standby mode. If you do not want to keep the rotation message, you can disable this function via SETUP MENU ->GENERAL SETUP->ORIENTATION->OFF.

While playing back photos, you can use the TRANS button to change the transition between photos. Default transition mode can be set via SETUP MENU->SLIDESHOW SETUP->TRANSITION.

MODE 01: FULL SCREEN

MODE 02: RANDOM

MODE 03: ROLL: TOP TO BOTTOM

MODE 04: ROLL: BOTTOM TO TOP

MODE 05: ROLL: TOP/Bottom TO CENTER

MODE 06: ROLL: CENTER TO TOP/Bottom

MODE 07: BLIND: TOP TO BOTTOM

Press the ZOOM button to enter or exit ZOOM mode or change zoom ratio. When a photo is enlarged, you can use the buttons to move it.

Music-slide-show (viewing photos with background music)

Select a photo and press SLIDE to start.

When you do not press 'SLIDE' the music is not played and the images will be displayed in a nonmusic slideshow. When there is no music in the folder available the SLIDE functionality does not work. You need to press the / ENTER button to have a slideshow of images without sound.

In SLIDE mode, only photo and music files in the same folder will be played back.

NOTE: In this mode, ROTATE/ZOOM are not accessible.

ENGLISH

You can stop viewing the photo by press PAUSE button once (music is still playing). Press PAUSE again, the music will stop. Press the / ENTER button to resume playing. You can set the interval display time between two photos by pressing the DELAY button. Default interval time is set via SETUP MENU->PREFERENCES->DELAY. Press the TRAN S button to change a transition. Press the REPEAT button to play back photos repeatedly.

Direct access button to your photo folder

You can create 1 Photo folder, which can be directly accessed by pressing the PHOTO-button on the remote control. Create a folder called "PHOTO ***" (Where *** can be changed to whatever you want) on the root of the hard disk and place photo's in this folder.

When the media player is started and you press the PHOTO-button, the media player will automatically open the folder.

NOTE:

If you create more than 1 folder beginning with "PHOTO ***", the device will only open the first folder.

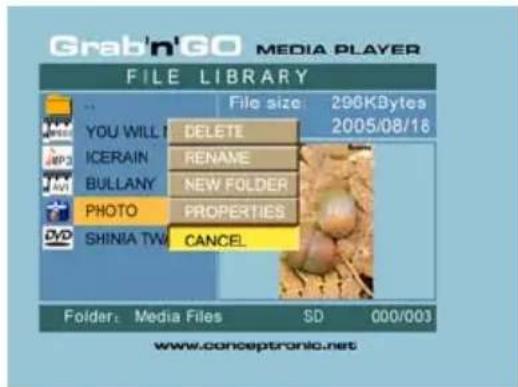

6.4 Operations in file library

• Use button to select a file or folder; / (PREV/NEXT) button to page up/page down. If a photo or a video is selected, its preview and information will be shown on the right hand side of the TV screen. If a music file is selected, music will start playing while showing its information on the right of the screen.
• You can press TOP button to move cursor straight to the top of file list and change to another folder easily.
• Press the / ENTER button to enter full screen mode (if playing music files, MUSIC EQUALIZER screen will appear). Press the / STOP button to escape full screen mode.
• Press REPEAT button to select a repeat mode: RANDOM/SHUFFLE/SINGLE/FOLDER/REPONE/FOLDER REPEAT.
• In STOP state, press the FUNC button to show or close a floating menu of the file operation.

DELETE: directly delete a selected file or folder.

RENAME: rename a selected file or folder.

NEW FOLDER: create a new folder.

PROPERTIES: show/close file information such as size, date, and format.

ENGLISH

7. Setup Menu

In stop state, press SETUP button to enter SETUP MENU.

Press / button to move cursor, and press the / ENTER button to confirm selection, press SETUP button when finished.

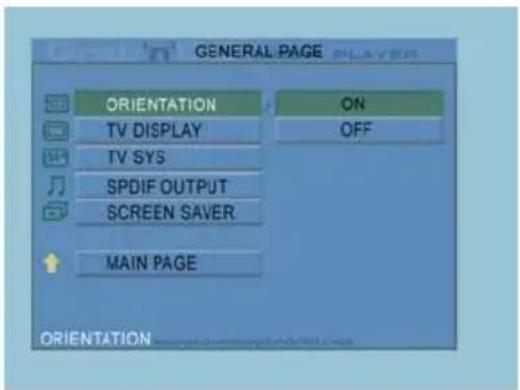

7.1 General setup

• ORIENTATION: keep rotation information.
  Options: ON, OFF
  Default: ON
  TV DISPLAY Options: NORMAL/PS, NORMAL/LB, WIDE Default: NORMAL/PS
  TV SYS: Select a video system. Options: MULTI. SYSTEM, NTSC, PAL Default: MULTI. SYSTEM
  SPDIF OUTPUT Options:OFF,SPDIF/RAW,SPDIF/PCM Default:OFF
• SCREEN Saver: start the screen saver; the screen saver image appears when the unit stops or the image is frozen for a few minutes.

This saver can keep the screen from being damaged. Options: ON, OFF Default:ON

7.2 Slideshow setup

• SLIDESHOW MODE Options: MANUAL; AUTO Default: AUTO
• INTERVAL TIME: select the interval time between two photos. Options: ONE SECOND, THREE SECONDS, FIVE SECONDS, TEN SECONDS Default: THREE SECONDS
• TRANS SPEED
• Options: FAST, SLOW
• Default: FAST
  TRANSITION Options: FULL SCREEN, RANDOM, TOP->BOTTOM, BOTTOM->TOP, T/B->CENTER, CENTER->T/B, BLIND: T->B, LEFT->RIGHT, RIGHT->LEFT, L/R->CENTER, CENTER->L/R, IMPLODE, BLIND: L->R, CROSS FADE Default: RANDOM

ENGLISH

7.3 Preferences

VIDEO OUTPUT: Set video output.

Options: S-VIDEO, COMPONENT, P-SCAN YPBPR, VGA and INTERLACE RGB.

Default: S-VIDEO.

• OSD LANG: select OSD languages.

Options: ENGLISH, FRENCH, GERMAN, ITALIAN, PORTUGESE, SPANISH, DUTCH Default: ENGLISH

• OSDMESSAGE:selectOSD

message during playing back a file.

Options: ON, OFF

Default: ON

• DEFAULT: use the manufacturer's default settings.
• AUTO START: Play all media files on all connected devices automatically.

Options: ON; OFF

Default: OFF

• FILE SORT: select file sorts at the current connected device(s).

Options: BY NAME; BY SIZE; BY TIME; BY TYPE

Default: BY NAME

8. Specifications

Power	:	100~240VAC, 50/60HZ
Power Consumption : 11W (typical)
Dimensions	:	177×163×44 (T×B×H mm)
Color System : PAL/NTSC
Frequency Response : ±3dB(20HZ-20KHZ)
Signal/Noise Ratio : ≥80dB
Audio Cross talk : ≥70dB
Audio Output : 2,0±0,2V(rms)
Video Output	:	1,0±0,2Vp-p, 75Ω
USB Data Transfer Rate : USB	2.0,	Max. 480Mb/s
File Format Supported : AVI/MPG		DAT/VOB/WAV/MP3/WMA/JPG
Supported File System(s) : FAT32.

Subject to change without prior notice.

9. Tips & Troubleshooting

Use the tips below for troubleshooting when your CMED3PLUS is not working properly:

The Power LED doesn't light up

• The power supply is not connected to the CMED3PLUS. Reconnect the power supply to the CMED3PLUS.

ENGLISH

There is no activity on the display.

• The CMED3PLUS is in standby state. Press the button on the remote control to activate it.
• The Wrong input source on your TV is selected. Change the input source.
• The Wrong video system selected. Press the VGA button on your remote control to switch video system.
• The Video cable is not connected properly. Check if the Video Cable is connected correctly.

There is no sound

• The Audio cable is not connected properly. Make sure the cable is connected correctly to your TV or amplifier.
• The CMED3PLUS is connected with an amplifier, but the amplifier is turned off. Turn on the amplifier.
• The audio stream of the MPEG2 or VOB file is invalid. Press the AUDIO button on the remote control to adjust to the proper audio stream.
• The Mute function is on. Press the MUTE button on the remote control again to cancel mute.
• The CMED3PLUS is functioning in FF/FR mode. Press the / ENTER button on the remote control to return to normal playback.

The display is distorted

• The CMED3PLUS is functioning in FF/FR mode. Press the / ENTER button on the remote control to return to normal playback.
• A PAL movie is played at NTSC mode or vice versa. Press the P/N button on the remote to change the display settings.

When pressing the SLIDE button, the system freezes.

• There are too many photos or music in the current folder. It will take a long time to start Music-Slide-Show. Please wait for playback.

The Remote control doesn't work

• Point the remote control to the CMED3PLUS receiver in about ± 30 degrees and directly.
• Use the remote control in the range of 5 meters.
• The remote control battery should be replaced.

The subtitles of the played movie are not displayed

• An AVI file is played, but the subtitle file contains a different filename. See chapter 6.1 how to display the subtitles.
• A VOB file is played. The CMED3PLUS does not have support for subtitles on VOB files.

When trying to play video, the message "CODEC NOT SUPPORTED" is displayed.

• The movie file is created with a not-supported codec for the CMED3PLUS.

Refer to the website, www.conceptronic.net for a list of supported codecs for the CMED3PLUS.

The CMED3PLUS does not display all HDD partitions / content.

• The partition on the HDD is not primary. Re-partition the HDD again and make sure all partitions are set to primary.
• The partition is not FAT32 formatted. Re-format the partition with FAT32 Filesystem.
• There are no mediafiles on the selected partition.

Which Memory Cards are supported by the CMED3PLUS?

• The CMED3PLUS reads all major Memory Card families, like:

Memorystick (MS), Secure Digital (SD), Multimedia Card (MMC), Smart Media Card (SM), Compact Flash (CF), Microdrive (MD).

Refer to the website, www.conceptronic.net for a list of supported Memory Cards for the CMED3PLUS.

CMED3PLUS de Conceptronic

Guía de instalación

Memorystick (MS), Secure Digital (SD), Multimedia Card (MMC), Smart Media Card (SM), Compact Flash (CF), Microdrive (MD).

Conceptronic CMED3PLUS

5 Considerations important

MODE 12: BALAYAGE: IMPLOSION

MODE 13 : EFFET DE RIDEAU VERTICAL : DE LA GAUCHE VERS LA DROITE

MODE 14:FONDU ENCHAINE

7.1 Configuration générale (General setup)

Options: NORMAL/PS, NORMAL/LB, LARGE

Options: OFF, SPDIF/RAW, SPDIF/PCM

Par défaut : OFF

CMED3PLUS Conceptronic

Conceptronic CMED3PLUS

MODO 01: FULL SCREEN (ECRA TOTAL)

MODO 02: RANDOM (ALEATORIO)

MODE03: ROLL: TOP TO BOTTOM (RODAR: DE CIMA PARA BAIXO)

MODE04: ROLL: BOTTOM TO TOP (RODAR: DE BAIXO PARA CIMA)

MOO 05: ROLL: TOP/BOTTM TO CENTER (RODAR: DE CIMA/BAIXO PARA O CENTRO)

MODO 06: ROLL: CENTER TO TOP/Bottom (RODAR: DO CENTRO PARA CIMA/BAIXO)

MODO 07: BLIND: TOP TO BOTTOM (CEGO: DE CIMA PARA BAIXO)

MODO 08: ROLL: LEFT TO RIGHT (RODAR: DA ESQUERDA PARA A DIREITA)

MODO 09: ROLL: RIGHT TO LEFT (RODAR: DA DIREITA PARA A ESQUERDA)

MODO 10: ROLL: LEFT/RIGHT TO CENTER (RODAR: DA ESQUERDA/DIREITA PARA O CENTRO)

MODE 11: ROLL: CENTER TO LEFT/RIGHT (RODAR: DO CENTRO PARA A ESQUERDA/DIREITA)

MODO 12: ROLL: IMPLODE (RODAR: IMPLODIR)

MODO 13: BLIND: LEFT TO RIGHT (CEGO: DA ESQUERDA PARA A DIREITA)

MODO 14: CROSS FADE (ENCADEAR)

PORTUGUES

Zoom de fotografias

• TV DISPLAY (ECRA DE TV)

Opçoes: NORMAL/PS, NORMAL/LB, WIDE (ALARGADO)

Opçoes: MULTI. SYSTEM, NTSC, PAL

Opçoes: OFF, SPDIF/RAW, SPDIF/PCM

Predefinção: OFF

Opçoes: FAST (RAPIDA), SLOW (LENTA)

• OSD LAng (LINGUA OSD): seleccionar as linguas OSD.

Opçoes: ENGLISH (INGLÉS), FRENCH (FRANCÉS), GERMAN (ALEMÁO), ITALIAN (ITALIANO), PORTUGESE (PORTUGUES), SPANISH (ESPANHOL), DUTCH (HOLANDÉS)

Conceptronic CMED3PLUS

Declaration of CE Conformity

The manufacturer Conceptronic

Address

3821

Databankweg

AL

7

Amersfoort,

the

Netherlan

Hereby declares that the product

Type 3,5" Media Player Plus

Product

CMED3PLUS

Complies with following directives:

89/336/EEC

EMC

directive:

Electromagnetic

Compatibility

73/23/EEC

Low

Voltage

Directive:

Electrical voltage

equipment units

designed for use within

The following standards were consulted to assess conformity:

ETS 300 328-2/2000
EN 301 489-17-2000
EN 301 489-1-2000
EN55022/9.98 Class B
EN 61000-3-2/3/4/1995
EN 50082-1/1994
EN 60950/1995

The CE symbol confirms that this product conforms to the above named standards and regulations.

C

This product is suitable for all EU countries.

Place and date of issue: Amersfoort, February 28, 2006
