USER MANUAL Terminal X4 Reloop

Black and white industrial DJD instrument with dual dials and control knobs, displayed against a reflective background (no visible text or symbols)

eRELOOP®

Bedienungsanleitung

ACHTUNG!

For your own safety, please read this operation manual carefully before initial operation! All persons involved in the installation, setting-up, operation, maintenance and service of this device must be appropriately qualified and observe this operation manual in detail. This product complies with the requirements of the applicable European and national regulations. Conformity has been proven. The respective statements and documents are deposited at the manufacturer.

Mode d'emploi

ATTENTION!

To prevent fire or avoid an electric shock do not expose the device to water or fluids!

Never open the housing!

ATTENTION!

Keep information for further reference!

Welcome to the Heloop ASIO Setup Wizard Welcome to the Heloop ASIO Setup Wizard The setup will qualify you through the installation of Heloop ASIO Driver 1.12. It is recommended that you choose other applications before starting Setup. The will make it possible to update relevant system files without having to reboot your computer. Following Heloop devices are supported with this driver: - Cyber Icekey 2.0 - Hugor 2. - Terminal Mix 2 - Terminal Mix 4 Houses Ask Next to continue. Next > Cancel www.HeloopD.com

License Agreement Please receive the terms before uploading Eclipse ADO Driver 1.12. From Page Driver to see the rest of the agreement. Copyright: B 2011-2023 WebLoop This software is being licensed to you buy Weblop as A FREE VERSION and it is provided for non-profit use only. Commercial usage of this product is strictly prohibited. Permission to use, copy and distribute this software without a fees hereby granted for non-commercial use only, provided that the above copyright notice and this permission notice appears in all orders. You may not reverse If you accept the terms of the agreement, do I Agree to continue. You must accept the agreement hereof Eclipse ADO Driver 1.12. OK Agree Cancel

Release A400Driver 3.0 Setup Choose Data Location Choose the folder in which to install Release A400 Driver. Setup will install Release A400 Driver. Files in the following folder. To install in a different folder, click Reserve and select another folder. Destination Folder: Space required: 1.3MB Space available: 396.528 Browse... Save Required: 1.3MB Save Status: 12 KB OK Finish Cancel

Reloep ASIO Driver 1.12 Setup Wizard Completing the Reloep ASIO Driver 1.12 Setup Wizard Reloep ASIO Driver 1.12 has been installed on your computer. Old finish to save the wizard.

serato dj intro Welcome to the DJ Intro Setup Wizard This will result DJ Intro wizard 1.0 and your computer. It is recommended that you close all other applications before continuing. Did Next to continue, or Cancel to not Setup. Next > Cancel

License Agreement Please read the following important information before continuing. Please read the following License Agreement, You must accept the terms of this agreement before continuing with the institution. SERATV - USER LICENSE AGREEMENT ("License Agreement") Seratv Inc LP ("Serato") and its licensor(s) own the Software, being any and all. Seratv applications, and intellectual property in the Software. By installing or using the Software, you agree to the terms of this License Agreement. 1. Grant of License: Seratv grants you a perpetual, non exclusive, personal license ("License") to install and use 2. I accept the agreement 3. Do not accept the agreement OK Next Cancel

Select Destination Location Where should 01 lines be installed? Setup will install 01 lines into the following file: To continue, disk next, if you would like to load a different file, disk browse... At least 31,7MB of the disk space is required. < Back Next > Cancel

Select Additional Tools Which additional tools should be performed? Select the additional tools you would like Setup to perform while installing iOS icons, even did not. Additional tools: ✓ Create a desktop icon

Ready to install Setup to new needs to begin installing (C) lines on your computer. Click install to continue with the installation, or click back if you want to remove or change any settings. Instructions: C:\Program Files\08\09\data\03\bin Additional keys: Additional icons: Create a desktop icon < Back Install Cancel

serato dj intro Completing the DJ Intro Setup Wizard Setup has been installed by 6.10x on your computer. The application may be launched by selecting the installed icons. Get fresh to exit Setup. Launch 6.10x Finish

If you approve and consider of this license, select 'Agree' to select the software. If you do not approve, select "Agree". BRIATO - JOHN CONY AGREEMENT (Lemon Agreement). Copyright: All of the terms and to be certified under the Software, etc., any and all listed applications and institutional properties in the Software. By imaging or using the Software, you agree to the terms of this License Agreement. General License Description may be personnel, representatives, personal license ("License") is required and use the Software on the write of this License Agreement. The License is applicable to any soil all software which is structured every a service class prior to the hardware components (include Software Hardware) or any other service, but it is not used by any Software in the software and use the Software Software Service on the computer in a time with this license ests. If you want a certificate and use these software services on another computer that must have been used to perform maintenance. Where, ascertained by the Software Implementation process, software owned by this period (i) their help Software is installed on your computer. the software has been approved and will apply, and this Copyright: All of the terms and to be certified under the Software, etc.

VIRTUAL DJ Welcome to the VirtualDJ LE (Terminal Mix 4) Setup Wizard The Setup Wizard allows you to change the way VirtualDJ LE (Terminal Mix 4) Setup Wizard will be installed on your computer or to remove if from your computer. Click Next to continue at Cancel to exit the Setup Wizard. Back Next Cancel

End their License Agreement Please read the following license agreement:can/uk SUA SUMMARY: 1. This licensed gives you the right to install and use the software or a maximum of two computers, by one person. 2. I don't give you the right to exit or sell computer systems on which the software is installed, or to exit or sell the software or part of it. 3. The software is distributed "set-at" and no warranty of any kind is expressed. 4. Organic Productions and its suppliers rely on intellectual property rights in the software. I accept the terms in the license agreement Free Back Next Cancel

Choose Setup Type Choose the setup type that best suits your needs Typical Setup the most common program features. Recommended for most users. Customs Always users to choose which program features will be installed and where they will be installed. Recommended for advanced users. Back Next Cancel

Ready to install VirtualDJ LI (Terminal Note 4) Click Install to begin the installation. Click back to review or change any of your installation settings. CIs Cancel to exit the record. Back Install Cancel

Software Maintenance English SULA SUMMARY: This software gives you the rights install and use the software on a system, which is used to create a new system. The software is installed, or its device and the system uses it. - The software in defaulters' words and no warranty of any kind is required. - None (software) can be supported within additional property rights in the software. - Does not allow, then choose an option for installation, or should be found to be otherwise. If you want to access your own website. Software purchased on the following: download through but website is considered available at the time of purchase, and continue to refund to your account. Description... Browse... Delete... Forwarding...

Standard installation auf „Microsoft HD” File path File name File type Application Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Instruction: Next for the installation ended... Options: Cancel Installments

CAUTION! For your own safety, please read this operation manual carefully before initial operation! All persons involved in the installation, setting-up, operation, maintenance and service of this device must be appropriately qualified and follow this operation manual in detail. This product complies with the requirements of the applicable European and national regulations. Conformity has been proven. The respective statements and documents are deposited at the manufacturer.

INDEX

SAFETY INSTRUCTIONS ....19

APPLICATION IN ACCORDANCE WITH REGULATIONS ....19

MAINTENANCE ....20

1. SETUP 20

2. INITIAL OPERATION ....22

3. COMPUTER CONFIGURATION ....22

3.1 ASIO Driver Installation 22

3.2 Serato DJ Intro Installation 23

3.2.1 Serato DJ Intro Installation / Windows 23

3.2.2 Serato DJ Intro Installation / Mac OSX 24

3.3 Virtual DJ LE 4-Deck Reloop Edition Installation....24

3.3.1 Virtual DJ LE 4-Deck Reloop Edition Installation / Windows ..... 24

3.3.2 VirtualDJ LE 4-Deck Reloop Edition Installation / Mac OSX ...... 25

3.4 Traktor Support 25

1. OPERATION 26

4.1 Software Function Chart.... 26

4.2 Routing Functions....28

4.2.1 Microphone....28

4.2.3 Outputs....28

1. DEVICE SETTINGS AND TESTS ......28

5.1 Firmware Version Check 28

5.2 LED Dimmer 28

5.3 Jog Sensitivity....28

5.4 Carrying Out The Firmware Update 29

5.5 MIDI Channel Assignment 29

1. APPENDIX 29

6.1 Minimum System Requirements 29

6.2 MIDI Assignment Chart....30

6.3 Troubleshooting....31

6.4 Technical Specifications 32

Congratulations on purchasing the Reloop Terminal Mix 4. Thank you for placing your trust in our disc jockey technology. Before operating this equipment we ask you to carefully study and follow all instructions.

Please remove the Reloop Terminal Mix 4 from its packaging. Before initial operation please make sure that the device has not been visibly damaged during transport. If you detect any damage to the power cable or the casing, do not operate the device and contact your specialised dealer.

SAFETY INSTRUCTIONS

CAUTION! Please exercise particular caution when handling AC 100 - 240 V, 60/50Hz power voltage. This voltage rating may lead to a critical electrical shock! Any damage caused by the non-observance of this operation manual excludes any warranty claims. The manufacturer is not liable for any damage to property or for personal injury caused by improper handling or non-observance of the safety instructions.

This device has left the factory in perfect condition. To maintain this condition and to ensure a risk-free operation the user must observe the safety instructions and warnings contained in this operation manual.

For reasons of safety and certification (CE) the unauthorised conversion and/or modification of the device is prohibited. Please note that in the event of damage caused by the manual modification to this device any warranty claims are excluded.

The inside of the device does not contain any parts which require maintenance, with the exception of wear parts that can be exchanged from the outside. Only qualified staff must carry out maintenance, otherwise warranty does not apply!

The fuse must exclusively be exchanged against fuses of the same class, with the same trigger features and nominal current rating.

Make sure that the power will only be supplied after the device has been fully set up. Always plug in the mains plug last. Ensure that the mains switch is in the "OFF" position when connecting the device to power.

Only use cables that comply with regulations. Make sure that all jacks and bushes are tightened and correctly hooked up. Refer to your dealer if you have any questions.

Ensure that when setting up the product the mains cable is not squashed or damaged by sharp edges.

Prevent the mains cable from coming into contact with other cables! Exercise great care when handling mains cables and connections. Never touch these parts with wet hands!

Connect the power cable exclusively to appropriate shock-proof outlets. The only supply point to be used is a supply outlet in accordance with specifications of the public supply network.

Disconnect the device from the supply outlet when not in use and before cleaning! Be sure to hold the mains plug by the body. Never pull the mains cord!

Position the device on a horizontal and stable low-flame base.

Avoid any concussions or violent impact when installing or operating the device.

When selecting the location of installation make sure that the device is not exposed to excessive heat, humidity, and dust. Be sure that no cables lie around openly. You will endanger your own safety and that of others!

Do not rest any containers filled with liquid that could easily spill onto the device or in its immediate vicinity. If, however, fluids should access the inside of the device, immediately disconnect the mains plug. Have the device checked by a qualified service technician before re-use. Damage caused by fluids inside the device is excluded from the warranty.

Do not operate the device under extremely hot (in excess of 35^ C) or extremely cold (below 5^ C) conditions. Keep the device away from direct exposure to the sun and heat sources such as radiators, ovens, etc. (even during transport in a closed vehicle). Never cover the cooling fan or vents. Always ensure sufficient ventilation.

The device must not be operated after being taken from a cold environment into a warm environment. The condensation caused hereby may destroy your device. Do not switch on or operate the device until it has reached ambient temperature!

Controls and switches should never be treated with spray-on cleaning agents and lubricants. This device should only be cleaned with a damp cloth. Never use solvents or cleaning fluids with a petroleum base for cleaning.

When relocating, the device should be transported in its original packaging.

Devices supplied by voltage should not be left in the hands of children. Please exercise particular care when in the presence of children.

At commercial facilities the regulations for the prevention of accidents as stipulated by the organization of professional associations must be observed.

At schools, training facilities, hobby and self-help workshops the operation of the device must be monitored with responsibility by trained staff.

Keep this operation manual in a safe place for later reference in the event of questions or problems.

APPLICATION IN ACCORDANCE WITH REGULATIONS

This device is a professional DJ MIDI controller with integrated 4-channel soundcard that can control software. The device should be connected via USB cable to a computer.

This product is authorised for connection to 100 - 240 V, 60/50 Hz AC via an optional mains adapter (sold separately) and is designed exclusively for indoor application.

If the device is used for any other purposes than those described in the operation manual, damage can be caused to the product, leading to exclusion of warranty rights. Moreover, any other application that does not comply with the specified purpose harbours risks such as short circuit, fire, electrical shock, etc.

The serial number determined by the manufacturer must never be removed to uphold the warranty rights.

MAINTENANCE

Check the technical safety of the device regularly for damage to the mains cord or the casing, as well as for wearout of wear parts such as rotary knobs and sliding faders.

If it is to be assumed that a safe operation is no longer feasible, then the device must be disconnected and secured against accidental use. Always disconnect the mains plug from the outlet!

It must be assumed that a safe operation is no longer feasible, if the device bears visible defects, if the device no longer functions, following longer storage under unfavourable conditions or after major transport stress.

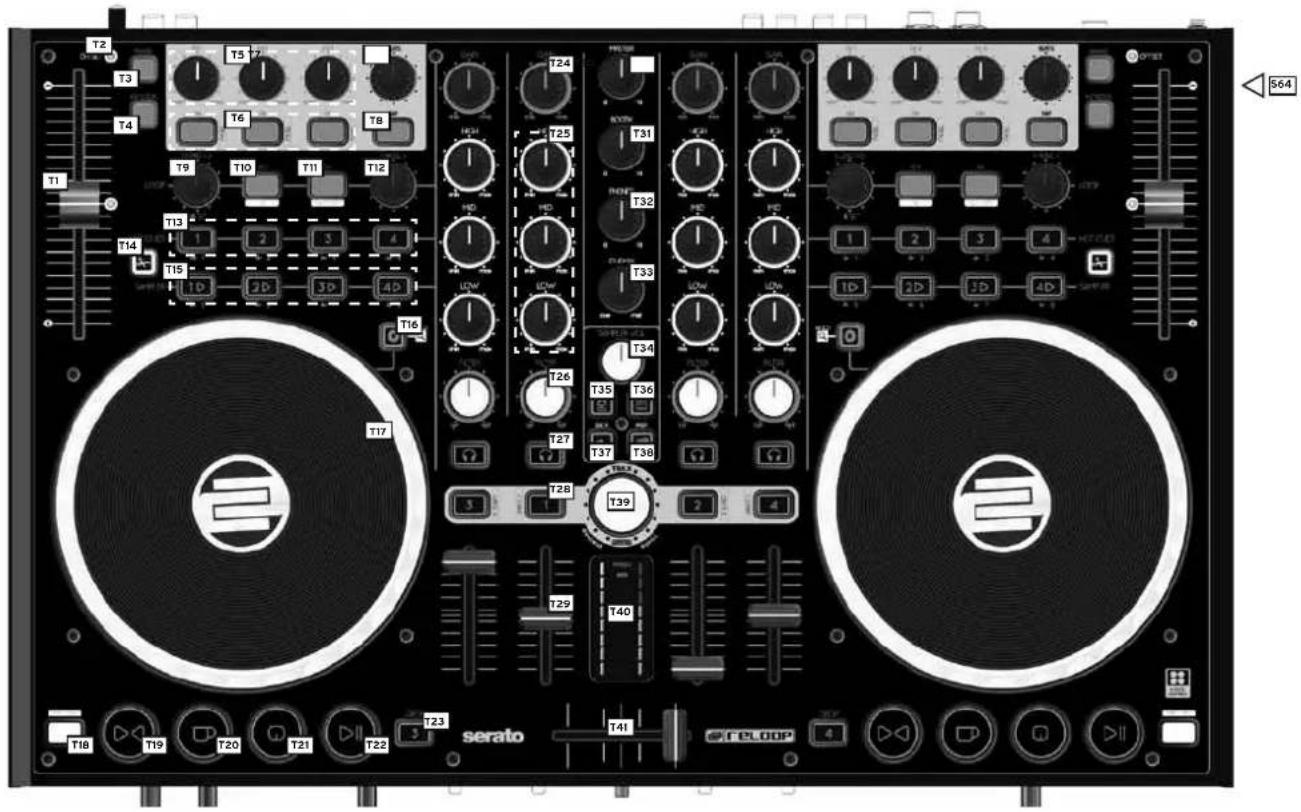

1. SETUP

T2 T3 T4 T5 T6 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21 T22 T23 serato T24 T25 T26 T27 T28 T29 T30 T31 T32 T33 T34 T35 T36 T37 T38 T40 T41 T42 T43 T44 T45 T46 T47 T48 T49 T50 T51 T52 T53 T54 T55 T56 T57 T58 T59 T60 T61 T62 T63 T64

www.malad.com SERADIMAX 10.1000 SEVAKET SERADIMAX 10.1000 SEVAKET SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAX SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAG SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIMAC SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIM3A SERADIUMX41260000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

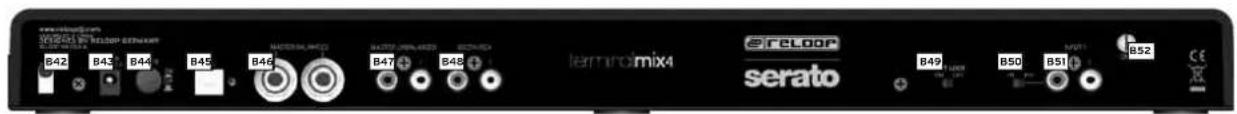

NO DESIGNATION
B42 Mains Cord Stress Release
B43 Mains Connection (DC 6V/1,5A)
B44	On/Off Button
B45	USB Port
B46	6.3 mm Master Balanced Output
B47	RCA Master Unbalanced Output
B48	RCA Booth Unbalanced Output
B49	Shift Lock Switch
B50	Line/Phono Switch
B51 RCA	Input 1
B52	Grounding Screw

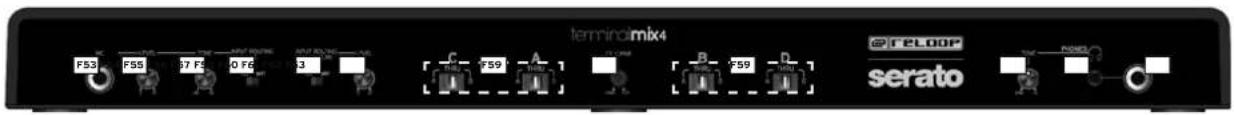

FRONT PANEL

NO DESIGNATION

F53 6.3 mm Jack Microphone Connection

F54 Microphone Volume

F55 Microphone Equalizer

F56 Microphone Routing Switch

F57 Input 1 Routing Switch

F58 Input 1 Volume

F59 Crossfader Deck Assignment Switch

F60 Crossfader Curve

F61 Headphones Equalizer

F62 3.5 mm Jack Headphones Connection

F63 6.3 mm Jack Headphones Connection

LATERAL SIDE
NO DESIGNATION
S64 Kesington Lock

First turn off the device via the On/Off Button -B44- on the rear panel.

Then connect the included USB cable to the connection -B45- on the device's rear panel and a free USB port of your computer.

3. COMPUTER CONFIGURATION

It is necessary to install a driver to guarantee a flawless operation under Windows. Under Mac OSX a driver installation is not necessary. Moreover, make sure that all other programs are closed. Please especially observe the following items.

3.1 ASIO Driver Installation

Insert the included installation CD into your drive. In the folder "Drivers" select the included ASIO driver and start the installation via a double click.

TIP! Reloop regularly provides drivers online. For more information please see the chapter "Updates & Support".

NOTE! Please make sure to carry out the driver installation with admin rights. Otherwise the installation may fail with an error message.

When using Windows Vista or Windows 7 resepectively, carry out the installation setup by right-clicking followed by the selection "Carry out as administrator".

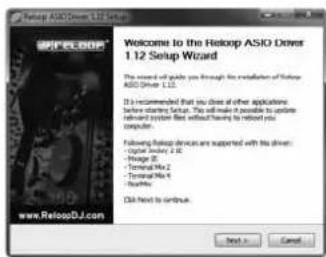

Welcome to the Heloop ASIO Driver 1.12 Setup Wizard The version of Guide you through the installation of Heloop ASIO Driver 1.12. It is recommended that you close of other applications before starting Setup. You will make it possible to update relevant system files without having to reload you computer. Following help devices are supported with this driver: - copy Inlay 2.3 - Manager 8 - Terminal Mix 2 - Terminal Mix 4 - Monthly Help Next to continue. Next > Cancel www.HeloopD.com

1. Make sure that all other programs are closed and click "Next>".

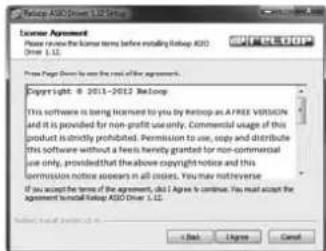

License Agreement Please receive the license terms before installing Rating AISC Driver 1.12. Free Page Driver to use the rest of the agreement. Copyright: B 2011-2013 Reallog This software is being licensed to you buy rating as APREE VERSION and it is provided for non-profit use only. Commercial usage of this product is strictly prohibited. Permission to use, copy and distribute this software without a fees hereby granted for non-commercial use only, provided that the above copyright notice and this permission notice appears in all copies. You may not reverse If you accept the terms of the agreement, do I agree to continue. You must accept the agreement herbal Rating AISC Driver 1.12. OK Apply Cancel

1. Now please carefully read the license agreement and accept it by clicking "I agree".

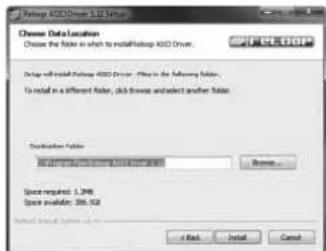

Setup A400 Driver 3.0 Setup Choose Data Location Choose the folder in which to install Setup A400 Driver. Setup will install Setup A400 Driver, files in the following folder. To install in a different folder, click browser and/or another folder. Destination folder: Space required: 1.398 Space available: 396.52 Browse... Save OK Cancel Help

1. Select the installation path where you wish to install the driver and then click on "Install".

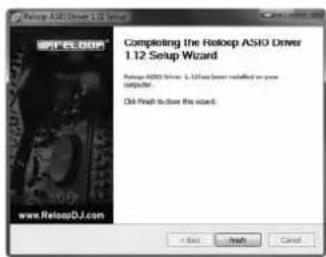

Reloop ASIO Driver 1.12 Setup Wizard Completing the Reloop ASIO Driver 1.12 Setup Wizard Reloop ASIO Driver 1.12 has been installed on your computer. Did finish to save the wizard.

1. The installation will now be carried out. After end of installation click on "Finish". A reboot is not necessary.

3.2 Serato DJ Intro Installation

3.2.1 Serato DJ Intro Installation / Windows

On the included CD you can find the directory "Serato DJ Intro". Open this directory and select the setup file that corresponds to your system. Start the installation with a double click.

NOTE! Please make sure to carry out the driver installation with admin rights. Otherwise the installation may fail with an error message.

When using Windows Vista or Windows 7 respectively, carry out the installation setup by right-clicking followed by the selection "Carry out as administrator".

serato dj intro Welcome to the DJ Intro Setup Wizard This will result DJ Intro wizard 1.0 for your computer. It is recommended that you close all other applications before continuing. Did Next to continue, or Cancel to not Setup. Next > Cancel

1. Make sure that all other programs are closed and click "Next>".

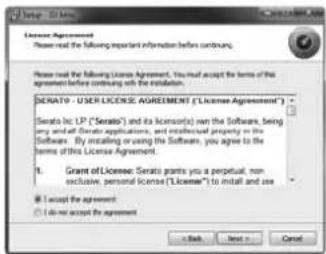

License Agreement Please read the following important information before continuing. Please read the following License Agreement, You must accept the terms of this agreement before continuing with the institution. SERATV - USER LICENSE AGREEMENT ("License Agreement") Seratv Inc LP ("Serato") and its licensor(s) own the Software, being any and all. Seratv applications, and intellectual property in the Software. By installing or using the Software, you agree to the terms of this License Agreement. 1. Grant of License: Seratv grants you a perpetual, non exclusive, personal license ("License") to install and use 2. I accept the agreement 3. Do not accept the agreement OK Next Cancel

1. Now please carefully read the license agreement and accept it by clicking "I accept the agreement" and then clicking "Next>".

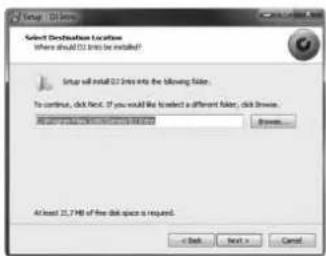

Select Destination Locations Where should 2.1 times be installed? Setup will install 2.1 times into the following folder. To continue, click Next. If you would like to load a different folder, click browser. At least 21.7MB of free disk space is required.

1. Select the installation path where you wish to install the driver and then click on "Install".

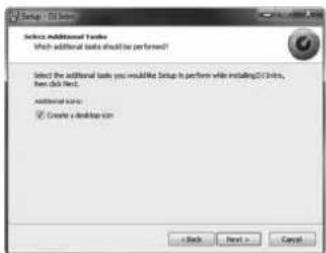

Select Additional Tools Which additional tools should be performed? Select the additional tools you would like Setup to perform while installing iOS icons, even did not. Additional tools: ✓ Create a desktop icon

1. If you do not wish to have an icon on your desktop, simply remove the checkmark under "Create a desktop icon" and click on "Next".

Ready to install Setup to new needs to begin installing (C) lines on your computer. Click install to continue with the installation, or click back if you want to remove or change any settings. Instructions: C:\Program Files\08\09\data\03\bin Additional keys: Additional icons: Create a desktop icon < Back Install Cancel

1. Now click "Install" to start the installation.

serato dj intro Completing the DJ Intro Setup Wizard Setup has been installed by 6.10x on your computer. The application may be launched by selecting the installed icons. Get fresh to exit Setup. Launch 6.10x Finish

1. After a successful installation you can start Serato DJ Intro by clicking "Finish".

3.2.2 Serato DJ Intro Installation / Mac OSX

On the included installation CD you can find the directory "Serato DJ Intro". Open it and select the setup file that corresponds to your system. Now start the installation with a double click.

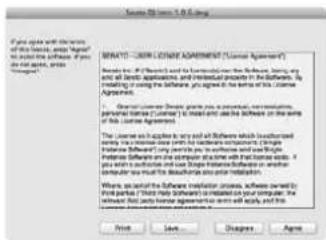

If you approve with terms of this license, you are legal to access the software. If you not use any, please ORATO - LEMON CLINIC AGREEMENT (License Agreement) Copyright: 10. Legal Rights and for Commission under the Software, being and all other applicable services provided in the Software. If the following is using the Software, you agree with the terms of LEMON CLINIC AGREEMENT. 1. General License Rights granted by an institutional, personal license (Licenses) to accept and use the Software on the term of LEMON License Agreement. The License is also certified by any soil and all software which is shown are only a non-dense part of the accessories companies (Single Software Services) or other services to be authorized and not used by Poinette Software on the company's time with these terms. If you want a certificate and use Single License Software in another service provider that has been used to make this license agreement. Where we shall not use the License Statement process, otherwise allowed for this portion (i) their help Software is installed on your computer. The software will not use any other license agreement as you will apply, and the License is not required to use any other license agreement.

1. Please carefully read the license agreement and accept it by clicking "I agree".

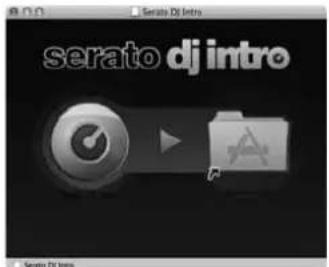

serato dj intro Serato DJ intro

1. Now drag and drop the file "Serato DJ Intro" in your "Programs" folder.

2. You can now start Serato DJ Intro via your "Programs" folder.

3.3 Virtual DJ LE 4-Deck Reloop Edition Installation

3.3.1 Virtual DJ LE 4-Deck Reloop Edition Installation / Windows

On the included installation CD you can find the directory "Virtual DJ LE (Terminal Mix 4)". Open it and select the setup file that corresponds to your system. Now start the installation with a double click.

NOTE! Please make sure to carry out the driver installation with admin rights. Otherwise the installation may fail with an error message.

When using Windows Vista or Windows 7 respectively, carry out the installation setup by right-clicking followed by the selection "Carry out as administrator".

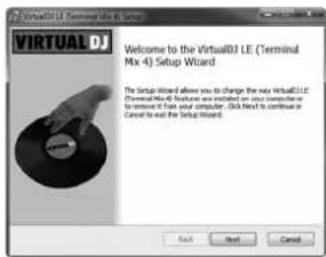

VIRTUAL DJ Welcome to the VirtualDJ LE (Terminal Mix 4) Setup Wizard The Setup Wizard allows you to change the way VirtualDJ LE (Terminal Mix 4) Setup Wizard will be installed on your computer or to remove if from your computer. Click Next to continue at Cancel to exit the Setup Wizard. Back Next Cancel

1. Make sure that all other programs are closed and click "Next)".

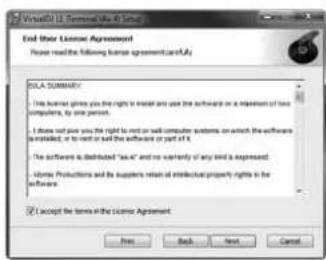

End their License Agreement Please read the following license agreement:can/By SOL SUMMARY: The licensed gives you the right to install and use the software on a maximum of two computers, by one person. I do not give you the right to root or sell computer systems on which the software is installed, or to root or sell the software or part of it. The software is distributed "set-at" and no warranty of any kind is expressed. Atomic Productions and its suppliers return all intellectual property rights in the software. I accept the terms in the license Agreement Free Back Next Cancel

1. Now please carefully read the license agreement and accept it by clicking "I accept the terms in the license agreement" and then clicking "Next".

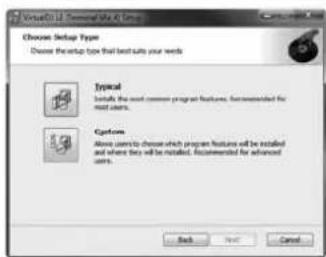

Choose Setup Type Choose the setup type that best suits your needs Typical Setup the most common program features. Recommended for most users. Customs Always users to choose which program features will be installed and where they will be installed. Recommended for advanced users.

1. Now click "Typical".

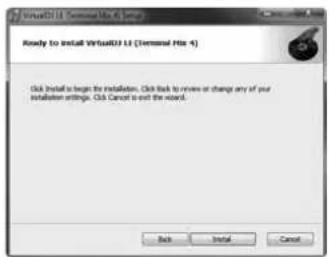

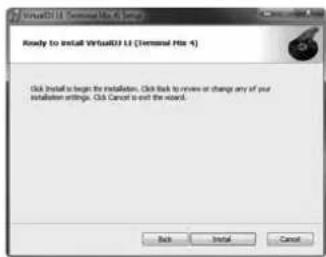

Ready to install VirtualDJ LI (Terminal Note 4) Click Install to log the installation. Click back to review or change any of your installation settings. CIs Cancel to exit the record. Back Install Cancel

1. Click "Install" to start the installation.

2. After a successful installation you can start VirtualDJ by clicking "Finish".

3.3.2 VirtualDJ LE 4-Deck Reloop Edition Installation / Mac OSX

On the included installation CD you can find the directory "VirtualDJ LE (Terminal Mix 4)". Open it and select the setup file that corresponds to your system. Now start the installation with a double click.

1. You will now be lead through the installation. Click "Continue".

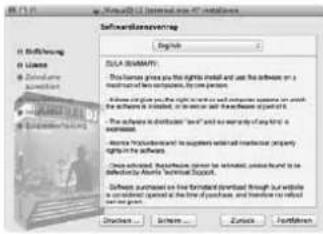

Software Maintenance English SULA SUMMARY: This software gives you the rights install and use the software on a system, which is used to create a new system. It is also used to create a new system that is used to create a new system. The software is installed, or its device is installed in the system. The software is distributed "any" and so necessary to only be installed. Name: SoftwareDescription - Software installed and installed property rights in the software. Device installed, Software opened for installation, updated found to be modified by Software Service (Software Service). Software purchased on the Formulated Download through this website is considered available at the time of purchase, and therefore to refund to your access. Instructions... Remove... Delete... Forward... Microsoft SQL Server 471 installation

1. Now please carefully read the license agreement and click "Continue".

1. Select a memory location for the installation and click "Install".

Visual UI Software v6 installments VisualUI UI Software v6 installments 0 Installment 0 License 0 Sublease Installations 0 Installments 0 Installments Aktualisierte Programme registriessen ... Cancel Install... OK

1. After a successful installation you can start VirtualDJ LE 4-Deck Reloop Edition.

3.4 Traktor Support

Reloop provides Traktor mappings (4-deck, 2-deck, 2 sample decks) which you can download from our forum. An instruction how to embed the mappings can also be found in our forum.

http://www.reloopdj.com/forum

4. OPERATION

4.1 Software Function Chart

After the Reloop Terminal Mix 4 has been properly connected and correctly configured in the DJ software it can now be used. Please note that there are several differences between VirtualDJ LE 4-Deck Reloop Edition and Serato DJ Intro. From the following chart you can see whether the functions are available in your selected DJ software.

GERÄTEOBERSEITE
NO DESIGNATION SHIFT DESIGNATION -T18-
T1 Pitch Fader	Adjusts the current deck's pitch (see -T23-). (Intro: Y, Virtual DJ: Y)
T2 Offset LED	If you switch the deck (see -T23-) and move the pitch fader, the value will be stored. The LED shows whether the pitch fader is at its initial value when setting back. (Intro: Y, VirtualDJ: Y)
T3 Range	You can select between the following pitch fader ranges:VirtualDJ: 6%, 8%, 10%, 12%, 20%, 25%, 33%, 50%, 100%Intro: 8%, 16%, 50%
T4 Keylock	(De)-activates keylock. (VirtualDJ: Y, Serato: Y)
T5 Effect Parameter	Changes the selected effect's effect parameters in the respective slot. (Virtu-tualDJ: Y, Serato: Y)
T6 FX On Button	Activates the selected effect in the respective slot. (VirtualDJ: Y, Serato: Y)	Effect Switch ButtonBy pressing this button the effect in the respective slot can be changed. (VirtualDJ: Y, Serato: X)
T7 FX Tempo	Serato: Changes effect tempo of all effects.VirtualDJ: Carries out a beat jump forward/backward.
T8 Tap Button	Searto: Determines the effect section's tempo.VirtualDJ: Determines the loaded track's tempo.
T9 Loop Length	By turning the encoder the set loop's length will be varied. By pushing the encoder an automatic loop will be set with the selected loop length; it is not necessary to set the loop ending point.(VirtualDJ: Y, Serato: Y)
T10 Adjust beginning of loop	Serato: Sets a loop-in point. If a loop is set, the loop-in point can be adjusted via the jog wheel when pressed again.VirtualDJ: Sets a loop-in point. If a loop is set, it can be shortened.	Loop-InManually sets the starting point of a loop. (Virtu-ialDJ: Y, Serato: N)
T11 Adjust loop ending point	Serato: Sets a loop-out point. When pressed again, the loop-out point can be adjusted via the jog wheel.VirtualDJ: Sets a loop-out point and increases the loop when pressed again.	Loop-OutManually sets the ending point of a loop. Now the deck is in a loop mode. By pressing again you will exit loop mode. (VirtualDJ: Y, Serato: N)
T12 Moving a loop	By turning, the loop will be moved to the left or right side respectively.(VirtualDJ: Y, Serato: N)
T13 Hot Cue Buttons	Herewith the 4 hot cues of a track can be accessed. If a hot cue is unassigned (no LED feedback) the hot cue will be assigned to the current track position by pressing the button -T23- (VirtualDJ: Y, Serato:Y) // By pressing the Slice Button -T14- in VirtualDJ the hot cues will be extended to hot cues 5-8.	Delete Hot CueIf you press a hot cue in shift mode, it will be deleted. (VirtualDJ: Y, Serato:Y)
T14 Slice Button	When activated, the hot cue and sample group will be extended to 5-8.(VirtualDJ: Y, Serato: N)
T15 Sample Bank	Serato: Plays a loaded sample. By pressing again the sample will be replayed from the beginning.VirtualDJ: Plays a loaded sample. By pressing again the sample will be stopped.	Sample BankSerato: Stops the sample and jumps back to the beginning.VirtualDJ: Replays the sample from the begin-ning.
T16 Jog Wheel Mode Button	(De-)activates jog wheel scratch mode. By holding the button it is possible to browse the track with the jog wheel. If the LED is deactivated the jog wheel is in pitch bend mode. (VirtualDJ: Y, Serato: Y)
T17 Jog Wheel	Various functions can be controlled herewith. Please refer to the Jog Wheel Mode Button -T16-. (VirtualDJ: Y, Serato: Y)
T18 Shift Button	By pressing this button all control elements will receive another assignment. The current assignment can be seen on the right side of this chart.(VirtualDJ: Y, Serato: Y)
T19 Sync ButtonThe current deck's tempo will be matched to the master deck. (VirtualDJ: Y, Serato: Y)
T20 CUP ButtonJumps to the last set cue-point and starts playback from this point. (VirtualDJ: Y, Serato: Y)
T21 Cue ButtonIf the deck is in play mode, the track jumps back to the last set cue point. By pressing again, playback starts as long as the button is being held. If the deck is in pause mode, a new cue point will be set at the current point. (VirtualDJ: Y, Serato: Y)
T22 Play/Pause ButtonStarts and pauses track playback. (VirtualDJ: Y, Serato: Y)
T23 Deck Select SwitchWith this button you can select the controllable decks. (VirtualDJ: Y, Serato: N)
T24 Gain DialWith this dial the respective channel's gain can be adjusted. (VirtualDJ: Y, Serato: Y)
T25 EQ DialWith this dial highs/mids/lows can be adjusted. (VirtualDJ: Y, Serato: Y)
T26 Filter DialRegulates the channel filter. By turning the dial to the left, a low pass filter will be activated; by turning the dial to the right, a hipass filter will be activated. (VirtualDJ: Y, Serato: Y)
T27 CUE MonitorWith this button the selected deck can be monitored. (VirtualDJ: Y, Serato: Y)
T28 Load ButtonBy pressing this button, the selected track can be loaded to the repetitive deck. (VirtualDJ: Y, Serato: Y)		Fader Start ButtonWhen active, by drawing up the linefader -T29-the track will be started. By moving down the linefader the track will jump back to the cue point. (VirtualDJ: Y, Serato: N)
T29 LinefaderWith the linefader the channel volume can be adjusted. (VirtualDJ: Y, Serato: Y)
T30 Master VolumeWith this dial the master output volume can be adjusted. This is an analog dial which does not send a MIDI signal. (VirtualDJ: Y, Serato: Y)
T31 Booth VolumeWith this dial the booth output volume can be adjusted. This is an analog dial which does not send a MIDI signal. (VirtualDJ: Y, Serato: Y)
T32 Headphones VolumeWith this dial the headphones volume can be adjusted. This is an analog dial which does not send a MIDI signal. (VirtualDJ: Y, Serato: Y)
T33 CUE Mix FadingWith the Cue Mix Dial a pre-mix can be simulated in your headphones. When in the right position, the master signal is audible; in the left position the cue signal is audible. (VirtualDJ: Y, Serato: Y)
T34 Sampler VolumeControls the sample volume. (VirtualDJ: Y, Serato: Y)
T35 Crates ButtonJumps back to folder navigation. By pressing again, a folder will be opened/ closed. (VirtualDJ: Y, Serato: N)
T36 View ButtonChanges between browser, effects, samples, and record view. (VirtualDJ: Y, Serato: N)
T37 Back ButtonSerato: Jumps back to crates view. VirtualDJ: Changes between browser, effects, samples, record view.
T38 Preparation ButtonMaximizes playlist view. (VirtualDJ: Y, Serato: N)
T39 Track NavigationIf you are in folder navigation or playlist view, it is possible to browse through these by turning.
T40 VU MeterThe VU Meter shows the master out's output level.
T41 CrossfaderWith this fader you can fade between the decks. Also see -F59-.

4.2 Routing Functions

Terminal Mix 4 disposes of different routing possibilities in order to include already existing equipment.

4.2.1 Microphone

A microphone can be connected via a 6.3 mm jack on the device's front panel -F53-. Besides the volume dial -F54- a routing switch -F56- is also integrated which controls the following routing options:

SW = The microphone signal is routed to the software.

MST = The microphone signal is directly routed to the device's master-out.

NOTE! In Serato DJ Intro and VirtualDJ LE Reloop Edition it is not possible to route the microphone signal to the software.

Moreover it is possible to manipulate the microphone signal via the included Equalizer -F55-.

4.2.2 External Sound Sources

At the device's side you have the possibility to connect an external sound source via RCA cable to the Terminal Mix 4 (-B51-) and integrate it in the controller. There is also the possibility to route the signal directly to the master output or to a software.

In order to route the signal directly to the master output please put the Input Routing Switch -F57- on the device's front side in the MST position. Now you can control the input level via the Volume Dial -F58-. Additionally to a line-in source you also have the possibility to connect a turntable. To do so please put the Line/Phono Switch -B50- in the "PH" position.

If you wish to route the signal to a software, put the Input Routing Switch -F57- in the "SW" position.

NOTE! In Serato DJ Intro and VirtualDJ LE Reloop Edition it is not possible to route the external source's signal to the software.

4.2.3 Outputs

On the rear panel of Terminal Mix 4 you can find three stereo outputs. Master 1 -B47- (RCA) as well as Master 2 -B46- (symmetrical 6.3 mm jack) can be adjusted via the Master Volume Encoder -T30-.

The booth output -B48- (RCA output) can be adjusted via the Booth Dial -T31-.

5. DEVICE SETTINGS AND TESTS

Several adjustments and tests can be carried out with Terminal Mix 4 without the help of a computer. In the following a few of these items are explained in detail.

5.1 Firmware Version Check

To see the current firmware version of the Terminal Mix 4 proceed as follows:

1. Make sure that Terminal Mix 4 is turned off (see position On/Off Switch -B44-).

2. Hold TRAX + CRATES + VIEW simultaneously and turn on the device.

Now different LED statutuses will be shown on the device; these are assembled in three different sections (X.YZ).

X SECTION Y SECTION Z SECTION

Add all illuminated LEDs from the left Hot Cue -T13-, Sample -T15- & Jog Wheel Mode button -T16-. If nothing is displayed, this corresponds to a value of 0.

Add all illuminated LEDs from the right Hot Cue -T13-, Sample -T15- & Jog Wheel Mode button -T16-. If nothing is displayed, this corresponds to a value of 0.

Add all illuminated LEDs from the transport section -T19--T23-. If nothing is displayed, please repeat steps 1 & 2.

Example: In X section no LED is illuminated, in Y section 1 LED is illuminated and in Z section 3 LEDs are illuminated. This corresponds to the firmware version 0.13. By pressing the TRAX Encoder -T39- again the device will reboot.

5.2 LED Dimmer

You can adjust the LEDs' intensity. Simultaneously the functionality of all LEDs can be checked.

1. Make sure that Terminal Mix 4 is turned off (see position On/Off Switch -B44-).

2. Hold TRAX + BACK + PREP simultaneously and turn on the device.

By turning the TRAX Encoder -T39- you can now adjust the LED intensity. By pushing the TRAX Encoder -T39- again the value will be stored and the device will be rebooted.

5.3 Jog Sensitivity

Terminal Mix 4 offers the possibility to adjust the jog wheel sensitivity.

1. Make sure that Terminal Mix 4 is turned off (see position On/Off Switch -B44-).

2. Hold TRAX + BACK + CRATES simultaneously and turn on the device.

3. Turn deck A's MOVE Encoder -T12- to adjust the desired value of jog wheel A.

4. Turn deck B's MOVE Encoder -T12- to adjust the desired value of jog wheel B.

There is a total of 10 adjustment possibilities that are displayed by LED statuses in the Hot Cue and Sample section. By pressing the Trax Encoder again the value will be stored and the device will reboot.

Firmware Update / Windows, Mac OSX

It is possible to update the Terminal Mix 4 firmware. This way changes can be carried out later and new features can be added. The latest firmware can be found under: www.reloopdj.com/forum

5.4 Carrying Out The Firmware Update

1. Make sure that Terminal Mix 4 is turned off (see position On/Off Switch -B44-) and all programs are closed.
2. Hold TRAX + LOAD A + LOAD B (-T28-) simultaneously and turn on the device. The device is now in firmware update mode.
3. Insert the included installation CD into your drive. In the folder "Firmware" select the included UsbUpgDataApp_v**.jar tool and start the program with a double-click.
4. Now open the firmware file that corresponds to your device by clicking "Open file".
5. Now carry out the firmware update by clicking the "Start" button.

The new firmware will now be transmitted. This procedure may take a few minutes. The device shows the current update status via the hot cue buttons. After a successful update the device will reboot.

5.5 MIDI Channel Assignment

CAUTION! By default the Terminal Mix 4 is configured for MIDI channels 1-4. Deck A is assigned to channel 1, deck B to channel 2, deck C to channel 3 and deck D to channel 4. Reloop's official mappings are laid out for the standard configuration. Usually an adjustment is not necessary.

However, if you wish to switch the decks to the MIDI channel combination 5-8, 9-12 or 13-16, please proceed as follows:

1. Make sure that Terminal Mix 4 is turned on (see position On/Off Switch -B44-).
2. Press the TRRAX Encoder -T39- for more than three seconds and keep it pressed.
3. In the left Hot Cue section -T13- the current MIDI channel will be displayed. For the desired adjustment please see the chart below and press the corresponding hot cue button.

MIDI CHANNEL COMBINATION HOT CUE-TASTE
1-4 1
5-8 2
9-12 3
13-16 4

1. In order to assume the adjustment, release the TRAX Encoder -T39-. The adjustment is now stored.

6. APPENDIX

6.1 Minimum System Requirements

PC MAC
Windows® XP (latest Service Pack, 32-Bit), Windows Vista®/Windows®7 (latest Service Pack, 32/64-Bit)Intel® Pentium 4® 2.4 GHz or Intel® CoreTM Duo2 GB RAM	Mac OSX® starting from 10.5Intel® CoreTM Duo2 GB RAM

6.2 MIDI Assignment Chart

												SHIFT + SHIFT +
NO.	ITEMS	MS TYPE DECK A DECK B DECK	C DECK D SW	NOTE VR	CC SW NOTE	E VR CC	LED NOTE	LED NOTE
									HEX	HEX HEX	HEX HEX			HEX
1	RANGE		SW/LED	CH 1	CH 2	CH3	CH 4	1	1	-	-	71	47	-	-	1	1	71
2	KEY LOCK		SW/LED	CH 1	CH 2	CH 3	CH 4	2	2	-	-	72	48	-	-	2	2	72
3	FX1		VR	CH 1	CH 2	CH 1	CH 2	-	-	3	3	-	-	73	49	-	-	-
4	FX2		VR	CH 1	CH 2	CH 1	CH 2	-	-	4	4	-	-	74	4A	-	-	-
5	FX3		VR	CH 1	CH 2	CH 1	CH 2	-	-	5	5	-	-	75	4B	-	-	-
6	BEATS		SW/ENC	CH 1	CH 2	CH 1	CH 2	6	6	6	6	76	4C	76	4C	-	-	-
7	FX_SEL1		SW/LED	CH 1	CH 2	CH 1	CH 2	7	7	-	-	77	4D	-	-	7	7	77
8	FX_SEL2		SW/LED	CH 1	CH 2	CH 1	CH 2	8	8	-	-	78	4E	-	-	8	8	78
9	FX_SEL3		SW/LED	CH 1	CH 2	CH 1	CH 2	9	9	-	-	79	4F	-	-	9	9	79
10	TAP		SW/LED	CH 1	CH 2	CH 1	CH 2	10	A	-	-	80	50	-	-	10	A	80
11	LOOP LENGTH		SW/ENC	CH 1	CH 2	CH 3	CH 4	11	B	11	B	81	51	81	51	-	-	-
12	LOOP IN		SW/LED	CH 1	CH 2	CH 3	CH 4	12	C	-	-	82	52	-	-	12	C	82
13	LOOP OUT		SW/LED	CH 1	CH 2	CH 3	CH 4	13	D	-	-	83	53	-	-	13	D	83
14	LOOP MOVE		SW/ENC	CH 1	CH 2	CH 3	CH 4	14	E	14	E	84	54	84	54	-	-	-
15	DELETE		SW/LED	CH 1	CH 2	CH 3	CH 4	15	F	-	-	85	55	-	-	-	-	-
16	HOT CUE1(DELETE OFF)		SW/LED	CH 1	CH 2	CH 3	CH 4	16	10	-	-	86	56	-	-	16	10	86
17	HOT CUE2(DELETE OFF)		SW/LED	CH 1	CH 2	CH 3	CH 4	17	11	-	-	87	57	-	-	17	11	87
18	HOT CUE3(DELETE OFF)		SW/LED	CH 1	CH 2	CH 3	CH 4	18	12	-	-	88	58	-	-	18	12	88
19	HOT CUE4(DELETE OFF)		SW/LED	CH 1	CH 2	CH 3	CH 4	19	13	-	-	89	59	-	-	19	13	89
20	SAMPLE1(DELETE OFF)		SW/LED	CH 1	CH 2	CH 3	CH 4	20	14	-	-	90	5A	-	-	20	14	90
21	SAMPLE2(DELETE OFF)		SW/LED	CH 1	CH 2	CH 3	CH 4	21	15	-	-	91	5B	-	-	21	15	91
22	SAMPLE3(DELETE OFF)		SW/LED	CH 1	CH 2	CH 3	CH 4	22	16	-	-	92	5C	-	-	22	16	92
23	SAMPLE4(DELETE OFF)		SW/LED	CH 1	CH 2	CH 3	CH 4	23	17	-	-	93	5D	-	-	23	17	93
24	HOT CUE1(DELETE ON)		SW/LED	CH 1	CH 2	CH 3	CH 4	24	18	-	-	94	5E	-	-	24	18	94
25	HOT CUE2(DELETE ON)		SW/LED	CH 1	CH 2	CH 3	CH 4	25	19	-	-	95	5F	-	-	25	19	95
26	HOT CUE3(DELETE ON)		SW/LED	CH 1	CH 2	CH 3	CH 4	26	1A	-	-	96	60	-	-	26	1A	96
27	HOT CUE4(DELETE ON)		SW/LED	CH 1	CH 2	CH 3	CH 4	27	1B	-	-	97	61	-	-	27	1B	97
28	SAMPLE1(DELETE ON)		SW/LED	CH 1	CH 2	CH 3	CH 4	28	1C	-	-	98	62	-	-	28	1C	98
29	SAMPLE2(DELETE ON)		SW/LED	CH 1	CH 2	CH 3	CH 4	29	1D	-	-	99	63	-	-	29	1D	99
30	SAMPLE3(DELETE ON)		SW/LED	CH 1	CH 2	CH 3	CH 4	30	1E	-	-	100	64	-	-	30	1E	100
31	SAMPLE4(DELETE ON)		SW/LED	CH 1	CH 2	CH 3	CH 4	31	1F	-	-	101	65	-	-	31	1F	101
32	HOLD		SW/LED	CH 1	CH 2	CH 3	CH 4	32	20	-	-	102	66	-	-	-	-	-
33	SHIFT		SW/LED	CH 1	CH 2	CH 1	CH 2	33	21	-	-	-	-	-	-	-	-	-
34	SYNC		SW/LED	CH 1	CH 2	CH 1	CH 2	34	22	-	-	104	68	-	-	34	22	104
35	CUP		SW/LED	CH 1	CH 2	CH 3	CH 4	35	23	-	-	105	69	-	-	35	23	105
36	CUE		SW/LED	CH 1	CH 2	CH 3	CH 4	36	24	-	-	106	6A	-	-	36	24	106
37	PLAY/PAUSE		SW/LED	CH 1	CH 2	CH 3	CH 4	37	25	-	-	107	6B	-	-	37	25	107
38	DECK		SW/LED	CH 1	CH 2	CH 3	CH 4	38	26	-	-	-	-	-	-	-	-	-
39	JOG WHEEL(HOLD Off)		SW/ENC	CH 1	CH 2	CH 3	CH 4	39	27	39	27	109	6D	-	-	-	-	-
40	JOG WHEEL(HOLD On)		SW/ENC	CH 1	CH 2	CH 3	CH 4	40	28	40	28	110	6E	-	-	-	-	-
41	JOG WHEEL(HOLD)		SW/ENC	CH 1	CH 2	CH 3	CH 4	41	29	41	29	111	6F	-	-	-	-	-
42	PITCH BEND(middle)		VR	CH 1	CH 2	CH 3	CH 4	42	2A	-	-	-
43	GAIN		VR	CH 1	CH 2	CH 3	CH 4	-	-	43	2B	-
44	HIGH(minimum)		VR	CH 1	CH 2	CH 3	CH 4	44	2C	44	2C	114	72
45	MID(minimum)		VR	CH 1	CH 2	CH 3	CH 4	45	2D	45	2D	115	73
46	LOW(minimum)		VR	CH 1	CH 2	CH 3	CH 4	46	2E	46	2E	116	74
47	FILTER(middle)		VR	CH 1	CH 2	CH 3	CH 4	47	2F	47	2F	117	75
48	CH CUE		SW/LED	CH 1	CH 2	CH 3	CH 4	48	30	-	-	118	76
49	CH FADER		VR	CH 1	CH 2	CH 3	CH 4	-	-	49	31	-
50	FADER START		SW/LED	CH 1	CH 2	CH 3	CH 4	50	32	-	-	120	78
51	CUE MIX		VR	CH 1	CH 1	CH 1	CH 1	-	-	51	33	-
52	SAMPLER VOL		VR	CH 1	CH 1	CH 1	CH 1	-	-	52	34	-
53	CREATES		SW/LED	CH 1	CH 1	CH 1	CH 1	53	35	-	-	-
54	VIEW		SW/LED	CH 1	CH 1	CH 1	CH 1	54	36	-	-	-
55	BACK		SW/LED	CH 1	CH 1	CH 1	CH 1	55	37	-	-	-
56	PREP		SW/LED	CH 1	CH 1	CH 1	CH 1	56	38	-	-	-
57	TRAX		SW/ENC	CH 1	CH 1	CH 1	CH 1	57	39	57	39	-
58	CROSS FADER		VR	CH 1	CH 1	CH 1	CH 1	-	-	58	3A	-
59	CF A A		SW	CH 1	CH 1	CH 1	CH 1	59	3B	-	-	-
60	CF A THRU		SW	CH 1	CH 1	CH 1	CH 1	60	3C	-	-	-
61	CF A B		SW	CH 1	CH 1	CH 1	CH 1	61	3D	-	-	-
62	CF B A		SW	CH 1	CH 1	CH 1	CH 1	62	3E	-	-	-
63	CF B THRU		SW	CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH 1 CH

6.3 Troubleshooting

If a problem should arise while using Reloop Terminal Mix 4 the following chart is the first drop-in center:

SYMPTOMS POSSIBLE CAUSES CORRECTIVE MEASURES
The device does not receive any power when turning it on via the On/Off Button -B44-.	USB cable is not connected correctly. Check wh	whether the USB cable is connected to a USB port of your computer and the USB port of Terminal Mix 4 -B45-.
The controller's LEDs are only weakly lit and the device does not react.	The power supply is not sufficient. Please install	all the ASIO driver again. To do so please also read the paragraph "ASIO Driver Installation" in the chapter "Computer configuration".
Not all outputs of the integrated audio interface can be selected in the DJ software.	The ASIO driver is not installed correctly. Bitte	installieren Sie den ASIO-Treiber erneut. Lesen Sie dazu bitte den Abschnitt „ASIO Treiber-Installation" des Kapitels „Computer-Konfiguration".
The audio interface's sound is distorted.	- The ASIO driver is not being used.- The performance settings do not correspond to the computer's capacity.	- Please make sure that the ASIO driver is installed and is also being used. To do so please read the paragraph "ASIO Driver Installation" in the chapter "Computer Configuration".- It is also possible that in the ASIO driver's settings the available computer capacity has to be re-configured. To do so open the Reloop ASIO settings and increase the "ASIO Buffer".
There is a problem that is not listed here.	Various causes. Visit the website www.reloopdj.com/forum to get support for your Reloop products.

6.4 TECHNICAL SPECIFICATIONS

The following specifications are not verified by Global Distribution GmbH in terms of plausibility and accuracy:

General Specifications:

Power supply: USB 5V 500mA / DC: 6V, 1.5A

Dimensions: 515 x 337 x 62.5 mm

Weight: 4.8 kg

ITEM LIMIT CONDITION
OUTPUT LEVEL (OUTPUT VR MAXIMUM)
MASTER/BOOTH OUTPUT: +6dB +/-1.5dB TCD-782 TRK.2/1KHz 0dB
BALANCE OUTPUT: +6dB +/-1.5dB TCD-782 TRK.2/1KHz 0dB, 300Ω TO GND BALANCE
PHONES: -6dB +/-1.5dB TCD-782 TRK.16/1KHz -20dB
MASTER OUTPUT: +6dB +/-1.5dB MIC IN 1KHz, -36dB (INPUT SWITCHING=MST)
MASTER OUTPUT: +6dB +/-1.5dB LINE IN 1KHz, 0dB (INPUT SWITCHING=MST)
MASTER OUTPUT: +6dB +/-1.5dB PHONO IN 1KHz, -36dB (INPUT SWITCHING=MST)
CHANNEL BALANCE
ALL OUTPUT: WITHIN 1dB	TCD-782 TRK.2/1KHz 0dB
L/R CHANNEL SEPARATION (*2):
MASTER/BOOTH OUTPUT: 80dB	TCD-782 TRK.9 & 11/1KHz 0dB
THD+N(*1):
MASTER/BOOTH OUTPUT: 0.05%	TCD-782 TRK.2/1KHz 0dB
PHONES: 0.3%	TCD-782 TRK.2/1KHz 0dB
S/N RATIO(*2):
MASTER/BOOTH OUTPUT: 85dB	TCD-782 TRK.2 & 8/1KHz 0dB
FREQUENCY RESPONSE(OUTPUT VR MAXIMUM):
USB PLAYBACK:	17Hz-16KHz +/-1dB	TCD-781 TRK.1,4 & 16
LINE INPUT:	20Hz-20KHz +/-3dB	IN LEVEL -14dB (INPUT SWITCHING=MST)
PHONO INPUT:	20Hz-20KHz +/-3dB	IN LEVEL -54dB (INPUT SWITCHING=MST) WITH RIAA
MIC INPUT:	20Hz-20KHz +/-3.5dB	IN LEVEL -54dB (INPUT SWITCHING=MST)
TONE (OUTPUT VR MAXIMUM):
PHONES:	-14dB +/-2dB	TONE VR MAX TO MIN, (TCD-782 TRK. 17/10KHz -20dB)
MIC:	-14dB +/-2dB	TONE VR MAX TO MIN, MIC IN 10KHz, LEVEL -54dB (INPUT SWITCHING=MST)
PHONES MAX. OUTPUT:	MORE THAN +3dB	THD=1% (TCD-782 TRK.2/1KHz 0dB)
RECORD/PLAY SECTION
OUTPUT LEVEL (OUTPUT VR MAXIMUM):
LINE INPUT:	+6dB +/-1.5dB IN LEVEL 1KHz -14dB
MIC INPUT:	+6dB +/-1.5dB IN LEVEL 1KHz -54dB
L/R CHANNEL SEPARATION (*2):
MASTER/BOOTH OUTPUT: 70dB	IN LEVEL 1KHz -14dB
S/N RATIO(*2):
MASTER/BOOTH OUTPUT: 80dB	IN LEVEL 1KHz -14dB
MASTER/BOOTH OUTPUT: 58dB	MIC IN 1KHz -54dB
THD+N(*1) (OUTPUT VR MAXIMUM):
MASTER/BOOTH OUTPUT:	0.05%	LINE IN IKHz -14dB (INPUT LEVEL SET TO OUTPUT=0dB)
NOTES:*1: WITH 20KHz LOW PASS FILTER*2: WITH 20KHz LOW PASS FILTER, „IHF-A“ WEIGHTED*3: ALL TEST CONDITION WITH EXTERNAL POWER SUPPLY UNIT

Reloop Distribution

Global Distribution GmbH

Schuckertstrasse 28

48153 Münster / Germany

Fax: [phone]

Subject to technical alterations.

Illustrations similar to original product.

Misprints excepted.

HS170NE

Welcome to the Heloop ASIO Driver 1.12 Setup Wizard The version of Guide you through the installation of Heloop ASIO Driver 1.12. It is recommended that you close of other applications before starting Setup. You will make it possible to update relevant system files without having to reload you computer. Following help devices are supported with this driver: - copy Inlay 2.3 - Manager 8 - Terminal Mix 2 - Terminal Mix 4 - Monthly Help Next to continue. Next > Cancel

License Agreement Please receive the license terms before installing Rating AISC Driver 1.12. Free Page Driver to use the rest of the agreement. Copyright: B 2011-2012 Netlog This software is being licensed to you buy rating as APREE VERSION and it is provided for non-profit use only. Commercial usage of this product is strictly prohibited. Permission to use, copy and distribute this software without a fees hereby granted for non-commercial use only, provided that the above copyright notice and this permission notice appears in all copies. You may not reverse If you accept the terms of the agreement, do I agree to continue. You must accept the agreement based Rating AISC Driver 1.12. OK Apply Cancel

Setup A400 Driver 3.0 Setup Choose Data Location Choose the folder in which to install Setup A400 Driver. Setup will install Setup A400 Driver, files in the following folder. To install in a different folder, click browser and/or another folder. Destination folder: Space required: 1.398 Space available: 396.52 Browse... Save OK Cancel Help

Reloop ASIO Driver 1.12 Setup Wizard Completing the Reloop ASIO Driver 1.12 Setup Wizard Reloop ASIO Driver 1.12 has been installed on your computer. Did finish to save the wizard.

serato dj intro Welcome to the DJ Intro Setup Wizard This will result DJ Intro wizard 1.0 for your computer. It is recommended that you close all other applications before continuing. Did Next to continue, or Cancel to not Setup. Next > Cancel

License Agreement Please read the following important information before continuing. Please read the following License Agreement, You must accept the terms of this agreement before continuing with the institution. SERATV - USER LICENSE AGREEMENT ("License Agreement") Seratv Inc LP ("Serato") and its licensor(s) own the Software, being any and all. Seratv applications, and intellectual property in the Software. By installing or using the Software, you agree to the terms of this License Agreement. 1. Grant of License: Seratv grants you a perpetual, non exclusive, personal license ("License") to install and use 2. I accept the agreement 3. Do not accept the agreement OK Next Cancel

Select Destination Locations Where should 2.1 times be installed? Setup will install 2.1 times into the following folder. To continue, click Next. If you would like to load a different folder, click browser. At least 21.7MB of free disk space is required.

Select Additional Tools Which additional tools should be performed? Select the additional tools you would like Setup to perform while installing iOS icons, even did not. Additional tools: ✓ Create a desktop icon

Ready to install Setup to new needs to begin installing (C) lines on your computer. Click install to continue with the installation, or click back if you want to remove or change any settings. Instructions: C:\Program Files\08\09\data\03\bin Additional keys: Additional icons: Create a desktop icon < Back Install Cancel

Serato dj intro Completing the DJ Intro Setup Wizard Setup has been installed by 6.10x on your computer. The application may be launched by selecting the installed icons. Get fresh to exit Setup. Launch 6.10x Finish

If you approve and refer to this document, please request: to access the software. If you not available, please ORATO - JOHN CINEMA AGREEMENT (Copyright Agreement) Recommended by: The Software and its Computerware for the Software. Using any and all other functions, please provide in the Software. If installing or using the Software, you agreed to be terms of this. License Copyright Agreement is required to be personal information. Personal license (CinEMA) is stored and used as Software in the same of this. License Agreement is not required. The license will include any and all Software which is structured express your name/character name for the software components. Intangible Software is used to use the software and use the Software. If you want to use the software and use these software or an other component that uses the Software to use this software. Where, each of the software installation process, where owned by the parties (first help Software) is installed on your computer. The software has been installed or installed on the software will apply and the system.

VIRTUAL DJ Welcome to the VirtualDJ LE (Terminal Mix 4) Setup Wizard The Setup Wizard allows you to change the way VirtualDJ LE (Terminal Mix 4) framework and installed on your computer as to remove it from your computer. Click Next to continue it Cancel to exit the Setup Wizard. Back Next Cancel

End their License Agreement Please read the following license agreement.cntAfs SUA SUMMARY: • This licensed gives you the rights to install any use the software on a maximum of two computers, by one person. • I don't give you the right or not on such computer systems on which the software is installed, or to rent and sell the software or part of it. • The software is distributed "Not at" and no warranty of any kind is expressed. • Logistic Productions and its suppliers retain all intellectual property rights to the software. I accept the terms in the License Agreement Free Back Next Cancel

Choose Setup Type Choose the setup type that best suits your needs Typical Setup the most common program features. Recommended for most users. Customs Always users to choose which program features will be installed and where they will be installed. Recommended for advanced users. Back Next Cancel

Ready to install VirtualDJ LL (Terminal Note 4) Click Install to begin the installation. Click back to review or change any of your installation settings. CIs Cancel to exit the record. Help Install Cancel

Software Maintenance English SULA SUMMARY: This software gives you the rights install and use the software on a system, which is used to create a new system. It is also used to create a new system that is used to create a new system. The software is installed, or its device is installed in the system. The software is distributed "any" and so necessary to only be installed. Name: SoftwareDescription - Software installed and installed property rights in the software. Device installed, Software opened for installation, updated found to be modified by Software Service (Software Service). Software purchased on the Formulated Download through this website is considered available at the time of purchase, and therefore to refund to your access. Instructions... Remove... Delete... Forward... Microsoft SQL Server 471 installation

General Specifications:

Power supply: USB 5V 500mA / DC: 6V, 1.5A

Dimensions: 515 x 337 x 62.5 mm

Weight: 4.8 kg

ITEM LIMIT CONDITION
OUTPUT LEVEL (OUTPUT VR MAXIMUM)
MASTER/BOOTH OUTPUT: +6dB +/-1.5dB TCD-782 TRK.2/1KHz 0dB
BALANCE OUTPUT: +6dB +/-1.5dB TCD-782 TRK.2/1KHz 0dB, 300Ω TO GND BALANCE
PHONES: -6dB +/-1.5dB TCD-782 TRK.16/1KHz -20dB
MASTER OUTPUT: +6dB +/-1.5dB MIC IN 1KHz, -36dB (INPUT SWITCHING=MST)
MASTER OUTPUT: +6dB +/-1.5dB LINE IN 1KHz, 0dB (INPUT SWITCHING=MST)
MASTER OUTPUT: +6dB +/-1.5dB PHONO IN 1KHz, -36dB (INPUT SWITCHING=MST)
CHANNEL BALANCE
ALL OUTPUT: WITHIN 1dB TCD-782 TRK.2/1KHz 0dB
L/R CHANNEL SEPARATION (*2):
MASTER/BOOTH OUTPUT: 80dB	TCD-782 TRK.9 & 11/1KHz 0dB
THD+N(*1):
MASTER/BOOTH OUTPUT: 0.05%	TCD-782 TRK.2/1KHz 0dB
PHONES: 0.3% TCD-782 TRK.2/1KHz 0dB
S/N RATIO(*2):
MASTER/BOOTH OUTPUT: 85dB	TCD-782 TRK.2 & 8/1KHz 0dB
FREQUENCY RESPONSE(OUTPUT VR MAXIMUM):
USB PLAYBACK:	17Hz-16KHz +/-1dB	TCD-781 TRK.1,4 & 16
LINE INPUT:	20Hz-20KHz +/-3dB	IN LEVEL -14dB (INPUT SWITCHING=MST)
PHONO INPUT:	20Hz-20KHz +/-3dB	IN LEVEL -54dB (INPUT SWITCHING=MST) WITH RIAA
MIC INPUT:	20Hz-20KHz +/-3.5dB	IN LEVEL -54dB (INPUT SWITCHING=MST)
TONE (OUTPUT VR MAXIMUM):
PHONES:	-14dB +/-2dB	TONE VR MAX TO MIN, (TCD-782 TRK. 17/10KHz -20dB)
MIC:	-14dB +/-2dB	TONE VR MAX TO MIN, MIC IN 10KHz, LEVEL -54dB (INPUT SWITCHING=MST)
PHONES MAX. OUTPUT:	MORE THAN +3dB	THD=1% (TCD-782 TRK.2/1KHz 0dB)
RECORD/PLAY SECTION
OUTPUT LEVEL (OUTPUT VR MAXIMUM):
LINE INPUT:	+6dB +/-1.5dB IN LEVEL 1KHz -14dB
MIC INPUT:	+6dB +/-1.5dB IN LEVEL 1KHz -54dB
L/R CHANNEL SEPARATION (*2):
MASTER/BOOTH OUTPUT: 70dB	IN LEVEL 1KHz -14dB
S/N RATIO(*2):
MASTER/BOOTH OUTPUT: 80dB	IN LEVEL 1KHz -14dB
MASTER/BOOTH OUTPUT: 58dB	MIC IN 1KHz -54dB
THD+N(*1) (OUTPUT VR MAXIMUM):
MASTER/BOOTH OUTPUT:	0.05%	LINE IN 1KHz -14dB (INPUT LEVEL SET TO OUTPUT=0dB)
NOTES:*1: WITH 20KHz LOW PASS FILTER*2: WITH 20KHz LOW PASS FILTER, "IHF-A" WEIGHTED*3: ALL TEST CONDITION WITH EXTERNAL POWER SUPPLY UNIT

Reloop Distribution

Global Distribution GmbH

Schuckertstrasse 28

48153 Münster / Germany

Fax: [phone]

Welcome to the Heloop ASIO Driver 1.12 Setup Wizard The record of guide you through the installation of Heloop ASIO Driver 1.12. It is recommended that you close of other applications before starting Setup. The will make it possible to install relevant system file without having to reboot your computer. Following Heloop devices are supported with this drive: - Optical Linker 1.12 - Noise 1.12 - Terminal Mix 2 - Terminal Mix 4 Modules Click Next to continue. Next > Cancel www.ReloopDJ.com

License Agreement Please receive the terms before installing KDD Driver 1.12. Free Page Driver to use the rest of the agreement. Copyright: B 2011-2012 KDDLong This software is being Hormand to you buy KDDLong as APRES VERTON and it is provided for non-profit use only. Commercial usage of this product is strictly prohibited. Permission to use, copy and distribute this software without a fees hereby granted for non-commercial use only, provided that the above copyright notice and this permission notice appears in all copies. You may not reverse If you accept the terms of the agreement, do I Agree to continue. You must accept the agreement Khinal KDD Driver 1.12. OK Apply Cancel

Setup A400 Driver 3.0 Setup Choose Data Location Choose the folder in which to install Setup A400 Driver. Setup will install Setup A400 Driver, files in the following folder. To install in a different folder, click browser and/or another folder. Destination folder: Space required: 1.398 Space available: 396.52 Browse... Save OK Cancel Help

Reloop ASIO Driver 1.12 Setup Wizard Completing the Reloop ASIO Driver 1.12 Setup Wizard Reloop ASIO Driver 1.12 has been installed on your computer. Did finish to save the wizard.

serato dj intro Welcome to the DJ Intro Setup Wizard This will result DJ Intro wizard 1.0 for your computer. It is recommended that you close all other applications before continuing. Did Next to continue, or Cancel to not Setup. Next > Cancel

License Agreement Please read the following important information before continuing. Please read the following License Agreement, You must accept the terms of this agreement before continuing with the institution. SERATV - USER LICENSE AGREEMENT ("License Agreement") Seratv Inc LP ("Serato") and its licensor(s) own the Software, being any and all. Seratv applications, and intellectual property in the Software. By installing or using the Software, you agree to the terms of this License Agreement. 1. Grant of License: Seratv grants you a perpetual, non exclusive, personal license ("License") to install and use 2. I accept the agreement 3. Do not accept the agreement OK Next Cancel

Select Destination Location Where should 2.13x lines be installed? Setup will install 2.13x lines into the following file. To continue, disk next. If you would like to load a different folder, disk browse... At least 21.7MB of the disk space is required.

Select Additional Tools Which additional tools should be performed? Select the additional tools you would like Setup to perform while installing iOS icons, even did not. Additional tools: ✓ Create a desktop icon

Ready to install Setup to new needs to begin installing (C) lines on your computer. Click install to continue with the installation, or click back if you want to remove or change any settings. Instructions: C:\Program Files\08\09\data\03\bin Additional keys: Additional icons: Create a desktop icon < Back Install Cancel

Serato dj intro Completing the DJ Intro Setup Wizard Setup has been installed by 6.10x on your computer. The application may be launched by selecting the installed icons. Get fresh to exit Setup. Launch 6.10x Finish

If you approve and refer to this document, please request: to access the software. If you not available, please ORATO - JOHN CINEMA AGREEMENT (Copyright Agreement) Recommended by: The Software and its Computerware for the Software. Using any and all other functions, please provide in the Software. If installing or using the Software, you agreed to be terms of this. License Copyright Agreement is required to be personal information. Personal Information is stored and used as Software in the same of this. License Agreement. The License is also known as only and all Software which is structured express your name/character name for the software components. Intangible Software is used to use the software and use the Software. If you want to access the software to another computer, then use the Software to access the software. Where, each of the software installed process, should have been first parties (first help Software) are installed on your computer. The software will also be installed as software will apply and the Software will not be installed.

VIRTUAL DJ Welcome to the VirtualDJ LE (Terminal Mix 4) Setup Wizard The Setup Wizard allows you to change the way VirtualDJ LE (Terminal Mix 4) hardware and installed on your computer as to remove it from your computer. Click Next to continue it Cancel to exit the Setup Wizard. Back Next Cancel

End their License Agreement Please read the following license agreement.casfula SUA SUMMARY: The licensed software you're right to install and use the software on a maximum of two computers, by one person. I don't miss you the right or next or sell computer systems on which the software is installed, or to next or sell the software or part of it. The software is distributed "Asia" and no warranty of any kind is expressed. Classic Productions and its suppliers retain all intellectual property rights in the software. I accept the terms in the License Agreement Free Back Next Cancel

Choose Setup Type Choose the setup type that best suits your needs Typical Setup the most common program features. Recommended for most users. Customs Always users to choose which program features will be installed and where they will be installed. Recommended for advanced users. Back Next Cancel

1. Haga clic en "Typical".

Ready to install VirtualDJ LL (Terminal Note 4) Click Install to begin the installation. Click back to review or change any of your installation settings. CIs Cancel to exit the record. Help Install Cancel

Software Maintenance English SULA SUMMARY: This software gives you the rights install and use the software on a system, which is used to create a new system. The software is installed, or its device and the system uses it. - The software in defaulters' words and no warranty of any kind is required. - None (software) can be supported within the installed property rights in the software. - Does not allow, then choose an option for installation, or should be found to be otherwise. If you want to access your own website. Software purchased on the following: download through but website is considered available at the time of purchase, and continue to refund to your account. Description... Browse... Delete... Forwarding...

General Specifications:

Power supply: USB 5V 500mA / DC: 6V, 1.5A

Dimensions: 515 x 337 x 62.5 mm

Weight: 4.8 kg

ITEM LIMIT CONDITION
OUTPUT LEVEL (OUTPUT VR MAXIMUM)
MASTER/BOOTH OUTPUT: +6dB +/-1.5dB TCD-782 TRK.2/1KHz 0dB
BALANCE OUTPUT: +6dB +/-1.5dB TCD-782 TRK.2/1KHz 0dB, 300Ω TO GND BALANCE
PHONES: -6dB +/-1.5dB TCD-782 TRK.16/1KHz -20dB
MASTER OUTPUT: +6dB +/-1.5dB MIC IN 1KHz, -36dB (INPUT SWITCHING=MST)
MASTER OUTPUT: +6dB +/-1.5dB LINE IN 1KHz, 0dB (INPUT SWITCHING=MST)
MASTER OUTPUT: +6dB +/-1.5dB PHONO IN 1KHz, -36dB (INPUT SWITCHING=MST)
CHANNEL BALANCE
ALL OUTPUT:	WITHIN 1dB	TCD-782 TRK.2/1KHz 0dB
L/R CHANNEL SEPARATION (*2):
MASTER/BOOTH OUTPUT: 80dB	TCD-782 TRK.9 & 11/1KHz 0dB
THD+N(*1):
MASTER/BOOTH OUTPUT: 0.05%	TCD-782 TRK.2/1KHz 0dB
PHONES: 0.3%	TCD-782 TRK.2/1KHz 0dB
S/N RATIO(*2):
MASTER/BOOTH OUTPUT: 85dB	TCD-782 TRK.2 & 8/1KHz 0dB
FREQUENCY RESPONSE(OUTPUT VR MAXIMUM):
USB PLAYBACK:	17Hz-16KHz +/-1dB	TCD-781 TRK.1,4 & 16
LINE INPUT:	20Hz-20KHz +/-3dB	IN LEVEL -14dB (INPUT SWITCHING=MST)
PHONO INPUT:	20Hz-20KHz +/-3dB	IN LEVEL -54dB (INPUT SWITCHING=MST) WITH RIAA
MIC INPUT:	20Hz-20KHz +/-3.5dB	IN LEVEL -54dB (INPUT SWITCHING=MST)
TONE (OUTPUT VR MAXIMUM):
PHONES:	-14dB +/-2dB	TONE VR MAX TO MIN, (TCD-782 TRK. 17/10KHz -20dB)
MIC:	-14dB +/-2dB	TONE VR MAX TO MIN, MIC IN 10KHz, LEVEL -54dB (INPUT SWITCHING=MST)
PHONES MAX. OUTPUT:	MORE THAN +3dB	THD=1% (TCD-782 TRK.2/1KHz 0dB)
RECORD/PLAY SECTION
OUTPUT LEVEL (OUTPUT VR MAXIMUM):
LINE INPUT:	+6dB +/-1.5dB IN LEVEL 1KHz -14dB
MIC INPUT:	+6dB +/-1.5dB IN LEVEL 1KHz -54dB
L/R CHANNEL SEPARATION (*2):
MASTER/BOOTH OUTPUT: 70dB	IN LEVEL 1KHz -14dB
S/N RATIO(*2):
MASTER/BOOTH OUTPUT: 80dB	IN LEVEL 1KHz -14dB
MASTER/BOOTH OUTPUT: 58dB	MIC IN 1KHz -54dB
THD+N(*1) (OUTPUT VR MAXIMUM):
MASTER/BOOTH OUTPUT:	0.05%	LINE IN IKHz -14dB (INPUT LEVEL SET TO OUTPUT=0dB)
NOTES:*1: WITH 20KHz LOW PASS FILTER*2: WITH 20KHz LOW PASS FILTER, „IHF-A" WEIGHTED*3: ALL TEST CONDITION WITH EXTERNAL POWER SUPPLY UNIT

Reloop Distribution

Global Distribution GmbH

Schuckertstrasse 28
