USER MANUAL Contour Interface Edition Reloop

CONTOUR Interface Editio

Professional 4 Deck MIDI controller with integrated 8 channel soundcard

For your own safety, please read this operation manual carefully before initial operation! All persons involved in the installation, setting-up, operation, maintenance and service of this device must be appropriately qualified and use this operation manual in detail. This product complies with the requirements of the applicable European and national regulations. Conformity has been proven. The respective statements and documents are deposited at the manufacturer.

Mode d'emploi

ATTENTION!

To prevent fire or avoid an electric shock do not expose the device to water or fluids. Never open the housing!

ATTENTION!

Keep Information for further reference!

1. Updates & Support 17

7.Anhang 17

Device In-Port Out-Port

Contour V* (CH1) Reloop CONTOUR Reloop CONTOUR

Contour V* (CH2) Reloop CONTOUR2 Reloop CONTOUR2

Contour V* (CH3) Reloop CONTOUR Reloop CONTOUR

Contour V* (CH4) Reloop CONTOUR2 Reloop CONTOUR2

Contour V* (Master) All ports None

4. BEDIENUNG

1.Hold the SHIFT button and turn the power on.
2. The button of 1-2-3-4 and a-b-c-d is used to select the desired channel, and the amount of FX SEL RING LED will on accordingly.

The corresponding channel is list as below:

1-a channel 1 3-a channel 9
1-b channel 2 3-b channel 10
1-c channel 3 3-c channel 11
1-d channel 4 3-d channel12
2-a channel 5 4-a channel 13
2-b channel 6 4-b channel 14
2-c channel 7 4-c channel15
2-d channel 8 4-d channel16

1. Then press the SHIFT button again to save the channel LED RINGS CODE:

00~07 => 0 => ALL LED OFF

08~15 => 8 => 1LED ON

16~23 => 16 => 2 LEDs ON

24~31 => 24 => 3 LEDs ON

.

120~126 120

127 127

ALLLED OFF
1LED ON
2 LEDs ON
3 LEDs ON

B LEDs ON

ALLLEDSON

1. General Section
Power Source	USB 5V 500mA / DC: 6V, 1.5A; User Selectable
Dimensions	160 x 382.65 x 63.35 mm
Weight	2 kg
USB
2. USB Slave Player Section: (Signal Format: MP3, 128kbps, Sony Sound Forge 8.0)
2.1 Output Level:	(Sony Sound Audio Device Type: Reloop Contour)
Out 1/2/3/4:	-6dBV +/-2dB (TCD782 TRK16)
Phones Out:	-6dBV +/-2dB (TCD782 TRK16)
2.2 Frequency Response:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	17-16 kHz +/-2dB (TCD782 TRK1, 4, 16, Windows Level at Master Out: 0dB)
2.3 THD+N:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	Less than 0.02% (TCD782 TRK2, Windows Level at Master Out: 0dB), W/20KHz LPF, A-weighted
2.4 S/N Ratio:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	More than 80dB (TCD782 TRK2, 8; windows Level at Master Out: 0dB), W/20KHz LPF, A-weighted
2.5 LR Separation:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	More than 80dB at 1KHz (TCD782 TRK2,9,11, Windows Level At Master, Out:0dB, W/20KHz LPF, A-weighted)
3. Maximum Output:	(Sony Sound Audio Device Type: Windows classic Wave Driver, THD=1%)
Out 1/2/3/4:	More than +7dBV (2.24V) LOAD=100K OHM
Phones:	More than +2dBV (1.26V) LOAD=32 OHM

OPERATION MANUAL

CAUTION!

For your own safety, please read this operation manual carefully before initial operation! All persons involved in the installation, setting-up, operation, maintenance and service of this device must be appropriately qualified and observe this operation manual in detail. This product complies with the requirements of the applicable European and national regulations. Conformity has been proven. The respective statements and documents are deposited at the manufacturer.

INDEX

1. Setup 24

1.1 Control Elements 25
1.2 Connections 25

1. Device Setup 26

2.1 Basic Steps 26
2.2 Audio Setup 26
2.2.1 Stand Alone Mode 26
2.2.2 External Mixing Mode 26

1. Computer Configuration 27

3.1 ASIO Driver Installation 27
3.2 Traktor LE Setup 28
3.2.1 Installation 28
3.2.2 Configuration 29
3.3 Traktor Pro Configuration (if applicable). 29
3.3.1 Audio Setup 29
3.3.2 Mapping Import 30

1. Operation 32

2. Device Settings and Tests 36

5.1 MIDI Channel Assignment 36
5.2 Jog Wheel Calibration 36
5.3 LED Functionality Test 37

1. Updates & Support 37

2. Appendix 37

7.1 System Requirements Traktor LE 37
7.2 MIDI Assignment Map 38
7.3 Troubleshooting 41
7.4 Technical Specifications 41

Congratulations on purchasing the Reloop Contour Interface Edition. Thank you for placing your trust in our disc jockey technology. Before operating this equipment we ask you to carefully study and observe all instructions.

Please remove the Reloop Contour Interface Edition from its packaging. Before initial operation please make sure that the device has not been visibly damaged during transport. If you detect any damage to the power cable or the casing, do not operate the device and contact your specialised dealer.

SAFETY INSTRUCTIONS

CAUTION!

Please exercise particular caution when handling the power voltage. This voltage rating may lead to a critical electrical shock! Any damage caused by the non-observance of this operation manual excludes any warranty claims. The manufacturer is not liable for any damage to property or for personal injury caused by improper handling or non-observance of the safety instructions.

• This device has left the factory in perfect condition. To maintain this condition and to ensure a risk-free operation the user must observe the safety instructions and warnings contained in this operation manual.
• For reasons of safety and certification (CE) the unauthorised conversion and/or modification of

the device is prohibited. Please note that in the event of damage caused by the manual modification to this device any warrantyclaims are excluded.

• The inside of the device does not contain any parts which require maintenance, with the exception of wear parts that can be exchanged from the outside. Only qualified staff must carry out maintenance, otherwise warranty does not apply!
• The Fuse must exclusively be exchanged against fuses of the same class, with the same trigger features and nominal current rating.
• Make sure that the power will only be supplied after the device has been fully set up. Always plug in the mains plug last. Ensure that the mains switch is in the "OFF" position when connecting the device to power.
• Only use cables that comply with regulations. Observe that all jacks and bushes are tightened and correctly hooked up. Refer to your dealer if you have any questions.
• Ensure that when setting up the product the mains cable is not squashed or damaged by sharp edges.
• Prevent the mains cable from coming into contact with other cables! Exercise great care when handling mains cables and connections. Never touch these parts with wet hands!
• Connect the power cable exclusively to appropriate shock-proof outlets. The only supply point to be used is a supply outlet in accordance with specifications of the public supply network.
• Disconnect the device from the supply outlet when not in use and before cleaning! Be sure to hold the mains plug by the body. Never pull the mains cord!
• Position the device on a horizontal and stable low-flame base.
• Avoid any concussions or violent impact when installing or operating the device.
• When selecting the location of installation make sure that the device is not exposed to excessive heat, humidity, and dust. Be sure that no cables lie around openly. You will endanger your own safety and that of others!
• Do not rest any containers filled with liquid that could easily spill onto the device or in its immediate vicinity. If, however, fluids should access the inside of the device, immediately disconnect the mains plug. Have the device checked by a qualified service technician before re-use. Damage caused by fluids inside the device is excluded from the warranty.
• Do not operate the device under extremely hot (in excess of 35^ ) or extremely cold (below 5^ ) conditions. Keep the device away from direct exposure to the sun and heat sources such as radiators, ovens, etc. (even · during transport in a closed vehicle). Never cover the cooling fan or vents. Always ensure sufficient ventilation.
• The device must not be operated after being taken from a cold environment into a warm environment. The condensation caused hereby may destroy your device. Do not switch on or operate the device until it has reached · ambient temperature!
• Controls and switches should never be treated with spray-on cleaning agents and lubricants. This device should only be cleaned with a damp cloth. Never use solvents or cleaning fluids with a petroleum base for cleaning.
• When relocating, the device should be transported in its original packaging.
• When starting operation, the faders and volume controls of your amplifier must be set to minimum level. Bring the loudspeaker switches into the "OFF" position. Wait between 8 to 10 seconds before increasing the volume to avoid shot noise created by transient effect, which could cause damage to loudspeakers and the diplexer.
  Devices supplied by voltage should not be left in the hands of children. Please exercise particular care when in the presence of children.
• At commercial facilities the regulations for the prevention of accidents as stipulated by the organization of professional associations must be observed.
• At schools, training facilities, hobby and self-help workshops the operation of the device must be monitored with responsibility by trained staff.
• Keep this operation manual in a safe place for later reference in the event of questions or problems.

APPLICATION IN ACCORDANCE WITH REGULATIONS

• This device is a professional DJ MIDI controller with integrated 8 channel soundcard that can control software. The device should be connected via USB cable to a computer.
• This product is authorised for connection to switching power AC 100-240V, 50/60Hz and is designed exclusively for indoor application.
• If the device is used for any other purposes than those described in the operation manual, damage can be caused to the product, leading to exclusion of warranty rights. Moreover, any other

application that does not comply with the specified purpose harbours risks such as short circuit, fire, electrical shock, etc.
- The serial number determined by the manufacturer must never be removed to uphold the warranty rights.

MAINTENANCE

• Check the technical safety of the device regularly for damage to the mains cord or the casing, as well as for wearout of wear parts such as rotary knobs and sliding faders.
• If it is to be assumed that a safe operation is no longer feasible then the device must be disconnected and secured against accidental use. Always disconnect the mains plug from the outlet!
• It must be assumed that a safe operation is no longer feasible if the device bears visible defects, if the device no longer functions, following longer storage under unfavourable conditions or after major transport stress.

1. SETUP

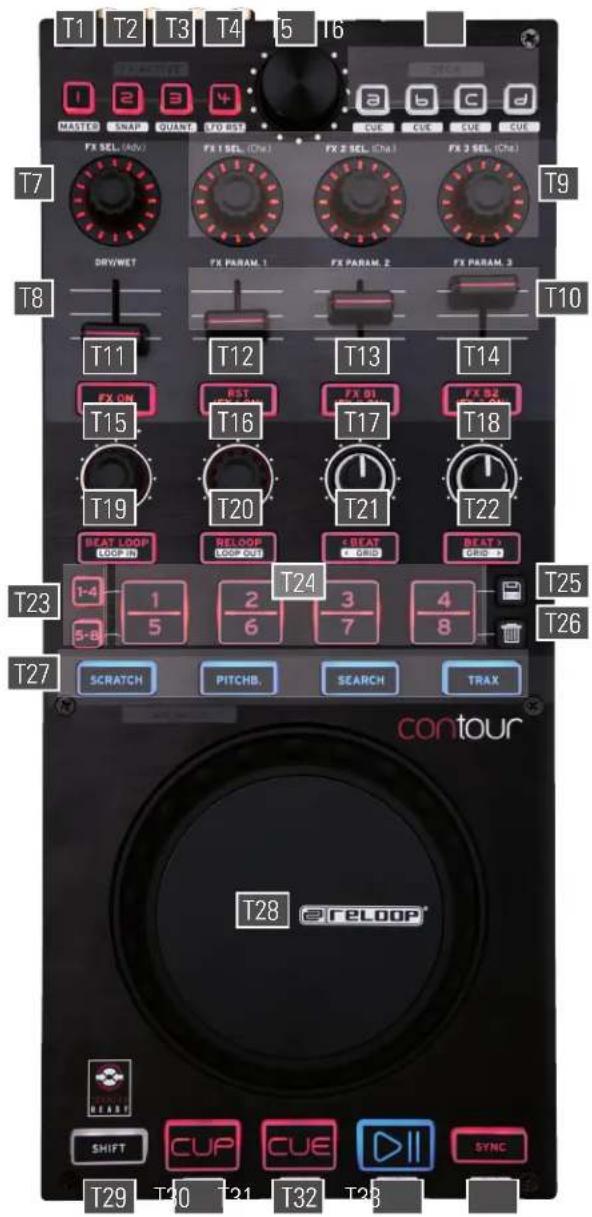

1.1 CONTROL ELEMENTS

Surface

T1. FX 1 Routing Button (Shift: Master Deck Assignment) [Traktor Pro]
T2. FX 2 Routing Button (Shift: Snap Mode) [Traktor Pro]
T3. FX 3 Routing Button (Shift: Quantise Mode) [Traktor Pro]
T4. FX 4 Routing Button (Shift: LFO Reset) [Traktor Pro]
T5. TRAX Encoder (Shift: Folder Navigation)
T6. Deck Assignment Buttons (Shift: Deck Cue)
T7. Dry/Wet Fine Adjustment (Shift: Effect Change in Advanced Effect Mode)
T8. Dry/Wet Fader (Shift: Headphones Volume)
T9. Effect Parameter respectively Dry/Wet Fine Adjustment (Shift: Effect Change respectively Equalizer Kill Function) [Traktor Pro]
T10. Effect Parameter respectivley Dry/Wet Fader [Traktor Pro] (Shift Equalizer Adjustment)
T11. FX On Button [Traktor Pro]
T12. Effect Reset respectively FX 1 On [Traktor Pro]
T13. Effect Button 1 respectively FX 2 On [Traktor Pro]
T14. Effect Button 2 respectively FX 3 On [Traktor Pro]
T15. Loop Length [Traktor Pro] (Shift: Fine Pitch Controller)
T16. Loop Shift [Traktor Pro] (Shift: Tempo Bend Control)
T17. Filter (Shift: Cue Mix Fading)
T18. Pan (Balance) Control (Shift:Master Volume)
T19. Auto Loop Function (Shift: Loop In/Set Cue Button)
T20. Reloop Function [Traktor Pro] (Shift: Loop Out Button)
T21. Beat Jump Backward (Shift: Left-Sided GRID Shift)
T22. Beat Jump Forward (Shift: Right-Sided GRID Shift)
T23. Hot Cue Bank Select [Traktor Pro]
T24. Hot Cue Buttons [Traktor Pro]
T25. Hot Cue Save Button [Traktor Pro]
T26. Hot Cue Delete Button [Traktor Pro]
T27. Jog Wheel Mode Buttons
T28. Jog Wheel
T29. Shift Button
T30. Cup Button (Shift: ActCue Button [Traktor Pro])
T31. Cue Button (Shift: Select Next Cue Point [Traktor Pro])
T32. Play/Pause Button (Shift: Keylock)
T33. Sync Button (Shift: Tap Button)

1.2 CONNECTIONS

Front Panel

F34. 3.5 mm Headphones Jack
F35. 6.3 mm Headphones jack

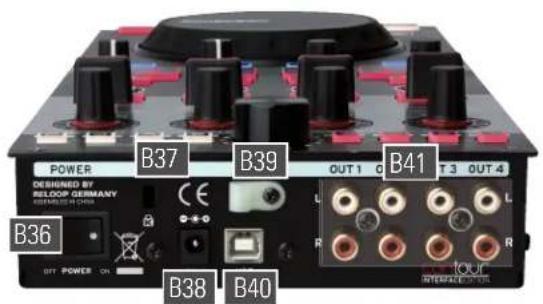

Rear Panel

B36. ON/OFF Button
B37. Kensington Lock
B38. Mains Connection (DC 6V/1.5A)
B39. Mains Cord Strain Relief
B40. USB Port
B41. Audio Outputs

2. DEVICE SETUP

2.1 BASIC STEPS

• First make sure to turn off the device via the ON/OFF Button -B36- on the rear panel.
• Connect the included mains adapter to the device's DC jack -B38- and a shock-proof outlet.
• Then connect the included USB cable to the corresponding connection -B40- on the device's rear panel and a free USB port of your computer.

2.2 AUDIO-SETUP

In the following two possible setups for the usage of the audio interface of your Reloop Contour will be explained.

NOTE!

Please make sure that while connecting new components the Reloop Contour has to be turned off in order to avoid any possible damages.

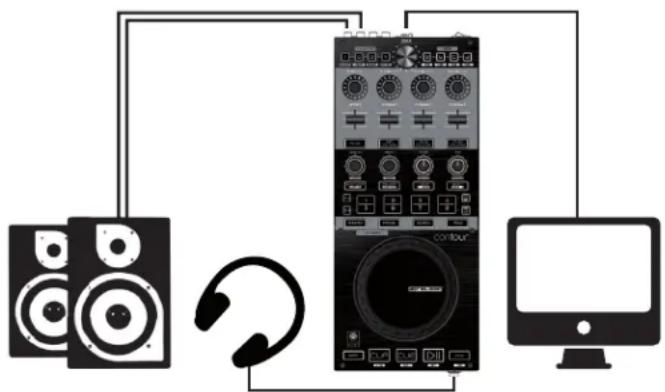

2.2.1 STAND ALONE-MODE

It is especially important for mobile DJs to use little equipment while still being able to mix comfortably and effectively.

In stand alone mode this is facilitated: Apart from a computer or notebook respectively and headphones there is no need for further equipment.

In order to arrange this setup proceed as follows:

Connect your headphones to the corresponding jack -F35- and -F34- respectively.

That followed connect your main sound system, e.g. active speakers or amplifier, to the RCA stereo output „Out 1“-B41-.

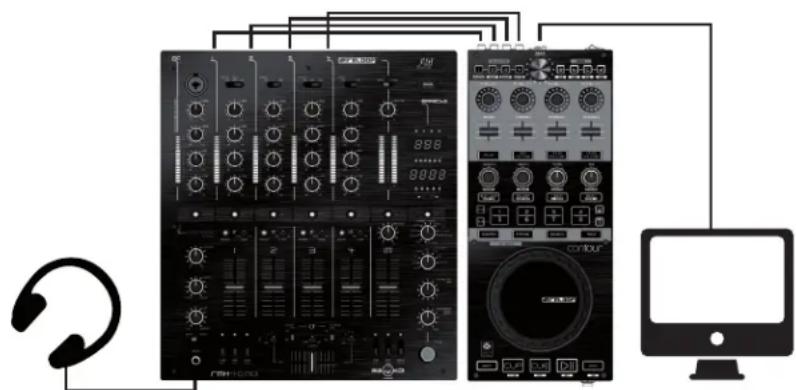

2.2.2 EXTERNAL MIXING-MODE

The external mix mode is ideal in order to integrate your Reloop Contour in your existing setup. Up to four decks of a DJ software, such as Traktor, can be routed to a mixing console. This way Contour is used for transport, sampler/hot cue, effect and deck control while the mixer is used for mixing the decks.

In order to arrange this setup proceed as follows:

• Connect the RCA stereo output „Out 1" -B41- to channel 1 of your mixing console.
• Connect the RCA stereo output "Out 2" -B41- to channel 2 of your mixing console.
• If you have a 4 channel mixing console at your disposal connect the RCA stereo outputs „Out 3" and „Out 4" -B41- to channels 3 and 4 of your mixing console.
• For monitoring it is necessary to connect your headphones to the mixing console.

3.COMPUTER CONFIGURATION

Before you can use your new device a few basic computer adjustments have to be carried out.

ATTENTION!

Please make sure that your Reloop Contour is turned off. You will be asked during the installation on to turn the device on.

The included USB cable can already be connected (see item Basic Steps).

Please especially observe the following explanations.

3.1 ASIO DRIVER INSTALLATION

Insert the included installation CD into your computer's drive. Select the driver that best suits your system in the „Drivers" folder and start the installation via a double click.

TIPI!

Reloop regularly provides updated drivers online. For more information please read the chapter „Updates & Support".

NOTE!

Please make sure to start the driver installation with admin rights. Otherwise the installation will fail with an error message.

If you use Windows Vista or Windows 7 please carry out the appropriate installation setup via a click of the right mouse button followed by the selection „Run as admin".

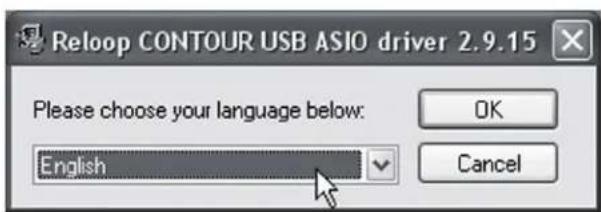

1. First of all you will enter the language select window. Please select your preferred language.

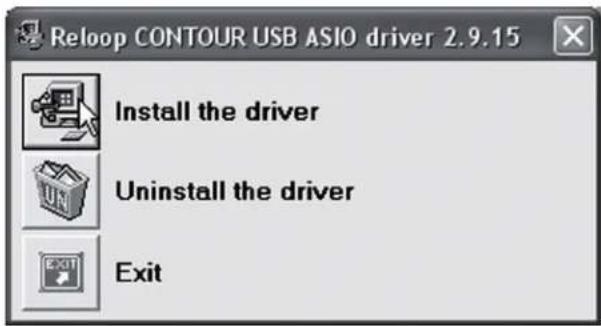

1. Now click on the .Install the driver" button.

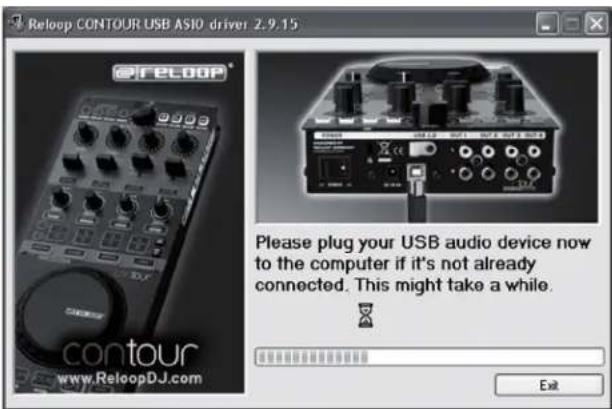

1. Now you will be asked to connect and turn on your Reloop Contour. If your Reloop Contour has not been connected via USB please connect the included USB cable to Contour's USB port -B40- and a free USB port of your computer. Also connect the included mains adapter to the corresponding connector -B38-.

Now turn on the device via the ON/Off Button -B36-.

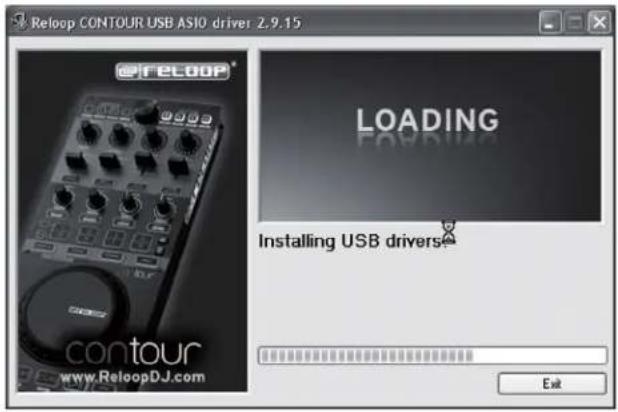

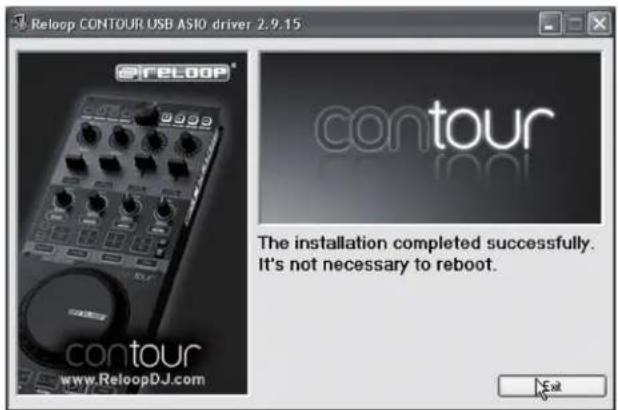

1. The installation will be continued. As soon as the installation has successfully finished you can close the setup via the „Finish" button. A reboot is not necessary.

3.2 TRAKTOR LE SETUP

Along with Reloop Contour you get the gratuitous and non-restrictive DJ software „Traktor LE".

NOTE!

Upgrade to Traktor PRO (4 deck support):

Via the included Traktor LE version you are able to purchase the extensive Traktor PRO version at a bargain price. Current proce conditions can be found under www.nativeinstruments.de

3.2.1 INSTALLATION

Besides the ASIO drivers, on the included installation CD you can also find a directory named „Traktor". Open this directory and select the setup file that best suits your system. Follow the instructions from the installation window.

NOTE!

Details regarding the system requirements can be found in the appendix under item „System Requirements Traktor LE".

3.2.2 CONFIGURATION

If Traktor LE is used for the first time the „Setup Wizard“ should start. If this is not the case please click on „Help“ and select the menu item „Start Setup Wizard“. In the setup wizard select the following items:

1. Answer the first question „Are you using a USB/FireWire Controller?" with „Yes". Then click on „Next".
2. In the field „Choose your manufacturer" select the item „Reloop". The following menu item „Choose your model" has to be answered with „Contour Interface LE". Again confirm this selection with „Yes".
3. The following question regarding connected hardware by manufacturer „Native Instruments" has to be answered with „No".

Your Reloop Contour should now be configured accordingly for Traktor LE.

NOTE!

By default the audio setup should be adjusted to stand alone mode (see item „Audio Setup" in the chapter „Device Setup").

If this is not the case or if you prefer using the „External Mix Mode“ (see item „Audio Setup“ in the chapter „Device Setup“), please take a close look at the following items.

Otherwise you can skip this chapter and continue with the chapter „Operation".

3.3 TRAKTOR PRO CONFIGURATION (IF APPLICABLE)

If you already possess Traktor Pro or you have upgraded Traktor LE at a lower-cost price, it is possible to fully exploit all Contour functions.

Observe the following points in order for Traktor to be able to work in combination with Contour.

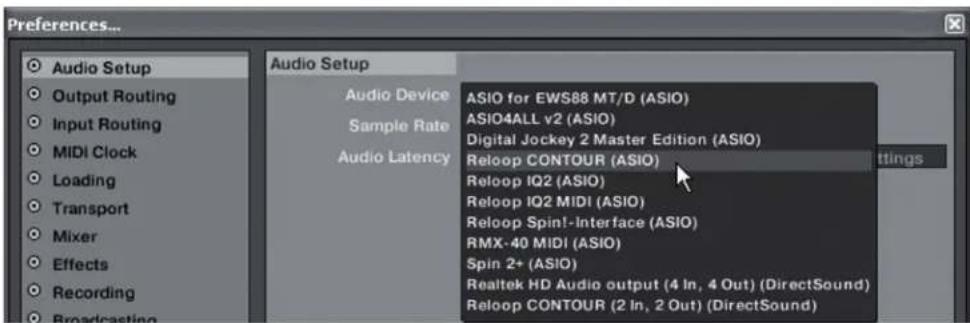

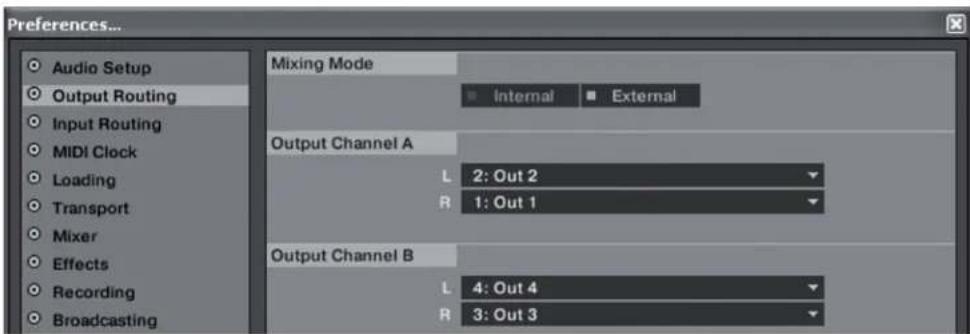

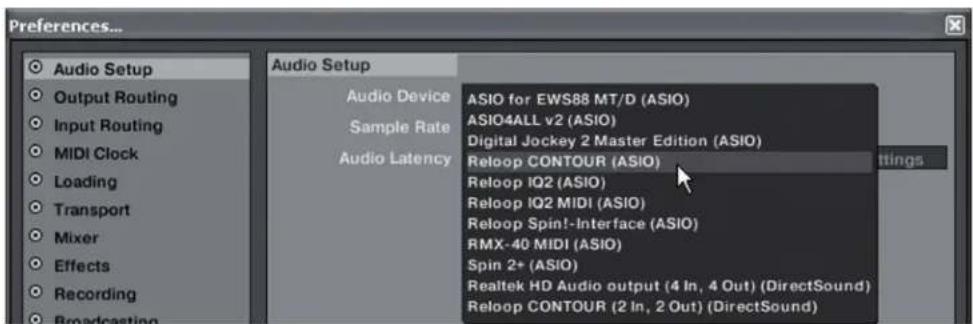

3.3.1 AUDIO SETUP

The audio setup in Traktor depends on your already existing setup. Reloop Contour can either be used in Stand Alone or External Mixing Mode. Further information and setup tips can be found under the item „Audio Setup" in the chapter „Device Installation" in this manual, that have to be worked through by any means.

Afterwards select your desired setup:

Stand Alone-Modus

1. In Traktor open the setup dialogue by clicking the small cog wheel in the upper right corner.
2. Open the category „Audio Setup" and in the field „Audio Device" select the item „Reloop Contour (ASIO)".

1. Now open the category „Output Routing" and in the field „Mixing Mode" select the button „Internal". For channel assignment refer to the following example:

External Mixing-Modus

1. In Traktor open the setup dialogue by clicking the small cog wheel in the upper right corner.
2. Open the category „Audio Setup" and in the field „Audio Device" select the item „Reloop Contour (ASIO)".

1. Now open the category „Output Routing" and in the field „Mixing Mode" select the button „External". For channel assignment refer to the following example:

3.3.2 MAPPING-IMPORT

In order for Traktor to be able to assign the MIDI commands that Contour sends to the correct functions, a special mapping is necessary.

A suitable mapping can be found on the installation CD in the folder „Mappings/Traktor Pro".

NOTE!

You can find updated and extended mappings online. Go to http://www.reloopdj.com/forum and open the category „Mapping files" in the field „Downloads for all Reloop products".

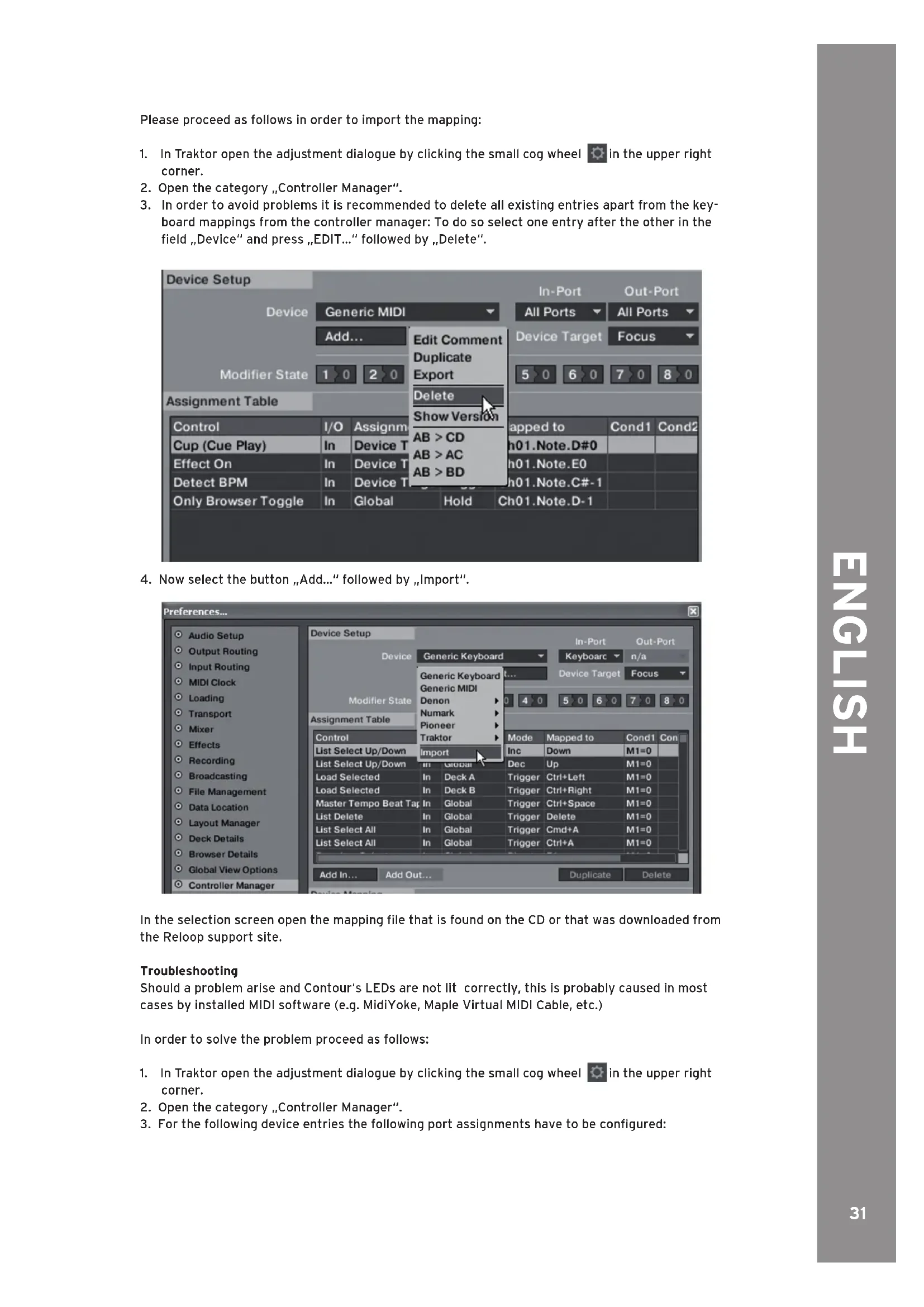

Please proceed as follows in order to import the mapping:

1. In Traktor open the adjustment dialogue by clicking the small cog wheel in the upper right corner.
2. Open the category „Controller Manager".

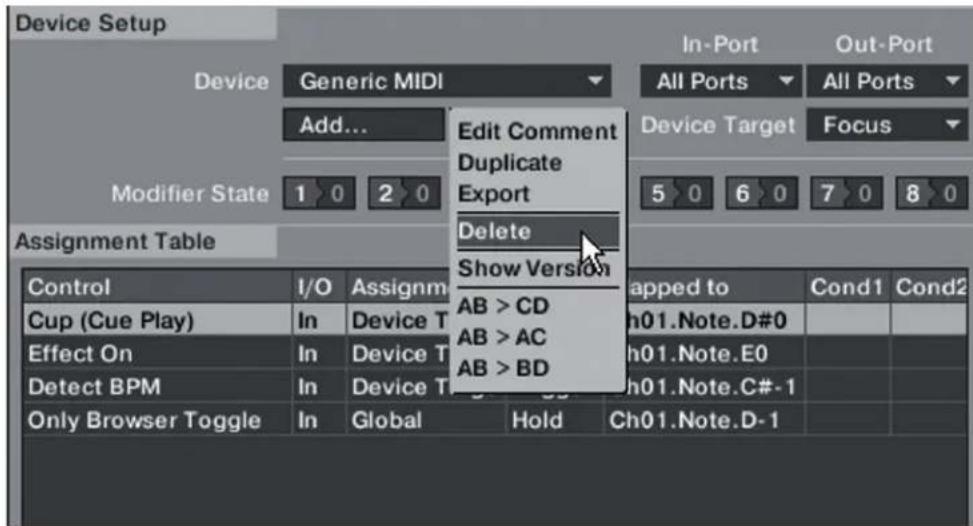

3. In order to avoid problems it is recommended to delete all existing entries apart from the keyboard mappings from the controller manager: To do so select one entry after the other in the field "Device" and press "EDIT..." followed by "Delete".

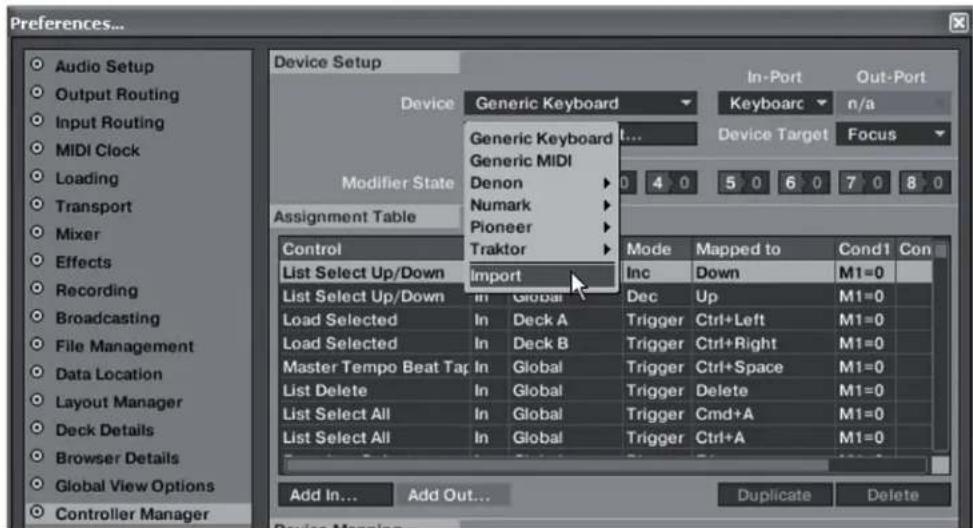

1. Now select the button "Add..." followed by "Import".

In the selection screen open the mapping file that is found on the CD or that was downloaded from the Reloop support site.

Troubleshooting

Should a problem arise and Contour's LEDs are not lit correctly, this is probably caused in most cases by installed MIDI software (e.g. MidiYoke, Maple Virtual MIDI Cable, etc.)

In order to solve the problem proceed as follows:

1. In Traktor open the adjustment dialogue by clicking the small cog wheel in the upper right corner.
2. Open the category „Controller Manager".
3. For the following device entries the following port assignments have to be configured:

Device In-Port Out-Port

Contour V* (CH1) Reloop CONTOUR Reloop CONTOUR

Contour V* (CH2) Reloop CONTOUR Reloop CONTOUR

Contour V* (CH3) Reloop CONTOUR Reloop CONTOUR

Contour V* (CH4) Reloop CONTOUR Reloop CONTOUR

Contour V* (Master) All ports None

If several Contour devices are in use, the various in- and out-ports for the different channels have to be divided among the devices.

Example: For 2 Contours the device entries should be manipulated as follows:

Device In-Port Out-Port

Contour V* (CH1) Reloop CONTOUR Reloop CONTOUR

Contour V* (CH2) Reloop CONTOUR2 Reloop CONTOUR2

Contour V* (CH3) Reloop CONTOUR Reloop CONTOUR

Contour V* (CH4) Reloop CONTOUR2 Reloop CONTOUR2

Contour V* (Master) All ports None

4. OPERATION

After connecting and configuring Reloop Contour correctly for the DJ software, Traktor can now be used. If Traktor Pro is used it is possible to fully exploit the Contour user interface. There are some differences for Traktor LE regarding effect control, the number of usable decks and the hot cue assignment.

NOTE!

In the following the whole Traktor function assignment will be described. Some features are only available in Traktor Pro and therefore they have been marked grey in the following chart.

ELEMENT FUNCTION FUNCTION WITH ACTIVATED SHIFT -T29-

T1	FX 1 Routing Button	Master Deck Assignment
	Hereby the FX 1 unit can be assigned to theThe current deck becomes the master deck. current deck (see -T6-).
T2	FX 2 Routing Button	SNAP Function Via this function it is possible to arrange the set cue points and loops at the grid.
	Hereby the FX2 unit can be assigned to the current deck (see -T6-).
T3	FX 3 Routing Button	Quantize Function Triggerd hot cues are geared to the master deck's beat. Convenient for real-time mixing.
	Hereby the FX 3 unit can be assigned to the current deck (see -T6-).
T4	FX 4 Routing Button	LFO Reset Function
	Hereby the FX 4 unit can be assigned to the Sets back all LFO-based effects. current deck (see -T6-).
T5	Tracklist Navigation	Folder Navigation
	- By turning the encoder you can scroll through the track directory.	- By turning the encoder you can navigate the folder direcotry.
	- By pressing the encoder you can load the selected track to the current deck.	- By pressing the encoder you can open/clos the selected direcotry.
T6 Deck Assignment Buttons By pressing one of the buttons the current deck can be determined. The LEDs change accordingly.		Deck Cue Buttons By using one of the cue buttons the monitoring function for the current deck will be activated.
NOTE! Only decks A & B can be used in Traktor LE.		NOTE! Only the first two buttons are available for Traktor LE.
T7 Dry/Wet Fine Adjustment Via the encoder the effect's intensity can be adjusted.		Effect Change <Advanced E.> If the Advanced Effect section is selected, the effect can be changed by turning the encoder.
T8 Dry/Wet Fader Hereby the effect's intensity can be changed quickly.		Headphones Volume The fader changes the headphones' volume. Only available in stand alone mode.
T9 Effect Parameter <Advanced E.> In Advanced Effect Mode the parameters can be changed herewith.		Effect Change <Chained E.> Hereby the relative effect can be changed in Chained Effect Mode.
Dry/Wet Fine Adjustment <Chained E.> If Chained Effect Mode is used, the single effects can be controlled via the encoder.		NOTE! In Traktor LE only the first effect section's effect is available.
NOTE! In Traktor LE only the first parameter is available in Chained Effect Mode.		Equalizer Kill Function Pressing the encoder activates/deactivates the equalizer's kill function. The first encoder from the left of this section filters the high frequencies, the second encoder filters the mid frequencies and the third encoder filters the low frequencies.
T10 Effect Parameter <Advanced E.> In Advanced Effect Mode the parameters can be changed quickly hereby.		Equalizer Controller By moving the fader the equalizer's parame-ters can be adjusted. The first fader from the left controls the high frequencies, the second fader controls the mid frequencies and the third fader controls the low frequencies that are audible in the following.
Dry/Wet Fader <Chained E.> If Chained Effect Mode is used the single effects can be controlled via the faders.
NOTE! In Traktor LE in Chained Effect Mode only the first parameter is available.
T11 FX On Button <Advanced E.> Activates the Advanced FX Section corresponding to the deck. (Deck A -> FX1, Deck B -> FX2, Deck C -> FX3, Deck D -> FX4)
T12 Effect Reset Function <Advanced E.> In Advanced Effect Mode the effect can be reset hereby. FX 1 On <Chained E.> Activates/deactivates the first effect in Chained Effect Mode.
T13 Effect Button 1 <Advanced E.> Activates/deactivates the Effect Button 1 in Advanced Effect Mode. FX 2 On <Chained E.> Activates/deactivates the second effect in Chained Effect Mode.
T14 Effect Button 2 <Advanced E.> Activates/deactivates the Effect Button 2 in Advanced Effect Mode. FX 3 On <Chained E.> Activates/deactivates the third effect in Chained Effect Mode.
T15 Loop Length By turning the encoder varies the set loop's length. By pressing the encoder the Loop Active function is activated/deactivated.		Fine Pitch Controller Herewith the current deck's pitch fader can be adjusted exactly.
T16 Loop Shift By turning the encoder a set loop can be shifted. Simultaneously pressing and turning the encoder determines the movement's range.		TempoBend Control Allows the temporary acceleration (clockwise) or deceleration (counterclockwise) of a track.
T17 Filter Regulates the filter effect for the active deck. In the zero position the filter will be deactivated automatically.		Cue Mix Fading Via the Cue Mix Fader a pre-mix can be simulated in your headphones. When to the right the master signal is audible, when to the left the cue signal is audible. Master Volume Adjusts the master volume.
T18 Pan (Balance) Controller Herewith you can adjust the volume division for the left and right channel. The zero position corresponds to an equal level on both channels.
T19 Autoloop Function Sets an automatic loop with the adjusted loop length (-T15-), without having to manually set the ending point.		Loop In/Set Cue Button Manually sets the starting point of a loop. Simultaneously a cue point will be set.
T20 Reloop Function Jumps to the last set loop and reactivates it.		Loop Out Button Manually sets the ending point of a loop. Now the deck is in a loop mode, the selected sequence is permanently repeated. Pressing the button again will end the loop mode. Left-Sided GRID-Shift Shifts the grid that Traktor puts over the bass line a step to the left. Right-Sided GRID-Shift Shifts the grid that Traktor puts over the bass line a step to the right.
T21 Beat Jump Backward Carries out a beat jump against opposed to the playback direction.
T22 Beat Jump Forward Carries out a beat jump in the playback direction.
T23 Hot Cue Bank Select Selects the desired hot cue bank. If "1-4" is pressed, the hot cue points 1-4 can be controlled in Traktor. Shortly pressing "5-8" facilitates the control of hot cues 5-8 via the Hot Cue Buttons -T24-.
T24 Hot Cue Buttons Herewith it is possible to control the 8 hot cues of a track in Traktor. Depending on which bank is currently active hot cues 1-4 and 5-8 respectively can be controlled. If a hot cue is not occupied (no LED feedback), this hot cue will be assigned to the current track position by pressing one of the pads.
T25 Hot Cue Save Button If this element is pressed, the current track position is saved on a free hot cue.
T26 Hot Cue Delete Button While this button is being pressed and held the saved hot cue points can be deleted by pressing the corresponding hot cue pads -T24-. The LED of the corresponding pad will go out. Afterwards release the Delete Button in order to leave delete mode.
T27 Jog Wheel Mode Buttons		Jog Wheel Mode Buttons
There are 5 modes at your disposal which shift mode there is a mode at your disposal determine the Jog Wheel's -T28- function that determines the Jog Wheel's -T28- func-SCRATCH if this mode is active, the current track can be scratched as long as the JogTRAX Wheel's surface -T28- is being touched. By turning the Jog Wheel -T28- while holding the side is being touched and the Jog Wheel Shift Button simultaneously the navigation is being moved, you can increase (clockwise) be significantly accelerated. Also quick or decrease (counterclockwise) the current search for a track will be facilitated. track's speed. PITCHB(END) Herewith you can increase (clockwise) or decrease (counterclockwise) the current track's speed. As opposed to SCRATCH mode the Jog Wheel's -T28- rotational speed also has an influence on the track's manipulation. SEARCH Allows scrolling quickly through a loaded track. TRAX By activating this mode Traktor automatically switches to browse view. By turning the Jog Wheel -T28- it is now possible to comfortably navigate the track list. A full navigation through the folder directory as well as the track directory is possible via the TRAX Encoder -T5-. NO SELECTED MODE If no mode has been selected, the Jog Wheel -T28- can be used for volume control of a deck (Rotary Deck Volume Control). If the Jog Wheel's surface is touched during the rotation, the deck can be quickly faded in and out. If only the rubberized edge is being touched for the rotary movement, the deck volume can be adjusted exactly.		ActCue Button Causes the return to the ActCue point. Jump to next cue point The deck jumps from the current position to the next cue point. Keylock (De)activates Keylock. Tap Button Determines the track's BPM, depending on how fast the button is repeatedly being pressed. Ideally it will be pressed to every beat in case the grid should not fit.
T28 Jog Wheel Herewith it is possible to control various functions. Please observe the Jog Wheel Mode Buttons -T27- regarding this.
T29 Shift Button By pressing this button all control elements on the device will receive a further function. The assignment can be found in the right column of this chart.
T30 Cup Button As long as this button is pressed the deck will return to the last set cue point and then stop. When the button is released, playback will start.
T31 Cue Button Herewith the cue point will be called up and played as long as the button is being held.
T32 Play/Pause Button Starts and pauses the track's playback respectively.
T33 Sync Button The current deck's speed is syncsed to the master deck.

5. DEVICE SETTINGS AND TESTS

There are a few settings and tests which can be carried out directly with Contour without the need for a computer. In the following a few points will be explained more thoroughly.

5.1 MIDI CHANNEL ASSIGNMENT

ATTENTION!

By default Contour is configured for channels 1-4. Deck A is assigned to channel 1, deck B is assigned to channel 2, deck C is assigned to channel 3, and deck D is assigned to channel 4. Reloop's official mappings are laid-out for the standard configuration. Usually there is no need to change these.

Should you, however, wish to assign the decks to the MIDI channel combination 5-8, 9-12, or 13-16 proceed as follows.

1. Make sure that Contour is turned off (see ON/OFF Button -B36-).
2. Press and hold the Shift Button -T29- and turn on Contour via the ON/OFF Button -B36-.
3. Now release the Shift Button -T29-.
4. via the FX Buttons -T1 - T4- you can select the desired channel combination.

MIDI-CHANNEL-COMBINATION FX-BUTTON

1-41

5-82

9-123

13-16

1. By pressing the Shift Button -T29- one last time the selection is saved and the Controller will be rebooted. The new MIDI channels have now been determined.

5.2 JOG WHEEL CALIBRATION

Should the Jog Wheel -T28- not react correctly any more, its touch-sensitivity can be recalibrated. Proceed as follows.

1. Make sure that Contour is turned off (see ON/OFF Button -B36-).
2. Press and hold the Play/Pause Button -T32- and turn on Contour via the ON/OFF Button -B36-.
3. Now release the Play/Pause Button -T32-.
4. Then touch the Jog Wheel's -T28- metal surface. Simultaneously the feedback LEDs that are placed around the Encoder -T7/9- should go out from the right to the left.

NOTE!

It is not necessary that all LEDs go out. However, the LED circle around the Effect Section's Encoder -T9- on the right side should go out.

If this is not the case there may be an error. Please refer to the chapter „Troubleshooting" in the appendix.

1. Release your finger from the surface and in the following press the Play/Pause Button -T32- in order to complete the calibration procedure. The controller will automatically reboot.

5.3 LED FUNCTIONALITY TEST

Herewith you can test whether all of Contour's built-in LEDs work faultlessly. For the functionality test please proceed as follows:

1. Make sure that Contour is turned off (see ON/OFF Button -B36-).
2. Press and hold the Cup Button -T30- and turn on Contour via the ON/OFF Button -B36-.
3. Now release the Cup Button -T30-.
4. All LEDs should be lit now.
5. In order to complete the test simply turn off the device via the ON/OFF Button -B36-.

6. UPDATES & SUPPORT

For Reloop Contour it is possible to update the firmware. This way it is subsequently possible to carry out changes or add new features. An instruction for this procedure can be found online under the mentioned address.

Especially for the integrated audio interface updated drivers are offered that can be downloaded. Also there will be updated mappings for follow-up versions of Traktor Pro and other DJ softwares so that you can use Reloop Contour in the future as well. It is also possible to purchase mappings for differing setups that partly come from the user community.

Therefore please regularly visit the following website:

www.reloopdj.com/forum

Besides numerous downloads you can also find a supprot forum there.

7. APPENDIX

7.1 SYSTEM REQUIREMENTS TRAKTOR LE

PC:

• Windows XP (Service Pack 2), Vista (32-Bit)
• Pentium III, 1 GHz or Athlon XP 1,4 GHz
  -512MBRAM

Mac:

• Mac OS 10.4
• G4 1,5 GHz or Intel Core Duo family
  -512MBRAM

7.2 MIDI ASSIGNMENT CHART

Key
	IO	FUNCTION	MIDI CODE	CHANNEL+	FUNCTION CODE	ACTION REMARK
				MIDI CODE
1	1	09 9X			01H/41H(SHIFT ON)	7FH : ON /00H : OFF
2	2	09 9X			02H/42H(SHIFT ON)	7FH : ON /00H : OFF
3	3	09 9X			03H/43H(SHIFT ON)	7FH : ON /00H : OFF
4	4	09 9X			04H/44H(SHIFT ON)	7FH : ON /00H : OFF
5	a	09 9X 05H (SHIFT ON)				7FH : ON /00H : OFF
6	b	09 9X 06H (SHIFT ON)				7FH : ON /00H : OFF
7	c	09 9X 07H (SHIFT ON)				7FH : ON /00H : OFF
8	d	09 9X 08H (SHIFT ON)				7FH : ON /00H : OFF
9	FX	ON 09 9X			0EH/4EH(SHIFT ON)	7FH : ON /00H : OFF
10	I	RST	09 9X		0FH/4FH(SHIFT ON)	7FH : ON /00H : OFF
11	I	FX B1	09 9X		10H/50H(SHIFT ON)	7FH : ON /00H : OFF
12	I	FX B2	09 9X		11H/51H(SHIFT ON)	7FH : ON /00H : OFF
13	I	BEAT LOOP	09 9X		12H/52H(SHIFT ON)	7FH : ON /00H : OFF
14	I	RELOOP	09 9X		13H/53H(SHIFT ON)	7FH : ON /00H : OFF
15	I	< BEAT	09 9X		14H/54H(SHIFT ON)	7FH : ON /00H : OFF
16	I	BEAT >	09 9X		15H/55H(SHIFT ON)	7FH : ON /00H : OFF
17	I	1-4	09 9X		18H/58H(SHIFT ON)	7FH : ON /00H : OFF
18	I	5-8	09 9X		19H/59H(SHIFT ON)	7FH : ON /00H : OFF
19	I	1/5 09 9X			1AH/5AH(SHIFT ON)	7FH : ON /00H : OFF
					34H/74H(SHIFT ON)	7FH : ON /00H : OFF
20	I	2/6 09 9X			1BH/5BH(SHIFT ON)	7FH : ON /00H : OFF
					35H/75H(SHIFT ON)	7FH : ON /00H : OFF
21	I	3/7 09 9X			1CH/5CH(SHIFT ON)	7FH : ON /00H : OFF
					36H/76H(SHIFT ON)	7FH : ON /00H : OFF
22	I	4/8 09 9X			1DH/5DH(SHIFT ON)	7FH : ON /00H : OFF
					37H/77H(SHIFT ON)	7FH : ON /00H : OFF
23	I	SAVE	09 9X		1EH/5EH(SHIFT ON)	7FH : ON /00H : OFF
24	I	DELETE	09 9X		1FH/5FH(SHIFT ON)	7FH : ON /00H : OFF
25	I	SCRATCH	09 9X		20H/60H(SHIFT ON)	7FH : ON /00H : OFF
26	I	PITCHB 09	9X		21H/61H(SHIFT ON)	7FH : ON /00H : OFF
27	I	SEARCH	09 9X		22H/62H(SHIFT ON)	7FH : ON /00H : OFF
28	I	TRAX	09 9X		23H/63H(SHIFT ON)	7FH : ON /00H : OFF
29	I	CUP	09 9X		25H/65H(SHIFT ON)	7FH : ON /00H : OFF
30	I	CUE	09 9X		26H/66H(SHIFT ON)	7FH : ON /00H : OFF
31	I	PLAY	09 9X		27H/67H(SHIFT ON)	7FH : ON /00H : OFF
32	I	SYNC	09 9X		28H/68H(SHIFT ON)	7FH : ON /00H : OFF

ENCODER/WHEEL
	I/O	FUNCTION	MIDI CODE	CHANNEL+ MIDI CODE	FUNCTION CODE	ACTION	REMARK
1	I	TRAX	0B	BX	09H/49H(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N
			09	9X	09H/49H(SHIFT ON)	7FH :ON/00H :OFF
2	I	FX SEL	0B	BX	0AH/4AH(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N
			09	9X	0AH/4AH(SHIFT ON)	7FH :ON/00H :OFF
3	I	FX 1 SEL	0B	BX	0BH/4BH(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N
			09	9X	0BH/4BH(SHIFT ON)	7FH :ON/00H :OFF
4	I	FX 2 SEL	0B	BX	0CH/4CH(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N
			09	9X	0CH/4CH(SHIFT ON)	7FH :ON/00H :OFF
5	I	FX 3 SEL	0B	BX	0DH/4DH(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N
			09	9X	0DH/4DH(SHIFT ON)	7FH :ON/00H :OFF

6	-LE	NGTH+	0B BX	16H/56H(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N
			09 9X 16H/56H(SHIFT ON)		7FH :ON/00H :OFF
7		-MOVE+	0B BX	17H/57H(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N
			09 9X 17H/57H(SHIFT ON)		7FH :ON/00H :OFF
8		WHEEL	0B BX	2FH/6FH(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N	FUNCTION OFF
				30H/70H(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N	SCRATCH ON
				31H/71H(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N	PITCHB ON
				32H/72H(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N	SEARCH ON
				33H/73H(SHIFT ON)	LEFT:40H-N/RIGHT:40H+N	TRAX ON
			09 9X	38H/78H(SHIFT ON)	7FH :ON/00H :OFF(RIGHT)	SCRATCH ON
				39H/79H(SHIFT ON)	7FH :ON/00H :OFF(LEFT)	PLATTER NO TOUCH
				2FH/6FH(SHIFT ON)	7FH :ON/00H :OFF	FUNCTION OFF
				30H/70H(SHIFT ON)	7FH :ON/00H :OFF	SCRATCH ON
				31H/71H(SHIFT ON)	7FH :ON/00H :OFF	PITCHB ON
				32H/72H(SHIFT ON)	7FH :ON/00H :OFF	SEARCH ON
				33H/73H(SHIFT ON)	7FH :ON/00H :OFF	TRAX ON

VR
	I/O	FUNCTION	MIDI CODE	CHANNEL+ MIDI CODE	FUNCTION CODE	ACTION	REMARK
1	I	DRY/WET	0B BX		29H/69H(SHIFT ON)	00H~7FH
2	I	FX PARAM 1	0B BX		2AH/6AH(SHIFT ON)	00H~7FH
3	I	FX PARAM 2	0B BX		2BH/6BH(SHIFT ON)	00H~7FH
4	I	FX PARAM 3	0B BX		2CH/6CH(SHIFT ON)	00H~7FH
5	I	FILTER	0B BX		2DH/6DH(SHIFT ON)	00H~7FH
			09 9X			7F:CENTER IN/00:CENTER OUT
6	I	PAN	0B BX		2EH/6EH(SHIFT ON)	00H~7FH
			09 9X			7F:CENTER IN/00:CENTER OUT

KEY LED
	I/O	FUNCTION	MIDI CODE	CHANNEL+ MIDI CODE	FUNCTION CODE	ACTION	REMARK
1	O 1	09	9X	01H/41H(SHIFT ON)	7FH :ON/00H :OFF
2	O 2	09	9X	02H/42H(SHIFT ON)	7FH :ON/00H :OFF
3	O 3	09	9X	03H/43H(SHIFT ON)	7FH :ON/00H :OFF
4	O 4	09	9X	04H/44H(SHIFT ON)	7FH :ON/00H :OFF
5	O	a	09	9X	05H (SHIFT ON)	7FH :ON/00H : OFF
6	O	b	09	9X	06H (SHIFT ON)	7FH :ON/00H : OFF
7	O	c	09	9X	07H (SHIFT ON)	7FH :ON/00H : OFF
8	O	d	09	9X	08H (SHIFT ON)	7FH :ON/00H : OFF
9	O FX ON	09	9X	0EH/4EH(SHIFT ON)	7FH :ON/00H : OFF
10	O	RST	09	9X	0FH/4FH(SHIFT ON)	7FH :ON/00H : OFF
11	O	FX B1	09	9X	10H/50H(SHIFT ON)	7FH :ON/00H : OFF
12	O FX B2	09	9X	11H/51H(SHIFT ON)	7FH :ON/00H : OFF
13	O	BEAT LOOP	09	9X	12H/52H(SHIFT ON)	7FH :ON/00H : OFF
14	O	RELOOP	09	9X	13H/53H(SHIFT ON)	7FH :ON/00H : OFF
15	O	< BEAT	09	9X	14H/54H(SHIFT ON)	7FH :ON/00H : OFF
16	O	BEAT >	09	9X	15H/55H(SHIFT ON)	7FH :ON/00H : OFF
17	O	1/5	09	9X	1AH/5AH(SHIFT ON)	7FH :ON/00H : OFF	1-4 ON
					34H/74H(SHIFT ON)	7FH :ON/00H : OFF	5-8 ON
18	O	2/6	09	9X	1BH/5BH(SHIFT ON)	7FH :ON/00H : OFF	1-4 ON
					35H/75H(SHIFT ON)	7FH :ON/00H : OFF	5-8 ON
19	O	3/7 09 9X			1CH/5CH(SHIFT ON)	7FH : ON / 00H : OFF	1-4 ON
					36H/76H(SHIFT ON)	7FH : ON / 00H : OFF	5-8 ON
20	O	4/8 09 9X			1DH/5DH(SHIFT ON)	7FH : ON / 00H : OFF	1-4 ON
					37H/77H(SHIFT ON)	7FH : ON / 00H : OFF	5-8 ON
21	O	CUP	09 9X		25H/65H(SHIFT ON)	7FH : ON / 00H : OFF
22	O	CUE	09 9X		26H/66H(SHIFT ON)	7FH : ON / 00H : OFF
23	O	PLAY	09 9X		27H/67H(SHIFT ON)	7FH : ON / 00H : OFF
24	O	SYNC	09 9X		28H/68H(SHIFT ON)	7FH : ON / 00H : OFF

RING LED
	I/O	FUNCTION	MIDI CODE	CHANNEL+ MIDI CODE	FUNCTION CODE ACTION	REMARK
1	0	FX SEL	0B BX		0AH/4AH(SHIFT ON)	00H~7F*
2	0	FX 1 SEL	0B	BX	0BH/4BH(SHIFT ON)	00H~7F*
3	0	FX 2 SEL	0B	BX	0CH/4CH(SHIFT ON)	00H~7F*
4	I	FX 3 SEL	0B	BX	0DH/4DH(SHIFT ON)	00H~7F*

*X-CHANNEL

CHANNEL ADJUSTMENT:

1.Hold the SHIFT button and turn the power on.
2. The button of 1-2-3-4 and a-b-c-d is used to select the desired channel, and the amount of FX SEL RING LED will on accordingly.

The corresponding channel is list as below:

1-a channel 1 3-a channel 9
1-b channel 2 3-b channel 10
1-c channel 3 3-c channel 11
1-d channel 4 3-d channel12
2-a channel 5 4-a channel 13
2-b channel 6 4-b channel 14
2-c channel 7 4-c channel15
2-d channel 8 4-d channel16

1. Then press the SHIFT button again to save the channel LED RINGS CODE:

00~07 => 0 => ALL LED OFF

08~15 => 8 => 1LED ON

16~23 => 16 => 2 LEDs ON

24~31 => 24 => 3 LEDs ON

120.136 130 15
137 137

7.3 TROUBLESHOOTING

If any problem should arise while using Reloop Contour the following chart is the first drop-in center:

SYMPTOMS POSSIBLE CAUSES CORRECTIVE MEASURES
The device does not receive any power USB cord or mains adapter are not correctly when turning it on via the ON/OFF Button connected. -B36-.	Check whether the USB cord is correctly connected to a free USB port of your computer and Contour's USB port -B40-. Please also check whether the mains adapter is connected correctly to the mains connection -B38-.
The Controller's LEDs are only weakly lit The power supply is not sufficient. Connect your computer to a secured power line. Also it is necessary to connect the included mains adapter to the corresponding jack.
Not all outputs of the integrated audio in- The ASIO driver is not installed correctly. Please install the ASIO driver again. Also please read the paragraph „ASIO Driver Installation" in the chapter „Computer Configuration".
The audio interface's sound is distorted. The ASIO driver is not used. The performance settings of your computer do not correspond to the computer's capacity.	Please make sure that the ASIO driver is installed and is also being used. Please refer to the paragraph „ASIO Driver Installation" in the chapter „Computer Configuration". It is also possible that in the ASIO driver's settings the available computer capacity has to be re-configured. Open the settings in Traktor, select the category „Audio Setup" and click on the „Settings" button next to the sound card selection window. Then select „System Performance" -> „Normal". If the problems persist you can also select „Relaxed" in the same menu.
The DJ software does not show any reac- Traktor LE is not configured correctly. In addition to the usage of any of the controller's Traktor Pro is not installed correctly. control elements.	If use the included Traktor LE version, start the Setup Wizard again. Refer to the paragraph „Traktor LE Setup" in the chapter „Computer Configuration". When using Traktor Pro the mapping has to be loaded again. To do so follow the instructions in the paragraph „Trakto Pro Configuration" in the chapter „Computer Configuration".
A problem occurs that is not listed in this Various causes. Visit www.reloopdj.com/forum, in order to get support regarding your Reloop products.

7.4 TECHNICAL SPECIFICATIONS

The following specifications are not verified by Global Distribution GmbH in terms of plausibility and accuracy:

1. General Section
Power Source	USB 5V 500mA / DC: 6V, 1.5A; User Selectable
Dimensions	160 x 382.65 x 63.35 mm
Weight	2 kg
USB
2. USB Slave Player Section: (Signal Format: MP3, 128kbps, Sony Sound Forge 8.0)
2.1 Output Level:	(Sony Sound Audio Device Type: Reloop Contour)
Out 1/2/3/4:	-6dBV +/-2dB (TCD782 TRK16)
Phones Out:	-6dBV +/-2dB (TCD782 TRK16)
2.2 Frequency Response:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	17-16 kHz +/-2dB (TCD782 TRK1, 4, 16, Windows Level at Master Out: 0dB)
2.3 THD+N:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	Less than 0.02% (TCD782 TRK2, Windows Level at Master Out: 0dB), W/20KHz LPF, A-weighted
2.4 S/N Ratio:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	More than 80dB (TCD782 TRK2, 8; windows Level at Master Out: 0dB), W/20KHz LPF, A-weighted
2.5 LR Separation:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	More than 80dB at 1KHz (TCD782 TRK2,9,11, Windows Level At Master, Out:0dB, W/20KHz LPF, A-weighted)
3. Maximum Output:	(Sony Sound Audio Device Type: Windows classic Wave Driver, THD=1%)
Out 1/2/3/4:	More than +7dBV (2.24V) LOAD=100K OHM
Phones:	More than +2dBV (1.26V) LOAD=32 OHM

MODE D'EMPLOI

ATTENTION!

Mode External Mixing

Device In-Port Out-Port

Contour V* (CH1) Reloop CONTOUR Reloop CONTOUR

Contour V* (CH2) Reloop CONTOUR2 Reloop CONTOUR2

Contour V* (CH3) Reloop CONTOUR Reloop CONTOUR

Contour V* (CH4) Reloop CONTOUR2 Reloop CONTOUR2

T32 Touche Play/Pause

1. Hold the SHIFT button and turn the power on.
2. The button of 1-2-3-4 and a-b-c-d is used to select the desired channel, and the amount of FX SEL RING LED will on accordingly.

The corresponding channel is list as below:

1-a channel 13-a channel 9
1-b channel 2 3-b channel 10
1-c channel 3 3-c channel 11
1-d channel 4 3-d channel 12
2-a channel 5 4-a channel 13
2-b channel 6 4-b channel 14
2-c channel 7 4-c channel 15
2-d channel 8 4-d channel 16

1. Then press the SHIFT button again to save the channel LED RINGS CODE:

00~07 => 0 => ALL LED OFF

08~15 => 8 => 1 LED ON

16~23 => 16 => 2 LEDs ON

24~31 => 24 => 3 LEDs ON

.

120~126 - 7 120 - 7 15 LEDs ON

127 => 127 => ALL LEDs ON

7.3 CONSEILS DE DÉPANNAGE

1. General Section
Power Source	USB 5V 500mA / DC: 6V, 1.5A; User Selectable
Dimensions	160 x 382.65 x 63.35 mm
Weight	2 kg
USB
2. USB Slave Player Section: (Signal Format: MP3, 128kbps, Sony Sound Forge 8.0)
2.1 Output Level:	(Sony Sound Audio Device Type: Reloop Contour)
Out 1/2/3/4:	-6dBV +/-2dB (TCD782 TRK16)
Phones Out:	-6dBV +/-2dB (TCD782 TRK16)
2.2 Frequency Response:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	17-16 kHz +/-2dB (TCD782 TRK1, 4, 16, Windows Level at Master Out: 0dB)
2.3 THD+N:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	Less than 0.02% (TCD782 TRK2, Windows Level at Master Out: 0dB), W/20KHz LPF, A-weighted
2.4 S/N Ratio:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	More than 80dB (TCD782 TRK2, 8; windows Level at Master Out: 0dB), W/20KHz LPF, A-weighted
2.5 LR Separation:	(Sony Sound Audio Device Type: Windows classic Wave Driver)
Out 1/2/3/4:	More than 80dB at 1KHz (TCD782 TRK2,9,11, Windows Level At Master, Out:0dB, W/20KHz LPF, A-weighted)
3. Maximum Output:	(Sony Sound Audio Device Type: Windows classic Wave Driver, THD=1%)
Out 1/2/3/4:	More than +7dBV (2.24V) LOAD=100K OHM
Phones:	More than +2dBV (1.26V) LOAD=32 OHM

NOTIZEN / NOTES / NOTE

NOTIZEN / NOTES / NOTE

www.reloopdj.com

Reloop Distribution

Global Distribution GmbH

Schuckertstrasse 28

48153 Munster / Germany

Fax: [phone]
