TTR8633 - Hi-fi system ROADSTAR - Free user manual and instructions

Product type	Turntable with stereo radio and line output (hi-fi system)
Power supply	AC 230 V ~ 50 Hz
Output power	2 x 1.5 W RMS
FM frequency range	88 - 108 MHz
MW frequency range	540 - 1600 kHz
Playback speeds	33 and 45 RPM
Functions	Off (OFF), Turntable (PHONO), Radio (TUNER) with AM/FM/FM ST selection
Headphone input	Headphone jack (3.5 mm) on the front panel
Line output	RCA jack (LINE OUT) for connection to an external hi-fi system
Antennas	Built-in FM antenna (cable at the rear) and built-in MW ferrite antenna
45 RPM adapter	Provided for 17 cm EP records
Cover	Protective cover for the turntable
Indicators	Power indicator and FM stereo indicator
Controls	Volume, tuning, function selector, band selector, speed selector, tonearm lift lever, auto-stop button
Safety	Do not expose to moisture or rain; unplug before cleaning; do not open the casing (no user-serviceable parts)
Maintenance	Clean with a soft, dry cloth; do not use abrasive products

Frequently Asked Questions - TTR8633 ROADSTAR

How to listen to the radio?

Set the function selector (6) to TUNER. The power indicator lights up. Choose the band (AM/FM/FM ST) with the band selector (7). Use the tuning selector (10) to find your station. Adjust the volume (9) to your liking.

How to play a vinyl record?

Open the cover. Set the function selector (6) to PHONO. Place the record on the turntable, use the 45 RPM adapter if necessary. Select the speed (33 or 45 RPM) with button (14). Release the tonearm from its clip and remove the protective cap. Lift the arm using the tonearm lift lever (13), position it at the beginning of the record, then lower it gently.

What to do if the sound is weak or of poor quality?

Check the volume (9). For radio, try reorienting the FM antenna (cable at the rear) or the unit itself for MW reception. If playing a record, clean the stylus with a soft cloth. Set the FM ST selector to Mono if the stereo signal is noisy.

How to connect the turntable to a hi-fi system?

Use the line output (LINE OUT) (16) at the rear of the unit. Connect it to the auxiliary input of your hi-fi system using an RCA cable (not supplied). Then set the function selector to PHONO.

How to maintain the unit?

Unplug the unit before any cleaning. Use a soft, dry cloth to wipe surfaces. Never use abrasive products or solvents. Protect the unit from moisture and dust.

What does the FM stereo indicator mean?

The FM stereo indicator (11) lights up when you receive an FM station in stereo and the band selector (7) is set to FM ST. If the signal is weak, switch to Mono to reduce noise.

How to use the 45 RPM adapter?

Place the EP adapter (12) on the center spindle of the turntable before placing a 45 RPM record (17 cm). Make sure the record is centered. Select the 45 RPM speed with button (14).

How to stop playing a record?

To stop manually, lift the tonearm using the lever (13) and return it to its rest. The Auto Stop function (18) automatically stops the turntable at the end of the record if activated (ON position).

The radio reception is poor, what should I do?

For FM, extend and orient the FM antenna cable (17) at the rear for better reception. For medium wave (MW), rotate the entire unit as the ferrite antenna is directional. Keep the unit away from sources of interference.

Can I use headphones with this system?

Yes, the unit is equipped with a headphone jack (4) on the front panel. Connect your headphones (3.5 mm jack). The speakers are then muted automatically.

USER MANUAL TTR8633 ROADSTAR

TURNTABLE WITH STEREO RADIO RECEIVER AND LINE-OUT.

TTR-8633

Instructionmanual

Bedienungsanleitung

Manueld'instructions

Manualed'istruzioni

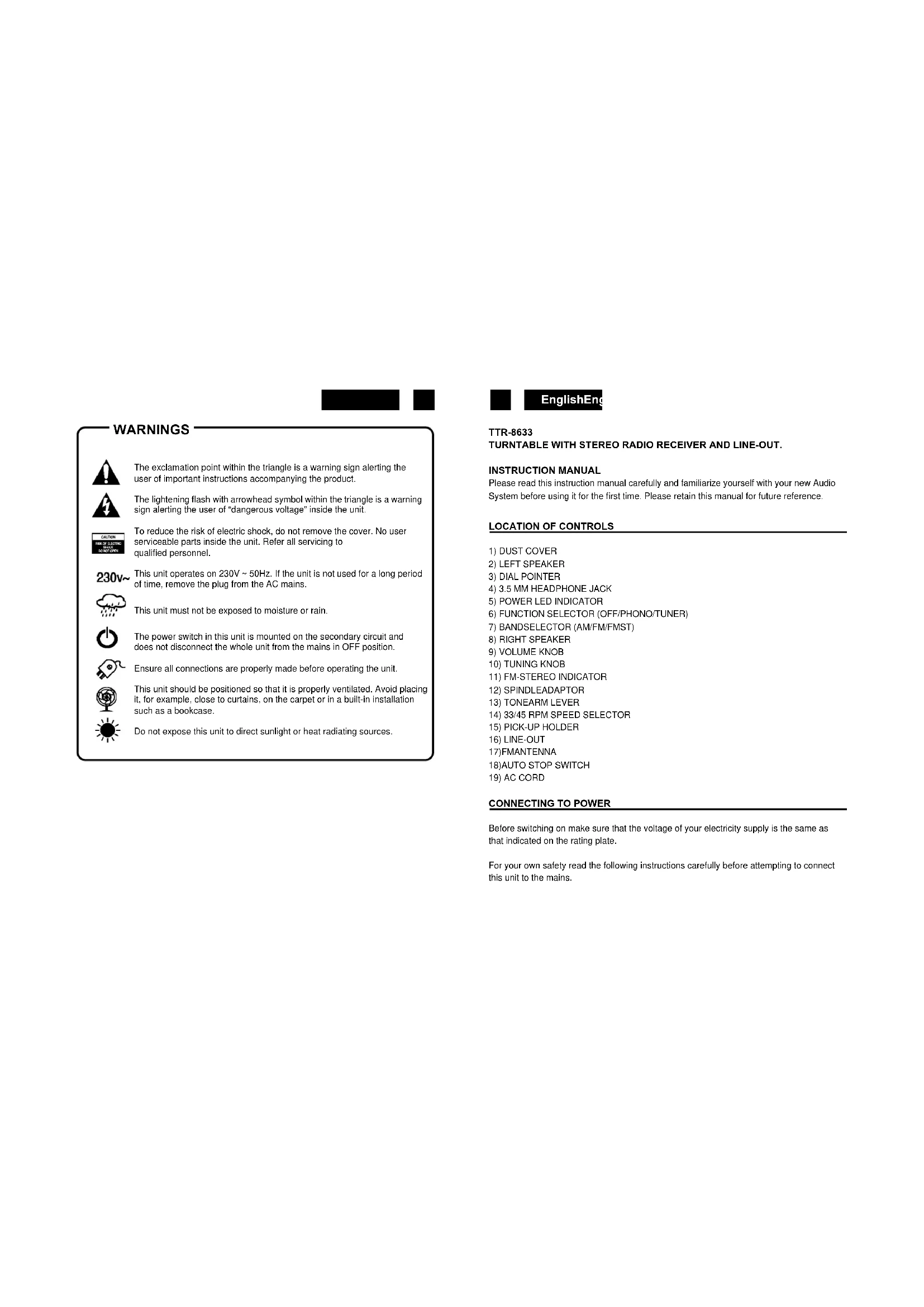

- Your new unit was manufactured and assembled under strict ROADSTAR quality control. Thank you for purchasing our product. Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future references.

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

230v\~

This unit operates on 230V \~ 50Hz. If the unit is not used for a long period of time, remove the plug from the AC mains.

This unit must not be exposed to moisture or rain.

The power switch in this unit is mounted on the secondary circuit and does not disconnect the whole unit from the mains in OFF position.

Ensure all connections are properly made before operating the unit.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

EnglishEng

TTR-8633

TURNTABLE WITH STEREO RADIO RECEIVER AND LINE-OUT.

INSTRUCTION MANUAL

Please read this instruction manual carefully and familiarize yourself with your new Audio System before using it for the first time. Please retain this manual for future reference.

LOCATION OF CONTROLS

1) DUST COVER
2) LEFT SPEAKER
3) DIAL POINTER
4) 3.5 MM HEADPHONE JACK
5) POWER LED INDICATOR
6) FUNCTION SELECTOR (OFF/PHONO/TUNER)
7) BANDSELECTOR (AM/FM/FMST)
8) RIGHT SPEAKER
9) VOLUME KNOB
10) TUNING KNOB
11) FM-STEREO INDICATOR
12) SPINDLEADAPTOR
13) TONEARM LEVER
14) 33/45 RPM SPEED SELECTOR
15) PICK-UP HOLDER
16) LINE-OUT
17) FMANTENNA
18) AUTO STOP SWITCH
19) AC CORD

CONNECTING TO POWER

Before switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

For your own safety read the following instructions carefully before attempting to connect this unit to the mains.

3

This unit is designed to operate on AC 230V 50Hz current only. Connecting it to other power sources may damage the unit.

CAUTION

To prevent electric shock disconnect from the mains before removing cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

SAFETYPRECAUTION

Do not allow this unit to be exposed to rain or moisture.

Mains Supply: 230V 50Hz - AC only

This symbol means that this unit is double insulated. An earth connection is not required.

POWER SUPPLY

Remove the stereo carefully from the box, retaining the packaging for future use.

AC POWEROPERATION

Connect the plug to a mains power inlet 230V AC \~ 50 Hz.

MW/FM TUNER

Operation

• Set the Function Selector (6) to the TUNER position.
The red Power Indicator (5) will light up.
- Select the desired frequency band with the Band Selector (7).
- Tune to the desired radio station by turning the Tuning control (10).
• To switch off the radio set the Function Selector (6) to the OFF position.

ANTENNA

• For FM reception there is a built-in FM antenna wire (17) at the rear of the unit. Move the wire around to obtain the best reception.
• For MW reception the signals are picked up through a built-in ferrite antenna. Your may have to orient the unit to obtain the best reception.

FM& FM-STEREO RECEPTION

• Stereo reception is possible when the tuned FM station is broadcasting in stereo.
• When in FM STereo mode and the station is broadcasting in Stereo, the STEREO indicator (11) lights up.

4

EnglishEng

- When FM stations are weak and are disturbed, listening can be improved by switching the Band selector to FM (Mono)(7). Reception will then be in MONO.

TURNTABLE OPERATION

Preparation

Open the Record Player Cover.

Release the Tonearm Clamp, and remove the stylus protector.

Listening to Records

1. Set the Function Selector (6) to the PHONO position.
2. Place a record on the turntable, over the central spindle. Place the EP adapter over the central spindle when playing 17cm EP records.
3. Set the Speed Selector (14) to 33 or 45 rpm according to the record.
4. Release the tonearm clamp, and remove the protective cap from the stylus.
5. Lift the Tonearm with the Tonearm Lift Lever (13).
6. Move the tonearm to the beginning of the record, or to the start of a particular track.
7. Gently lower the tone arm onto the record with the Tonearm Lift lever to start playing.
8. When the record is finished the tonearm will automatically stop. Lift the tonearm from the record and return it to the rest.
9. To stop manually, lift the tonearm from the record and return it to the rest.
10. To select Auto Stop mode, move the Auto Stop Switch (18) to ON position.

Notes: Do not stop or turn the platter manually.

Moving or jarring the turntable without securing the Tonearm clamp could result in damage to the Tonearm.

Replace the protective cap on the stylus when not in use.

LINE-OUT FUNCTION

You can connect the system to external audio device (amplifier or active speakers) through the Line out RCA socket (16) with an RCA cable (not included).

SPECIFICATIONS

Power Supply

AC: 230V \~ 50Hz

Radio Frequency Coverage

FM: 88 - 108MHz

MW: 540 - 1600kHz

Output power 2 x 1.5 W RMS

Design and specifications are subject to change without notice.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

5

6

EnglishEng
