USER MANUAL KDCBT49DAB KENWOOD

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Notice: The sign "Pb" below the symbol for batteries indicates that this battery contains lead.

The marking of products using lasers

The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC Declaration of Conformity with regard to the EMC Directive 2004/108/EC Declaration of Conformity with regard to the RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU Representative:

JVCKENWOOD NEDERLAND B.V.

Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands

Hereby, JVC KENWOOD declares that this unit KDC-BT49DAB is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Français

Par la presente JVC KENWOOD declare que I'appareil

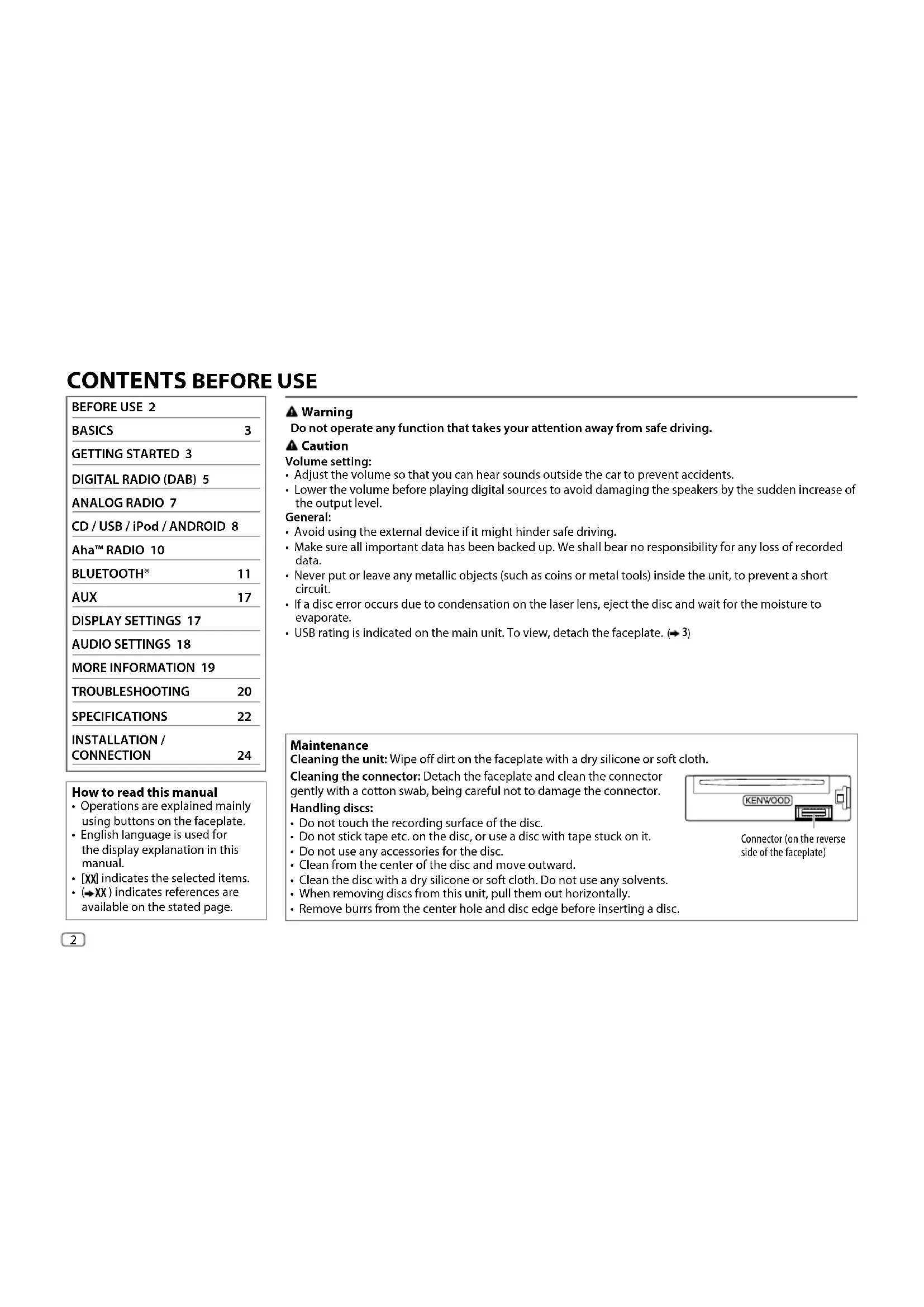

How to read this manual

• Operations are explained mainly using buttons on the faceplate.
• English language is used for the display explanation in this manual.
• [XX] indicates the selected items.
• ( × X) indicates references are available on the stated page.

Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.
• USB rating is indicated on the main unit. To view, detach the faceplate. (→3)

Maintenance

Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector: Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Handling discs:

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

Connector (on the reverse side of the faceplate)

BASICS

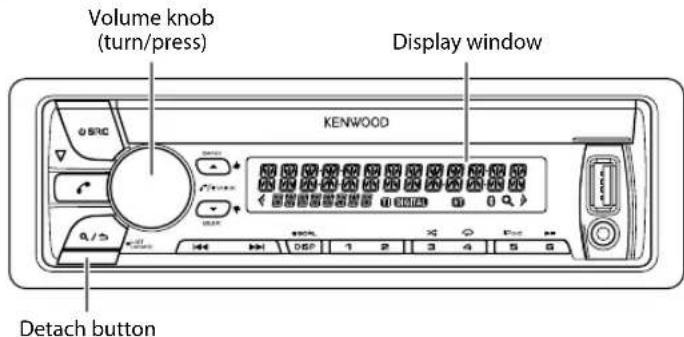

Faceplate

How to resetAttach Detach

Your preset adjustments will also be erased.

To On the faceplate

Turn on the power

Press SRC.

• Press and hold to turn off the power.

Adjust the volume Turn the volume knob.

Select a source

Press SRC repeatedly.

Change the display

Press DISP SCRL repeatedly.

information

• Press and hold to scroll the current display information.

GETTING STARTED

Select the display language and cancel the demonstration

When you turn on the power (or after you reset the unit), the display shows: "SEL LANGUAGE" "PRESS" "VOLUME KNOB"

1 Turn the volume knob to select [ENG] (English) or [RUS] (Russian), then press the knob. [ENG] is selected for the initial setup.

Then, the display shows: "CANCEL DEMO" "PRESS" "VOLUME KNOB".

2 Press the volume knob.

[YES] is selected for the initial setup.

3 Press the volume knob again. "DEMO OFF" appears.

Set the clock

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ CLOCK], then press the knob.
3 Turn the volume knob to select [ CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob. Day Hour Minute

GETTING STARTED

5 Turn the volume knob to select [CLOCK FORMAT], then press the knob.

6 Turn the volume knob to select [12H] or [24H], then press the knob.

7 Press and hold exit.

To return to the previous setting item, press a

Set the initial settings

1 Press bostert STANDBY.
2 Press the volume knob to enter [FUNCTION].
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold.

To return to the previous setting item, press a/5

Default: XX

AUDIO CONTROL

SP SELECT	OFF/5/4/6×9/6/OEM: Selects according to the speaker size (5 inches or 4 inches, 6×9 inches or 6 inches) or OEM speakers for optimum performance.
DISPLAY
EASY MENU	ON: Both display and button illumination change to white color when entering [FUNCTION].;OFF: Both display and button illumination remain as [COLORSELECT] color. (↔17)
TUNER SETTING
DAB L-BAND	ON: Receives L-BAND ensemble during digital audio reception.;OFF: Cancels
DAB ANT POWER	ON: Supplies power to the DAB antenna. Selects when using the supplied antenna. ;OFF: Does not supply power. Selects when using passive antenna without booster. (↔26)
PRESET TYPE NORMAL	; Memorizes one station for each preset button in each band (FM1/ FM2/ FM3/ MW/ LW/ DB2/ DB3). ;MIX: Memorizes one station for each preset button, regardless of the selected band.

SYSTEM

KEY BEEP ON: Activates the keypress tone. ; OFF: Deactivates.
SOURCE SELECT
AHA SRC ON: Enables AHA in source selection. ; OFF: Disables. (→10)
BUILT-IN AUX ON : Enables AUX in source selection. ; OFF: Disables. (→17)
P-OFF WAIT	Applicable only when the demonstration mode is turned off. Sets the duration when the unit will automatically turn off (while in standby mode) to save the battery. 20M: 20 minutes; 40M: 40 minutes; 60M: 60 minutes; WAIT TIME — — : Cancels
CD READ 1	: Automatically distinguishes between audio file disc and music CD. ; 2: Forces to play as a music CD. No sound can be heard if an audio file disc is played.
F/W UPDATE
UPDATE SYSTEM / UPDATE BT / UPDATE DAB1 / UPDATE DAB2
F/W UP xx.xx/ F/W UP xxx/ F/W UP Vxxx	YES: Starts upgrading the firmware. ; NQ Cancels (upgrading is not activated). For details on how to update the firmware, see: www.kenwood.com/cs/ce/
CLOCK
CLOCK DISPLAY	ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels.
ENGLISH	Selected language is use as the display language for [FUNCTION] menu and Tag information (folder name, file name, song title, artist name, album name) if applicable.
PYCKM	Selected language is use as the display language for [FUNCTION] menu and Tag information (folder name, file name, song title, artist name, album name) if applicable.

DIGITAL RADIO (DAB)

About DAB (Digital Audio Broadcasting)

DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data.

In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called "services") to form one "ensemble."

The "primary component" (main radio station) is sometimes accompanied by a "secondary component" which can contain extra programs or other information.

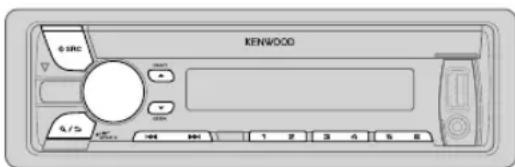

Preparation:

1 Connect a DAB antenna to the DAB antenna jack. (一 25)
2 Press to Select DAB.
3 Press and hold List UPDATE Service List update.

"LIST UPDATE" appears and update starts. "UPDATED" appears when update completes. Updates take up to 3 minutes. No interruption (such as traffic information) is possible during updates.

To cancel the Service List update: Press and hold Q/LIST UPDATE again.

Search for an ensemble

1 Press (he)rately to select DAB.
2 Press to select DB1/DB2/DB3.
3 Press and hold / to search for an ensemble.
4 Press 一 / 一 to select an ensemble, service or component to listen.

To change the searching method for | / Press SEEK repeatedly.

AUTO1 : Press / : Select an ensemble, service or component.

Press and hold 一 一 一 : Automatically search for an ensemble.

AUTO2 : Press / : Search for a preset station.

MANUAL: Press / : Select an ensemble, service or component.

Press and hold / : Manually search for an ensemble.

• To store a service: Press and hold one of the number buttons (1 to 6).
• To select a stored service: Press one of the number buttons (1 to 6).

Select a service

1 Press Qo/entLSetWrdSrech mode.
2 Turn the volume knob or press / to select a service, then press the knob.

To cancel the Service Search mode, press a/5

Select a service by name

1 Press Qo/entLsTswRdsBeech mode.
2 Turn the volume knob quickly to enter Alphabet Search mode.
3 Turn the volume knob or press 一 一 to select the character to be searched for.
4 Press the volume knob to start searching.
5 Turn the volume knob to select a service, then press the knob.

To cancel the Alphabet Search mode, press a/

DIGITAL RADIO (DAB)

Other settings

1 Press the volume knob to enter [FUNCTION].

2 Turn the volume knob to make a selection (see the following table), then press the knob.

3 Repeat step 2 until the desired item is selected or activated.

4 Press and hold etit.

To return to the previous setting item, press a/

Default: XX

TUNER SETTING

AF SET	ON:While listening to DAB: Automatically switch to FM broadcasting the same program if the DAB signal becomes weak. It will switch back to DAB sound when the signal becomes strong again.While listening to FM: Automatically switch to DAB source broadcasting the same program (if available).;OFF: Cancels.
TI ON	: Allows the unit to temporarily switch to Traffic Information if available ("TI" lights up).; OFF: Cancels.
PTY SEARCH	Press the volume knob to enter PTY language selection. Turn the volume knob to select the PTY language (ENGLISH/FRENCH/GERMAN), then press the knob.Selection the available Program Type (see the following), then, press !←/▶→to start.
ASW SELECT	TRAVEL,WARNINGSPNEWS,WEATHER,EVENT,SPECIAL,RAD INFO,SPORTS,FINANCE:Turn the volume knob to make a selection, then press the knob."×"appears in front of the activated announcement type.Automatically switch from any source to Digital radio ensembles broadcasting an activated announcement type.Multiple announcement can be activated simultaneously.To deactivate,press the volume knob again ("×" goes off).

LIST UPDATE AUTO : Automatically update the DAB Service List when the power is turned on.; MANUAL: Updates the DAB Service List by pressing and holding q/w-s.
PTY WATCH	Automatically switch from any source to Digital Radio ensembles broadcasting a selected type of program.NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIORED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATIONALM (music), OLDIES, FOLK M (music), DOCUMENT OFF: Cancels.
RELATED SERV	ON: Enable Soft-Link function to switch to an alternative service which is different audio program from the current audio program.; OFF: Disable.
CLOCK
TIME SYNC	ON: Synchronizes the unit's time to the Digital Radio signal station time.; OFF: Cancels.

Available Program Type:

SPEECH: NEWS, AFFAIRS, INFO (information), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIORED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT

MUSIC: POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music) The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.

• If the volume is adjusted during reception of traffic information, announcement, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, announcement, alarm or news bulletin is turned on.

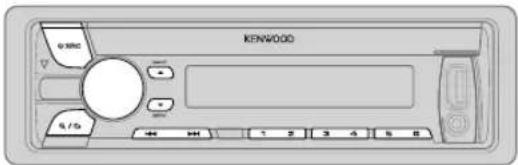

ANALOG RADIO

Search for a station

1 Press hespeatedly to select TUNER.
2 Press randomly to select FM1/FM2/ FM3/MW/LW.
3 Press / to search for a station.
To change the searching method for 一 / 一 Press SEEK repeatedly.

AUTO1: Automatically search for a station.

AUTO2 : Search for a preset station.

MANUAL:Manually search for a station.

To store a station: Press and hold one of the number buttons (1 to 6).
- To select a stored station: Press one of the number buttons (1 to 6).

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold

To return to the previous setting item, press a/

TUNER SETTING
LOCAL SEEK	ON: Searches only stations with good reception. ; OFF: Cancels.
AUTO MEMORY	YES: Automatically starts memorizing 6 stations with good reception. ; NO: Cancels. • Selectable only if [NORMAL] is selected for [PRESET TYPE]. (→4)
MONO SET ON	: Improves the FM reception, but the stereo effect may be lost. ; OFF: Cancels.
NEWS SET ON	: The unit will temporarily switch to News Programme if available. ; OFF: Cancels.
REGIONAL ON	: Switches to another station only in the specific region using the “AF” control. ; OFF: Cancels.
AF SET ON	: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; OFF: Cancels.
TI* ON	: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ; OFF: Cancels. * [TI] in MW/LW band is for enabling traffic interruption to DAB source only.
PTY SEARCH	Press the volume knob to enter PTY language selection. Turn the volume knob to select the PTY language (ENGLISH/FRENCH/GERMAN), then press the knob. Selects the available Program Type (see the following), then, press ↓ / ↑ to start.

• [LOCAL SEEK]/[MONO SET]/[NEWS SET]/[REGIONAL]/[AF SET]/[PTY SEARCH] is selectable only when the band is FM1/ FM2/ FM3.
  Available Program Type: SPEECH:NEWS, AFFAIRS INFO (information), SPORT, EDUCATE, DRAMA CULTURE, SCIENCE, VARIOED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT MUSIC: POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music)
  The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.
• If the volume is adjusted during reception of traffic information, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, alarm or news bulletin function is turned on.

CD / USB / iPod /Android

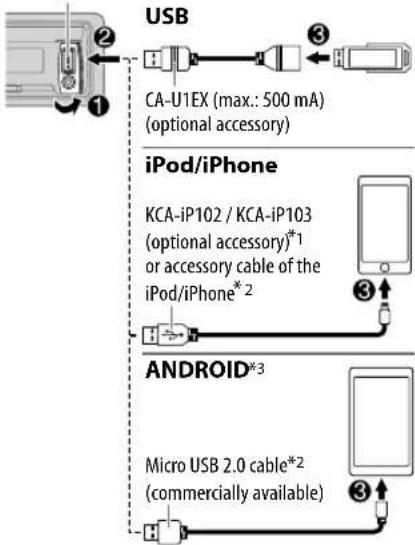

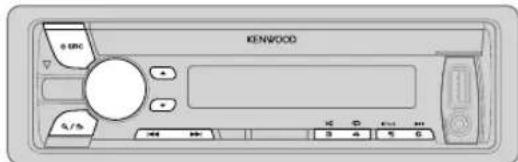

Start playback

The source changes automatically and playback starts.

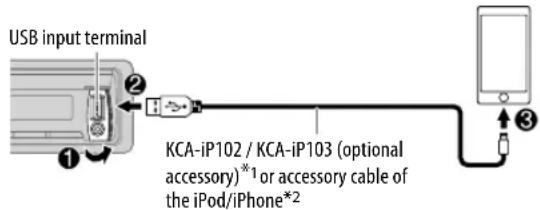

USB input terminal

^1 KCA-iP102:30-pin type, KCA-iP103:Lightning type
2 Do not leave the cable inside the car when not using.

To On the faceplate

Playback / pause Press .	6▶11
Reverse / Fast-forward*4	Press and hold |←/→|.
Select a track/file	Press |←/→|.
Select a folder*5	Press ▲/▼.
Repeat play*6	Press repeatedly. TRACK REPEAT/ REPEAT OFF: Audio CD FILE REPEAT/ FOLDER REPEAT / REPEAT OFF: MP3/WMA/AAC/WAV file, iPod or ANDROID FILE REPEAT/ REPEAT OFF: KME Light/ KMC file *7
Random play*6	Press repeatedly. DISC RANDOM/ RANDOM OFF: Audio CD FOLDER RANDOM/ RANDOM OFF: MP3/WMA/AAC/WAV file, KME Light/ KMC file, iPod or ANDROID
	Press and hold 3×↓ to select ALL RANDOM.*8
Select control mode	While in iPod source, press 5 iPod repeatedly. MODE ON: Control from the iPod *9 MODE OFF: Control from the unit While in ANDROID source, (→ 9, [ANDROID SETUP])
Select music drive (→ 9, [MUSIC DRIVE])	Press 5 iPod repeatedly. The stored songs in the following start playback. • Selected internal or external memory of a smartphone (Mass Storage Class). • Selected drive of a multiple drives device.

CD/USB/iPod/Android

3 When connecting an Android device, "Press [VIEW] to install KENWOOD MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device before connecting. (→ 19)
4 For ANDROID: Applicable only when [BROWSE MODE] is selected. (ANDROID SETUP])
5 For CD: Only for MP3/WMA/AAC files. This does not work for iPod/Android.
6 For iPod/Android: Applicable only when [MODE OFF]/[BROWSE MODE] is selected.
^7 KME Light: KENWOOD Music Editor Light, KMC: KENWOOD Music Control (→ 19)
8 For CD: Only for MP3/WMA/AAC files.
*9 You can still play/pause, file skip, fast-forward or reverse files from the unit.

Select a file from a folder/list

1 Press /
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

For USB (for KME Light/ KMC files):

Press / to search at a preset skip search ratio. (→[SKIP SEARCH])

Press and hold 1 × 100 to search at a 10% ratio.

Not applicable for CD and MP3/WMA/AAC/WAV files.

For iPod:

You can search for a file according to the first character.

Turn the volume knob quickly to enter character search.
Turn the volume knob to select the character.
To search for a character other than A to Z and 0 to 9, enter only *
3 Press / to move to the entry position.
- You can enter up to 3 characters.
4 Press the volume knob to start searching.

• To return to the root folder/ first file/ top menu, press 5 iPod.
  To return to the previous setting item, press a/b.
  To cancel, press and hold /
• For iPod, applicable only when [MODE OFF] is selected. (→ 8)
• ForAndroid,applicableonlywhen[BROWSE MODE]is selected.（AndroidSETUP)]

Listen to Tuneln Radio/Tuneln Radio Pro/Aupeo

While listening to Tuneln Radio, Tuneln Radio Pro or Aupeo, connect the iPod/iPhone to the USB input terminal of the unit.

The unit will output the sound from these applications.

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold

To return to the previous setting item, press a/b

Default: XX

ANDROID SETUP

BROWSE MODE: Control from the unit (using KENWOOD MUSIC PLAY application).; HAND MODE: Control other media player applications from the Android device (without using KENWOOD MUSIC PLAY application). However, you can still play/pause and file skip from the unit.

USB

MUSIC DRIVE DRIVE CHANGE : The next drive ([DRIVE 1] to [DRIVE 5]) is selected automatically and playback starts. Repeat steps 1 to 3 to select the following drives.

SKIP SEARCH 0.5% / 1% / 5% / 10%: While listening to iPod,Android or KME Light/KMC file, selects the skip search ratio over the total files.

Aha™ RADIO

Preparation:

Install the latest version of AhaTM application on your device (iPhone/ iPod touch), then create an account and log in to AhaTM.

• Select ON] for [AHA SRC]. ( 4)

Start listening

1 Open the AhaTM application on your device.
2 Connect your device to the USB input terminal.

The source changes to AHA and broadcast starts.

^1 KCA-iP102:30-pin type, KCA-iP103:Lightning type
2 Do not leave the cable inside the car when not using.

To On the faceplate

Playback/pause Press.

Select a content

Press

Forward 30 seconds of a content*4

Press and hold

Backward 15 seconds of a content*4

Press and hold

"Like" current content*5

Press

To unvote, press again.

"Dislike" current content*6

Press

To unvote, press again.

3 The functionality is depending on the selected station.
4 Applicable to audiobook and podcast only.
5 Not applicable to audiobook, Location Based Stations (LBS) and Twitter station.
6 Not applicable to audiobook, Location Based Stations (LBS), Facebook and Twitter station.

Search for a station

1 Press R/
2 Turn the volume knob to select a station, then press the knob.
3 Turn the volume knob to the desired content, then press the knob.

To cancel, press and hold

You can make a call when your device is connected to the unit via Bluetooth connection ( 16) ...

• To call a number in the content*7: Press 1, then press the volume knob to call.
  To end or disconnect a call: Press

*7 The availability is depending on the selected station.

BLUETOOTH®

BLUETOOTH - Connection

Supported Bluetooth profiles

• Hands-Free Profile (HFP)
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)
• Advanced Audio Distribution Profile (A2DP)
  Audio/Video Remote Control Profile (AVRCP)

Supported Bluetooth codecs

• Sub Band Codec (SBC)
• Advanced Audio Coding (AAC)
• aptX Codec (aptX)

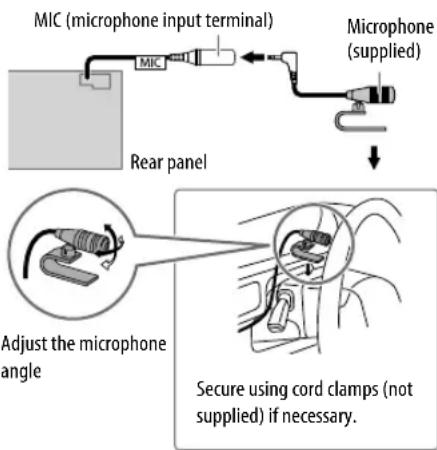

Connect the microphone

Pair a Bluetooth device

When connecting a Bluetooth device to the unit for the first time, perform pairing between the unit and the device.

1 Press to ARG on the unit.
2 Search and select this unit model name (KDC-BT4 *DAB) on the Bluetooth device.

"PAIRING" "PASS XXXXXX" Device name PRESS"VOLUME KNOB" scrolls on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.
  Refer also to the manual supplied with your Bluetooth device.

3 Press the volume knob to start pairing.

"PAIRING OK" appears when pairing is completed and "B" will light up when the Bluetooth connection is established.

• Up to five devices can be registered (paired) in total.
• Only one Bluetooth device can be connected at any time.
• This unit supports Secure Simple Pairing (SSP).
• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually. Refer to the instruction manual of the Bluetooth device for more information.
• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 15, DEVICE DELETE].
• When you connect iPhone/ iPod touch/ Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated. Press the volume knob to pair once you have confirmed the device name.

Automatic pairing request is activated only if:

• Bluetooth function of the connected devcie is turned on.
  [AUTO PAIRING] is set to [ON]. (→ 15)
• KENWOOD MUSIC PLAY application is installed on the Android device.

BLUETOOTH®

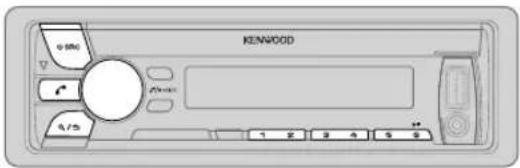

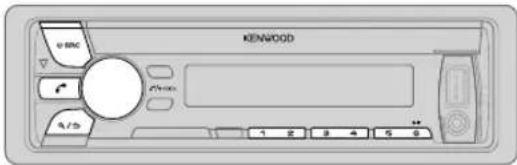

BLUETOOTH - Mobile phone

Receive a call

When there is an incoming call:

• All the buttons and display flash.
• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (→ 13)

During a call:

• The buttons and display illuminate according to the settings made for [DISPLAY]. (→17)
• If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected.

To On the faceplate

Answer a call	Press or the volume knob or one of the number buttons (1 to 6).
Reject a call	Press SRC.
End a call	Press or SRC
Adjust the phone volume [00] to [35] (Default: [15]*)	Turn the volume knob during a call. ·This adjustment will not affect the volume of the other sources.
Switch between hands-free and private talk modes	Press ▶ □ during a call. ·Operations may vary according to the connected Bluetooth device.

• Not applicable for iPhone. During a call, the unit synchronizes the phone volume on the iPhone to the unit.

Improve the voice quality

While talking on the phone...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold

To return to the previous setting item, press Q/

Default: XX

MIC GAIN -10	\( + {10}\left( {-4}\right) \) : The sensitivity of the microphone increases as the number increased.
NR LEVEL -5	\( + 5\left( 0\right) \) : Adjust the noise reduction level until the least noise is being heard during a phone conversation.
ECHO CANCEL -5	\( + 5\left( 0\right) \) : Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

BLUETOOTH®

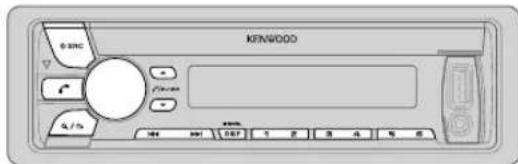

Make the settings for receiving a call

1 Press to enter Bluetooth mode.
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold.

To return to the previous setting item, press

Default: XX

SETTINGS

AUTO ANSWER

1- 30 The unit answers

incoming call automatically in the selected time (in seconds). OFF: Cancels.

BATT/SIGNAL AUTO

: Shows the strength of the rry and signal when the unit ts a Bluetooth device and the ooth device is connected. ; Cancel. Clock time is shown.

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press and hold

To return to the previous setting item, press R/

CALL HISTORY

1 Press the volume knob to select a name or a phone number. ·“INCOMING”, “OUTGOING”, or “MISSED” is shown on the lower part of the display to indicate the previous call status. ·PreDISP SCRL to change the display category (NUMBER or NAME). ·“NO DATA” appears if there is no recorded call history. 2 Press the volume knob to call.

PHONE BOOK

1 Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHJKLM) appears. ·To go to the other menu (LMNOPQRSTUV or WXYZ1 *, press▲/▼. ·To select the desired first letter, turn the volume knob or press▶▶▶, then press the knob. Select “1” to search with numbers and select “*” to search with symbols. 2 Turn the volume knob to select a name, then press the knob. 3 Turn the volume knob to select a phone number, then press the knob to call. ·If the phone supports PBAP, the phonebook of the connected phone is automatically transferred to the unit when pairing. ·Contacts are categorized as: HOME, OFFICE, MOBILE, OTHER, GENERAL. ·This unit can display only non-accent letters. (Accent letters such as “U” is shown as “U”).

BLUETOOTH®

NUMBER DIAL	1 Turn the volume knob to select a number (0 to 9) or character (*, #, +). 2 Press i←/▶to move the entry position. Repeat steps 1 and 2 until you finish entering the phone number. 3 Press the volume knob to call.
VOICE	Speak the name of the contact you want to call or the voice command to control the phone functions. (→Make a call using voice recognition)
BATT*	LOW/ MID/FULL: Shows the strength of the battery.
SIGNAL*	NO SIGNAL/ LOW/MID/MAX: Shows the strength of the current received signal.

• Functionality depends on the type of the phone used.

Make a call using voice recognition

1 Press and hold to activate the connected phone.
2 Speak the name of the contact you want to call or the voice command to control the phone functions.
- Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
- This unit also supports the intelligent personal assistant function of iPhone.

Delete a contact

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [CALL HISTORY], then press the knob.
3 Turn the volume knob to select a contact.
4 Press and hold the volume knob to enter delete mode.
5 Turn the volume knob to select [DELETE ONE] or [DELETE ALL], then press the knob. DELETE ONE: Selected name or phone number in step 3 is deleted. DELETE ALL: All names or phone numbers in [CALL HISTORY] in step 2 is deleted.
6 Turn the volume knob to select [YES], then press the knob.
7 Press and hold t ,exit.
To return to the previous setting item, press a/s
- Not applicable for mobile phone that supports PBAP.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [CALL HISTORY], [PHONE BOOK], or [NUMBER DIAL], then press the knob.
3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number.
4 Press and hold one of the number buttons (1 to 6). "STORED" appears when the contact is stored.

To erase a contact from the preset memory, select [NUMBER DIAL] in step 2 and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press the volume knob to call. "NO MEMORY" appears if there is no contacts stored.

BLUETOOTH®

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold exist.

To return to the previous setting item, press

Default: XX

BT MODE

PHONE SELECT	Selects the phone or audio device to connect or disconnect. “*” appears in front of the device name when connected.
AUDIO SELECT	·You can only connect another Bluetooth device by disconnecting the connected Bluetooth device first. “*” disappears when disconnected.
DEVICE DELETE	1 Turn the volume knob to select a device to delete, then press the knob. 2 Turn the volume knob to select [YES] or [NO], then press the knob.
PIN CODE EDIT (0000)	Changes the PIN code (up to 6 digits). 1 Turn the volume knob to select a number. 2 Press ↓/→to move the entry position. Repeat steps and 2 until you finish entering the PIN code. 3 Press the volume knob to confirm.
RECONNECT ON	: The unit automatically reconnect when the last connected Bluetooth device is within range.; OFF: Cancels.
AUTO PAIRING ON	: The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/ Android device) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work.; OFF: Cancels.
INITIALIZE YES	: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.); NO Cancels.

Bluetooth test mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.
- Make sure there is no Bluetooth device paired.

1 Press and hold .

"PLEASE PAIR YOUR PHONE PIN 0000" appears.
2 Search and select this unit model name (KDC-BT4*DAB) on the Bluetooth device.
3 Operate the Bluetooth device to confirm pairing.

"TESTING" flashes on the display.

The connectivity result (OK or NG) appears after the test.

PAIRING: Pairing status

HF CNT: Hands-Free Profile (HFP) compatibility
AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility

PB DL: Phonebook Access profile (PBAP) compatibility

To cancel test mode, press and hold SRC to turn off the unit.

BLUETOOTH®

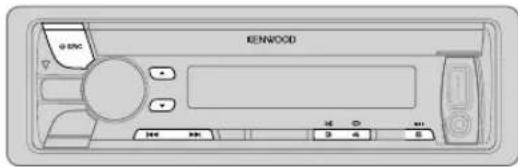

BLUETOOTH-Audio

Audio player via Bluetooth

1 Press (re)atedly to select BT AUDIO.
2 Operate the Bluetooth audio player to start playback.

To On the faceplate

Playback / pause	Press 6▶11.
Select group or folder	Press ▲/▼.
Reverse / Forward skip	Press ↓/▶↓.
Reverse / Fast-forward	Press and hold ↓/▶↓.
Repeat play Press	4▶ repeatedly. ALL REPEAT, FILE REPEAT, REPEAT OFF
Random play Press repeatedly.	3▶ FOLDER RANDOM, RANDOM OFF
	Press and hold 30:select ALL RANDOM.

Operations and display indications may differ according to their availability on the connected device.

Internet radio via Bluetooth

Listen to AhaTM Radio

Preparation:

Select [ON] for [AHA SRC]. (一 4)

You can listen to AhaTM Radio on your smart phone (Android OS) through Bluetooth on this unit.

1 Open the AhaTM application on your smart phone.
2 Connect your smart phone via Bluetooth connection. ( 11)
3 Press repeatedly to select AHA. The source switches and broadcast starts automatically.
- You can operate Aha™ Radio in the same way as Aha™ Radio for iPod/iPhone. (→ 10)
To call a number in the content: Press 1, then press the volume knob to call.
- To end or disconnect a call: Press
The availability is depending on the selected station.

AUX

Preparation:

Select [ON] for [BUILT-IN AUX]. ( 4)

Start listening

1 Connect a portable audio player (commercially available).

3.5 mm stereo mini plug with "L" shaped connector (commercially available)

2 Press repeatedly to select AUX.
3 Turn on the portable audio player and start playback.

Set the AUX name

While listening to a portable audio player connected to the unit...
1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SYSTEM], then press the knob.
3 Turn the volume knob to select [ AUX NAME SET], then press the knob.
4 Turn the volume knob to make a selection, then press the knob. AUX (default)/DVD/PORTABLE/GAME/VIDEO/TV
5 Press and hold

To return to the previous setting item, press Q/

DISPLAY SETTINGS

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [DISPLAY], then press the knob.
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.

5 Press and hold a.

To return to the previous setting item, press

Default: XX

COLOR SELECT VARIABLE SCAN / CUSTOM R/G/B/ preset colors*: Selects your preferred key and display illumination color.

You can create your own color (when [CUSTOM R/G/B] or preset colors* is selected). The color you have created can be stored in [CUSTOM R/G/B].

1 Press and hold the volume knob to enter the detailed color adjustment.
2 Press / to select the color (R/ G/B) to adjust.
3 Turn the volume knob to adjust the level (0 — 9), then press the knob.

DIMMERON : Dims the display and button illumination. ; OFF: Cancels.

BRIGHTNESS 0 -31: Selects your preferred brightness level for display and button illumination.

TEXT SCROLL AUTO /ONCE: Selects whether to scroll the display information automatically, or scroll only once. OFF: Cancels.

* Preset colors:RED1/ RED2/ RED3/ PURPLE1/PURPLE2/PURPLE3/ PURPLE4 BLUE1/ BLUE2/ BLUE3/ SKYBLUE1/ SKYBLUE2/ LIGHTBLUE/AQUA1/AQUA2/GREEN1/ GREEN2/ GREEN3/YELLOWGREEN1/YELLOWGREEN2/YELLOW/ORANGE1/ORANGE2/ ORANGERED

AUDIO SETTINGS

While listening to any source...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [AUDIO CONTROL], then press the knob.
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold to exit.

To return to the previous setting item, press Q/3.

Default: XX

SUB-W LEVEL -15 to +15 (0) Adjusts the subwoofer output level.

BAND1 LEVEL -8 to +8 (+6)

BAND2 LEVEL -8 to +8 (+6)

BAND3 LEVEL -8 to +8 (+7)

BAND4 LEVEL -8 to +8 (+3)

BAND5 LEVEL -8 to +8 (0)

PRESET EQ DRIVE EQ /TOP40/ POWERFUL/ROCK/POPS/EASY/JAZZ/NATURAL/USER: Selects a preset equalizer suitable to the music genre. (Select [USER] to use the customized settings.)[DRIVE EQ] is a preset equalizer that reduces noise outside the car or running noise of the tyres.

BASS BOOST LEVEL1 /LEVEL2/LEVEL3: Selects your preferred bass boost level.; OFF: Cancels.

LOUDNESS LEVEL1 /LEVEL2 Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level.; OFF: Cancels.

EXTRA EQ LEVEL1 / LEVEL2/LEVEL3 : Selects your preferred elevation level to enhance the sound in [PRESET EQ].;OFF: Cancels.

SUBWOOFER SET ON : Turns on the subwoofer output. ;OFF: Cancels.

LPF SUBWOOFER THROUGH : All signals are sent to the subwoofer. ;85HZ/ 120HZ/ 160HZ: Audio signals with frequencies lower than 85 Hz/ 120 Hz/ 160 Hz are sent to the subwoofer.

SUB-W PHASE REVERSE (180°)/ NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [LPF SUBWOOFER].)

HPF THROUGH : All signals are sent to the speakers. ; 100HZ/ 120HZ/ 150HZ: Audio signals with frequencies higher than 100 Hz/ 120 Hz/ 150 Hz are sent to the speakers.

FADER R15 toF15 (0): Adjusts the rear and front speaker output balance.

BALANCE L15 toR15 (0): Adjusts the left and right speaker output balance.

VOLUME OFFSET For AUX: -8 to +8 (0); For other sources: -8 to 0 Presets the volume adjustment level of each source. (Before adjustment, select the source you want to adjust.)

SOUND RECNSTR (Sound reconstruction) ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; OFF: Cancels.

SUB-W LEVEL]/[LPF SUBWOOFER]/[SUB-W PHASE] is selectable only if SUBWOOFER SET] is set to [ON].

MORE INFORMATION

General

• This unit can only play the following CDs:

• Detailed information and notes about the playable audio files are stated in an online manual on the following web site: www.kenwood.com/cs/ce/audiofile/

Playable files

• Playable audio file: MP3 (.mp3), WMA (.wma), AAC (.m4a)
• Playable disc media: CD-R/CD-RW/CD-ROM
• Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name.
• Playable USB device file system: FAT12, FAT16, FAT32
  Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

Unplayable discs

Discs that are not round.
- Discs with coloring on the recording surface or discs that are dirty.
- Recordable/ReWritable discs that have not been finalized.
- 8 cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

• This unit can play MP3/WMA/AAC/WAV files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.

About KENWOOD Music Editor Light and KENWOOD Music Control

• This unit supports the PC application KENWOOD Music Editor Light and Android™ application KENWOOD Music Control.
• When you play audio files with song data added using the KENWOOD Music Editor Light or KENWOOD Music Control, you can search for audio files by Genres, Artists, Albums, Playlists, and Songs.
• KENWOOD Music Editor Light and KENWOOD Music Control are available on the following web site: www.kenwood.com/cs/ce/

About iPod/iPhone

Made for

• iPod touch (2nd, 3rd, 4th, and 5th generation)
• iPod classic
• iPod nano (3rd, 4th, 5th, 6th, and 7th generation)
• iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C
  For the latest compatible list and software versions of iPhone/iPod, see: www.kenwood.com/cs/ce/ipod
• You cannot operate iPod if "KENWOOD" or "V is displayed on iPod.

About Android device

• This unit supports Android OS 4.1 and above.
• Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (A0A) 2.0.
• If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.
  For more information and the latest compatible list, see: www.kenwood.com/cs/ce/

About Aha™ Radio

• Aha™ is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some Ahad functionality cannot be operated from this unit.

About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.
• This unit may not work with some Bluetooth devices.
• Signal conditions vary, depending on the surroundings.
  For more information about Bluetooth, visit the following website: www.kenwood.com/cs/ce/

TROUBLESHOOTING

Symptom Remedy

General	Sound cannot be heard.	·Adjust the volume to the optimum level. ·Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	·Sound cannot be heard. ·The unit does not turn on. ·Information shown on the display is incorrect.	Clean the connectors. (⇒2)
	The unit does not work at all.	Reset the unit. (⇒3)
Digital Radio	DAB reception is poor. Make sure [ON] is selected for [DAB ANT POWER]. (⇒4)
	"DAB ANT ERR" Check the DAB antenna. If a passive antenna (without a booster) is used, set [DAB ANT POWER] to [OFF]. (⇒4)
	"RELATED SERV FOUND"	·Press the volume knob to activate Soft-Link. (⇒6) ·Press OK/Cancel.
Analog Radio	·Radio reception is poor. ·Static noise while listening to the radio.	·Connect the antenna firmly. ·Pull the antenna out all the way.
CD/USB/iPod	Disc cannot be ejected.	Press and hold ▲ to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. (⇒3)
	Noise is generated. Skip to another track or change the disc.

Symptom Remedy

CD/USB/iPod	Tracks do not play back as you intended them to play.	Playback order is determined when files are recorded.
	"READING" keeps flashing.	Do not use too many hierarchical levels or folders.
	Elapsed playing time is not correct.	This is caused by how the tracks are recorded.
	Correct characters are not displayed (e.g. album name).	This unit can only display uppercase letters, numbers, and a limited number of symbols. Uppercase Cyrillic letters can also be displayed if [PYCCKMI] is selected. (⇒ 4)
	"NA FILE"	Make sure the disc contains supported audio files.(⇒ 19)
	"NO DISC" Insert a playable disc into the loading slot.
	"TOC ERROR" Make sure the disc is clean and inserted properly.
	"PLEASE EJECT" Reset the unit. If this does not solve the problem, consult your nearest service center.
	"READ ERROR" Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device.
	"NO DEVICE" Connect a USB device, and change the source to USB again.
	"COPY PRO" A copy-protected file is played.
	"NA DEVICE" Connect a supported USB device, and check the connections.
	"NO MUSIC" Connect a USB device that contains playable audio files.
	"IPod ERROR" • Reconnect the iPod. • Reset the iPod.

TROUBLESHOOTING

Symptom Remedy

Android	·Sound cannot be heard during playback. ·Sound output only from the Android device.	·Reconnect the Android device. ·If in [HAND MODE], launch any media player application on the Android device and start playback. ·If in [HAND MODE], relaunch the current media player application or use another media player application. ·Restart the Android device. ·If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (→19)
	Cannot playback at [BROWSE MODE].	·Make sure KENWOOD MUSIC PLAY APP is installed on the Android device. (→9) ·Reconnect the Android device and make the appropriate setting in [ANDROID SETUP]. (→9) ·If this does not solve the problem, the connected Android device does not support [BROWSE MODE]. (→19)
	“NO DEVICE” or “READING” keeps flashing.	·Switch off the developer options on the Android device. ·Reconnect the Android device. ·If this does not solve the problem, the connected Android device does not support [BROWSE MODE]. (→19)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	“ANDROID ERROR” / “NA DEVICE”	·Reconnect the Android device. ·Restart the Android device.
AhaTM Radio	“ACTN DISABLED” An unavailable operation has been performed.
	“AHA APP UPDATE REQUIRED”	Make sure you have installed the latest version of the AhaTM application for KENWOOD application on your device.
	“AHA UNAVAILABLE” Your device cannot be connected to Aha Radio server.
	“CHECK APP” There is no response from Aha server.

Symptom Remedy

AhaTM Radio	"CHECK DEVICE" Check the Aha application on your device.
	"CONNECT PHONE" Connect your device to the unit.
	"LOG IN FAILD" Logging into Aha has failed.
	"NETWORK The network has been disconnected. UNAVAILABLE"
	"POOR GPS" The GPS reception condition of your smartphone is poor.
	"NO SKIPS" Skips is not allowed.
Bluetooth®	No Bluetooth device is detected. Search from the Bluetooth device again. Reset the unit. (→3)
	Bluetooth pairing cannot be made. Make sure you have entered the same PIN code to both the unit and Bluetooth device. Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (→11)
	Echo or noise is heard during a phone conversation. Adjust the microphone unit's position. (→11) Check the [ECHO CANCEL] setting. (→12)
	Phone sound quality is poor. Reduce the distance between the unit and the Bluetooth device. Move the car to a place where you can get a better signal reception.
	Voice calling method is not successful. Use voice calling method in a more quiet environment. Reduce the distance from the microphone when you speak the name. Make sure the same voice as the registered voice tag is used.

TROUBLESHOOTING

Symptom		Remedy
Bluetooth®	Sound is being interrupted or skipped during playback of a Bluetooth audio player.	• Reduce the distance between the unit and the Bluetooth audio player. • Turn off, then turn on the unit and try to connect again. • Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled.	• Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.) • Disconnect and connect the Bluetooth player again.
	"DEVICE FULL" The number of registered devices has reached its limit. Retry after deleting an unnecessary device. (→15, DEVICE DELETE)
	"N/A VOICE TAG"	Make sure the same voice as the registered voice tag is used.
	"NOT SUPPORT"	The connected phone does not support Voice Recognition feature.
	"NO ENTRY" / "NO PAIR"	There is no registered device connected/found via Bluetooth.
	"ERROR"	Try the operation again. If "ERROR" appears again, check if the device supports the function you have tried.
	"NO INFO"	Bluetooth device cannot get the contact information.
	"HF ERROR XX" / "BT ERROR"	Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center.

SPECIFICATIONS

Digital radio	DAB Frequency Range L Band 1 452.960 MHz — 1 490.624 MHzBand III 174.928 MHz — 239.200 MHz
	Sensitivity -100 dBm
	Signal-to-Noise Ratio 80 dB
	Antenna Connector Type SMB
	Antenna Output Voltage 14.4 V (11 V - 16 V)
	Antenna Maximum Current < 100 mA
Analog radio	FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz space)
	Usable Sensitivity (S/N = 26 dB) 0.71 μV/75 Ω
	Quieting Sensitivity 2.0 μV/75 Ω(DIN S/N = 46 dB)
	Frequency Response (±3 dB) 30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO) 64 dB
	Stereo Separation (1 kHz) 40 dB
	MW Frequency Range 531 kHz — 1 611 kHz (9 kHz space)
	Usable Sensitivity (S/N = 20 dB) 28.2 μV
	LW Frequency Range 153 kHz — 279 kHz (9 kHz space)
	Usable Sensitivity (S/N = 20 dB) 50 μV

SPECIFICATIONS

CD player	Laser Diode GaAlAs
	Digital Filter (D/A) 8 times over sampling
	Spindle Speed 500 rpm — 200 rpm (CLV)
	Wow & Flutter Below measurable limit
	Frequency Response (±1 dB) 20 Hz — 20 kHz
	Total Harmonic Distortion (1 kHz) 0.01 %
	Signal-to-Noise Ratio (1 kHz) 105 dB
	Dynamic Range 90 dB
	Channel Separation 85 dB
	MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode Compliant with Windows Media Audio
	AAC Decode AAC-LC“.m4a” files
USB	USB Standard USB 1.1, USB 2.0 (Full speed)
	File System FAT12/ 16/ 32
	Maximum Supply Current DC 5 V=1 A
	MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode Compliant with Windows Media Audio
	AAC Decode AAC-LC“.m4a” files
	WAV Decode Linear-PCM
Auxiliary	Frequency Response (±3 dB) 20 Hz — 20 kHz
	Input Maximum Voltage 1 000 mV
	Input Impedance 30 kΩ

Bluetooth	Version	Bluetooth Ver.2.1+EDR / Bluetooth 3.0
	Frequency Range	2.402 GHz — 2.480 GHz
	Output Power +4 dBm (MAX), 0 dBm (AVE) Power Class 2
	Maximum Communication Range	Line of sight approx. 10 m (32.8 ft)
	Profile	HFP (Hands-Free Profile) SPP (Serial Port Profile) PBAP (Phonebook Access Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile)
Audio	Maximum Output Power	50 W × 4
	Full Bandwidth Power	22 W × 4 (at less than 1 % THD)
	Speaker Impedance	4 Ω — 8 Ω
	Tone Action Band 1: 100 Hz ±8 dB
		Band 2: 315 Hz ±8 dB Band 3: 1 kHz ±8 dB Band 4: 4 kHz ±8 dB Band 5: 12.5 kHz ±8 dB
	Preout Level/Load (CD)	4 000 mV/10 kΩ
	Preout Impedance	≤ 600 Ω
General	Operating Voltage	14.4 V (10.5 V — 16 V allowable)
	Maximum Current Consumption	10 A
	Operational Temperature Range	0°C — +40°C
	Installation Size (W × H × D) 182 mm × 53 mm × 159 mm
	Weight	1.3 kg

Subject to change without notice.

Warning

The unit can only be used with a 12 V DC power supply, negative ground.
- Disconnect the battery's negative terminal before wiring and mounting.
- Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
- Insulate unconnected wires with vinyl tape to prevent a short circuit.
- Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Mount the unit at an angle of less than 30^ .
  If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the terminal of the car battery.
2 Install the DAB antenna.

See Installing the DAB antenna. ( 26)

3 Connect the wires properly.
See Wiring connection. (→25)
4 Install the unit to your car.
See Installing the unit (in-dash mounting).
5 Connect the terminal of the car battery.
6 Reset the unit. ( 3)

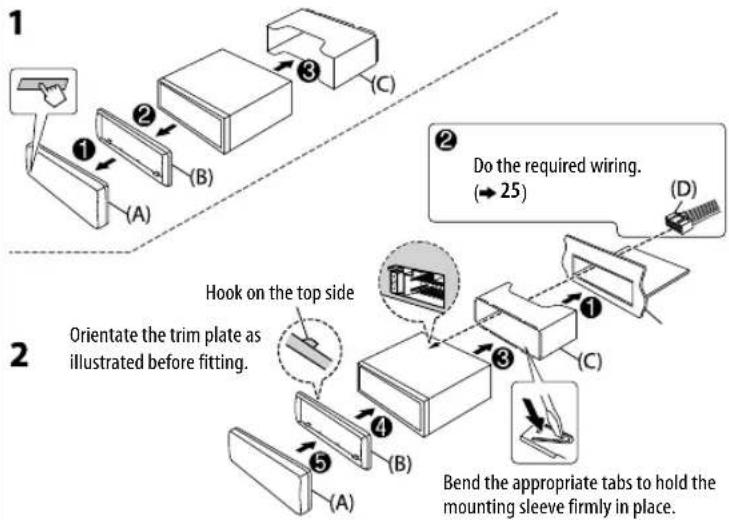

Installing the unit (in-dash mounting)

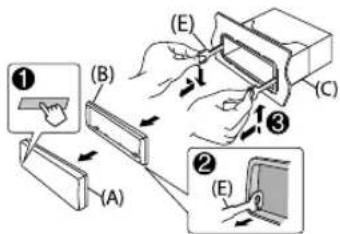

How to remove the unit

1 Detach the faceplate.
2 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.
3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the right.

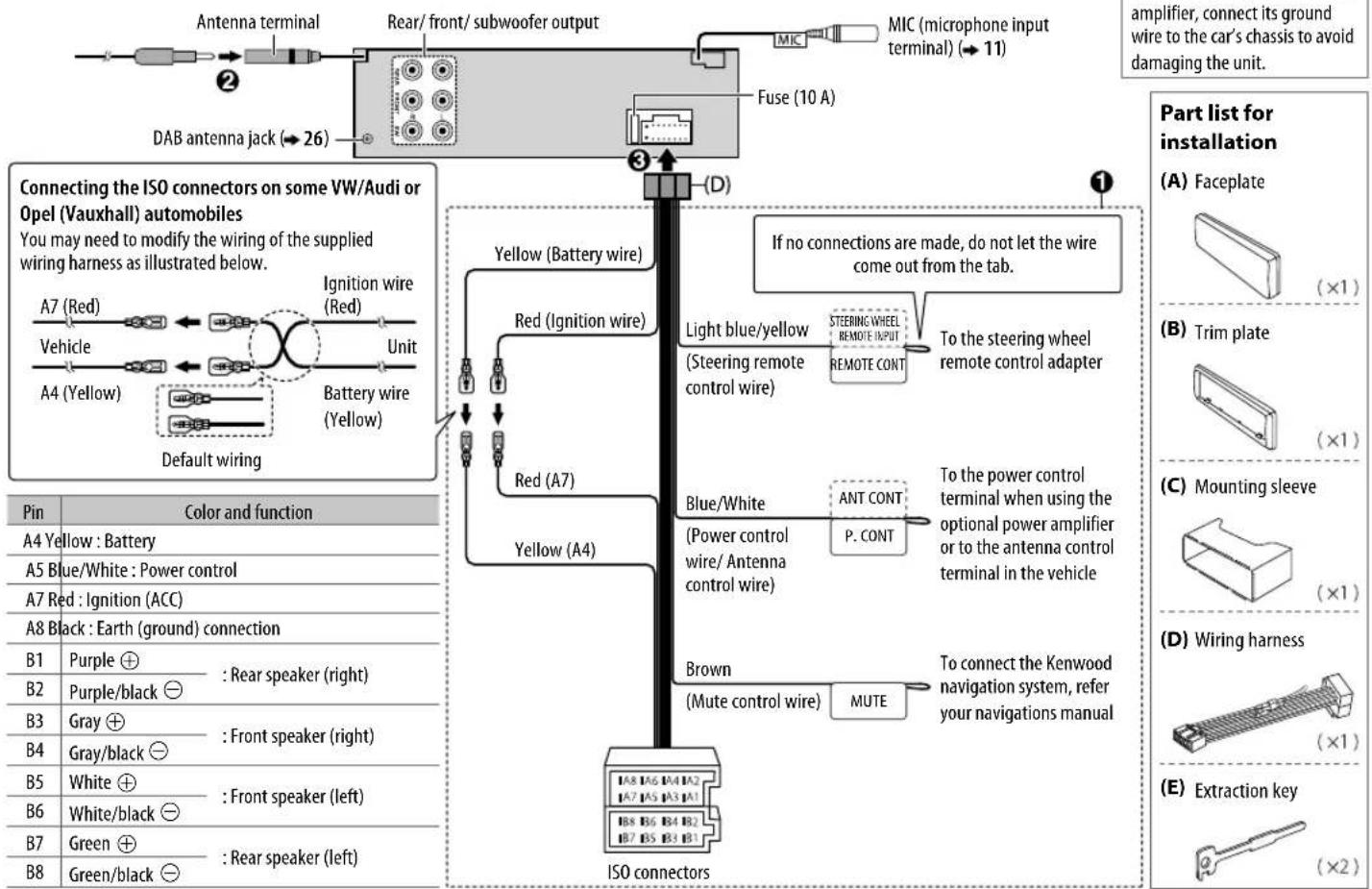

Wiring connection

Installing the DAB antenna (supplied)

Caution

The film antenna (F) is exclusively for use inside the vehicle.
- Do not install at the following locations:

where it may block the driver's view.
where it may obstruct the operation of safety devices such as air bags.
on movable glass surfaces such as the rear hatch.
- at side of vehicle (e.g. door, front quarter window).
on rear window.

• Signal strength will weaken when installed at the following locations:

on IR reflecting glass or locations covered with mirror type glass film.
where it overlaps with genuine radio antenna (pattern).
where it overlaps with window heating wires.
on glass that blocks radio signals (e.g. IR reflecting glass, thermal insulation glass).

• Poor reception may occur:

• due to noise when windscreen wiper, air conditioner, or motor is turned on.

• depending on the direction of the broadcast station with respect to the vehicle (antenna).

Thoroughly wipe oil and dirt from the pasting surface with the supplied cleaner (I).

• Do not bend or damage the film antenna (F).
• It may not be possible to install on certain vehicles.
• Check the cable routing of the film antenna (F) and amplifier unit (G) before pasting.
• Do not apply any glass cleaner after pasting the film antenna (F).

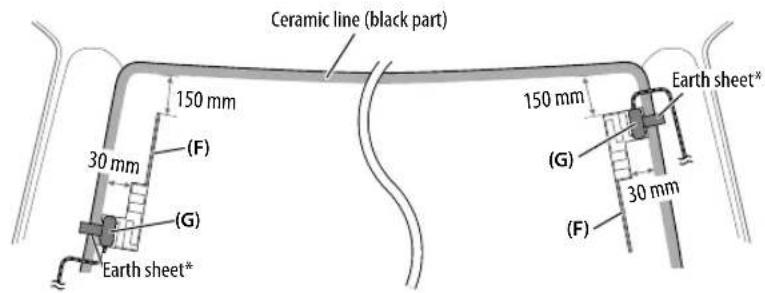

Determine the antenna installation position

• The direction of the film antenna (F) changes depending on whether the film antenna (F) is installed on the right side or left side.
• Be sure to check the installation location of film antenna (F) before installing. Film antenna cannot be re-pasted.
• Separate from other antennas by at least 100mm
• Do not paste the amplifier unit (G) on the ceramic line (black part) around the front glass. Because there is not enough adhesion.

Installling the antenna on the left side
Installling the antenna on the right side

• Paste the earth sheet of the amplifier unit (G) on the metal part of the front pillar.

Part list for installation

(cable with booster, 3.5m )

Caution When installing the antenna cable inside the front pillar with the air bag installed

• The front pillar cover is secured with a special clip which may need to be replaced when it is removed. Contact your vehicle dealer for details on removing the front pillar cover and availability of replacement parts.

• Install the amplifier unit (G) above the air bag so that it does not obstruct the operation of the air bag.

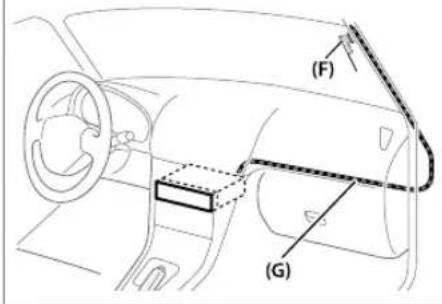

Installation overview The antenna should be installed on the passenger side for safety.

Antenna installation 1 Remove the front pillar cover of your car.

2 Clean the windscreen with the supplied cleaner (I).

• Wait until the glass surface is completely dry before proceeding.

Warm the surface of the windscreen with defroster if it is cold (during winter).

3 Remove the separator (tag 1) of film antenna (F) horizontally and paste the antenna on the windscreen.

Do not touch the pasting surface (adhesive side) of the film antenna (F).

4 Rub the film antenna gently onto the windscreen in the direction of the arrow shown to allow it to stick firmly.

5 Remove the separator (tag 2) of film antenna (F) vertically.

Separator (tag 2)

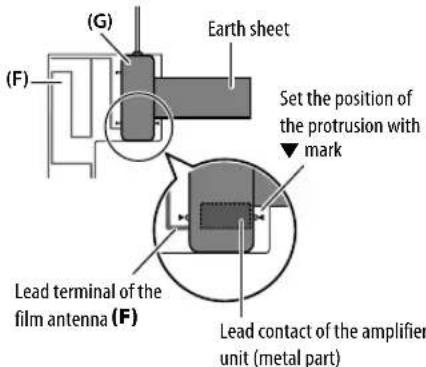

6 Set the position of the protrusion of the amplifier unit (G) with the on the film antenna (F) and paste.

Do not touch the lead terminal or the pasting surface (adhesive side) of the amplifier unit (G).

• When installing the antenna on the right side

• When installing the antenna on the left side

7 Remove the film covering the earth sheet and paste the earth sheet on the metal part of the vehicle.

Provide sufficient leeway for the earth sheet so that it does not interfere with the interior parts (front pillar cover). Also take care that the interior parts do not interfere with the amplifier unit (G).

8 Wire the antenna cables.

Use cable clampers to secure the antenna to the pillar at several positions.

9 Attach the front pillar cover back to its original position.

Be sure not to damage the earth sheet and amplifier unit (G) when covering.

10 Connect the amplifier unit (G) to the DAB input terminal on the rear of the unit.
11 Set [DAB ANT POWER] to [ON]. (→ 4)

TABLE DES MATIERES

CD/USB/iPod/Android 8

Aha™ RADIO 10

BLUETOOTH 11

AUX 17

RéGLAGES D'AFFICHAGE 17

RéGLAGES AUDIO 18

PLUS D'INFORMATIONS 19

GUIDE DE DÉPANNAGE 20

SPECIFICATIONS 22

INSTALLATION/

RACCORDEMENT 24

SPEECH: NEWS, AFFAIRS INFO(information), SPORT, EDUCATE DRAMA, CULTURE, SCIENCE, VARIED, WEATHER, FINANCE, CHILDREN SOCIAL, RELIGION, PHONE, IN, TRAVEL, LEISURE, DOCUMENT

BLUETOOTH — Telephone portable

CD/USB/iPod/Android 8

Aha™ RADIO 10

BLUETOOTH 11

AUX 17

Uber DAB (Digital Audio Broadcasting)

SPEECH: NEWS, AFFAIRS, INFO(Information), SPORT, EDUCATE DRAMA, CULTURE, SCIENCE, VARIORED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE, IN, TRAVEL, LEISURE, DOCUMENT

SPEECH: NEWS, AFFAIRSINFO (Information), SPORT, EDUCATE, DRAMA, CULTURE SCIENCE VARIOED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN TRAVEL, LEISURE, DOCUMENT

Trägerblatt (Zapfen 2)

[YES] is de basisinstelling.

Meer over DAB (Digital Audio Broadcasting)

SPEECH: NEWS, AFFAIRSINFO (informatie), SPORT, EDUCATE DRAMA, CULTURE, SCIENCE, VARIOED WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT

PB DL: Phonebook Access profile (PBAP)

compatibilität

SUB-W LEVEL]/LPF SUBWOOFER/ [SUB-W PHASE] is alleen kiesbaar wonneer SUBWOOFER SET] op [ON] is gesteld.

MEER INFORMATIE

Algemeen

Meer over iPod/iPhone

Made for

• iPod touch (2nd, 3rd, 4th en 5th generation)
• iPod classic
  -iPod nano (3rd, 4th, 5th, 6th en 7th generation)
  iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C
  Gavoor de laatste compatibiliteitslilst en softwareversie van iPhone/iPod naar:www.kenwood.com/cs/ce/ipod
• U knot de iPod nied bedieren runaway "KENWOOD" of "op de iPod worden waergegeven.

Meer over Android apparaten

Meer over AhaTM Radio

SPEECH: NEWS, AFFAIRSINFO (informazioni), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIOED, WEATHER, FINANCE, CHILDREN SOCIAL, RELIGION, PHONE IN TRAVEL, LEISURE, DOCUMENT MUSIC: POP M (musica),ROCK M (musica), EASY M(musica), LIGHT M (musica), CLASSICS, OTHER M (musica), JAZZ, COUNTRY, NATION M (musica), OLDIES, FOLK M (musica)

-Advanced Audio Coding (AAC)

-Codec aptX (aptX)

• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
  Lightning is a trademark of Apple Inc.
• aha, the Aha logo, and the Aha trade dress are trademarks or registered trademarks of HARMAN International Industries, used with permission.
  The "AAC" logo is a trademark of Dolby Laboratories.
  Android is trademark of Google Inc.
  The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
• © 2013 CSR plc and its group companies. The aptX® mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.
