USER MANUAL KDSH9102 JVC

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car.... If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit. How to reset your unit Press the reset button on the control panel using a ball-point pen or similar tool. This will reset the built-in microcomputer. Note: Your preset adjustments—such as preset channels or sound adjustments—will also be erased. CAUTION: NEVER insert your finger in between the control panel and the unit, as it may get caught or hurt. (See page 52.) 56 M T/P MODE Note: For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen. Position And Reproduction Of Labels Name/Rating plateBottom panel of the main unit

2.CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. 3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel. 4.CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches. 5.CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Caution:This product contains a laser componentof higher laser class than Class 1. CLASS LASER

PRODUCT CAUTION: Invisible laser radiation when open and interlock failed or defeated.

• Tuning in to an ensemble and one of the services p. 62
• Storing DAB services in memory p. 64
• Tuning in to a preset DAB service p. 64
• What you can do more with DAB p. 66
• Changing the display pattern p. 70
• ADDITIONAL INFORMATION p. 71
• TROUBLESHOOTING p. 72
• MAINTENANCE p. 74
• Handling discs p. 74
• SPECIFICATIONS Caution: If the temperature inside the car is below 0°C, the movement of animation and text scroll will be halted on the display to prevent the display from being blurred. (LOW TEMP.) indicator appears on the display. When the temperature increases, and the operating temperature is resumed, these functions will start working again. EN02-06SH9101[E_EX]f.p65 03.2.27, 22:4834 ENGLISH p. 75

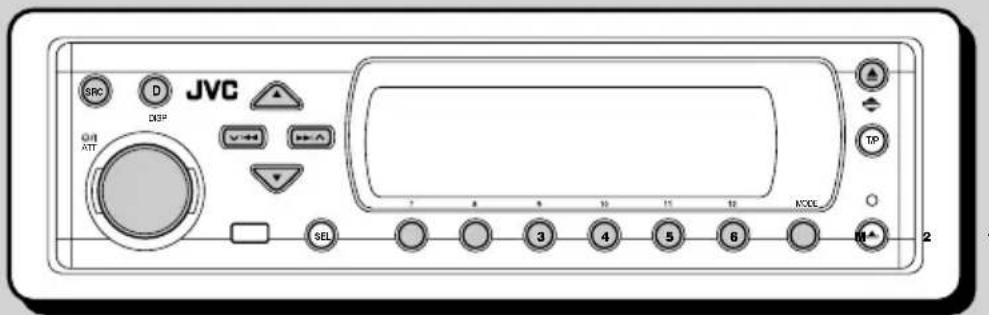

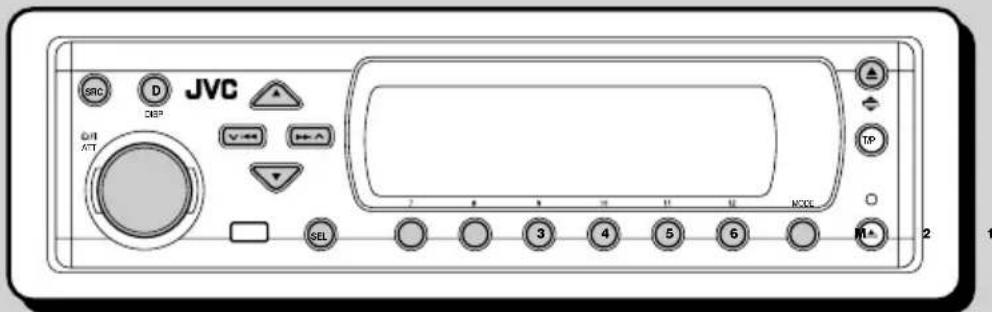

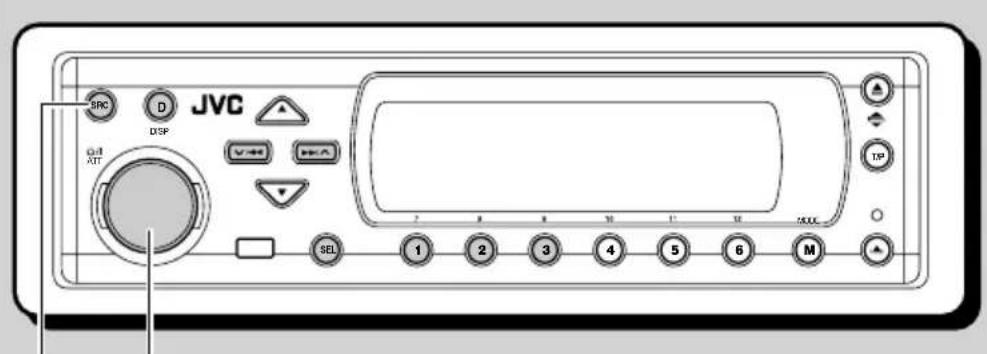

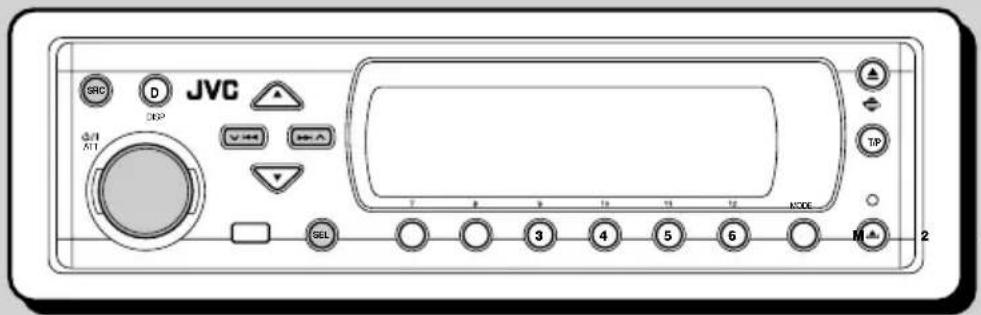

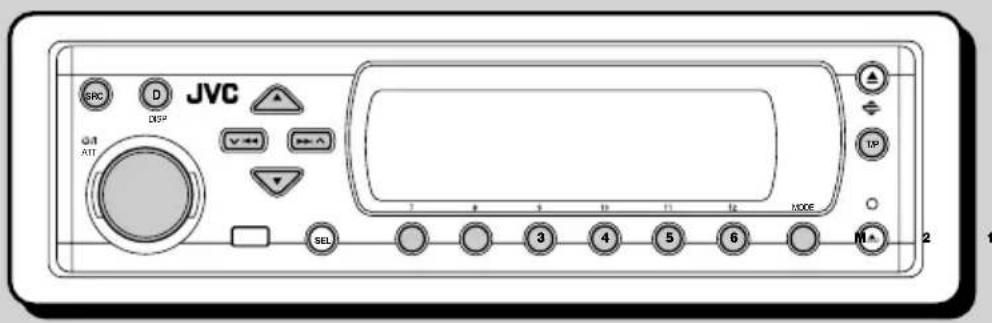

LOCATION OF THE BUTTONS

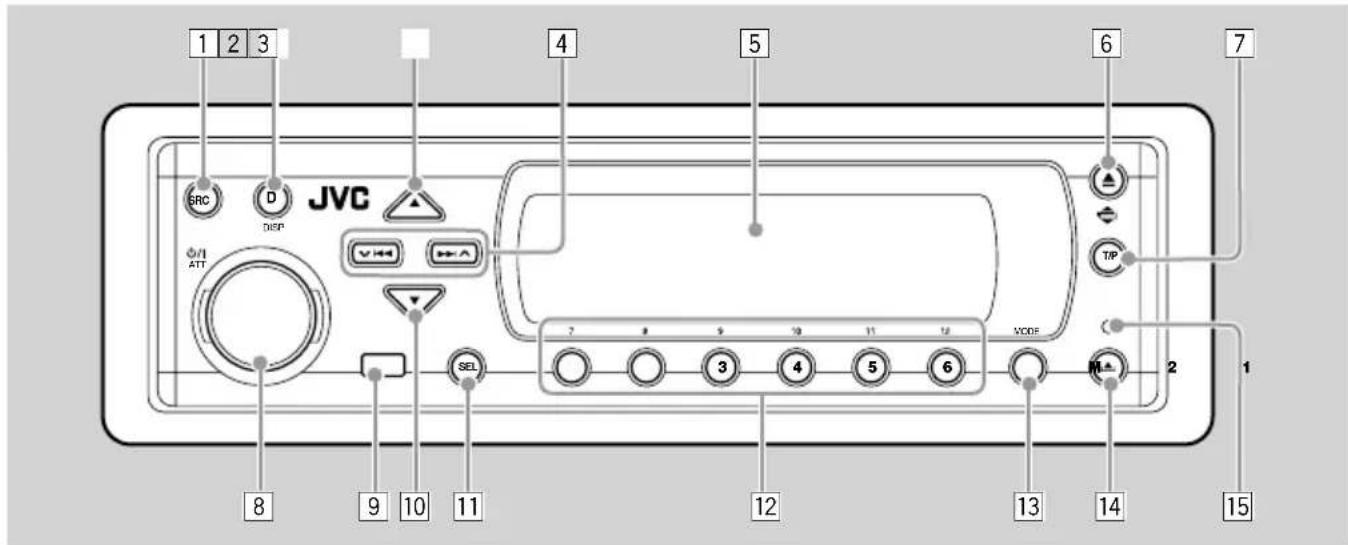

Control panel 1 SRC (source) button2 DISP (D) (display) button3 5 (up) button4 4/¢ buttons5 Display window6 • 0 (eject) button• (angle) button7 T/P (traffic programme/programme type)button Illumination Navigation for easy operations: If you use MODE (M) or SEL (select), the display and some controls (such as the number buttons, 4/¢ , 5 / ∞, and control dial) enter the corresponding control mode, then the controls start flashing to lead you to the next operational steps. (Illumination Navigation)• The display show how these buttons function during this period.Ex. When you press number button 1 after pressing MODE (M), to operate the FM tuner. To use these controls for original functions again, wait until the controls stop flashing without using these controls.• Pressing MODE (M) again also restores original functions. However, pressing SEL (select)makes the unit into a different mode.3456 M21

SRC DISP ATT SEL T/P MODE

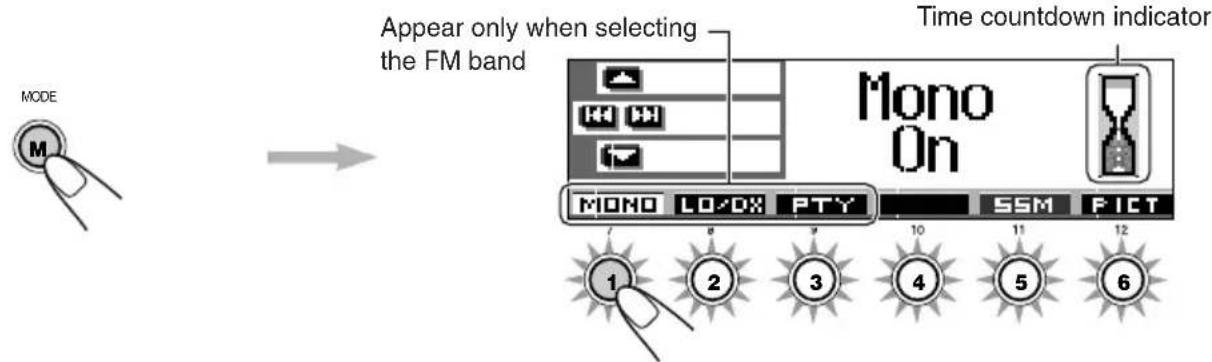

MODE Time countdown indicator Appear only when selecting the FM band

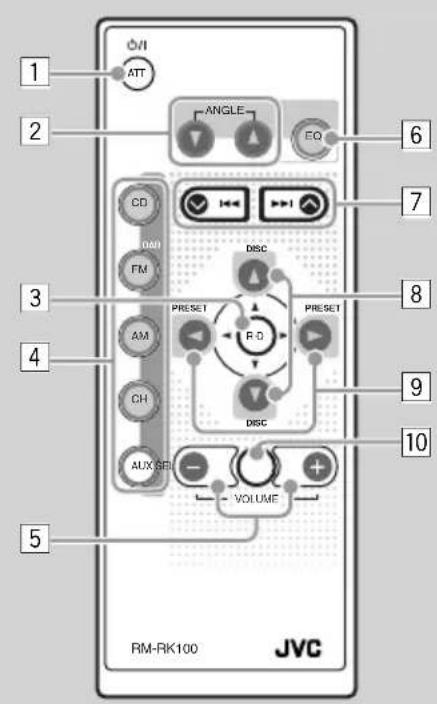

EN02-06SH9101[E_EX]f.p65 03.2.27, 22:4845 ENGLISH Remote controller 1 • Turns on the unit if pressed when the unit is turned off.

• Turns off the unit if pressed and held for a few seconds.

• Drops the volume level in a moment if pressed briefly. Press again to resume the volume. 2 Changes the angle of the control panel to four positions. 3 Skips to the root while listening to an MP3 disc. 4 • CD: Selects CD player.

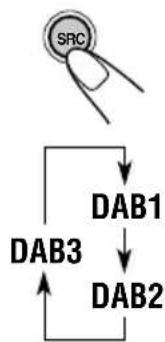

• FM/DAB: – Selects FM tuner if pressed briefly. Each time you press the button, FM band (FM1, FM2 and FM3) changes. – Selects DAB tuner if pressed and held.*

Each time you press and hold the button, DAB band (DAB1, DAB2 and DAB3) changes.

• AM: Selects AM tuner.

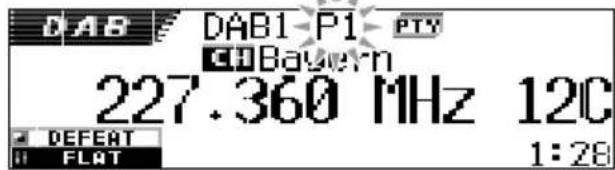

• Selects ensembles while listening to the DAB tuner.

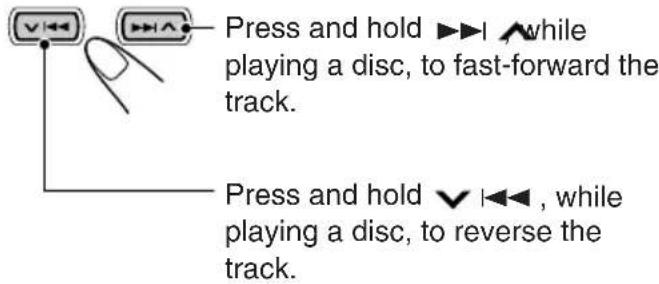

• Fast-forwards or reverses the track if pressed and held while listening to a disc.

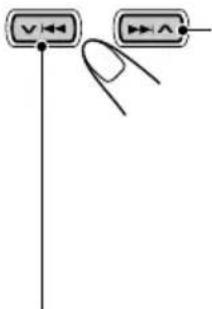

• Skips to the beginning of the next track or goes back to the beginning of the current (or previous) tracks if pressed briefly while listening to a disc. 8 • Selects services while listening to the DAB tuner.

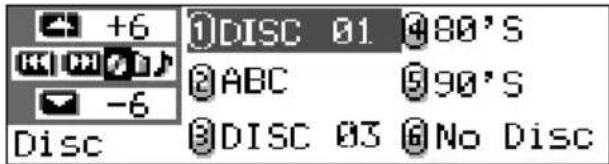

• Changes the disc number while listening to the CD changer. Each time you press and hold the button, the disc number changes, and the selected disc starts playing.

• Skips to the first track of a folder on a higher hierarchy level or on a lower hierarchy level if pressed briefly while listening to an MP3 or a WMA disc. (This does not function for WMA discs on the MP3-compatible CD changer).

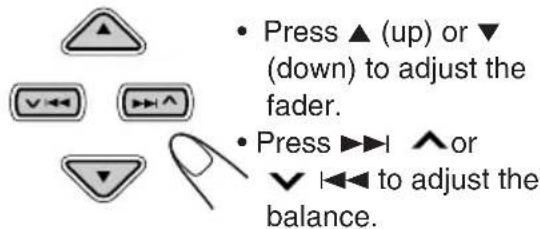

• Adjusts the fader level on the fader/balance adjustment screen. 9 • Changes the preset channel number while listening to the radio (or the DAB tuner). Each time you press the button, the preset channel number changes, and the selected station (or service) is tuned in.

• Skips to the first track of the next folder or the first track of the previous folder if pressed and held while listening to an MP3 or a WMA disc.

• Skips to the first track of the next folder or the first track of the previous folder on the same hierarchy level if pressed briefly while listening to an MP3 or a WMA disc. (This does not function for WMA discs on the MP3-compatible CD changer).

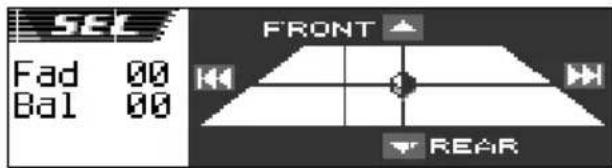

• Adjusts the balance level on the fader/ balance adjustment screen. p *

Turns on or off the fader/balance adjustment screen. Then you can adjust them using the buttons explained above (8 and 9).

Without connecting the DAB tuner or CD changer, you cannot select it as the source to play.

If the “Line In” setting is changed to “Off,” you cannot select “LINE IN” (see pages 48 and 49).

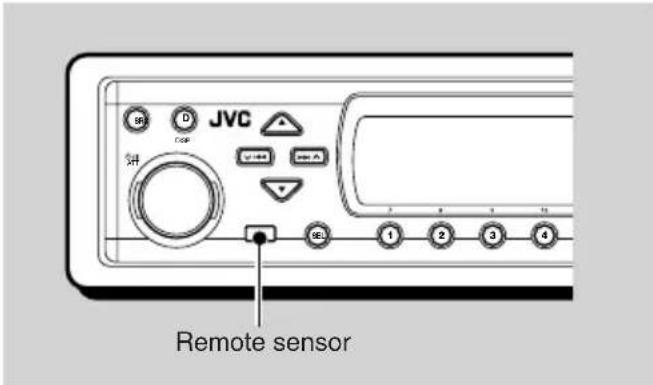

EN02-06SH9101[E_EX]f.p65 03.2.27, 22:4856 ENGLISH Preparing the remote controller Before using the remote controller:• Aim the remote controller directly at the remotesensor on the main unit. Make sure there is noobstacle in between.• Do not expose the remote sensor to strong light(direct sunlight or artificial lighting). Installing the battery When the controllable range or effectiveness of theremote controller decreases, replace the battery.

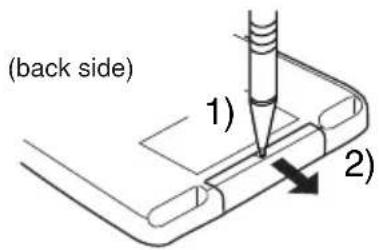

1. Remove the battery holder.

1) Push out the battery holder in the directionindicated by the arrow using a ball-pointpen or a similar tool.2) Remove the battery holder.

2. Place the battery.

Slide the battery into the holder with the + sidefacing upwards so that the battery is fixed inthe holder.

3. Return the battery holder.

Insert again the battery holder pushing it untilyou hear a clicking sound.(back side)Lithium coin battery(product number:CR2025)(back side)Remote sensor

• Store the battery in a place where children cannotreach.If a child accidentally swallows the battery,consult a doctor immediately.• Do not recharge, short, disassemble or heat thebattery or dispose of it in a fire.Doing any of these things may cause the batteryto give off heat, crack or start a fire.• Do not leave the battery with other metallicmaterials.Doing this may cause the battery to give off heat,crack or start a fire.• When throwing away or saving the battery, wrapit in tape and insulate; otherwise, the battery maystart to give off heat, crack or start a fire.• Do not poke the battery with tweezers or similartools.Doing this may cause the battery to give off heat,crack or start a fire. CAUTION: DO NOT leave the remote controller in a place(such as dashboards) exposed to direct sunlightfor a long time. Otherwise, it may be damaged.

SRC DISP ATT SEL This receiver is equipped with the steeringwheel remote control function.If your car is equipped with the steeringwheel remote controller, you can operate thisreceiver using the controller.• See the Installation/Connection Manual(separate volume) for connection to utilizethis function. EN02-06SH9101[E_EX]f.p65 03.2.27, 22:4867 ENGLISH BASIC OPERATIONS Turning on the power

Turn on the power.Note on One-Touch Operation:When you select a source in step below, thepower automatically comes on. You do not haveto press this button to turn on the power. Select the source.Each time you press the button,the source changes as follows.

Without connecting the DAB tuner or CDchanger, you cannot select it as the source toplay.

If a disc is not in the loading slot, you cannotselect CD as the source to play.

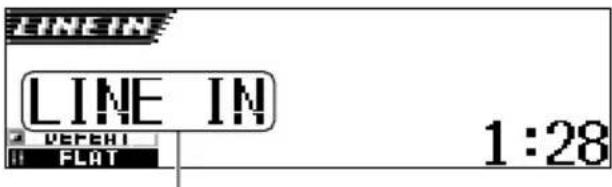

When “Line In” is set to “Off” in the PSMsetting, you cannot select “LINE IN” as thesource (see page 49). Adjust the volume. Select the DSP mode and soundmode as you want. To drop the volume in a moment Press briefly while listening to anysource. “ATT” starts flashing on the display, andthe volume level will drop in a moment.To resume the previous volume level, press thebutton briefly again.• If you turn the control dial, you can also restorethe sound. To turn off the power Press for more than 1 second.• If you turn off the power while listening to adisc, playback will start from where playbackhas been stopped previously, next time youturn on the power. 1, 3

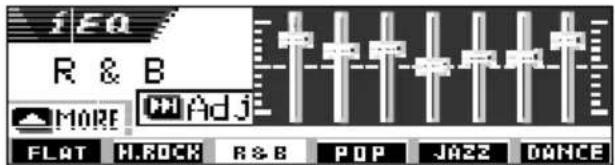

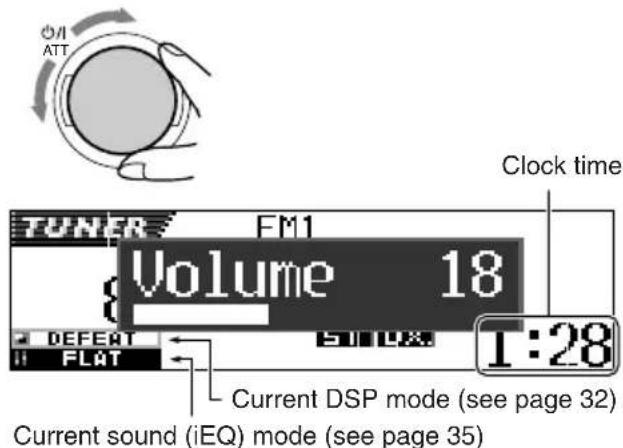

SRC DISP ATT SEL T/P MODE ATT SRC Current sound (iEQ) mode (see page 35) Current DSP mode (see page 32) ATT Clock time Display indication:If you have changedsome PSM items (seepages 47 and 48), theindications on thedisplay you see may bedifferent from those usedin this manual.

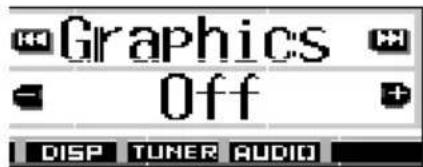

EN07-09SH9101[E_EX]f.p65 03.2.27, 22:4978 ENGLISH Canceling the display demonstration When shipped from the factory, displaydemonstration has been activated, and startsautomatically when no operations are done forabout 20 seconds.• It is recommended to cancel the demonstrationbefore you use the unit for the first time.To cancel the display demonstration, followthe procedure below:

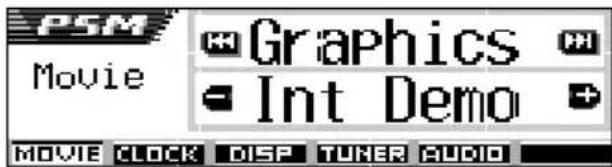

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 47 and 48.)

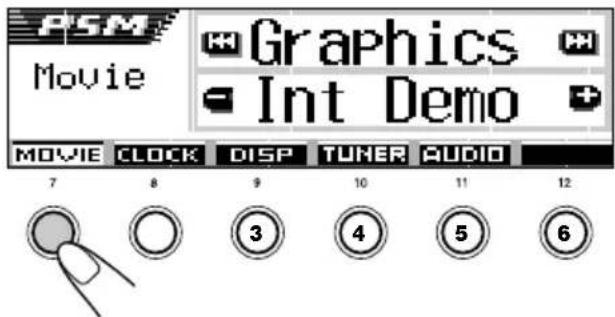

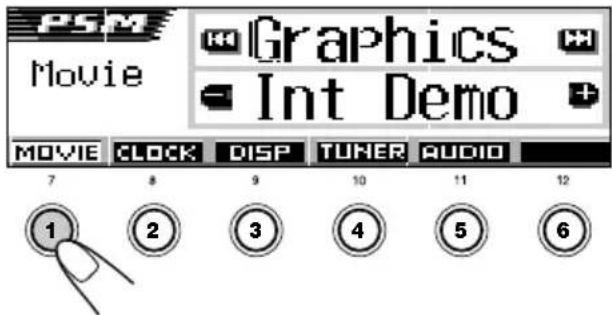

Press number button 1 to select “MOVIE”—Movie category of the PSM settings. The “Graphics” setting screen appears onthe display.

Finish the setting. SEL ATT To activate the display demonstration, repeat the same procedure and select “Int Demo” or “All Demo” in step

• For more details, see “To show the graphics onthe display—Graphics” on page 48. Setting the clock You can also set the clock system to 24 hours or12 hours.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 47 and 48.)

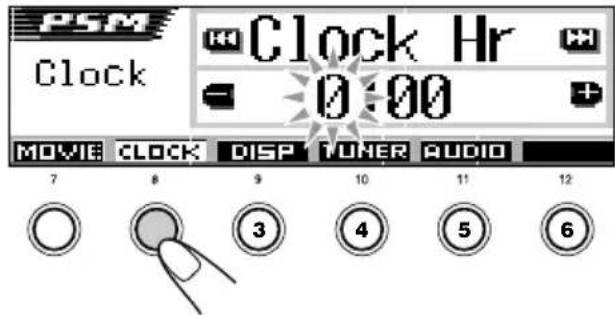

Press number button 2 to select “CLOCK”—Clock category of the PSM settings. The “Clock Hr” setting screen appears on the display.

Set the minute. 1 Select “Clock Min (minute).” 2 Adjust the minute. SEL ATT SEL

Set the clock system. 1 Select “24H/12H.” 2 Adjust “24Hours” or “12Hours.”

Finish the setting. To check the current clock time when the unitis turned off, press DISP (D).The power turns on and the clock time is shownfor about 5 seconds, then the power turns off. Selecting the level meter You can show the level meters on the displaywhile playing any source. This unit is equippedwith three level meter patterns.

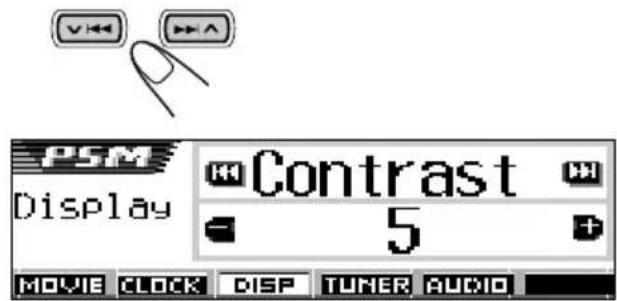

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 47 and 48.)

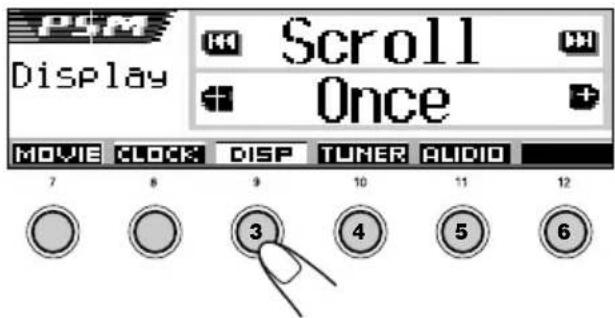

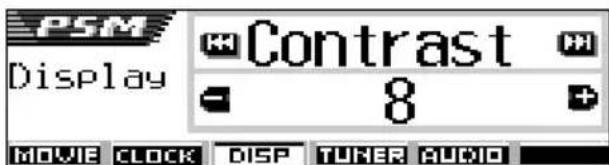

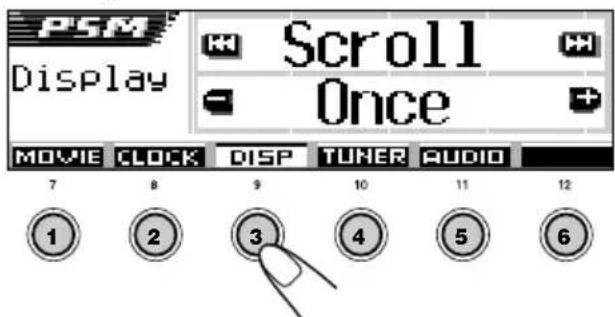

Press number button 3 to select “DISP”—Display category of the PSM settings.

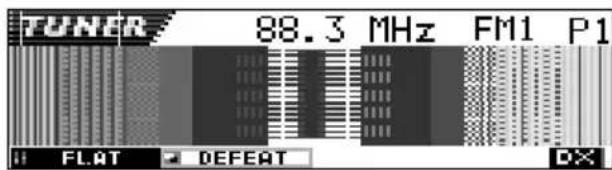

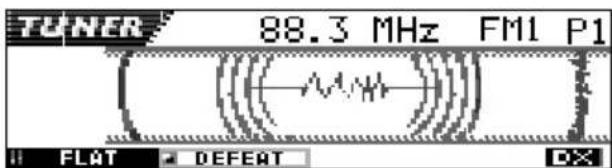

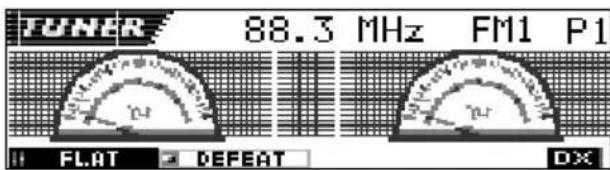

Select the level meter pattern you want. As you turn the controldial, the level meterschange as follows:

Finish the setting. Standard: No level meter appears on the display. (Initiallyselected when shipped from the factory.) Meter 1: The left and right audio level meters appear. Meter 2: Level meters fluctuate horizontally from center toboth sides as audio levels changes. Meter 3: Signal waves fluctuate at the center and spreadoutward. SEL ATT Meter 1 Standard Meter 2 Meter 3 SEL

EN07-09SH9101[E_EX]f.p65 03.2.27, 22:49910 ENGLISH RADIO OPERATIONS Listening to the radio You can use either automatic searching or manualsearching to tune in to a particular station. Searching a station automatically: Auto search

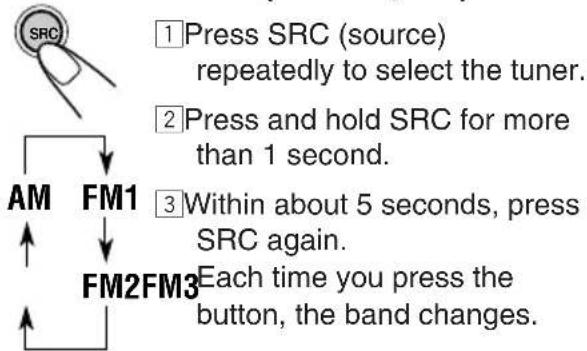

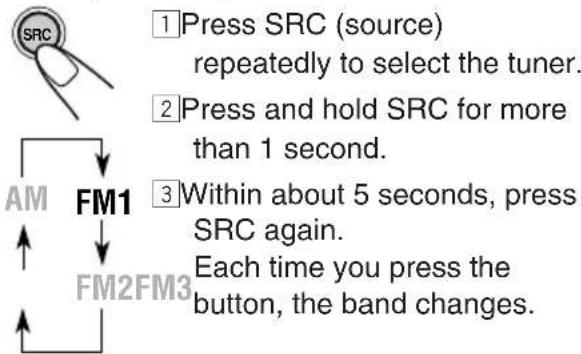

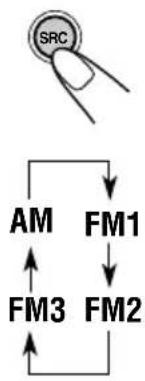

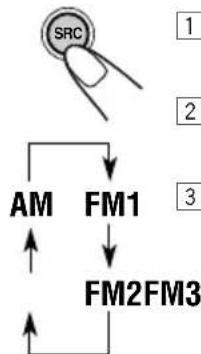

Select the band (FM1 – 3, AM).1 Press SRC (source)repeatedly to select the tuner.2 Press and hold SRC for morethan 1 second.The band indication on thedisplay starts flashing.3 Within about 5 seconds (whilethe band indication isflashing), press SRC again.Each time you press thebutton, the band changes.Last received station of the selected band istuned in.3456 M21

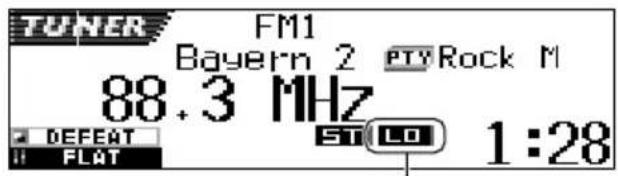

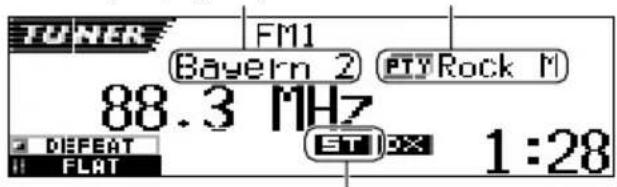

SRC DISP ATT SEL T/P MODE Lights up when receiving an FM stereo broadcast with sufficient signal strength. Note: This receiver has three FM bands (FM1, FM2,FM3). You can use any one of them to listen to anFM broadcast. Start searching a station.When a station is received, searching stops.To stop searching before a station is received,press the same button you have pressed forsearching.Press ¢ to searchstations of higherfrequencies.Press 4 to searchstations of lowerfrequencies. FM1 FM2FM3

Ex. When the band is FM Program station (PS) name (see page 14) Programme type (PTY) (see page 14) SRC EN10-14SH9101[E_EX]f.p65 03.2.27, 22:501011 ENGLISH Searching a station manually: Manual search

Select the band (FM1 – 3, AM). 1 Press SRC (source)repeatedly to select the tuner.2 Press and hold SRC for morethan 1 second.3 Within about 5 seconds, pressSRC again.Each time you press thebutton, the band changes.Note:This receiver has three FM bands (FM1, FM2,FM3). You can use any one of them to listen to anFM broadcast.

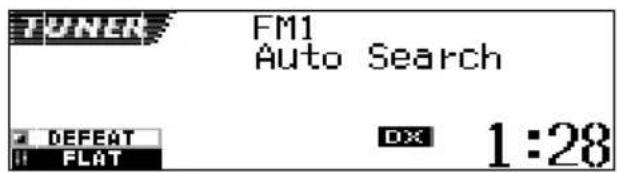

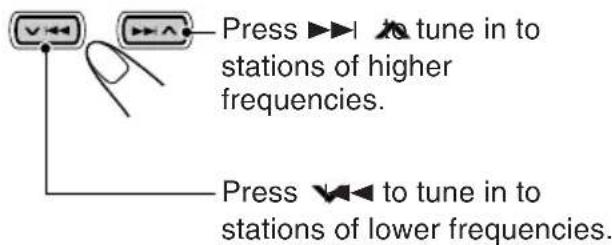

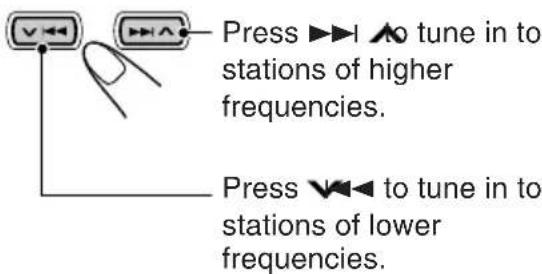

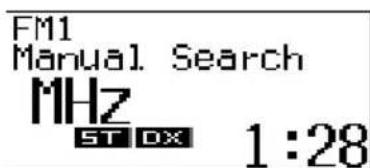

Press and hold ¢ or 4 until “Manual Search” appears on the display.

Tune in to a station you want while “Manual Search” is still on the display.

• If you release your finger from the button,the manual mode will automatically turn offafter about 5 seconds.• If you hold down the button, the frequencykeeps changing (in 50 kHz intervals for FMand 9 kHz intervals for AM—MW/LW) untilyou release the button.Press ¢ to tune in tostations of higherfrequencies.Press 4 to tune in tostations of lowerfrequencies. To tune in FM stations only with strong signals—LO/DX (Local/Distant) While searching FM stations (including SSM—see page 12), this unit stops searching wheneverit detects signals (DX mode: The DX indicator islit—initial setting). If received signals are weak,you may only hear noises.By setting LO/DX to “Local,” you can make thisunit detects only stations with sufficient signalstrength. 1 Press MODE (M) while listening to an FM stereo broadcast.“Mode” appears on the display, andthe number buttons start flashing. 2 Press number button 2, while “Mode” is still on the display.Each time you press the button, the “LO/DX”setting alternates between “Local” and “DX.”LO indicator appearsAfter about5 secondsThe display returns to the source indicationscreen. FM1 FM2FM3

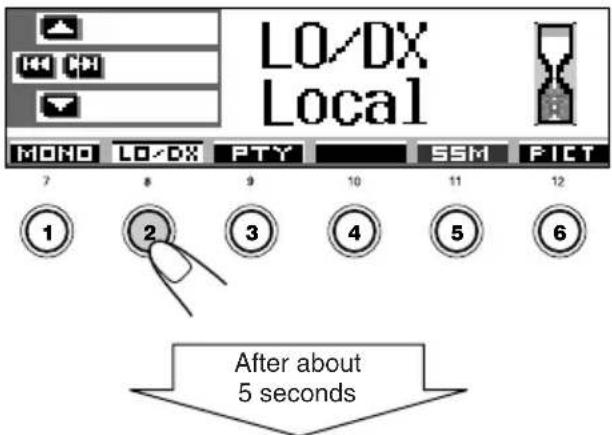

See page 40 for this function. SRC EN10-14SH9101[E_EX]f.p65 03.2.27, 22:511112 ENGLISH Storing stations in memory You can use one of the following two methods tostore broadcasting stations in memory.• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)• Manual preset of both FM and AM stations FM station automatic preset: SSM You can preset 6 local FM stations in each FM band(FM1, FM2 and FM3).

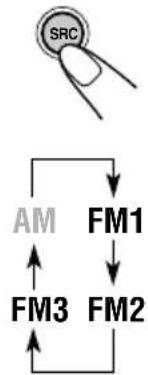

Select the FM band (FM1 – 3) you want to store FM stations into. 1 Press SRC (source)repeatedly to select the tuner.2 Press and hold SRC for morethan 1 second.The band indication on thedisplay starts flashing.3 Within about 5 seconds (whilethe band indication isflashing), press SRC again.Each time you press thebutton, the band changes.

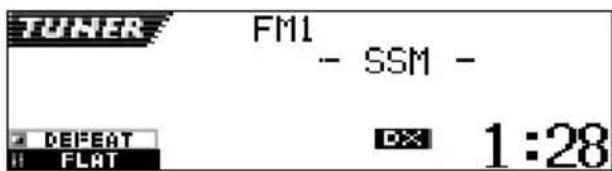

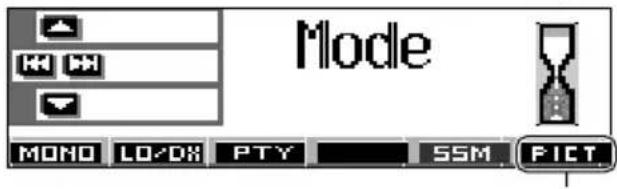

Start SSM. 1 Press MODE (M).“Mode” appears on thedisplay, and the numberbuttons start flashing.2 Press and hold numberbutton 5 until “– SSM –”appears.Local FM stations with the strongest signals aresearched and stored automatically in the bandnumber you have selected (FM1, FM2 or FM3).These stations are preset in the number buttons —No.1 (lowest frequency) to No.6 (highestfrequency).When automatic preset is over, the station storedin number button 1 will be automatically tuned in. When an FM stereo broadcast is hard to receive: Set the FM reception mode to “Mono On.” 1 Press MODE (M) while listening to an FM stereo broadcast.“Mode” appears on the display, andthe number buttons start flashing. 2 Press number button 1, while “Mode” is still on the display. Each time you press the button, “Mono On” and “Mono Off” alternately appears. MO indicator appearsAfter about5 secondsThe display returns to the source indicationscreen. SRC

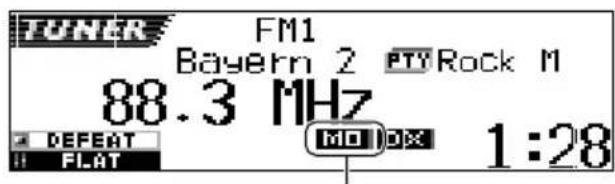

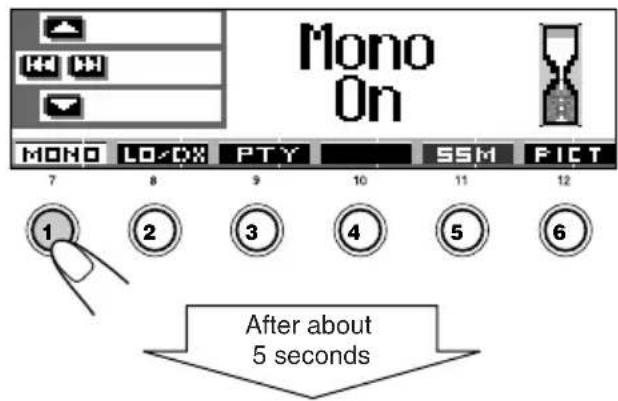

If the sound quality decreases and thestereo effect is lost while listening to anFM stationIn some areas, adjacent stations mayinterfere with each other. If this interferenceoccurs, this unit can automatically reduce thisinterference noise (initial factory setting).However, in this case, the sound quality willbe degraded and the stereo effect will be alsolost.If you do not want to degrade the soundquality and to lose the stereo effect, ratherthan to eliminate the interference noise, see “To change the FM tuner selectivity—IF Filter” on page 49. EN10-14SH9101[E_EX]f.p65 03.2.27, 22:511213 ENGLISH Manual preset You can preset up to 6 stations in each band (FM1,FM2, FM3 and AM) manually.Ex.: Storing an FM station of 92.5 MHz into thepreset number 1 of the FM1 band. Select the band (FM1 – 3, AM) youwant to store stations into (in thisexample, FM1).1 Press SRC (source)repeatedly to select the tuner.2 Press and hold SRC for morethan 1 second.3 Within about 5 seconds, pressSRC again.Each time you press thebutton, the band changes. Tune in to a station (in this example,of 92.5 MHz). Press and hold the number button (inthis example, 1) for more than 2seconds.The selected preset numberflashes for a while. Repeat the above procedure to storeother stations into other presetnumbers.Press ¢ to tune in tostations of higherfrequencies.Press 4 to tune in tostations of lower frequencies. SRC

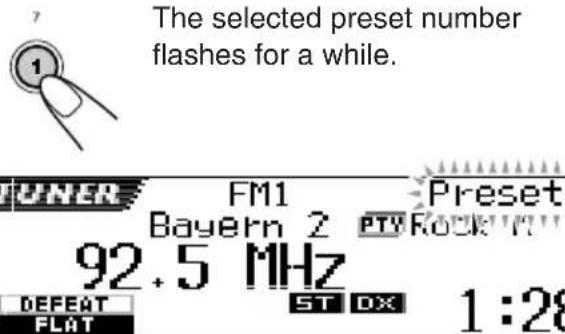

345621Notes:• A previously preset station is erased when a newstation is stored in the same preset number.• Preset stations are erased when the power supply tothe memory circuit is interrupted (for example,during battery replacement). If this occurs, presetthe stations again. Tuning in to a preset station You can easily tune in to a preset station.Remember that you must store stations first. If youhave not stored them yet, see “Storing stations inmemory” on pages 12 and 13. Selecting a preset station directly

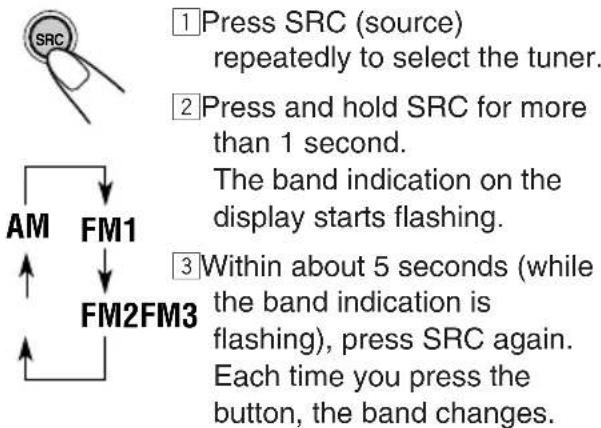

Select the band (FM1 – 3, AM). 1 Press SRC (source)repeatedly to select the tuner.2 Press and hold SRC for morethan 1 second.The band indication on thedisplay starts flashing.3 Within about 5 seconds (whilethe band indication isflashing), press SRC again.Each time you press thebutton, the band changes. Select the number (1 – 6) for the presetstation you want. EN10-14SH9101[E_EX]f.p65 03.2.27, 22:511314 ENGLISH Changing the display pattern By pressing DISP (D), you can change theinformation shown on the display.Each time you press the button, thedisplay patterns change as follows:• Initial display pattern:• Programme station (PS) name isemphasized: Selecting a preset station using the preset station list If you forget what stations are stored in whatpreset numbers, you can check the preset stationlist, then select your desired station on the list.

Select the band (FM1 – 3, AM). 1 Press SRC (source)repeatedly to select the tuner.2 Press and hold SRC for morethan 1 second.3 Within about 5 seconds, pressSRC again.Each time you press thebutton, the band changes.

Press and hold 5 (up) or ∞ (down) until the preset station list for the current band (FM1, FM2, FM3, or AM) appears on the display. The currently received station willbe highlighted on the display.Notes:• If one of FM band preset station lists (FM1,FM2, or FM3) is shown on the display, youcan show the other lists by pressing 5 (up) or∞ (down).• If a preset station is an FM RDS station withPS signal, PS name will be shown instead ofthe station frequency.

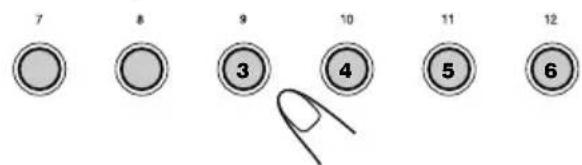

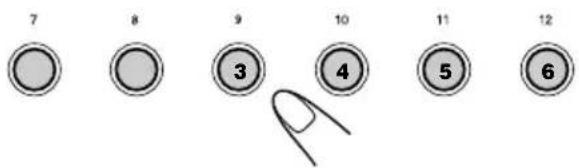

Select the number (1 – 6) for the preset station you want. SRC FM1 FM2FM3

“No Name” always appears for AM or FM non-RDS stations (see the following pages).

Appears only when selecting a preset station.

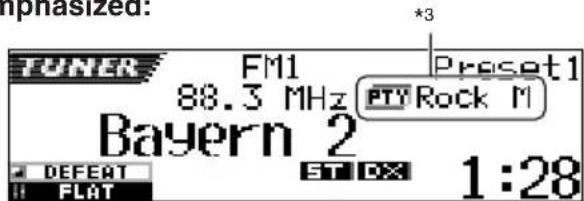

PTY code appears only when receiving an RDS station.

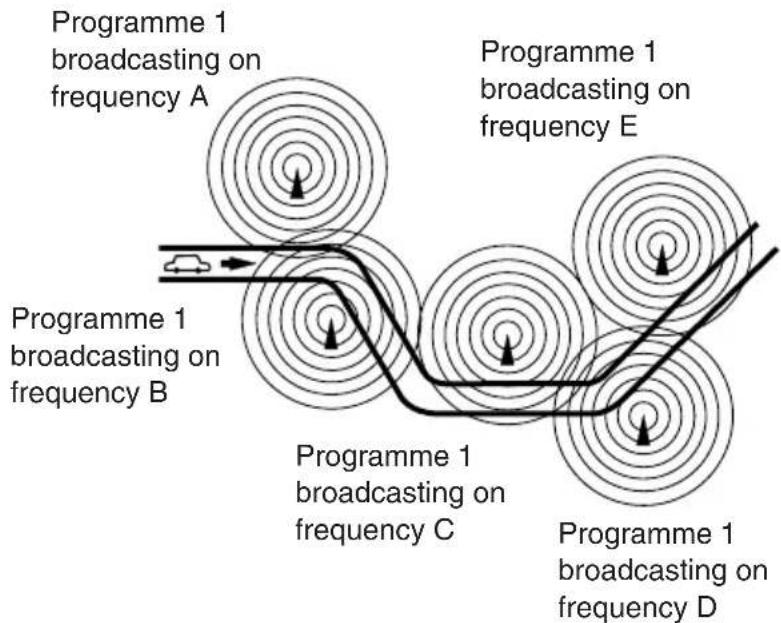

EN10-14SH9101[E_EX]f.p65 03.2.27, 22:511415 ENGLISH RDS OPERATIONS What you can do with RDS RDS (Radio Data System) allows FM stations tosend an additional signal along with their regularprogramme signals. For example, the stationssend their station names, as well as informationabout what type of programme they broadcast,such as sports or music, etc.Another advantage of RDS function is called“Enhanced Other Networks.” By using theEnhanced Other Networks data sent from astation, you can tune in to a different station of adifferent network broadcasting your favoriteprogramme or traffic announcement whilelistening to another programme or to anothersource such as CD.By receiving the RDS data, this unit can do thefollowing:• Tracing the same programme automatically(Network-Tracking Reception)• Standby Reception of TA (TrafficAnnouncement) or your favorite programme• PTY (Programme Type) search• Programme search• And some other functions Tracing the same programme automatically (Network-Tracking Reception) When driving in an area where FM reception isnot good, the tuner built in this unit automaticallytunes in to another RDS station, broadcasting thesame programme with stronger signals. So, youcan continue to listen to the same programme inits finest reception, no matter where you drive.(See the illustration on page 21.)Two types of the RDS data are used to makeNetwork-Tracking Reception work correctly—PI (Programme Identification) and AF(Alternative Frequency).Without receiving these data correctly from theRDS station you are listening to, Network-Tracking Reception will not operate. To use Network-Tracking Reception You can select the different modes of network-tracking reception to continue listening to thesame programme in its finest reception.When shipped from the factory, “AF” is selected.• AF: Network-Tracking Reception isactivated without Regionalization.With this setting, the unit switches toanother station within the samenetwork when the receiving signalsfrom the current station becomeweak. (In this mode, the programmemay differ from the one currentlyreceived.)The AF indicator lights up.• AF Reg: Network-Tracking Reception isactivated with Regionalization.With this setting, the unit switches toanother station, within the samenetwork, broadcasting the sameprogramme when the receivingsignals from the current stationbecome weak.The REG indicator lights up.• Off: Network-Tracking Reception isdeactivated.Neither the AF nor the REG indicatorlights up.Note:If a DAB tuner is connected and Alternative Reception(for DAB services) is activated, Network-TrackingReception is also activated (“AF”) automatically. Onthe other hand, Network-Tracking Reception cannotbe deactivated without deactivating AlternativeReception. (See page 69.)AF or REG indicator lights up. EN15-21SH9101[E_EX]f.p65 03.2.27, 22:551516 ENGLISH

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 47 and 48.)

Press number button 4 to select “TUNER”—Tuner category of the PSM settings. The “PTY Stnby” (standby) setting screen appears on the display.

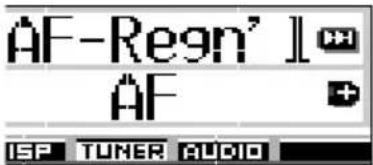

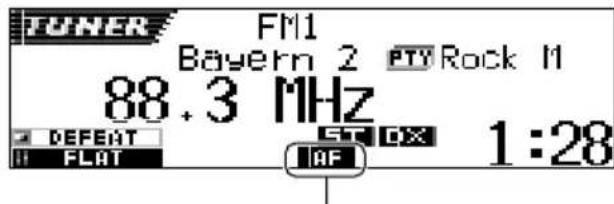

Select “AF-Regn’l” (alternative frequency/regionalization reception).

Select the desired mode—“AF,” “AF Reg,” or “Off.”

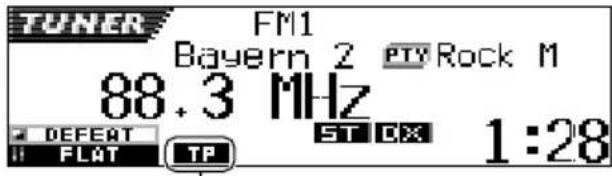

Finish the setting. Using TA Standby Reception TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station, CD, or other connected components).

• TA Standby Reception will not work if you are listening to an AM station. Press T/P to activate TA Standby Reception. Each time your press the button, this function is turned on and off alternately.

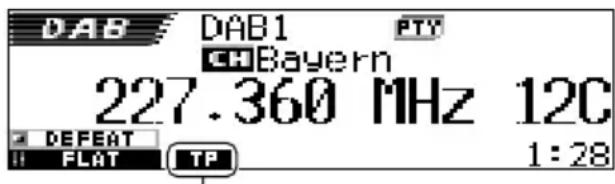

• When the DAB tuner is connected, this also turns on and off Road Traffic Flash Standby Reception (see page 66). 7 When the current source is FM, the TP indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated. If a station starts broadcasting a traffic announcement, “Traffic Flash” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 20) and the traffic announcement can be heard.

• If the TP indicator flashes, TA Standby Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated. SEL ATT SEL T/P TP indicator appears (either lights up or flashes) EN15-21SH9101[E_EX]f.p65 03.2.27, 22:551617 ENGLISH

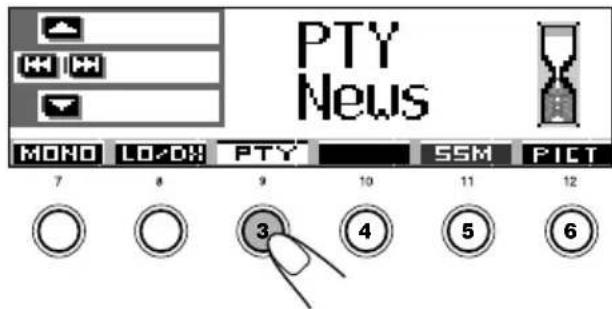

Select one of the twenty-nine PTY codes. (See page 21.) Selected code name appears on the display and is stored into memory.

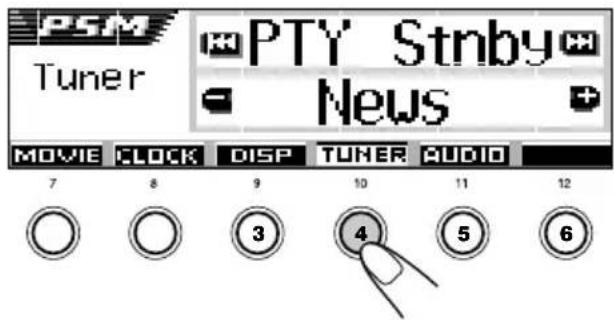

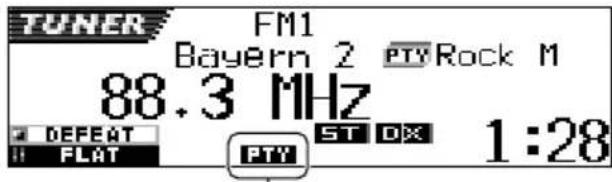

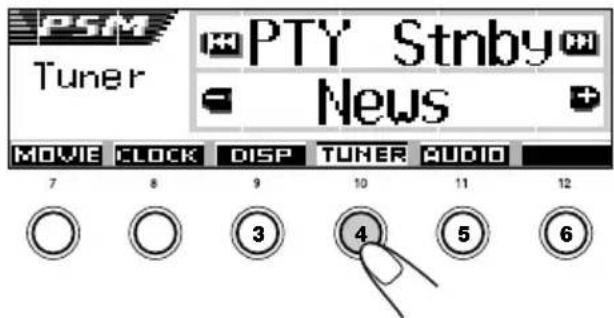

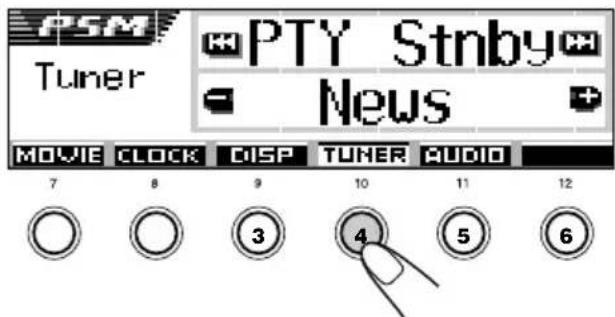

Finish the setting. To set PTY Standby Reception When the DAB tuner is connected, the following operations will set PTY Standby Reception both for the FM tuner and the DAB tuner. (See page 69.) 1 Press MODE (M) while listening to an FM stereo broadcast. “Mode” appears on the display, and the number buttons start flashing. 7 When the current source is other than FM, the TP indicator lights up. If a station starts broadcasting a traffic announcement, “Traffic Flash” appears on the display, and this unit automatically changes the source and tunes in to the station. Using PTY Standby Reception PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from any source except AM stations. To select your favorite PTY code for PTY Standby Reception When shipped from factory, PTY Standby Reception has been set to work for searching for “News” programmes. You can select your favorite programme type for PTY Standby Reception.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 47 and 48.)

Press number button 4 to select “TUNER”—Tuner category of the PSM settings. The “PTY Stnby” (standby) setting screen appears on the display. EN15-21SH9101[E_EX]f.p65 03.2.27, 22:551718 ENGLISH Note: After turning on PTY Standby Reception, you canchange the source without canceling PTY StandbyReception. In this case, the PTY indicator stopsflashing if it was. If a station starts broadcasting theselected PTY programme, this unit automaticallychanges the source and tunes in to the station.• If you change the source to AM, PTY StandbyReception will be temporarily canceled.• You can only deactivate the PTY Standby Receptionwhen the source is FM. Searching your favorite programme You can search any one of the PTY codes.In addition, you can store your 6 favoriteprogramme types in the number buttons.When shipped from the factory, the following6 programme types have been stored in thenumber buttons (1 to 6).To store your favorite programme types, seebelow and page 19.To search your favorite programme type, seepage 19. To store your favorite programme types

Press and hold T/P for more than 2 seconds while listening to an FM station. The last selected PTY code appears.Pop M

ClassicsAffairsVaried T/P 345621Ex.: When the currently selected PTY codefor PTY Standby Reception is “News”After about5 secondsThe display returns to the source indicationscreen.PTY indicator appears(either lights up or flashes) 2 Press number button 3 repeatedly to activate PTY Standby Reception while “Mode” is still on the display.Each time you press the button, PTY StandbyReception turns on and off alternately.The PTY indicator either lights up or flashes.• If the PTY indicator lights up, PTY StandbyReception is activated.If a station starts broadcasting the selectedPTY programme, this unit automatically tunesin to the station.• If the PTY indicator flashes, PTY StandbyReception is not yet activated since the stationbeing received does not provide the signalsused for PTY Standby Reception.To activate PTY Standby Reception, you needto tune in to another station providing these signals. Press ¢ or 4 to search for such a station.When a station providing these signals is tunedin, the PTY indicator stops flashing andremains lit. Now PTY Standby Reception isactivated. EN15-21SH9101[E_EX]f.p65 03.2.27, 22:551819 ENGLISH

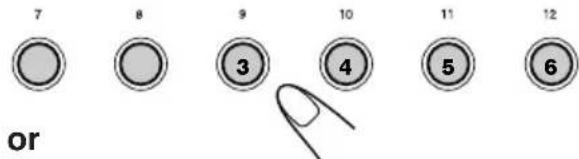

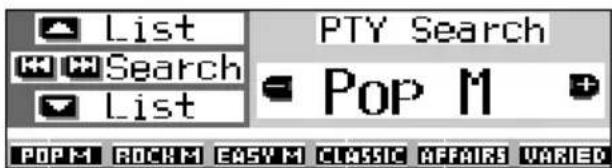

To select one of your favorite programme type

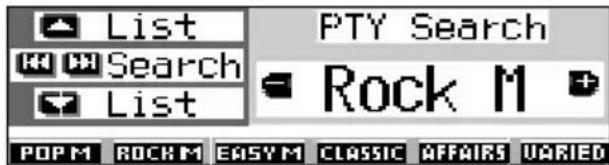

To select any one of the twenty-nine PTY codes How to use the

(down) button By pressing 5 (up) or ∞ (down) repeatedly, you can show the list of your preset PTY codes and all twenty-nine PTY codes (six PTY codes at a time). First, the list of your stored PTY codes appears, then all twenty-nine PTY codes (six PTY codes at a time) appears in sequence. Press the number button to select your desired PTY code on the list currently shown on the display.

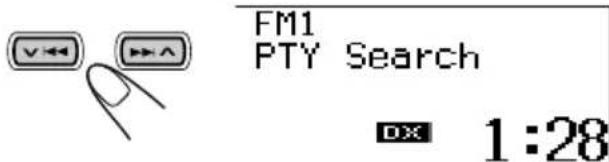

Start PTY search for your favorite programme.

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change. Note: In some areas, the PTY search will not work correctly. Ex.: When “Rock M” is selected The last selected PTY code appears. ATT T/P T/P ATT

Select one of the twenty-nine PTY codes. (See page 21.) Selected code name appears on the display.

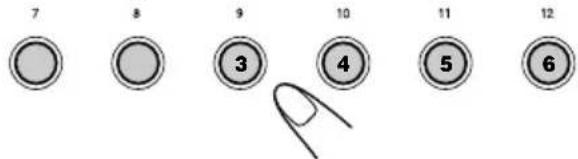

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want. Selected preset number flashes for a while.

Press and hold T/P for more than 2 seconds to exit from this mode. To search your favorite programme type

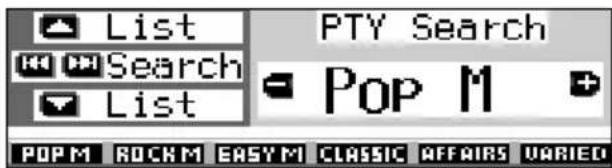

Press and hold T/P for more than 2 seconds while listening to an FM station. EN15-21SH9101[E_EX]f.p65 03.2.27, 22:551920 ENGLISH Setting the TA volume level You can preset the volume level for TA StandbyReception. When a traffic programme is received,the volume level automatically changes to thepreset level.• See also “Changing the general settings(PSM)” on page 46. 1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM itemsappears on the display. 2 Press number button 4 to select “TUNER”— Tuner category of the PSM settings. 3 Press ¢ or 4 to select “TA Volume.” 4 Turn the control dial to set to the desired volume. You can set it from “Volume 0” to “Volume 50.” 5 Press SEL (select) to finish the setting. Automatic clock adjustment When shipped from the factory, the clock built inthis unit is set to be readjusted automaticallyusing the CT (Clock Time) data in the RDSsignal.If you do not want to use automatic clockadjustment, follow the procedure below.• See also “Changing the general settings(PSM)” on page 46.1 Press and hold SEL (select) for more than2 seconds so that one of the PSM itemsappears on the display. 2 Press number button 2 to select “CLOCK”— Clock category of the PSM settings. 3 Press ¢ or 4 to select “Auto Adj” (adjustment).4 Turn the control dial counterclockwise to select“Off.”Now automatic clock adjustment is canceled.5 Press SEL (select) to finish the setting.To reactivate clock adjustment, repeat the same procedure and select “On” in step 4 by turning the control dial clockwise. Note: You must stay tuned to the same station for more than2 minutes after setting “Auto Adj” to “On.”Otherwise, the clock time will not be adjusted. (This isbecause the unit takes up to 2 minutes to capture theCT data in the RDS signal.) Other convenient RDS functions and adjustments Automatic selection of the station when using the number buttons Usually when you press the number button, thepreset station is tuned in.However, when the preset station is an RDSstation, something different will happen. If thesignals from that preset station are not sufficientfor good reception, this unit, using the AF data,tunes in to another frequency broadcasting thesame programme as the original preset station isbroadcasting. (Programme search)• The unit takes some time to tune in to anotherstation using programme search.To activate programme search, follow theprocedure below.• See also “Changing the general settings(PSM)” on page 46. 1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM itemsappears on the display. 2 Press number button 4 to select “TUNER”— Tuner category of the PSM settings. 3 Press ¢ or 4 to select “P(Programme)-Search.” 4 Turn the control dial clockwise to select “On.” Now programme search is activated. 5 Press SEL (select) to finish the setting. To cancel programme search, repeat the same procedure and select “Off” in step 4 by turning the control dial counterclockwise. EN15-21SH9101[E_EX]f.p65 03.2.27, 22:552021 ENGLISH PTY codes News: News Affairs: Topical programmes expanding on current news or affairs Info: Programmes which impart advice on a wide variety of topics Sport: Sport events Educate: Educational programmes Drama: Radio plays Culture: Programmes on national or regional culture Science: Programmes on natural science and technology Varied: Other programmes like comedies or ceremonies Pop M: Pop music Rock M: Rock music Easy M: Easy-listening music Light M: Light music Classics: Classical music Other M: Other music Weather: Weather information Finance: Reports on commerce, trading, the Stock Market, etc. Children: Entertainment programmes for children Social: Programmes on social activities Religion: Programmes dealing with any aspect of belief or faith, or the nature of existence or ethics Phone In: Programmes where people can express their views either by phone or in a public forum Travel: Programmes about travel destinations, package tours, and travel ideas and opportunities Leisure: Programmes concerned with recreational activities such as gardening, cooking, fishing, etc. Jazz: Jazz music Country: Country music Nation M: Current popular music from another nation or region, in that country’s language Oldies: Classic pop music Folk M: Folk music Document: Programmes dealing with factual matters, presented in an investigative style The same programme can be received on different frequencies. Programme 1 broadcasting on frequency A Programme 1 broadcasting on frequency E Programme 1 broadcasting on frequency B Programme 1 broadcasting on frequency D Programme 1 broadcasting on frequency C EN15-21SH9101[E_EX]f.p65 03.2.27, 22:552122 ENGLISH CD OPERATIONS Playing a disc

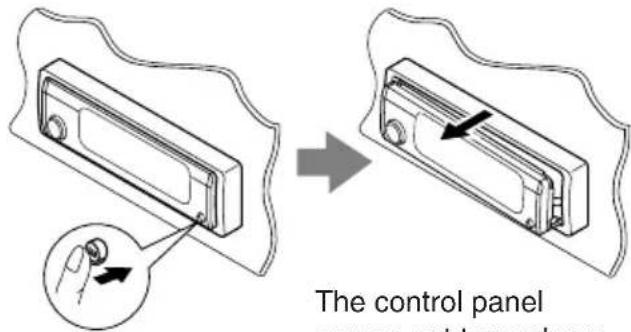

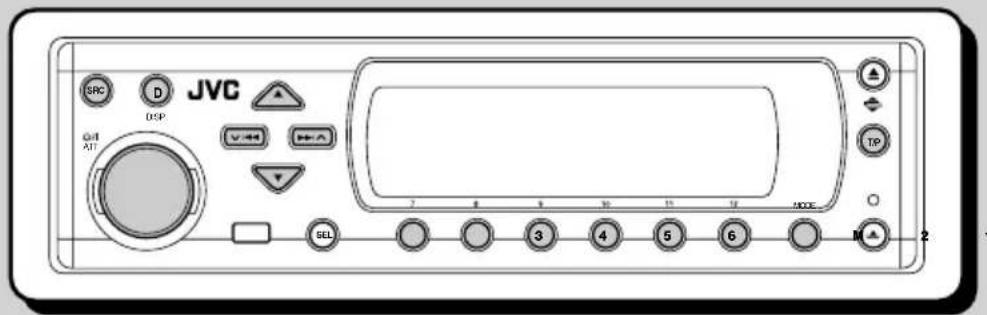

Open the control panel.

Insert a disc into the loading slot. The unit draws thedisc, the control panelgoes back to theprevious position (seepage 52), and playbackstarts automatically.All tracks will be played repeatedly until you stopplayback.Notes:• MP3 or WMA discs require a longer readout time.(It differs due to the complexity of the folder/trackconfiguration.)• For details on playable discs and other relatedinformation, see page 74. To stop play and eject the disc Press 0.Playback stops, the control panel moves down,and the disc automatically ejects from the loadingslot.If you change the source, the disc play also stops(without ejecting the disc this time).: Folders and their playback order: MP3/WMA tracks and their playbackorderThis unit has been designed to reproduce CDs,CD-Rs (Recordable), CD-RWs (Rewritable), andCD Texts.• This unit is also compatible with MP3 andWMA discs. For details about these discs,refer to “A Guide to MP3/WMA” (separatevolume). About MP3 and WMA discs MP3 and WMA (Windows Media Audio) “tracks”(word “file” is not used to indicate MP3 or WMAfiles, “track” is used in this manual) are recordedin “folders.”During recording, the tracks and folders can bearranged in a way similar to arranging files andfolders of computer data.“Root” is similar to the root of a tree. Every trackand folder can be linked to and be accessed fromthe root.3456 M21

SRC DISP ATT SEL T/P MODE

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in theUnited States and/or other countries.

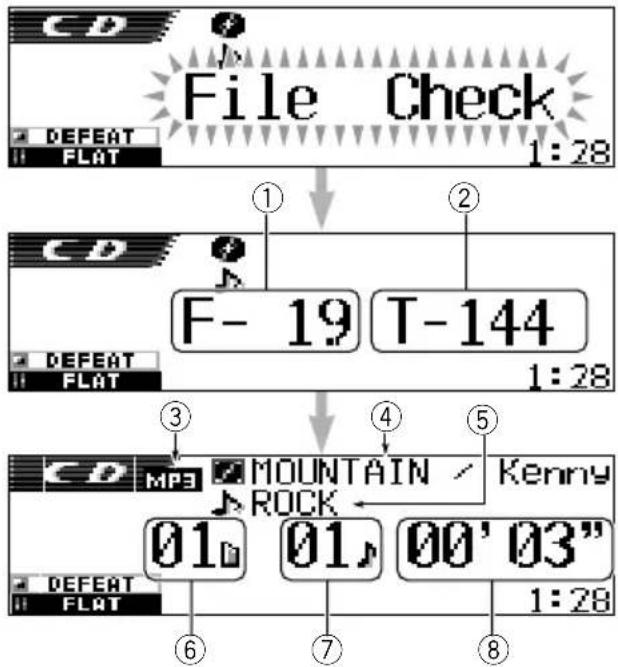

• Display indications when inserting an MP3 or a WMA disc 1 Total folder number2 Total track number3 Disc type—MP3 or WMA4 Album name/performer (or folder name when “Tag” is set to “Off”—see page 49, or when no Tag is recorded)5 Track title (or track name when “Tag” is set to“Off”—see page 49, or when no Tag is recorded)6 Current folder number7 Current track number8 Elapsed playing time of the current track

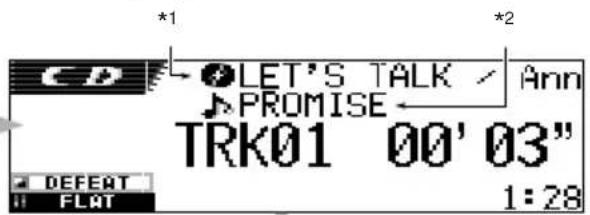

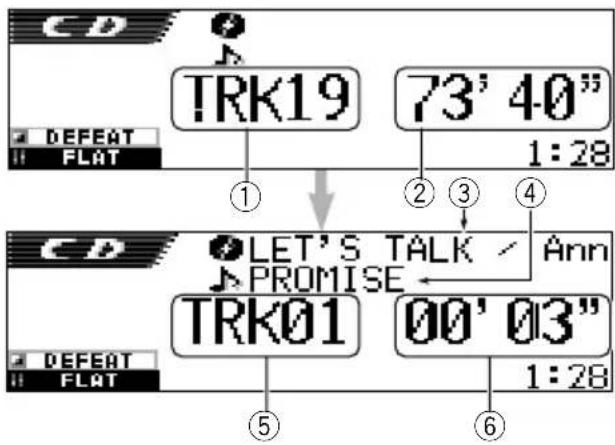

• Display indications when inserting an audio CD or a CD Text: 1 Total track number2 Total playback time of the disc3 Disc title/performer (if no title is recorded or assigned*, “No Name” appears.) 4 Track title (if no title is recorded, “No Name” appears.)5 Current track number6 Elapsed playing time of the current track* If a name has been assigned to the audio CD (seepage 51), it will be shown on the display. Notes:
• When a disc is already in the loading slot, selecting “CD” as the source starts disc play.• The unit cannot read or play an MP3 track without the extension code <mp3>, and a WMA trackwithout the extension code <wma>.• When a disc is inserted upside down, the disc automatically ejects.• If you change the source, playback also stops (without ejecting the disc).Next time you select “CD” as the source, disc play starts from where it has been stopped previously.To return the control panel to its previousposition, press 0 again.• If you keep the loading slot open for about 1 minute, (beeps sound when the “Beep” setting is turned “On”—see page 49) the control panelreturns to its previous position.Be careful not to get the disc or your fingercaught in between the control panel and theunit. Note: If the ejected disc is not removed within 15 seconds,the disc is automatically inserted again into theloading slot to prevent it from dust. (Disc will not playthis time.)

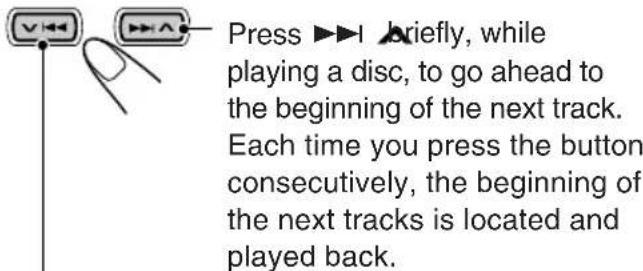

EN22-31SH9101[E_EX]f.p65 03.2.27, 22:562324 ENGLISH Press ¢ briefly, while playing a disc, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back. Press 4 briefly, while playing a disc, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back. What is ImageLink When an MP3 or a WMA folder includes an image <jml> file edited by Image Converter (supplied in the CD-ROM), you can show the image on the display while the tracks in the folder are played back.

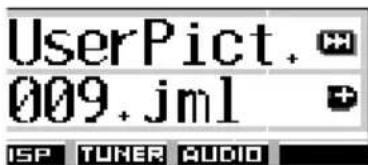

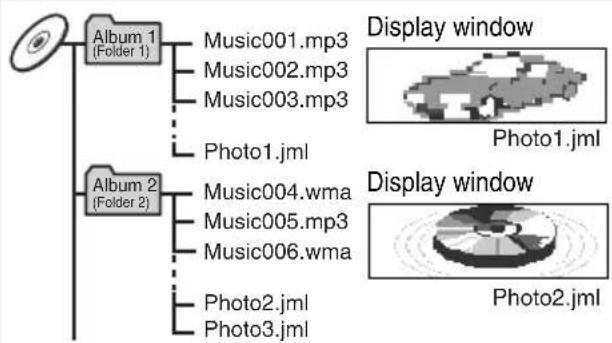

• While reading an image <jml> file, no sounds come out (the preset image of a coffee cup is shown on the display during this period). To activate ImageLink, follow the procedure below

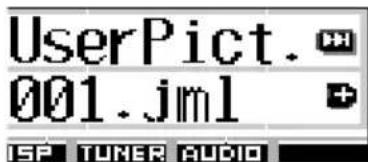

• See also “Changing the general settings (PSM)” on page 46. 1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. 2 Press number button 1 to select “MOVIE” — Movie category of the PSM settings. The “Graphics” setting screen appears on the display. 3 Turn the control dial to select “ImageLink.” 4 Press SEL (select) to finish the setting. ImageLink starts functioning when the next folder starts playing. Note: ImageLink will not work in the following cases:

• If no <jml> file is included in an MP3/WMA folder.

• If Intro Scan is activated.

• If the source is changed to another from “CD,” or

• If you turn off then on the unit while the preset image of a coffee cup is shown on the display. Locating a particular portion on a track To fast-forward or reverse the track Note: During this operation on an MP3 or WMA disc, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.) To go to the next or previous tracks Press and hold ¢ , while playing a disc, to fast-forward the track. Press and hold 4 , while playing a disc, to reverse the track. If there are more than one <jml> file in a folder, a<jml> file with younger playback order numberwill be shown on the display (in the above example, “Photo2.jml” will be used for Album 2). Album 1(Folder 1)Music001.mp3Music002.mp3Music003.mp3Photo1.jml Photo1.jml Photo2.jml Album 2(Folder 2)Music004.wmaMusic005.mp3Music006.wmaPhoto2.jmlPhoto3.jml Display window Display window EN22-31SH9101[E_EX]f.p65 03.2.27, 22:562425 ENGLISH Track 6 \ 10 \ 20 \ 30 \ 31 \ 32 (Three times) (Twice) Track 36 \ 30 \ 20 \ 10 \ 9 \ 8 (Three times) (Twice)

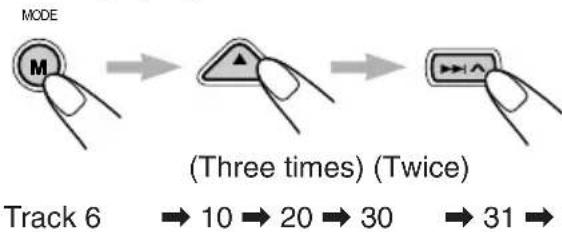

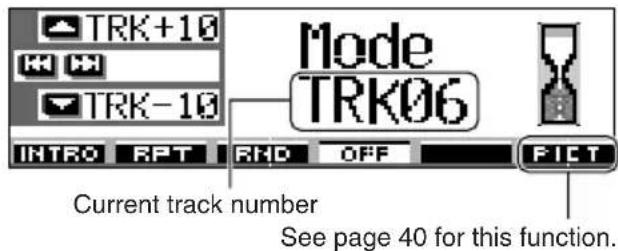

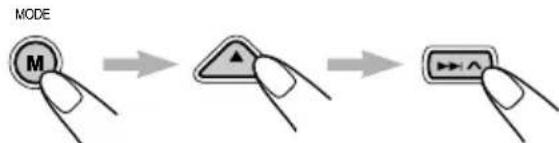

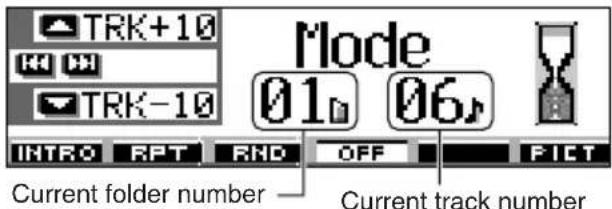

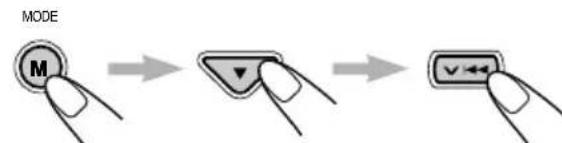

MODE How to go to the desired track quickly

• Ex. 1: To select track number 32 while playing track number 6

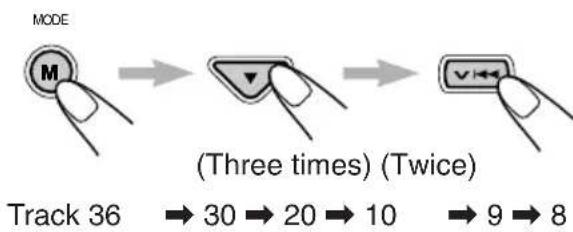

• Ex. 2 :To select track number 8 while playing track number 36

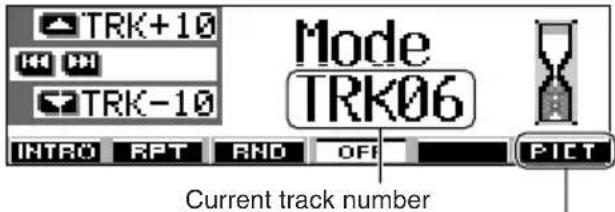

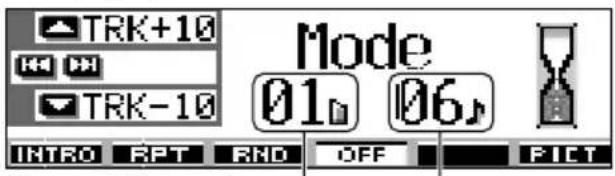

MODE Current track number Current track number Current folder number Locating a track on a disc To go to a particular track directly (ONLY for CD and CD Text discs) Press the number button corresponding to the track number to start its playback.

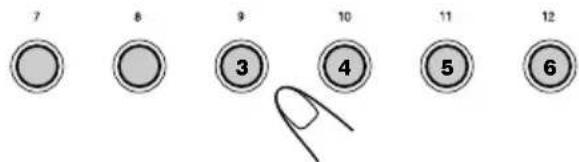

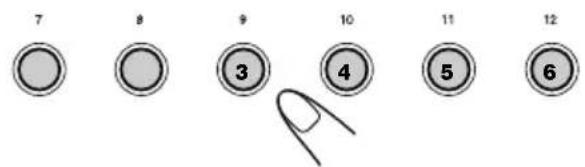

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second. To go to a track quickly 1 Press MODE (M) while playing a disc. “Mode” appears on the display, and the number buttons and 5 (up)/ ∞ (down) buttons start flashing. 2 Press 5 (up) or ∞ (down), while “Mode” is still on the display. First time you press 5 (up) or ∞ (down), the track skips to the nearest higher or lower track with a track number of multiple ten (ex. 10th, 20th, 30th). Then, each time you press the button, you can skip 10 tracks (see “How to go to the desired track quickly” that follows).

• After the last track, the first track will be selected, and vice versa.

• While playing an MP3 or a WMA disc, this operation is possible only within a folder. While playing an audio CD or a CD Text disc: While playing an MP3 or a WMA disc: See page 40 for this function. EN22-31SH9101[E_EX]f.p65 03.2.27, 22:562526 ENGLISH Locating a folder on a disc The following operations are only possible when playing an MP3 or a WMA disc. To go to a folder directly IMPORTANT: To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If folder name is “01 ABC” = Press 1 to go to Folder “01 ABC.” If folder name is “1 ABC,” pressing 1 does not work. If folder name is “12 ABC” = Press and hold 6 (12) to go to Folder “12 ABC.” Press the number button corresponding to the folder number to start playing the first track in the selected folder.

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second. Notes:

• If the folder does not contain any MP3 or WMA tracks, playback will not start (“No Music” appears on the display). Select another folder.

• You cannot directly select a folder with a number greater than 12. To select a particular track in a folder, press ¢ or 4 after selecting the folder. To skip to the next or previous folder (either on the same or different hierarchy levels) On the control panel: On the remote controller: Press and hold 3 (right) while playing a disc to skip to the next folder. Each time you press and hold the button consecutively, the next folder is located and the first track in the folder starts playing. Press 5 (up) while playing a disc to skip to the next folder. Each time you press the button consecutively, the next folder is located and the first track in the folder starts playing. Press ∞ (down) while playing a disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located and the first track in the folder starts playing. Press and hold 2 (left) while playing a disc to skip back to the previous folder. Each time you press and hold the button consecutively, the previous folder is located and the first track in the folder starts playing. Note: If the folder does not contain any MP3 or WMA tracks, it is skipped. See the hierarchy diagram on page 22.01 02 03 04 PRESETPRESET EN22-31SH9101[E_EX]f.p65 03.2.27, 22:562627 ENGLISH To skip to the next or previous folder within a folder (on the same hierarchy level) ONLY on the remote controller: See the hierarchy diagram on page 22.03 04 03 04 Press 3 (right) while playing a disc to skip to the next folder. Each time you press the button consecutively, the next folder included within the same folder (on the same hierarchy level) is located (and the first track in the folder starts playing if recorded). Press 2 (left) while playing a disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder included within the same folder (on the same hierarchy level) is located (and the first track in the folder starts playing if recorded). Note: If the folder does not contain any MP3 or WMA tracks, playback will not start (“No Music” appears on the display). Select another folder. To skip to the folders on the lower or on the higher hierarchy levels ONLY on the remote controller: 01 05 01 05Example 1Example 2See the hierarchy diagram on page 22.01 02 03

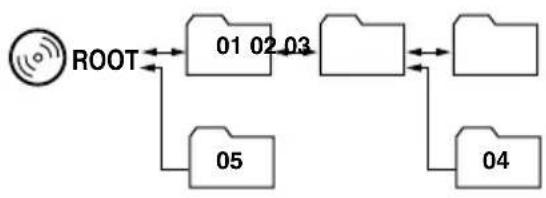

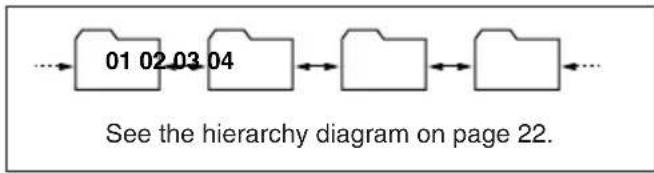

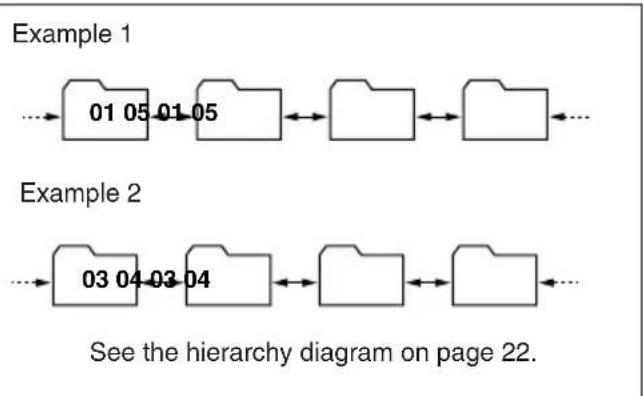

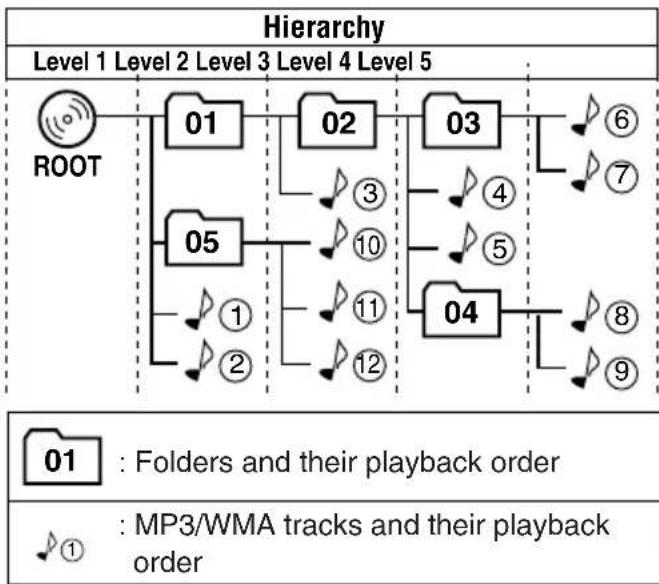

Press 5 (up) while playing a disc to skip to a folder on the higher hierarchy level. Each time you press the button consecutively, a folder on the higher hierarchy level is located (and the first track in the folder starts playing if recorded). Press ∞ (down) while playing a disc to skip to a folder on the lower hierarchy level. Each time you press the button consecutively, a folder on the lower hierarchy level is located (and the first track in the folder starts playing if recorded).

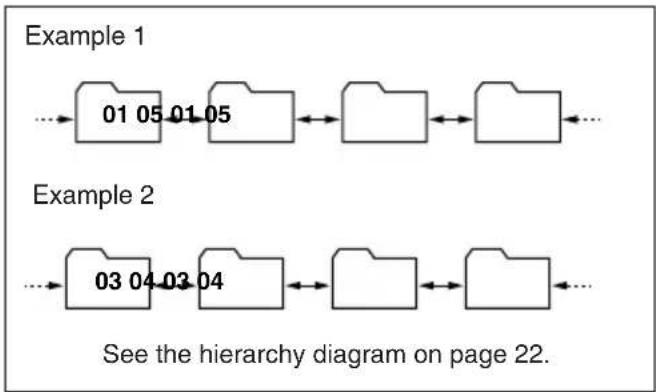

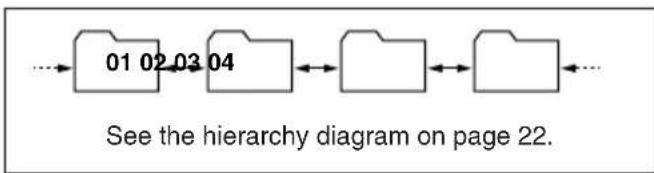

• If there are more than one folder on the lower or higher hierarchy level, a folder with younger playback order number will be located. Note: If the folder does not contain any MP3 or WMA tracks, playback will not start (“No Music” appears on the display). Select another folder. To go back to the root directly, press R

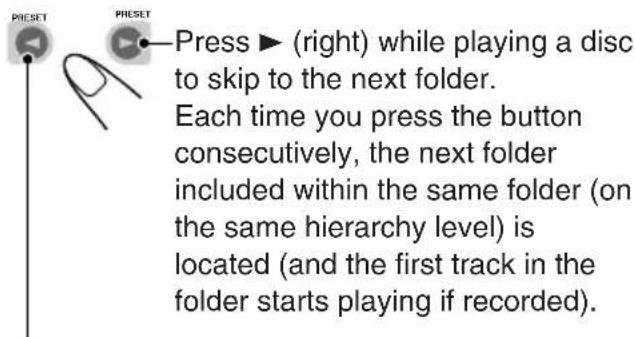

D on the remote controller. You can go back to the root from any folder.

• If tracks are recorded on the disc directly without putting them into a folder, this unit starts playing the tracks. PRESETPRESET DISC DISC EN22-31SH9101[E_EX]f.p65 03.2.27, 22:562728 ENGLISH Folder name list Track name list To select a track and start playback

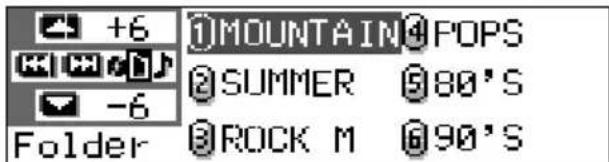

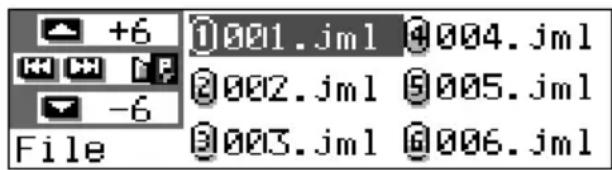

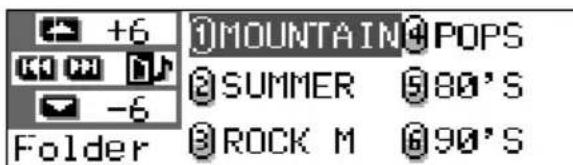

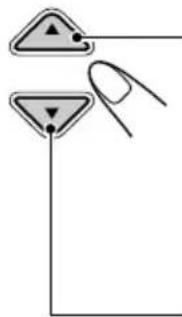

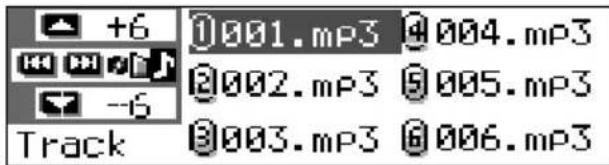

Press and hold 5 (up) or ∞ (down) so that the folder name list of the inserteddisc appears on the display.The currently playing folder willbe highlighted on the display. Show the track name list of the currentfolder.Each time you press the button,the lists on the display changesas follows:The currently playing track (or folder) will behighlighted on the display.Note:The display can show only six names at a time.You can show the other names on the next lists by pressing 5 (up) or ∞ (down).

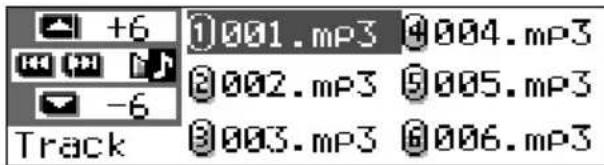

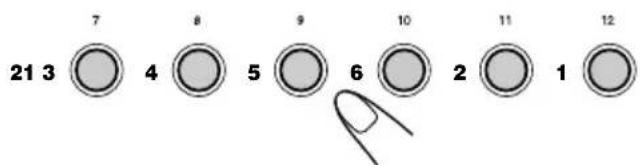

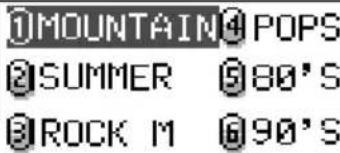

Select the number (1 – 6) for the trackyou want to play. Selecting a folder and a track using the name lists The following operations are only possiblewhen playing an MP3 or a WMA disc.You can show the folder name and track namelists on the display while playing a disc, thenselect a folder or a track you want to play. To select a folder and start playback

Press and hold 5 (up) or ∞ (down) so that the folder name list of the inserteddisc appears on the display.The currently playing folder willbe highlighted on the display.Notes:• The display can show only six names at atime. You can show the other names on thenext lists by pressing 5 (up) or ∞ (down).

• If you press ¢ or 4 , the track name list of the current playing folderappears. Each time you press the button, thefolder name list and track name listalternately appears.• Only folders including MP3 or WMA trackswill be listed. Select the number (1 – 6) for the folderyou want to play. EN22-31SH9101[E_EX]f.p65 03.2.27, 22:572829 ENGLISH Selecting playback modes To play back tracks at random (Random Play) You can play back tracks on a disc (or in a folderfor MP3 and WMA discs) at random. 1 Press MODE (M) while playing a disc.“Mode” appears on the display, thenthe number buttons and the 5 (up)/∞ (down) buttons start flashing. 2 Press number button 3, while “Mode” is still on the display.Each time you press the button, random playmode changes as follows:For audio CD and CD Text discs:For MP3 and WMA discs:

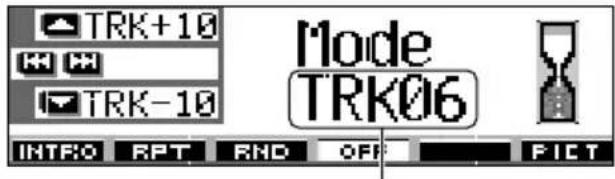

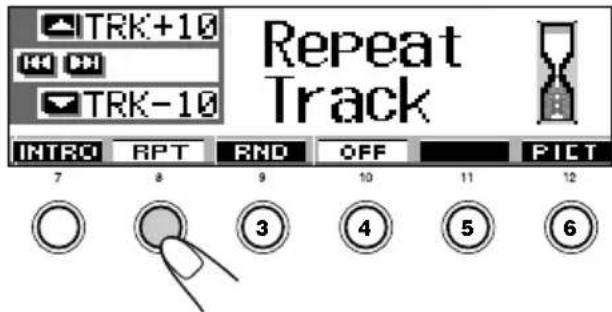

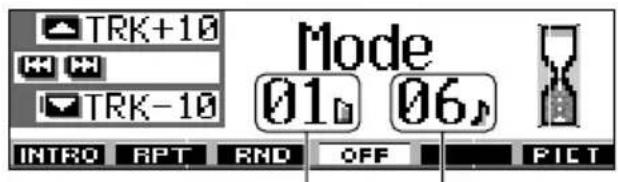

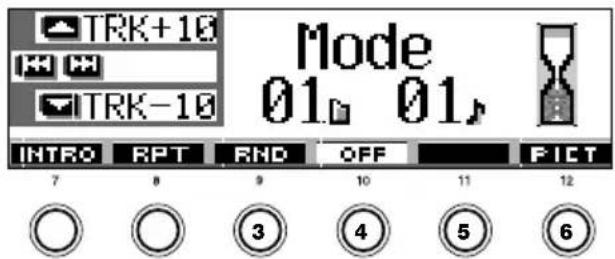

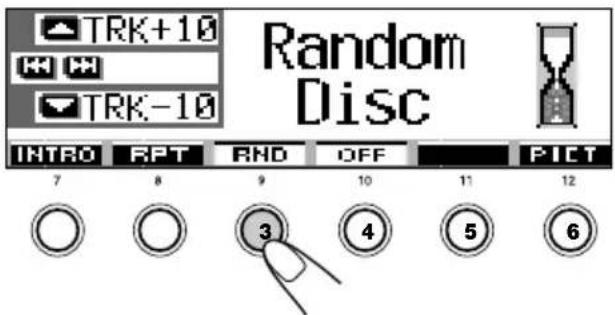

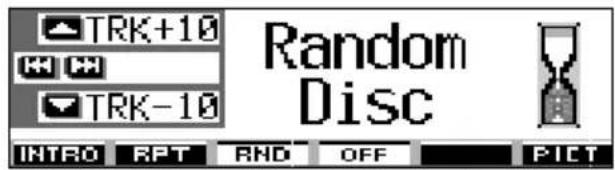

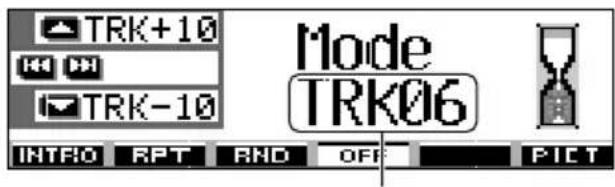

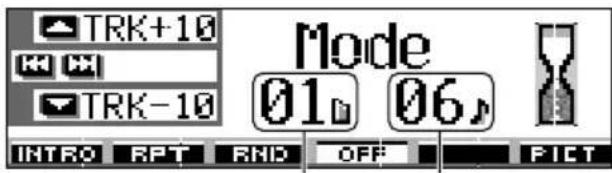

MODE 345621Current track numberCurrent folder numberMode Plays randomlyRandom Folder*: All tracks of the current folder,then moves to the next folder andso on.• While playing, lightsup on the display.Random Disc: All tracks on the disc.• While playing, lightsup on the display.* “Random Folder” can be used for MP3 and WMAdiscs only. To cancel Random Play, select “Random Off” by pressing number button 3 repeatedly or pressnumber button 4 in step 2. To play back tracks repeatedly (Repeat Play) You can play back a track (or a folder for MP3 andWMA discs) repeatedly. 1 Press MODE (M) while playing a disc.“Mode” appears on the display, thenthe number buttons and the 5 (up)/∞ (down) buttons start flashing. 2 Press number button 2, while “Mode” is still on the display.Each time you press the button, repeat playmode changes as follows:While playing an audio CD or a CD Text disc:While playing an MP3 or a WMA disc: EN22-31SH9101[E_EX]f.p65 03.2.27, 22:572930 ENGLISH For audio CD and CD Text discs:For MP3 and WMA discs:Mode Plays repeatedlyRepeat Track : Current (or specified) track.• While playing, lightsup on the display.Repeat Folder*: All tracks of the current (orspecified) folder.• While playing, lightsup on the display.* “Repeat Folder” can be used for MP3 and WMAdiscs only. To cancel Repeat Play, select “Repeat Off” by pressing number button 2 repeatedly or pressnumber button 4 in step 2. To play back only intros (Intro Scan) You can play back the first 15 seconds of eachtrack sequentially. 1 Press MODE (M) while playing a disc.“Mode” appears on the display, thenthe number buttons and the 5 (up)/∞ (down) buttons start flashing. 2 Press number button 1, while “Mode” is still on the display.Each time you press the button, intro scanmode changes as follows: Repeat Off Repeat Track Repeat OffRepeat FolderRepeat TrackFor audio CD and CD Text discs:For MP3 and WMA discs:Mode Plays the beginnings ofIntro Track : All tracks of the disc.• While playing, lightsup on the display. Intro Folder* : First tracks of all folders.

• While playing, lightsup on the display.* “Intro Folder” can be used for MP3 and WMA discsonly. To cancel Intro Scan, select “Intro Off” by pressing number button 1 repeatedly or pressnumber button 4 in step 2. Prohibiting disc ejection You can prohibit disc ejection and can lock a discin the loading slot. While pressing SEL (select), press and hold 0 for more than 2 seconds. “No Eject” flashes on the display for about 5seconds, and the disc is locked and cannot beejected.To cancel the prohibition and unlock the discWhile pressing SEL (select), press and hold 0again for more than 2 seconds.“Eject OK” flashes on the display for about 5seconds, and the disc is unlocked.345621 Intro Off Intro Track Intro Off Intro FolderIntro Track

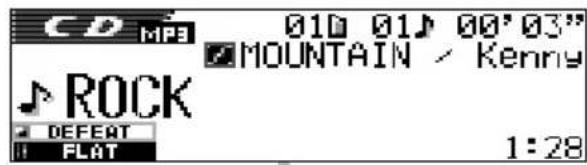

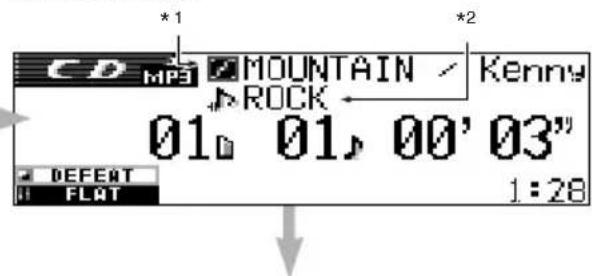

DISP While playing an MP3 or a WMA disc:

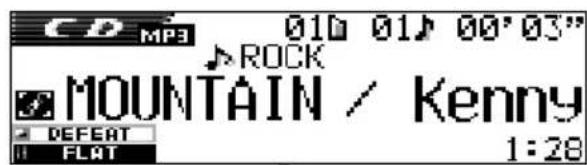

• Album name/performer or folder name is emphasized:

• Track title or track name is emphasized:

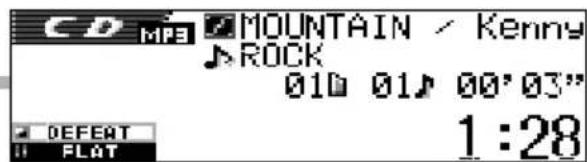

• Clock time is emphasized: Notes:

If “Tag” is set to “Off” (see page 49), folder name appear with .

If “Tag” is set to “Off” (see page 49), track name appear with . Display indication:

• When the title is emphasized at the center of the display, it is shown entirely by scrolling if it cannot be shown at a time. See also “To select the scroll mode—Scroll” on page 48.

• Some characters or symbols will not be shown (will be blanked or substituted) on the display.

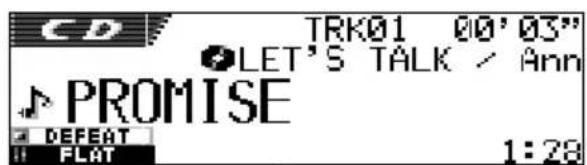

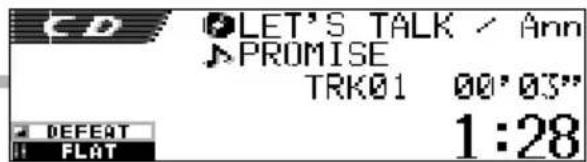

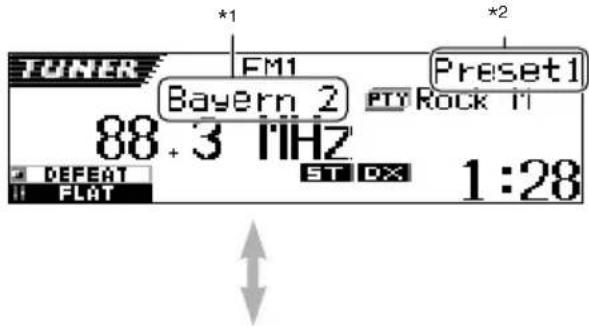

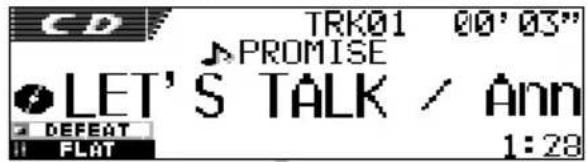

Changing the display pattern By pressing DISP (D), you can change the information shown on the display. Each time you press the button, the display patterns change as follows: While playing an audio CD or a CD Text disc:

• Disc title/performer or your assigned disc name is emphasized:

• Track title is emphasized:

• Clock time is emphasized: Notes:

If no name is assigned to the audio CD, or if no disc title/performer is recorded for the CD Text, “No Name” will appear. To assign a name to an audio CD, see page 51.

“No Name” appears for an audio CD. If no track title is recorded for the CD Text, “No Name” will also appear. EN22-31SH9101[E_EX]f.p65 03.2.27, 22:573132 ENGLISH DSP OPERATIONS SEL

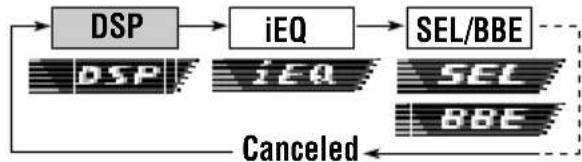

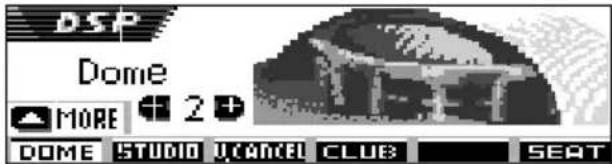

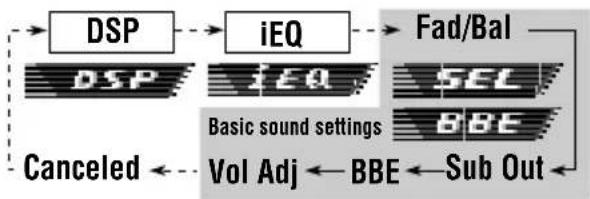

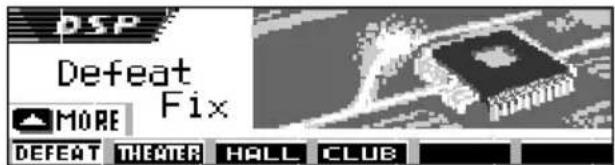

Press SEL (select) once to show the DSP mode selection screen. The last selected DSP modescreen appears.• If you press the button twice or more, theunit enters different sound adjustmentmodes.• For iEQ (sound mode) settings, see pages35 and 36.• For SEL/BBE (basic sound) settings, seepages 37 and 38.

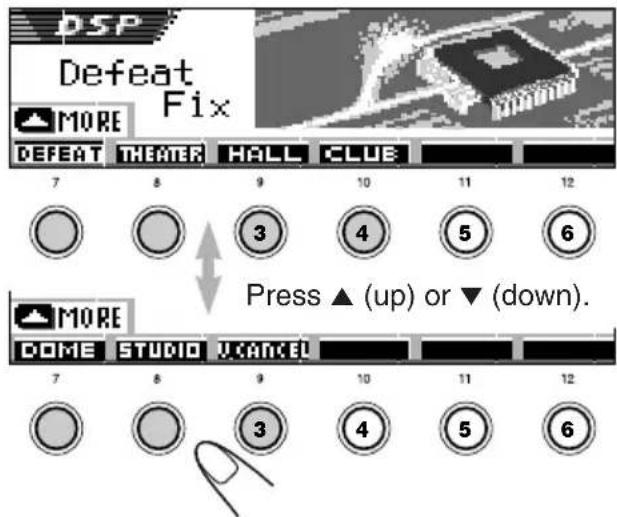

Press the number button to select one of the DSP modes listed on the display.

• This unit has two DSP mode selectionscreens. To move to the other screen, press 5 (up) or ∞ (down). Selecting the DSP modes Using the DSP (Digital Signal Processor) modesbuilt in this unit, you can create a more acousticsound field in your car compartment.Available DSP modes:THEATER: Reminds you of the intensityreproducing a theater.HALL: Reminds you of a large concerthall with a being-there feeling.CLUB: Reminds you of powerfulnessreproduced in a dance club.DOME: Reminds you of a dome with ahigh ceiling.STUDIO: Reminds you of live sounds in arecording studio.V. CANCEL:Reduces the vocal sounds (VoiceCancel). Good for mastering yourfavorite songs—Karaoke.DEFEAT: Cancels the DSP modes.Note:Effectiveness of “V.CANCEL” depends on therecording condition of the sources. Especially, if youplay back the following sources you cannot get thesatisfactory results.• Monaural sources such as AM and monaural FMbroadcasting programs,• Multiplex sound sources, and• Sources recorded with duets, strong echo, a chorus,or only a few instruments. Press 5 (up) or ∞ (down). DSP Canceled iEQ SEL/BBE EN32-38SH9101[E_EX]f.p65 03.2.27, 23:023233 ENGLISH To make further precise settings for the DSP modes You can also make further precise settings to make the best sound field in your car compartment. These settings you make are valid for all DSP modes except “V.CANCEL.” Setting items: The number of the built-in speakers : Select the number of the speakers built in your car—“2ch” or “4ch.”

• When you have four speakers (4ch) built in your car, select your car size (see step

on page 34). Listening seat position: Select the listening seat position where you want to locate the sound image.

Press SEL (select) once to show the DSP mode selection screen. The currently activated DSP mode appears on the display.

• If the DSP mode is not activated (“DEFEAT” is selected), you cannot go to the next step. Select one of the DSP modes first. SEL Ex. When “Dome” is selected previously

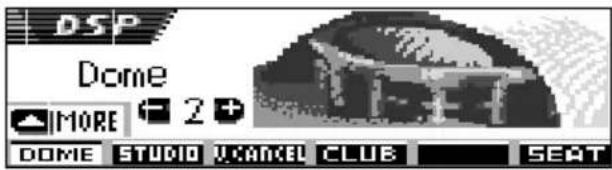

The selected DSP effect level is valid for all DSP modes except “V.CANCEL.”

• As the number increases, the effect level becomes stronger. To cancel the DSP modes, select “DEFEAT” in step

To exit from the DSP mode selection screen, press SEL (select) repeatedly or wait for about 15 seconds. ATT Ex. When “Dome” is selected in the previous step

Press number button 6 to enter the further precise setting screen.

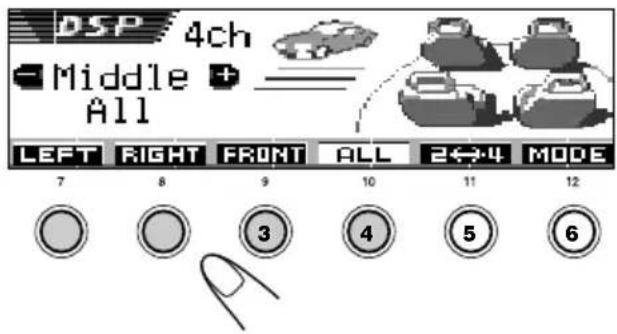

Select your listening seats position.

• Press number button 1 to select “LEFT (front left)” seat.
• Press number button 2 to select “RIGHT (front right)” seat.
• Press number button 3 to select “FRONT” seats.
• Press number button 4 to select “ALL” seats. Note: If fader or balance has been set close to itsextreme, appropriate effect may not be obtained.

Press number button 5 to set the number of the built-in speakers.

• Select “4ch” for the fourspeaker system, and “2ch” forthe two speaker system. Note: When “4ch” is selected, rear speakers are used only to reproduce reflections and reverberationsin order to creates a being-there feeling in yourcar compartment.345621 ATT

If you select “4ch,” rotate the control dial to select your car size. As you rotate it, the car sizechanges as follows: Compact: Select when the distance fromthe rear speakers to the listeningseat position is shorten than thatfrom the front speakers.• Middle: Select when the distance fromthe rear speakers to the listeningseat position is almost equal tothat from the front speakers.• Large: Select when the distance fromthe rear speakers to the listeningseat position is longer than thatfrom the front speakers. Note: If you have selected “2ch” in the previous step,you cannot select the car size.To go back to the DSP mode selection screen,press number button 6.To exit from the DSP mode selection screen,press SEL (select) repeatedly or wait for about 15seconds.

EN32-38SH9101[E_EX]f.p65 03.2.27, 23:023435 ENGLISH EQUALIZER OPERATIONS Selecting preset sound modes (iEQ: intelligent equalizer) You can select a preset sound mode (iEQ:intelligent equalizer) suitable to the music genre.Available sound modes:H. ROCK (Hard Rock)R & B (Rhythm and Blues)POP (Popular music)JAZZ (Jazz)DANCE (Dance music)Country (Country music)REGGAE (Reggae)CLASSIC (Classical music)USER 1, USER 2, USER 3FLAT (No sound mode is applied)

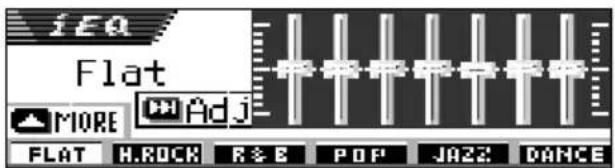

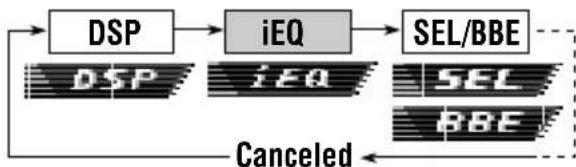

Press SEL (select) twice to show the sound selection screen. The last selected sound mode iscalled up.• If you press the button more than twice,the unit enters different sound adjustmentmodes.• For DSP mode settings, see pages 32to 34.• For SEL/BBE (basic sound) settings, seepages 37 and 38. SEL Press 5 (up) or ∞ (down).

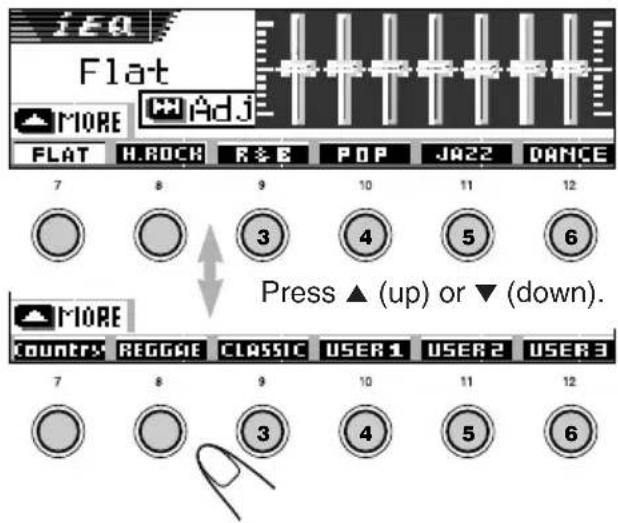

Press the number button to select one of the sound modes listed on the display.

• This unit has two sound mode selectionscreens. To move to the other screen, press 5 (up) or ∞ (down). To cancel the sound mode, select “FLAT” in step

To exit from the sound mode selectionscreen, press SEL (select) repeatedly or wait forabout 15 seconds.Notes:• For details about the preset settings of each soundmode, see page 71.

• If “V.CANCEL” is selected for the DSP mode, you cannot change the sound modes.345621345621 DSP Canceled iEQ SEL/BBE EN32-38SH9101[E_EX]f.p65 03.2.27, 23:023536 ENGLISH Buttons used for adjustments Storing your own sound modes You can adjust the sound modes to your preference and store your own adjustments in memory (USER 1, USER 2 and USER 3).

Press SEL (select) twice to show the sound mode selection screen. The last selected sound mode is called up.

Press the number button to select one of the sound modes listed on the display.

• This unit has two sound mode selection screens. To move to the other screen, press 5 (up) or ∞ (down).

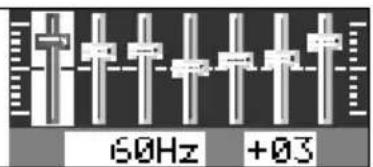

Enter the sound adjustment mode. The following sound mode adjustment screen appears on the display. Ex. When you select “USER 1.” Ex. When “R & B” is selected previously SEL

Make adjustments as you like.

level of the selected band within the range of –05 to +05.

3) Repeat steps 1) and 2) to adjust the

other frequency bands.

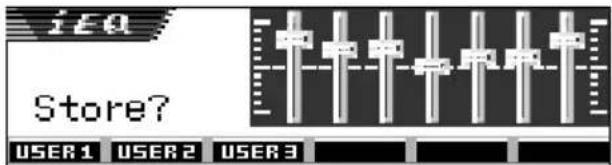

Store the adjustment you made. The confirmation message appears—whether you want to store the adjustment. If you want to cancel the adjustment, press DISP (D).

• Adjustment you made remains effective until you select another sound mode.

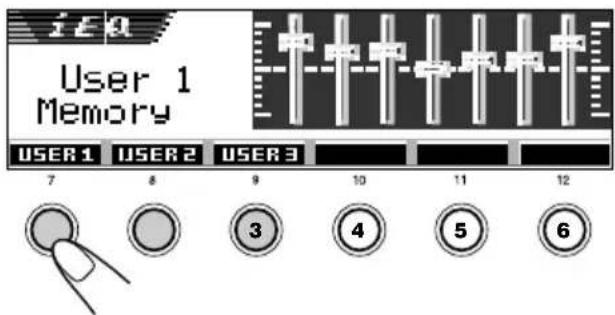

Press number button 1, 2 or 3 to select one of the user sound modes (USER 1, USER 2, or USER 3) you want to store into. SEL EN32-38SH9101[E_EX]f.p65 03.2.27, 23:033637 ENGLISH SOUND ADJUSTMENTS Performing the basic sound settings You can set the speaker output balance,subwoofer output level, and input level of eachsource.• There is a time limit in doing the followingprocedure. If the setting is canceled before youfinish, start from step again.

Press SEL (select) repeatedly to show one of the basic sound setting (SEL) screens. Each time you press the button,the adjustable items change asfollows:• For DSP mode settings, see pages 32to 34.• For iEQ (sound mode) settings, see pages35 and 36.Indication To do: RangeFad Adjust the front R06 (Rear only)and rear speaker |balance. F06 (Front only)Bal Adjust the left L06 (Left only)and right speaker |balance. R06 (Right only)Sub Out Adjust the 00 (min.)subwoofer output |level and cutoff 08 (max.)frequency level. Low/Mid/HighBBE Make sounds BBE Off, BBE 1,natural. BBE 2, BBE 3 Vol Adj Adjust and store –05 (min.) the input level |of each source. +05 (max.) SEL

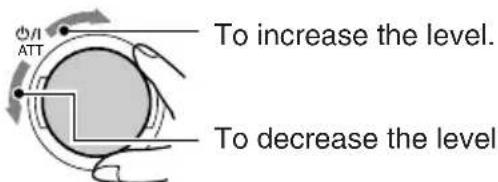

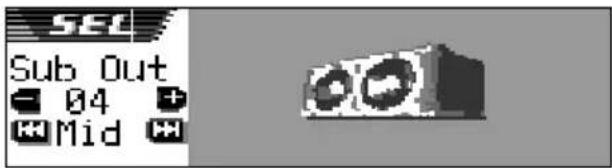

Adjust the level. To adjust fader and balance—Fad, Bal:Make these two adjustments at the sametime.• If you are using a two-speaker system, setthe fader level to “00.”

• Press 5 (up) or ∞ (down) to adjust thefader.• Press ¢ or 4 to adjust thebalance.To adjust subwoofer output—Sub Out:This takes effect only when a subwoofer isconnected.You can also set an appropriate cutofffrequency level according to the subwooferconnected.
• Press ¢ or 4 to select “Low,” “Mid,” or “High.”Low: Frequencies higher than 50 Hz arecut off to the subwoofer.Mid: Frequencies higher than 80 Hz arecut off to the subwoofer.High: Frequencies higher than 115 Hz arecut off to the subwoofer.To increase the level.To decrease the level.ATT Basic sound settings Fad/Bal Sub Out Vol Adj BBE DSP Canceled iEQ EN32-38SH9101[E_EX]f.p65 03.2.27, 23:033738 ENGLISH To make sounds natural—BBE: BBE Digital* is a new digital processing method to restore the brilliance and clarity of the original live sound in recording, broadcasts, etc. When a speaker reproduces sound, it introduces frequency-dependent phase shifting, causing high-frequency sounds to take longer to reach the ear than low frequency sounds. BBE Digital adjusts the phase relationship between the low, mid and high frequencies by adding a progressively longer delay time to the low and mid frequencies, so that all frequencies reach the listener’s ears at the proper time. Select the effect level. As the number gets higher, the effect level becomes stronger. When shipped from the factory, the effect level is set to “BBE Off” (BBE Digital is canceled). Note: If “V.CANCEL” is selected for the DSP mode, you cannot change the BBE level.

• Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound , Inc. under USP4638258 and 4482866. BBE and BBE symbol are registered trademarks of BBE Sound, Inc. ATT To increase the level. To decrease the level.To increase the level. To decrease the level. ATT (INPUT OVER) indicator To adjust the input level of each source —Vol Adj: This setting is required for each source except FM. Before making an adjustment, select an appropriate source for which you want to make an adjustment. Once you have made an adjustment, it is memorized, and you will not need to adjust the volume level each time you change the source. Adjust to match the input level to the FM sound level. If the (INPUT OVER) indicator appears on the display, and sounds are distorted The input level through the external component (LINE IN) is set at a high level (more than 1.5 Vrms). If this happens, adjust the output level on the connected component so that the (INPUT OVER) indicator will not appear. BBE Off (Canceled) BBE 1 BBE 2 BBE 3 EN32-38SH9101[E_EX]f.p65 03.2.27, 23:033839 ENGLISH GRAPHIC DISPLAYS What is Image Converter Image Converter is a JVC’s original software to produce a custom image to show on your JVC Car Audio. Here is a basic procedure to make a CD-R including still images (pictures) and animations (movies) with Image Converter In this manual, we only explain how to export the files (still images and animations) into the memory built in this unit—step 5 below.

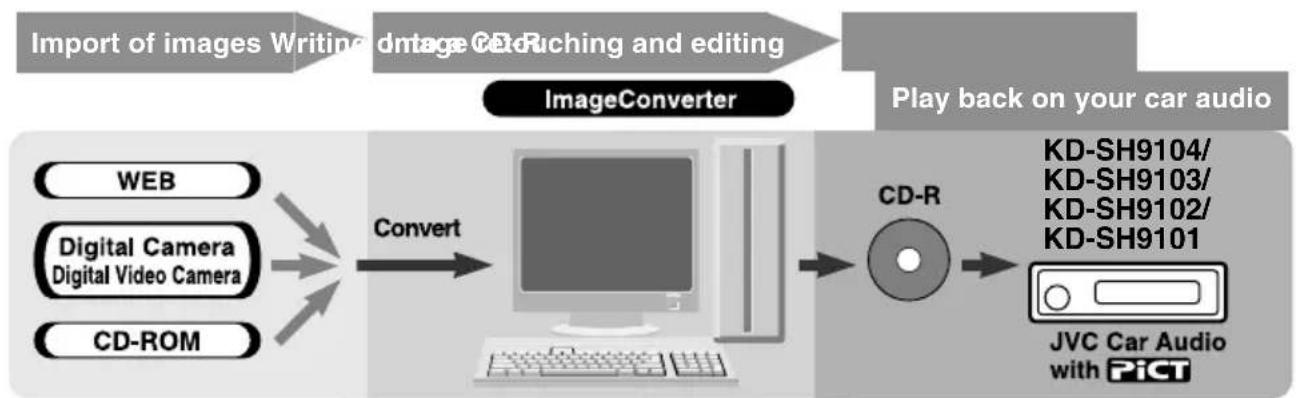

• For the other processes (from steps 1 to 4 below), refer to Image Converter manual (PDF files included in the “Manual” folder of the supplied CD-ROM). With Image Converter included in the supplied CD-ROM, you can edit your own favorite pictures and use them as your own opening screen, ending screen, and graphic screen while playing a source. Image retouching and editing Import of images Writing onto a CD-R Play back on your car audio KD-SH9104/ KD-SH9103/ KD-SH9102/ KD-SH9101 Install / Start the program Install Image Converter on your PC. Import the images Import the source images from the Image Converter CD-ROM or from other equipment like a digital camera or a digital video camera. Retouch and edit the images Retouch the images like trimming or adjusting the color, editing the animation effect, and adding the texts. Write your images onto a CD-R Write the animations or the still images you made with Image Converter using your CD-R writing software. You have to write the images you made onto a CD-R to enjoy the images on your Car Audio.

• To write data onto a CD-R, refer also to the instruction of your CD-R writing software. Enjoy the animations or the still images you made on your Car Audio Export the images to your JVC Car Audio from the CD-R you made. EN39-45SH9104[E_EX]f.p65 6/15/03, 10:07 PM3940 ENGLISH

Open the control panel.

Insert a CD-ROM with the files (images and animations) into the loading slot. The unit draws the disc, the control panel goes back to the previous position (see page 52).

• If the disc includes playable audio files such as MP3 tracks, playback starts automatically.

Press MODE (M) after the disc is detected. “Mode” appears on the display, then the number buttons and the 5 (up)/ ∞ (down) buttons start flashing.

Press number button 6 to show the download selection screen. Downloading images and animations Before starting the following procedure, prepare a CD-ROM including still images (pictures) and animations (movies).

• The supplied Image Converter CD-ROM includes sample images and animations, so you can use this disc as your first trial. IMPORTANT:

• Still images (pictures) should have <jml>, and animations (movies) should have <jma> as their extension code in their file names.

• Downloading a file can be done only while selecting “CD” as the source; on the other hand, deleting a file can be done while selecting any source.

• Before you download or erase the files, observe the following: – Do not download a file while driving. – Do not turn off the ignition key of the car while downloading or erasing a file.* – Do not detach the control panel while downloading or erasing a file.*

• If you do it, the file download or erasure will not be done correctly. In this case, perform the same procedure again.

• If you have already downloaded an animation for “PowerOn,” “PowerOff,” or “Movie,” downloading a new animation deletes the previously stored animation.

• It takes a long time for the unit to download an animation. – About 6 to 7 seconds for a still image (one frame). – About 3 to 4 minutes for an animation of 30 frames. – About 10 minutes for an animation of 90 frames.

• While a station (or service for the DAB tuner) is being tuned in by one of the Standby Reception modes such as TA, PTY, or Announcement, you cannot download or delete a file. On the other hand, while you are downloading or deleting a file, no Standby Reception mode will work to have this unit tune in a station (or service). It only works after download or deletion is over. EN39-45SH9101[E_EX]f.p65 03.2.27, 23:044041 ENGLISH Notes:
• On this list, the folders including the targetfiles—<jml> files for “Picture” and <jma>files for the others—are shown.• The display can show only six names at a time.You can show the other names on the next lists by pressing 5 (up) or ∞ (down).
• If a disc inserted does not include any <jml>and <jma> files, beeps sound and you cannotgo to the next step.If you want to cancel the procedure, pressDISP (D).

Select (highlight) a folder in which a file you want is included.

Show the name list of the files included in the selected folder. Each time you press the button,the lists on the display changesas follows: Note: The display can show only six names at a time.You can show the other names on the next lists by pressing 5 (up) or ∞ (down).

Ex. When you have selected “Picture” in step

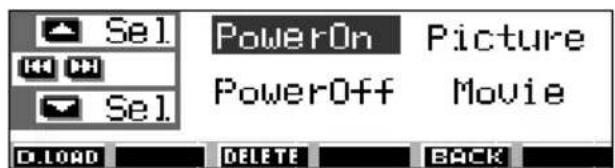

Select (highlight) one of the listed items for which you want to download a file.

• PowerOn : Opening screenTo download an animation to be shownafter the unit is turned on. (You can storeonly one animation consisting of 30 framesmaximum.)• PowerOff : Ending screenTo download an animation to be shownbefore the unit is turned off. (You can storeonly one animation consisting of 30 framesmaximum.)• Picture : Graphic screen*To download a still image to be shownwhile playing a source. (You can store 90still images—each one frame.)• Movie : Graphic screen*To download an animation to be shownwhile playing a source. (You can store onlyone animation consisting of 90 framesmaximum.)* Graphic screen will appear only if no operationis done for about 20 seconds.If you want to cancel the procedure, pressnumber button 5, the download selectionscreen goes off.

Show the name list of the folder included in the inserted CD-R. “File Check....” appears for awhile, then the folder listappears.The currently selected folder will behighlighted on the display.CONTINUED ON THE NEXT PAGE EN39-45SH9101[E_EX]f.p65 03.2.27, 23:044142 ENGLISH 345621The file name appears, and the unit willask you “Download OK?” Deleting unwanted files

• When “BACK” is shown on the display above number button 5, you can go back to theprevious screen by pressing number button 5. To delete all the stored files at a time 1 Press MODE (M) while playing anysource.“Mode” appears on the display, andthe number buttons and 5 (up)/ ∞(down) buttons start flashing.2 Press number button 6 to show thedownload selection screen. 3 Press 5 (up) or ∞ (down) to select (highlight) all the listeditems.4 Press number button 4.The unit asks you “All File DeleteOK?”5 Press number button 4 again.“Now Deleting...” appears whileerasing the files. When erasure isover, the download selectionscreen appears again.6 Press number button 5 to resumethe source indication screen.

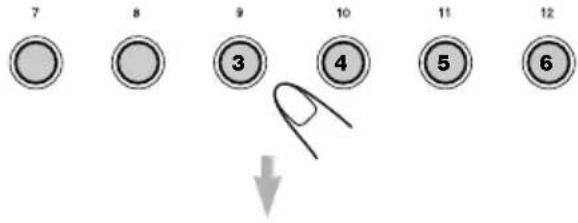

Select a file you want to download. If it is OK, press number button 1 tostart downloading.Downloading starts, and“Downloading...” appears on thedisplay.If it is over, the file name listappears again.If it is not OK, press number button 5, thefile selection screen appears again. Repeatfrom step again. Repeat steps

if you aredownloading files for “Picture” andwant to store more files. Finish the download procedure.To download a file for another item listed on thedownload selection screen, repeat from step again.Notes:• If you try to store the 91st image for picture screen,“Picture Full” appears and you cannot startdownloading. In this case, delete unwanted filesbefore downloading.• If the total frame number of an animationdownloaded exceeds the following number, theframes exceeding that numbers are ignored.– For opening and ending screens: 30– For movie screen: 90

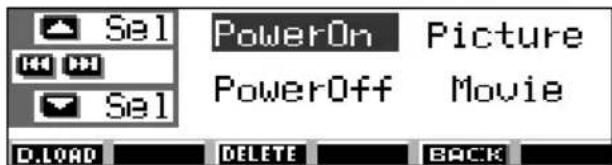

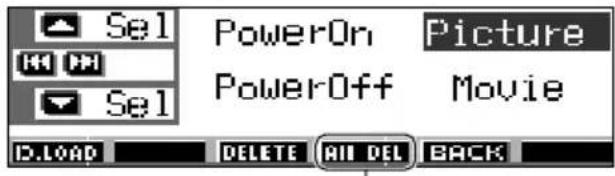

EN39-45SH9101[E_EX]f.p65 03.2.27, 23:044243 ENGLISH To delete the files stored for “PowerOn,” “PowerOff,” “Picture (all stored images at a time),” and “Movie” 1 Press MODE (M) while playing any source. “Mode” appears on the display, and the number buttons and 5 (up)/ ∞ (down) buttons start flashing. 2 Press number button 6 to show the download selection screen. 3 Press 5 (up) or ∞ (down) to select (highlight) one of the listed items. 4 To delete the file stored in “PowerOn,” “PowerOff,” and “Movie,” press number button 3. The file name of the previously stored animation appears, and the unit asks you “Delete OK?” To delete all the files stored in “Picture” at a time, press number button 4. The unit asks you “All Picture Delete OK?” 5 To delete the file stored in “PowerOn,” “PowerOff,” and “Movie,” press number button 3 again. To delete all the files stored in “Picture” at a time, press number button 4 again. “Now Deleting...” appears while erasing the selected file. When erasure is over, the download selection screen appears again. 6 Press number button 5 to resume the source indication screen.

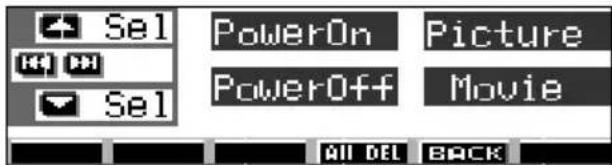

MODE To delete the stored files for “Picture” (one by one) 1 Press MODE (M) while playing any source. “Mode” appears on the display, and the number buttons and 5 (up)/ ∞ (down) buttons start flashing. 2 Press number button 6 to show the download selection screen. 3 Press 5 (up) or ∞ (down) to select (highlight) “Picture.” 4 Press number button 3. The unit shows the name list of the stored files. Note: The display can show only six names at a time. You can show the other names by pressing 5 (up) or ∞ (down) repeatedly. 5 Press the number buttons for the file you want to delete. Selected file name appears, and the unit asks you “Delete OK?” 6 Press number button 3 to start erasure. “Now Deleting...” appears while erasing the selected file. When erasure is over, the name list of the stored file appears again. Appears when “Picture” is selected (highlighted)

Ex. When selecting “Picture”

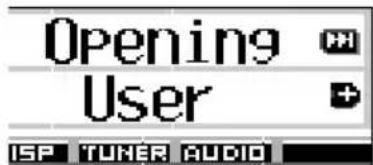

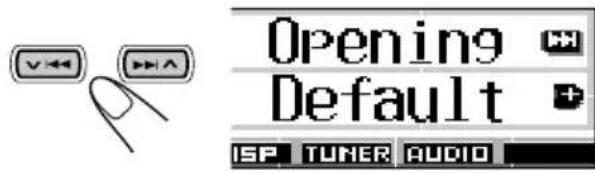

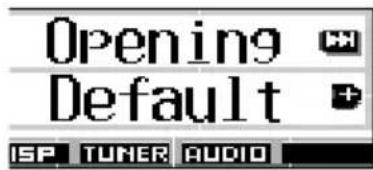

Select “Opening” (opening screen setting) or “Ending” (ending screen setting).

• Default: Factory-preset animation is used.

• User: Your own edited animation is used.

Finish the setting. To activate the graphic screen using either picture or movie Using this setting, you can change the graphic displays. These graphic screen appears if no operation is done for about 20 seconds.

• If no image is stored in “Picture,” or no animation in “Movie,” “UserPict.” will not be selected as a PSM item.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 47 and 48.) 7 To delete more files, repeat from steps 5 and

8 Press DISP (D) to resume the source indication screen. Activating the downloaded images and animations To activate the animations stored for opening and ending screens After the unit turns on or before the unit turns off, you can see preset animations on the display. These are called opening screen and ending screen. You can use your own edited animations for these opening and ending screens.

• Opening and ending screens will not be shown if the “KeyIn CFM” setting is set to “Short" or “Off.” (See page 48).

• If no animation is stored in “PowerOn” and “PowerOff,” “Opening” and “Ending” will not be selected as a PSM item.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 47 and 48.)

Press number button 1 to select “MOVIE”—Movie category of the PSM settings. The “Graphics” setting screen appears on the display.

DISP EN39-45SH9101[E_EX]f.p65 03.2.27, 23:044445 ENGLISH To select a still image for graphic display—User Picture You cannot select “UserPict.” as a PSM item inthe following cases:

• If no image is stored in “Picture,” or

• “UserPict.” is not selected for the “Graphics” setting (see the left column).

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 47 and 48.)

Press number button 1 to select “MOVIE”—Movie category of the PSM settings. The “Graphics” setting screen appears onthe display.

Select a file you want.

Finish the setting. Ex. When you select “UserPict.” SEL SEL File name of the currently selected image alsoappears. SEL

Press number button 1 to select “MOVIE”—Movie category of the PSM settings. The “Graphics” setting screen appears onthe display.

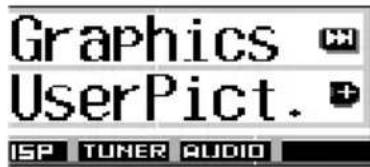

Select “UserMovie,” “UserSlide,” or “UserPict.”

UserMovie: Your edited animation stored in“Movie” is activated as yourgraphic screen.• UserSlide: Your edited still images storedin “Picture” are activated andshown in sequence as yourgraphic screen.• UserPict.: One of your edited still imagestored in “Picture” is activatedas your graphic screen.Select one of the stored images(see the next column).

Finish the setting. To cancel all graphic displays, select “Off” in step

Note: For the “Graphics” setting, you can also select “AllDemo,” “Int Demo,” and “ImageLink.”— See pages 8 and 48 for “All Demo” and “IntDemo.”— See pages 24 and 48 for “ImageLink.”

ATT ATT EN39-45SH9101[E_EX]f.p65 03.2.27, 23:044546 ENGLISH Changing the general settings (PSM) You can change the items listed on the table onthe next page by using the PSM (PreferredSetting Mode) control.• The PSM items are grouped into fivecategories—MOVIE, CLOCK, DISP (display),TUNER, and AUDIO. Basic Procedure Ex. To change “Contrast” Press and hold SEL (select) for morethan 2 seconds so that one of thePSM items appears on the display.(See pages 47 and 48.)The number buttons , 4 /¢ , and control dial startflashing to teach you that theycan be used for the nextoperational steps. Press number button (in thisexample, 3) to select one of the PSMcategories.The first-listed item in the selected categoryappears. Select the PSM item you want toadjust.• By pressing ¢ or 4repeatedly, you can also move to anothercategory. Adjust the PSM item selected. Repeat steps

to adjust theother PSM items if necessary. Finish the setting.

OTHER MAIN FUNCTIONS

SEL ATT SEL Ex. When you have selected “Graphics” previously

Opening animation Ending

Ending animation UserPict.

Displayed only after a downlaodable file is stored in memory.

Displayed only after a downlaodable file is stored in memory and while selecting “UserPict.” for “Graphics.”

Displayed only when “Dimmer” is set to “Time Set.”

Displayed only when “DAB AF” is set to “Off.”

CONTINUED ON THE NEXT PAGE

00 – 59 EN46-53SH9101[E_EX]f.p65 03.2.27, 23:194748 ENGLISH To show the graphics on the display— Graphics You can change the graphics shown on the display. These graphics appear if no operation is done for about 20 seconds (except for “ImageLink”).

• All Demo: Display demonstration (animation) appears (see page 8).

• Int Demo: Display demonstration (animation) and playback source indication appears alternately (see page 8).

UserMovie : Your edited animation appears (see pages 44 and 45).

• UserSlide: Your edited still images appears in sequence (see pages 44 and 45).

• UserPict.: One of your edited still image appears (see pages 44 and 45).

• ImageLink: To show a still image while playing back an MP3/WMA tracks (see page 24).

• Off: Cancels all graphic display above. Note: You can select “UserMovie,” “UserSlide,” and “UserPict.” only after downloading the appropriate files in memory. (See page 40.) To select the source animation on the display—KeyIn CFM When changing the source, the display shows the source animation. You can select the source animation on the display according to your preference.

• Long: A long source animation appears.

• Short: A short source animation appears.

• Off: Cancels the source animation. To select the scroll mode—Scroll When a disc information is emphasized at the center of the display, it is shown entirely by scrolling if it cannot be shown at a time.

• Once: Scrolls only once.

• Auto: Repeats the scroll (in 5-second intervals).

• Off: Cancels scroll mode. Note: Even if the scroll mode is set to “Off,” you can scroll the display by pressing DISP (D) for more than 1 second. To adjust the display contrast level —Contrast You can adjust the display contrast level among 1 to 10. Adjust it to make the display indications clear and legible. IF Filter Intermediate frequency filter DAB AF*

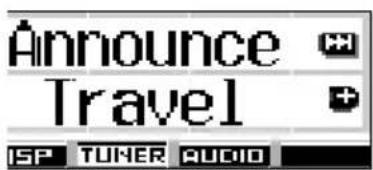

Alternative frequency search Announce*

Off Muting1 Muting2 Off

Displayed only when the DAB tuner is connected.

Not displayed when the current source is “LINE IN.” Auto Wide Auto

EN46-53SH9101[E_EX]f.p65 03.2.27, 23:194849 ENGLISH To select the display illumination pattern —LCD Type You can select the display illumination patterns according to your preference.

• Auto: Positive pattern will be selected during the day time (depending on the “Dimmer” setting); on the other hand, negative pattern will be used during the night time (depending on the “Dimmer” setting).

• Positive: Positive (normal) pattern of the display.

• Negative: Negative pattern of the display. To select the font on the display —Font Type You can change the font types used on the display. Select either “1” or “2” according to your preference. To turn the tag display on or off—Tag An MP3 and WMA track can contain track information called “Tag ” where its album name, performer, track title, etc. are recorded.

• On: Turns on the Tag display while playing MP3 or WMA tracks.

• If a track does not have Tags, folder name and track name appear.

• Off: Turns off the Tag display while playing MP3 or WMA tracks. (Only the folder name and track name appear.) Notes:

• If you change the setting from “Off” to “On” while playing a track, the tag display will be activated when the next track starts playing.

• For MP3 tracks only: There are two versions—ID3v1 (ID3 Tag version 1) and ID3v2 (ID3 Tag version 2). When both ID3v1 and ID3v2 are recorded, ID3v2 will be shown. To change the FM tuner selectivity —IF Filter In some areas, adjacent stations may interfere with each other. If this interference occurs, noise may be heard.

• Auto: When this type of interference occurs, this unit automatically increases the tuner selectivity so that interference noise will be reduced. (But the stereo effect will also be lost.)

• Wide: Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will not be lost. To turn on/off the key-touch tone—Beep You can deactivate the key-touch tone if you do not want it to beep each time you press a button.

• On: Activates the key-touch tone.

• Off: Deactivates the key-touch tone. To select the telephone muting— Telephone This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “Muting1” or “Muting2,” whichever mutes the sounds from this unit.

• Muting1: Selects this if this setting can mute the sounds when using the cellular phone.

• Muting2: Selects this if this setting can mute the sounds when using the cellular phone.

• Off: Cancels the telephone muting. To turn on/off the line input switch —Line In You can switch off the line input when no external component is connected to the LINE IN plugs.

• On: You can select “LINE IN” as the playback source.

• Off: You cannot select “LINE IN” as the playback source. To turn on/off the power amplifier switch— PowerAmp You can switch off the built-in amplifier and send the audio signals only to the external amplifier(s) to get clear sounds and to prevent internal heat buildup inside this unit.

• On: When not using external amplifier(s).

• Off: When using external amplifier(s). EN46-53SH9101[E_EX]f.p65 03.2.27, 23:194950 ENGLISH Selecting the dimmer mode You can dim the display at night automatically oras you set the timer.When shipped from the factory, Auto Dimmermode is activated. Note: Auto Dimmer equipped with this unit may not workcorrectly on some vehicles, particularly on thosehaving a control dial for dimming.In this case, select any other than “Auto.”

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 47 and 48.)

Press number button 3 to select “DISP”—Display category of the PSM settings.

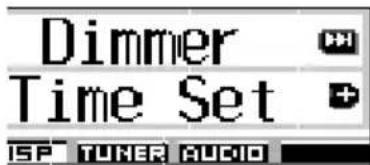

Press ¢ or 4 to select “Dimmer.”

Set the dimmer mode as you like.

• Auto: Activates Auto Dimmer.When you turn on the carhead lights, the displayautomatically dims.• Off: Cancels Auto Dimmer.• On: Always dims the display.• Time Set: Used to set the timer for thedimmer mode. Note: Selecting “Auto” or “Time Set” may change thedisplay pattern to the “Negative” or “Positive”pattern if “LCD Type” is set to “Auto.”
• If you select “Time Set,” go to the following steps to set the timer.
• If you select any other than “Time Set,” go to step to finish the setting.

Select “From– To” to set the timer for the dimmer mode.

Set the timer. 1 Turn the control dial to select the starttime.2 Press ¢ once.3 Turn the control dial to select the endtime.

Finish the setting. SEL ATT SEL EN46-53SH9101[E_EX]f.p65 03.2.27, 23:195051 ENGLISH

Select the character set you want while the first character position is flashing. Each time you press the button,the character set changes asfollows:

Move the cursor to the next (or previous) character position.

until you finish entering the name.

Finish the procedure while the last selected character is flashing. To erase the entered characters Insert spaces using the same proceduredescribed above.Notes:• When you try to assign a name to the 41st disc,“Name Full” appears on the display, and youcannot enter the text entry mode. In this case, deleteunwanted names before assignment.• When the CD changer is connected, you can assignnames to CDs in the CD changer. These names canalso be shown on the display if you insert the CDsin this unit. Assigning names to the sources You can assign names to CDs (both in this unitand in the CD changer), and the externalcomponent.After assigning a name, it will appears on thedisplay when you select the source.CDs* Up to 32 characters (up to40 discs)External component Up to 8 characters* You cannot assign a name to CD Text, MP3, andWMA discs.

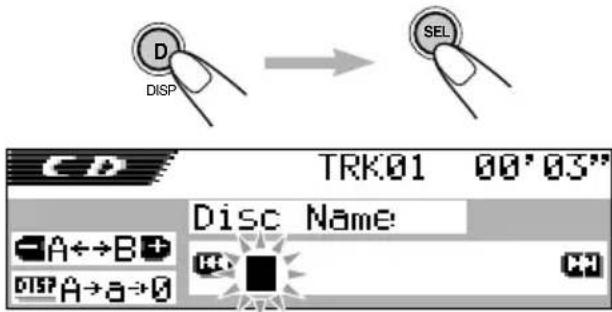

Select a source you want to assign a name to. When you select a source, thepower automatically comes on.

While holding DISP (D), press and hold SEL (select) for more than 2 seconds. Maximum number ofcharactersSourcesEx.: When you select CD as the source SRC

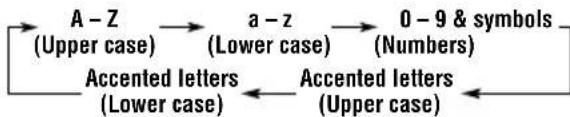

DISP A – Z (Upper case) a – z (Lower case) Accented letters (Lower case) Accented letters (Upper case) 0 – 9 & symbols (Numbers) EN46-53SH9101[E_EX]f.p65 03.2.28, 11:405152 ENGLISH Changing the control panel angle You can change the angle of the control panel tofour positions.

Press and hold 0 ( ) until the angle adjustment screen appears. The 5 (up) and ∞ (down) buttons start flashing to teachyou that they can be used for thenext operational steps.

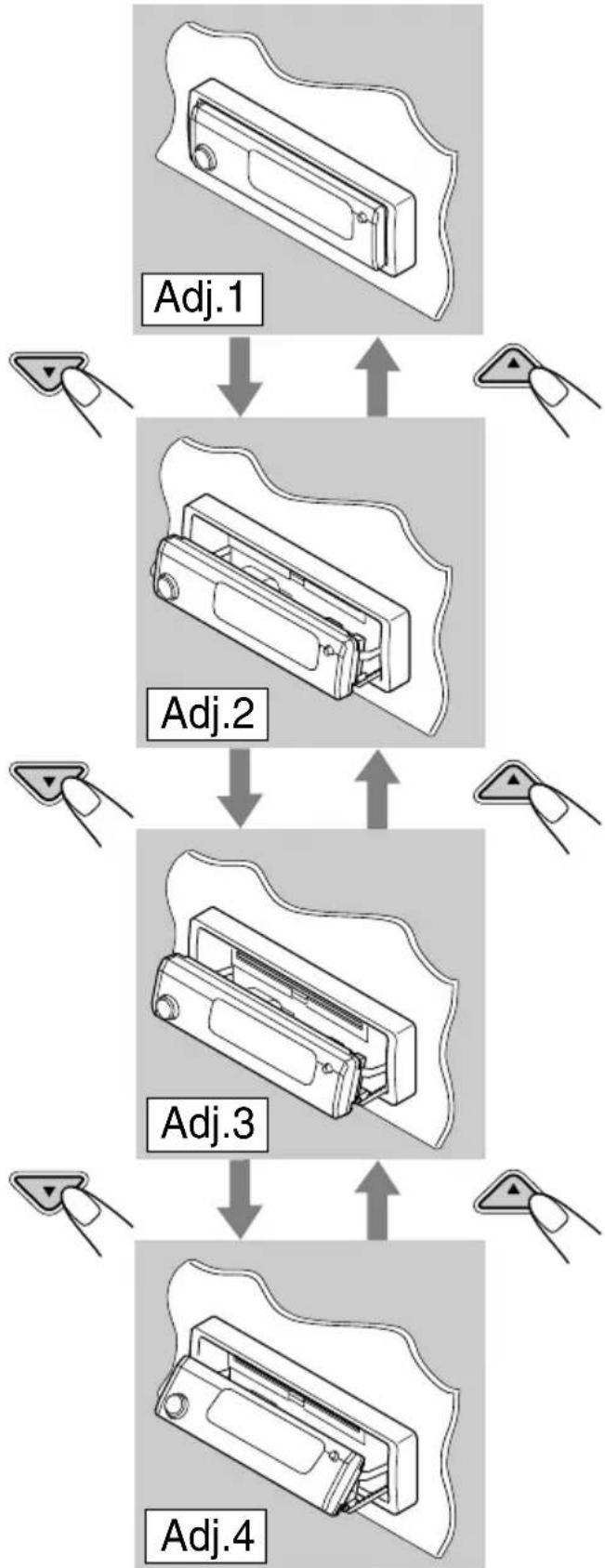

Adjust the angle to the position you want. CAUTION:NEVER insert your finger in between thecontrol panel and the unit, as it may getcaught or hurt. Adj.1 Adj.2 Adj.3 Adj.4 The control panel angles changes as follows:When using the remote controllerYou can change the angle position simply by pressing ANGLE 5 or ANGLE ∞. EN46-53SH9101[E_EX]f.p65 03.2.27, 23:195253 ENGLISH Detaching the control panel You can detach the control panel when leavingthe car.When detaching or attaching the control panel,be careful not to damage the connectors on theback of the control panel and on the panelholder. Detaching the control panel Before detaching the control panel, be sure toturn off the power.

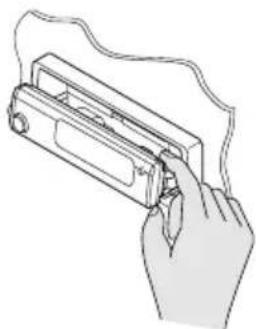

Unlock the control panel. The control panelcomes out toward you.

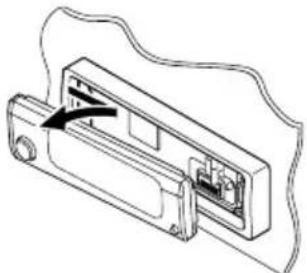

Move the control panel to the right, then pull it out of the unit.

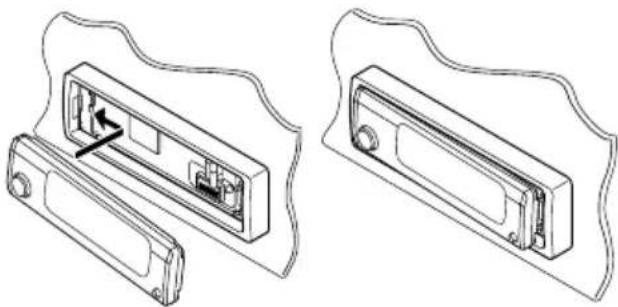

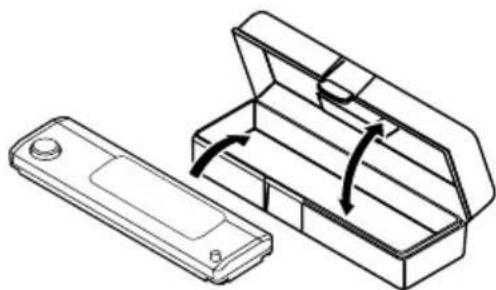

Put the detached control panel into the provided case. Attaching the control panel

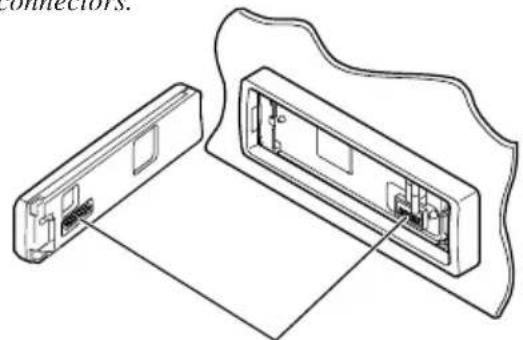

Insert the left side of the control panel into the groove on the panel holder.

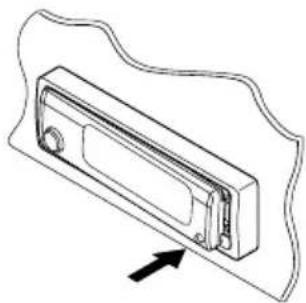

Press the right side of the control panel to fix it to the panel holder. Note on cleaning the connectors:If you frequently detach the control panel, theconnectors will deteriorate.To minimize this possibility, periodically wipe theconnectors with a cotton swab or cloth moistenedwith alcohol, being careful not to damage theconnectors.Connectors EN46-53SH9101[E_EX]f.p65 03.2.27, 23:195354 ENGLISH

CD CHANGER OPERATIONS

We recommend that you use the JVC MP3-compatible CD changer with your unit.By using this CD changer, you can play backyour original CD-Rs (Recordable) and CD-RWs(Rewritable) recorded either in audio CD formator in MP3 format.• You can also connect other CH-X seriesCD changers (except CH-X99 and CH-X100).However, they are not compatible with MP3discs, so you cannot play back MP3 discs.• You cannot use the KD-MK series CDchangers with this unit.Before operating your CD changer:• Refer also to the Instructions supplied withyour CD changer.• If no discs are in the magazine of the CDchanger or the discs are inserted upsidedown, “No Disc” will appear on the display. Ifthis happens, remove the magazine and setthe discs correctly.• If no magazine is loaded in the CD changer,“No Magazine” appears on the display. If thishappens, insert the magazine in the CDchanger.• If “Reset 01” – “Reset 08” appears on thedisplay, something is wrong with theconnection between this unit and the CDchanger. If this happens, check theconnection and make sure the cords areconnected firmly. Then, press the resetbutton of the CD changer.Note:You cannot control and play any WMA disc on the CDchanger. Playing discs Select the CD automatic changer (CD-CH). Each time you press the button,the source changes as describedon page 7. When you select asource, the power automaticallycomes on.Playback starts from the first track of the firstdisc, and all tracks of all discs are played back.• When the current disc is an audio CD or aCD Text disc:1 Disc number2 Disc title/performer (if no title is recorded or assigned,“No Name” appears.)3 Track title (if no title is recorded, “No Name”appears.)4 Current track number5 Elapsed playing time of the current track SRC

SRC DISP ATT SEL T/P MODE EN54-60SH9101[E_EX]f.p65 03.2.27, 23:205455 ENGLISH To go to a particular disc directly Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second. To fast-forward or reverse the track Note: During this operation on an MP3 disc, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.) To go to the next track or the previous tracks Press ¢ briefly, while playing a disc, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back. Press 4 briefly, while playing a disc, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back. Press and hold ¢ , while playing a disc, to fast-forward the track. Press and hold 4, while playing a disc, to reverse the track.

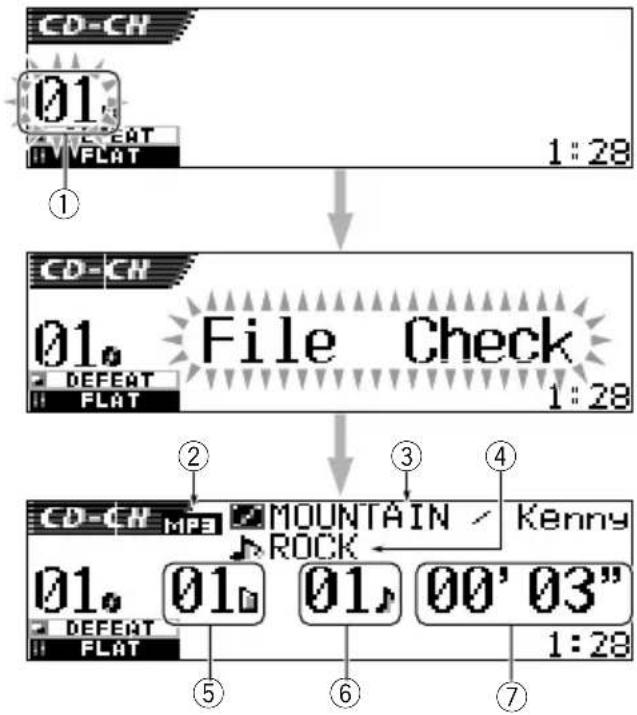

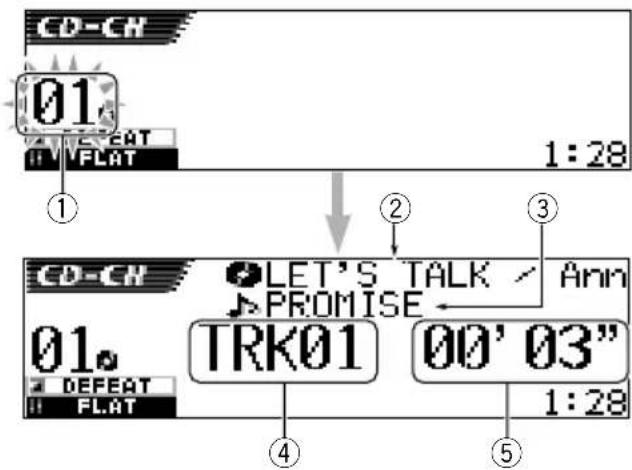

• When the current disc is an MP3 disc: 1 Disc number 2 Disc type—MP3 3 Album title/performer (or folder name when “Tag” is set to “Off”—see page 49, or when no Tag is recorded) 4 Track title (or track name when “Tag ” is set to “Off”—see page 49, or when no Tag is recorded) 5 Current folder number 6 Current track number 7 Elapsed playing time of the current track To change the display pattern By pressing DISP (D), you can change the information shown on the display. Each time you press the button, the display patterns change.

• For details, see page 31. If you change the source or turn off the unit Disc play also stops. Next time you select “CD-CH” as the source, disc play starts from where it has been stopped previously.

DISP EN54-60SH9101[E_EX]f.p65 03.2.27, 23:205556 ENGLISH To go to a track quickly This operation is only possible when using JVC MP3-compatible CD changer CH-X1500. 1 Press MODE (M) while playing a disc. “Mode” appears on the display, and the number buttons and 5 (up)/ ∞ (down) buttons start flashing. 2 Press 5 (up) or ∞ (down), while “Mode” is still on the display. First time you press 5 (up) or ∞ (down), the track skips to the nearest higher or lower track with a track number of multiple ten (ex. 10th, 20th, 30th). Then, each time you press the button, you can skip 10 tracks (see “How to go to the desired track quickly” that follows).

• After the last track, the first track will be selected, and vice versa.

• While playing an MP3 disc, this operation is possible only within a folder.

MODE Track 6 \ 10 \ 20 \ 30 \ 31 \ 32 (Three times) (Twice) Track 36 \ 30 \ 20 \ 10 \ 9 \ 8 (Three times) (Twice)

MODE How to go to the desired track quickly

• Ex. 1: To select track number 32 while playing track number 6

• Ex. 2 :To select track number 8 while playing track number 36 Current track number While playing an audio CD or a CD Text disc: While playing an MP3 disc: Current track number Current folder number See page 40 for this function. EN54-60SH9101[E_EX]f.p65 03.2.27, 23:205657 ENGLISH Locating a folder on a disc The following operations are only possible when playing an MP3 disc using a JVC MP3- compatible CD changer, CH-X1500. To skip to the next or previous folder (either on the same or different hierarchy levels) On the control panel: On the remote controller: Press and hold 3 (right) while playing a disc to skip to the next folder. Each time you press and hold the button consecutively, the next folder is located and the first track in the folder starts playing. Press 5 (up) while playing a disc to skip to the next folder. Each time you press the button consecutively, the next folder is located and the first track in the folder starts playing. Press ∞ (down) while playing a disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located and the first track in the folder starts playing. Press and hold 2 (left) while playing a disc to skip back to the previous folder. Each time you press and hold the button consecutively, the previous folder is located and the first track in the folder starts playing. Note: If the folder does not contain any MP3 tracks, it is skipped. See the hierarchy diagram on page 22.01 02 03 04PRESETPRESET To skip to the next or previous folder within a folder (on the same hierarchy level) ONLY on the remote controller: See the hierarchy diagram on page 22.03 04 03 04 Press 3 (right) while playing a disc to skip to the next folder. Each time you press the button consecutively, the next folder included within the same folder (on the same hierarchy level) is located (and the first track in the folder starts playing if recorded). Press 2 (left) while playing a disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder included within the same folder (on the same hierarchy level) is located (and the first track in the folder starts playing if recorded). Note: If the folder does not contain any MP3 tracks, playback will not start (“No Music” appears on the display). Select another folder. To go back to the root directly, press R

D on the remote controller. You can go back to the root from any folder.

• If tracks are recorded on the disc directly without putting them into a folder, this unit starts playing the tracks. 01 05 01 05Example 1Example 2PRESETPRESET EN54-60SH9101[E_EX]f.p65 03.2.27, 23:205758 ENGLISH Selecting a disc/folder/track using the name lists To select a disc using the disc lists If you forget what discs are loaded in the CDchanger, you can show the disc name list andselect a disc in the list shown on the display.• The display can show only six names at a time.

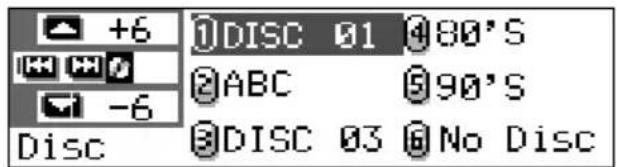

While playing a disc, press and hold 5 (up) or ∞ (down) until a disc name list appears on the display. Note: If a disc has a disc title (CD Text) or an assigneddisc name, it will be shown on the display.However, if the disc has not been played before,its disc number will appear.

Select the number (1 – 6) for the disc you want to play. While playing an MP3 disc, you can also showthe folder list(s) and track list(s) on the display,then select a folder or track. 1 While playing an MP3 disc, press and hold 5 (up) or∞ (down) until a disc name listappears on the display. 2 Press ¢ or 4 to show a folder list of thecurrent disc or track list of thecurrent folder.Each time you press the button, the lists onthe display change as follows: Note: The display can show only six names at a time. Youcan show the other names on the next lists by pressing5 (up) or ∞ (down). 3 Press the number button for the disc, folder or track you want to play.345621Ex. When folder list is selectedEx. When track list is selected EN54-60SH9101[E_EX]f.p65 03.2.27, 23:215859 ENGLISH Selecting playback modes To play back tracks at random (Random Play) You can play back tracks on a disc, on all loaded discs (or in a folder for MP3 discs) at random. 1 Press MODE (M) while playing a disc. “Mode” appears on the display, then the number buttons and the 5 (up)/∞ (down) buttons start flashing. 2 Press number button 3, while “Mode” is still on the display. Each time you press the button, random play mode changes as follows: Random Off Random AllRandom Disc Random All Random DiscRandom Folder Random Off Current track numberWhile playing an audio CD or a CD Text disc:While playing an MP3 disc:Current track numberCurrent folder number For audio CD and CD Text discs: For MP3 discs: Mode Plays randomly Random Folder *: All tracks of the current folder, then moves to the next folder and so on.

• While playing, lights up on the display. Random Disc: All tracks on the disc.

• While playing, lights up on the display. Random All: All tracks of all discs inserted in the magazine.

• While playing, lights up on the display.

• “Random Folder” can be used for MP3 discs only. To cancel Random Play, select “Random Off” by pressing number button 3 repeatedly or press number button 4 in step 2.

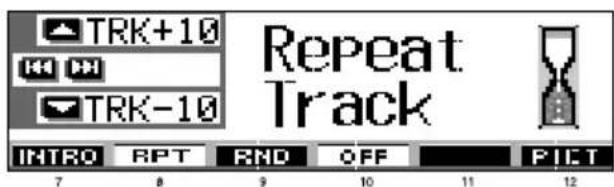

MODE EN54-60SH9101[E_EX]f.p65 03.2.27, 23:215960 ENGLISH To play back tracks repeatedly (Repeat Play) You can play back a track, a disc (or a folder for MP3 discs) repeatedly. 1 Press MODE (M) while playing a disc. “Mode” appears on the display, then the number buttons and the 5 (up)/ ∞ (down) buttons start flashing. 2 Press number button 2, while “Mode” is still on the display. Each time you press the button, repeat play mode changes as follows: For audio CD and CD Text discs: For MP3 discs: Mode Plays repeatedly Repeat Track : Current (or specified) track.

• While playing, lights up on the display. Repeat Folder

• :All tracks of the current (or specified) folder.

• While playing, lights up on the display. Repeat Disc : All tracks of the current (or specified) disc.

• While playing, lights up on the display.

• “Repeat Folder” can be used for MP3 discs only. To cancel Repeat Play, select “Repeat Off” by pressing number button 2 repeatedly or press number button 4 in step 2.

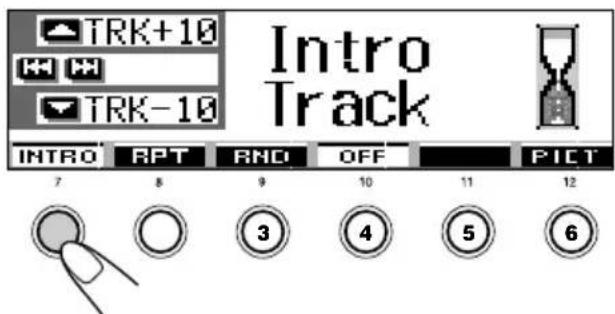

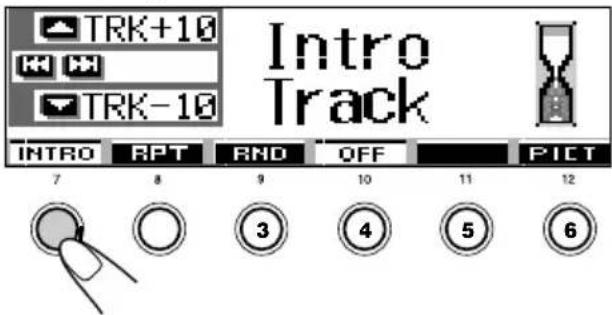

MODE To play back only intros (Intro Scan) You can play back the first 15 seconds of each track sequentially. 1 Press MODE (M) while playing a disc. “Mode” appears on the display, then the number buttons and the 5 (up)/ ∞ (down) buttons start flashing. 2 Press number button 1, while “Mode” is still on the display. Each time you press the button, intro scan mode changes as follows: For audio CD and CD Text discs: For MP3 discs: Mode Plays the beginnings of Intro Track : All tracks of the disc.

• While playing, lights up on the display. Intro Folder* : First tracks of all folders of the current disc.

• While playing, lights up on the display. Intro Disc : First tracks of all inserted discs.

• While playing, lights up on the display.

• “Intro Folder” can be used for MP3 discs only. To cancel Intro Scan, select “Intro Off” by pressing number button 1 repeatedly or press number button 4 in step 2. EN54-60SH9101[E_EX]f.p65 03.2.27, 23:216061 ENGLISH

SRC DISP ATT SEL T/P MODE

Select the DSP mode and sound mode as you want.

• For the DSP modes, see page 32.

• For the sound (iEQ) modes, see page 35. Note: When the source is “LINE IN,” the DISP (D) button will not work. If you have assigned a different name to the external component, it will appear. Playing an external component You can connect an external components to the LINE IN plugs on the rear.

• If you cannot select “LINE IN” as the source, change the “Line In” setting to “On.” (See page 49.)

Select the external component (LINE IN). Each time you press the button, the source changes as described on page 7. When you select a source, the power automatically comes on.

Turn on the connected component and start playing the source. EN61-61SH9101[E_EX]f.p65 03.2.27, 23:226162 ENGLISH

DAB TUNER OPERATIONS

Tuning in to an ensemble and one of the services A typical ensemble has 6 or more programmes(services) broadcast at the same time. Aftertuning in to an ensemble, you can select aservice you want to listen to.

Select the DAB tuner. Each time you press the button,the source changes as describedon page 7. When you select asource, the power automaticallycomes on.

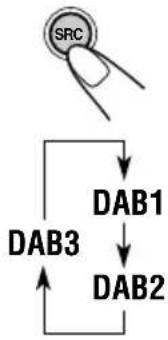

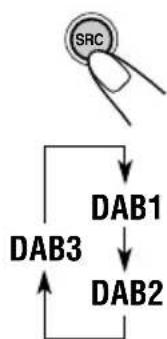

Select the DAB band (DAB1, DAB2, or DAB3). 1 Press and hold SRC for morethan 1 second.The band indication on thedisplay starts flashing.2 Within about 5 seconds (wilethe band indication isflashing), press SRC again.Each time you press thebutton, the band changes.Note:This receiver has three DAB bands (DAB1,DAB2, DAB3). You can use any of them to tunein to an ensemble.We recommend that you use DAB (Digital AudioBroadcasting) tuner KT-DB1500 or KT-DB1000with your unit.If you have another DAB tuner, consult your JVCIN-CAR ENTERTAINMENT dealer.• Refer also to the Instructions supplied withyour DAB tuner. What is DAB system? DAB is one of the digital radio broadcastingsystems available today. It can deliver CDquality sound without any annoyinginterference and signal distortion.Furthermore, it can carry text, pictures, anddata.In contrast to FM broadcast, where eachprogramme is transmitted on its ownfrequency, DAB combines severalprogrammes (called “services”) to form one“ensemble.”In addition, each “service”—called “primaryservice”—can also be divided into itscomponents (called “secondary service”).With the DAB tuner connected with this unit,you can enjoy these DAB services.3456 M21

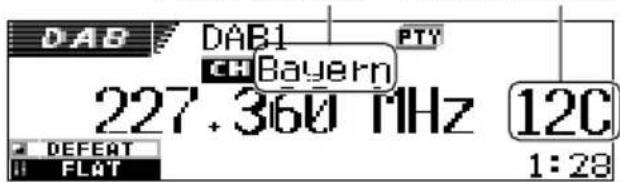

SRC DISP ATT SEL T/P MODE SRC SRC DAB1 DAB2 DAB3 Last received ensemble (service) of theselected band is tuned in.Channel numberEnsemble label EN62-70SH9101[E_EX]f.p65 03.2.27, 23:296263 ENGLISH

Start searching for an ensemble. When an ensemble is received, searching stops. To stop searching before an ensemble is received, press the same button you have pressed for searching.

Select a service (either primary or secondary) you want to listen to. To tune in to a particular ensemble without searching 1 Press SRC repeatedly to select DAB tuner as the source. 2 Press and hold SRC for more than 1 second. 3 Press SRC repeatedly to select the DAB band (DAB1, DAB2, or DAB3). 4 Press and hold ¢ or 4 for more than one second. 5 Press ¢ or 4 repeatedly until the ensemble you want is reached.

• If you hold down the button, the frequency keeps changing until you release the button. 6 Press 5 (up) or ∞ (down) to select a service (either primary or secondary) you want to listen to. When noises generated while running interfere with your listening While driving, surrounding sounds will interfere with your listening. Especially the low level sounds will be hard to listen. If this happens, you can reinforce the low level sounds to improve your listening. For this purpose, some service provides Dynamic Range Control signals together with their regular program signals. 1 Press MODE (M) while listening to a DAB service. “Mode” appears on the display, and the number buttons start flashing. 2 Press number button 1 repeatedly to activate the DRC function while “Mode” is still on the display. Each time you press the button, the DRC function will be set as follows: As the number increases, the DRC effect level also increases.

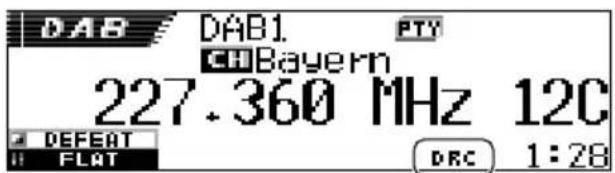

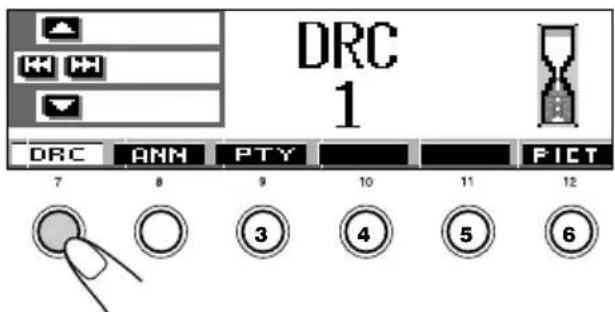

• The DRC indicator will be highlighted ( ) only when the unit received DRC signals from the tuned service. To cancel the DRC effect, select “DRC Off.” Press ¢ to search for ensembles of higher frequency. Press 4 to search for ensembles of lower frequency. Press 5 (up) to select the next service. (If a primary service has some secondary services, they are selected before the next primary service is selected.) Press ∞ (down) to select the previous service (either primary or secondary). DRC 1 DRC 2 DRC Off DRC 3

Press and hold the number button (in this example, 1) you want to store the selected service into for more than 2 seconds.

Repeat the above procedure to store other DAB services into other preset numbers. Notes:

• You can only preset primary DAB services. If youstore a secondary service, its primary service willbe stored instead.• A previously preset DAB service is erased when anew DAB service is stored in the same presetnumber. Tuning in to a preset DAB service You can easily tune in to a preset DAB service.Remember that you must store services first. Ifyou have not stored them yet, “Storing DABservices in memory.”

Select the DAB tuner. Each time you press the button,the source changes as describedon page 7. When you select asource, the power automaticallycomes on.The display pattern automatically changesto the initial display pattern and the presetnumber flashes (then the previous displaypattern resumes). Storing DAB services in memory You can preset up to 6 DAB services in eachDAB band (DAB1, DAB2, and DAB3) manually.

Select the DAB tuner. Each time you press the button,the source changes as describedon page 7. When you select asource, the power automaticallycomes on.

Select the DAB band (DAB1, DAB2, or DAB3). 1 Press and hold SRC for morethan 1 second.The band indication on thedisplay starts flashing.2 Within about 5 seconds (wilethe band indication isflashing), press SRC again.Each time you press thebutton, the band changes.

Tune in to an ensemble you want.

Select a service of the ensemble you want to listen to. Press 5 (up) to select the nextservice.Press ∞ (down) to select theprevious service. SRC SRC DAB1 DAB2 DAB3

Select the DAB band (DAB1, DAB2, or DAB3). 1 Press and hold SRC for morethan 1 second.The band indication on thedisplay starts flashing.2 Within about 5 seconds (whilethe band indication isflashing), press SRC again.Each time you press thebutton, the band changes.

Select the number (1 – 6) for the preset DAB service (primary) you want. Note: If the selected primary service has some secondaryservices, pressing the same number button repeatedlywill tune in to the secondary services. Selecting a preset service using the preset service list If you forget what services are stored in whatpreset number, you can check the preset servicelist, then select your desired service on the list.

Select the DAB tuner. Each time you press the button,the source changes as describedon page 7. When you select asource, the power automaticallycomes on.

Select the DAB band (DAB1, DAB2, or DAB3). 1 Press and hold SRC for morethan 1 second.The band indication on thedisplay starts flashing.2 Within about 5 seconds (whilethe band indication isflashing), press SRC again.Each time you press thebutton, the band changes.

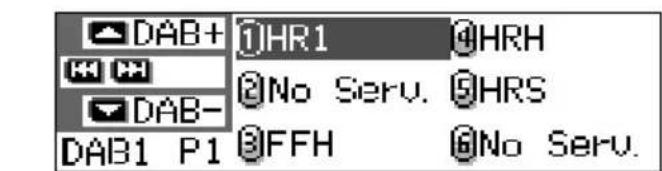

Press and hold 5 (up) or ∞ (down) until the preset ensemble (primary service) list for the current band (DAB1, DAB2, or DAB3) appears on the display. Note: You can show the other DAB band presetensemble (primary service) lists (DAB1, DAB2,or DAB3) by pressing 5 (up) or ∞ (down).

Select the number (1 – 6) for a service you want. SRC DAB1 DAB2 DAB3 SRC SRC DAB1 DAB2 DAB3 EN62-70SH9101[E_EX]f.p65 03.2.27, 23:296566 ENGLISH

• If you press the button while listening to any other source than AM – The TP indicator comes to light up when a service supporting Road Traffic Flash signal (or an FM RDS station supporting TA signal) is tuned in by the built-in tuner. This receiver now stands by for the Road Traffic Flash signal (or TA signal) reception. – The TP indicator keeps flashing when a service supporting Road Traffic Flash signal (or an FM RDS station supporting TA signal) is NOT tuned in by the built-in tuner. In this case, this receiver cannot stand by for Road Traffic Flash signal (or TA signal) reception. How Road Traffic Flash Standby Reception works: If a Road Traffic Flash (or Traffic Announcement) starts broadcasting while the Road Traffic Flash Standby Reception is activated, “Traffic Flash” appears and the unit tunes into the service (or FM RDS station) broadcasting Road Traffic Flash (or Traffic Announcement). The volume increases to the preset TA volume level and the Road Traffic Flash (or Traffic Announcement) can be heard. Using Announcement Standby Reception Announcement Standby Reception allows the unit to switch temporarily to your favorite service (Announcement type). To select your favorite announcement type for Announcement Standby Reception When shipped from factory, Announcement Standby Reception has been set to work for searching for “Travel” services. You can select your favorite announcement type for Announcement Standby Reception.

• If you do not want to change the announcement type (from “Travel” to another one), go to page

What you can do more with DAB With the DAB tuner connected, you can use the following convenient functions.

• Road Traffic Flash Standby Reception

• Standby Reception of 9 types of Announcement signals

• Tracing the same program (service) automatically while driving where the same DAB ensemble is not received Road Traffic Flash Standby Reception Press T/P briefly to activate Road Traffic Flash Standby Reception. Each time you press the button, Road Traffic Flash Standby Reception turns on and off.

• When this function is turned on, the TP indicator lights up or flashes (as follows).

• If you press the button while listening to a service supporting Road Traffic Flash signal, the TP indicator lights up. This receiver now stands by for the Road Traffic Flash signal reception.

• If you press the button while listening to a service NOT supporting Road Traffic Flash signal, the TP indicator flashes. In this case, Road Traffic Flash Standby Reception does not work. – If an FM RDS station supporting TA signal is tuned in by the built-in tuner. This receiver stands by for the TA signal reception and the TP indicator lights up. T/P TP indicator appears (either lights up or flashes) EN62-70SH9101[E_EX]f.p65 03.2.27, 23:296667 ENGLISH SEL ATT SEL

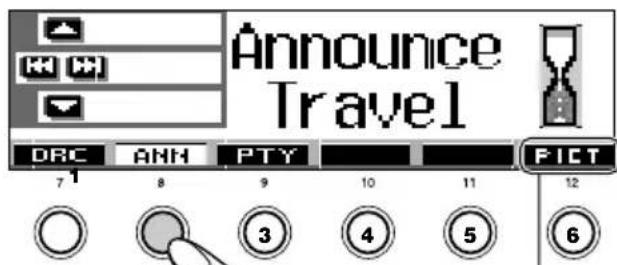

Ex.: When the currently selected announcement type for Announcement Standby Reception is “Travel” To activate Announcement Standby Reception 1 Press MODE (M) while listening to a DAB service. “Mode” appears on the display, and the number buttons start flashing. 2 Press number button 2 repeatedly to activate Announcement Standby Reception while “Mode” is still on the display. Each time you press the button, Announcement Standby Reception turns on and off alternately.

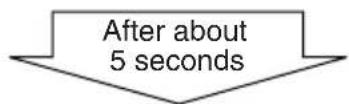

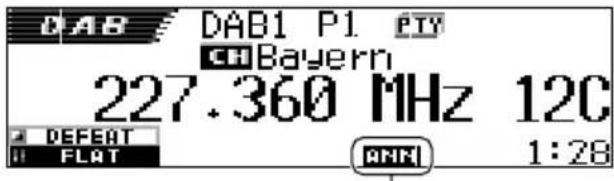

MODE ANN indicator appears (either lights up or flashes) After about 5 seconds The display returns to the source indication screen.

See page 40 for this function.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 47 and 48.)

Press number button 4 to select “TUNER”—Tuner category of the PSM settings. The “PTY Stnby” (standby) setting screen appears on the display.

Select “Announce” (announcement).

Select one of the 9 announcement types. (See page 68.) Selected announcement type appears on the display and is stored into memory.

EN62-70SH9101[E_EX]f.p65 03.2.27, 23:296768 ENGLISH The ANN (announcement) indicator either lights up or flashes.

• If the ANN indicator lights up, Announcement Standby Reception is activated. If a service starts broadcasting a programme of the selected announcement type, this unit automatically tunes in to the service.

• If the ANN indicator flashes, Announcement Standby Reception is not yet activated since the service being received does not provide the signals used for Announcement Standby Reception. To activate Announcement Standby Reception, you need to tune in to another service providing these signals. Press ¢ or 4 to search for such a service. When a service providing these signals is tuned in, the ANN indicator stops flashing and remains lit. Now Announcement Standby Reception is activated. Note: After turning on Announcement Standby Reception, you can change the source without canceling Announcement Standby Reception. In this case, the ANN indicator stops flashing if it was. If a service starts broadcasting the selected announcement type, this unit automatically changes the source and tunes in to the service. How Announcement Standby Reception works: If a service of the selected Announcement type starts broadcasting while the Announcement Standby Reception is activated, selected announcement type appears and the unit tunes into the service. Announcement type Travel: Programmes about travel destinations, package tours, and travel ideas and opportunities

Warning: Warnings about earthquakes,

tsunami, etc. News: News Weather: Weather information Event: Information about events, concerts, etc. Special: Special programmes expanding on current news or affairs Rad Inf: Radio information Sports: Sport events Finance: Reports on commerce, trading, the Stock Market, etc. EN62-70SH9101[E_EX]f.p65 03.2.27, 23:296869 ENGLISH Using PTY Standby Reception PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from any source except AM stations

• Operations are exactly the same as explained on pages 17 and 18 for FM RDS stations. You cannot use PTY Standby Reception separately for the DAB tuner and for the FM tuner.

• PTY Standby Reception works for the DAB tuner only using a Dynamic PTY, but not a Static PTY. To select your favorite PTY code for PTY Standby Reception, see page 17. To set PTY Standby Reception, see pages 17 and 18.

• You can set PTY Standby Reception when the source is either “FM” or “DAB.” Searching your favorite service You can search any one of the PTY codes (either Dynamic or Static PTY). In addition, you can store your 6 favorite programme types in the number buttons (see page 18).

• Operations are exactly the same as explained on pages 18 and 19 for FM RDS stations. However, you cannot store PTY codes in the number buttons separately for the DAB tuner and for the FM tuner. To store your favorite programme (service) types, see pages 18 and 19. To search your favorite programme (service) type, see page 19.

• Search will be performed on the DAB tuner only. Tracing the same program automatically (Alternative Reception) You can keep listening to the same program.

• While receiving a DAB service: When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same program.

• While receiving an FM RDS station: When driving in an area where a DAB service is broadcasting the same program as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service. To use Alternative Reception When shipped from the factory, Alternative Reception is activated.

• See also “Changing the general settings (PSM)” on page 46. 1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. 2 Press number button 4 to select “TUNER”— Tuner category of the PSM settings. 3 Press ¢ or 4 to select “DAB AF” (alternative frequency). 4 Turn the control dial to select the desired mode.

• On: Traces the program among DAB services and FM RDS stations —Alternative Reception. The AF indicator lights up on the display (see page 15).

• Off: Alternative Reception is deactivated. 5 Press SEL (select) to finish the setting. Note: When Alternative Reception (for DAB services) is activated, Network-Tracking Reception (for RDS stations: see page 15) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception. EN62-70SH9101[E_EX]f.p65 03.2.27, 23:296970 ENGLISH Changing the display pattern By pressing DISP (D), you can change the information shown on the display. Each time you press the button, the display patterns change as follows:

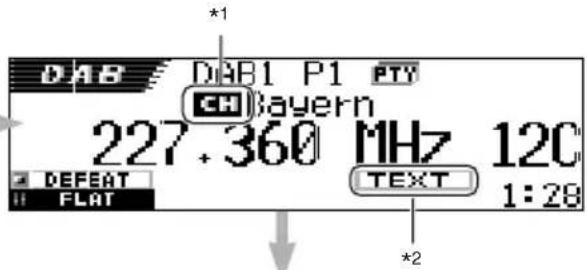

Ensemble label (primary service) indicator: The different indicator ( ) will be displayed when the secondary service is selected.

TEXT indicator: implies the current service received is providing DLS (Dynamic Label Segment—DAB radio text information).

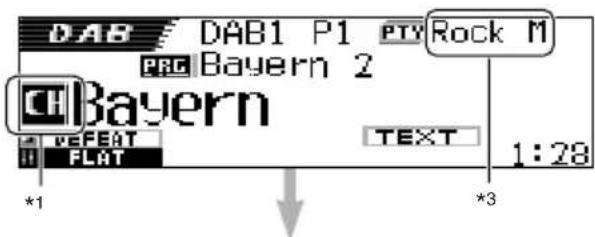

Each service can have several PTY codes. If a service have several PTY codes, they will be shown in turn.

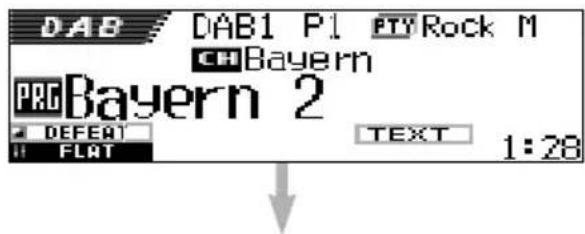

• Ensemble label (name) is emphasized

• Service label (name) is emphasized

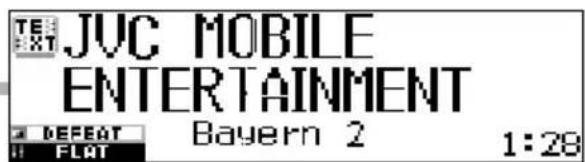

• Dynamic Label Segment (DLS) is display

• You can adjust the preset sound modes temporarily. However, your temporary adjustments will be reset when you select another sound mode. Available characters In addition to the alphabets (A – Z, a – z), you can use the following characters to assign names to CDs, and external component. (See page 51.)

• These characters can be also used to show other information such as disc title/performer, RDS, and DAB on the display. Accented letters Lower case Numbers and symbols Sound Preset equalizing values Mode 60 Hz 150 Hz 400 Hz 1 kHz 2.4 kHz 6 kHz 12 kHz Flat 00 00 00 00 00 00 00 Hard Rock +03 +03 +01 00 00 +02 +01 R & B +03 +02 +02 00 +01 +01 +03 Pop 00 +02 00 00 +01 +01 +02 Jazz +03 +02 +01 +01 +01 +03 +02 DanceMusic +04 +02 00 –02 –01 +01 +01 Country +02 +01 00 00 00 +01 +02 Reggae +03 00 00 +01 +02 +02 +03 Classic +02 +03 +01 00 00 +02 00 User 1 00 00 00 00 00 00 00 User 2 00 00 00 00 00 00 00 User 3 00 00 00 00 00 00 00 Upper case EN71-75SH9101[E_EX]f.p65 03.2.27, 23:307172 ENGLISH What appears to be trouble is not always serious. Check the following points before calling a service center. TROUBLESHOOTING Remedies Stop playback while driving on rough roads. Change the disc. Check the cords and connections. Set it to “On” (see page 49). Check the cords and connections. Insert the disc correctly.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording. Unlock the disc (see page 30.) While holding , press 0 for more than 2 seconds to eject the disc. Press the reset button on the control panel using a ball-point pen (see page 2). Press the reset button on the control panel using a ball-point pen (see page 2). If the reset button does not work. Check the installation. (Ex. you have used a screws which are longer than specified.) Adjust the output level on the external component. Remove the control panel, wipe the connectors, then attach it again (see page 53). Store stations manually. Connect the antenna firmly. Causes You are driving on rough roads. Disc is scratched. Connections are incorrect. The “PowerAmp” setting is set to “Off.” Connections are incorrect. Disc is inserted upside down. CD-R/CD-RW is not finalized. Disc is locked. The CD player may function incorrectly. The built-in microcomputer may have functioned incorrectly due to noise, etc. There is something is blocking the control panel movement. Input level through the external component (LINE IN) is too high. The control panel is not attached correctly and firmly. Signals are too weak. The antenna is not connected firmly. Symptoms

• Sound is sometimes interrupted.

• Sound cannot be heard from the speakers.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

• Disc cannot be ejected.

• Disc cannot be recognized (“No Disc,” “Loading Error,” or “Eject Error” flashes).

• This unit does not work at all.

• When “Reset P00” to “Reset P44” appears on the display.

• (INPUT OVER) indicator appears on the display.

• “Panel Connect Error” appears on the display.

• SSM automatic preset does not work.

• Static noise while listening to the radio. FM/AM General Playback EN71-75SH9101[E_EX]f.p65 03.2.27, 23:307273 ENGLISH MP3/WMA Playback CD Changer Causes You are trying to download an animation of many frames. Temperature in the car compartment is very low— (LOW TEMP.) indicator appears. No disc in the magazine. This unit is not connected to a CD changer correctly. MP3/WMA tracks do not have the extension code—mp3 or wma in their file names. MP3/WMA tracks are not recorded in the format compliant with ISO 9660 Level 1, ISO 9660 Level 2, Romeo, or Joliet. Tracks are not encoded in an appropriate format. WMA tracks are copy- protected. The track played back is not an MP3/WMA file (although it has the extension code—mp3 or wma). This sometimes occurs during play. This is caused by how the tracks are recorded on the disc. The current MP3/WMA disc does not contain any MP3/ WMA tracks. No MP3/WMA tracks are included in the folder. Only <jml> and/or <jma> files are recorded on the disc. This unit can only display alphabets (capital: A–Z, small: a–z), numbers, and a limited number of symbols. Symptoms

• Download does not seem to finish.

• Animation does not move.

• “Movie” category settings in the PSM do not take effect.

• Disc cannot be played back.

• “Unplayable File” appears and tracks skip.

• Elapsed playing time is not correct.

• “No Files” appears on the display for a while, then the disc ejects.

• “No Music” appears on the display.

• Correct characters are not displayed. (e.g. album name) Remedies This is normal (see page 40). Wait until the operating temperature resumes—until (LOW TEMP.) indicator goes off. Insert a disc. Connect this unit and the CD changer correctly and press the reset button of the CD changer. Press the reset button of the CD changer. Add the extension code—mp3 or wma to their file names. Change the disc. (Record MP3/WMA tracks using a compliant application.) Insert a disc that contains tracks encoded in an appropriate format. This is normal. Copy-protected tracks cannot be played back. Skip to another track or change the disc. (Do not add the extension code—mp3 or wma to non-MP3 or WMA files.) Select another folder. Insert a disc that contains MP3/ WMA tracks. Select another folder including MP3/WMA tracks. Insert a disc including MP3 or WMA tracks. Graphics EN71-75SH9101[E_EX]f.p65 03.2.27, 23:307374 ENGLISH MAINTENANCE Center holder Handling discs This unit has been designed to reproduce CDs,CD-Rs (Recordable), CD-RWs (Rewritable), andCD Texts.• This unit is also compatible with MP3 andWMA discs. How to handle discs When removing a disc from itscase, press down the centerholder of the case and lift thedisc out, holding it by the edges.• Always hold the disc by the edges. Do nottouch its recording surface.When storing a disc into its case, gently insertthe disc around the center holder (with theprinted surface facing up).• Make sure to store discs into the cases after use. To keep discs clean A dirty disc may not play correctly.If a disc does become dirty, wipe itwith a soft cloth in a straight linefrom center to edge. To play new discs New discs may have some roughspots around the inner and outeredges. If such a disc is used, thisunit may reject the disc.To remove these rough spots, rubthe edges with a pencil or ball-point pen, etc. Moisture condensation Moisture may condense on the lens inside theCD player in the following cases:• After starting the heater in the car.• If it becomes very humid inside the car.Should this occur, the CD player maymalfunction. In this case, eject the disc and leavethe unit turned on for a few hours until themoisture evaporates. When playing a CD-R or CD-RW Before playing back CD-Rs or CD-RWs, readtheir instructions or cautions carefully.
• Use only “finalized” CD-Rs or CD-RWs.
• Some CD-Rs or CD-RWs may not play backon this unit because of their disccharacteristics, and for the following reasons:– Discs are dirty or scratched.– Moisture condensation on the lens inside theunit.– The pickup lens inside the unit is dirty.• CD-RWs may require a longer readout timesince the reflectance of CD-RWs is lower thanthat of regular CDs.• CD-Rs or CD-RWs are susceptible to hightemperatures or high humidity, so do not leavethem inside your car.• Do not use following CD-Rs or CD-RWs:– Discs with stickers, labels, or protective sealstuck to the surface.– Discs on which labels can be directly printedby an ink jet printer.Using these discs under high temperatures orhigh humidity may cause malfunctions ordamage to discs. For example,– Stickers or labels may shrink and warp adisc.– Stickers or labels may peel off so discscannot be ejected.– Print on discs may get sticky.Read instructions or cautions about labels andprintable discs carefully. CAUTIONS:
• Do not insert 8 cm discs (single CDs) into theloading slot. (Such discs cannot be ejected.)• Do not insert any disc of unusual shape—like aheart or flower; otherwise, it will cause amalfunction.• Do not expose discs to direct sunlight or anyheat source or place them in a place subject tohigh temperature and humidity. Do not leavethem in a car.• Do not use any solvent (for example,conventional record cleaner, spray, thinner,benzine, etc.) to clean discs.StickerStickerresidue Disc Stick-onlabelWarped disc EN71-75SH9101[E_EX]f.p65 03.2.27, 23:307475 ENGLISH SPECIFICATIONS

Type: Compact disc player Signal Detection System: Non-contact optical pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 98 dB Signal-to-Noise Ratio: 102 dB Wow and Flutter: Less than measurable limit MP3 (MPEG Audio Layer 3) Max. Bit rate: 320 Kbps WMA (Windows Media

Audio) Max. Bit rate: 192 Kbps GENERAL Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D): Installation Size: 182 mm × 52 mm × 161 mm Panel Size: 188 mm × 58 mm × 17 mm Mass: 1.8 kg (excluding accessories) Design and specifications are subject to change without notice.

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front: 50 W per channel Rear: 50 W per channel Continuous Power Output (RMS): Front: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range: Frequencies: 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz Level: ±10 dB Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-In Level/Impedance: LINE IN: 1.5 V/20 kΩ load Line-Out Level/Impedance:

4.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ TUNER SECTION Frequency Range: FM: 87.5 MHz to 108.0 MHz AM: (MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz [FM Tuner] Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity: 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB [MW Tuner] Sensitivity: 20 µV Selectivity: 35 dB [LW Tuner] Sensitivity: 50 µV EN71-75SH9101[E_EX]f.p65 03.2.27, 23:30752 DEUTSCH

1.LASER-PRODUKT DER KLASSE 1

PRODUCT CAUTION: Invisible laser radiation when open and interlock failed or defeated.

SRC DISP ATT SEL T/P MODE

SRC DISP ATT SEL T/P MODE

Off Muting1 Muting2 Off

SRC DISP ATT SEL T/P MODE

1.PRODUIT LASER CLASSE 1

SRC DISP ATT SEL T/P MODE

SRC DISP ATT SEL T/P MODE ATT SRC

SRC DISP ATT SEL T/P MODE

Off Muting1 Muting2 Off

SRC DISP ATT SEL T/P MODE

SRC DISP ATT SEL T/P MODE

SRC DISP ATT SEL T/P MODE SRC SRC DAB1 DAB2 DAB3

SRC DISP ATT SEL T/P MODE

SRC DISP ATT SEL T/P MODE

Kies “UserMovie”, “UserSlide” of “UserPict.”.

Off Muting1 Muting2 Off

SRC DISP ATT SEL T/P MODE
