USER MANUAL DV1820 AudioSonic

Black and white photo of a portable electronic device with a screen displaying a celestial sky (no visible text or symbols)

INSTRUCTION MANUAL GEBRUIKERSHANDLEIDING BEDIENUNGSANLEITUNG MODE D'EMPLOI MANUAL DE INSTRUCCIONES MANUAL DE INSTRUÇÕES INSTRUKCJE OBS UGIŁ

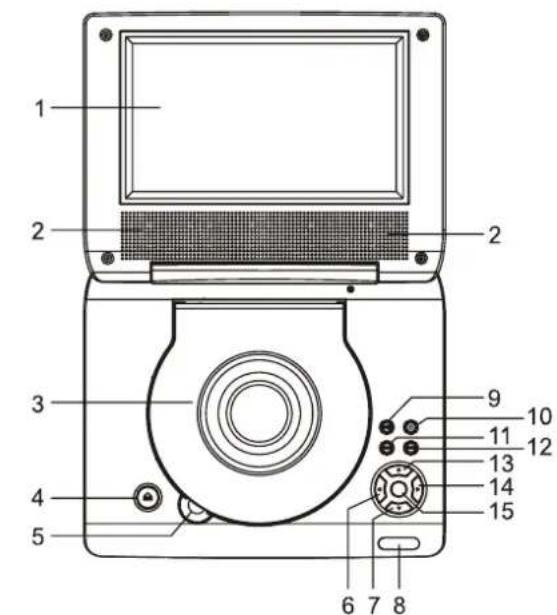

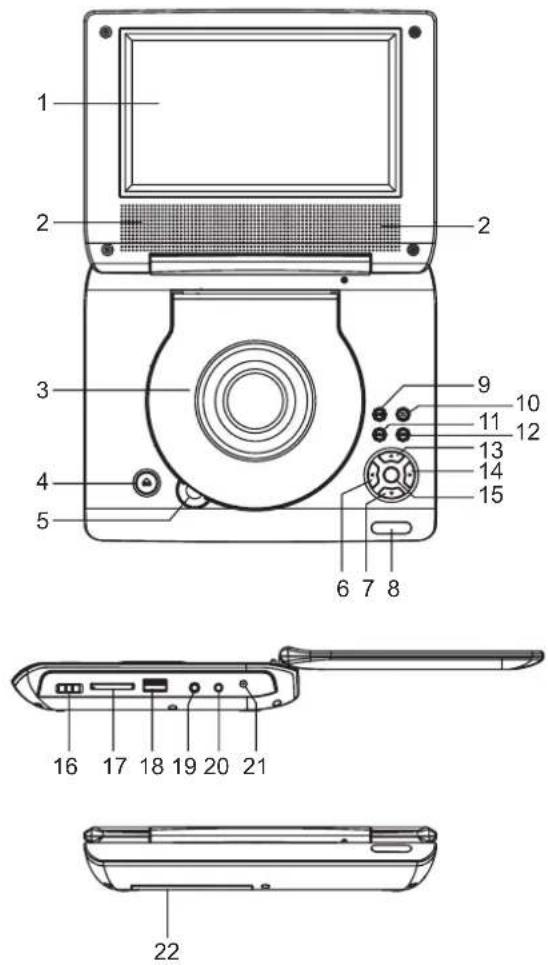

OVERVIEW OF THE DVD PLAYER:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

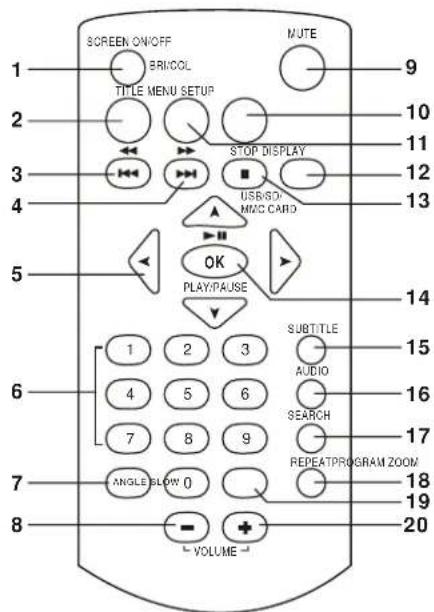

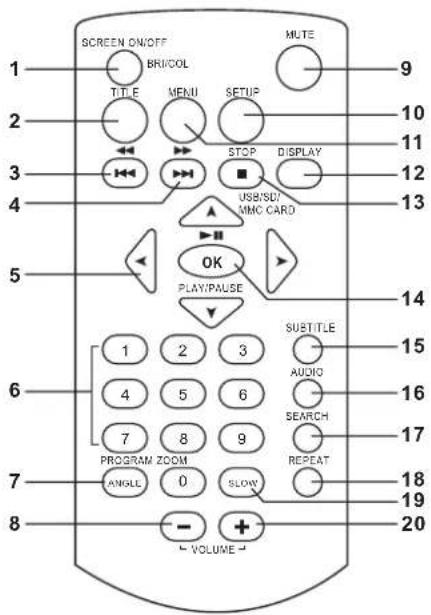

REMOTE CONTROL UNIT:

SCREEN ON/OFF BRICOL TITLE MENU SETUP STOP DISPLAY USB/SDI MMC CARD OK PLAY/PAUSE SUBTITLE AUDIO SEARCH REPEAT PROGRAM ZOOM ANGLE 0 SLOW VOLUME 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

1. TFT SCREEN
2. SPEAKERS
3. DISC COVER
4. DISC COVER OPEN BUTTON
5. DISC COVER CLOSE AREA
6. VOLUME- & NAVIGATION LEFT BUTTON
7. NAVIGATION DOWN BUTTON
8. CHARGE INDICATOR & REMOTE SENSOR & POWER INDICATOR
9. PLAY/PAUSE BUTTON
10. STOP & USB/SD/MMC CARD BUTTON
11. PREVIOUS & F_BWD BUTTON
12. NEXT & F FWD BUTTON
13. NAVIGATION UP BUTTON
14. VOLUME+ & NAVIGATION RIGHT BUTTON
15. OK BUTTON
16. POWER ON/OFF SWITCH
17. SD/MMC CARD SLOT
18. USB PORT
19. PHONES JACK
20. AUDIO/VIDEO OUT JACK
21. DC IN JACK
22. BATTERY COMPARTMENT

* The rating plate is located at the bottom of the apparatus.

1. SCREEN ON/OFF & BRI/COL ADJUST BUTTON
2. TITLE BUTTON
3. PREV & FAST BACKWARD BUTTON
4. NEXT & FAST FORWARD BUTTON
5. NAVIGATION BUTTONS
6. NUMERIC BUTTONS
7. PROGRAM/ANGLE BUTTON
8. VOLUME - BUTTON
9. MUTE BUTTON
10. SETUP BUTTON
11. MENU BUTTON
12. DISPLAY BUTTON
13. STOP & USB/SD/MMC CARD BUTTON
14. OK(PLAY/PAUSE) BUTTON
15. SUBTITLE BUTTON
16. AUDIO BUTTON
17. SEARCH BUTTON
18. REPEAT BUTTON
19. ZOOM/SLOW BUTTON
20. VOLUME + BUTTON

BASIC CONNECTION

• It is recommended to connect a multi-system TV.
• Ensure that this player and other equipment to be connected are set to OFF mode and disconnect the AC power cords before commencing connection.
• Do not block ventilation holes of any of the equipment and arrange them so that air can circulate freely.
• Read through the instructions before connecting other equipment.
• Ensure that you observe the color coding when connecting audio, video cables. If the RCA adapter is supplied only, the audio/video RCA cable is required. Plug one end of the RCA adapter to the unit. Then connect the audio/video RCA cable to the RCA adapter and the television.

Note:

• During DVD play, the TV volume may be at a lower level than during TV broadcasts, etc. If this is the case, adjust the volume to the desired level.
• If the DVD/CD player is connected to the TV through a video cassette recorder, the picture may not be played back normally with some DVDs. If this is the case, do not connect the player via the VCR.

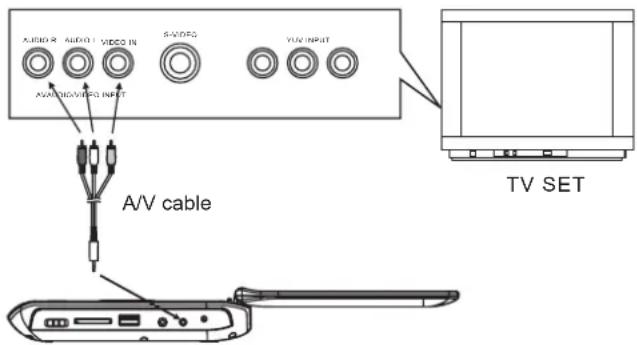

CONNECTING TO A STEREO TV SET

AUDIO R AUDIO I VIDEO IN S-AVIDS YUN INPUT AVACO GIVE VIDEO INPUT A/V cable TV SET

After connection is firmed and securely done, plug AC ADAPTER to an applicable wall outlet and turn on the player.

CONNECTING TO A CAR ADAPTOR

The car power adaptor is designed for use with vehicles that have a 12V, negative ground electrical system.

WARNING:

Disconnect the car power adaptor when not in use. Not in use in 24V vehicles.

To the cigarette lighter socket

CAUTIONS:

• Use the unit only with the recommended car power adaptor, use with other car power adaptor might damage the unit.
• The recommended car power adaptor is for use with this unit only. Do not use it with other equipment.
• In the interests of road traffic safety, do not operate the unit or view video software while driving a vehicle.

• Make sure the unit is fastened securely to prevent from moving outside of the vehicle in an accident.

• When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become hot due to poor contact. Be sure to clean the cigarette lighter socket before use.

• After use, disconnect the car power adaptor from both the unit and cigarette lighter socket.

FUSE REPLACEMENT

FUSE POSITIVE(+) CAP

NOTE: Don't throw out the positive(+) cap when replace the fuse.

CHARGE THE BUILT-IN BATTERY

The player is with a rechargeable lithium battery. Before using the battery, please make sure it is charged. If not, charge it first. Slide the power switch to OFF position and then connect one end of the supplied adapter to the wall outlet and the other end to the unit for charging the built-in battery.

Note:

1. The battery only could be charged at powering off mode.
2. If the unit is not in use for a prolonged period of time, it is recommendable to charge the built-in battery each three months.

OPERATIONS

PREPARATION

Power on the TV set and select video input mode.

Power on the audio system which is connected to the player Note: The unit either be powered by the supplied adapter or the rechargeable battery. And please get that the battery only could be charged at powering off mode.

GET STARTED

1. Slide the POWER ON/OFF switch to turn on the player.
2. Press disc cover OPEN key to open the disc cover, and then place the disc onto the disc tray.
3. Close the disc tray and the playback starts automatically.
4. When a menu screen appears on the TV, move the navigation buttons to select a preferred track number, then press OK(PLAY/PAUSE) button to start playback.

ADJUST THE VOLUME

Press VOLUME+/- button on the remote or press and hold these two buttons on the unit to increase or reduce the volume level.

MUTE

While the power is on, the audio output of the main unit is to be shut off by pressing the button. Press it again to resume sound output.

SKIP AHEAD OR BACK

Press PREVIOUS or NEXT button once during play to skip a chapter (DVD) or a track (CD) ahead or backwards.

RAPID ADVANCE/REVERSE

During playback, press and hold FAST BACKWARD or FAST FORWARD button several times to scan the disc forward or backward at X2, X4, X8, X16,X32 normal speed.

Press PLAY/PAUSE button to resume normal play.

STOP PLAYBACK

Press STOP button during playback to stop playback; the player activates its resume function when STOP is pressed in STOP mode; press PLAY button again, playback resumes at the point it stopped previously; open the disc tray or press the STOP button one more time to clear the resume function. Press and hold this button to make change between Dvd, Mcr (Media Card Reader) and Usb.

Press and hold ZOOM/SLOW button on the remote control during playback, the Disc will be played at 1/2 normal speed at first, each time this button is pressed, the play speed becomes slower at 1/4,1/8 and 1/16 speed.

REPEAT

Press REPEAT button during playback, it will repeat play one chapter/title or repeat all (for DVD disc), or repeat play a track or all tracks (CD), or repeat the sections between two specific points(A-B).

SEARCH FOR PREFERRED SCENE

1. Press SEARCH button several times during play to show different Search mode.
2. Input the desired number or time via the numeric buttons.
3. Press OK(PLAY/PAUSE) button to confirm and the playback from the located scene starts.
4. Search menu will exit automatically no input.

ON SCREEN DISPLAY INFORMATION

When the player is in operation, press DISPLAY button continuously on the remote control, the screen will display parts of information in a sequence.

CHANGING AUDIO SOUNDTRACK LANGUAGE (DVD)

It is possible to change the audio soundtrack language to a different language from the one selected at the initial settings (This operation works only with discs on which multiple audio soundtrack languages are recorded).

Press AUDIO button to change the sound track language during DVD disc play.

NOTE: When no soundtrack languages are recorded, pressing this button will not work.

CHANGING SUBTITLE LANGUAGE (DVD ONLY)

Press SUBTITLE button during playback, the subtitle language will change on the screen as a response to each press;

When the desired language appears, release the button to view the subtitle in that language.

Note: this function only works on the DVDs recorded with multi-language subtitles.

RETURN TO MAIN MENU AND PLAY THE TITLE

During playback, press MENU button to return to the menu and press TITLE button to play the title.

PROGRAM PLAY(UP TO 20 MEMORIES)

1. Press PROGRAM during playback to display the program menu.
2. Select location(s) to be memorized via navigation buttons and then enter desired Titles/Chapters/tracks numbers via numeric buttons.
   Note: It is unnecessary to input the leading figure zerolf the chapter/title/track number is more than the cardinal 10, press the unit digit key first and then another unit digit. Some figure inputs may be useless, because it 's greater figure than total title/chapter/track number on the disc. To programme another ten tracks by selecting NEXT button. Up to 20 tracks can be programmed.

Example: Track 3, press "3"

Track 12, press "1" and then "2"

Track 21, press "2" and then "1"

1. To start programmed playback, scroll START on the menu and then press OK(PLAY/PAUSE) button.
2. To clear all programmed item, first of all, press PROGRAM button to enter the program menu, by now it will highlight STOP on the menu, press OK(PLAY/PAUSE) button once to confirm, then EXIT on the menu will be highlighted, press OK(PLAY/PAUSE) again to clear all the programmed item.

ZOOM PLAY

Press the ZOOM key continuously to zoom in the picture by 2, 3, and 4 times.

Scroll to view the enlarged picture using Navigation buttons.

MULTI-ANGLE VIEWING (DVD ONLY)

Press and hold ANGLE button during playback to select a desired angle to view the scene.

Note: only the DVDs shot with multi-angle scenes have this function.

MP3/MPEG 4 PLAYBACK

1. Load the MP3/MPEG 4 disc onto the disc tray and the TV screen will show all its folders after a few seconds.
2. Select the folder you want by the navigation buttons and then OK(PALY/PAUSE) button to confirm.
3. The files in this folder are displayed and select your favourable song via navigation buttons and press OK(PALY/PAUSE)button to start playback.
4. Press NEXT and PREV button to select track directly.
5. Press REPEAT button to change play mode.

KODAK PICTURE CD / JPEG CD PLAYBACK

Slide show of Kodak Picture CD after being loaded begins automatically.

Folders of JPEG picture CD after being loaded are displayed on the TV screen; use the navigation buttons to select the desired folder and then press OK(PLAY/PAUSE) button to confirm. The files in this folder are displayed and you can select your favourable pictures using the up/down navigation buttons and press OK(PLAY/PAUSE) button to start playback.

KODAK PICTURE CD/JPEG CD OPERATIONS

1. PLAY MODES

Press REPEAT button to change play mode.

During playback, press STOP button to show folders/files in the disc.

2. SKIP TO NEXT/PREVIOUS PICTURE

Press NEXT button to skip to the next picture or PREV button to the previous picture.

If no key is pressed for a few seconds, it will skip to next picture automatically.

3. PICTURE ROTATIONS

Press RIGHT and LEFT navigation buttons to rotate the picture Clockwise and anti-clockwise respectively.

4. PICTURE FLIPS

Press UP NAVIGATION button to flip the picture vertically. Press DOWN NAVIGATION button to flip the picture horizontally.

5. PICTURE ZOOM IN/OUT

Press ZOOM button continuously, the picture zooms in and out.

If the picture is enlarged, you may use the navigation buttons to view blocked parts of the picture.

COLOR AND BRIGHTNESS ADJUSTMENT (FOR THE LCD SCREEN)

Press SCREEN ON/OFF button on the remote control to adjust the color intensity and brightness respectively via navigation left/right button.

Press and hold this button for a moment to open or close the TFT display.

EXTERNAL MEMORY MEDIA OPERATION (USB&SD/MMC CARD)

Prepare the player for External Memory media operation

1. Slide the POWER switch to ON position, plug a USB data traveller filled with Audio/video files into the USB port or Insert the SD/MMC card with the label side facing up into the card slot, the USB or the SD/MMC card is successfully detected and read after a few seconds, at the same time, the TV screen will show all its folders.

2. You may play the files stored in the storage media much in the same way as you do the Mp3 disc.

Note: Press and hold STOP button to make change among Dvd, Mcr (Media Card Reader) and Usb.

INITIAL SETTINGS

Initial settings page is for you to make your preferred settings up for your player. Once the initial settings are done they are retained in the CPU of the player until otherwise modified.

COMMON PROCEDURES FOR INITIAL SETTINGS

1. Press SETUP button.
2. Use the navigation buttons to select the item you want to modify, press OK(PLAY/PAUSE) button to confirm, setting page with further setting items displayed shows on the TV screen. Again use navigation buttons to make changes. Press again OK(PLAY/PAUSE) button to confirm modifications.
3. Use navigation buttons to switch to another setting on the main setting page.
4. Press SETUP button to exit main setting page.

1. GENERAL SETUP

1.1 TV DISPLAY - it is used to select the TV scan mode, please set as per your TV set.

Options: Normal/Ps Normal Lb Wide

1.2 LCD MODE - it is used to select the LCD mode.

Options: 4:3 16:9

1.3 OSD LANGUAGE - it is used to select different On Screen Display language for different user.

1.4 SCREEN SAVER - when the player is not in used for several minutes, a running DVD logo will move across the TV screen to protect the TV screen.

Options: On: Screen saver is enabled Off: Screen saver is disabled

1.5 EXIT SETUP - It is used to exit the setup menu.

2. AUDIO SETUP

2.1 DOWNMIX

Options: Lt/ft/Right mix mode

Stereo - Select this option if you don't have a 5.1 channels amplifier.

2.2 EXIT SETUP - It is used to exit the setup menu.

3. VIDEO QUALITY SETUP

3.1 BRIGHTNESS - to set the brightness for display.
3.2 CONTRAST - to set the contrast effect for display.
3.3 HUE - to set the hue for display.
3.4 SATURATION - to set the saturation for display.
3.5 EXIT SETUP - It is used to exit the setup menu.

4. SYSTEM SETUP

Please follow the below steps to enter the System Page: First, power on the unit with the disc tray is empty or the disc door is opened, then press SETUP button and enter the System Page by pressing NAVIGATION buttons.

4.1 TV TYPE - it is used to select the TV mode. Please select this option as per your TV set.

4.2 AUDIO - select preferred audio language. (DVD only - need disc software support)

4.3 SUBTITLE - select preferred subtitle language. (DVD only - need disc software support)

4.4 DISC MENU - select preferred disc menu language. (DVD only - need disc software support)

4.5 PARENTAL - select rating levels. (DVD only - need disc software support)

4.6 PASSWORD

Option: Change

Select to change password

Procedure to change password:

1) Enter old password in the Old Password row
2) Enter new password in the New Password row
3) Enter the new password again in the Confirm Pwd row You may reset the password if you forget the old password by using the supervisor password: 1389
4.7 DEFAULT - Reset to factory settings.
4.8 EXIT SETUP - It is used to exit the setup menu.

DISC HANDLING PRECAUTIONS

• Hold the disc by the edge so the surface will not be soiled with finger prints. Finger prints, dirt and scratches can cause skipping and distortion.
• Do not write on the label side with a ball-point pen or other writing utensils.
• Do not apply benzine, thinner, and liquid that prevents against static electricity.
• Be careful not to drop or bend the disc.
  • Install only one disc on the disc tray.
• Do not try to close the disc tray when the disc is not installed properly.
• Be sure to store the disc in its case when not in use.

TROUBLESHOOTING

If your DVD player does not seem to be functioning properly, check the items below before you contact an authorized service center

Symptom Check
Power does not turn on or suddenly turns off.	Make sure the AC adapter is securely plugged into an AC outlet.Turn the power off and then back on.
No picture or sound	Check that the A/V cables are securely connected.Check that the disc is a DVD, DVD-RW or AUDIO CD.Do not use a disc that has scratches or dirt.Check that the label-side of the disc is facing up.The pick-up lens of the DVD player may be dirty. Contact the service center for lens cleaning.Check that the TV channel is set to VIDEO or AV if viewing with a TV.
No picture	Check that the LCD display is turned on.
No sound	Check that the display panel is open. If it is closed, audio will not be output to the speakers.Check the volume setting. If set to zero, turn up volume level.Check that the headphones are plugged into the PHONES socket.Speakers cannot be used with the headphones.
No picture and sound	Check that the battery is properly installed and AC Adapter is properly connected.
Distorted video or sound	Use a disc without scratches or dents.

WARNING

1. No flame sources, such as lighted candles, should be placed on the apparatus.
2. Do not place the product in closed bookcases or racks without proper ventilation.
3. The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
4. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
5. It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
6. The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.
7. Do not use abrasive, benzene, thinner or other solvents to clean the surface of the unit. To clean, wipe it will mild non-abrasive detergent solution and clean soft cloth.
8. Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.

Do not dispose of the device with the household waste. This product must be disposed of according to EU directive 2002/96/EC-WEEE (Waste Electrical and Electronic equipment). Return the device to a collection point. Observe the applicable regulations. Contact your municipality, if in doubt.

CAUTION

• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type of battery.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Attention should be drawn to the environmental aspects of battery disposal.

OVERZICHT VAN DE DVD SPELER:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 18 19 20 21

Line drawing of a rectangular electronic device with a labeled component '22' (no text or symbols beyond the label)

AFSTANDSBEDIENING:

SCREEN ON/OFF BRINOL TITLE MENU SETUP STOP DISPLAY USB/SDI MNC CARD OK PLAY/PAUSE SUBTITLE AUDIO SEARCH REPEATPROGRAM ZOOM ANGLE BLOW 0 VOLUME

1. TFT SCHERM
2. LUIDSPREKERS
3. DISKHOUDER
4. OPENTOETS VOOR DISKHOUDER
5. SLUITZONE VOOR DISKHOUDER
6. VOLUME- & NAVIGATIETOETS LINKS
7. NAVIGATIETOETS OMLAAG
8. OPLAADINDICATOR & AFSTANDSSENSOR & AAN/UIT INDICATOR
9. START/PAUZETOETS
10. STOP & USB/SD/MMC KAARTTOETS
11. VORIGE & TERUGSPOELTOETS
12. VOLGENDE & VOORUITSPOELTOETS
13. NAVIGATIETOETS OMHOOG
14. VOLUME+ & NAVIGATIETOETS RECHTS
15. OK TOETS
16. AAN/UITSCHAKELAAR
17. SD/MMC KAARTSLEUF
18. USB POORT
19. HOOFDTELEFOONINGANG
20. AUDIO/VIDEO UITGANG
21. DC INGANG
22. BATTERIJHOUDER

Technical line drawing of a rectangular electronic device with a labeled component (22), no text or symbols present.

Line drawing of a rectangular electronic device with a labeled component '22' (no text or symbols beyond the label)

1. ÉCRAN TFT
2. HAUT PARLEURS
3. COUVERCLE DES DISQUES
4. ZONE D'OUVERTURE DU DISQUE
5. TRAPPE DISQUE
6. VOLUME - & NAVIGATION GAUCHE
7. NAVIGATION BAS
8. INDICATEUR DE CHARGE/ CAPTEUR INFRAROUGE /INDICATEUR DE COURANT
9. LECTURE/PAUSE
10. STOP ET USB/SD/MMC
11. CHAPITRE PRECEDENT ET RECUL RAPIDE
12. CHAPITRE SUIVANT ET AVANCE RAPIDE
13. NAVIGATION HAUT
14. VOLUME + & NAVIGATION DROIT
15. OK
16. BOUTON ON/OFF
17. LECTEUR DE CARTES SD/MMC
18. ENTREE USB
19. ÉCOUTEURS
20. JACK AUDIO/VIDEO OUT
21. ENTRÉE JACK DC
22. COMPARTIMENT DE BATTERIE

Line drawing of a handheld electronic device with ports and connectors, connected to a plug (no text or symbols)

REPLACEMENT DE FUSIBLES

FUSIBLE POLE POSITIF (+)

REVENIR AU MENU PRINCIPAL OU TITRE

3. ROTATION D'IMAGES

Options : Normal/Ps Normal Lb Large

4. VOLTEAR LA IMAGEN

Line drawing of a rectangular electronic device with a labeled component '22' (no text or symbols beyond the label)
