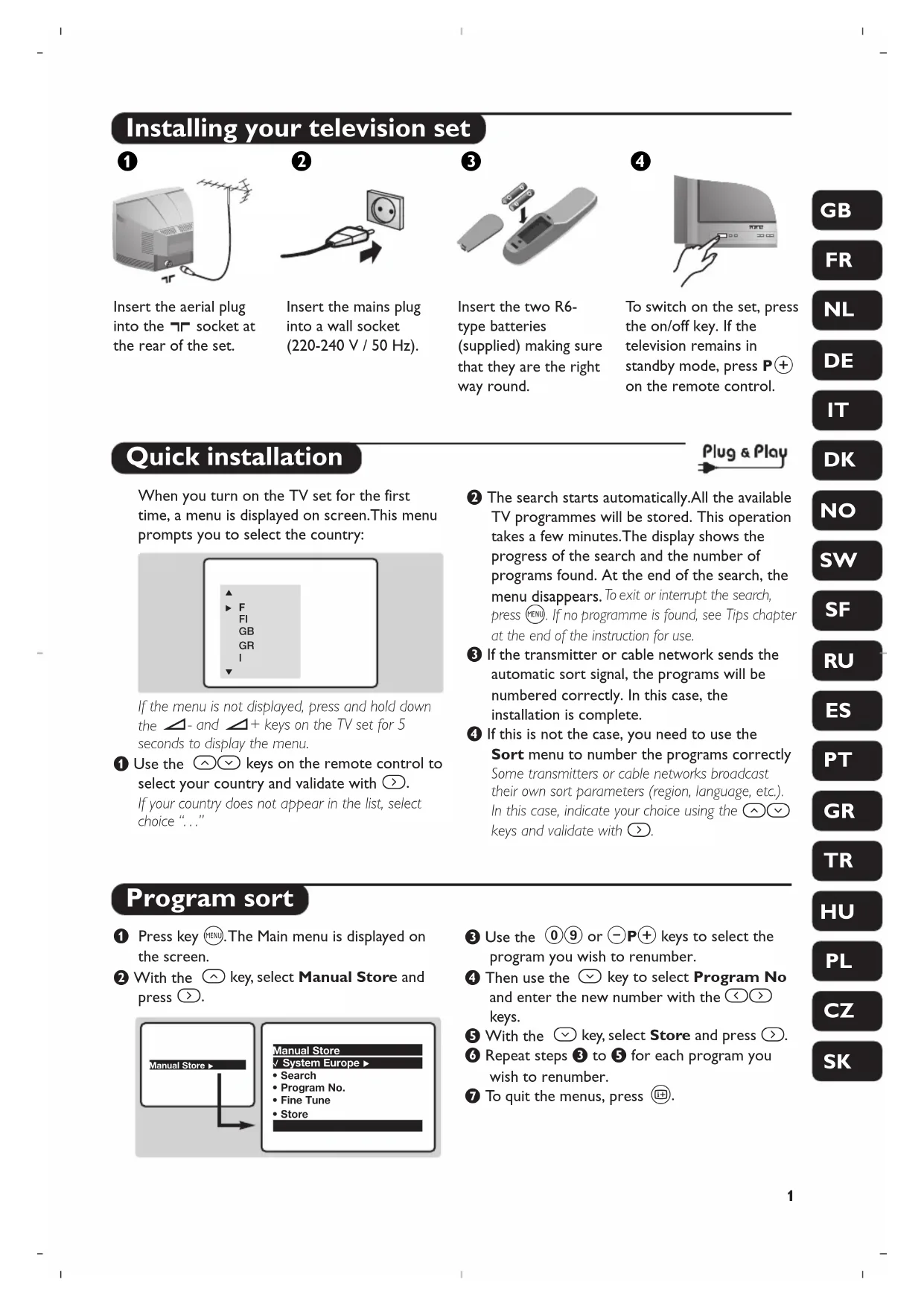

on the remote control. æÂê® Quick installation Program sort When you turn on the TV set for the first time, a menu is displayed on screen.This menu prompts you to select the country: If the menu is not displayed, press and hold down the ”- and ”+ keys on the TV set for 5 seconds to display the menu. & Use the îÏ keys on the remote control to select your country and validate with

If your country does not appear in the list, select choice “. . .” é The search starts automatically.All the available TV programmes will be stored. This operation takes a few minutes.The display shows the progress of the search and the number of programs found. At the end of the search, the menu disappears. To exit or interrupt the search, press H. If no programme is found, see Tips chapter at the end of the instruction for use. “ If the transmitter or cable network sends the automatic sort signal, the programs will be numbered correctly. In this case, the installation is complete. ‘ If this is not the case, you need to use the Sort menu to number the programs correctly Some transmitters or cable networks broadcast their own sort parameters (region, language, etc.). In this case, indicate your choice using the

“ Use the 09 or @P# keys to select the program you wish to renumber. ‘ Then use the Ï key to select Program No and enter the new number with the

keys. ( With the Ï key, select Store and press ¬. § Repeat steps “ to ( for each program you wish to renumber. è To quit the menus, press

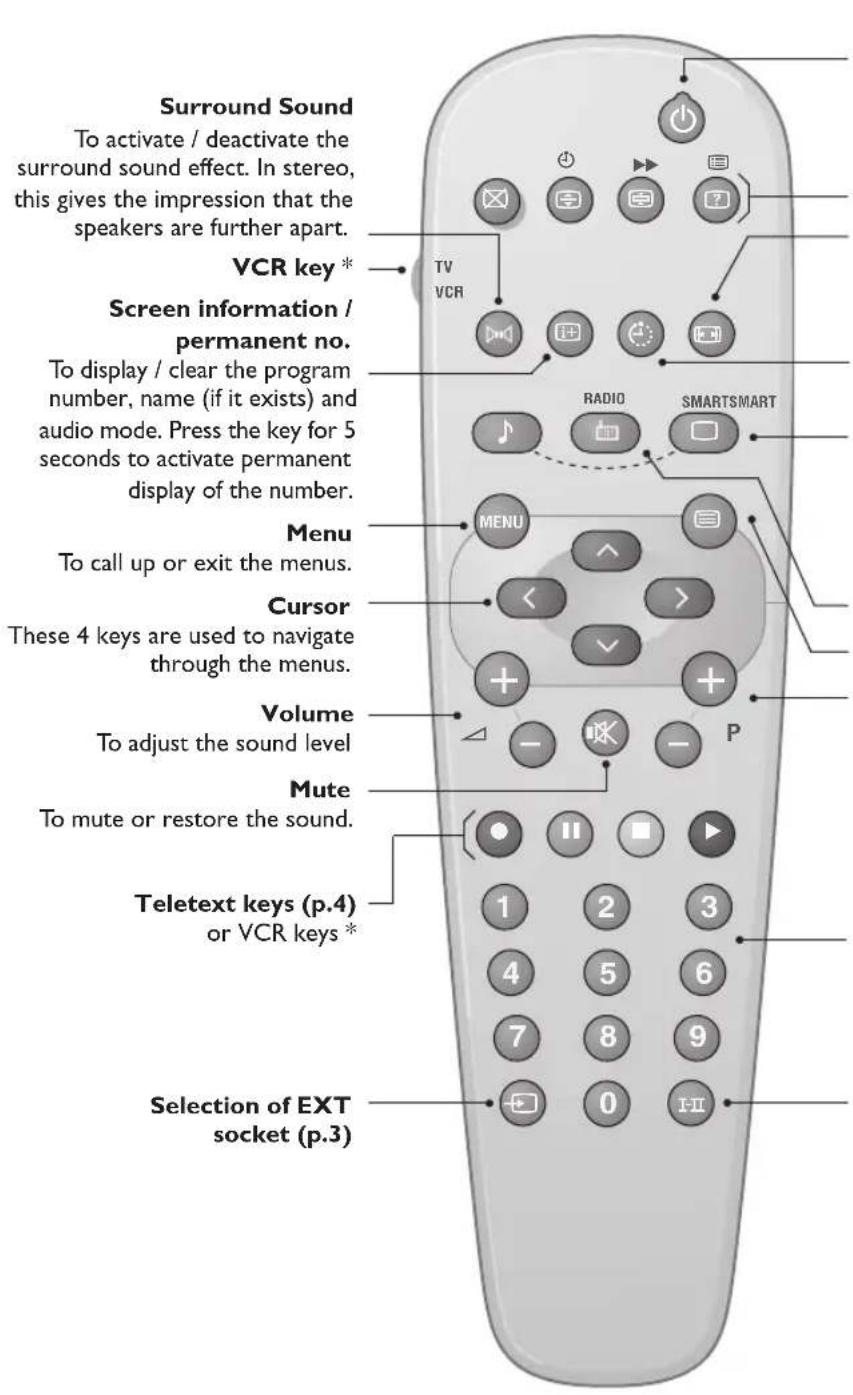

• Store2 Remote control keys Surround SoundTo activate / deactivate thesurround sound effect. In stereo,this gives the impression that thespeakers are further apart.VCR key *Screen information /permanent no.To display / clear the programnumber, name (if it exists) andaudio mode. Press the key for 5seconds to activate permanentdisplay of the number. Menu To call up or exit the menus.VolumeTo adjust the sound levelCursorThese 4 keys are used to navigatethrough the menus.Teletext keys (p.4)or VCR keys *Selection of EXTsocket (p.3)* VCR keyThe remote control lets you control the main functions of the VCR.Press and hold down the VCR key located on the side of the remote control, then press one of the keys to accessthe VCR functions: b%∫HîÏȬP @# · ¢ÊÆ09The remote control is compatible with all VCRs using the RC5 standard.StandbyLets you place the TV set onstandby.To turn on the TV, press P @@, b, 0 to 9 . Teletext keys (p. 4),and VCR keys 16:9 Format (p. 5).unused keys.Smart picture and soundUsed to access a series of predefinedpicture and sound settings.The personal position relates tosettings selected from the menus. Mute To mute or restore the sound.Program selection To access the next or previousprogramme.The number, (name)and sound mode are displayed fora few moments.For some programs, the title of theprogram will be displayed at thebottom of the screen.Sound modeUsed to force programmes inStereo and Nicam Stereo toMono or, for bilingualprogrammes, to choose betweenDual I or Dual II. The Mono indication is red when inforced position.Teletext (p. 4)Digit keysDirect access to the programmes.For a 2 digit programme, enterthe 2nd digit before the dashdisappears.

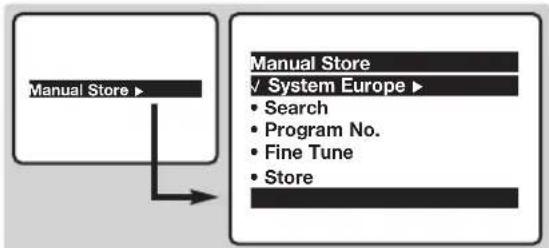

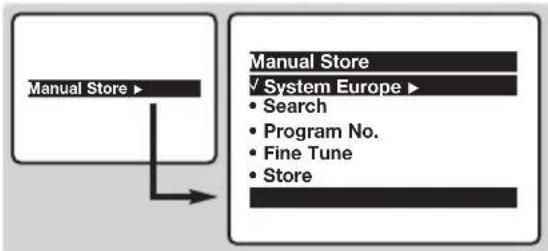

Sleeptimer (only available on certain versions)To select the length of time beforethe set automatically switches tostandby (from 0 to 240 minutes)3 Manual store Other settings in the menu This menu is used to store the programmes one at a time. & Press the H key. é With the î key, select Manual Store and press ¬. Use the îÏ keys to select a setting and the Ȭ keys to adjust. : “ System: select Europe (automatic detection*) or West Europe (BG standard), East Europe (DK standard), UK (I standard) or France (LL’ standard).

• Except for France (LL’ standard), you must select choice France. ‘ Search: press ¬.The search starts. Once a programme is found, the scanning stops. Go to the next step. If you know the frequency of the required programme, this can be entered directly using the 0 to 9 keys. If no programme is found, see Tips chapter at the end of the instruction for use. ( Program No.: enter the required number with the Ȭ or 0 to 9 keys. § Fine Tune: if the reception is not satisfactory, adjust using the Ȭ keys. è Store: press ¬.The program is stored. ! Repeat steps ‘ to è for each programme to store. ç To quit the menus, press d. & Press the H key. é Use the îÏ keys to select a setting and the Ȭ keys to adjust. :

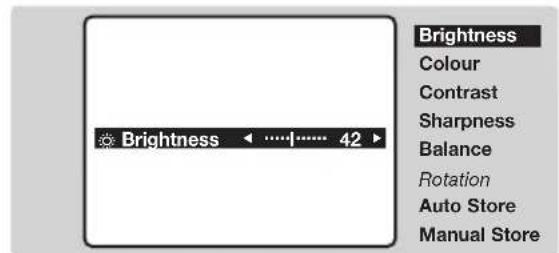

• Brightness: this changes picture brilliance.

• Colour: this changes the intensity of the colour.

• Contrast: this changes the difference between the light and dark tones.

Sharpness: this changes the picture definition.

• Balance : this balances the sound on the left and right speakers.

Auto Store: to start automatic search for all programmes available in your region.Then, you need to use the Manual Store menu to renumber the programmes (see p. 1). To quit or interrupt the search, press

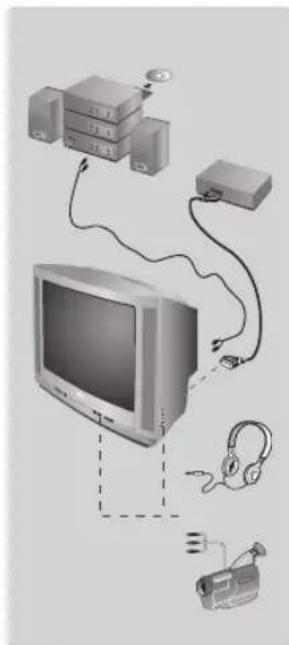

“ To quit the menus, press d. Connecting peripheral equipment Use the euroconnector socket located at the back of the set or the front AV connections (when available). Certain versions are equipped with 2 euroconnectors EXT1 and EXT2.To select connected equipment, press several times the n key. Most equipment (decoder,VCR) carries out the switching itself. Headphones socket (only available on certain versions) When headphones are connected, the sound on the TV set will be cut. The

# keys are used to adjust the volume level. The headphone impedance must be between 32 and 600 Ohms. Amplifier (only available on certain versions) To connect to a hi-fi system, use an audio connection cable and connect the “L” and “R” outputs on the TV set to the “AUDIO IN” “L” and “R” input on your hi-fi amplifier. The keys on the TV set The TV set has 4 keys : VOLUME - + (- ” +) and PROGRAM - + (- P +). To access or exit the menus, press simultaneously the ” - and ” + keys.Then use the - P + and - ” + keys to select and adjust. Other functions Manual Store Æ Brightness

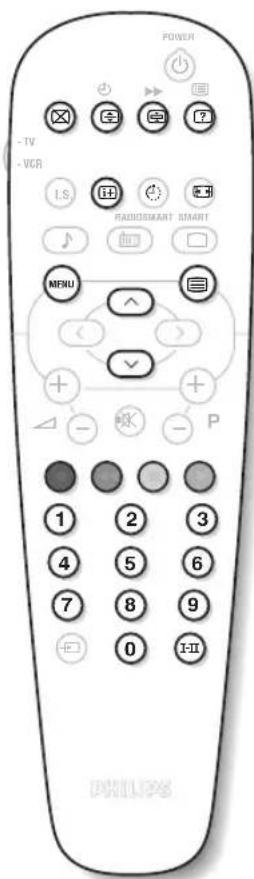

BrightnessColourContrastSharpnessBalanceRotationAuto StoreManual StoreManual Store System Europe Æ• Search• Program No.• Fine Tune• Store4 Teletext Press : You will obtain: Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language (cable networks, satellite channels, etc.).

MENU Teletext call Selecting a page This is used to call teletext, change to transparent mode and then exit.The summary appears with a list of items that can be accessed. Each item has a corresponding 3 digit page number. If the channel selected does not broadcast teletext, the indication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel). Enter the number of the page required using the 0 to 9 or @ P # keys, îÏ. Example: page 120, enter 12

.The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number. Direct access to the items Coloured areas are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages. Contents This returns you to the contents page (usually page 100). Temporary stop This is used to temporarily disable or activate the teletext display. Enlarge a page Stop sub-page acquisition This allows you to display the top or bottom part of the page and then return to normal size. Certain pages contain sub-pages which are automatically displayed successively.This key is used to stop or resume sub-page acquisition.The indication _ appears top left. Hidden information Favourite pages Double page teletext (only available on certain versions) To display or hide the concealed information (games solutions). For teletext programs 0 to 40, you can store 4 favourite pages which can then be accessed directly using the coloured keys (red, green, yellow, blue). & Press the H key to change to favourite pages mode. é Display the teletext page that you want to store. “ Press the coloured key of your choice for 3 seconds. The page is now stored. ‘ Repeat the operation with the other coloured keys. ( You can now consult teletext and your favourite pages will appear in colour at the bottom of the screen.To retrieve the standard items, press H. To clear everything, press d for 5 seconds. To activate or deactivate the double page teletext display mode.The active pa ge is di splayed on the left and the following page is displayed on the right. Press

if you want to hold a page (i.e. the contents page).The active page is then displayed on the right.To return to normal mode, press

Tips Positioning the television set Place your TV on a solid, stable surface, leaving a space of at least 5 cm around the appliance.To avoid accidents,do not put anything on the set such as a cloth or cover, a container full of liquid (vase) or a heat source (lamp). The set must not be exposed to water. Poor reception The proximity of mountains or high buildings may be responsible for ghost pictures, echoing or shadows. In this case, modify the orientation of the aerial. No picture or no sound Have you connected the aerial socket properly? Have you chosen the right system? (p. 3). Teletext Are certain characters not displayed correctly ? Press and hold down the ”- and”+ keys on the TV set for 5 seconds to display the Country menu.Then use the Ȭ keys to select your country and validate with H. Standby To save power, your set is fitted with components that give it a very low power consumption when in standby mode (less than 3 W). Still no results? If your TV set breaks down, never attempt to repair it yourself: contact your dealer's after-sales service. Recycling directive The batteries supplied with this appliance do not contain mercury or nickel cadmium.The materials used in your set are either reusable or can be recycled.To minimise environmental waste, specialist companies collect used appliances and dismantle them after retrieving any materials that can be used again (ask your dealer for further details). 16:9 Formats If your television is equipped with a 4:3 screen. If your television is equipped with a 16:9 screen. Press the p key (or Ȭ) to select the different modes: This TV set is also equipped with automatic switching which will select the correct-screen format, provided the specific signals are transmitted with the programmes. 4:3 The picture is reproduced in 4:3 format and a black band is displayed on either side of the picture.The picture may be progressively enlarged using the îÏ keys. Zoom 14:9 The picture is enlarged to 14:9 format, a thin black band remains on both sides of the picture.The îÏ keys allow you to compress and move the image vertically to view the top or bottom of the picture (subtitles). Zoom 16:9 The picture is enlarged to 16:9 format.This mode is recommended when displaying pictures which have black bands at the top and bottom (letterbox format). Use the îÏ keys if you wish to compress and move the image vertically to view the top or bottom of the picture. Subtitle Zoom This mode is used to display 4:3 pictures using the full surface of the screen leaving the sub-titles visible. Use the îÏ keys to increase or decrease the compression at the bottom of the screen. Super Wide This mode is used to display 4:3 pictures using the full surface of the screen by enlarging the sides of the picture.The îÏ keys allow you to scroll the image up or down the screen. Widescreen This mode restores the correct proportions of pictures transmitted in 16:9 using full screen display. Press the p key (or îÏ) to select the different modes: 4:3 The picture is reproduced in 4:3 format. Expand 4:3 The picture is enlarged vertically.This mode is used to cancell the black bands when watching a programme in letterbox format. Compress 16:9 The picture is compressed vertically into 16:9 format.1 Installation du téléviseur Introduisez la fiche d’antenne TV dans la prise : située à l’arrière. Branchez le cordon d’alimentation sur le secteur (220-240 V / 50 Hz) Introduisez les 2 piles de type R6 fournies en respectant les polarités. Pour allumer le téléviseur, appuyez sur la touche marche arrêt. Si le téléviseur reste en veille, appuyez sur la touche

1. Remove fuse cover and fuse.

2.The replacement fuse must comply with BS 1362 and have the ASTA approval mark. If the fuse is lost, make contact with your retailer in order to verify the correct type.

3. Refit the fuse cover.

In order to maintain conformity to the EMC directive, the mains plug on this product must not be removed. Connecting the aerial The aerial should be connected to the socket marked : at the back of the set.An inferior aerial is likely to result in a poor,perhaps unstable picture with ghost images and lack of contrast. Make-shift loft or set-top aerials are often inadequate.Your dealer will know from experience the most suitable type for your locality. Should you wish to use the set in conjunction with other equipment, which connects to the aerial socket such as TV games, or a video camera it is recommended that these be connected via a combiner unit to avoid repeated connection and disconnection of the aerial plug. Fitting the stand (if provided) Use only the stand provided with the set, making sure that the fixings are properly tightened.A diagram showing how to assemble the stand is packed with the stand. Never use a make-shift stand, or legs fixed with woodscrews. Information for users in the UK (not applicable outside the UK)GB
