USER MANUAL KD55X8509C SONY

Parts and Controls .... 7

Controls and Indicators 7

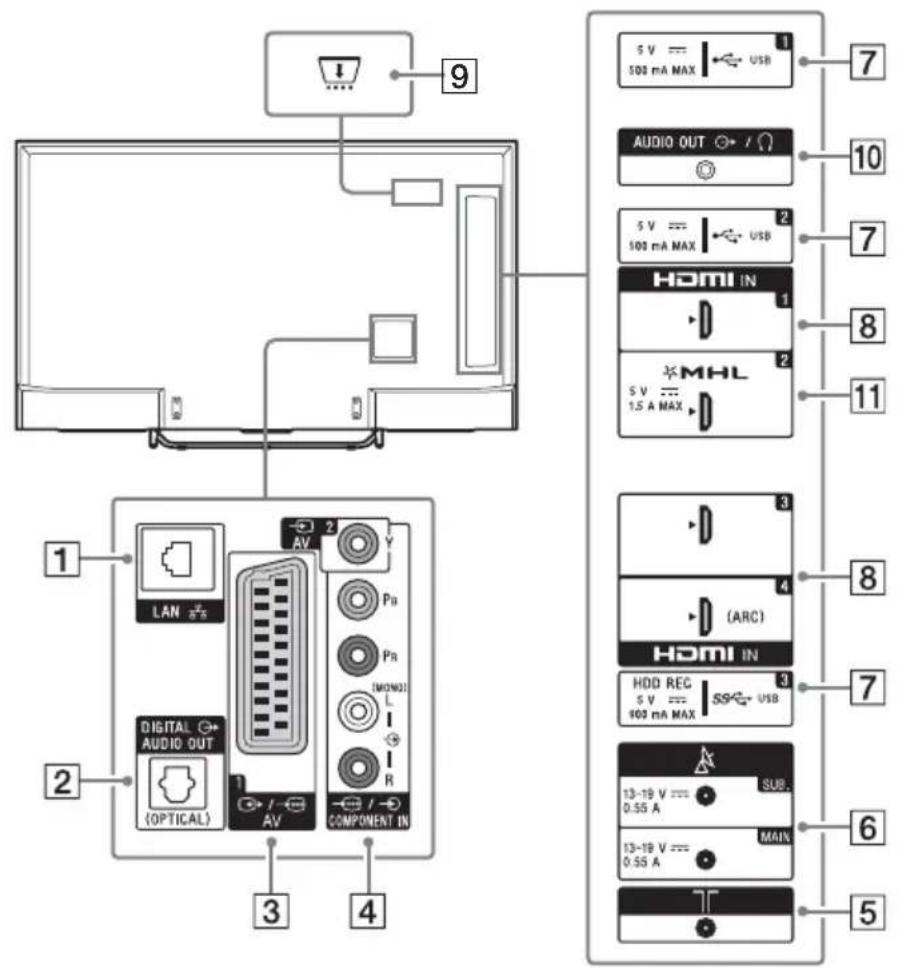

Inputs and Outputs ....8

Using Remote Control ..... 10

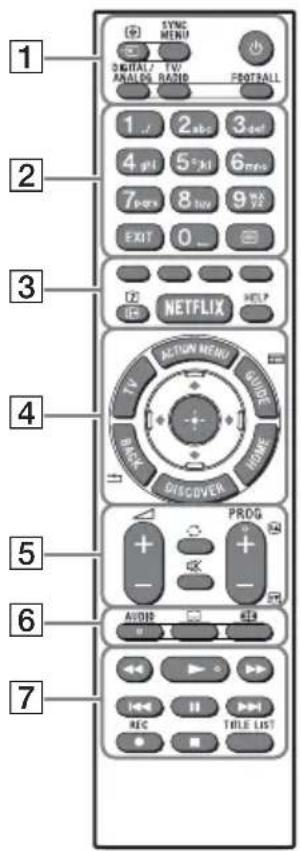

Remote Control Parts Description.....10

Using the Touchpad Remote Control ..... 12

Launching the Touchpad Remote Control Introduction/Tutorial 12

Connecting Other Devices.... 12

Installing the TV to the Wall ..... 16

Troubleshooting....18

Troubles and Solutions .....18

Specifications....19

Introduction

Thank you for choosing this Sony product.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

Note

• Before operating the TV, please read "Safety information" (page 3).
• Images and illustrations used in Startup Guide and this manual are for reference only and may differ from actual product appearance.
• The "x" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the identification label

Labels for the Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

WARNING

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced with the same rating of fuse approved by ASTA or BSI to BS 1362 (i.e., marked with ☑ or 🤨) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

FUSE

How to replace the fuse

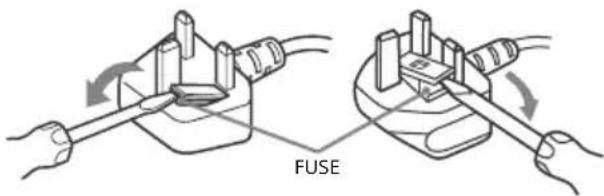

Open the fuse compartment with a blade screwdriver, and replace the fuse.

Please refer to the illustration that actually equipped with the product.

IMPORTANT NOTICE

This product has been manufactured by or on behalf of Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents.

Notice for Wireless Signal

Hereby, Sony Corporation declares that this unit is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For details, please access the following URL: http://www.compliance.sony.de/

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.

TV wireless system may be operated in following countries:

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

This equipment can be operated in other non-European countries.

Safety information

WARNING

Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

- The TV set should be installed near an easily accessible mains socket.

- Place the TV set on a stable, level surface to avoid it from falling down and cause personal injury or damage to the TV.

• Install the TV where it cannot be pulled, pushed, or knocked over.

- Only qualified service personnel should carry out wall installations.

- For safety reasons, it is strongly recommended that you use Sony accessories, including: Wall-Mount Bracket

SU-WL450 (KD-65/55X850xC, KD-49/43X830xC)

- Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model.

Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8 mm - 12 mm Screw Wall-Mount Bracket TV's rear cover

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or three people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

Line drawing of two human figures holding a rectangular object (no text or symbols)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Ventilation

• Never cover the ventilation holes or insert anything in the cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation.

Installed on the wall

10 cm 30 cm 10 cm 10 cm

Leave at least this space around the set.

Installed with stand

10 cm 30 cm 10 cm 6 cm

Leave at least this space around the set.

- To ensure proper ventilation and prevent the collection of dirt or dust:

— Do not lay the TV set flat, install upside down, backwards, or sideways.
— Do not place the TV set on a shelf, rug, bed or in a closet.
— Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.
— Do not install the TV set as shown below.

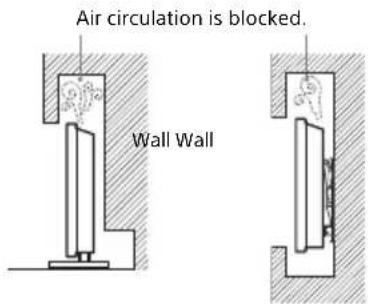

Air circulation is blocked. Wall Wall

Mains lead

Handle the mains lead and socket as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

— Use only mains leads supplied by Sony, not other suppliers.
— Insert the plug fully into the mains socket.
— Operate the TV set on a 220-240 V AC supply only.
- When wiring cables, be sure to unplug the mains lead for your safety and take care not to catch your feet on the cables.

• Disconnect the mains lead from the mains socket before working on or moving the TV set.
• Keep the mains lead away from heat sources.
• Unplug the mains plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Note

• Do not use the supplied mains lead on any other equipment.
• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken.
• Do not modify the mains lead.
• Do not put anything heavy on the mains lead.
• Do not pull on the mains lead itself when disconnecting the mains lead.
• Do not connect too many appliances to the same mains socket.
• Do not use a poor fitting mains socket.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location:

• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.
• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.
• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow moisture to evaporate completely before powering the TV on.

Environment:

• Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.
• Do not place the TV in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.

- Do not install the TV in places subject to extreme temperature such as in direct sunlight, near a radiator or a heating vent. The TV may overheat in such condition which can cause deformation of the enclosure and/or TV malfunction.

Situation:

• Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from mains socket and aerial during lightning storms.
• Do not install the TV so that it sticks out into an open space. Injury or damage from a person or object bumping into the TV may result.

Broken pieces:

• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.
• If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise electric shock may result.

When not in use

• If you will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons.
• As the TV set is not disconnected from the mains when the TV set is just turned off, pull the plug from the mains to disconnect the TV set completely.
  • However, some TV sets may have features that require the TV set to be left in standby to work correctly.

For children

• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the mains lead immediately if any of the following problems occur.

Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

— Mains lead is damaged.
— Poor fitting of mains socket.
— TV set is damaged by being dropped, hit or having something thrown at it.
— Any liquid or solid object falls through openings in the cabinet.

About LCD Monitor Temperature

When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

Precautions

Viewing the TV

• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

(3D compatible models only)

• Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games. Sony recommends that all viewers take regular breaks while watching 3D video images or playing stereoscopic 3D games. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images or playing stereoscopic 3D games until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual of any other device or media used with this television and (ii) our website (www.sony.eu/support) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above.
• Do not use, store, or leave the 3D Glasses or in places with a high temperature, e.g., in direct sunlight, or in sun-heated cars.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the mains lead connected to the TV set from mains socket before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
• Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.
• When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.

Optional Equipment

• Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.
• This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection signal cable shorter than 3 meters.

Recommendation of F-type plug

Projection of the inner wire from the connection part must be less than 1.5 mm.

(Reference drawing of the F type plug)

Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker, etc.), as malfunction of the medical equipment may result.
• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result.

Caution about handling the remote control

• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.
• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the

recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this

product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Parts and Controls

Controls and Indicators

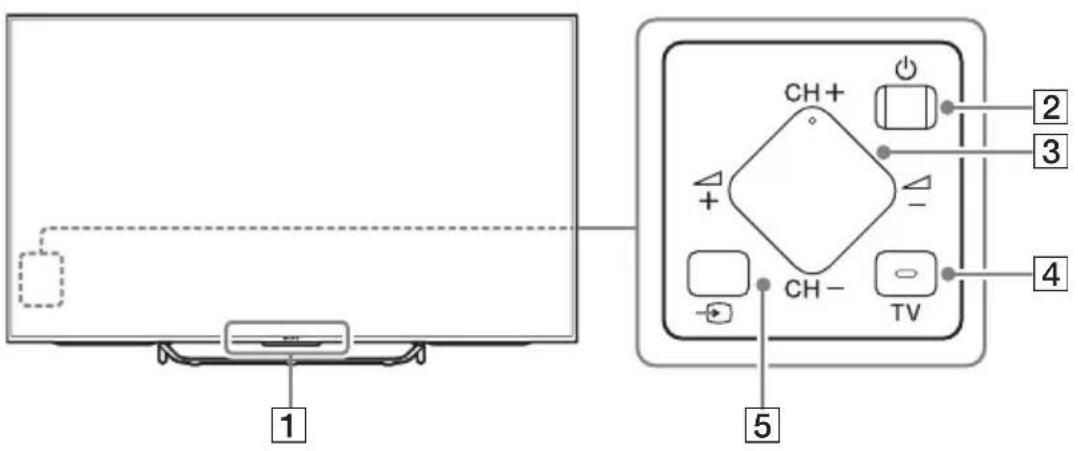

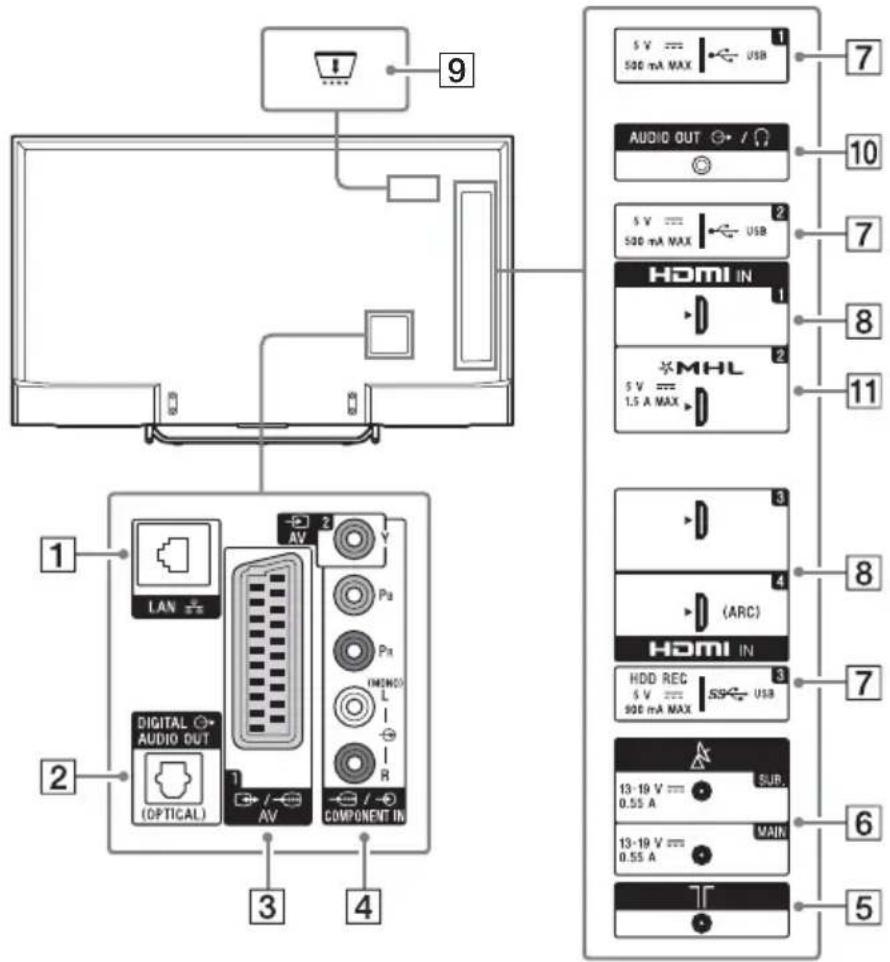

1 2 3 4 5 CH+ CH- TV

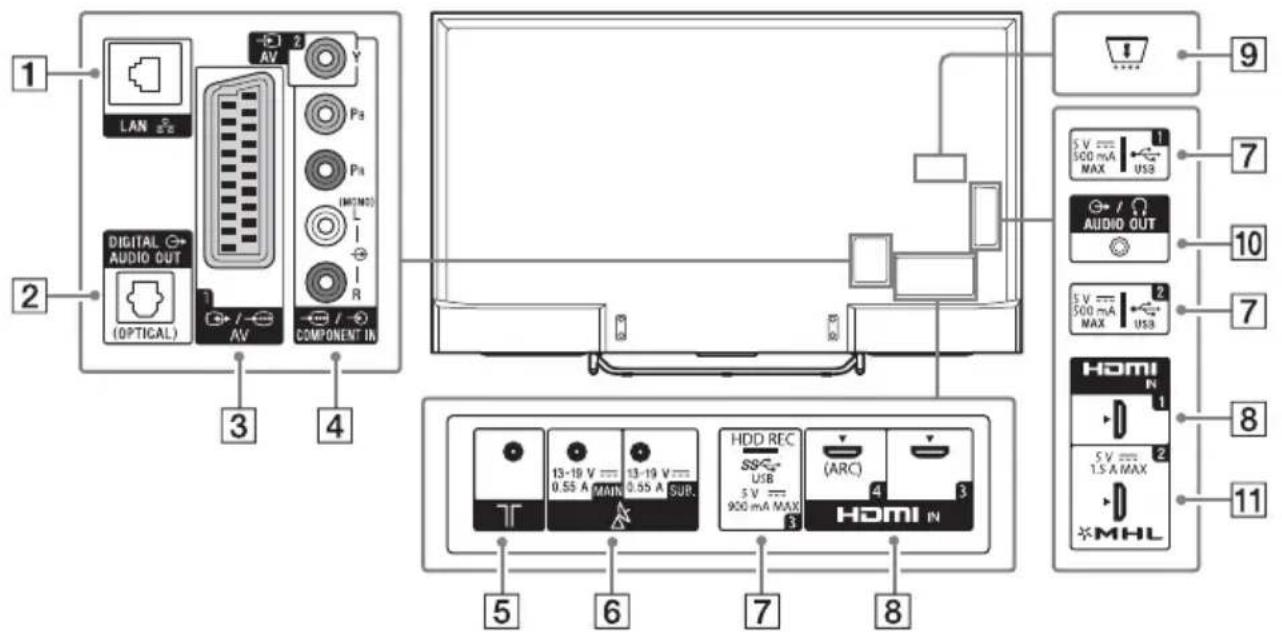

1 Remote Control sensor ^1 / Light sensor ^1 / Illumination LED / 3D Sync Transmitter ^13

The illumination LED lights up or blinks according to the status of the TV.

• White
  When turning on the TV/picture off mode/software update, etc.
  • C y a n
  When connecting with a mobile device wirelessly.
  • P i n ^2 k *
  Recording mode.
• Amber
  Timer is set.

2 ⏻ (Power)

3 CH +/- (Channel)

$$ \triangle + / - (\text { Volume }) $$

4 TV

Switch to a TV channel or input from other applications.

5 → (Input select)

Display and select the input source.

*1 Do not place anything near the sensor.
*2 Only on limited region/country/TV model.
*3 3D compatible models only.

Inputs and Outputs

KD-75/65/55X850xC

1 LAN 2 DIGITAL AUDIO OUT (OPTICAL) 3 4 COMPONENT IN 5 6 7 8 HDMI 13-19 V === 0.55 A MAIN 13-19 V === 0.55 A SUR. HDD REC SS← USB 5 V === 900 mA MAX (ARC) 4 3 HOMI IN 5 V === 500 mA MAX USB AUDIO OUT 7 9 10 7 8 11 *S MHL

KD-49/43X830xC

9 1 LAN 2 DIGITAL AUDIO OUT (OPTICAL) 3 4 COMPONENT IN AV Pb Pr (MONOS) L R 5 V === 500 mA MAX USB AUDIO OUT / 5 V === 100 mA MAX USB HOMI IN MHL S V === 1.5 A MAX 3 (ARC) HDMI IN HDD REC 5 V === 900 mA MAX SS USB SUB. 13-19 V === 0.55 A MAIN 13-19 V === 0.55 A 7 10 7 8 11 8 7 6 5

1 LAN

2 DIGITAL AUDIO OUT (OPTICAL)

3 ↗ /→... A V 1

- Connect with a SCART cable. When you connect an analogue decoder, the TV tuner outputs scrambled signals to the decoder, and the decoder unscrambles the signals before outputting them.

4 → AV 2, ↗ COMPONENT IN

• For a composite connection: Use → AV 2, and → (L/R) of → ⋯ /→ COMPONENT IN* ^1 .
• For a component connection: Use Y, PB, PR, and (L/R).

5 (RF input)

Connect to your cable or antenna (aerial).

6 (Satellite input)

Connect to your satellite antenna (aerial).

7 USB 1/2, USB3(HDD REC)* 2

• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 jack.

8 HDMI IN 1/3/4

- If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 4. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

9 CAM (Conditional Access Module)

• Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM.
• Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer.
• CAM is not supported in some countries/areas. Check with your authorised dealer.
• A CAM message may appear when you switch to a digital programme after using the Internet video.

10 AUDIO OUT→ /Ω

• To listen to the TV's sound through the connected equipment, press HOME.
  Select [Settings] → [Sound] → [Headphone/Audio out] and then select the desired item.

11 HDMI IN 2/MHL

- You can connect your MHL (Mobile High-definition Link) device using an HD quality MHL cable.

*1 When connecting mono equipment, connect to the L (MONO) audio jack (socket).
*2 Only on limited region/country/TV model.
*3 HDD REC function will be available within 2015. You will receive HDD REC function automatically as a software upgrade. Make sure your TV is connected to the Internet. If you do not have a network connection, you will be able to download the software from the Sony support website using your PC. For details on how to upgrade, please visit the Sony support website. To stay informed about the exact release date, please subscribe at http://www.sony.eu/support/2015tvnetworkupdate

Using Remote Control

Remote Control Parts Description

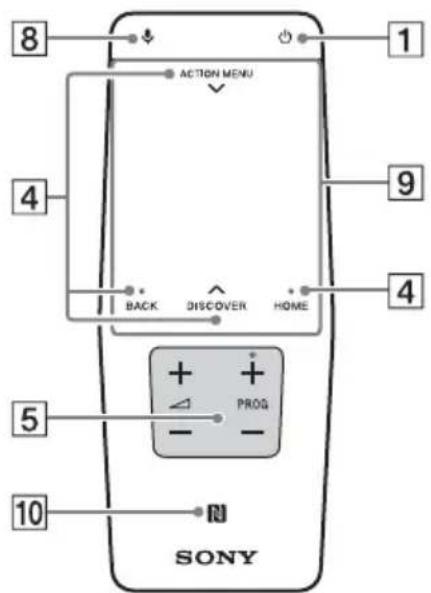

IR (infrared) Remote Control Touchpad Remote Control

SYNC MENU DIGITAL/ TW RADIO FOOTBALL 1 2 3 4 5 6 7 8 9 EXIT 0 NETFLIX HELP ACTION MENU GUIDE HOME DISCOVER PROG AVOID TITLE LIST 1 2 3 4 5 6 7

For models with supplied Touchpad Remote Control.

8 1 ACTION MENU 4 BACK DISCOVER HOME 9 4 5 PROG - 10 SONY

1 → /Input select/Text hold)

In TV mode: Display and select the input source.

In Text mode: Hold the current page.

SYNC MENU\*1

Display the BRAVIA Sync Menu.

(TV standby)

Turn on or turn off the TV (standby mode).

DIGITAL/ANALOG

Switch between digital and analogue mode.

TV/RADIO

Switch between TV or RADIO broadcasts.

FOOTBALL\*1

Turn Live Football Mode on or off (when the feature is available).

2 Number buttons

EXIT

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

(Text)

Display text information.

3 Colour buttons

Execute correspondent function at that time.

Access the "NETFLIX" online service.

HELP

Display Help Menu.

4 ACTION MENU

Display a list of contextual functions.

You can also display it by slide down your finger from ACTION MENU on the Touchpad Remote Control.

TV\*1

Switch to a TV channel or input from other applications.

GUIDE/ ^* 1

Display the digital programme guide.

BACK/←

Return to previous screen.

HOME

Display the TV Home Menu.

DISCOVER

Bring up the Content Bar to search for content.

You can also launch Content Bar by slide up your finger from DISCOVER on the Touchpad Remote Control.

↑/↓/←/→/ ⊕ (Item select/Enter)

5 ∠ +/- (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

※ (Muting)

Mute the sound. Press again to restore the sound.

PROG +/−/▲/▼

In TV mode: Select the channel.

In Text mode: Select the next (▲) or previous (▼) page.

6 AUDIO

Change the language for the programme currently being viewed.

(Subtitle setting)

Turn subtitles on or off (when the feature is available).

(Wide mode)

Change the screen format.

7 ◀◀/▶/▶▶/◀◀/||/▶▶/■

Operate media contents on TV and connected BRAVIA Sync-compatible device.

● REC\*1\*2

Record the current programme with the USB HDD recording function.

TITLE LIST\*1

Display the Title list.

8 ↓(Microphone)

Use Voice Function. (e.g., Search various content by voice.)

9 Touchpad

Operate the TV with the touchpad.

10 N(NFC)

Touch the device (e.g. some models of Xperia) corresponding to the One-touch mirroring function, then its screen is displayed on the TV.

*1 The location, availability and function of remote control button may vary depending on your country/region/TV model.

*2 HDD REC function will be available within 2015. You will receive HDD REC function automatically as a software upgrade. Make sure your TV is connected to the Internet. If you do not have a network connection, you will be able to download the software from the Sony support website using your PC. For details on how to upgrade, please visit the Sony support website. To stay informed about the exact release date, please subscribe at http://www.sony.eu/support/2015tvnetworkupdate

Using the Touchpad Remote Control

Touchpad Remote Control can only be used after pairing with the TV.

To pair, follow the pairing screen instruction. Pairing screen can be displayed by pressing the → button on the TV for 5 seconds, or select [Settings] - [Touchpad Remote Control settings] - [Pair Touchpad Remote Control].

Launching the Touchpad Remote Control Introduction/Tutorial

1 Press HOME.

ACCESS + BACK 100%

2 Select [Settings] - [Touchpad Remote Control settings] - [Start Introduction/Tutorial].

Connecting Other Devices

For more information on connections, refer to the Help Guide.

Note

• To select an input device connected to the TV, press →.

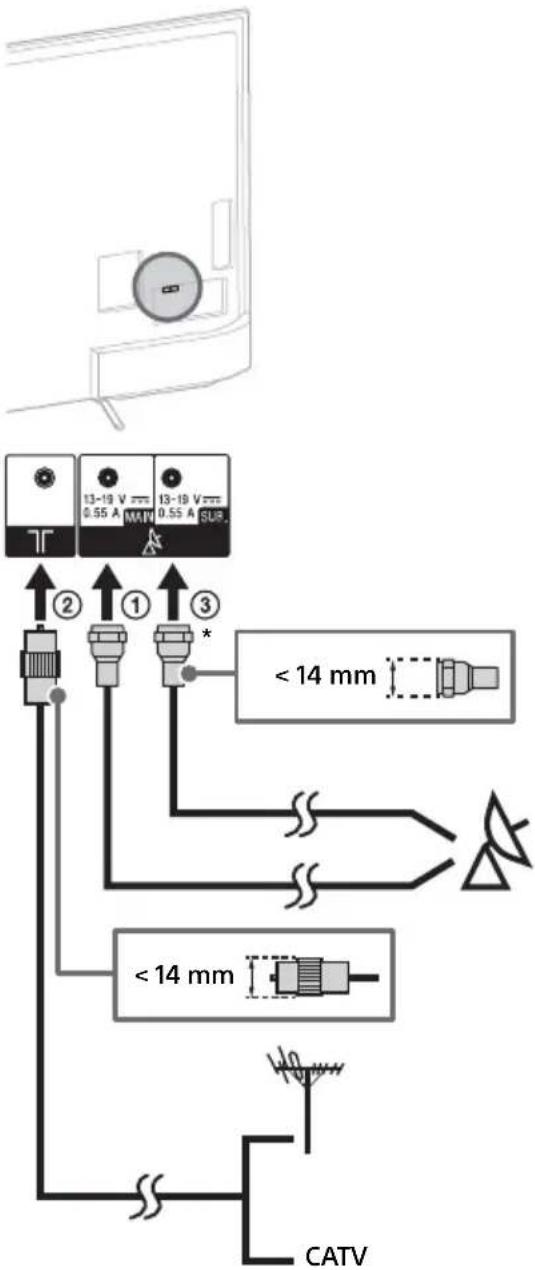

To connect Satellite

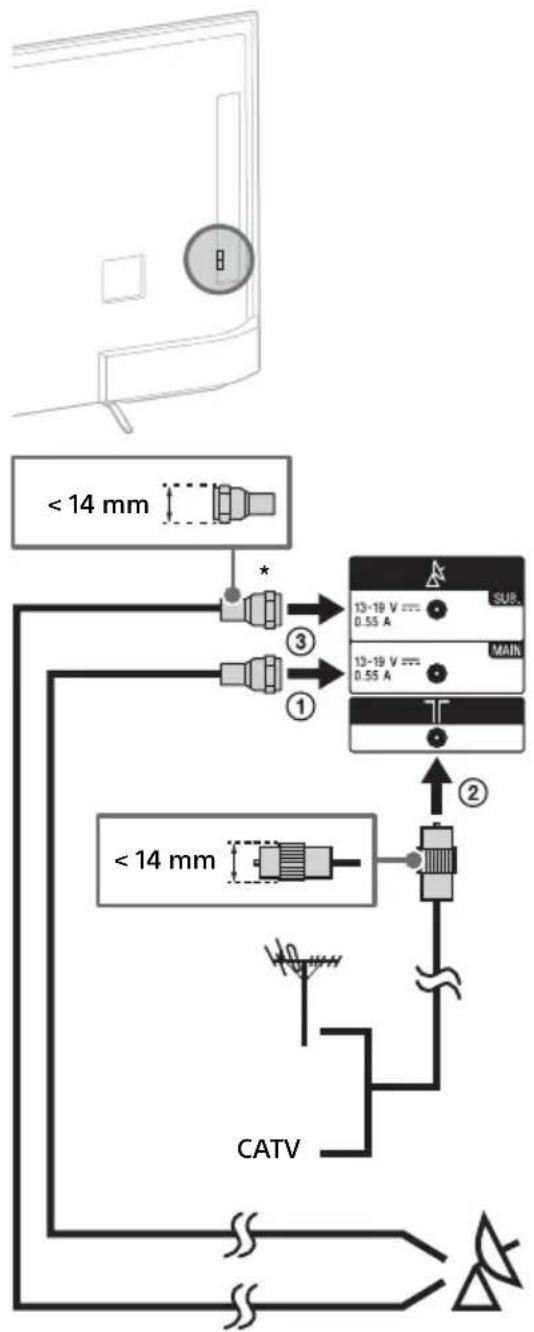

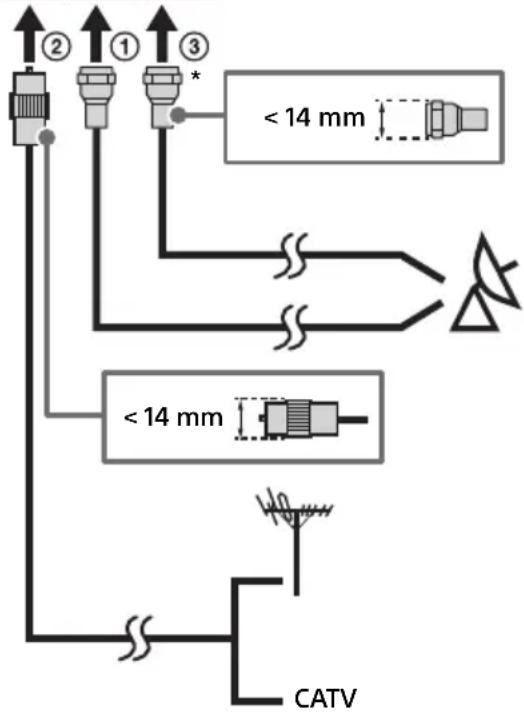

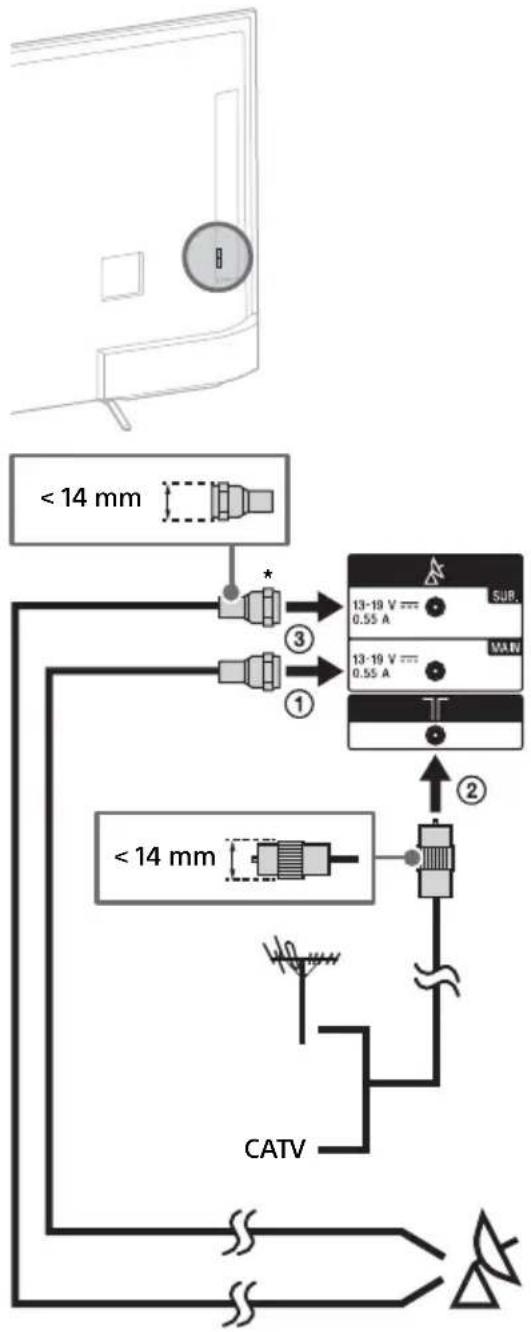

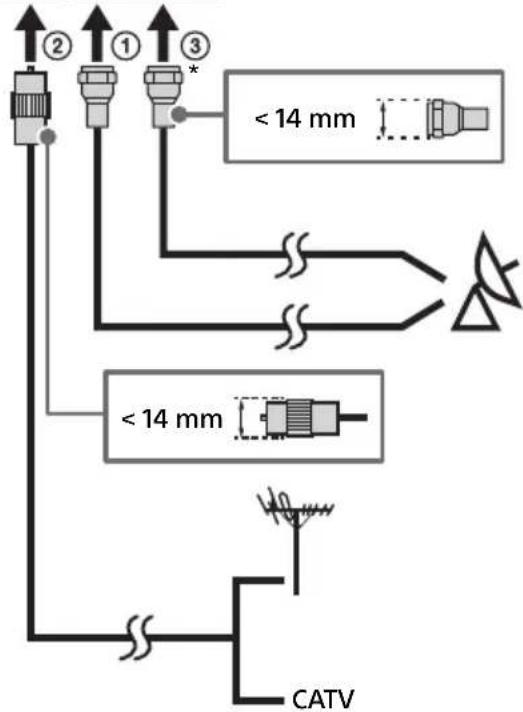

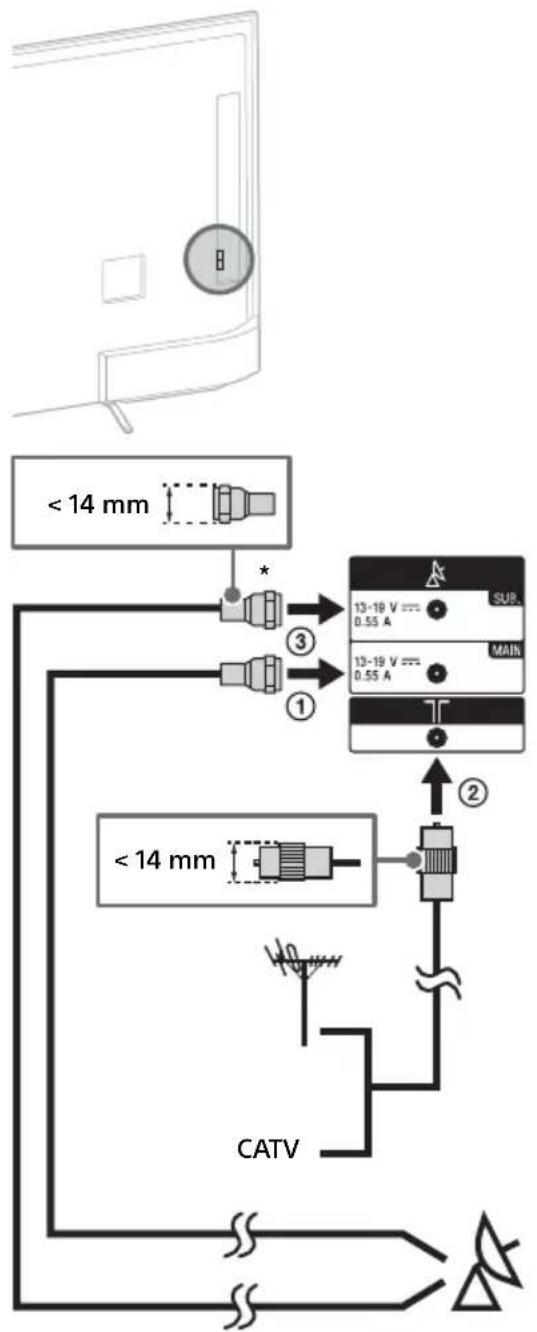

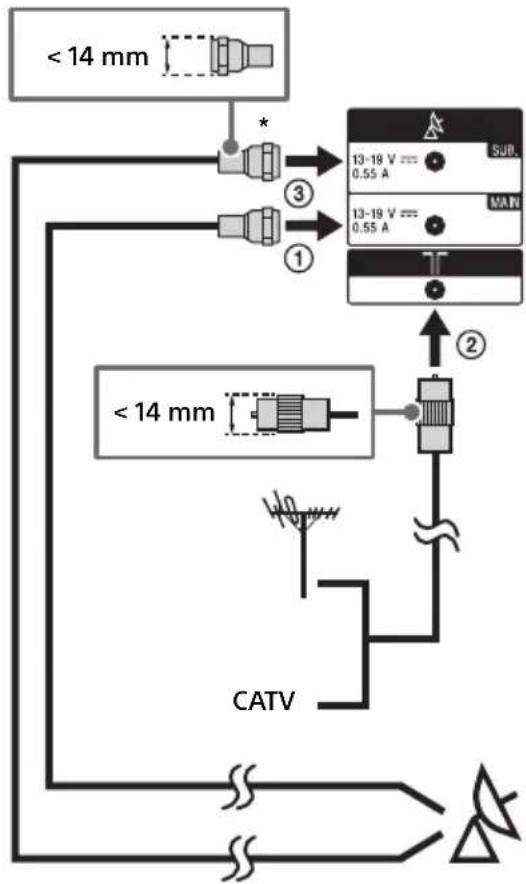

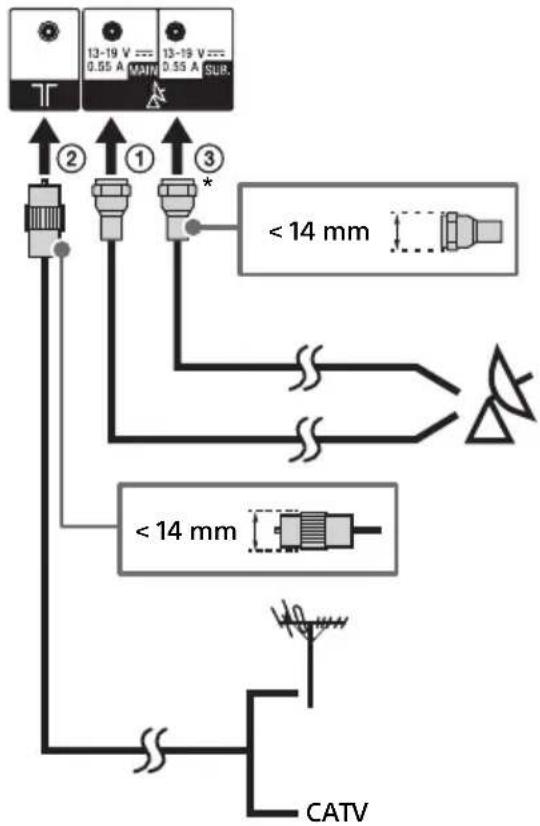

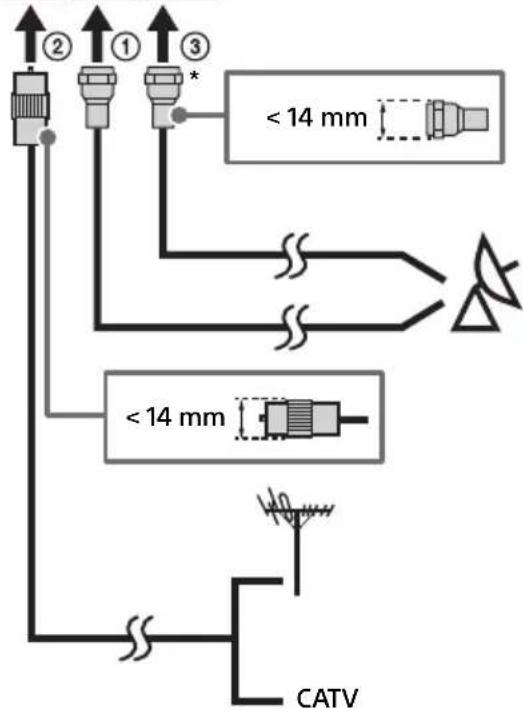

Connections for terrestrial/cable and satellite. ① → ③ : connection steps

KD-75/65/55X850xC

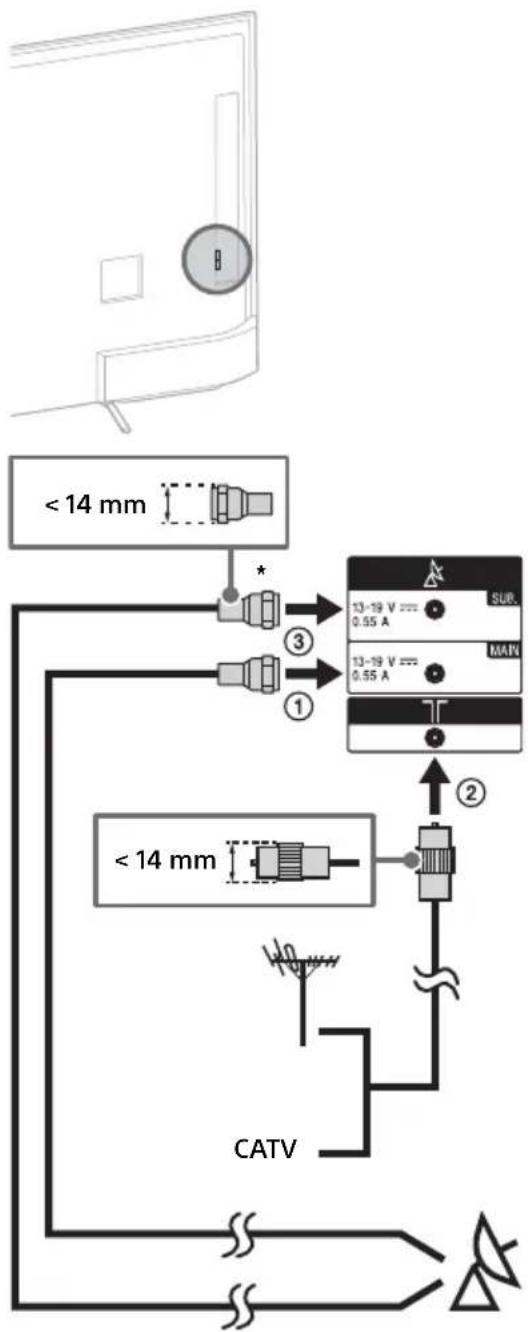

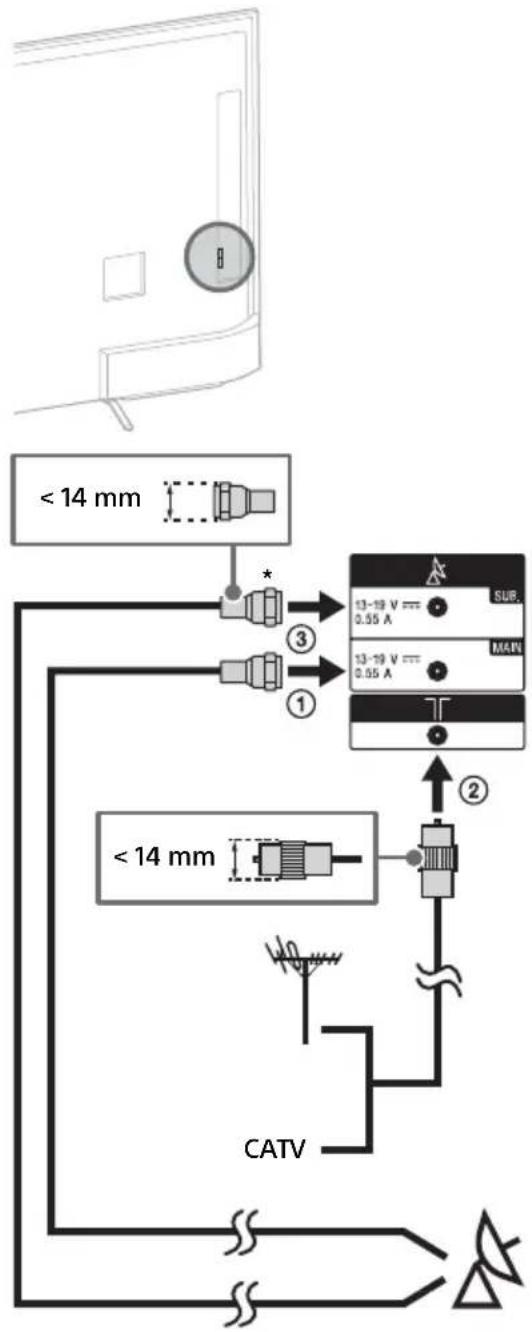

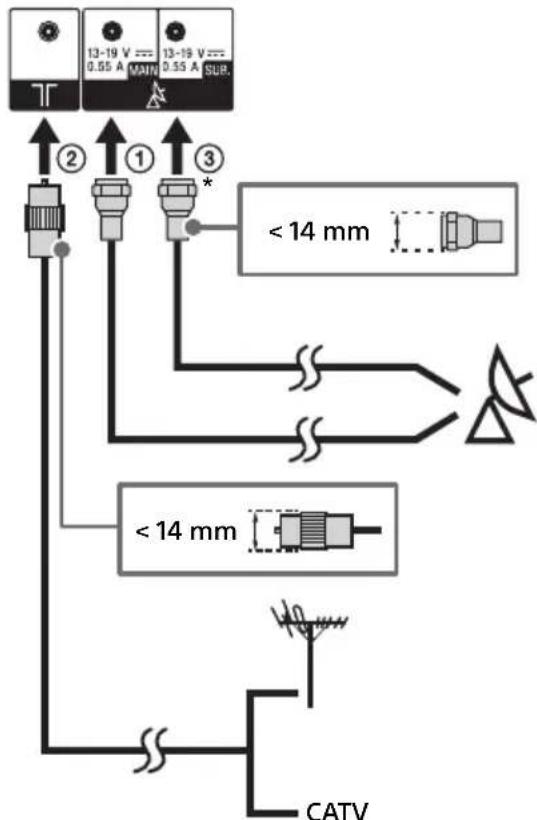

13-19 V 0.55 A 13-19 V 0.55 A SUB. ② ① ③ * < 14 mm < 14 mm CATV

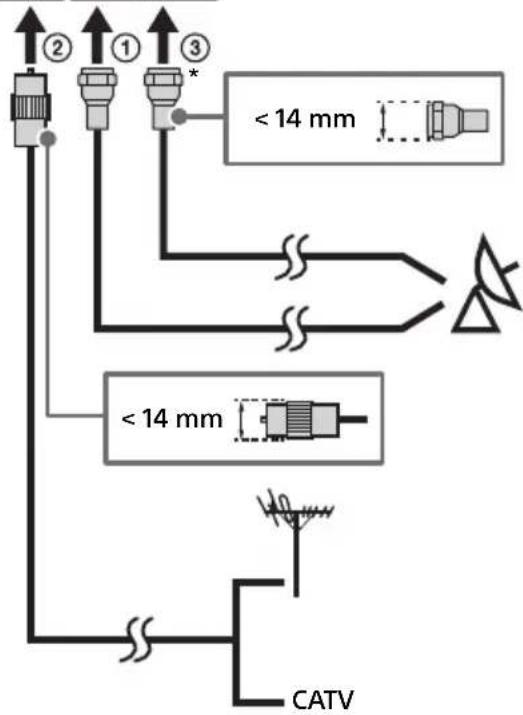

KD-49/43X830xC

* Connect only when you are using twin tuner mode.

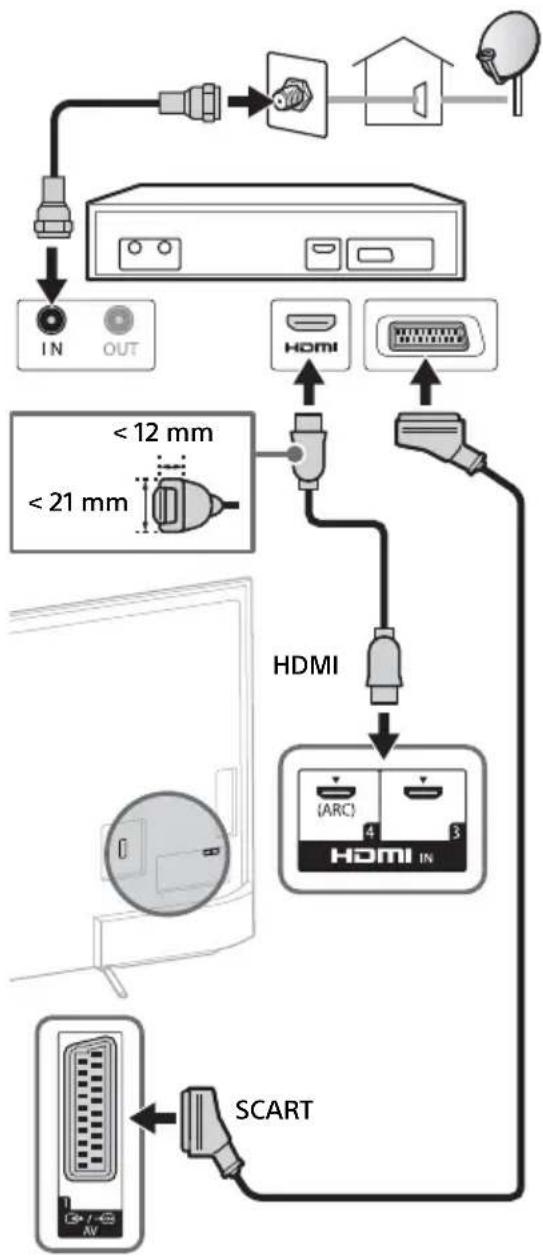

To connect Satellite Box

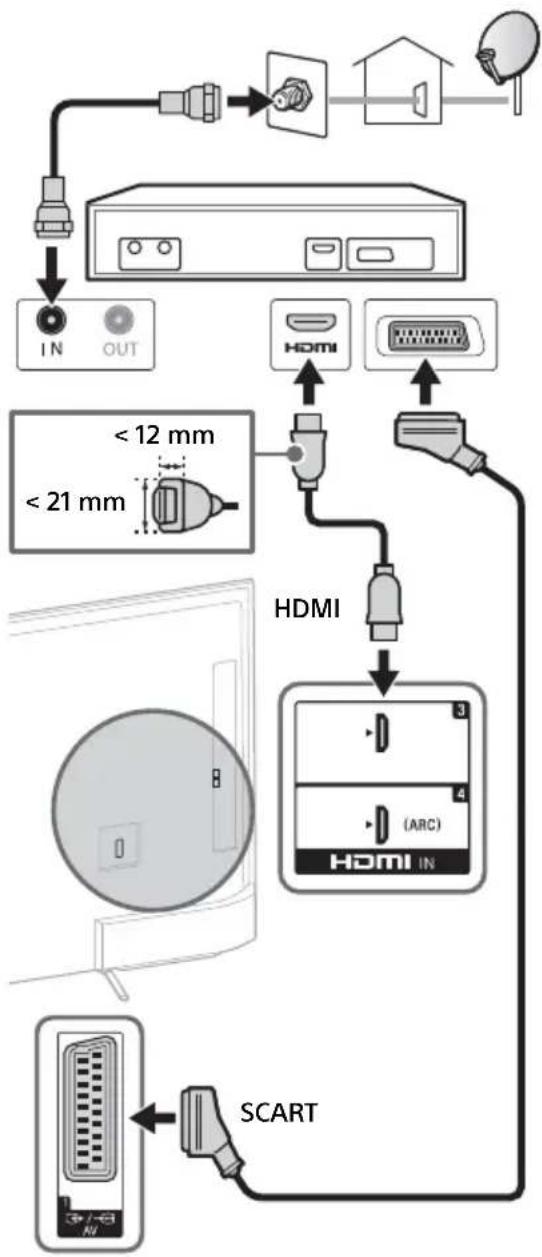

Connect to the TV using either an HDMI or SCART cable.

KD-75/65/55X850xC

KD-49/43X830xC


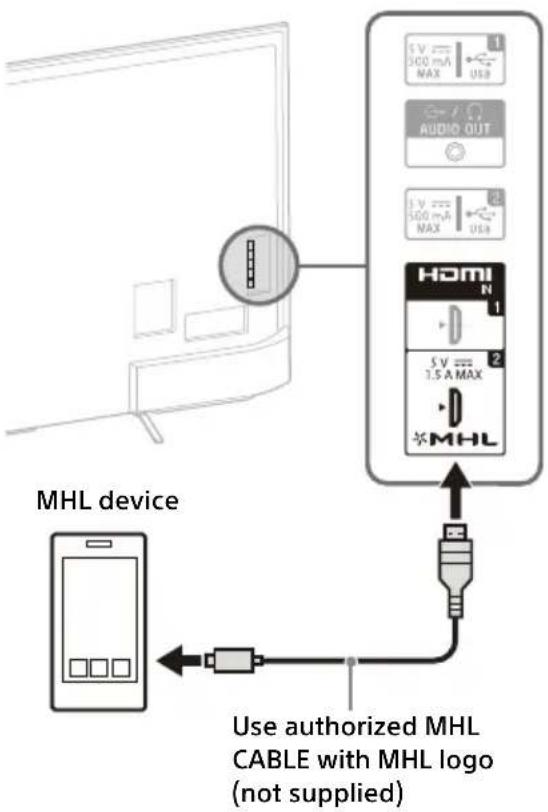

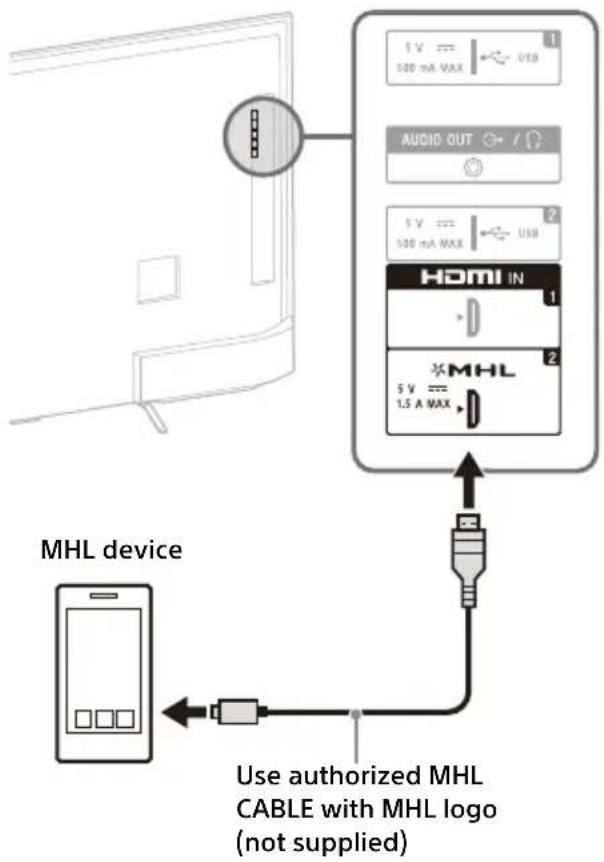

To connect MHL Device
KD-75/65/55X850xC

MHL device Use authorized MHL CABLE with MHL logo (not supplied)

MHL device Use authorized MHL CABLE with MHL logo (not supplied)

The TV simultaneously charges the MHL-compatible connected device while playing photo/music/video files. You can use the TV remote control to control the connected MHL-compatible device.

Note

• If [MHL charging during standby] is set to [On], you can continue charging the MHL-compatible device even when the TV is in standby mode.
• Use authorized MHL 3 CABLE with MHL logo for 4K smartphone or mobile devices.

Installing the TV to the Wall

This TV's instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) (KD-65/55X850xC, KD-49/43X830xC) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

Note

- Be sure to store the removed screws in a safe place, keeping them away from children.

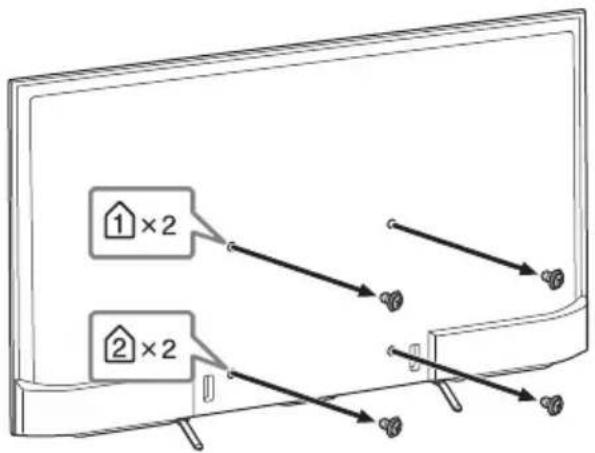

To remove the screws from the rear of the TV (KD-75/65X850xC)

1×2 2×2

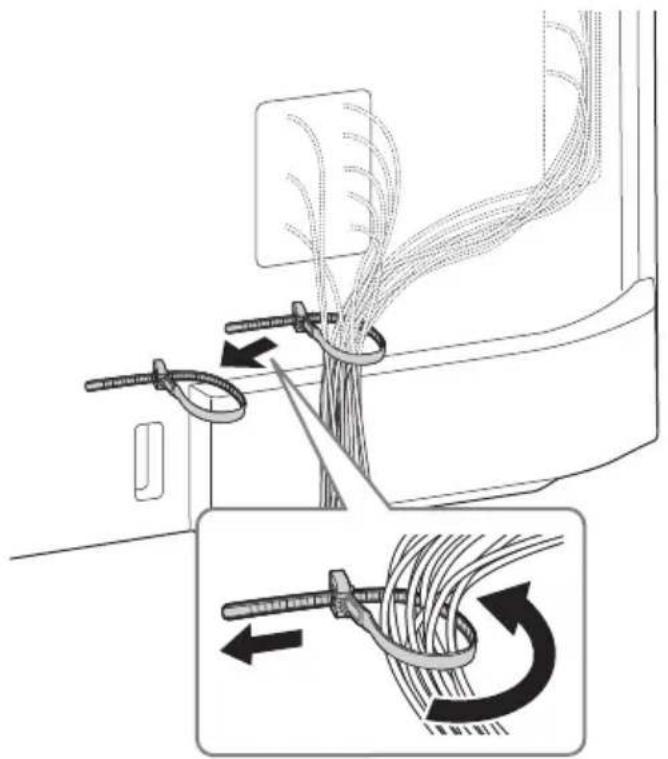

To change the cable management (KD-55X850xC, KD-49/43X830xC)

Diagram illustrating cable stripping and winding process with labeled components and directional arrows

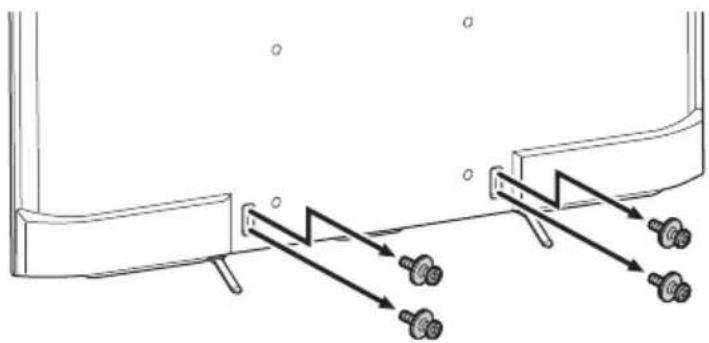

To detach the Table-Top Stand from the TV

Technical diagram showing mechanical assembly with bolts and directional arrows (no text or symbols)

For instructions on Wall-Mount Bracket installation of your TV model, refer to the following website: www.sony.eu/tv/wall-mount-bracket-manual

Troubleshooting

In order to keep your TV software up-to-date, it is necessary to download the latest software information via the digital broadcasting system or internet and to update the software. Select [Update Now] to start a software update. The illumination LED flashes white while the software is updating. Do not unplug the mains lead during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 30 minutes. If you do not wish to update the software automatically, press HOME and select [Help] → [System software update] → [Automatic software download] → [Off].

When you unplug the TV and plug it in again, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV because it takes time to initialize the system. Wait for about 10 to 20 seconds, then operate it again.

When the illumination LED is flashing in red, count how many times it flashes (interval time is three seconds).

If the illumination LED flashes red, reset the TV by disconnecting the mains lead for two minutes, then turn on the TV. If the problem persists, contact your dealer or Sony service centre with the number of times the illumination LED flashes red (interval time is three seconds). Disconnect the mains lead, and inform your dealer or Sony service centre.

When the illumination LED is not flashing, check the items as follows.

You can also refer to [Troubleshooting] in the Help Guide or perform self-diagnosis by selecting [Help] → [Self diagnostics]. If the problem persists, have your TV serviced by qualified service personnel.

Troubles and Solutions

There is no picture (screen is dark) and no sound.

• Check the antenna (aerial)/cable connection.
• Connect the TV to mains lead, and press ⏻ on the TV or the remote control.

Some programmes cannot be tuned.

• Check the antenna (aerial)/cable connection.
• The satellite cable might be short-circuited or there might be connection problems of the cable. Check the cable connection and then turn the TV off with the Mains power On/Off switch, and turn it on again.
• The frequency that you entered is out of range. Consult the received satellite broadcasting company.

There is no Cable TV services (programmes) found.

• Check the cable connection or tuning configuration.
• Attempt the [Digital Auto Tuning] by selecting [Antenna] instead of [Cable].

The remote control does not function.

- Replace the batteries.

The [Parental lock] password has been forgotten.

- Enter 9999 for the PIN code. (PIN code 9999 is always accepted.)

The TV surrounds become warm.

- When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand.

Frozen audio or video, a blank screen, or the TV does not respond to TV or remote control buttons.

- Perform a simple reset of the TV by unplugging the mains lead for two minutes, then plug it in again.

The ⏻, CH+/-, △+/-, ⊖ and TV buttons cannot be located on the TV.

- See below illustration for location of the buttons on the TV.

Rear of TV

Diagram showing a device with a labeled input and a control panel with CH+, CH-, TV, and directional indicators.

The illumination LED is turned on.

- If you do not wish to light up the illumination LED, you can turn it off.

Press HOME, then select [Settings] → [Illumination LED] → [Off].

SONY

Cannot connect to a wireless router by WPS (Wi-Fi Protected Setup).

- If you use WEP security, select [Easy] [Wi-Fi] [Connect by scan list]. Then, select the network name (SSID) you want to connect.

Cannot find the required network name in network setup.

- Select [[Manual entry]] and press to enter network name.

Specifications

GB

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Analogue: Depending on your country/area

selection: B/G, D/K, L, I

Digital: DVB-T/DVB-C

DVB-T2

Satellite: DVB-S/DVB-S2

Colour/video system

Analogue: PAL, SECAM, NTSC3.58 (Video only), NTSC4.43 (Video only)

Digital: Refer to the Help Guide.

Channel coverage

Analogue: UHF/VHF/Cable, Depending on your country/area selection.

Digital: UHF/VHF/Cable, Depending on your country/area selection.

Satellite: IF Frequency 950-2,150 MHz

Sound output

10 W + 10 W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n

(IEEE802.11ac may not be available depending on countries/regions.)

Bluetooth Version 4.1

Input/Output jacks

Antenna (aerial) cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F-Type Connector IEC169-24, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

↔ / →…AV1

21-pin scart connector (CENELEC standard)

including audio/video input, RGB input and TV audio/video output.

YP_BPR (Component Video): 1080p (50, 60 Hz),

1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Audio input (phono jacks)

AV2

Video input (common phono pin with Y input)

HDMI IN 1, 2, 3, 4 (support 4K resolution)

Video (2D):

4096 × 2160p (50, 60 Hz)^12, 4096 × 2160p (24

Hz)*2, 3840 × 2160p (50, 60 Hz)*1, 3840 × 2160p

(24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p,

576p, 576i, 480p, 480i, PC Formats

*1 YCbCr 4:2:0 / 8bit only

*2 3840 × 2160p is displayed when 4096 × 2160p is input

Video (3D) (3D compatible models only):

Frame Packing: 1080p (30 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side-by-Side: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-Under: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2,

96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby

Digital and DTS

ARC (Audio Return Channel) (HDMI IN 4 only)

MHL (HDMI IN 2)

Video (2D):

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25, 30

Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50,

60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

* 3840 × 2160p is displayed when 4096 × 2160p is input

Video (3D) (3D compatible models only):

Frame Packing: 1080p (30 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side-by-Side: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-Under: 1080p (50, 60 Hz), 1080p (30 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2,

96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby

Digital and DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM, Dolby Digital, DTS)

Headphone, Audio Output, Subwoofer

1, 2, 3 (HDD REC)*

USB device port (30USB HDD device for REC feature)

USB port 1 and 2 support High Speed USB (USB2.0).

USB port 3 supports Super Speed USB (USB3.0).

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

Others

Optional accessories

Touchpad Remote Control: RMF-TX100E (KD-49/43X830xC)

Wall-Mount Bracket: SU-WL450 (KD-65/

Active 3D Glasses: TDG-BT500A (3D compatible models only)

Operating temperature

0^ C - 40^ C

Operating humidity

10% - 80% RH (non-condensing)

Power and others

Power requirements

Rating: Input 220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-75X850xC / FW-75X8570C: B

KD-65X850xC / FW-65X8570C: A

KD-55X850xC / FW-55X8570C: A

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

Screen size (measured diagonally) (Approx.)

KD-75X850xC / FW-75X8570C:

75 inches / 189.3 cm

KD-65X850xC / FW-65X8570C:

65 inches / 163.9 cm

KD-55X850xC / FW-55X8570C:

55 inches / 138.8 cm

KD-49X830xC / FW-49X8370C:

49 inches / 123.2 cm

KD-43X830xC / FW-43X8370C:

43 inches / 108.0 cm

Power consumption

in [Standard] mode

KD-75X850xC / FW-75X8570C: 230 W

KD-65X850xC / FW-65X8570C: 149 W

KD-55X850xC / FW-55X8570C: 115 W

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

in [Vivid] mode

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

Average annual energy consumption ^4

KD-75X850xC / FW-75X8570C: 319 kWh

KD-65X850xC / FW-65X8570C: 207 kWh

KD-55X850xC / FW-55X8570C: 160 kWh

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

Standby power consumption ^23

0.5 W (27 W in software/EPG update mode)

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2: 5 V, =500 mA MAX

USB 3: 5 V, -900 mA MAX

MHL (HDMI IN 2): 5 V, -1.5 A MAX

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KD-75X850xC: 167.5 × 101.9 × 32.3 cm

KD-65X850xC: 145.3 × 89.2 × 26.5 cm

KD-55X850xC: 123.6 × 75.9 × 22.2 cm

KD-49X830xC: 109.3 × 67.9 × 20.1 cm

KD-43X830xC: 96.1 × 60.4 × 18.9 cm

without Table-Top Stand

KD-75X850xC: 167.5 × 97.0 × 7.9 cm

KD-65X850xC: 145.3 × 84.4 × 7.8 cm

KD-55X850xC: 123.6 × 72.2 × 6.0 cm

KD-49X830xC: 109.3 × 64.3 × 6.0 cm

KD-43X830xC: 96.1 × 56.8 × 6.0 cm

Mass (Approx.)

with Table-Top Stand

KD-75X850xC: 36.3 kg

KD-65X850xC: 25.5 kg

KD-55X850xC: 21.0 kg

KD-49X830xC: 15.4 kg

KD-43X830xC: 12.8 kg

without Table-Top Stand

KD-75X850xC: 34.8 kg

KD-65X850xC: 24.1 kg

KD-55X850xC: 19.9 kg

KD-49X830xC: 14.4 kg

KD-43X830xC: 11.8 kg

*1 Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*2 Specified standby power is reached after the TV finishes necessary internal processes.
*3 Standby power consumption will increase when your TV is connected to the network.
*4 Only on limited region/country/TV model.

Note

• The "x" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.
• Do not remove the dummy card from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.
• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.
• This TV set incorporates MHL 3.

Notes on Digital TV function

• Any functions related to Digital TV ( )DV3 will only work in countries or areas where DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4 AVC) digital terrestrial signals are broadcast or where you have access to a compatible DVB-C (MPEG-2 and H.264/MPEG-4 AVC) cable service. Please confirm with your local dealer if you can receive a DVB-T/DVB-T2 signal where you live or ask your cable provider if their DVB-C cable service is suitable for integrated operation with this TV.
• Your cable provider may charge a fee for their services, or require you to agree to its terms and conditions of business.
• This TV set complies with DVB-T/DVB-T2 and DVB-C specifications, but compatibility with future DVB-T/DVB-T2 digital terrestrial and DVB-C digital cable broadcasts are not guaranteed.
• Some Digital TV functions may not be available in some countries/areas and DVB-C cable may not operate correctly with some providers.

Trademark information

- Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

- "BRAVIA" and BareTrademarks of Sony Corporation.

- Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Wi-Fi, Wi-Fi Direct, Miracast and Wi-Fi Protected Setup are trademarks or registered trademarks of Wi-Fi Alliance.

- MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

- For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

- Designed with UEI™ Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

- The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

- DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

- TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

- USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. ss

For models with supplied Touchpad Remote Control:

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

- Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

- "BRAVIA" and BareTrademarks of Sony Corporation.

- Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Wi-Fi, Wi-Fi Direct, Miracast and Wi-Fi Protected Setup are trademarks or registered trademarks of Wi-Fi Alliance.

- MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

- For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

- Designed with UEI™ Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

- The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

- DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

- TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

Table des matières

AVIS IMPORTANT....2

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Two stylized human figures holding a rectangular frame (no text or symbols)

2 DIGITAL AUDIO OUT (OPTICAL)

3 ↩ /→... A V 1

Diagram illustrating cable stripping and winding process with labeled components and directional arrows

Technical diagram showing mechanical assembly with bolts and directional arrows (no text or symbols)

Diagram showing a device connected to a control panel with labeled buttons including CH+, CH-, TV, and directional indicators.

G DIGITAL AUDIO OUT (OPTICAL)

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Line drawing of two human figures holding a rectangular object (no text or symbols)

Pared Pared

9 1 2 3 4 5 6 7 8 9 AUDIO OUT 10 S V = 500 mA MAX USB S V = 100 mA MAX USB HDMI IN MHL S V = 1.5 A MAX Digital Audio OUT (OPTICAL) AV COMPONENT IN Pb Pr (MON/O) L R HV LAN Y HDMI IN HDD REC S V = 900 mA MAX SS USB 13-19 V = 0.55 A SUB 13-19 V = 0.55 A MAIN T

1 LAN

2 DIGITAL AUDIO OUT (OPTICAL)

3 ↩ /→... A V 1

Simple line drawing of a door with a circular button and rectangular side panels (no text or symbols)

KD-49/43X830xC

Diagram showing rope knotting process with directional arrows and a magnified detail (no text or symbols)

Technical diagram showing mechanical assembly with bolts and directional arrows (no text or symbols)

- / - C O M P O N E N T I

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Formatos de PC

*1 Solo YCbCr 4:2:0 / 8 bits

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p

Lado a lado: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Encima-debajo: 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: PCM lineal de 5,1 canales: 32, 44,1, 48,

88,2, 96, 176,4 y 192 kHz, 16, 20 y 24 bits, Dolby

Digital y DTS

ARC (Audio Return Channel) (sólo HDMI IN 4)

MHL (HDMI IN 2)

Vídeo (2D):

4096 × 2160p (24 Hz) ^* , 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p,

576i, 480p, 480i

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p

Lado a lado: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Encima-debajo: 1080p (50, 60 Hz), 1080p

(30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50,

60 Hz)

Audio: PCM lineal de 5,1 canales: 32, 44,1, 48,

88,2, 96, 176,4 y 192 kHz, 16, 20 y 24 bits, Dolby

Digital y DTS

DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos canales, Dolby Digital, DTS)

AUDIO OUT, Ⓥ (minitoma estéreo)

Auriculares, salida de audio, subwoofer

1, 2, 3 (HDD REC)*

4

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C:

49 pulgadas / 123,2 cm

KD-43X830xC / FW-43X8370C:

43 pulgadas / 108,0 cm

Consumo de energía

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

En el modo [Viva]

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Wi-Fi, Wi-Fi Direct, Miracast y Wi-Fi Protected Setup son marcas comerciales o marcas comerciales registradas de Wi-Fi Alliance.

- Designed with UEITM Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Two silhouettes of people holding a large rectangular object (no text or symbols visible)

2 DIGITAL AUDIO OUT (OPTICAL)

3 → /→... A V 1

Simple line drawing of a door with a circular button labeled 'B' (no text or symbols beyond the label)

Diagram illustrating cable stripping and winding process with labeled components and directional arrows

Technical diagram showing mechanical assembly with bolts and directional arrows (no text or labels)

4096 × 2160p (24 Hz)^* , 3840 × 2160p (24, 25, 30 Hz) , 1080p (30, 50, 60 Hz) , 1080/24p , 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

in de stand [Levendig]

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

Stand-by vermogensgebruik ^23

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Line drawing of two people holding a rectangular object (no text or symbols)

9 1 S V = 500 mA MAX USB AUDIO OUT / 5 V = 100 mA MAX USB HDMI IN MHL 1.5 A MAX 1 2 3 4 5 6 7 8 9 10 11 Digital Audio OUT (OPTICAL) AV COMPONENT IN Pb Pr (HOMO) L R 13-19 V = 0.55 A SUB. 13-19 V = 0.55 A MAIN

1 LAN
2 DIGITAL AUDIO OUT (OPTICAL)
3 ↩ /→... A V 1

Diagram illustrating cable stripping and winding process with labeled components and directional arrows

Technical diagram showing mechanical assembly with bolts and directional arrows (no text or labels)

Diagram showing a device connected to a control panel with labeled buttons including CH+, CH-, TV, and directional indicators.

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Computerformate

*1 nur YCbCr 4:2:0/8 Bit

Frame Packing: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Nebeneinander: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Untereinander: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: 5,1-Kanal linear PCM: 32, 44,1, 48, 88,2, 96,

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p,

576i, 480p, 480i

Frame Packing: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Nebeneinander: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Untereinander: 1080p (50, 60 Hz), 1080p

(30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(50, 60 Hz)

Audio: 5,1-Kanal linear PCM: 32, 44,1, 48, 88,2, 96,

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

im Modus [Brillant]

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

ohne Tischständer

KD-75X850xC: 34,8 kg

KD-65X850xC: 24,1 kg

KD-55X850xC: 19,9 kg

KD-49X830xC: 14,4 kg

KD-43X830xC: 11,8 kg

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Designed with UEI™ Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Line drawing of two human figures holding a large rectangular object (no text or symbols)

9 1 2 3 4 5 6 7 8 9 AUDIO OUT 10 S V = 500 mA MAX USB S V = 100 mA MAX USB HDMI IN MHL S V = 1.5 A MAX Digital Audio OUT (OPTICAL) AV COMPONENT IN Pb Pr (MON/O) L R HV PV PWM HDMI IN HDD REC S V = 900 mA MAX SS USB 13-19 V = 0.55 A SUB 13-19 V = 0.55 A MAIN T

1 LAN

2 DIGITAL AUDIO OUT (OPTICAL)

3 ↩ /→... A V 1

Diagram illustrating cable stripping and winding mechanism with labeled components and directional arrows

Technical diagram showing mechanical assembly with bolts and directional arrows (no text or symbols)

Diagram showing a device connected to a control panel with labeled buttons including CH+, CH-, TV, and directional indicators.

- / - C O M P O N E N T I

YP_BP_R (Vídeo componente): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Entrada de áudio (tomadas RCA)

AV2

Entrada de vídeo (tomada de pinos RCA normal com entrada Y)

DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais, Dolby Digital, DTS)

AUDIO OUT, Ⓞ (Minitomada estétero)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C:

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

no modo [Vívido]

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

Consumo de energia anual médio*1

KD-75X850xC / FW-75X8570C: 319 kWh

KD-65X850xC / FW-65X8570C: 207 kWh

KD-55X850xC / FW-55X8570C: 160 kWh

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Line drawing of two people holding a large rectangular object (no text or symbols)

Parete Parete

9 1 LAN 2 DIGITAL AUDIO OUT (OPTICAL) 3 4 COMPONENT IN AV Pb Pr (MON/O) L R 5 V === 500 mA MAX USB AUDIO OUT / 5 V === 100 mA MAX USB HOMI IN MHL S V === 1.5 A MAX 3 (ARC) HDMI IN HDD REC 5 V === 900 mA MAX SS USB SUB. 13-19 V === 0.55 A MAIN 13-19 V === 0.55 A 7 10 7 8 11 8 7 6 5

1 LAN

2 DIGITAL AUDIO OUT (OPTICAL)

3 ↩ /→... A V 1

Diagram illustrating cable stripping and winding process with labeled components and directional arrows

Technical diagram showing mechanical assembly with bolts and directional arrows (no text or labels)

Diagram showing a device connected to a control panel with labeled buttons including CH+, CH-, TV, and directional indicators.

- / - C O M P O N E N T I

YP _B PR (Video component): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Formati PC

*1 Solo YCbCr 4:2:0 / 8bit

Frame Packing: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Fianco a fianco: 1080p (50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Sotto-sopra: 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: PCM lineare 5,1 canali: 32, 44,1, 48, 88,2,

96, 176, 4 e 192 kHz, 16, 20 e 24 bit, Dolby Digital e DTS

ARC (Audio Return Channel) (solo HDMI IN 4)

MHL (HDMI IN 2)

Video (2D):

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p,

576i, 480p, 480i

Frame Packing: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Fianco a fianco: 1080p (50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Sotto-sopra: 1080p (50, 60 Hz), 1080p (30 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: PCM lineare 5,1 canali: 32, 44,1, 48, 88,2,

96, 176, 4 e 192 kHz, 16, 20 e 24 bit, Dolby Digital e DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C:

49 pollici / 123,2 cm

KD-43X830xC / FW-43X8370C:

43 pollici / 108,0 cm

Potenza assorbita

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

Consumo energetico medio annuo ^*1

KD-75X850xC / FW-75X8570C: 319 kWh

KD-65X850xC / FW-65X8570C: 207 kWh

KD-55X850xC / FW-55X8570C: 160 kWh

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Two silhouettes of people holding a large rectangular object (no text or symbols visible)

1 LAN
2 DIGITAL AUDIO OUT (OPTICAL)
3 ⇔ ↗ ⋯ A V 1

Simple line drawing of a door with a circular button and handle (no text or symbols)

KD-49/43X830xC

Diagram showing rope knotting process with rope routing and angle annotation (no text or symbols)

Technical line drawing of a mechanical assembly with two parts and three bolts, no text or symbols present

-∅/→C O M P O N E N T I

YP_BP_R (komponentvideo): 1080p (50, 60 Hz),

1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i,

480p, 480i

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 576i, 480p, 480i,

PC-format

*1 YCbCr 4:2:0/endast 8-bitars

Frame Packing: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Sida-vid-sida: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Över-under: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Frame Packing: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Sida-vid-sida: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Över-under: 1080p (50, 60 Hz), 1080p (30 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

i [Dagsljus]-läge

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

Dimension (Cirka) (b × h × d)

med bordsstativ

KD-75X850xC: 167,5 × 101,9 × 32,3 cm

KD-65X850xC: 145,3 × 89,2 × 26,5 cm

KD-55X850xC: 123,6 × 75,9 × 22,2 cm

KD-49X830xC: 109,3 × 67,9 × 20,1 cm

KD-43X830xC: 96,1 × 60,4 × 18,9 cm

utan bordsstativ

KD-75X850xC: 167,5 × 97,0 × 7,9 cm

KD-65X850xC: 145,3 × 84,4 × 7,8 cm

KD-55X850xC: 123,6 × 72,2 × 6,0 cm

KD-49X830xC: 109,3 × 64,3 × 6,0 cm

KD-43X830xC: 96,1 × 56,8 × 6,0 cm

Vikt (Cirka)

med bordsstativ

KD-75X850xC: 36,3 kg

KD-65X850xC: 25,5 kg

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

utan bordsstativ

KD-75X850xC: 34,8 kg

KD-65X850xC: 24,1 kg

KD-55X850xC: 19,9 kg

KD-49X830xC: 14,4 kg

KD-43X830xC: 11,8 kg

PRODUKTET SKAL HOLDES VÄEK FRA

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Two human figures holding a rectangular frame, no text or symbols present

1 LAN 2 DIGITAL AUDIO OUT (OPTICAL) 3 4 COMPONENT IN 5 6 7 8 HDMI 1 13-19 V = 0.55 A MAX 13-19 V = 0.55 A SUB. HDD REC SS USB S V = 900 mA MAX (ARC) 4 3 HOMI IN 5 6 7 8 9 10 11 S V = 500 mA MAX AUDIO OUT S V = 500 mA MAX HDMI IV S V = 1 S A MAX MHL

KD-49/43X830xC

9 1 S V === 500 mA MAX USB 7 AUDIO OUT / 10 S V === 500 mA MAX USB 2 HDMI IN 1 MHL 2 S V === 1.5 A MAX 11 1 Digital Audio OUT (OPTICAL) AV COMPONENT IN 3 4 (ARC) HDMI IN 3 HDD REC 5 V === 500 mA MAX USB 7 SUB. 13-19 V === 0.55 A MAIN 13-19 V === 0.55 A 5

1 LAN

2 DIGITAL AUDIO OUT (OPTICAL)

3 ⇔ ↗ ⋯ A V 1

Simple line drawing of a door with a circular button labeled 'CP' on the front panel (no text or symbols beyond the label)

KD-49/43X830xC

Diagram showing rope knotting process with rope routing and angle annotation (no text or symbols)

Technical line drawing of a mechanical assembly with two parts and three bolts, no text or symbols present

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*1,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60

Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Pc-formater

*1 Kun YCbCr 4:2:0/8 bit

*2 Når 4096 × 2160p er input, vises 3840 × 2160p

Video (3D) (Kun 3D-kompatible modeller):

Billedpakning: 1080p (30 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side om side: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-under: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Lyd: 5,1-kanals lineær PCM: 32, 44,1, 48, 88,2, 96,

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

* Når 4096 × 2160p er input, vises 3840 × 2160p

Video (3D) (Kun 3D-kompatible modeller):

Billedpakning: 1080p (30 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side om side: 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-under: 1080p (50, 60 Hz), 1080p (30 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Lyd: 5,1-kanals lineær PCM: 32, 44,1, 48, 88,2, 96,

DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM, Dolby Digital, DTS)

AUDIO OUT, Ⓞ (Mini-stereostik)

Hovedtelefon, lydudgang, subwoofer

1, 2, 3 (HDD REC)*

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

i [Kraftig] tilstand

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

Strømforbrug i standby ^2*3

0,5 W (27 W i software-/EPG-opdateringstilstand)

Skærmopløsning

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

Uden tv-fod

KD-75X850xC: 34,8 kg

KD-65X850xC: 24,1 kg

KD-55X850xC: 19,9 kg

KD-49X830xC: 14,4 kg

KD-43X830xC: 11,8 kg

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Line drawing of two figures holding a rectangular object (no text or symbols)

1 LAN 2 DIGITAL AUDIO OUT (OPTICAL) 3 4 COMPONENT IN 5 6 7 8 HDMI 1 13-19 V = 0.55 A MAX 13-19 V = 0.55 A SUB. HDD REC SS USB S V = 900 mA MAX (ARC) 4 3 HOMI IN 5 6 7 8 9 10 11 S V = 500 mA MAX AUDIO OUT S V = 500 mA MAX HDMI IV S V = 1 S A MAX MHL

KD-49/43X830xC

9 1 S V === 500 mA MAX USB 7 AUDIO OUT / 10 S V === 500 mA MAX USB 2 HDMI IN 1 MHL 2 S V === 1.5 A MAX 11 1 Digital Audio OUT (OPTICAL) AV COMPONENT IN 3 4 (ARC) HDMI IN 3 HDD REC 5 V === 500 mA MAX SSD USB 7 SUB. 13-19 V === 0.55 A MAIN 13-19 V === 0.55 A 5 T

1 LAN

2 DIGITAL AUDIO OUT (OPTICAL)

3 ⇔ ↗ ⋯ A V 1

Simple line drawing of a door with a circular button on the left side (no text or symbols)

KD-49/43X830xC

Diagram showing rope knotting process with rope routing and angle annotation (no text or symbols)

Technical line drawing of a mechanical assembly with two parts and three bolts, no text or symbols present

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*1,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC-muodot

*1 YCbCr 4:2:0 / vain 8-bittinen

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p,

576i, 480p, 480i

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C:

49 tuumaa / 123,2 cm

KD-43X830xC / FW-43X8370C:

43 tuumaa / 108,0 cm

Virrankulutus

[Vakio] -tilassa

KD-75X850xC / FW-75X8570C: 230 W

KD-65X850xC / FW-65X8570C: 149 W

KD-55X850xC / FW-55X8570C: 115 W

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

[Kirkas] -tilassa

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

ilman pöytäjalustaa

KD-75X850xC: 34,8 kg

KD-65X850xC: 24,1 kg

KD-55X850xC: 19,9 kg

KD-49X830xC: 14,4 kg

KD-43X830xC: 11,8 kg

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Designed with UEI Technology™ Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Two silhouettes of people holding a large rectangular object (no text or symbols visible)

1 LAN 2 DIGITAL AUDIO OUT (OPTICAL) 3 4 COMPONENT IN 5 6 7 8 HDMI 1 13-19 V = 0.55 A MAX 13-19 V = 0.55 A SUB. HDD REC SS USB S V = 900 mA MAX (ARC) 4 3 HOMI IN 5 6 7 8 9 10 11 S V = 500 mA MAX AUDIO OUT S V = 500 mA MAX HDMI IV S V = 1 S A MAX MHL

KD-49/43X830xC

9 1 S V === 500 mA MAX USB 7 AUDIO OUT / 10 S V === 500 mA MAX USB 2 HDMI IN 1 MHL 2 S V === 1.5 A MAX 11 1 Digital Audio OUT (OPTICAL) AV COMPONENT IN 3 4 (ARC) HDMI IN 3 HDD REC 5 V === 500 mA MAX SSD USB 7 SUB. 13-19 V === 0.55 A MAIN 13-19 V === 0.55 A 5

1 LAN

2 DIGITAL AUDIO OUT (OPTICAL)

3 ⇔ ↗ ⋯ A V 1

Vis TV-ens home-meny.

DISCOVER

(Teksting-innstilling)

Simple line drawing of a door with a circular button labeled 'CP' on the front panel (no text or symbols beyond the label)

KD-49/43X830xC

* Koble kun til när du bruker tvilling tunermodus.

Diagram showing rope knotting process with rope routing and angle annotation (no text or symbols)

Technical line drawing of a mechanical assembly with two parts and three bolts, no text or symbols present

- / - C O M P O N E N T I

YP _B PR (komponent video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Lydinngang (phonoplugger)

AV2

Videoinngang (felles phonopinne med Y-in ngang)

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*1,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,

PC-formater

*1 Kun YCbCr 4:2:0 / 8 bit

*2 3840 × 2160p vises när 4096 × 2160p mates inn

Video (3D) (Kun 3D-kompatible modeller):

Dobbeltramme: 1080p (30 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side ved side: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-under: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Lyd: 5,1 kanal lineær PCM: 32, 44,1, 48, 88,2, 96,

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

* 3840 × 2160p vises när 4096 × 2160p mates inn

Video (3D) (Kun 3D-kompatible modeller):

Dobbeltramme: 1080p (30 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side ved side: 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-under: 1080p (50, 60 Hz), 1080p (30 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Lyd: 5,1 kanal lineær PCM: 32, 44,1, 48, 88,2, 96,

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM, Dolby Digital, DTS)

AUDIO OUT, Ⓞ (stereomini-kontakt)

Hodetelefon, lydutgang, subwoofer

1, 2, 3 (HDD REC)* 4

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C:

49 tommer / 123,2 cm

KD-43X830xC / FW-43X8370C:

43 tommer / 108,0 cm

Strømforbruk

i [Standard]-modus

KD-75X850xC / FW-75X8570C: 230 W

KD-65X850xC / FW-65X8570C: 149 W

KD-55X850xC / FW-55X8570C: 115 W

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

i [Dynamisk]-modus

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

uten bordstativ

KD-75X850xC: 34,8 kg

KD-65X850xC: 24,1 kg

KD-55X850xC: 19,9 kg

KD-49X830xC: 14,4 kg

KD-43X830xC: 11,8 kg

The Heights, Brooklands

Weybridge, Surrey, KT 13 0XW

United Kingdom.

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Two human figures holding a rectangular object, no text or symbols visible

2 DIGITAL AUDIO OUT (OPTICAL)

3 ↩ /→... A V 1

13-19 V === 0.55 A MAIN 13-19 V === 0.55 A SUB. ② ① ③ * < 14 mm < 14 mm CATV

KD-49/43X830xC

KD-49/43X830xC

Diagram illustrating cable stripping and winding process with labeled components and directional arrows

Technical diagram showing mechanical assembly with bolts and directional arrows (no text or labels)

Diagram showing a device connected to a control panel with labeled buttons including CH+, CH-, TV, and directional indicators.

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*1,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Formaty komputerowe

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

w trybie [Żywy]

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

bez podstawy

KD-75X850xC: 34,8 kg

KD-65X850xC: 24,1 kg

KD-55X850xC: 19,9 kg

KD-49X830xC: 14,4 kg

KD-43X830xC: 11,8 kg

*1

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Designed with UEI™ Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Line drawing of two human figures holding a rectangular object (no text or symbols)

2 DIGITAL AUDIO OUT (OPTICAL)

3 ⇔ ↗ ⋯ A V 1

Simple line drawing of a door with a circular button and handle (no text or symbols)

KD-49/43X830xC

Diagram illustrating cable rope knotting process with labeled steps and directional arrows

Technical line drawing of a mechanical assembly with two parts and three bolts, no text or symbols present

- / - C O M P O N E N T I

YP_BP_R (komponentní video): 1080p (50, 60 Hz),

1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i,

480p, 480i

Audio vstup (phono konektory)

AV2

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*1,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC formáty

Frame Packing: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Vedle sebe: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Nad/pod: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Frame Packing: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Vedle sebe: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Nad/pod: 1080p (50, 60 Hz), 1080p (30 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C:

49 palcü / 123,2 cm

KD-43X830xC / FW-43X8370C:

43 palců / 108,0 cm

Spotřeba energie

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

v režimu [Živý]

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Two silhouettes of people holding a rectangular frame (no text or symbols visible)

1 LAN
2 DIGITAL AUDIO OUT (OPTICAL)
3 ⇔ ↗ ⋯ A V 1

- Pripojte pomocou kábla SCART. Ked' pripájate analógový dekodér, TV tuner do dekodéra vysiela zakódovaný signál a dekodér ho pred vyslaním dekóduje.

4 → AV 2, ↗ COMPONENT IN

• Pre kompozitné pripojenie: Použite konektory → AV 2 a → (L/R) modulu → /→ COMPONENT IN* ^1 .
• Komponentné pripojenie: Použite konektory Y, B, PR, a → (L/R).

Simple line drawing of a door with a circular button and handle (no text or symbols)

KD-49/43X830xC

Diagram showing rope knotting process with rope routing and angle annotation (no text or symbols)

Technical diagram showing mechanical assembly with bolts and a zigzag component (no text or symbols)

Diagram showing a device connected to a control panel with labeled buttons and a highlighted symbol

Osvetlenie LED svieti.

- Ak nechcete, aby osvetlenie LED svietilo, môžete ho vypnút. Stlačte tlačidlo HOME a potom vyberte položky [Nastavenia] → [Osvetlenie LED] → [Vyp.].

SONY

Pripojenie k bezdrôtovému smerovaču použitím funkcie WPS (Wi-Fi Protected Setup) zlyhalo.

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*1,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i,

Formáty PC

*1 YCbCr 4:2:0/iba 8 bitov

*2 Ked'je vstup 4096 × 2160 pixelov, zobrazené je 3840 × 2160 pixelov

Video (3D) (Iba modely kompatibilné s formátom 3D):

Zhustovanie rámcov: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Vedl'a seba: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Nad sebou: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Zvuk: 5,1 lineárny kanál PCM: 32, 44,1, 48, 88,2, 96,

176,4 a 192 kHz, 16, 20 a 24 bitov, Dolby Digital a DTS

ARC (Audio Return Channel) (iba HDMI IN 4)

MHL (HDMI IN 2)

Video (2D):

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25, 30

Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50,

60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i,

480p, 480i

* Ked'je vstup 4096 × 2160 pixelov, zobrazené je 3840 × 2160 pixelov

Video (3D) (Iba modely kompatibilné s formátom 3D):

Zhustovanie rámcov: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Vedl'a seba: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Nad sebou: 1080p (50, 60 Hz), 1080p (30 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Zvuk: 5,1 lineárny kanál PCM: 32, 44,1, 48, 88,2, 96,

176,4 a 192 kHz, 16, 20 a 24 bitov, Dolby Digital a DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C:

49 palcov / 123,2 cm

KD-43X830xC / FW-43X8370C:

43 palcov / 108,0 cm

Príkon

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

v režime [Živý]

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

Priemerná ročná spotreba energie ^*1

KD-75X850xC / FW-75X8570C: 319 kWh

KD-65X850xC / FW-65X8570C: 207 kWh

KD-55X850xC / FW-55X8570C: 160 kWh

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

Príkon v pohotovostnom režime ^2*3

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

bez stolového stojana

KD-75X850xC: 34,8 kg

KD-65X850xC: 24,1 kg

KD-55X850xC: 19,9 kg

KD-49X830xC: 14,4 kg

KD-43X830xC: 11,8 kg

Two silhouettes of people holding a large rectangular object (no text or symbols visible)

1 LAN 2 DIGITAL AUDIO OUT (OPTICAL) 3 4 COMPONENT IN 5 6 7 8 HDMI 1 13-19 V = 0.55 A MAX 13-19 V = 0.55 A SUB. HDD REC SS USB S V = 900 mA MAX (ARC) 4 3 HOMI IN 5 6 7 8 9 10 11 S V = 500 mA MAX AUDIO OUT S V = 500 mA MAX HDMI IV S V = 1 S A MAX MHL

KD-49/43X830xC

9 1 S V === 500 mA MAX USB 7 AUDIO OUT / 10 S V === 500 mA MAX USB 2 HDMI IN 1 MHL 2 S V === 1.5 A MAX 11 1 Digital Audio OUT (OPTICAL) AV COMPONENT IN 3 4 (ARC) HDMI IN 3 HDD REC 5 V === 500 mA MAX USB 7 SUB. 13-19 V === 0.55 A MAIN 13-19 V === 0.55 A 5

□ □ LAN

☐ DIGITAL AUDIO OUT (OPTICAL)

□□/ -A… V 1

USB 1/2, USB 3 (SDD REC)*2*3

ACCESS NAME BACK UNCOVEN

Simple line drawing of a door frame with a circular button and handle (no text or symbols)

KD-49/43X830xC

Diagram illustrating cable rope knotting process with labeled steps and directional arrows

Technical line drawing of a mechanical assembly with two parts and three bolts, no text or symbols present

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*1,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30,

50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC formátumok

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C:

49 hüvelyk / 123,2 cm

KD-43X830xC / FW-43X8370C:

43 hüvelyk / 108,0 cm

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

[Élénk] üzemmódban

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Designed with UEI Technology™ Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

INFORMATIE IMPORTANTĂ 2

INFORMATIE IMPORTANTĂ

AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo

Line drawing of two human figures holding a rectangular object (no text or symbols)

1 LAN
2 DIGITAL AUDIO OUT (OPTICAL)
3 ⇔ ↗ ⋯ A V 1

↑/↓/←/→/ ⊕ (Selectare element/Introducere)

5 ∠ +/- (Volum)

Reglează volumul.

(Salt)

Simple line drawing of a door with a circular button and rectangular supports (no text or symbols)

KD-49/43X830xC

Diagram showing rope knotting process with rope routing and angle annotation (no text or symbols)

Technical diagram showing mechanical assembly with bolts and a bracket (no text or symbols)

- / - C O M P O N E N T I

YP_BP_R (video pe componente): 1080p (50, 60 Hz),

1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Intrare audio (mufe fono)

AV2

Intrare video (pin fono comun cu intrarea Y)

(24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p,

576p, 576i, 480p, 480i, Formate PC

*1 Numai YCbCr 4:2:0 / 8 biti

Alăturate: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Suprapuse: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: PCM liniar pe 5,1 canale: 32, 44,1, 48, 88,2,

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Alăturate: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Suprapuse: 1080p (50, 60 Hz), 1080p (30 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: PCM liniar pe 5,1 canale: 32, 44,1, 48, 88,2,

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

Consum mediu anual de energie ^*1

KD-75X850xC / FW-75X8570C: 319 kWh

KD-65X850xC / FW-65X8570C: 207 kWh

KD-55X850xC / FW-55X8570C: 160 kWh

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

fără suport de masă

KD-75X850xC: 34,8 kg

KD-65X850xC: 24,1 kg

KD-55X850xC: 19,9 kg

KD-49X830xC: 14,4 kg

KD-43X830xC: 11,8 kg

Two silhouettes of people holding a rectangular object, no text or symbols visible

9 1 LAN 2 DIGITAL AUDIO OUT (OPTICAL) 3 COMPONENT IN AV Pb Pr (MON/O) L R Y S V === 500 mA MAX USB AUDIO OUT / 5 V === 100 mA MAX USB HOMI IN MHL S V === 1.5 A MAX 3 (ARC) HDMI IN HDD REC 5 V === 900 mA MAX SS USB SUB. 13-19 V === 0.55 A MAIN 13-19 V === 0.55 A 7 10 7 8 11 8 7 6 5

1 LAN

2 DIGITAL AUDIO OUT (OPTICAL)

3 ↗ /→... A V 1

13-19 V === 0.55 A MAIN 13-19 V === 0.55 A SUB. ② ① ③ * < 14 mm < 14 mm CATV

KD-49/43X830xC

Diagram illustrating cable stripping and winding mechanism with labeled components and directional arrows

Technical diagram showing mechanical assembly with bolts and directional arrows (no text or labels)

Diagram showing a device connected to a control panel with labeled buttons including CH+, CH-, TV, and directional indicators.

ARC (Audio Return Channel) (camo HDMI IN 4)

MHL (HDMI IN 2)

Видео (2D): 4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i * Показва се 3840 × 2160p, когато въведено 4096 × 2160p

G DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

в [Ярък] режим

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

без поставка за маса

KD-75X850xC: 34,8 kg

KD-65X850xC: 24,1 kg

KD-55X850xC: 19,9 kg

KD-49X830xC: 14,4 kg

KD-43X830xC: 11,8 kg

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Designed with UEI Technology™ Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

Line drawing of two people holding a rectangular object (no text or symbols)

1 LAN
2 DIGITAL AUDIO OUT (OPTICAL)
3 ⇔ ↗ ⋯ A V 1

Diagram showing rope knotting process with rope routing and angle annotation (no text or symbols)

Technical diagram showing mechanical assembly with bolts and arrows indicating motion (no text or symbols)

Diagram showing a device connected to a control panel with labeled buttons including CH+, CH-, TV, and directional indicators.

- / - C O M P O N E N

YP _B PR (Bívtεο Component): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

(24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p,

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p,

576i, 480p, 480i

DIGITAL AUDIO OUT (OPTICAL)

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

Line drawing of two people holding a large rectangular object (no text or symbols)

1-7-1 Konan, Minato-ku, Tokyo

108-0075 Japan

9 1 2 3 4 5 6 7 8 9 AUDIO OUT 10 S V = 500 mA MAX USB S V = 100 mA MAX USB HDMI IN MHL S V = 1.5 A MAX (ARC) HDMI IN HDD REC 5V = 900 mA MAX SS USB 13-19 V = 0.55 A SUB 13-19 V = 0.55 A MAIN T

1 LAN
2 DIGITAL AUDIO OUT (OPTICAL)
3 ↩ /→... A V 1

13-19 V === 0.55 A MAIN 13-19 V === 0.55 A SUB ② ① ③ * < 14 mm < 14 mm CATV

KD-49/43X830xC

Diagram illustrating cable stripping and winding process with labeled components and directional arrows

Technical diagram showing mechanical assembly with bolts and directional arrows (no text or labels)

Simple line drawing of a Sony air conditioner unit with no text or symbols

(24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p,

576p, 576i, 480p, 480i, PC Formatları

*1 Sadece YCbCr 4:2:0 / 8bit

Kare Paketleme: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Yan Yana: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Alt Alta: 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (50, 60 Hz)

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25,

30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Kare Paketleme: 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Yan Yana: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Alt Alta: 1080p (50, 60 Hz), 1080p (30 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

DIGITAL AUDIO OUT (OPTICAL)

Kulaklık, Ses Çıkışı, Subwoofer

1, 2, 3 (HDD REC)*

4

KD-49X830xC / FW-49X8370C: A

KD-43X830xC / FW-43X8370C: A

KD-49X830xC / FW-49X8370C: 84 W

KD-43X830xC / FW-43X8370C: 72 W

[Canlı] modunda

KD-75X850xC / FW-75X8570C: 425 W

KD-65X850xC / FW-65X8570C: 288 W

KD-55X850xC / FW-55X8570C: 229 W

KD-49X830xC / FW-49X8370C: 177 W

KD-43X830xC / FW-43X8370C: 162 W

KD-49X830xC / FW-49X8370C: 117 kWh

KD-43X830xC / FW-43X8370C: 100 kWh

KD-55X850xC: 21,0 kg

KD-49X830xC: 15,4 kg

KD-43X830xC: 12,8 kg

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Designed with UEI™ Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Designed with UEI™ Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

MHL Mobile High-Definition Link

dts® Digital Surround

Bluetooth®

DiSEqC 1.0

TUXERA LEADING FILE SYSTEM INTEROPERABILITY

4K

Actual resolution: 3840 x 2160 pixels.
