Product Type	2-way center speaker, acoustic suspension
Dimensions (W x H x D)	430 x 140 x 200 mm
Weight	5.4 kg
Impedance	6 Ω
Rated input power	50 W
Maximum input power	200 W
Sensitivity	88 dB / 2.83 V / m
Frequency response	60 Hz to 50 kHz (-10 dB)
Crossover frequency	2.5 kHz
Speakers	10 cm cone woofer x 2, 3 cm dome tweeter
Magnetic shielding	Yes (anti-magnetic)
Supplied accessories	Adhesive fasteners x 4
Connections	Screw terminals (compatible with banana plugs)
Maintenance and cleaning	Clean, dry cloth. Do not use chemical solvents.
Safety	Do not expose to rain or moisture. Avoid heat sources and vibrations.
Reparability	Do not open the cabinet. Contact a qualified YAMAHA service technician.

Frequently Asked Questions - NSC325 YAMAHA

What type of speaker is the YAMAHA NS-C325?

It's a 2-way center speaker with acoustic suspension, featuring anti-magnetic shielding for use near a TV.

How do I connect the speaker to my amplifier?

Use speaker cables: connect the amplifier's (+) and (-) terminals to the corresponding speaker terminals. Strip the wires, insert into the screw terminals and tighten. You can also use banana plugs after removing the cap.

Can I place the speaker directly on my TV?

Yes, if the TV surface is flat and larger than the speaker's base. Use the supplied adhesive fasteners to secure the speaker and prevent it from falling.

How do I clean the speaker?

Use a clean, dry cloth. Never use chemical solvents, alcohol or abrasive products that would damage the finish.

What is the maximum power supported by the speaker?

The rated input power is 50 W and the maximum power is 200 W. Do not exceed this limit to avoid damaging the speakers.

Can the speaker disturb the TV picture?

Thanks to the magnetic shielding, the risk of interference is reduced. If iridescence or hum appears, move the speaker away from the TV.

How do I remove the front grille?

Hold the grille by the sides and pull gently forward. To reattach, align the four speaker pins with the grille holes and push gently.

What should I do if there is sound distortion?

Immediately reduce the volume of the amplifier. Prolonged distortion can damage the speakers. Never allow a 'pinched' sound to occur.

What accessories are included?

The speaker comes with 4 adhesive fasteners to secure it on the TV. No speaker cables are supplied.

Can I repair the speaker myself?

No, never attempt to open the cabinet. Contact a qualified YAMAHA service technician for any repairs.

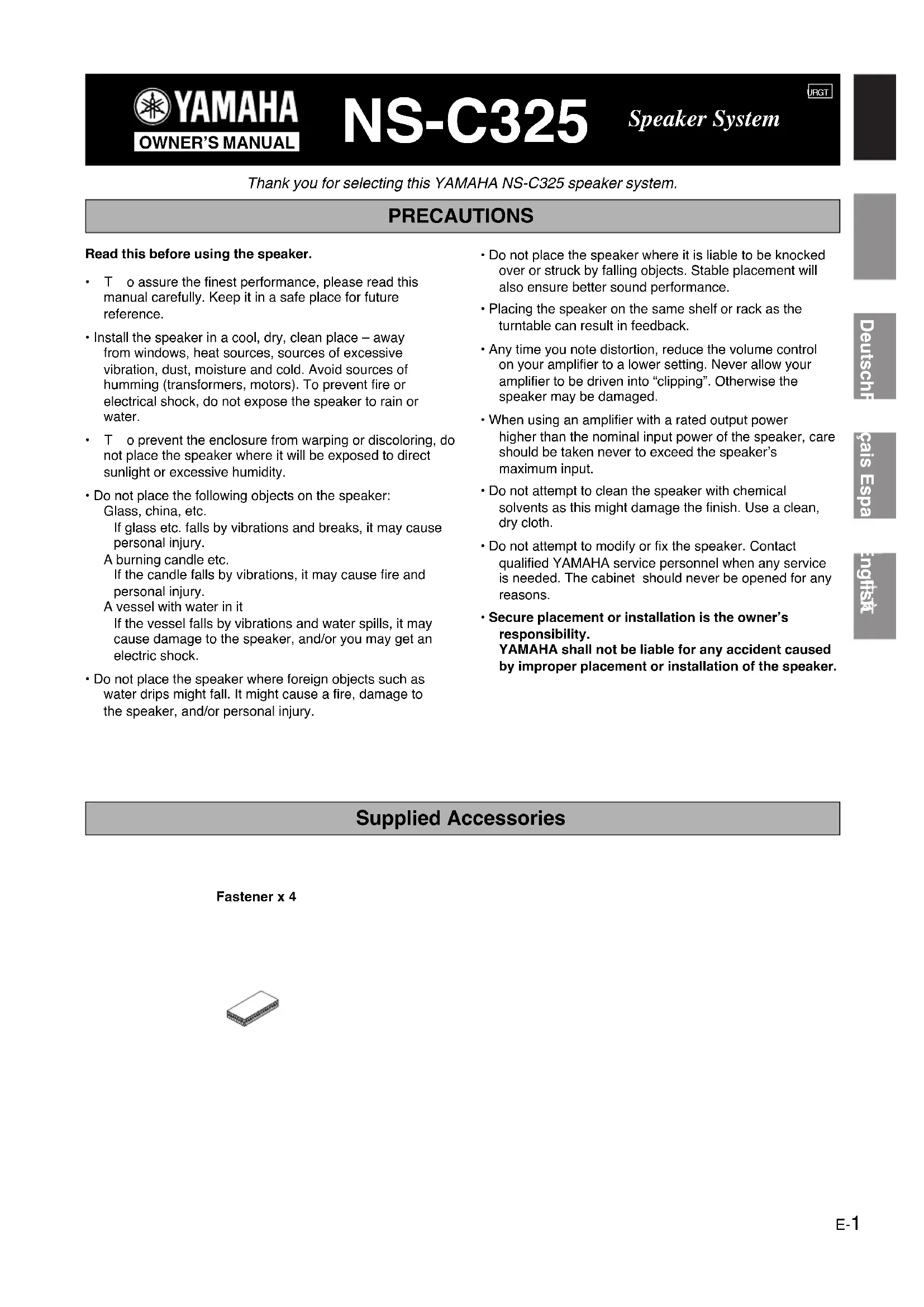

USER MANUAL NSC325 YAMAHA

Thank you for selecting this YAMAHA NS-C325 speaker system.

PRECAUTIONS

Read this before using the speaker.

• T o assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
• Install the speaker in a cool, dry, clean place - away from windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors). To prevent fire or electrical shock, do not expose the speaker to rain or water.
• T o prevent the enclosure from warping or discoloring, do not place the speaker where it will be exposed to direct sunlight or excessive humidity.
• Do not place the following objects on the speaker: Glass, china, etc. If glass etc. falls by vibrations and breaks, it may cause personal injury.

A burning candle etc.

If the candle falls by vibrations, it may cause fire and personal injury.

A vessel with water in it

If the vessel falls by vibrations and water spills, it may cause damage to the speaker, and/or you may get an electric shock.

• Do not place the speaker where foreign objects such as water drips might fall. It might cause a fire, damage to the speaker, and/or personal injury.

• Do not place the speaker where it is liable to be knocked over or struck by falling objects. Stable placement will also ensure better sound performance.

• Placing the speaker on the same shelf or rack as the turntable can result in feedback.
• Any time you note distortion, reduce the volume control on your amplifier to a lower setting. Never allow your amplifier to be driven into "clipping". Otherwise the speaker may be damaged.
• When using an amplifier with a rated output power higher than the nominal input power of the speaker, care should be taken never to exceed the speaker's maximum input.
• Do not attempt to clean the speaker with chemical solvents as this might damage the finish. Use a clean, dry cloth.
• Do not attempt to modify or fix the speaker. Contact qualified YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reasons.
• Secure placement or installation is the owner's responsibility. YAMAHA shall not be liable for any accident caused by improper placement or installation of the speaker.

Supplied Accessories

Fastener x 4

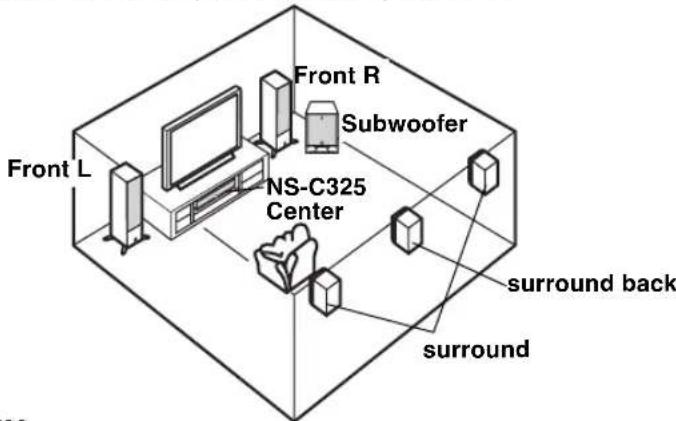

PLACING THE SPEAKER

Place the speaker on TV whose top is flat or on the floor under the TV or inside the TV rack so that it is stabilized.

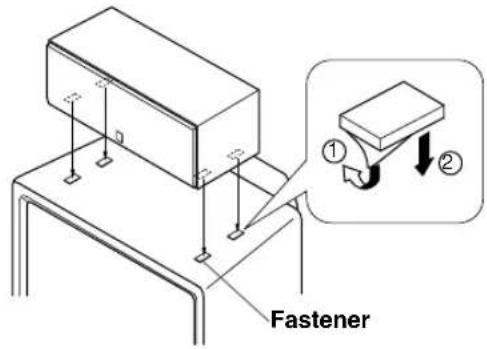

When placing the speaker on top of the TV, to prevent the speaker from falling down, put the provided fasteners at four points on the bottom of the speaker and the top of the TV.

Notes

• Do not place the speaker on top of the TV whose area is smaller than the bottom area of the speaker. If placed, the speaker may drop out causing an injury to you.
• Do not place the speaker on top of the TV with an inclination.
• Do not touch the adhesive surface after peeling off the seal as this will weaken its adhesive strength.

Thoroughly wipe clean the surface where the fastener is to be applied. Note that adhesive strength is weakened if the surface is dirty, oily or wet and that this may cause the center speaker to drop.
- This speaker features a magnetically shielded design, but there is still a chance that placing it too close to a TV set might impair picture color or create a buzzing noise. Should this happen, move the speaker away from the TV set.

CONNECTIONS TO YOUR AMPLIFIER

Before making connections, make sure that the amplifier is switched off.

CONNECTIONS

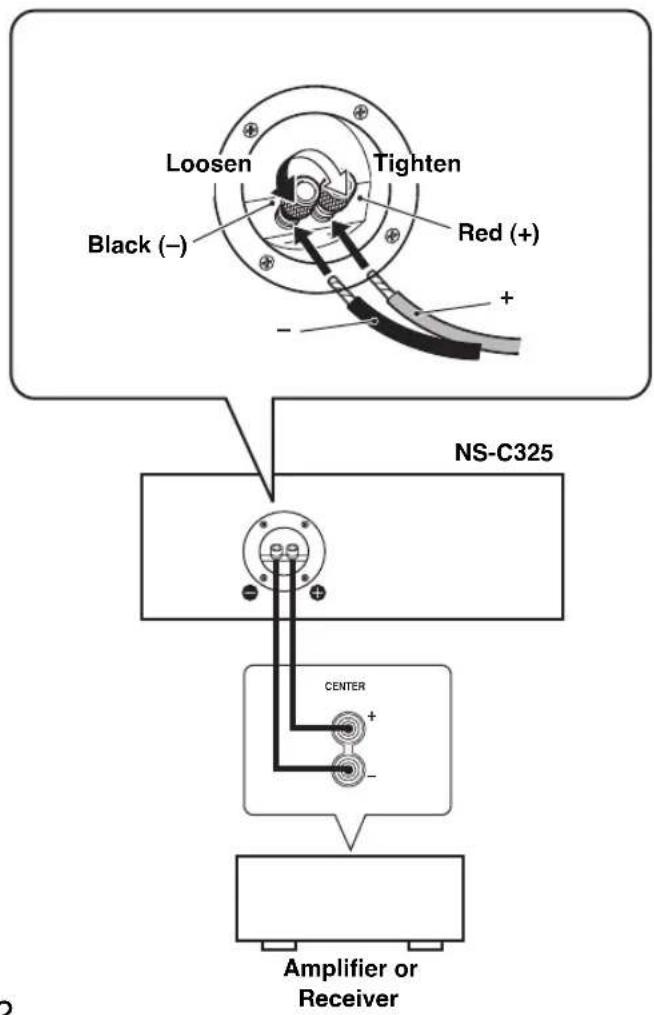

• Connect the screw-type input terminals at the rear of the speaker to the speaker output terminals of the amplifier (or receiver) with the speaker cable.
• Connect the (+) terminals on the amplifier (or receiver) and the speaker using one side of the cable. Connect the (-) terminals on both components using the other side of the cable.
• Connect the speaker to the center terminals of your amplifier, making sure not to reverse the polarity (+, -). If the speaker is connected with reversed polarity, the sound will be unnatural and lack bass.

How to connect:

①Loosen the knob.
② Remove the insulation coating at the extremity of each speaker cable by twisting the coating off.

③Insert the bare wire.
4 Tighten the knob and secure the cables.

Test the firmness of the connection by pulling lightly on the cables at the terminal.

Note:

Do not let the bare speaker wires touch each other as this could damage the speaker or the amplifier, or both of them.

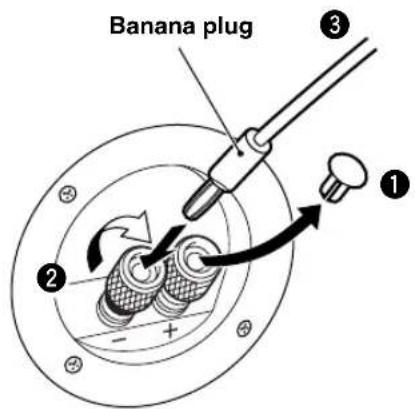

When using a banana plug

1 Remove the cover by pulling it toward you.
2 Tighten the terminal knob.
3Simply insert the banana plug into the terminal.

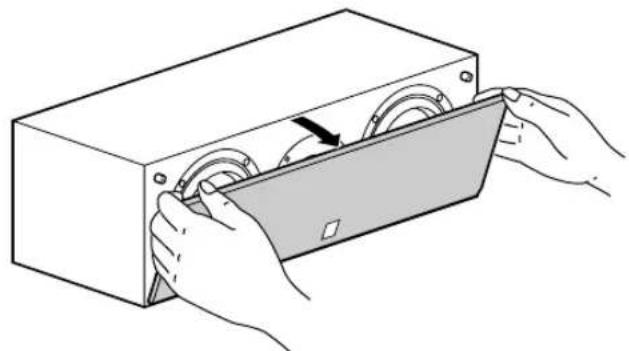

REMOVING THE FRONT COVER

The front cover is fastened to the enclosure at four points and can be removed if desired. To remove the cover, hold on to both sides and slowly pull straight away from the speaker. To reattach, line up the four holes on the inner surface of the cover with the four corresponding pegs on the speaker and push gently.

Note:

When the cover is removed, take care not to touch the speaker units with your hands or to exert excessive force with tools.

SPECIFICATIONS

Type 2-way acoustic suspension speaker system

Magnetic shielding type

Driver 10 cm (4") cone woofer x 2

3 cm (1") dome tweeter

Impedance 6Ω

Frequency Response .60 Hz to 50 kHz (-10dB)

Nominal Input Power 50W

Maximum Input Power 200 W

Sensitivity 88 dB/2.83 V/m

Crossover Frequency 2.5 kHz

Dimensions (WxHxD) 430 x 140 x 200 mm

(16-15/16" x 5-1/2" x 7-7/8")

Weight 5.4kg (11 lbs.14 oz.)

Specifications subject to change without notice due to product improvements.
Care should be taken not to exceed the input power values noted above.
