NSU40P - Speakers YAMAHA - Free user manual and instructions

Type	Satellite speaker 2-way acoustic suspension
Brand	YAMAHA
Model	NSU40P
Category	Speakers
Magnetic shielding	Yes
Driver	5 cm cone type in spruce
Nominal input power	15 W
Maximum input power	50 W
Impedance	4 Ω
Frequency response	120 Hz – 25 kHz
Sound pressure (Sensitivity)	82 dB
Dimensions (W × H × D)	70 mm × 95 mm × 118 mm
Weight	0.3 kg
Supplied speaker cables	3 m × 3, 7 m × 2
Included accessories	Cable clamp, anti-slip pads (20), monitor bracket
Recommended use	Home cinema system (5 satellites)
Wall mounting	Possible (4 mm self-tapping screws, not supplied)
Front angle adjustment	Yes, via screw under the bracket
Maintenance and cleaning	Clean dry cloth, no chemical solvents
Safety	Do not exceed maximum input, avoid distortion
Repairability	Spare parts not listed, consult authorized service

Frequently Asked Questions - NSU40P YAMAHA

How do I connect the NSU40P speakers to my amplifier?

Ensure the amplifier is off. Use the supplied speaker cables. Connect the (+) terminals with the interrupted white line and the (-) terminals with the side without line. Respect polarities for natural sound.

Can I mount the speakers on the wall?

Yes, each speaker weighs 0.3 kg. Use 4 mm self-tapping screws (not supplied) on a solid wall. Hang them by the slots at the back. Do not mount on thin plywood.

How do I adjust the angle of the front speakers?

Loosen the screw under the speaker bracket, adjust the angle to your preference, then tighten the screw. Place the anti-slip pads under the bracket to prevent vibrations.

What is the maximum power supported by the speaker?

The nominal power is 15 W and the maximum input power is 50 W. Use a suitable amplifier to avoid damaging the speakers.

How do I clean the speakers?

Use a clean dry cloth. Never use chemical solvents as they would damage the finish.

Are the speakers magnetically shielded?

Yes, they are anti-magnetic shielded. However, if image interference appears on a TV or monitor, move the speakers away.

How to position speakers for optimal sound?

Place the front speakers on each side of the screen at ear height, the center speaker between them, and the rear speakers behind or beside the listening position, slightly higher than ears.

Can I install the center speaker on a monitor?

Yes, use the included bracket. Remove the speaker's foot, mount the bracket under the speaker and on the monitor to prevent it from falling. Check that the monitor surface is not tilted more than 10°.

What to do in case of sound distortion?

Reduce the sound level by lowering the amplifier volume. Never allow a 'pinching' sound to occur, as it could damage the speakers.

What speaker cables are supplied?

The set includes 3 cables of 3 meters and 2 cables of 7 meters, already marked FRONT L, FRONT R, CENTER, REAR L and REAR R for easy connections.

USER MANUAL NSU40P YAMAHA

See page 3 on how to connect the speakers to your amplifier or receiver.

Please read the following operating precautions before use. YAMAHA will not be held responsible for any damage and/or injury caused by not following the cautions below.

• To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
• To prevent the enclosure from warping or discoloring, do not place the speakers where they will be exposed to direct sunlight or excessive humidity.
• Do not place the speakers where they are liable to be knocked over or struck by falling objects. Stable placement will also ensure better sound performance.
• Placing the speakers on the same shelf or rack as the turntable can result in feedback.
• Any time you note distortion, reduce the volume control on your amplifier to a lower setting. Never allow your amplifier to be driven into "clipping". Otherwise the speakers may be damaged.
• When using an amplifier with a rated output power higher than the nominal input power of the speakers, care should be taken never to exceed the speakers' maximum input.
• Do not attempt to clean the speakers with chemical solvents as this might damage the finish. Use a clean, dry cloth.
• Secure placement or installation is the owner's responsibility. YAMAHA shall not be liable for any accident caused by improper placement or installation of speakers.

These speakers feature a magnetically shielded design, but there is still a chance that placing them too close to a TV or a computer monitor might impair picture color. Should this happen, move the speakers away from the TV or the computer monitor.

Unpacking

After unpacking, check that the following parts are included.

• Satellite speaker x 5
• Accessories

- Speaker cable (3m) x 3

- Speaker cable (7m) x 2

- Cable holder x 1

- Pad x 20

- Fastener x 1

Setting up the speakers

This speaker package is designed to be suitable for use in a home theater sound system.

The included five full-range satellite speakers are all the same models. When using these speakers in a home theater sound system, assign them to two front speakers, one center speaker and two rear speakers respectively.

Recommended speaker placement

Before making connections, place all speakers in their respective positions. The positioning of the speakers is important because it controls the overall sound quality of your audio system.

Place the speakers depending on your listening position by following the instructions below.

* The speakers can be mounted on a wall. (See the next page.)

Front speakers: On both sides of and at approximately the same height as the TV (or computer monitor).

Rear speakers: Behind your listening position or on both sides of the listening room. Normally, set the rear speakers at positions higher than your ears when you sit at the listening position.

Center speaker: Precisely between the front speakers.

* When mounting the center speaker on the monitor, see the next page.

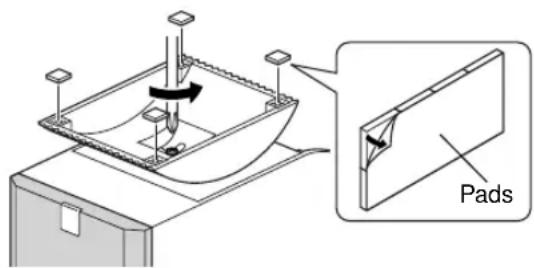

■ Adjusting the front angle of the speakers

The front angle of the speakers can be adjusted as shown below.

1 Loosen the screw on the bottom of the speaker stand.

* Attach the supplied nonskid pads at the four corners on the bottom of the stand to prevent the speaker from moving by vibrations.

2 Adjust the speaker angle on the stand as you prefer, and then tighten the screw.

Diagram of a computer monitor with dashed lines indicating motion or movement, no text or symbols present

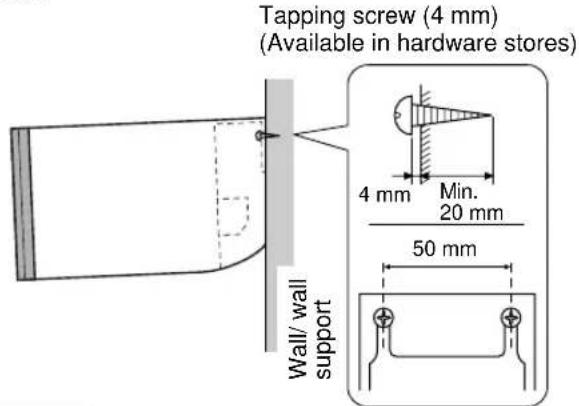

■ Mounting the speakers on a wall

The speakers can also be hung on the wall.

Fasten screws into a firm wall or wall support as shown in the figure, and hang the slits on the rear of the speaker on the protruding screws.

* Make sure that the screws are securely caught by the slits.

Warning

• Each speaker weighs 0.3 kg (0.6 lbs.). Do not mount them on thin plywood or a wall with soft surface material. If mounted, the screws may come out of the flimsy surface and the speakers may fall. This could damage the speakers and cause personal injury.
• Do not install the speakers on a wall with nails, adhesives, or any other unstable hardware. Long-term use and vibrations may cause them to fall.
• To avoid accidents resulting from tripping over loose speaker cables, fix them to the wall.

■ Placing the center speaker on top of the monitor

A speaker used for the center speaker can be placed on top of the monitor. Follow one of the two procedures below for placing a speaker on top of the monitor.

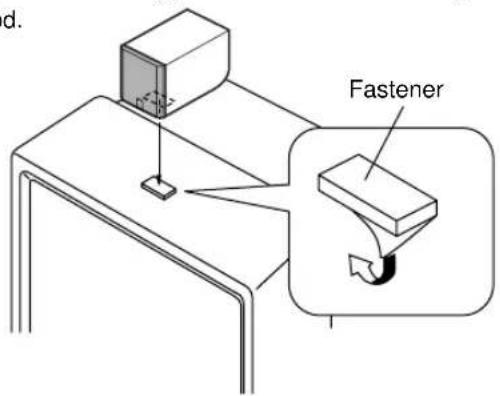

Placing the center speaker on top of the monitor by using the provided fastener

First remove the stand from the speaker, and attach the provided fastener at the bottom of the speaker and on top of the monitor to prevent the speaker from falling.

* This is the recommended method for placing a speaker on top of the monitor. If discoloration of picture occurs, or you need the speaker stand to adjust the speaker angle on top of the monitor, you can select the following method.

Note

Do not place the speaker on top of the monitor with an inclination of more than 10 degrees.

Placing the center speaker on top of the monitor with the speaker stand attached to the speaker

In this method, you need to fix the speaker cable on the monitor by using the provided cable holder to prevent the speaker from falling.

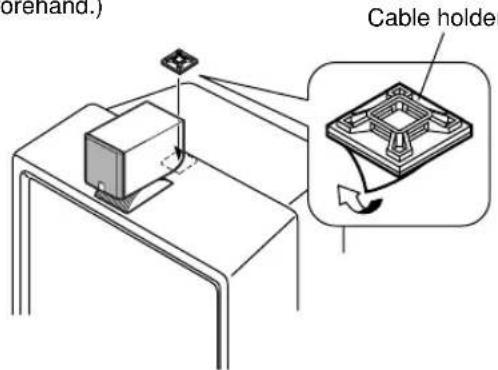

1 Remove the backing sheet from the holder, and attach the holder on top of the monitor by pressing it down forcibly. (The top of the monitor must be cleaned beforehand.) Cable holder

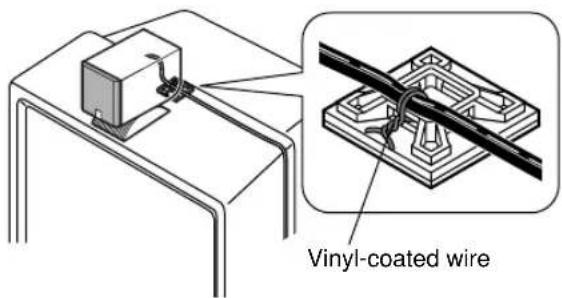

2 Tie the speaker cable to the holder firmly with a provided vinyl-coated wire (which is originally used for bundling the speaker cables) as shown below.

Note

Though this speaker is a magnetically shielded type, there may be some influence on the monitor picture depending on the type of monitor or the placement of the speaker. In such a case, place the speaker further apart from the monitor until there is no influence on the monitor picture.

Connection to your amplifier

(See the figure inside the front cover.)

Before making connections, make sure that the amplifier is switched off.

Notes on connections

• Connect the push-type input terminals at the rear of the speakers to the speaker output terminals of your amplifier with the provided speaker cables.
• One side of the speaker cable has a white broken line. Connect the (+) terminals on both the amplifier and the speakers using the side with a white broken line. Connect the (−) terminals on both components using the side with no line.
• Connect one speaker to the left (marked L) terminals of your amplifier, and the other speaker to the right (marked R) terminals, making sure not to reverse the polarity (+, -). If one speaker is connected with reversed polarity, the sound will be unnatural and lack bass.
• The provided speaker cables have labels marked FRONT L, FRONT R, CENTER, REAR L or REAR R. Connect each speaker cable to the corresponding speaker.
• When using this speaker system connecting with a multichannel amplifier (RP-U200 etc.), also be sure to use a subwoofer (YST-SW45 etc.). Moreover, set the multichannel amplifier or a DVD player etc. which sends signals to the amplifier in the “small speaker mode”. If it is set in the “large speaker mode”, the speakers may reproduce distorted sounds due to excessive input of low frequency signals, or the speakers may be damaged.

How to Connect:

① Press and hold the terminal's tab, as shown in the figure.
② Insert the bare wire end properly into the terminal hole. [Remove approx. 10 mm (3/8") insulation from the speaker cable.]
③ Release your finger from the tab to allow it to lock securely on the cable's wire end.

* Test the firmness of the connection by pulling lightly on the cable at the terminal.

Notes

• Do not let the bare wires touch each other as this could damage the speaker or the amplifier, or both of them.
• Insert the speaker cables into the terminal holes securely, taking care not to let the bare wires touch both (+) and (−) terminals. If the cables are not inserted securely, it may cause noises or no sound from the speakers, or damage the speakers.
• Insert the bare wires only into the terminal holes. If the insulated (vinyl) part of the cable is inserted, no sound will be reproduced from the speaker.
• Fix the speaker cables to avoid catching your hands or feet on the loose cables.

Specifications

Type ......Full range speaker system Magnetically shielded type

Driver.... 5 cm (2") cone type

Nominal Input Power 15W

Maximum Input Power 50W

Impedance 4Ω

Frequency Response.... 120 Hz–25 kHz

Sensitivity 82 dB

Dimensions (W x H x D).... 70 mm x 95 mm x 118 mm (2-3/4" x 3-3/4" x 4-5/8")

Weight 0.3 kg (0.6 lbs.)

Accessories

Speaker cable (3m) x 3

Speaker cable (7m) x 2

Cable holder x 1

Pad x 20

Fastener x 1

* Please note that all specifications are subject to change without notice.
