NSB310 - Speakers YAMAHA - Free user manual and instructions

Brand	YAMAHA
Model	NS-B310
Category	Bookshelf speakers
Type	Acoustic suspension (sealed) speaker, magnetically shielded
Drivers	2 × 8 cm full-range cone
Impedance	6 Ω
Frequency response	80 Hz – 35 kHz (-10 dB) / 50 kHz (-30 dB)
Nominal power	40 W
Maximum power	120 W
Sensitivity	87 dB / 2.83 V / m
Unit weight	1.6 kg
Wall mounting	Mounting bracket included, screw holes on bottom (diam. 6 mm, depth 14 mm)
Front grille	Removable (magnetic attachment)
Connection	Screw terminals (accepts banana plugs)
Minimum distance to CRT TV	20 cm
Maintenance	Dry cloth, slightly damp water for stubborn stains
Warranty	2 years (EEA and Switzerland)

Frequently Asked Questions - NSB310 YAMAHA

How to connect NS-B310 speakers to an amplifier?

Use a speaker cable stripped to 10 mm. Loosen the screw terminals, insert the stripped wire respecting polarity (+/-) and tighten. Connect the left speaker to the L output and the right speaker to the R output. You can also use banana plugs after removing the terminal caps.

Can the NS-B310 be wall-mounted?

Yes, the speakers come with a wall mounting bracket. Use self-tapping screws (diam. 3.5–4 mm, min. length 20 mm) into a solid wall. Hang the bracket on the screws. The speaker weight is 1.6 kg. Do not mount on plywood or a soft surface.

How to remove the front grille of the speakers?

The grille is held by magnets. Hold the speaker with one hand and gently pull the grille with the other hand. Avoid touching the drivers. Do not place the grille near objects sensitive to magnets (CRT TV, magnetic cards).

What is the recommended amplifier power for these speakers?

The nominal power is 40 W and maximum power is 120 W. Use an amplifier with output power not exceeding 120 W per channel. If distortion occurs, reduce the volume to avoid damaging the speakers.

What to do if the sound is distorted or lacks bass?

Check the polarity of the connections: the (+) and (-) wires must match between the amplifier and each speaker. If a speaker is reversed, the sound will be weak and lack bass. Correct the wiring.

Can the NS-B310 be used with a TV?

Yes, they can be used as front or surround speakers in a home theater system. Place them on each side of the TV. For a CRT TV, keep the speakers at least 20 cm away to avoid interference. No problem with plasma or LCD TVs.

How to maintain the speakers?

Clean with a clean, dry cloth. For stubborn stains, slightly dampen the cloth with water and wring it well. Never use chemical solvents (alcohol, thinners) that could damage the finish.

Are the speakers magnetically shielded?

Yes, they are magnetically shielded type, allowing placement near a TV without distorting the picture (except CRT closer than 20 cm).

What is the warranty period?

YAMAHA offers a 2-year warranty against manufacturing defects, parts and labor, in the European Economic Area and Switzerland. Keep the purchase receipt as proof.

Are speaker cables supplied?

No, no speaker cables are included. You must purchase them separately. Use cable of appropriate gauge (at least 1.5 mm²) for good performance.

USER MANUAL NSB310 YAMAHA

Read this before using the speaker.

• To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
• Install the speaker in a cool, dry, clean place - away from windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of electrical noise (transformers, motors). To prevent fire or electrical shock, do not expose this unit to rain or water.

- To prevent the enclosure from warping or discoloring, do not place the speaker where it will be exposed to direct sunlight or excessive humidity.

- Do not place the following objects on the speaker: Glass, china, small metallic etc. If glass, etc., falls as a result of vibration and breaks, it may cause personal injury.

A burning candle, etc. If the candle falls as a result of vibrations, it may cause fire and personal injury.

A vessel with water in it If the vessel falls as a result of vibrations and water spills, it may cause damage to the speaker, and/or you may get an electric shock.

- Do not place the speaker where foreign material such as dripping water. It might cause fire, damage to this unit, and/or personal injury.

- Do not place the speaker where it is liable to be knocked over or struck by falling objects. Stable placement will also ensure better sound performance.

- Placing the speaker on the same shelf or rack as the turntable can result in acoustical feedback.

- Never put a hand or a foreign object into the port located on the rear of the speaker, as this might cause personal injury and/or damage to the speaker.

- When moving the speaker, do not hold the port, as it might cause personal injury and/or damage to the speaker.

- Any time you notice distortion, reduce the volume control on your amplifier. Never allow your amplifier to be driven into “clipping.” Otherwise the speaker may be damaged.

- When using an amplifier with a rated output power higher than the nominal input power of the speaker, care should be taken never to exceed the speaker's maximum input.

- Do not attempt to clean the speaker with chemical solvents, as this might damage the finish. Use a clean, dry cloth.

- Do not attempt to modify or repair the speaker. Contact qualified YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reasons.

- Secure placement and installation is the owner's responsibility. YAMAHA shall not be liable for any accident caused by improper placement or installation of speakers.

Information for Users on Collection and Disposal of Old Equipment

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

[Information on Disposal in other Countries outside the European Union]

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

SUPPLIED ACCESSORIES (Only for NS-C310)

Fastener × 2

■Using as 2ch stereo speakers

Better stereo images will be obtained when the speakers are slightly angled in towards the listeners.

Diagram showing a person inside a container connected to a ceiling-mounted device (no text or symbols present)

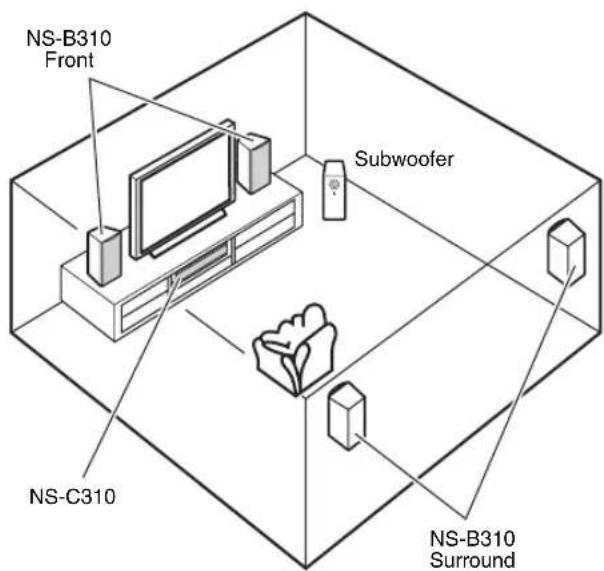

■Using as front speakers and surround speakers in a surround system

Position the speakers on both sides of the TV. The positioning of speakers is important, since this dictates the overall sound quality of the surround system. Set up the speakers on the basis of your listening position by following the owner's manual supplied with your amplifier.

And mount the speakers on a wall or place the speakers on a shelf. Determine the best position by following the owner's manual supplied with your amplifier.

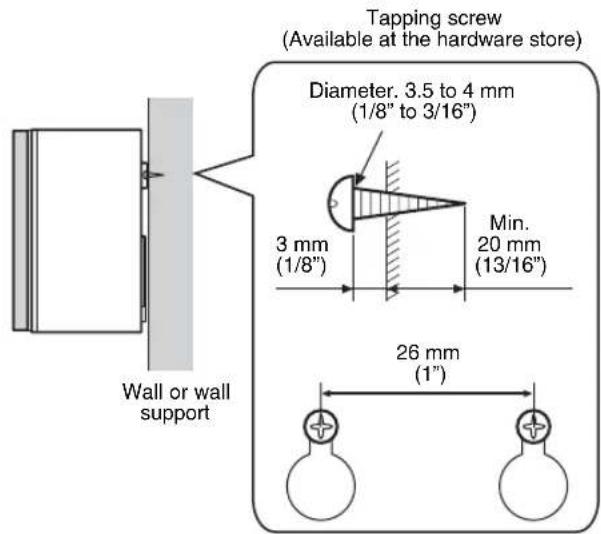

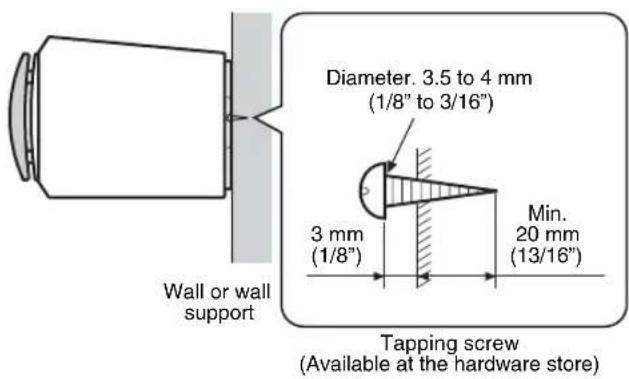

■To mount the speakers on a wall by using the attached mounting bracket

Fasten screws into a firm wall or wall support as shown in the figure, and hang the holes of the mounting bracket on the protruding screws.

* Make sure that the screws are secured in the narrow sections of the holes.

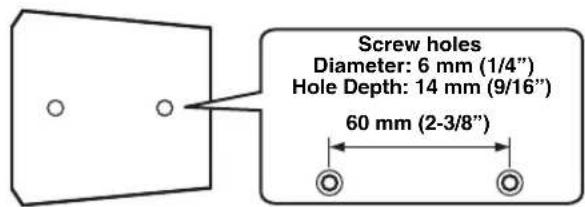

You can also use the screw holes on the bottom of the speaker for installing the speaker using a commercially available speaker bracket (if you do not use the attached mounting bracket).

Note

Placing this unit too close to a CRT TV set might impair picture color or create a buzzing noise. Should this happen, move the speaker away (more than 20 cm (7-7/8")) from the TV set.

When using a PDP or LCD TV, it would not happen.

WARNING

• NS-B310 weighs 1.6 kg (3 lbs. 8 oz.). Do not mount it on thin plywood or a wall with soft surface material. If mounted, the screws may come out and the speaker may fall. This may damage the speaker, or cause personal injury.
• Do not install the speaker on a wall with nails, adhesives, or any other unstable hardware. Long term use and vibrations may cause it to fall.
  • To avoid accidents resulting from tripping over loose speaker cables, fix them securely to the floor or wall.

For NS-C310

■Using as center speaker

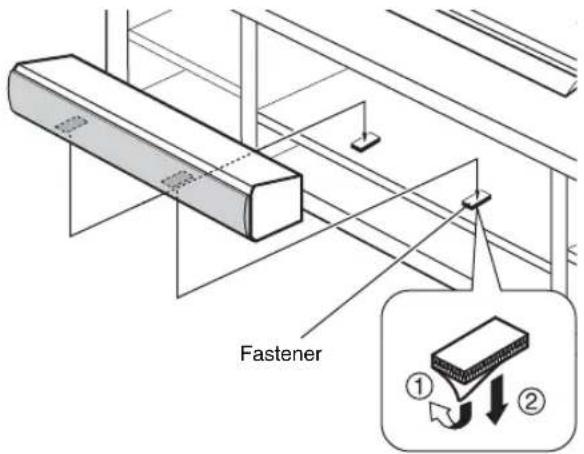

Place the speaker on a TV rack or other stable surface. To prevent the speaker from falling down, attach the fasteners provided in each corner of the speaker's underside.

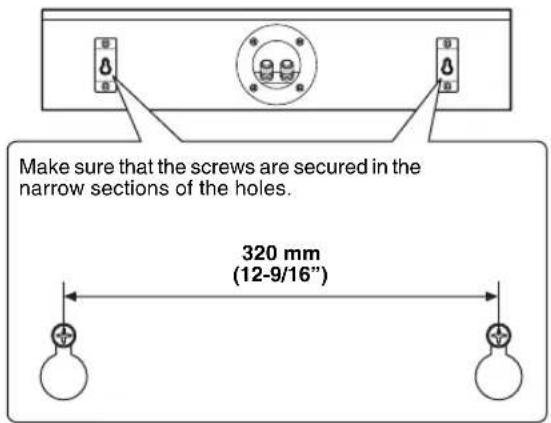

■To mount the speakers on a wall by using the attached mounting bracket

Fasten screws into a firm wall or wall support as shown in the figure, and hang the holes of the mounting bracket on the protruding screws.

Note

Placing this unit too close to a CRT TV set might impair picture color or create a buzzing noise. Should this happen, move the speaker away (more than 20 cm (7-7/8")) from the TV set.

When using a PDP or LCD TV, it would not happen.

WARNING

• NS-C310 weighs 2.9 kg (6 lbs. 6 oz.). Do not mount it on thin plywood or a wall with soft surface material. If mounted, the screws may come out and the speaker may fall. This may damage the speaker, or cause personal injury.
• Do not touch the adhesive surface after peeling off the seal as this will weaken its adhesive strength.
• Thoroughly wipe clean the surface where the fasteners are to be attached. Note that adhesive strength is weakened if the surface is dirty, oily or wet, and that this may cause the center speaker to drop.
• Do not install the speaker on a wall with nails, adhesives, or any other unstable hardware. Long term use and vibrations may cause it to fall.
• To avoid accidents resulting from tripping over loose speaker cables, fix them securely to the floor or wall.

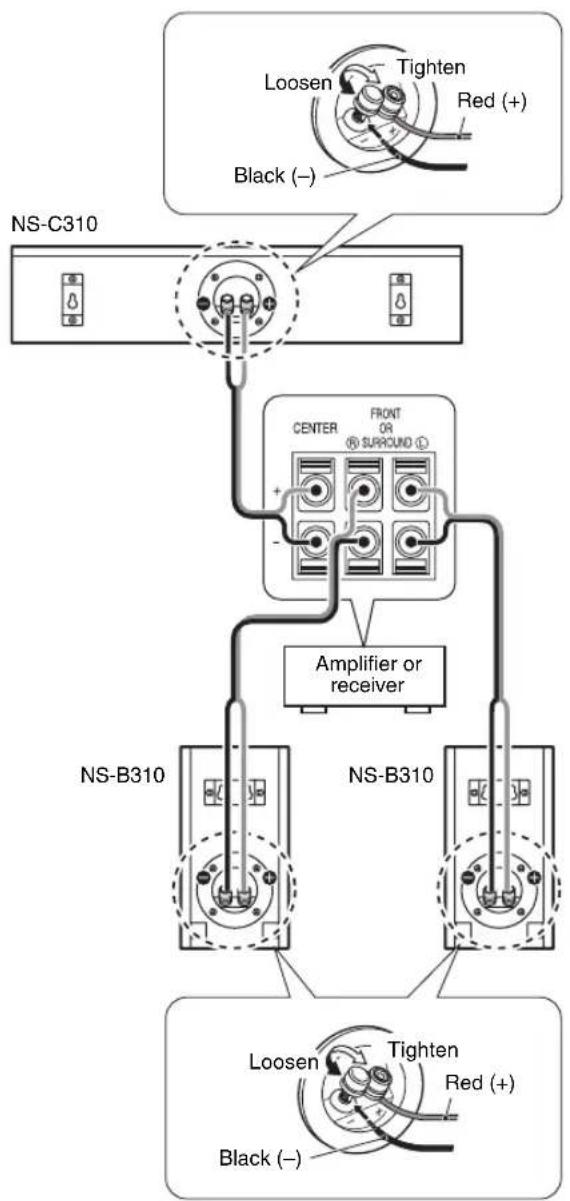

CONNECTIONS TO YOUR AMPLIFIER

Before making connections, make sure that the amplifier is switched off.

• Connect the screw-type input terminals at the rear of the speakers to the speaker output terminals of the amplifier (or receiver) with the speaker cable.
• Connect the (+) terminals on the amplifier (or receiver) to the (+) terminal of each speaker, making sure to confirm the color-coded wire of the cable at each end. Use the other wire of the cable to connect the (−) terminals of the components.
• Connect one speaker to the left (marked L) terminals of your amplifier, and another speaker to the right (marked R) terminals, making sure not to reverse the polarity (+,-). If one speaker is connected with reversed polarity the sound will be unnatural and lack bass.

■How to connect

1 Loosen the knob.
2 Remove 10 mm (3/8") of insulation from each end of the cables, and twist the exposed conductors together neatly and tightly, as shown below.

3 Insert the bare wire.
4 Tighten the knob and secure the cables. Test the firmness of the connection by pulling lightly on the cables at the terminal.

Notes

• Do not let the bare speaker wires touch each other as this could damage the speaker or the amplifier, or both.
• Do not insert the insulation into the hole. Sound may not be produced.

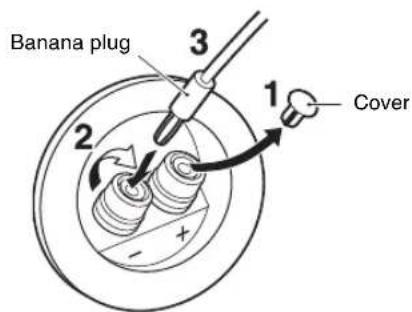

■When using a banana plug

Note

Do not take off this cover unless using a banana plug.

1 Remove the cover by pulling it toward you.
2 Tighten the terminal knob.
3 Simply insert the banana plug into the terminal.

REMOVING THE FRONT COVER

The front cover is attached to protect the speaker, but you can remove it if necessary.

The front cover is fixed by magnets. Hold the speaker with one hand, and pull the front cover gently with the other to remove it.

NS-B310

Illustration of a hand inserting a device into a box with a circular arrow indicating rotation (no text or symbols)

NS-C310

Illustration of hands operating a mechanical device with rollers (no text or symbols)

Notes

• When removing the cover, be careful that you don't touch the drive units, and don't exert excessive force with any tools.
• There are magnets on the reverse side of the front cover. Do not place a front cover close to objects that might be affected by magnets, such as CRT TV, clock, magnetic card, diskette, etc., after removing it.

SPECIFICATIONS

NS-B310

Type .... full-range acoustic suspension speaker system Non-Magnetic shielding type

Driver....8 cm (3-1/8") cone full-range × 2

Impedance....6 Ω

Frequency Response ....80 Hz to 35 kHz (-10 dB) to 50 kHz (-30 dB)

Nominal Input Power.... 40 W

Maximum Input Power 120 W

Sensitivity 87 dB/2.83 V/m

Dimensions (W × H × D).... 107 × 200 × 127 mm (4-3/16" × 7-7/8" × 5")

Weight....1.6 kg (3 lbs. 8 oz.)

NS-C310

Type ....2-way acoustic suspension speaker system Non-Magnetic shielding type

Driver.... 6.5 cm (2-9/16") cone woofer × 4 3 cm (1-3/16") soft dome tweeter

Impedance....6 Ω

Frequency Response .... 90 Hz to 45 kHz (-10 dB) to 100 kHz (-30 dB)

Nominal Input Power.... 40 W

Maximum Input Power 120 W

Sensitivity 90 dB/2.83 V/m

Crossover Frequency 6 kHz

Dimensions (W × H × D).... 440 × 94 × 125 mm (17-5/16" × 3-11/16" × 4-15/16")

Weight....2.9 kg (6 lbs. 6 oz.)

• Specifications subject to change without notice due to product improvements.
• Care should be taken not to exceed the input power values noted above.
• A speaker cable is not included with this model.

Taking care of the speaker

When you wipe this unit, do not use chemical solvents (e.g., alcohol or thinners, etc.): this might damage the finish. Use a clean, dry cloth. For difficult soils, dampen a soft cloth in water, wring it out, and then wipe with the cloth.

Limited Guarantee for European Economic Area (EEA) and Switzerland

Thank you for having chosen a Yamaha product. In the unlikely event that your Yamaha product needs guarantee service, please contact the dealer from whom it was purchased. If you experience any difficulty, please contact Yamaha representative office in your country. You can find full details on our website (http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident).

The product is guaranteed to be free from defects in workmanship or materials for a period of two years from the date of the original purchase. Yamaha undertakes, subject to the conditions listed below, to have the faulty product or any part(s) repaired, or replaced at Yamaha's discretion, without any charge for parts or labour. Yamaha reserves the right to replace a product with that of a similar kind and/or value and condition, where a model has been discontinued or is considered uneconomic to repair.

Conditions

1. The original invoice or sales receipt (showing date of purchase, product code and dealer's name) MUST accompany the defective product, along with a statement detailing the fault. In the absence of this clear proof of purchase, Yamaha reserves the right to refuse to provide free of charge service and the product may be returned at the customer's expense.
2. The product MUST have been purchased from an AUTHORISED Yamaha dealer within the European Economic Area (EEA) or Switzerland.
3. The product must not have been the subject of any modifications or alterations, unless authorised in writing by Yamaha.
4. The following are excluded from this guarantee:

a. Periodic maintenance and repair or replacement of parts due to normal wear and tear.

b. Damage resulting from:

(1) Repairs performed by the customer himself or by an unauthorised third party.
(2) Inadequate packaging or mishandling, when the product is in transit from the customer. Please note that it is the customer's responsibility to ensure the product is adequately packaged when returning the product for repair.
(3) Misuse, including but not limited to (a) failure to use the product for its normal purpose or in accordance with Yamaha's instructions on the proper use, maintenance and storage, and (b) installation or use of the product in a manner inconsistent with the technical or safety standards in force in the country where it is used.

(4) Accidents, lightning, water, fire, improper ventilation, battery leakage or any cause beyond Yamaha's control.

(5) Defects of the system into which this product is incorporated and/or incompatibility with third party products.

(6) Use of a product imported into the EEA and/or Switzerland, not by Yamaha, where that product does not conform to the technical or safety standards of the country of use and/or to the standard specification of a product sold by Yamaha in the EEA and/or Switzerland.

(7) Non AV (Audio Visual) related products. (Products subject to “Yamaha AV Guarantee Statement” are defined in our website at http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident.)

1. Where the guarantee differs between the country of purchase and the country of use of the product, the guarantee of the country of use shall apply.
2. Yamaha may not be held responsible for any losses or damages, whether direct, consequential or otherwise, save for the repair or replacement of the product.
3. Please backup any custom settings or data, as Yamaha may not be held responsible for any alteration or loss to such settings or data.
4. This guarantee does not affect the consumer's statutory rights under applicable national laws in force or the consumer's rights against the dealer arising from their sales/purchase contract.

PRÉCAUTIONS

Diagram showing a device with two sensors above a container, connected by dashed lines (no text or symbols)

Illustration of a hand opening a device into a box with a circular component (no text or symbols)

NS-C310

Illustration of hands holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Remarques

Dimensions (L × H × P).... 107 × 200 × 127 mm

Poids....1.6 kg

NS-C310

Dimensions (L × H × P).... 440 × 94 × 125 mm

Poids....2.9 kg

Diagram showing a person inside a container with two devices above, connected by dashed lines (no text or symbols)

Illustration of a hand opening a device into a box with a cable (no text or symbols)

NS-C310

Illustration of hands operating a mechanical device with rollers (no text or symbols)

Hinweise

(Acoustic Suspension)

Diagram showing a device with two cars above a rectangular panel, connected by dashed lines to a small container (no text or symbols)

Illustration of a hand inserting a cable into a device housing (no text or symbols)

NS-C310

Illustration of hands operating a mechanical device with rollers (no text or symbols)

Notas

Diagram showing a person inside a container connected to two vehicles above a rectangular structure (no text or symbols)

Illustration of a hand inserting a cable into a device housing (no text or symbols)

NS-C310

Illustration of hands operating a mechanical device with rollers (no text or symbols)

Примечания

Diagram showing a person inside a container with two car heads above, connected by dashed lines to a rectangular platform (no text or symbols)

Illustration of a hand inserting a device into a box (no text or symbols visible)

NS-C310

Illustration of hands using a tool to lift a mechanical component (no text or symbols visible)

注意
