Product Type	Center Floor Speaker
Brand	Loewe
Model	Center Floor Stand I Compose
Acoustic Principle	3-way, Appolito configuration
Woofer	1 x 80 mm, paper cone
Midrange driver	1 x 80 mm, paper cone
Tweeter	1 x coated fabric dome, Ø 33 mm
Nominal Power	50 W (RMS)
Maximum Power	90 W (music)
Impedance	4 - 8 Ω
Sound Pressure	84 dB SPL (1W/m)
TV Rotation	±45° manual
Included speaker cable	6 m
Cleaning	Soft damp cloth, no corrosive cleaner
Intended Use	With Loewe Flat TVs (chassis L2700 and later)
System Connection	Via Audio Link 25-pin cable (subwoofer) and speaker cables
Available Adjustments	Phase switch, bass level, crossover frequency (50-250 Hz)
Recommended Crossover Frequency	120 Hz for the Center Stand
Safety	Do not open the enclosure, avoid moisture and excessive heat
Warranty	Domestic use only

Frequently Asked Questions - Center Floor Stand I Compose LOEWE

How to connect the Center Floor Stand I Compose to my Loewe TV?

Connect the subwoofer to the TV using the Audio Link 25-pin cable. Then, connect the center speaker to the subwoofer with the supplied speaker cable. Make sure all cables are securely fastened in the subwoofer's cable holder.

How to adjust the phase switch?

The phase switch (mark ⑦) optimizes bass reproduction. Have a person listen to a bass-rich passage from your listening position while you toggle the switch. Choose the position that gives the best bass perception.

What is the recommended crossover frequency for the Center Floor Stand?

The manual recommends setting the 'Crossover Frequency' control (mark ⑧) to 120 Hz for the Center Stand.

Can I rotate the TV once the speaker is installed?

Yes, you can manually rotate the TV and Center Floor Stand I Compose assembly ±45° to the side.

How to clean the speaker?

Clean it only with a soft, damp, clean cloth, without using any corrosive cleaning agents.

What to do if the sound is weak or distorted?

First check the cable connections. Make sure the subwoofer is turned on (ON/OFF switch to 'I'). Then adjust the bass level (mark ⑥) and crossover frequency to your liking. If the problem persists, refer to the full manual.

Can I use this speaker with a TV of another brand?

The Individual Sound system is designed for Loewe Flat TVs (from chassis L2700 onwards). Its use with other brands is not guaranteed. Refer to the TV manual for compatibility.

What settings should be made on the Loewe TV?

In the TV menu, register the new devices according to the 'Use of additional devices' section in your TV manual. Dolby Digital settings are also made via the menu.

How to fix the cables in the holder?

Open the cable clamp (mark ④) at the bottom of the subwoofer, pass all cables through it, then close it to hold them in place.

Is this speaker compatible with Dolby Digital?

Yes, the Individual Sound system can reproduce Dolby Digital sound. If your Loewe TV is equipped with a digital tuner (DVB), the digital surround signal is decoded and reproduced via this speaker system.

USER MANUAL Center Floor Stand I Compose LOEWE

Center Floor Stand I Compose

LOEWE.

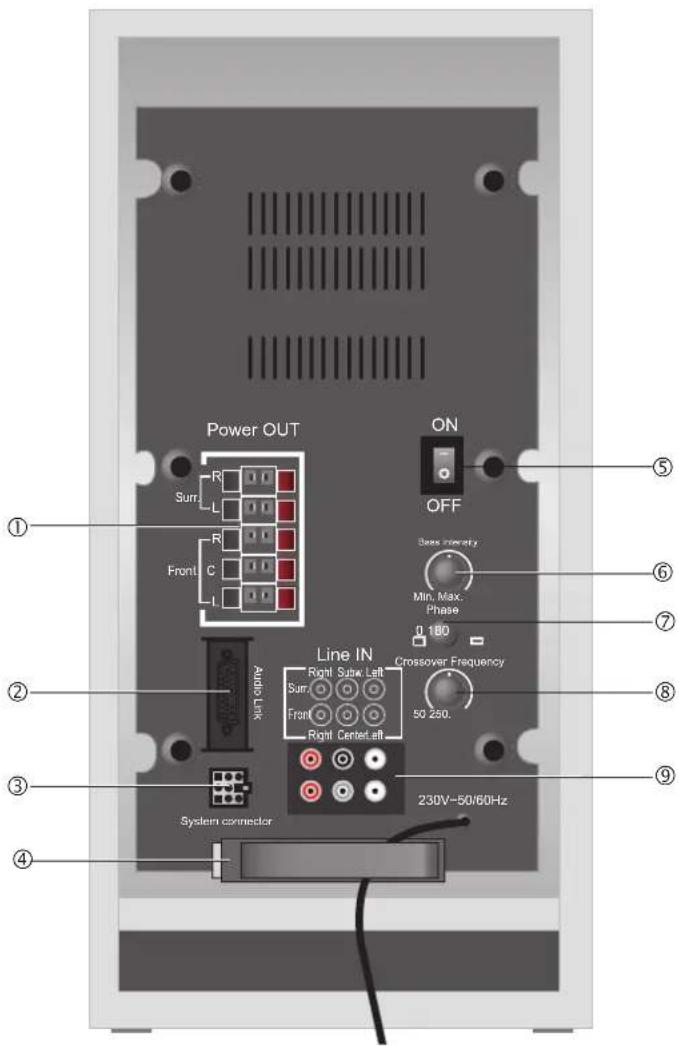

Subwoofer

① Anschluss-Klemmen für Laufsprecher (Stand/Satellit)
Terminals for connecting speakers (stand/satellite)
Bornes de raccordement pour haut-parleurs stand/satellites
① Morsetti per il collegamento di altoparlanti stand/satellitari
E Terminales de connexion para altavoces stand/satélites
aansluitklemmen voor sprekers stand/satellietluid

Center Floor Stand I Compose

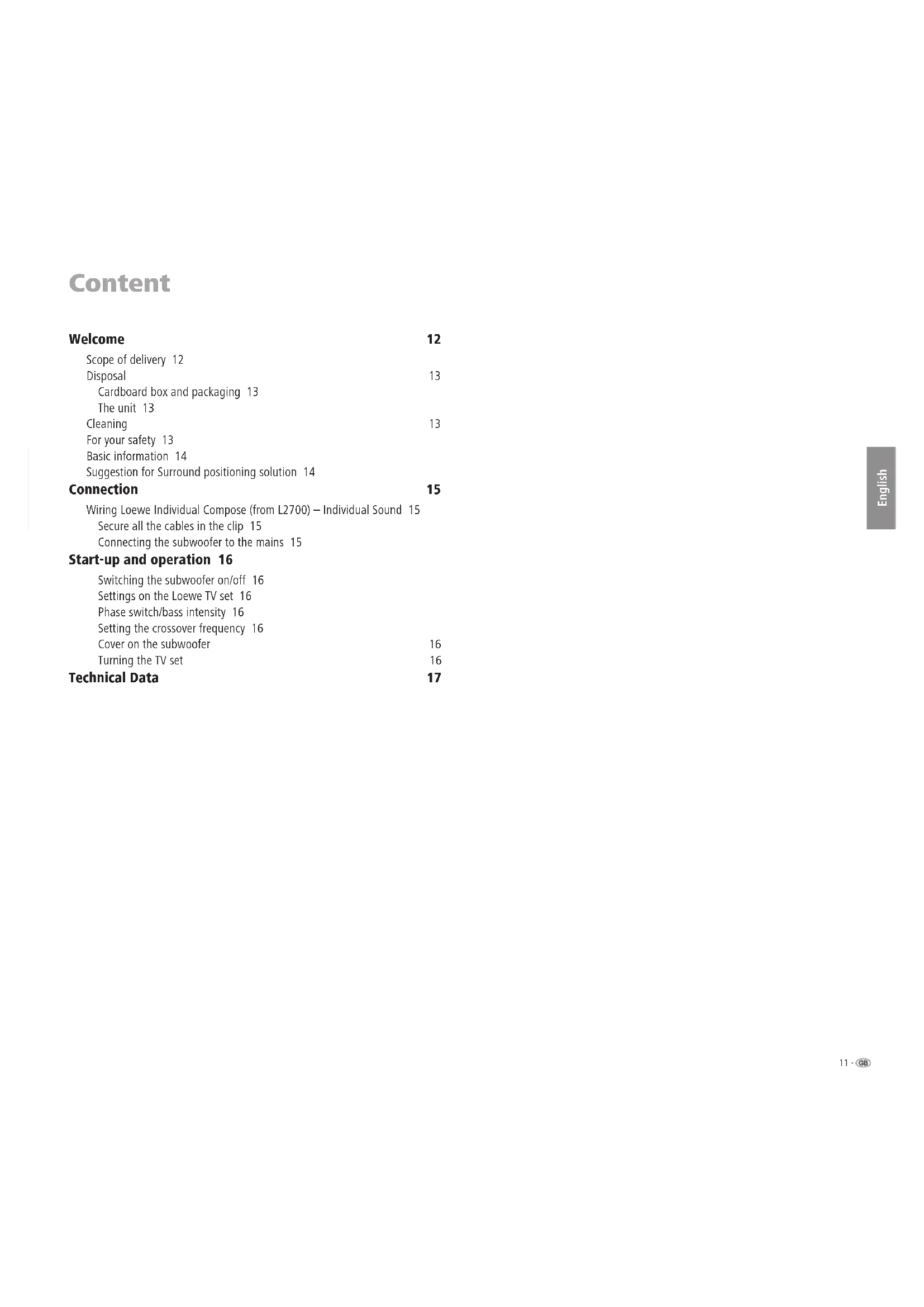

Scope of delivery 12

Disposal 13

Cardboard box and packaging 13

The unit 13

Cleaning 13

For your safety 13

Basic information 14

Suggestion for Surround positioning solution 14

Connection 15

Wiring Loewe IndividualCompose(fromL2700)-IndividualSound15

Secure all the cables in the clip 15

Connecting the subwoofer to the mains 15

Start-up and operation 16

Switching the subwoofer on/off 16

Settings on the Loewe TV set 16

Phase switch/bass intensity 16

Setting the crossover frequency 16

Cover on the subwoofer 16

Turning the TV set 16

Technical Data 17

Welcome

Thank you

for choosing a Loewe product. We are happy to have you as a customer.

At Loewe we combine the highest standards of technology, design and user friendliness. This applies equally for TV, DVD, video and accessories.

Neither technology nor design is an end in itself, but both are intended to provide our customers with the best possible audio and visual experience.

Our design is not influenced by short-term, fashionable trends. You have, after all, purchased a high-quality piece of equipment which you do not want to get tired of looking at tomorrow or the day after.

The Individual Sound loudspeaker system is designed for Loewe Flat TV sets.

The loudspeaker system can be individually extended from a simple stereo combination through a variant with four satellite loudspeakers and a center loudspeaker to the top quality solution with four standing loudspeakers. The subwoofer with integrated amp is also included respectively.

You can thus play DVDs in Dolby Digital cinema quality. You can also convert stereo broadcasts or playbacks (from a video recorder or DVD player) in Dolby ProLogic or Virtual or Circle Surround into a 5.1 surround signal and play it over the Individual Sound speaker system. If your TV set (from chassis L 2700 on) is equipped with a digital tuner (DVB), the received digital surround signal is decoded and played back over the Individual Sound system.

The Individual Sound speaker system switches on and off automatically with the Loewe Flat TV set.

The settings for Dolby Digital can be made comfortably with the menus of the Loewe Flat TV.

Scope of delivery

Center Floor Stand I Compose, Order No. 67207B/L00

Center Floor Stand I Compose
- Loudspeaker cable (6m)
Fabric tube
- Holders for fabric tube
- Operating Manual
- Installation Instructions

Welcome

Disposal

Cardboard box and packaging

You have opted for a durable and technically sophisticated product. In line with national regulations regarding the disposal of packaging materials, we pay a fee to authorised recyclers who collect packaging from dealers. However, we recommend that you keep the original cardboard box and the rest of the packaging materials so that the unit can, if necessary, be transported in the safest possible conditions.

The unit

Important: The EU Directive 2002/96/EG governs the proper re-acceptance, handling and recycling of used electronic appliances.

Old electronic appliances must therefore be disposed of separately. Never throw this set in the normal domestic waste. You can hand in your old set free of charge at identified collection points or at your dealer if you buy a similar new set. Other details about re-acceptance (also for non-EU countries) are available from your local administration.

Cleaning

Only clean your Individual Sound loudspeaker system with a damp, soft, clean cloth (without aggressive cleaning agents).

For your safety

For your safety and to avoid unnecessary damage to your TV set, please read and observe the following safety instructions:

• Your Individual Sound loudspeaker system is designed exclusively for playing audio signals.
• You must switch off your system (Individual Sound loudspeaker system, TV and any other components which may be connected) before you can connect or disconnect other devices or loudspeakers.

Protect your Individual Sound loudspeaker system against ...

• Damp and moisture
• Knocks and mechanical stresses
  Magnetic and electrical fields
  Higher electrical powers than specified
  Cold, heat, direct sunlight and extreme temperature variations
  Dust
• Covering which obstructs air circulation
  Manipulations inside the set
• Do not place any containers filled with liquids or lit candles on top of the unit.

Your Individual Sound loudspeaker system has been designed exclusively for private household use. Warranty services cover this use for the intended purpose.

WARNING: TO RULE OUT THE DANGER OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR THE REAR PANEL OF THE UNIT). THERE ARE NO PARTS INSIDE THE HOUSING WHICH CAN BE REPAIRED BY THE USER. HAVE REPAIRS DONE ONLY BY YOUR LOEWE DEALER.

If you have moved your Individual Sound loudspeaker system out of the cold into a warm environment, leave it for about an hour because of the possible forming of condensation. Do not switch on until it has reached room temperature. This avoids seriously damaging the components.

Setting up

Basic information

• Place the Center Floor Stand I Compose on a firm, level base.
• Do not place the Center Floor Stand I Compose in the vicinity of intense sources of heat or in direct sunlight.
• The speaker generates magnetic dispersion fields which act in the vicinity of the housing. We recommend a minimum distance of >0.5m from magnetically sensitive equipment such as magnetic data media etc.

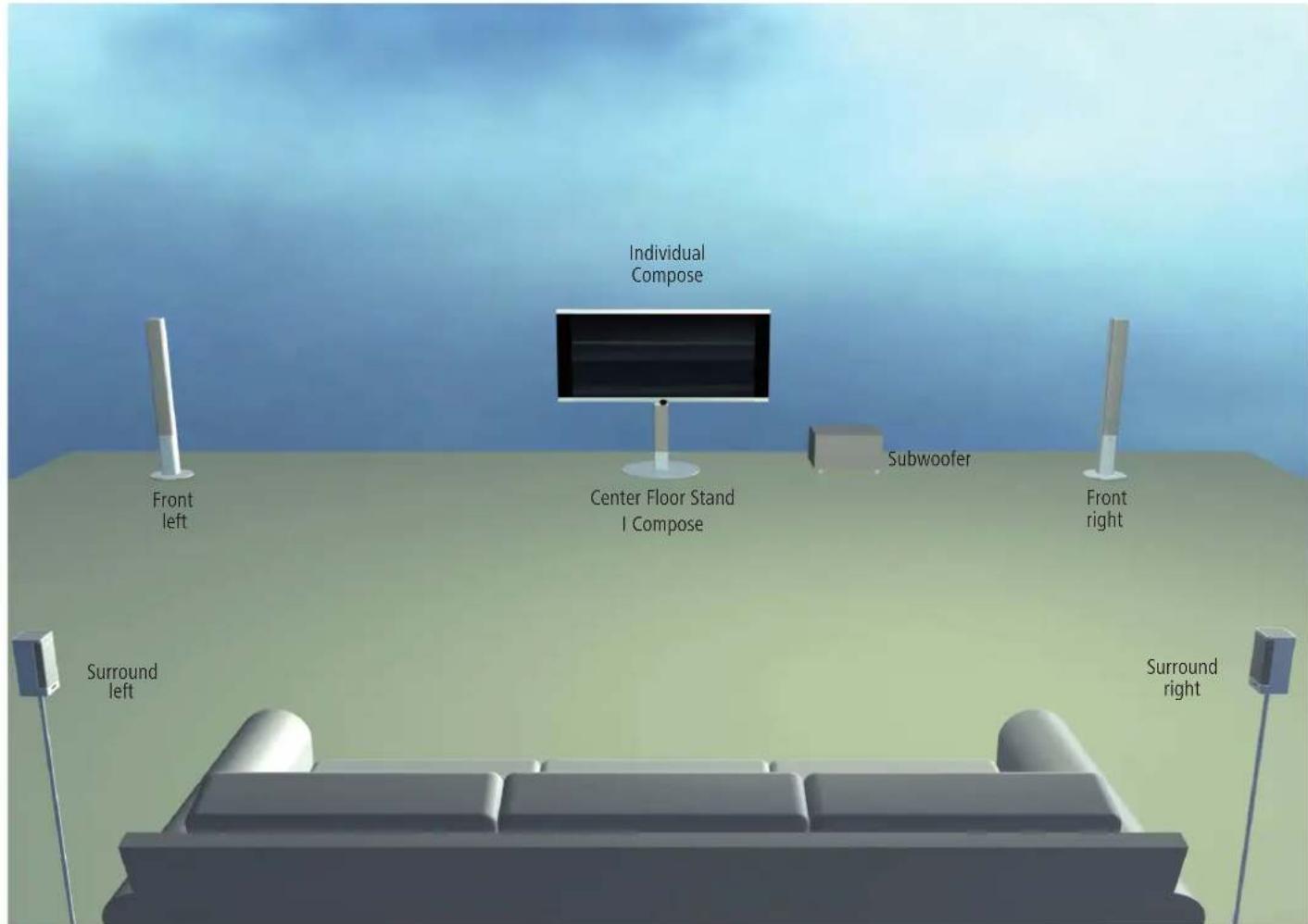

Suggestion for surround positioning solution

Connection

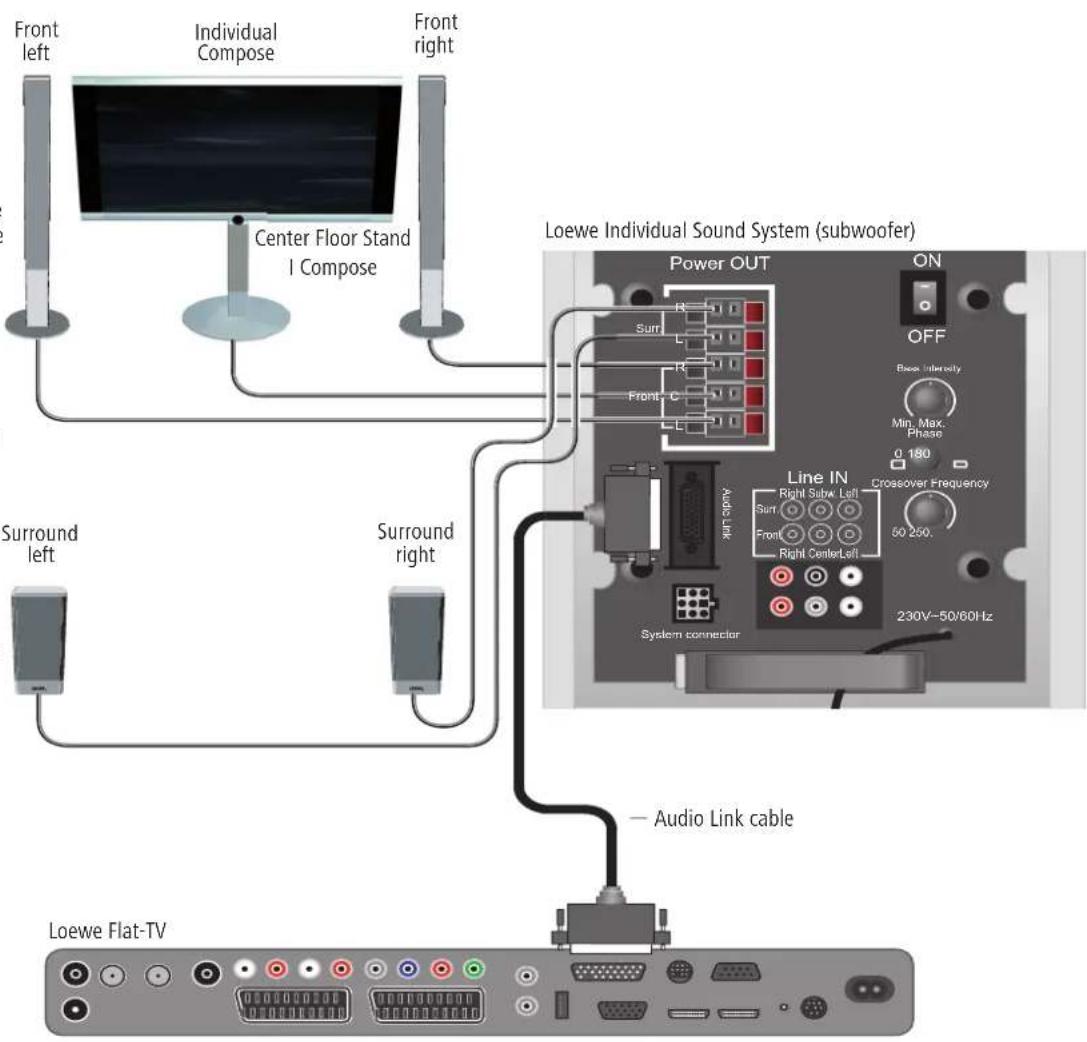

Wiring Loewe IndividualCompose(fromL2700)-IndividualSound

Mount the Audio Link cable with the 25-pin plug on the TV set and subwoofer.

Connect the loudspeakers and the TV Stand Compose as shown in the figure on the right.

Mount the IndividualCompose on the TV StandCompose as described in the enclosed installation instructions.

Secure all the cables in the clip

Open the cable clip ④ at the bottom of the subwoofer, lay all the cables in it and close the clip again. This fixes the cables.

Connecting the subwoofer to the mains

Plug the mains plug of the subwoofer into a 230 V AC socket.

Start-up and operation

Before beginning with start-up and operation, make sure that all the cables are connected correctly.

Switching the subwoofer on/off

You switch the Individual Sound loudspeaker system on in position "I-ON" with the ON/OFF switch ⑤.

If the subwoofer is connected as described on page 15, there is no need to switch the subwoofer on and off separately any more. After switching on the subwoofer for the first time, it is always switched on and off immediately with the Loewe TV set.

Settings on the Loewe TV set

Make the necessary settings on your Loewe Auro Preceiver as described in the Auro operating manual in the chapter "Initial start-up".

Phase switch/bass intensity

The "Phase" switch ⑦ and the "Bass intensity" knob ⑥ enable you to optimize bass reproduction.

We recommend you to proceed as follows:

• If the subwoofer is in the corner of the room, set the bass intensity knob to "Min".
• If the subwoofer is against a wall, set the bass intensity knob to the center position.
• If the subwoofer is standing freely in the room, set the bass intensity knob to "Max".
• Start DVD playback for example and select a title with bass parts.
• Have a second person activate the phase switch whilst you sit and listen.
• Decide for yourself which switch position reproduces the best bass sound.
• Set the bass intensity to suit your taste if necessary.

Setting the crossover frequency

The "Crossover Frequency" knob ⑧ gives you the possibility of setting the limit frequency for bass reproduction between 50Hz and 250Hz depending on which speakers you have connected. We recommend setting this to 120Hz for the Center Stand.

Cover on the subwoofer

After you have made the settings described in "Start-up and operation", replace the cover on the rear of the subwoofer.

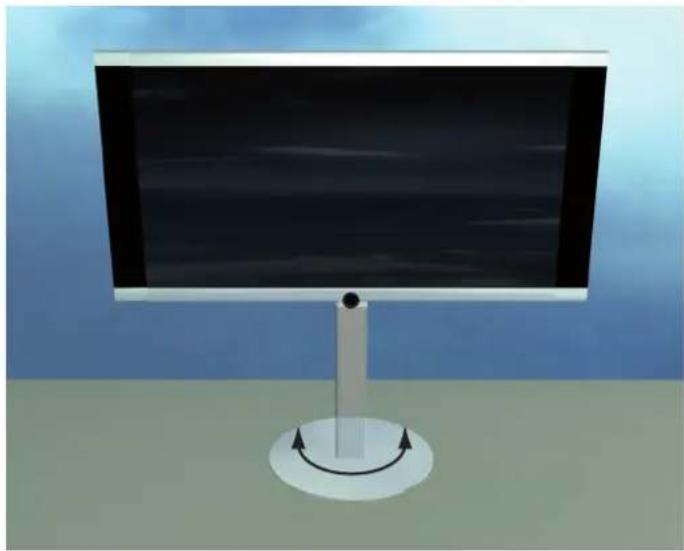

Turning the TV set

The fully assembled unit of TV set and TV stand can be turned 45^ to either side by hand.

Technical Data

Center Floor Stand I Compose

Dimensions in cm 50,2 x H 53,1

Weight in kgs 19,5

Principle 3 ways, d'Appolito arrangement

Fitting 1x bass 80~mm paper diaphragm

1x middle tone 80 mm, paper diaphragm

1x treble, coated fabric calotte, 03mm

Load capacity

50 W (sine) / 90 W (max. music)

Impedance

4 -8 Ohm

Transmission range 120Hz - 22kHz± 3dB

Sound pressure 84 dB spl (1w/m)

Table des matieres

Bienvenue 20

Center Floor Stand I Compose, Ref. 67207B/L00

Center Floor Stand I Compose

Dimensions en cm 50,2 x H 53,1

Poids en kg 19,5

Plage de transmission 120 Hz-22 kHz ±3dB

© by Loewe Opta 2007

#

Benvenuti 28

Center Floor Stand I Compose

Dimensioni in cm 50,2 x H 53,1

Peso In kg 19,5

© by Loewe Opta 2007

Contidente

Bienvenido 42

Center Floor Stand I Compose

Dimensiones en cm 05,2 x alta 53,1

Peso en kg 19,5

Center Floor Stand I Compose

Afmetingen in cm 50,2 x H 53,1

Gewicht in kg 19,5

Principe 3-wegs, d'Appolito-opstelling

Uitrusting 1x bas 80~mm papieren membraan

1x Middentonenluidspreker 80~mm papieren membran

1x hogetonen, gecoate textielbolkap, 03mm
